Trimble Site Mobile User Manual

Trimble Site Mobile

User Manual

i

Welcome

Thank you for purchasing a Trimble Site Mobile rugged handheld computer!
This user manual will help you configure and use your device.

Important information for using the user manual

This user manual has been prepared to guide you through the configuration
and operation of your device, which includes:

1. Initial configuration of the device

2. Operating basics

3. Navigating the operating system and software

4. Securing your device

Please read this user manual carefully before using your device for the first
time. In particular, read the Important Safety Information and all of Chapter
1 before using your device.

This user manual describes features and functionality that may not be
present on your particular device, as features vary by model.

Document conventions

It is important to understand the typographical conventions used in this user
manual. The formatting of the text identifies special information:

1. CAPITAL — indicates the hardware items on the device. Example:
press the POWER button.

2. Bold — indicates the items displayed on the screen, including icons,
tiles, buttons, headings, field names and options.
Example: tap the E-mail icon.

ii

3. Italic — indicates the name of a screen/window as shown in the upper
left corner of the display.
Example: the Settings screen.

4. > — describes a procedure or a navigation path.

5. Example: Tap > Settings > System > System Information >
Wireless is equivalent to:

1. Tap the (Start) icon or press the (Start) button

2. Tap the Settings icon

3. Tap the System icon

4. Tap the System Information icon

5. On the System Information screen, slide left or right until the
Wireless tab is displayed. You can also tap the < or > in the horizontal
scroll bar to activate different tabs in the System Information screen.

Terms

The following terms are used throughout this user manual to describe user
actions.

1. Press — press and quickly release a hardware button.

2. Tap — touch and quickly release an item displayed on the screen.

3. Select — tap an item in a list or tap a command from a menu.

4. Drag — tap and hold on the item and then move it to the target position
without releasing your fingertip.

5. Slide — touch and drag to the left/right/up/down to move to the next item
on the list.

Important safety information

 THE DEVICE BATTERY IS PARTIALLY CHARGED WHEN

SHIPPED NEW FROM THE FACTORY.

 BEFORE INSERTING OR REMOVING A SIM CARD, THE PHONE

MODULE MUST BE POWERED OFF. To do this, press and hold

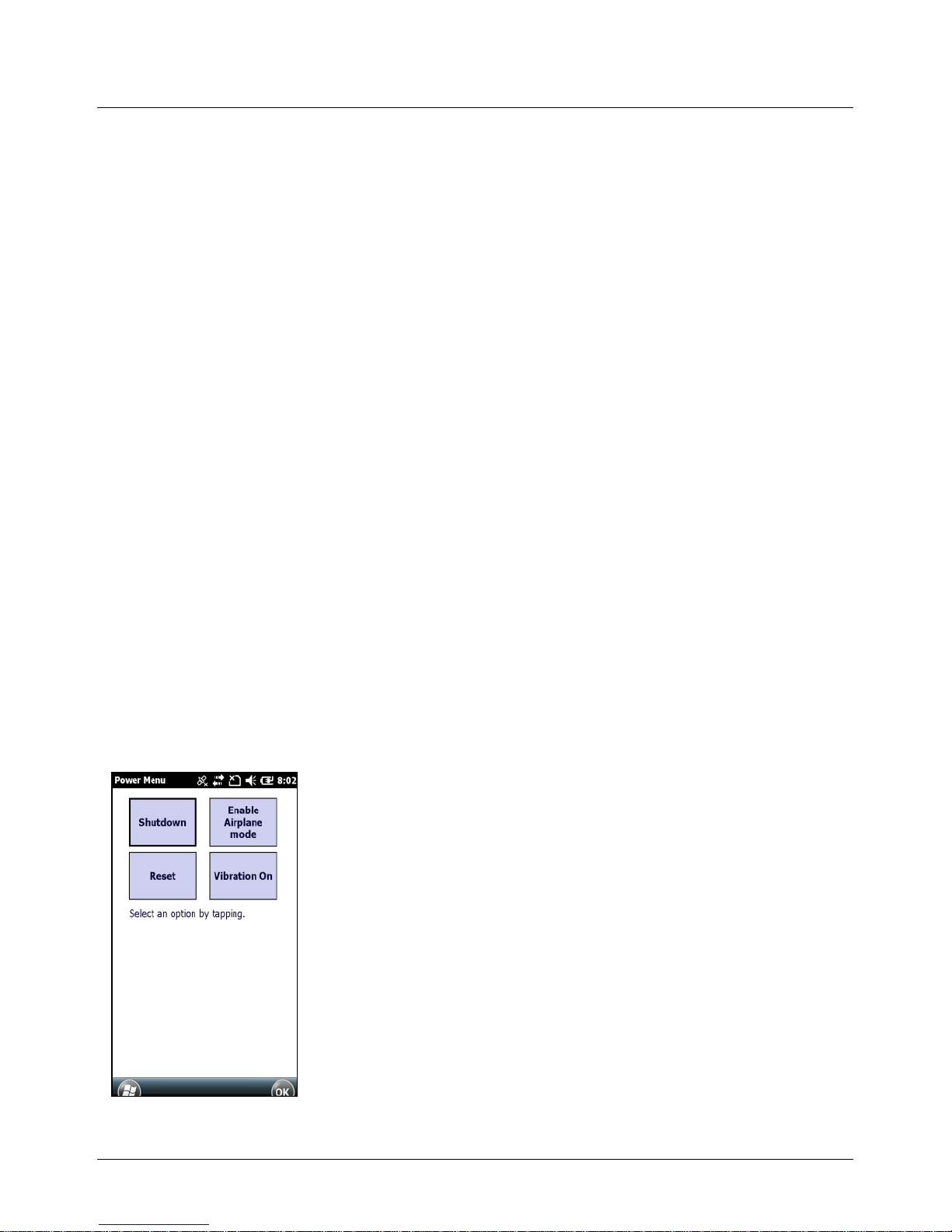

the POWER button for two seconds to display the Power Menu,

iii

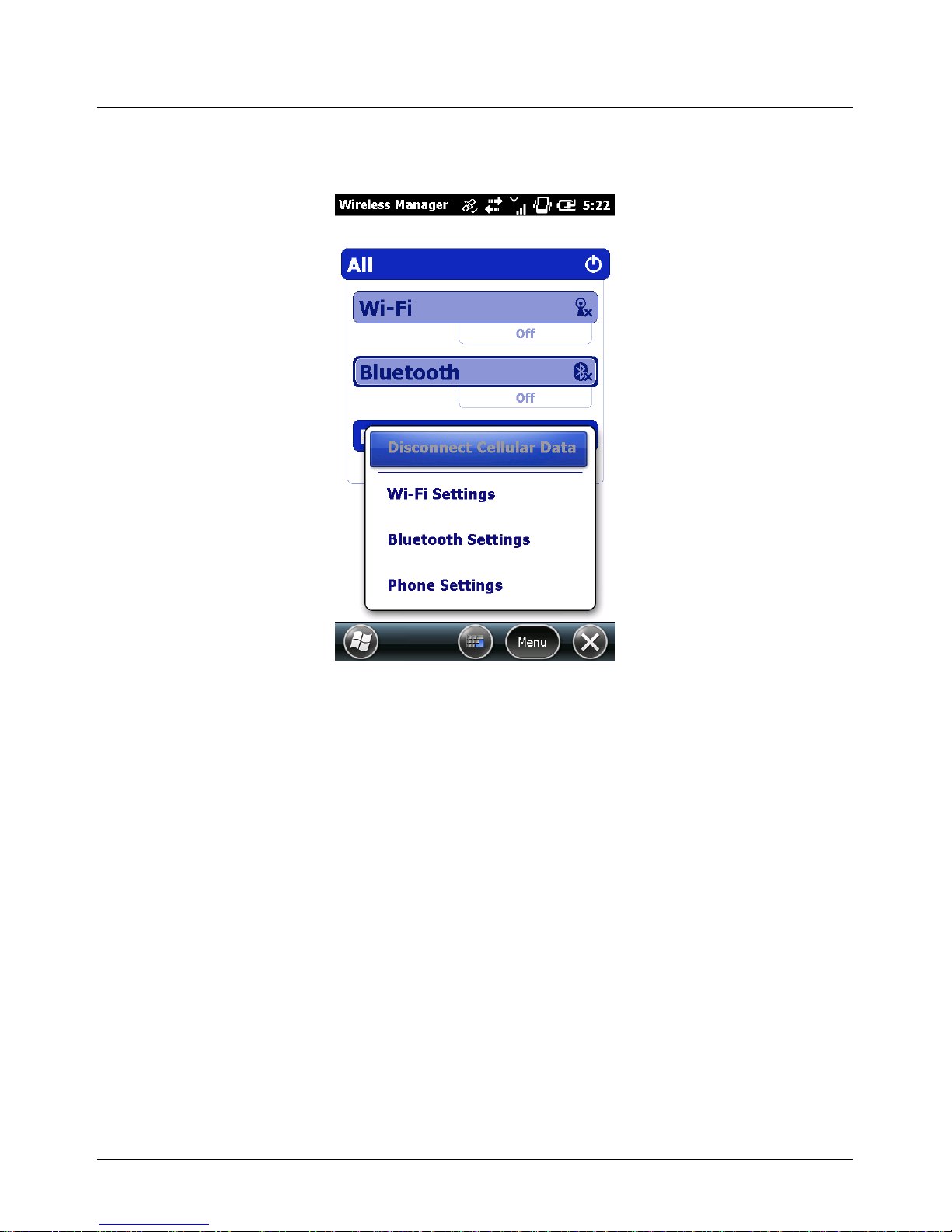

then tap Enable Airplane mode. Alternatively, use the Wireless
Manager to disable only the Phone module.

 DO NOT OPERATE THE DEVICE WITHOUT THE CARD SLOT

COVER PROPERLY INSTALLED.

 IN MANY COUNTRIES YOU ARE REQUIRED BY LAW TO TURN

OFF YOUR PHONE WHEN YOU FLY. THE MOST SECURE
METHOD TO ACCOMPLISH THIS IS TO ENABLE AIRPLANE
MODE. To do this, press and hold the POWER button for two
seconds to display the Power Menu, then tap Enable Airplane
mode.
WARNING: TURNING OFF YOUR DEVICE DOES NOT TURN OFF
THE PHONE; YOU MUST USE AIRPLANE MODE.

 YOUR WARRANTY IS INVALIDATED IF YOU OPEN OR TAMPER

WITH THE OUTER CASING OF THE DEVICE. Unapproved
modifications or operations beyond or in conflict with these
instructions for use may void authorization by the authorities to
operate the equipment.

 ONLY APPROVED ACCESSORIES MAY BE USED WITH THIS EQUIPMENT. IN

GENERAL, ALL CABLES MUST BE HIGH QUALITY, SHIELDED, CORRECTLY
TERMINATED AND NORMALLY RESTRICTED TO TWO METERS IN LENGTH.
THE POWER SUPPLY APPROVED FOR THIS PRODUCT EMPLOYS SPECIAL
PROVISIONS TO AVOID RADIO INTERFERENCE AND SHOULD NOT BE
ALTERED OR SUBSTITUTED.

iv

Disclaimers

The manufacturer operates a policy of ongoing product development. The
manufacturer reserves the right to make changes and improvements to any
of the hardware and software products described in this document without
prior notice.

The screenshots and other presentations shown in this user manual may
differ from the actual screens and presentations generated by the actual
product. The manufacturer does not warrant that this document is
error-free.

Not all models are available in all regions of the world. Depending on the
specific model purchased, the color and look of your device and
accessories may not exactly match the graphics shown in this document.
Not all models contain all of the hardware features and software
applications described in this user manual.

All such differences are minor and the actual product will deliver the
described functionality as presented in this User Manual in all material
respects, subject to limitations of the particular model operated by the user.

Limited Warranty & Liability Limitations

This unit and battery are limited warranted against defects in materials and
workmanship for twelve (12) months from the original date of purchase. All
accessories and peripherals are limited warranted against defects in
materials and workmanship for twelve (12) months from the original date of
purchase. If notice is received of such defects during the limited warranty
period, the proven defective product(s) will either be repaired or replaced, at

the manufacturer’s option. Replacement products may be either new or like

new.
The manufacturer does not warrant that the operation of the products will be

uninterrupted or error free. If the product is not, within a reasonable time,
repaired or replaced to a condition as limited warranted, the customer will
be entitled to a refund of the purchase price upon prompt return of the
product.

Limited warranty does not apply to defects resulting from (a) improper or
inadequate maintenance or calibration, (b) software, interfacing, parts, or

v

supplies not supplied by manufacturer, (c) unauthorized modification, or
misuse, (d) operation in conditions outside of the published environmental
specifications for the product, or (e) physical damage due to external
causes, including accident, abuse, misuse or problems with electrical
power. Water damage caused by improper installation of the accessories
and service parts is not covered by warranty. Removal of or tampering with
the back case voids the limited warranty. There are important seals that will
be compromised and the device will no longer be water resistant (IP65) or
waterproof (IP68).

To the extent allowed by local law, the above limited warranties are
exclusive and no other warranty or condition, whether written or oral, is
expressed or implied, specifically disclaiming any implied warranties or
conditions of merchantability, satisfactory quality, and fitness for a particular
purpose.

To the extent allowed by local law, the remedies in this limited

warranty statement are the customer’s sole and exclusive remedies.

Except as indicated above, in no event will the manufacturer or its
suppliers be liable for loss of data or for direct, special, incidental,
consequential (including lost profit or data), or other damage,
whether based in contract, tort, or otherwise.

Standard Warranty Addendum

Trimble Navigation Limited
935 Stewart Drive
Sunnyvale, California 94085
United States of America

Notice to Australian Purchasers

The Australian Consumer Law
Our goods come with guarantees that cannot be excluded under the

Australian Consumer Law. You are entitled to a replacement or refund for a
major failure and for compensation for any other reasonably foreseeable

vi

loss or damage. You are also entitled to have the goods repaired or
replaced if the goods fail to be of acceptable quality and the failure does not
amount to a major failure.

Trimble's warranty, as set out in the user manual accompanying this
statement, or as described in the warranty card accompanying the Product
you purchased, is in addition to any mandatory rights and remedies that you
may have under the Australian Consumer Law.

Copyright

All brand and product names are trademarks or registered trademarks of
their respective companies.

Revision: 1.0
(09/2012)

vii

Contents

Welcome ......................................................................................................... i

Important information for using the user manual ..................................... i

Document conventions ............................................................................. i

Terms ...................................................................................................... ii

Important safety information .................................................................... ii

Disclaimers ............................................................................................. iv

Limited Warranty & Liability Limitations ................................................. iv

Standard Warranty Addendum ................................................................ v

Copyright ................................................................................................ vi

Contents ....................................................................................................... vii

Chapter 1 Getting Started ............................................................................ 1

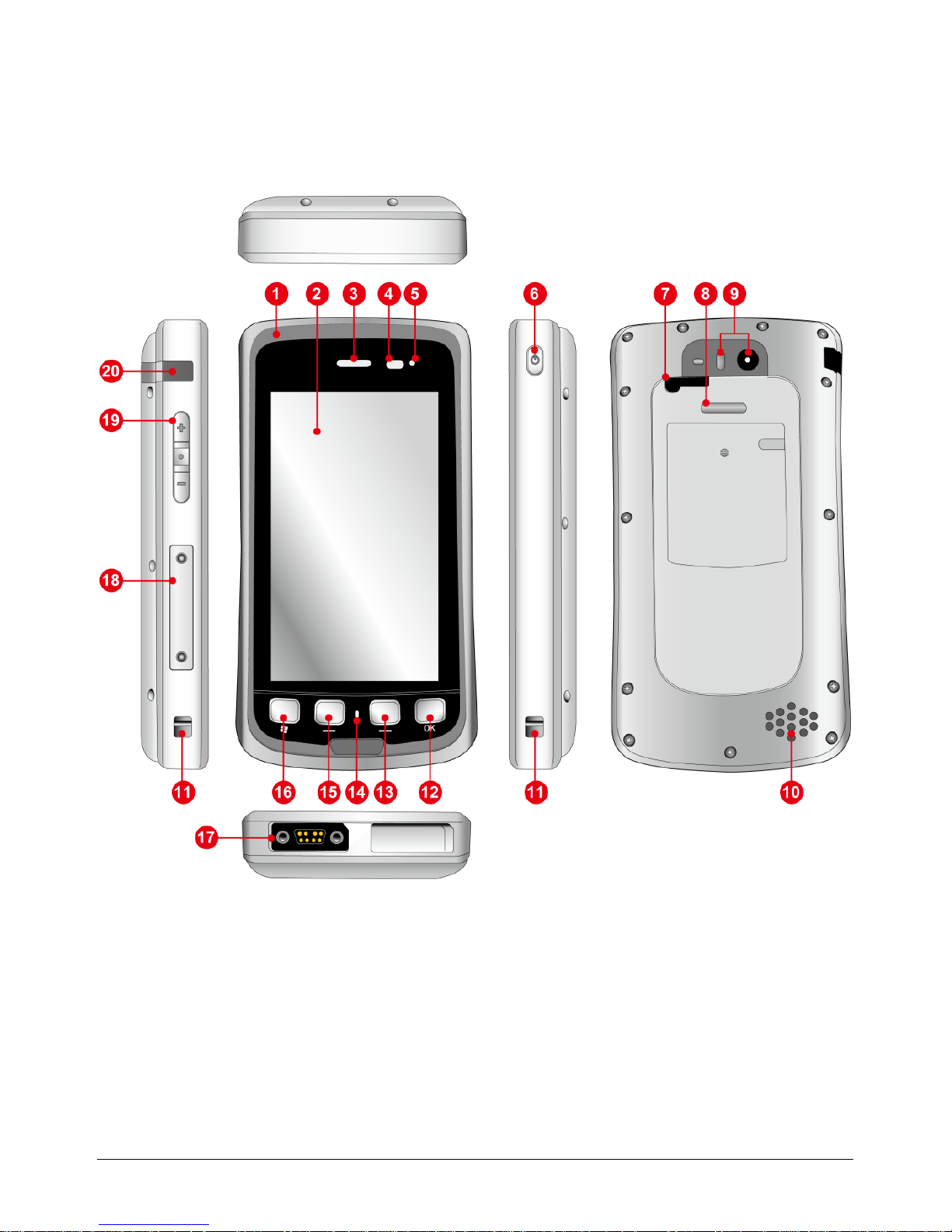

1.1 Device components ........................................................................... 1

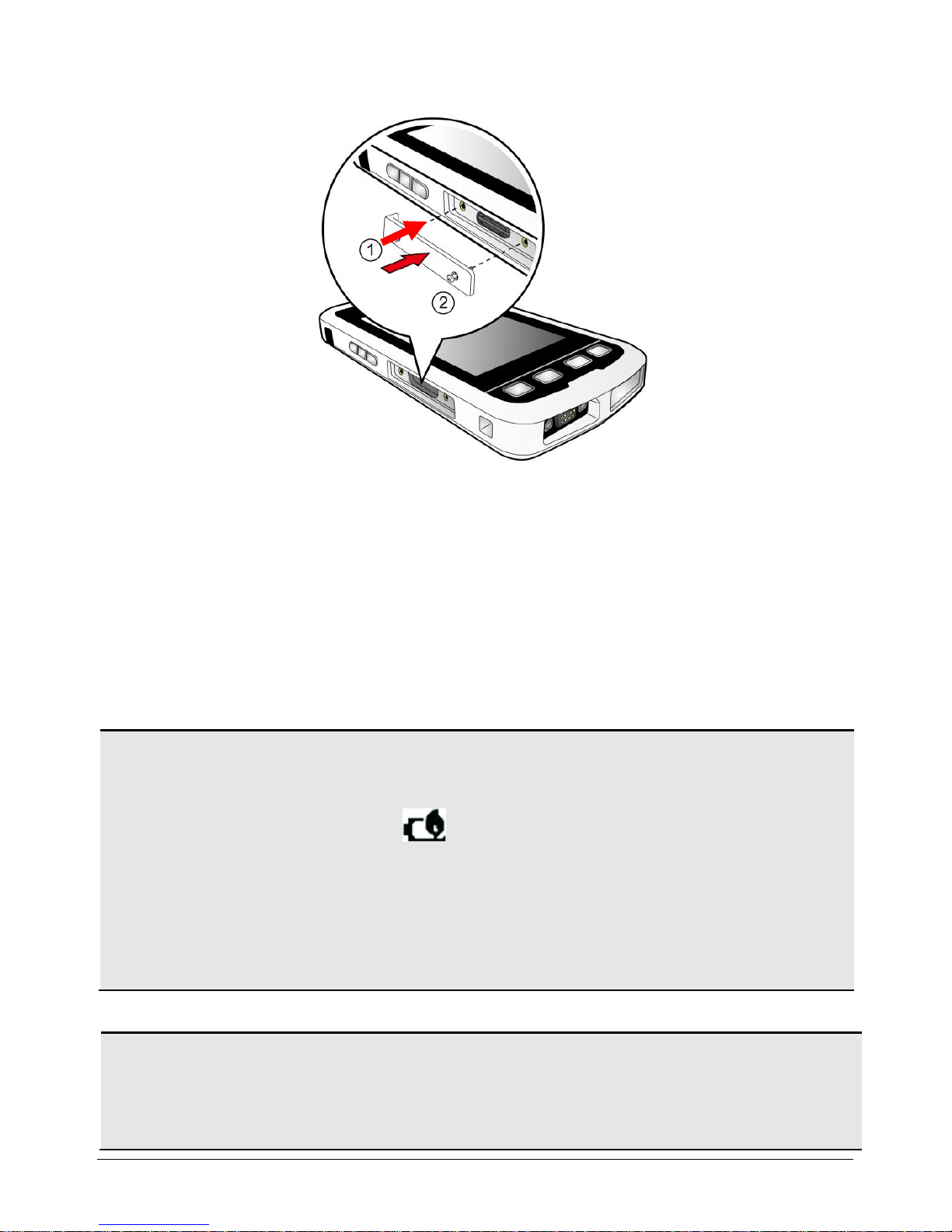

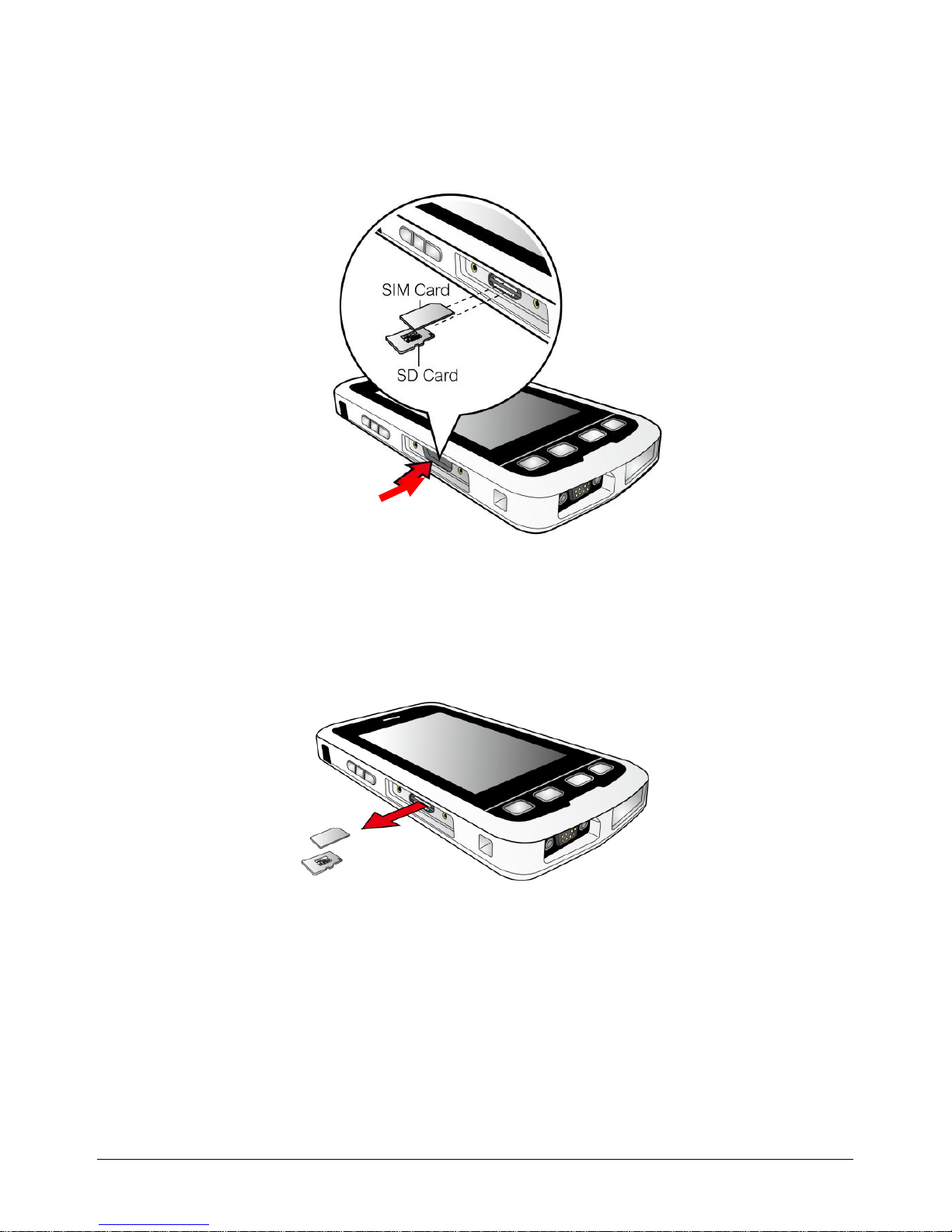

1.2 Inserting a storage card and a SIM card ........................................... 5

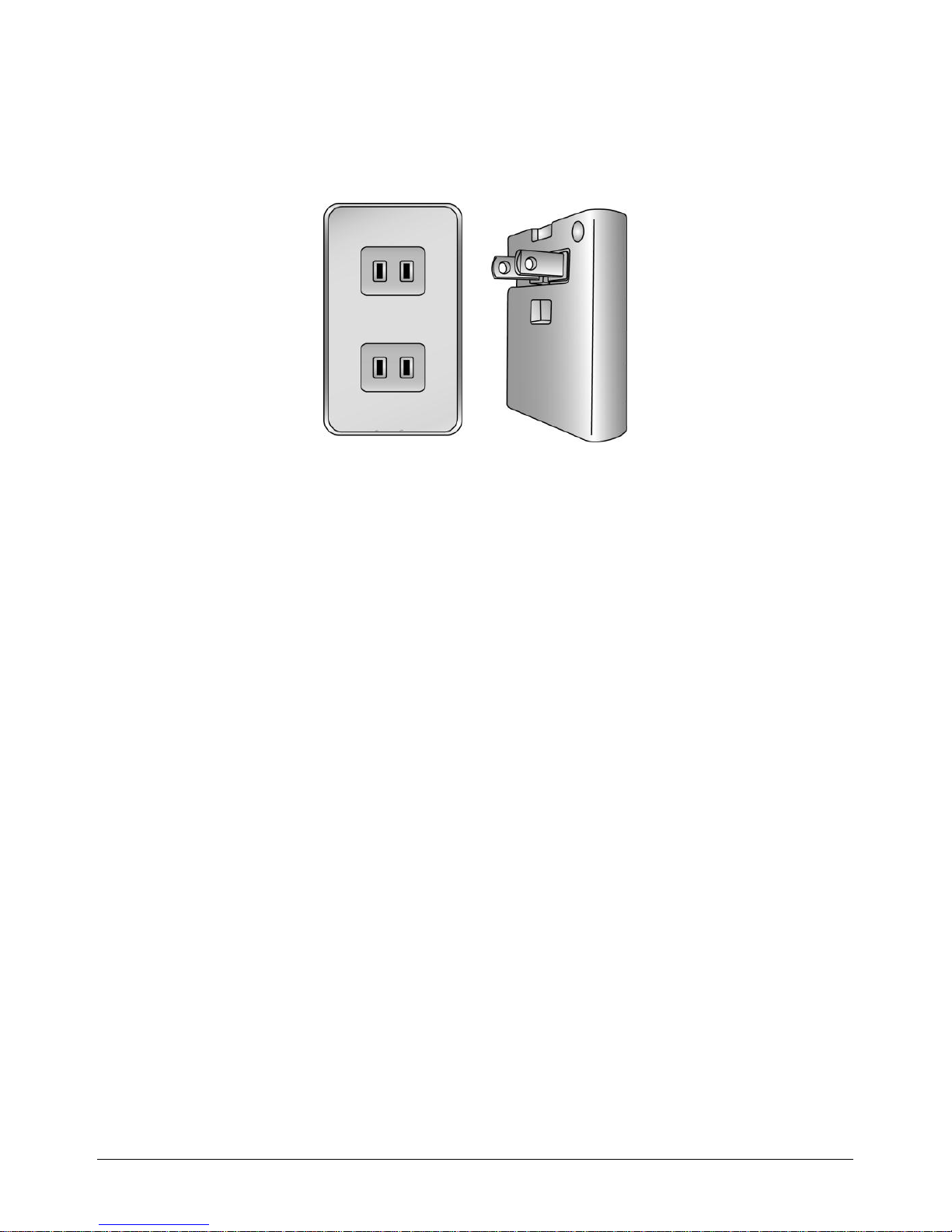

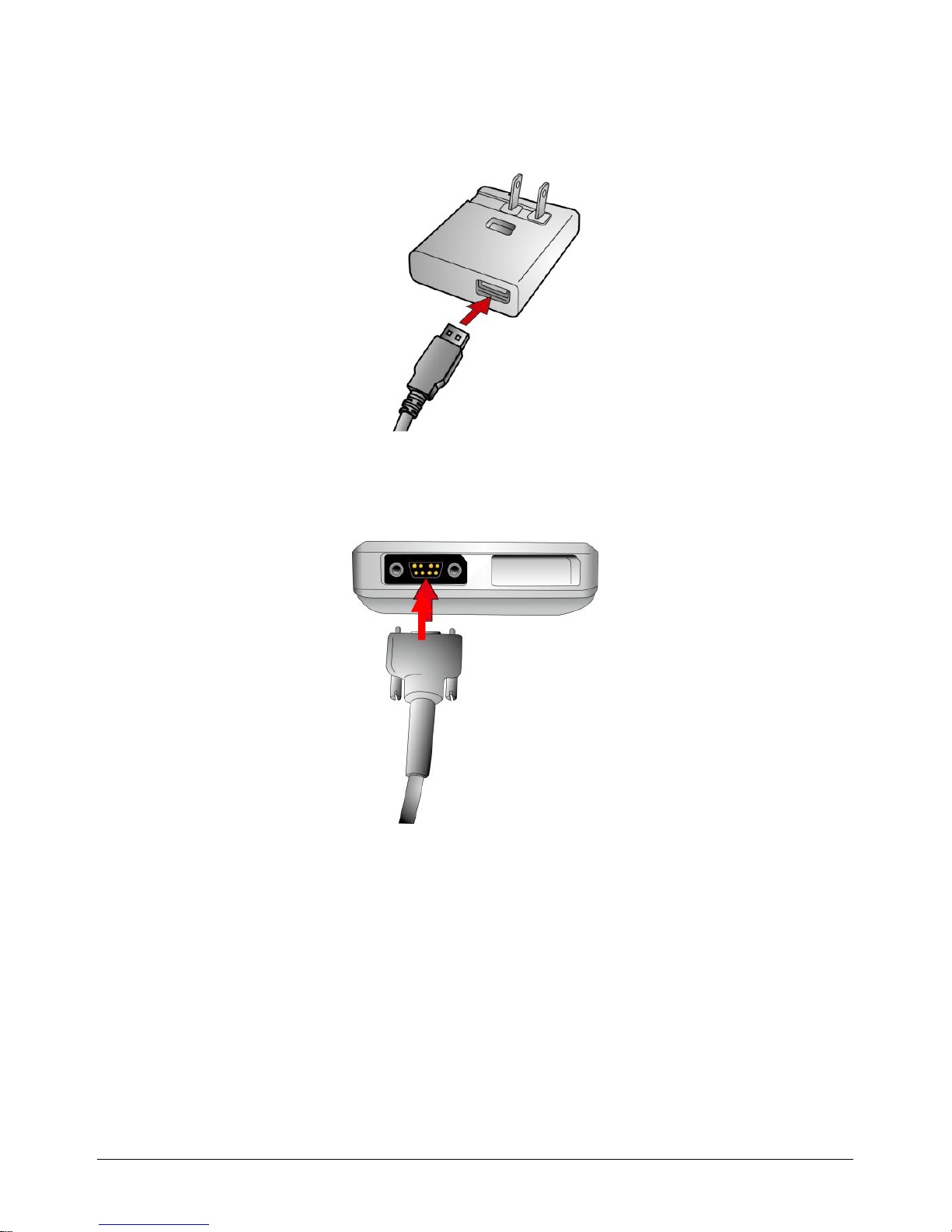

1.3 Charging the battery .......................................................................... 7

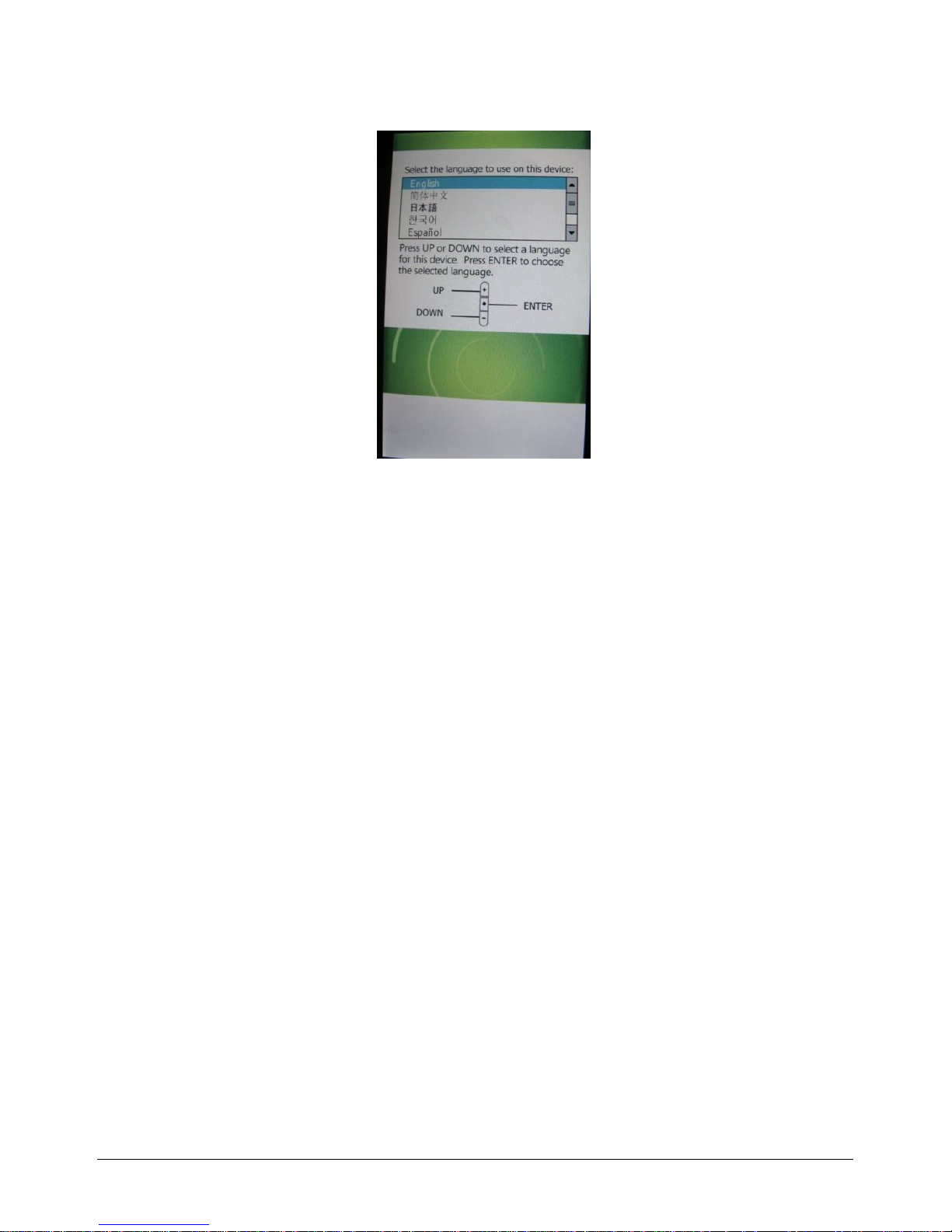

1.4 Turning your device on and choosing your language ....................... 9

Chapter 2 Operating Basics ....................................................................... 11

2.1 Home screen ................................................................................... 11

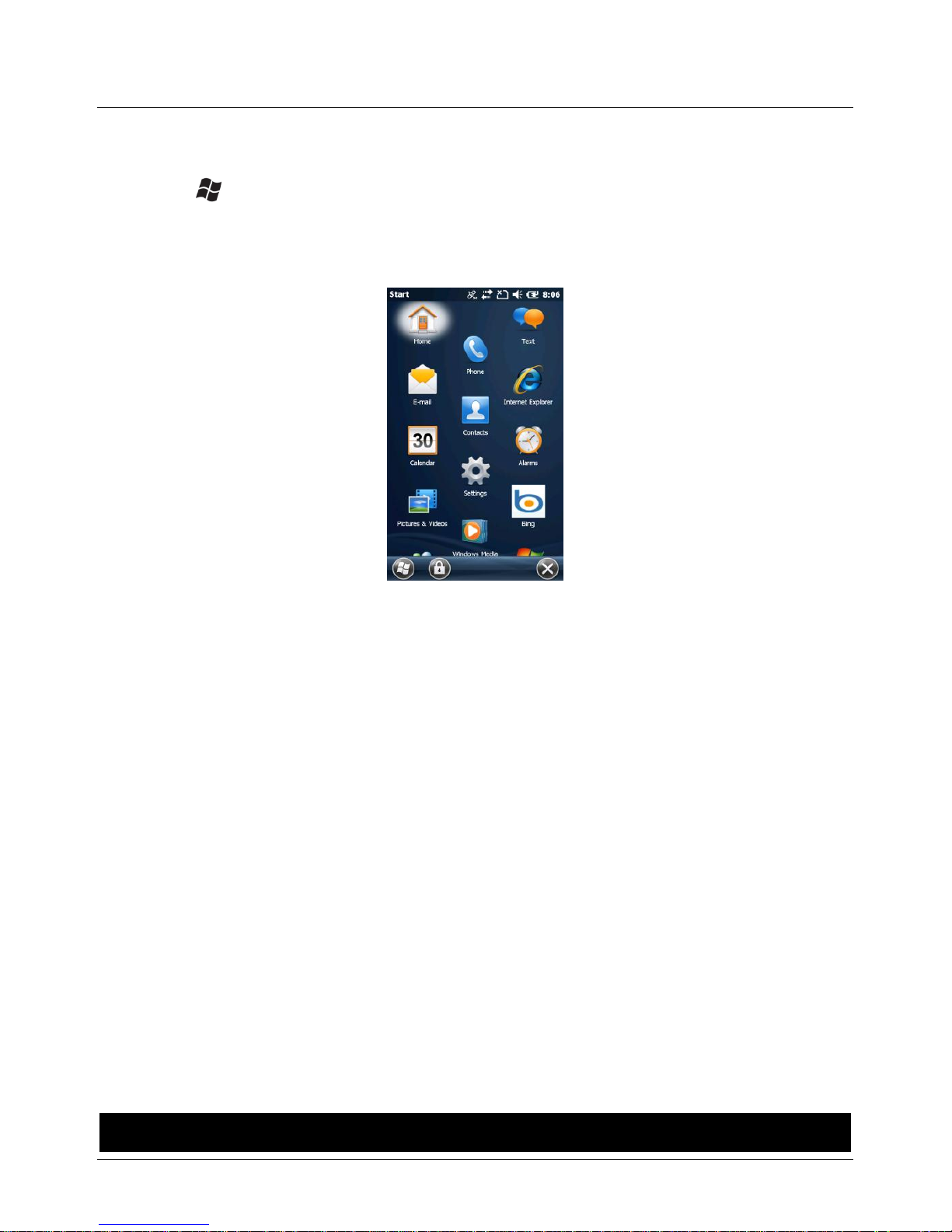

2.2 Start screen ..................................................................................... 13

2.3 Title bar ........................................................................................... 13

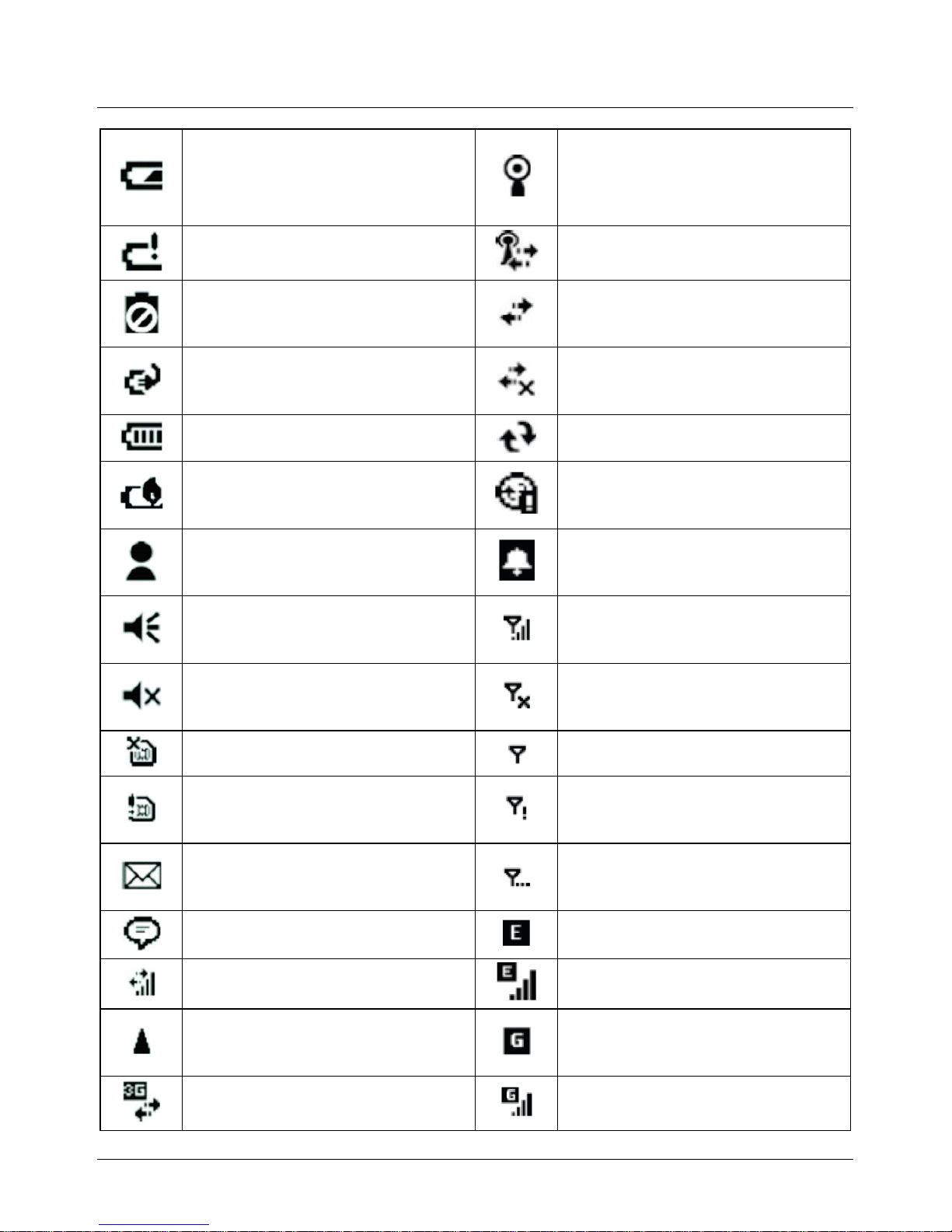

2.3.1 Title bar status indicators ............................................................. 13

2.4 Tile bar ............................................................................................ 16

2.5 Power menu .................................................................................... 16

2.6 Securing your device ....................................................................... 17

Lock the keypad .................................................................................... 17

Lock your device ................................................................................... 18

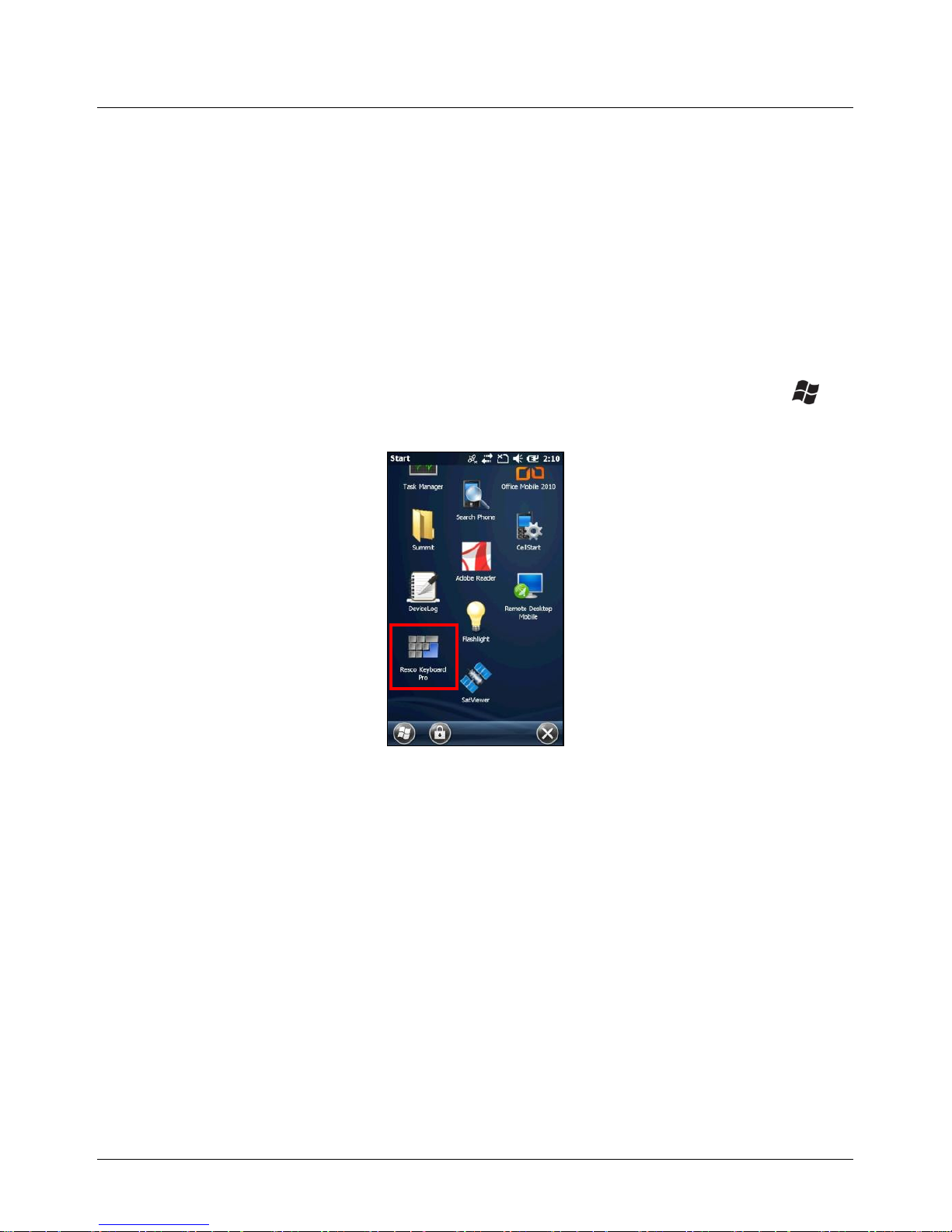

2.7 Configuring the Onscreen Keyboard ............................................... 19

2.8 Perform a Clean Boot / Factory Reset ............................................ 19

2.9 Absolute Power Off mode ............................................................... 20

Chapter 3 Managing and Caring for Your Device .................................... 22

3.1 Changing basic settings .................................................................. 22

Personalizing the Home screen ............................................................ 22

Setting the date, time, and alarms ........................................................ 22

Setting regional options ......................................................................... 23

3.2 Customizing sounds and notifications ............................................. 23

Specifying the sound for an event ......................................................... 23

Setting the ring tone for incoming calls ................................................. 23

Copying a sound to your device ............................................................ 23

3.3 Managing battery power and data storage ..................................... 24

Battery Life ............................................................................................ 24

viii

Changing the power management settings .......................................... 25

Managing low battery ............................................................................ 25

Checking the phone memory ................................................................ 26

3.4 Working with files ............................................................................ 27

Copying files to your computer .............................................................. 27

Using File Explorer ................................................................................ 27

3.5 Adding and removing programs ...................................................... 28

Installing a program from your computer .............................................. 28

Removing a program ............................................................................. 29

3.6 Using Task Manager ....................................................................... 29

3.7 Checking the Device System information ....................................... 29

3.8 Caring for your Device .................................................................... 29

3.9 Safe Use of your Device ................................................................. 31

Chapter 4 Connecting to a PC and Synchronizing Information ............. 34

4.1 Setting up Windows Mobile® Device Center ................................... 34

Using Windows Mobile Device Center .................................................. 35

4.2 Setting up ActiveSync® ................................................................... 36

Setting up synchronization in ActiveSync ............................................. 36

4.3 Synchronizing with your computer .................................................. 37

Starting and stopping synchronization .................................................. 37

Selecting information to synchronize .................................................... 38

Troubleshooting sync connection problems .......................................... 38

Chapter 5 Using the Phone ........................................................................ 40

5.1 Making a call ................................................................................... 40

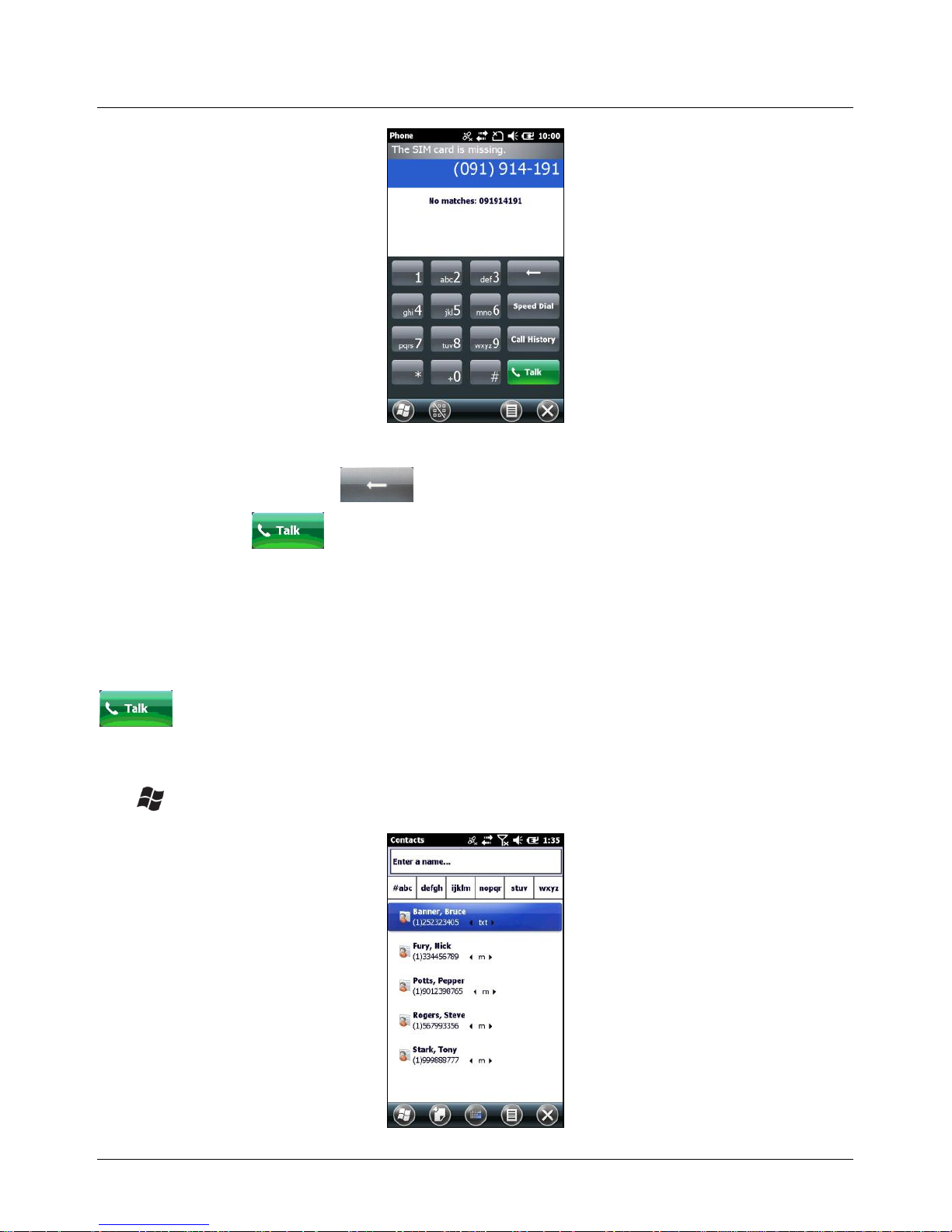

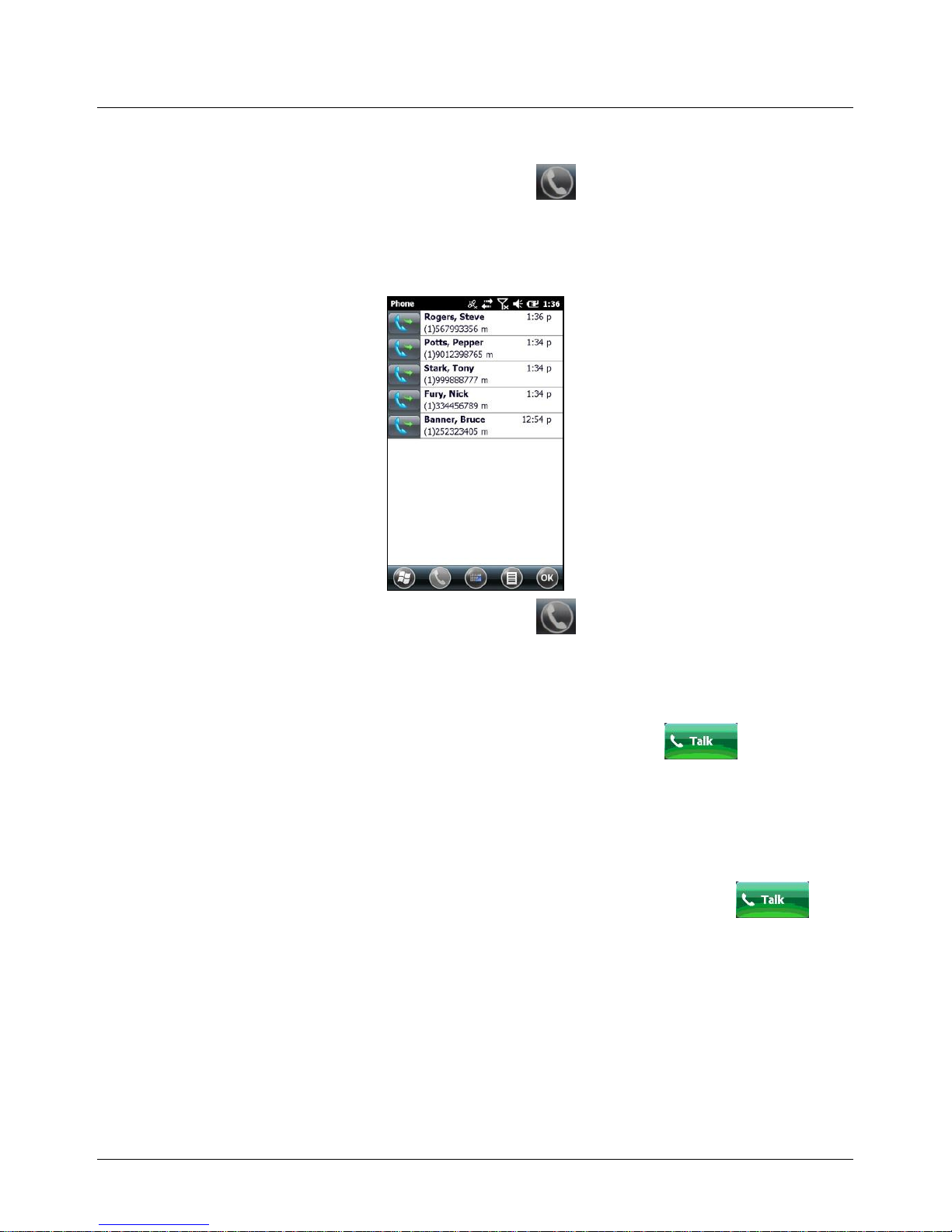

Making a call from the Phone screen .................................................... 40

Making a call from Contacts .................................................................. 41

Making a call from Call History .............................................................. 42

Making an international call ................................................................... 42

Making an emergency call .................................................................... 42

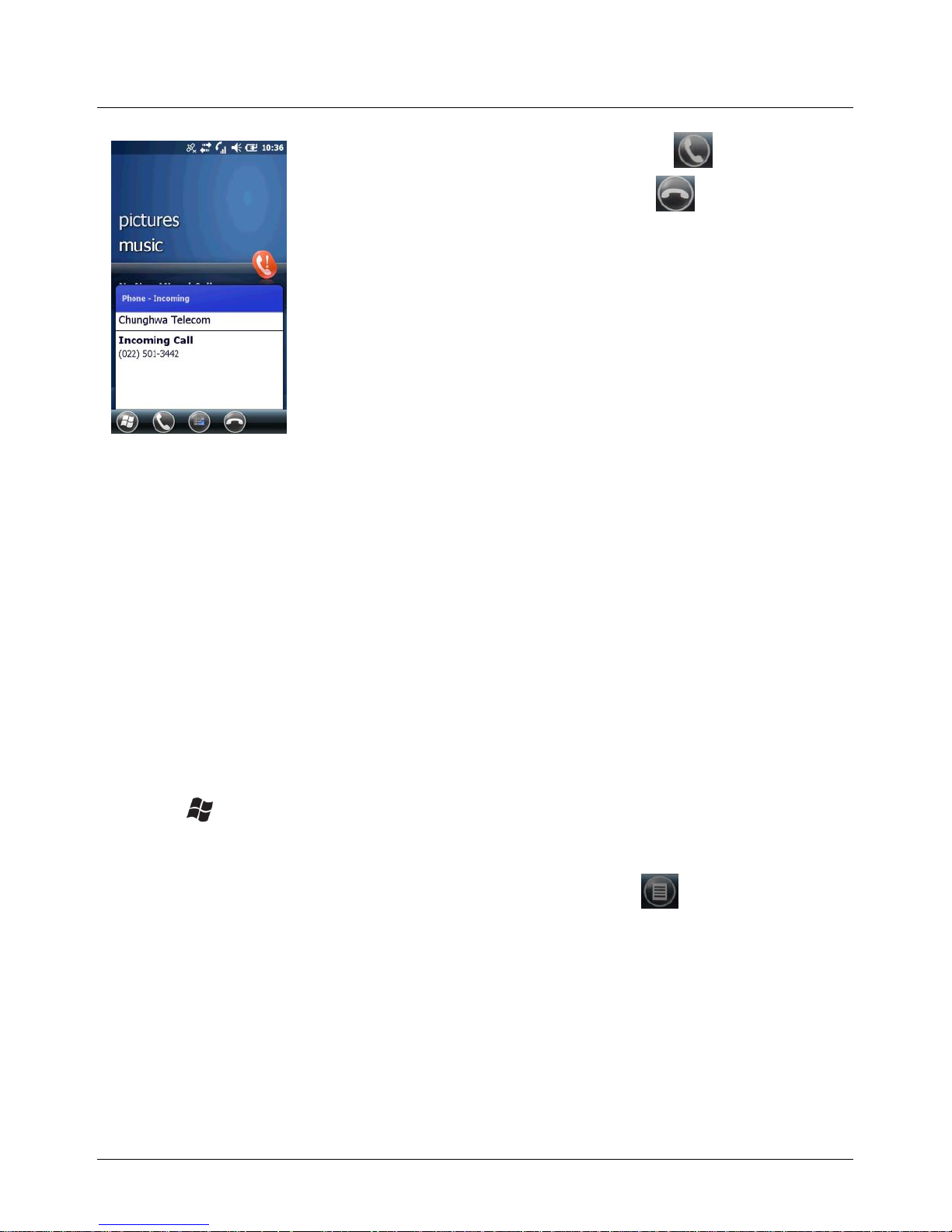

5.2 Receiving and ending a call ............................................................ 42

Ending a call .......................................................................................... 43

5.3 Speed dial ....................................................................................... 43

Using speed dial .................................................................................... 43

5.4 Working with WWAN (mobile data service) .................................... 44

5.5 Working with CellStart ..................................................................... 44

Removing cellular data settings ............................................................ 45

5.6 Customizing your phone ................................................................. 45

5.7 Browsing the Internet ...................................................................... 46

Internet Sharing ..................................................................................... 46

5.8 SMS messages ............................................................................... 46

5.9 Sending and receiving e-mail .......................................................... 47

Chapter 6 Using Additional Hardware Features ...................................... 48

6.1 Flashlight ......................................................................................... 48

ix

6.2 Assigning Buttons (hardware buttons) ............................................ 48

6.3 Compass Calibration ....................................................................... 48

6.4 Working with Bluetooth ................................................................... 49

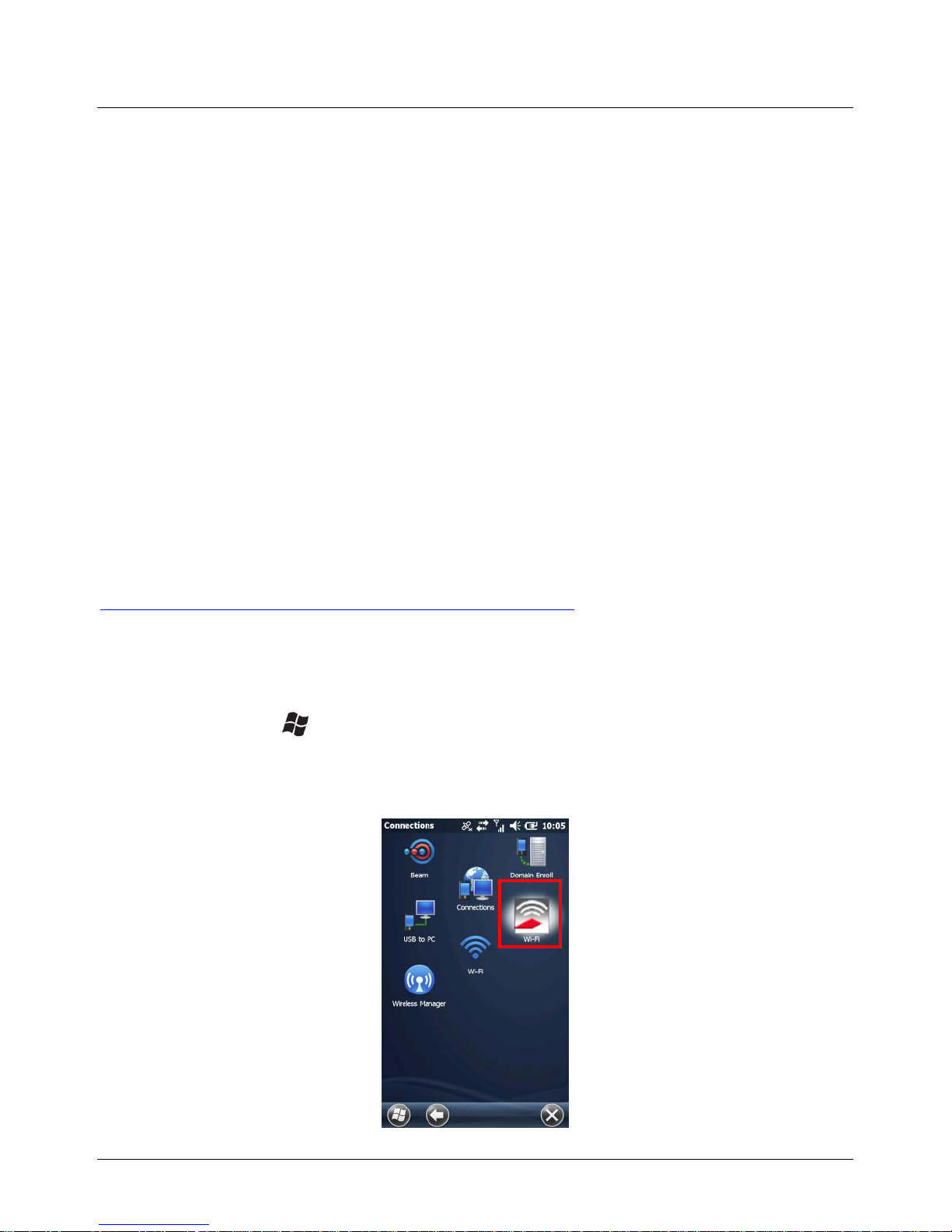

6.5 Working with Wi-Fi .......................................................................... 51

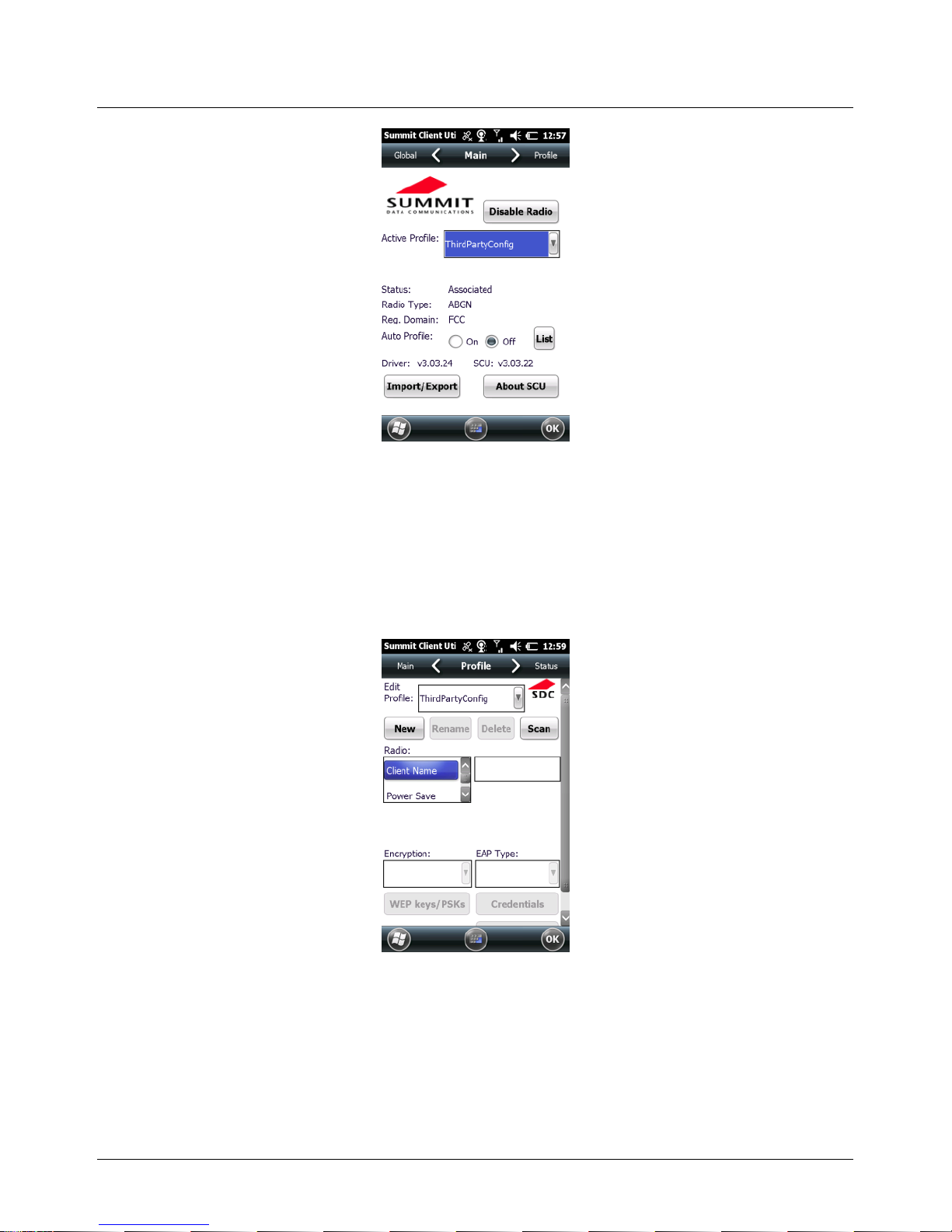

Using the Summit Utilities ..................................................................... 54

Accessing the Summit Client Utility ....................................................... 54

Main Window ......................................................................................... 55

Profile Window ...................................................................................... 56

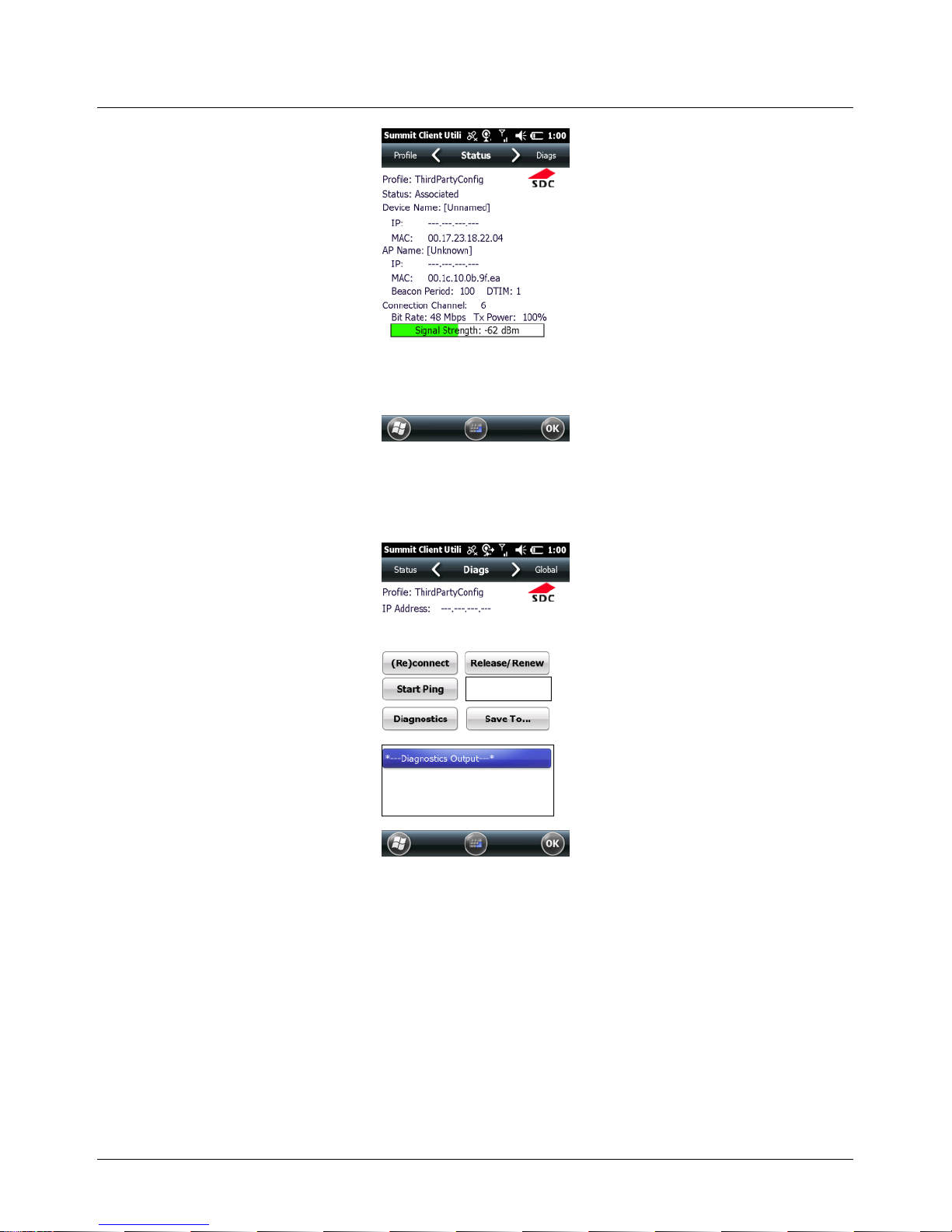

Status Window ...................................................................................... 56

Diags Window ....................................................................................... 57

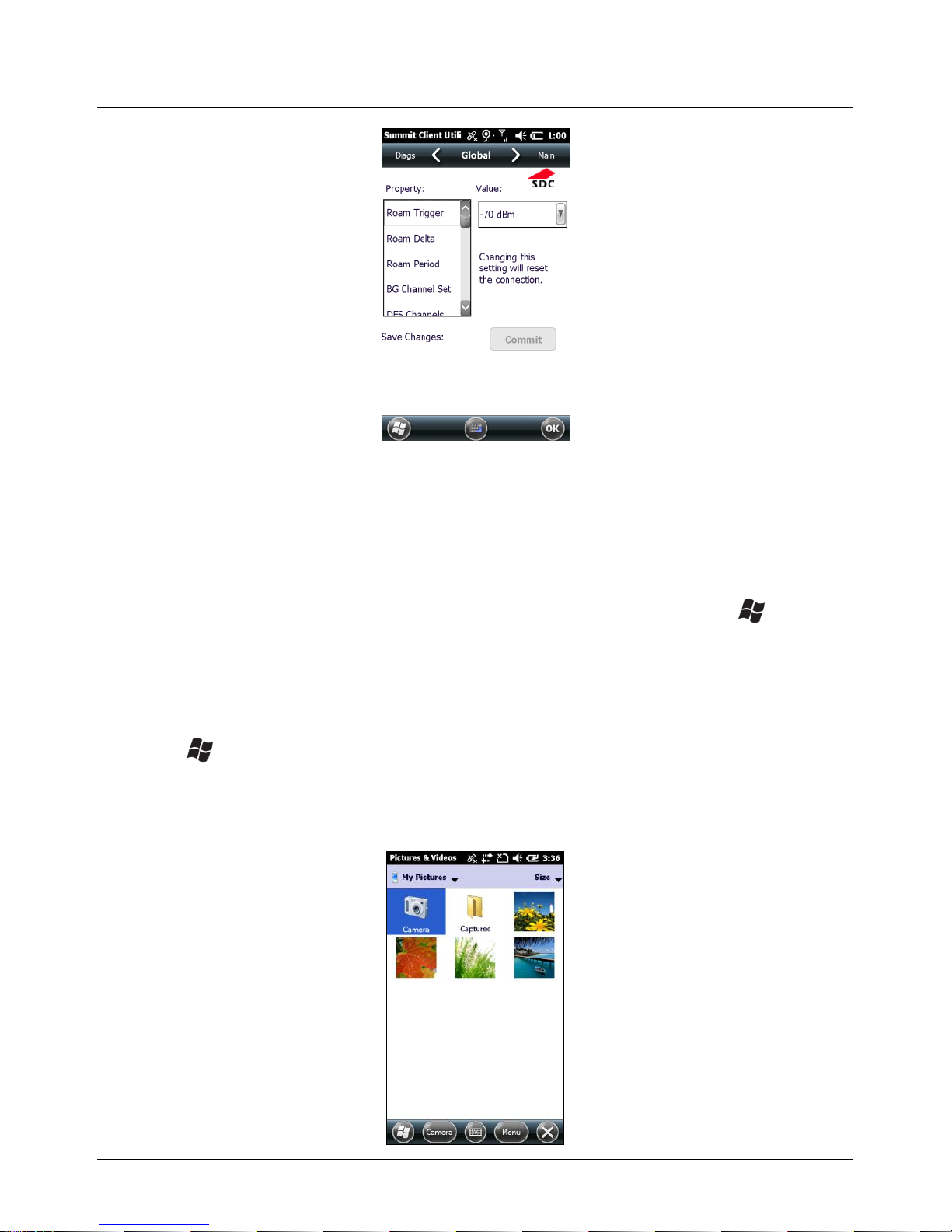

Global Window ...................................................................................... 57

6.6 Working with the Camera ................................................................ 58

User Interface ........................................................................................ 59

Thumbnail Window ................................................................................ 59

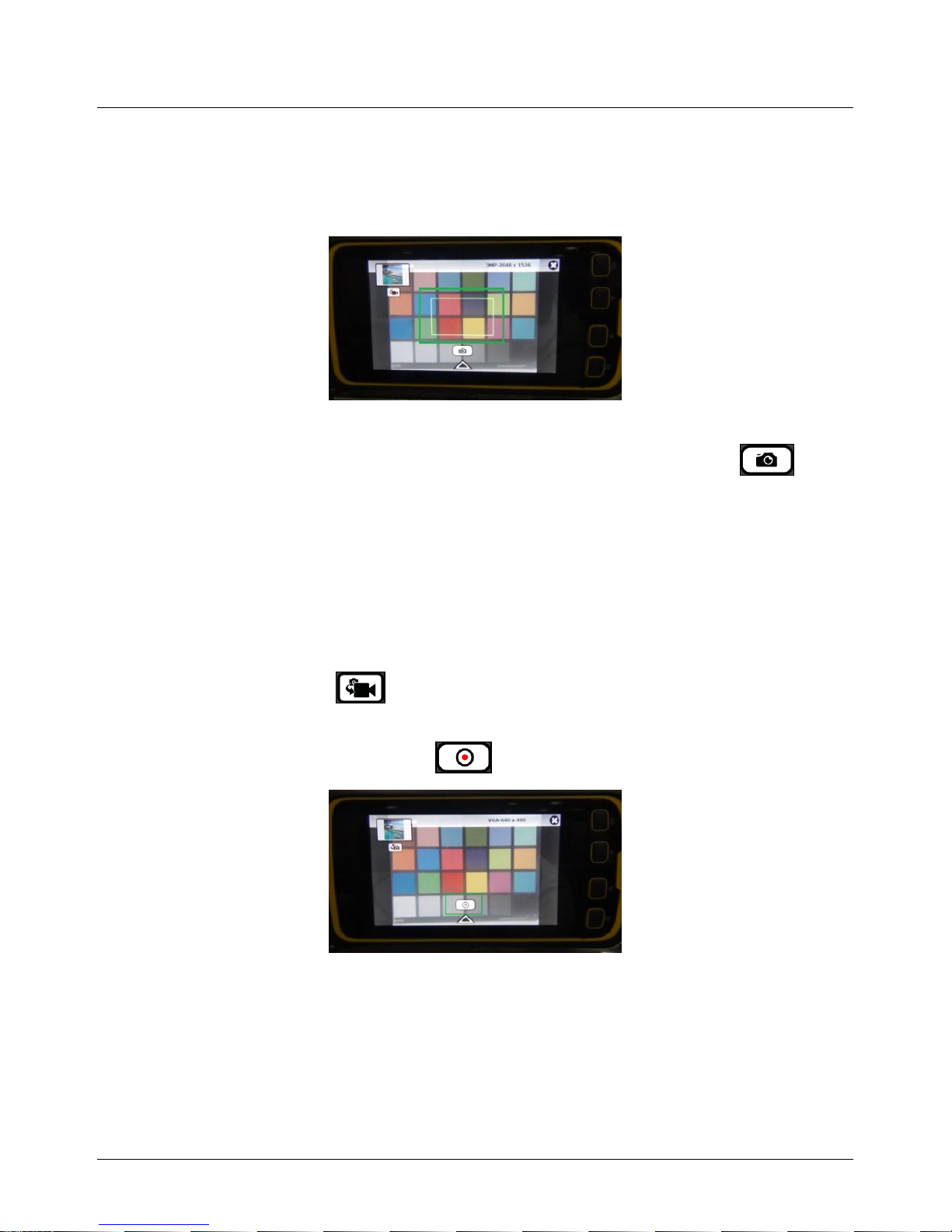

Capturing Images .................................................................................. 59

Capturing Videos ................................................................................... 60

Closing application ................................................................................ 60

Image Camera Application Features..................................................... 60

Image Delete and Switch to Camera in Image review mode ................ 66

Video Camera Application Features ..................................................... 66

6.7 Working with GPS ........................................................................... 69

GPS settings: ........................................................................................ 69

Exiting GPS applications ....................................................................... 69

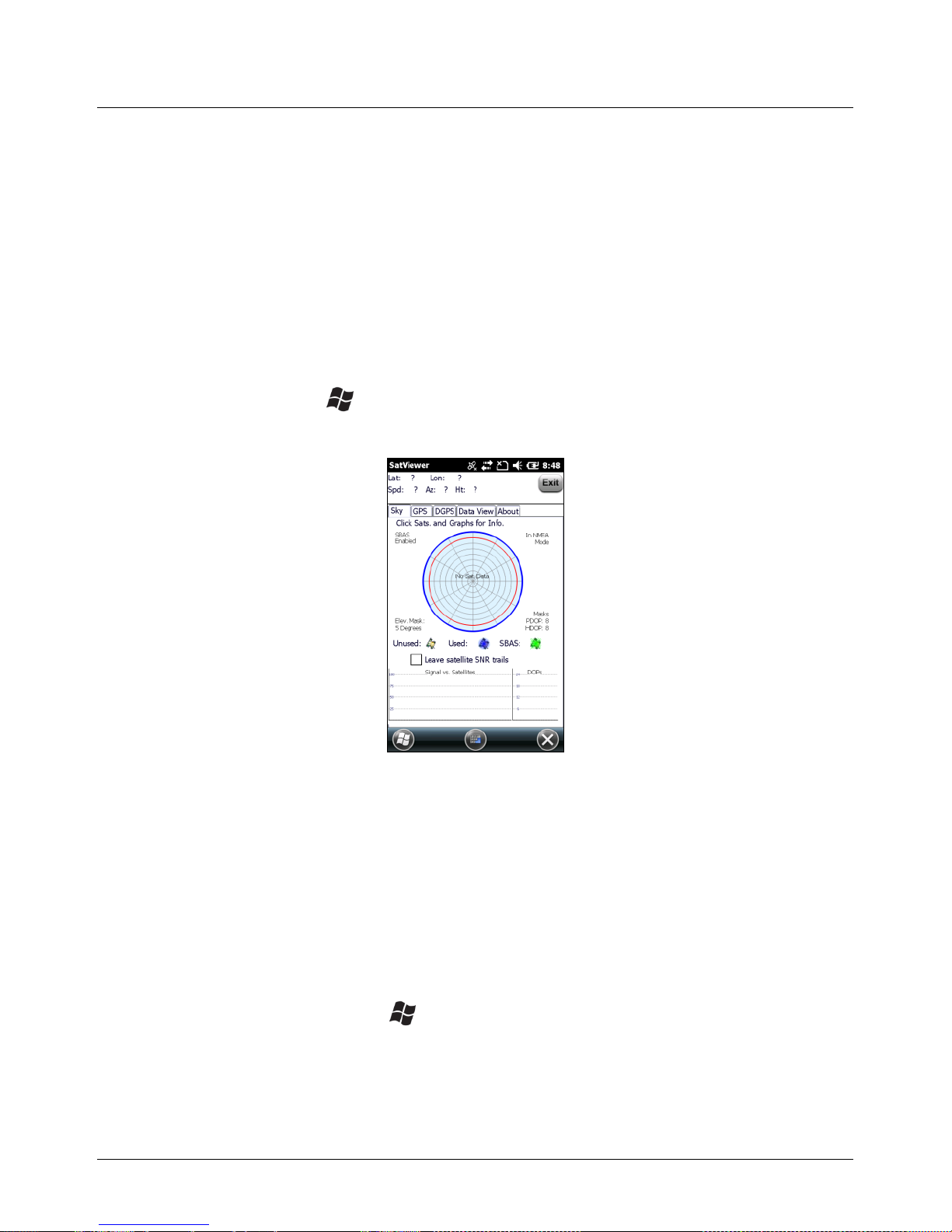

6.8 SatViewer ........................................................................................ 70

6.9 Battery Logger ................................................................................. 70

Appendix A: Regulatory Compliance ....................................................... 72

U.S.A. - FCC Statement ........................................................................ 72

Exposure to Radio Frequency (RF) Signals ......................................... 72

Telecommunications & Internet Association (TIA) information ............. 73

Canada Compliance, Industrie Canada (IC) ......................................... 74

RoHS Statement ................................................................................... 75

European Conformity Statement ........................................................... 75

Europe ................................................................................................... 75

Environmental Hazards ......................................................................... 77

Toxic and Hazardous Substances and Elements ................................. 77

Taiwan ................................................................................................... 78

1

Chapter 1 Getting Started

1.1 Device components

1. Color Band

The color band surrounding the screen is yellow or grey, and indicates
IP65 or IP68, respectively.

2. Touchscreen

The capacitive touchscreen enables handwriting, drawing and making
selections with your finger. An optional T41 Capacitive Stylus, sold
separately, is available.

2

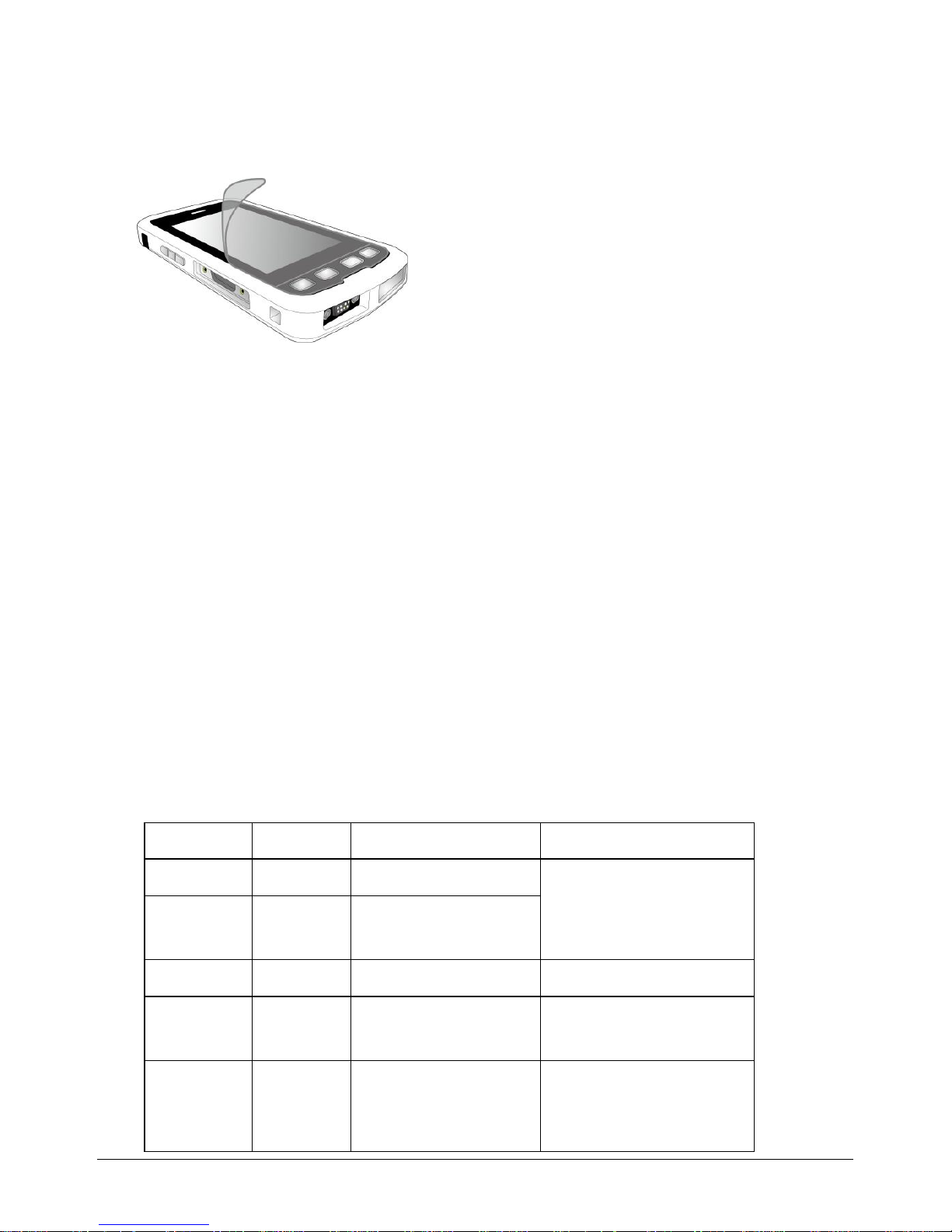

The touchscreen is on a rugged Gorilla® Glass panel, and to prevent
cosmetic scratches, a screen protector is recommended. Follow the
instruction below to apply the Screen Protector.

3. Phone Receiver (Ear)

When using the phone, place the receiver to your ear to hear the other
participant(s) to the phone call.

4. Light Sensor

The Light Sensor detects ambient light in your environment. If the
Backlight control is configured to use the Light Sensor, the screen
brightness dims in a dark environment and brightens in a lighted
environment.

5. Notification LED

One tri-color LED (Red/Amber/Green) indicator is provided for user
notifications. These include battery status and other operating system
(OS) notifications. This indicator is capable of operating even when the
device is in Shutdown mode.

The LED status behavior is as follows:

Color

Pattern

Condition

Notes

Red

Solid

Low battery

Connect device to

charger before

pressing POWER.

Red

Blinking

Low battery and

OS notification

Amber

Solid

Charging

Amber

Blinking

Charging and OS

notification

Amber

Blinking

OS notification,

medium battery

charge

3

Color

Pattern

Condition

Notes

Green

Solid

Fully charged

Green

Blinking

Fully charged and

OS notification

<Off>

n/a

Battery not low,

no OS notification

6. POWER button

 When the device is on, press and release to suspend or resume the

device.

 Press and hold for 2 seconds to open the Power Menu.
 Press and hold for 6 to 8 seconds to force the device to Reset.

7. MCX port

The MCX port enables connecting an optional External GPS Antenna to
provide improved GPS signal reception when operating the Trimble Site
Mobile inside a vehicle or in other situations where the sky visibility is
limited.

8. Accessory Latch

The accessory latch is designed to lock the connection of Extended
Battery Pack.

9. Camera and Flash

 The camera takes pictures and records videos.
 The flash assists the camera in low-light conditions.

10. Speaker
Listen to audio media or a phone call from here.

11. Wrist Strap tie point

Wrist strap tie points are provide on both sides of the device to
accommodate left- and right-handed users.

12. OK button

Press to confirm your selection. Pressing this button is typically
equivalent to tapping the X tile or OK tile on the Tile bar.

4

13. RIGHT button ( )
Press to activate the associated tile (if any) on the Tile bar.

14. Microphone
Speak here when talking during a phone call.

15. LEFT button ( )
Press to activate the associated tile (if any) on the Tile bar.

16. button

Press to access the Start screen. Press again to access the Home
screen.

17. T41 Custom Port

Connect the T41 Custom USB Client cable to this port to charge the
device or connect to the device from a desktop or laptop computer.
Two optional accessories are available, the T41 USB Host Cable and
the T41 9-Pin Serial Cable.

18. microSD storage card and SIM card slots

Use the SD/SIM Card Access Tool to loosen the protective cover.
A microSD storage card provides additional file storage.
A SIM card provides access to a GSM cellular network, enabling the
device to place and receive phone calls, send and receive text
messages and to connect to 3.75G mobile data services. (Contact a
GSM cellular service provider in your area to obtain services and a SIM
card.)

19. VOLUME control and ACTION buttons

Press the + / - button to increase/decrease the volume for your device.
Press the ACTION button (between the + / - buttons) to select an option.

20. Headphone or Headset connector

Connect a 3.5 mm stereo headphone to listen to audio media or use the
hands-free kit.
Connect a 3.5 mm stereo headset to listen to audio media and to use
the phone in hands-free mode.

5

1.2 Inserting a storage card and a SIM card

To install a microSD storage card and a SIM card in your device, you need to
remove the cover on the left side using the SD/SIM Card Access Tool included
with the device accessories.

NOTE: The device supports up to 32 GB SDHC microSD storage cards. SDXC cards
are not supported.

WARNING: Insert or remove a SIM card ONLY when the Phone module is
completely off.

WARNING: Only insert a SIM card on devices with Phone/WWAN capability.

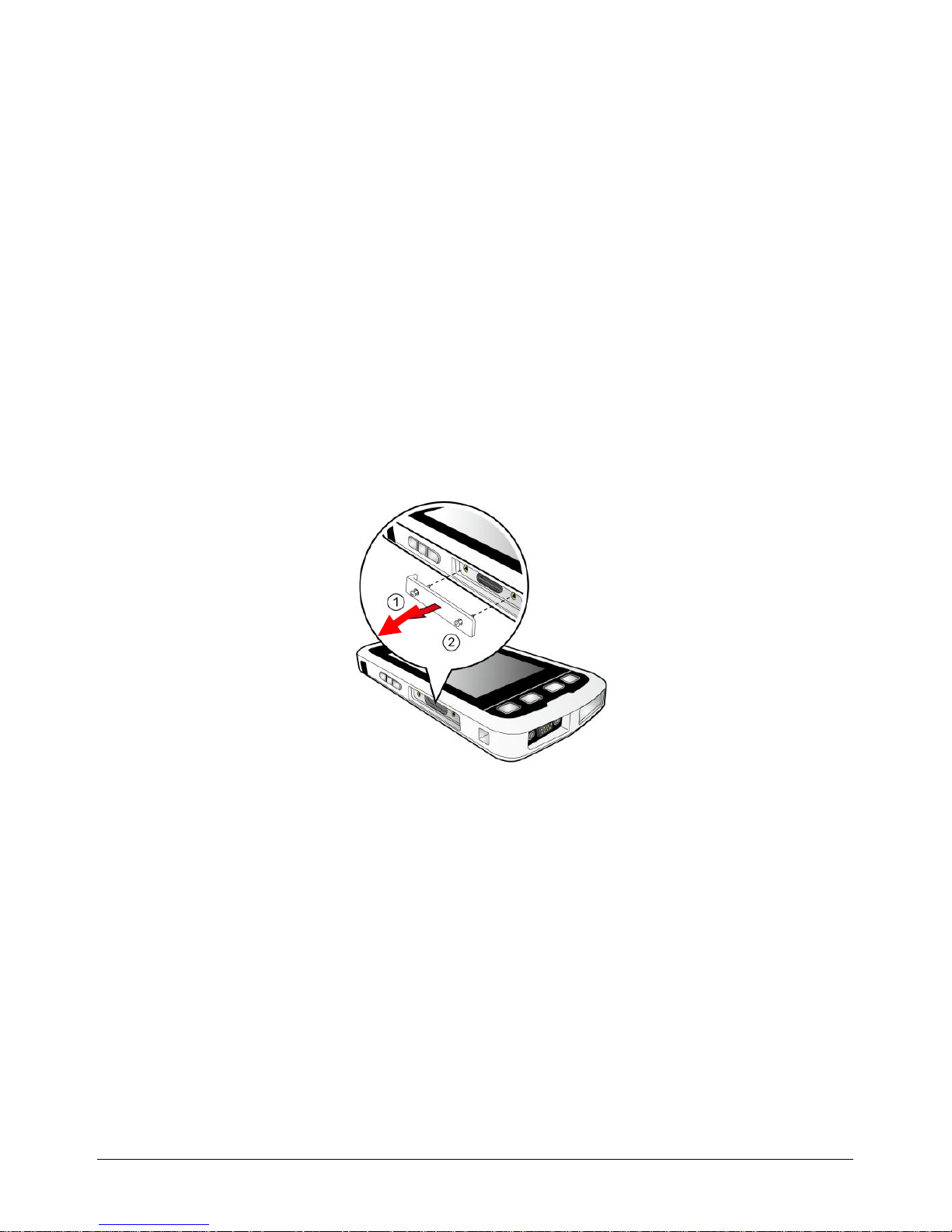

1. Remove the cover on the left side of the device by unscrewing the
screws.

2. Follow the illustration below to insert the storage card and the SIM card:
 To insert the SIM card: push the card into the slot with its metal

contacts facing the back of your device.

 To insert the storage card: hold the card by the edges and gently

insert it into the slot with the label facing the front of your device. Do
not apply pressure to the center of the storage card while inserting
the card.

6

3. To remove a card, push the card to release from the slot.

NOTE: Make sure you have saved any data in open programs before
removing the storage card.
WARNING: Only remove a SIM card when the device is in Shutdown mode,
Absolute Power Off mode, Airplane mode or when the Phone module is off.

4. Replace the cover and then secure it with the screws.

7

1.3 Charging the battery

IMPORTANT: Before using the Trimble Site Mobile for the first time, charge the
device for at least 4 hours. The notification LED will turn green when fully
charged.

CAUTION: Avoid Extreme Heat

 The battery is designed to stop operating at or above 149 °F (65

°C). If this status icon appears, the battery has overheated
to 140 °F (60 °C) or more.

 If the battery temperature exceeds 158 °F (70 °C), the battery

will be disabled and the device must be sent to an Authorized
Service Provider to have the battery replaced.

Operating Temperature Range: -22 °F to 140 °F (-30 °C to 60 °C)
Storage Temperature Range: -40 °F to 158 °F (-40 °C to 70 °C)

CAUTION: Do not exceed specified storage temperature.

8

1. Connect the USB end of the T41 Custom USB Client cable to the AC
charger.

2. Connect the custom end of the T41 Custom USB Client cable to the
connector on the bottom face of your device.

9

3. Plug the AC charger into a wall outlet. If needed, attach a plug converter
onto the AC charger.

Tips for extending the battery life:

See Chapter 3.3 for tips on extending battery life.

1.4 Turning your device on and choosing your

language

WARNING! BEFORE TURNING THE DEVICE ON, THE DEVICE MUST BE PLUGGED
IN TO AN EXTERNAL POWER SOURCE. COMPLETE ALL STEPS IN 1.3 CHARGING
THE BATTERY.

1. Once you begin to charge your device, the device turns on
automatically.

10

2. The Welcome Wizard will lead you through the setup process.

3. Select your preferred language by using the + or - (shown as UP or
DOWN on the Wizard) buttons on the left side of the device, then press
the ACTION (shown as ENTER on the Wizard) button to choose the
language (the touchscreen is not enabled in the Wizard).

4. Use the + button to highlight the box next to Yes, I want to use
<language > as the language on the device.

a. Press the ACTION (ENTER) button to check the box.
b. Press the - (DOWN) button 2 times to highlight the Next > box.
c. Press the ACTION (ENTER) button to select Next >.

Wait while your device is being configured for the language you
selected.

WARNING: The only way to change the language you have selected is
to re-install the firmware using the Firmware update utility.

NOTE: Only Microsoft applications and messages will be translated into
languages other than English. All other error messages, notifications
and other applications may appear in English.

5. Tap the screen to set up your device with a Security PIN (optional).

6. See Chapter 3 for instructions on setting the date and time on your
device.

11

Chapter 2 Operating Basics

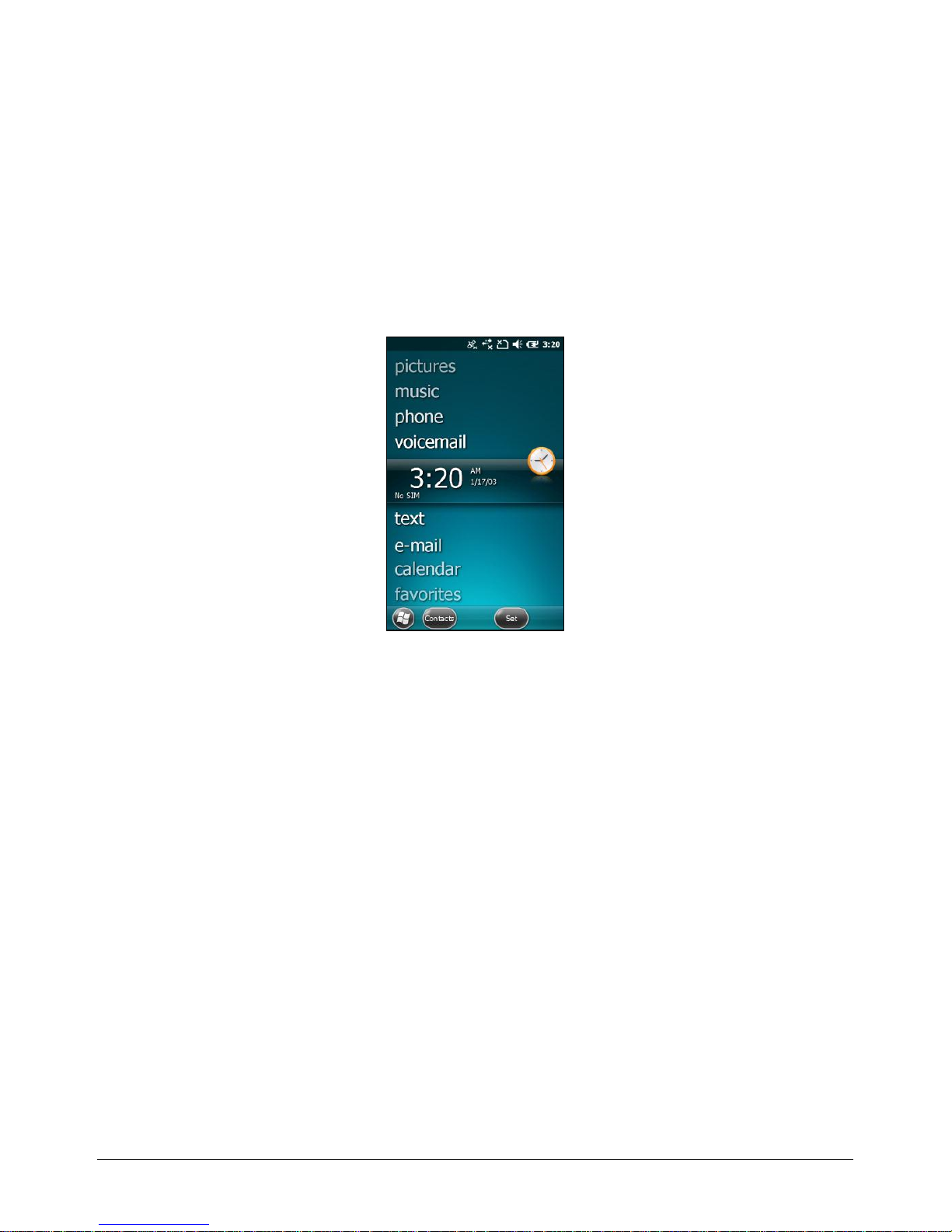

2.1 Home screen

The Home Screen is an easy way to launch common activities, such as using the
phone, checking text messages or checking e-mail. You can view high-level
information at a glance, with notifications for Live services, e-mail, voicemail,
SMS/MMS and more.

To navigate the Home screen, touch and slide your fingertip up or down on the
screen; or drag the highlight bar to the desired item on the screen. The programs
provided on the Home screen include:

 pictures: Select your photos from this menu.
 music: Select your music from this menu.
 phone: If your device has the phone feature, select this item to use

the phone.

 voicemail: If your device has the phone feature, select this item to

access your voicemail.

 time: Select your time zone, set the time and date and set alarms.
 text: If your device has the phone feature, select this item to compose

and read text messages.

12

 e-mail: Select this item to read and compose e-mail.
 calendar: Select this item to manage appointments.
 favorites: Select this item to use Internet Explorer Mobile.

You can change to the classic Windows Mobile Today screen by tapping >
Settings > Home.

1. On the Appearance tab, change the theme to Classic Blue.

2. On the Items tab, uncheck Windows Default and select the items that
you would like to appear on the Home screen.

Trimble Site Mobile

User Manual

13

2.2 Start screen

Press the button to access the Start screen where you can easily access the
software installed on your device. Slide your fingertip up/down on the Start
screen to browse more items and then access an item by tapping on the item.

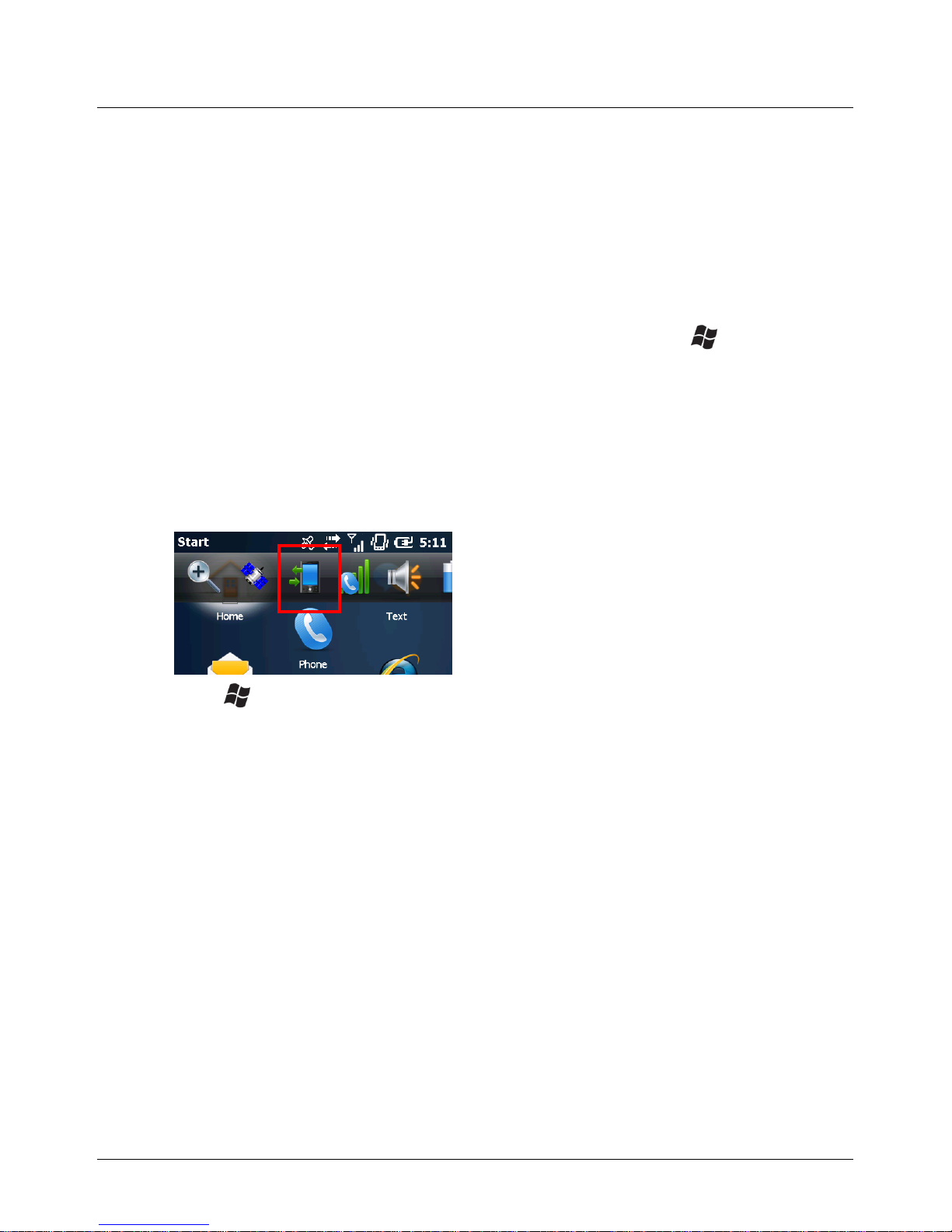

2.3 Title bar

In Windows Embedded Handheld, the title bar is located at the top of the screen
and it is touchable. Tap anywhere on the title bar to reveal a list of vertical icon
slots, representing different categories of icons. Tap an icon to get additional
notification or status information. The title bar also provides access to the
Magnify tool, providing a closer look at the data on the screen. Simply tap the
Magnify icon on the right end of the title bar to end magnify mode.

The Start, OK, and Close (X) icons have been moved from the Title bar to the Tile
bar to improve consistency. Now, all navigation controls—Start, OK and
Close—are in one place.

2.3.1 Title bar status indicators

The following table lists common status indicators seen in the Title bar.

Icon

Description

Icon

Description

Trimble Site Mobile

User Manual

14

Battery power is low

Other networks are detected.
Tap to access an available
network

Battery power is very low

Wireless network connected

Battery communication error

Active connection, but not
currently synchronizing

Battery charging

Inactive connection to computer
or wireless network

Battery level

Synchronizing

Battery out of temperature
range WARNING

Synchronizing error

Instant messages received

Pending alarm

Speaker is on

Phone is turned on and signal
strength

Speaker is off (or in mute
position)

Phone is turned off. To turn it
on, tap this icon

SIM card missing

No signal

Faulty SIM card

No service. Phone connection
unavailable or network error.

E-mail has been received

Lost signal. The device is
searching for a signal.

Tap to view more notifications

EDGE network is available

Data call is in progress

EDGE network connected

Roaming mode

GPRS network available
3G connected

GPRS network connected

Trimble Site Mobile

User Manual

15

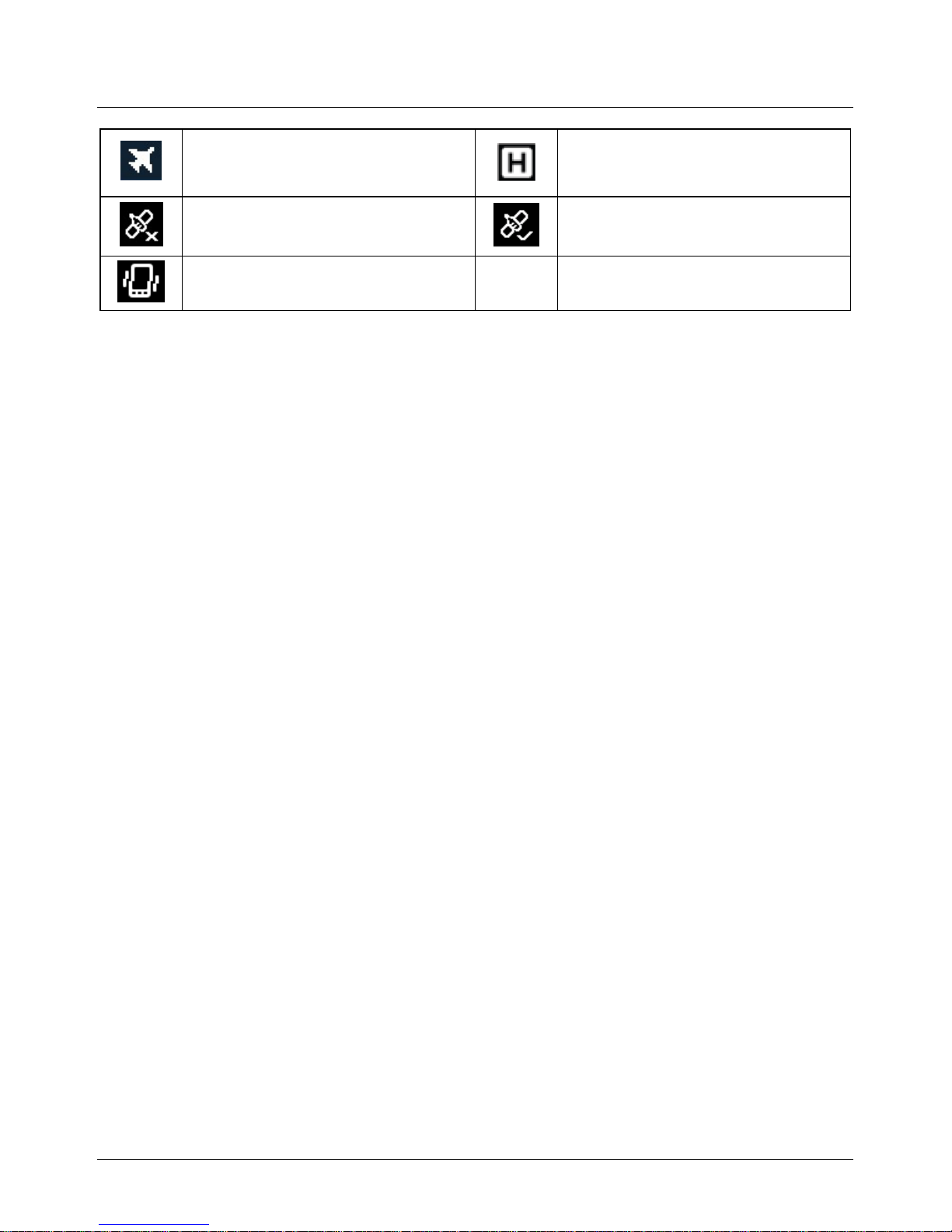

Airplane mode enabled. The
device radios are all off.

HSDPA network available
GPS receiver is off.

GPS receiver is on.

Vibrate mode is on

Trimble Site Mobile

User Manual

16

2.4 Tile bar

The Tile bar is located at the bottom of the screen and the information displayed
there is more uniform than on earlier versions of Windows® Mobile operating
systems. The Tile bar uses touchable tiles, and these tiles can be activated by
pressing the corresponding buttons on front keypad of your device.

Touchable tiles can be text strings or icons, depending on the screen, and they
are at fixed positions on the Tile bar. For example, the Start icon is always in the
far left position, and the OK or Close icon is always on the far right. If the Tile bar
has a Keyboard icon, it is always in the third, or center position; if it has
additional menu or feature access icons, they will be on either side of the
Keyboard icon.

The buttons on the bezel below the screen correspond to the touchable tiles on
the Tile bar. Press a button to activate the associated tile.

2.5 Power menu

Press and hold the POWER button for about 3 seconds until the Power Menu
appears. Tap an option or OK to exit.

 Shutdown: Turn off the device.
 Enable Airplane mode: Enable the

Airplane mode for the device.

 Disable Airplane mode: Disable the

Airplane mode for the device.

 Reset: Restart the device.
 Vibration On: Enable the Vibration mode

for the device.

NOTE: If the Power Menu does not appear when

the POWER button is held down, and/or if you

Trimble Site Mobile

User Manual

17

continue to hold down the POWER button for at
least 7 seconds, the device will perform a
hardware reset. It may take a few seconds for
the device to start after the POWER button has
been released.

2.6 Securing your device

You can customize the level of security you want to have on your device by
locking the keypad or the entire device.

Lock the keypad

The keypad lock turns off the keypad functionality. This is a helpful feature if, for
example, your device is turned off and in your pocket, and you want to prevent
accidental button presses from activating the device.

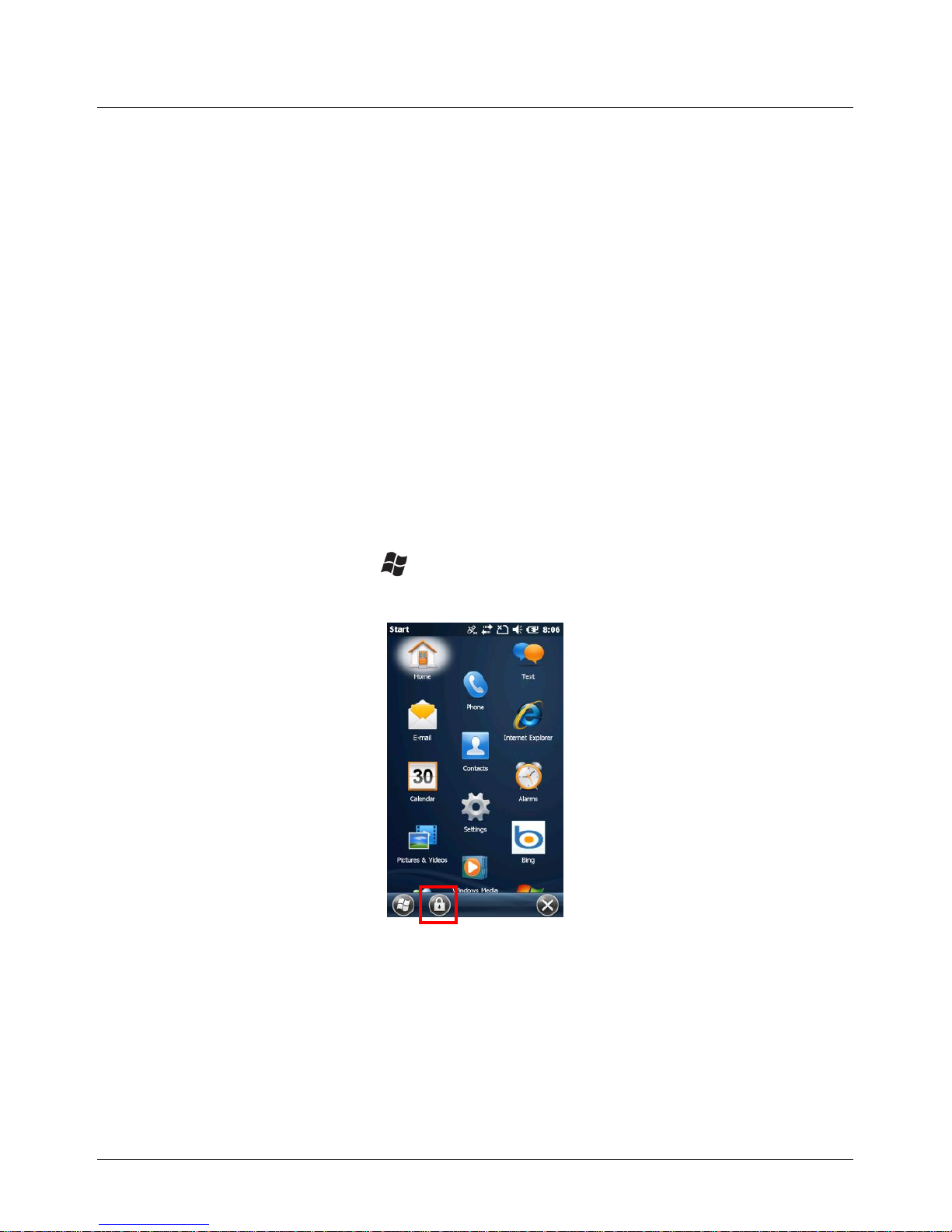

To lock the keypad, press the button to access the Start screen, then press
the LEFT button or tap the padlock tile on the Tile bar.

Trimble Site Mobile

User Manual

18

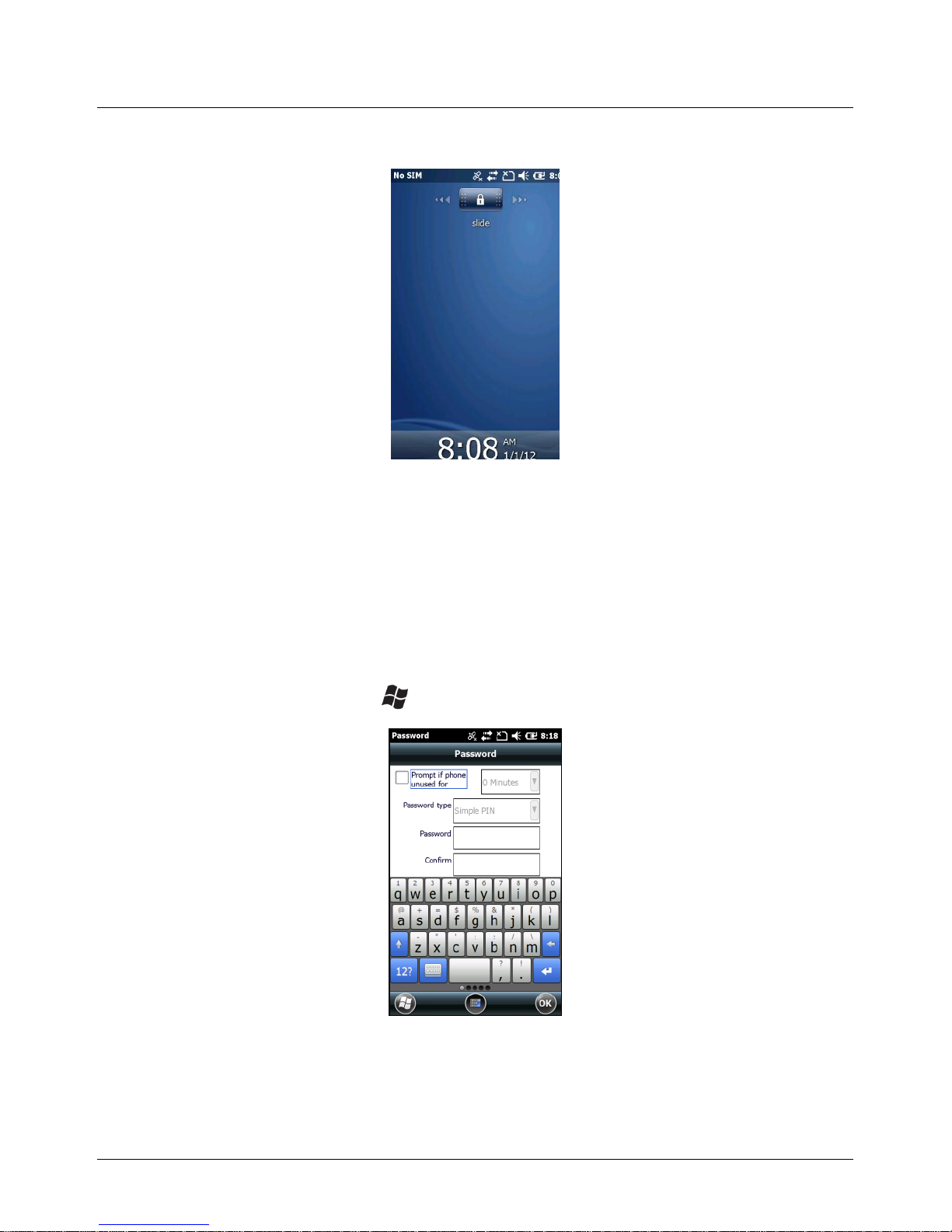

You will then see the following screen:

To unlock the keypad, slide the lock symbol.

Lock your device

Locking your device prevents access to personal data. When you enable this
feature, your device will automatically lock after a specified time of inactivity. A
screen will be displayed requiring your device lock password before access is
granted.

To access the Lock menu, tap > Settings > Lock

WARNING: BE CERTAIN TO REMEMBER THE PASSWORD.

The only way to recover from a forgotten password is to perform a

Trimble Site Mobile

User Manual

19

Clean Boot. However, you will LOSE all application software, licenses, settings
and data on your device. For instructions on how to Perform a Clean Boot, see
below..

2.7 Configuring the Onscreen Keyboard

The Soft Input Panel (also called S.I.P.) is a special on-screen keyboard for
devices which do not have standard keyboards. The Trimble Site Mobile includes

a custom S.I.P. application called Resco Keyboard Pro. To configure it, tap >
Resco Keyboard Pro.

Resco Keyboard Pro allows you to customize your device for fast insertion of
frequently used phrases, and to customize various features including haptic or
audio feedback, basic or advanced gestures and more. Resco Keyboard Pro
supports 39 languages.

2.8 Perform a Clean Boot / Factory Reset

WARNING: Application software installed by the customer and some

licenses, settings and user data will be cleared if this function is performed!

1. Press and hold the POWER button to display the Power Menu.

2. Tap Reset.

Trimble Site Mobile

User Manual

20

3. When you see the screen goes completely black, press and hold the
button.

4. When you see the Trimble Site Mobile screen, press the RIGHT button
while still holding the button. Let go of both buttons.

5. Press the ACTION button on the left side of the device to clear the
persistent store. Press any other button to cancel and continue booting
normally.

2.9 Absolute Power Off mode

The Trimble Site Mobile features a battery cut-off mode that enables the device
to enter the absolute lowest power mode possible, even lower than the
SHUTDOWN power state. In this mode, the draw on the battery is less than 20
uA.

The primary purpose for this mode is to prolong the shelf life of the battery
while the product is between the production factory and the customer. A
secondary purpose is to ensure the device is completely powered down before
shipping the product via air freight, or when putting the product into storage for
an extended period, typically longer than a week.

NOTE: The sole method for exiting this mode is to charge the battery.

To activate the Absolute Power Off mode, follow these steps:

1. Disconnect the T41 USB Client cable, if connected.

2. Press and hold the POWER button to display the Power Menu.

3. Tap Reset. The screen will go black as the unit goes through reset.

4. When it comes out of reset, indicated by the Trimble Site Mobile splash
screen appearing, press and hold the LEFT button ( ) and the RIGHT
button ( ).

5. A message will appear: “Please remove AC. System is turning off”

6. The device is now in Absolute Power Off mode.

Trimble Site Mobile

User Manual

21

Trimble Site Mobile

User Manual

22

Chapter 3 Managing and Caring for Your
Device

3.1 Changing basic settings

Personalizing the Home screen

The Home screen is the starting place for most of the tasks you perform on your
device and gives you access to all the features and software programs of your
device.

1. Tap > Settings > Home > Appearance.

2. Select the available option from the list.

3. When done, tap OK.

4. To set a picture as the Home screen background:

a. Select the Use this picture as the background option.
b. Tap Browse to select the picture you want to use.
c. When done, tap OK.

Setting the date, time, and alarms

1. Tap > Settings > Clock & Alarms > Time.

2. Set the Time zone, Date, and Time.

3. When done, tap OK.

4. To set an alarm:

a. On the Clock & Alarms screen, go to the Alarms tab.
b. Tap on the alarm item to display the Alarm Settings screen,

allowing you to change the Alarm settings. Tap OK to save the
settings.

c. Tap the checkbox on each available alarm item to enable or

disable the alarm.

d. When you enable an alarm, an Alarm icon appears on the Home

screen.

Trimble Site Mobile

User Manual

23

e. You may also need to check the Sound alarms even when the

device is set to silent or vibrate checkbox.

Setting regional options

Your device comes with the regional settings that are appropriate for your
locale.

1. On the Home screen, tap > Settings > System > Regional
Settings.

2. On the Regional Settings screen, select the Region tab and then select
your preferred language from the list.

3. If desired, you can specify the locale, date and time style, as well as
number and currency formatting options applicable to your region.

4. When done, tap OK.

3.2 Customizing sounds and notifications

You can choose how to be notified for incoming calls, reminders, new messages,
alarms, and more.

Specifying the sound for an event

1. On the Home screen, tap > Settings > Sounds & Notifications.

2. From the Sounds tab, select the desired sound for each event.

3. When done, tap OK.

Setting the ring tone for incoming calls

1. On the Home screen, tap > Settings > Sounds & Notifications.

2. From the Notifications tab, select a ringtone in the Ring tone list.

3. When done, tap OK.

NOTE: If you select Vibrate, the sound mutes and the phone will vibrate when
you receive a call. The Vibrate status icon appears in the title bar.

Copying a sound to your device

Trimble Site Mobile

User Manual

24

You can use a .wav, .mid, .wma, or .mp3 audio file on your device as a ring tone,
notification, or reminder.

1. Connect the device to your PC using the T41 Custom USB Client cable.

2. On your PC, copy the sound file you want.

3. Explore the phone’s contents:

 In Windows Mobile Device Center on your PC, tap File

Management > Browse the contents of your device.

 In ActiveSync on your PC, tap Explore and double-tap My

Windows Mobile-Based Device.

4. Navigate to your device’s Application Data > Sounds folder and then
paste the audio file.

3.3 Managing battery power and data storage

Battery Life

The Lithium-ion polymer battery life is dependent upon the application and
operating environment. For example, estimated battery life for a new battery is
approximately 12 hours with the device turned on but idle, backlight at 15% and
all radios and compass off.

Tips for extending the battery life:

- Display backlight: Tap > Settings > System > Backlight to minimize the

amount of time the backlight stays on and dim it to only as bright as required
to view the display.
Alternatively, verify that the backlight brightness is auto-adjusting based on

the Light Sensor, by tapping > Settings > System > Backlight > Brightness
and checking the box for Use Light Sensor to adjust the brightness.

- Wi-Fi, Bluetooth and camera: Turn off when not needed.

- WWAN: Turn the phone off when not in use.

- GPS: Ensure that the GPS-aware applications that communicate with the GPS

are closed when not in use.

- Flashlight: Use the flashlight only when needed.

Trimble Site Mobile

User Manual

25

- Cold temperatures: Keep the device as close to room ambient temperature

(77 °F or 25 °C) as possible. If feasible, keep it inside your coat or a vehicle
when not in use.

- Auto features: Tap > Settings > Power > Advanced. Specify your device to

turn off in a short time if not in use. Tap > Settings > Bluetooth > Wake
Settings. Turn off Allow Bluetooth activity to turn the device on. Bluetooth
could turn on your device, transfer data and drain the battery.

- CPU: Applications requiring significant computations by the CPU may have

some impact on battery life, but this is typically less significant than managing
the hardware features.

Changing the power management settings

You can use Power Management to check the battery, and configure settings
that prolong battery life.

1. Tap > Settings > Power.

2. On the Power screen, you can:

 Select the Battery tab to check the amount of battery life remaining.
 Select the Advanced tab to change the screen power settings.

3. To optimize battery usage, you can adjust the backlight settings:

 Tap > Settings > System > Backlight.
 From the Brightness tab, adjust the proper backlight level and

enable the Light Sensor to automatically adjust the backlight
brightness.

4. From the Battery Power tab and External Power tab, set the backlight
off settings

5. When done, tap OK.

Managing low battery

When the low-battery warning appears, do the following:

Trimble Site Mobile

User Manual

26

1. Immediately save your current data. All of your data is stored in
non-volatile persistent storage memory. Losing power will not impact
saved data or configurations other than the real-time clock. As with any
computer system, we recommend that you regularly backup your data
to removable media or to a PC.

2. Synchronize with your PC or use the AC adapter to charge the battery.

3. Turn off your device while it is charging, especially if it is charging from
the PC USB power and not from the AC adapter power. Turn on Trimble
Site Mobile only when you need to use it, until the battery is recharged.

Checking the phone memory

1. Tap > Settings > System > Memory.

2. From the Main tab and Storage Card tab, check the available memory
and the available storage on your device.

Trimble Site Mobile

User Manual

27

3.4 Working with files

You can copy files between your device and computer, or copy files to a storage
card installed on your device. You can also efficiently manage your files and
folders using File Explorer.

Copying files to your computer

1. Connect your device to your PC.

2. Do one of the following, as appropriate to your PC:

 In Windows Mobile Device Center on your PC, tap File

Management > Browse the contents of your device.

 In ActiveSync on your PC, tap Explore. This opens the Mobile

Device folder for your device.

3. Browse your device for files that you want to copy to your PC.

4. Select and copy the files [Ctrl + C] and then paste them [Ctrl + V] to the
destination folder in the PC.

Using File Explorer

File Explorer provides many easy-to-use features for file and folder management.
File Explorer lets you browse and manage the contents of your device.

1. Tap > File Explorer. The root folder on the device is named My
Device, and contains the following folders: My Documents, Program
Files, Windows, and more.

2. Tap a folder or file to open it.

3. To return to an upper level folder, tap Up.

4. To copy files to a storage card:

a. Verify the storage card is properly installed on your device.
b. On the File Explorer screen, navigate to the appropriate folder.
c. Select the file you want to copy, and then tap Menu > Edit >

Copy.

d. Tap Menu > Storage Card.

Trimble Site Mobile

User Manual

28

e. Tap Menu > Edit > Paste.

NOTE: Unlike Windows® PC’s, Windows Embedded Handheld does not feature a
Recycle Bin. Once a file is deleted, it cannot be recovered.

3.5 Adding and removing programs

Before you purchase additional programs for your device, make sure that they
are compatible with the Windows Embedded Handheld operating system. Also,
before you launch the program installer, check first whether the installer can
directly run on Windows Embedded Handheld or needs to be run on a Windows
PC.

Follow the setup instructions that came with your software. If prompted,
perform a reset to complete the installation.

Installing a program directly on your device

1. If the installation file is a .cab file, download the file directly to your
device, or download it to your PC and copy it to your device.

2. On your device, tap > File Explorer and navigate to the installation
file.

3. Tap the file to start the installation process.

4. Choose whether to install the program into the main memory or your
storage card, if you have the storage card inserted on your device.

5. Wait for the installation to complete.

Installing a program from your computer

1. If the installer is an .exe file such as Setup.exe, most likely, the installer
needs to be run on a Windows PC. Download or copy it to your
computer.

2. Connect your device to your computer using the USB cable, and then
double-click the installation file on your computer to start the installation
process.

Trimble Site Mobile

User Manual

29

3. Follow the on-screen instructions on your computer and your device to
complete the installation.

Removing a program

1. Tap > Settings > System > Remove Programs.

2. Scroll to the program to remove and then tap Remove.

3.6 Using Task Manager

Task Manager allows you to view or stop the programs currently running on
your device.

1. Tap > Task Manager.

2. On the Task Manager screen, select a program on the list and then tap
End Task.

3. To stop all running programs, tap Menu > End All Tasks.

4. Tap Menu to open a menu where you can change the view, sorting

order, refresh the screen, and more.

3.7 Checking the Device System information

Tap > Settings > System > System Information. Firmware version, serial
number, processor speed, RAM and Flash size, wireless configurations, battery
and card port information can be found here.

3.8 Caring for your Device

Cleaning the device

Use a soft, dampened cloth with either water or a diluted mild detergent. If a
mild detergent is used, ensure all soap residue is removed. Do not use any
chemical cleaners and do not put the device in the dishwasher.

Trimble Site Mobile

User Manual

30

Care of the touchscreen

Use only your finger, the T41 stylus or other stylus devices specifically designed
for use with capacitive touchscreens.

The use of ballpoint pens, nails or other sharp objects to operate the
touchscreen will scratch and/or damage the device. Keep the touchscreen clean
by gently wiping the display, using a soft, dampened cloth with either clean
water or glass cleaner. Use a screen protector at all times, and change the screen
protector according to manufacturer recommendations.

Do not use abrasive cleaners directly on the display. Doing so may void your
warranty. Use the screen protectors included with the device to keep the
touchscreen clean and protected, following the instructions provided on the
screen protector package.

Mechanical shock

The device is designed to resist damage for drops up to 4 ft (1.22 meters).
However, you should protect the display from impact, pressure, or abrasive
substances that can scratch it or crack it. The device should not be dropped
unnecessarily.

Environmental considerations

The device’s rugged design allows you to run your device in harsh outdoor

environments. Here are some considerations that will help you get the most out
of your device when working in very wet, hot or cold conditions.

Water: This device is designed to IP65 (yellow units) or IP68 (grey units). IPx5 is
defined as resistant to driving rain and water spray. IPx8 is defined as resistant
to submersion in water up to 1 meter deep for up to 2 hours.

WARNING: Removal of the back case screws could cause leakage and will void
your warranty.

Trimble Site Mobile

User Manual

31

NOTE: Although an optional accessory for the port cover is available and the
audio jack has a protective cover, these are not required to maintain the seal
against water. The covers are intended to keep mud, sand and other materials
from blocking these ports.

Temperature range: The operational temperature range is from -22 °F to +144 °F
(-30 °C to +60 °C). Although the device is designed to be rugged, do not leave it
in direct sunlight in excessive heat or in a vehicle in the sunlight for extended
periods as the internal temperature may exceed the operating or storage
temperature limits.

Batteries perform best at room temperature. The battery has a stable capacity as
temperatures rise; however, the colder the temperature, the greater the
reduction in available battery capacity. Under very cold conditions (-4 °F / -20°C
and below), the battery capacity is noticeably reduced. To improve the battery
performance in very cold conditions, consider increasing the load on the battery,
such as by adjusting the backlight to full brightness. Increasing the battery load
causes the battery to generate heat, thus warming the battery and improving
the performance. There are limits to how hard to push the battery before you
reduce the run-time instead of increasing it.

3.9 Safe Use of your Device

Repair: Do not attempt to dismantle the device for repair. There are no
user-serviceable parts inside. For service, use the contact details listed on the
cover of this manual or contact your local dealer.

Battery safety: Lithium-ion polymer batteries are classified by the U. S. Federal
Government as non-hazardous waste and are safe for disposal in the normal
municipal waste stream except where prohibited by local or regional regulations.
These batteries contain recyclable materials and are accepted for recycling.

Trimble Site Mobile

User Manual

32

NOTE: In the event of a battery failure, return the device to Trimble or an
Authorized Service Provider to have the battery replaced. Trimble disposes
used batteries in accordance with local regulations.

1. Do not disassemble or open, crush, bend or deform, puncture, or shred
the battery assembly. There are no user-serviceable parts in the battery
assembly.

2. Do not use battery if plastic case is cracked, compromised or punctured.

3. Do not attempt to separate the battery from the device.

4. Do not modify or remanufacture, attempt to insert foreign objects into
the battery, immerse or expose to water or other liquids.

5. Do not expose to fire, explosion, or other hazard. Do not expose to
temperatures above +158 °F (+70 °C). The battery is designed to stop
functioning if it reaches an unsafe temperature.

6. Only use a charging system that has been qualified for use with the
device.

7. In the event of a battery leak, do not allow the liquid to come in contact
with the skin or eyes. If contact has been made, flush the affected area
with water and seek medical advice.

Power supply safety: Use only AC and vehicle adapters intended for the device.
Other external power sources may damage your product and void the warranty.
Certification of this Class III product is only valid with the power supply –
PSA10F-050Q.

 Ensure the input voltage on the power supply matches the voltage in

your location. Ensure the power supply has prongs compatible with
your outlets.

 The power supply is designed for indoor use only. Avoid using the

power supply in wet areas.

 Unplug the power supply from power when not connected to the

device.

Trimble Site Mobile

User Manual

33

 Do not create a short circuit in the power output connector.

Trimble Site Mobile

User Manual

34

Chapter 4 Connecting to a PC and
Synchronizing Information

You can take information from your computer wherever you go by synchronizing
them to your device. The following types of information can be synchronized:

 Microsoft Outlook® information, which includes Outlook e-mail,

contacts, calendar, tasks, and notes

 Notes, which are created using Microsoft® Office OneNote® 2007
 Media, such as pictures, music and video
 Favorites, which are the bookmarked links to your favorite web sites
 Files, such as documents and other files

Before you can synchronize, you will first need to install and set up either
ActiveSync or Windows Mobile Device Center on your computer.

After installing the synchronization software on your computer, connect the
phone to your computer using the T41 USB Client cable. Upon connecting the
client cable to your device and your computer, choose to start the
synchronization process.

ActiveSync or Windows Mobile Device Center only synchronizes data on your
computer and phone. If you have installed a storage card and you want to back
up files from the storage card, use Windows Explorer on your computer to copy
files from the storage card to your computer.

If you are sending your device to your local dealer or service center for repair or
a hard reset, data from your device will be lost. It is recommended that you sync
your device to your computer to back up your files. To back up files from the
storage card to your computer, use Windows Explorer to copy files from the
storage card to the computer.

4.1 Setting up Windows Mobile® Device Center

Trimble Site Mobile

User Manual

35

Microsoft Windows Mobile® Device Center is the replacement for Microsoft®
ActiveSync® on Windows Vista® and newer. Some versions of Windows Vista®
come with Windows Mobile Device Center already installed. If Windows Mobile
Device Center is not available on your Windows Vista®, you can download it from
the Microsoft website. Go to http://www.microsoft.com and search for
Windows Mobile Device Center. When you connect your device to your
computer and start Windows Mobile Device Center for the first time, you are
asked to create a Windows Mobile partnership with your device. To create a
partnership:

1. Connect your device to your PC. Windows Mobile Device Center
configures itself and then opens.

2. You are given the option to Register Online, Remind me Later, or
Don’t Register.

3. On the Windows Mobile Device Home screen, click Set up your
device.

NOTE: Choose Connect without setting up your device if you only want to
transfer media files, check for updates, and explore your device but not sync
Outlook information.

1. Select the information types that you want to synchronize then click
Next.

2. Enter a name for your device and click Set Up.

When you finish the wizard, Windows Mobile Device Center synchronizes your
device automatically. Notice that Outlook e-mail messages and other
information will appear on your device after synchronization.

Using Windows Mobile Device Center

To open Windows Mobile Device Center, click > All Programs > Windows
Mobile Device Center on your Windows Vista or newer computer.

Trimble Site Mobile

User Manual

36

On Windows Mobile Device Center, you can do the following:

 Click Mobile Device Settings to change synchronization settings.
 When you click Pictures > Music and Video > <XX> new

pictures/video clips are available for import, a wizard guides you
to tag and transfer photos from your device to the Photo Gallery on
your computer.

 Click Pictures > Music and Video > Add media to your device

from Windows Media Player to synchronize music and video files
using Windows Media® Player.

 Click File Management > Browse the contents of your device to

view documents and files on your device.

NOTE: See Windows Mobile Device Center Help for more information.

4.2 Setting up ActiveSync®

On a Windows® XP computer, you need to use Microsoft ActiveSync® 4.5 or later.
If you do not have this software on your computer, you can download it from the
Microsoft website. Go to http://www.microsoft.com and search for ActiveSync.

Setting up synchronization in ActiveSync

1. Connect your device to your computer. The Synchronization Setup
Wizard automatically starts and guides you to create a synchronization

partnership. Click Next to proceed.

2. To synchronize your device with your computer, clear the Synchronize
directly with a server running Microsoft Exchange check box, and then
click Next.

3. Select the information types that you want to synchronize, then click
Next.

4. Select or clear the Allow wireless data connections check box
according to your preference.

5. Click Finish.

Trimble Site Mobile

User Manual

37

When you finish the wizard, ActiveSync synchronizes your device automatically.
Notice that Outlook e-mail messages and other information appear on your
device after synchronization.

4.3 Synchronizing with your computer

Connect your device to your PC to synchronize the information between your
device and PC. While your device is connected, ActiveSync (or Windows Mobile
Device Center on your PC) synchronizes every time you make a change on either
the PC or your device.

Starting and stopping synchronization

You can manually synchronize either from your device or computer.

From your device:

1. Click > ActiveSync, and then click Sync.

2. To end synchronization before it completes, click Stop.

TIP: To delete a partnership with one computer completely, disconnect your
device from that computer first. In ActiveSync on your device, tap Menu >
Options, select the computer name, then tap Menu > Delete.

From Windows Mobile Device Center:

1. Click > All Programs > Windows Mobile Device Center.

2. Click at the lower left of the Windows Mobile Device Center.

3. To end synchronization before it completes, click .

From ActiveSync on your computer:

When you connect your device to your computer, ActiveSync automatically
opens on your computer and synchronizes.

1. To manually start synchronization, click .

2. To end synchronization before it completes, click .

Trimble Site Mobile

User Manual

38

Selecting information to synchronize

You can change the information types and the amount of information to
synchronize for each type either on your device or your computer. Follow the
steps below to change synchronization settings on your device.

Before changing synchronization settings on your device, disconnect it from your
computer.

NOTE: It is not possible to set ActiveSync Options if your device has not yet
synchronized with your PC.

1. In ActiveSync on your device, tap Menu > Options.

2. Select the check box for any items you want to synchronize. If you
cannot select a check box, you might have to clear the check box
for the same information type elsewhere in the list.

3. To change synchronization settings for an information type, for
instance, E-mail, select it and tap Settings.

4. You can then set the download size limit, specify the time period
of information to download, and more.

Some information types such as Favorites, Files and Media cannot be selected in
ActiveSync Options on your device. You can only select or clear these items from
your computer’s Windows Mobile Device Center or ActiveSync.

A computer can have sync partnerships with many different Windows Mobile
powered phones, but a phone can have sync partnerships with at most two
computers. To ensure that your device will synchronize properly with both
computers, set up the second computer using the same synchronization settings
you used on the first computer.

Outlook e-mail can be synchronized with only one computer.

Troubleshooting sync connection problems

Trimble Site Mobile

User Manual

39

In some cases, when the computer connects to the Internet or a local network, it
may disconnect the connection with your device in favor of the Internet or
network connection.

If this happens, on the device, click > Settings > Connections > USB to PC,
then clear the Enable advanced network functionality check box.

Trimble Site Mobile

User Manual

40

Chapter 5 Using the Phone

NOTE: Not all Trimble Site Mobile models feature a GSM phone and WWAN
feature. This section applies to the T41 X models only. Do not place a SIM card in
T41 C or T41 M models.

Before using the phone feature, purchase a GSM cellular voice or data plan
from a GSM cellular service provider.

You can use Phone to make phone calls, set up speed dials, keep track of calls,
and send SMS messages just like the standard features of a mobile phone. Also,
there are several dialing features unique to your device. For example, you can
take notes while talking, dial directly from Contacts and easily transfer contacts
between your SIM card and the storage of your device.

The Phone screen lets you open, call, or find a contact, or save a new number in
Contacts. To open the Phone screen, tap the phone option on the Home screen,

or tap > Phone.

5.1 Making a call

You can make calls from the Phone screen, from Contacts screen, from Speed
Dial and from Call History.

Making a call from the Phone screen

1. Open the Phone screen.

Trimble Site Mobile

User Manual

41

2. Enter the phone number by tapping numeric buttons on the screen.

3. Tap the Back icon( ) if you need to delete a number.

4. Tap Talk ( ) to begin the call.

TIP: When you tap a key on the on-screen keypad, a list of names and numbers is
displayed as your device searches Contacts, Call History, and Speed Dial to find a
matching name or number. The next key you tap continues to narrow the search.
When you see the name of the person you want to call, tap it and tap Talk (

).

Making a call from Contacts

1. > Contacts.

Trimble Site Mobile

User Manual

42

2. Select the desired contact.

3. Select the number to call, and then tap .

Making a call from Call History

1. Open the Call History screen (from the phone screen).

2. Select the number to call, and then tap .

Making an international call

Tap and hold the 0 (Zero) key on the keypad until “+” symbol appears.

Enter the full phone number you want to dial, and tap Talk ( ). The full
phone number includes the country code, area code (without the leading zero, if
any), and phone number.

Making an emergency call

Enter the emergency number for your locale and then tap the Talk ( ).

5.2 Receiving and ending a call

When you receive a phone call, an incoming call message appears on the screen
and you are given the option to answer or ignore it.

Trimble Site Mobile

User Manual

43

 To answer the call, tap
 To reject the call, tap

TIP: To adjust the in-call volume, press the VOLUME ＋ / － button on the left
side of the device.

Ending a call

When a call is in progress, tap the End button to hang up.

5.3 Speed dial

You can create speed dial entries for frequently-called numbers so you can dial a
number by tapping a single key.

Using speed dial

1. Tap > Contacts.

2. Select a contact to view the contact details.

3. Select the desired phone number and tap Menu ( ) > Add to
Speed Dial.

4. Specify the Name, Number, and Location assignment of the Speed
Dial entry.

5. When done, tap OK.
NOTE: The first speed dial location is generally reserved for your

voicemail. Speed Dial uses the next available location by default. If you

Trimble Site Mobile

User Manual

44

want to place a number in a location that is already used, the new
number replaces the existing number.

6. If you have assigned a speed dial (for example, the number 2 key) to a
contact in Speed Dial, you can simply tap and hold the 2 key to dial the
contact’s number.

5.4 Working with WWAN (mobile data service)

After purchasing a data connection plan from your local GSM cellular provider,
you can communicate from field to office, send e-mail messages and send text
messages.

You will need a SIM card from your provider, and you should install it per the
instruction in chapter 1.2 Inserting the storage card and the SIM card.

NOTE: When browsing the internet using the cellular connection, you must turn
off the Wi-Fi (802.11) or the device will default to the Wi-Fi to browse.

CAUTION:

 DO NOT use your device while driving a moving vehicle.
 When you are on an airplane, in a medical facility or at other facilities

where wireless communication devices are not allowed, access the
Power Menu to Enable Airplane mode. Simply pressing the
POWER button off to put the device in Sleep mode does not turn off
these communication radios.

5.5 Working with CellStart

Follow the instructions below to use CellStart to configure the cellular data
connection.

1. Tap > CellStart. (You may need to tap OK to agree to the terms to
open the program.) Under Available Settings, tap the [+] by your
country to expand carriers.

2. Tap the [+] by the carrier you have signed up with and highlight Typical
and tap New. (If using multiple configuration settings, you can tap on the
primary setting and tap Default.)

Trimble Site Mobile

User Manual

45

3. Ensure the phone is turned on. Tap > Settings > Connections >
Wireless Manager > Phone.

4. Test the settings by tapping > Internet Explorer and then browse to
a web page. The phone will automatically open a data connection when
you try to open a web page.

5. If the phone will not connect, try other settings before calling the carrier
technical support.

6. You can also manually change modem settings by tapping >
Settings > Connections > Connections.

7. NOTE: Once connected, G (GPRS) or E (EDGE - a faster form of
GPRS) or H (HSDPA) will automatically appear in the notification bar
depending on the network capabilities in that area; some service
providers may only provide GPRS.

Removing cellular data settings

1. Tap > CellStart.

2. Tap Refresh to see the current list of configurations.

3. Select the configured data setting you wish to remove.

4. Tap Remove and OK.

NOTE: After removing a default configuration, the top setting will become the
new default.

To access the detailed settings for each configuration, tap Menu > Open
Connections Applet to change the modem connections.

5.6 Customizing your phone

Tap > Settings > Personal > Phone. The SIM card must be installed and the
phone turned on to view the settings.

Sounds: Tap to make changes.

 Phone Number: The SIM card phone number is displayed.
 Ring type, Ring tone and Keypad sounds: Choose the sounds you

want for text messaging notifications.

Trimble Site Mobile

User Manual

46

Security: A PIN can be set or changed to block unauthorized access to your
phone connection.

Services: Settings can be changed for Call Barring, Caller ID, Call Forwarding,
Call Waiting, Fixed Dialing and Voicemail and Text Messages.

Network: Find and set your preferred networks.

Version: View the RIL, MUX, RHA and AUD versions, as well as the
Manufacturer, Model and Revision number of the WWAN module.

Info: Information about your phone hardware ID number, current signal

strength, cell tower ID number and more.

 IMEI: The unique number that identifies the phone module that is

embedded in the device. (If you purchase a SIM card separately, the
phone service provider may want your IMEI number. It is located on
this screen.

 IMSI and ICCID: Unique numbers embedded on the SIM card.
 Signal Strength, Cell ID, Location Code and Network Code are

also listed under the info tab.

Band: Leave all the settings selected unless you are instructed by Technical
Support to make an adjustment.

5.7 Browsing the Internet

Tap > Internet Explorer, and enter the address of a web site.

Internet Sharing

The Internet service from your device can be shared with a computer. Tap >
Internet Sharing. You can connect either through USB or Bluetooth.

5.8 SMS messages

You can send a SMS (short message service) in much the same way as a typical
mobile telephone. Each SMS text message can contain a maximum of 160
characters or less, depending on your service provider.

To send a message from the Home screen, tap text > Compose.

Trimble Site Mobile

User Manual

47

To send a message from the Start screen, tap Text > Menu > New.

5.9 Sending and receiving e-mail

E-mail setup: Tap > E-mail > Setup E-mail. Follow instructions to set up the
email service. You can synchronize with a POP Mail server, or with a Microsoft
Exchange® server.

Sending and receiving messages: Tap > E-mail and select an email account.
Tap New to compose a message and tap Send. Input the contact information.
Depending on your account settings, your device will check for new e-mail
periodically. You can force a download of new messages, by tapping Menu >
Send/Receive.

Trimble Site Mobile

User Manual

48

Chapter 6 Using Additional Hardware
Features

6.1 Flashlight

The dual LEDs for the camera flash can also be used as a flashlight. Tap >
Flashlight to toggle the Flashlight on and off.

6.2 Assigning Buttons (hardware buttons)

Tap > Settings > Personal > Buttons. Under Program Buttons, your favorite
programs can be assigned to several of the device buttons. The list of assignable
buttons is shown on the left hand side with the program that is assigned by
default on the right. To reassign a button, select the button in section 1 and
change to the desired program or action from the pull-down list in section 2.

You can customize the way your Up/Down control repeats by changing the
settings under the Up/Down Control tab.

CAUTION: Assigning a button to activate a program may disable the use of that
button for specific uses in other programs. For example, if the ACTION button is
assigned to open a specific program, it will no longer trigger the camera
application to capture an image.

6.3 Compass Calibration

To re-calibrate the compass, tap > Settings > System > Compass Calibration.
Follow the instructions on the screen.

1. Set the device on a level surface and tap Calibrate.

2. Wait 3 seconds and then turn the device around, spinning it on its back
without lifting or tilting the device. Complete at least a full rotation in 10
seconds.

Trimble Site Mobile

User Manual

49

3. Repeat as necessary if the calibration fails.

6.4 Working with Bluetooth

If your device comes with built-in Bluetooth capability, you can wirelessly
transmit data to and from your device by connecting to available Bluetooth
enabled devices. To find out if you have Bluetooth installed in your device, tap

> Settings > System > System Information > Wireless.

Bluetooth capability is a short-range wireless communication technology that
exchanges information (beam) over a distance of up to 30 feet (10 meters)
without requiring a physical connection.

Bluetooth settings: tap > Settings > Bluetooth.

Mode: To enable Bluetooth, select the check box Turn on Bluetooth. If you want
other Bluetooth devices to find your device, also check the Make this device
visible to other devices checkbox.

Devices: Tap Add new device to search for other Bluetooth devices. For

enhanced security, use passcodes.

COM Ports: Available only for Bluetooth-connected devices that support serial
(COM) connections.

Wake Settings: Allow Bluetooth activity to turn the device on. When this check
box is selected, another Bluetooth device can send data and your device will turn
on and reply if necessary, but only if Bluetooth is enabled.

NOTE: It is recommended that your device be configured to automatically turn
off when not in use. Otherwise, another Bluetooth device could turn on your
device, transfer data and if Trimble Site Mobile does not turn off again, drain the
battery.

Receiving Beams: To allow the device to receive incoming beams, tap >
Settings > Connections > Beam to open the Beam screen. Check the Receive all
incoming beams checkbox and tap OK.

Trimble Site Mobile

User Manual

50

Creating a Bluetooth Partnership: Bluetooth partnerships are required for
connections to some PC’s, printers, and headphones.

Configuring Bluetooth connections vary depending upon how each Bluetooth
device works. Refer to all device documentation.

1. Tap > Settings > Bluetooth > Mode. Ensure that both devices
have Bluetooth turned on in the Mode area, are visible and within close
range.

2. Tap Devices > Add new device… Wait a few moments while your
device searches for Bluetooth devices.

3. Tap the name of the other Bluetooth device and tap Next. For enhanced
security, use passcodes. Enter the same passcode on the other device.

4. Under Advanced, you can change the name of the other device and
add additional services, if available. Tap Save.

Creating a Bluetooth connection with a PC:

1. Ensure that your PC has connectivity software installed and has
Bluetooth hardware.

2. Set up a partnership between your device and the PC. Refer to your PC
documentation for instructions.

3. Once shown, select the PC from the Device list and tap Next.

4. Enter the passcode, if necessary and tap Next.

5. Confirm that ActiveSync service is available and place a check in the
check box and tap Finish.

6. Tap > ActiveSync > Menu > Connect via Bluetooth.

Bluetooth-enabled headphone: You can use Bluetooth stereo headphones
(A2DP) or a Bluetooth headset (HFP/HSP). Any Bluetooth audio device
supporting the A2DP, HFP, or HSP profiles should be compatible. Many
Bluetooth headphones do not require a passcode to pair with your device.

Troubleshooting Bluetooth connection problems: If your device cannot find
another Bluetooth device, confirm that the device is within range (less than 30
feet / 10 meters) and no large objects obstruct the path of other

Trimble Site Mobile

User Manual

51

Bluetooth-enabled devices. Confirm that the device is turned on and has been
configured to be discoverable.

6.5 Working with Wi-Fi

If your device comes with built-in Wi-Fi capability, you can wirelessly transmit
data to and from your device by connecting to available access points or hot

spots. To find out if you have Wi-Fi installed in your device, tap > Settings >
System > System Information > Wireless.

The Wi-Fi is off by default; however the on/off state will persist after a reset. To
turn the Wi-Fi on or off, do one of the following procedures:

 Touch the Title bar, tap the Connectivity icon and tap Wireless

Manager to open the Wireless Manager screen, and tap Wi-Fi.

 Tap > Settings > Connections > Wireless Manager and tap

Wi-Fi.

Once the Wi-Fi is turned on, it detects the wireless networks in the vicinity and
gives you the option to connect to one. Turn Wi-Fi off when not in use to save
battery power and possibly speed up other processes.

1. Wi-Fi by default is off. Tap Wi-Fi on the Wireless Manager screen to
enable Wi-Fi as necessary.

2. After a few seconds, a Multiple Networks Detected or Network Detected
pop-up window appears.

3. Tap the network to connect to and tap OK.

4. If the network requires authentication, the Network Log On dialog will
open. For networks that require network keys, enter the network key
into the dialog box and tap Connect to begin using the network.

Trimble Site Mobile

User Manual

52

5. Under Network Adapters tab, changes can be made to what your
network card connects to and to modify adapter settings.

To update Wi-Fi connection settings:

1. On the Wireless Manager screen, tap Menu > Wi-Fi Settings.

2. Tap the name of the network to update the settings for.

3. The Configure Wireless Network wizard appears. Update settings
and tap Next as needed to progress through the wizard.

4. Tap Finish to close the wizard and save the settings.

NOTE: If your device is connected to a PC that is connected to the Internet, the

device will use the PC’s Internet connection and Wi-Fi will not appear on the

Wireless Manager screen. You may allow the simultaneous use of the PC and the
Wi-Fi module by doing one of the following:

 In the ActiveSync software on your PC, select File > Connection

Settings and check the Allow wireless connection on the device
when connected to the desktop checkbox.

Trimble Site Mobile

User Manual

53

 In Windows Mobile Device Center software on your PC, click Mobile

Device Settings > Connection Settings and check the Allow data
connections on device when connected to PC checkbox.

Using ActiveSync via Wi-Fi

Exchange ActiveSync, a component of Exchange Server, facilitates data
synchronization between your device and an Exchange server. This
synchronization can occur over a network connection, allowing you to update
calendars, contacts, tasks and the Inbox on your device without directly
connecting to a PC. The server must be running Exchange Server 2003 SP2 or
later.

To use Exchange ActiveSync, confirm with your system administrator that an
Exchange Server is available. The administrator will provide you with a login
name, password, server name, and domain name. To configure Exchange
ActiveSync on your device:

1. Tap > ActiveSync > Menu > Add Server Source.

2. Enter your email address and tap Next.

3. Enter the User name, Password and Domain and tap Next.

4. The Automatic Configuration dialog will appear while the device
attempts to connect to Exchange Server. If the system encounters
difficulty, follow the directions of the dialogs that appear, such as the
Edit Server Settings dialog.

5. Choose the data types you want to synchronize and tap Finish. Enter
the server address and confirm with your administrator whether the
Exchange server requires an encrypted (SSL) connection. Tap Next.

Troubleshooting Wi-Fi connection problems: If the device seems to be
connected to the network, but you are having difficulty using the network

connection, tap > Settings > Connections > Wi-Fi. The Network Cards
window will open and allow you to confirm that the connection is appropriately
configured as either a Work or Internet connection. If you are unable to connect

Trimble Site Mobile

User Manual

54

to a network, try connecting to another network without any security, such as a
Wi-Fi hotspot, to determine if the issue is the hardware or the network.

Using the Summit Utilities

The Trimble Site Mobile software includes a Wi-Fi connection management and
monitoring utility called the Summit Client Utility (SCU). SCU allows you to view
all radio and security settings, and status; and enables you to troubleshoot
connectivity issues.

The SCU software is useful for establishing network connections on networks
that require more complex settings than the Configure Wireless Network wizard
provided in the Windows Embedded Handheld operating system.

For more information how to use the SCU, please visit:

http://www.summitdata.com/documentation.html and click on the User’s

Guide.

Accessing the Summit Client Utility

To access SCU, tap > Settings > Connections > Wi-Fi. The Summit Client
Utility window appears.
NOTE: There are two icons labeled Wi-Fi.

Trimble Site Mobile

User Manual

55

SCU has five tabs which may be accessed from the top of the screen:

 Main
 Profile
 Status
 Diags (for troubleshooting)
 Global

To view a tab, tap the tab bar at the top of the screen, or slide your finger left or
right to view the next tab.

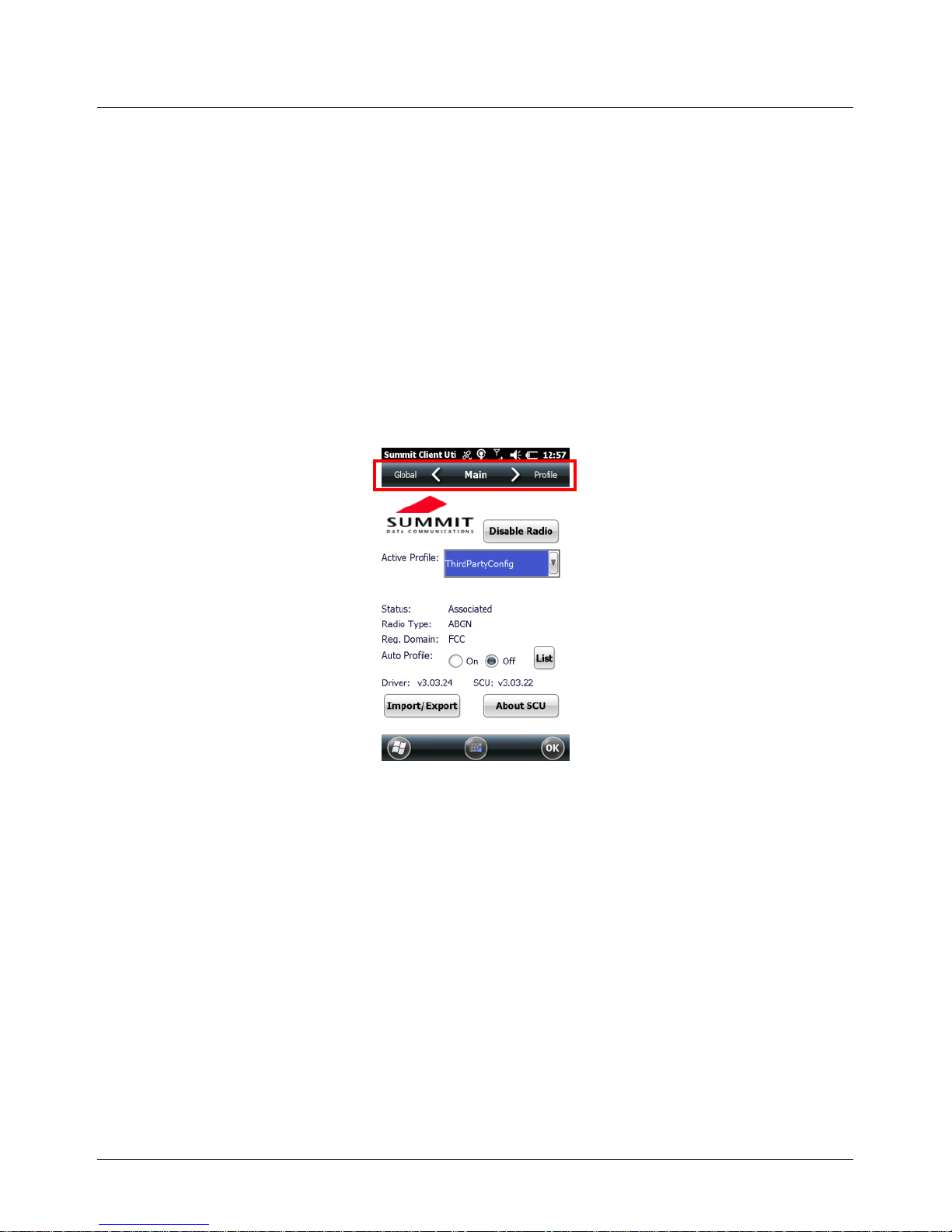

Main Window

The Main window provides an overview of the current wireless network
connection configuration (Active Profile), a snapshot of connection information,
and additional information regarding SCU (About SCU). You can also import and
export settings configurations, which is useful if you have multiple devices to
configure to access your local networks.

Trimble Site Mobile

User Manual

56

Profile Window

Profile settings are radio and security settings that are stored for each
configuration profile. Tap New to create a new Profile and enter in the necessary
connection settings for a Wi-Fi network access point. Scroll down to find the
Commit button to save changes to the Profile.

Status Window

The Status window provides status information on the radio connection between
the client device and the associated access point.

Trimble Site Mobile

User Manual

57

Diags Window

The Diags window enables you to troubleshoot connection issues with SCU.

Global Window

Global settings include radio and security settings that apply to all profiles and
settings managed by SCU.

Trimble Site Mobile

User Manual

58

6.6 Working with the Camera

If your device comes with the built-in camera, you can capture photos and

videos. To find out if you have a camera installed in your device, tap >
Pictures & Videos. If you see the Camera icon, your device has the camera
feature.

To capture pictures and videos, open the camera application:

1. Tap > Pictures & Videos.

2. Tap the Camera icon or the Camera tile, or press the LEFT button to
activate the Camera tile.

Trimble Site Mobile

User Manual

59

The camera application starts and soon displays a camera preview on the entire
display screen. The camera will be in either in Portrait or Landscape mode as per
the camera settings or according to the device orientation. The Title bar and Tile
bar will not be visible.

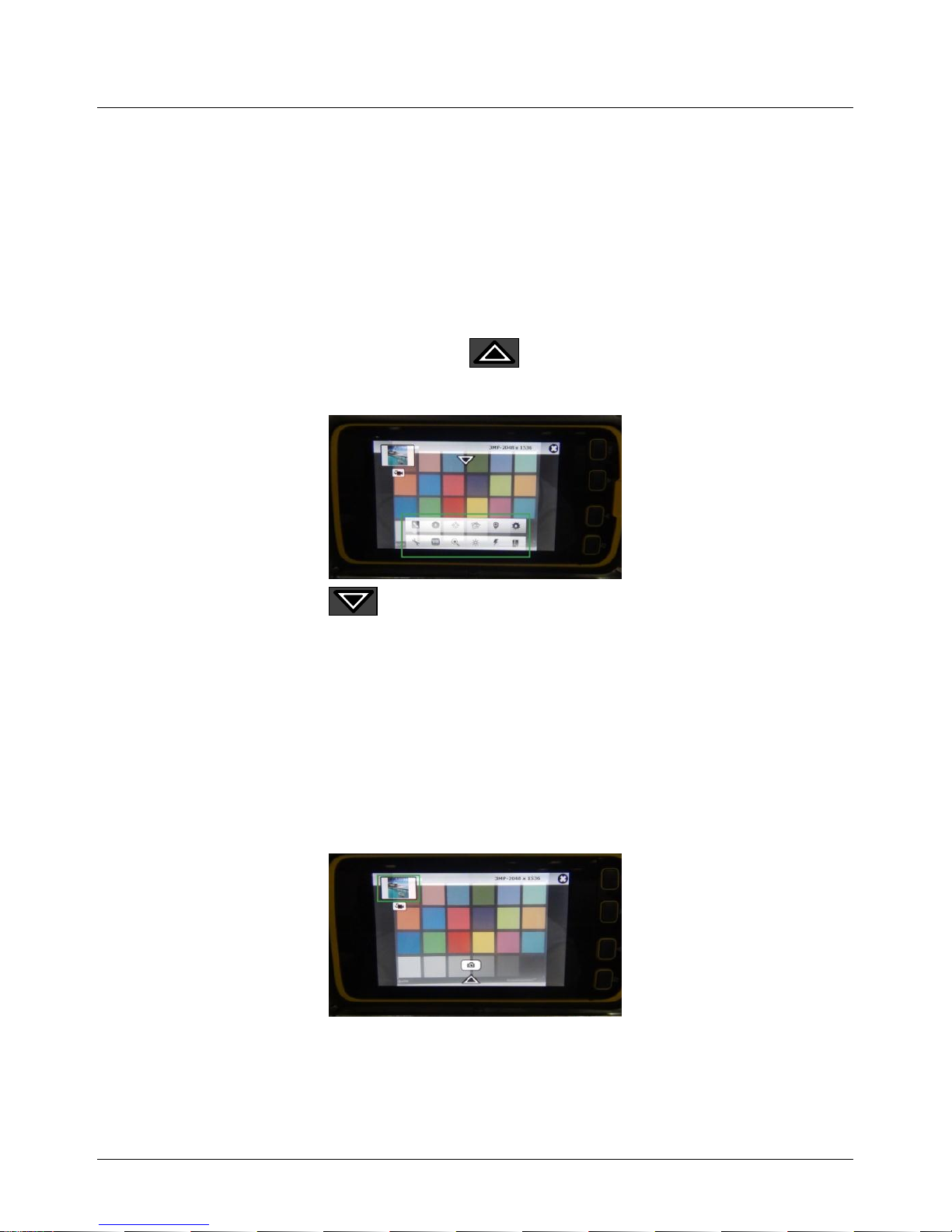

User Interface

A tap on the preview screen shows the camera application interface buttons

over the preview. Tap on the up arrow ( ) to display the pop-up menu
system and to access various camera features and settings.

Tap on the down arrow ( ) to exit the menus.

Thumbnail Window

A thumbnail image is shown on top of the preview screen. This is the most
recent image captured using the camera application. Tap on the thumbnail to
return to Microsoft Pictures & Videos window and display a thumbnail preview
of saved image and video files.

Capturing Images

Trimble Site Mobile

User Manual

60

If preview not focused, a quick double-tap on the preview screen focuses the
image (if focus is enabled in settings menu). Focus success is indicated by a green
box displayed at center of the screen.

The image can be captured after this by tapping on the Camera icon ( )
when the user interface is viewable on the image preview. You can also use the
ACTION button to trigger the image capture.

Captured images are saved with the file extension of .JPG.

Capturing Videos

The camera application will switch from image mode to video mode by
tapping the video icon ( ) below the thumbnail window. In video mode,

the similar icon is used to switch to Image mode.

A tap of the capture/record button ( ) will start capturing the video.

Captured video files are saved with the file extension of .WMV.

Closing application

To close the camera application, tap on the close (X) mark at the top right corner
of the preview or press the OK button.

Image Camera Application Features

Trimble Site Mobile

User Manual

61

Tap on the up arrow ( ) to display the pop-up menu system to access various
features and settings. The features and settings are described below.

White Balance ( )

A tap on the White Balance icon, displays the following options.

 Auto: Select this option to adjust the White Balance automatically

while taking pictures and videos in different lighting conditions.

 Sunny: Select this option when taking pictures and videos in full

sunlight.

 Incandescent: Select this option when taking pictures and videos in

places lit with Incandescent lighting.

 Fluorescent: Select this option when taking pictures and videos in

places lit with Fluorescent lighting.

Selection of any option applies that setting to camera preview and to images
captured.

Zoom Levels ( )

A tap on the Zoom icon displays the levels of digital zoom supported by camera
application.

 1.0x [Minimum Zoom]
 1.5x
 2.0x
 2.5x
 3.0x
 3.5x
 4.0x [Maximum Zoom]

Selection of any option applies that setting to camera preview and to images
captured.
NOTE: The Image Tagging of date-time and GPS on the image is not compatible
with a Digital Zoom setting other than 1.0x. The EXIF tagging is not affected by
Digital Zoom.

Trimble Site Mobile

User Manual

62

Brightness ( )

A tap on the Brightness icon enables adjustment of the Brightness offset.

 +3 [Maximum Brightness]
 +2
 +1
 0 [Normal Brightness]
 -1
 -2
 -3 [Minimum Brightness]

Selection of any option applies that setting to camera preview and to images
captured. Increase the Brightness if the subject is underexposed, or decrease
the Brightness if the subject is overexposed. A common situation requiring
adjustment to Brightness is capturing a scene with high contrast caused by
direct exposure of light sources or areas of shading or shadows.

Flash Settings ( )

A tap on the Flash Settings icon displays the following options.

 On: Selection of this option enable the flash icon ( ) on the screen

and dual LEDs will flash while capturing images.

 Off: Selection of this option disables the LED flash.
 Auto: Selection of this option enable the LEDs to flash if needed to

illuminate the scenes with low-light. The auto flash icon ( ) will
display on the screen.

Image Quality ( )

A tap on the Image Quality icon displays the following options.

 Economy: Select this option should save the captured image with

low quality (high compression).

 Normal: Select this option should save the captured image with

medium quality (medium compression).

Trimble Site Mobile

User Manual

63

 Fine: Select this option should save the captured image with good

quality (low compression).

 Super Fine: Select this option should save the captured image with

very good quality (very low compression).

Images will be stored with the selected quality and the file size of the
image increases as quality increases.

Camera Settings ( )

A tap on the Settings icon displays the sub menu which has Still Resolution,
Storage Selection, Focus, Image Review, Image Tagging and Application
Settings. These sub menu options are explained in further detail below.

Still Resolution

The still image resolution displays on the top right corner of the preview
window when the camera user interface is visible.

Two aspect ratios are available on the Trimble Site Mobile:

 4:3
 5:3

4:3 ( )

The 4:3 image resolutions available are:

 1.3MP - 1280x960
 3MP - 2048x1536
 5MP - 2560x1920
 8MP - 3264x2448

Select the desired image resolution.

5:3 ( )

The 5:3 image resolutions available are:

 WVGA - 800x480
 WXGA - 1280x768
 2.4MP - 2000x1200

Trimble Site Mobile

User Manual

64

 3.9MP - 2560x1536
 6MP - 3264x1960

Select the desired image resolution.

Storage Select ( )

Tap on the Storage Select icon to display the following options:

 Main Memory: Save images to the on-board storage.
 SD Card: Save the images to the microSD card. This item is not

selectable if no microSD card is installed.

Focus ( )

Tap on the Focus icon to display the following options.

 Enable: This enables the Auto Focus feature, which is activated with

double-tap on the image preview.

 Disable: This disables the Auto Focus feature.

Image Review ( )

A tap on the Image Review icon will display the following options.

 2 Seconds: The captured image is displayed for 2 seconds.
 3 Seconds: The captured image is displayed for 3 seconds.
 User Prompted: The captured image is displayed until the user

indicates to delete or save the image. See below for further
information.

 Off: The captured image is not displayed. This mode is useful for

capturing images as quickly as possible.

Image Tagging ( )

Image tagging is the capture of date, time and location data on your images. The
data may be stored in the EXIF data or both the EXIF data and on the visible
image.
A tap on the Image Tagging icon will display the following sub menu and
options.

Trimble Site Mobile

User Manual

65

 Date

Date Source:

 Device Date-Time: Fetch the date-time from the device real-time clock.
 GPS Date-Time: Fetch the current GPS date-time.

NOTE: If the current GPS time is not available (due to lack of GPS
signal), the Device Date-Time is used.

Stamp Settings:

 EXIF: Store the date-time information as EXIF data.
 EXIF & Stamp: Store the date-time information as EXIF data and

embedded on the visible image.

 Off: Do not store date-time information.

 GPS

Format:

 Deg/Min/Sec: Format in Degrees, Minutes, Seconds.
 Decimal Degree: Format in Degrees with decimal precision.

Stamp Settings:

 EXIF: Store the location information as EXIF data.
 EXIF & Stamp: Store the location information as EXIF data and

embedded on the visible image.

 Off: Do not store date-time information.

APP Settings ( )

Tap on the APP Settings icon to display a sub menu with the options described
below.

 UI Orientation

 Rotation on Tilt: Enable the automatic rotation of the camera user

interface based on device orientation/tilt.

 Fixed Landscape: Lock the camera application in landscape mode.
 Fixed Portrait: Lock the camera application in portrait mode.

Trimble Site Mobile

User Manual

66

NOTE: This option only applies to the image capture and does not apply
to video capture, which is only available in fixed landscape mode.

 Sounds

 Enable: This option enables the beep sound while focusing and click

sound for capturing the images.

 Disable: This option disables the sound while focusing and capturing

the images.

 Modify Prefix

Select the Modify Prefix option to display the prefix window enabling you
to edit the prefix of Image and Video files. By default, Image files append
with prefix IMG and video files append with VID.

The file is saved with a name that is auto generated with the prefix
followed by a four digit number. The number is sequential.

Image Delete and Switch to Camera in Image review mode

When the Image Review mode is User Prompted, the camera application will
display the capture image and show two icons.

 DELETE ( )

Tap the delete icon to delete the image from the storage.

 CAMERA ( )

Tap the camera icon to save the image and return to image preview mode.

Video Camera Application Features

Tap on the up arrow ( ) to display the pop-up menu system to access various
features and settings. The features and settings are described below.

Many of the settings for image capture are the same for video capture, and
these include White Balance, Brightness and Focus. Settings unique to video
recording are as follows:

 Audio settings ( )

Tap the Audio Settings icon to display the following options:

Trimble Site Mobile

User Manual

67

 Enable: Audio capture from the MICROPHONE is enabled while

recording.

 Disable: The video that is recorded does NOT include any sound from

the MICROPHONE.

 Video Settings ( )

 Resolution ( )

Tap the Video Resolution icon to display the following options:

 QVGA - 320x240
 VGA - 640x480
 WVGA - 800x480

Selection of any option applies that setting to camera preview and to
videos captured.

 Storage Select ( )

Tap the Storage Select icon to display the following options:

 Main Memory: Save videos to the on-board storage.
 SD Card: Save the videos to the microSD card. This item is not

selectable if no microSD card is installed.

 Video Review ( )

Tap the Video Review icon to display the following options:

 On: If selected, the video review mode is enabled. After video capturing

is completed, video review window enables the user to review the
capture video by playing it back. Also, DELETE and VIDEO icons are

enabled in the review window. A tap on the Delete ( ) icon, will
delete the video file and return to the video preview window. A tap on

the Video ( ) icon will save the video file and return to the video
preview window.

Trimble Site Mobile

User Manual

68

 Off: If selected, the video review feature is disabled. The application

will return to the preview window after capturing the video and storing
the video file.

 Pause Time-out ( )

Tap the Pause Time-out icon to display the following options:

 10 seconds
 20 seconds
 60 seconds
 Disable

Select an option to specify the timeout duration of the PAUSE feature
while recording.

While recording has the option to be STOPPED (and saved) or being
PAUSED and continued. If paused, the video recording pauses for the
selected time-out. Then the pause icon changes to a record icon,
enabling the user to resume recording. The Stop icon ends the
recording and saves the video file.

Trimble Site Mobile

User Manual

69

6.7 Working with GPS

Tap > Settings > System > System Information > Wireless to see if your
device has GPS installed. COM2 is the dedicated hardware port for the built-in
GPS (COM1 is dedicated to the external 9-pin).

The GPS is compatible with applications that accept the NMEA position
information using a default baud rate of 38400.

GPS settings:

If you are using only one GPS-aware application, these settings do not need to be

changed. However, to use multiple GPS-aware applications, tap > Settings >
System > GPS and select the following tabs:

 Access: The GPS Intermediate Driver (GPSID) allows multiple

applications to access the GPS receiver. If the check box is
unchecked, the GPSID is disabled.

 Hardware: COM2 is the hardware port dedicated for the built-in

GPS. Verify that COM2 is selected. The internal GPS
communicates at 38400 baud by default. If it has been modified by a
third-party program, adjust to match the receiver baud rate.

 Programs: Programs that use GPS need to know which COM port to

use to access GPS data. When using more than one GPS-aware
application, the same GPSID port must be used in each application.
Ensure that the COM port on the GPS-aware application(s) is set to
the same GPSID port as shown in the Programs tab of the GPS
applet. The program port must be a different port than the hardware
port. By default, the GPS program port is COM3 and should not be
modified unless directed by Technical Support.

NOTE: Some GPS-aware applications may not communicate over GPS program
ports.

Exiting GPS applications

Trimble Site Mobile

User Manual

70

Any time you exit a GPS application (such as SatViewer) it is advisable to close
the port gracefully, e.g. tap Disconnect from GPS and then exit the application.
Failure to do so may leave the port open and hinder the next GPS operation.

6.8 SatViewer

SatViewer provides information such as your current longitude, latitude,
elevation, how many GPS satellites are visible and the quality of the computed
coordinates.

To open SatViewer, tap > SatViewer. To begin monitoring GPS satellites, tap
the GPS tab and the Connect to GPS button.

NOTE: External GPS receivers, Bluetooth GPS receivers or other external GPS
devices are not supported and may not work correctly with SatViewer.

6.9 Battery Logger

The battery logger is useful for monitoring battery performance under certain
user scenarios or to check if the battery has a performance issue.

To run the Battery Logger, tap > File Explorer. In the Windows folder, find
batlog and tap it to start the program. Tap File > Start Battery Logging. The
software will prompt you to specify where to log the data file.

The program analyzes and logs the following information about the battery:

Trimble Site Mobile

User Manual

71

- Charge cycles begun and % capacity at initiation

- Charge cycles fully completed

- Aborted charge cycles and % capacity at termination

- Provide notification when the number of charge cycles reaches 90% of the
max

Trimble Site Mobile

User Manual

72

Appendix A: Regulatory Compliance

U.S.A. - FCC Statement

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:

–Reorient or relocate the receiving antenna.

–Increase the separation between the equipment and receiver.

–Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

–Consult the dealer or an experienced radio/TV technician for help.

Exposure to Radio Frequency (RF) Signals

Your device contains a radio transmitter and receiver. The radiated output
power is far below the international radio frequency exposure limits. These
limits are part of comprehensive guidelines and establish permitted levels of RF
energy for the general population. The guidelines are based on the safety
standards previously set by international standards bodies:

 American National Standards Institute (ANSI) IEEE. C95.1-1992.

Trimble Site Mobile

User Manual

73

 National Council on Radiation Protection and Measurement

(NCRP). Report 86. 1986.

 Int’l Commission on Non-Ionizing Radiation Protection (ICNIRP)

1996.

 Ministry of Health (Canada), Safety Code 6. The standards

include a substantial safety margin designed to assure the safety
of all persons, regardless of age and health.

SAR: 0.545w/kg

Use of unauthorized or modified antennas may impair call quality and damage
the phone, causing loss of performance. To assure optimal phone performance
and ensure human exposure to RF energy is within the guidelines set forth in the
relevant standards; always use your device only in its normal-use position.

Avoiding contact with the antenna area when the phone is IN USE optimizes the
antenna performance.

Telecommunications & Internet Association (TIA) information

Hearing Aids: Some digital wireless phones may interfere with some hearing
aids. In the event of such interference, you may want to consult your wireless
service provider, or call customer service to discuss alternatives.

Pacemakers and Other Medical Devices: The Health Industry Manufacturers
Association recommends a minimum separation of six inches be maintained
between a handheld wireless phone and a pacemaker to avoid potential
interference with the pacemaker. These recommendations are consistent with
the independent research by and recommendations of Wireless Technology
Research. Persons with pacemakers should use the ear opposite the pacemaker
to minimize the potential for interference. Persons with pacemakers should
exercise great caution if using a hands-free device such as a headset, as these
persons may be at greater risk of the device not maintaining the recommended

Trimble Site Mobile

User Manual

74

minimum six inches of separation from the pacemaker. If you have any reason to
suspect that interference is taking place, turn the phone OFF immediately.

If you use any other personal medical device, consult the manufacturer of your
device to determine if they are adequately shielded from external RF energy.
Your physician may be able to assist you in obtaining this information.

Turn the phone OFF in health care facilities when any regulations posted in these
areas instruct you to do so. Hospitals or health care facilities may be using
equipment that could be sensitive to external RF energy.

Canada Compliance, Industrie Canada (IC)

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de classe B est conforme à la norme NMB-003.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.

Cet appareil est conforme avec Industrie Canada RSS standard exempts de licence (s).

Son fonctionnement est soumis aux deux conditions suivantes:

(1) cet appareil ne peut pas provoquer d'interférences et

(2) cet appareil doit accepter toute interférence, y compris les interférences pouvant

entraîner un mauvais fonctionnement de la appareil.

RF Radiation Exposure Statement:

For body worn operation, this phone has been tested and meets RF exposure guidelines
when used with an accessory that contains no metal and that positions the handset a
minimum of 1.5 cm from the body.

Use of other accessories may not ensure compliance with RF exposure guidelines.

Trimble Site Mobile

User Manual

75

Déclaration de l'exposition aux radiations RF:

Pour le fonctionnement du corps, ce téléphone a été testé et répond aux directives
d'exposition RF lorsqu'il est utilisé avec un accessoire qui ne contient pas de métal et qui
place le combiné d'un minimum de 1.5 cm du corps.

Utilisation d'autres accessoires peut ne pas assurer le respect des directives d'exposition
RF.

RoHS Statement

This device conforms to RoHS (Reduction Of Hazardous
Sub-stances) European Union regulations that set
maximum concentration limits on hazardous materials
used in electrical and electronic equipment.

CAUTION: RISK OF EXPLOSION IF BATTERY IS DISPOSED OF INCORRECTLY.
DISPOSE OF THE DEVICE AND THE BATTERY ACCORDING TO INSTRUCTIONS FOR
ELECTRONIC WASTE.

European Conformity Statement

Declaration of Conformity with Regard to the R&TTE 1999/5/EC and EMC 89/336/ EEC
directives.

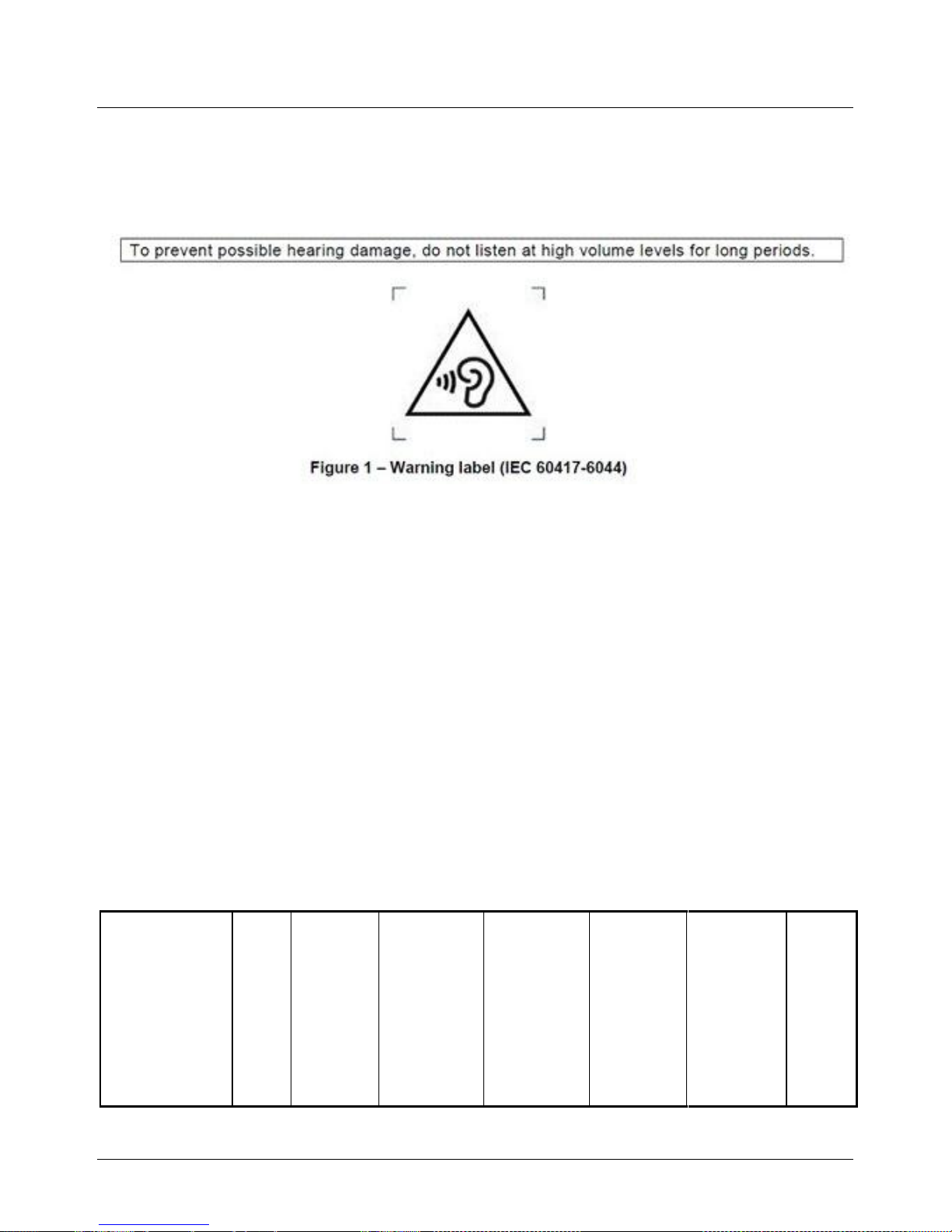

Europe
