e-ASK
Electronic Access Security Keyless-entry
e-FOB RF Keyless-entry System
Instructions
FCC ID: TV2EFOB1
Table of Contents
Introduction .............................................................................................1
e-FOB Operation and Features..............................................................2
Teaching Additional Fob Transmitters .................................................3
Smart Led: ............................................................................................4
Dip Switch Setting Assignment.............................................................4
DIP Switch #1: Horn/Panic Mode .........................................................5
DIP Switch #2: Sustained Output .........................................................5
DIP Switch #3: Double Button Output...................................................5
DIP Switch #4: Button Output ...............................................................5
DIP Switch #5: Headlights Supervision ................................................5
DIP Switch #6: Arm Alarm ....................................................................5
DIP Switch #7: Automatic Lock/Unlock ................................................6
DIP Switch #8: Keypad #5 Output and fob long unlock........................ 6
DIP Switch #9: Keypad #5 Output and fob long unlock........................ 6
DIP Switch #10: 3rd Unlock/Staggered Lock.........................................6
Additional System Features................................................................... 6
Light Activation......................................................................................6
2nd Unlock Output ..................................................................................6
Panic Mode ...........................................................................................6

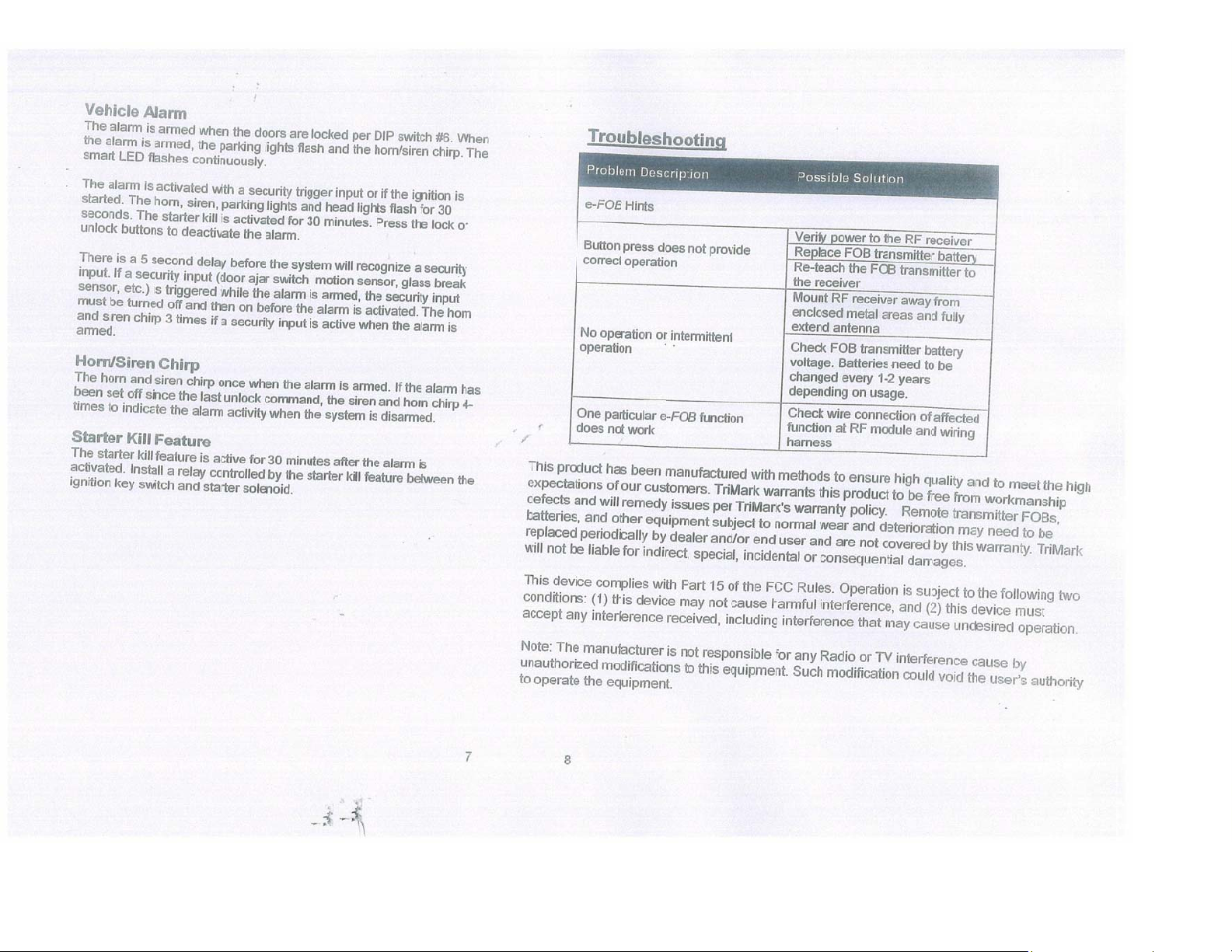

Vehicle Alarm........................................................................................7
Horn/Siren Chirp ...................................................................................7
Starter Kill Feature................................................................................7
Troubleshooting......................................................................................8
Appendix: Installation and Mounting e-FOB System ...........................I
General Mounting Guidelines: ...............................................................I
Wiring color code tables and diagrams..................................................I
RF RECEIVER ............................................................................................................ I
Wiring Connections for Basic System Functions................................ IV
i
Introduction
e-FOB Operation and Features
This manual provides the necessary information for the installation and
use of TriMark’s e-FOB transmitter/receiver system. Basic functions of
the system include:
• Locking and unlocking entry doors
• Light activation
• Panic mode
• Auxiliary functions
The e-FOB system includes:
• Receiver
• 2 FOB transmitters
• 14-pin wire harness
• 10-pin wire harness
• 4-pin wire harness
• 2-pin wire harness
• Smart LED
• Push button switch

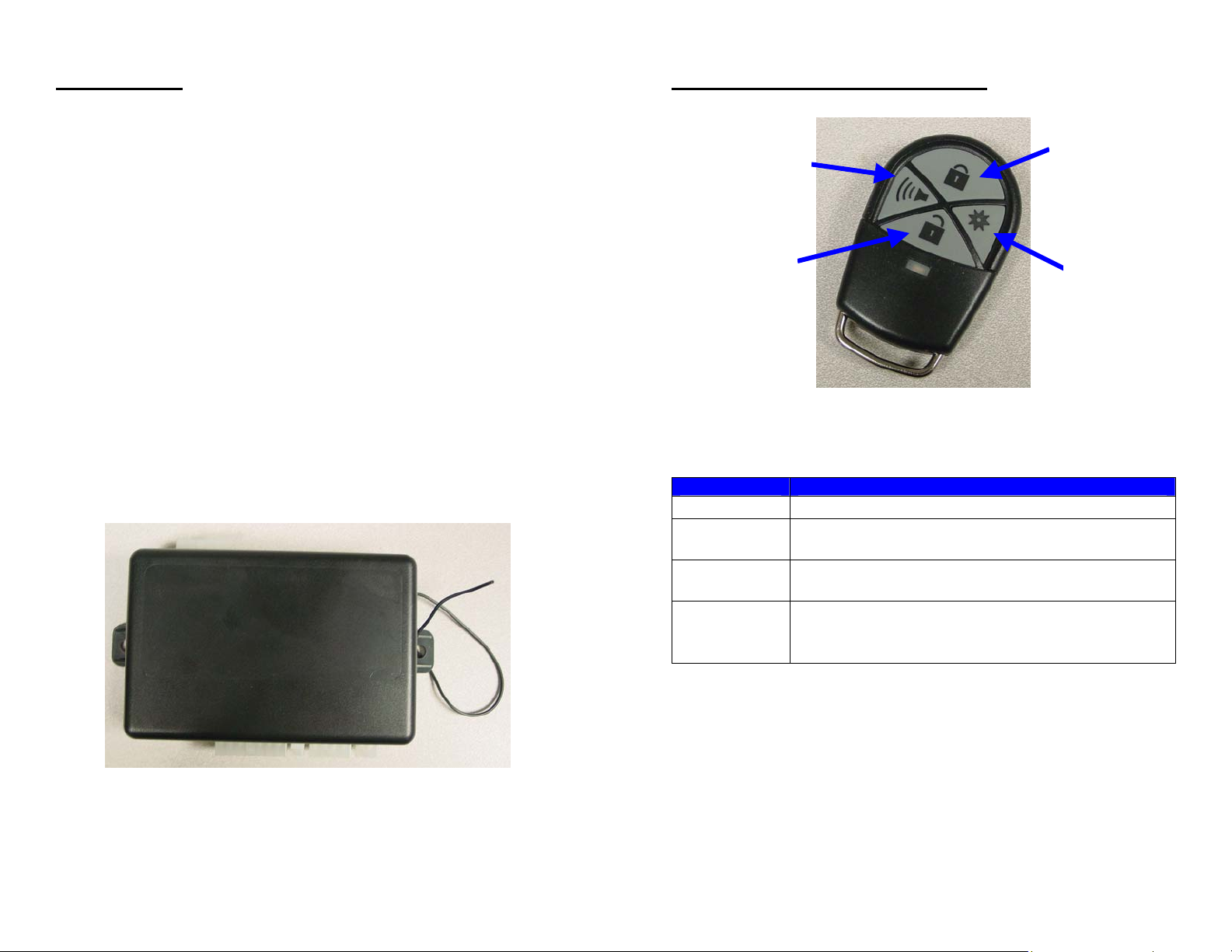

The receiver and FOB transmitters are shipped programmed. After
making all necessary wiring connections (see appendix page IV), the eFOB system will function as indicated in this manual.
Lock button
Unlock
button
Button Function
Lock Locks all entry doors and arms security system.
Unlock
Horn Button
Unlocks entry doors and disarms security system.
Also activates the porch light.
Activates panic mode when pressed and held for 2
seconds.
*
* Button function is OEM/dealer defined. Possible
* Button
Notes:
• While the engine is running only the entry unlock function of the
e-FOB remains activated —other functions are deactivated.
• For information on changing the default configuration, see Dip
Switch Setting Assignment on page 4.
assignment include: interior/exterior lighting, awning
extension/retraction, gas cap, hood, etc.
1
2

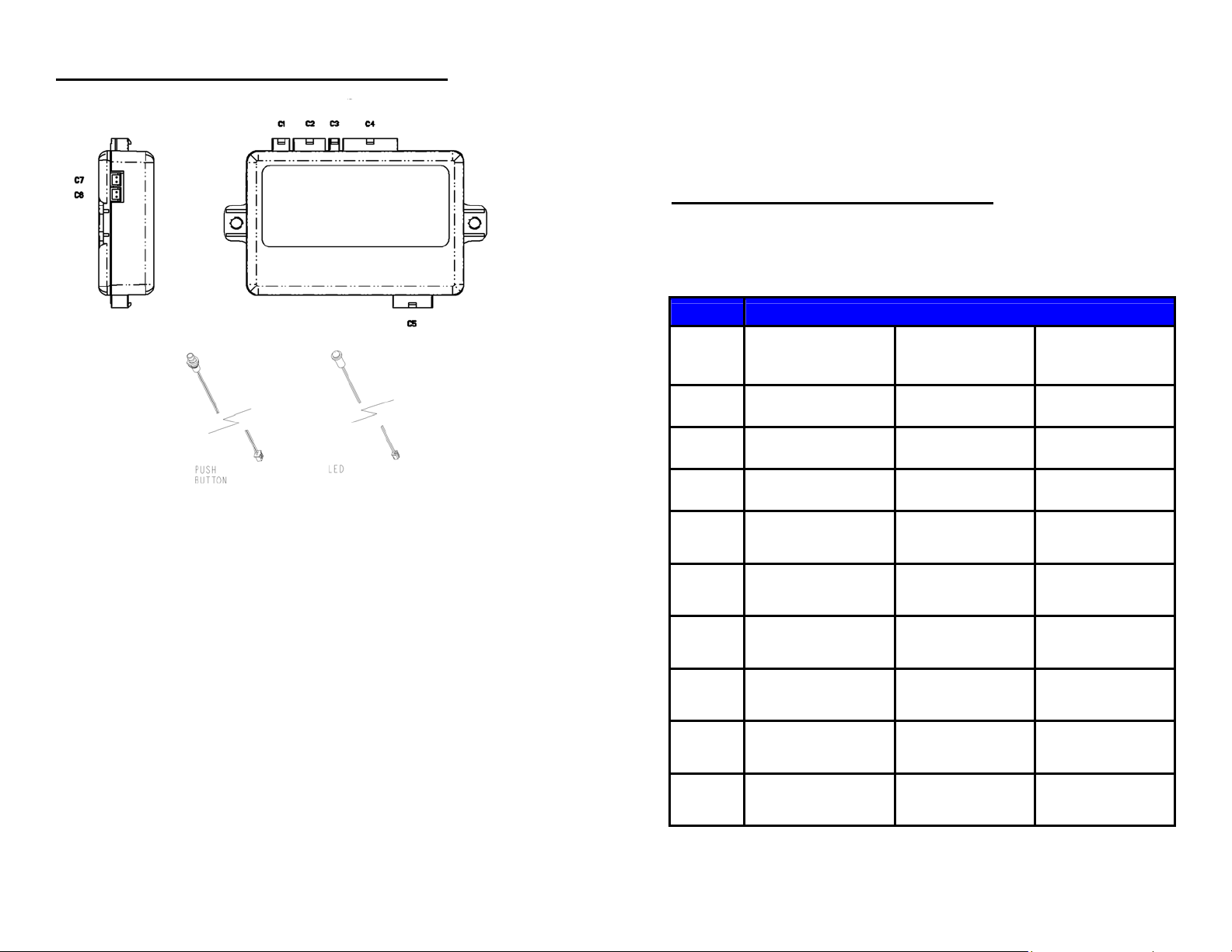

Teaching Additional Fob Transmitters
1. Plug the LED into C6 and the push button into C7 on the
receiver.
2. Turn ignition off and unlock doors.
3. Press and release the programming button 3 times. The LED will
turn on.
4. Press and release any button of each new FOB transmitter once.
The LED will flash and the horn and siren will sound once. Up to
4 transmitters may be programmed at one time.
Notes:
• If you place the system in learn mode and teach nothing, the
system will exit in 10 seconds.
• When new transmitters are taught, all old transmitters are
erased.
• The memory for codes will not be erased if power is removed.
• As soon as the LED turns off, the system is fully functional.
Smart Led:
The smart LED indicates system status:
• Slow Flash = Armed
• Off = Disarmed
• Fast Flash = Alarm activated
Dip Switch Setting Assignment
The DIP Switch settings control additional functions. Power to the
receiver should be disconnected and reconnected after a DIP switch is
changed. Functional assignments are described below:
Switch DIP SWITCH SETTINGS
#1 Horn Button
#2
#3
#4 Button Output ON = Sustained OFF = Pulse
#5
#6 Arm Alarm
#7
#8
#9
#10 3rd Unlock Output
Left & Right
Buttons Output
Double Button
Output
Headlights
Supervision
Automatic
Lock/Unlock
Keypad #5 Output
and fob long unlock
Keypad #5 Output
and fob long unlock
ON = Single Horn
Pulse
ON = Sustained OFF = Pulse
ON = Sustained OFF = Pulse
ON = 0.25 sec.
Pulse
ON = 1 lock
button press
ON = Enabled OFF = Disabled
ON = Lights
output for 5 min.
ON = Output
0.25 sec. pulse
ON = staggered
with lock
OFF = Panic
Mode
OFF = 30 sec.
OFF = 2 lock
button presses
OFF = Aux2
output for 5 min.
OFF = Output on
for 5 min.
OFF = activated
with unlock
3
4
DIP Switch #1: Horn/Panic Mode
• DIP switch #1 ON: the Horn button (center left) provides a pulse
output.
• DIP switch #1 OFF: the Horn button (center left) actuates panic
mode.
DIP Switch #2: Sustained Output
• DIP switch #2 ON: the middle left and right buttons provide
sustained outputs. Output lasts as long as the button is pressed–
up to 30 seconds. Middle left button activates horn output.
Middle right button activates auxiliary output. Dip switch #1 must
be OFF.
• DIP switch #2 OFF: see by DIP switch #1 for output.
DIP Switch #3: Double Button Output
• DIP switch #3 ON: the double button output lasts as long as the
button is pressed–up to 30 seconds. Dip switch #1 & #2 must be
OFF.
• DIP switch #3 OFF: see DIP switches #1 or #2 for output.
DIP Switch #4: Button Output
• DIP switch #4 ON: all button output lasts as long as the button is
pressed–up to 30 seconds. No alarm is available in this
configuration. Dip switch #1, #2, & #3 must be OFF.
• DIP switch #4 OFF: see DIP switches #1-#3 for output.
DIP Switch #5: Headlights Supervision
• DIP switch #5 ON: the headlights flash once on an unlock
command.
• DIP switch #5 OFF: the headlights are actuated with the dome
lights. Lights remain illuminated for 30 seconds with an unlock
command. Arming the alarm or starting the car deactivates the
lights immediately.
DIP Switch #6: Arm Alarm
• DIP switch #6 ON: a single lock press locks doors and arms
alarm.
• DIP switch #6 OFF: first lock press locks doors. Second lock
press arms alarm.
5
DIP Switch #7: Automatic Lock/Unlock
• DIP switch #3 ON: the auto-locking feature is activated. All doors
are locked 5-seconds after ignition start. Doors unlock when the
ignition is turned off. THIS FEATURE IS CANCELED if a door is
open when the ignition is started. This protects against
accidental locking of keys in the vehicle.
• DIP switch #3 OFF: Automatic lock/unlock feature is disabled.
DIP Switch #8: Keypad #5 Output and fob long unlock
• DIP switch #8 ON: the #5 keypad output provides a mirrored
output to the headlights.
• DIP switch #8 OFF: the #5 keypad output provides a mirrored
output to Aux2.
DIP Switch #9: Keypad #5 Output and fob long unlock
• DIP switch #8 ON: the keypad #5 output and fob long unlock
provides a pulse output dependent upon DIP switch #8.
• DIP switch #8 OFF: the keypad #5 output and fob long unlock
provides a 5 minute output dependent upon DIP switch #8.
DIP Switch #10: 3rd Unlock/Staggered Lock
• DIP switch #5 ON: the 3rd unlock output is staggered to the lock
actuation to decrease peak current draw.
• DIP switch #5 OFF: the 3
command.
rd
unlock output actuates with an unlock
Additional System Features
Light Activation
When the alarm is armed, the parking lights flash. With an unlock
instruction; the dome light stays illuminated for 30 seconds. The
headlight actuation is controlled by DIP switch #5.
2nd Unlock Output
Press and release the Unlock button twice for a pulse output.
Panic Mode
Pressing and holding the Horn button (center left) for 2 seconds activates
panic mode. During panic mode, horn/siren is continuously activated and
headlights and parking lights flash for 30 seconds. Pressing the lock or
unlock button deactivates panic mode.
6
Appendix: Installation and Mounting e-FOB
System
Contact TriMark for specific mounting details, such as drawings,
placement suggestions, mounting hardware, etc.
General Mounting Guidelines:
The RF receiver should be placed in an interior location that does not
shield RF signals. You may need to try multiple locations to optimize
reception. The antennae must be left fully extended and exposed.
Minimize shielding from metal enclosures.

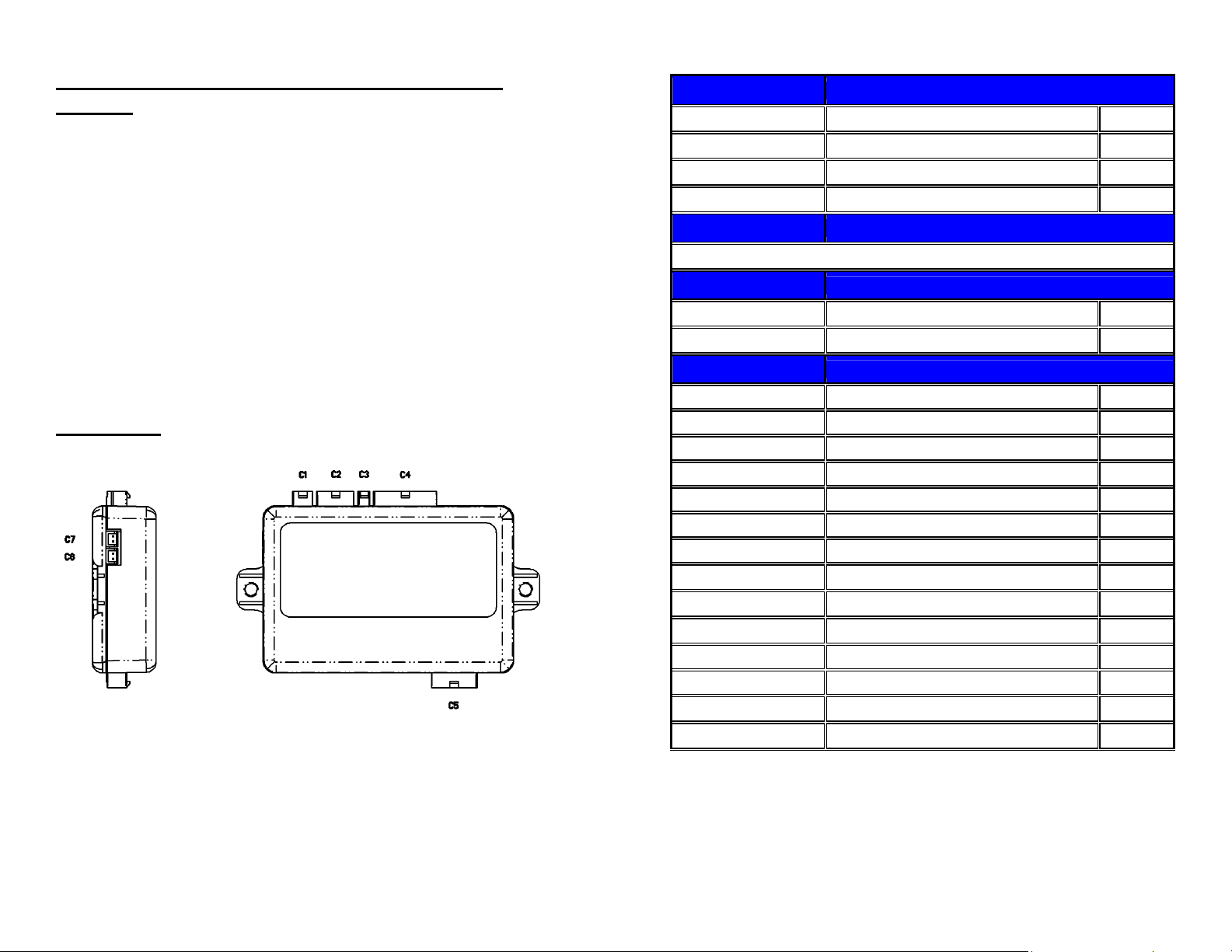

Wiring color code tables and diagrams
The following tables and diagrams are provided to show color-coded wire
and pin assignments for the e-FOB system. Connect all wires before
plugging module into wiring harness.
RF RECEIVER
WIRE COLORS
--
Yellow
Black
Red
WIRE COLORS
WIRE COLORS
Green/White
Blue/White
WIRE COLORS
White/Blue
Green/Black
White/Yellow
Black/White
Gray/White
White/Pink
Gray
Purple/Black
Purple/White
Blue/White
Blue/Black
White
White/Purple
Gray/Black
CONNECTOR 1: 4-PIN HARNESS
--
Ignition Input
Ground Input
Power (+12V)
CONNECTOR 2: KEYPAD HARNESS
Integrated Harness
CONNECTOR 3: 2-PIN HARNESS
Lock Input (-)
Unlock Input (-)
CONNECTOR 4: 14-PIN HARNESS
(-) Security Trigger Input 3
Armed Output (-500 mA)
Starter Kill Output (-500 mA)
Lights Output (-500 mA)
Horn Output (-500 mA)
(-) Security Trigger Input 1
Siren Output (A/C)
Aux. 2 Output (-500 mA)
Aux. Output (relay 15A)
nd
Unlock Output (-500 mA)
2
rd
3
Unlock/Staggered Lock (-500mA)
Parking Lights (relay 15A)
(+)Security Trigger Input 2
Siren Output (A/C)
1
2
3
4
1
2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
I
II
WIRE COLORS CONNECTOR 5: 10-PIN HARNESS
Green/Black
--
Purple
Pink
Pink/Black
Green/White
Green
Blue/Black
Blue/White
Blue
* DO NOT USE A TEST LIGHT ON THE MODULE'S 500MA OUTPUTS
Door Lock (N/C) (relay 30A)
--
Dome Light Output (relay 15A)
Dome Light (N/O) (relay 15A)
Dome Light (N/C) (relay 15A)
Door Lock (N/O) (relay 30A)
Lock Output (relay 30A)
Door Unlock (N/C) (relay 30A)
Door Unlock (N/O) (relay 30A)
Unlock Output (relay 30A)
1
2
3
4
5
6
7
8
9
10

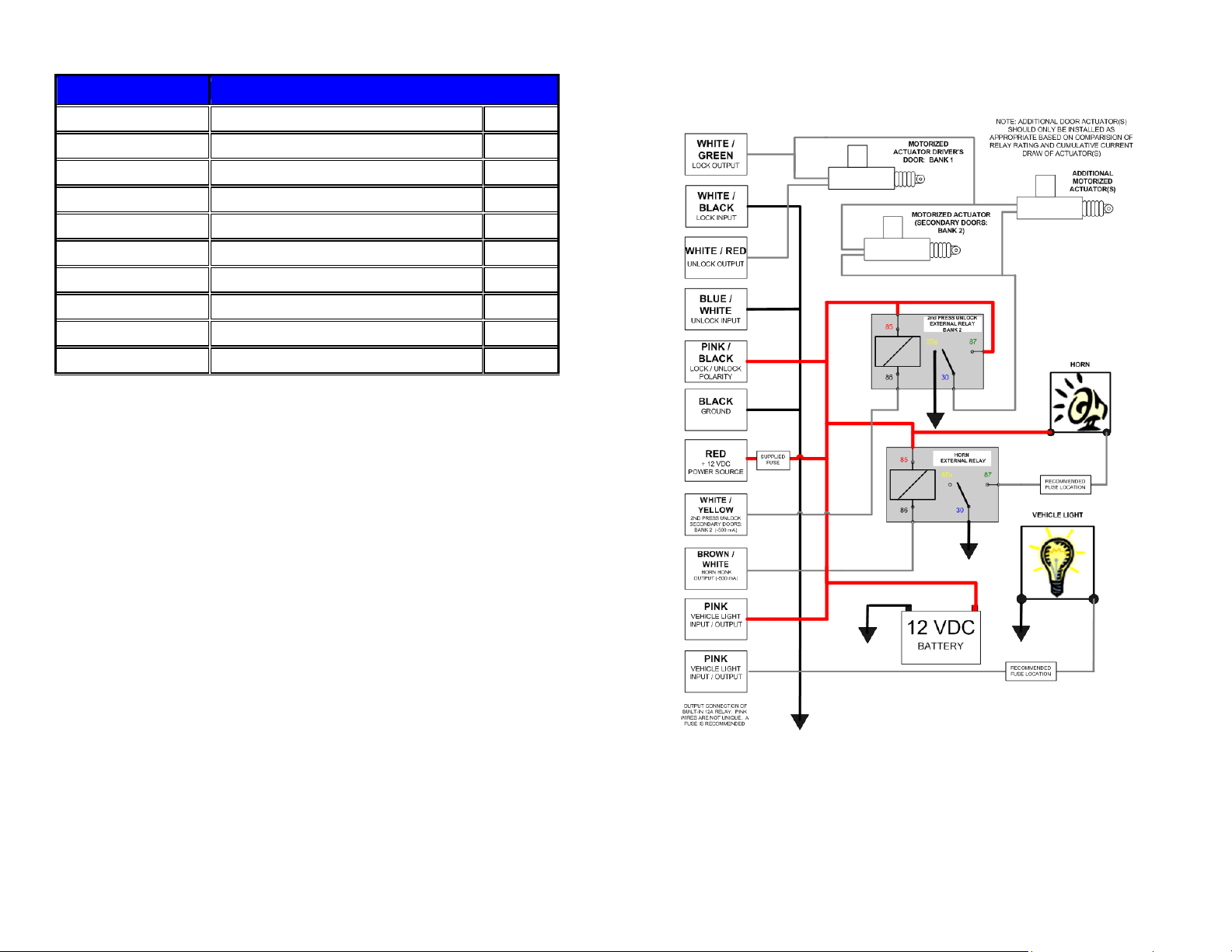

Wiring Connections for Basic System Functions
III
IV
