TEST REPORT

Reference No.: A06033011
Report No.: FCCA06033011
Page:

2 of 20

Date: May 12, 2006

Table of Contents

1. DOCUMENT POLICY AND TEST STATEMENT................................................... 3

1.1 DOCUMENT POLICY.......................................................................................... 3

1.2 TEST STATEMENT ............................................................................................. 3

2. DESCRIPTION OF EUT AND TEST MODE......................................................... 4

2.1 GENERAL DESCRIPTION OF EUT.................................................................... 4

2.2 DESCRIPTION OF EUT INTERNAL DEVICE ..................................................... 4

2.3 DESCRIPTION OF TEST MODE......................................................................... 4

2.4 DESCRIPTION OF SUPPORT UNIT................................................................... 5

3. DESCRIPTION OF APPLIED STANDARDS......................................................... 5

4. CONDUCTED EMISSION TEST.......................................................................... 5

5. RADIATED EMISSION TEST ............................................................................... 6

5.1 RADIATED EMISSION LIMIT.............................................................................. 6

5.2 TEST EQUIPMENT............................................................................................. 7

5.3 TEST SET-UP...................................................................................................... 8

5.4 TEST PROCEDURE............................................................................................ 8

5.5 EUT OPERATING CONDITION........................................................................... 8

5.6 MAXIMUM MODULATION PERCENTAGE ......................................................... 8

5.7 RADIATED EMISSION TEST RESULT................................................................ 9

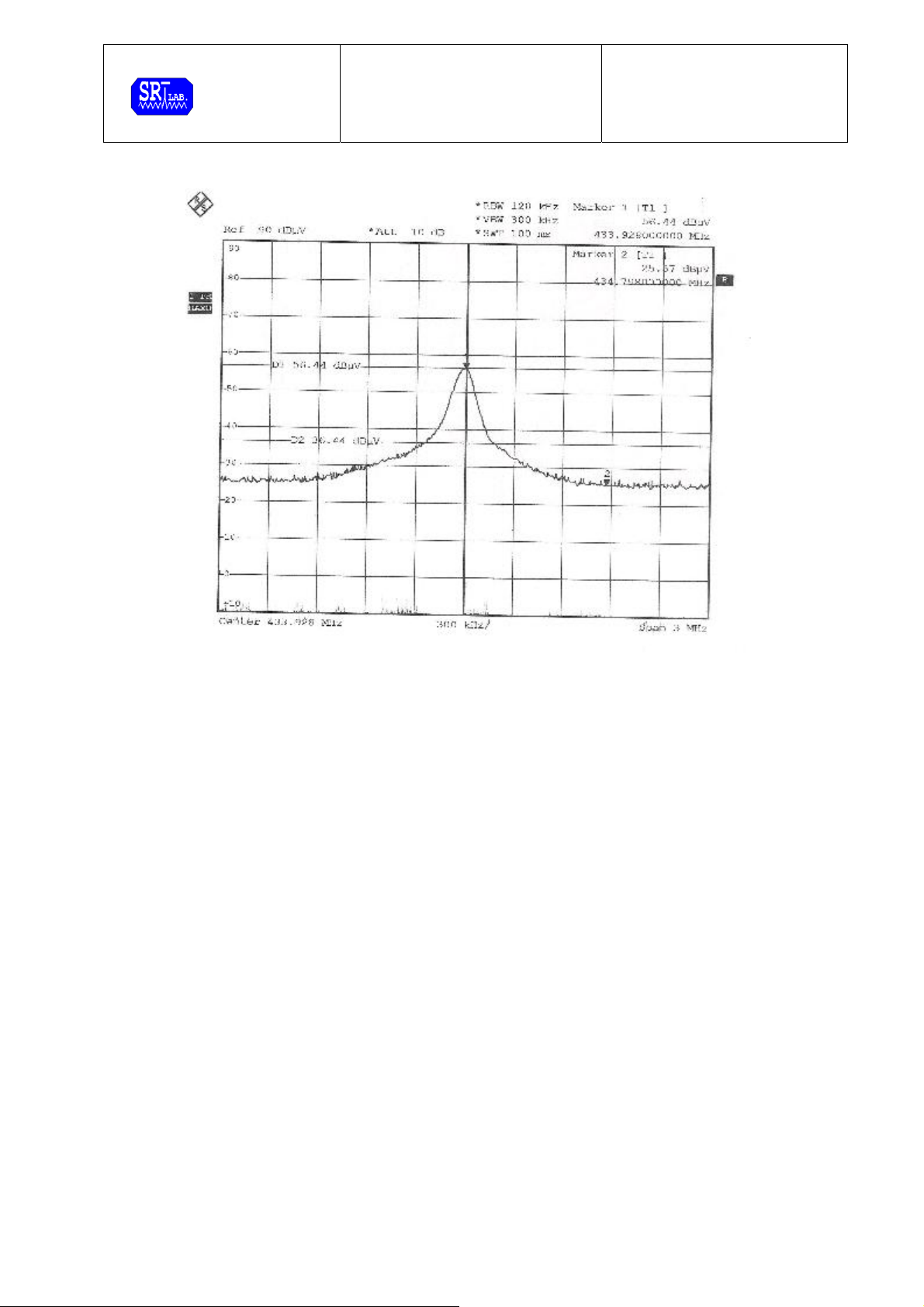

6. BAND EDGE TEST .............................................................................................11

6.1 BAND EDGE LIMIT ............................................................................................11

6.2 TEST EQUIPMENT............................................................................................11

6.3 TEST SET-UP.....................................................................................................12

6.4 TEST PROCEDURE...........................................................................................12

6.5 EUT OPERATING CONDITION.....................................................................12

6.6 BAND EDGE TEST RESULT.........................................................................12

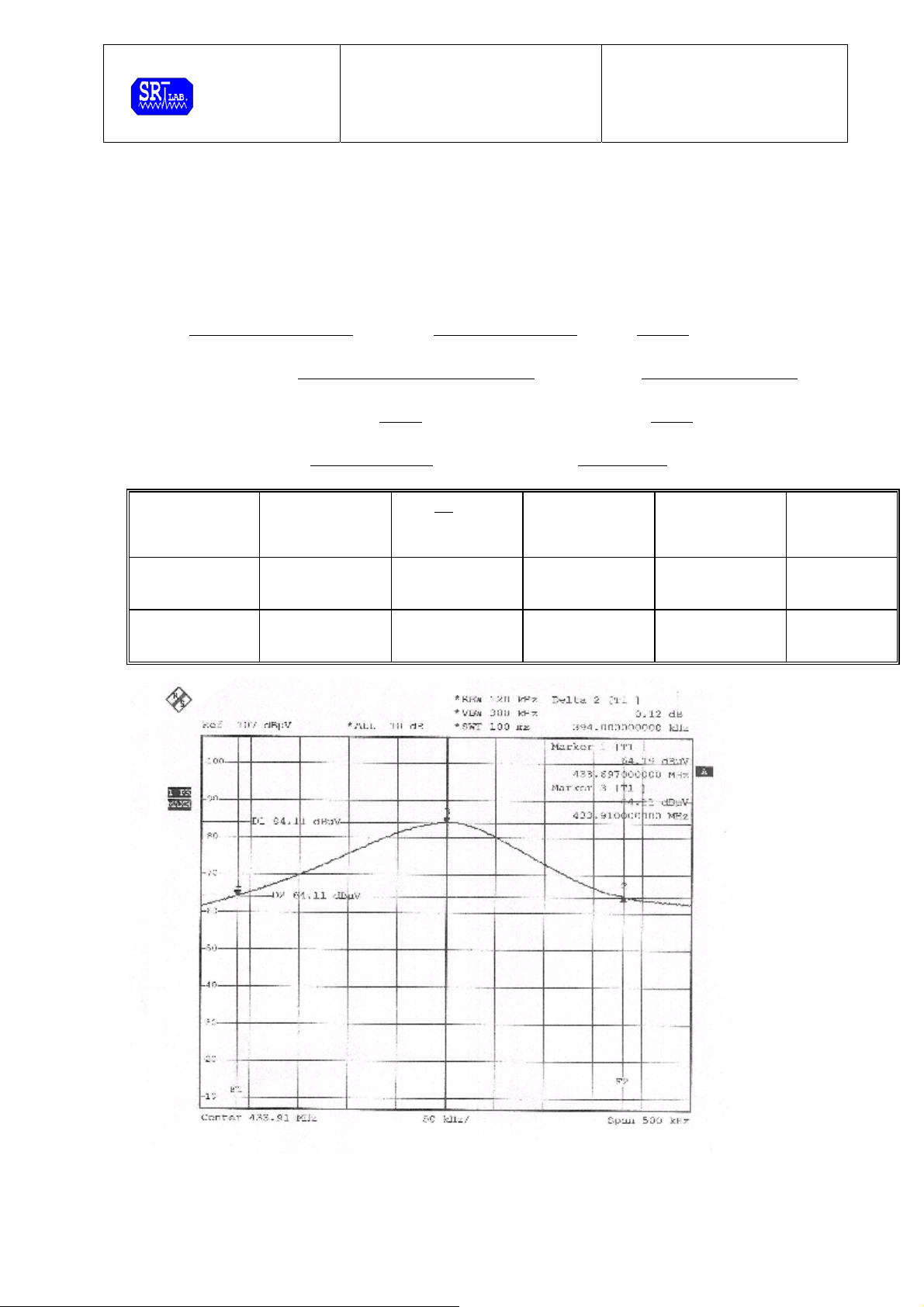

7. FREQUENCY BANDWIDTH............................................................................... 14

7.1 FREQUENCY BANDWIDTH LIMIT ....................................................................14

7.2 TEST EQUIPMENT............................................................................................14

7.3 TEST SET-UP.....................................................................................................14

7.4 TEST PROCEDURE...........................................................................................14

7.5 EUT OPERATING CONDITION.....................................................................15

7.6 FREQUENCY BANDWIDTH TEST RESULT.................................................15

PASS/FAIL................................................................................................................ 15

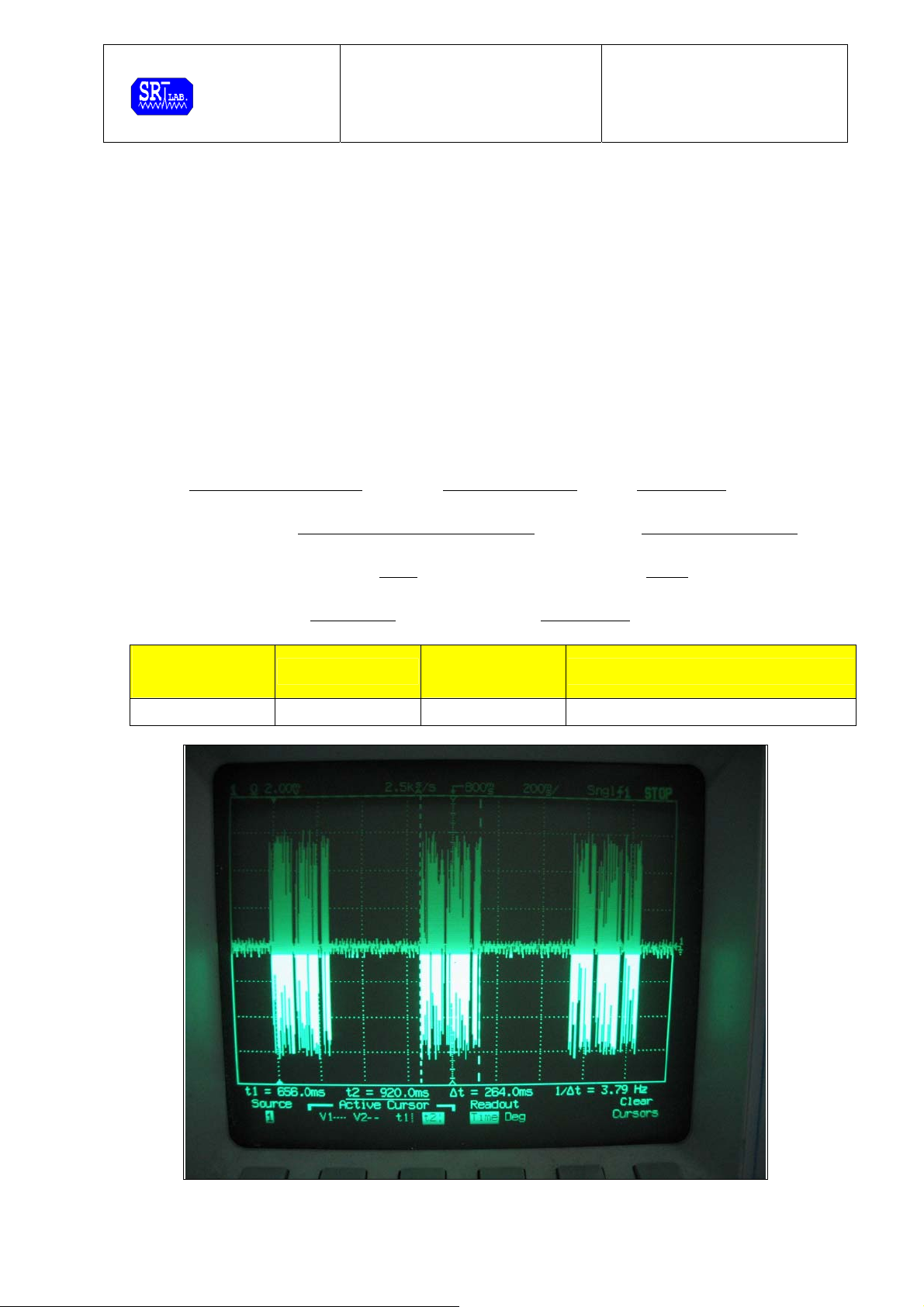

8. RELEASE OR OPERATING TIME....................................................................... 16

8.1 RELEASE TIME OR OPERATING LIMIT ...........................................................16

8.2 TEST EQUIPMENT............................................................................................16

8.3 TEST SET-UP.....................................................................................................16

8.4 TEST PROCEDURE............................................................................................17

8.5 EUT OPERATING CONDITION...........................................................................17

8.6 RELEASE OR OPERATING TIME TEST RESULT..............................................17

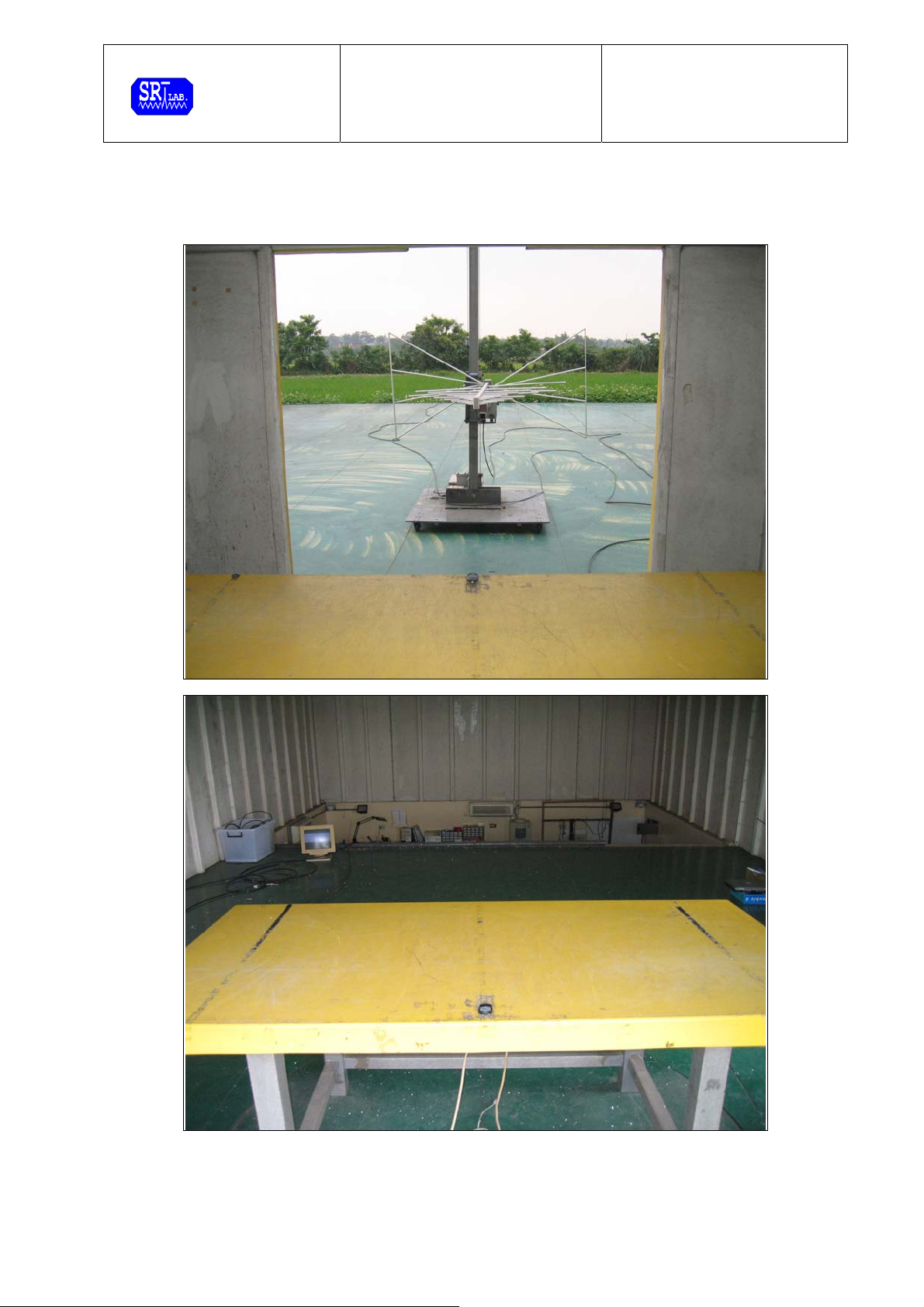

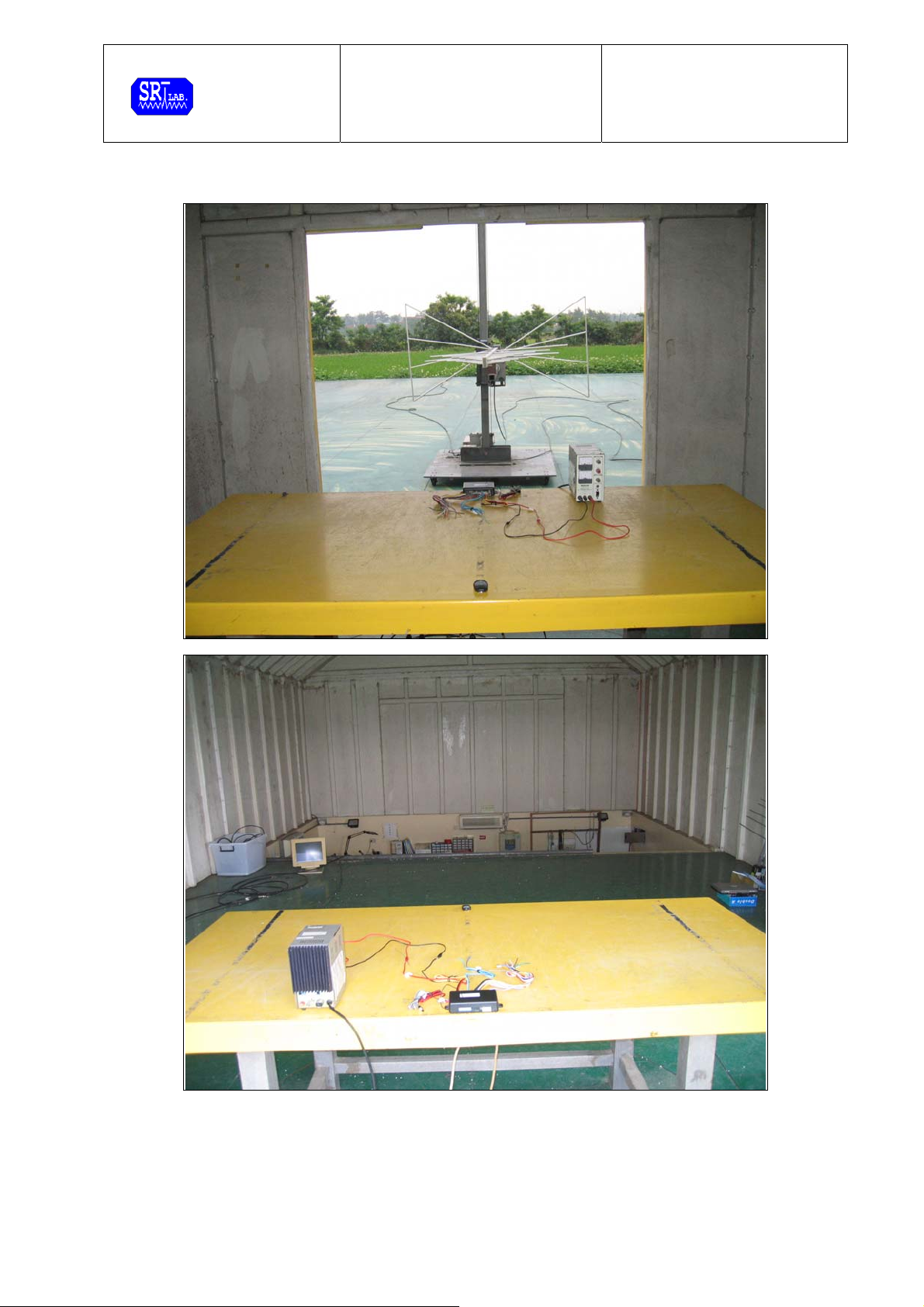

9. PHOTOS OF TESTING....................................................................................... 18

10. TERMS OF ABRIV ATION .................................................................................20

FCC ID: TV2EFOBI

Spectrum Research
& Testing Lab., Inc.

No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.

TEST REPORT

Reference No.: A06033011
Report No.: FCCA06033011
Page:

3 of 20

Date: May 12, 2006

1. DOCUMENT POLICY AND TEST STATEMENT

1.1 DOCUMENT POLICY

- The report shall not be reproduced except in full, without the written approval of
SRT Lab, Inc.

- The report must not be used by the applicant to claim that the product is endorsed
by NVLAP.

- The NVLAP logo applies only to the applicable standards specified in this report.

1.2 TEST STATEMENT

- The test results in the report apply only to the unit tested by SRT Lab.

- There was no deviation from the requirements of test standards during the test.

- The new battery power source 3 Vdc, was used during the test.

- The antennas were soldered on the PCB.

FCC ID: TV2EFOBI

Spectrum Research
& Testing Lab., Inc.

No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.

TEST REPORT

2. DESCRIPTION OF EUT AND TEST MODE

2.1 GENERAL DESCRIPTION OF EUT

Reference No.: A06033011
Report No.: FCCA06033011
Page:

4 of 20

Date: May 12, 2006

PRODUCT
MODEL NO.

POWER SUPPLY

Remote Controller
TM-TX01

3Vdc,5mA(Battery)

CABLE N/A
I/O PORT/INTERFACE N/A
FREQUENCY BAND 433.92MHz
CARRIER FREQUENCY 433.92MHz
NUMBER OF CHANNEL 1
CHANNEL SPACING N/A
RF OUTPUT POWER 0.01W=10dBm
I.F. & L.O. L.O.: 433.92MHz
MODULATION TYPE SAW
BIT RATE OF TRANSMISSION 4 kHz
ANTENNA TYPE Integral Antenna

NOTE: The EUT is the transmitter part of a remote controller , which include s a receiver part. For more

detailed information, please refer to the specifications or User’s manual provided by manufacturer.

2.2 DESCRIPTION OF EUT INTERNAL DEVICE

DEVICE BRAND / MAKER MODEL # FCC ID/DOC REMARK

N/A

2.3 DESCRIPTION OF TEST MODE

The EUT was operated in continunely transmitting mode.

FCC ID: TV2EFOBI

Spectrum Research
& Testing Lab., Inc.

No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.

TEST REPORT

Reference No.: A06033011
Report No.: FCCA06033011
Page:

5 of 20

Date: May 12, 2006

2.4 DESCRIPTION OF SUPPORT UNIT

The EUT was configured by the requirement of ANSI C63.4 and CISPR 22. All
interface ports were connected to the appropriate support units via specific cables.
The support units and cables are listed below.

NO DEVICE BRAND MODEL # FCC ID/DOC CABLE

1 N/A

NOTE: For the actual test configuration, please refer to the photos of testing.

3. DESCRIPTION OF APPLIED STANDARDS

The EUT is a kind of wireless product and according to the specifications provided by
the applicant, must comply with the requirements of the following standards:

47 CFR Part 15, Subpart C

All tests have been performed and recorded as per the above standards.

4. CONDUCTED EMISSION TEST

The test item was not performed, because the EUT uses 3Vdc battery as power
source.

FCC ID: TV2EFOBI

Spectrum Research
& Testing Lab., Inc.

No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.

TEST REPORT

Reference No.: A06033011
Report No.: FCCA06033011
Page:

6 of 20

Date: May 12, 2006

5. RADIATED EMISSION TEST

5.1 RADIATED EMISSION LIMIT

FCC part15C 15.209 limits of radiated emission measurement for frequency below
1000 MHz

FREQUENCY (MHz) DISTANCE (m) FIELS STRENGTH (dBµV/m)

30 - 88 3 40.0
88 - 216 3 43.5
216 - 960 3 46.0
ABOVE 960 3 54.0

FCC part15C 15.231(b) limit of fundamental and spurious emissions measurement.

FREQUENCY (MHz)

Field Strength of

Fundamental

(microvolts/meter)

Field Strength of Spurious

Emissions

(microvolts/meter)

40.66-40.70 2250 225
70-130 1250 125

130-174 1250 to 3750 (NOTE 5) 125 to 375 (NOTE 7)
174-260 3750 375 (NOTE 7)
260-470 3750 to 12500 (NOTE 6) 375 to 1250

Above 470 12500 1250

NOTE:

1. The lower limit shall apply at the transition frequencies.

2. Emission level (dBµV/m) = 20 log Emission level (µV/m).

3.In the emission tables above, the tighter limit applies at the band edges.

4. Distance refers to the distance between measuring nstrument,
antenna, and the closest point of any part of the device or system.

5. Limit = 20log(56.81818(F) - 6136.3636) ; F : Fundamental Frequ ency (MHz)

6. Limit = 20log(41.667 x F – 7083.3333) ; F : Fundamental Frequency (MHz)

7. Limit = The Limit of Fundamental Frequency – 20dB

8. The maximum permitted unwanted emission level is 20 dB below the maximum permitted
fundamental level.

FCC ID: TV2EFOBI

Spectrum Research
& Testing Lab., Inc.

No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.

TEST REPORT

Reference No.: A06033011
Report No.: FCCA06033011
Page:

7 of 20

Date: May 12, 2006

5.2 TEST EQUIPMENT

The following test equipment was used during the radiated emission test :

EQUIPMENT/

FACILITIES

EMI TEST
RECEIVER
BI-LOG
ANTENNA

PRE-AMPLIFIER

SPECTRUM 9KHz TO 26.5GHz HP

HORN ANTENNA 1GHz TO 18GHz EMCO

OATS

1. The calibration interval of the above test equipment is one year and the calibrations are traceable
to NML/ROC and NIST/USA.

2. The Open Area Test Site (SRT -1) is registere d by FCC with No. 90957 and VCCI with No. R-1081.

3. The Open Area Test Site (SRT-2) is registered by FCC with No. 98458 and VCCI with No. R-1168.

SPECIFICATIONS MANUFACTURER

9 kHz TO
2750 MHz
25 MHz TO
2 GHz
1GHz-26.5GHz
Gain:30dB(typ.)

3 – 10 M
MEASUREMENT

ROHDE &
SCHWARZ

EMCO

HP

SRT SRT-1

MODEL#/

SERIAL#

ESCS30/
836858/008
3142/
9701-1124
8449B/
3008A01019
8953E/
3710A03220
3115/
9602-4681

DUE DATE OF CAL. &

CAL. CENTER

AUG. 2006
ETC
APR. 2007
SRT
DEC. 2006
ETC
MAY 2006
ETC
NOV. 2006
ETC
APR. 2007
SRT

FCC ID: TV2EFOBI

Spectrum Research
& Testing Lab., Inc.

No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.

TEST REPORT

Reference No.: A06033011
Report No.: FCCA06033011
Page:

8 of 20

Date: May 12, 2006

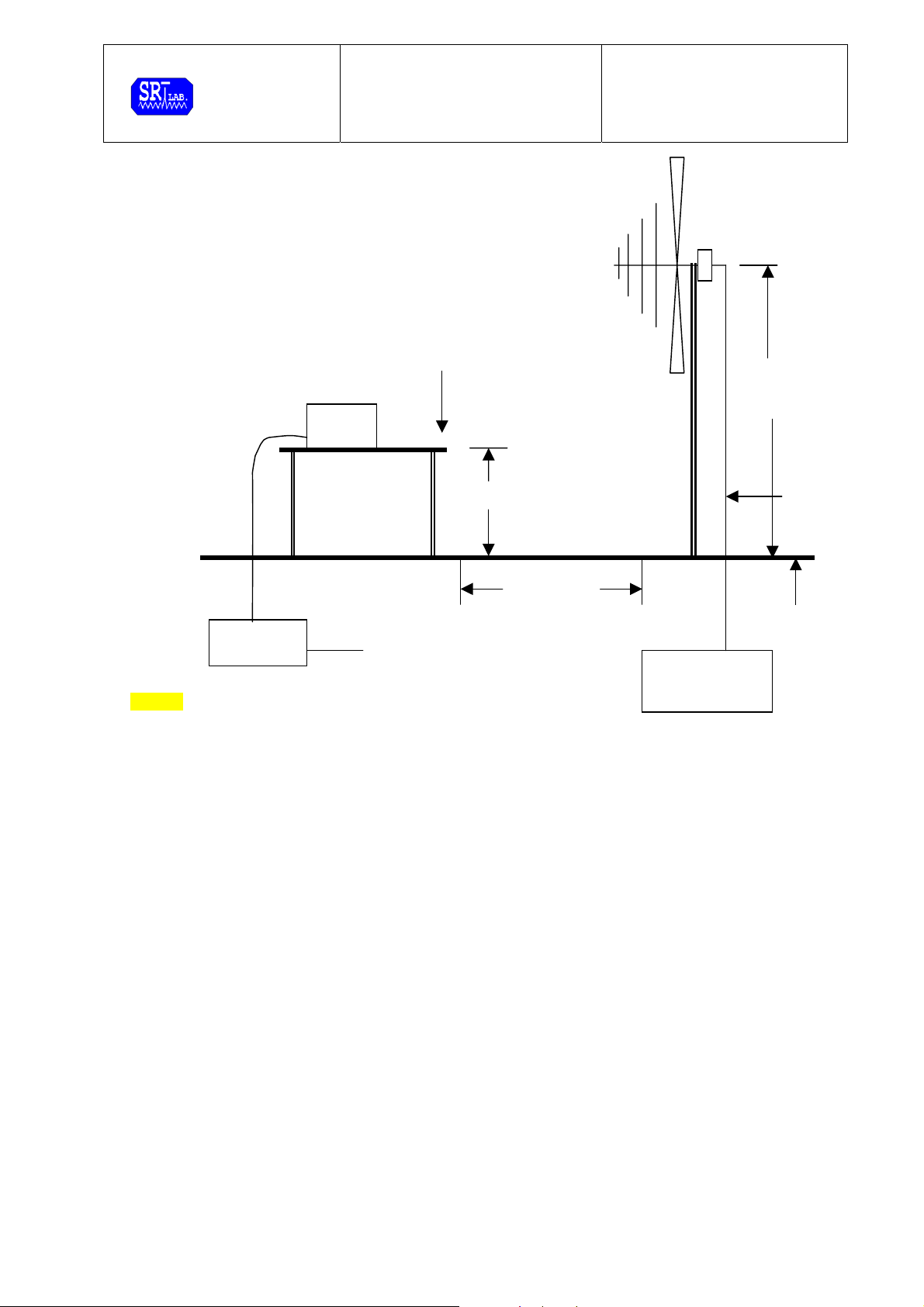

5.3 TEST SET-UP

Power Cable

NOTE :

1. The EUT system was put on a wooden table with 0.8m heights above a ground plane.

2. For the actual test configuration, please refer to the photos of testing.

Filter

EUT

Turn Table

To Utility
Power

0.8 m

1m – 4m

Coaxial
Cable

3/10m

Ground Plane

EMI Receiver

5.4 TEST PROCEDURE

The EUT was tested according to the requirement of ANSI C63.4 and CISPR 22. The
measurements were made at an open area test site with 3 meter measurement
distance under 1 GHz and with 3m distance above 1GHz. The frequency spectrum
measured started from 30 MHz. Under 1 GHz, all readings were quasi-peak values
with 120 kHz resolution bandwidth of the test receiver. Above 1 GHz, the
measurements were made at an open area test site with 3 meter measurement
distance and all readings were peak or average values with 1 MHz resolution
bandwidth of the test receiver. The EUT system was operated in all typical methods
by users. The cables connected to EUT and support units were moved to find the
maximum emission levels for each frequency.

5.5 EUT OPERATING CONDITION

Same as section 2.3 of this report.

5.6 Maximum Modulation Percentage

Duty Cycle = 50%

FCC ID: TV2EFOBI

Spectrum Research
& Testing Lab., Inc.

No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.

TEST REPORT

Reference No.: A06033011
Report No.: FCCA06033011
Page:

9 of 20

Date: May 12, 2006

5.7 RADIATED EMISSION TEST RESULT

Temperature: 22℃ Humidity: 68%RH
Ferquency Range: 30MHz – 5GHz Measured Distance: 3m
Receiver Detector: Peak/QP/AV Tested By: Nick Hsieh

Fundamental

Reading
(dBµV)

Peak AV Peak AV Peak AV Peak AV

Frequency

(MHz)

Correct

Factor

(dB)

Antenna

Factor

(dB/m)

Polariz
ation

433.90 3.00 15.64 H 47.3 42.30 62.94 57.94 100.83 80.83 -37.89 -22.89 223.7 1.42

433.90 3.00 15.64 V 41.1 36.40 56.74 52.04 100.83 80.83 -44.09 -28.79 265.7 1.04

Emission

Level

(dBµV/m)

Limit

(dBµV/m)

Margin

(dB)

AZ

(°) EL(m)

TX

Emission

Frequency

(MHz)

Correct

Factor

(dB)

Antenna

Factor
(dB/m)

Polarization

Reading
(dBµV)
Peak/QP

Level

(dBµV/m)

Peak/QP

Limit

(dBµV/m)

Peak/QP

Margin

(dB)

Peak/QP

AZ

(°)

EL

(m)

71.7100 1.58 6.68 H 11.6 19.9 40.0 -20.1 129.0 1.1

333.8420 3.19 14.43 H 3.8 21.4 46.0 -24.6 176.0 1.2

502.4450 4.13 16.13 H 3.7 24.0 46.0 -22.0 231.0 1.0

709.9270 5.06 21.08 H 2.9 29.0 46.0 -17.0 45.0 1.3

798.3250 5.32 21.88 H 2.5 29.7 46.0 -16.3 96.0 1.1

926.2800 5.85 22.79 H 2.1 30.7 46.0 -15.3 311.0 1.2

193.0650 2.46 10.58 V 5.3 18.3 43.5 -25.2 347.0 1.0

267.6200 2.94 12.25 V 4.9 20.1 46.0 -25.9 39.0 1.2

335.0500 3.20 14.47 V 3.9 21.6 46.0 -24.4 143.0 1.1

502.3000 4.13 16.13 V 3.8 24.1 46.0 -21.9 165.0 1.1

647.1600 4.75 19.09 V 3.4 27.2 46.0 -18.8 89.0 1.3

729.8700 5.12 21.26 V 7.5 33.9 46.0 -12.1 107.0 1.0

FCC ID: TV2EFOBI

Spectrum Research
& Testing Lab., Inc.

No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.

TEST REPORT

Reference No.: A06033011
Report No.: FCCA06033011
Page:

10 of 20

Date: May 12, 2006

RX

Emission

Frequency

(MHz)

Correct

Factor

(dB)

Antenna

Factor
(dB/m)

Polarization

Reading
(dBµV)
Peak/QP

Level

(dBµV/m)

Peak/QP

Limit

(dBµV/m)

Peak/QP

Margin

(dB)

Peak/QP

AZ

(°)

EL

(m)

152.2550 2.17 9.24 H 6.0 17.4 43.5 -26.1 268.9 1.4

300.1000 3.02 13.70 H 3.9 20.6 46.0 -25.4 130.2 1.2

502.3050 4.13 16.13 H 3.8 24.1 46.0 -21.9 98.2 1.2

601.0850 4.60 17.44 H 8.5 30.5 46.0 -15.5 129.6 1.1

802.4300 5.34 21.91 H 2.3 29.6 46.0 -16.4 78.3 1.1

932.5900 5.86 22.85 H 2.4 31.1 46.0 -14.9 220.6 1.2

167.0350 2.28 10.12 V 4.5 16.9 43.5 -26.6 221.1 1.3

401.3000 3.61 15.90 V 3.6 23.1 46.0 -22.9 296.3 1.2

428.3400 3.75 15.96 V 3.6 23.3 46.0 -22.7 88.7 1.1

649.1370 4.76 19.16 V 3.5 27.4 46.0 -18.6 20.3 1.1

732.9250 5.13 21.29 V 2.9 29.3 46.0 -16.7 117.2 1.0

840.9600 5.53 22.14 V 2.0 29.7 46.0 -16.3 89.5 1.0

NOTE :

1. Measurement uncertainty is +-/2dB.

2. "*":

Measurement value was too low to be detected.

3. Emissiom Level = Reading Value + Ant. Factor + Cable Loss.

4. The field strength of other emission frequencies were very low against the limit.

5.The emission level is lower than equipment ‘s noise.

6. Above 1GHz and up to 4.5GHz, the noise is very small.

FCC ID: TV2EFOBI

Spectrum Research
& Testing Lab., Inc.

No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.

NOTE :

1. Measurement uncertainty is +-/2dB.

2. "*":

Measurement value was too low to be detected.

3. Emissiom Level = Reading Value + Ant. Factor + Cable Loss.

4. The field strength of other emission frequencies were very low against the limit.

5.The emission level is lower than equipment ‘s noise.

6. Above 1GHz and up to 4.5GHz, the noise is very small.

TEST REPORT

Reference No.: A06033011
Report No.: FCCA06033011
Page:

11 of 20

Date: May 12, 2006

6. BAND EDGE TEST

6.1 BAND EDGE LIMIT

FCC part15C 15.231(b) limit of fundamental and spurious emissions measurement.

FREQUENCY (MHz)

Field Strength of

Fundamental

(microvolts/meter)

Field Strength of Spurious

Emissions

(microvolts/meter)

40.66-40.70 2250 225
70-130 1250 125

130-174 1250 to 3750 (NOTE 4) 125 to 375 (NOTE 6)
174-260 3750 375
260-470 3750 to 12500 (NOTE 5) 375 to 1250 (NOTE 6)

Above 470 12500 1250

NOTE:

1. The lower limit shall apply at the transition frequencies.

2. Emission level (µV/m) = 20 log Emission level (µV/m).

3.In the emission tables above, the tighter limit applies at the band edges.

4. Limit = 20log(56.81818(F) - 6136.3636) ; F : Fundamental Frequ ency (MHz)

5. Limit = 20log(41.667(F) – 7083.3333) ; F : Fundamental Frequency (MHz)

6. Limit = The Limit of Fundamental Frequency – 20dB

7. The maximum permitted unwanted emission level is 20 dB below the maximum permitted
fundamental

level.

6.2 TEST EQUIPMENT

The following test equipment was used during the radiated emission test :

EQUIPMENT/

FACILITIES

SPECTRUM 9 kHz TO 7GHz

NOTE:

1. The calibration interval of the above test equipment is one year and the calibrat ions are traceable
to NML/ROC and NIST/USA.

SPECIFICATIONS MANUFACTURER

ROHDE &
SCHWARZ

MODEL#/

SERIAL#

FSP7/
839511/010

DUE DATE OF CAL. &

CAL. CENTER

MAR. 2007
ETC

FCC ID: TV2EFOBI

Spectrum Research
& Testing Lab., Inc.

No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.

TEST REPORT

Reference No.: A06033011
Report No.: FCCA06033011
Page:

12 of 20

Date: May 12, 2006

6.3 TEST SET-UP

The EUT was connected to Receiver(or spectrum) by 50Ω coaxial cable.

EUT Receiver or Spectrum

6.4 TEST PROCEDURE

Please refer to FCC Part15C 15.231.

6.5 EUT OPERATING CONDITION

Same as section 2.3 of this report.

6.6 BAND EDGE TEST RESULT

EUT: Remote Controller MODEL: TM-TX01 MODE: TX

TEST STANDARD: FCC part15 Subpart C 15.231 TEST SITE: SHIELDED ROOM

AMBIENT TEMPERATURE : 20 ℃ RELATIVE HUMIDITY : 65 ％RH

TEST PERSONNEL : NICK APPROVED BY: JOHNSON

Frequency

(MHz)

RF LEVEL

120kHz BW

(dBuV)

Limit of

Power(dBuV)

MARGIN

(dB)

PASS/FAIL

433.928 56.44 80.83 -24.39 PASS

FCC ID: TV2EFOBI

Spectrum Research
& Testing Lab., Inc.

No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.

TEST REPORT

Reference No.: A06033011
Report No.: FCCA06033011
Page:

13 of 20

Date: May 12, 2006

FCC ID: TV2EFOBI

Spectrum Research
& Testing Lab., Inc.

No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.

TEST REPORT

Reference No.: A06033011
Report No.: FCCA06033011
Page:

14 of 20

Date: May 12, 2006

7. FREQUENCY BANDWIDTH

7.1 FREQUENCY BANDWIDTH LIMIT

FREQUENCY (MHz) BANDWIDTH LIMIT(kHz)

Above 70-900 0.25%×Center Frequency(MHz)

Above 900 0.5%×Center Frequency(MHz)

NOTE:

1. Bandwidth is determined at the points 20dB down from the modulated ca rrier.

7.2 TEST EQUIPMENT

The following test equipment was used during the radiated emission test :

EQUIPMENT/

FACILITIES

SPECTRUM 9 kHz TO 7GHz

NOTE:

1. The calibration interval of the above test equipment is one year and the calibrat ions are traceable
to NML/ROC and NIST/USA.

SPECIFICATIONS MANUFACTURER

ROHDE &
SCHWARZ

MODEL#/

SERIAL#

FSP7/
839511/010

DUE DATE OF CAL. &

CAL. CENTER

MAR. 2005
ETC

7.3 TEST SET-UP

The EUT was connected to receiver(or spectrum) by 50Ω coaxial cable.

EUT Receiver or Spectrum

7.4 TEST PROCEDURE

Please refer to FCC Part15C 15.231.

FCC ID: TV2EFOBI

Spectrum Research
& Testing Lab., Inc.

No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.

TEST REPORT

Reference No.: A06033011
Report No.: FCCA06033011
Page:

15 of 20

Date: May 12, 2006

7.5 EUT OPERATING CONDITION

Same as section 2.3 of this report.

7.6 FREQUENCY BANDWIDTH TEST RESULT

EUT: Remote Controller MODEL: TM-TX01 MODE: TX

TEST STANDARD: FCC part15 Subpart C 15.231 TEST SITE: SHIELDED ROOM

AMBIENT TEMPERATURE : 20 ℃ RELATIVE HUMIDITY : 65 ％RH

TEST PERSONNEL: NICK APPROVED BY: JOHNSON

CHANNEL

NUMBER

CHANNEL

FREQUENCY

(MHz)

___20___ dB

DOWN BW

(kHz)

MINIMUM

LIMIT

(kHz)

MAXIMUM

LIMIT

(kHz)

PASS/FAIL

1 433.91 394.0 1084.78

PASS

FCC ID: TV2EFOBI

Spectrum Research
& Testing Lab., Inc.

No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.

TEST REPORT

Reference No.: A06033011
Report No.: FCCA06033011
Page:

16 of 20

Date: May 12, 2006

8. RELEASE OR OPERATING TIME

8.1 RELEASE TIME OR OPERATING LIMIT

1. A manually operated transmitter shall employ a switch that will auto matically

deactivate the transmitter within not more than 5 seconds of being released.

2. A transmitter activated automatically shall cease transmission within 5 seconds after

activation.

3). Periodic transmissions at regular predetermined intervals are not permitted. However,

polling or supervision transmissions to determine system integrity of transmitters used in
security or safety applications are allowed if the periodic rate of transmission do es not
exceed one transmission of not more than one second duration per hour for each
transmitter.

4. Intentional radiators, which are employed for radio control purposes during

emergencies involving fire, security, and safety of life, when activ ated to signal an alarm,
may operate during the pungency of the alarm condition.

8.2 TEST EQUIPMENT

The following test equipment was used during the radiated emission test :

EQUIPMENT/

FACILITIES

OSCILLOSCOPE

NOTE:

1. The calibration interval of the above test equipment is one year and the calibrat ions are traceable
to NML/ROC and NIST/USA.

SPECIFICATIONS MANUFACTURER

500MHz HP

MODEL#/

SERIAL#

54616B/
US39150351

DUE DATE OF CAL. &

CAL. CENTER

APR. 2007
ETC

8.3 TEST SET-UP

EUT (TX)

LOOP
ANT. PROBE

Oscilloscope

FCC ID: TV2EFOBI

Spectrum Research
& Testing Lab., Inc.

No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.

TEST REPORT

Reference No.: A06033011
Report No.: FCCA06033011
Page:

17 of 20

Date: May 12, 2006

8.4 TEST PROCEDURE

A specific loop antenna was connected to oscilloscope to detect the EUT’s release
time.
The oscilloscope displayed the EUT’s release time and took a picture of
measurement.

8.5 EUT OPERATING CONDITION

The EUT is normal use function.

8.6 RELEASE OR OPERATING TIME TEST RESULT

EUT: Remote Controller MODEL: TM-TX01 MODE: TX

TEST STANDARD: FCC part15 Subpart C 15.231 TEST SITE: SHIELDED ROOM

AMBIENT TEMPERATURE : 20 ℃ RELATIVE HUMIDITY : 65 ％RH

TEST PERSONNEL: NICK APPROVED BY: JOHNSON

Start release

Stop time(ms)

time(ms)

Total release

Limit of release time<(s)

time(ms)

656 920 264

5

FCC ID: TV2EFOBI

Spectrum Research
& Testing Lab., Inc.

No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.

9. PHOTOS OF TESTING

Radiated test-TX

TEST REPORT

Reference No.: A06033011
Report No.: FCCA06033011
Page:

18 of 20

Date: May 12, 2006

FCC ID: TV2EFOBI

Spectrum Research
& Testing Lab., Inc.

No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.

Radiated test-RX

TEST REPORT

Reference No.: A06033011
Report No.: FCCA06033011
Page:

19 of 20

Date: May 12, 2006

FCC ID: TV2EFOBI

Spectrum Research
& Testing Lab., Inc.

No. 101-10, Ling 8,
Shan-Tong Li, Chung-Li
City, Taoyuan, Taiwan,
R.O.C.

TEST REPORT

Reference No.: A06033011
Report No.: FCCA06033011
Page:
Date: May 12, 2006

10. TERMS OF ABRIVATION

AV. Average detection
AZ(°) Turn table azimuth
Correct. Correction
EL(m) Antenna height (meter)
EUT Equipment Under Test
Horiz. Horizontal direction
LISN Line Impedance Stabilization Network
NSA Normalized Site Attenuation
PK. Peak detection
Q.P. Quasi-peak detection

20 of 20

SRT Lab Spectrum Research & Testing Laboratory, Inc.
Vert. Vertical direction

FCC ID: TV2EFOBI
