Page 1
909
User Manual
Page 2
2
thank you
Welcome
Firstly, thank you for purchasing your Trilogy Audio Systems 909 Pre-amplier, we value your custom.
We strive to design and build world class products that stand the test of time. By reading this manual you can
gain clear understanding of its operation and learn to care for it correctly. In turn, it will reward you with a lifetime
of outstanding performance.
......................................
Nic Poulson.
CEO Trilogy Audio Systems.
www.trilogyaudio.com
909/um/20042014
Page 3
3
Getting Started
4 Introduction
4 About this manual
5 Unpacking
5 Enviroment
5 Power Supply
7 Connections
9 Security
9 PIN Code Protection
11 Powering the Pre-Amp
11 Quickstart
Menu Index
13 Overview
15 Time Settings
15 Sleep To set the sleep timer
17 Timers To set the daily on/off timers
19 Time Set To set the day and time
21 Defaults
21 Menu Lock To enable or disable the menu lock
23 Volume To set various default volume parameters
25 Input To assign the default input
25 Film In To assign an input to be the lm input
25 Output To select the default output source
27 Balance To assign the default balance setting
27 Display To set various display parameters
29 Warm Mode To enable or disable Warm Mode
29 External To set TASLink parameters
31 Names
31 Inputs To assign user names to the inputs
33 External To assign user names to peripherals connected by TASLink
35 Tools
35 Ext status To check the status of peripherals connected by TASLink
35 Bus status To check the status of the TASLink bus
35 Version To check the software version in this unit and peripherals
contents
909/um/20042014
Page 4
4
37 Bond To bond peripherals to this 909 for security
37 Unbond To unbond peripherals from this 909
37 IR Code To display the codes received by the IR receiver
39 Factory To reset the 909 to factory default settings
TASLink
41 Overview
41 Bus power
41 Bus remote on
41 High speed bus
43 Low speed (quiet) bus
43 Rear Panel LEDs
43 Front Panel Warning LEDs
Appendices
45 Appendix A
47 Appendix B
Care & Service
49 Cleaning
49 Servicing
49 Declarations
Glossary
50 Glossary
Specications/Returns
51 909 Specications
51 Returns
Acknowledgements
52 Acknowledgements
.
contents
909/um/20042014
Page 5
5
Introduction
We prefer that your Trilogy dealer delivers, installs, sets up and explains your 909’s operation to you.
However, we still recommend that you read through this manual thoroughly and keep it to hand for reference if
you intend using some or all of the 909’s complex and rather unique features.
Should any part of this manual or the operation of the 909 not be clear to you, please do not hesitate to contact
your Trilogy dealer. If they are not available please contact ourselves directly.
About this manual
Throughout this user manual, the following icons are used:
[enter] This refers to a physical control on the 909.
RETURN 1 This refers to a physical connection on the 909.
Bal Centre
This indicates information that is presented on the display.
From this point on, any information presented on the left hand pages are pictorial representations of either the
front or back views of the 909 or of the display.
Therefore consider the left hand pages as additional information to accompany the written descriptions on the
opposite pages.
909/um/20042014
Page 6
6
Unpacking
Be careful when unpacking your Trilogy amplier, it is heavy. Seek assistance if necessary. Store the packaging
safely for future use. It is the ideal method of protecting your amplier from damage during transport.
Environment
Do not site the amplier near liquids, or place water-lled containers near the unit. If water does come into
contact with the unit there is serious potential for an electric shock or re hazard. Immediately pull out the mains
plug from the wall socket. Contact your dealer to arrange an inspection before further use.
The amplier is cooled by convection and so needs good circulation of room temperature air under and around it.
Do not place it near sources of heat such as radiators or in direct sunlight. Do not enclose in a cupboard. Do not
place directly on carpet.
A at, smooth surface is required. As with all high resolution audio equipment, your amplier is sensitive to
vibration, strong magnetic elds and radio interference. A dedicated high performance equipment platform sited
away from other appliances is the optimum location.
Power Supply
The AC input voltage has been set for the country it was purchased in. Check that the label on the rear panel
matches your AC supply voltage before plugging in. The AC inlet cable provided should be used. If another cable
is used check it is wired correctly. The fuse should be rated at 10 amps.
The wires in the AC input cable supplied are coloured in accordance with the following code:
Green and yellow..............Earth
Blue................................Neutral
Brown.................................Live
The amplier must be earthed. Do not disconnect the AC earth at any time. If in doubt about any aspect of
power supply, consult your Trilogy dealer or a qualied electrician.
A direct connection to a mains outlet is best for your amplier, avoid adapters. To realise your amplier's full
potential we recommend high quality mains conditioning. See www.Isol-8.co.uk for more on power supply and
system solutions from our highly acclaimed sister company.
909/um/20042014
Page 7
7
909/um/20042014
Page 8
8

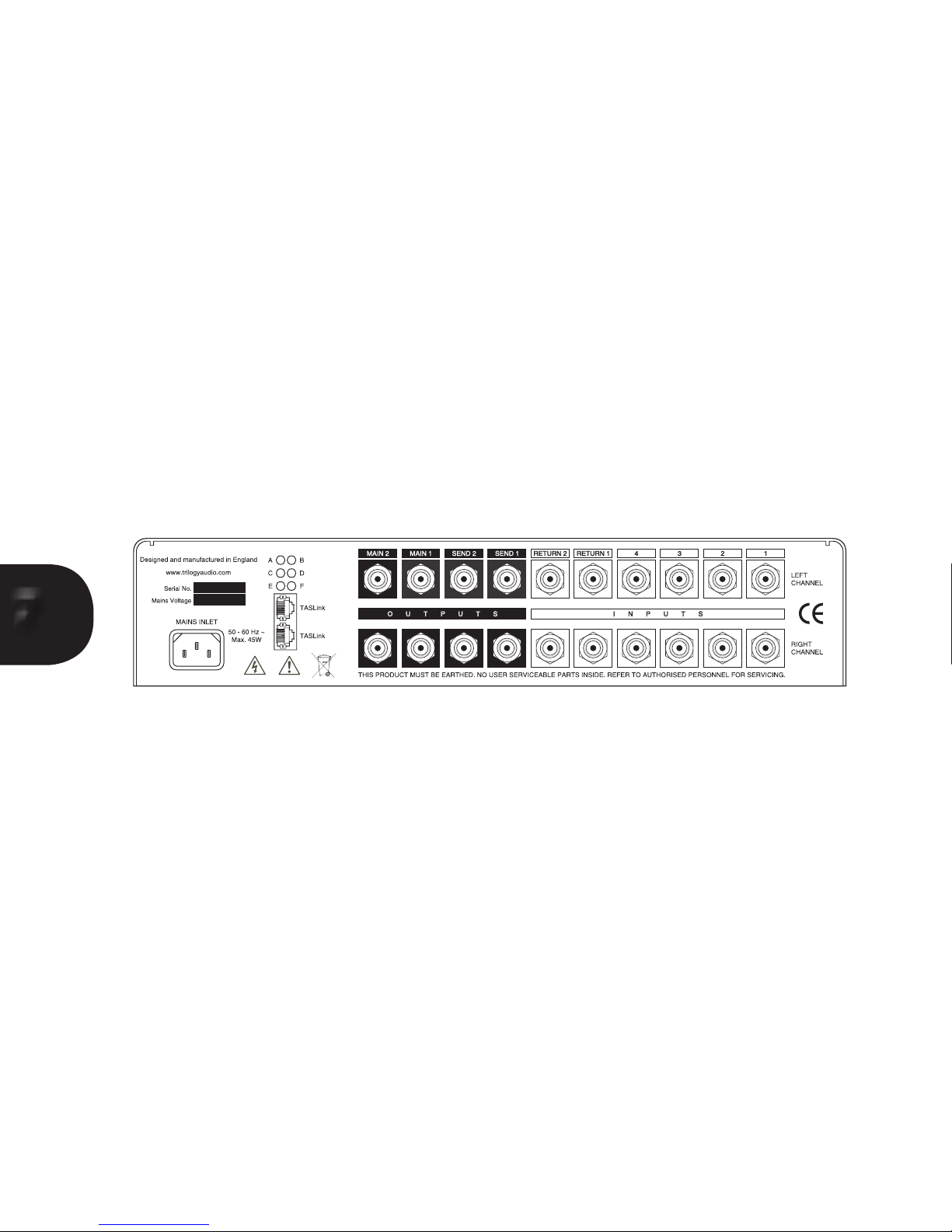

Connections
It is good practice to complete all interconnections before switching on to avoid any damage to your system's
loudspeakers while plugging in.
The IEC inlet provides the unit with power. Connect with the supplied AC input cable. It can be left connected at
all times to ensure reliable operation. If not being used for extended periods of time switch off at the mains outlet.
See the Comprehensive Operation Guide for timed, sleep and remote switching.
The Pre-Amplier can accommodate six line level audio inputs. Two are associated with auxiliary loops. If both
loop functions are not required RETURN 1 and RETURN 2 can be regarded as inputs 5 and 6. Connect your
sources to these inputs via RCA phono cables as required. A separate phono stage will be required for vinyl
playback.
Two sets of main line level outputs are provided. Connect MAIN 1 to your power amplier via RCA phono cables.
MAIN 2 is provided for connection to a second power amplier for applications such as bi-amping. MAIN 2 is not
independently buffered or controlled.
Two independent switchable auxiliary loops are provided, SEND 1 and SEND 2 with RETURN 1 and
RETURN 2. These can be congured to provide send and returns to and from recording media, AV or multi-room
systems independently from the main outputs. They are congured via the front panel controls as detailed in the
Comprehensive Operation Guide.
Twin TASLink connectors allow interconnection, control and monitoring of other Trilogy Audio System products
via QuietBuss technology. The associated LEDs give status information. The Comprehensive Operation Guide
contains further information. TASLink cables are available from your Trilogy dealer in various lengths.
909/um/20042014
Page 9
9

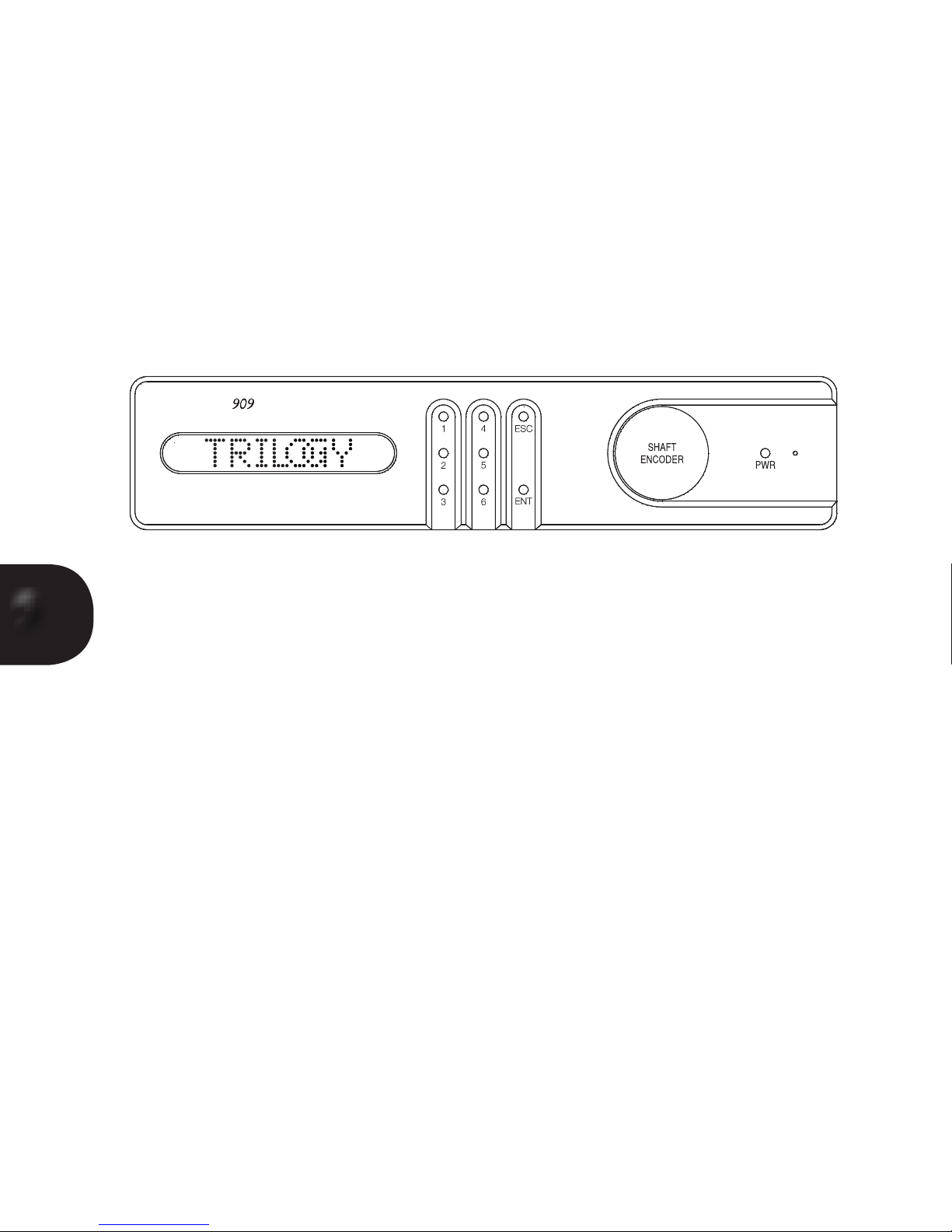

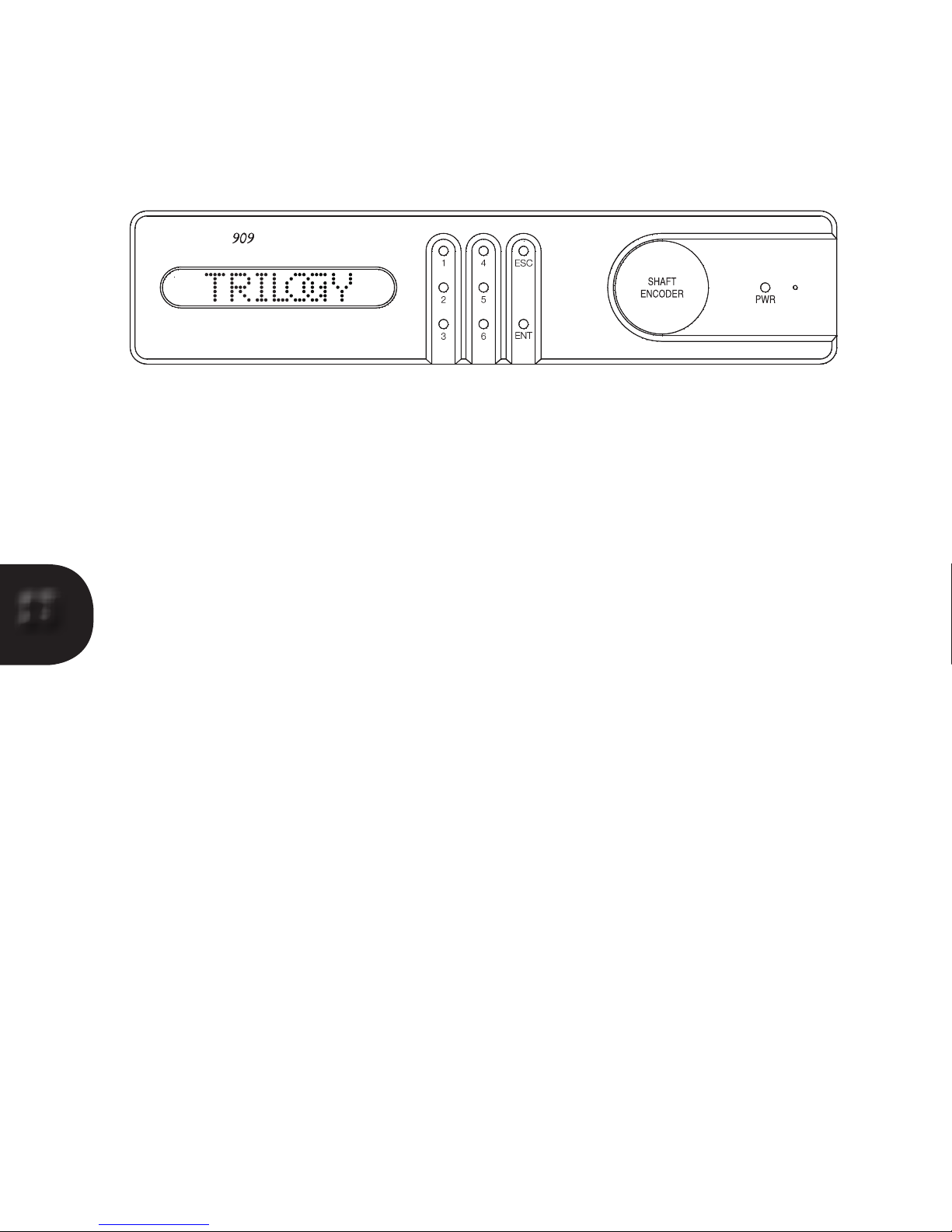

Pin Code
[enter]
00----
Rotate [shaft encoder] to display rst Pin Code pair
52----
[enter]
5200--
Rotate [shaft encoder] to display second Pin Code pair
5225--
[enter]
522500
Rotate [shaft encoder] to display third Pin Code pair
522594
[enter]
Warm up...
The number used above is purely an example.
Your unique PIN Code is detailed in the separate sheet accompanying your 909.
909/um/20042014
TRILOGY
TRILOGY
Page 10
10
Security
Each 909 comes with its own unique PIN for your security. If the AC input is disconnected for a long period of
time you will be prompted for a PIN on power up. Please take precautions to remember your PIN and make sure
it cannot fall into the hands of others. Should you not be able to enter the correct PIN, contact your Trilogy dealer.
PIN Code Protection
When the amplier is rst powered, or unplugged for approximately fteen minutes, the pre-amp requires a
security PIN code to be entered. When the display says
PIN Code
, press [enter] and the display will read
00----
where 00 are the rst two digits of the PIN code you are entering. Set these digits correctly with the
[shaft encoder], noting you can move backwards through 00 to 99 for speed. Press [enter], adjust the next pair of
digits, [enter] to change the last pair then [enter] again to complete PIN code entry.
If the PIN is entered incorrectly, press [enter] at the warning but note after three failures, the unit will be locked out
for two minutes before prompting again for PIN entry.
909/um/20042014
Page 11
11
909/um/20042014
Page 12
12
Powering the Pre-Amp
Once the PIN code has been correctly entered, the pre-amp can be powered using the [power] button. The
message
Warm up...
will be displayed while the circuitry warms up, and any attached power amps warm up if
they are controlled from the pre-amp. After forty seconds, the pre-amp is unmuted, the current input and volume
are displayed before the menu defaults to the home page.
Turn off by again pressing the [power] button, which includes the ability to abort power up during the warming
period. The message
Turn off
is displayed and this takes a couple of seconds as outputs are muted before
valve circuitry is powered down.
This simple on/off operation is the standard setting from the Trilogy factory, but the detailed menus offer the ability
to select an intermediate
Standby
mode, where a simple press of the [power] button while powered places the
pre-amp and peripherals in a keep warm mode. This is of particular benet for equipment such as the 990 power
amplier, which can cycle power to its circuitry to keep warm, while reducing power consumption below standard
mute modes. When this mode is enabled, full turn off is achieved by pressing and holding the [power] button.
Quickstart
Having made and checked all appropriate input, output and AC connections, press the [power] button. The unit
will remain muted until warm up is completed.
Select an Input from [1] to [6] . The [shaft encoder] will adjust volume.
To explore the control menus use a combination of [shaft encoder], [escape] and [enter] buttons. The display will
be your guide. If you get lost, press the [escape] button repeatedly until the originally selected input is displayed.
909/um/20042014
Page 13
13
Record Output options
No output
Input 1
Input 2
Input 3
Input 4
Input 5
Input 6
Balance options
Mute Right
Bal <30
....
Bal <1
Bal Centre
Bal >1
....
Bal >30
Mute Left
Brightness options
Bright Auto
Bright 1
....
Bright 9
More options
More
Time
Defaults
Names
Tools
909/um/20042014
TRILOGY
TRILOGY
Page 14
14
Overview
The Trilogy 909 pre-amp offers a nested menu structure to access the large number of options. This is intuitive,
using a combination of [enter] / [escape] buttons and the rotary [shaft encoder]. Although the six input select
buttons could have been used at some point in the menu structure, this would have been difcult to remember.
The six input buttons are only ever used to change the input you listen to, which may also be associated with
input level adjustments (trim).
By default, the pre-amp displays what we call the ‘Home Page’, which is selectable as a blank screen, Trilogy
logo, time, input or volume. The home page can be set differently when the pre-amp is off, compared with when
it is powered.
Navigating the menu, you will alternate between the [enter] button and rotary [shaft encoder], with [escape] to
step back up one level. Because the [shaft encoder] is normally used to adjust the volume from the home page,
the rst step to access the menus is to press [enter], which shows the record output. This can be changed with
the [shaft encoder], or [enter] again to adjust balance. [enter] again for brightness and choose from automatic
according to ambient light, or xed levels 1-9. The next [enter] will display
More
, which is the route into the
detailed menus, which are accessed by turning the [shaft encoder].
The top level menu is circular, so pressing [enter] when
More
is displayed will return to record output selection.
[escape] at any time from these top level settings to return to the home page, and press [escape] from the home
page to display the current time. Holding [escape] for several seconds at the home page will display the unit’s
serial number.
You will nd it intuitive, but it is unusual that you advance between top level menus of output, balance, brightness
and more using the [enter] button, whereas in the detailed menus found within
More
, the different menus are
selected with the [shaft encoder]. The logic for this is we nd it acceptable to select between the small number of
high level menus using [enter], and also that each of these top level menus demands the use of the
[shaft encoder].
To access the detailed menus,
More
should be displayed then turn the [shaft encoder] to select between time,
defaults, names and tools. If you have enabled menu lock in the defaults (disabled by default), on turning the
[shaft encoder] you will be prompted to enter the four digit menu PIN code provided with your pre-amp. This is a
different number to the six digit PIN entered when power is applied.
909/um/20042014
Page 15
15
More
Time
Sleep
Timers
Time Set
More
Time
Sleep
Sleep Off
Sleep 0:01
....
Sleep 2:00
909/um/20042014
Page 16
16
More / Time
This includes setting the current time and sleep time similar to that found on an alarm clock, putting the pre-amp
to sleep after an adjustable number of minutes. On and off timers are provided for every day, plus global on/off
timers that apply every day. Individual timers can be disabled and only some timers used if required. For example,
turn on Saturday morning and turn off Sunday evening. Press [enter] to access
Sleep
, then select other time
options if required.
More / Time / Sleep
Pressing the [enter] button when
Sleep
is displayed, will allow the user to set a sleep timer to turn the pre-amp
off automatically after a set time. However during this countdown period the front panel button, an external
remote or one of the timers might switch the pre-amp off rst.
The default value displayed is
Off
, but using the [shaft encoder], the time can be adjusted from
0:01
(one minute until sleep) to
2:00
(two hours until sleep) in one minute steps. Once set as required, [escape] from
this menu or leave the display timeout to return to the homepage if enabled. When the unit goes to sleep, by
default it will switch off both the pre-amp and any TASLink attached peripherals.
If display timeout is not enabled and you stay on the sleep display, you will see a live countdown. If you wish to
disable the sleep timer, set it to
Off
.
909/um/20042014
Page 17
17
More
Time
Timers
Mon ><:00 ©
Mon ><:00 ®
Tue ><:00 ©
Tue ><:00 ®
Wed ><:00 ©
Wed ><:00 ®
Thu ><:00 ©
Thu ><:00 ®
Fri ><:00 ©
Fri ><:00 ®
Sat ><:00 ©
Sat ><:00 ®
Sun ><:00 ©
Sun ><:00 ®
All ><:00 ©
All ><:00 ®
909/um/20042014
Page 18
18
More / Time / Timers
Timers are provided to allow automatic on/off switching customised to your daily routine, like a modern central
heating controller. This facility may be useful simply to bring your audio equipment to optimum temperature
before listening, to minimise power wasted overnight in maintaining temperature, or to provide wake-up music
like an alarm clock.
[enter] from
Timers
to show the ‘on timer’ for Monday, designated with the lled square top right of the display.
The day will be ashing. Turning the [shaft encoder] to the right shows the off timer for Monday with an empty
square bottom right, then on/off for every day with the addition of ‘all on’ and ‘all off’ timers which will work
every day.
The timer hours are adjustable
00
to 23, minutes are 00 to 59 as expected. We deliberately prevented the
[shaft encoder] ‘wrapping round’, eg 23 hours to 00 hours. Before 00 hours, there is an additional setting of
><
hours which disables that timer. Trilogy 909 pre-amps are shipped with all timers disabled and minutes set
to 00, that is
><:00
.
To adjust a timer, select the timer of interest with the [shaft encoder] and press [enter]. This allows hours to be
changed, including disabling with a setting of
><
. Press [enter] to edit the minutes or [escape] back to selecting
the different days on/off. It will be clear what you are changing with the [shaft encoder] as the display will be
ashing.
We have included what we hope is a useful feature. After editing timer minutes, pressing [enter] moves to the
next timer – press [enter] to edit that. This speeds setting as you are likely to edit an off timer when you have
edited that day’s on timer. However if you edit the minutes on one timer and do not want to edit the next timer,
simply press [enter] then choose another timer, or [escape] again to leave the timer menu.
The timers were designed with exibility in mind. Day timers do not have to be used in on/off pairs, so you could
have your system switch on Saturday morning and keep warm until Sunday evening, just using Saturday on and
Sunday off timers. Similarly, each day could turn on at different times, but the All off timer would switch off the
system at the same time every day.
When the unit switches off, it will switch off both the pre-amp and any TASLink attached peripherals.
909/um/20042014
Page 19
19
More
Time
Time Set
Day HH:MM
909/um/20042014
Page 20
20
More / Time / Time Set
An internal clock allows the pre-amp to operate its on/off timers and display the current time if required. The
clock must be set by the user but, once the time is set, it keeps time even when there is no mains power applied.
This clock offers the same accuracy as typical quartz units that are not locked to a time reference such as the
internet or a radio signal. As for similar devices, the clock may need adjusting occasionally.
To adjust or set the clock for the rst time, press [enter] at the
Time Set
menu. The day and time will be
displayed with the day ashing. Use the [shaft encoder] to adjust the day, [enter] to make the hours ash and
adjust (always 24 hour clock), then [enter] again to adjust minutes. [enter] will cycle back to adjusting the day.
Although seconds are not displayed, internally they are reset to zero if the time is adjusted.
909/um/20042014
Page 21
21
More
Defaults
Menu Lock
Volume
Input
Film in
Output
Balance
Display
Warm Mode
External
More
Defaults
Menu Lock
Unlocked
Locked
909/um/20042014
Page 22
22
More / Defaults
A wide range of default values can be set in this menu, including startup input and output selection, startup
volume and settings to integrate a surround system. Display parameters such as home page, timeout and
brightness, language, and whether volume is displayed in decibels or 0..99. Settings for external equipment
using TASLink communications, and new facilities as they are developed. Where direct access to a setting such
as input or brightness is available, these menus change the startup default but not the current settings. For items
like language or display in dB, both the default and current setting are changed. [enter] for the rst default setting
Menu Lock
where the PIN code request for detailed menus can be enabled.
More / Defaults / Menu Lock
All of the detailed menus beyond
More
can be protected by a PIN code. Whether this is enabled is set here,
pressing [enter] at
Menu Lock
allows
Unlocked
or
Locked
with the [shaft encoder].
909/um/20042014
Page 23
23
More
Defaults
Volume Trim
Input X
Trim -20
....
Trim +20
More
Defaults
Volume
Start
Mute
Dim 4
Dim 3
Dim 2
Dim 1
-65.0dB
....
-26.0dB
More
Defaults
Volume
Max
Mute
Dim 4
Dim 3
Dim 2
Dim 1
-65.0dB
....
-26.0dB
More
Defaults
Volume
Film
Mute
Dim 4
Dim 3
Dim 2
Dim 1
-65.0dB
....
-26.0dB
909/um/20042014
Page 24
24
More / Defaults / Volume
If you press [enter] when you get to the defaults volume menu, you will see
Trim
. Rotate the [shaft encoder] to
see alternatives
Start, Max
and
Film
. In order these are,
Trim
volume offset for the selected input, to equalise levels between sources.
Each step is 0.5dB.
Start
default volume level every time the pre-amp is turned on, unless the default input is
set to be a lm input, for example from a surround processor.
Max
maximum volume level that can be achieved for all inputs except any designated
lm input. This is useful when you don’t trust others with your speakers! It is
possible to increase the effective volume beyond this setting by adjusting the input
trim. If the maximum setting is reduced below the startup setting, when [escape] is
pressed the startup level is automatically lowered to match.
Film
nominally unity gain for surround systems where an input has a xed volume level
and all adjustments are made on the surround processor. The audio performance
of the Trilogy 909 pre-amp benets from the lack of closed loop control of the pre amp gain, hence the gain will vary depending on the valves. This setting allows ne
tuning of the unity gain, or adjustment to a value which is not unity.
With
Trim, Start, Max
or
Film
displayed, press [enter] to view and change the setting with the [shaft encoder].
Note that when you press [enter] to adjust all but trim, the pre-amp volume will change to the setting which you
want to edit, so you can audition the level correctly. For
Max
in particular we recommend caution. Press [escape]
to leave the menu and the new value is saved.
You will not be able to edit the
Film
setting unless you have a lm input dened (see more/defaults/lm in) and
that input is selected. If you have a lm input selected, you will not be able to edit
Start
or
Max
which do not
apply to the lm mode.
Factory defaults for these volume settings are
Trim
0 all inputs
Start
-60dB (12 when display is set to use 0..99, not dB)
Max
-26dB (61)
Film
-26dB (61)
909/um/20042014
Page 25
25
More
Defaults
Input
No input
Input 1
Input 2
Input 3
Input 4
Input 5
Input 6
More
Defaults
Film in
No film
Input 1
Input 2
Input 3
Input 4
Input 5
Input 6
More
Defaults
Output
No output
Input 1
Input 2
Input 3
Input 4
Input 5
Input 6
909/um/20042014
Page 26
26
More / Defaults / Input
With
Input
showing, press [enter] to see the input that is selected every time the pre-amp is turned on with the
[power] button, timers or externally via TASLink. Options are the six inputs or
No input
selected at power on. The
default startup volume will also be selected at power on, unless that input is designated as the lm input typically
connected to a surround sound processor. In that case the default lm volume is used. Hence menus associated
with default input are defaults / volume and defaults / lm in. Factory default is input 1 selected at power on.
Changes to this setting will only be evident next time the pre-amp is turned on.
More / Defaults / Film in
If an input is designated here as the ‘lm input’, it has its own setting for volume which over-rides the volume
control and the volume is automatically changed to that setting when the lm input is selected. This level is set
in defaults / volume / lm. When listening to a ‘normal’ stereo input after the lm input, volume is restored to the
default startup volume set in defaults / volume / start.
No Film
is the factory setting for this parameter. To change this, press [enter] when
Film
in is displayed, then use
the [shaft encoder] to select the lm input. To avoid the volume jumping between the stereo and lm volume
settings as you pass over the currently selected input, changing this setting has no direct effect. Once an input is
assigned as the lm input, it must be deselected if already selected, then selected to enter the lm mode.
More / Defaults / Output
The default output is selected when power is applied to the pre-amp. The pre-amp does not have to be turned
on. This operation is quite deliberate. Whether the pre-amp is on or off, it was felt important to maintain the
currently selected record source so a recording can continue. The record output is maintained in all standby or
off modes, dependant only on mains power being available. This setting differs from the default input which is
selected every time the pre-amp is turned on – the default output is only selected when mains is connected.
Although applied at different times to the default input, changes are made in the same way, with options of
No output
or any of the six inputs.
909/um/20042014
Page 27
27
More
Defaults
Balance
Bal <30
....
Bal <1
Bal Centre
Bal >1
....
Bal >30
More
Defaults
Display
Home On
Blank
Logo
Time
Volume
Input
Home off
Blank
Logo
Time
Timeout
Off
30 secs
60 secs
90 secs
Bright
Bright Auto
Bright 1
....
Bright 9
909/um/20042014
Page 28
28
More / Defaults / Balance
Default balance is similar to default startup volume as it is applied every time the pre-amp is turned on. Default
balance is not used in lm mode and can only be auditioned if the selected input is not designated as the lm
input. Similar to adjusting default volumes, when default balance is adjusted the pre-amp follows changes for
proper auditioning.
Factory default balance is
Bal Centre
which will be displayed when you press [enter] from
Balance
. Adjust
balance using the [shaft encoder] from the greatest left bias
<30
to a right bias of
>30
. The default balance can
not be adjusted to fully mute left or right speakers, a feature which is only available on the ‘live’ balance control
to check for faults. For those interested in dB, each step is 0.5dB where the volume adjustment permits – if the
volume is near minimum or maximum levels, the balance control will be limited in the range it can achieve.
Although volume can be displayed in dB or 0..99, balance is displayed as a number only.
More / Defaults / Display
Press [enter] then use the [shaft encoder] to see the display options
Home On
What the display shows at idle when the pre-amp is on, e.g. time or input
Home Off
What is displayed when the amp is off
Timeout
After using a menu this dictates the time taken to return to the home display
Bright
Display brightness can be changed ‘live’, but this is the startup setting
dB or 0..99
Volume can be displayed in decibels (dB) or as a range 0..99
Language
The pre-amp hardware permits foreign language support in the future
With any of the above displayed, press [enter] to see the current setting and make changes.
The options for
Home
On are a blank screen, the Trilogy logo, time of day, volume or input name. It is not logical
for the pre-amp to display volume or input when it is switched off, so
Home Off
does not offer these options.
Factory settings for these home pages are blank when the pre-amp is off and time when turned on. Note that the
blank display shows a single dot to the left when the pre-amp is off to indicate the unit is powered, as the main
power LED is not illuminated. This is a required safety feature.
Timeout
can be set to off (disabled), 30, 60 or 90 seconds. This is the time to return to the home display
from menus.
Default
Bright
can be
Bright Auto
, depending on ambient light, or a xed setting of
Bright1
(dim) to
Bright9
.
909/um/20042014
Page 29
29
More
Defaults
Display
dB or 0..99
Vol dB
Vol 0..99
Language
English 01
Not fitted
More
Defaults
Warm Mode
Warm off
Warm on
More
Defaults
External
Bus power
Pwr on
Pwr off
Bus remote
Not used
In on
In warm
Out on
Out warm
High speed
Hi off
Hi on
909/um/20042014
Page 30
30
When the
dB or 0..99
volume option is set to decibels, maximum volume is 0.0dB. Lower volumes are shown
as a negative value, e.g. -10.0dB is 10dB below the maximum possible level. This mode will suit those with a
technical interest, but might be confusing as the displayed number gets larger as the volume is lowered. The
alternative is 0 to 99 where 99 is the maximum level.
The pre-amp has been designed to accept foreign language support in the future. Press [enter] to access this
setting, and use the [shaft encoder] to select the
Language
. Note:
Language
will only allow English at this time.
More / Defaults / Warm Mode
By default, warm mode is off. When enabled, a short press of the [power] button turns the pre-amp on, a shortpress puts it into warm mode, a long press from on or warm will turn the equipment off. For the 909 pre-amp
alone, warm mode simply mutes the amplier and is not of great benet. This facility is really intended for use
with equipment such as the 990 power amp that has a true ‘keep warm’ mode. When connected via TASLink,
placing the 909 pre-amp in warm mode will maintain a steady temperature for the 990 power amp heatsink.
More / Defaults / External
This menu allows changes to TASLink settings for bus power, bus remote GPI and high speed data. We suggest
you read the TASLink overview before changing these settings.
Bus power
Bus power can be turned on or off. It is on by default.
The bus must be powered by the pre-amp or another Trilogy power source for the
low speed bus to operate
Bus remote
The bus remote line is one pin of the TASLink connector and is used to turn on
Trilogy, or other manufacturer’s, equipment that is not equipped with the TASLink
low speed bus. Alternatively, the bus remote line can be an input to the 909 pre amp to allow turn-on from other systems. Options are,
Not used
Factory default
In on
Input with <2.5V turn off and >7.5V turn on
In warm
Input as above with additional 2.5V-7.5V keep warm
Out on
Output nominal 10V when pre-amp is on
Out warm
Output nominal 10V when pre-amp is on or warm
Requires defaults/warm mode to be enabled
High speed
By default the high speed data is off. This is used for external displays and
multi-room control systems.
909/um/20042014
Page 31
31
More
Names
Inputs
External
More
Names
Inputs
1Input 1
Input 1
2Input 2
Input 2
3Input 3
Input 3
4Input 4
Input 4
5Input 5
Input 5
6Input 6
Input 6
909/um/20042014
Page 32
32
More / Names
Inputs are named here. Where Trilogy peripherals are installed on TASLink and can be named, this is also done in
these menus. [enter] for
Inputs
, to name the six inputs. The option to give names to TASLink devices relies on
suitable devices being connected.
More / Names / Inputs
The pre-amp leaves the factory with input names set to Input 1, Input 2 etc. These names can be edited, for
example to show the equipment type such as CD or Tuner. Names are limited to ten characters, but it is possible
that not all characters will t on the display. We use variable width fonts on the display to improve the look,
meaning a capital “B” is much wider than a lower case “i”. Using variable width fonts actually increases the
number of characters available on the display but it does mean the characters available depends on what you
want to display.
With
Inputs
showing, press [enter] and the display will show the input number and name of the rst input,
1Input 1
, where the rst character will be ashing. At this stage you can select which input name to edit with
the [shaft encoder]. When the desired input is displayed, press [enter] again and the rst number will disappear to
show the input name as it will appear in normal operation,
Input 1
.
Again the rst character is ashing, but now it is ashing on the rst character of the name which can be edited
using the [shaft encoder]. Pressing [enter] moves to the second character, and so on through all ten possible
characters before returning to the rst character. Each ashing character can be changed with the
[shaft encoder]. There is no delete function, so simply set that character to a space which is found by turning
the [shaft encoder] fully anticlockwise. Because it would be impossible to see a ashing, blank space, if you are
editing a character that is a space, a dot ashes at the top of that position.
Ten characters are allowed, even if they do not all t onto the display. If you change characters near the beginning
of the name, you may nd end characters come into view, but if they are out of view during editing they will not
be seen during normal operation. We could have scrolled the display for you to edit end characters otherwise
off the display, but our method means you will not waste time editing a long name only to nd it does not t in
normal use!
Pressing [enter] to cycle through the characters applies even when the characters are off the end of the display.
You may need to press [enter] a few times without seeing a ashing character before returning to the rst
character ashing.
909/um/20042014
Page 33
33
More
Names
External
01.
....
24.
909/um/20042014
Page 34
34
More / Names / External
Shipped from the factory, equipment such as the Trilogy 990 power amp will turn on and off, following the
909 pre-amp if connected over TASLink. There is no need to name devices that are controlled over the TASLink
low speed bus, but naming allows their status to be checked through the display of the 909 pre-amp. This status
includes running temperature and fault messages. Naming devices also allows their serial number to be checked
remotely.
To allow TASLink communication, each device controlled via low speed bus needs a unique ID number. From the
factory no ID number is set on such equipment as the 990 power amp.
This menu intelligently combines the assignment of ID numbers and the naming process.
When rst run with new equipment, pressing [enter] on this menu will display
01.
where 01 is the ID number and the dot means no device has responded. Use the [shaft encoder] to select ID 02,
03 etc. to a maximum of 24.
We suggest you use contiguous ID numbers starting from 01, as unit 01 is the rst status that is fetched in that
menu. With 01 (or other) displayed, low speed bus units should have their front panel LEDS mostly off with
a short ash on. This indicates the button is temporarily not used for on/off and can be used to ‘grab’ an ID
number from the pre-amp. If you need to switch off the devices during this time, for example due to excessive
audio levels, use the pre-amp power button to switch off both the 909 pre-amp and connected devices.
A two second press of the power button of equipment such as the 990 power amp, will cause that device’s LED
to change from an occasional ash to rapid ashing, to indicate it has taken the current ID. With multiple devices,
it is possible to move between ID numbers 01,02 etc. using the [shaft encoder] and device LEDs will change their
ashing to indicate which is being addressed. Grabbing an ID number where that ID number is used elsewhere,
will cause the original device is automatically reset to having no ID number, just as it leaves the factory.
Once a device has an ID number, it will return with the factory name e.g.
01990
and names can be edited in
the same way as input naming. Press [enter] and
990
will be displayed with the rst character ashing. Edit the
name, using [enter] to advance through the characters and [escape] to save. There will be a short delay showing
01.
again while the name is written and read back over the TASLink low speed bus.
909/um/20042014
Page 35
35
More
Tools
Ext status
Bus status
Version
Bond
Unbond
IR Code
Factory
More
Tools
Ext status
01.
....
24.
More
Tools
Bus status
Pwr
9.8V
Pwr
0.00A
Rem
0.0V
Rem
0.00A
More
Tools
Version
This 909
Vx.xx
Display
Disp x.xx
External
01.
....
24.
909/um/20042014
Page 36
36
More / Tools
Tools offers detailed system information – TASLink peripheral status, a ‘health check’ for the TASLink bus itself,
and a check of software versions in the pre-amp and peripherals. Tools also allows presets to be returned to the
factory default and TASLink equipped peripherals to be ‘security bonded’ to the preamp.
More / Tools / Ext status
For intelligent TASLink devices that have been named (above), their status can be checked using this menu. The
pre-amp will rst look for unit ID 01 and advance from there until it nds a unit which can report its status. At the
maximum, ID 24, the status check wraps round to ID 01.
Unit status and name alternate on the display. To advance from one unit ID to the next, press [enter].
The Trilogy PRC remote has a dedicated status button which starts at ID 01, particularly useful for returning to
the rst attached unit after checking the status of the last unit without waiting for the system to cycle.
More / Tools / Bus status
This menu displays in turn, TASLink bus power voltage and current, followed by bus remote voltage and current.
You may be asked to use these tools as part of telephone support.
More / Tools / Version
It is common practice to update software over a period of time. However, Trilogy do not believe this should
happen regularly and are against automatic updates via a computer as this does carry risks. Although typically a
dealer tool, options for software version are
This 909
Display
External
The rst two will display the versions of the two main controllers in the pre-amp, although any TASLink connected
display will show its own local software version. The external option will display the serial number / version of
equipment that has been named – similar in operation to ext status.
909/um/20042014
Page 37
37
More
Tools
Bond
More
Tools
Unbond
More
Tools
IR Code
IR 0000
909/um/20042014
Page 38
38
More / Tools / Bond
To protect your investment in Trilogy equipment, this facility allows many Trilogy peripherals to be security bonded
to the 909 pre-amp. The Trilogy 990 power amp is one example that, once bonded, can not be turned on with
its local power button or via TASLink other than with the original bonding 909 pre-amp. With target peripherals
connected to TASLink, press [enter] and the message
Done
will be displayed. To prove bonding has been
successful, power off equipment such as 990 power amps, either with their front panel buttons or via the 909
pre-amp. Then attempt to power peripherals with their front panel buttons which should not work if bonding has
been successful.
Please note there is deliberately no indication which 909 pre-amp is bonded to different power ampliers etc.
This is a security issue.
More / Tools / Unbond
When reconguring your system or moving some units to a different location, there may be a need for bonded
equipment to be unbonded. Even Trilogy dealers are unable to undo security bonding and only the original
909 pre-amp can unbond those items which it has previously secured. After pressing [enter] and receiving the
message ‘
Done
’, front panel buttons should be used, like bonding above, to test whether equipment can be
turned on locally. In this case, it should now be possible to power peripheral equipment via their local front panel
buttons.
More / Tools / IR Code
Although Trilogy offer a very attractive PRC Infra Red remote control, some users will want to use programmable
remotes to cover different types of AV equipment. Although some programmable remotes are very capable,
experience shows that some can be complicated to setup. The standard factory setting for the 909 pre-amp is
Philips’ RC5 remote control standard with a system code of 16 (10 hex). Remote numbers 1-6 are the six input
buttons, 7 is [escape] and 9 is [enter]. Digit 0 opens external status, program up and down navigate the menu
in a similar way to the [shaft encoder], while volume up and down are as expected – menu and volume are
separate functions, unlike the front panel [shaft encoder]. Mute on/off is standard, while Time is the button used
for Teletext in television systems.
To aid fault nding with your remote control, the
IR Code
page shows a four digit hexadecimal number for the
IR code received. When nothing is received it shows
IR 0000
. If it continues to show this despite you sending
Infra Red commands, then those commands are not Philips RC5.
909/um/20042014
Page 39
39
More
Tools
Factory
Restore?
909/um/20042014
Page 40
40
For RC5 commands to be valid for the 909 pre-amp, the rst two digits should be D0 or F0 – the numbers
alternate for each key press. Out of interest, the rst two digits will be
C0/E0
for RC5 television control.
For the possible commands, the last two digits are then,
00
External status
01....06
Input 1 …… Input 6
07
Escape
09
Enter
0C
Power
0D
Mute
10
Volume up
11
Volume down
20
Menu up
21
Menu down
3C
Time
To leave the IR code display, you must use the front panel [escape] button, or wait for timeout.
You can not escape with infra red escape.
More / Tools / Factory
Selecting
Factory
, will prompt you with
Restore?
To check whether you are really sure you want to reset.
If you press [enter], this will return all values to standard, detailed in Appendix B. To abort, press [escape].
909/um/20042014
Page 41
41
909/um/20042014
Page 42
42
TASLink Overview
TASLink is Trilogy’s proprietary bus system offering power and data to remote displays, and also data to other
Trilogy audio products to synchronise power on/off and provide error information. TASLink has a bus remote line
(GPI) allowing equipment from other manufacturers to be powered on/off by the 909 pre-amp, or allow the 909
to be turned on by another system.
Standard Cat5 or Cat5e cables are used, the same as used for computer networks with RJ45 plug terminations.
Do not however cross-plug computer networks and TASLink, as damage may result. It should be noted that
Cat5/RJ45 cables are not unique to computer networks and are often used for telephony and other control
systems. The cross-plugging issue is not unique to Trilogy products and Trilogy can take no responsibility for
damage caused by failure to follow this instruction.
By using standard Cat5 wiring, users can take advantage of any structured wiring in their buildings.
Bus power
Nominally 10 Volts, bus power is used for external interfaces such as displays. The number of devices connected
to the bus should be discussed with your dealer, as larger systems may require a small additional power supply.
Even without displays, power is used by a number of audio devices that have internal optical isolators. Bus
power should not be connected to non-Trilogy equipment.
Bus remote on
This is a 10 Volt remote control signal for Trilogy equipment to power up, by starting their turn on procedure.
Usually output by the pre-amp and optically isolated in power amps, the pre-amp can be set to receive this signal
instead so a different system can deliver the main power-on signal.
High speed bus
This is a balanced data bus used for devices that require regular and fast communication with the pre-amp. An
example of this is an external display that needs to update many times a second when adjusting volume. This
bus uses industry standard transceivers to offer best performance over long cable length, but the message
format is unique to Trilogy. This bus normally operates continuously, but can be disabled in the master if there
are no devices that need it. Where TASLink loops through a device that does not use the high speed bus, bus
signals are looped locally between connectors and kept well away from audio.
909/um/20042014
Page 43
43
909/um/20042014
Page 44
44
Low speed (quiet) bus
This quiet bus is proprietary to Trilogy, both electrically and in the messages that are sent. Developed to serve
audio devices that do not require fast updates, there are three optically isolated signals (LSS/LSW/LSD) which
allow the microcontroller in the audio device to turn off during normal use. The master can briey enable the
microcontroller in the audio device to power up/down, or the audio device can alert the master to a fault which
has automatically woken it from sleep. This bus operates infrequently and at 1/100 the frequency of the fast bus.
In normal operation the quiet bus will be completely silent.
Rear Panel LEDs
The use of the rear panel LEDs may change over time. Currently, they are used to indicate,
LED A Bus power on
LED B Bus remote on
LED C Bus LSS
LED D Bus LSW
LED E Local LSD
LED F Bus LSD
Diagnostics using LEDs C – F are possible, as part of Trilogy dealer training. You may be asked to look at these
LEDs as part of any telephone support.
Front Panel Warning LEDs
Dots to the right of the front panel display are used to indicate problems. The centre right LED will ash if TASLink
attached equipment capable of error reporting has a problem. Use more / tools / ext status to check which unit
has a problem. When looking at individual unit status, this LED will continue to ash for any units that would
produce this warning when on other menu screens.
The top two LEDs on the right will ash if the current drawn on TASLink bus power has exceeded the maximum
allowable, 500mA for more than one second or 1000mA for more than half a second.
Similarly, the bottom two right-hand LEDs will ash if the current drawn on the TASLink remote line has exceeded
the specication, which is the same as the bus power line. Bus power and remote overcurrent will result in that
output being switched off and mains power must be removed from the pre-amp to clear either of these faults.
909/um/20042014
Page 45
45
909/um/20042014
Page 46
46
Appendix A
TASLink Pinout
RJ45 FUNCTION
2
1
Orange/white
White/orange
BUS POWER
0V
6
3
Green/white
White/green
LSW
LSS
4
5
Blue/white
White/blue
DATA +
DATA -
8
7
Brown/white
White/brown
BUS REMOTE
LSD
909/um/20042014
Page 47
47
909/um/20042014
Page 48
48
Appendix B
Default Settings
More Time Sleep Sleep Off
More Time Timers All disabled
More Defaults Menu Lock Unlocked
More Defaults Volume Trim Input X Trim 00
More Defaults Volume Start -60.0dB
More Defaults Volume Max -26.0dB
More Defaults Volume Film -26.0dB
More Defaults Input Input 1
More Defaults Film in No film
More Defaults Output No output
More Defaults Balance Bal Centre
More Defaults Display Home On Time
More Defaults Display Home Off Blank
More Defaults Display Timeout 60 secs
More Defaults Display Bright Bright Auto
More Defaults Display dB or 0..99 Vol dB
More Defaults Display Language English 01
More Names Inputs 1Input1 Input 1
More Names Inputs 2Input2 Input 2
More Names Inputs 3Input3 Input 3
More Names Inputs 4Input4 Input 4
More Names Inputs 5Input5 Input 5
More Names Inputs 5Input6 Input 6
More Names External Not set
909/um/20042014
Page 49
49
909/um/20042014
Page 50
50
Cleaning
Dust the unit regularly with a soft cloth or soft brush. For more stubborn marks make sure the unit is switched off
and disconnected from the power supply. Use a slightly damp cloth with a very small amount of mild detergent
such as washing up liquid. Do not use a wet cloth. Be careful when using cleaning or polishing agents. Never use
abrasives or alcohol based agents, they will harm the surface nish. Do not allow the unit to become wet when
cleaning.
Servicing
Your Trilogy amplier uses thermionic valves or vacuum tubes for amplication. They are the key component in
realising your ampliers very high performance. Valves have a nite lifespan and will need replacing during the
lifetime of the amplier. This lifespan depends on how long and how hard they are used. In typical use, small
signal valves can last for 5000 hours. Frequent switching on and off reduces valve life.
Please bear in mind that some failures can occur early on in a valve’s working life, usually due to mechanical
stresses that can occur during shipping. This is not a reection on the ampliers design but is an inherent
characteristic of all valves, and is impossible to predict even during the ampliers factory burn in period. The
good news is considerate circuit design and modern manufacturing methods mean that valves are now typically
very reliable once established in service.
It is good practice to replace the valves your amplier periodically to prevent sudden loss of a signal path. Your
Trilogy amplier uses readily available and inexpensive valves should replacement be needed. If you are in any
doubt your Trilogy dealer will help you assess whether your valves need replacing.
If your amplier exhibits noticeable loss of performance, extreme sensitivity to vibration or becomes excessively
noisy then new valves should be tted by your authorised Trilogy dealer.
There are no user serviceable parts inside. Do not open or attempt to repair the unit. Refer to your authorised
Trilogy dealer for servicing.
Declarations
This product is guaranteed against defects in material and workmanship for 3 years from the date of purchase.
This Guarantee excludes valves which are guaranteed for 6 months from date of purchase.
The Guarantee is not transferable and is offered to the original purchaser only.
This guarantee does not limit your statutory rights within the country of purchase.
Failure to comply with any of the above instructions during installation or operation will render the manufacturers
warranty null and void.
Marking by the “CE” symbol indicates compliance of this device with the EMC (Electromagnetic Compatibility)
and LVD (Low Voltage Directive) standards of the European Community
This amplier has been tested to ensure that its operation is not adversely affected by normal background levels
of radio frequency interference, and that it does not itself generate excessive amounts of radio frequency energy.
If your amplier exhibits sensitivity to nearby radio frequency devices or is suspected of affecting another device,
increase the distance between them. If the problem persists, consult your Trilogy dealer.
909/um/20042014
Page 51
51
Glossary
Enter used to select next level of menu structure
Escape used to select previous level of menu structure
Shaft Encoder The rotary knob, used for volume control and data entry.
Send An output taken before the volume control for recording or AV loops.
Return An input back from the recording equipment or AV loops.
Main The nal output to connect to the power amplier’s input.
TASLink Trilogy Audio Systems’ proprietary Link between products.
GPI General Purpose Interface. A control voltage on TASLink that can
be used as an input or output for connection to non Trilogy equipment.
Bus An interface where many devices share the same electrical connection.
RJ45 A standard latching connector chosen for TASLink.
Cat5(e) A standard 4 pair data cable chosen for TASLink.
909/um/20042014
Page 52
52
909 Specications
Size
424*428*99 (W*D*H)
Size (including connectors)
424*446*99 (W*D*H)
Size (packaged)
590*610*250 (W*D*H)
Weight
7.5Kg
Weight (packaged)
10Kg
Standby power consumption
4 Watts
Maximum power consumption
35 Watts
Inputs
6 RCA “phono” sockets
Input impedance
Greater than 50K Ohms
Main outputs
2 RCA “phono” sockets
Send (tape) outputs
2 RCA “phono” sockets
Output Impedance (Main)
1K5 Ohms
Frequency response
10Hz - 30KHz +/-0.5dB
Gain (Inputs to Send outputs)
0dB
Gain (Inputs to Main outputs)
26dB (+/-1dB)
Film Gain (Inputs to Main outputs)
0dB (+/-1dB)
Distortion
Less than 0.1% A weighted at 1V output
Phase
Phase correct (non inverting)
Specication subject to change.
Returns
Should it be necessary for your 909 to be serviced, please send it in the original packaging to your dealer.
If this is not possible please contact us directly and request a Return Authorisation Number. Please mark this
number in the space provided on the outer packaging.
Please do not send products back to us without this number as we will not accept liability for the product.
If a product is not returned to us in its original packaging, after servicing we will return it, in Trilogy packaging
and a nominal charge will be made.
909/um/20042014
Page 53
53
Whilst the information given in this document is correct at the time of printing, small production changes in
the course of our Company’s policy of improvement through continued research and development might not
necessarily be indicated in the specication.
If clarication of any point or specication is required, please refer to your Trilogy dealer.
We welcome your feedback, whether positive or negative, to help us further rene our products.
Please write to; Trilogy Audio Systems
PO Box 56402
London SE3 7WQ
Or fax: +44 (0) 20 8856 0616
Please visit our web site; www.trilogyaudio.com
Acknowledgements
.
Nearly three years in design and development, this current range of Trilogy products are un-paralleled in their
performance, aesthetics and system architecture.
Only when a product is technically near perfect, blended with real passion and soul, is it possible for this level of
overall performance to be achieved.
A great many people have worked tirelessly to help achieve this goal, and I would like to take this opportunity to
thank Emeka Chigbu, Simon Dart, Cliff Orman, Chris Sims and Simon Quill for their dedication to this project.
© Copyright Trilogy Audio Systems 2008. E&OE
909/um/20042014
Page 54
Loading...
