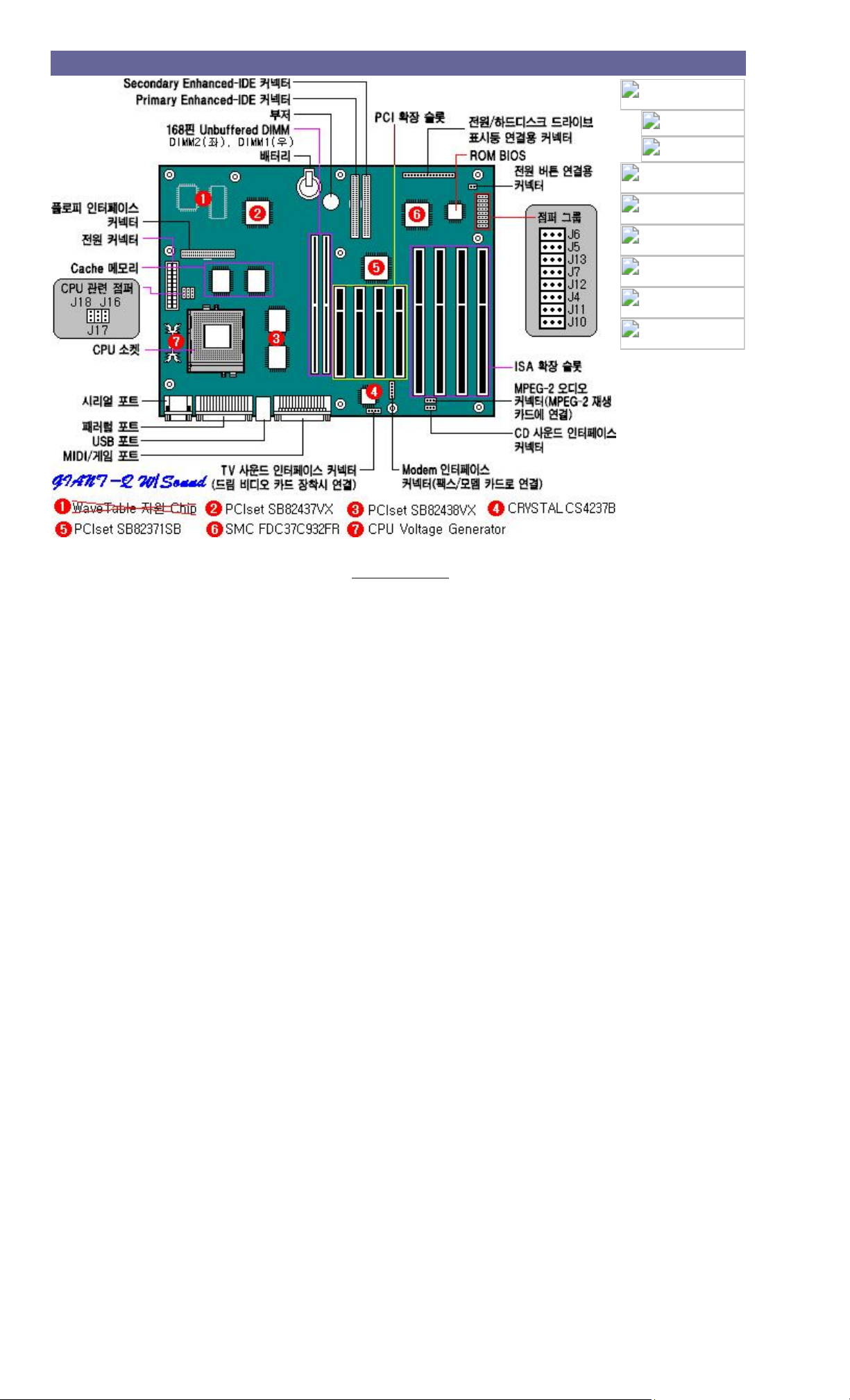

GIANT-Q Main Board(with sound)
[ Back to Previous ]
GIANT-Q (With Sound) Jumper Settings
Main board jumper setting (CPU TYPE)
CPU TYPE J16 J17 J18
Pentium P54C, P54CS, AMD-K5 2-3 2-3 2-3
Pentium P55C(MMX), Cyrix M1(6X86L) 1-2 1-2 1-2
Main board jumper setting (CPU CLOCK: Pentium P54C, P54CS, P55C)
CPU CLOCK J10 J11 J4 J12
100MHz 1-2 1-2 1-2 2-3
120MHz 2-3 2-3 2-3 2-3
133MHz 1-2 1-2 2-3 2-3
150MHz 2-3 2-3 2-3 1-2
166MHz 1-2 1-2 2-3 1-2
200MHz 1-2 1-2 1-2 1-2
233MHz 1-2 1-2 1-2 2-3
Main board jumper setting (CPU CLOCK: Cyrix M1(6X86L))
CPU CLOCK J10 J11 J4 J12
Cyrix M1(6X86L), PR150 2-3 2-3 2-3 2-3
Cyrix M1(6X86L), PR166 1-2 1-2 2-3 1-2
Motherboard jumper setting (CPU CLOCK: AMD-K5)
CPU CLOCK J10 J11 J4 J12
AMD-K5, PR120 2-3 2-3 2-3 2-3
AMD-K5, PR133 1-2 1-2 2-3 2-3
AMD-K5, PR166 1-2 1-2 2-3 1-2
Main board jumper setting ( * : Factory setting state (can be changed))
PASSWORD used* not used
J13 1-2 2-3
CMOS CLER not used* Used
J5 1-2 2-3
CMOS SETUP Available* can not be used
J7 1-2 2-3
FDD Write Protect can not be used* Available
J6 1-2 2-3
GIANT-Q(With Sound) CPU
Features _
Supported CPUs:
Intel Pentium P54C(S), 75/ 90/ 100/ 120/ 133/ 150/ 166/ 200MHz
Intel Pentium P55C(MMX) 166/200/233 MHz
AMD-K5 PR 120/PR133/PR150/PR166
Cyrix M1 PR150/PR166(6X86L,Core 2.8V, I/O 3.3V)
socket : Comes with 321-pin Socket 7
Clock Speed: 50/60/66 MHz
Other : P54CTB(Pentium OverDrive Processor)
GIANT-Q (With Sound) memory settings
cache memory settings
type: Divided into 256KB/512KB according to model type
expansion: Main board replacement processing through A/S
main memory
type: JEDEC 168-Pin 3.3V Unbuffered DIMM Type Module (SDRAM)
socket: Provides two 168-pin 3.3V Unbuffered DIMM type module sockets
Volume:
8MB,16MB,32MB,64MB (Currently unsupported) (Caution: Capacity over 64MB only
supports Double Bank module)
expansion: up to 128MB
Double Bank
module:
#RAS signal is two, and one DIMM module is a memory composed of two banks.
(Single bank memory is not supported, and as it is judged that there is no double bank
memory manufacturer at present, there is a possibility of filing a claim, so be careful)
How to install
memory size Bank 0 (DIMM1)
Bank 2,3
(DIMM2)
8M 8M --
16M 8M 8M
16M 16M --
24M 16M 8M
32M 16M 16
32M 32M --
40M 32M 8M
48M 32M 16M
64M 32M 32M
64M
(unavailable)
64M (Double) --
Double Bank 64MB SDRAM module does not
currently have a vendor, so it is impossible to
upgrade over 64MB. Request notification to the
person in charge of each center situation in case
of complaint
72M
(unavailable)
64M (Double) 8M
80M
(unavailable)
64M (Double) 16M
96M
(unavailable)
64M (Double) 32M
128M
(unavailable)
64M (Double) 64M (Double)
GIANT/+/P/Q(With Sound) Main B/D CMOS SETUP
Press the DEL key during booting
Level 1 Step 2 Step 3 Step 4 selection option
Setup
Standard
Pri Master
Type Not / 1~45 / User / Auto / CDROM
LBA/Large Mode On, Off
Block Mode On, Off
32Bit Mode On, Off
PIO Mode Auto, 0 to 5
Pri Slave
Type Not / 1~45 / User / Auto / CDROM
LBA/Large Mode On, Off
Block Mode On, Off
32Bit Mode On, Off
PIO Mode Auto, 0 to 5
Sec Master
Type Not / 1~45 / User / Auto / CDROM
LBA/Large Mode On, Off
Block Mode On, Off
32Bit Mode On, Off
PIO Mode Auto, 0 to 5
Sec Slave
Type Not / 1~45 / User / Auto / CDROM
LBA/Large Mode On, Off
Block Mode On, Off
32Bit Mode On, Off
PIO Mode Auto, 0 to 5
Date/Time
date, time setting
Floppy A
Not / 360K 5.¼/ 1.2M 5¼ /
Floppy B
720KB 3½ / 1.44M 3½ / 2.88M 3½
Advanced
DreamSYS Logo : Disable Disable, Enable
Quick Boot : On Disable, Enable
BootUp Sequence : C:,A:,CD
C:,A:,CDROM/ A:,C:,CDROM/
CDROM,A:,C:
BootUp Num-Lock : OFF On, Off
Floppy Drive Swap : Disabled Disabled, Enabled
PS/2 Mouse Support : Enable Disabled, Enabled
Primary display : VGA/EGA Absent, VGA/EGA, CGA
Password Checking : Always Setup, Always
OS/2 Compatible Mode : Disabled Disabled, Enabled
External Cache : Enable Disabled, Enabled
System BIOS Cacheable : Disabled Disabled, Enabled
C000,C400,16K Shadow : Disabled Disabled, Enabled
C800,CC00,D000...DC00,16K
Shadow
: Enable Disabled, Enabled
Chipset PCI VGA Palette Snoop : Disabled Disabled, Enabled
USB Function : Disabled Disabled, Enabled
Power Ctrl
Wake-up Scheduler :Enabled Disabled, Enabled
(This item does not exist in Giant-P/Q.)
Wake-up Ring : Enabled Disabled, Enabled
(Giant-P/Q에서는 이 항목이 존재하지 않음.)
Power Management/APM : Win 95 Disabled, Win 95, Other
Hard Disk Power Down in
SUSPEND
: Enabled Disabled, Enabled
Standby Timeout(Minute) : Disabled Disabled, 5, 10, 15, 20
Suspend Timeout(Minute) : Disabled Disabled, 30, 40, 50, 60
IRQ3 : Monitor Monitor, Ignore
IRQ4 : Monitor Monitor, Ignore
IRQ5 : Ignore Monitor, Ignore
IRQ7 : Ignore Monitor, Ignore
IRQ9 : Ignore Monitor, Ignore
IRQ10 : Ignore Monitor, Ignore
IRQ11 : Ignore Monitor, Ignore
PCI/PnP
Plug and Play Aware O/S : No No, Yes
DMA 0 Used By ISA : No No, Yes
DMA 1 Used By ISA : No No, Yes
DMA 3 Used By ISA : No No, Yes
DMA 5 Used By ISA : No No, Yes
DMA 6 Used By ISA : No No, Yes
DMA 7 Used By ISA : No No, Yes
IRQ 3 Used By ISA : No No, Yes
IRQ 4 Used By ISA : No No, Yes
IRQ 5 Used By ISA : No No, Yes
IRQ 7 Used By ISA : No No, Yes
IRQ 9 Used By ISA : No No, Yes
IRQ 10 Used By ISA : No No, Yes
IRQ 11 Used By ISA : No No, Yes
Peripheral
OnBoard FDC :Enabled Disabled, Enabled
OnBoard Serial Port 1 : Auto Auto, Disabled, 3F8H, -
OnBoard Serial Port 2 : Auto 3E8H, 2F8H, 2F8H
OnBoard Parallel Port : Auto Auto, Manual
Parallel Port Mode : EPP Normal/Bi-d, EPP, ECP
EPP Version : V1.9 V1.7, V1.9
Parallel Port IRQ : Auto Auto, IRQ5, IRQ7
Parallel Port DMA Channel : N/A N/A, 0, 1, 3
OnBoard IDE : Both Disabled, Primary, Secondary, Both
OnBoard Sound : Enable Disabled, Enabled
Utility Detect IDE
Primary IDE 커넥터에 연결된 하드 디스크 드라이브 용량을 자동으로 감지 함(Secondary IDE 커넥터에
연결된 하드는 설정 없이 자동 인식)
Color Set Sky, Army, Pastel, LCD
셋업 화면 색깔 선택
Security
Supervisor
영 숫자 6자리까지 입력 가능(모두 설정 가능)
User
영 숫자 6자리까지 입력 가능(Advanced, Use, Color set만 설정 가능)
Anti-Virus
바이러스의 보호 기능, 하드의 부트 섹터에 Write 방지 기능
Default Original
셋업 변경 전의 단계로 수정 함
Optimal
최적 환경으로 자동 설정 기능(Standard, Utility, Password는 변경 안됨)
