1. Preface

1.1 Purpose

This manual describes the physical and electrical characteristics and the installation requirements for a
TT31 Mode S Transponder. It also describes the TT31 ADS-B functionality for a compliant ADS-B
Out installation using 1090ES.

1.2 Scope

This document applies to the installation of the TT31 Mode S Transponder.
At the publication date of this manual the software version identifier for the TT31 is 3.15 and the

FPGA version identifier is 020714a. The software and FPGA versions are subject to change without
notice.

1.3 Changes from Previous Issue

In addition to minor editorial changes, the following are the changes between issue AP and issue AQ:

5.7.10 Audio Mute Input

Added text for the intended mute behaviour.

5.7.12 GPS Position Input

Added support for Trig TN72 TABS GPS protocol.

6.1.6 Squat Switch Source

Added GPS-only automatic air-ground determination.

6.1.8 RS232 Input/Output

Added settings for TN72 TABS GPS.

7.1 Air/Ground Considerations

New section with recommended test practices.

12.2 FAA 91.227 Compliance

Updated compliance table and added new sources.

12.3 CS-ACNS Compliance

Updated compliance table and added new sources.

12.4 TSO-C199 TABS Compliance

New section.

12.6 ADS-B Support

Added behaviour for TSO-C199 TABS GPS.

13 Installation Drawings

Added C of G indication.

1.4 Document Cross-References

00454-00

TT31 Mode S Transponder Operating Manual

AF

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Page 2 Trig Avionics Limited

2. Introduction

2.1 TT31 Description

The TT31 Mode S panel mount transponder is an ED-73B Class 1 compliant Mode S level 2es datalink
transponder, with support for extended squitter, elementary surveillance and SI codes. The TT31 is
also a DO-260B Class B1S compliant ADS-B out participant. The TT31 meets the relevant
environmental requirements of ED-14D, and is certified to ETSO 2C112b, ETSO C166a, TSO C112
and TSO C166b.

The TT31 transmitter power output is nominally 240 watts, and the transponder runs from either 14
volt nominal or 28 volt nominal DC power supply with no configuration changes required.

The TT31 transponder responds to both legacy Mode A/C interrogations and to Mode S interrogations
from both ground radar and airborne collision avoidance systems. In all cases, the interrogations are
received by the transponder on 1030MHz, and replies are transmitted on 1090MHz.

In the Mode S environment, S stands for Select, and a Mode S interrogator can selectively address a
single transponder. This allows accurate position plotting with lower reply rates, which in turn reduces
frequency congestion and interference. As a side benefit, power consumption by the transponder may
be reduced, and simple datalink services can be supported, such as ADS-B. It is however crucial to the
reliable operation of the system that each aircraft has a distinct Mode S address. The Mode S address is
allocated by the registration authority for the aircraft, and must be set when the TT31 is installed.

The TT31 can be configured to transmit version 2 ADS-B using the 1090ES datalink.
The ADS-B Out capability is enabled automatically when the transponder is configured to use a GPS

position source over an RS232 interface. With a GPS source connected the transponder supports all
required features of ADS-B Out.

Note: With no GPS interface configured, the transponder does not enable any ADS-B
functions, and will behave as a conventional Mode S transponder.

2.2 Interfaces

At the rear, the transponder has two Molex style connectors and a single antenna connector for blind
mating with the corresponding connectors in the mounting tray.

The interfaces provide the following services:

Parallel altitude
input

Connection to an external altitude encoder using parallel Gray code.
Ident input

External IDENT switch input.

Standby input

External standby input for dual transponder installations.

“On ground” input

Allows automatic flight/ground mode switching for aircraft with a squat switch.

Lighting bus input

Used to adjust the backlight and switch lighting intensity.

DME Suppression
Input

Input to limit interference between DME interrogations and transponder replies –
suppresses transponder whilst active.

Suppression bus
I/O

ARINC compatible suppression bus signal used in aircraft with more sophisticated
suppression needs, both an input to and output from the transponder.

Audio output

Optionally used by the altitude monitor and TIS traffic functions.

Audio mute input

Discrete input to mute the audio output.

Altitude alert
output

Output used to signal altitude deviations when optional altitude monitor function is
used.

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Trig Avionics Limited Page 3

2 x RS232 Inputs

Connections to an external RS232 GPS receiver for ADS-B support and/or a serial
altitude encoder or air data computer. Using serial altitude data allows the
transponder to report altitude with 25 foot resolution.

2 x RS232 Outputs

Connections to a TIS display and a GPS or other device needing serial altitude data
– this allows the transponder to act as a repeater instead of requiring a second
altitude encoder.

ARINC TIS Output

ARINC429 output for connection to traffic display.

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Page 4 Trig Avionics Limited

3. Technical Specifications

3.1 Regulatory

Specification

Characteristics

Compliance

ETSO 2C112b, TSO C112; Class 1 Level 2es
ETSO C166a, TSO C166b; Class B1S

FCC Identification

VZI00220

Applicable documents

EUROCAE ED-73B, EUROCAE ED-14D (RTCA DO­160D), EUROCAE ED-14E (RTCA DO-160E), RTCA DO­181C, RTCA DO-260B

Software

ED-12B (RTCA DO-178B) Level B

Power Requirements

10 – 33 Volts DC. Typical 6.3Watts @ 14Volts.

Altitude

35,000 feet

Humidity

95% @ +50C for 6 hours; 85% @ +38C for 16 hours.
Tested to Category A in DO-160D

Operating Temperature

-20C to +55C

Transmitter Frequency

1090MHz ± 1MHz

Transmitter Power

240 Watts nominal; 125 Watts minimum at antenna after
allowing for 0.5dB connector losses and 1.5dB cable losses.

Transmitter Modulation

6M75 V1D

Receiver Frequency

1030 MHz

Receiver Sensitivity

-74dBm ± 3dB

3.1.1 Approved Deviations

The TT31 ADS-B function is certified to ETSO C166a which references DO-260A as the applicable
standard; the TT31 implements DO-260B which has replaced DO-260A.

The TT31 ADS-B function is certified to FAA TSO C166b which references DO-260B, but also refers
to the environmental standard DO-160F and indirectly refers to the transponder standard DO-181D.
The TT31 transponder certification was carried out to DO-160E and DO-181C.

3.2 Physical Specifications (in Tray)

Specification

Characteristics

Height

40mm (1.57”)

Width

160mm (6.30”)

Length

239mm (9.4”)

Weight

2.8lbs. (1.35Kg)

3.3 Installation Approval

The conditions and tests required for the TSO approval of the TT31 Mode S Transponder are minimum
performance standards. It is the responsibility of those desiring to install this transponder on or within
a specific type or class of aircraft to determine that the aircraft operating conditions are within the TSO
standards. The transponder may be installed only if further evaluation by the user/installer documents
an acceptable installation that is approved by the appropriate airworthiness authority.

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Trig Avionics Limited Page 5

3.3.1 Mode S Transponder Installation Approval

Installation of the TT31 as a replacement for an existing transponder is considered a Minor Change by
EASA and the FAA, and should be documented accordingly.

Note: With no GPS interface configured, the transponder does not enable any ADS-B
functions, and will behave as a conventional Mode S transponder.

3.3.2 ADS-B Installation Approval

At the time of publishing this manual, enabling the ADS-B Out feature is considered a major change
and will generally involve further approval.

For installers seeking US FAA STC approval, our STC partner is Peregrine in Denver who hold a range
of AML STCs for TT31 transponders. Contact them at - peregrine.aero/contact.html

Installers seeking approvals for other parts of the world or for more information on our STC program,
should contact the Trig support team – [email protected]

For uncertified aircraft installations or for installers developing their own solution, this manual can be
used for guidance on the ADS-B installation. Further technical diagrams, schematics and instructions
are contained within the STC pack which can be obtained through Peregrine.

3.4 Non – TSO Functions

The TT31 Mode S Transponder contains the following non-TSO functions:

• Stopwatch and Flight Timer. The transponder provides a simple stopwatch and flight timer

function, displayed on the front panel.

• Altitude Monitor. The Altitude Monitor activates an audio annunciator or annunciator light

(depending on installation) when the aircraft pressure altitude differs from the previously
selected altitude by more than 250 feet.

• Altitude Repeater. This is a serial altitude output that can connect to a GPS or other device

needing serial altitude data – this allows the transponder to act as a repeater for the altitude

input instead of requiring a second altitude encoder.
The operation of each of these functions is described later in this manual.
The non-TSO functions defined in this section are not part of the TSO approval. The non-TSO function

data included in this section is approved under 14 CFR 21.305(d).

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Page 6 Trig Avionics Limited

4. Unit and Accessories supplied

4.1 TT31 Mode S Transponder Items

Your TT31 Mode S transponder includes the following items:

Unit Description

Qty

Part Number

TT31 Mode S Transponder

1

00220-00-01

TT31 Mounting Tray

1

00231-00

TT31 Documentation Kit

1

00233-00

TT31 Installation Kit

1

00223-00

4.2 Installation Kit

Your TT31 installation kit includes the following items:

Unit Description

Qty

Part Number

12 way double sided crimp housing
connector

1

00032-00

24 way double sided crimp housing
connector

1

00033-00

Crimp Terminal, Female, 18-24 AWG

30

00236-00

Screw, Pozidrive, Pan Head M3x12mm lg

4

00422-00

Connector Co-axial Panel Mount Right
Angle Blind Mate

1

00239-00

Circlip 7/16” External

1

00242-00

Washer 7/16” Plain, Stainless Steel

1

00241-00

Washer 7/16” Crinkle, Beryllium Copper

1

00317-00

4.3 Documentation Kit

Your TT31 documentation kit includes the following items:

Unit Description

Qty

Part Number

TT31 Transponder Installation Manual

1

00455-00

TT31 Pilots Operating Manual

1

00454-00

4.4 Required Items

Additional items you will require, but which are not in the TT31 package, include:

• Antenna and fixing hardware. The TT31 is compatible with any transponder antenna

approved to (E)TSO C74 or C112.

• Altitude encoder. You require an encoding altimeter or a blind encoder with either parallel

Gray code or RS232 serial output. For best results, and simpler installation, an encoder with a

serial output is recommended.

• Cables. You need to supply and fabricate all required cables. Guidance on cable types is

given in section 5 below.

• Fixings. To secure the transponder tray to the airframe you will need at least 6 flat head

screws and six self-locking nuts. If the aircraft does not have existing mounting provisions

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Trig Avionics Limited Page 7

you may need to fabricate additional brackets to support the transponder tray.
To support the optional ADS-B features a GPS receiver with an appropriate serial output is required.

To support the optional TIS features a display with an appropriate serial or ARINC 429 input is
required.

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Page 8 Trig Avionics Limited

5. Installation

5.1 Unpacking and Inspecting Equipment

Carefully unpack the transponder and make a visual inspection of the unit for evidence of any damage
incurred during shipment. If the unit is damaged, notify the shipping company to file a claim for the
damage. To justify your claim, save the original shipping container and all packaging materials.

5.2 Mounting

The TT31 Mode S transponder must be mounted rigidly in the aircraft panel. The following installation
procedure should be followed, remembering to allow adequate space for installation of cables and
connectors.

• Select a position in the panel that is not too close to any high external heat source. (The TT31

is not a significant heat source itself and does not need to be kept away from other devices for

this reason).

• Avoid sharp bends and placing the cables too near to the aircraft control cables.

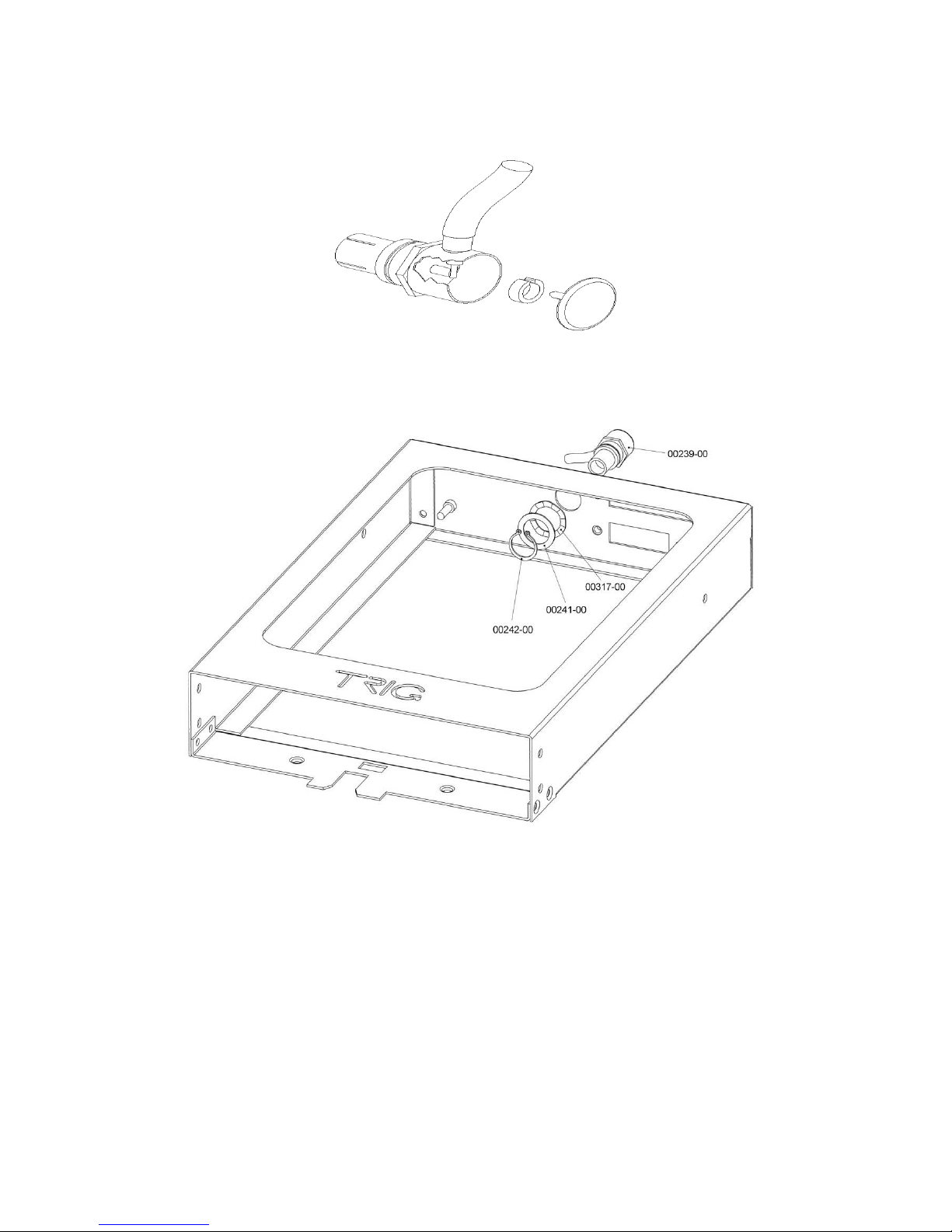

• Secure the mounting tray (p/n 00231-00) to the instrument panel via the six (6) mounting

holes in the tray. It is important that the tray is supported at the rear two mounting holes as

well as the front four.

• Check that the locking mechanism is correctly oriented by unscrewing the locking screw if

required.

• Slide the TT31 transponder into the secured mounting tray.

• Lock the TT31 transponder into the mounting tray using a 3/32” Allen key, taking care not to

over tighten the locking screw.

5.3 Cooling Requirements

The TT31 Mode S transponder meets all applicable ETSO and TSO requirements without forced air­cooling.

Attention should however be given to the incorporation of cooling provisions to limit the maximum
operating temperature of each unit when the TT31 is installed in a typical panel or rack. The reliability
of equipment operating in close proximity in a rack can be degraded if adequate cooling is not
provided.

5.4 Electrical Connections

The TT31 has two Molex edge connectors, one with 24 contacts, which is the primary interface, and a
second connector with 12 contacts. A single coaxial connector attaches to the antenna. The second
Molex connector (12 way connector) adds the altitude alerter, an ARINC 429 output, audio output,
audio mute input and a second serial port. In simple installations it is possible to omit wiring for the
second connector altogether.

The Molex edge connector used in the TT31 is similar to the connector used on the KT76A, KT76C
and KT78A transponders, and the common signals on the primary connector use the same contact
positions and are electrically compatible. The antenna connector is also compatible. Providing that the
wiring is appropriately installed, it is intended that you can upgrade a KT76A, KT76C or KT78A
installation to the TT31 without any connector rewiring. Before doing that however, you MUST check
that the wiring for the existing transponder is in good condition.

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Trig Avionics Limited Page 9

5.4.1 Primary Interface – Pinout

Pin

Signal

Direction

1

Ground

-

2

Lighting 14V

Input

3

Lighting 28V

Input

4

Suppress I/O *

Bi-directional

5

Squat Switch In *

Input

6

RS232 Output 1 *

Output

7

RS232 Input 1 *

Input

8

Altitude D4

Input

9

Suppress In

Input

10

Standby Switch

Input

11

11-33V DC

-

12

11-33V DC

-

A

Ground

-

B

Altitude B4

Input

C

Altitude B2

Input

D

Altitude C1

Input

E

Altitude B1

Input

F

Ident Switch In

Input

H

Altitude C4

Input

J

Altitude A4

Input

K

Altitude A2

Input

L

Altitude C2

Input

M

Altitude A1

Input

N

Do Not Connect *

-

*: These signals are different to the KT76A/KT76C/KT78A pinout; on the KT76A, KT76C and
KT78A these signals are not usually connected in the aircraft.

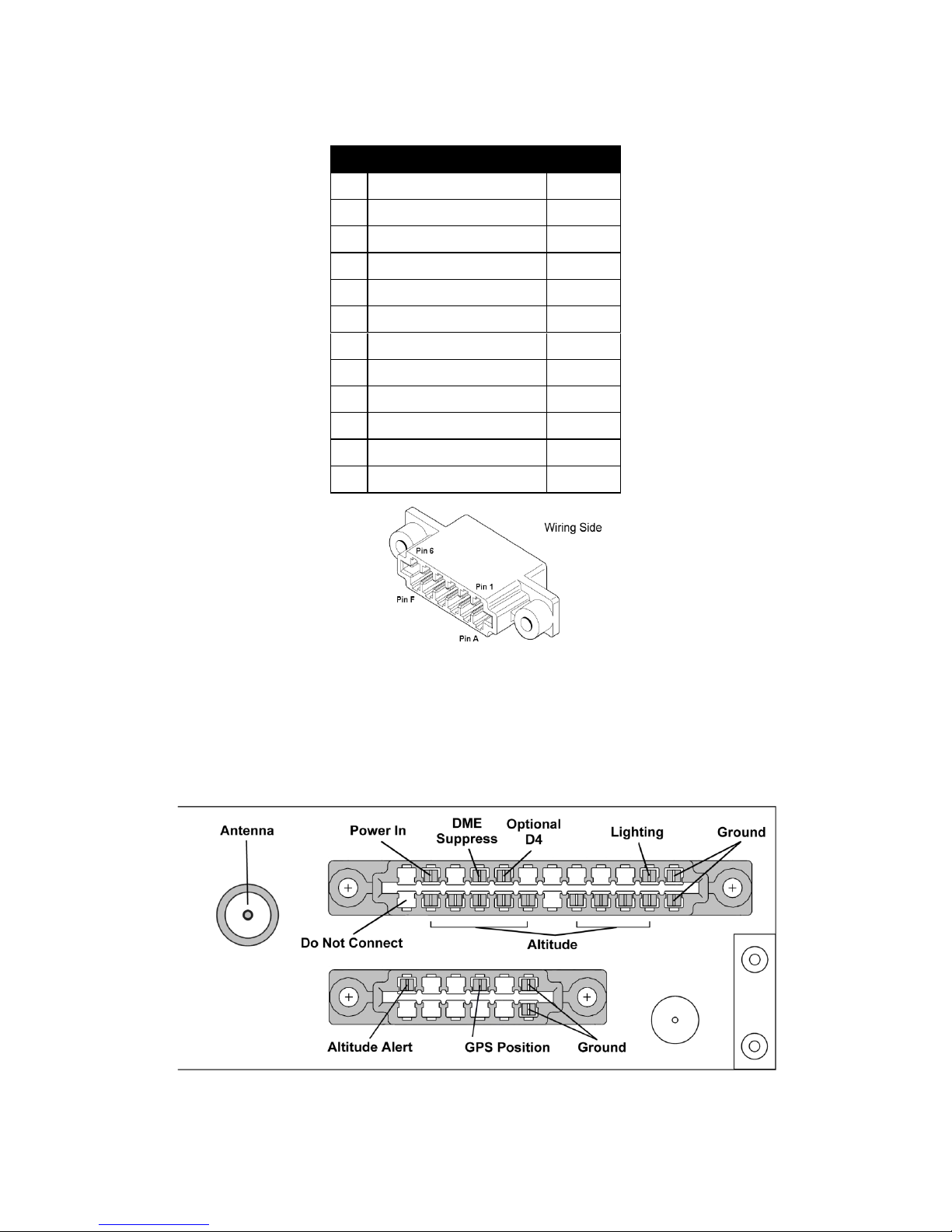

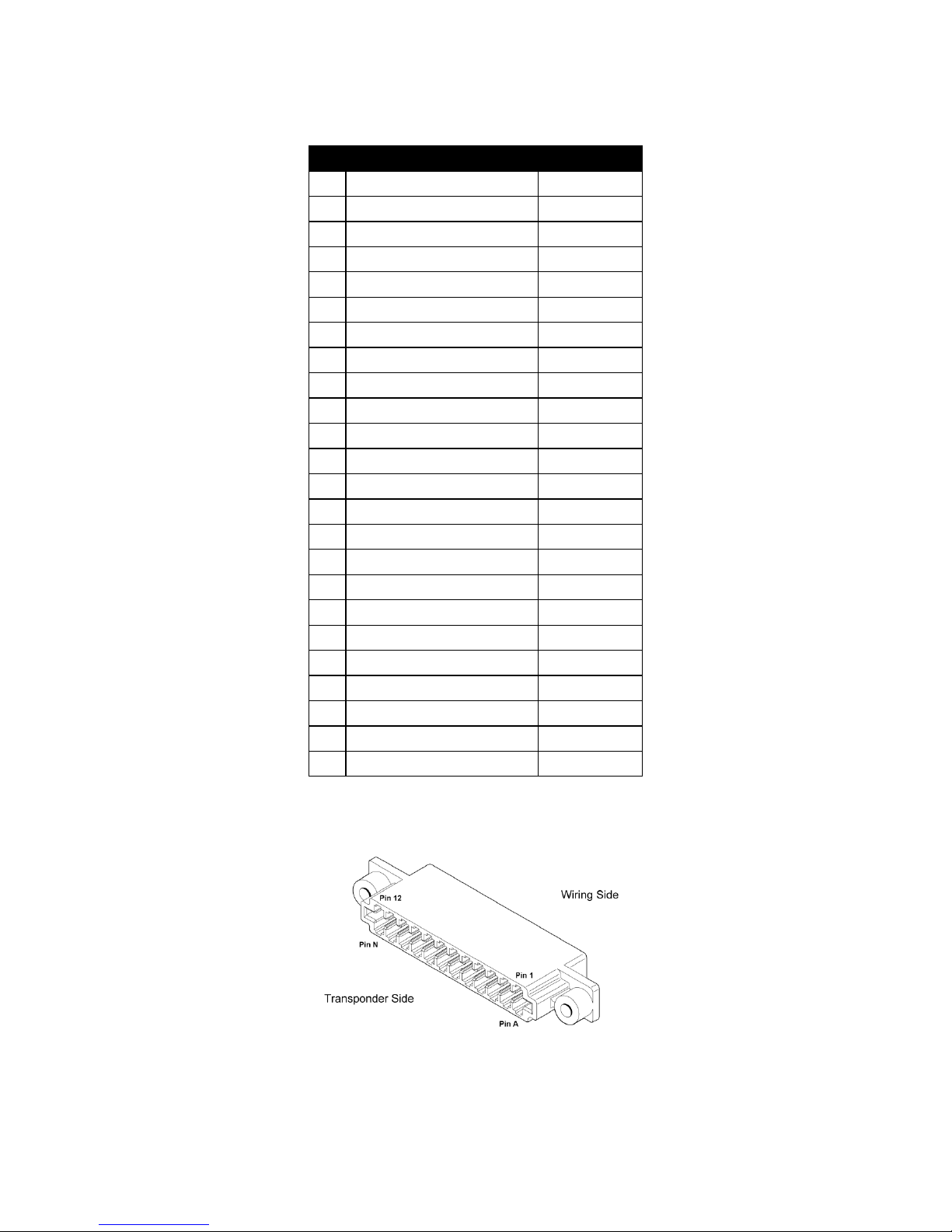

The following diagram shows the connector orientation as it would be fitted to the mounting tray.

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Page 10 Trig Avionics Limited

5.4.2 Secondary Interface - Pinout

Pin

Signal

Direction

1

Ground

-

2

RS232 Output 2

Output

3

RS232 Input 2

Input

4

Reserved

Input

5

Audio Mute In

Input

6

Altitude Alert

Output

A

Ground

-

B

Audio +

Output

C

Audio -

Output

D

Reserved

-

E

ARINC Traffic B

Output

F

ARINC Traffic A

Output

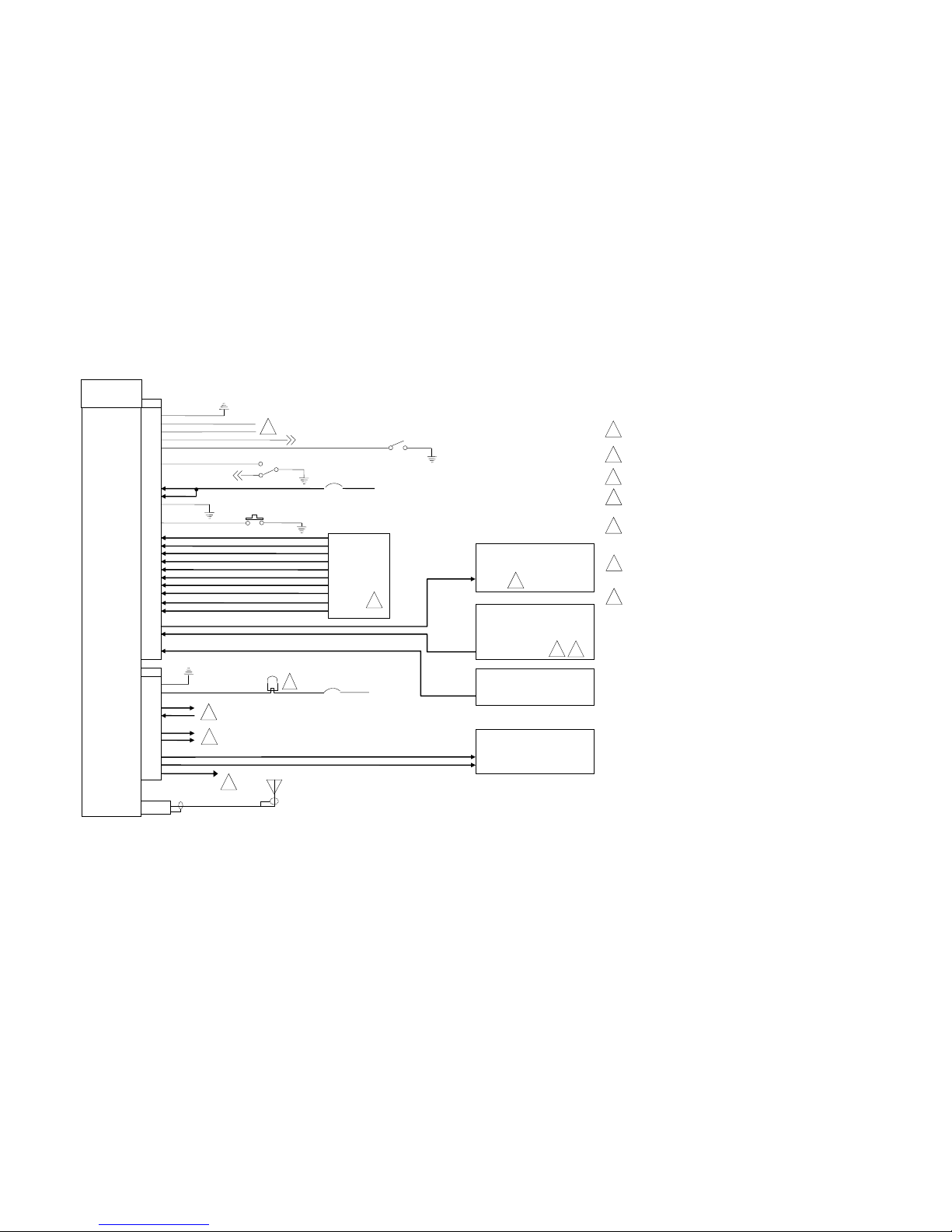

5.4.3 Orientation Diagram

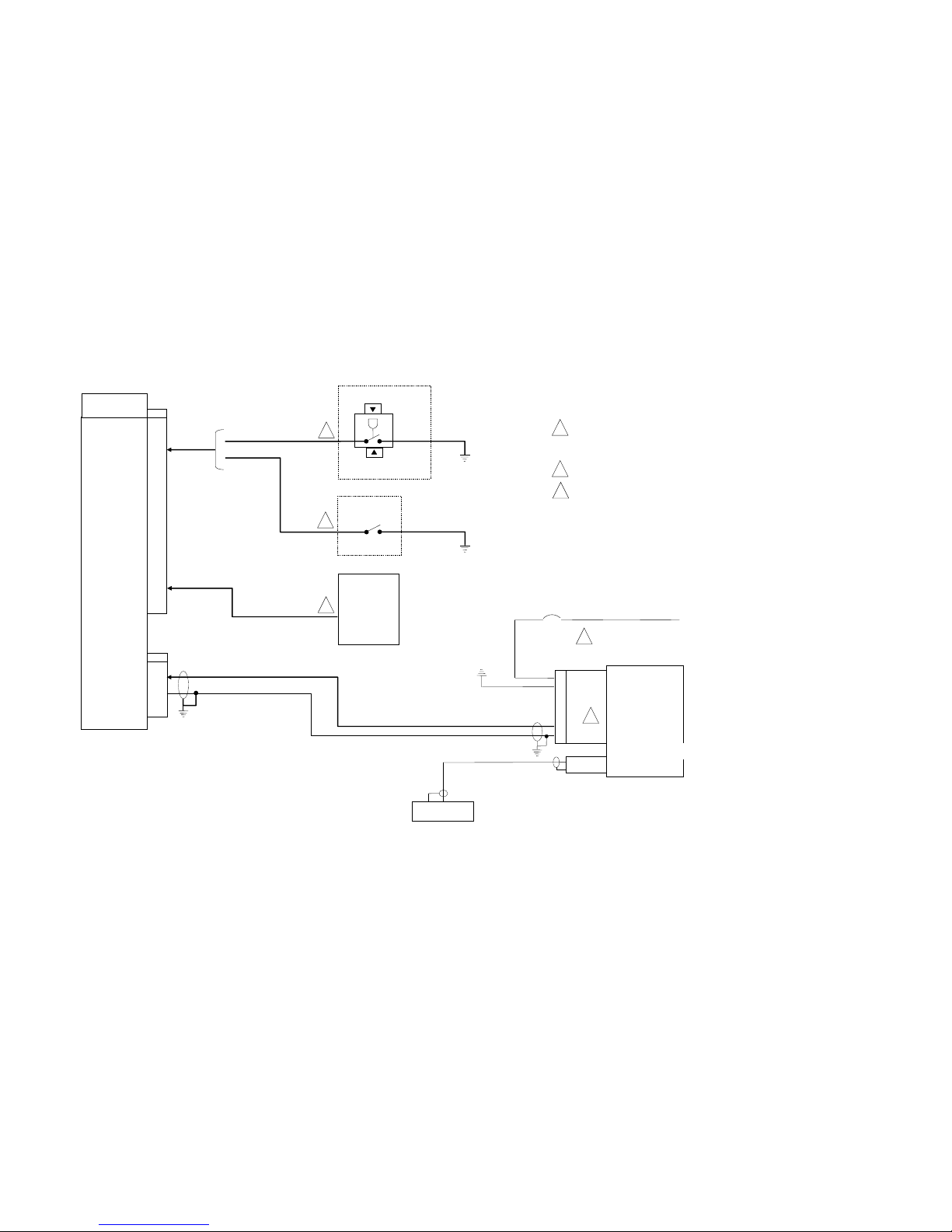

To assist in connector orientation, the following example shows a typical set of connections. This
diagram shows the expected connector positions when viewed from the transponder side of the tray,
looking into the tray from the front. In the example shown the aircraft uses a 14 volt lighting bus, a
parallel altitude encoder, a DME with simple suppression output, a GPS connected to serial input 2,
and a simple lamp for the altitude alerter. This example is representative of a simple fixed gear 14 volt
aircraft.

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Trig Avionics Limited Page 11

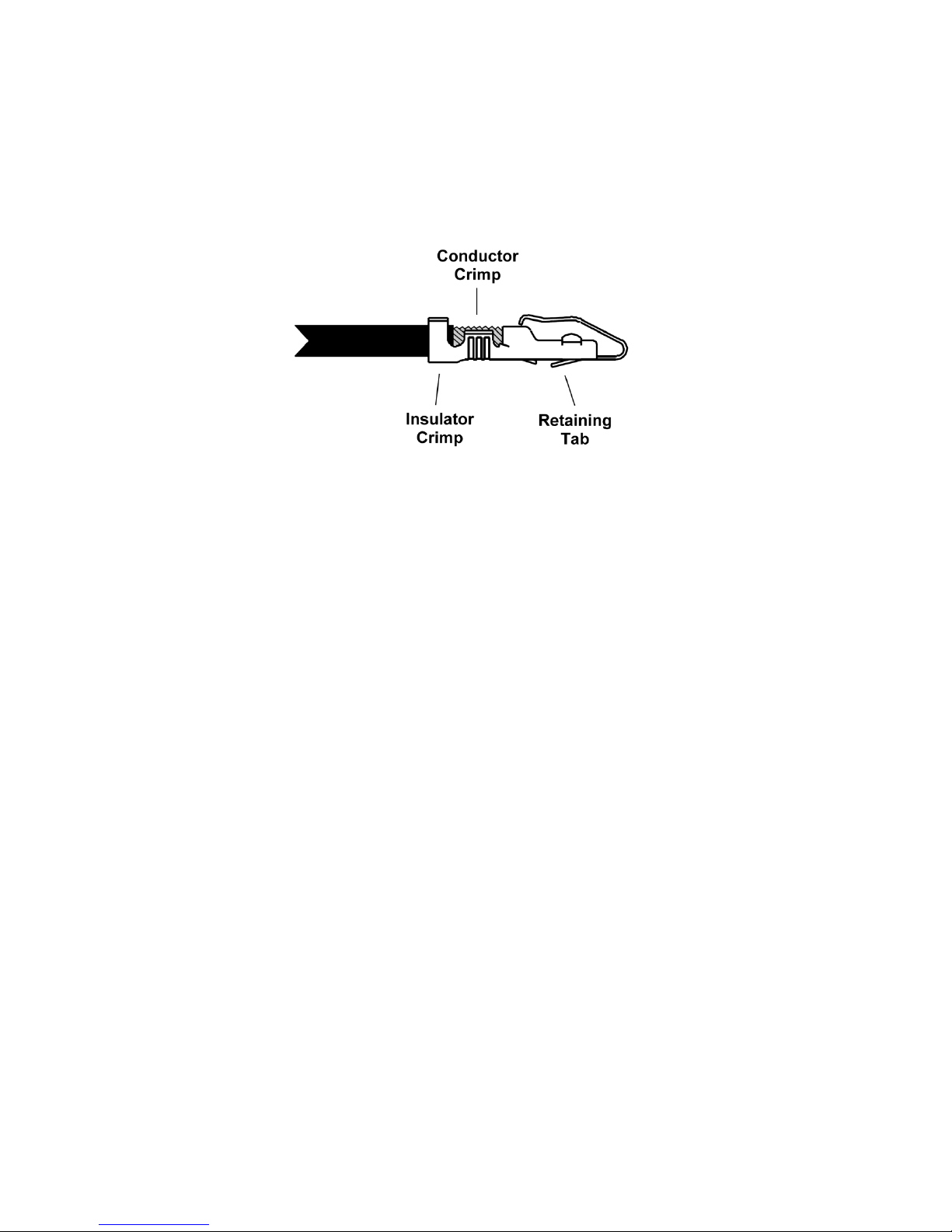

5.4.4 Molex Crimp Terminals

The Molex connector contacts should be wired with wire of 18-24 AWG. The contacts are compatible
with a wide range of crimp tools. Ensure that the contact has been crimped using both the conductor
crimp and the insulator crimp.

Once crimped, the contacts should be slotted into the rear of the connector shell. Push the contact in
until the retaining tab clicks into place. Tug gently to confirm the contact is locked in place.

The contacts can be easily removed using the Molex removal tool, or equivalent. This is pushed gently
into the connector shell from the side opposite from the wire entry, and lifts the retaining tab from the
stop, allowing the contact to be eased out by pulling on the wire.

5.5 Antenna Installation

The antenna should be installed according to the manufacturer’s instructions.
The following considerations should be taken into account when siting the Antenna.

• The antenna should be well removed from any projections, the engine(s) and propeller(s). It

should also be well removed from landing gear doors, access doors or others openings which

will break the ground plane for the antenna.

• The antenna should be mounted on the bottom surface of the aircraft and in a vertical position

when the aircraft is in level flight.

• Avoid mounting the antenna within 3 feet of the ADF sense antenna or any COMM antenna

and 6 feet from the transponder to the DME antenna.

• Where practical, plan the antenna location to keep the cable lengths as short as possible and

avoid sharp bends in the cable to minimise the VSWR.

• To prevent RF interference, the antenna must be physically mounted a minimum distance of 3

feet from the TT31 Mode S transponder.
Electrical connection to the antenna should be protected to avoid loss of efficiency as a result of the

presence of liquids or moisture. All antenna feeders shall be installed in such a way that a minimum of
RF energy is radiated inside the aircraft.

5.5.1 Antenna Cable

The TT31 is designed to meet Class 1 requirements with an allowance of 2 dB for loss in the
connectors and cable used to connect it to the antenna. Excessive loss will degrade both transmitter
output power and receiver sensitivity.

Allowing 0.25dB loss for the connector at each end of the antenna cable assembly leaves an allowance
of 1.5dB maximum loss for the cable itself.

An acceptable cable:

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Page 12 Trig Avionics Limited

• Has less than 1.5dB loss for the run length needed

• Has a characteristic impedance of 50 Ohms

• Has double braid screens or has a foil and braid screen

Once the cable run length is known, a cable type with low enough loss per metre that meets the above
requirements can be chosen. Longer runs require lower loss cable.

NOTE: Low loss cable typically uses foamed or cellular dielectrics and foil screens. These make such
cables especially prone to damage from too-tight bends or from momentary kinking during installation.
Once kinked, these cables do not return to full performance when straightened.

The following table is a guide to the maximum usable lengths of some common cable types. Actual
cable loss varies between manufacturers, there are many variants, and the table is therefore based on
typical data. Use it as a guide only and refer to the manufacturer’s data sheet for your specific chosen
cable for accurate values.

Max Length

in Metres

Max Length

in Feet

Insertion Loss

dB/metre at

1090MHz

MIL-C-17 Cables

Carlisle Type

2.54

8’ 4”

0.59

M17/128 (RG400)

3.16

10’ 4”

0.47

3C142B

3.81

12’ 6”

0.39

M17/112 (RG304)

5.25

17’ 3”

0.29

M17/127 (RG393)

311601

6.42

21’ 1”

0.23

311501

8.22

26’ 11”

0.18

311201

12.59

41’ 3”

0.12

310801

Contact Carlisle Interconnect Technologies on [phone] or www.carlisleit.com for their data
sheets.

When routing the cable, ensure that you:

• Route the cable away from sources of heat.

• Route the cable away from potential interference sources such as ignition wiring, 400Hz

generators, fluorescent lighting and electric motors.

• Allow a minimum separation of 300mm (12 inches) from an ADF antenna cable

• Keep the cable run as short as possible

• Avoid routing the cable round tight bends.

• Avoid kinking the cable even temporarily during installation.

• Secure the cable so that it cannot interfere with other systems

5.5.2 BNC Connector

This section describes the technique for attaching the antenna cable to the supplied blind-mate BNC
connector.

If a low-loss cable is needed that has too large a dielectric diameter to fit the supplied blind-mate BNC
connector, a short length (up to 150mm or 6 inches) of smaller cable may be used with suitable mating
connectors to adapt to the transponder connector.

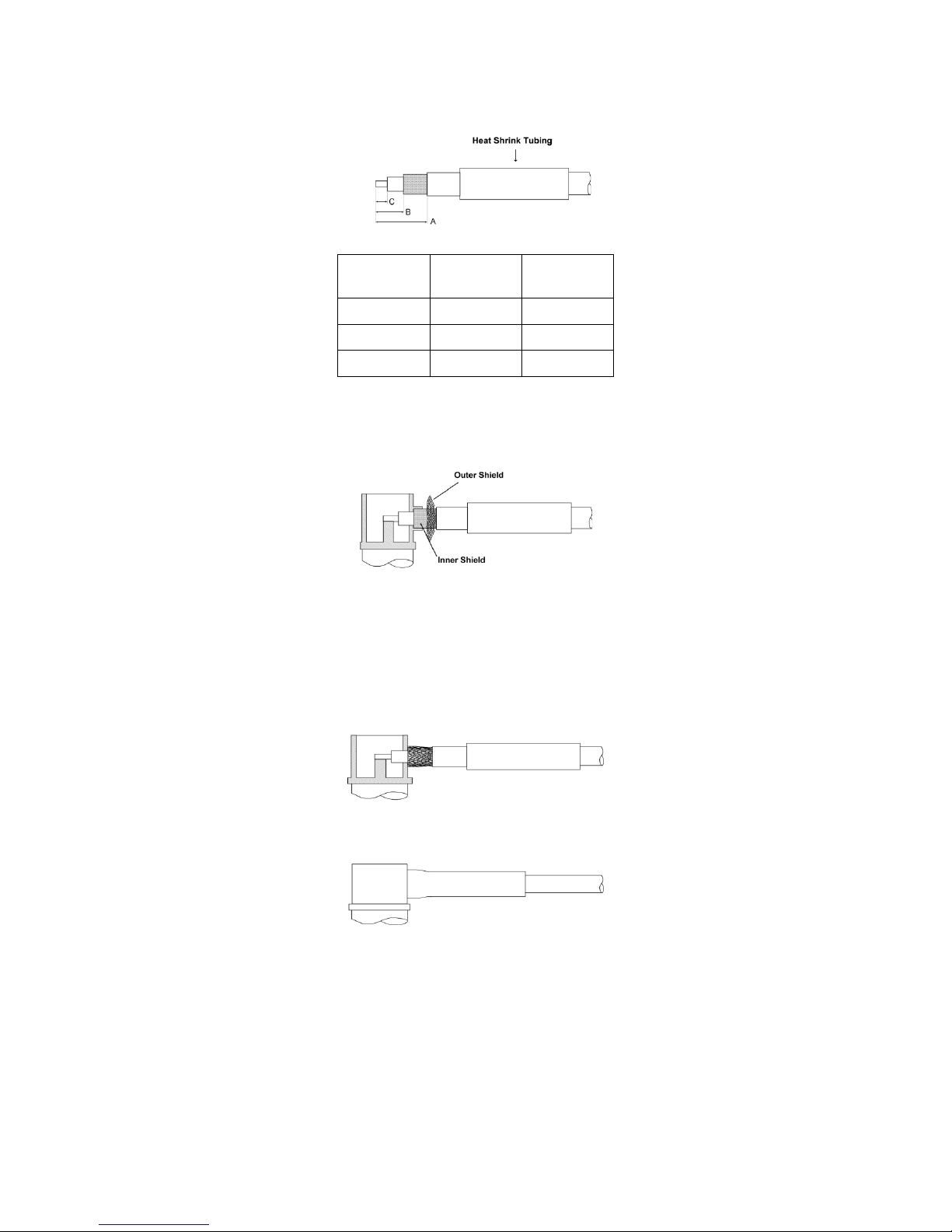

• Strip back the coax cable to the dimensions in the table, as shown in the diagram below. Slide

25 mm (1 inch) of heat shrink tubing over the cable.

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Trig Avionics Limited Page 13

Dimension

Cut size

(mm)

Cut size

(inches)

A

12.7

0.5 B 6.4

0.25 C 3.2

0.125

• Insert the cable into the connector – the inner conductor should align with the centre contact,

the inner shield should be inside the body of the connector and the outer shield should be

outside the body.

• Solder the centre conductor to the centre contact, aligning the conductor with the slot in the

contact. Avoid excess solder heat on the centre BNC conductor pin.

• Solder the inner shield to the inside of the connector body by applying a soldering iron to the

body and running solder into the gap. Try to avoid excess solder heat on the connector body.

• Solder the outer shield to the outside of the connector body. Avoid excess solder heat on the

connector body.

• Slide heat shrink tubing forward (flush to connector) and heat to shrink the tubing.

• Complete the assembly by installing the bushing over the centre contact, and fitting the cap.

Solder the cap in place in at least two places.

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Page 14 Trig Avionics Limited

5.6 Tray / BNC Connector Assembly

When the BNC is prepared, feed it through the TT31 mounting tray and attach the washer combination
in the following order:

• Wave washer (p/n 00317-00).

• Plain washer (p/n 00241-00).

• Circlip washer (p/n 00242-00).

The Circlip washer should be fitted with a set of Circlip pliers.
The two Molex connectors should be passed through the openings in the rear of the tray, and then

mounted firmly to the tray from the inside using the four M3 screws supplied.

00239-00

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Trig Avionics Limited Page 15

5.7 Interface Details

5.7.1 Power Input

The power supply can be 11-33 Volts DC; no voltage adjustment is required. Contacts 11 and 12 on
the 24 way connector are both available as power inputs. This is for compatibility reasons only –
internally the two are connected together, and in most installations only one need be connected to the
power supply.

Use a 3 Amp or greater circuit breaker for power supply protection to the TT31.

5.7.2 Lighting Bus Input

The TT31 will adjust the brightness of the front panel switch lighting according to the voltage on the
lighting bus input. Two lighting bus inputs are provided on the 24 way connector to accommodate
aircraft with 14 Volt or 28 Volt lighting systems. When the lighting bus operates at 28 Volts, connect
the bus input to contact 3, and leave contact 2 unconnected. When the lighting bus operates at 14
Volts, connect the bus input to contact 2. In this case contact 3 can be left unconnected, but for
backwards compatibility may also be grounded instead with no effect.

If no lighting bus input is detected, the TT31 will automatically control the front panel lighting based
on the ambient light sensor.

5.7.3 Mutual Suppression

Mutual suppression allows two or more transmitters on adjacent frequencies to inhibit the other
transmitters when one is active to limit the interference effects. It is commonly used between
transponders and DME systems, and between transponders and collision avoidance systems.

The TT31 provides two styles of mutual suppression interface on the 24 way connector. The Suppress
input on contact 9 is typically used in aircraft with simple DME systems and no other suppression
requirements. It is an input only, and is active whenever the input is greater than approximately 5
Volts.

The Suppress I/O on contact 4 is an ARINC compatible suppression bus interface, which acts as both
an input and an output. The TT31 will assert this signal when it is transmitting, and can be suppressed
by other equipment that asserts the signal. The TT31 will drive approximately 24 Volts on the output
(independently of supply voltage), and will treat the input as active whenever the bus has greater than
10 Volts.

5.7.4 Serial Port Options

There are two RS232 serial input/output ports, one on the primary connector (pins 6 and 7) and one on
the secondary connector (pins 2 and 3). The input sources can be an altitude encoder, air data
computer, or GPS for ADS-B support. The output can be serial altitude data for baro-aided GPS
devices, or TIS traffic for suitable display.

Note: although each input and output can be assigned separately, the line speed for each input

and output pair can only be set together.

5.7.5 Altitude Inputs and Output

The TT31 can use either a parallel Gray code altitude input, or serial RS232 altitude input. The Gray
code interface is on the 24 way connector, whereas the serial altitude can be configured to be on either
of the two RS232 inputs. If the altitude encoder you are using offers both, we recommend using the
RS232 serial input. Serial formats allow a higher resolution altitude representation that can be used by
Mode S interrogations, whereas parallel Gray code format can only represent altitude to the nearest 100
feet. You must choose between serial or parallel formats – you should NOT connect both. If a parallel
encoder is connected the TT31 will always use that as the altitude source even if a serial encoder is also
connected.

The parallel encoder inputs are active when the voltage to ground is pulled below approximately 4
Volts. The TT31 includes internal isolation diodes which prevent the unit from pulling the encoder

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Page 16 Trig Avionics Limited

lines to ground when the transponder is switched off. The TT31 can therefore share the altitude inputs
with other devices without needing external isolation.

Parallel output altitude encoders intended for operation below 30,000 feet may not have a signal
connection for D4. In an aircraft with a service ceiling below 30,000 feet input D4 will never be active,
and can safely be left unconnected.

The serial encoder input uses RS232 input levels. The communication is usually 9600 bps, no parity,
although the bit rate can be configured. The TT31 will correctly recognise either

“Icarus/Trimble/Garmin” format altitude data, or “RMS” format altitude data. Refer to the encoder

documentation to determine jumper settings as appropriate.
The TT31 can also accept Shadin family Format G, Format S and Format Z air data protocols which

supply both altitude and airspeed information. The airspeed information can be used to provide an
automatic air/ground determination for an ADS-B installation.

The TT31 includes a serial altitude output which repeats the altitude received on the encoded input
(either parallel or serial) for connection to a GPS or other equipment. The output format is always
“Icarus/Trimble/Garmin” format. If the altitude source is a parallel encoder, the serial output is
reported every 0.5 seconds; if the source is a serial encoder, the output simply repeats the input reports,
each report delayed by up to 10 milliseconds from the corresponding input report.

5.7.6 Squat Switch Input

The Squat switch input allows the transponder to automatically switch between Airborne and Ground
modes of operation. The squat switch will also automatically start and stop the flight timer. The input
will be asserted when the voltage to ground is pulled below approximately 4 Volts. The operating
mode of the squat switch can be programmed during setup to allow for active low or active high logical
behaviour. For aircraft with no squat switch this input should be left open circuit, and the setup mode
programmed for “Not Connected”.

5.7.7 Ident Switch Input

The Ident switch input, on the 24 way connector, allows the IDENT function to be selected using a
remote switch. The input is active low, and will be asserted when the voltage to ground is pulled below
approximately 4 Volts.

5.7.8 External Standby Input

This input, when held low, places the transponder in Standby mode. It should be used to switch
between transponders in an installation with two transponders. The input is active low, and will be
asserted when the voltage to ground is pulled below approximately 4 Volts.

5.7.9 Audio Output

The Audio Output is on the 12 way secondary connector. The Audio Output is a balanced (two wire)
audio output that can be connected to an unswitched input on the aircraft audio panel. Audio output is
up to 10 Volts peak-to-peak across the pair when driving a 600 Ohm load; actual level can be adjusted
at installation – see Section 6.

Note: The audio pair is not a true transformer balanced output – both pins are actively driven.

If the audio panel input is single-ended, then only one of the output pins should be used,

together with a local ground pin – the other audio output should be left floating.

The Audio Output carries the traffic alert messages for TIS, and the altitude audio annunciator used by
the altitude monitor function.

5.7.10 Audio Mute Input

The Audio Mute Input is on the 12 way secondary connector. It is intended to be connected to the
mute output on higher priority audio systems such as ground proximity warnings. The input is active
low, and is asserted when the voltage to ground is pulled below approximately 4 Volts. When the input

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Trig Avionics Limited Page 17

is pulled low audio alerts for traffic and altitude are inhibited.

5.7.11 Altitude Alerter Output

The TT31 includes an altitude monitor function that can alert the pilot to altitude deviations in cruise
flight. The altitude alerter output, on the 12 way secondary connector, is switched to ground when the
altitude deviation is detected and can be connected to a warning light or sounder to warn the pilot. The
output is an open collector transistor, and can sink up to 1 Amp DC. The switched voltage should not
exceed 60 Volts.

5.7.12 GPS Position Input

The GPS position input is required to support ADS-B functionality. The GPS position input is an
RS232 input to the transponder. The ADS-B features are optional – no GPS is required for normal
Mode S Elementary Surveillance.

The TT31 GPS input can recognise the following protocols:

• Industry standard “Aviation” protocol

• NMEA 0183 protocol ($GPRMC message required)

• FreeFlight and NexNav GPS proprietary protocols, used by the Trig TN70 receiver

• Garmin proprietary ADS-B protocols

• Trig ADS-B protocol

• Trig TN72 TSO-C199 TABS GPS with NMEA protocol

Some of the protocols listed above may not contain all the required data for a compliant ADS-B
message, depending on the intended airspace regulations. For further information refer to Section 12
(ADS-B Compliance) of this manual.

With the Garmin ADS-B protocol selected, the TT31 is compatible with both the Garmin ADSB and
Garmin ADSB Plus protocols.

NOTE: GPS sources providing data using the Garmin ADSB protocol will not meet all the

FAA requirements contained in FAR 91.227. For installers seeking compliance in the USA,

the GPS source must use the Garmin ADS-B Plus protocol.

5.7.13 TIS Traffic Output

The TIS traffic output supports the display of uplinked Traffic Information Service messages. It can be
provided on a serial output (RS232 output 1 or 2) and/or on the ARINC 429 output on the 12 way
secondary connector. The TT31 RS232 output can drive the Trig proprietary traffic protocol, and can
also support the format used by certain Garmin handheld displays, including the 495, 496, 695 and 696.

The TT31 ARINC TIS output can drive a number of common traffic displays, including Garmin and
Bendix/King multifunction displays.

Note: TIS is a Mode S uplink service that is provided by some US approach radars. TIS

coverage is limited to the coverage areas of those radars. There is no TIS provision outside

the USA.

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Page 18 Trig Avionics Limited

6. Installation Setup and Test

The TT31 uses a simple setup system to program important system parameters, including the Mode S
address. In the original factory configuration, the setup screen is the first thing that runs when you
switch on the transponder. If the transponder has already been configured, and you want to access the
setup screen again, simply hold down the FUNC button while switching on the transponder and the
setup system will run.

The script will prompt for the following configuration items:

• Aircraft Registration

• Mode S Address

• VFR Squawk Code

• Aircraft Maximum Airspeed

• Aircraft Category

• Squat switch source, if fitted

• TIS ARINC output

• Serial RS232 Input/Output configuration (GPS, TIS, Altitude)

• ADS-B parameters ( if GPS source is fitted)

• Audio Output Volume

• LCD Dimming Settings

It will then run some simple installation diagnostics, including an external interface check, a check of
the altitude encoder interface, and a check of the lighting bus input.

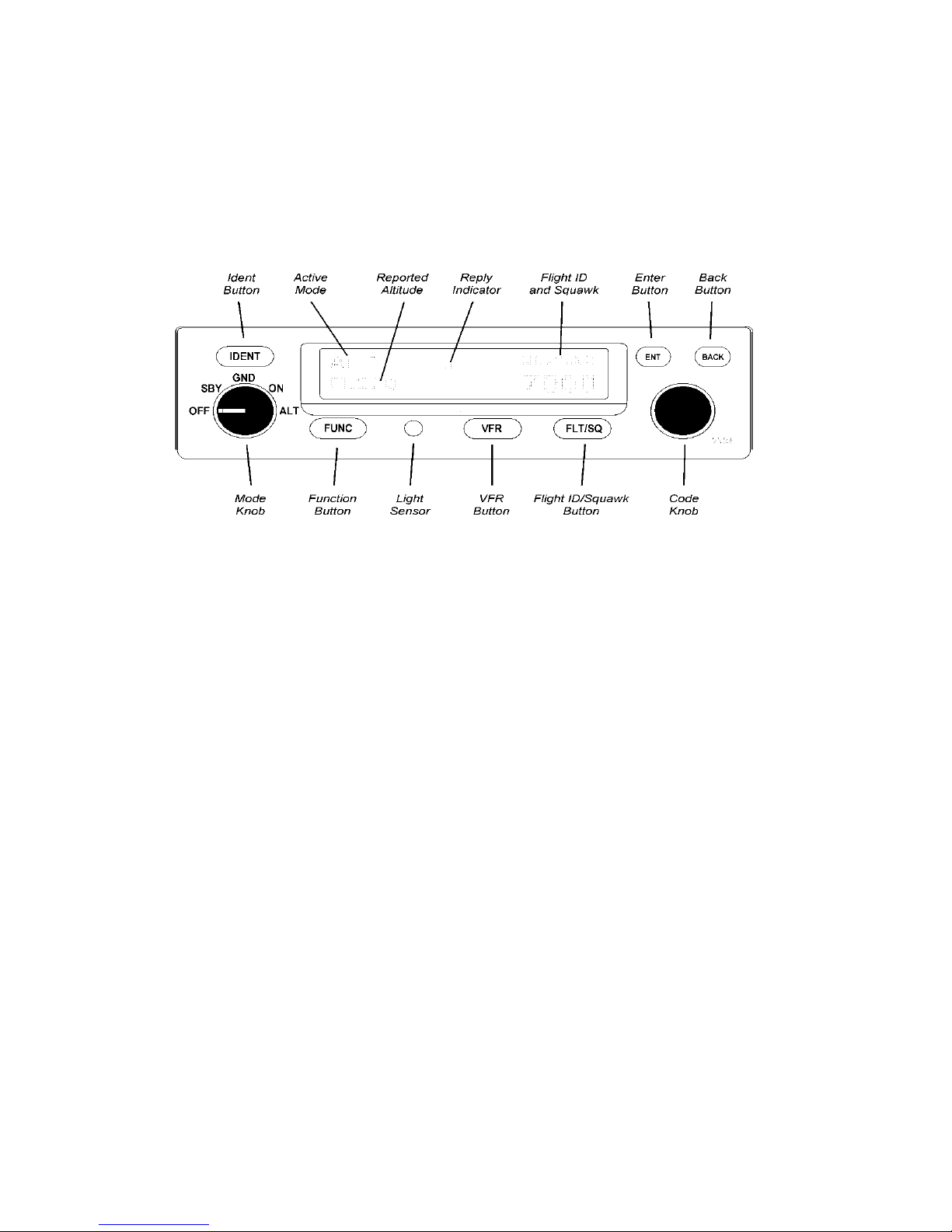

All the programming is accomplished using the right hand rotary knob and the ENT, BACK and FUNC
buttons. Make all input selections using the rotary knob. Pressing the ENT button accepts the current
input and advances to the next input item. Pressing the BACK button accepts the current input and
then returns to the previous input item. Pressing the FUNC button moves directly to the next screen.

6.1 Configuration Items

6.1.1 Aircraft Registration (VFR Flight ID)

The default Flight ID for an aircraft not on an IFR flight plan should be the aircraft registration. Enter
the aircraft registration using the rotary knob and the ENT button.

Note that the aircraft registration is loaded as letters and numbers only. There are no dashes or other
punctuation marks, and no spaces can be inserted. When you enter a space it finishes the data entry
and moves to the next item.

6.1.2 Aircraft Address Programming

The Mode S Address is a 24 bit number issued to the aircraft by the registration authority for the
aircraft. These addresses are usually written as a 6 digit hexadecimal number, although you may also
encounter one written as an 8 digit octal number. The TT31 only understands the hexadecimal format,
so you must first convert an octal number to hexadecimal.

Enter the 6 digit aircraft address using the rotary knob and the ENT button.
In the case of an N registration aircraft, this ICAO address will normally be filled in automatically

based on the tail number.

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Trig Avionics Limited Page 19

6.1.3 VFR Squawk Code

When the pilot presses the VFR button, a pre-programmed code will replace the current squawk code.
The code is set up next; the choice of code will depend on the normal location of the aircraft. In the
USA, the VFR squawk code is 1200. In most parts of Europe, the VFR squawk code should be set to

7000.
Enter the 4 digit squawk code using the rotary knob and the ENT button.

6.1.4 Airspeed Category

Mode S transponders can transmit their maximum airspeed characteristics to aircraft equipped with
TCAS. This information is used to help identify threats and to plan avoiding action by the TCAS
equipped aircraft. The airspeeds are grouped in ranges; using the rotary knob, select the range that
corresponds to the aircraft.

6.1.5 Aircraft Category

To assist ATC tracking of aircraft, an aircraft category can be transmitted by Mode S transponders.
Using the rotary knob, select the aircraft category that most closely matches the aircraft the transponder
is installed in.

6.1.6 Squat Switch Source

The Squat switch input allows the transponder to automatically switch between Airborne and Ground
modes, and to automatically start and stop the flight timer. If a discrete input is used the sense of the
squat switch input can be selected in the settings menu.

For ADS-B enabled installations the transponder can automatically determine the Air/Ground state
without an external squat switch by using GPS data either alone or in combination with an Air Data
Computer.

Note: The preferred choice where available is to use a real squat switch.

If the squat switch input is not used the “Not Connected” option should be selected.

6.1.7 ARINC TIS Output

If the aircraft has a Traffic Information Service (TIS) compatible display connected to the ARINC 429
output, select the appropriate interface protocol using the rotary knob.

Note: TIS is a Mode S uplink service that is provided by some US approach radars. TIS

coverage is limited to the coverage areas of those radars; there is no TIS provision outside the

USA.

6.1.8 RS232 Input/Output

There are two RS232 input lines and two RS232 output lines on the TT31. Either input can be used to
receive data from a serial altitude source, such as an altitude encoder or air data computer, or a GPS
position source for ADS-B. Either output can be used to provide serial altitude output, or TIS traffic.

If a GPS is connected for ADS-B position reporting, select the appropriate interface protocol using the
rotary knob.

If the aircraft has a Traffic Information Service (TIS) compatible display connected to the transponder,
select the appropriate interface protocol using the rotary knob.

Serial altitude input protocols are detected automatically. Serial altitude output is fixed as “Icarus”
format.

Separate bit rates are chosen for each RS232 port but are common for input and output. The line speed
of each RS232 port can be selected with the rotary knob. Each line can be configured to run at 4800,
9600, 19200, 38400 or 57600 bps. In addition, serial line 1 also runs at 1200 and 2400 bps.

Traffic displays using the Garmin protocol run at 9600 bps, as do Garmin GPS position sources. The

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Page 20 Trig Avionics Limited

Trig TN72 TABS GPS receiver also runs at 9600 bps, and panel mount GPS units with Aviation format
outputs generally run at 9600 bps. NMEA GPS units generally run at 4800 bps. The Trig TN70 GPS
receiver runs at 19200 bps, as does the FreeFlight 1201 and similar devices.

Note: Input and Output speeds on the same RS232 line are not separately controlled on the

TT31. Not all combinations of inputs and outputs will be usable if the external devices

operate on fixed bit rates and are different to each other.

6.1.9 ADS-B Configuration

Configuring a GPS on either RS232 input automatically turns on ADS-B Out. The following
additional ADS-B parameters will then need to be configured.

6.1.9.1 GPS System Certification Level

An important metric for ADS-B ground system behaviour is the SDA or System Design Assurance
level. It is intended to reflect the probability that the GPS position source is providing erroneous
information, and is based on the certification standard that was used by the GPS vendor. This will be
indicated in the form of a letter code (A to D) on the data plate or installation documentation for the
GPS in accordance with the standards DO-178B and DO-254, for example “DO-178B level C”. If both
standards are reported but at different levels, use the lower standard (higher letter).

The following table shows example certification data, current at the time of publication.

Equipment

Certification Level

Trig TN70

Level C

Accord NexNav Mini

Level C

FreeFlight 1201

Level C

Garmin 4x0W/5x0W

Level C

Garmin GTN series

Level C

This configuration item is not required if a TSO-199 TABS position source is selected; it is set
automatically for you.

6.1.9.2 GPS NACv

Another metric that the ADS-B ground system uses to help it track the aircraft is NACv. NACv is the
Navigational Accuracy Category for velocity, and is a design feature of the GPS receiver. It represents
the error bound for velocity that the GPS may report in acceleration/deceleration or turning
manoeuvres. You can find this information from your GPS installation manual.

The following table shows example NACv data, current at the time of publication.

Equipment

NACv Setting

Trig TN70

10 metres per Second

Accord NexNav Mini

10 metres per Second

FreeFlight 1201

10 metres per Second

Garmin 4x0W/5x0W

10 metres per Second

Garmin GTN series

10 metres per Second

NOTE: If the Garmin ADS-B Plus protocol is used then the NACv is set dynamically by the

Garmin GPS unit. This manual configuration item is ignored.

This configuration item is not required if a TSO-199 TABS position source is selected; it is set

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Trig Avionics Limited Page 21

automatically for you.

6.1.9.3 Aircraft Length and Width

On the ground, ADS-B transmits encoded aircraft size information which is used by ATC to identify
taxiing routes and potential conflicts. When configured for ADS-B, the TT31 will ask for the aircraft
length and width (wingspan), in metres, and will calculate the appropriate size code for transmission.

6.1.9.4 GPS Antenna Offset

The GPS antenna offset is used together with the aircraft length and width to manage taxiway conflicts.
A typical GPS installation does not report the geographic position of the centre of the aircraft, or even
the tip of the nose of the aircraft; instead it usually reports the location of the actual GPS antenna (not
the GPS receiver). In normal flight operations this distinction is of no practical importance at all, but if
ADS-B is used to manage taxiway conflicts, a significant offset in antenna position could mean that the
aircraft is not in the same place as the ADS-B reported position. Although primarily intended for
position correction on large transport aircraft, General Aviation aircraft can also have a significant
offset. For example, if the aircraft has a long tail boom and the GPS antenna is on the top of the tail,
the GPS position could be 15 feet or more from the nose of the aircraft.

Enter the position of the GPS antenna relative to the nose of the aircraft. The position is stored and
transmitted to the nearest 2 metres; great accuracy in measurement is not required.

6.1.9.5 ADS-B Receiver Options

In the USA there are two ADS-B channels, 1090ES and UAT, and there is an ADS-B based traffic
information service called TIS-B. The ADS-B ground stations relay this information between the two
channels so that suitably equipped aircraft can receive traffic information. To limit channel congestion
these services are only provided to aircraft equipped to receive them.

The transponder reports what receivers are installed in a periodic status message; enter the receiver
status here.

6.1.10 Audio Volume

The altitude alert function includes an audio alert, as does the TIS traffic service. This configuration
item lets you adjust the audio volume output from the transponder using the rotary knob. Whilst you
are turning the volume control, the transponder will periodically output a test signal to verify the
settings.

6.1.11 LCD Dim Point

The LCD backlight illumination is controlled automatically by the ambient light sensor. Depending on
the amount of light spill in the cockpit, and the brightness of other adjacent avionics displays, it may be
necessary to adjust the darkest setting of the backlight to best match other equipment and to improve
the cockpit appearance.

Note – it is only practical to do this in pitch darkness, since that is the in-flight environment

that you are trying to reproduce. If you are working in a hangar with any other lighting it

may be better to leave the setting in the mid-range.

6.1.12 LCD Brightness Curve

The actual maximum brightness of the LCD cannot be increased with this control. What it controls is
the rate at which the lighting increases in brightness as the ambient light increases. This allows the
brightness to be matched to other avionics displays during light level changes as far as possible.

6.2 Test items

6.2.1 Interface Check

The Interface Check screen displays the current state of the external IDENT, external STANDBY and

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Page 22 Trig Avionics Limited

external GROUND inputs. Exercise these inputs to confirm the correct behaviour.

6.2.2 Altitude Check

The Altitude check displays the current state of the altitude inputs. Individual Gray code lines are
shown to assist in fault tracing.

6.2.3 Lighting Bus

The lighting bus check displays the voltage on the lighting bus to assist in verifying the correct
operation of the lighting bus.

6.2.4 Temperature

The internal temperature of the transponder can be displayed. The display is in degrees Celsius.

6.2.5 RS232 Input Check

The RS232 interface check provides a diagnostic that the RS232 input lines are configured correctly. It
will display on screen the data each RS232 line is set up to receive. If valid data of the correct type is
being received, the decoded data will be shown on the display.

6.2.6 Transponder Cycles

The transponder cycle counter represents the total running time for the transponder, and is used by
maintenance staff to track faults.

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Trig Avionics Limited Page 23

7. Post Installation Checks

Post installation checks should be carried out in accordance with your certification requirements.
These checks should include:

• Mode S interrogations to verify correct address programming.

• Verification of the reported altitude using a static tester. For aircraft using parallel Gray code

encoders, the test should include a range of altitudes up to 6,800 feet, 14,800 feet or 30,800

feet, depending on the service ceiling of the aircraft – these altitudes correspond to code

changes which are not otherwise tested at lower altitudes.

• Where installed, verification of correct squat switch ground/airborne indications. In an

aircraft with a squat switch, setting the Mode switch to ALT when the aircraft is on the ground

should leave the transponder in GND mode; when the aircraft becomes airborne, the mode

should switch automatically to ALT. Manually opening or closing the switch as appropriate

will allow the transponder test on the ramp. See below for discussion on automatic air/ground

using other methods.

• Interrogations to verify the receiver sensitivity. A Mode S transponder should have a

minimum triggering level (MTL) of between -77 dBm and -71 dBm. Failure to meet this

requirement usually indicates antenna or coaxial cable problems.

• Interrogations to verify the transmitted power. A Class 1 installation should have no less than

125 Watts at the antenna (and no more than 500 Watts). Failure to meet this requirement is

also generally due to antenna or wiring issues.

• Where installed, verification of the GPS position source and ADS-B outputs. In an aircraft

with a configured GPS, pressing the FUNC button on the transponder front panel in normal

operation will display the ADS position monitor. With the aircraft outside the hangar (for

good GPS reception) the aircraft position should be displayed on the transponder. If the

position indications are all dashes then either the GPS position is not valid or the GPS

interface is not correctly configured. Whenever a valid position is received by the transponder

and the transponder is in any mode other than Standby, ADS-B Extended Squitters should be

observed on the transponder test set.

• Where installed, verification of the TIS output. A Mode S test set with TIS capability should

be used; with the transponder in ALT mode traffic should be shown on the attached display.

7.1 Automatic Air/Ground Considerations

If you have configured the transponder with an automatic air/ground determination method based on
GPS data with or without an Air Data Computer the transponder should be in “Ground” mode when
parked on the ramp and will not reply to Mode A/C interrogations or Mode S all-call interrogations
when the system has switched to GND mode.

To carry out a transponder test on the ground one of the easiest ways of making the transponder
airborne is to turn off the attached GPS receiver. Without GPS data the transponder will always switch
to airborne mode. This allows you to complete all the conventional transponder tests. ADS-B status
messages will also be transmitted and can be verified, but position and velocity reports will be missing.
When the GPS is switched on and a GPS position fix is first obtained, the transponder waits for a few
seconds before switching to GND mode. It will transmit airborne position and velocity squitters for a
short period before returning to GND mode, and this will allow you to complete the ramp test.

An alternative solution is to temporarily turn off the automatic air/ground determination from

the setup mode. We strongly discourage you from using that method because it has resulted in

the aircraft being despatched with the automatic air/ground still turned off – it is easy to

forget to reinstate the air/ground system after completing the tests.

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Page 24 Trig Avionics Limited

8. Normal Operation

8.1 Overview

On the front panel is an amber backlit LCD display flanked by a rotary mode selector knob (OFF, SBY,
GND, ON, and ALT) and a continuously rotating knob used for code and data entry.

8.2 Display

The display shows the operating mode of the transponder, the reported pressure altitude, and the
current squawk code and Flight ID. The reply indicator is active when the transponder replies to
interrogations.

The pressure altitude is displayed as a Flight Level, which is the pressure altitude in hundreds of feet.
When non-standard atmospheric conditions apply, this may not match the altimeter indicated altitude,
but will be correctly displayed by the ATC radar.

8.3 Mode Selector Knob

The left hand knob controls the power to the transponder and the operating mode.

OFF

Power is removed from the transponder.

SBY

The transponder is on, but will not reply to any interrogations.

GND

The transponder will respond to Mode S ground interrogations from
surface movement radar.

ON

The transponder will respond to all interrogations, but altitude
reporting is suppressed.

ALT

The transponder will respond to all interrogations.

When airborne, the transponder should always be set to ALT unless otherwise directed by Air Traffic
Control. When you are taxiing on the ground, the transponder should be set to GND mode. If your
installation includes a squat switch or is configured with an automatic air/ground system it will switch
automatically and you do not need to manually select the GND position.

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Trig Avionics Limited Page 25

8.4 Push Buttons

IDENT

Press the IDENT button when ATC instructs you to “Ident” or “Squawk Ident”. This

activates the SPI pulse in the transponder replies for 18 seconds. IDENT will appear in the
display.

FUNC

Pressing the FUNC button provides access to the flight timer, stopwatch and altitude
monitor function. When the aircraft is ADS-B equipped, pressing FUNC also provides
access to the ADS-B position monitor.

VFR

Pressing the VFR button sets the transponder to the pre-programmed conspicuity code.
Pressing the button again restores the previous squawk code.

FLT/SQ

Pressing FLT/SQ alternates the primary display between squawk code and Flight ID.

ENT

The ENT button enters a digit in the code selector.

BACK

The BACK button goes back to the previous digit in the code selector.

8.5 Code Selector Knob

The right hand knob is used to set squawk codes and the Flight ID. The FLT/SQ button selects which
will be updated. Turning the knob will highlight the first digit on the display, and the digit can be
changed as required. Press the ENT button to advance to the next digit. When ENT is pressed on the
last digit, the new squawk code or Flight ID will replace the previous value. If the code entry is not
completed within 7 seconds, the changes are ignored and the previous code restored.

1200

VFR code in the USA

7000

VFR code commonly used in Europe.

7500

Hijack code

7600

Loss of communications

7700

Emergency code

The Flight ID should correspond to the aircraft call sign entered on your flight plan. If no flight plan is
active, the aircraft registration should be used as your Flight ID. Use only letters and digits. If the
Flight ID is less than 8 characters long, entering a blank character will end it.

8.6 Flight Timer

The Flight Timer records the time for which the transponder has been powered on and operating in
flight mode – either ON or ALT. Press the FUNC button to display the Flight Timer.

8.7 Stopwatch

The stopwatch can be used as a convenient timer. Press the FUNC button to display the stopwatch.
Pressing ENT will reset and start the timer. Pressing ENT again will stop the timer.

8.8 ADS-B Position Monitor

The ADS-B position monitor is available on aircraft equipped for ADS-B position output. It provides a
convenient way of verifying that valid position information is being received by the transponder by
displaying the current calculated position. If a valid position is displayed, the transponder will be
transmitting that position to ADS-B participants. If no position is available the position will be
displayed as dashes, and the transponder will NOT be transmitting ADS-B position information.

8.9 Altitude Monitor

The Altitude Monitor activates an audio annunciator or annunciator light (depending on installation)
when the aircraft pressure altitude differs from the selected altitude by more than 250 feet. Press the
FUNC button to display the altitude monitor enable screen. Pressing ENT toggles the altitude monitor
at the current altitude.

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Page 26 Trig Avionics Limited

When altitude monitoring is in use, a small deviation pointer appears adjacent to the altitude display on
the transponder.

8.10 Warnings

There are two warning messages that can be displayed on the transponder. Warning messages can be
cleared by pressing the ENT key on the control panel.

If the transponder has been configured for ADS-B operation, but a suitable position fix is not available,
a warning message is displayed to indicate that ADS-B capability has been lost. The transponder will
continue to operate normally.

If there is a problem with the antenna installation, a warning message may be displayed. Depending on
whether this is an intermittent problem the message may recur when cleared. The transponder may still
be replying to interrogations, but there can be no assurance that ATC is receiving those replies.

8.11 Fault Annunciation

If the transponder detects an internal failure, or a hard fault with the antenna installation, the screen will
indicate FAULT and a brief statement of the problem. No replies will be made to interrogations when
a fault is detected.

8.12 Low Temperature Operation

The TT31 is certified for correct operation at temperatures down to -20 Celsius. At low temperatures
however the display performance will be impaired. The aircraft cockpit should be warmed to allow
normal operation of the transponder before takeoff.

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Trig Avionics Limited Page 27

9. Continued Airworthiness

9.1 Maintenance

Other than for periodic functional checks required by the regulations, the TT31 Mode S transponder
has been designed and manufactured to allow “on condition maintenance”. This means that there are
no periodic service requirements necessary to maintain continued airworthiness, and no maintenance is
required until the equipment does not properly perform its intended function. When service is required,
a complete performance test should be accomplished following any repair action. Repairs should only
be carried out in accordance with Trig Avionics Limited service procedures.

9.2 ADS-B Installations

9.2.1 GPS Receiver Maintenance

If any maintenance is required on the connected GPS receiver, it is advisable to check with the GPS
manufacturer that you have the most recent and correct version of tests to carry out after maintenance.
Check that there are no additional requirements to be considered when using the GPS as part of an
ADS-B system.

There is no requirement to test the full ADS-B system following maintenance on the GPS receiver as
long as the post maintenance checks verify the output being used by the TT31.

9.2.2 GPS Receiver Design Changes

It should be noted that if the GPS receiver has been sent away for repair, it may have additional
upgrades or design changes applied to it when it returns. The installer must check with the
manufacturer that these upgrades or design changes do not adversely affect the compatibility with the
TT31.

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Page 28 Trig Avionics Limited

10. Limited Warranty

Trig Avionics Limited warrants our products to be free from defects in materials and workmanship for
a period of two (2) years from the date of installation by an authorised dealer.

This warranty covers repair and/or replacement at our option, of any parts found to be defective,
provided such defects in our opinion are due to faulty material or workmanship and are not caused by
tampering, abuse, or normal wear.

All warranties are F.O.B.

Trig Avionics Limited

Heriot Watt Research Park

Riccarton, Edinburgh, EH14 4AP
Trig Avionics will not accept or pay for any charges for warranty work performed outside our factory

without prior written consent.
This warranty applies only to products in normal use. It does not apply to units or circuit boards

defective due to improper installation, physical damage, tampering, lightning or other electrical
discharge, units with altered serial numbers, or units repaired by unauthorised persons or in violation of
Trig Avionics Limited service procedures.

Trig Avionics Limited assumes no responsibility for any consequential losses of any nature with
respect to any products or services sold, rendered, or delivered.

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Trig Avionics Limited Page 29

11. Environmental Qualification Form

Nomenclature

TT31 Mode S Transponder

Part Number:

00220-(XX)

ETSO:

2C112b

Manufacturer

Trig Avionics Limited

Address

Heriot Watt Research Park, Riccarton, Currie, Scotland, EH14 4AP

Conditions

DO-160D

Section

Description of Conducted Tests

Temperature and Altitude

4.0

Equipment tested to Categories A1, C1

Low temperature ground survival

4.5.1

-55°C

Low temperature operating

4.5.1

-20°C

High temperature operating

4.5.3

+55°C

High temperature short-time operating

4.5.2

+70°C

High temperature ground survival

4.5.2

+85°C

Loss of Cooling

4.5.4

Cooling air not required (+70°C operating without cooling air)

Altitude

4.6.1

35,000 feet

Decompression

4.6.2

8,000 to 35,000 feet in 15 seconds

Overpressure

4.6.3

-15000 feet

Temperature Variation

5.0

Equipment tested to Category C

Humidity

6.0

Equipment tested to Category A

Operational Shocks

7.2

Equipment tested to Category B

Crash Safety

7.3

Equipment tested to Category B and extended to use test
levels for Helicopters

Vibration

8.0

Aircraft zone 2; type 3, 4, 5 to category S level M
Equipment at strike-off level 3 also tested for aircraft zone 2;

type 1 (Helicopters) to category U level G

Explosion

9.0

Equipment identified as Category X – no test required

Waterproofness

10.0

Equipment identified as Category X – no test required

Fluids Susceptibility

11.0

Equipment identified as Category X – no test required

Sand and Dust

12.0

Equipment identified as Category X – no test required

Fungus

13.0

Equipment identified as Category X – no test required

Salt Spray

14.0

Equipment identified as Category X – no test required

Magnetic Effect

15.0

Equipment tested to Category Z

Power Input

16.0

Equipment tested to Category B

Voltage Spike

17.0

Equipment tested to Category B

Audio frequency conducted susceptibility

18.0

Equipment tested to Category B

Induced signal susceptibility

19.0

Equipment tested to Category A

Radio frequency susceptibility

20.0

Equipment tested to Category T

Radio frequency emission

21.0

Equipment tested to Category B

Lightning induced transient susceptibility

22.0

Equipment identified as Category XXXX – no test required

Lightning direct effects

23.0

Equipment identified as Category X – no test required

Icing

24.0

Equipment identified as Category X – no test required

Electrostatic Discharge

25.0

Equipment identified as Category X – no test required

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Page 30 Trig Avionics Limited

Because the ETSO for ADS-B was published later than the ETSO for transponders it refers to a later
edition of the environmental standard, ED-14E/DO-160E, rather than ED-14D/DO-160D. The
following form provides the environmental data in DO-160E format. The two tables are equivalent.

Nomenclature

TT31 Mode S Transponder

Part Number:

00220-(XX)

ETSO:

C166a

Manufacturer

Trig Avionics Limited

Address

Heriot Watt Research Park, Riccarton, Currie, Scotland, EH14 4AP

Conditions

DO-160E

Description of Conducted Tests

Temperature and Altitude

4.0

Equipment tested to Categories A4, C4

Low temperature ground survival

4.5.1

-55°C

Low temperature operating

4.5.1

-20°C

High temperature operating

4.5.3

+55°C

High temperature short-time operating

4.5.2

+70°C

High temperature ground survival

4.5.2

+85°C

Loss of Cooling

4.5.4

Cooling air not required (+70°C operating without cooling air)

Altitude

4.6.1

35,000 feet

Decompression

4.6.2

8,000 to 35,000 feet in 15 seconds

Overpressure

4.6.3

-15000 feet

Temperature Variation

5.0

Equipment tested to Category C

Humidity

6.0

Equipment tested to Category A

Operational Shocks

7.2

Equipment tested to Category B

Crash Safety

7.3

Equipment tested to Category B and extended to use test
levels for Helicopters

Vibration

8.0

Aircraft zone 2; type 3, 4, 5 to category S level M
Equipment at strike-off level 3 also tested for aircraft zone 2;
type 1 (Helicopters) to category U level G

Explosion

9.0

Equipment identified as Category X – no test required

Waterproofness

10.0

Equipment identified as Category X – no test required

Fluids Susceptibility

11.0

Equipment identified as Category X – no test required

Sand and Dust

12.0

Equipment identified as Category X – no test required

Fungus

13.0

Equipment identified as Category X – no test required

Salt Spray

14.0

Equipment identified as Category X – no test required

Magnetic Effect

15.0

Equipment tested to Category Z

Power Input

16.0

Equipment tested to Category B

Voltage Spike

17.0

Equipment tested to Category B

Audio frequency conducted susceptibility

18.0

Equipment tested to Category B

Induced signal susceptibility

19.0

Equipment tested to Category AC

Radio frequency susceptibility

20.0

Equipment tested to Category T

Radio frequency emission

21.0

Equipment tested to Category B

Lightning induced transient susceptibility

22.0

Equipment identified as Category XXXX – no test required

Lightning direct effects

23.0

Equipment identified as Category X – no test required

Icing

24.0

Equipment identified as Category X – no test required

Electrostatic Discharge

25.0

Equipment identified as Category X – no test required

Fire, Flammability

26.0

Equipment identified as Category C

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Trig Avionics Limited Page 31

12. ADS-B Compliance

TT31 transponders with software version 3.1 and above include support for Extended Squitter ADS-B
out which is compliant with DO-260B. The TT31 is a B1S ADS-B transmitter.

12.1 ADS-B Parameters Supported

The following table lists the ADS-B parameters that are transmitted by the TT31 transponder when
connected to an appropriate GPS receiver.

Parameter

BDS Register

SPI

0,5

Emergency Indicator

0,5

Barometric Altitude

0,5

Quality Indicator (NIC)

0,5

Airborne Position
Latitude

0,5

Longitude

0,5

Quality Indicator (NIC)

0,6

Surface Position
Latitude

0,6

Longitude

0,6

Surface Ground Speed

0,6

Surface Ground Track

0,6

Aircraft Identification

0,8

Airborne Ground Velocity

0,9

Geometric to Barometric Altitude Difference

0.9

Geometric Vertical Speed

0.9

Squawk Code

6,1

Emergency Status

6,1

Quality Indicator (NACp, NACv and GVA)

6,5

Quality Indicator (SIL and SDA)

6,5

Version Indicator

6,5

Surface Length/Width

6,5

Surface Antenna Offset

6,5

In all cases, uncompensated latency due to the transponder is less than 10 milliseconds. Analysis of the
system latency should add this to the latency of the GPS system and the transmission time of the
position data from the GPS to the transponder to determine the overall latency.

12.2 FAA 91.227 Compliance

The TT31 transponder is certified to TSO-C166b and meets the requirements of AC 20-165B when
directly connected to the GPS units listed below, and will form the basis of a 14 CFR 91.227 compliant
ADS-B installation.

The following combinations are available under Trig STC program for certified aircraft.

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Page 32 Trig Avionics Limited

GPS Unit

GPS Output Setting

TT31 Input Setting

Trig TN70

n/a

FreeFlight/NexNav

FreeFlight 1201

n/a

FreeFlight/NexNav

Aspen NexNav Mini

n/a

FreeFlight/NexNav

Garmin GNS4x0W

ADS-B+

Garmin ADSB

Garmin GNS5x0W

ADS-B+

Garmin ADSB

Garmin GTN6xx

ADS-B+

Garmin ADSB

Garmin GTN7xx

ADS-B+

Garmin ADSB

In addition, where an STC is not required, for example Experimental aircraft, the following
combinations are also supported and will form the basis of a 14 CFR 91.227 compliant ADS-B
installation.

GPS Unit

GPS Output Setting

TT31 Input Setting

Avidyne IFD 4xx

ADS-B (Avi)

Trig ADSB

Avidyne IFD 5xx

ADS-B (Avi)

Trig ADSB

Garmin GPS 20A

n/a

Garmin ADSB

12.3 CS-ACNS Compliance

The TT31 transponder can be connected to the following GPS units to form the basis of a CS-ACNS
compliant ADS-B installation:

GPS Unit

GPS Output Setting

TT31 Input Setting

Trig TN70

n/a

FreeFlight/NexNav

FreeFlight 1201

n/a

FreeFlight/NexNav

Aspen NexNav Mini

n/a

FreeFlight/NexNav

Avidyne IFD 4xx

ADS-B (Avi)

Trig ADSB

Avidyne IFD 5xx

ADS-B (Avi)

Trig ADSB

Garmin GNS4x0W

ADS-B or ADS-B+

Garmin ADSB

Garmin GNS5x0W

ADS-B or ADS-B+

Garmin ADSB

Garmin GTN6xx

ADS-B+

Garmin ADSB

Garmin GTN7xx

ADS-B+

Garmin ADSB

Garmin GPS 20A

n/a

Garmin ADSB

For installations seeking certification to CS-ACNS or other applicable standards, additional compliance
information is available on request from Trig Avionics Limited.

12.4 TSO-C199 TABS Compliance

TT31 transponders are TSO-C166b compliant ADS-B transmitters. When connected to an appropriate
TSO-C199 Class B GPS position source all transmitted ADS-B data complies with section A1.2.5 of
TSO-C199.

The Traffic Awareness Beacon System (TABS) is intended for voluntary equipage on aircraft
exempted from carrying Automatic Dependent Surveillance - Broadcast (ADS-B) equipment, such as
gliders, balloons and aircraft without electrical systems. TABS GPS devices do not meet the ADS-B
requirements defined in 14 CFR § 91.227.

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Trig Avionics Limited Page 33

12.5 Automatic Air/Ground Determination

The TT31 can report ADS-B surface and airborne messages. The ADC or squat switch inputs can be
utilised to determine air/ground status as explained in section 6.1.

12.6 ADS-B Support

Details are given below for specific transponder behaviour that may be required to show compliance
against AC20-165A. For installations seeking certification to 14 CFR 91.227 or other applicable
standards, additional compliance information is also available on request from Trig Avionics Limited.

• The TT31 will transmit an ADS-B message populated with all the parameters required by 14

CFR 91.227.

• The TT31 will transmit north/south, east/west velocities within an airborne ADS-B message.

• The TT31 will transmit ground speed and ground track within a surface ADS-B message. The

TT31 will suppress the ground track at velocities less than 7 knots.

• When using the GPS listed in the table above, the TT31 will set SIL = 3 and SIL

SUPP

= 0. For

TSO-C199 TABS GPS the TT31 will set SIL = 1 and SIL

SUPP

= 0. For all other GPS units the

TT31 will set SIL = 0.

• The TT31 will always limit the NIC value to not greater than 8.

• The NACp value is set using HFOM data from the GPS.

• The NACv is a fixed setting determined from the setup menu.

NOTE: If using the Garmin ADS-B Plus protocol, the NACv is set dynamically from the GPS

data. In this instance the NACv setting from the setup menu is ignored.

• The TT31 will set the GVA value using VFOM data from the GPS.

• If the TT31 detects an internal failure, the screen will indicate FAULT or WARNING

followed by a brief statement of the problem.

• If the TT31 detects that no position data is being received then the display will indicate

WARNING – NO ADSB POSN.

• Only a single, bottom mounted antenna can be used and therefore the Single Antenna Bit will

be fixed at 1.

• There is no pilot interface to disable ADS-B reporting.

• The TT31 has no anonymity feature because it works on 1090 MHz and is certified to TSO-

C166b.

• The TT31 will populate the vertical rate field with the GPS geometric vertical rate data. This

will always be converted to feet per minute and the TT31 transmits geometric rate, never

barometric.
If you require additional information and data to support an ADS-B installation then please contact

[email protected].

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Page 34 Trig Avionics Limited

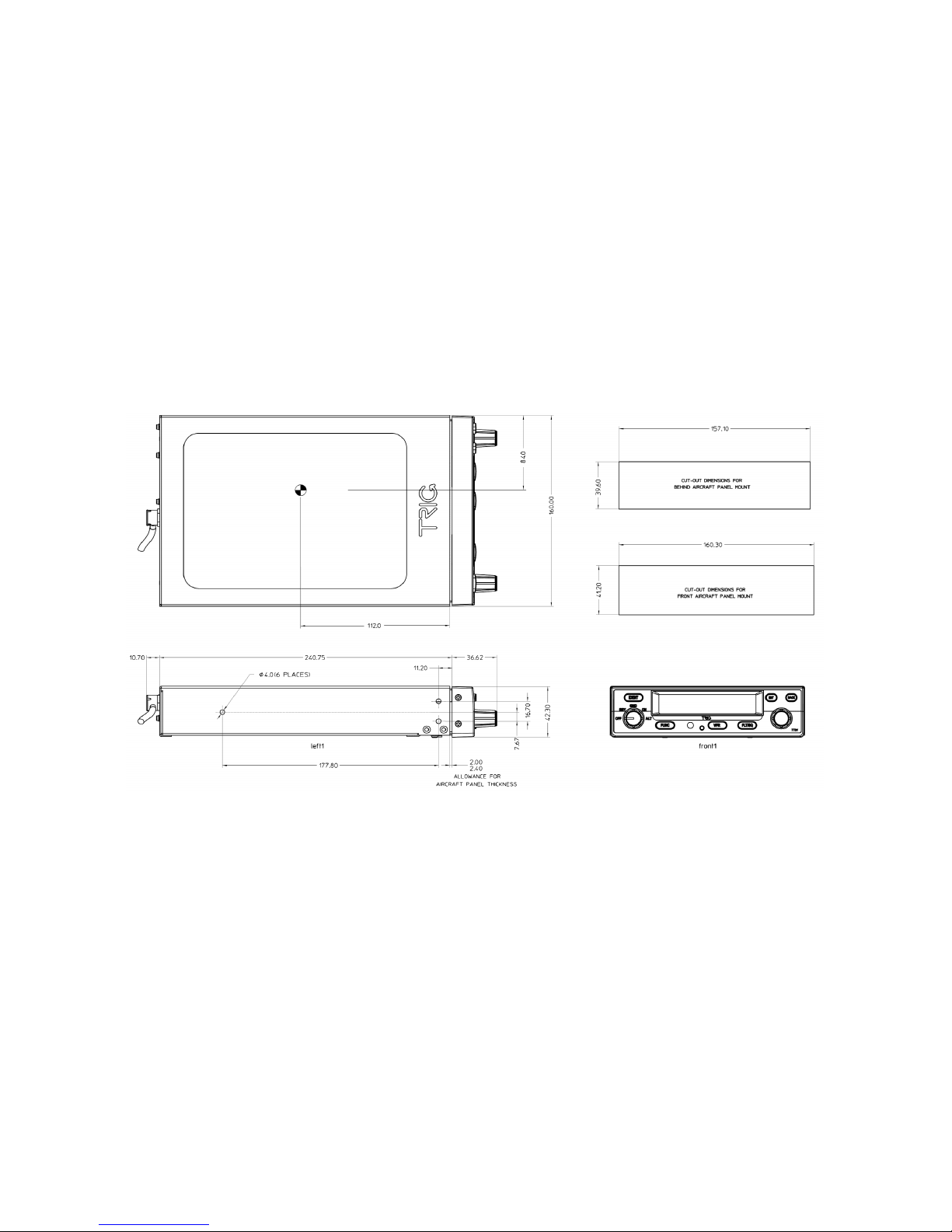

13. Installation Drawings

All dimensions in millimetres

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Trig Avionics Limited Page 35

14. Connection Diagrams

14.1 Master Drawing List

Figure 14-A Typical TT31 Interconnect ....................................................................................................................................................................................................36

Figure 14-B Typical TT31 ADS-B Out Interconnect ................................................................................................................................................................................36

Figure 14-C RS-232 GPS Interconnect .....................................................................................................................................................................................................36

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Page 36 Trig Avionics Limited

Ground
Lighting 14V
Lighting 28V
Suppress I/O
Squat Switch

Ext Standby

11-33V DC
11-33V DC

Ground

Ext Ident

Alt D4
Alt B4
Alt B2
Alt C1
Alt B1
Alt C4
Alt A4
Alt A2
Alt C2
Alt A1

RS232 Out 1

RS232 In 1

Suppress In

Ground
Altitude Alert

RS232 Out 2

RS232 In 2

ARINC Traffic B
ARINC Traffic A

Audio +

Audio -

Audio Mute

Antenna Connection
RF

1
2
3
4
5

10

11
12

A

F

8
B
C
D
E
H
J
K
L

M

6
7

9

1
6

2
3

E
F

B
C
5

Coax

GPS POSITION SOURCE

Altitude In

MUTUAL SUPPRESSION BUS

PARALLEL
ALTITUDE
ENCODER

3A

CIRCUIT BREAKER

11 – 33v aircraft power

1

OTHER TRANSPONDER

1A

Circuit Breaker

3

LAMP

4

11 – 33V

Primary

TRIG TT31

Secondary

SERIAL ALTITUDE ENCODER

or

ADC

Altitude Out

2

1

DME

Suppression Out

AUDIO PANEL

Audio +
Audio -

ALL WIRES SHOULD BE 18 – 24 AWG

NOTES:

1.

CONNECT ONLY ONE INPUT TO THE LIGHTING BUS, DEPENDING ON LINE VOLTAGE

1

2

ONLY CONNECT ONE ALTITUDE DATA SOURCE, EITHER A SERIAL ENCODER, PARALLEL

ENCODER OR ADC.

WHEN USING DATA FROM AN ADC, IT SHOULD BE CONNECTED TO THE “SERIAL ALT IN”, AS

SHOWN.

3

LAMP SHOWN AS EXAMPLE OF POSSIBLE ALERTER INSTALLATION. OTHER OPTIONS ARE

POSSIBLE.

4 5 5 6 6

THIS DIAGRAM ILLUSTRATES SERIAL ALTITUDE IN/OUT ON RS232 PORT 1. THIS CAN BE

CONFIGURED FOR GPS IN OR TIS OUT IF REQUIRED. RS232 PORT 2 COULD ALSO BE
USED.

5

TIS TRAFFIC OUTPUT TO A COMPATIBLE ARINC DISPLAY.

7

7

DISCRETE INPUT FROM HIGHER PRIORITY AUDIO SOURCE.

Figure 14-A Typical TT31 Interconnect

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Trig Avionics Limited Page 37

Squat Switch

RS232 In 1

RS232 In 2

Ground

5

7

GPS POSITION

SOURCE

Power In
Ground

RS232 Out
Ground

CIRCUIT

BREAKER

Power In

GPS ANTENNA

Antenna

3

2

1

REFER TO MANUFACTURERS REQUIREMENTS FOR CABLE SIZES

2

THESE INPUTS ARE USED FOR AUTOMATIC AIR-GROUND DETERMINATION. ONLY

ONE OF THESE METHODS IS REQUIRED TO BE CONNECTED (ADC, SQUAT SWITCH
OR AIRSPEED SWITCH).

NOTES:

1.

3

REFER TO MANUFACTURERS INSTALLATION DOCUMENTS FOR SUPPLY CONNECTIONS

Coax

TRIG TT31

ADC

Pitot

Line

Airspeed

Switch

Static

Line

Aircraft Squat

Switch

1 1 1

Primary

3

A

Secondary

REFER TO RS-232 CONNECTION DIAGRAM (FIGURE 14-C)

Figure 14-B Typical TT31 ADS-B Out Interconnect

TT31 Transponder Installation Manual 8 May 2017
00455-00 Issue AQ

______________________

Page 38 Trig Avionics Limited

GPS POSITION SOURCE

GPS RS-232 OUT

Ground

TRIG TT31

GPS INPUT

Ground

FREE FLIGHT

1201

P1

7

10

GARMIN

500W SERIES

P5001

56

GND

GARMIN

400W SERIES

P4001

56

GND

1

TO AVOID SIGNAL INTERFERENCE THE RS-232 LINK WIRES ARE RECOMMENDED TO BE A TWISTED SHIELDED PAIR TO MIL-C-27500 OR EQUIVALENT.

2

TERMINATE THE SHIELD GROUNDS TO A SPARE GROUND PIN ON EITHER UNIT. IF NO GROUND PIN IS SPARE THEN CONNECT THE SHIELD GROUNDS TO THE AIRCRAFT CHASSIS

OR CONNECTOR BACKSHELL IF APPLICABLE.

NOTES:

1.

2.

1

REFER TO SECTION 6 FOR CORRECT CONFIGURATION OF TRANSPONDER

2

REFER TO APPROPRIATE GPS INSTALLATION MANUAL FOR CORRECT CONFIGURATION OF GPS POSITION SOURCE

TT31

24-Way
Primary

Connector

7

A

TT31

3

A

12-Way
Secondary
Connector

NEXNAV MINI

P1

7

10

RS232 In 2

RS232 In 1

Trig TN70

P1

7

10

Trig TN72

P1

7

5

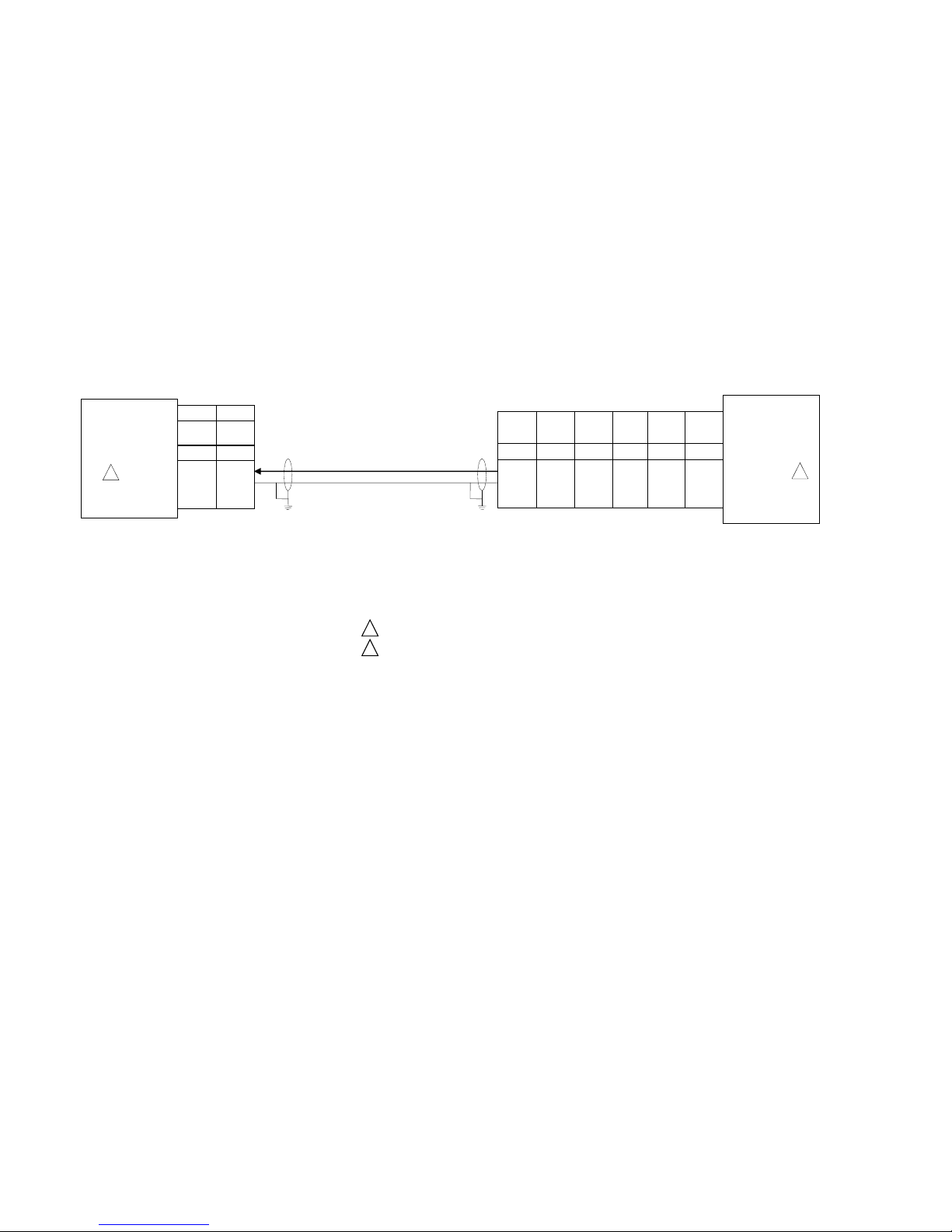

Figure 14-C RS-232 GPS Interconnect
