TT21 Mode S Transponder Installation Manual

00560-00-AA 19 January 2009

Trig Avionics Limited Heriot Watt Research Park Riccarton, Currie EH14 4AP Scotland, UK

Page 2

This page intentionally left blank

Page 3

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

CONTENTS

PREFACE....................................................................................................................................... 1

1.1 PURPOSE....................................................................................................................................1

1.2 SCOPE........................................................................................................................................ 1

1.3 CHANGES FROM PREVIOUS ISSUE .............................................................................................. 1

1.4 DOCUMENT CROSS-REFERENCES ..............................................................................................1

2. INTRODUCTION.......................................................................................................................... 2

2.1 TT21 DESCRIPTION ................................................................................................................... 2

2.2 INTERFACES...............................................................................................................................2

2.2.1 TT21 Transponder Unit....................................................................................................2

2.2.2 TC20 Controller Unit .......................................................................................................2

3. TECHNICAL SPECIFICATIONS...............................................................................................3

3.1 TT21 TRANSPONDER UNIT (00675-00)..................................................................................... 3

3.2 TC20 CONTROL UNIT (00649-00).............................................................................................4

4. UNIT AND ACCESSORIES SUPPLIED.....................................................................................5

4.1 TT21 MODE S TRANSPONDER ITEMS ........................................................................................5

4.2 TC20 CONTROLLER ITEMS ........................................................................................................ 5

4.3 INSTALLATION KIT.................................................................................................................... 5

4.4 REQUIRED ITEMS.......................................................................................................................6

5. INSTALLATION ...........................................................................................................................7

5.1 UNPACKING AND INSPECTING EQUIPMENT................................................................................ 7

5.2 CONTROLLER MOUNTING.......................................................................................................... 7

5.3 TRANSPONDER MAIN UNIT MOUNTING.....................................................................................7

5.4 COOLING REQUIREMENTS ......................................................................................................... 7

5.5 TT21 TRANSPONDER ELECTRICAL CONNECTIONS.....................................................................8

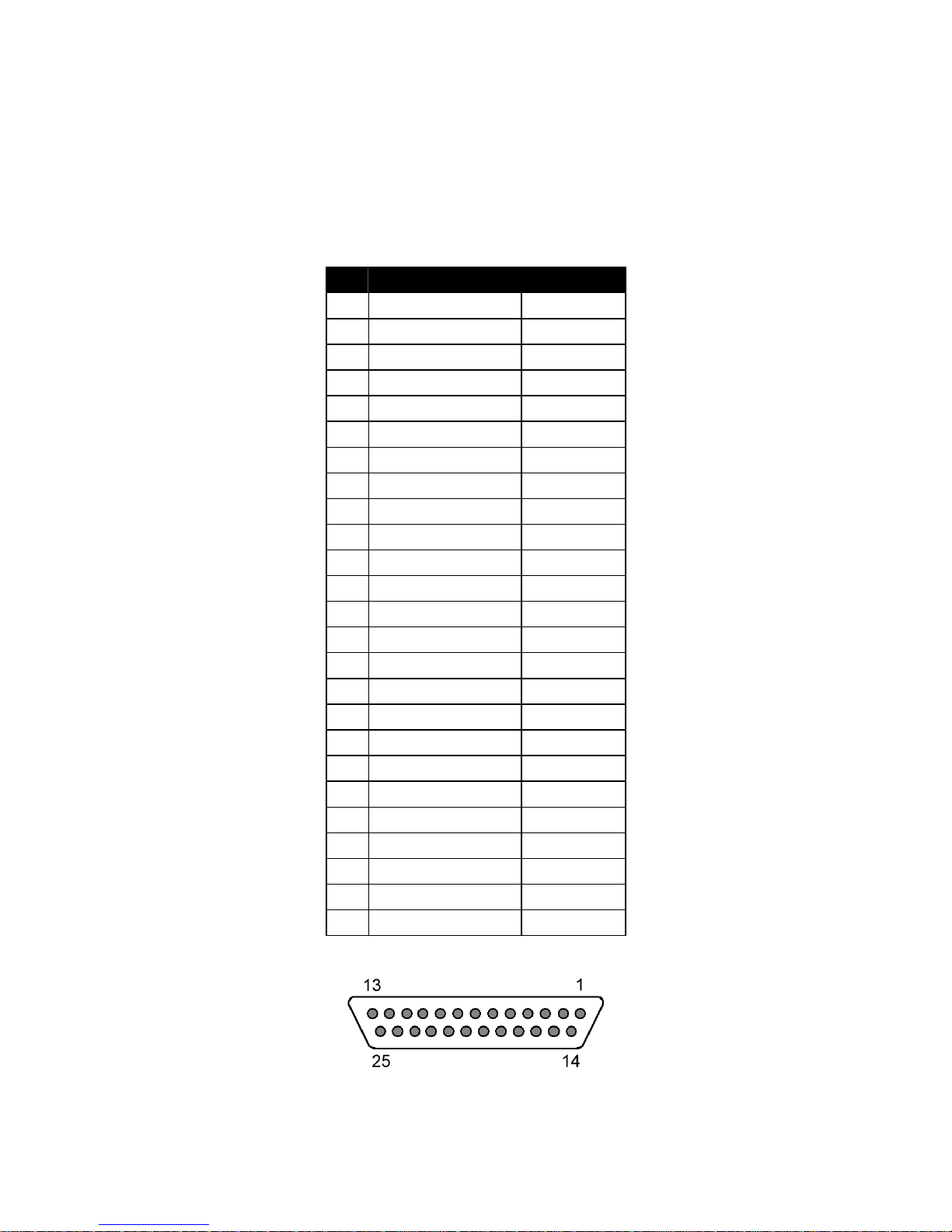

5.5.1 TT21 Interface – Pinout....................................................................................................8

5.6 TT21 TRANSPONDER INTERFACE DETAILS................................................................................ 9

5.6.1 Power Input......................................................................................................................9

5.6.2 TMAP Bus......................................................................................................................... 9

5.6.3 Power On..........................................................................................................................9

5.6.4 Controller Power..............................................................................................................9

5.6.5 Mutual Suppression.......................................................................................................... 9

5.6.6 Ident Switch Input.............................................................................................................9

5.6.7 Squat Switch Input............................................................................................................9

5.6.8 External Standby Input................................................................................................... 10

5.6.9 GPS Position Input......................................................................................................... 10

Trig Avionics Limited i

Page 4

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

5.7 TC20 CONTROLLER ELECTRICAL CONNECTIONS ....................................................................10

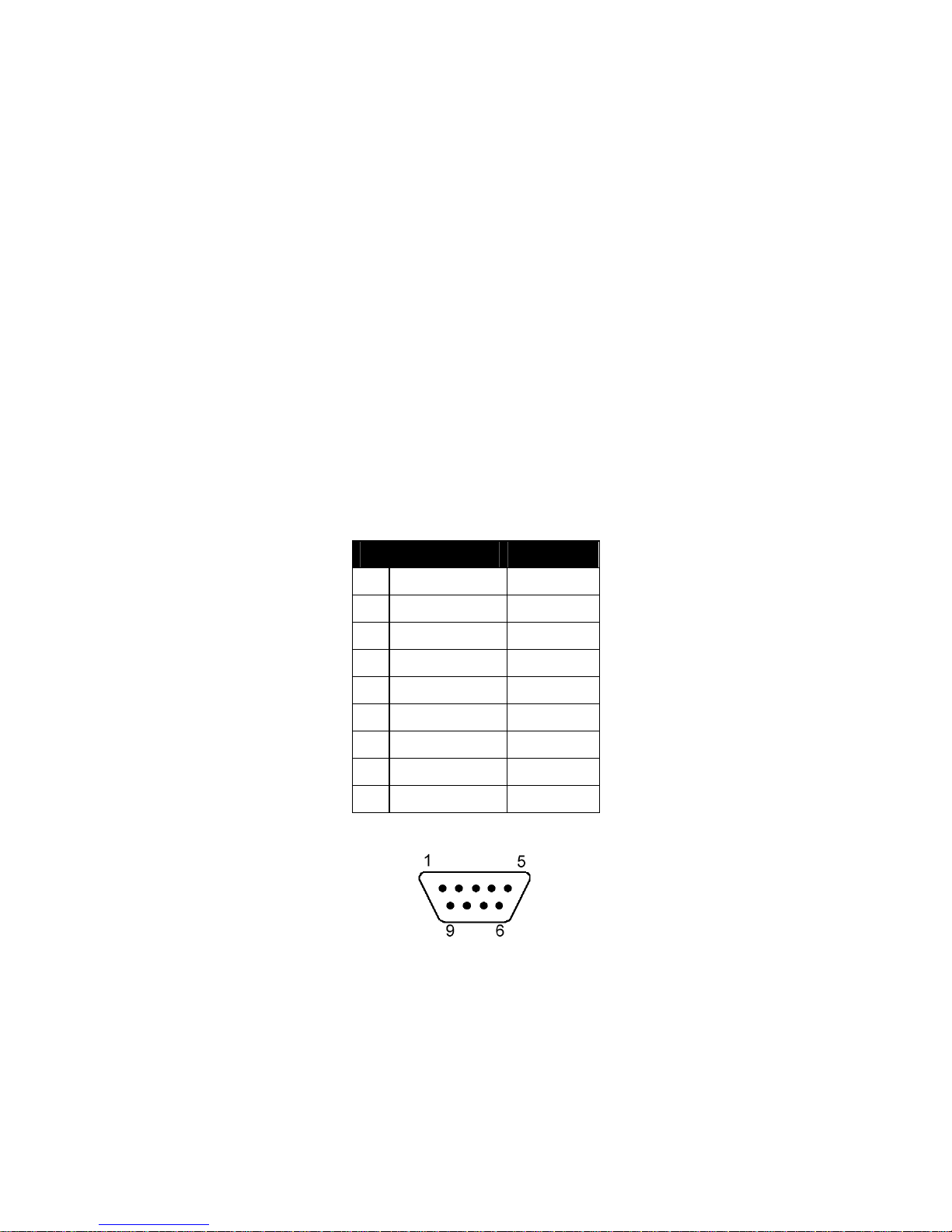

5.7.1 TC20 Interface - Pinout..................................................................................................10

5.8 TC20 CONTROLLER INTERFACE DETAILS................................................................................ 10

5.8.1 TMAP Bus....................................................................................................................... 10

5.8.2 Altitude Out ....................................................................................................................11

5.8.3 Remote ON......................................................................................................................11

5.8.4 Power.............................................................................................................................. 11

5.9 D CONNECTOR CRIMP TERMINALS..........................................................................................11

5.10 WIRING CONSIDERATIONS....................................................................................................... 11

5.11 ANTENNA INSTALLATION........................................................................................................ 12

5.11.1 Antenna Ground Plane................................................................................................... 12

5.11.2 Antenna Cable ................................................................................................................12

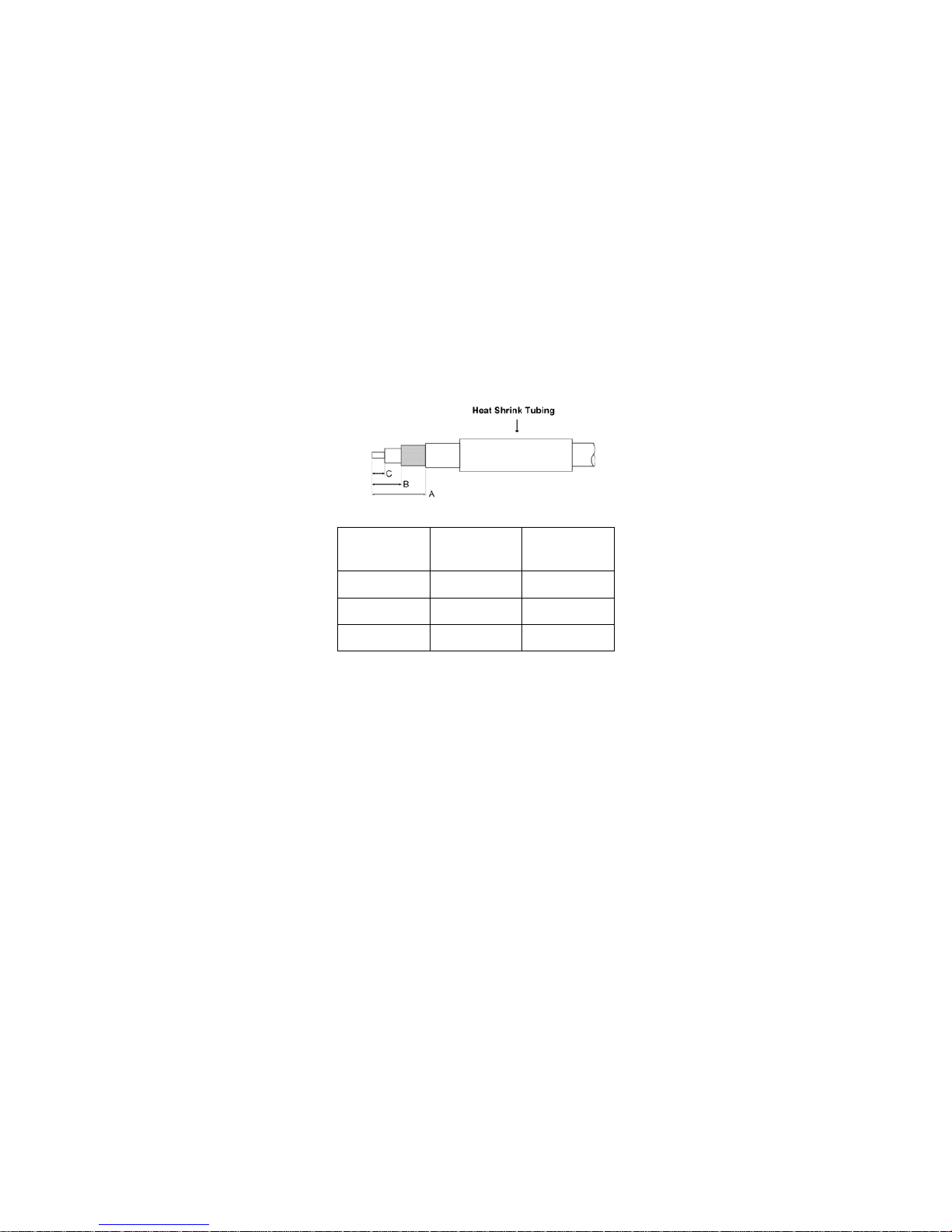

5.11.3 TNC Connector............................................................................................................... 14

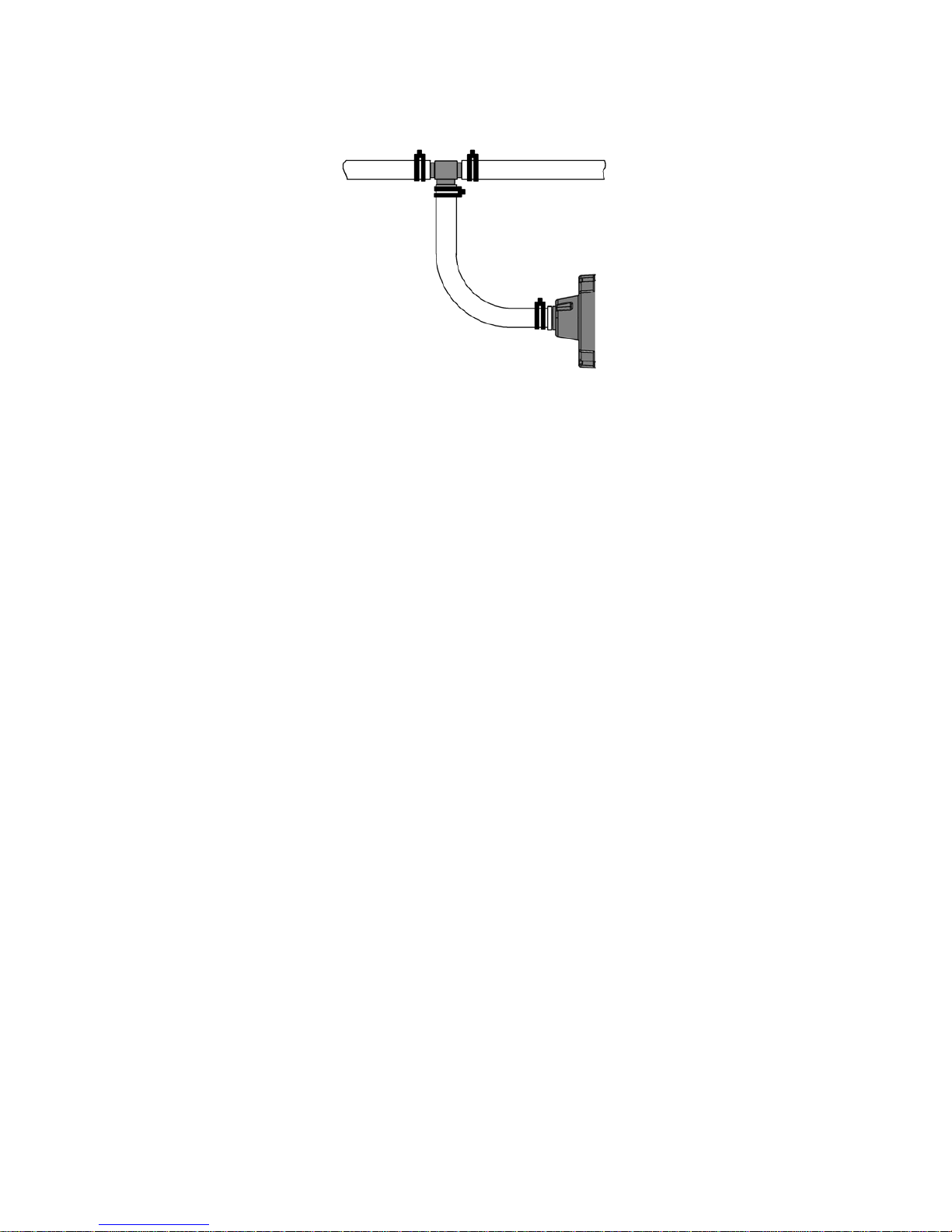

5.12 STATIC PRESSURE CONNECTION..............................................................................................14

6. INSTALLATION SETUP AND TEST.......................................................................................16

6.1 CONFIGURATION ITEMS...........................................................................................................16

6.1.1 Aircraft Address Programming ......................................................................................16

6.1.2 VFR Squawk Code..........................................................................................................16

6.1.3 VFR Flight ID.................................................................................................................16

6.1.4 Airspeed Category.......................................................................................................... 17

6.1.5 Aircraft Category............................................................................................................ 17

6.1.6 Squat Switch Source .......................................................................................................17

6.1.7 GPS Input .......................................................................................................................17

6.1.8 GPS Line Speed.............................................................................................................. 17

6.1.9 GPS System Integrity Level ............................................................................................17

6.1.10 Aircraft Length and Width..............................................................................................17

6.1.11 ADS-B Test Message Options......................................................................................... 18

6.2 TEST AND CALIBRATION ITEMS ...............................................................................................18

6.2.1 Voltage Check................................................................................................................. 18

6.2.2 Altitude Encoder Calibration .........................................................................................18

7. POST INSTALLATION CHECKS............................................................................................20

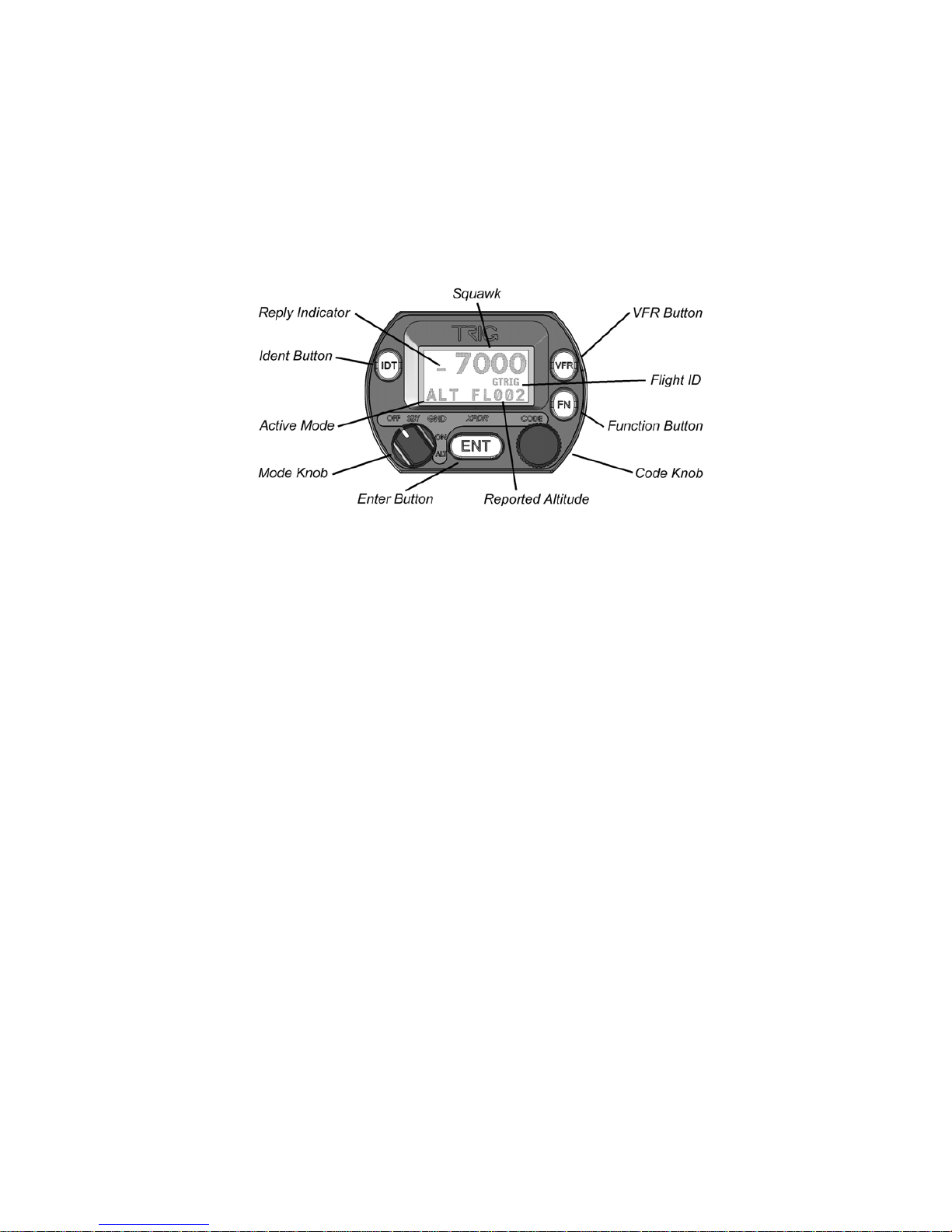

8. NORMAL OPERATION............................................................................................................. 21

8.1 OVERVIEW...............................................................................................................................21

8.2 DISPLAY.................................................................................................................................. 21

8.3 MODE SELECTOR KNOB ..........................................................................................................21

8.4 PUSH BUTTONS........................................................................................................................21

8.5 CODE SELECTOR KNOB ...........................................................................................................22

ii Trig Avionics Limited

Page 5

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

8.6 ALTITUDE ENCODER WARM UP ..............................................................................................22

8.7 GENERAL LOW TEMPERATURE OPERATION.............................................................................22

8.8 WARNING MESSAGES..............................................................................................................22

8.9 FAULT ANNUNCIATION............................................................................................................22

9. CONTINUED AIRWORTHINESS............................................................................................ 24

10. LIMITED WARRANTY .........................................................................................................25

11. ENVIRONMENTAL QUALIFICATION FORMS ..............................................................26

12. ADS-B COMPLIANCE ...........................................................................................................28

12.1 ADS-B PARAMETERS SUPPORTED .......................................................................................... 28

12.2 ADS-B SERVICE LEVELS.........................................................................................................28

12.3 AMC 20-24 COMPLIANCE.......................................................................................................29

13. INSTALLATION DRAWINGS.............................................................................................. 30

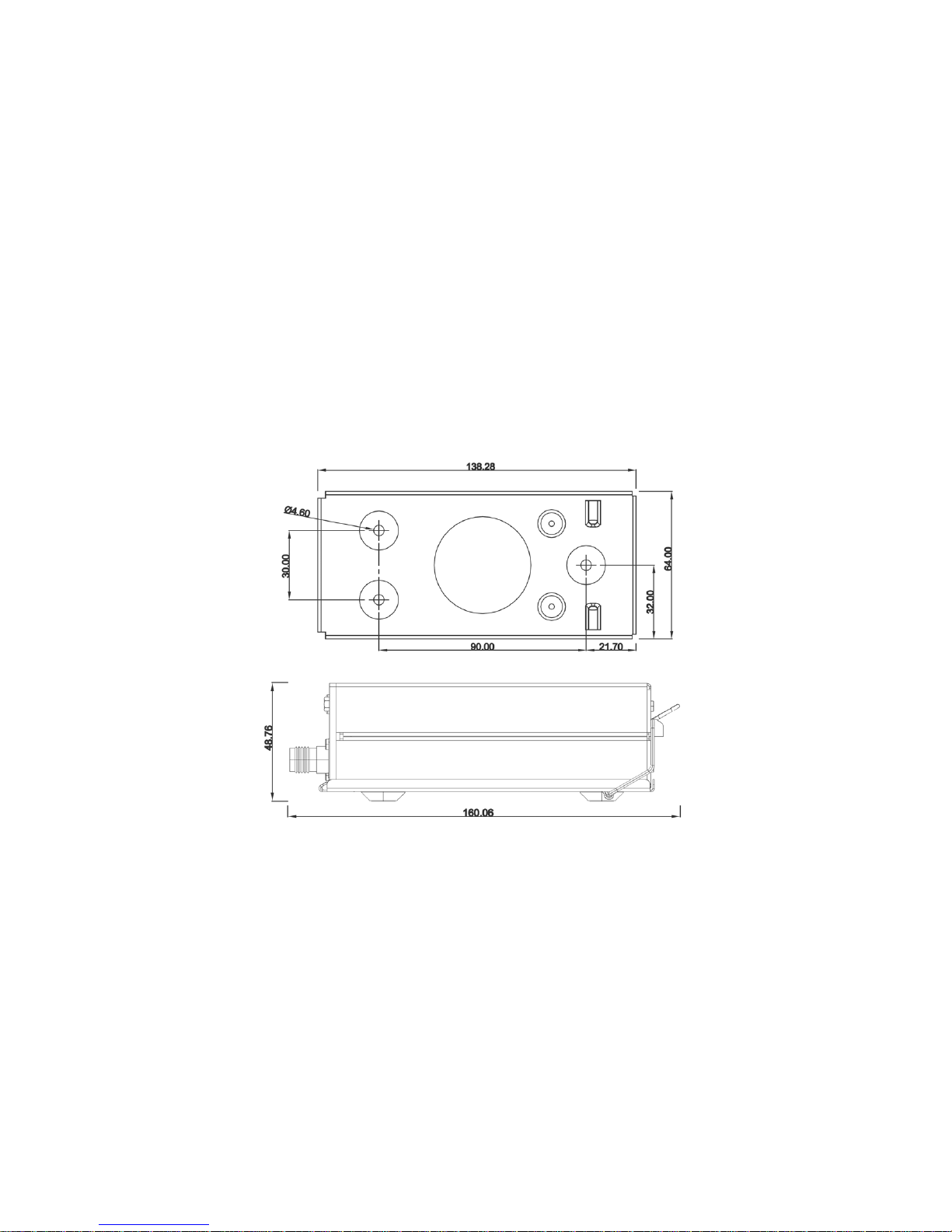

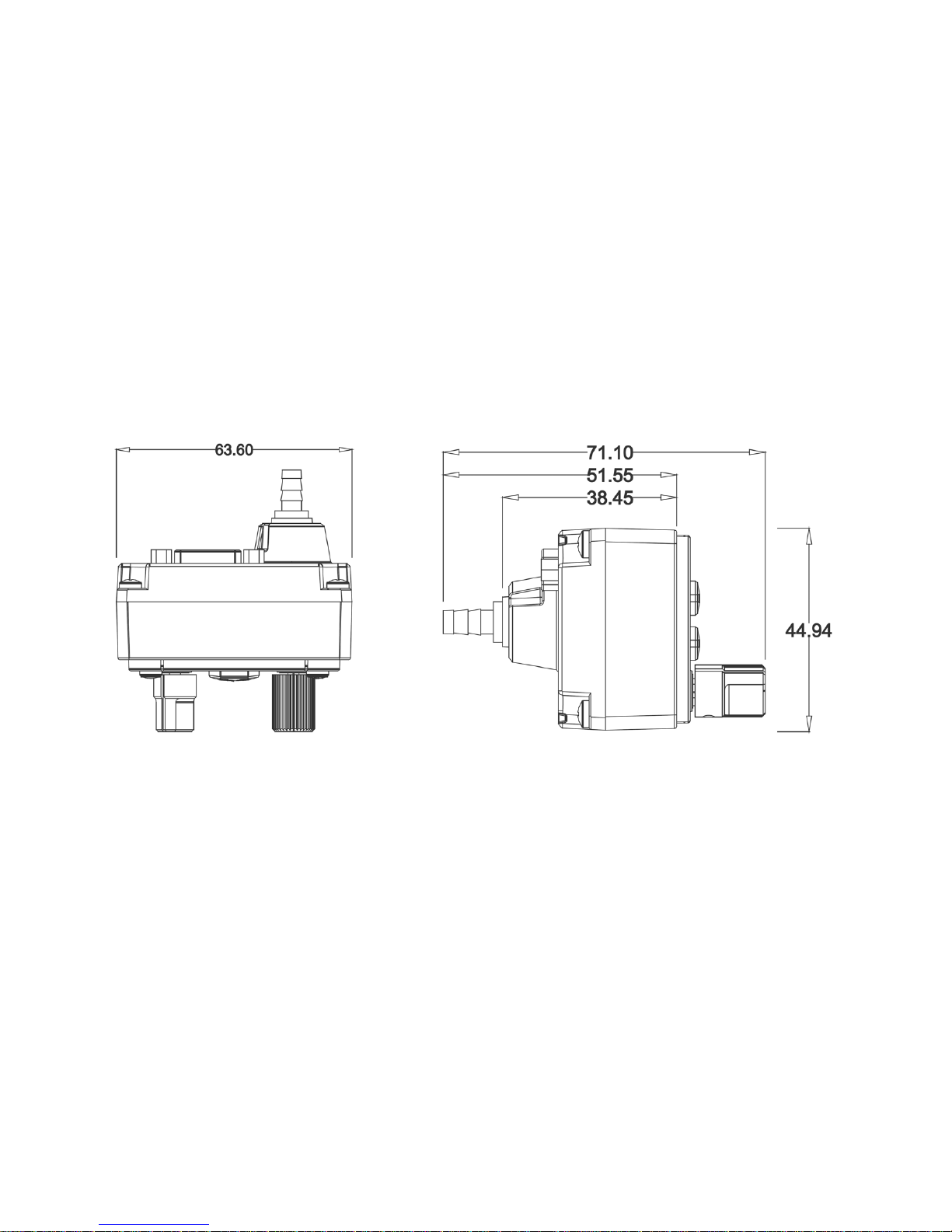

13.1 MOUNTING TRAY FIXING AND OVERALL DIMENSIONS.............................................................. 30

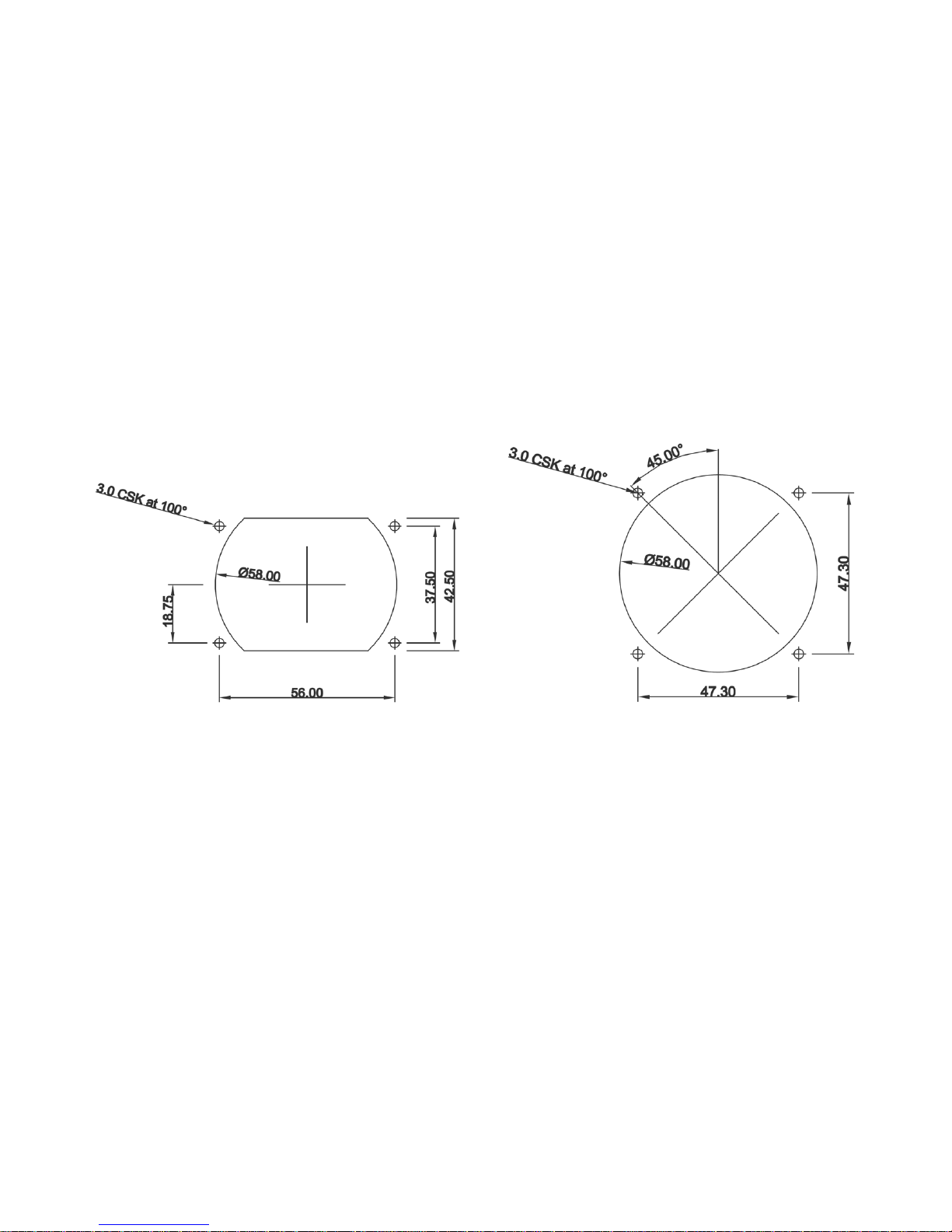

13.2 FRONT PANEL CUT-OUT OPTIONS ........................................................................................... 31

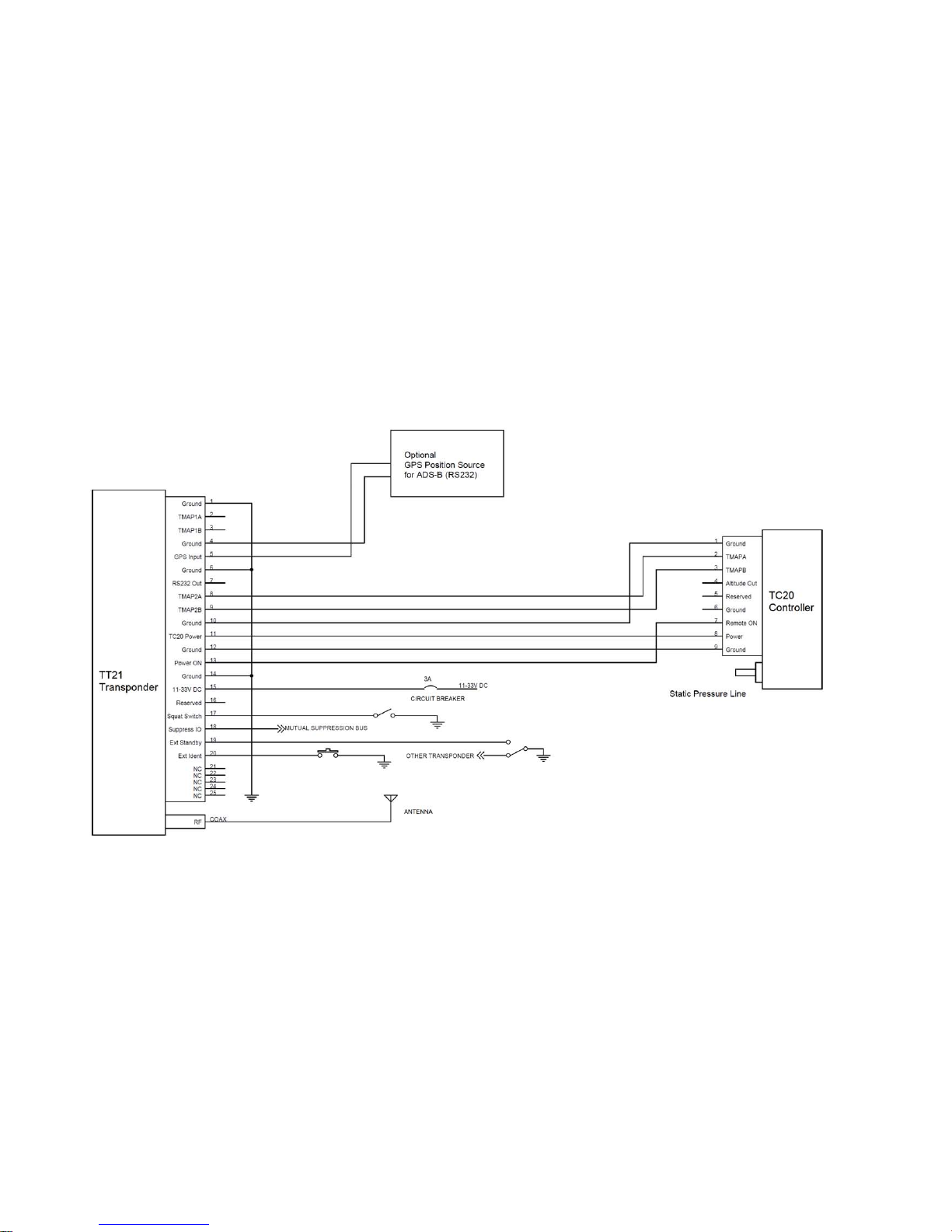

14. BASIC INTERCONNECT DIAGRAM .................................................................................33

Trig Avionics Limited iii

Page 6

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

iv Trig Avionics Limited

This page intentionally left blank

Page 7

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

1. Preface

1.1 Purpose

This manual describes the physical and electrical characteristics and the installation requirements for a TT21 Mode S Transponder and associated TC20 controller.

1.2 Scope

This document applies to the installation of the TT21 Mode S Transponder. At the publication date of this manual the software version identifier for the TT21 is 1.1 and the FPGA

version identifier is 1.1. The TC20 controller software version identifier is 1.1. The software and FPGA versions are subject to change without notice.

1.3 Changes from Previous Issue

None, this is the first issue.

1.4 Document Cross-References

00559-00 TT21 Mode S Transponder Operating Manual AA

Trig Avionics Limited Page 1

Page 8

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

2. Introduction

2.1 TT21 Description

The TT21 Mode S transponder system is an ED-73B Class 2 compliant Mode S level 2 datalink transponder, with support for extended squitter, which also meets the relevant environmental requirements of ED-14D. It is certified to ETSO 2C112b and ETSO C166a.

The TT21 transponder is controlled using a separate front panel controller, called the TC20. This allows the transponder to be mounted separately from the instrument panel, and reduces the amount of panel space taken by the transponder. The TC20 includes an altitude encoder. The TC20 is certified to ETSO 2C112b and ETSO C88a.

The TT21 transmitter power output is nominally 130 watts, and the transponder runs from either 14 volt nominal or 28 volt nominal DC power supply with no configuration changes required.

The TT21 transponder responds to both legacy Mode A/C interrogations and to Mode S interrogations from both ground radar and airborne collision avoidance systems. In all cases, the interrogations are received by the transponder on 1030MHz, and replies are transmitted on 1090MHz.

2.2 Interfaces

2.2.1 TT21 Transponder Unit

The main transponder unit has a single TNC antenna connection and a single 25 way D-type connector. The 25 way D-type interface provides the following services:

Power Input The TT21 operates on 11 to 33 Volts DC. Front Panel Datalink A two wire data link is used to connect the TT21 and the controller. Front Panel Power The controller is powered from the transponder. Remote On/Off The on-off switching is on the controller, and switches this input. Ident input External IDENT switch input. Standby input External standby input for dual transponder installations. “On ground” input Allows automatic flight/ground mode switching for aircraft with a squat switch. Suppression bus I/O ARINC compatible suppression bus signal used in aircraft with other pulse

equipment, such as DME. This pin is both an input to and output from the

transponder. GPS Input Connection to a GPS supplying position input for ADS-B position reporting. RS232 Output Secondary RS232 interface provided for future upgrade.

2.2.2 TC20 Controller Unit

The TC20 controller has a single 9 way D-type connector. It provides the following services: Power Input The controller receives power from the transponder. Front Panel Datalink A two wire data link is used to connect the TT21 and the controller. Remote On/Off The on-off switching is on the controller, and controls this output. Altitude Output An additional serial output on the TC20 provides pressure altitude information

that can be used for baro-aiding by certain GPS receivers.

Page 2 Trig Avionics Limited

Page 9

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

3. Technical Specifications

3.1 TT21 Transponder Unit (00675-00)

Specification Characteristics

Compliance ETSO 2C112b Class 2 Level 2es, ETSO C166a Class B0 FCC Identification VZI00675 Applicable documents EuroCAE ED-73B, EuroCAE ED-14E (RTCA DO-160E),

RTCA DO-181D, RTCA DO-260A change 2 Software ED-12B (RTCA DO-178B) Level B Hardware DO-254 Level C Power Requirements 11 – 33 Volts DC. Typical 5 Watts @ 14Volts. Altitude 35,000 feet Humidity 95% @ +50°C for 6 hours; 85% @ +38°C for 16 hours.

Tested to Category A in DO-160E Operating Temperature -20°C to +70°C Transmitter Frequency 1090MHz ± 1MHz Transmitter Power 130 Watts nominal; 71 Watts minimum at antenna after

allowing for 0.5dB connector losses and 1.5dB cable losses. Receiver Frequency 1030 MHz Receiver Sensitivity -74dBm ± 3dB

Physical Specifications (in the mounting tray)

Height 48mm (1.9”) Width 66mm (2.5”) Length 160mm (6.3”) Weight 0.77lbs. (350 g)

Trig Avionics Limited Page 3

Page 10

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

3.2 TC20 Control Unit (00649-00)

Specification Characteristics

Compliance ETSO 2C112b, ETSO C88a Applicable documents EuroCAE ED-73B, EuroCAE ED-14E (RTCA DO-160E),

RTCA DO-181D, SAE 8003 Software ED-12B (RTCA DO-178B) Level B Altitude -1000 to 35,000 feet Humidity 95% @ +50°C for 6 hours; 85% @ +38°C for 16 hours.

Tested to Category A in DO-160E Operating Temperature -20°C to +55°C

Physical Specifications (behind the panel)

Height 44mm (1.8”) Width 63mm (2.4”) Length 54mm (2.1”) Weight 0.11lbs. (90 g)

Page 4 Trig Avionics Limited

Page 11

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

4. Unit and Accessories supplied

4.1 TT21 Mode S Transponder Items

The TT21 Mode S transponder includes the following items:

Unit Description Qty Part Number

TT21 Mode S Transponder 1 00675-00 TT21 Mounting Tray 1 00667-00

4.2 TC20 Controller Items

The TC20 controller includes the following items:

Unit Description Qty Part Number

TC20 Transponder Controller 1 00649-00 TT21 Installation Kit 1 00668-00

4.3 Installation Kit

The TT21 installation kit includes the following items:

Unit Description Qty Part Number

TT21 Transponder Installation Manual 1 00560-00 TT21 Pilots Operating Manual 1 00559-00 Mounting adapter (circular hole adapter) 2 00678-00 Connector Co-axial TNC 1 00723-00 Screwlock assembly 4 00724-00 Headshell, 9 Way 1 00725-00 Headshell, 25 way 1 00726-00 9 way D-type contact housing (female) 1 00727-00 25 way D-type contact housing (male) 1 00728-00 Crimp Terminal, Male, 22-24 AWG 20 00729-00 Crimp Terminal, Female, 22-24 AWG 9 00730-00 Static tubing, EPDM 5mm ID 1 00731-00 Hose T piece 1 00732-00 Hose Adapter 2 00733-00 Hose clip, small 6 00734-00 Hose clip, large 2 00735-00 Long mounting screws, 4-40 thread 4 00736-00 Short mounting screws, 4-40 thread 4 00737-00

Trig Avionics Limited Page 5

Page 12

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

4.4 Required Items

Additional items you will require, but which are not in the TT21 package, in clude:

 Antenna and fixing hardware. The TT21 is compatible with any transponder antenna

approved to ETSO C74 or 2C112.

 Cables. You need to supply and fabricate all required cables. Guidance on cable types is

given in section 5 below.

 Fixings. To secure the transponder tray to the airframe you will need at least 3 flat head

screws and three self-locking nuts. If the aircraft does not have existing mounting provisions you may need to fabricate additional brackets to support the transponder tray.

To support the optional ADS-B features a GPS receiver with an appropriate serial output is required.

Page 6 Trig Avionics Limited

Page 13

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

5. Installation

5.1 Unpacking and Inspecting Equipment

Carefully unpack the transponder and make a visual inspection of the unit for evidence of any damage incurred during shipment. If the unit is damaged, notify the shipping company to file a claim for the damage. To justify your claim, save the original shipping container and all packaging materials.

5.2 Controller Mounting

The TC20 transponder controller must be mounted rigidly in the aircraft panel. The controller can be mounted in the ultra compact mounting hole or in a conventional 57mm (2¼ inch) instrument cut-out.

The following installation procedure should be followed, remembering to allow adequate space for installation of cables and connectors.

 Select a position in the panel that is not too close to any high external heat source. (The

TC20 is not a significant heat source itself and does not need to be kept away from other devices for this reason).

 Avoid sharp bends and placing the cables too near to the aircraft control cables.

If you are using a 57mm instrument cut-out, you must first clip the two mounting adapters to the transponder. The controller should then be mounted using the four LONG screws provided. If you are using the Trig compact cutout, you do not need the mounting adapters. The controller should be mounted using the four SHORT screws provided. If alternate screws are required, please note that the mounting thread in each case is 4-40.

5.3 Transponder Main Unit Mounting

The TT21 Mode S transponder is designed to be mounted in any convenient location in the cockpit, the cabin, or an avionics bay.

The following installation procedure should be followed, remembering to allow adequate space for installation of cables and connectors.

 Select a position in the aircraft that is not too close to any high external heat source. (The

TT21 is not a significant heat source itself and does not need to be kept away from other devices for this reason).

 Avoid sharp bends and placing the cables too near to the aircraft control cables.  Secure the mounting tray (p/n 00667-00) to the aircraft via the three (3) mounting holes in the

tray. The tray should be mounted to a flat surface - it is important that the tray is supported at the dimples as well as the three mounting points.

 Put the TT21 transponder into the secured mounting tray by hooking the connector end under

the lip on the tray.

 Lock the TT21 transponder into the mounting tray by clipping the retaining wire over the lugs

on the opposite end.

5.4 Cooling Requirements

The TT21 Mode S transponder meets all applicable ETSO requirements without forced air-cooling. Attention should however be given to the incorporation of cooling provisions to limit the maximum

operating temperature if the TT21 is installed in close proximity to other avionics. Th e reliability of equipment operating in close proximity in an avionics bay can be degraded if adequate cooling is not

Trig Avionics Limited Page 7

Page 14

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

provided.

5.5 TT21 Transponder Electrical Connections

The TT21 has a single 25 way female socket which provides the data and power inputs to the transponder. A single TNC coaxial connector attaches to the antenna.

5.5.1 TT21 Interface – Pinout

Pin Signal Direction

Ground -

TMAP1A Bidirectional

TMAP1B Bidirectional

Ground -

GPS Position In Input

Ground -

RS232 Out Output

TMAP2A Bidirectional

TMAP2B Bidirectional

Ground -

Controller Power Output

Ground -

Power ON Input

Ground -

11-33V DC Input

Reserved -

Squat Switch In Input

Mutual Suppression Bidirectional

External Standby In Input

Ident Switch In Input

Reserved -

The following diagram shows the connector orientation as viewed from the wiring side.

Page 8 Trig Avionics Limited

Page 15

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

5.6 TT21 Transponder Interface Details

5.6.1 Power Input

The power supply can be 11-33 Volts DC; no voltage adjustment is required. Use a 3 Amp circuit breaker for power supply protection to the TT21.

5.6.2 TMAP Bus

TMAP is a Trig proprietary bus based on RS485 signalling. It provides a bi-directional interface between the transponder and the control head. Each TMAP interface comprises a balanced pair of signals, called A and B, both of which must be connected for communication to work.

There are two sets of TMAP pins on the TT21, TMAP1 A and B, and TMAP2 A and B. This is to support future installation wiring options. The two sets are identical, and either pair (TMAP1 or TMAP2) may be used to connect to the control head.

5.6.3 Power On

The TT21 power supply can be directly controlled by this discrete input. The input is active low, so that the TT21 will power up whenever the input is held low. This signal is intended to connect to the TC20 Remote ON output.

5.6.4 Controller Power

The TC20 controller does not connect to aircraft power – it receives power from the TT21 using this output. The TT21 provides 6.5 Volts to the TC20. This output includes short circuit protection, and no fuse is required between the TT21 and the TC20.

5.6.5 Mutual Suppression

Mutual suppression allows two or more transmitters on adjacent frequencies to inhibit the other transmitters when one is active to limit the interference effects. It is commonly used between transponders and DME systems, and between transponders and collision avoidance systems.

The Suppress I/O on pin 18 is an ARINC compatible suppression bus interface, which acts as both an input and an output. The TT21 will assert this signal when it is transmitting, and can be suppressed by other equipment that asserts the signal. The TT21 will drive approximately 24 Volts on the output (independently of supply voltage), and will treat the input as active whenever the bus has greater than 10 Volts.

5.6.6 Ident Switch Input

The Ident switch input allows the IDENT function to be selected using a remote switch. The input is active low, and will be asserted when the voltage to ground is pulled below approximately 4 Volts.

5.6.7 Squat Switch Input

The Squat switch input allows the transponder to automatically switch between Airborne and Ground modes. The input will be asserted when the voltage to ground is pulled below approximately 4 Volts. The logical sense of the input can be programmed to be either active low or active high.

On an aircraft with no squat switch this input should be left unconnected, and the transponder programmed to ignore the input.

Trig Avionics Limited Page 9

Page 16

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

5.6.8 External Standby Input

This input, when held low, places the transponder in Standby mode. It should be used to switch between transponders in an installation with two transponders. The input is active low, and will be asserted when the voltage to ground is pulled below approximately 4 Volts.

5.6.9 GPS Position Input

The GPS position input is required to support ADS-B functionality. The GPS position input is an RS232 input to the transponder. The ADS-B features are optional – no GPS is required for normal Mode S Elementary Surveillance.

The TT21 GPS input can recognise the industry standard “Aviation” format, the NMEA 0183 format, or the format used by certain Freeflight and NexNav GPS sensors; the interface speed can be selected between 4800, 9600 and 19200 bps.

There is also an RS232 output on the connector for future expansion. This pin is unused and should be left unconnected.

5.7 TC20 Controller Electrical Connections

The TC20 controller has a single 9 way D type male connector to link to the transponder, and optionally to connect to a GPS for baro-aiding.

5.7.1 TC20 Interface - Pinout

Pin Signal Direction

Ground -

TMAPA Bidirectional

TMAPB Bidirectional

Altitude Out Output

Reserved Input

Ground -

Remote ON Output

Power Input

Ground -

The following diagram shows the connector orientation as viewed from the wiring side.

5.8 TC20 Controller Interface Details

5.8.1 TMAP Bus

TMAP is a Trig proprietary bus based on RS485 signalling. It provides a bi-directional interface between the transponder and the control head. Each TMAP interface comprises a balanced pair of

Page 10 Trig Avionics Limited

Page 17

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

signals, called A and B, both of which must be connected for communication to work. TMAP A and B lines on the controller should be connected to the corresponding A and B lines of

either TMAP1 or TMAP2 on the TT21.

5.8.2 Altitude Out

The TC20 incorporates an altitude encoder. Certain GPS receivers can benefit from having altitude information supplied to them. The TC20 reports pressure altitude on this pin as an RS232 serial data format, at 9600 bps, using the format commonly called “Icarus” or “Garmin” format.

5.8.3 Remote ON

This output is connected directly to the Power/Mode switch on the TC20, and should be connected to the Power ON discrete input of the TT21.

5.8.4 Power

The TC20 uses 6.5 volts which is available from the TT21 transponder. This input should NOT be connected to aircraft power.

5.9 D Connector Crimp Terminals

The D type connector contacts should be wired with wire of 20-24 AWG. The contacts are compatible with a wide range of crimp tools.

Once crimped, the contacts should be slotted into the rear of the connector shell. Push the contact in until the retaining tab clicks into place. Tug gently to confirm the contact is locked in place.

5.10 Wiring Considerations

The connection from the TT21 transponder to the TC20 uses a minimum of six (6) signal lines; the TMAP pair, the Power and Ground pair, and the Remote On discrete line plus associated ground line. In a certified installation the normal wire choice would be Tefzel hook-up wire. Wire of 20 AWG is more than adequate for the task; in installations where weight is an issue, wire of 22 or 24 AWG can also be used. Where lighter wires than 20 AWG are used the individual wires should be laced together for support.

The TT21/TC20 was tested and certified using unshielded, untwisted wiring, and that is sufficient for a certified installation. There may however be technical benefits of improved electromagnetic emissions and susceptibility to and from the transponder system if the two wires of the TMAP pair are lightly twisted together – one twist per 1 to 2 inches is appropriate. This may reduce interference and breakthrough on adjacent audio wiring if it is not possible to route them separately. For tidiness and consistency the other pairs in the bundle can also be twisted, but there will be no particular difference in behaviour.

The distance between the TT21 transponder and the TC20 controller is limited by the impedance of the wire between them. The TC20 is powered from the TT21, not from aircraft power, and therefore the acceptable voltage drop in the power line is what limits the distance. The TC20 needs an impedance of less than 0.5 ohm in the power line for satisfactory operation. The following table gives guidelines for typical aircraft hook-up wire. Note that different brands may vary – check your supplier for details.

Gauge Ohm/k

Length for 0.5

Ohm

20 AWG

35 14.2 m

22 64 7.8 m

Trig Avionics Limited Page 11

Page 18

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

AWG 24

AWG

99 5.0 m

An alternative to a harness built from individual wires, particularly for a long cable run, is to use a multi-core cable. Aviation grade cable with 6 or more cores is often more expensive than the individual wires, and therefore is not generally a good choice for a certified aircraft. For aircraft where those considerations do not apply however, an attractive alternative solution may be to use 3 pair or 4 pair data cable.

Whilst appropriate cables may exist, please note that not all data cable is suitable for th is application. Cables with solid cores should not be used, and cables should be selected based on the wear characteristics of their insulation material, including temperature rating, resistance to solvents an d oils, and flammability. Most inexpensive commercial data cables have poor flammability properties.

5.11 Antenna Installation

The antenna should be installed according to the manufacturer’s instructions. The following considerations should be taken into account when siting the Antenna.

 The antenna should be well removed from any projections, the engine(s) and propeller(s). It

should also be well removed from landing gear doors, access doors or others openings which will break the ground plane for the antenna.

 The antenna should be mounted on the bottom surface of the aircraft and in a vertical position

when the aircraft is in level flight.

 Avoid mounting the antenna within 3 feet of the ADF sense antenna or any COMM antenna

and 6 feet from the transponder to the DME antenna.

 Where practical, plan the antenna location to keep the cable lengths as short as possible and

avoid sharp bends in the cable to minimise the VSWR.

Electrical connection to the antenna should be protected to avoid loss of efficiency as a result of the presence of liquids or moisture. All antenna feeders shall be installed in such a way that a minimum of RF energy is radiated inside the aircraft.

5.11.1 Antenna Ground Plane

When a conventional aircraft monopole antenna is used it relies on a ground plane for correct behaviour. For ideal performance the ground plane should be very large compared to the wavelength of the transmission, which is 275mm. In a metal skinned aircraft this is usually easy to accomplish, but is more difficult in a composite or fabric skinned aircraft. In these cases a metallic ground plane should be fabricated and fitted under the antenna.

As the ground plane is made smaller, the actual dimensions of the ground plane become more critical, and small multiples of the wavelength should be avoided, as should circles. Rectangles or squares are much less likely to create a critical dimension that resonates with the transmissions. The smallest practical ground plane is a square around 120mm per side; as the size increases the performance may actually get worse, but will be better by the time the ground plane is 700mm on each side. Anything much larger than that size is unlikely to show significant further improvement.

The thickness of the material used to construct the ground plane is not critical, providing it is sufficiently conductive. A variety of proprietary mesh and grid solutions are available. Heavyweight cooking foil meets the technical requirements, but obviously needs to be properly supported.

5.11.2 Antenna Cable

The TT21 is designed to meet Class 2 requirements with an allowance of 2 dB for loss in the

Page 12 Trig Avionics Limited

Page 19

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

connectors and cable used to connect it to the anten na. Excessive loss will degrade both transmitter output power and receiver sensitivity.

Allowing 0.25dB loss for the connector at each end of the antenna cable assembly leaves an allowance of 1.5dB maximum loss for the cable itself.

An acceptable cable:

 Has less than 1.5dB loss for the run length needed  Has a characteristic impedance of 50 Ohms  Has double braid screens or has a foil and braid screen

Once the cable run length is known, a cable type with low enough loss per metre that meets the above requirements can be chosen. Longer runs require lower loss cable. Consider moving the TT21 closer to the antenna to minimise the losses in the antenna cable – subject to the limits identified above, the TT21 can be at any distance from the control head without affecting performance in any way.

NOTE: Low loss cable typically uses foamed or cellular dielectrics and foil screens. These make such cables especially prone to damage from too-tight bends or from momentary kinking during installation. Once kinked, these cables do not return to full performance when straightened.

The following table is a guide to the maximum usable lengths of some common cable types. Actual cable loss varies between manufacturers, there are many variants, and the table is therefore based on typical data. Use it as a guide only and refer to the manufacturer’s data sheet for your specific chosen cable for accurate values.

Max Length

in Metres

Max Length

in Feet

Insertion Loss

dB/metre at

1090MHz

MIL-C-17 Cables Electronic Cable

Specialists Type

2.54 8’ 4” 0.59 M17/128 (RG400)

3.16 10’ 4” 0.47 3C142B

3.81 12’ 6” 0.39 M17/112 (RG304)

5.25 17’ 3” 0.29 M17/127 (RG393) 311601

6.42 21’ 1” 0.23 311501

8.22 26’ 11” 0.18 311201

12.59 41’ 3” 0.12 310801 Contact Electronic Cable Specialists on +1 414 421 5300 or www.ecsdirect.com for their data sheets. When routing the cable, ensure that you:

 Route the cable away from sources of heat.  Route the cable away from potential interference sources such as ignition wiring, 400Hz

generators, fluorescent lighting and electric motors.

 Allow a minimum separation of 300mm (12 inches) from an ADF antenna cable.  Keep the cable run as short as possible.  Avoid routing the cable round tight bends.  Avoid kinking the cable even temporarily during installation.  Secure the cable so that it cannot interfere with other systems.

Trig Avionics Limited Page 13

Page 20

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

5.11.3 TNC Connector

This section describes the technique for attaching the antenna cable to the supplied TNC connector. If a low-loss cable is needed that has too large a dielectric diameter to fit the supplied connector, a

short length (up to 150mm or 6 inches) of smaller cable may be used with suitable mating connectors to adapt to the transponder connector.

The supplied connector can be completed using a wide range of commercial crimp tools (for example the Tyco 5-1814800-3). The die apertures for the inner pin and the outer shield should be approximately 1.72 mm and 5.41 mm respectively.

 Strip back the coax cable to the dimensions in the table, as shown in the diagram below. Slide

25 mm (1 inch) of heat shrink tubing over the cable.

 Slide the outer crimp sleeve over the cable – it must go on before securing the centre contact.

Dimension Cut size

(mm)

Cut size

(inches) A 17.5 0.69 B 7.2 0.28 C 4.8 0.19

 Crimp the centre contact to the cable.  Insert the cable into the connector – the centre contact should click into place in the body, the

inner shield should be inside the body of the connector and the outer shield should be outside the body.

 Crimp the outer sleeve over the shield.  Slide heat shrink tubing forward (flush to connector) and heat to shrink the tubing.

5.12 Static Pressure Connection

The TC20 controller includes an altitude encoder which must be connected to the same source of static pressure as the primary altimeter on the aircraft. The TC20 static pressure port provides a mounting spigot intended for nominal 5mm or 3/16 inch inside diameter tubing. A length of 5mm EPDM rubber tubing is included in the installation kit to facilitate connection to the aircraft static system.

Choose a point in the existing static pressure line that is as close as practical to the TC20. Cut the static pressure line, and use the supplied T fitting to connect the altitude encoder. Take care not to contaminate the inside of the static line when cutting or inserting the connectors.

Page 14 Trig Avionics Limited

Page 21

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

The following diagram shows the general arrangement, although other combinations may be used:

For aircraft with ¼ inch static lines, two adapters are provided which can convert from ¼ inch inside diameter hoses to the 5 mm hose in the install kit.

In all cases, the static line should include drainage provisions and should be routed in accordance with CS 23.1325 or other applicable airworthiness provisions for the aircraft.

Trig Avionics Limited Page 15

Page 22

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

6. Installation Setup and Test

The TT21 uses a simple setup system to program important system parameters, including the Mode S address. In the original factory configuration, the setup screen is the first thing that runs when you switch on the transponder. If the transponder has already been configured, and you want to access the setup screen again, simply hold down the FN button while switching on the transponder and the setup system will run.

The script will prompt for the following configuration items:

 Mode S Address  VFR Squawk Code  VFR Flight ID (Registration)  Aircraft Maximum Airspeed  Aircraft Category  Squat switch source, if fitted  GPS position source, if fitted, and ADS-B parameters

This setup mode also allows the recalibration of the altitude encoder. All the programming is accomplished using the right hand rotary knob and the ENT and FN buttons.

Make all input selections using the rotary knob. Pressing the ENT button accepts the current input and advances to the next input item. Pressing the FN button moves directly to the next screen.

6.1 Configuration Items

6.1.1 Aircraft Address Programming

The Mode S Address is a 24 bit number issued to the aircraft by the registration authority for the aircraft. These addresses are usually written as a 6 digit hexadecimal number, although you may also encounter one written as an 8 digit octal number. The TT21 only understands the hexadecimal format, so you must first convert an octal number to hexadecimal.

Enter the 6 digit aircraft address using the rotary knob and the ENT button.

6.1.2 VFR Squawk Code

When the pilot presses the VFR button, a pre-programmed code will replace the current squawk code. The pre-programmed code is set up here; the choice of code will depend on the normal location of the aircraft. In the USA, the VFR squawk code is 1200. In most parts of Europe, the VFR squawk code should be set to 7000.

Enter the 4 digit squawk code using the rotary knob and the ENT button.

6.1.3 VFR Flight ID

The default Flight ID for an aircraft not on an IFR flight plan should be the aircraft registration. Enter the aircraft registration using the rotary knob and the ENT button.

Note that the aircraft registration is loaded as letters and numbers only. There are no dashes or other punctuation marks, and no spaces can be inserted. When you enter a space it finishes the data entry and moves to the next item.

Page 16 Trig Avionics Limited

Page 23

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

6.1.4 Airspeed Category

Mode S transponders can transmit their maximum airspeed characteristics to aircraft equipped with TCAS. This information is used to help identify threats and to plan avoiding action by the TCAS equipped aircraft. The airspeeds are grouped in ranges; using the rotary knob, select the range that corresponds to the aircraft.

6.1.5 Aircraft Category

To assist ATC tracking of aircraft, an aircraft category can be transmitted by Mode S transponders. Using the rotary knob, select the aircraft category that most closely matches the aircraft the transponder is installed in.

6.1.6 Squat Switch Source

The Squat switch input allows the transponder to automatically switch between Airborne and Ground modes, and to automatically start and stop the flight timer. The sense of the squat switch input can be selected using the rotary knob. If the squat switch input is not connected the “Not Connected” option must be selected.

6.1.7 GPS Input

If a GPS is connected for ADS-B position reporting, select the appropriate interface protocol using the rotary knob.

6.1.8 GPS Line Speed

If a GPS has been selected at the previous step, you should select the appropriate line speed using the rotary knob. Panel mount GPS units with Aviation format outputs generally run at 9600 bps. NMEA GPS units generally run at 4800 bps. Freeflight 1201 and NexNav 3101 GPS receivers generally run at 19200 bps.

6.1.9 GPS System Integrity Level

An important metric for ADS-B ground system behaviour is the SIL or System Integrity Level. It is intended to reflect the probability that the GPS position source is providing erroneous information. A detailed analysis of the contribution to system integrity is outside the scope of this manual, and the installer may need to carry out a system safety analysis to determine the best value to set. However, a reasonable guideline might be:

Equipment Transmitted Integrity Level

VFR only GPS or uncertified installation Low GPS installation certified for en-route and terminal IFR

navigation

Medium

GPS installation certified with augmentation, such as WAAS or LAAS

High

6.1.10 Aircraft Length and Width

On the ground, ADS-B transmits encoded aircraft size information which is used by ATC to identify taxiing routes and potential conflicts. When configured for ADS-B, the TT21 will ask for the aircraft length and width (wingspan), in metres, and will calculate the appropriate size code for transmission.

Trig Avionics Limited Page 17

Page 24

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

6.1.11 ADS-B Test Message Option

Because of limitations in the ATC radar computer systems, in US airspace the FAA require ADS-B equipped aircraft to periodically transmit their Mode A squawk code in an ADS-B squitter message. This allows the computer system to reconcile conventional radar traces with ADS-B information in a mixed surveillance environment. Because the Mode A code does not form part of the base ADS-B message set, the code is sent in a “TEST” message.

These special messages only need to be sent when the aircraft is visible to US radar systems. The transponder already knows the geographic position of the aircraft, and therefore the recommended option setting for these messages is “Only in America”.

6.2 Test and Calibration items

6.2.1 Voltage Check

The Voltage Check screen displays the current input voltage received by the control head from the TT21. Whilst displaying this screen theTC20 will exercise certain internal functions in the controller, including periodically turning on the heater circuit. The purpose of these exercises is to present a changing load on the power lines from the TT21. If you suspect a potential problem with the wiring to the controller, it is worth monitoring the displayed voltage for several seconds to find the worst-case reading.

The nominal voltage is 6.5 Volts. The displayed value may be lower due to cable impedance. If the voltage is below 6.0 Volts, then the interface cable has too much impedance, and you should review the choice of cable.

6.2.2 Altitude Encoder Calibration

The Altitude Encoder Calibration allows you to adjust the b uilt-in altitude encoder to ensure that the altitude transmitted by the transponder corresponds to the altitude seen by the pilot on the primary altimeter. This process is normally carried out every 24 months, as part of the altimeter checks on the aircraft. The maximum allowed difference between the primary altimeter and the altitude encoder is 125 feet in ETSO C88a and TSO C88b. The altitude encoder in the TC20 is accurately calibrated during manufacture to be within 50 feet of the applied pressure altitude at all altitudes, whereas the allowed error in the primary altimeter increases with altitude, and above 18,000 feet the altimeter error alone may exceed 125 feet. It is therefore possible that the combination of the allowed errors in the encoder and the primary altimeter may exceed 125 feet, in which case the altitude encoder must be adjusted to correspond to the primary altimeter.

Note: The purpose of calibrating the encoder is to make the output correspond to the primary altimeter. The encoder calibration procedure must therefore only be undertaken after

the

primary altimeter has been tested and found to comply with the relevant standards.

6.2.2.1 Calibration Equipment

To calibrate the encoder you will need to be able to power up the transponder subsystem, and you will need a pitot-static test set with the appropriate adapters to connect to the static port on the aircraft. The pitot-static test set should be able to drive the altitude down to sea level, and above the service ceiling of the aircraft.

No transponder test set is required – the calibration procedure displays all the information you need on the screen of the TC20

6.2.2.2 Calibration Procedure

There are two adjustment points on the altitude encoder, a low altitude adjustment point, and a high altitude adjustment point. The low altitude point adjusts the correspondence at sea level, and the high

Page 18 Trig Avionics Limited

Page 25

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

altitude point adjusts the correspondence at the altitude limit of the encoder. Since the altitude limit of the encoder is likely to be higher than the service ceiling of the aircraft, it is sufficient to set the upper adjustment at the service ceiling of the aircraft.

Note: DO NOT EXCEED THE ALTITUDE OR RATE OF CLIMB LIMITS OF THE PITOTSTATIC INSTRUMENTS OF THE AIRCRAFT. The Trig altitude encoder is a solid state device and will not be affected by excess altitude or rate of climb and descent, but the mechanical instruments in the aircraft can easily be damaged by being driven beyond their intended range.

Proceed as follows:

1. Set the primary altimeter subscale setting to 1013.2 hPa, 29.92 in hg.

2. Connect the pitot-static test set to the aircraft.

3. Power up the transponder and controller, whilst holding the FN button down on the

controller. This will enter SETUP mode on the controller.

4. Skip over the configuration modes until reaching the encoder calibration section.

5. Accept the Yes/No question; the LOW ALTITUDE set point will now be active, and

an altitude will be displayed.

6. On the static test set, drive the altitude to 0 feet.

7. Read the primary altimeter value, and turn the right knob on the TC20 until the

altitude displayed on the TC20 matches the altitude on the primary altimeter.

8. Press ENT on the TC20; the display will move to the HIGH ALTITUDE set point.

9. On the static test set, drive the altitude to the service ceiling of the aircraft.

10. Read the primary altimeter value, and turn the right knob on the TC20 until the

altitude displayed on the TC20 matches the altitude on the primary altimeter.

11. Press ENT on the TC20; the display moves to the TEST ALTITUDE screen.

To complete the testing you should leave the TC20 screen displaying the encoder altitude, and exercise the altitude on the static test set across the altitude range of the aircraft. Use at least 10 test p oints, and verify that in each case the altitude displayed on the primary altimeter and the altitude displayed on the TC20 correspond within the 125 foot tolerance. Lightly tap the altimeter at each test point to eliminate friction effects.

When the correspondence test is complete, press ENT again on the TC20, and power off the system.

Trig Avionics Limited Page 19

Page 26

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

7. Post Installation Checks

Post installation checks should be carried out in accordance with your certification requirements. These checks should include:

 Mode S interrogations to verify correct address programming.  Verification of the reported altitude using a static tester.  Where installed, verification of correct squat switch ground/airborne indications. In an

aircraft with a squat switch, setting the Mode switch to ALT when the aircraft is on the ground should leave the transponder in GND mode; when the aircraft becomes airborne, the mode should switch automatically to ALT.

 Interrogations to verify the receiver sensitivity. A Mode S transponder should have a

minimum triggering level (MTL) of between -77 dBm and -71 dBm. Failure to meet this requirement usually indicates antenna or coaxial cable problems.

 Interrogations to verify the transmitted power. A Class 2 installation should have no less than

71 Watts at the antenna (and no more than 500 Watts). Failure to meet this requirement is also generally due to antenna or wiring issues.

 Where installed, verification of the GPS position source and ADS-B outputs. Whenever a

valid position is received by the transponder and the transponder is in any mode other than Standby, ADS-B Extended Squitters should be observed on the transponder test set.

Page 20 Trig Avionics Limited

Page 27

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

8. Normal Operation

8.1 Overview

On the front panel is a monochrome LCD display flanked by a rotary mode selector knob (OFF, SBY, GND, ON, and ALT) and a continuously rotating knob used for code and data entry.

8.2 Display

The display shows the operating mode of the transponder, the reported pressure altitude, and the current squawk code and Flight ID. The reply indicator is active when the transponder replies to interrogations.

The pressure altitude is displayed as a Flight Level, which is the pressure altitude in hundreds of feet. When non-standard atmospheric conditions apply, this may not match the altimeter indicated altitude, but will be correctly displayed by the ATC radar.

8.3 Mode Selector Knob

The left hand knob controls the power to the transponder and the operating mode. OFF Power is removed from the transponder. SBY The transponder is on, but will not reply to any interrogations. GND The transponder will respond to Mode S ground interrogations from

surface movement radar.

ON The transponder will respond to all interrogations, but altitude

reporting is suppressed. ALT The transponder will respond to all interrogations. When airborne, the transponder should always be set to ALT unless otherwise directed by Air Traffic

Control. When you are taxiing on the ground, the transponder should be set to GND unless your installation includes a gear squat switch. Aircraft installations that includ e a gear squat switch will automatically select GND on landing.

8.4 Push Buttons

IDT Press the IDT button when ATC instructs you to “Ident” or

“Squawk Ident”. This activates the SPI pulse in the transponder

Trig Avionics Limited Page 21

Page 28

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

replies for 18 seconds. IDT will appear in the display.

FN Pressing the FN button provides access to changing the Flight

ID.

VFR Pressing the VFR button sets the transponder to the pre-

programmed conspicuity code. Pressing the button again restores the previous squawk code.

ENT The ENT button enters a digit in the code selector.

8.5 Code Selector Knob

The right hand knob is used to set squawk codes and the Flight ID. The FN button selects which will be updated. Turning the knob will highlight the first digit on the display, and the digit can be changed as required. Press the ENT button to advance to the next digit. When ENT is pressed on the last digit, the new squawk code or Flight ID will replace the previous value. If the code entry is not completed within 7 seconds, the changes are ignored and the previous code restored.

1200 VFR code in the USA 7000 VFR code commonly used in Europe. 7500 Hijack code 7600 Loss of communications 7700 Emergency code

The Flight ID should correspond to the aircraft call sign entered on your flight plan. If no flight plan is active, the aircraft registration should be used as your Flight ID. Use only letters and digits. If the Flight ID is less than 8 characters long, entering a blank character will end it.

8.6 Altitude Encoder Warm Up

The built in altitude encoder uses a sensor that is temperature dependent. A small internal heater circuit keeps the sensor at the correct temperature. When the ambient temperature is below 0°C there may be a delay between switching on the transponder and seeing an altitude reported. In very cold weather this delay can be up to 5 minutes. You should always switch on the transponder (usually to GND mode) before taxiing to the runway, to ensure that the sensor is operating before you become airborne.

8.7 General Low Temperature Operation

The TT21 is certified to operate correctly down to -20°C, but at low temperatures the display may be impaired. On a cold day you may need to wait for the cockpit to warm up to ensure normal operation.

8.8 Warning Messages

If the transponder detects a problem, the screen will indicate WARNING and a brief statement of the problem. Depending on the nature of the problem, your transponder may not be replying to interrogations. Note the message on the screen and pass that information to your avionics maintenance organisation. Press ENT to clear the message; if the fault is still present the message will reappear.

8.9 Fault Annunciation

If the transponder detects a catastrophic internal failure, the screen will indicate FAULT and a brief statement of the problem. No replies will be made to interrogations when a fault has been detected.

Some FAULT indications can be recovered by switching the transponder off and back on again, although in all cases a FAULT code implies that there is a fault with the transponder or the installation.

Page 22 Trig Avionics Limited

Page 29

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

Note the FAULT message shown on the screen and pass that information to your avionics maintenance organisation.

Trig Avionics Limited Page 23

Page 30

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

9. Continued Airworthiness

Other than for periodic functional checks required by the regulations, the TT21 Mode S transponder has been designed and manufactured to allow “on condition maintenance”. This means that there are no periodic service requirements necessary to maintain continued airworthiness, and no maintenance is required until the equipment does not properly perform its intended function. When service is required, a complete performance test should be accomplished following any repair action. Repairs should only be carried out in accordance with Trig Avionics Limited service procedures.

Page 24 Trig Avionics Limited

Page 31

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

10. Limited Warranty

Trig Avionics Limited warrants our products to be free from defects in materials and workmanship for a period of two (2) years from the date of installation by an authorised dealer.

This warranty covers repair and/or replacement at our option, of any parts found to be defective, provided such defects in our opinion are due to faulty material or workmanship and are not caused by tampering, abuse, or normal wear.

All warranties are F.O.B.

Trig Avionics Limited Heriot Watt Research Park Riccarton, Currie, EH14 4AP

Trig Avionics will not accept or pay for any charges for warranty work performed outside our factory without prior written consent.

This warranty applies only to products in normal use. It does not apply to units or circuit boards defective due to improper installation, physical damage, tampering, lightning or other electrical discharge, units with altered serial numbers, or units repaired by unauthorised persons or in violation of Trig Avionics Limited service procedures.

Trig Avionics Limited assumes no responsibility for any consequential losses of any nature with respect to any products or services sold, rendered, or delivered.

Trig Avionics Limited Page 25

Page 32

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

11. Environmental Qualification Forms

Nomenclature TT21 Mode S Transponder Part Number: 00675-(XX) ETSO: 2C112b, C166a Manufacturer Trig Avionics Limited Address Heriot Watt Research Park, Riccarton, Currie, Scotland, EH14 4AP

Conditions DO-160E

Section

Description of Conducted Tests

Temperature and Altitude 4.0 Equipment tested to Categories A2, C1 Low temperature ground survival 4.5.1 -55°C Low temperature short-time operating 4.5.1 -40°C Low temperature operating 4.5.2 -20°C High temperature operating 4.5.4 +70°C High temperature short-time operating 4.5.3 +70°C High temperature ground survival 4.5.3 +85°C Loss of Cooling 4.5.5 Cooling air not required (+70°C operating without cooling air) Altitude 4.6.1 35,000 feet Decompression 4.6.2 8,000 to 35,000 feet in 15 seconds Overpressure 4.6.3 -15000 feet Temperature Variation 5.0 Equipment tested to Category C Humidity 6.0 Equipment tested to Category A Operational Shocks 7.2 Equipment tested to Category B Crash Safety 7.3 Equipment tested to Category B and extended to use test

levels for Helicopters

Vibration 8.0 Aircraft zone 2; type 3, 4, 5 to category S level M, type 1

(Helicopters) to category U level G Explosion 9.0 Equipment identified as Category X – no test required Waterproofness 10.0 Equipment identified as Category X – no test required Fluids Susceptibility 11.0 Equipment identified as Category X – no test required Sand and Dust 12.0 Equipment identified as Category X – no test required Fungus 13.0 Equipment identified as Category X – no test required Salt Spray 14.0 Equipment identified as Category X – no test required Magnetic Effect 15.0 Equipment tested to Category Z Power Input 16.0 Equipment tested to Category B Voltage Spike 17.0 Equipment tested to Category B Audio frequency conducted susceptibility 18.0 Equipment tested to Category B Induced signal susceptibility 19.0 Equipment tested to Category AC Radio frequency susceptibility 20.0 Equipment tested to Category TT Radio frequency emission 21.0 Equipment tested to Category B Lightning induced transient susceptibility 22.0 Equipment identified as Category XXXX – no test required Lightning direct effects 23.0 Equipment identified as Category X – no test required Icing 24.0 Equipment identified as Category X – no test required Electrostatic Discharge 25.0 Equipment identified as Category X – no test required

Page 26 Trig Avionics Limited

Page 33

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

Nomenclature TC20 Mode S Controller Part Number: 00649-(XX) ETSO: 2C112b, C88a Manufacturer Trig Avionics Limited Address Heriot Watt Research Park, Riccarton, Currie, Scotland, EH14 4AP

Conditions DO-160E

Section

Description of Conducted Tests

Temperature and Altitude 4.0 Equipment tested to Categories A4, C4 Low temperature ground survival 4.5.1 -55°C Low temperature short-time operating 4.5.1 -25°C Low temperature operating 4.5.2 -20°C High temperature operating 4.5.3 +55°C High temperature short-time operating 4.5.3 +70°C High temperature ground survival 4.5.3 +85°C Loss of Cooling 4.5.5 Cooling air not required (+70°C operating without cooling air) Altitude 4.6.1 35,000 feet Decompression 4.6.2 8,000 to 35,000 feet in 15 seconds Overpressure 4.6.3 -15000 feet Temperature Variation 5.0 Equipment tested to Category A Humidity 6.0 Equipment tested to Category A Operational Shocks 7.2 Equipment tested to Category B Crash Safety 7.3 Equipment tested to Category B and extended to use test

levels for Helicopters Vibration 8.0 Aircraft zone 2; type 3, 4, 5 to category S level M, type 1

(Helicopters) to category U level G Explosion 9.0 Equipment identified as Category X – no test required Waterproofness 10.0 Equipment tested to Category W (front face only) Fluids Susceptibility 11.0 Equipment identified as Category X – no test required Sand and Dust 12.0 Equipment identified as Category X – no test required Fungus 13.0 Equipment identified as Category X – no test required Salt Spray 14.0 Equipment identified as Category X – no test required Magnetic Effect 15.0 Equipment tested to Category Z Power Input 16.0 Equipment identified as Category X – no test required Voltage Spike 17.0 Equipment identified as Category X – no test required Audio frequency conducted susceptibility 18.0 Equipment identified as Category X – no test required Induced signal susceptibility 19.0 Equipment tested to Category AC Radio frequency susceptibility 20.0 Equipment tested to Category TT Radio frequency emission 21.0 Equipment tested to Category M Lightning induced transient susceptibility 22.0 Equipment identified as Category XXXX – no test required Lightning direct effects 23.0 Equipment identified as Category X – no test required Icing 24.0 Equipment identified as Category X – no test required Electrostatic Discharge 25.0 Equipment identified as Category X – no test required

Trig Avionics Limited Page 27

Page 34

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

Page 28 Trig Avionics Limited

12. ADS-B Compliance

TT21 transponders include support for Extended Squitter ADS-B out. The TT21 is a DO-260A change 2 compliant category B0 broadcast-only participant.

12.1 ADS-B Parameters Supported

The following table lists the ADS-B parameters that are transmitted by the TT21 transponder when connected to an appropriate GPS receiver.

Parameter BDS Register

SPI 0,5 Emergency Indicator 0,5 Barometric Altitude 0,5 Quality Indicator (NIC) 0,5

Latitude 0,5

Airborne Position

Longitude 0,5

Quality Indicator (NIC) 0,6

Latitude 0,6

Surface Position

Longitude 0,6 Surface Ground Speed 0,6 Surface Ground Track 0,6 Aircraft Identification 0,8 Airborne Ground Velocity 0,9 Emergency Status 6,1 Quality Indicator (NACp) 6,5 Quality Indicator (SIL) 6,5 Version Indicator 6,5 Surface Length/Width 6,5 In addition the TEST message with 4096 squawk code information can also be transmitted to support

coordination with ATC radar systems. TEST message transmission status is an installation option.

12.2 ADS-B Service Levels

ADS-B forms part of the future plans for airspace management, and is being deployed in certain limited applications. The following summary of the ADS-B service is current at the date of publication of this manual, but you should be aware that regulatory changes are taking place in this area, and the most recent regulatory information should be consulted.

There are currently three levels of service that an ADS-B transmitter can provide.

Operational ADS-B Surveillance

EASA has published the certification requirements for using ADS-B position information for Air Traffic Control services in a non-radar environment, AMC20-24. AMC20-24 includes both technical attributes of the individual components of an

Page 35

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

Trig Avionics Limited Page 29

installation and system attributes for the overall aircraft installation. AMC20-24 has been adopted as a base standard for ADS-B surveillance in other parts of the world, and provides radar-like separation capabilities between participating IFR aircraft.

Experimental ADS-B Surveillance

ADS-B trials have taken place in a number of countries which, because of the experimental nature, have allowed deviations from the operational standards represented by AMC20-24, but which have been based on positional information with comparable integrity.

ADS-B Information

There are a number of non-certified applications of ADS-B technology such as fleet monitoring and traffic awareness which can be deployed using position sources of lower integrity which, because the integrity is reported in the transmissions, are also compatible with the ADS-B surveillance environment.

There is also a widely publicised fourth level of service in discussion which is the US “Next Generation” plan, but at the time of publication of this manual a number of key aspects of this are undefined and no compliance statement against that future plan is practical.

The TT21 is designed to provide all of the required parameters listed in AMC20-24. However, in order to be used for separation services AMC20-24 sets additional criteria related to the position accuracy and integrity of the GPS position source used, and the ability for the GPS to communicate those accuracy and integrity parameters to the ADS-B output system in the transponder. At the publication date of this manual, the only commercially available GPS receivers we are aware of that can be used with the TT21 to meet the system requirements of AMC20-24 are the Freeflight 1201 and the NexNav 3101.

A wide range of other GPS receivers can be used as the position source for ADS-B, including ETSO129a receivers and simpler VFR GPS receivers. Whilst these receivers may be suitable for Informational or Experimental installations, they generally lack one or more of the required integrity parameters for an operational IFR separation application.

12.3 AMC 20-24 Compliance

For installations seeking certification to AMC20-24 or other applicable standards, additional compliance information is available on request from Trig Avionics Limited.

Page 36

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

13. Installation Drawings

13.1 Mounting tray fixing and overall dimensions

All dimensions in millimetres

______________________

Page 30 Trig Avionics Limited

Page 37

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

13.2 Front Panel Controller Dimensions

Controller shown without the mounting adapters (00678-00) used for 57mm (2¼ inch) instrument mounting.

All dimensions in millimetres.

______________________

Trig Avionics Limited Page 31

Page 38

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

13.3 Front Panel Cut-out Options

The front panel controller can be fitted to either the compact mounting hole or a conventional 57mm (2¼ inch) instrument cut-out. The compact mounting is a truncated 58 mm opening; please note that the mounting screws are NOT in the same location for the two options.

All dimensions in millimetres.

______________________

Page 32 Trig Avionics Limited

Page 39

TT21 Transponder Installation Manual 19 January 2009

Issue AA

______________________

Trig Avionics Limited Page 33

00560-00

14. Basic Interconnect Diagram

Page 40

TT21 Transponder Installation Manual 19 January 2009 00560-00 Issue AA

______________________

This page intentionally left blank

Page 34 Trig Avionics Limited
