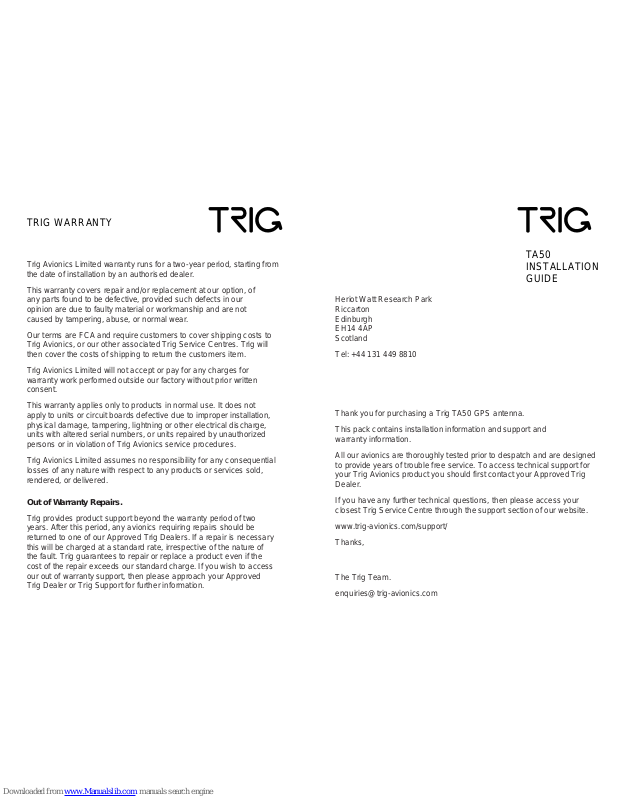

TRIG WARRANTY
Trig Avionics Limited warranty runs for a two-year period, starting from
the date of installation by an authorised dealer.
This warranty covers repair and/or replacement at our option, of
any parts found to be defective, provided such defects in our
opinion are due to faulty material or workmanship and are not
caused by tampering, abuse, or normal wear.
Our terms are FCA and require customers to cover shipping costs to
Trig Avionics, or our other associated Trig Service Centres. Trig will
then cover the costs of shipping to return the customers item.
Trig Avionics Limited will not accept or pay for any charges for
warranty work performed outside our factory without prior written
consent.
This warranty applies only to products in normal use. It does not
apply to units or circuit boards defective due to improper installation,
physical damage, tampering, lightning or other electrical discharge,
units with altered serial numbers, or units repaired by unauthorized
persons or in violation of Trig Avionics service procedures.
Trig Avionics Limited assumes no responsibility for any consequential
losses of any nature with respect to any products or services sold,
rendered, or delivered.
Out of Warranty Repairs.
Trig provides product support beyond the warranty period of two
years. After this period, any avionics requiring repairs should be
returned to one of our Approved Trig Dealers. If a repair is necessary
this will be charged at a standard rate, irrespective of the nature of
the fault. Trig guarantees to repair or replace a product even if the
cost of the repair exceeds our standard charge. If you wish to access
our out of warranty support, then please approach your Approved
Trig Dealer or Trig Support for further information.
Heriot Watt Research Park
Riccarton
Edinburgh
EH14 4AP
Scotland
Tel: +44 131 449 8810
Thank you for purchasing a Trig TA50 GPS antenna.
This pack contains installation information and support and
warranty information.
All our avionics are thoroughly tested prior to despatch and are designed
to provide years of trouble free service. To access technical support for
your Trig Avionics product you should first contact your Approved Trig
Dealer.
If you have any further technical questions, then please access your
closest Trig Service Centre through the support section of our website.
www.trig-avionics.com/support/
Thanks,
The Trig Team.
[email protected]
TA50
INSTALLATION
GUIDE
Page 2

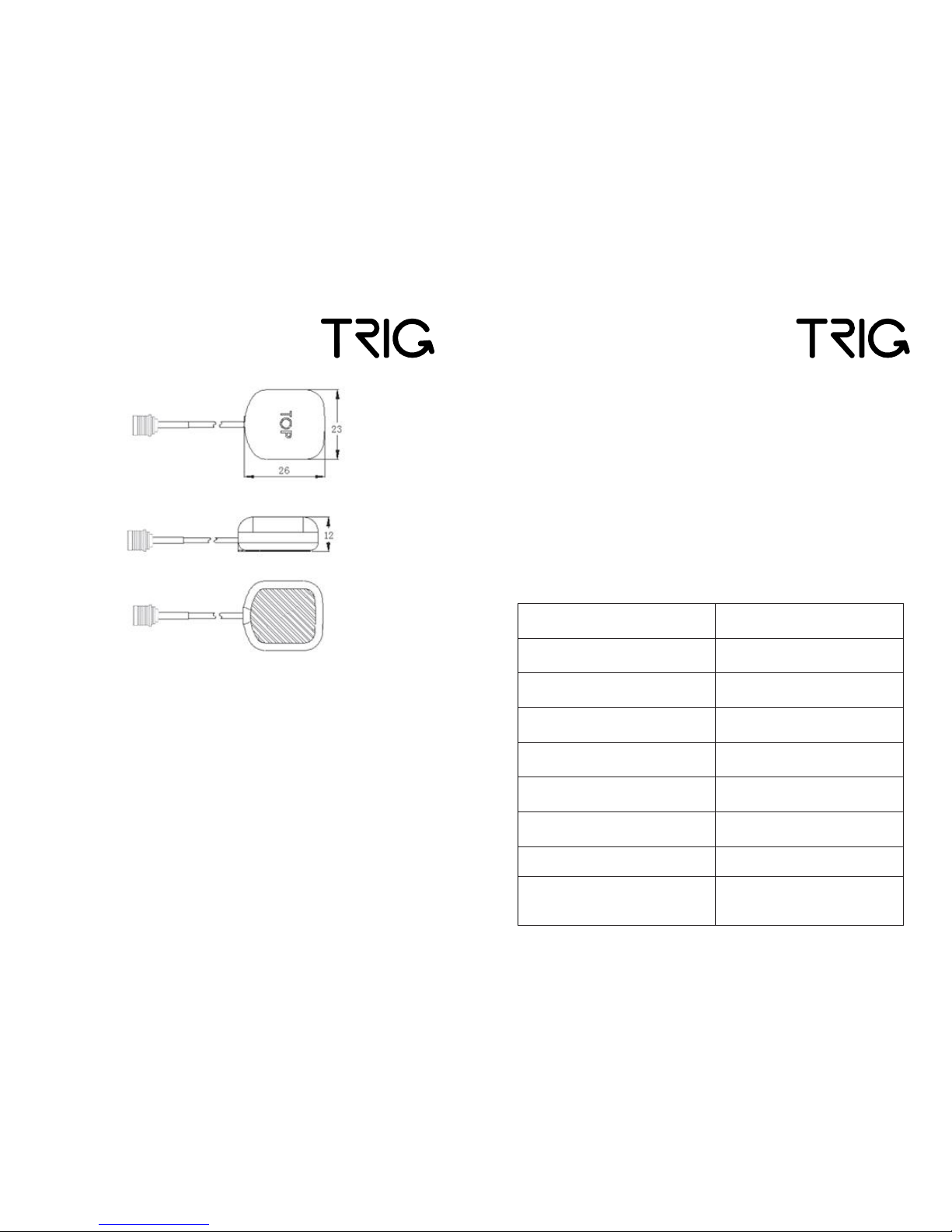

INSTALLATION GUIDE SPECIFICATION SHEET
1. Mounting location: The TA50 can be mounted either internally or
externally. The antenna must be mounted in a location that will
assure the best possible (360º at the horizon) unobstructed view
of the GPS satellite constellation in level flight – for example, on
the roof of the aircraft or on top of the glare shield.
2. Ensure that the surface area where the antenna is to be mounted
is clean and free from dust or grease.
3. Stick the included adhesive pad to the base of the antenna. Peel
off the other side of the pad and position the antenna in the
desired location, pressing down firmly to permanently attach.
4. Route the cable to the GPS receiver, taking care to avoid
locations where it may rub or trap controls.
TA50 –Aircraft Antenna for GPS Receivers.
The TA50 is a permanently mounted aircraft antenna, designed
for use with GPS receivers such as the Trig TN72. The TA50 is
fitted with a QMA connector.
It is an active (amplified) antenna providing an average of 26 dB gain
over a passive (non-amplified) antenna.
The TA50 is supplied for aviation use only.
Specifications:
Frequency:
1575.42 MHz ±3 MHz
Antenna Gain:
>1 dBic
VSWR:
1.5:1.
Filtering:
-20 dB minimum @ ±50 MHz
Noise Figure:
1.5 dB Max.
Gain:
26 dB
DC Power Requirement:
3 to 5 VDC
Temperature:
-40º C to +85º C
Cable Length:
1 metre – Part No 02171-00
3 metre – Part No 02172-00
