Page 1
Filabot
Vermont, USA, Earth
1-802-505-6772
Operation Manual

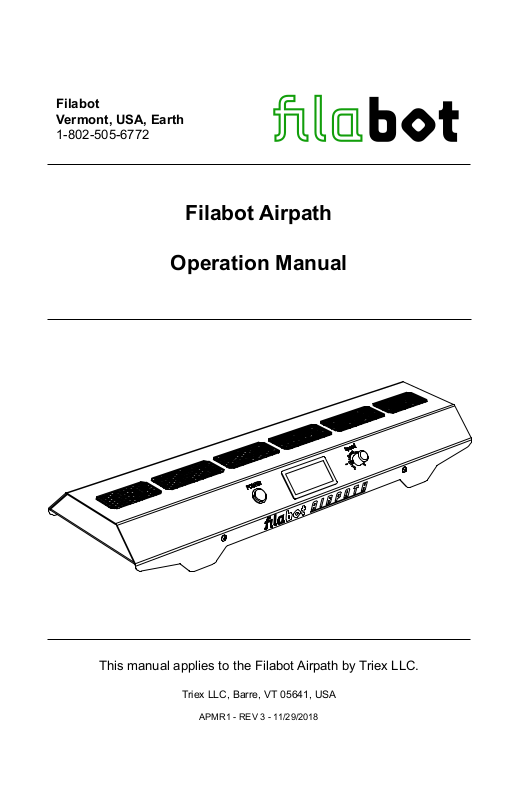

Filabot Airpath
This manual applies to the Filabot Airpath by Triex LLC.
Triex LLC, Barre, VT 05641, USA
APMR1 - REV 3 - 11/29/2018
Page 2
Caution!
Fans are very strong! To avoid possible injury and contaminated
●
filament, use the Airpath indoors on a CLEAN, DRY, FLAT SURFACE.
The fans will pick up dust, paper, and debris from under and around the
Airpath and blow them up into the air.
Fans will turn ON by default when the machine is plugged in.●
Use of a DC power supply other than the one provided may result in
●
damage to the Airpath or poor operation.
Using this device for anything other than cooling filament as specified
●
in the operation section has not been approved for safety or applicability
by Filabot.
Do not use this device if any parts appear missing or damaged.●
Do not modify this device without authorization from Triex LLC.●
Contact Filabot with any questions
General Specifications
Power AC/DC Adaptor Input: 100-240VAC 50/60Hz 1.0-0.5A
DC Power/Adaptor Output: 24VDC 5A
Dimensions: 24in L x 3 1/8in H x 7 1/8in W
Weight: 9 pounds (4kg)
Page 3
Operation

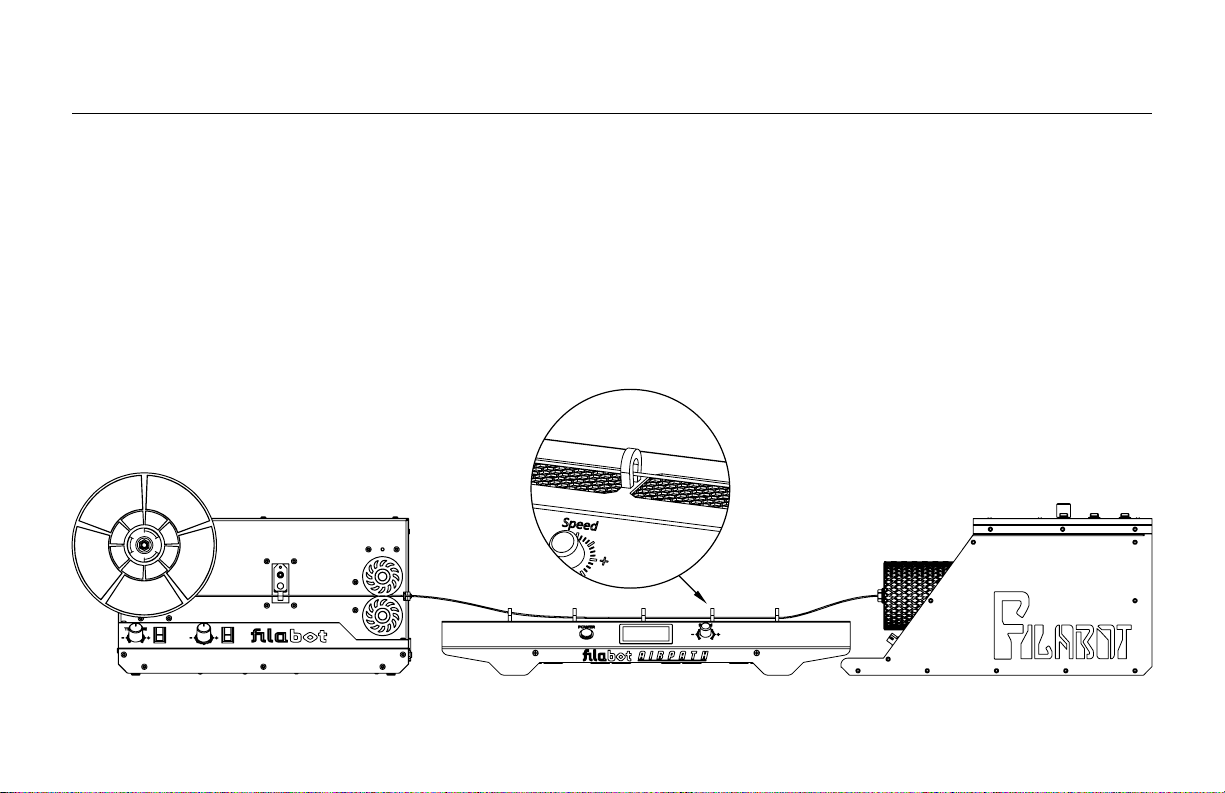

It may require trial and error to find the best setup for your extrusion rate and type of plastic. Generally, it is best to have
the Airpath close enough to the extruder so that forced air from the first fan is cooling the filament before it reaches the first
guide. This will reduce the chance that it will stick to the guide or the top of the Airpath. Once you begin extruding and
spooling, place the guides over the filament to keep it in place. Adjust the fans to the fastest speed possible unless the
filament begins to “jump rope” or flail, as this can cause variations in shape and diameter. Adjust the distance between
each machine to change the cooling profile and improve cooling performance. Typically, the Spooler will be about two feet
from the Airpath to ensure the filament has fully solidified before entering the rollers.
Page 4
Warranty Information
The Filabot Airpath has a one year warranty. This includes replacement of
any part that fails. Warranty is void if system is opened up or damage is
direct. Only Triex LLC technicians are allowed to service internal parts.
More information about our warranty is available on www.filabot.com
2018, Triex LLC, Barre VT, USA. No part of this manual may be copied, stored, transmitted,
or otherwise released without the express written consent of Triex LLC. This manual applies
only to the Filabot Airpath. While Triex LLC has applied all precaution in producing this
manual, we urge the customer or user of this device to contact Triex LLC with any questions
or concerns about operation before operating the device or making adjustments. Triex LLC
provides no assurance of applicability of the product to customers’ requirements.
