Page 1

luxCONTROL

Product manual DALI MSensor 02

Page 2

Page 3

Table of contents

- 3 / 38 -

Table of contents

Scope of documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

New features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Commissioning and settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Constant light control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Presence control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Special DALI settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Enhanced functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Practical examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

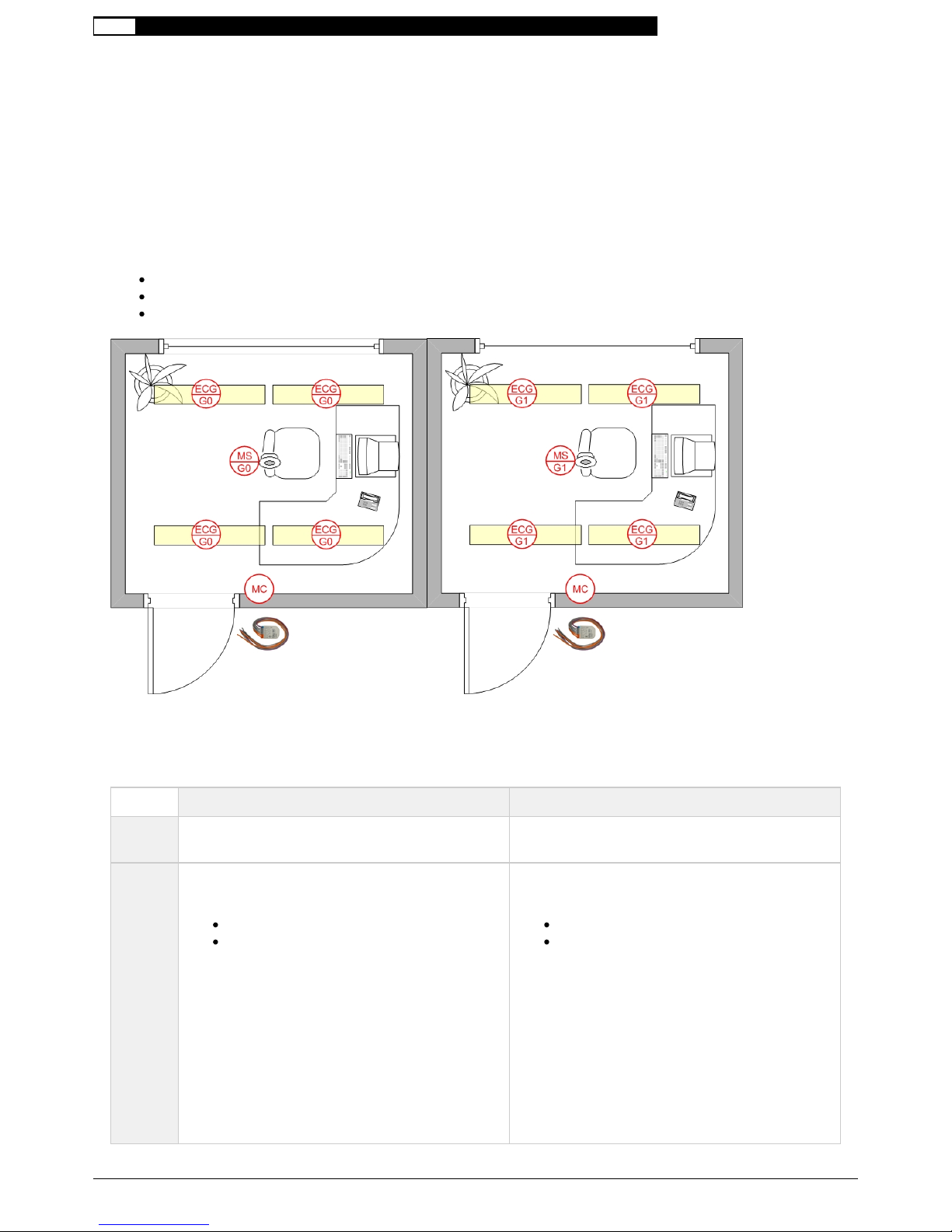

Individual office rooms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

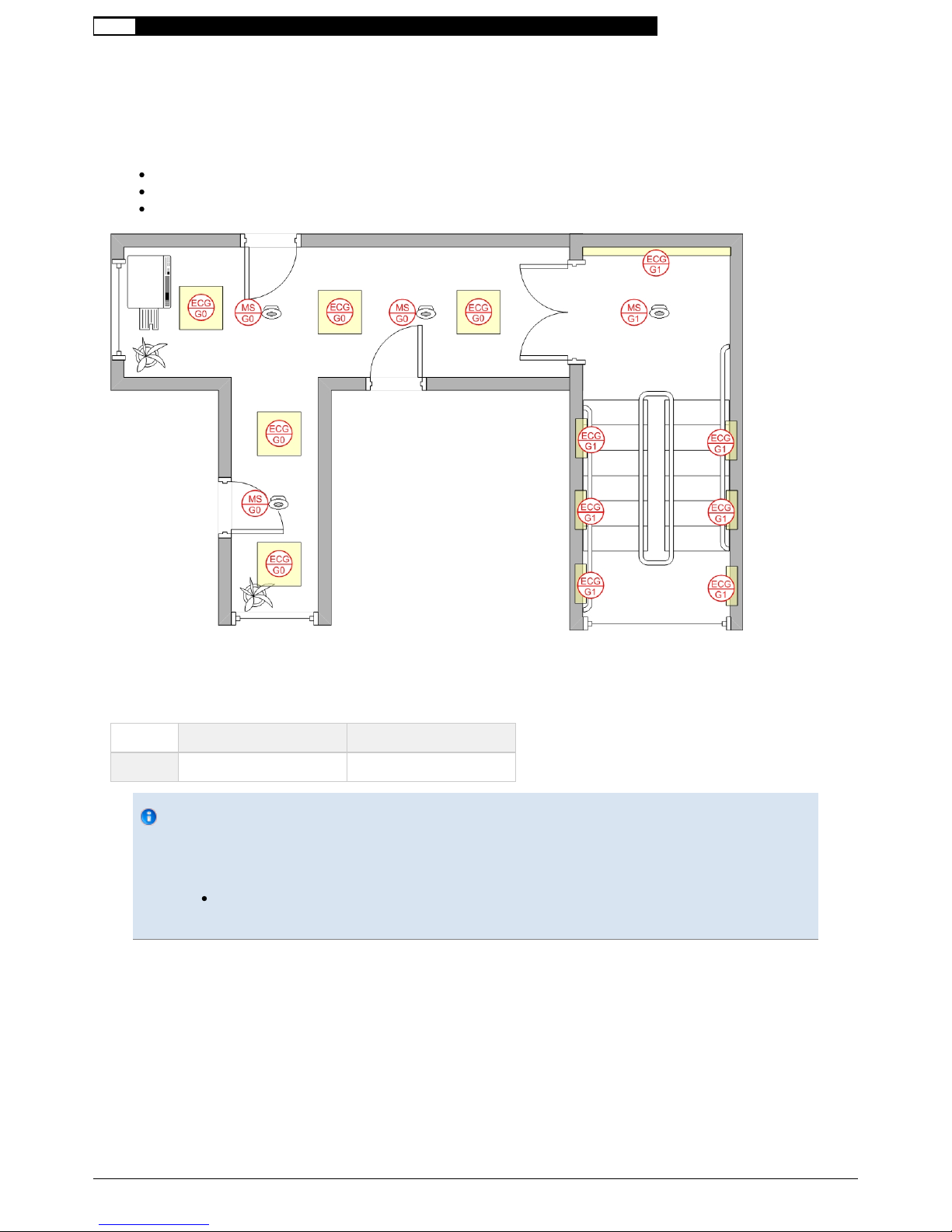

Corridor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

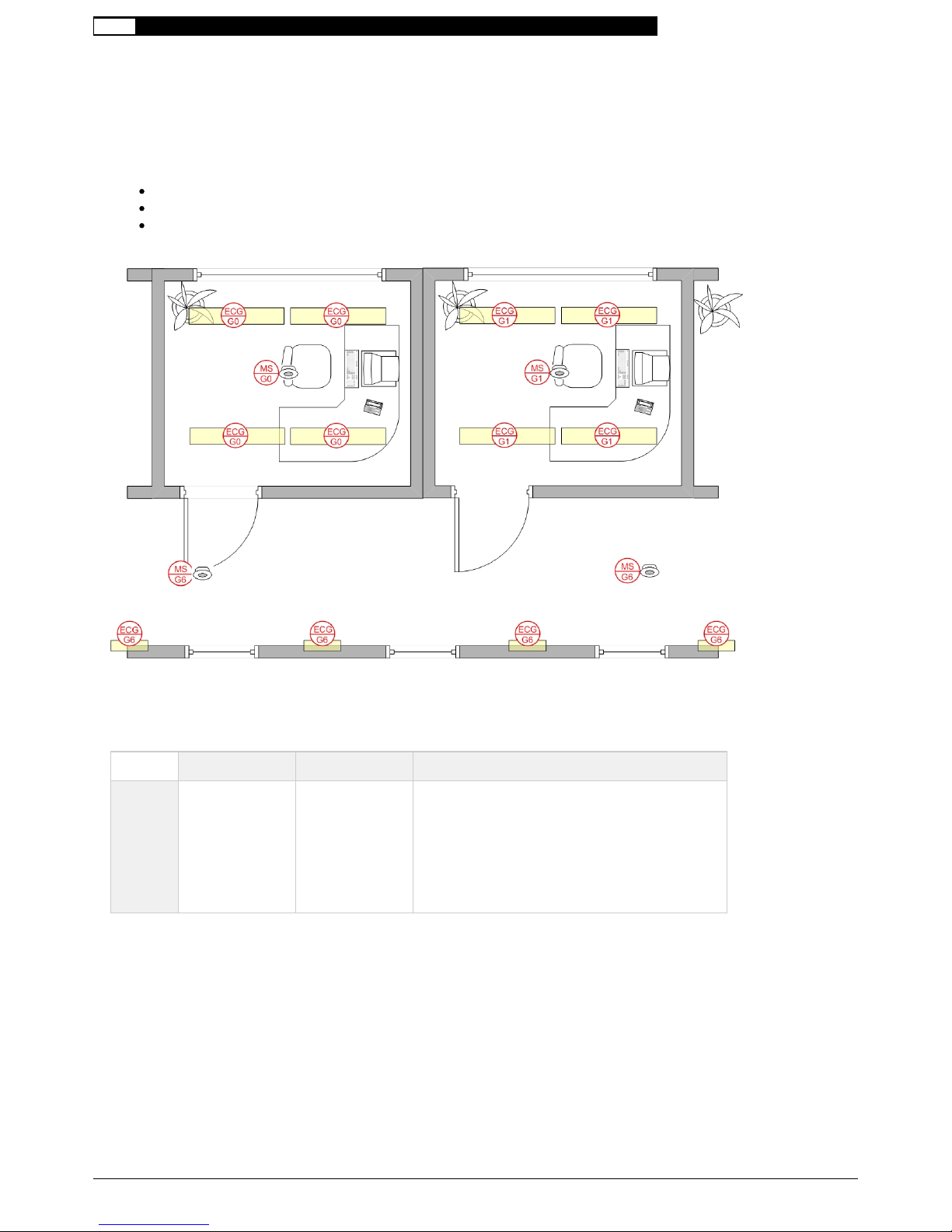

Neighbourhood function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Reference list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Commands for broadcast and luminaire groups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Commands to DALI address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Page 4

Scope of documentation

Documentation DALI MSensor 02 | 02-2012 | en - 4 / 38 -

Validity

These operating instructions are valid for the DALI MSensor 02. For better distinction from previous versions the DALI MSensor 02 carries imprints with the information "Version 02" or "Firmware version V2.00".

Notice

The DALI MSensor 02 behaves differently to previous versions (V1.5 and earlier). The DALI MSensor is therefore only backward compatible to a limited extent.

Please pay attention to notes in the individual chapters! For version V1.5 or earlier sensors: pay attention to the notes in the respective documentation!

The DALI MSensor 02 is configured in the masterCONFIGURATOR software (V2.02. or later). Using older versions of the software to configure the DALI MSensor 02 will result in incorrect operation.

Please make sure you are using an up-to-date version of the masterCONFIGURATOR software.

TRIDONIC GmbH & Co KG is constantly striving to develop all its products. This means that there may be changes in form, equipment and technology. Claims cannot therefore be made on the basis of information, diagrams or descriptions in these instructions. The latest version of these operating instructions is available on our home page at

http://www.tridonic.com/com/en/operating-instructions.asp

Version information

Editorial deadline:

24-02-2012

Version number:

1.0

Issue date:

24-02-2012

This documentation may not be changed, expanded, copied or passed to third parties without the prior written agreement of TRIDONIC GmbH & Co KG. We are always open to comments, corrections and requests. Please send them to .[email protected]

Imprint

Tridonic GmbH & Co KG Färbergasse 15 6851 Dornbirn Austria

T +43 5572 395-0 F +43 5572 20176

www.tridonic.com

...

Page 5

Safety instructions

Documentation DALI MSensor 02 | 02-2012 | en - 5 / 38 -

Safety instructions

The instructions in this section have been compiled to ensure that operators and users of the DALI MSensor 02 from Tridonic are able to detect potential risks in good time and take the necessary preventative measures. The operator must ensure that all users fully understand these instructions and adhere to them. This device may only be installed and configured by suitably qualified personnel.

Intended use

Proper use

Steuergerät für den Betrieb DALI-fähiger Leuchten. The device may only be used for this intended purpose.

Improper use

Outdoor use. Extensions and modifications to the product.

Warning!

Improper use could result in injury, malfunction or damage to property. The operator must inform all usersof the potential risks associated with the use of the equipment and of protective countermeasures.

Dangers associated with the operation of the system

Danger!

Danger of electrocution Disconnect the power to the entire lighting system before working on the lighting system!

Caution!

Risk of damage caused by condensation Prior to commissioning the system, wait until the control device is at room temperature and completely dry!

Caution!

Risk of damage caused by humidity Only use the control device in dry rooms and protect it against humidity!

Caution!

Electromagnetic compatibility (EMC) Although the Tridonic control device meets the stringent requirements of the appropriate directives and standards on electromagnetic compatibility, it could potentially interfere with other devices under certain circumstances!

...

Page 6

New features

Documentation DALI MSensor 02 | 02-2012 | en - 6 / 38 -

New features

New grouping concept

The DALI MSensor 02 only assigns one DALI group, the luminaire group. The notion of a sensor group has been omitted from the new group concept. This has resulted in changed behaviour in response to some DALI commands (see chapter

"Special DALI settings", page 25).

Reaction of DALI MSensor 02 to scene recalls

The way that the DALI MSensor 02 responds to scene recalls can be set. For example, it is possible to activate light control by the DALI MSensor 02 by calling up a scene ( ).see chapter "Special DALI settings", page 25

Presence synchronisation with other DALI MSensor 02 groups

The DALI MSensor 02 makes it possible to set up presence synchronsiation between several DALI MSensor 02 groups. In doing so, it is possible to specify how the DALI MSensor 02 should respond to any presence in other groups (see chapter

"Presence control", page 17

Extended operating modes for integration in other control systems

Two new operating modes which are specially optimised to support integration into non-Tridonic control systems have been built into the DALI MSensor 02 ( ).see chapter "Enhanced functionality", page 29

...

Page 7

Introduction

Documentation DALI MSensor 02 | 02-2012 | en - 7 / 38 -

Introduction

The DALI MSensor 02 is used in the comfortDIM system in Direct master mode. In this mode the sensor controls a DALI group directly. Besides Direct master mode, the DALI MSensor 02 also supports two further modes for use in combination with a higher-level DALI master controller:

Indirect master mode Slave mode

The following chapters deal with Direct master mode in detail. Later on, ( ) thesee chapter "Enhanced functionality", page 29 other two modes are dealt with briefly.

...

Page 8

Description

Documentation DALI MSensor 02 | 02-2012 | en - 8 / 38 -

Description

The DALI MSensor 02 is a digital controller in the comfortDIM product range that can be used to control the control gear of a DALI group collectively. The sensor combines three functions in one control device:

Constant light control Presence-based control Remote control

The DALI MSensor 02 is is available in four different housing designs:

Fitted in luminaire Recessed into ceiling

Surface-mounted Box-mounted

The DALI MSensor 02 is designed for the following principal applications:

Individual offices Open-plan offices Training/presentation rooms Corridors, passageways and garages

The DALI MSensor 02 either controls all the units on the DALI circuit or a DALI group. The DALI MSensor 02 is Multi-master compatible, i.e. it can be used in conjunction with other DALI controllers in the comfortDIM product range. This allows the DALI MSensor 02 to be addressed and grouped in the same way as DALI control gear and makes it easy to configure the system.The DALI MSensors 02 is configured in the masterCONFIGURATOR software (V2.02. or later).

...

Page 9

Installation

Documentation DALI MSensor 02 | 02-2012 | en - 9 / 38 -

Installation

The DALI MSensor 02 is connected directly to the DALI circuit and does not require its own power supply. It can be connected to the DALI circuit without bothering about polarity. Power is supplied via the DALI circuit. The sensor draws 6 mA.

Notice

A maximum of 12 DALI MSensors 02 can be operated on a single DALI circuit. If more sensors are connected, the increased data traffic this causes has an adverse affect on the light control function.

...

Page 10

Commissioning and Adaptions

Documentation DALI MSensor 02 | 02-2012 | en - 10 / 38 -

Commissioning and settings

The DALI MSensor 02 either controls all the devices on the DALI circuit or a DALI group. To enlarge the presence detection area, it is possible to assign the same destination to several DALI MSensors 02. To achieve this, simply assign the sensors to the same DALI group.

The DALI MSensor 02 is configured in the masterCONFIGURATOR software (V2.02. or later). The DALI MSensor 02 can be assigned to a specific effective range. In addition, the parameters of the individual functions can be individually adjusted (see

).There are two ways of obtaining assignment to an effective range:chapter "Functions", page 12

Group assignment by using rotary switch Group assignment by using masterCONFIGURATOR software

Notice

Luminaires must not belong to more than one DALI group! Otherwise the sensors will not interpret commands sent to the luminaire correctly. Unlike other DALI controllers, a DALI address is assigned to the DALI MSensor 02 during addressing. This reduces the total number of available DALI addresses. This must be taken into account when designing the DALI circuit!

Extending an existing DALI circuit

The DALI MSensor 02 can be used in an existing DALI circuit when a system is extended if the DALI MSensor 02 controls its own group.It is not possible to operate a DALI MSensor 02 and a DALI MSensor (V1.5 or earlier) in the same DALI group. Because of the modified grouping concept, there is no synchronisation of constant light control and presence detection between the two equipment generations.

Group assignment by using rotary switch

The effective range of the DALI MSensor 02 is set using the rotary switch at the rear of the sensor. All control gear located within the previously set effective range is controlled by the sensor.

Rotary switch setting Effective range (group)

0 All (broadcast)

1 0

2 1

3...9 2...8

A...F 9...14

Page 11

Commissioning and Adaptions

Documentation DALI MSensor 02 | 02-2012 | en - 11 / 38 -

Group assignment by using masterCONFIGURATOR

The effective range of the DALI MSensor 02 can be set in the masterCONFIGURATOR software (V2.02 or later). When this assignment method is used, the position of the sensor's rotary switch is ignored and the assignment selected in the masterCONFIGURATOR software is active. If the group assignment in the masterCONFIGURATOR software is cancelled, the assignment set using the rotary switch becomes effective.

Replacing a faulty DALI MSensor (V1.5 or earlier)

It is only possible to replace a faulty DALI MSensor (V1.5 or earlier) by a DALI MSensor 02 if specific preconditions are met:

Make sure that there is no other DALI MSensor (V1.5 or earlier) in the DALI group in question! Make sure that the faulty DALI MSensor (V1.5 or earlier) is not influenced by other DALI controllers (e.g. by the fact that a DALI GC activates daylight-based control via the sensor group).

Further adaptation is required in the case other applications:

If you have any queries, please contact Tridonic Technical Support. Alternatively, it is possible to use the masterCONFIGURATOR software to install the V1.5 firmware in the DALI MSensor 02. The DALI MSensor 02 will then behave in the same way as previous-generation DALI MSensors.

...

Page 12

Functions

Documentation DALI MSensor 02 | 02-2012 | en - 12 / 38 -

Functions

The DALI MSensor 02 has the following functions and user interfaces:

Constant light control by means of ambient light sensor Presence-based control by means of PIR motion sensor or presence detector Remote control via an infrared input for two different IR remote controls

Constant light control

Description

Constant light control makes it possible to match the lighting in a room to the naturally available ambient light. To do this, the ambient light sensor monitors the illuminance in the room, compares it to the previously set brightness setpoint and dims the light until the received illuminance matches the desired setpoint. If several DALI MSensors 02 are used in the same luminaire group, the light is dimmed until the light value is no longer less than the setpoint at every sensor.

Where ambient light values are high, this can result in ambient light-based bright-out and bright-in. If the measured illuminance exceeds a specified threshold value for a period of time that is longer than the specified delay time, the luminaire group is switched off by the DALI MSensor 02. This also applies in cases where motion is detected in the room. The luminaire group is switched on again as soon as the measured illuminance falls below the brightness setpoint.

The Constant light control function ensures that the illuminance in the room remains constant and changes due to variable amounts of ambient light in the room are compensated for. This produces greater comfort, illumination is always properly adjusted, and it also saves energy.

Detection area of the ambient light sensor

The detection area of the sensor is sized so that a relatively large area, rather than just an individual location on the task area, is covered and assessed. This ensures that objects being moved around cannot cause incorrect measurements.

Page 13

Constant light control

Documentation DALI MSensor 02 | 02-2012 | en - 13 / 38 -

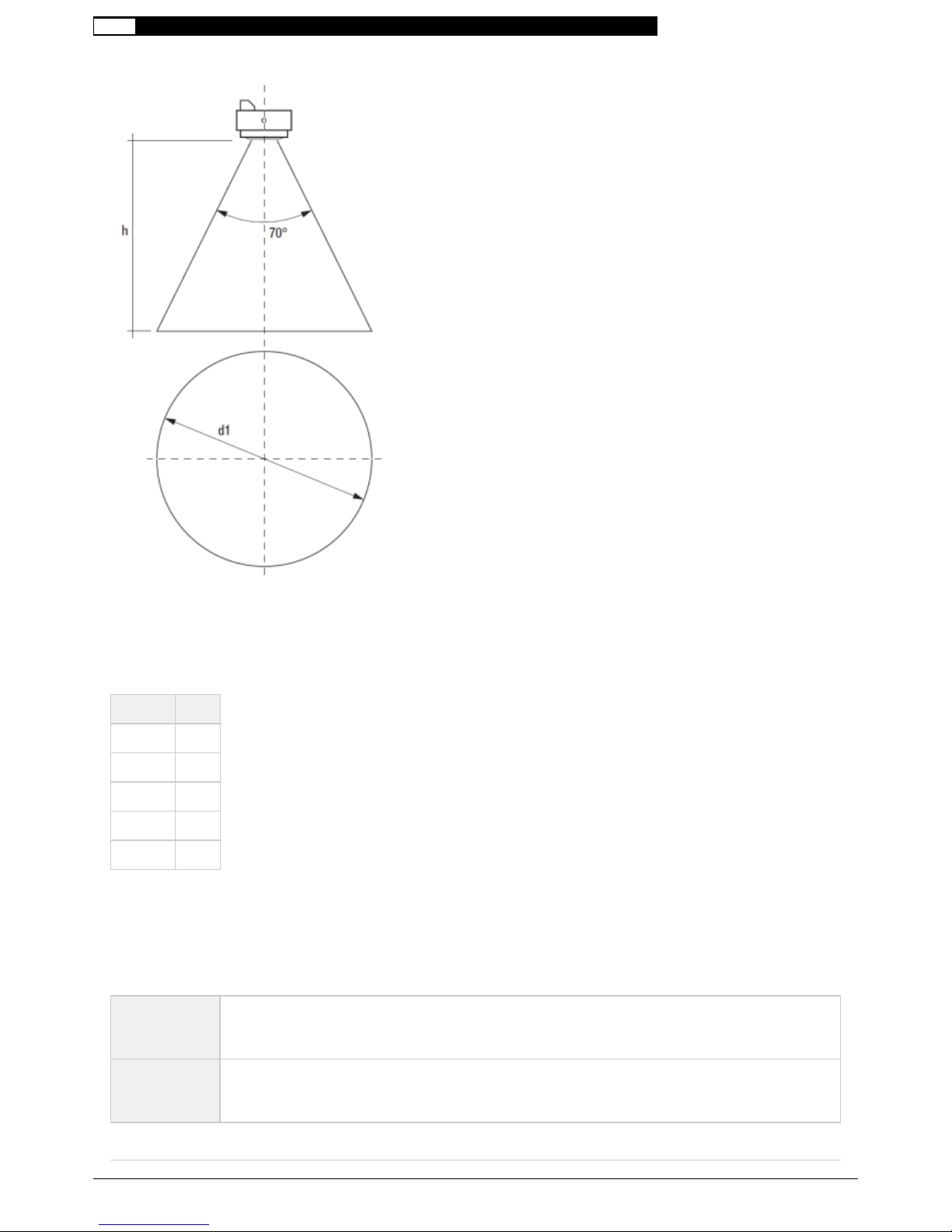

The diameter of the detection area depends on the detection angle of the sensor and the height at which it is mounted.

Calculating the diameter:

d1 = 2 × tan(0.5 × 70°) × h

Typical example values of detection area:

Height h Ø d1

2.0 m 2.8 m

2.5 m 3.5 m

3.0 m 4.2 m

3.5 m 4.9 m

4.0 m 5.6 m

Operating modes

The ambient light sensor has three operating modes. Constant light control can be activated or deactivated. Constant light control can also be deactivated temporarily.

Ambient light control: "enabled"

Light control of the luminaire group is activated by triggering the DALI MSensor 02.

Ambient light control: "disabled"

The light control of the DALI MSensor 02 is permanently deactivated. A fixed setpoint in the luminaire group is invoked by triggering the DALI MSensor 02.

Page 14

Constant light control

Documentation DALI MSensor 02 | 02-2012 | en - 14 / 38 -

Ambient light control: "temporarily disabled"

Light control can be temporarily deactivated by a manual intervention on another DALI controller. Doing so temporarily switches off light control. The luminaires remain adjusted to the corresponding setpoint. Light control is reactivated at the next switch-on or by an activation command.

Commissioning

Setting operating modes

The individual operating modes can be set by using the masterCONFIGURATOR software (V2.02 or later) (see chapter

"Source directory", page 35

Setting the brightness setpoint

The brightness setpoint is set by using an IR SMART Controller, DALI RC or masterCONFIGURATOR.

Notice

The factory settings of the ambient light sensor are appropriate for normal conditions in a typical office room. Factors such as the room height, type of furniture and nature of the floor can make it necessary to make adjustments.

Check that ambient light control adjusts the lighting to desired levels. In case of incorrect operation or unsatisfactory results: adjust the brightness setpoint.

Notice

A suitable brightness setpoint is typically defined by using a lux meter to make a localised brightness measurement. The results obtained may vary depending where the measurement is made and what the external lighting conditions are.

Check ambient light control at various locations within the measuring area and under varying external lighting conditions. Make sure that the selected brightness setpoint takes into account varying conditions.

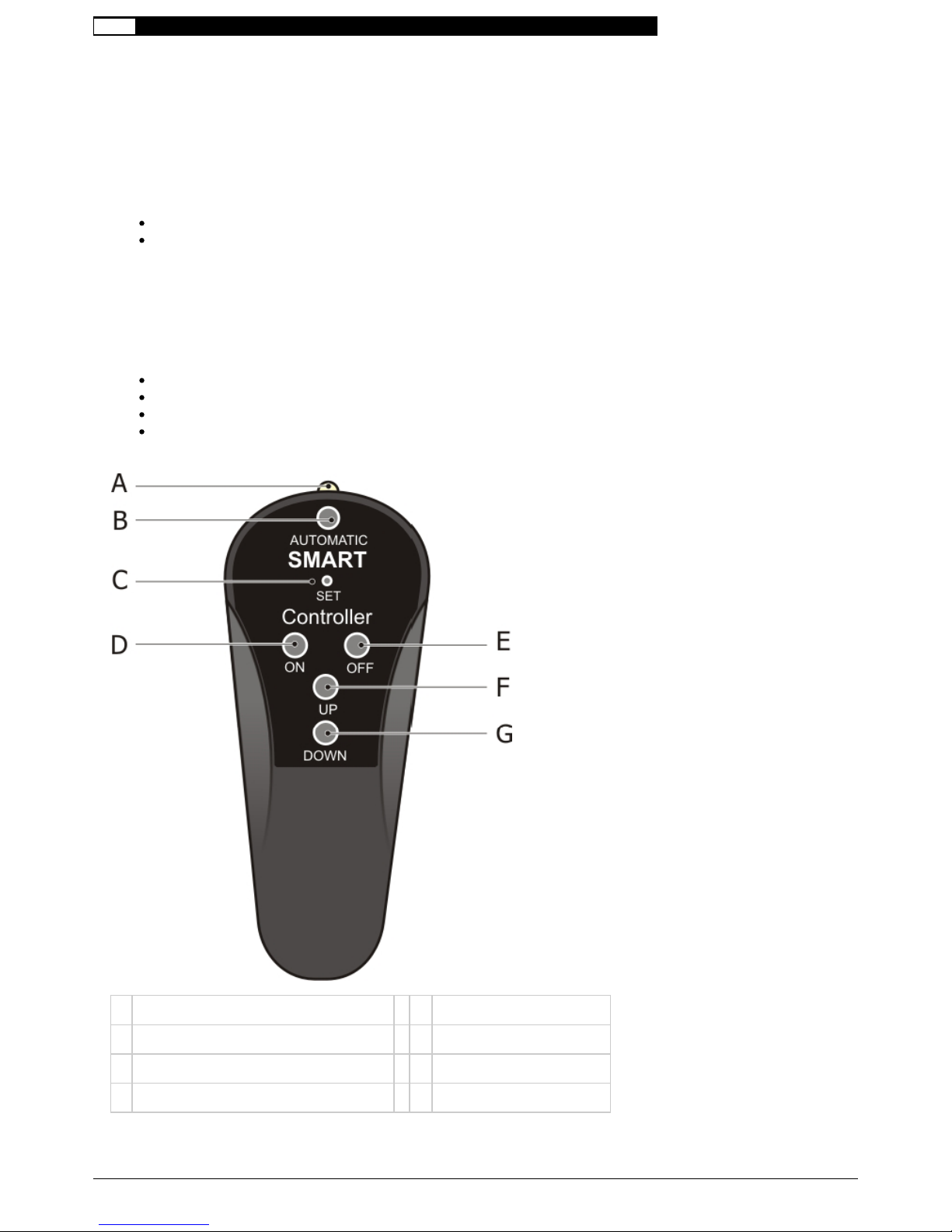

Procedure with IR SMART Controller

For the names of the buttons with letters, see the figure showing the IR SMART Controller (see chapter "IR SMART

)Controller", page 21

Set the desired brightness by pressing the Up/Down button (F and G) Save the new brightness setpoint by pressing the SET button (C)

-› DALI MSensor 02 briefly dims the luminaire group up and down

Procedure with DALI-RC

For the names of the buttons with letters, see the figure showing the DALI RC ( )see chapter "DALI RC", page 22

Set the desired brightness by pressing the +/- button (J) Save the new brightness setpoint by pressing the AUTOMATIC button (K) for at least 3 seconds.

-› DALI MSensor 02 briefly dims the luminaire group up and down

Page 15

Constant light control

Documentation DALI MSensor 02 | 02-2012 | en - 15 / 38 -

Procedure with masterCONFIGURATOR

Directly enter the brightness setpoint

Setting the ambient light-based bright-out and bright-in

This function can be activated or deactivated. The individual parameters can be adjusted. All settings can be made by using the masterCONFIGURATOR software (V2.02 or later) ( ).see chapter "Source directory", page 35

Tricks and hints

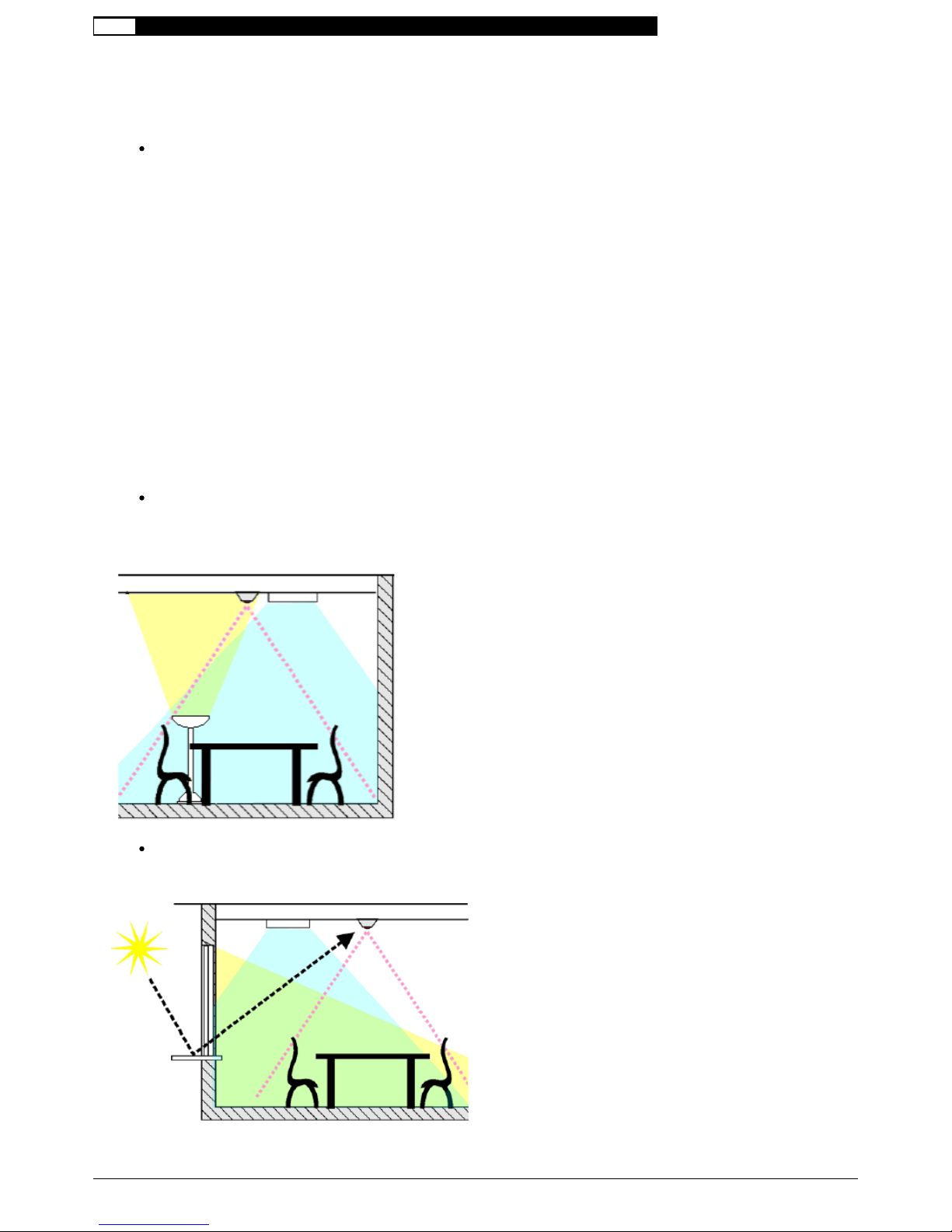

Position the ambient light sensor correctly

Ambient light control is based on measuring reflected artificial light and daylight. This light must be detected correctly and completely. Prevent measurements being falsified by other light sources. Positioning the ambient light sensor correctly is crucial:

1. In order to be able to control ambient lighting properly, the sensor must be able to detect the light from the controlled luminaires completely.

Position the sensor so that the sensor's detection area lies within the area that is lit by the controlled luminaires.

2. If the sensor is directly exposed to other light sources, this falsifies the results obtained and the reflected artificial light and daylight can no longer be detected correctly.

Position the sensor so that it is not directly exposed to other artificial light sources (e.g. free-standing luminaires in the room).

Page 16

Constant light control

Documentation DALI MSensor 02 | 02-2012 | en - 16 / 38 -

Position the sensor so that it is not directly exposed to sunlight:

Make sure that the detection area of the sensor lies within the room. Make sure that the sensor is far enough away from any window area. Make sure that any glare or sunlight reflected by shiny glass or metal surfaces cannot hit the sensor.

3. If more than one sensor is being used in a room it is possible that the detection areas of the sensors may overlap. Overlapping detection areas may cause the different control circuits to affect one another and this may lead to false results.

Position the sensors so that their detection areas do not overlap.

...

Page 17

Presence control

Documentation DALI MSensor 02 | 02-2012 | en - 17 / 38 -

Presence control

Description

Presence-based control makes it possible to link illuminance to the presence or absence of people. The light is switched on as soon as a person enters a room. When the person leaves, the light is set to a predefined light value after a certain time lapse. Presence-based control offers the benefits of saving energy as well as the convenience of automatic lighting control. The device has different operating modes and profiles that can be adjusted in the masterCONFIGURATOR software (V2.02 or later).

Notice

The presence-based control of the DALI MSensor 02 reacts to moving thermal radiation from people. Other heat sources (e.g. photocopiers, radiators, etc.) may have an adverse affect on presence-based control. Make sure that there are no other heat sources in the immediate vicinity of the sensor.

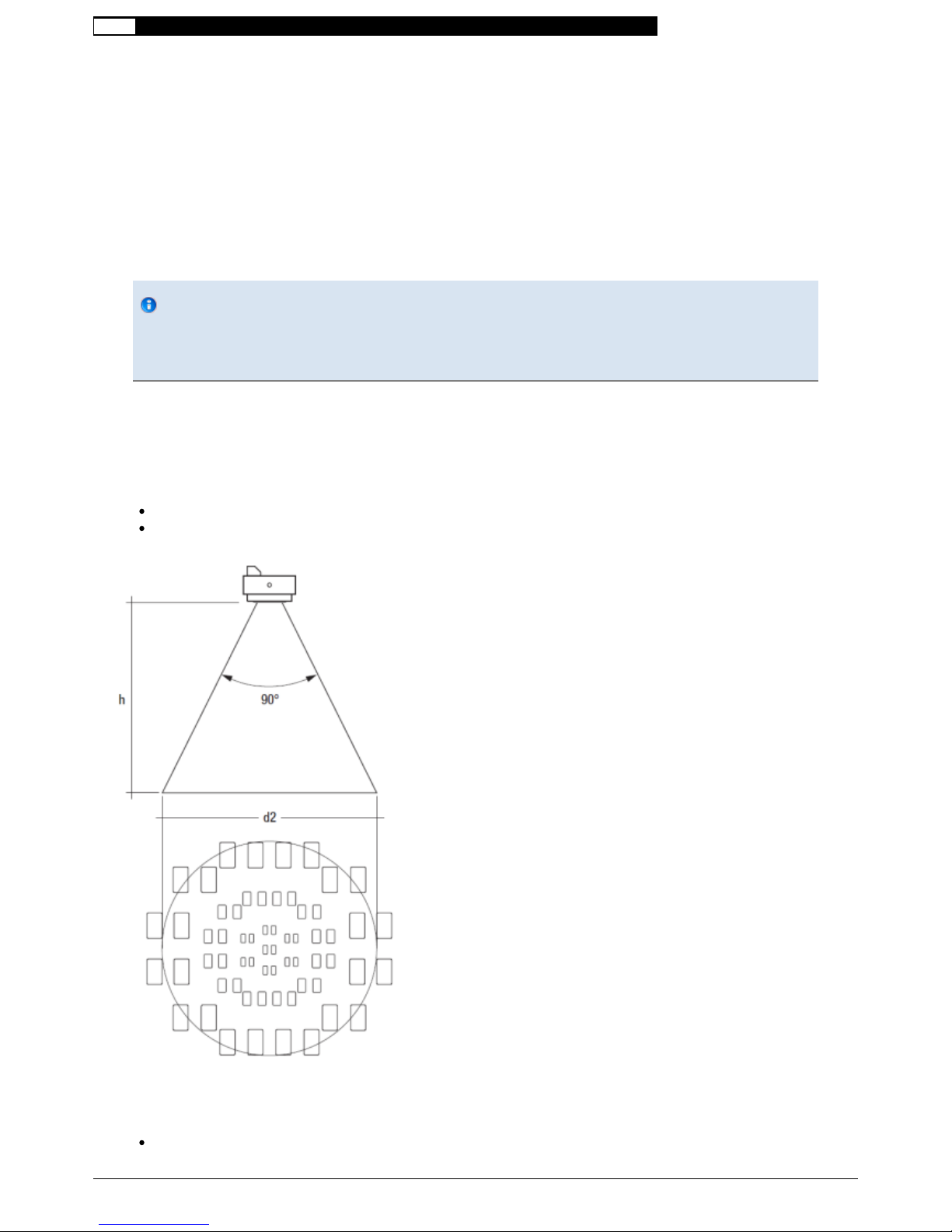

Detection area of the motion sensor

The detection area of the motion sensor consists of a pattern of various measurement fields. The following conditions must be met in order for an object to be detected reliably:

The object must move from one measurement field to another The temperature of the object must be different from the background temperature

The diameter of the detection area depends on the detection angle of the sensor and the height at which it is mounted. The mounting height also has an effect on the sensor's accuracy. The position and mounting height produce two different detection areas:

in the centre of the detection area, the sensor operates as a presence detector, i.e. objects are detected merely by

Page 18

Presence control

Documentation DALI MSensor 02 | 02-2012 | en - 18 / 38 -

arm movements, etc. and do not need to move through the room. (This applies up to a maximum height of 3 m) Throughout the entire detection area, the sensor operates as a motion sensor, i.e. objects are detected when they move through the room

Calculating the diameter:

d2 = 2 × tan(0.5 × 90°) × h

Typical example values of detection area:

Height h Ø d2

2.0 m 4 m

2.5 m 5 m

3.0 m 6 m

3.5 m 7 m

4.0 m 8 m

Notice

The recommended maximum room height is 3 m for office applications and 4 m for corridor applications. For presence detection, it is vital that arm movements, etc. can be detected.Position the sensor on the ceiling so that the room user's hands are located in the centre of the detection area and are not concealed by display screens, backs, etc.

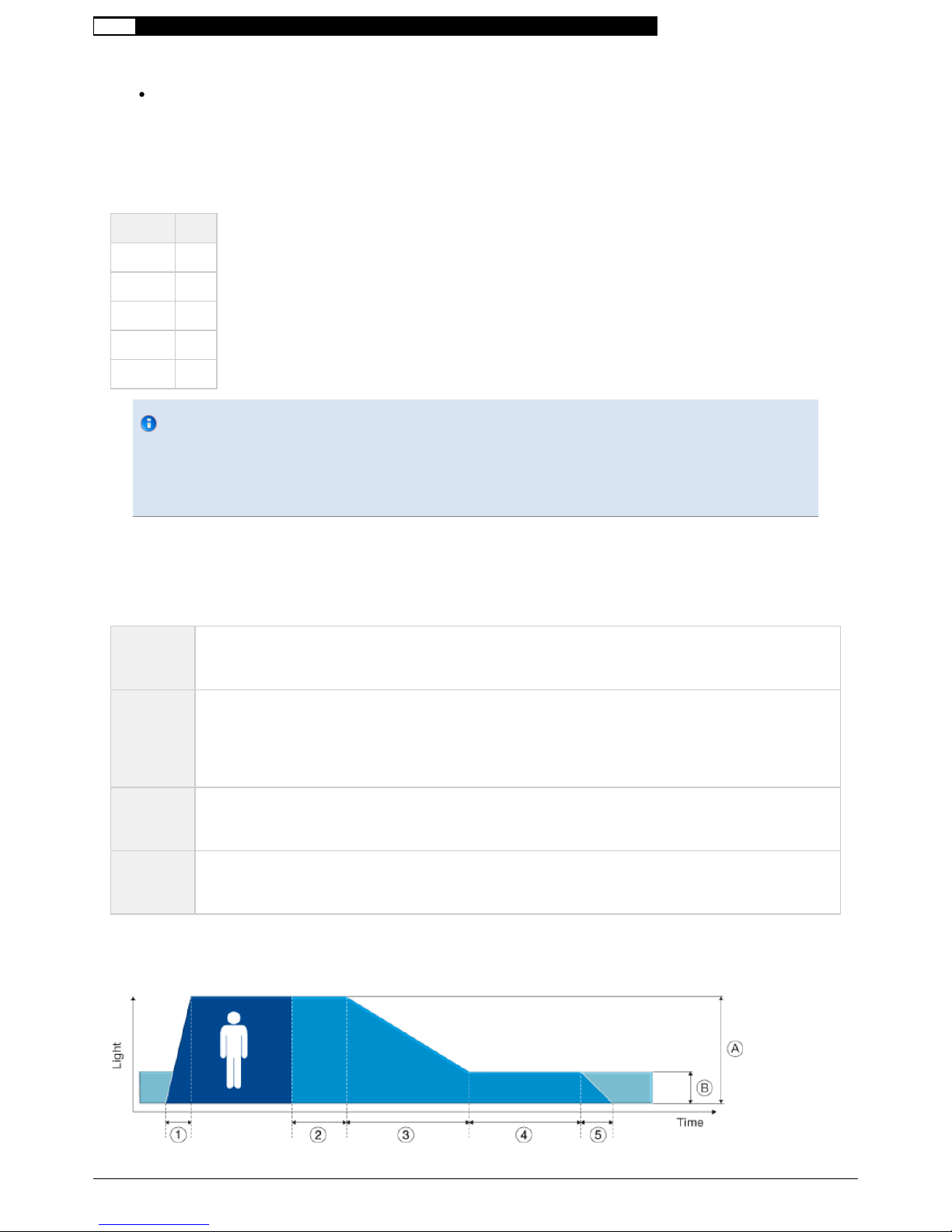

Operating modes

The motion sensor has four different operating modes.

Operating mode: "enabled"

The light is switched on or off automatically in response to the presence of a person.

Operating mode: "enabled (only OFF)"

The sensor switches off if there is no motion detected in the detection area, but does not switch on again even if motion is detected. Switch-on must be obtained through a manual switch-on command (e.g. using DALI RC). The manual switch-on command (e.g. scene recall) must either be directed at the luminaire group or to all devices (broadcast) in order for presence-based control to be activated. The DALI MSensor 02 ignores switch-on commands sent to other groups.

Operating mode: "disabled"

The motion sensor is deactivated. The light must be switched on and off manually.

Operating mode: "Never-Off"

After no motion has been detected and the delay time has elapsed, the sensor dims to a low light value (absence value) but does not switch off.

Profiles

Page 19

Presence control

Documentation DALI MSensor 02 | 02-2012 | en - 19 / 38 -

Fade-in time

The time needed to reach the presence value.

Presence value

The value that the luminaire group assumes while a person is present in the room.

run-on time

The time that starts to run after the last motion is detected in a room and after which, when it elapses, the fade-down time is started. If another movement is detected in the room during the delay time, the delay time is restarted.

Fade time

Time in which the lighting is faded down to the absence value.

Switch-off delay

The time for which the absence value is maintained if no motion is detected.

Absence value

The value that the luminaire group assumes during the switch-off delay.

Fade-off time

The time needed to dim down from the absence value.

Notice

If the motion sensor is switched off manually during operation, it is temporarily deactivated. The duration of deactivation depends on the value of the "Dead time (manual OFF)" parameter. If the sensor detects motion during the time lag, it restarts the time lag afresh. The motion sensor is reactivated when the time lag has elapsed.

Commissioning

Setting the operating mode

The individual operating modes can be set in the masterCONFIGURATOR software (V2.02 or later) (see chapter "Source

).directory", page 35

Setting the profile

The individual profiles can be set in the masterCONFIGURATOR software (V2.02 or later) (see chapter "Source directory",

).page 35

Setting the "Dead time (manual OFF)"

The value of "Dead time (manual OFF)" can be set in the masterCONFIGURATOR software (V2.02 or later) (see chapter

"Source directory", page 35

Enhanced functionality

DALI MSensors 02 of different DALI groups can synchronise their motion detection, i.e. a DALI MSensor 02 can monitor other DALI groups with DALI MSensors 02 and respond appropriately to the "Motion detected" synchronisation command in another group. A DALI MSensor 02 can monitor up to 4 other DALI groups.

The following parameters can be adjusted:

Go to Presence value

The "Motion detected" synchronisation command is interpreted in the same way as if the actual sensor detected motion.

Page 20

Presence control

Documentation DALI MSensor 02 | 02-2012 | en - 20 / 38 -

Go to Absence value

The "Motion detected" synchronisation command causes the DALI MSensor 02 to maintain the absence value. If the sensor is already at the absence value, it keeps resetting the switch-off delay and remains at that value. If the sensor is in the "OFF" state, it switches to the absence value. If the sensor is at the absence value, the synchronisation command is ignored.

MASK

The DALI MSensor 02 ignores the "Motion detected" synchronisation command of the other group (factory setting).

Notice

In the operating mode: "enabled (only OFF)", the DALI MSensor 02 does not send synchronisation commands until the sensor has been activated by a manual switch-on command. In the operating mode: "enabled (only OFF)", the DALI MSensor 02 does not respond to synchronisation commands until the sensor has been activated by a manual switch-on command.

...

Page 21

Remote control

Documentation DALI MSensor 02 | 02-2012 | en - 21 / 38 -

Remote control

Description

The DALI MSensor 02 can be operated with two remote controls:

IR SMART Controller DALI RC

IR SMART Controller

The IR SMART Controller is used to operate the assigned luminaire group in the DALI system. This remote control offers the following functions:

Switching luminaire group on/off Dimming luminaire group up/down Activation of light control Definition of the brightness setpoint value

A IR sender E OFF – Luminaire group OFF

B AUTOMATIC control mode ON/OFF F UP – Increase light value

C SET – Saves the current light control value G DOWN – Reduce light value

D ON – Luminaire group ON

Page 22

Remote control

Documentation DALI MSensor 02 | 02-2012 | en - 22 / 38 -

DALI RC

The DALI RC offers the following functions:

Switching all the luminaires or the selected group on/off Dimming all the luminaires or the selected group up/down Activation of light control Calling up two scenes Definition of the brightness setpoint value

In order to ensure that the remote control can be used straight away without any complicated set-up procedure, the buttons are pre-programmed with a default setting. The button assignment in User mode is as follows:

A IR sender

B LED - status display I Switch all luminaires in the DALI system ON or OFF

C Light value 100 % brightness J Increase or reduce the light value (dimming the DALI system)

D Light value 50 % brightness K AUTOMATIC control mode ON

E Light value 25 % brightness L Call up scene 2

F Light value 12 % brightness H Call up scene 1

G Light value 6 % brightness

Page 23

Remote control

Documentation DALI MSensor 02 | 02-2012 | en - 23 / 38 -

Commissioning

Changing the button assignment (DALI RC only)

The assignment of the DALI RC's buttons can be modified in the masterCONFIGURATOR software (V2.02 or later) (see

).chapter "Source directory", page 35

Setting the effective range (group assignment)

IR SMART Controller

The effective range of the IR SMART Controller is the luminaire group that is set on the DALI MSensor 02. This setting is made via the DALI MSensor 02 ( ).see chapter "Commissioning and settings", page 10

DALI RC

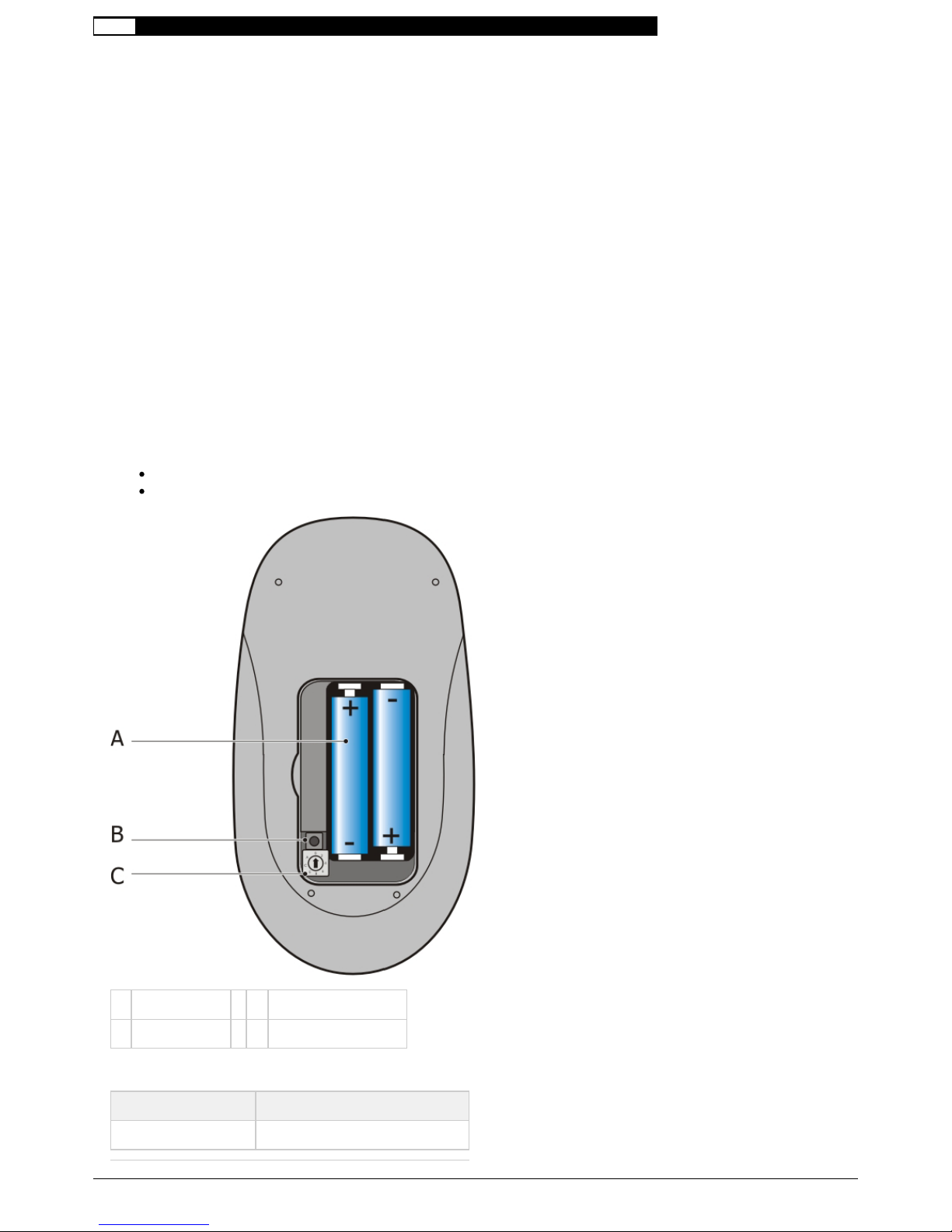

The rotary switch in the battery compartment of the remote control is used for setting the group to be controlled by the remote control:

Position 0 means that the commands apply to all the control gear Positions 1-15 mean that the commands apply only to the corresponding group

A Battery C Rotary switch [Group]

B [Modes] button

Assignment of rotary switch setting to effective range

Rotary switch setting Effective range (group) DALI RC

0 All (broadcast)

Page 24

Remote control

Documentation DALI MSensor 02 | 02-2012 | en - 24 / 38 -

1 0

2 1

3...9 2...8

A...F 9...14

Notice

If the masterCONFIGURATOR software is used to customise the button assignments, the rotary switch in the battery compartment of the remote control is disabled. The commands will then only apply to the luminaire group selected on the DALI MSensor 02.

...

Page 25

Special DALI settings

Documentation DALI MSensor 02 | 02-2012 | en - 25 / 38 -

Special DALI settings

DALI concept

The behaviour of control devices is not currently described in the DALI standard. This is why the DALI MSensor 02 responds to some DALI commands in a special manner, as defined by Tridonic. This ensures that the DALI MSensor 02 can be optimally combined with other products in the comfortDIM product range.

Please pay attention to notes concerning DALI commands ( ) !see chapter "Reaction to DALI commands", page 25 When used in combination with other manufacturers' controllers: please check compatibility!

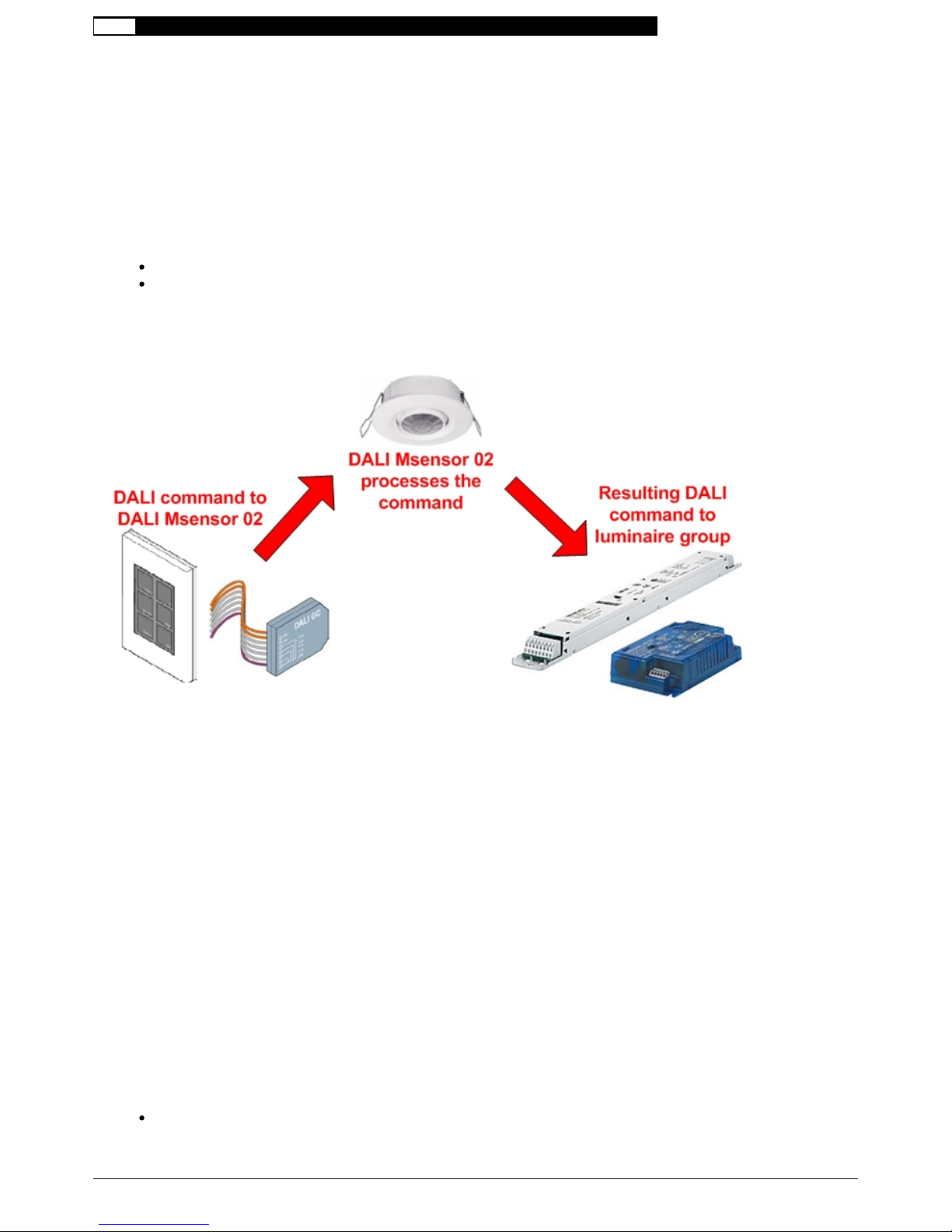

The DALI MSensor 02 is designed so that it can be combined with other DALI controllers. This is why the sensor responds to some DALI commands in a different way than that specified in the official DALI standard. This ensures that other DALI controllers, e.g. the DALI SC or x-touchPanel, can be used to affect light control.

Like DALI control gear, the DALI MSensor 02 reacts to commands that are sent to it, i.e. commands sent to its DALI address, DALI group (luminaire group), or to broadcast commands.

Reaction to DALI commands

The DALI MSensor 02 sometimes distinguishes whether commands are sent to its DALI address or to its DALI group or whether commands are broadcast commands. This chapter deals with the most important commands for communicating with other controllers and confines itself to broadcast or group commands. A detailed overview of supported DALI commands sent to a DALI address can be found in the annex ( ).see chapter "Commands to DALI address", page 37

Direct setpoint invocation (DALI "Direct Arc Power x" command)

In the case of direct setpoint invocation, a distinction must be made between setpoint commands greater than 0% and setpoint commands equal to 0%. Setpoint commands greater than 0% act as a switch-on command. The following behaviour applies for these:

Constant light control:

Setpoint is invoked, light control is temporarily disabled.

Page 26

Special DALI settings

Documentation DALI MSensor 02 | 02-2012 | en - 26 / 38 -

Presence control:

In switched-off state: presence detector is activated and changes to "Presence" state. In switched-on state: presence detector changes to "Presence" state, delay time is restarted.

Switch off (DALI "OFF" command or "Direct Arc Power 0")

In the case of direct setpoint invocation, a distinction must be made between setpoint commands greater than 0% and setpoint commands equal to 0%. Setpoint commands equal to 0% act as a switch-off command. The specific DALI "OFF" command also acts as a switch-off command. The following behaviour applies for both variants:

Constant light control:

Luminaire group is switched off.

Presence control:

Presence detector changes to "Time lag (manual OFF)" state.

Switch on at maximum value (DALI "Recall Max" command)

Constant light control:

This behaviour can be adjusted in the masterCONFIGURATOR configuration software:

The maximum value of the control gear is invoked, light control is temporarily disabled or The maximum value of the control gear is invoked, light control is activated.

Presence control:

In switched-off state: presence detector is activated and changes to "Presence" state. In switched-on state: presence detector changes to "Presence" state, delay time is restarted.

Recall scene (DALI "Recall Scene x" command)

This behaviour can be adjusted in the masterCONFIGURATOR configuration software:

automatic

Constant light control:

Light control is activated

Presence-based control:

In switched-off state: presence detector is activated and changes to "Presence" state. In switched-on state: presence detector changes to "Presence" state, delay time is restarted.

static

Constant light control:

Light control is temporarily deactivated

Page 27

Special DALI settings

Documentation DALI MSensor 02 | 02-2012 | en - 27 / 38 -

Presence-based control:

In switched-off state: presence detector is activated and changes to "Presence" state. In switched-on state: presence detector changes to "Presence" state, delay time is restarted.

off

Constant light control:

Luminaire group is switched off.

Presence-based control:

Presence detector changes to "Time lag (manual OFF)" state.

MASK

The DALI MSensor 02 does not react to scene recall and remains in its current state

Notice

Scene recalls are sent both to the DALI MSensor 02 and to the ballasts of the luminaire group. This may result in contradictory responses! To prevent this, proceed as follows:

In the ballast, select the "MASK" setting if one of the three "automatic", "off" or "MASK" settings has been selected in the DALI MSensor 02.

Dimming (DALI "Up" or "Down" command)

Constant light control:

This behaviour can be adjusted in the masterCONFIGURATOR configuration software:

Luminaire group is dimmed, light control is temporarily deactivated or Luminaire group is dimmed. The brightness value measured after dimming is accepted as the new temporary brightness setpoint for constant light control. At the next switch-on, constant light control is reset to the previously stored brightness setpoint.

Presence control:

In switched-off state: the presence detector ignores the command and remains in the "off" state. In switched-on state: the presence detector remains in its respective state, the motion sensor profile continues.

Implementation of DALI commands in other comfortDIM controllers

If the DALI MSensor 02 is combined with other comfortDIM controllers in a DALI circuit, its behaviour can be influenced by the above-mentioned DALI commands. The following matrix lists those commands that are output by a particular device.

DALI command or device type

Direct setpoint invocation ("Direct Arc Power x")

Switch on at maximum value ("Recall Max")

Switch off ("OFF" or "Direct Arc Power 0")

Recall scene ("Recall Scene x")

Dimming ("Up" or "Down")

DALI GC

- + + - +

DALI SC

- - - + -

Page 28

Special DALI settings

Documentation DALI MSensor 02 | 02-2012 | en - 28 / 38 -

DALI MC

+ + + + +

DALI TOUCHPANEL

+ + + + +

DALI x-touchBOX/PANEL

+ + + + +

Notice

In the case of the DALI MC and DALI TOUCHPANEL controllers, the DALI commands that are used can be modified in the masterCONFIGURATOR software. The particular DALI command that is invoked then depends on the settings. Scene recalls using the DALI SC, DALI TOUCHPANEL (factory setting), x-touchBOX or x-touchPANEL are sent to all devices, this means that all DALI MSensors 02 with appropriate parametrisation respond to them!

...

Page 29

Extended functionality

Documentation DALI MSensor 02 | 02-2012 | en - 29 / 38 -

Enhanced functionality

Besides Direct master mode, the DALI MSensor 02 also supports two further modes for use in combination with a higher-level DALI master controller:

Indirect master mode Slave mode

Ex factory, the DALI MSensor 02 is in Direct master mode. The sensor can be switched to the desired mode by using the master controller itself or by using the masterCONFIGURATOR software.

Notice

If used in conjunction with an external system note the following:

Make sure that the DALI MSensor 02 is compatibel with the external system Make sure that the producer of the external system has conferred the right to use the DALI MSensor in conjunction with their own product

Indirect master mode

In Indirect master mode, the DALI MSensor 02 does not send any active control commands to the luminaires; it sends the measured light value, presence detection status and remote control status to a higher-level master. The master controller analyses this information and sends the corresponding control commands to the luminaires.

eDALI is used to communicate with the master. eDALI is Tridonic GmbH & Co KG's proprietary extension of the DALI standard.

Slave mode

In Slave mode, the DALI MSensor 02 do not send any active control commands to the luminaires; it has to be interrogated by a higher-level control system (master).

As in Direct master mode, the DALI MSensor 02 is given a DALI address during addressing. The brightness currently measured by the sensor and the status of the presence detector can be interrogated via this DALI address by using the "QUERY ACTUAL LEVEL" DALI request. A detailed listing and explanation of the supported DALI commands can be found in the annex ( ).see chapter "Reaction to DALI commands sent to the DALI address", page 37

Notice

The remote control is inoperative in Slave mode. The rotary switch at the rear of the DALI MSensor 02 is inoperative in Slave mode.

...

Page 30

Practical examples

Documentation DALI MSensor 02 | 02-2012 | en - 30 / 38 -

Practical examples

Individual office rooms

Requirements

Switch on and switch off by means of momentary-action switch Switch off by means of motion sensor Ambient light control of illuminance

Grouping/configuration:

Room A Room B

MSensor

Group 0 (switch position 1) Configuration: Scene 0: Automatic control

Group 1 (switch position 2) Configuration: Scene 1: Automatic control

DALI MC

The DALI MC is used to switch on light control and to switch off the lighting

Activation of light control with scene recall Switch off with OFF

Configuration of input 1: Target: Group 0 Function: Momentary-action switch Command X: Recall scene 0

Configuration of input 2: Target: Group 0 Function: Momentary-action switch Command X: OFF

The DALI MC is used to switch on light control and to switch off the lighting

Activation of light control with scene recall Switch off with OFF

Configuration of input 1: Target: Group 1 Function: Momentary-action switch Command X: Recall scene 1

Configuration of input 2: Target: Group 1 Function: Momentary-action switch Command X: OFF

Page 31

Practical examples

Documentation DALI MSensor 02 | 02-2012 | en - 31 / 38 -

Corridor

Requirements

Switch on and switch off using motion sensor Ambient light control of illuminance Corridor and staircase are separately controlled

Grouping:

Corridor Staircase

MSensor

Group 0 (switch position 1) Group 1 (switch position 2)

Notice

In order to enlarge the presence detection area, several DALI MSensors 02 are installed in the corridor. All these sensors must be assigned to the same luminaire group. If there are multiple DALI MSensors 02 in a group, light control behaves as follows:

the light value is raised until it is no longer less than the setpoint value at any of the sensors.

...

Page 32

Practical examples

Documentation DALI MSensor 02 | 02-2012 | en - 32 / 38 -

Presence synchronisation for corridor with office rooms

Requirements

Switch on and switch off using motion sensor Ambient light control of illuminance Lighting in the corridor must remain at a basic lighting level (10%) as long as at least one office is occupied. The lighting must only be switched off entirely when no office is occupied and there is nobody in the corridor.

Grouping/configuration:

Office A Office B Corridor

MSensor

Group 0 (switch position 1)

Group 1 (switch position 2)

Group 6 (switch position 7)

Configuration Reaction to presence in other groups:

Group: 0 and 1 Function: Go to Absence value

...

Page 33

Disposal

Documentation DALI MSensor 02 | 02-2012 | en - 33 / 38 -

Disposal

For disposal in accordance with the WEEE Directive:

Return the device to Tridonic or dispose of the device in accordance with national regulations. Do not dispose of the device in nonrecyclable waste. Do not burn the device.

...

Page 34

Compliance

Documentation DALI MSensor 02 | 02-2012 | en - 34 / 38 -

Compliance

CE conformity

Tridonic declares that the DALI MSensor 02 product complies with the relevant EC directives.

EMC standards

The compliance declaration for the ballast allows the manufacturer to assume that with the exception of radio interference all the EMC requirements are met also for the luminaire. Radio interference is heavily dependent on the design of the luminaire and the wiring so it has to be measured in conjunction with the luminaire.

The limit values for EMC are given in the following standards:

EN 55015 (Limit values and measuring procedures for radio interference) EN 61547 (EMC requirements)

With the CE symbol on its products and with the compliance declaration, Tridonic confirms that its products comply with EMC standards.

...

Page 35

Reference list

Documentation DALI MSensor 02 | 02-2012 | en - 35 / 38 -

Reference list
