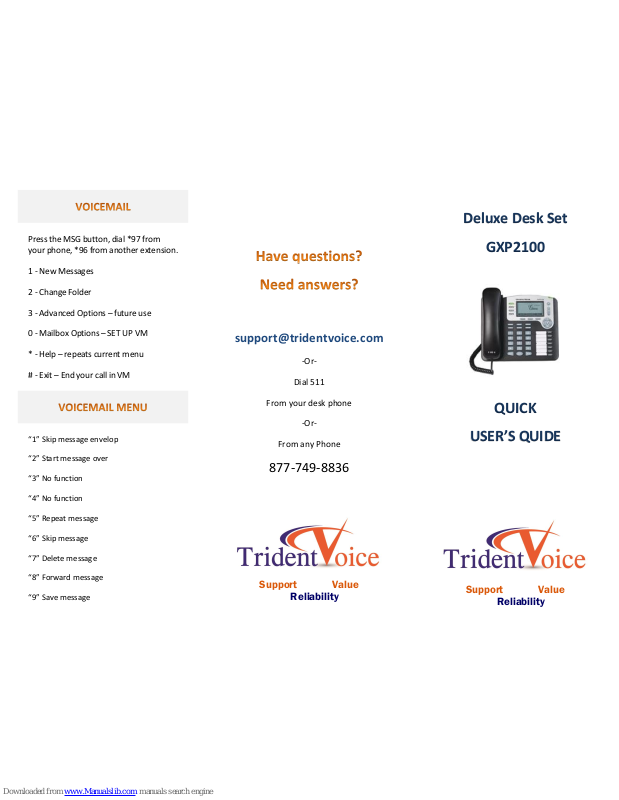

Trident Voice GXP2100 Quick User Quide

Press the MSG button, dial *97 from
your phone, *96 from another extension.

1 - New Messages

2 - Change Folder

3 - Advanced Options – future use

0 - Mailbox Options – SET UP VM

* - Help – repeats current menu

# - Exit – End your call in VM

“1” Skip message envelop

“2” Start message over

“3” No function

“4” No function

“5” Repeat message

“6” Skip message

“7” Delete message

“8” Forward message

“9” Save message

[e-mail]

-Or-

Dial 511

From your desk phone

-Or-

From any Phone

877-749-8836

Support Value

Reliability

Deluxe Desk Set

GXP2100

QUICK

USER’S QUIDE



Support Value

Reliability

DIAL: Take Handset/SPEAKER off-hook,
enter phone number, press SEND key.

REDIAL: Take Handset/SPEAKER off­hook, then press SEND button.

CALL HISTORY: Press MENU, select Call
History then “Received Calls, Missed Calls
or Dialed Calls, select phone number
using arrow keys, press OK. Press OK
again to dial the selected phone number.

RECEVING CALLS: Take handset off­hook, press SPEAKER or LINE button.

MULTIPLE CALLS: Answer incoming calls
by pressing the corresponding LINE
button, active call will be put on hold.

SET UP: Press the FORWARD ALL soft
key on the bottom of the display and
follow prompting.

CANCELLING: Press the CANCEL
FORWARD soft key on the bottom of the
display and follow the prompting.

HOLD: Press the HOLD button, line will
begin blinking.

RESUME: Press blinking LINE button.

MUTE: While on a call, press the MUTE

button to disable/enable the microphone.

BLIND TRANSFER: Press the TRANSFER
button, dial the number and press the
SEND button to complete transfer of
active call.

SUPERVISED TRANSFER: Press another
LINE button, dial number, press SEND,
next press the TRANSER button and the
original LINE button to transfer.

CALL PARK: Press another LINE button,
dial “700” and press SEND, listen for slot
701-709, press TRANSFER button and the
original LINE button.

CALL PARK PICK-UP: Dial “7XX” and
press SEND.

DO NOT DISTURB (DND): When phone
is ringing, if you do not wish to take a
call, press the DND button, which
instantly sends the call to voicemail.

INITIATE: Place first call on HOLD, press
another LINE button, dial number, next
press CONF and the LINE button that is
blinking to join, repeat for 3rd party.

END: Press HOLD, this will break
conference call and put both parties on
hold; select specific blinking LINE button
to speak to individual.

FOR ALL CALLS: When phone is idle,
press the MENU button and scroll down
to “Preference”, press the MENU button
to select. Scroll down to “Enable DND”
and press the MENU button to select.

The phone will not ring and sends calls to
voicemail. Your display will show the
DND icon.

DEACTIVATE: Select “Disable DND” on
display.
