OPERATING & INSTALLATION
INSTRUCTIONS
132993190
WASHER-DRYER
WDR 1040 W
WDR 1240 W
Important Safety Information
It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move
house and leave the appliance, always ensure that the book is supplied with the appliance in
order that the new owner can get to know the functioning of the appliance and the relevant
warnings.
These warnings have been provided in the interest of safety. You MUST read them carefully
before installing or using the appliance.
Installation
●
This appliance is heavy. Care should be taken when
moving it.
●
It is dangerous to alter the specifications or attempt
to modify this product in any way.
●
All packing and transit bolts must be removed before
use. Serious damage can occur to the product and to
property if this is not adhered to. See relevant section
in instructions.
●
Any plumbing work required to install this appliance
should be carried out by a qualified plumber or
competent person.
●
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
●
Care must be taken to ensure that the appliance does
not stand on the electrical supply cable.
●
If the machine is situated on a carpeted floor, please
adjust the feet in order to allow air to circulate freely.
Child Safety
●
This appliance is designed to be operated by adults.
Children should not be allowed to tamper with the
controls or play with the product.
●
Pets and children have been known to climb into
washer-dryers. Please check your drum before use.
●
The glass door becomes very hot during the washing
and drying cycle. Keep children away from the
vicinity of the appliance whilst it is in operation.
Keep all packaging well away from children.
●
Keep all detergents in a safe place out of children’s
●
reach.
Use
●
Always unplug the appliance and turn off the water
supply after use.
●
Do not overload the appliance. See relevant section
in the instruction book.
●
Only wash and dry fabrics which are designed to be
machine washed and dried. If in doubt, consult the
care label on the clothes.
●
Before washing, ensure that all pockets are empty
and buttons and zips are fastened. Avoid washing
frayed or torn articles and treat stains such as paint,
ink, rust, and grass before washing. Underwired bras
must NOT be machine washed.
●
Any objects such as coins, safety pins, nails, screws,
stones or any other hard, sharp material can cause
extensive damage and must not be placed into the
machine.
●
Garments which have been in contact with volatile
petroleum products should not be machine washed.
If volatile cleaning fluids are used, care should be
taken to ensure that the fluid is removed from the
garment before placing in the machine.
●
Wash small items such as socks, laces, washable
belts etc in a washing bag or pillow case as it is
possible for such items to slip down between the tub
and the inner drum.
●
Only use the advised quantities of fabric softener.
Damage to the fabric can ensue if you over-fill.
Refer to the manufacturer’s recommendations of
quantities.
●
As some duvets and eiderdowns should be
washed/dried in large commercial machines because
of their bulk, please check with the manufacturer of
the item before washing in a domestic machine.
●
The users should always check that they have not
left their gas lighters (disposable or otherwise) in
their clothing.
●
Never tumble dry items that have had contact with
chemicals such as dry cleaning fluid.These are of a
volatile nature and could cause an explosion.
Only tumble dry items which have been washed in
water or require airing.
●
Plastic detergent dispensers should not remain in the
drum during the drying cycle, as the plastic used is
not designed to withstand the heat. If you wish to
wash-through-to-dry you should use the
conventional detergent dispenser drawer.
●
Leave the porthole door slightly ajar between washes
to preserve the door seal.
●
Under no circumstances should you attempt to repair
the machine yourself. Repairs carried out by
inexperienced persons may cause injury or serious
malfunctioning. Contact your local Tricity Bendix
Service Force Centre. Always insist on genuine
Tricity Bendix spare parts.
2
Contents
For the User
Important Safety Information
Your New Washer-Dryer
Description of the Appliance
Detergent dispenser drawer 5
The Control Panel
Operating sequence
Washing 4.5 kg of white cotton at 95°C 7
Load the laundry 7
Measure out the detergent 7
Measure out the fabric softener 7
Select the required programme 7
Start the machine 7
At the end of the programme 8
Washing 2 kg of mixed fabrics at 50°C 9
Load the laundry 9
Measure out the detergent 9
Measure out the fabric softener 9
Select the programme 9
Start the machine 9
At the end of the programme 9
Drying 2.25 kg of cotton 10
Load the laundry 10
Select the programme 10
Select the required time 10
Start the machine 10
At the end of the programme 10
Autodrying 1 kg of mixed fabrics 11
Load the laundry 11
Add the washing powder and additive 11
Select the programme 11
Select the required time 11
Start the machine 11
At the end of the programme 11
7-11

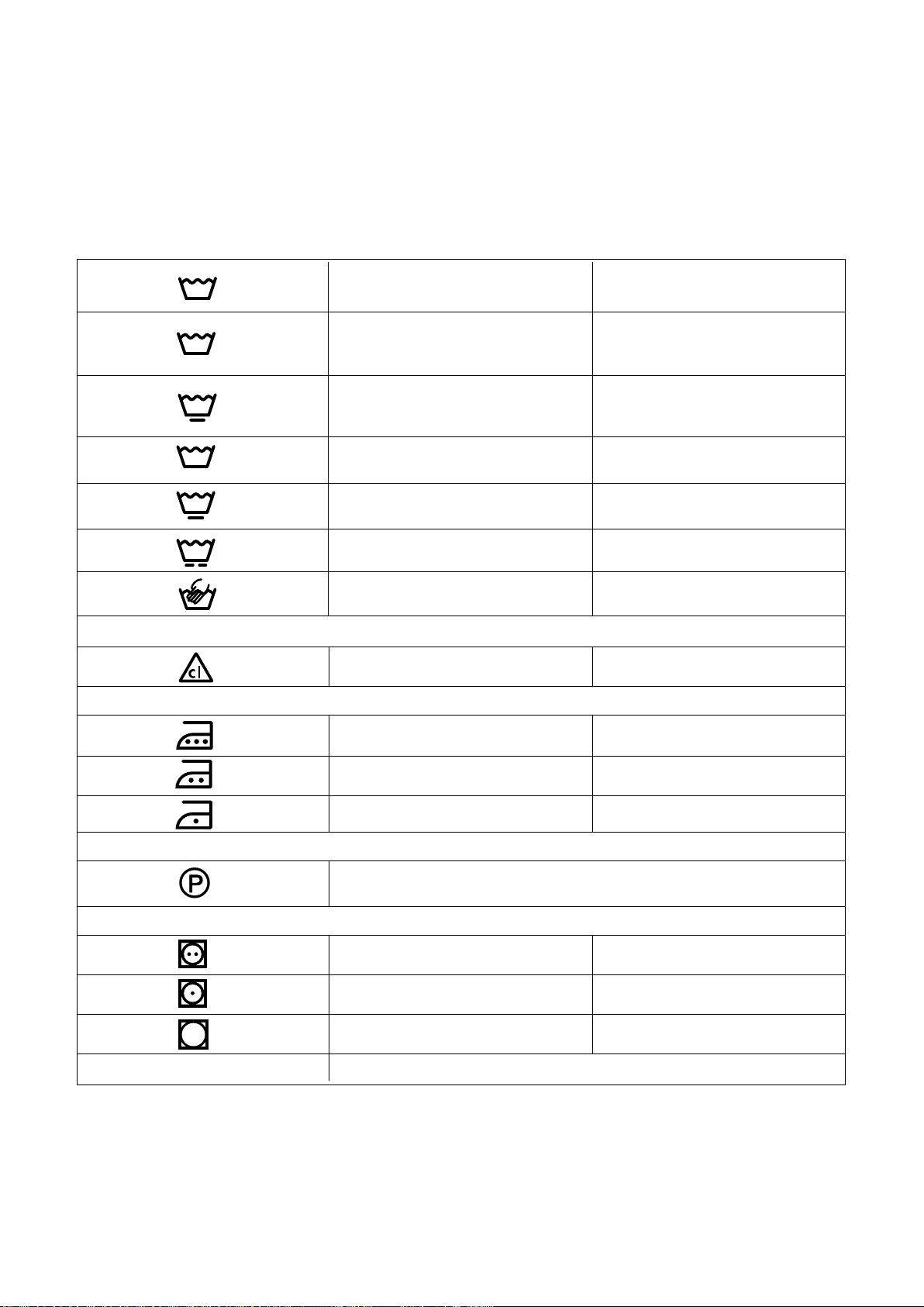

Wash Care Symbols
Washing Programmes
2
Drying Programmes
4
Maintenance and Cleaning
5
Descaling 18
After each wash 18
6
Maintenance wash 18
External cleaning 18
Cleaning the dispenser drawer 18
Cleaning the drawer recess 18
Cleaning the filter 18-19
The dangers of freezing 19
Something Not Working
Service and Spare Parts
Guarantee Conditions
For the Installer
Installation Instructions
Technical Specifications
Unpacking 24
Positioning 24
Water inlet 25
Water drainage 25-26
Levelling 26
Special conditions 26
In the interest of the environment 26
Electrical connection 27
14
15-16
17
18-19
20-21
21
22
23
23
Washing and Drying Hints
Which detergent to use?.... 13
And in which form? 13
Fabric Conditioners 13
12
Guide to use the Instruction Book
The following symbols will be found in the text to guide you throughout the instructions:
Safety instructions
Hints and tips
Environmental information
3
Your New Washer-Dryer
Your new washer-dryer meets all modern requirements for effective treatment of laundry with
low water, energy and detergent consumption.
It is gentle with your laundry, simple to use and easy to care for.
●
The special wool programme with its new delicate
wash system treats your woollens with extreme care.
●
The anti-unbalance device ensures that the
machine remains stable when spinning.
●
Automatic cooling of the wash water to 60°C
before draining, with the 95°C programme. This
reduces thermal shock to fabrics, helping to prevent
creasing.
●
The two drying programmes will give your wash
that soft, relaxed feel whatever the weather.
Ecological hints
To save water and energy and help protect the
environment, we recommend that you follow these
hints:
●
Adjust the quantity of detergent according to the
hardness of your water supply, the amount of
laundry and the degree of soiling.
●
A programme without prewash is sufficient for
normally soiled laundry.
●
Try to load the maximum washing and drying
capacity of the machine as small loads are
uneconomical.
●
Always load well spun laundry. The higher the spin
speed, the lower the electricity consumption and the
shorter the drying times.
In the interest
of the environment
●
Materials marked with the symbol are
recyclable.
●
Check with your local Council or Environmental
Health Office to see if there are facilities in your area
for re-cycling this appliance.
●
When the appliance is to be scrapped, cut off the
power supply cable and make the door lock device
unusable to prevent young children from being
trapped inside.
●
Help to keep your country tidy - use authorised
disposal sites for your old appliance.
How do we help to protect the environment?
We use recycled paper!
Important
Your machine is fitted with a balance control device, which ensures the machine is stable during the spin.
If the wash load appears not to have been spun sufficiently at the end of the wash cycle, because it is not evenly
distributed in the drum, the balance control device may have operated. It will therefore be necessary to redistribute the
wash load manually and select a spin programme. For more detailed information see the section headed "Something
Not Working".
4
Description of the Appliance
1
9
7643
2
10
11
8
5
M
A
IN
S
O
N
D
R
YIN
G
T
IM
E
P
R
O
G
RA
M
M
E
W
D
R 10
40
W
H
A
LF
LO
A
D
CO
T
TO
N
S
- L
IN
E
N
S
W
H
ITE
S w
ith
P
R
EW
A
SH
95
°
1
W
H
IT
ES
95
°
2
F
AS
T C
O
LO
U
R
S
6
0
°
3
N
O
N
F
AS
T C
O
LO
U
R
S
4
0
°
4
L
on
g sp
in
5
FU
LL
H
E
AT
D
R
Y
IN
G
6
10
00 rpm
D
EL
IC
A
TE
F
AB
R
IC
S
W
O
O
L
4
0°
13
D
E
LICA
T
ES
40
°
14
R
ins
es
15
Dra
in
1
6
S
YN
T
H
ET
IC
S
M
IX
ED
FA
BR
IC
S
5
0°
7
Q
UIC
K
A
N
D
C
O
O
L
3
0
°
8
Rin
se
s
9
C
o
nd
ition
e
r rin
se
10
Sh
o
rt s
pin
1
1
H
A
LF H
EA
T
D
R
YIN
G
12
R
EV
E
RS
E A
C
T
IO
N
W
A
S
HE
R
D
R
YE
R
C0026
1 Detergent dispenser drawer
2 Programme guide
3 Drying indicator Light
4 Drying Time Selector Dial
5 ON/OFF Button
6 Half Load Button
7 “Mains-on” Light
8 Programme Selector Dial
9 Door opening handle
10 Filter
11 Adjustable feet
Detergent dispenser drawer
Prewash
Main wash
Fabric softener
5
The Control Panel
1
23
45
6
7
MAINS ON
DRYING TIME
PROGRAMME
WDR 1040 W
HALF
LOAD
COTTONS - LINENS
WHITES with PREWASH 95°
1
WHITES 95°
2
FAST COLOURS 60°
3
NON FAST COLOURS 40°
4
Long spin
5
FULL HEAT DRYING 6
1000 rpm
DELICATE FABRICS
WOOL 40°
13
DELICATES
40°
14
Rinses
15
Drain
16
SYNTHETICS
MIXED FABRICS 50°
7
QUICK AND COOL 30°
8
Rinses
9
Conditioner rinse
10
Short spin
11
HALF HEAT DRYING 12
REVERSE ACTION
WASHER DRYER
1 Programme guide
2 Drying indicator Light
This light illuminates when the machine is drying.
3 Drying time Selector Dial
Graduated up to 120 mins for cottons (black section)
and synthetics (red section), this dial allows you to
select the desired drying time according to the type and
quantity of laundry and the required degree of dryness.
Turn the dial clockwise only.
Cooling phase
To allow the laundry to cool down, a cooling phase
starts automatically 10 minutes before the end of drying
and this phase must in no circumstances be reduced or
interrupted.
4 On/Off Button
By depressing this button the machine starts operating.
When depressed again, the machine stops.
5 HALF LOAD Button
Select this button to reduce water consumption on the
rinse cycle when washing a smaller load of cottons or
linens (maximum load size = 2.25 kg).
6 MAINS-ON Light
This light illuminates when the machine starts working
and goes out when the ON/OFF button is released.
7 Programme Selector Dial
Turn the dial clockwise to select the required wash and
drying programme.
Before setting the dial to any position the machine must
be switched off by depressing the ON/OFF button
again.
6
Operating Sequence
C0025
P0004
T0003
P1006S
2
C0024
Before the first wash, we recommend that you run a
cotton cycle at 60°C, without any laundry in the
machine, to remove any manufacturing residue from the
drum and tub.
Pour 1/2 a measure of detergent into the main wash
compartment of the dispenser drawer and start the
machine.
WASHING 4.5 KG OF WHITE COTTON AT 95°C
Suppose you have 4.5 kg of normally soiled laundry to
wash. It is white cotton and is suitable for high
temperature washing.
1. Load the laundry
Open the door by pulling the door handle outwards.
Place the laundry in the drum, one item at a time,
shaking them out as much as possible. Close the door.
3. Measure out the fabric
softener
If required, pour fabric softener into the compartment
marked (the amount used must not exceed the
“MAX” mark in the drawer).
Close the drawer gently.
4. Select the required programme
Turn the programme selector dial clockwise to the
programme 2 or 1 (if you wish to perform a prewash).
2. Measure out the detergent
Pull out the dispenser drawer until it stops.
Measure out the amount of detergent required and pour
it into the main wash compartment
If you wish to carry out the prewash, pour detergent into
the compartment marked .
.
5. Start the machine
Before starting up the machine check that:
●
the appliance is plugged in
●
the water supply tap is turned on
●
the drain hose is correctly and securely positioned
●
the door and the detergent dispenser drawer are
closed.
Depress the ON/OFF button: the mains-on light will
illuminate and the machine starts operating.
7
6. At the end of the programme
The machine stops automatically.
The door is controlled by a safety device which releases
2 minutes after the end of the programme.
Switch the machine off by depressing the ON/OFF
button again. The mains-on light goes out.
Remove the laundry.
When the programme has finished you are advised to
unplug the appliance and turn off the water tap.
8
WASHING 2 KG OF MIXED FABRICS AT 50°C
C0024
C0025
P0004
T0003
P1006b
7
Suppose you have 2 kg of Mixed fabrics to wash. They
are rather delicate fabrics and should not be washed at a
high temperature.
1. Load the laundry
Open the door by pulling the door handle outwards.
Place the laundry in the drum, one item at a time,
shaking them out as much as possible. Close the door.
2. Measure out the detergent
Pull out the dispenser drawer until it stops.
Measure out the amount of detergent required and pour
it into the main wash compartment .
4. Select the programme
Turn the programme selector dial clockwise to the
programme 7.
5. Start the machine
Before starting up the machine check that:
●
the appliance is plugged in
●
the water supply tap is turned on
●
the drain hose is correctly and securely positioned
●
the door and the detergent dispenser drawer are
closed.
Depress the ON/OFF button: the mains-on light will
illuminate and the machine starts operating.
3. Measure out the fabric
softener
If required, pour fabric softener into the compartment
marked (the amount used must not exceed the
“MAX” mark in the drawer).
Close the drawer gently.
6. At the end of the programme
The machine stops automatically.
If you have selected a programme which ends with the
water of the last rinse left in the tub (programmes 7-8-9-
10-13-14-15), drain the water before opening the door.
Select programme 16 (drain) or 11 (short spin).
The door is controlled by a safety device which releases
2 minutes after the end of the programme.
Switch the machine off by depressing the ON/OFF
button again. The mains-on light goes out.
Remove the laundry.
When the programme has finished you are advised to
unplug the appliance and turn off the water tap.
9
DRYING 2.25 KG OF COTTON
M0031S
60
80
P1006c
6
T0003
You have for example just machine-washed and spun at
1000 rpm 4.5 kg (10 lb) of laundry.
They are cotton fabrics of medium weight which you
want to iron as soon as they are dry.
Switch off the machine.
Then remove the laundry from the appliance and divide
the items to obtain two loads of approx. 2.25 kg (5 lb)
each.
1. Load the laundry
Open the door by pulling the catch outward.
Load the items one at a time and close the door.
2. Select the programme
Turn the programme selector dial clockwise to
programme 6.
3. Select the required time
Following indications given in the programme chart on
page 17, turn the time selector dial clockwise to the 60
mins setting (black section).
4. Start the machine
Depress the ON/OFF button, the mains-on light and
drying light will illuminate and the machine starts
operating.
5. At the end of the programme
The machine stops automatically and the drying light
goes out.
The door is controlled by a safety device which releases
2 minutes after the end of the programme.
Switch the machine off by depressing the ON/OFF
button again, the mains-on light goes out.
If the laundry is still too damp, select a further brief
drying time, bearing in mind that during the last 10
minutes the appliance carries out a cooling and
anticrease phase.
Remove the laundry.
When the programme has finished you are advised to
unplug the appliance and turn off the water tap.
10
AUTODRYING 1 KG OF MIXED FABRICS
T0003
M0031S
60
80
P1006d
7
You intend to wash and dry automatically 1 kg (2.2 lb)
of mixed fabrics which do not need ironing.
Proceed as follows:
1. Load the laundry.
2. Add the washing powder and fabric softener.
3. Select the programme
Turn the programme selector dial clockwise to
programme 7.
4. Select the required time
Following indications given in the programme chart on
page 17, turn the time selector dial clockwise to the 60
mins setting (red section).
6. At the end of the programme
The machine stops automatically and the drying light
goes out.
The door is controlled by a safety device which releases
2 minutes after the end of the programme.
Switch the machine off by depressing the ON/OFF
button again, the mains-on light goes out.
If the laundry is still too damp, select a further brief
drying time, bearing in mind that during the last 10
minutes the appliance carries out a cooling and
anticrease phase.
Remove the laundry.
When the programme has finished you are advised to
unplug the appliance and turn off the water tap.
Do not use a dosing device when carrying out a
NON-STOP programme.
5. Start the machine
Depress the ON/OFF button: the mains-on light comes
on and the machine starts operating.
11
Washing and Drying Hints
Do NOT overload the machine. Weigh the laundry the
first few times you use the appliance.
The average weights of the most common items are
listed below as a guide:
1000g = 1 kg
Sheet 700-1000 g
Pillow case 100-200 g
Tablecloth 400-500 g
Serviette 50-100 g
Tea towel 70-120 g
Linen hand towel 100-150 g
Towelling hand towel 150-250 g
Towelling bath towel 700-1000 g
Bath robe 1000-1500 g
Man’s shirt 200-300 g
Apron 150-200 g
●
Load the laundry loosely alternating large items with
small ones.
●
Sort the laundry according to the type of fabric,
colour-fastness and how dirty it is.
●
Avoid washing unhemmed or torn items as they may
unravel.
●
Before washing, empty all pockets of small objects
which may have been left inside (coins, keys, screws
etc). as these could damage the drain pump.
●
When washing curtains, remove the hooks.
●
Close poppers and zips and fasten loose buttons.
●
It is essential to wash new coloured items separately
when washing for the first time.
●
When washing fabrics requiring different wash
temperatures together, always select the lowest
temperature.
●
White items should not be washed with coloured
items.
●
Very small items (handkerchiefs, ribbons, socks etc)
should be washed in a washing bag or a pillow case.
●
Use a good quality detergent suitable for automatic
washing machines.
●
Use the correct quantities of detergent.
●
For wool, use gentle detergent only in small
quantities.
●
Bleach is very corrosive; it should be used with care
and kept out of reach of children.
●
Some stains such as fruit, wine, grass, rust etc. are
difficult to remove and should be treated before
washing with specific products, which can be found
in most household shops. In some cases it may help
to soak the stain before washing with a special presoak product or biological detergent.
●
If you have used the machine to wash, rinse or spin
only non-colour fast garments, there may be dye left
in the sump. To ensure any subsequent wash is not
contaminated with the dye, select and carry out a
rinse and spin programme, without any garments, to
ensure that any dye is removed from the sump.
●
Do not leave the damp laundry load in a heap too
long before drying.
●
Avoid drying dark clothes with light coloured fluffy
items such as towels as these can attract the fluff.
●
If you overdry the laundry, besides wasting energy,
any subsequent ironing may become more difficult
because the fabric could be heavily crumpled.
●
Remove the laundry when the appliance has finished
drying.
●
To avoid a static charge when drying is completed,
use either a fabric softener when you are washing the
laundry or a fabric conditioner specifically for
tumble dryers.
●
Particularly delicate items such as synthetic curtains,
woollen and silk, garments with metal inserts, nylon
stockings, bulky garments such as anoraks,
bedcovers, quilts, sleeping bags and duvets must not
be machine dried.
●
Garments padded with foam-rubber or materials
similar to foam-rubber must not be machine dried;
they represent a fire hazard.
●
Also, fabrics containing residues of setting lotions or
hair sprays, nail solvents or similar solutions must
not be machine dried in order to avoid the formation
of harmful vapours.
●
For drying, follow the indications given on the
manufacturer’s labels.
May be tumble dried
Drying at high temperature
Drying at reduced temperature
Do not tumble dry
Important:
As a dryer, the machine works on the condensation
principle.
Therefore, the water tap must be open and the
drain hose must drain water into a sink or into
the drain pipe, even during the drying cycle.
12
Which detergent?....
To ensure you obtain the best wash results from your
appliance, it is important to use the right detergent in
your everyday wash, and only detergents recommended
for use in automatic machines.
To maintain the appearance of your clothes and
household textiles and to make them last longer you
should use different types of detergent for different
washes, whether for whites, colours or delicates.
And in which form?
Not only are there different types of detergent, but they
are also available in different forms. Whether you chose
a powder or liquid in traditional or compact form is
your own personal choice.
TRADITIONAL POWDERS
Pour the powder directly into the dispenser drawer. Do
not sprinkle powder onto clothes in the machine drum.
WHITES
We recommend the Ariel product
range which is biological and
designed to provide excellent
cleaning and stain removal even
at low temperatures.
NON BIOLOGICAL
If you prefer to use a non
biological detergent, which does
not contain enzymes we
recommend Fairy. Fairy provides
good cleaning and stain removal.
COLOUREDS
For coloured items you should use a
detergent which is designed to clean
while maintaining the original colour.
Ariel Color does not contain bleach
and therefore helps to preserve
colours.
TRADITIONAL LIQUIDS
Liquid can be placed in the main wash compartment of
the detergent drawer marked with the symbol , start
the machine immediately upon placing the
detergent in the dispenser drawer.
Alternatively the detergent is measured into the
specially designed dosing device* which should be
placed on top of the laundry, and at the back of the
machine drum.
COMPACT POWDERS AND LIQUIDS
Compact detergents (or concentrates as they are also
known) are available in liquid or powder form, and
generally require a smaller dosage. Follow the
manufacturer’s instructions to ensure the most
economical usage. Pour the detergent directly into the
dispenser drawer, or alternatively measure the detergent
into the specially designed dosing device* which
should be placed on top of the laundry, and at the back
of the machine drum.
* If you use a dosing device in a washer dryer,
please ensure the dosing device/ball is removed
before carrying out a drying programme.
DELICATE ITEMS
When washing delicates such as
woollens, you should use a product
which is specially designed to care for
fine fabrics.
Dreft Automatic is suitable for
woollens and other delicates.
LAUNDRY BLEACH
For additional stain removal you may
wish to use a product such as Ace
Gentle Bleach which is used in addition
to your chosen detergent. Ace is
suitable for all washable fabrics
including silks, woollens and coloureds.
FABRIC CONDITIONERS
These are ideal for improving ‘softness’, and also
reduce static cling on synthetics and make ironing
easier. They are available in two types:
For example Lenor liquid fabric
softener, for use in the washing
machine/washer dryer. The
liquid fabric softener should be
poured into the compartment
marked with the symbol .
Follow the manufacturer’s dosage
instructions and never exceed the
MAX level.
Bounce conditioning sheets for use
in a tumble dryer. We recommend
the conditioning sheets are pinned
(using a safety pin) to an article
of laundry and placed in the
tumble dryer.
13
Wash Care Symbols
95
60
50
40
40
40
Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling
code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct
programme on your washing machine.
WASHING SYMBOL
BLEACHING
WASH ACTION FABRIC
Normal (Maximum)
Normal (Maximum)
Reduced (Medium)
Normal (Maximum)
Reduced (Medium)
Much Reduced (Minimum)
Hand wash only
Chlorine bleach may be used
White Cotton or Linen
without Special Finishes
Cotton, Linen or Viscose
without Special Finishes
Colourfast at 60°C.
Nylon, Polyester/Cotton, Viscose
with Special Finishes,
Cotton/Acrylic Mix.
Cotton, Linen or Viscose
Colourfast at 40°C but not 60°C.
Acrylics, Acetate, Triacetate, Wool
mixes, Polyester/wool blends.
Wool, wool mixtures, Silks
Do not machine wash
IRONING
Hot iron
Warm iron
Cool iron
DRY CLEANING
May be dry cleaned. Other letters and/or a bar beneath the circle will
indicate the required process to the dry cleaner.
TUMBLE DRYING
with high heat setting
with low heat setting
May be tumble dried
X
A cross through any symbol means «DO NOT»
Important Notes
For best results, always use the dispenser drawer for
dispensing detergents and liquid additives.
Once the dispenser has been filled, close it by pushing it
in gently. This is particularly important if you are using
Cotton, Linen, Viscose
Polyester mixtures, Wool
Acrylic, Nylon, Polyester
fabric conditioner to avoid the conditioner entering the
machine prematurely.
When using liquid detergent and a prewash programme,
place the detergent into the correct compartment in the
dispenser drawer, after the prewash has finished.
14
Washing Programmes
Programmes for cottons and linens
Wash programme/
Washing symbol
WHITES with
PREWASH
WHITES
FAST
COLOURS
NON FAST
COLOURS
Degree of soil
and type of laundry
For heavy soiled cotton
items.
White cotton, for
example normally soiled
work garments, sheets,
household linen,
underwear, towels.
Fast coloured cotton or
linen fabrics, shirts,
underwear, towels.
Non fast coloured
cotton or linen fabrics,
shirts, blouses,
underwear.
Programme
dial position
1
2
3(*)
4
Description
Prewash at 40 °C
Wash at 95°C
3 rinses
Long spin
Wash at 95 °C
3 rinses
Long spin
Wash at 60 °C
3 rinses
Long spin
Wash at 40 °C
3 rinses
Long spin
Possible
options
HALF LOAD
HALF LOAD
HALF LOAD
HALF LOAD
Max.
load
4.5 kg
4.5 kg
4.5 kg
4.5 kg
Long spin
(*) This programme at 60°C with cold water filling is the reference programme for the Energy label according to
EEC Directive 92/75.
Important!
• Some programmes, when selected, may start with a short drain. This is quite normal and not a fault of the machine.
When a programme is selected, the selector dial will advance to the water filling position. E.g. Programme 2 is
selected, there is a short drain. The appliance takes in water and the selector will appear to move to the 3 position.
The appliance will have memorised the programme selected, in this case 2, and will run the correct programme
even though the selector dial appears to be at position 3.
• We recommend that you do not to switch the appliance off and on during its operation. This would modify the
memorised programme in progress with unsatisfactory washing results.
Separate spin for
cotton and linen items
5
Long spin
4.5 kg
15
Washing Programmes
Programmes for synthetics, mixed fabrics, wool and delicates
Wash programme/
Washing symbol
MIXED
FABRICS
QUICK
AND COOL
Rinses
Conditioner
rinse
Short spin
Degree of soil
and type of laundry
Synthetic or mixed
fabrics, underwear,
coloured garments,
non-shrink shirts,
blouses.
Lightly soiled
synthetic or mixed
fabrics
Separate rinse cycle for
synthetics and mixed
fabrics
This programme can
be used for softening
hand washed garments.
Separate spin for hand
washed delicate items
Programme
dial position
7
8
9
10
11
Description
Wash at 50 °C
3 rinses
Water left in the tub
Wash at 30 °C
3 rinses
Water left in the tub
3 rinses
Water left in the tub
1 rinse with fabric
softener, if required
Water left in the tub
Draining of water
Short spin
Possible
options
-
Max.
load
2 kg
2 kg
2 kg
2 kg
2 kg
Specially tested
WOOL
DELICATES
Rinses
Drain
At the end of these programmes the machine stops with the water of the last rinse left in the tub to prevent the fabrics
from creasing. To drain the water select programme “11” or “16”.
When the automatic NON-STOP washing plus drying programme is used, the water is emptied out automatically and
there is a short spin at 850 rpm before drying starts.
programme for wool
garments bearing the
“Pure new wool, nonshrink, machine
washable” label.
Delicate fabrics, for
example curtains
Separate rinse cycle for
delicate and wool items
For emptying out the
last rinse water in
programmes which end
with water left in tub.
13
14
15
16
Wash at 40 °C
3 rinses
Water left in the tub
Wash at 40 °C
3 rinses
Water left in the tub
3 rinses
Water left in the tub
Draining of water
1 kg
2 kg
2 kg
-
-
Important!
• Programmes 7 and 13, when selected, may start with a short drain. This is quite normal and not a fault of the
machine.
• We recommend that you do not to switch the appliance off and on during its operation. This would modify the
memorised programme in progress with unsatisfactory washing results.
16
Drying Programmes
Degree of drying
Store dry (*)
Suitable for items
to put away
without ironing
Iron dry
Suitable for
ironing
Type of fabric
Cotton and linen
(towels, T-shirts,
bathrobes)
Programme 6
Synthetics and mixed
fabrics (jumpers,
blouses, underwear,
household linen)
Programme 12
Cotton and linen
(sheets, tablecloths,
shirts, etc.)
Programme 6
Max. load
2.25 kg
1 kg
1.5 kg 850
1 kg 850 60-70
2.25 kg
1 kg
Spin speed
1000
1200
1000
1200
1000
1200
1000
1200
Drying time mins
Black section
Red section
Black section
80-90
70-80
50-60
40-50
90-100
60-70
50-60
40-50
30-40
(*) The STORE DRY drying programme for cotton is the reference programme for the Energy Label data, in
compliance with EC directive 92/75.
17
Maintenance and Cleaning
P0132
P0011
P0038
C0027
C0023
Before any maintenance or cleaning is carried out you
must DISCONNECT the appliance from the electricity
supply.
Descaling
The water we use normally contains lime. It is a good
idea to periodically use a water softening powder in the
machine. Do this separately from any laundry washing,
and according to the softening powder manufacturer's
instructions. This will help to prevent the formation of
lime deposits.
After each wash
Leave the door open for a while. This helps to prevent
mould and stagnant smells forming inside the appliance.
Keeping the door open after a wash will also help to
preserve the door seal.
Cleaning the drawer recess
Having removed the drawer, use a small brush to clean
the recess, ensuring that all washing powder residue is
removed from the upper and lower part of the recess.
Replace the drawer and run the rinse programme
without any clothes in the drum.
Maintenance Wash
With the use of low temperature washes it is possible to
get a build up of residues inside the drum.
We recommend that a maintenance wash be performed
on a regular basis.
To run a maintenance wash:
●
The drum should be empty of laundry.
●
Select the hottest cotton wash programme.
●
Use a normal measure of detergent, must be a
powder (such as Ariel Futur).
External cleaning
Clean the exterior cabinet of the appliance with soap
and water only, and then dry thoroughly.
Cleaning the dispenser drawer
The washing powder and additive dispenser drawer
should be cleaned regularly.
Remove the drawer by pressing the catch downwards
and by pulling it out. Flush it out under a tap, to remove
any traces of accumulated powder.
To aid cleaning, the top part of the additive
compartment should be removed.
Cleaning the filter
The water drain filter
A clean filter is important for the correct operating of
the machine, and should therefore be cleaned after every
washing programme.
Open the filter door and place a container underneath to
catch any spillage. If the filter is blocked and the
machine is unable to drain you will need to drain the
water manually from the machine at this stage. To do
this, unhook the drain hose from the standpipe or sink
and hold the end of the hose over a bowl on the floor.
The water should drain by gravity into the bowl. When
the bowl is full, hook the hose back up and empty the
bowl. Repeat the procedure until water stops flowing
out.
18
Unscrew and remove the filter.
P1090
P0040
P0133
Clean carefully under a fast running tap.
Warning
When the appliance is in use and depending on the
programme selected there can be hot water in the filter.
Never remove the filter during a wash cycle, always
wait until the appliance has finished the cycle, and is
empty. When replacing the filter, ensure it is securely
retightened so as to stop leaks and young children being
able to remove it.
The water inlet filter
If your water is very hard or contains traces of lime
deposit, the water inlet filters may become clogged.
It is therefore a good idea to clean them from time to
time.
Turn off the water tap. Unscrew the water inlet hose.
Clean the filter using a hard bristle brush.
Tighten up the inlet hose.
The dangers of freezing
If the machine is exposed to temperatures below 0°C,
certain precautions should be taken.
●
Turn off the water tap.
●
Unscrew the inlet hose.
●
Unhook the drain hose from the rear support and
position the end of this hose and that of the inlet
hose in a bowl. Run the draining programme.
●
Disconnect the appliance.
●
Screw the inlet hose and reposition the drain hose.
●
When you intend to start the machine up again,
make sure that the room temperature is above 0°C.
19
Something Not Working
Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out
an engineer. Before contacting your local Service Centre, please carry out the checks listed below.
IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or
installation, a charge will be made even if the appliance is under guarantee.
Symptom
The machine does not start
The machine does not fill
The machine fills then empties
immediately
The machine does not empty and/or
does not spin
Possible causes
●
The door has not been closed.
●
The plug is not properly inserted in the power socket.
●
There is no supply at the socket
●
The main fuse or the fuse in the plug has blown.
●
The selector dial is not correctly positioned.
●
The ON/OFF button has not been depressed.
●
Ensure the water tap is open.
●
The filters in the inlet hose is blocked.
●
The inlet hose may be squashed or kinked.
●
The door has not been closed.
●
The end of the drain hose is too low.
●
The end of the drain hose is submerged in water.
●
There is no vent in the end of the drain hose.
●
The drain hose may be squashed or kinked.
●
A programme which ends with water in tub has been selected.
●
The drain filter may be blocked.
●
The drain hose extension, if fitted, is not correct. Follow the
instructions for connecting to the waste.
●
The drainage system pipes are blocked.
●
The wash load is unbalanced: redistribute the clothes inside the drum to
allow the machine to spin.
There is water on the floor
Unsatisfactory washing results
The machine vibrates when spinning
●
Too much detergent or unsuitable detergent has been used (creates too
much foam).
●
Check whether there are any leaks from one of the inlet hose fitting. It
is not always easy to see this as the water runs down the hose; check to
see if it is damp.
●
The drain hose may be damaged or not securely positioned.
●
The detergent dispenser drawer or recess is clogged.
●
The drainage system pipes are blocked.
●
Too little detergent or unsuitable detergent has been used. An
insufficient amount of detergent leaves the laundry looking grey and
causes lime scale to form.
●
Stubborn stains have not been treated prior to washing
●
The correct wash programme has not been selected.
●
Too much laundry has been placed in the drum.
●
The internal packing has not been removed.
●
The machine is in contact with the wall or furniture.
●
The machine is not stable and level (check diagonally).
●
The washing load is badly distributed in the drum.
●
Maybe there is very little laundry in the drum.
20
Symptom
Mod. ..........
Prod. No. ...........
Ser. No. .........
M
o
d
. .
..
...
...
.
P
r
o
d
. N
o
. .
...
..
...
..
S
e
r
.
N
o
.
..
...
..
..
P0042
The door will not open
Spinning starts late or the machine
does not spin
Possible causes
●
The programme is still running.
●
The door lock has not yet released.
●
Water in the tub: the door cannot be opened if water is present in the
tub.
●
The electronic unbalance detection device has cut in because the
laundry is not evenly distributed in the drum. The laundry is
redistributed by reverse rotation of the drum. This may happen several
times before the unbalance disappears and normal spinning can resume.
If, after 10 minutes, the laundry is still not evenly distributed in the
drum, the machine will not spin. In this case, redistribute the load
manually and reselect the spin programme.
The machine makes an unusual
noise
●
The machine is fitted with a type of motor which makes an unusual
noise compared with other traditional motors. This new motor ensures
a softer start and more even distribution of the laundry in the drum
when spinning, as well as increased stability of the machine.
No water is visible in the drum
●
Machines based on modern technology operate very economically
using very little water without affecting performance.
●
The machine does not dry or does
not dry properly
The drying time has not been selected.
●
The water tap are not turned on.
●
The drain filter is clogged.
●
The machine is overloaded.
●
The selected drying time/section is not suitable for the laundry.
Service & Spare Parts
In the event of your appliance requiring service, or if
you wish to purchase spare parts, please contact your
local Tricity Bendix Service Force Centre by
telephoning:
0870 5 929929
Your telephone call will be automatically routed to the
Service Force Centre covering your post code area.
For the address of your local Service Force Centre and
further information about Service Force, please visit the
website at www.serviceforce.co.uk.
Before calling out an engineer, please ensure you have
read the details under the heading “Something Not
Working”.
When you contact the Service Force Centre you will
need to give the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of fault
4. The model and serial number of the appliance (found
on the rating plate - see picture).
5. The purchase date
Customer Care
For general enquiries concerning your Tricity Bendix
appliance or for further information on Tricity Bendix
products, please contact our Customer Care Department
by letter or telephone as follows:
Customer Care Department
Tricity Bendix
55-77 High Street
Slough
Berkshire
SL1 1DZ
Tel 08705 950950*
* calls to this number may be recorded for training
purposes.
21
Guarantee Conditions
Standard guarantee conditions
We, Tricity Bendix undertake that if, within 12 months
of the date of the purchase, this Tricity Bendix appliance
or any part thereof is proved to be defective by reason
only of faulty workmanship or materials, we will, at our
option, repair or replace the same FREE OF ANY
CHARGE for labour, materials or carriage on condition
that:
●
The appliance has been correctly installed and used
only on the electricity supply stated on the rating
plate.
●
The appliance has been used for normal domestic
purposes only, and in accordance with the
manufacturer’s instructions.
●
The appliance has not been serviced, maintained,
repaired, taken apart or tampered with, by any
person not authorised by us.
All service work under this guarantee must be
undertaken by a Tricity Bendix Service Force Centre.
Any appliance or defective part replaced shall become
the Company’s property.
This guarantee is in addition to your statutory and other
legal rights.
Home visits are made between 8.30am and 5.30pm
Monday to Friday. Visits may be available outside these
hours in which case a premium will be charged.
Exclusions
This guarantee does not cover:
●
Damage or calls resulting from transportation,
improper use or neglect, the replacement of any light
bulbs or removable parts of glass or plastic.
●
Costs incurred for calls to put right an appliance
which is improperly installed or calls to appliances
outside the United Kingdom.
●
Appliances found to be in use within a commercial
environment, plus those which are subject to rental
agreements.
●
Products of Tricity Bendixmanufacture which are
NOT marketed by Tricity Bendix.
European guarantee
If you should move to another country within Europe
then your guarantee moves with you to your new home
subject to the following qualifications:
The guarantee starts from the date you first
●
purchased your product.
The guarantee is for the same period and to the same
●
extent for labour and parts as exists in the new
country of use for this brand or range of products.
The guarantee relates to you and cannot be
●
transferred to another user.
Your new home is within the European Community
●
(EC) or European Free Trade Area.
The product is installed and used in accordance with
●
our instructions and is only used domestically, i.e. a
normal household.
The product is installed taking into account
●
regulations in your new country.
Before you move please contact your nearest Customer
Care Centre, listed below, to give them details of your
new home. They will then ensure that the local Service
Organisation is aware of your move and able to look
after you and your appliances.
France Senlis +33 (0)344 62 20 13
Germany Nurnberg +49 (0)800 234 7378
Italy Pordenone +39 (0)800 11 75 11
Sweden Stockholm +46 (0)20 78 77 50
UK Slough +44 (0)1753 219898
22
Installation Instructions
It is dangerous to alter the specifications or
attempt to modify this product in any way.
Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
Any plumbing work required to install this
appliance should be carried out by a qualified
plumber or competent person.
Should the appliance power supply cable need to
be replaced, this should be carried out by our
Service Force Centre.
Technical Specifications
DIMENSIONS Height 85 cm
Width 60 cm
Depth 57 cm
POWER SUPPLY VOLTAGE 230 - 240 V/50 Hz
TOTAL POWER ABSORBED 2050 W (10A)
WATER PRESSURE Minimum 50 kPa
Maximum 800 kPa
MAX LOAD CAPACITY Washing
Cotton, linen 4.5 kg
Synthetics 2 kg
Delicate fabrics 2 kg
Wool 1 kg
Drying
Cotton, linen 2.25 kg
Synthetics 1.5 kg
SPIN SPEED Maximum 1000 rpm (WDR 1040W)
1200 rpm (WDR 1240W)
CONSUMPTION DATA FOR WASHING Energy 1.05 kWh
4.5 KG NORMALLY SOILED COTTON Water 60 litres
ITEMS AT 60°C (PROGR. 3) Time 140 mins
This appliance complies with the following E.E.C. Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
23
Unpacking
P1127
P1126
P1124
2
3
1
P0001
P1129
P0002
P1128
All transit bolts and packing must be removed
before using the appliance.
You are advised to keep all the packaging for re-use in
case the machine is to be transported again.
Using a spanner unscrew and remove the two rear
bottom screws. Slide out the two plastic pins.
Lay the machine gently on its back, making sure that the
hoses are not squashed.
Remove the polystyrene block from the bottom of the
machine and release the two plastic bags.
Very carefully slide out the left polythene bag, removing
it towards the right and then downwards.
Repeat the operation for the right polythene bag,
removing it towards the left and then upwards.
Fill all the holes with the plastic plugs supplied with the
instruction booklet.
Important !
You are advised to keep all the packaging for re-use in
case the machine is to be transported again.
In case of moving out the same precautions as per
paragraph “The dangers of freezing” must be taken i.e.
the residual water in the hoses must be pumped out.
Positioning
Install the machine on a flat hard floor.
Make sure that air circulation around the machine is not
impeded by carpets, rugs etc. Check that the machine
does not touch the wall or other kitchen units.
Never place cardboard, wood or similar materials under
the machine to compensate for any unevenness in the
floor.
Your new washer-dryer has been designed to be
permanently plumbed in to your home’s water supply
and drainage system. However, if this is not possible, it
may be connected to suitable existing taps with the drain
hose discharging into a sink.
The appliance has two inlet hoses, hot and cold, with
female 3/4” BSP thread connectors. If this connection is
not compatible with the plumbing of the existing
installation, a variety of connectors are available from
good hardware stores and plumbers merchants to suit
most domestic plumbing. Any alteration to your existing
plumbing must be carried out by a competent person, or
qualified plumber.
Remove the polystyrene base.
Set the machine upright and unscrew the remaining rear
screw. Slide out the relevant pin.
Installation on a Suspended Floor
Suspended wooden floors are particularly susceptible to
vibration. To help prevent vibration we recommend you
place a waterproof wood panel, at least 15 mm thick
under the appliance, secured to at least 2 floor beams
with screws. If possible install the appliance in one of
the corners of the room, where the floor is more stable.
24
Water inlet
P0021
P1088
P1130
3 pin
Max. 90 cm.
(35.4")
Min.60 cm.
(23.6")
P1040
Min. 30 cm.(12")
38 mm.(1/ ") diameter
standpipe
1
2
P1074
30 cm (12")
Water drainage
Connect the hose to a tap with a 3/4” thread.
Do not use previously used hoses for water connection.
Installation should comply with local water authority
and building regulations’ requirements.
The appliance must be connected to a cold water
supply.
A minimum water pressure of 50 kPa (0.5 bar) is
required for safe operation of the appliance.
If you cannot make the cold water connection direct
from the rising mains, you may be able to operate the
appliance from your cold water storage system.
There should be a minimum distance of 5.02m
(16.5 ft) between the appliance’s inlet and the bottom of
the water storage tank.
Set the hose correctly by loosening the ring nut. After
positioning the inlet hose, be sure to tighten the ring nut
again to prevent leaks.
This appliance is designed to be permanently plumbed
into your home's water supply and drainage system.
The appliance drain hose should hook into a standpipe,
the hook in the drain hose is formed using the plastic
“U-Piece” supplied.
The standpipe should have an internal diameter of
approximately 38mm (see diagram) thus ensuring there
is an air break between the drain hose and standpipe.
When discharging into a standpipe ensure that the top of
the curve in the hose end is no more than 90cm (35.4'')
and no less than 60cm (23.6'') above floor level.
The upright standpipe should have a minimum length of
30cm (12'') from the bottom of the elbow to the top of
the pipe (see diagram).
Make sure that it is designed in such a way, that the end
of the drain hose cannot be covered with water.
The drain hose may be extended to a maximum of 4
metres. An additional drain hose and joining piece
is available from your local Service Force Centre.
The joining piece must have an internal diameter of
18mm.
25
SHOWER
BATH
SINK TOILET
BIDET
WASHING
MACHINE
DISHWASHER
RAINWATER
'RUN-OFF'
SURFACE WATER
DRAINS & SEWERS
UNTREATED
DISCHARGE
RIVER
FOUL DRAIN
FOUL SEWERS
SEWAGE
TREATMENT
WORKS
RIVER
P0987
TREATED
DISCHARGE
If you intend the drain hose to empty into a sink, make
P1051
P0022
sure that the sink is empty and the plug hole is not
blocked. Use the plastic “U-Piece” supplied.
The drain hose must not be kinked.
Levelling
Level the washer-dryer by raising or lowering the feet.
The feet may be tight to adjust as they incorporate a self
locking nut, but the machine MUST be level and stable.
Any necessary adjustment can be made with a spanner.
Accurate levelling prevents vibration, noise and
displacement of the machine during operation.
Some vibration is inevitable, especially if mounted on a
wooden floor.
Sprung wooden floors are particularly susceptible to
vibration. For advice, consult a builder. If possible,
always place the machine on a solid floor.
Special conditions
If the floor is carpeted or covered with crumbly or soft
material, insert a rigid support base under the feet to
prevent noise, vibration or displacement. The base
should protrude a few centimetres beyond the edges of
the machine.
Warning
The machine should NOT be placed on deep pile
carpeting.
Note
Please ensure that when the appliance is installed it is
easily accessible for the engineer in the event of a
breakdown.
In the interest of the
environment
Washer-dryers and dishwashers should be connected to
the FOUL drainage system, the water will then be taken
to a sewage works for treatment before being discharged
safely into a river.
It is essential that these appliances are not connected to
the surface water drainage system as this water is
discharged directly into a river or stream and may cause
pollution.
If you require any further advice please contact your
local water authority.
26
Electrical connection
GREEN & YELLOW
BROWN
CORD CLAMP
BLUE
13A
P1041
E
N
L
Mod. ..........
Prod. No. ...........
Ser. No. .........
M
o
d
.
..
...
...
..
P
ro
d
.
N
o
.
...
...
...
..
S
e
r
. N
o
. .
...
...
..
P0042
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
WARNING: THIS APPLIANCE MUST BE
EARTHED.
The manufacturer declines any liability should
this safety measure not be observed.
Before switching on, make sure the electricity supply
voltage is the same as that indicated on the appliance’s
rating plate. The rating plate is located at the top of the
rim of the open door.
The wire coloured blue must be connected to the
terminal marked «N» or coloured black.
The wire coloured brown must be connected to the
terminal marked «L» or coloured red.
Upon completion there must be no cut, or stray strands
of wire present and the cord clamp must be secure over
the outer sheath.
WARNING:
A cut off plug inserted into a 13 amp socket is
a serious safety (shock) hazard.
Ensure that the cut off plug is disposed of
safely.
Should the appliance power supply cable need to be
replaced, this should be carried out by our Service
Force Centre.
Note
When the appliance is installed the power supply cable
must be accessible.
Permanent connection
The appliance is supplied with a 13amp plug fitted.
In the event of having to change the fuse in the plug
supplied, a 13amp ASTA approved (BS1363) fuse must
be used.
Should the plug need to be replaced for any reason,
proceed as described below.
The wires in the mains lead are coloured in accordance
with the following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
The wire coloured green and yellow must be connected
to the terminal marked with the letter «E» or by the
earth symbol or coloured green and yellow.
In the case of permanent connection it is necessary that
you install a double pole switch between the appliance
and the electricity supply (mains), with a minimum gap
of 3mm between the switch contacts and of a type
suitable for the required load in compliance with the
current electrical regulations.
The switch must not break the yellow and green earth
cable at any point.
27
Tricity Bendix, 55-77High Street, Slough, Berkshire SL1 1DZ
Consumer care telephone number 08705 950950
© Electrolux plc 2002
Loading...
