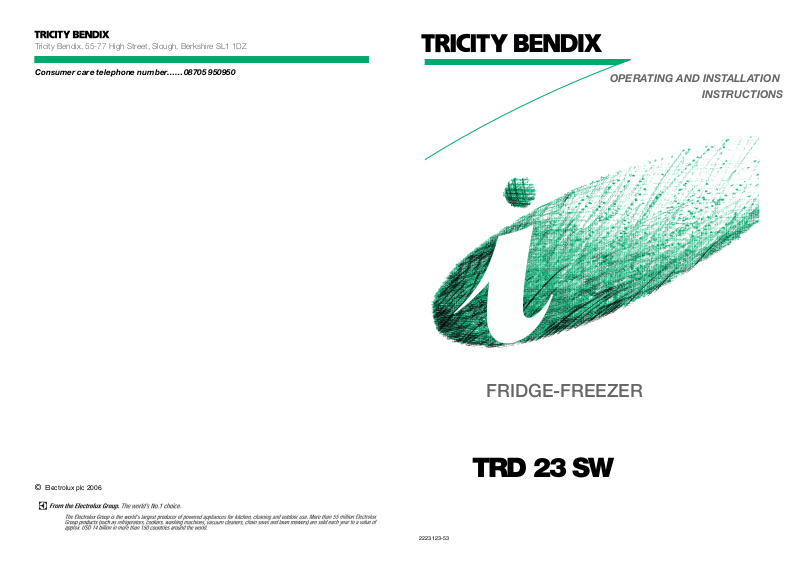

tricity bendix TRD23SW User Manual

2223 123-53

TRD 23 SW

FRIDGE-FREEZER

OPERATING AND INSTALLATION

INSTRUCTIONS

Tricity Bendix, 55-77 High Street, Slough, Berkshire SL1 1DZ

Consumer care telephone number……08705 950950

©

Electrolux plc 2006

2

IMPORTANT SAFETY INFORMATION

It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move house and
leave the appliance, always ensure that the book is left with the appliance in order that the new owner
can get to know the functioning of the appliance and the relevant safety information.

This information has been provided in the interest of safety. You MUST read it carefully before installing
or using the appliance.

Installation

• This appliance is heavy. Care should be taken when
moving it.

• It is dangerous to alter the specifications or attempt
to modify this product in any way.

• Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
Important: if the supply cable is damaged, it must
be replaced by a special cable available from your
local Service Force Centre.

• Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.

• Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall but leaving the required
distance for ventilation as stated in the installation
instructions.

• The appliance should be left for 2 hours after
installation before it is turned on, in order to allow
the refrigerant to settle.

Child Safety

• Do not allow children to tamper with the controls or
play with the product.

• Keep all packaging well away from children.

General Safety

• This appliance contains hydrocarbons in its
cooling unit; maintenance and recharging must
therefore only be carried out by authorized
technicians.

• Take utmost care when handling your appliance
so as not to cause any damages to the cooling
unit with consequent possible fluid leakages.

• The appliance must not be located close to
cookers, radiators or boilers.

• Avoid prolonged exposure of the appliance to
direct sunlight.

• Do not use other electrical appliances (such as
ice cream makers) inside of refrigerating
appliances.

During Use

• This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs.

• Frozen food must NOT be re-frozen once it has
thawed out.

• Do not place carbonated or fizzy drinks in the
freezer.

• Do not remove items from the freezer if your
hands are damp/wet, as this could cause skin
abrasions or frost/freezer burns.

• Ice lollies can cause ‘frost/freezer burns’ if
consumed straight from the freezer.

• Manufacturers’ storage recommendations should
be strictly adhered to. Refer to relevant
instructions.

• The cooling plate or refrigerated freezer shelves
in this appliance contain channels through which
the refrigerant passes. If these are punctured this
will cause substantial damage to the appliance
and result in food loss. DO NOT USE SHARP
INSTRUMENTS to scrape off frost or ice. Under
NO circumstances should solid ice be forced off
the lining or shelves. Solid ice should be allowed
to thaw, when defrosting the appliance. See
Defrost Instructions.

Maintenance and Cleaning

• Switch off and unplug the appliance before
carrying out any cleaning or maintenance work.

Servicing

• This product should be serviced by an authorised
engineer and only genuine spare parts should be
used.

• Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Refer to your local
Service Force Centre and always insist on
genuine spare parts.

At the end of the Appliance
Life

• When disposing of your appliance, use an
authorised disposal site.

• Remove the plug and ensure that any locks or
catches are removed, to prevent young children
being trapped inside.

15

Door reversal

1. Disconnect from the electricity supply;

2. Remove all loose items, including food, store food
in a cool place;

3. Gently lay the fridge/freezer on its back with the
top held away from the floor by 5-8 cm (2-3
inches) of packing;

4. Remove the feet (2-3).

5. Remove bottom hinge (1).

6. Slide out the fridge door from middle hinge (H)
and remove the latter.

7. Slide out the freezer door from pin (G), unscrew
the latter and then screw it down into the hinge
provided on the opposite side, after having
removed the small plugs which should then be
fitted on the opposite side.

8. Refit the freezer door and the middle hinge on the
opposite side.

9. Refit the fridge door and bottom hinge (1) on the
opposite side.

10.Refit the feet (2-3).

Attention

After completion of the door reversing operation,
check that the door gasket adheres to the cabinet. If
the ambient temperature is cold (i.e. in Winter), the
gasket may not fit perfectly to the cabinet. In that
case, wait for the natural fitting of the gasket or
accelerate this process by heating up the part
involved with a normal hairdryer.

H

G

I

I

I

D715 PIED/M

1

2

3

PR60

A

45°

Rear spacers

The plastic bag containing all relevant
documentation also contains two spacers to be fitted
into special holes in the back of the appliance. Fit the
spacers into the holes, taking care to ensure that the
arrow (A) is positioned as shown in Fig. Then turn
them through 45° (arrow (A) vertical) until they lock
into place.

3

CONTENTS

Instructions for the User

Important Safety Information

2

Operation

4

Before use 4

Setting the temperature 4

Freezing fresh food 4

Storage of frozen food 4

Thawing 4

Making ice cubes 5

Fresh food refrigeration 5

Movable shelves 5

Freezing calendar 5

Hints and Tips

6

Maintenance and Cleaning

7

Internal cleaning 7

External cleaning 7

When the appliance is not in use 7

Changing the light bulb 7

Defrosting 7

Something Not Working

9

Service and Spare Parts

10

Customer Care

10

Guarantee Conditions

11

Instructions for the
Installer

Technical Specification

12

Installation

13

Positioning 13

Shelf holders 13

Electrical Connection

14

Rear spacers 15

Door Reversal

15

Disposal of old Appliances

The symbol on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it shall be handed over to
the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help prevent
potential negative consequences for the environment
and human health, which could otherwise be caused
by inappropriate waste handling of this product. For
more detailed information about recycling of this
product, please contact your local city office, your
household waste disposal service or the shop where
you purchased the product.

14

Electrical connections

Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.

WARNING:THIS APPLIANCE MUST BE
EARTHED.

The manufacturer declines any liability should
this safety measure not be observed.

If the plug that is fitted to your appliance is not
suitable for your socket outlet, it must be cut off and
the appropriate plug fitted.

Remove the fuse from the cut off plug.

The cut off plug should then be disposed of to
prevent the hazard of shocks in case it should be
plugged into a 13amp socket in another part of your
home.

Important

The wires in the mains lead are coloured in
accordance with the following code:

Green and Yellow - Earth

Blue - Neutral

Brown - Live

If you fit your own plug, the colours of the wires in
the mains lead of your appliance may not correspond
with the markings identifying the terminals in your
plug, proceed as follows:

Connect the Green and Yellow (earth) wire to the
terminal in the plug which is marked with the letter

«E» or the earth symbol or coloured green and
yellow.

Connect the blue (neutral) wire to the terminal in the
plug which is marked with the letter «N» or coloured
black.

Connect the brown (live) wire to the terminal in the
plug which is marked with the letter «L» or coloured
red.

The plug moulded onto the lead incorporates a fuse.

For replacement, use a 13amp BSI362 fuse. Only
ASTA or BSI approved fuses should be used.

The plug must not be used if the fuse cover/carrier is
lost. The cover/carrier is indicated by the coloured
insert at the base of the plug.

A replacement cover/carrier must be obtained from
your local Service Force Centre.

This appliance complies with the E.E.C. Directive
No. 87/308 of 2.6.87 relative to radio interference
suppression.

This appliance complies with the following
E.E.C. Directives:

- 73/23 EEC of 19.2.73 (Low Voltage Directive)
and subsequent modifications;

- 89/336 EEC of 3.5.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.

Please ensure that when the appliance is
installed it is easily accessible for the engineer in
the event of a breakdown.

GREEN & YELLOW

13 AMP. FUSE

13 AMP

BLUE

D207

BROWN

CORD CLAMP
