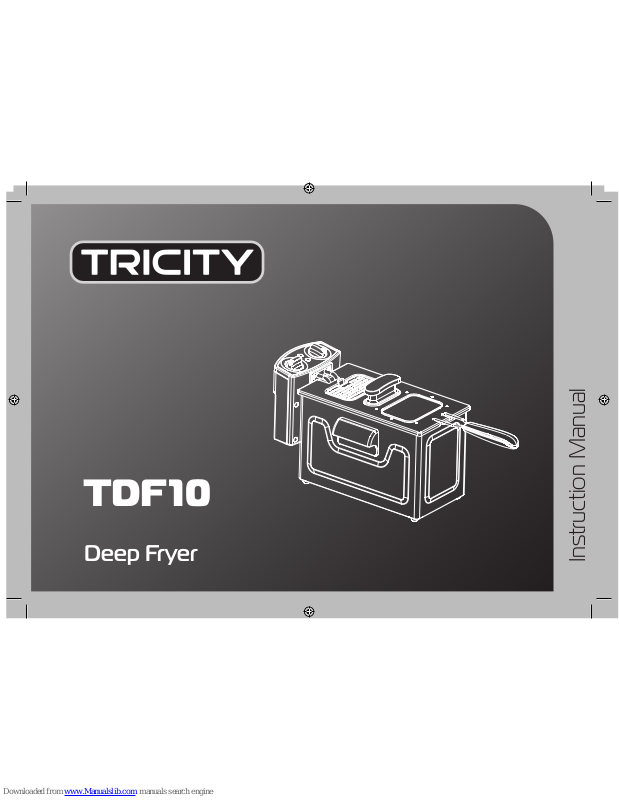

Tricity Bendix TDF10 Instruction Manual
Instruction Manual
TDF10
Deep Fryer
Please follow all the precautions listed below
for safety and to reduce the risk of re, injury or
electrical shock.
Read all the instructions and retain them. If you pass the
fryer on to a third party, include these instructions
During and after use parts of the appliance are HOT. Do not
touch areas such as the metal surface of the frying well until
they are cool.
Unplug the fryer from the mains after use and allow it to cool
before handling or cleaning any parts.
The oil or fat in the deep fryer will stay hot for some time
after use. Do not move the fryer until it is completely cool. To
lift the appliance, use the handle grips at the sides.
Do not touch hot surfaces, use oven gloves.
Do not pour oil out of the deep fryer when the oil and the appliance are hot. Allow them to cool rst. This can take at least
3 hours depending on ambient and oil temperatures.
Never connect the deep fryer to the elec tricity supply without placing the oil in the tank.
Never operate the fryer when the oil in the tank is above
the maximum or below the minimum mark. The minimum
amount of oil is 3 litres. The maximum is 4 litres.
Do not fully immerse the element of the deep fryer in
water or liquids. Follow the cleaning instructions fully!
Do not place the deep fryer on or near a hot gas or electric
burner or near a heated oven or allow it to touch curtains,
wall coverings, clothing, dishtowels or other ammable materials during use.
Ensure there is ample clearance around and above the appli-
ance so you can work safely.
Use the deep fryer on stable heat-resistant surfaces.
Do not exposed the fryer to direct sunlight.
Operate the fryer with the controls facing you. Do not reach
across the appliance while it is operating or when it is hot.
Never leave the deep fryer unattended when it is connected
to the electricity supply.
Make sure that the power cable does not touch any hot surface or overhang a table edge.
Do not use the deep fryer outdoors.
Do not place the fryer under any overhead cupboards when
in use.
Do not use attachments or accessories not recommended by
the manufacturer.
Do not use the deep fryer with a damaged cord or plug or
after the appliance, or frying basket has malfunctioned or is
damaged. Seek expert advice.
Do not use extension leads with kitchen equipment - they
increase the risk of accidents.
If you are using solid fat, melt this gently in a separate pan
and pour it into the oil tank before switching on. Do not melt
solid fat in the fryer by placing it in the basket or you may
damage the appliance.
Renew cooking oil regularly. Used oil may contain contaminants, these may lower smoking temperatures and cause
excess foaming and spattering.
Always dry food before frying as moist foods cause excess
foaming and spattering. Even small amounts of water may
cause the oil to spatter.
Never overload the frying basket. If too much food is fried
at the same time, the food will not get crisp and may cause
excess foaming and spattering.
After completion of frying permit the food to drain before
removing the basket.
This appliance is for household use. Do not use it for any purpose not expressly specied in this manual.
There are no user ser viceable parts in your deep fr yer. Unauthorised dismantling or servicing will void the product
warranty.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of this
appliance by a person responsible for their safety.
Parents must warn children not to touch hot appliance parts.
Close supervision is necessary when an appliance is used
near children.
Children should not operate or be encouraged to play with
this appliance.
ELECTRICAL INFORMATION
Before using this appliance ensure that the voltage of your
electricity supply is the same as that indicated on the
apppliance.
The means of disconnecting this appliance from the mains
supply is the mains plug. This should be unobstructed and
readily operable at all times
This appliance must be earthed.
Important Safety Instructions
The Control Panel
The On/O Switch and Timer has three positions:
ON: This switches the Fryer on. Use this position for heating oil to the frying temperature
and for frying batches of food.
OFF: This position switches the Fryer OFF. Always set the switch to OFF before you plug the
fryer into the mains and immediately after you stop using the fryer.
TIMER: Use the timer in conjunction with your recipe to cook food for the appropriate time.
Set the timer after the oil has heated to the correct temperature and just before you lower
the food into the oil. When the set time has expired the timer will return to the OFF position
and a bell will ring.
The Temperature Control is callbrated in Degrees Celsius (Centigrade). Use it in conjunction with your recipe to set the oil temperature.
The Power Light comes on when the fryer is switched on and goes out when it is
switched o.
The Ready Light comes on when the oil has reached the correct temperature. During use
the light will go on and o as the oil heats and cools. This is a normal part of of its operation.
Know Your Deep Fryer
Features and controls
KEY
Fryer Base1.
Lifting Handle2.
Removeable Oil Tank3.
Fryer Lid Handle8.
Viewing Window9.
Basket Handle10.
Fryer Basket11.
Control Panel4.
Heater Element5.
Fryer Lid6.
3-Piece Filter & Cover7.
1
3
4
6
7
8
9
11
10
5
2
