Tricity Bendix TBWD 1210 User Manual

WASHER DRYER

TBWD 1210

OPERATING & INSTALLATION

INSTRUCTIONS

132978210

2

Installation

●

This appliance is heavy. Care should be taken when
moving it.

●

It is dangerous to alter the specifications or attempt
to modify this product in any way.

●

All packing and transit bolts must be removed before
use. Serious damage can occur to the product and to
property if this is not adhered to. See relevant section
in instructions.

●

Any plumbing work required to install this appliance
should be carried out by a qualified plumber or
competent person.

●

Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.

●

Care must be taken to ensure that the appliance does
not stand on the electrical supply cable.

●

If the machine is situated on a carpeted floor, please
adjust the feet in order to allow air to circulate freely.

Child Safety

●

This appliance is designed to be operated by adults.
Children should not be allowed to tamper with the
controls or play with the product.

●

Pets and children have been known to climb into
washing machines. Please check your drum before
use.

●

The glass door becomes very hot during the washing
and drying cycle. Keep children away from the
vicinity of the appliance whilst it is in operation.

●

Keep all packaging well away from children.

●

Keep all detergents in a safe place out of children’s
reach.

Use

●

Always unplug the appliance and turn off the water
supply after use.

●

Do not overload the appliance. See relevant section
in the instruction book.

●

Only wash fabrics which are designed to be machine
washed. If in doubt, consult the care label on the
clothes.

●

Before washing, ensure that all pockets are empty
and buttons and zips are fastened. Avoid washing
frayed or torn articles and treat stains such as paint,
ink, rust, and grass before washing. Underwired bras
must NOT be machine washed.

●

Any objects such as coins, safety pins, nails, screws,
stones or any other hard, sharp material can cause
extensive damage and must not be placed into the
machine.

●

Garments which have been in contact with volatile
petroleum products should not be machine washed.
If volatile cleaning fluids are used, care should be
taken to ensure that the fluid is removed from the
garment before placing in the machine.

●

Wash small items such as socks, laces, washable
belts etc in a washing bag or pillow case as it is
possible for such items to slip down between the tub
and the inner drum.

●

Only use the advised quantities of fabric softener.
Damage to the fabric can ensue if you over-fill.
Refer to the manufacturer’s recommendations of
quantities.

●

As some duvets and eiderdowns should be washed
in large commercial machines because of their bulk,
please check with the manufacturer of the item
before washing in a domestic machine.

●

Never tumble dry items that have had contact with
chemicals such as dry cleaning fluid.These are of a
volatile nature and could cause an explosion.

Only tumble dry items which have been washed in
water or require airing.

●

Plastic detergent dispensers should not remain in the
drum during the drying cycle, as the plastic used is
not designed to withstand the heat. If you wish to
wash-through-to-dry you should use the
conventional detergent dispenser drawer.

●

Leave the porthole door slightly ajar between washes
to preserve the door seal.

●

Under no circumstances should you attempt to repair
the machine yourself. Repairs carried out by
inexperienced persons may cause injury or serious
malfunctioning. Contact your local Service Force
Centre. Always insist on genuine spare parts.

Important Safety Information

It is most important that this instruction book should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, or should you move
house and leave the appliance, always ensure that the book is supplied with the appliance in
order that the new owner can get to know the functioning of the appliance and the relevant
warnings.

These warnings have been provided in the interest of safety. You MUST read them carefully
before installing or using the appliance.

3

Contents

For the User

Important Safety Information

2

Your New Washer Dryer

4

Description of the Appliance

5
Detergent dispenser drawer 5
Child safety feature 5

The Control Panel

6-10

Programme Information

10

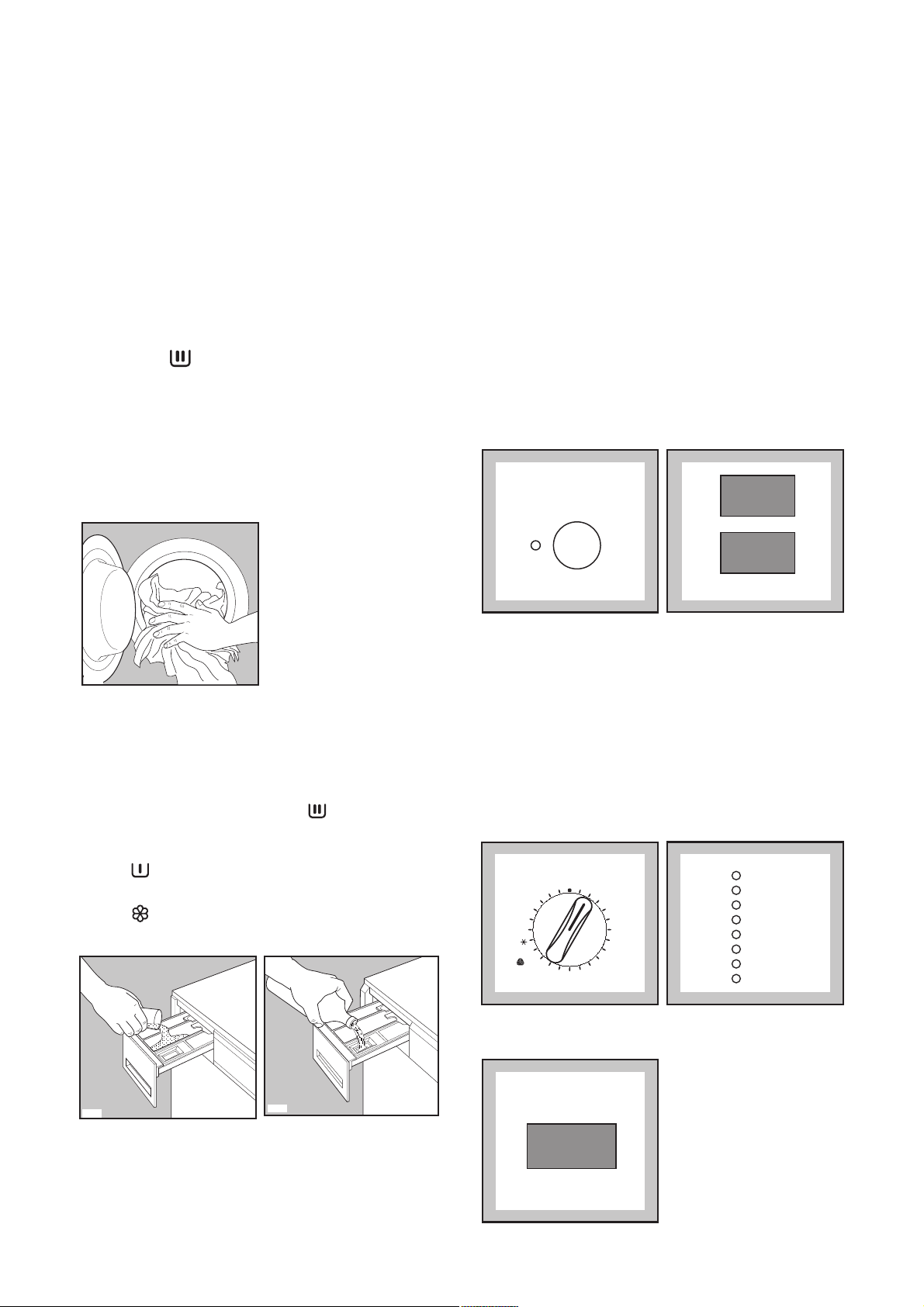

Operating sequence

11-13

Washing only 11

L

oad the laundry 11
Measure out the detergent and the fabric softener 11
Jetsystem wash 11
Switch the machine on 11
Select the required programme 11
Select the spin speed or “Rinse hold” option 12
Select the required options 12
Select the Delay start 12
Start the programme 12
At the end of the programme 12-13

Drying only 13

Automatic washing and drying 13

Washing and Drying Hints

14-15

Which detergent?.... 15

And in which form? 15

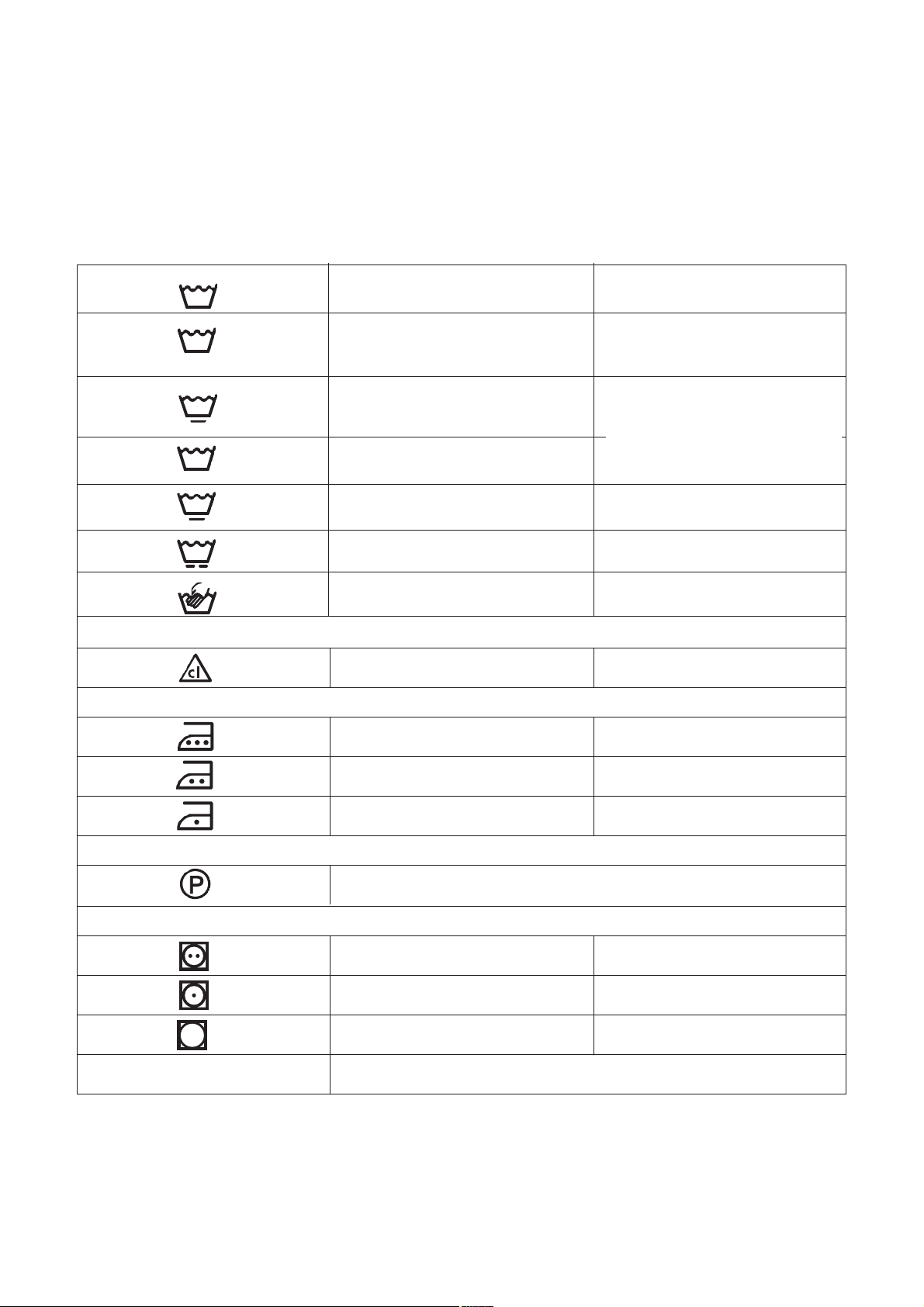

Wash Care Symbols

16

Washing and Special Programmes

17-18

Drying Programmes

19

24

Maintenance and Cleaning

20-21
Descaling 20
After each wash 20
Maintenance wash 20
External cleaning 20

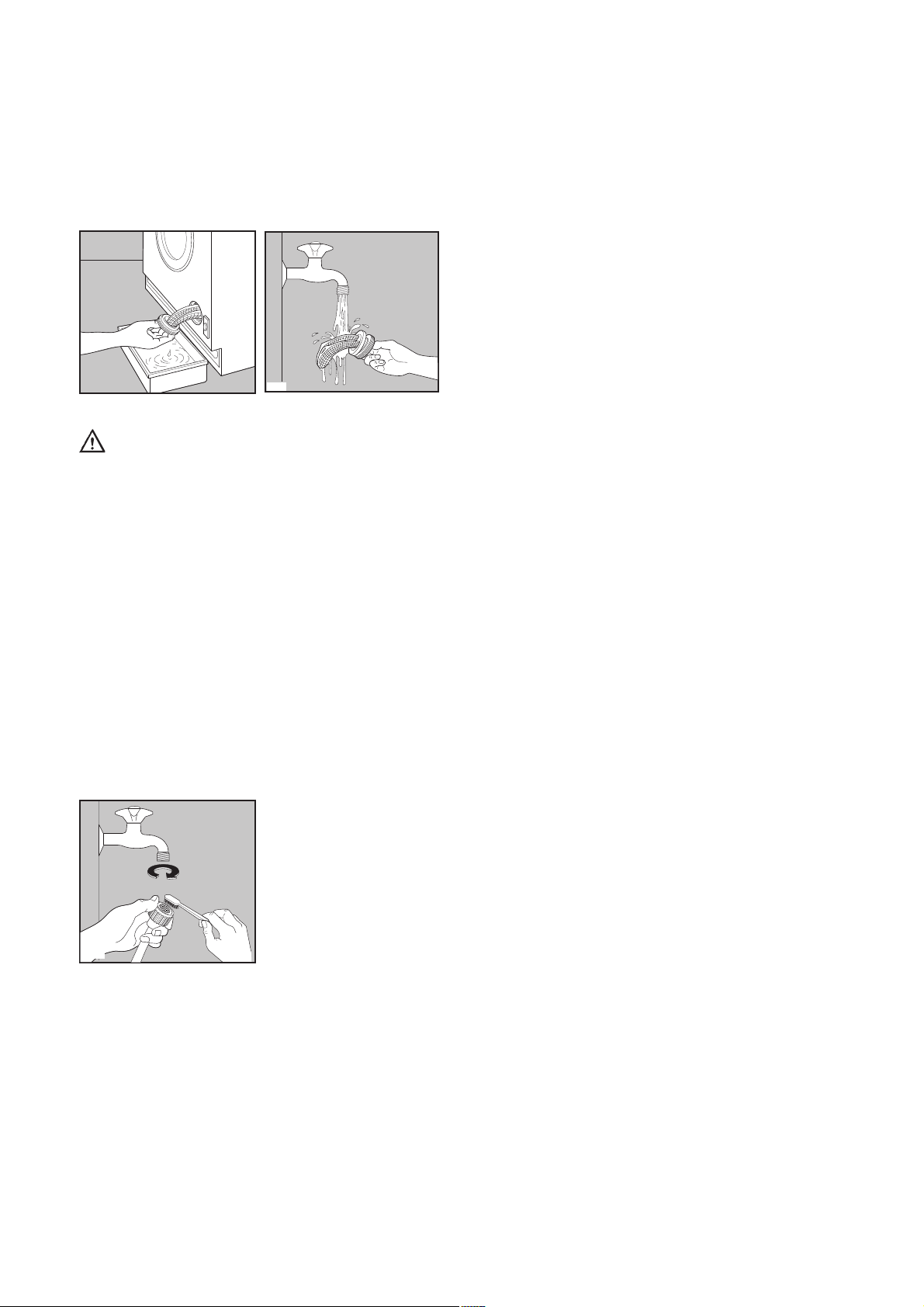

Cleaning the dispenser drawer 20
Cleaning the drawer recess 20
Cleaning the filter 20
The dangers of freezing 21

Emergency emptying out 21

Something Not Working

22-23

Service and Spare Parts

23-24

Guarantee conditions

24

For the Installer

Installation Instructions

25

Technical Specifications

25

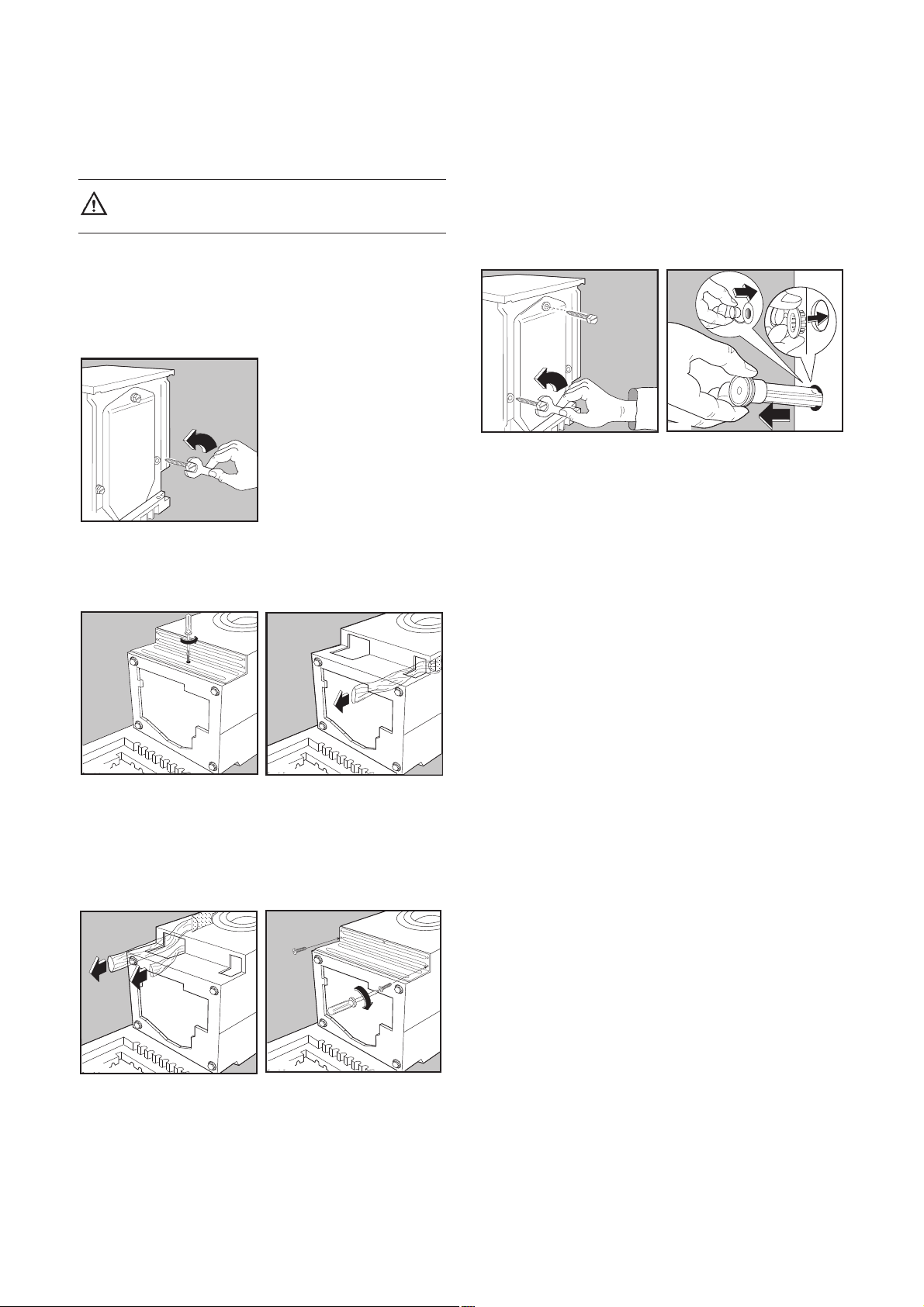

Unpacking 26
Positioning 26

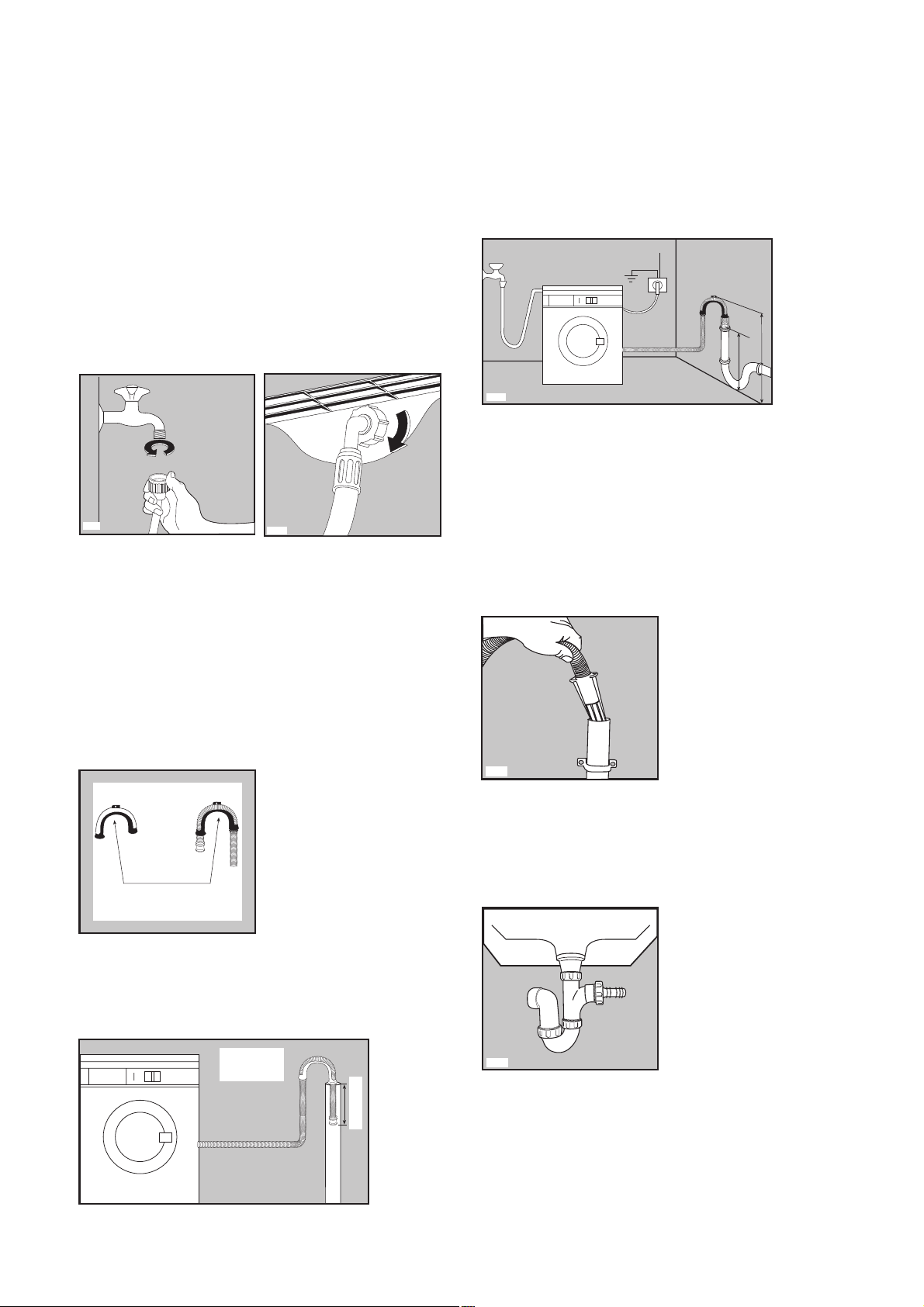

Water inlet 26-27

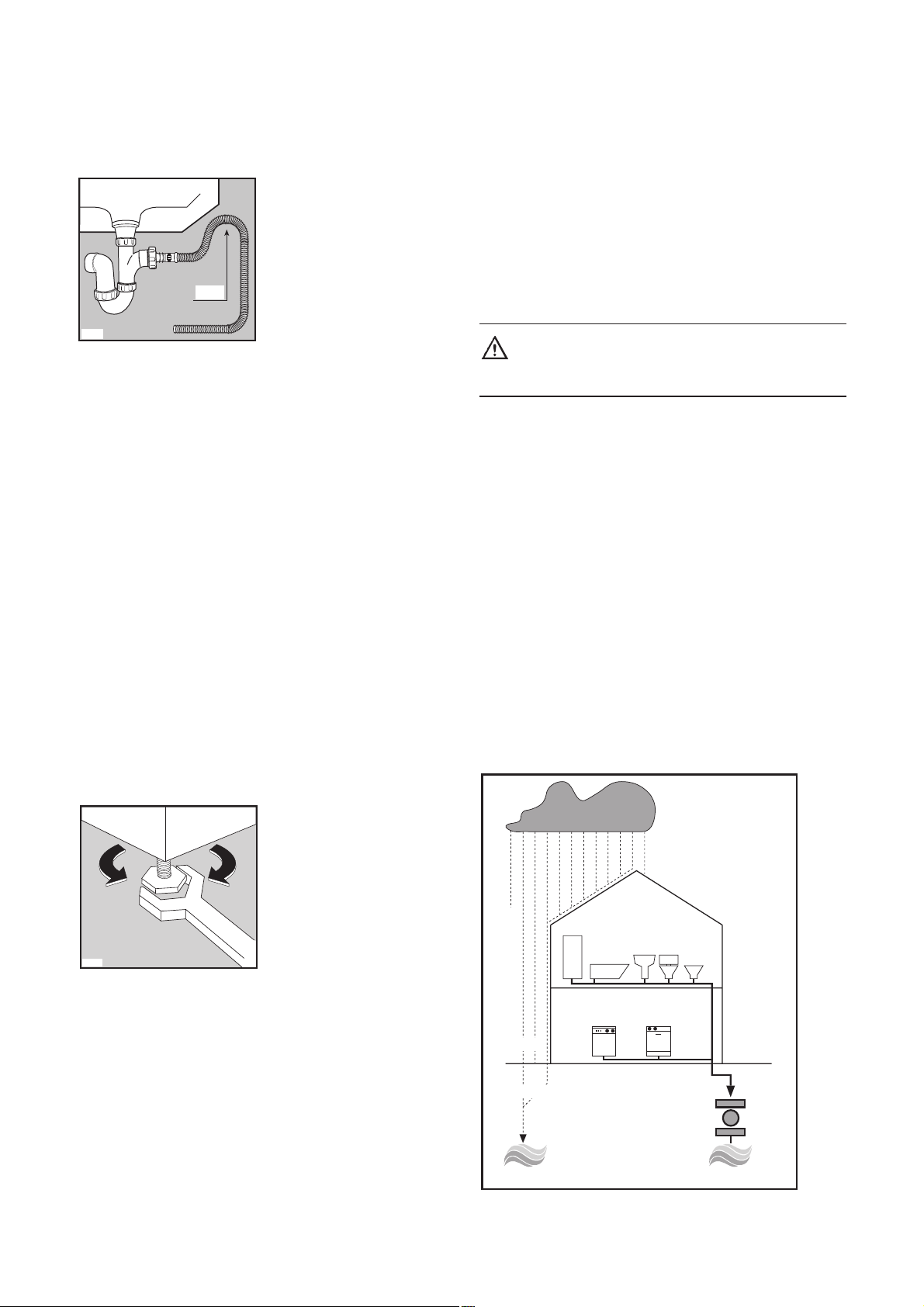

Water drainage 27-28
Levelling 28
Special conditions 28
In the interest of the environment 28
Electrical connection 29

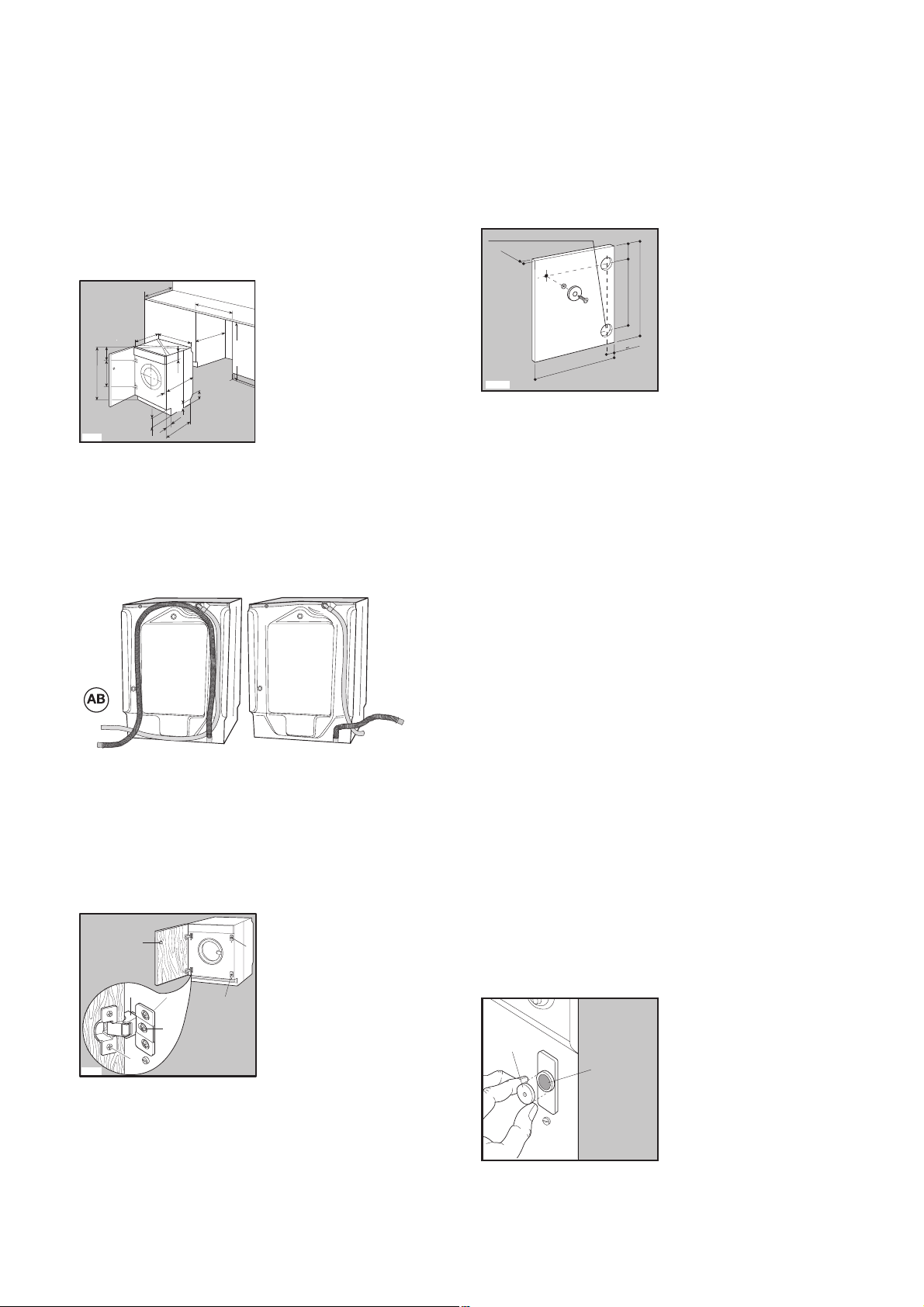

Building-in 30-31

Guide to use the Instruction Book

The following symbols will be found in the text to guide you throughout the instructions:

Safety instructions
Hints and tips
Environmental information

Your New Washer-Dryer

Your new washer-dryer meets all modern requirements for effective treatment of laundry with
low water, energy and detergent consumption.

Even small loads are washed “economically” because the amount of water used is regulated
automatically according to the load and type of fabric.

●

Automatic cooling of the wash water to 60°C

before draining, with the 95°C programme. This
reduces thermal shock to fabrics, helping to prevent
creasing.

●

The special WOOL programme with its new
delicate wash system treats your woollens with
extreme care.

●

The anti-unbalance device ensures that the washing
machine remains stable when spinning.

●

The ECO valve allows total use of detergent and
reduces water consumption so saving energy.

●

The two drying programmes will give your wash
that soft, relaxed feel whatever the weather.

Ecological hints

To save water and energy and help protect the
environment, we recommend that you follow these
hints:

●

Adjust the quantity of detergent according to the
hardness of your water supply, the amount of
laundry and the degree of soiling.

●

Select an “economy” programme for lightly soiled
laundry.

●

A programme without prewash is sufficient for
normally soiled laundry.

●

The machine works more economically if it is fully
loaded both for washing and drying cycles.

●

With adequate pre-treatment, stains and limited
soiling can be removed; the laundry can then be
washed at a lower temperature.

●

Always load well spun laundry. The higher the spin
speed, the lower the electricity consumption and the
shorter the drying times.

In the interest
of the environment

●

Materials marked with the symbol are
recyclable.

●

Check with your local Council or Environmental
Health Office to see if there are facilities in your area
for re-cycling this appliance.

●

When the appliance is to be scrapped, cut off the
power supply cable and make the door lock device
unusable to prevent young children from being
trapped inside.

●

Help to keep your country tidy - use authorised
disposal sites for your old appliance.

The symbol on the product or on its packaging
indicates that this product may not be treated as
household waste. Instead it should be taken to the
appropriate collection point for the recycling of
electrical and electronic equipment. By ensuring this
product is disposed of correctly, you will help
prevent potential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste handling
of this product. For more detailed information about
recycling of this product, please contact your local
council, your household waste disposal service or the
shop where you purchased the product.

How do we help to protect the environment?
We use recycled paper!

Important

Your machine is fitted with a balance control device, which ensures the machine is stable during the spin.
If the wash load appears not to have been spun sufficiently at the end of the wash cycle, it is because it is not evenly
distributed in the drum, the balance control device may have operated. It will therefore be necessary to redistribute the
wash load manually and select a spin programme. For more detailed information see the section headed "Something
Not Working".

4

5

Description of the Appliance

1 Detergent dispenser drawer

2 Control panel

3 Door opening handle

4 Filter

5 Adjustable feet

Detergent dispenser drawer

Prewash

Main wash

Fabric softener

Child safety feature

This machine incorporates a special child safety feature
to prevent small children from being trapped inside the
machine.
To activate this device, rotate the button (without
pressing it) inside the door clockwise until the groove is
horizontal. If necessary use a coin.
To disable this device and restore the possibility of
closing the door, rotate the button anti-clockwise until
the groove is vertical.

AUTOWASH

1200

On/Off

Programme time

1200

900

700

500

Rinse
hold

Half

Extra

Spin

Prewash

Quick

load

rinse

Programme

Prewash

Off

Wash

Mini 30

95°

E60°

Cottons

Spin

Rinse

60°

Drain

Rinse hold

E40°

Softener

Drain

Rinses

Start/

Time

Delay

Pause

dry

start

40°

Spin

Soak 30

30°

Drying

Dry

End

60°

30°

Wool

40°

E60°

30°

40°

30°

40°

Synthetics

Delicates

Dry

TBWD 1210

P0301

P1131

1 Detergent dispenser drawer

2

Mains-on light

This light comes on when the On/Off button is pressed,
and goes out when it is pressed again.

3 On/Off button

Press this button to switch the machine on. Press it
again to switch the machine off.

Programme Option buttons

Depending on the programme, different functions can
be combined. These must be selected after choosing the
desired programme and before depressing the
Start/Pause button.
When these buttons are pressed, the corresponding pilot
lights come on. When they are pressed again, the pilot
lights go out.
If an incorrect option is selected, the corresponding
pilot light flashes for about 2 seconds and the message
Err is displayed.

4 Prewash button

The machine performs a prewash cycle at 30°C max.
The prewash cycle ends with a short spin at 650 r.p.m.
in programmes for Cottons and Synthetics, and with
emptying of the water for Delicates.
This option is not available with the Wool

and

Mini 30 programmes.
For use when washing heavily soiled laundry.

6

The Control Panel

1 23

4

59678 1011

12

13 14

1200

Rinse

hold

Prewash

Wash

Rinse

Rinse hold

Drain

Spin

Drying

End

Start/
Pause

Spin

Prewash

Delay
start

Quick

On/Off

Half
load

Extra
rinse

Time

dry

Programme time

900

700

500

1200

TBWD 1210

AUTOWASH

Programme

Drain

Off

Dry

Rinses

Spin

Wool

Cottons

Synthetics

Soak 30

40°

60°

40°

30°

30°

95°

60°

E60°

E40°

30°

E60°

40°

Dry

Softener

Mini 30

30°

40°

Delicates

5 Spin button

Press this button to reduce the maximum speed of the
final speed proposed by the machine for the selected
programme or to select Rinse hold position.
The light corresponding to the selected spin speed
illuminates.

The following speeds are available for the different
fabrics:

• Cottons, linen: 500/700/900 max 1200 r.p.m.

• Synthetics and

Wool :

500/700 max 900 r.p.m.

• Delicates and Mini 30:
500 max 700 r.p.m.

The light corresponding to the selected spin speed
illuminates.

Rinse hold

When Rinse Hold option is selected, the last rinse
water is not emptied out, to prevent the fabrics from
creasing. When the programme has finished, the display
will show a flashing zero, the light of the

Start/Pause

button goes out, the Rinse Hold, the End pilot lights in
the progress display are alight and the door is locked to
indicate that the water must be emptied out.

To empty out water there are 2 possibilities:

• Select Drain programme:
The water is emptied out without spinning.

• Select Spin programme: reduce eventually the spin
speed by means of the relevant button and then
depress the

Start/Pause button.

The water is emptied out and the laundry is spun at
the selected spin speed.

Attention! Before selecting Drain or Spin
programmes, the selector dial has to be positioned on
Off (cancelling).

7

The Rinse hold option CANNOT be selected for the
automatic Washing & Drying programme.

6 Quick button

This option can be used for lightly soiled Cottons,
Synthetics or Delicate items that have been used or

worn for a short time.
This option is not available with the Wool
programme, the Energy saving programmes (E60° and
E40°) and Mini 30.

7 Half load button

Select this option to reduce water consumptions on the
rinse cycle when washing only a smaller load of cottons
or linens (maximum load size = kg 2.5).

The machine performs the rinses with less water.

8 Extra rinse button

This option can be selected with all programmes, except
the Wool and Mini 30. The machine will add 2
rinses for cotton and 1 rinse for synthetics and delicates.

This option is recommended for people who are allergic
to detergents and in areas where the water is very soft.

9 Time Dry button

By depressing this button you can select the desired
drying time according to the fabrics (cotton or
synthetics) you have to dry.

To select the drying time you have to push the button
until the drying time you want appears in the display.

For Cottons and Synthetics you can select a time from
10 to 130 minutes.

For automatic Washing & Drying programmes the
drying time is displayed for 3 seconds, then the duration
of the programme will appear.

10 Delay start button

The wash programme can be delayed from 30 min - 60
min - 90 min, 2 hours and then by 1 hour up to a
maximum of 23 hours by means of this button.

Selecting the delayed start

● Select the programme and the required options.

● Select the delay start.

● Depress Start/Pause button: the machine starts its

hourly countdown.

The programme will start after the selected delay has
expired. The Delay start cannot be used with

Drain or

Spin programmes.

Cancelling the delayed start

● Depress Start/Pause button.

● Depress Delay start button until «

00’’

» is displayed.

● Depress Start/Pause button again, if you wish to

restart the machine immediately.

Note!

● With programme “Soak 30” the selected delay

corresponds to the soak time of the laundry in the
drum.

● The door will be locked throughout the delay time.

If you need to open the door, you must first set the
washing machine to Pause by pressing the
“Start/Pause” button. After you have closed the
door, press the “Start/Pause” button again.

11 Start/Pause button

This button has two functions: Start - Pause

Start

After having selected the required programme, press this
button to start the machine; the corresponding pilot light
stops flashing.

If you have selected the delayed start, the machine
begins its countdown. The duration of the programme or
the delay appears on the display.

Pause

To interrupt a programme which is running, depress the
Start/Pause button: the corresponding pilot light starts
to flash.

To restart the programme from the point at which it was
interrupted, press the Start/Pause button again.

12 Programme time (Display)

The display shows the following information:

Reset/Cancelling - Duration of the programme ­Drying time - Delayed start - Incorrect option
selection - Alarm code - End of programme

8

Reset/cancellation of the programme

If the programme selector dial is turned to Off position,
three blinking dashes are displayed.

Now you can select a new programme.

(If the programme selector dial has not turned to Off
position, when you press the On/Off button to switch
the machine on, the display will show a blinking zero.)

Duration of the selected programme

After selecting a programme, the duration is displayed
in hours and minutes (for example

22..0055

).

The duration is calculated automatically on the basis of
the maximum recommended load for each type of
fabric.

After the programme has started, the time remaining is
updated every minute.

Drying time

The selected drying time is displayed in minutes.

After starting the programme, the remaining time is
updated every minute.

Delayed start

The selected delay (23 hours max) set by means of the
relevant button appears on the display for 3 seconds,
then the duration of the previously selected programme
is displayed.

The countdown is updated every hour and, when remain
the last 2 hours, each 30 min.

Incorrect option selection

If an option which is not compatible with the set wash

programme is selected, the message Err is displayed for
2 seconds.

Alarm codes

In the event of operating problems, some alarm codes
can be displayed, for example

EE2200

(see paragraph

“Something not working”).

Programme time

---

2.05

Delay

start

105

E20

9

End of programme

When the programme has finished a flashing zero is
displayed and

the End pilot light illuminates.

At the end of the Soak 30 programme, a flashing zero
is displayed,

the End pilot light is on and the door is

locked to indicate that the water must be drained.

If the

Rinse hold option has been selected, a flashing

zero is displayed and

the End and Rinse hold pilot

lights

are on. The door is locked to indicate that the

water must be drained before opening the door.

13 Programme progress display

By selecting the wash programme, the pilot lights
corresponding to the various phases making up the
programme come on.

After the machine has started, only the running phase
light will

illuminate and stay on.

When the programme has finished, the

End pilot light

illuminates.

In the event of operating problems the following alarm
code appearson the display.

EE1100

= the machine does not fill

EE2200

= the machine does not empty

EE4400

= the door has not been closed

To eliminate the problem, see paragraph “Something not
working”.

14 Programme selector dial

The selector is divided into 5 sections:

• Cottons

• Synthetics

• Delicates

• Wool

• Special programmes

• Reset programme Off

The selector dial can be turned either clockwise or
anticlockwise.
Position E60° or E40° corresponds to the ENERGY
SAVING programme and position to “cold wash”.

At the end of the programme the selector dial must
be turned to position “Off” (reset).

Functions

End of programme

When the End pilot light on the programme progress
display illuminates, the door can be opened (

if the Rinse

hold option has not been selected or at the end of the
Soak 30 programme)

.

Turn the programme selector dial to Off.
Switch the machine off by depressing the On/Off
button before removing the laundry.

Altering an option or a running programme

It is possible to change any option before the
programme carries it out.
Before you make any change, you must pause the
washer dryer by pressing the Start/Pause button.
Changing a running programme is possible only by
resetting it. Turn the programme selector dial to "Off"
and then to the new programme position. The washing
water in the tub will not empty out .
Start the new programme by depressing the Start/Pause
button.

0

Prewash

Wash

Rinse

Rinse hold

Drain

Spin

Drying

End

Programme

Off

Mini 30

95°

Spin

Drain

Softener

Rinses

Soak 30

30°

Wool

40°

30°

Delicates

E60°

Cottons

60°

E40°

40°

30°

Dry

60°

E60°

40°

30°

40°

Synthetics

Dry

Important!

At the end of the soak (after having emptied out the
water) you can select the washing programme.
First turn the programme selector dial to Off, then select
the programme and depress the Start/Pause button.

Wool

Washing programme for machine washable wool as
well as for hand washable woollens and delicate fabrics
with the “hand washing” care symbol .

Rinses

With this programme it is possible to rinse and spin
cotton garments which have been washed by hand.
The machine performs 3 rinses, followed by a final spin
at 1200 r.p.m.
The spin speed can be reduced by depressing Spin
button.

Drain

For emptying out the water of the last rinse in
programmes with the Rinse hold option or at the end of
the Soak 30 programme.
Turn first the programme selector dial to Off, then select

Drain programme and depress the Start/Pause button.

Spin

Separate long spin at the maximum speed for hand
washed cotton garments. You can reduce the speed by
means of Spin button to adapt it to the fabrics to be
spun.

Mini 30

This is a complete programme that can be combined

with the following options: Spin speed/ Rinse Hold and
Delay Start.
To be used for laundry which is lightly soiled or which
needs freshening up.
Max load 2 kg.
Washing temperature 30°C
Programme duration 30 minutes
Final spin speed 700 r.p.m.

Off = Cancelling

To reset a programme turn the selector dial to Off.
Now a new programme can be selected. .

10

Interrupting a programme

Depress the Start/Pause button to interrupt a

programme which is running: the corresponding light
starts to flash.
Depress the same button to restart the programme.

Opening the door after the programme has
started

You can open the door, after having set the washer-dryer
to PAUSE, provided the following conditions exist:

• the drum temperature is over 55°C;

• the level of the water is not high;

If these requirements are met, when you pause the
washing machine, the door can be opened

.

Should it not be possible to open the door, and should it
be absolutely necessary to do so, switch the machine off
by pressing the On/Off button.

After approximately 3 minutes, you can open the door.

Pay attention to the level and temperature of the
water in the machine!

When you close the door and press the On/Off button
again, the machine will resume the programme from the
point where it had been interrupted.

Programme information

Soak 30

This is a special programme for heavily soiled laundry.
The machine performs a soak of about 20 minutes at
30°C. At the end of the soak time the machine will stop
automatically with water left in the tub. The display
will show a flashing zero.
Pour the detergent for the soak programme into the
compartment marked (Prewash)

.

This programme cannot be used for very delicate
fabrics or

Wool .

Before starting a new washing phase, it is necessary to
empty out the water by:

• Draining only: turn the programme selector dial to
Drain programme. (Depress the Start/Pause button).

• Draining and spin: turn the programme selector dial
to Spin programme; reduce the spin speed by means
of the Spin button, and then depress Start/Pause
button.

11

Operating Sequence

Washing only

Before the first wash we recommend that you pour 2
litres of water into the main wash compartment of the
detergent drawer in order to activate the ECO valve and
then run a cotton cycle at 95°C, without any laundry in
the machine, to remove any manufacturing residue from
the drum and tub.
Pour 1/2 a measure of detergent into the main wash
compartment of the dispenser drawer and start the
machine.

1. Load the laundry

Open the door by pulling the door handle outwards.
Place the laundry in the drum, one item at a time,
shaking them out as much as possible. Close the door.

2. Measure out the detergent

and the fabric softener

Pull out the dispenser drawer until it stops.
Measure out the amount of detergent required and pour
it into the main wash compartment .
If you have selected the Prewash option or the Soak
programme, pour detergent into the compartment
marked .

If required, pour fabric softener into the compartment
marked (the amount used must not exceed the
“MAX” mark in the drawer). Close the drawer gently.

Therefore we recommend that you use approximately
1/3 less than the detergent manufacturer recommends on
the packet or bottle, making the appropriate allowances
for soft or hard water, and light or heavy soilage of
clothes. If you have judged the amount correctly you
should expect to see a soft sudsy liquid during the wash.
It is not necessary to have a head of lather on the water.

3. Switch the machine on

To switch the machine on, press the On/Off button: the
mains-on light comes on. The display will show three
flashing dashes or a blinking zero.

If the programme selector dial is on the Reset Off
position, three flashing dashes will be displayed. If the
programme selector dial is positioned on a wash
programme, a flashing zero appears on the display.

4. Select the required programme

Turn the programme selector dial to the desired
position: the lights corresponding to the different phases
making up the selected programme light on.

The display shows the duration of the programme.

If your laundry needs a
soak time, turn the
programme selector dial to
“Soak 30” and then,
before starting a washing
cycle, empty the water as
described in the “Soak
30° paragraph.

On/Off

---

0

P0004

P0006

P0005

Programme

Off

Mini 30

95°

E60°

Cottons

60°

E40°

40°

30°

Dry

60°

E60°

40°

30°

40°

Synthetics

Dry

Softener

Rinses

Soak 30

Wool

Delicates

Spin

Drain

30°

40°

30°

2.05

Prewash

Wash

Rinse

Rinse hold

Drain

Spin

Drying

End

12

5.

Select the Spin speed or
Rinse hold option

Depress the Spin (speed) button to choose the required
speed or Rinse hold option: the corresponding light
illuminates.

6. Select the required options

The light corresponding to the depressed button
illuminates.

7. Select the Delay Start option

To delay starting of a programme, press the Delay Start
button. The corresponding light illuminates. The figures
corresponding to the selected delay will be displayed for
about 3 seconds, after which the duration of the selected
programme will appear on the display.

When the Start/Pause button is pressed, the selected
delay will again appear on the display and the machine
starts its countdown.

Delay

start

Programme time

During this period it is possible to load other laundry:
press the Start/Pause button. Open the door. Load the
laundry. Close the door and press the Start/Pause
button again.

8. Start the programme

To start the selected programme, press the Start/Pause
button; the corresponding light stops flashing and

the

Wash pilot light illuminates

.

The pilot light corresponding to the wash phase which is
running is on.

The machine starts operating.

If the Delay Start option has been selected the
programme will start at the end of the countdown.

9. At the end of the programme

The machine stops automatically. The display shows a
blinking zero. The light of the Start/Pause button goes
out and the End light illuminates.

If the Rinse hold option has been selected, the door will
be locked, the

Rinse hold pilot light in the programme

progress display remains lit to indicate that the water
must be drained before opening the door. The display
shows a flashing zero.

To empty out the water you can after turning the
programme selector dial to Off position:

● select Drain programme, the water is emptied out

without spinning

● select Spin programme. Select the spin speed by

means of the relevant button and then depress the
Start/Pause button. The water is emptied out and the
laundry is spun at the selected spin speed.

At the end of the cycle, the light of the Start/Pause
button light goes out, and the End light

illuminates. The

door can be opened.

Turn the programme selector dial to Reset Off.

1200

900

700

500

Rinse

hold

Spin

Half

Prewash Quick

load

Extra
rinse

Start/
Pause

13

Switch the machine off by pressing the On/Off button.

Remove the laundry from the drum and carefully check
that the drum is empty so as to avoid any forgotten
items being damaged in a subsequent wash (e.g.
shrinking) or their colour running into a load of whites.

If you do not intend to carry out another wash, close the
water tap.

Leave the door open to prevent the formation of mildew
and unpleasant smells.

Drying only

Warning! Do not exceed the maximum laundry loads:

- 2.5 kg for linen and cottons

- 1.5 kg for synthetics.

The water tap must be open and the drain hose must be
positioned in the sink or connected to the drain pipe.

1. Load the laundry

2. Depress the On/Off button to switch the machine

on.

3. Select the drying programme “Dry” (for Cottons or
Synthetics).

4. Depress the Time Dry button until the time you

want appears in the display. The corresponding light
comes on.

5. Press the Start/Pause button to start the programme.

6. At the end of the cycle, turn the programme selector

dial to Reset Off and press the On/Off button again
to switch the appliance off.

7. Remove the laundry.

Automatic washing and drying
(NON-STOP programme)

Warning! For NON-STOP programmes, it is also
essential not to exceed the maximum load sizes of

2.5 kg for cotton and 1.5 kg for synthetics.

1. Load the laundry.

2. Add detergent and fabric softener.

Do not use dosing device/ball when carrying out
the NON-STOP programme because the plastic
material is not designed to withstand the high
drying temperature.

3. Switch the machine on by depressing the On/Off

button.

4. Select the wash programme.

5 Select eventually the required options by means of

the relevant buttons.

6. Select the drying time.
If possible, do not select a spin speed lower than that
proposed by the appliance to avoid a too long drying
time so saving energy.
In any case the reduction of the spin speed is only
possible after selecting drying. The lowest values
you can select are the following:
900 r.p.m. for Cottons and 700 r.p.m. for

Synthetics.

7. Start the programme by depressing the Start/Pause

button.

8. At the end of the programme, turn the selector dial to
Reset Off and press the On/Off button again to
switch the machine off.

9. Remove the laundry.

14

Washing and Drying Hints

Do NOT overload the machine. Weigh the laundry the
first few times you use the appliance.

The average weights of the most common items are
listed below as a guide:

1000g = 1 kg

Sheet 700-1000 g

Pillow case 100-200 g

Tablecloth 400-500 g

Serviette 50-100 g

Tea towel 70-120 g

Linen hand towel 100-150 g

Towelling hand towel 150-250 g

Towelling bath towel 700-1000 g

Bath robe 1000-1500 g

Man’s shirt 200-300 g

Apron 150-200 g

● Load the laundry loosely alternating large items with

small ones.

● Sort the laundry according to the type of fabric,

colour-fastness and how dirty it is.

● Avoid washing unhemmed or torn items as they may

unravel.

● Before washing, empty all pockets of small objects

which may have been left inside (coins, keys, screws
etc). as these could damage the drain pump.

● When washing curtains, remove the hooks.

● Close poppers and zips and fasten loose buttons.

● It is essential to wash new coloured items separately

when washing for the first time.

● When washing fabrics requiring different wash

temperatures together, always select the lowest
temperature.

● White items should not be washed with coloured

items.

● Very small items (handkerchiefs, ribbons, socks etc)

should be washed in a washing bag or a pillow case.

● Use a good quality detergent suitable for automatic

washing machines.

● Use the correct quantities of detergent.

● For wool, use gentle detergent only in small

quantities.

● Bleach is very corrosive; it should be used with care

and kept out of reach of children.

● Some stains such as fruit, wine, grass, rust etc. are

difficult to remove and should be treated before
washing with specific products, which can be found
in most household shops. In some cases it may help
to soak the stain before washing with a special pre­soak product or biological detergent.

● If you have used the machine to wash, rinse or spin

only non-colour fast garments, there may be dye left
in the sump. To ensure any subsequent wash is not
contaminated with the dye, select and carry out a
rinse and spin programme, without any garments, to
ensure that any dye is removed from the sump.

● Do not leave the damp laundry load in a heap too

long before drying.

● Avoid drying dark clothes with light coloured fluffy

items such as towels as these can attract the fluff.

● If you overdry the laundry, besides wasting energy,

any subsequent ironing may become more difficult
because the fabric could be heavily crumpled.

● Remove the laundry when the appliance has finished

drying.

● To avoid a static charge when drying is completed,

use either a fabric softener when you are washing the
laundry or a fabric conditioner specifically for tumble
dryers.

● Particularly delicate items such as synthetic curtains,

woollen and silk, garments with metal inserts, nylon
stockings, bulky garments such as anoraks,
bedcovers, quilts, sleeping bags and duvets must not
be machine dried.

● Garments padded with foam-rubber or materials

similar to foam-rubber must not be machine dried;
they represent a fire hazard.

● Also, fabrics containing residues of setting lotions or

hair sprays, nail solvents or similar solutions must not
be machine dried in order to avoid the formation of
harmful vapours.

● For drying, follow the indications given on the

manufacturer’s labels.

May be tumble dried

Drying at high temperature

Drying at reduced temperature

Do not tumble dry

Important: As a dryer, the machine works on the
condensation principle.

Therefore, the water tap must be open and the
drain hose must drain water into a sink or into
the drain pipe, even during the drying cycle.

15

And in which form?

Not only are there different types of detergent, but they
are also available in different forms. Whether you chose
a powder or liquid in traditional or compact form is
your own personal choice.

TRADITIONAL POWDERS

Pour the powder directly into the dispenser drawer. Do
not sprinkle powder onto clothes in the machine drum.

TRADITIONAL LIQUIDS

Liquid can be placed in the main wash compartment of
the detergent drawer marked with the symbol , start
the machine immediately upon placing the
detergent in the dispenser drawer.
Alternatively the detergent is measured into the
specially designed dosing device* which should be
placed on top of the laundry, and at the back of the
machine drum.

COMPACT POWDERS AND LIQUIDS

Compact detergents (or concentrates as they are also
known) are available in liquid or powder form, and
generally require a smaller dosage. Follow the
manufacturer’s instructions to ensure the most
economical usage. Pour the detergent directly into the
dispenser drawer, or alternatively measure the detergent
into the specially designed dosing device* which
should be placed on top of the laundry, and at the back
of the machine drum.

* If you use a dosing device in a washer dryer,

please ensure the dosing device/ball is removed
before carrying out a drying programme.

FABRIC CONDITIONERS

These are ideal for improving ‘softness’, and also
reduce static cling on synthetics and make ironing
easier. They are available in two types:

For example Lenor liquid fabric
softener, for use in the washing
machine/washer dryer. The
liquid fabric softener should be
poured into the compartment
marked with the symbol .
Follow the
manufacturer’s dosage
instructions and never exceed the
MAX level.

Bounce conditioning sheets for use
in a tumble dryer. We recommend
the conditioning sheets are pinned
(using a safety pin) to an article
of laundry and placed in the tumble dryer.

Which detergent?....

To ensure you obtain the best wash results from your
appliance, it is important to use the right detergent in
your everyday wash, and only detergents recommended
for use in automatic machines.
To maintain the appearance of your clothes and
household textiles and to make them last longer you
should use different types of detergent for different
washes, whether for whites, colours or delicates.

WHITES

We recommend the Ariel product
range which is biological and
designed to provide excellent
cleaning and stain removal even
at low temperatures.

NON BIOLOGICAL

If you prefer to use a non
biological detergent, which does
not contain enzymes we
recommend Fairy. Fairy provides
good cleaning and stain removal.

COLOURS

For coloured items you should use a detergent which is
designed to clean while maintaining the
original colour.
Ariel Color does not contain bleach
and therefore helps to preserve
colours.

DELICATE ITEMS

When washing delicates such as
woollens, you should use a product
which is specially designed to care for
fine fabrics.
Dreft Automatic is suitable for
woollens and other delicates.

LAUNDRY BLEACH

For additional stain removal you may wish to use a
product such as Ace Gentle Bleach
which is used in addition to your
chosen detergent. Ace is suitable for all
washable fabrics including silks,
woollens and colours.

16

Wash Care Symbols

Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling
code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct
programme on your washing machine.

WASHING SYMBOL

BLEACHING

IRONING

DRY CLEANING

TUMBLE DRYING

WASH ACTION FABRIC

Hot iron

Warm iron

Cool iron

Cotten, Linen, Viscose

Polyester mixtures, Wool

Acrylic, Nylon, Polyester

Important Notes

For best results, always use the dispenser drawer for
dispensing detergents and liquid additives.
Once the dispenser has been filled, close it by pushing it
in gently. This is particularly important if you are using

fabric conditioner to avoid the conditioner entering the
machine prematurely.
When using liquid detergent and a prewash programme,
place the detergent into the correct compartment in the
dispenser drawer, after the prewash has finished.

95

60

50

40

40

40

Chlorine bleach may be used

May be tumble dried

with high heat setting

with low heat setting

A cross through any symbol means «DO NOT»

May be dry cleaned. Other letters and/or a bar beneath the circle will
indicate the required process to the dry cleaner.

Normal (Maximum)

Normal (Maximum)

White Cotton or Linen
without Special Finishes

Cotton, Linen or Viscose
without Special Finishes
Colourfast at 60°C.

Reduced (Medium)

Normal (Maximum)

Reduced (Medium)

Much Reduced (Minimum)

Hand wash only

Nylon, Polyester/Cotton, Viscose
with Special Finishes, Cotton/
Acrylic Mix.

Cotton, Linen or Viscose
Colourfast at 40°C but not 60°C.

Acrylics, Acetate, Triacetate, Wool
mixes, Polyester/wool blends.

Wool, wool mixtures, Silks

Do not machine wash

X

17

Washing Programmes

*The “Cottons White Economy” at E60° C is the reference programme for the data entered in the energy label, in
compliance with EC 92/75 standards.

This data is given purely as an indication: the consumption values may vary in relation to the quantity and type of
laundry, the temperature of the water supply and the ambient temperature. The data refers to the highest temperature
for each programme.

Attention!

For the duration of the programmes, please refer to the display on the control panel.

Section

Spin speed/Rinse hold

Prewash, Half load,

Quick, Extra rinse

Spin speed/Rinse hold

Prewash, Half load,

Extra rinse

Spin speed/Rinse hold

Prewash, Half load,

Quick, Extra rinse

Spin speed/Rinse hold

Prewash, Half load,

Extra rinse

Spin speed/Rinse hold

Prewash, Half load,

Quick, Extra rinse

Spin speed/Rinse hold

Prewash, Quick,

Extra rinse

Spin speed/Rinse hold

Prewash, Extra rinse

Spin speed/Rinse hold

Prewash, Extra rinse

Quick,

Spin speed/Rinse hold

Prewash, Extra

rinse,Quick,

Spin speed/Rinse hold

Cottons

*Cottons

Cottons

Cottons

Cottons

Synthetics

Synthetics

Synthetics

Delicates

Wool

(handwash)

95°

E60°

60°

E40°

40°-30°

60°

E60°

40°-30°

Cold

40°-30°

40°- 30°

Cold

Temp.

Type of

fabric

Additional

functions

5 kg

5 kg

5 kg

5 kg

5 kg

2 kg

2 kg

2 kg

2 kg

1 kg

Max.

load

2.1

0.9

1.2

0.95

0.6

0.8

0.5

0.45

0.55

0.4

58

49

55

49

55

52

52

49

58

55

Consumption*

Energy

kWh

Water

lt

Whites

Whites

Economy

Whites and
Fast
coloureds

Coloureds

Economy

Non-fast
coloureds

Synthetics

Synthetics

Economy

Synthetics

Delicates

Wool
(handwash)

Programme

description

Wash at 95°C
3 rinses
Normal spin

Wash at 60°C
3 rinses
Normal spin

Wash at 60°C
3 rinses
Normal spin

Wash at 40°C
3 rinses
Normal spin

Wash at 40°-30°
3 rinses
Normal spin

Wash at 60°C
3 rinses
Delicate spin

Wash at 42°C
3 rinses
Delicate spin

Wash at 40°-30°C
3 rinses
Delicate spin

Wash at 40°-30°C
3 rinses
Delicate spin

Wash at 40°-30°C
or cold wash
3 rinses
Delicate spin

18

This data is given purely as an indication: the consumption values may vary in relation to the quantity and type of
laundry, the temperature of the water supply and the ambient temperature.

Spin speed/Rinse hold

Extra rinse

Spin speed/Rinse hold

Spin speed

Spin speed/Rinse hold

Programme

Additional

functions

5 kg

5 kg

-

5 kg

5 kg

2 kg

Max.

load

0.3

0.1

-

-

0.3

19

42

17

-

45

Consumption

*

Energy

kWh

Water

lt

Soak 30

Rinses

Softener

Drain

Spin

Mini 30

Off (Reset)

Programme description

Soak for about 20 minutes at
30°C

3 rinses with liquid additive
if required
Long spin at the max speed

1 rinse with liquid additive
Long spin at max. speed

For emptying out after the
programme “Soak 30° ” or at
the end of a programme with
“Rinse hold” option

Separate long spin at 1200 rpm
max

Wash at 30°C
2 rinses
Short spin at 700 r.p.m.

For cancelling the wash
programme which is running

Special Programmes

19

Drying Programmes

Degree of drying

Store dry (*)
Suitable for items
to put away
without ironing

Type of fabric

Cotton and linen
(towels, T-shirts,
bathrobes)

Max. load

2.5 kg

Spin speed

1200

Drying time

mins

85-95

1 kg

1200

40-50

Synthetics and mixed
fabrics (jumpers,
blouses, underwear,
household linen)

1.5 kg 900

80-90

1, kg 900 55-65

Iron dry
Suitable for
ironing

Cotton and linen
(sheets, tablecloths,
shirts, etc.)

2.5 kg

1200

65-75

1 kg

1200

30-40

Extra dry
Ideal for
towelling
materials

Cotton and linen
(bathrobes, bath
towels, etc.)

2.5 kg

1200

95-105

1 kg

1200

50-60

(*) The STORE DRY drying programme for cotton is the reference programme for the Energy Label data, in

compliance with EC directive 92/75.

20

Cleaning the drawer recess

Having removed the drawer, use a small brush to clean
the recess, ensuring that all washing powder residue is
removed from the upper and lower part of the recess.
Replace the drawer and run the rinse programme
without any clothes in the drum.

Cleaning the filter

The water drain filter

A clean filter is important for the correct functioning of
the machine, and should therefore be cleaned after every
washing and drying programme.

Place a container under the filter to catch any spillage. If
the filter is blocked and the machine is unable to drain
you will need to drain the water manually from the
machine at this stage. To do this, unhook the drain hose
from the standpipe or sink and hold the end of the hose
over a bowl on the floor. The water should drain by
gravity into the bowl. When the bowl is full, hook the
hose back up and empty the bowl. Repeat the procedure
until water stops flowing out.

Maintenance and Cleaning

Before any maintenance or cleaning is carried out you
must DISCONNECT the appliance from the electricity
supply.

Descaling

The water we use normally contains lime. It is a good
idea to periodically use a water softening powder in the
machine. Do this separately from any laundry washing,
and according to the softening powder manufacturer's
instructions. This will help to prevent the formation of
lime deposits.

After each wash

Leave the door open for a while. This helps to prevent
mould and stagnant smells forming inside the appliance.
Keeping the door open after a wash will also help to
preserve the door seal.

Maintenance Wash

With the use of low temperature washes it is possible to
get a build up of residues inside the drum.
We recommend that a maintenance wash be performed
on a regular basis.

To run a maintenance wash:

●

The drum should be empty of laundry.

●

Select the hottest cotton wash programme.

●

Use a normal measure of detergent, must be a
powder (such as Ariel Futur).

External cleaning

Clean the exterior cabinet of the appliance with soap
and water only, and then dry thoroughly.

Cleaning the dispenser drawer

The washing powder and additive dispenser drawer
should be cleaned regularly.
Remove the drawer by pressing the catch downwards
and by pulling it out. Flush it out under a tap, to remove
any traces of accumulated powder.
To aid cleaning, the top part of the additive
compartment should be removed.

P0010

P0009

P0038

P0037

21

Unscrew and remove the filter.

Clean carefully under a fast running tap.

Warning

When the appliance is in use and depending on the
programme selected there can be hot water in the filter.
Never remove the filter during a wash cycle, always
wait until the appliance has finished the cycle, and is
empty. When replacing the filter, ensure it is securely
retightened so as to stop leaks and young children being
able to remove it.

The water inlet filter

If your water is very hard or contains traces of lime
deposit, the water inlet filter may become clogged.

It is therefore a good idea to clean it from time to time.

Turn off the water tap. Unscrew the water inlet hose.
Clean the filter using a hard bristle brush.

Tighten up the inlet hose.

The dangers of freezing

If the machine is exposed to temperatures below 0°C,
certain precautions should be taken.

●

Turn off the water tap.

●

Unscrew the inlet hose.

●

Unhook the drain hose from the rear support and
position the end of this hose and that of the inlet
hose in a bowl. Run the draining programme.

●

Disconnect the appliance.

●

Screw the inlet hose and reposition the drain hose.

●

When you intend to start the machine up again,
make sure that the room temperature is above 0°C.

Emergency emptying out

If the water is not discharged, proceed as follows to
empty out the machine:

●

pull out the plug from the power socket;

●

close the water tap;

●

if necessary, wait until the water has cooled down;

●

Unscrew and remove the filter;

●

place a bowl on the floor. The water should drain by
gravity into the bowl. When the bowl is full, empty
the bowl. Repeat the procedure until water stops
flowing out;

●

clean the filter if necessary as previously described;

●

screw the filter again.

Important!

Every time you drain the water through the emergency
emptying hose you must pour 2 litres of water into the
main wash compartment of the detergent drawer and
then run the drain programme. This will activate the
ECO valve avoiding that part of the detergent remains
unused at next washing.

P0039

P0040

P1090

22

Something Not Working

Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out
an engineer. Before contacting your local Service Force Centre, please carry out the checks listed below.

IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or
installation, a charge will be made even if the appliance is under guarantee.

During machine operation it is possible that an alarm code appears on the display:

-

EE1100

: problem with the water supply

-

EE2200

: problem with water draining

-

EE4400

: door open

Once the problem has been eliminated, press the Start/Pause button to restart the programme. If after all checks, the
problem persists, contact your local Service Force Centre.

Symptom

The machine does not start

Possible causes

●

The door has not been closed. (

EE4400

)

●

The plug is not properly inserted in the power socket.

●

There is no current at the socket

●

The main fuse or the fuse in the plug has blown.

●

The selector dial is not correctly positioned.

●

The

Start/Pause

button has not been depressed.

●

The Delay start option has been selected.

The machine does not fill

●

Ensure the water tap is open. (

EE1100

)

●

The filter in the inlet hose is blocked. (

EE1100

)

●

The inlet hose may be squashed or kinked. (

EE1100

)

●

The door has not been closed. (

EE4400

)

The machine fills then empties
immediately

●

The end of the drain hose is too low.

●

The end of the drain hose is submerged in water.

●

There is no vent in the end of the drain hose.

The machine does not empty and/or
does not spin

●

The drain hose may be squashed or kinked. (

EE2200

)

●

The Rinse hold option or the Soak 30 programme has been selected.

●

The drain filter may be blocked. (

EE2200

)

●

The drain hose extension is not correct. Follow the instructions for
connecting to the waste.

●

The drainage system pipes are blocked. (

EE2200

)

●

The wash load is unbalanced: redistribute the clothes inside the drum to
allow the machine to spin.

There is water on the floor

●

Too much detergent or unsuitable detergent has been used (creates too
much foam).

●

Check whether there are any leaks from one of the inlet hose fittings. It
is not always easy to see this as the water runs down the hose; check to
see if it is damp.

●

The drain hose may be damaged or not securely positioned.

●

The detergent dispenser drawer or recess is clogged.

●

The drainage system pipes are blocked.

●

The filter has not fully screwed in.

Unsatisfactory washing results

●

Too little detergent or unsuitable detergent has been used. An
insufficient amount of detergent leaves the laundry looking grey and
causes lime scale to form.

●

Stubborn stains have not been treated prior to washing

●

The correct wash programme has not been selected.

●

Too much laundry has been placed in the drum.

23

Symptom

The door will not open

Possible causes

●

The water level is above the bottom edge of the door.

●

The machine is heating the water or drying the clothes.

●

The drum is turning.

Spinning starts late or the machine
does not spin

●

The electronic unbalance detection device has cut in because the
laundry is not evenly distributed in the drum. The laundry is
redistributed by reverse rotation of the drum. This may happen several
times before the unbalance disappears and normal spinning can resume.
If, after 10 minutes, the laundry is still not evenly distributed in the
drum, the machine will not spin. In this case, redistribute the load
manually and select the spin programme.

The machine makes an unusual
noise

●

The machine is fitted with a type of motor which makes an unusual
noise compared with other traditional motors. This new motor ensures
a softer start and more even distribution of the laundry in the drum
when spinning, as well as increased stability of the machine.

No water is visible in the drum

The machine does not dry or does
not dry properly

●

Machines based on modern technology operate very economically
using very little water without affecting performance.

●

The drying time has not been selected.

●

The water tap is not turned on.(

EE1100

)

●

The drain filter is clogged. (

EE2200

)

●

The machine is overloaded.

●

The selected drying time or drying sector is not suitable for the laundry.

Service & Spare Parts

In the event of your appliance requiring service, or if
you wish to purchase spare parts, please contact your
local Service Force Centre by telephoning:

0870 5 929929

For the address of your local Service Force Centre and
further information about Service Force, please visit the
website at www.serviceforce.co.uk.

Before calling out an engineer, please ensure you have
read the details under the heading “Something Not
Working”.

When you contact the Service Force Centre you will
need to give the following details:

1. Your name, address and post code

2. Your telephone number

3. Clear and concise details of fault

4. The model and serial number of the appliance (found
on the rating plate - see picture)

5. The purchase date.

Customer

For general enquiries concerning your Tricity Bendix
appliance or for further information on Tricity Bendix
products, please contact our Customer Care Department
by letter or telephone at the address below:

Customer Care Department - Tricity Bendix

Major Appliances

Addington Way
Luton
Bedfordshire
LU4 9QQ

Tel [phone]*

* calls to this number may be recorded for training

purposes.

Mod. ..........

Prod. No. ...........

Ser. No. .........

Mod. ..........

Prod. No. ...........

Ser. No. .........

P0042 BD

The machine vibrates when spinning

●

The internal packing has not been removed.

●

The machine is in contact with the wall or furniture.

●

The machine is not level.

●

The washing load is badly distributed in the drum.

●

Maybe there is very little laundry in the drum.

24

Guarantee Conditions

Standard guarantee conditions

We, Tricity Bendix , undertake that if, within 12 months
of the date of the purchase, this Tricity Bendix appliance
or any part thereof is proved to be defective by reason
only of faulty workmanship or materials, we will, at our
option, repair or replace the same FREE OF ANY
CHARGE for labour, materials or carriage on condition
that:

●

The appliance has been correctly installed and used
only on the electricity supply stated on the rating
plate.

●

The appliance has been used for normal domestic
purposes only, and in accordance with the
manufacturer’s instructions.

●

The appliance has not been serviced, maintained,
repaired, taken apart or tampered with, by any
person not authorised by us.

All service work under this guarantee must be
undertaken by an Tricity Bendix Service Force Centre.
Any appliance or defective part replaced shall become

the Company’s property.
This guarantee is in addition to your statutory and other
legal rights.
Home visits are made between 8.30am and 5.30pm
Monday to Friday. Visits may be available outside these
hours in which case a premium will be charged.

Exclusions

This guarantee does not cover:

●

Damage or calls resulting from transportation,
improper use or neglect, the replacement of any light
bulbs or removable parts of glass or plastic.

●

Costs incurred for calls to put right an appliance
which is improperly installed or calls to appliances
outside the United Kingdom.

●

Appliances found to be in use within a commercial
environment, plus those which are subject to rental
agreements.

●

Products of Tricity Bendix manufacture which are
NOT marketed by Tricity Bendix .

European guarantee

If you should move to another country within Europe
then your guarantee moves with you to your new home
subject to the following qualifications:

●

The guarantee starts from the date you first
purchased your product.

●

The guarantee is for the same period and to the same
extent for labour and parts as exists in the new
country of use for this brand or range of products.

●

The guarantee relates to you and cannot be
transferred to another user.

●

Your new home is within the European Community
(EC) or European Free Trade Area.

●

The product is installed and used in accordance with
our instructions and is only used domestically, i.e. a
normal household.

●

The product is installed taking into account
regulations in your new country.

Before you move please contact your nearest Customer
Care Centre, listed below, to give them details of your
new home. They will then ensure that the local Service
Organisation is aware of your move and able to look
after you and your appliances.

France Senlis [phone]

Germany Nurnberg [phone]

Italy Pordenone [phone]

Sweden Stockholm [phone]

UK Luton [phone]

Ireland Dublin [phone]

25

Installation Instructions

Technical Specifications

It is dangerous to alter the specifications or
attempt to modify this product in any way.

Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.

Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.

Any plumbing work required to install this
appliance should be carried out by a qualified
plumber or competent person.

DIMENSIONS Height 82 cm

Width 60 cm
Depth 54 cm

POWER SUPPLY VOLTAGE 230-240 V/50 Hz
TOTAL POWER ABSORBED 2050 W (10A)

WATER PRESSURE Minimum 0.05 MPa

Maximum 0.80 MPa

MAX. LOAD CAPACITY Washing:

Cotton, linen 5 kg
Synthetics 2 kg
Delicate fabrics 2 kg
Wool 1 kg

Drying:

Cotton, linen 2.5 kg
Synthetics 1.5 kg

SPIN SPEED Maximum 1200 rpm

CONSUMPTION DATA FOR WASHING Energy 0.90 kWh
5 KG NORMALLY SOILED COTTON Water 49 litres
ITEMS WITH THE ECONOMY Time 120 mins

PROGRAMME E60

°

This appliance complies with the following E.E.C. Directives:

- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;

- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

26

Unpacking

All transit bolts and packing must be removed
before using the appliance.

You are advised to keep all the packaging for re-use in
case the machine is to be transported again.

Using a spanner unscrew and remove the rear right bolt.
Lay the machine gently on its back, making sure that the
hoses are not squashed.

Remove the polystyrene base and take off the bottom
panel by unscrewing the central screw. Carefully slide
out the right polythene bag.

Repeat the operation for the left and central polythene
bags.
Re-fit the bottom panel using the 4 screws supplied with
the door hinges (in the plastic bag) and the previously
removed screw.

Set the machine upright and remove the two remaining
bolts from the back.

Pull out the three plastic spacers from the holes into
which the bolts were fitted.
Plug the open holes with the plugs supplied with the
instruction booklet.

Positioning

Install the machine on a flat hard floor.
Make sure that air circulation around the machine is not
impeded by carpets, rugs etc. Check that the machine
does not touch the wall or other kitchen units.
Never place cardboard, wood or similar materials under
the machine to compensate for any unevenness in the
floor.

Your new washer-dryer has been designed to be
permanently plumbed in to your home’s water supply
and drainage system. However, if this is not possible, it
may be connected to a suitable existing tap with the
drain hose discharging into a sink.
The appliance has an inlet hose, with female 3/4” BSP
thread connector. If this connection is not compatible
with the plumbing of the existing installation, a variety
of connectors are available from good hardware stores
and plumbers merchants to suit most domestic
plumbing. Any alteration to your existing plumbing
must be carried out by a competent person, or qualified
plumber.

Water inlet

Connect the hose to a tap with a 3/4’’ thread.

Do not use previously employed hoses.

Installation should comply with local water authority
and building regulations’ requirements.

The appliance must be connected to a cold water
supply.

A minimum water pressure of 0.05 MPa (0.5 bar) is
required for safe operation of the appliance

P0255

P0457

P0015

P0256

P0020

P0016

P0453

27

If you cannot make the cold water connection direct
from the rising mains, you may be able to operate the
appliance from your cold water storage system.

There should be a minimum distance of 5.02m
(16.5 ft) between the appliance’s inlet and the bottom of
the water storage tank.

Set the hoses correctly by loosening the ring nuts. After
positioning the inlet hoses, be sure to tighten the ring
nuts again to prevent leaks.

Water drainage

This appliance is designed to be permanently plumbed
into your home's drainage system using one of the
following methods.

1. Into a drainage standpipe.

Firstly form a hook in the end of the drain hose using
the “U” piece” supplied.

Place the drain hose into your standpipe, which should
have an internal diameter of approximately 38mm thus
ensuring there is an air break between the drain hose
and standpipe.

When discharging into a standpipe ensure that the top of
the standpipe is no more than 90cm (35.4'') and no less
than 60cm (23.6'') above floor level.

The drain hose may be extended to a maximum of 4
metres. An additional drain hose and joining piece is
available from your local Service Force Centre.
The joining piece must have an internal diameter of
18mm.

If your drain hose looks like this (see below) you do not
require the “U” piece”. Just push the hose firmly into
the standpipe.

2. Onto a sink outlet spigot.

If the outlet spigot has not been used before, remove
any blanking plug that may be in place.

Push the drain hose onto the spigot and secure with a
clip if required, ensure a loop is formed in the drain
hose (see diagram) to prevent waste from the sink
entering the washer dryer.

P1088

P0021

3 pin

Max. 90 cm (35.4)

Min. 60 cm (23.6)

P1201

U piece

supplied

P1199

38 mm (11.2)

standpipe

diameter

30 cm (12")

P1200

P1212

P1197

28

Special conditions

If the floor is carpeted or covered with crumbly or soft
material, insert a rigid support base under the feet to
prevent noise, vibration or displacement. The base
should protrude a few centimetres beyond the edges of
the machine.

Warning

The machine should NOT be placed on deep pile

carpeting.

Note

Please ensure that when the appliance is installed it is
easily accessible for the engineer in the event of a
breakdown.

In the interest of the environment

Washer-dryers and dishwashers should be connected to
the FOUL drainage system, the water will then be taken
to a sewage works for treatment before being discharged
safely into a river.
It is essential that these appliances are not connected to
the surface water drainage system as this water is
discharged directly into a river or stream and may cause
pollution.
If you require any further advice please contact your
local water authority.

The drain hose may be extended to a maximum of 4
metres. An additional drain hose and joining piece is
available from your local Service Force Centre.
The joining piece must have an internal diameter of 18mm.

Important

●

Before connecting up the machine to new pipework
or to pipework that has not been used for some time,
run off a reasonable amount of water to flush out any
debris that may have collected in the pipes.

●

For a correct functioning of the machine the
drain hose must remain hooked on the proper
support piece situated on the top part of the back
side of the appliance.

Levelling

Level the washer-dryer by raising or lowering the feet.
The feet may be tight to adjust as they incorporate a self
locking nut, but the machine MUST be level and stable
(check diagonally).

Any necessary adjustment can be made with a spanner.
Accurate levelling prevents vibration, noise and
displacement of the machine during operation.

Some vibration is inevitable, especially if mounted on a
wooden floor.

Sprung wooden floors are particularly susceptible to
vibration. For advice, consult a builder. If possible,
always place the machine on a solid floor.

Loop

P1198

P1051

P0987

RAINWATER

'RUN-OFF'

SURFACE WATER

DRAINS & SEWERS

UNTREATED
DISCHARGE

RIVER

SHOWER

BATH

WASHING
MACHINE

SINK TOILET

DISHWASHER

BIDET

FOUL DRAIN

FOUL SEWERS

SEWAGE

TREATMENT

WORKS

TREATED

DISCHARGE

RIVER

29

Electrical connection

Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.

WARNING: THIS APPLIANCE MUST BE
EARTHED.

The manufacturer declines any liability should

this safety measure not be observed.

Before switching on, make sure the electricity supply
voltage is the same as that indicated on the appliance’s
rating plate. The rating plate is located at the top of the
rim of the open door.

The appliance is supplied with a 13amp plug fitted.
In the event of having to change the fuse in the plug
supplied, a 13amp ASTA approved (BS1363/A) fuse
must be used.
Should the plug need to be replaced for any reason,
proceed as described below.
The wires in the mains lead are coloured in accordance
with the following code:

Green and Yellow - Earth

Blue - Neutral

Brown - Live

The wire coloured green and yellow must be connected
to the terminal marked with the letter «E» or by the
earth symbol or coloured green and yellow.

The wire coloured blue must be connected to the
terminal «N» or coloured black.

The wire coloured brown must be connected to the
terminal marked «L» or coloured red.
Upon completion there must be no cut, or stray strands
of wire present and the cord clamp must be secure over
the outer sheath.

WARNING:

A cut off plug inserted into a 13 amp socket is

a serious safety (shock) hazard.
Ensure that the cut off plug is disposed of
safely. Should the appliance power supply
cable neeed to be replaced, this must be carried
out by our Service Force Centre.

Note

When the appliance is installed the power supply cable
must be accessible.

Permanent connection

In the case of permanent connection it is necessary that
you install a double pole switch between the appliance
and the electricity supply (mains), with a minimum gap
of 3mm between the switch contacts and of a type
suitable for the required load in compliance with the
current electrical regulations.

The switch must not break the yellow and green earth
cable at any point.

Prod. No. ...........

Mod. ..........

Ser. No. .........

Mod. ..........

Prod. No. ...........

P0042 BD

Ser. No. .........

GREEN & YELLOW

E

13A

L

N

BROWN

BLUE

P1041

CORD CLAMP

30

Building-in

This appliance has been designed to be built into the
kitchen furniture. The recess should have the
dimensions shown in picture A.

When installing the appliance into the kitchen furniture
ensure, if possible, the hoses are placed in either of the
two recesses on the back of the appliance. This will help
to prevent the hoses from becoming kinked or trapped.
Picture AB.

Preparation and assembly of the door

The machine is originally pre-arranged for the assembly
of a door opening from right to left.
In this case it is sufficient to screw in the hinges (1) and
the counter-magnet (6) provided with the appliance, at
the right level (Fig. B).

a) Door

The dimensions of the door should be:

- width 595-598 mm

- thickness 16-22 mm

P0965

820 min

570

min.

600

596

416

176,5

818

541

195

490

160

120

90

8

515

165

A

600

The height (C-Fig. C) depends on the height of the
adjacent furniture's base.

b) Hinges

To mount the hinges it is necessary to drill two holes
(dia. 35 mm, depth 12.5-14 mm depending on the depth
of door furniture) on the inner side of the door. The
distance between the holes hobs fixing centres must be
416 mm.
The distance (B) from upper edge of the door to the
centre of the hole depends on the adjacent furniture's
dimensions.
The required dimensions are given in the picture C.
The hinges will be fixed to the door by means of screws
for wood (2-Fig. B) supplied with the appliance.

c) Mounting the door

Fix the hinges (1) to the machine by means of the
M5x15 screws (3-Fig. B). The hinges can be adjusted to
compensate for possible uneven thickness of the door.
To align the door perfectly it is necessary to loosen the
screw (3-Fig. B), adjust the door and tighten the screw
again.

d) Counter-magnet (6)

The appliance is pre-arranged for a magnetic closure of
the door. To enable a correct operation of this device, it
is necessary to screw the counter-magnet (6) (steel disk
+ rubber ring) into the inner side of the door.
Its position must correspond to the magnet (4) on the
appliance (see picture D).

35 Ø 12.5-14 depth

16-22

B

C

22+1,5

595-598

416

P0422S

C

6

1

7

2

1

3

3

P0982

2

4

5

B

6

4

P0984

D

31

If the door has to be opened from left to right, invert the
position of the plates (7), the magnet (4) and the plate
(5) (Fig. B and E). Mount the countermagnet (6) and the
hinges (1) as previously described.

Recommendations regarding the
construction and fitting of a base
when the installation requires an
integrated appliance to be raised

Where the appliance has been raised by mounting onto
a wooden base provided by the installer. The material
used to construct the base should have a non slip
surface, be water repellent and if possible be one solid
piece.
If it is not possible to use one solid piece, due to the
additional height required, ensure that any additional
strips of timber are glued and screwed to the underside
of the base (see Fig. F).

Drill four fixing holes see Fig. G

Position the base into the recess with its front edge as
far forward as the adjoining plinth line will allow.

The reason for placing the base in this position is to
allow a small strip of beading to be fitted in front of
the appliance feet.

Fix the base firmly to the floor using four appropriate
countersunk screws (see Fig. H).

With the appliance installed adjust all four feet ensuring
the machine is stable, and a clearance of approximately
5 mm is left between the top of the machine and the
underside of the worktop.

A final check for stability should be carried out with the
machine on spin with a load, this will identify the need
for any further fine adjustment to the feet.

A strip of beading approximately 605 mm W, x 5 mm
H, x 25 mm D must be screwed down into the base
directly in front of the machine’s feet, this will provide
additional security.

If required an additional door magnet, part number
1242394-00/3 and disc, part number 1242393-00/5 are
available from spare parts.

E

4

5

6

1

7

3

P0983

2

Hardwood strip
5 mm x 25 mm

H

5 mm Hardwood strip

40 mm

100 mm

F

600-605 mm

Front view

Additional pieces of
timber should run
from front to back

600-605

5 X 25 X 605

490

600-605 mm

490 mm

95 mm

Front edge

50 mm

G

Top view

Tricity Bendix, Addington Way, Luton, Bedfordshire LU4 9QQ

Consumer care telephone number 08705 950950

© Electrolux plc 2006
