tricity bendix TBS605BL User Manual
INSTRUCTION BOOKLET
BUILT-IN OVEN MODEL
TBS 605
Please read this instruction booklet before using the appliance
2
Important Safety Information
You MUST read these warnings carefully before installing or using the oven.
If you need assistance, contact our Customer Care Department
on 08705 950950
Installation
• This oven must be installed by qualified personnel
to the relevant British Standards.
• This oven is heavy. Take care when moving it.
• Remove all packaging, both inside and outside the
oven, before using the oven.
• Do not attempt to modify the oven in any way.
food in the oven.
• Ensure that all control knobs are in the OFF
position when not in use.
• Do not leave cookware containing foodstuffs, e.g.
fat or oil in or on the oven in case it is
inadvertently switched ON.
• When using other electrical appliances, ensure the
cable does not come into contact with the hot
surfaces of the oven.
Child Safety
• This oven is designed to be operated by adults. Do
not allow children to play near or with the oven.
• The oven gets hot when it is in use. Children
should be kept away until it has cooled.
During Use
• This oven is intended for domestic cooking only.
It is not designed for commercial or industrial
purposes.
• Never line any part of the oven with aluminium
foil.
• Do not allow heatproof cooking material, e.g.
roasting bags, to come into contact with oven
elements.
• Never place plastic or any other material which
may melt in or on the oven.
• Do not place sealed cans or aerosols inside the
oven. They may explode if they are heated.
• Do not hang towels, dishcloths or clothes from the
oven or its handle.
• Do not use this oven if it is in contact with water
and never operate it with wet hands.
Maintenance and Cleaning
• Only clean this oven in accordance with the
instructions.
• The oven should be kept clean at all times. A
build-up of fats or other foodstuffs could result in
a fire, especially in the grill pan.
• Always allow the oven to cool down and switch
off the electrical supply before carrying out any
cleaning or maintenance work.
Service
• This oven should only be repaired or serviced by
an authorised Service Engineer and only genuine
approved spare parts should be used.
Environmental Information
• After installation, please dispose of the packaging
with due regard to safety and the environment.
• When disposing of an old appliance, make it
unusable, by cutting off the cable. Remove any
door catches, to prevent small children being
trapped inside.
• Take great care when heating fats and oils as they
will ignite if they become too hot.
• Always use oven gloves to remove and replace
Keep this instruction book for future
reference and ensure it is passed on
to any new owner.
3
Contents
For the User
Important Safety Information 3
Description of the Appliance 5
Controls 6
Before the First Use 9
Using the Oven 9
Using the Fan Oven 11
Cooking Chart 12
Defrosting 14
Grilling 15
Cleaning the Oven 18
If something goes wrong 21
For the Installer
Technical Data 25
Electrical Connection 25
Building In 26
Service and Spare Parts 22
Guarantee conditions 22
Guide to Use the instructions
The following symbols will be found in the text to
guide you throughout the Instructions:
Safety Instructions
☞
Step by step instructions for an
operation
Hints and Tips
i
This appliance complies with the following
E.E.C. Directives:
* 73/23 - 90/683
(Low VoltageDirective);
* 93/68 (General Directives);
* 89/336 (Electromagnetical
Compatibility Directive) .
and subsequent modifications
Oven Door Protection Device
All our appliances comply with the
European safety standards. Nevertheless,
in order to ensure the highest safety
level, and avoid small children to be
exposed to the heat when the appliance
is operated, it is possible to fit a special
protection device to the oven door. This
device can be purchased in our Service
Force Centres, specifying the relevant
code (35791) and the Product No. shown
on the rating plate.
4
Description of the Appliance
Control Panel
Oven door
Oven Function
Control Light
Electronic
timer
OVEN PROGRAMMER
MAINS
THERMOSTAT
Control Light
ON
ON
Thermostat
Oven
Function
Control
Knob
FUNCTION TEMPERATURE
0
MAX
200
Thermostat
Control
Knob
50
100
150
Accessories
Removable
handle
Grill Pan Grid
Grill / Roasting pan
5
Controls
Oven Function Control Knob
Oven Light - The oven light will be on without
any cooking function.

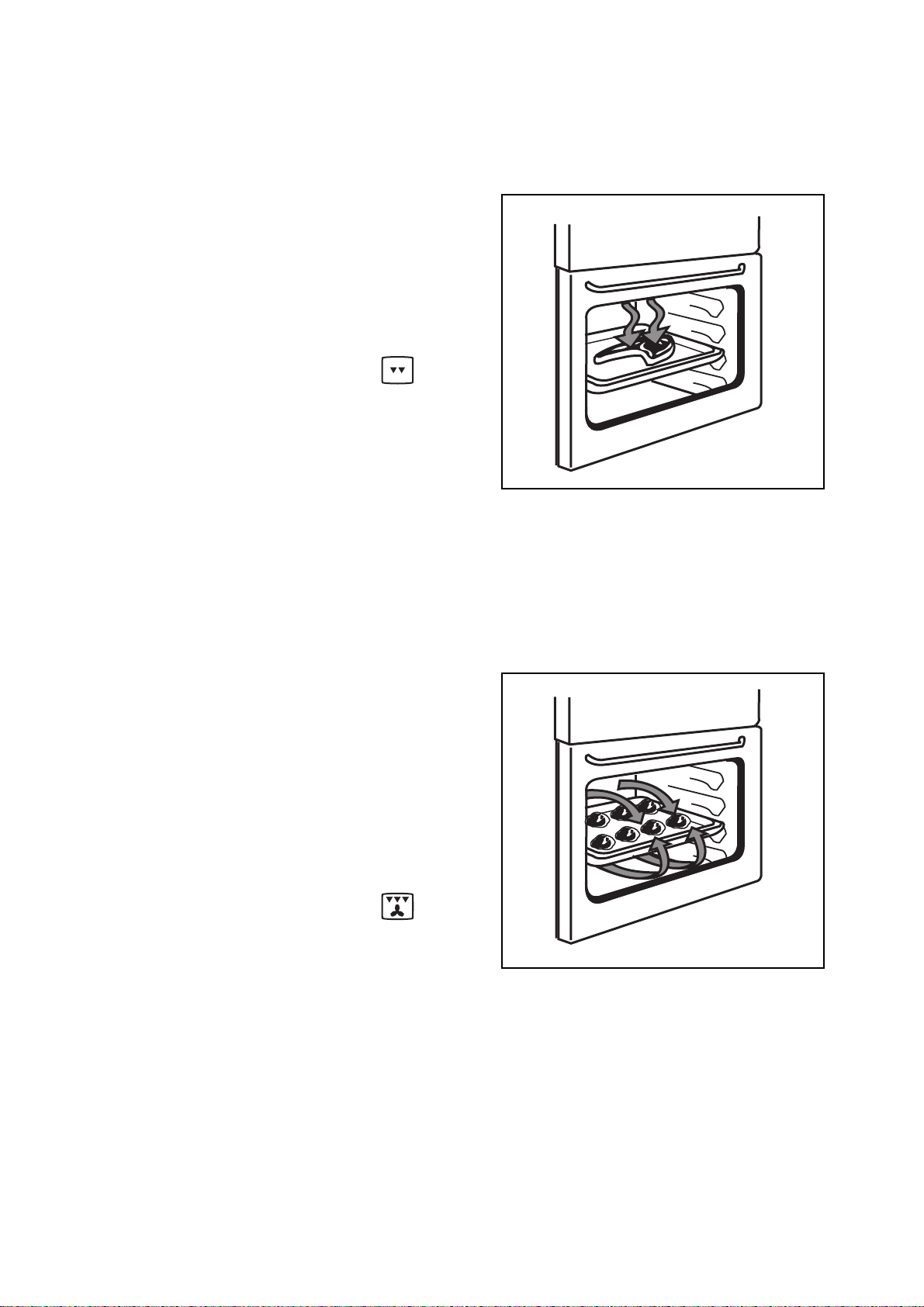

Inner grill element only - can be used for
grilling small quantities.
Double Grill - The full grill element will be on.
Thermal Grilling - This function offers an
alternative method of cooking food items,
normally associated with conventional grilling.
The grill element and the oven fan operate
together, circulating hot air around the food.
Fan Oven cooking - This allows you to roast or
roast and bake simoultaneously using any
shelf, without flavour transference.
Defrost Setting - This setting is intended to
assist in thawing of frozen food.
Thermostat Control Knob
Turn the thermostat control knob clockwise to select
temperatures between 50°C and 250°C (MAX).
The Safety Thermostat
This oven is provided with a safety thermostat. In
case of malfunctioning of the main thermostat, and
consequent over-heating, the safety device will stop
the power supply to the appliance. If this happens,
call your local Service Centre. Under no
circumstances should you attempt to repair the
appliance yourself.
24 hour Clock and Timer
Minute minder
Cooking duration
End of cooking time
MAX
200
0
Cookpot
symbol
150
A
A
U
U
T
T
O
O
50
100
Auto
symbol
Manual function
Cookpot symbol - This will be displayed when
a program is in operation.
A
Auto symbol - This will be displayed when the
U
oven has been programmed for automatic
T
O
operation.
- + Time setting knob
6
- +
Time
setting
Programming
controls
24 hour Clock and Timer
The electronic timer can indicate the time of day,
operate as a minute minder and automatically operate
the oven.
Before the oven can be operated, the time of day must
be set on the electronic timer.
Please note that this is a 24 hour clock. For example,
2pm is shown as 14:00.
In case of loss of power, all the settings (time of day,
set program or program in operation), will be
cancelled. When the power is restored, the numbers
on the display will flash, and the timer has to be reset.
TO SET THE TIME OF DAY
☞
Press buttons and , and at the same time turn
the time setting knob until the correct time of day is
displayed.
TO SET THE MINUTE MINDER
☞
Press button and at the same time turn the setting
time knob until the duration time is displayed
(maximum 23 hours, 59 minutes).
Our diagram shows the timer set for 35 minutes.
After a few seconds the time of day will show in the
display.
- +
- +
To check the number of minutes remaining, press the
button. At the end of the timed period an alarm
will sound. To switch off the alarm press button
.
7
MANUAL FUNCTION
☞
Press button to set the oven for manual function.
TO SET THE TIMER TO
☞
SWITCH OFF ONLY
This is useful if you want to begin cooking
immediately but have the oven switch off
automatically.
1. Set the oven function control knob and the
thermostat control knob on the required settings.
2. Place food in the oven.
3. Press button
and, at the same time, turn the
time setting knob until the required cooking
duration is displayed.
Our diagram shows the timer set for 1 hour 10
minutes.
At the end of the cooking time the oven will switch
off, an alarm will sound. To switch off the alarm
- +
A
A
U
U
T
T
O
O
- +
press button
TO SET THE TIMER TO SWITCH
☞
.
THE OVEN ON AND OFF
1. Ensure the clock is showing the right time of day.
2. Carry out steps 1, 2 and 3 as explained in "To set
the timer to switch off only".
3. Press button
and at the same time turn the
time setting knob until the end cooking time is
displayed.
Our diagram shows the end cooking time set for
7:35 pm.
TO CANCEL A PROGRAMME
☞
1. Press button and, at the same time, turn the
time setting knob until the cooking duration is set
on "zero".
2. If the end cooking time has been set too, press
button
and at the same time turn the time
setting knob until the end cooking time is set on
"zero".
A
A
U
U
T
T
O
O
- +
8
Before the First Use
Remove all packaging, both inside and
outside the oven, before using the
appliance.
Before first use, the oven should be heated without
food. During this time, an unpleasant odour may be
emitted. This is quite normal.
☞
This procedure should be repeated with the grill
function for approximately 5-10 minutes.
1. Set the end of cooking programmer to
manual function.
2. Switch the oven function control knob to
fan cooking
3. Set the thermostat control knob to MAX.
4. Open a window for ventilation.
5. Allow the oven to run empty for
approximately 45 minutes.
.
Using the Oven
• Always cook with the oven door closed.
• Stand clear when opening the drop down
oven door. Do not allow it to fall open support the door using the door handle,
until it is fully open.
• The oven has four shelf levels, and is
i
supplied with two shelves. The shelf
positions are counted from the bottom of
the oven as shown in the diagram.
It is important that these shelves are
correctly positioned as shown in the
diagram. Shelf level 2 is fitted with
telescopic shelf supports (see next page).
• Do not place cookware directly on the
oven base.
4
3
2
1

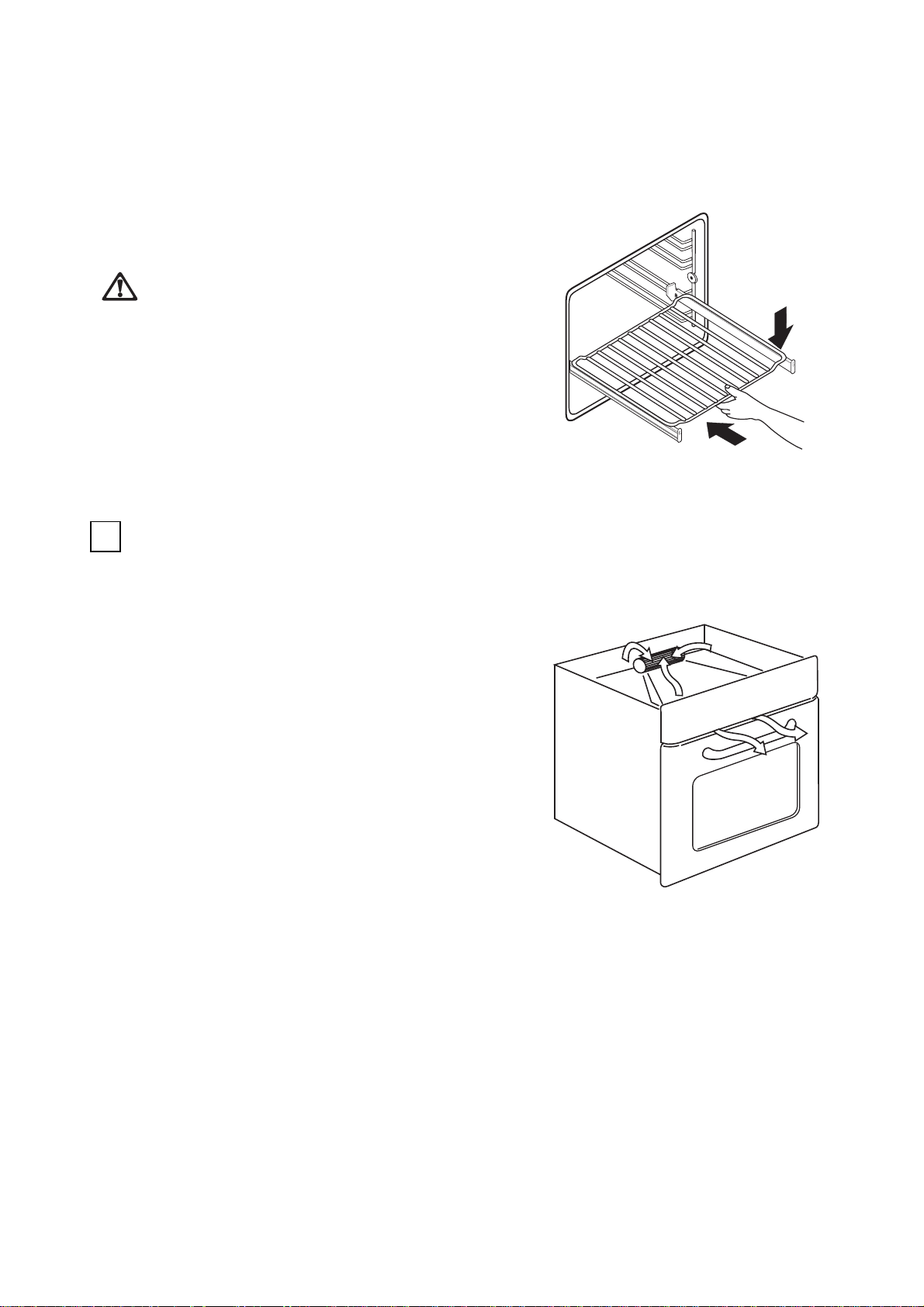

Your oven is supplied with one normal shelf for use
on the telescopic shelf supports and one anti-tip shelf.
NORMAL SHELF
The anti-tip shelf has four small metal tabs on its
frame to prevent it from sliding out from the shelf
supports.
ANTI-TIP SHELF
metal tabs
9
