Tricity Bendix TBS 603 User Manual

INSTRUCTION BOOKLET

BUILT-IN OVEN MODEL

TBS 603

Please read this instruction booklet before using the appliance

2

Important Safety Information

You MUST read these warnings carefully before installing or using the oven.
If you need assistance, contact our Customer Care Department
on 08705 950950

Installation

• This oven must be installed by qualified personnel
to the relevant British Standards.

• This oven is heavy. Take care when moving it.

• Remove all packaging, both inside and outside the
oven, before using the oven.

• Do not attempt to modify the oven in any way.

food in the oven.

• Ensure that all control knobs are in the OFF
position when not in use.

• Do not leave cookware containing foodstuffs, e.g.
fat or oil in or on the oven in case it is
inadvertently switched ON.

• When using other electrical appliances, ensure the
cable does not come into contact with the hot
surfaces of the oven.

Child Safety

• This oven is designed to be operated by adults. Do
not allow children to play near or with the oven.

• The oven gets hot when it is in use. Children
should be kept away until it has cooled.

During Use

• This oven is intended for domestic cooking only.
It is not designed for commercial or industrial
purposes.

• Never line any part of the oven with aluminium
foil.

• Do not allow heatproof cooking material, e.g.
roasting bags, to come into contact with oven
elements.

• Never place plastic or any other material which
may melt in or on the oven.

• Do not place sealed cans or aerosols inside the
oven. They may explode if they are heated.

• Do not hang towels, dishcloths or clothes from the
oven or its handle.

• Do not use this oven if it is in contact with water
and never operate it with wet hands.

Maintenance and Cleaning

• Only clean this oven in accordance with the
instructions.

• The oven should be kept clean at all times. A
build-up of fats or other foodstuffs could result in
a fire, especially in the grill pan.

• Always allow the oven to cool down and switch
off the electrical supply before carrying out any
cleaning or maintenance work.

Service

• This oven should only be repaired or serviced by
an authorised Service Engineer and only genuine
approved spare parts should be used.

Environmental Information

• After installation, please dispose of the packaging
with due regard to safety and the environment.

• When disposing of an old appliance, make it
unusable, by cutting off the cable. Remove any
door catches, to prevent small children being
trapped inside.

• Take great care when heating fats and oils as they
will ignite if they become too hot.

• Always use oven gloves to remove and replace

Keep this instruction book for future

reference and ensure it is passed on

to any new owner.

3

Contents

For the User

Important Safety Information 3
Description of the Appliance 5
Controls 6
Before the First Use 7
Using the Oven 7
Using the Fan Oven 9
Cooking Chart 10
Defrosting 12
Grilling 13
Cleaning the Oven 14
If something goes wrong 17
Service and Spare Parts 18
Guarantee Conditions 18

For the Installer

Technical Data 21
Electrical Connection 21

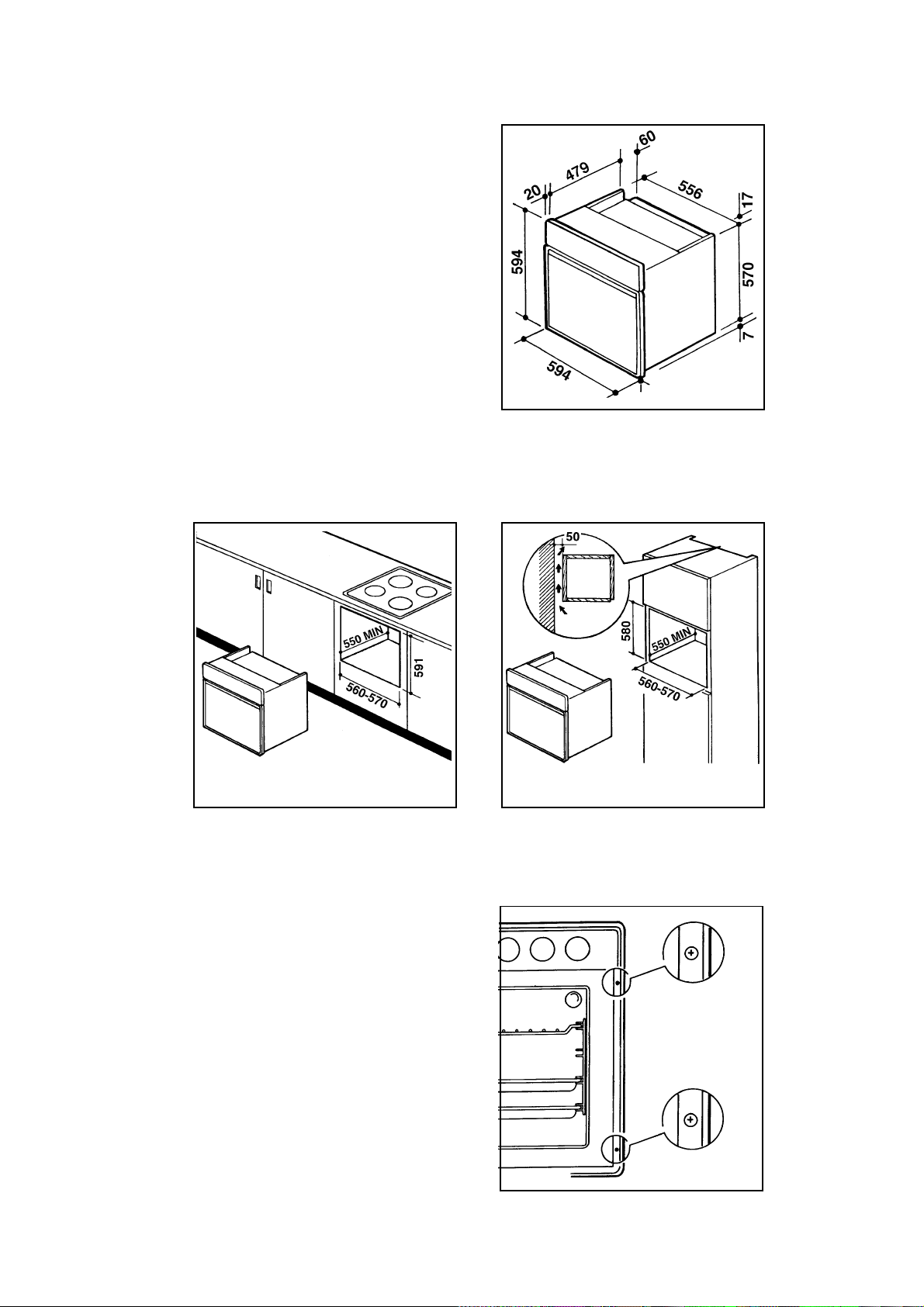

Building In 22

Guide to Use the instructions

The following symbols will be found in the text to
guide you throughout the Instructions:

Safety Instructions

Oven Door Protection Device

☞

Step by step instructions for an
operation

Hints and Tips

i

This appliance complies with the following

E.E.C. Directives:
* 73/23 - 90/683

(Low VoltageDirective);

* 93/68 (General Directives);
* 89/336 (Electromagnetical

Compatibility Directive) .
and subsequent modifications

All our appliances comply with the
European safety standards. Nevertheless,
in order to ensure the highest safety
level, and avoid small children to be
exposed to the heat when the appliance
is operated, it is possible to fit a special
protection device to the oven door. This
device can be purchased in our Service
Force Centres, specifying the relevant
code (35791) and the Product No. shown
on the rating plate.

4

Description of the Appliance

Oven

Function

Control

Knob

Thermostat Control

Knob

End of Cooking Programmer

Oven Function

Control Light

Thermostat

Control Light

Control Panel

Oven door

TIMER

90

75

60

MAINS

ON

5

10

15

30

THERMOSTAT

ON

45

FUNCTION TEMPERATURE

00

MAX

200

50

100

150

Accessories

Removable

handle

Grill Pan Grid

Grill / Roasting pan

5

Controls

Oven Function Control Knob

Oven Light - The oven light will be on without
any cooking function.

Defrost Setting - This setting is intended to
assist in thawing of frozen food

Fan oven cooking - This allows you to roast or
roast and bake simoultaneously using any

shelf, without flavour transference.
Grill - The heat comes only from the top

element.

Thermostat Control Knob

Turn the thermostat control knob clockwise to select
temperatures between 50°C and 250°C (MAX).

0

50

MAX

100

The Safety Thermostat

This oven is provided with a safety thermostat. In
case of malfunctioning of the main thermostat, and
consequent over-heating, the safety device will stop
the power supply to the appliance. If this happens,
call your local Service Centre. Under no
circumstances should you attempt to repair the
appliance yourself.

End of Cooking programmer

The end of cooking programmer allows the oven to
switch off automatically (it cannot be used as a timer
only).
The cooking duration can be set up to 90 minutes
maximum.
Turn the knob clockwise to 90, then turn it anticlockwise
to the required cooking time. At the end of the chosen
cooking time the timer clock automatically switches off
the oven. At the same time an acoustic signal is emitted
which stops automatically.

For manual operation the switch should be turned in
an anti-clockwise direction until the symbol showing

a hand
choose the function required.

reaches the corresponding sign « ● » then

90

75

200

60

150

0

5

10

15

30

45

6

Before the First Use

Remove all packaging, both inside and
outside the oven, before using the
appliance.

Before first use, the oven should be heated without
food. During this time, an unpleasant odour may be
emitted. This is quite normal.

☞

This procedure should be repeated with the grill
function for approximately 5-10 minutes.

1. Set the end of cooking programmer to
manual function.

2. Switch the oven function control knob to
fan cooking .

3. Set the thermostat control knob to MAX.

4. Open a window for ventilation.

5. Allow the oven to run empty for
approximately 45 minutes.

Using the Oven

• Always cook with the oven door closed.

• Stand clear when opening the drop down
oven door. Do not allow it to fall open ­support the door using the door handle,
until it is fully open.

• The oven has four shelf levels, and is

i

supplied with two shelves. The shelf
positions are counted from the bottom of
the oven as shown in the diagram.

It is important that these shelves are
correctly positioned as shown in the
diagram. Shelf level 2 is fitted with
telescopic shelf supports (see next page).

• Do not place cookware directly on the
oven base.

4

3

2

1

Your oven is supplied with one normal shelf for use
on the telescopic shelf supports and one anti-tip shelf.

NORMAL SHELF

The anti-tip shelf has four small metal tabs on its
frame to prevent it from sliding out from the shelf
supports.

ANTI-TIP SHELF

metal tabs

7
