Tricity Bendix SI 453 User Manual
OPERATING AND INSTALLATION INSTRUCTIONS
MODEL NO.
SI 453
39
TECHNICAL DETAILS
MODEL NO. SI 453
Voltage: 230/240 Volts AC 50Hz
Wattage: 10.0/10.9kW
Height: 900mm
Width: 550mm
Depth: 600mm
Weight: 61kg
This appliance complies with: European Council Directive 73/23/EEC.
EMC Directive 89/336/EEC.
CE Marking Directive 93/68/EEC.
2
CONTENTS
Technical Details
Contents
Preface
Safety
Introduction ...................................................................................... 8
Getting to Know Your Appliance
The Ceramic Hob
.........................................................................................
...........................................................................................
............................................................................................
Before Installation ........................................................................... 6
During Operation ........................................................................... 6
After Use ................................................................................... 7
General .................................................................................... 7
Rating Plate
Installation .................................................................................. 8
Reversible Main Oven Door ................................................................. 9
General Notes on using your Appliance ...................................................... 9
About Condensation and Steam ............................................................. 9
The Cooling Fan for the Controls ............................................................ 9
Grill and Oven Furniture ..................................................................... 9

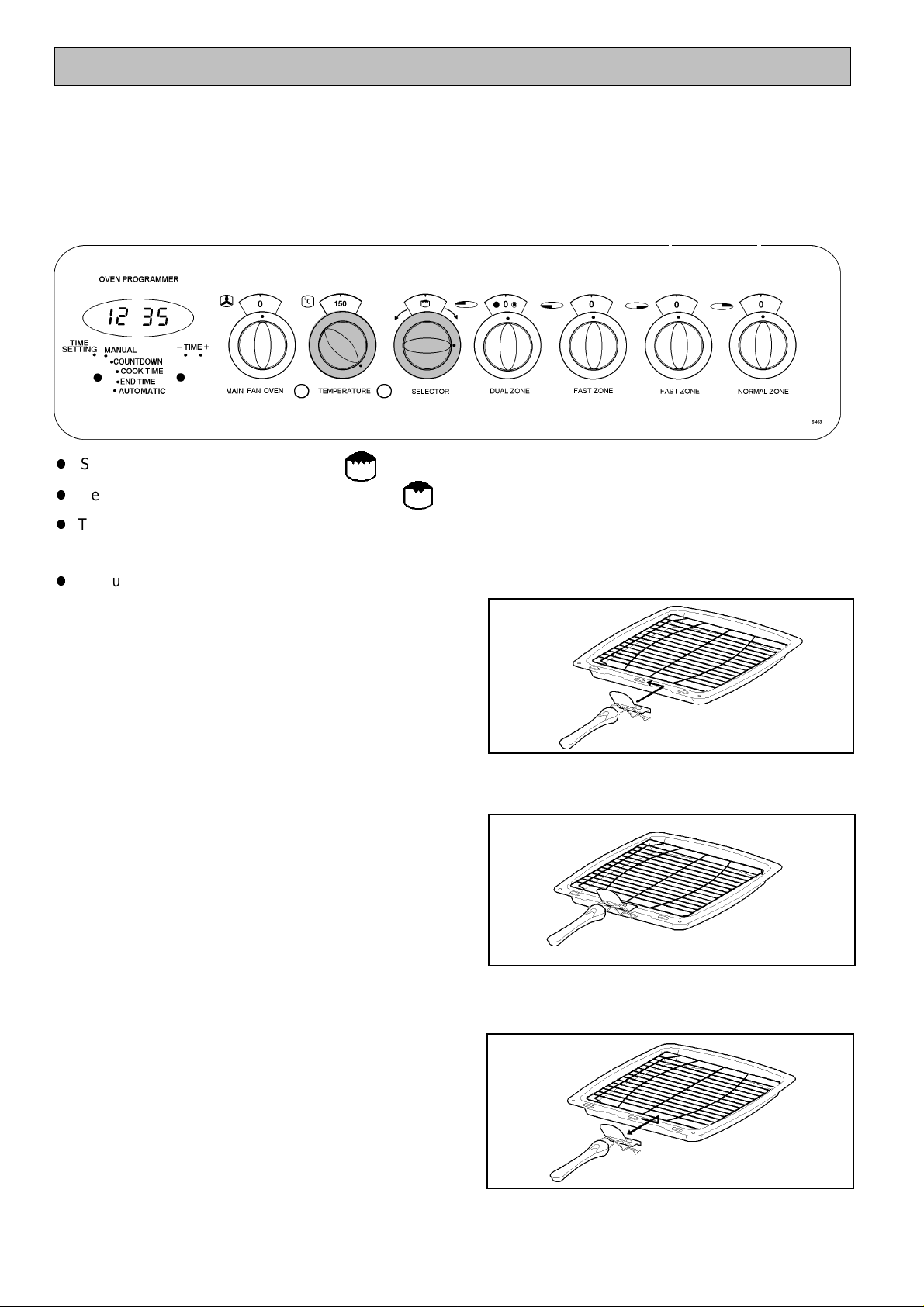

The Control Panel ......................................................................... 10

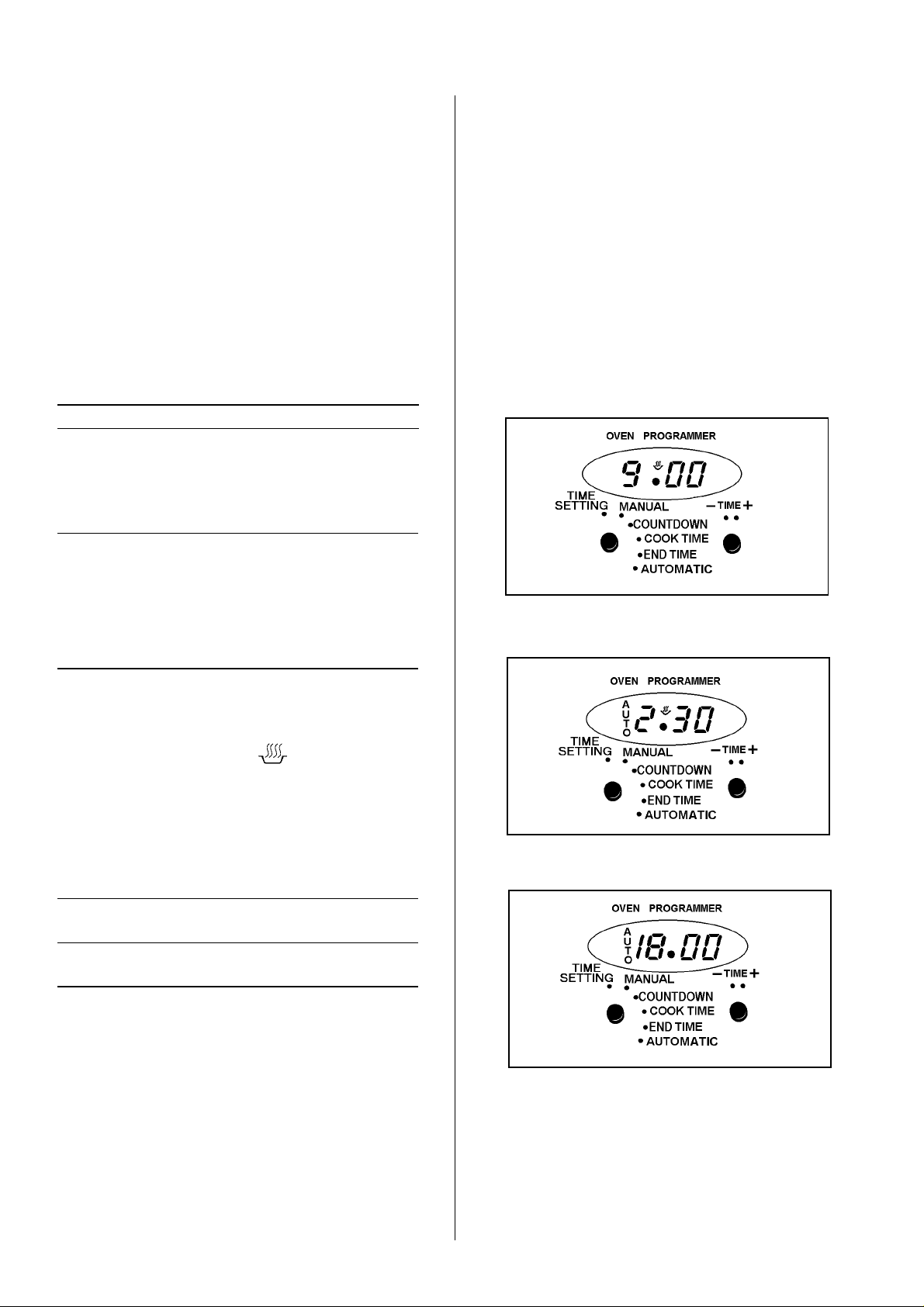

The Timer ................................................................................. 11

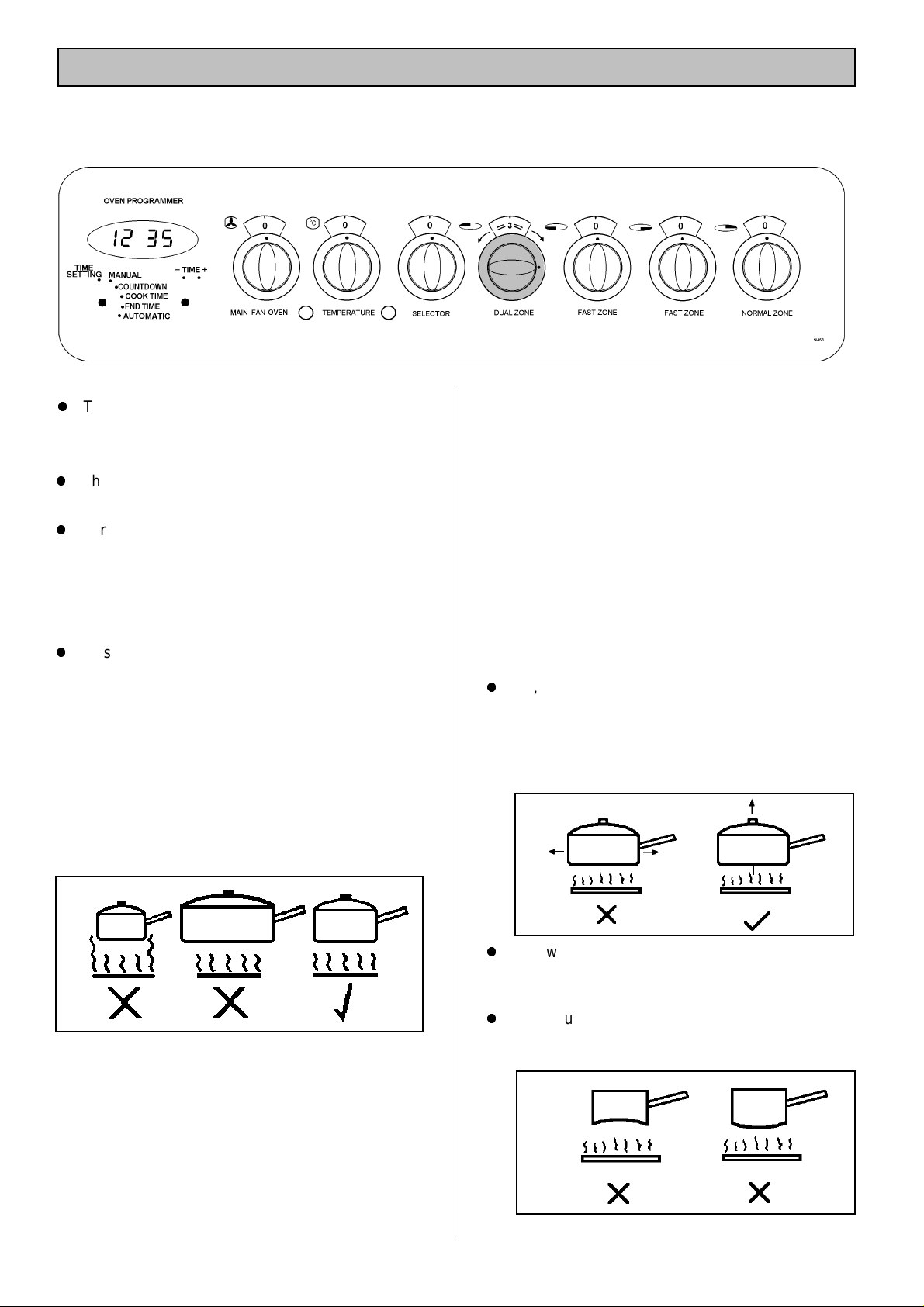

Recommended Saucepans ................................................................. 13
Hints and Tips ............................................................................. 13
.................................................................................
................................................................................
................................................................
................................................................................
10
13
2
3
5
6
8
Deep Fat Frying ................................................................................. 14
Preserving ....................................................................................... 14
The Dual Grill
Uses of the Grill ........................................................................... 15
Selecting the Grill .......................................................................... 15
Things to Note ............................................................................. 15
The Grill Pan and Handle ................................................................... 15
Hints and Tips ............................................................................. 16

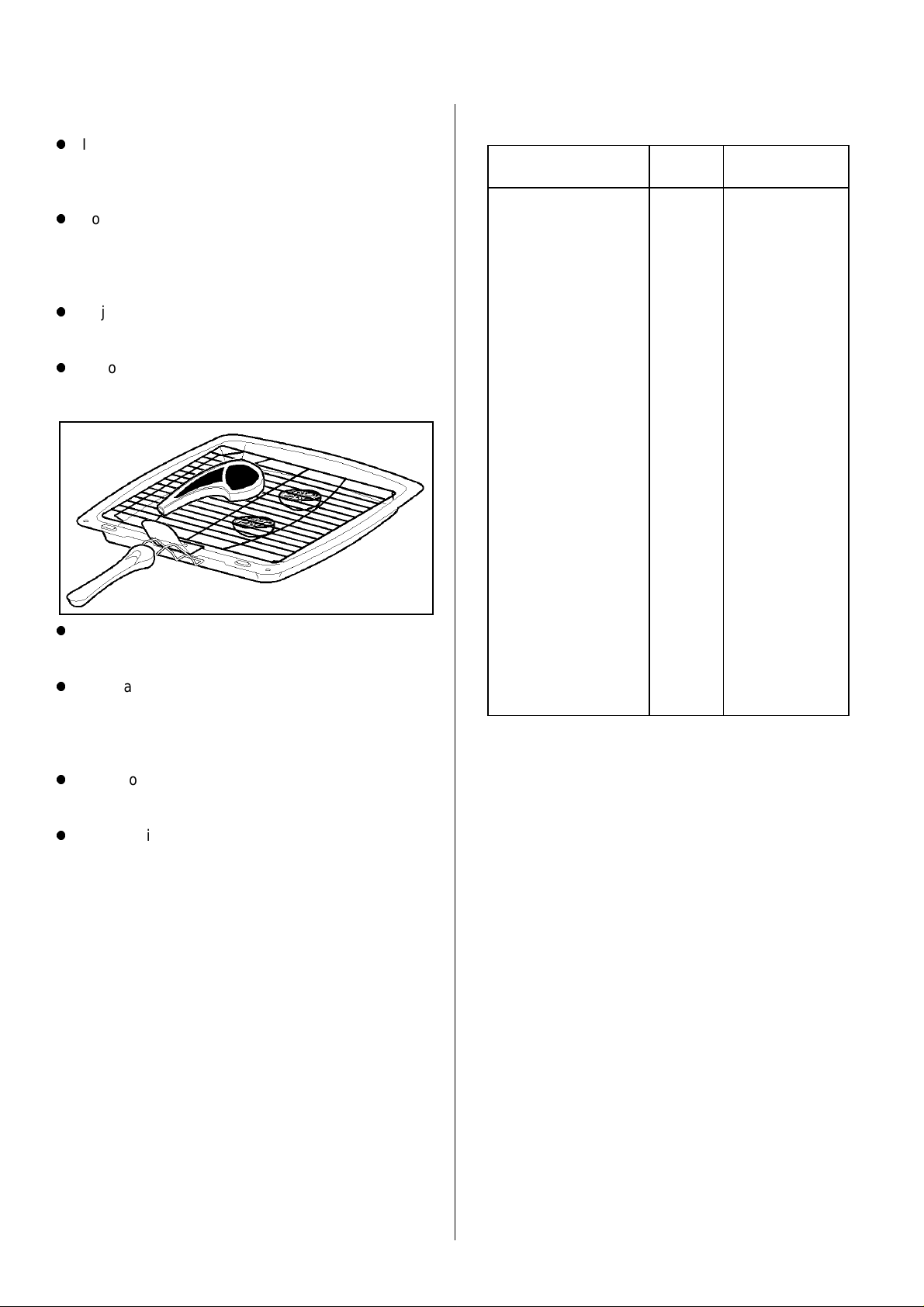

Grilling Chart .............................................................................. 16
The Top Oven
Uses of the Top Oven ...................................................................... 17
Selecting the Top Oven .................................................................... 17
Things to Note ............................................................................. 17
To Fit the Top Oven Shelf .................................................................. 17
Hints and Tips ............................................................................. 18
Automatic Cooking ......................................................................... 18

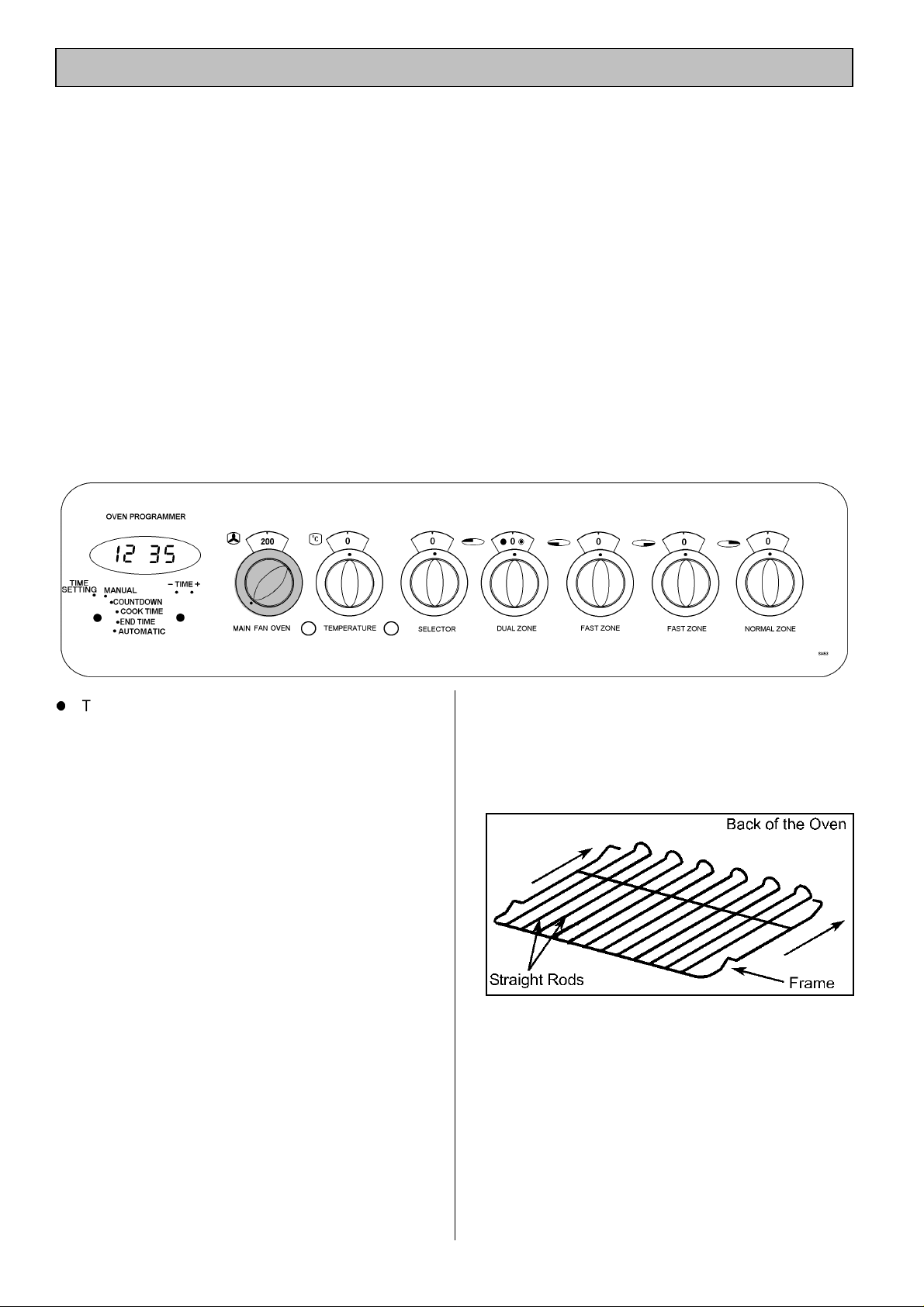

The Main Fan Oven .............................................................................. 19
Uses of the Fan Oven ...................................................................... 19
Selecting the Fan Oven .................................................................... 19
Things to Note ............................................................................. 19

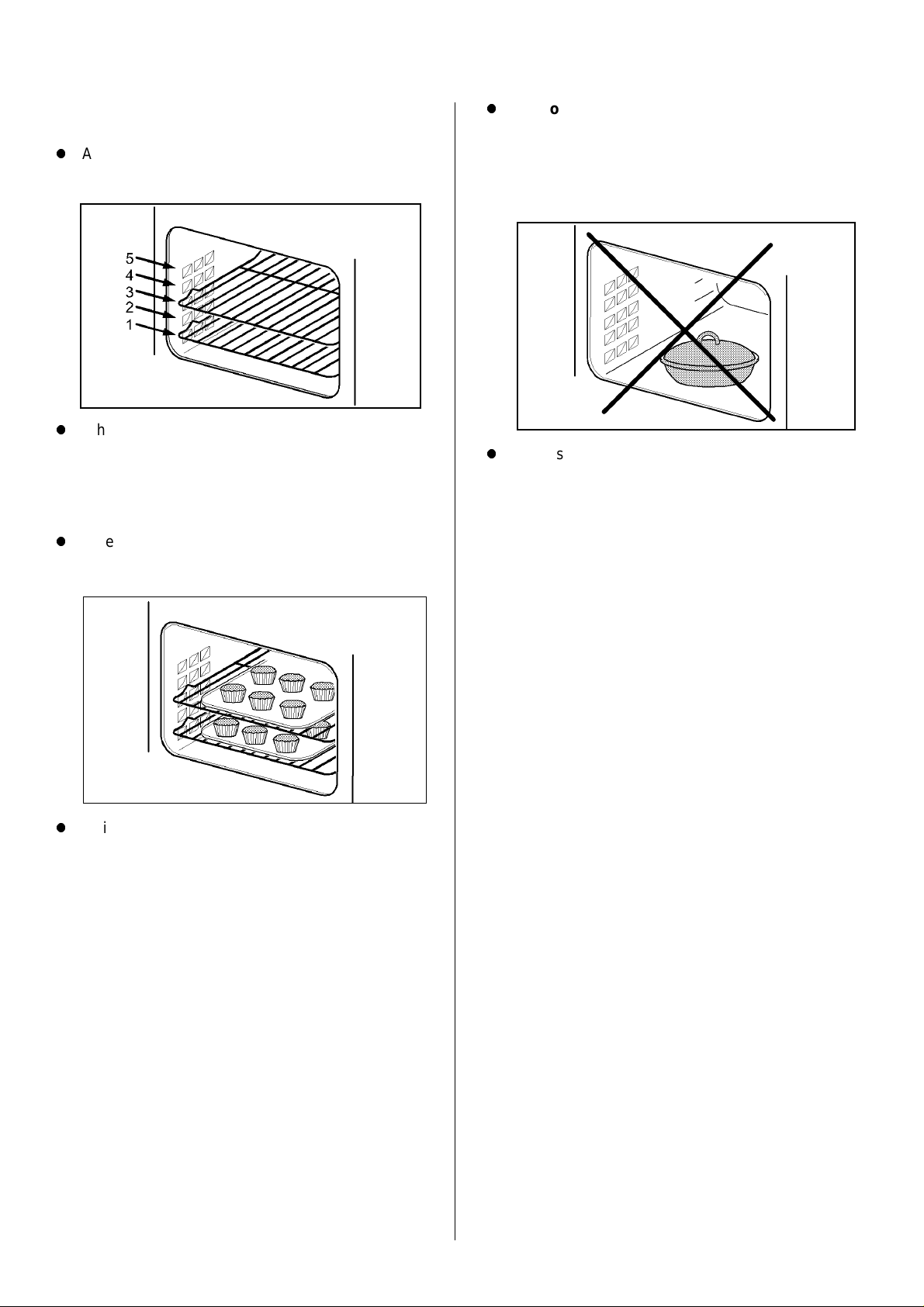

To Fit the Main Oven Shelves .............................................................. 19
Hints and Tips ............................................................................. 20
Automatic Cooking ......................................................................... 20
....................................................................................
...................................................................................
15
17
3
CONTENTS
Oven Cooking Chart ............................................................................. 21
Roasting Chart .................................................................................. 22
Defrost Feature
Uses of Defrost Feature .................................................................... 23
Selecting Defrost .......................................................................... 23
Things to Note ............................................................................. 23
Hints and Tips ............................................................................. 23
Care and Cleaning
Cleaning Materials ......................................................................... 24
Cleaning the Ceramic Hob ................................................................. 24
Cleaning the Outside of the Appliance ...................................................... 25
Cleaning the Grill Pan, Grill Pan Grid and Oven Shelves ..................................... 25
Cleaning Inside the Grill/Oven Compartments ............................................... 26
Care of Stayclean Surfaces ................................................................ 26
Hints and Tips ............................................................................. 26
Cleaning Between the Outer and Inner Door Glass .......................................... 26
Replacing the Oven Light Bulb .............................................................. 27
Something not Working? ........................................................................ 28
Service and Spare Parts

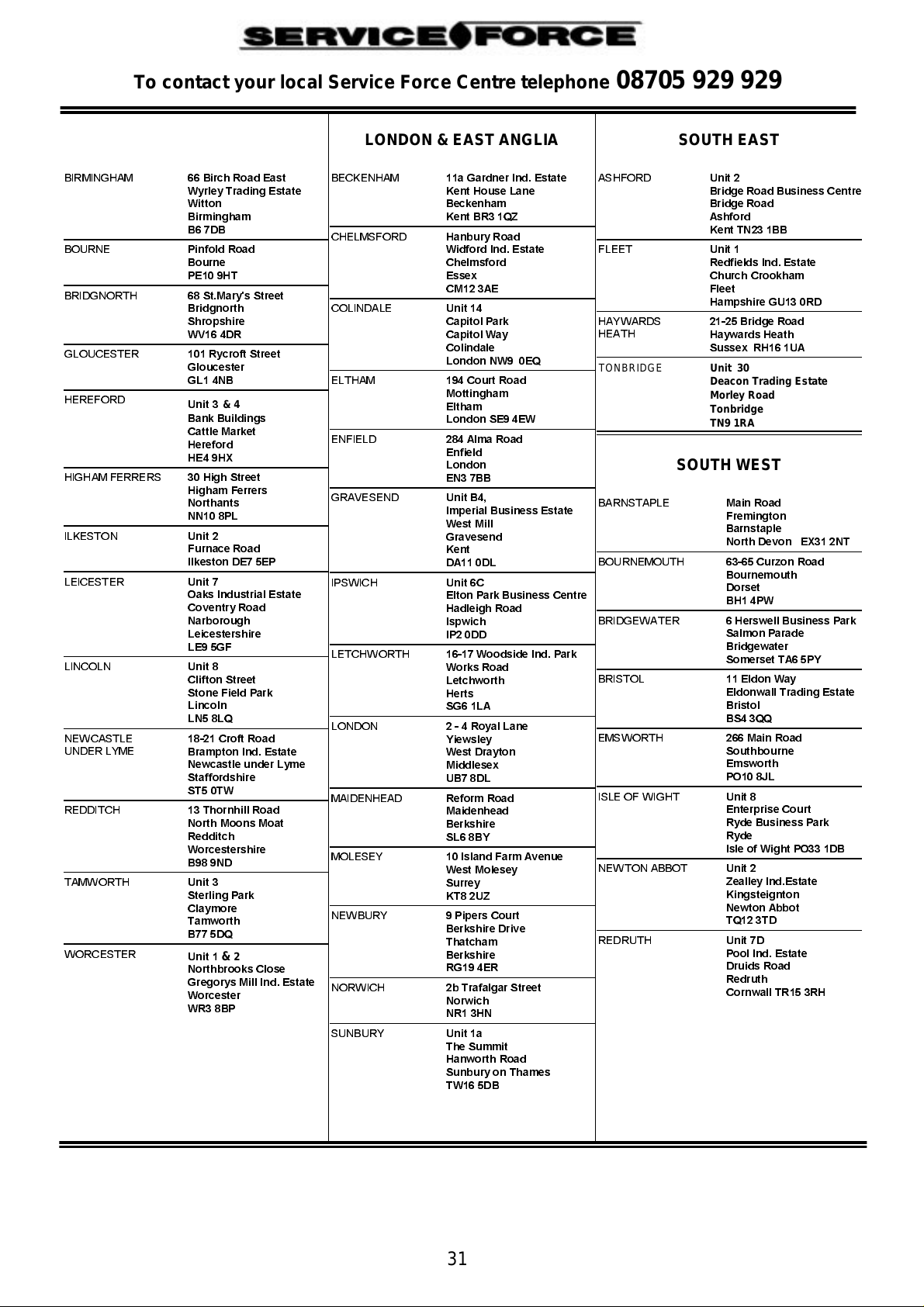

Customer Service Centres ....................................................................... 30
Guarantee Conditions
..................................................................................
...............................................................................
.........................................................................
...........................................................................
23
24
29
32
4
PREFACE
Dear Customer,
Thank you for buying a Tricity Bendix appliance. With our 80 years experience
in developing and manufacturing the very best in U.K. cookers, you can be
assured that you have purchased a hard working, reliable, quality product.
Tricity Bendix cookers comply with British Standard safety and performance
requirements. They have been approved by BEAB (British Electrotechnical
Approvals Board) and are covered by a 12 month parts and labour guarantee.
To get the best from your new Tricity Bendix appliance, we ask that you
PLEASE READ THESE INSTRUCTIONS CAREFULLY. Particular attention
should be made to cooking times and temperatures which may differ from
your previous appliance.
It is most important that this instruction book is retained with the appliance for
future reference. Should the appliance be sold, or if you move house and
leave the appliance, always ensure that the book remains with the appliance.
This will enable the new owner to be acquainted with the functioning of the
appliance and the relevant warnings.
Please read the whole instruction book before attempting to use the appliance
ensuring you follow the recommendations given.
5
SAFETY
THESE WARNINGS ARE PROVIDED IN
THE INTERESTS OF YOUR SAFETY.
ENSURE THAT YOU UNDERSTAND THEM
ALL BEFORE INSTALLING OR USING THE
APPLIANCE.
PLEASE
READ
CAREFULLY
BEFORE INSTALLATION
This appliance is heavy and care must
be taken when moving it.
Ensure that all packaging, both inside
and outside the appliance, has been
removed before the appliance is used.
If the appliance is to be placed on a
base, measures must be taken to
prevent the cooker slipping from the
base.
After installation, please dispose of
the packaging with due regard to
safety and the environment, your local
authority can arrange this.
DURING OPERATION
Do not use this appliance if it is in
contact with water. Never operate it
with wet hands.
This appliance is designed to be
operated by adults. Young children
must not be allowed to tamper with
the product or play with the controls.
During use the cooker becomes Hot.
Care should be taken to avoid
touching heating elements inside the
oven.
Accessible parts especially around
the grill area may become hot when
the appliance is in use. Children
should be kept away until it has
cooled.
Do not try to lift or move the
appliance by pulling the door handles.
The electrical installation work must
be undertaken by a qualified
electrician/competent person.
It is dangerous to alter or modify the
specifications of the product in any
way.
Do not use the cooker if the ceramic
glass is damaged. If a fault or crack
becomes visible during cooking,
disconnect the cooker immediately
from the electricity supply and contact
your local Service Force Centre.
Do not place silver foil or plastic
containers on ceramic glass.
Do not allow young childen to play
with any part of the packaging.
Take great care when heating fats
and oils as they will ignite if they
become too hot.
This product has been designed for
cooking edible foodstuffs only, and
must not be used for any other
purposes.
Never place plastic or any other
material which may melt in the oven
or on the hob.
Ensure cooking utensils are large
enough to contain foods to prevent
spillages and boil overs.
The handles of saucepans which are
smaller than the heated area on the
hob will become hot. Ensure your
hand is protected before handling the
pan.
6
Take care to follow the
recommendations given for tending
the food when grilling.
Always use oven gloves to remove
and replace food in the oven.
Ensure that you support the grill pan
when it is in the withdrawn or partially
withdrawn position.
Do not leave utensils containing
foodstuffs, e.g. fat or oil in or on the
appliance in case it is inadvertently
switched ON.
Cookers and hobs become very hot,
and retain their heat for a long period
of time after use. Children should be
kept well away from the appliance
until it has cooled.
Ensure that all vents are left
unobstructed to ensure ventilation of
the oven cavity.
Ensure that the anti-tilt shelves are
put in place correctly. Refer to
instructions on page 17 and 19.
Never line any part of the appliance
with aluminium foil. Do not allow
heatproof cooking materials, e.g.
roasting bags, to come into contact
with oven elements.
Always stand back from the appliance
when opening the oven door to allow
any build up of steam or heat to
release.
Never leave the cooker unattended
when the oven doors are open.
GENERAL
Under no circumstances should
repairs be carried out by
inexperienced persons as this may
cause injury or serious malfunction.
This product should be serviced by an
authorised Service Engineer and only
genuine approved spare parts should
be used. Details of servicing and
repair arrangements are given on
page 29 of this book.
Do not stand on the appliance or on
the open oven door.
Do not hang towels, dishcloths or
clothes from the appliance or its
handle. They are a safety hazard.
Do not place sealed cans or aerosols
inside the oven. They may explode if
they are heated.
Do not leave the hotplates switched
on for long periods when not covered
by a saucepan. The controls may
overheat.
AFTER USE
Ensure that all control knobs are in
the OFF position when not in use.
For hygiene and safety reasons this
appliance should be kept clean at all
times. A build-up of fats or other
foodstuffs could result in a fire,
especially in the grill pan.
Always allow the cooling fan to cool
the cooker down before switching off
at the wall prior to carrying out any
cleaning or maintenance work.
Only clean this appliance in
accordance with the instructions
given in this book. Extreme care
must be taken when using a ceramic
hob scraper.
Your safety is of paramount importance.
Therefore, if you are unsure about any of the
meanings of these WARNINGS contact the:
Customer Care Department
Telephone 0870 5 950950
7
INTRODUCTION
WARNING: THIS APPLIANCE MUST BE
EARTHED
RATING PLATE
This is situated on the lower front frame of the
appliance and can be seen upon opening the top cavity
door. Alternatively the rating plate may also be found
on the back or top of some models (Where applicable).
The appliance must be protected by a suitably rated
fuse or circuit breaker. The rating of the appliance is
given on the rating plate.
Do not remove the rating plate from the cooker as
this may invalidate the guarantee.
To move the cooker, open the main oven door and
lift the cooker by holding inside the top of the
compartment.
INSTALLATION
If your cooker has been damaged in transit, contact
your supplier immediately. DO NOT attempt to install
it.
Your cooker left the factory fully packaged to protect it
from damage. If it is delivered without packaging and
damage has occurred, the manufacturer cannot
accept responsibility. Contact your supplier for advice.
Once the packaging has been removed the cooker
should only be moved by hand. DO NOT use a sack
barrow or any other aid to lift the cooker as damage
may occur.
Connection to the electricity supply must be carried out
by a qualified electrician/competent person.
The electrical connection should be made using a
double pole isolating switch (cooker socket) with at
least 3mm contact separation. The cable must have
conductors of sufficiently high cross-sectional area to
prevent overheating and deterioration.
Six square millimetres (6.00mm²) is the recommended
cross-section area.
This is a type Y appliance which means it is
free-standing and can be fitted with cabinets on one
or both sides. It may also be fitted in a corner setting.
Side walls which are above hob level should be
protected by heat resistant non-combustible material
and MUST NOT be nearer than 40mm to the hob
side.
A nominal air gap of 2mm all around the cooker is
required to enable the cooker to be moved into
position
Always ensure an air gap is maintained at hotplate
level. Tiles or other forms of deep wall covering
should not obscure this gap.
Air gap
The cable should be routed away from potentially hot
areas marked by X in the diagram below.
Overhanging surfaces or a cooker hood should be a
minimum of 685mm above the hob.
It is important to ensure that the appliance is level
after installation. Levelling feet are fitted to the
appliance to accommodate uneven floors.
8
REVERSIBLE MAIN OVEN DOOR
If you require the oven door to be hinged on the
opposite side, you will need to contact a qualified
Service Engineer. See page 30 for your nearest
Service Force Centre. PLEASE NOTE that a charge
will be made.
GRILL AND OVEN FURNITURE
The following items of oven furniture have been
supplied with the cooker: If you require
replacements of any of the items listed below please
contact your local Service Force Centre, quoting the
relevant part number.
GENERAL NOTES ON USING YOUR
COOKER
We suggest that you run the oven elements for 10 - 15
minutes at 220°C to burn off any residue from their
surfaces.
The procedure should be repeated with the grill for
approximately 5 - 10 minutes.
During this period an odour may be emitted, it is
therefore advisable to open a window for ventilation.
ABOUT CONDENSATION AND STEAM
When food is heated it produces steam similar to a
boiling kettle. The ovens are vented to allow some of
this steam to escape. However, always stand back
from the appliance when opening the oven door to
allow any build up of steam or heat to release.
If the steam comes into contact with a cool surface on
the outside of the appliance, e.g. a trim, it will
condense and produce water droplets. This is quite
normal and is not caused by a fault on the appliance.
1 grill pan
(311409401)
1 grill pan handle
(311468100)
Note
If you require an additional handle for your grill pan,
this can be ordered from your local Service Force
Centre by quoting part number 311479800\6.
1 grill pan grid
(311419801)
To prevent discolouration, regularly wipe away
condensation and also soilage from surfaces.
For your safety wallcoverings at the rear of the
appliance should be securely fixed to the wall.
THE COOLING FAN FOR THE
The cooling fan comes on immediately when the grill or
top oven are switched on and after a time when the
main fan oven is in use. The operation of the cooling
fan is temperature dependent in the case of the main
oven and the cooling fan may not switch in at all at low
temperature settings or where the main oven has only
been used for a short time.
The cooling fan may run on after the control knobs
have been switched off until the cooker has cooled.
If an automatic programme has been set the cooling
fan does not come on until the cooktime begins.
Do not switch the cooker off at its power point until the
cooling fan has cooled the cooker down.
CONTROLS
1 straight shelf for
grilling and top oven
cooking only
2 straight shelves
for main oven cooking
Scuffing of the Stayclean panel/s by the oven
furniture pack may occur during transit. These marks
will disappear after the oven elements have been
burnt off for the first time.
9
GETTING TO KNOW YOUR COOKER

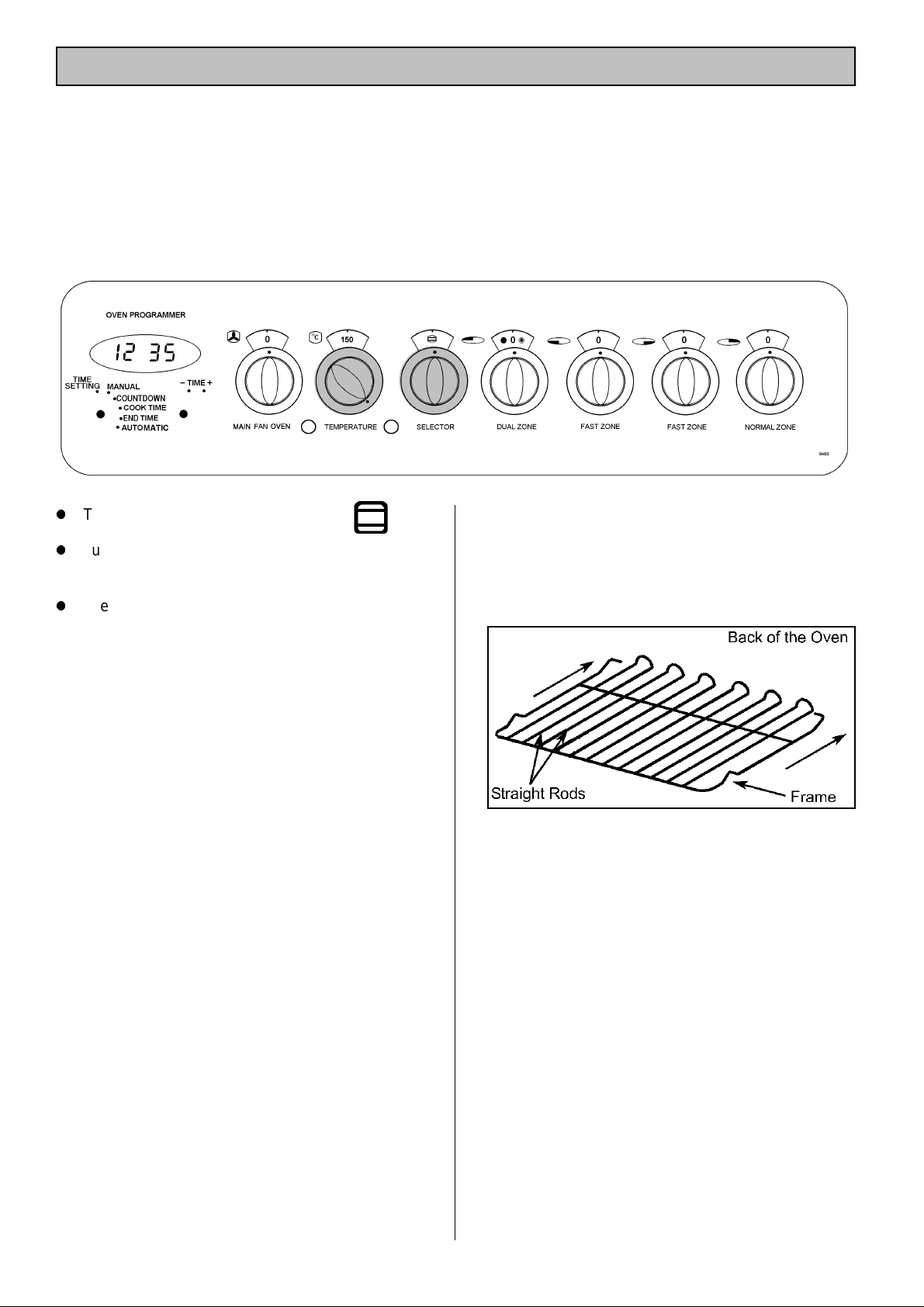

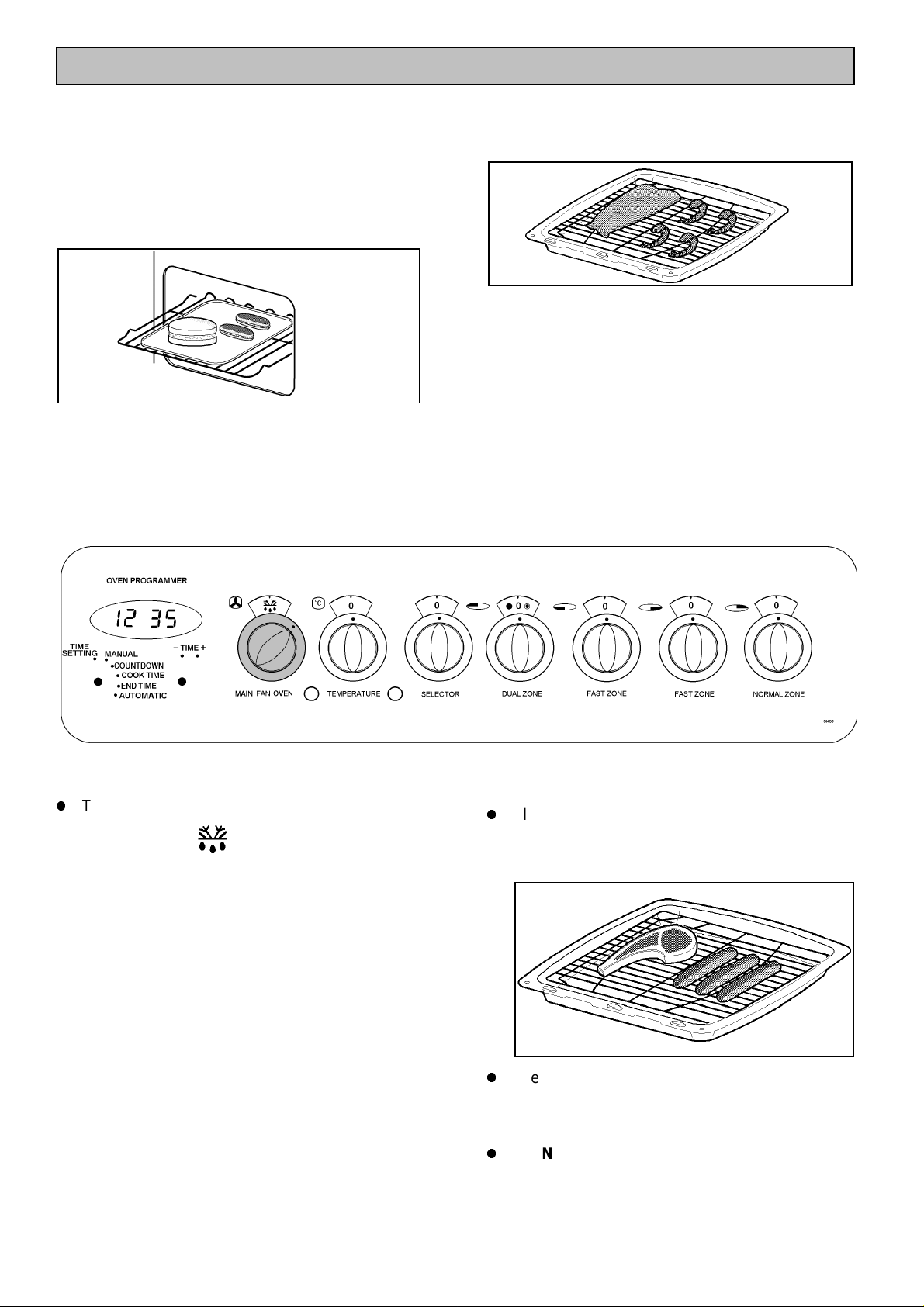

THE CONTROL PANEL
A B C D
F G
FEATURES
A - The Timer
B - Main Oven Temperature Control
C - Top Oven Temperature Control
D - Selector Control
E - Hotplate Controls
F - Main Oven Indicator Neon
G - Top Oven Indicator Neon
E
10
THE TIMER
Please note that this is a 24 hour clock, for example
2.00 pm is shown as 1400.
In the following pages we explain how to set the
controls. Read through them a few times until you
are familiar with the procedure.
If the oven is switched off on the wall, or there is a
loss of power, the clock will stop and you will not be
able to use the ovens. When you first switch the
electricity supply on, the timer display will flash.
TO SET THE TIME OF DAY
Turn the selector knob to 'Manual' then turn to 'Time
Setting'.
Set the correct time by turning and holding the
setting knob clockwise. Adjust the time by turning the
setting knob in either direction.
Turn the selector knob back to 'Manual'.
Cookpot symbol
Selector
Bell symbol
Setting knob
TO USE THE COUNTDOWN
Turn the selector knob to 'Countdown'. Turn the
setting knob clockwise until the display shows the
time you want. The bell symbol ( ) will be showing
and this will stay lit up during the time. Our diagram
shows the timer set to 5 minutes.
If you change your mind and want to cancel the time
you have set, simply turn the setting knob
anticlockwise. Then turn the selector to 'Manual'.
When you are using the countdown you can make
the clock show the time of day by turning the selector
knob to 'Manual'. The bell symbol will stay on to
remind you that the countdown is set. At the end of
the timed period an alarm will sound and the bell
symbol will go out.
Switch off the alarm by turning the selector knob to
'Time Setting'. Then turn to 'Manual' and the time of
day will show in the display.
Note:
You can use the countdown when an automatic
sequence has been set, as long as you remember
the following point.
1 Turn the selector knob to 'Automatic' as soon as
you have entered the timed period into the
display.
11
Loading...
