Page 1
OPERATING AND INSTALLATION INSTRUCTIONS
MODEL NO.
SI 322 / SI 323
Page 2
TECHNICAL DETAILS
MODEL NO. SI 322 / SI 323
Voltage: 230/240 Volts AC 50Hz
Wattage: 11.2/12.2kW
Height: 900mm
Width: 500mm
Depth: 600mm
This appliance complies with: European Council Directive 73/23/EEC.
EMC Directive 89/336/EEC.
CE Marking Directive 93/68/EEC.
2
Page 3
CONTENTS
Technical Details
Contents
Preface
Safety
Introduction ...................................................................................... 8
Getting to Know Your Cooker
The Sealed Hotplates ............................................................................ 13
.........................................................................................
...........................................................................................
.............................................................................................
Before Installation ........................................................................... 6
During Operation ........................................................................... 6
After Use ................................................................................... 7
General .................................................................................... 7
Rating Plate
Installation .................................................................................. 8
Reversible Main Oven Door ................................................................. 9
General Notes on Using Your Cooker ........................................................ 9
About Condensation and Steam ............................................................. 9
Oven/Grill Indicator Neons .................................................................. 9
Grill and Oven Furniture ..................................................................... 9
The Control Panel ......................................................................... 10
The Electronic Minute Minder ............................................................... 11
Recommended Saucepans ................................................................. 13
Hints and Tips ............................................................................. 13
Deep Fat Frying
Preserving ................................................................................. 14
.................................................................................
................................................................................
...................................................................
...........................................................................
10
14
2
3
5
6
8
The Grill
The Top Oven
The Main Fan Oven .............................................................................. 19
Oven Cooking Chart ............................................................................. 21
Roasting Chart .................................................................................. 22
.........................................................................................
Selecting the Grill .......................................................................... 15
Things to Note ............................................................................. 15
The Grill Pan and Handle ................................................................... 15
Hints and Tips ............................................................................. 16
Grilling Chart .............................................................................. 16
...................................................................................
Uses of the Top Oven ...................................................................... 17
Selecting the Top Oven .................................................................... 17
Things to Note ............................................................................. 17
To Fit the Top Oven Shelf .................................................................. 17
Hints and Tips ............................................................................. 17
Selecting the Main Fan Oven ............................................................... 19
Things to Note ............................................................................. 19
To Fit the Main Oven Shelves .............................................................. 20
Hints and Tips ............................................................................. 20
15
17
3
Page 4
CONTENTS
Defrost Feature
Uses of Defrost Feature .................................................................... 23
Selecting Defrost .......................................................................... 23
Things to Note ............................................................................. 23
Hints and Tips ............................................................................. 23
Care and Cleaning
Cleaning Materials ......................................................................... 24
Cleaning the Sealed Hotplates and Hotplate Trims .......................................... 24
Things To Note ............................................................................ 24
Cleaning the Outside of the Cooker ......................................................... 24
Cleaning the Grill Pan, Grill Pan Grid and Oven Shelves ..................................... 25
Cleaning Inside the Grill/Oven Compartments ............................................... 25
Care of Stayclean Surfaces ................................................................ 25
Hints and Tips ............................................................................. 25
Cleaning between the Outer and Inner Door Glass .......................................... 26
Something not Working? ........................................................................ 27
Service and Spare Parts

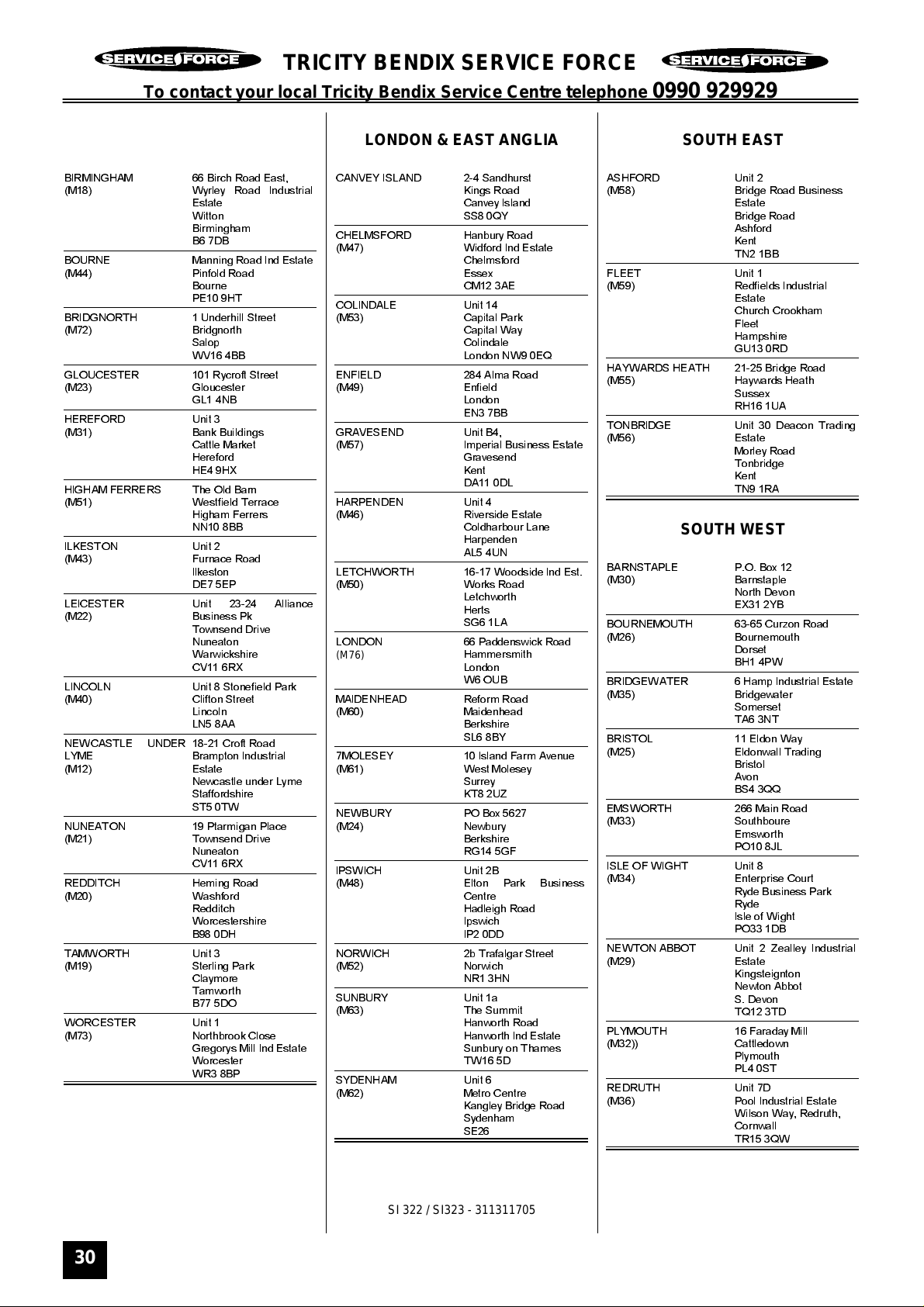

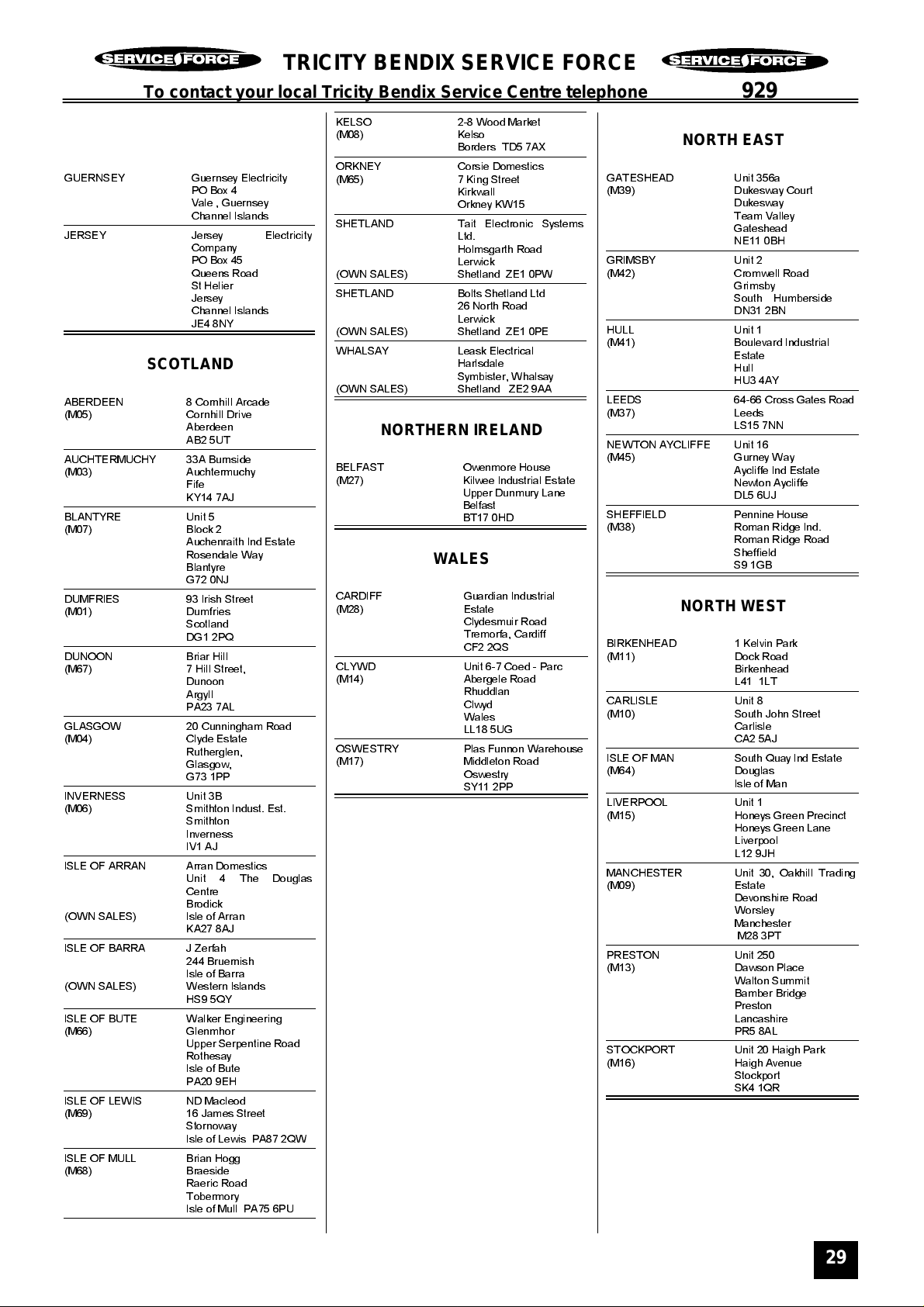

Customer Service Centres ....................................................................... 29
Guarantee Conditions
..................................................................................
...............................................................................
.........................................................................
...........................................................................
23
24
28
31
4
Page 5
PREFACE
Dear Customer,
Thank you for buying a Tricity Bendix cooker. With our 80 years experience in
developing and manufacturing the very best in U.K. cookers, you can be
assured that you have purchased a hard working, reliable, quality product.
Tricity Bendix cookers comply with British Standard safety and performance
requirements. They have been approved by BEAB (British Electrotechnical
Approvals Board) and are covered by a 12 month parts and labour guarantee.
To get the best from your new Tricity Bendix cooker, we ask that you PLEASE
READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be
made to cooking times and temperatures which may differ from your previous
cooker.
It is most important that this instruction book is retained with the appliance for
future reference. Should the appliance be sold, or if you move house and
leave the appliance, always ensure that the book remains with the appliance.
This will enable the new owner to be acquainted with the functioning of the
appliance and the relevant warnings.
Please read the whole instruction book before attempting to use the appliance
ensuring you follow the recommendations given.
5
Page 6
SAFETY
THESE WARNINGS ARE PROVIDED IN
THE INTERESTS OF YOUR SAFETY.
ENSURE THAT YOU UNDERSTAND
THEM ALL BEFORE INSTALLING OR
USING THE COOKER.
PLEASE
READ
CAREFULLY
BEFORE INSTALLATION
This appliance is heavy and care
must be taken when moving it.
Ensure that all packaging, both
inside and outside the appliance,
has been removed before the
appliance is used.
DURING OPERATION
Do not use this appliance if it is in
contact with water. Never operate it
with wet hands.
This appliance is designed to be
operated by adults. Young children
must not be allowed to tamper with
the product or play with the controls.
Accessible parts especially around
the grill area may become hot when
the appliance is in use. Children
should be kept away until it has
cooled.
Take great care when heating fats
and oils as they will ignite if they
become too hot.
This product has been designed for
cooking edible foodstuffs only, and
must not be used for any other
purposes.
Do not try to move the appliance by
pulling the door handles.
The electrical installation work must
be undertaken by a qualified
electrician/competent person.
It is dangerous to alter or modify
the specifications of the product in
any way.
After installation, please dispose of
the packaging with due regard to
safety and the environment.
Never place plastic or any other
material which may melt in the oven
or on the hob.
Ensure cooking utensils are large
enough to contain foods to prevent
spillages and boil overs.
The handles of saucepans which are
smaller than the heated area on the
hob will become hot. Ensure your
hand is protected before handling the
pan.
Take care to follow the
recommendations given for tending
the food when grilling.
Do not leave the handle in position
when grilling as it will become hot.
6
Page 7
Always use oven gloves to remove
and replace food in the oven.
Similarly always use oven gloves to
remove and replace the grill pan
handle when grilling.
Recommendations
given on page 15.
Ensure that you support the grill pan
when it is in the withdrawn or partially
withdrawn position.
Ensure that all vents are left
unobstructed to ensure ventilation of
the oven cavity.
Ensure that the anti-tilt shelves are
put in place correctly. Refer to
instructions on page 17 and 20.
Cookers and hobs become very hot,
and retain their heat for a long period
of time after use. Children should be
kept well away from the appliance
until it has cooled.
GENERAL
Under no circumstances should
repairs be carried out by
inexperienced persons as this may
cause injury or serious malfunction.
This product should be serviced by
an authorised Service Engineer and
only genuine approved spare parts
should be used. Details of servicing
and repair arrangements are given on
page 28 of this book.
AFTER USE
Never line any part of the appliance
with aluminium foil.
Always stand back from the
appliance when opening the oven
door to allow any build up of steam
or heat to release.
Do not place sealed cans or
aerosols inside the oven. They may
explode if they are heated.
Do not leave the hotplates switched
on for long periods when not covered
by a saucepan. The controls and
cabinets may overheat.
Ensure that all control knobs are in
the OFF position when not in use.
For hygiene and safety reasons this
appliance should be kept clean at all
times. A build-up of fats or other
foodstuffs could result in a fire,
especially in the grill pan.
Do not stand on the appliance or on
the open oven door.
Do not hang towels, dishcloths or
clothes from the appliance or its
handles. They are a safety hazard.
Only clean this appliance in
accordance with the instructions
given in this book.
Your safety is of paramount importance.
Therefore, if you are unsure about any of the
meanings of these WARNINGS contact the:
Consumer Care Department
Telephone (01635) 525542
Do not leave utensils containing
foodstuffs, e.g. fat or oil in or on the
appliance in case it is inadvertently
switched ON.
7
Page 8
INTRODUCTION
WARNING: THIS APPLIANCE MUST BE EARTHED
RATING PLATE
Record the model, product and serial numbers on the
back cover of this instruction book, from the rating
plate. This is situated on the lower front frame of the
appliance and can be seen upon opening the oven
door.
The appliance must be protected by a suitably rated
fuse or circuit breaker. The rating of the appliance is
given on the rating plate.
INSTALLATION
If your cooker has been damaged in transit, contact
your supplier immediately. DO NOT attempt to install
it.
The cable should be routed away from potentially hot
areas marked by X in the diagram below.
To move the cooker, open the main oven door and
lift the cooker by holding inside the top of the
compartment.
Your cooker left the factory fully packaged to protect
it from damage. If it is delivered without packaging
and damage has occurred, the manufacturer cannot
accept responsibility. Contact your supplier for
advice.
Once the packaging has been removed the cooker
should only be moved by hand. DO NOT use a sack
barrow or any other aid to lift the cooker as damage
may occur.
Connection to the electricity supply must be carried
out by a qualified electrician/competent person.
The electrical connection should be made using a
double pole isolating switch (cooker socket) with at
least 3mm contact separation. The cable must have
conductors of sufficiently high cross-sectional area to
prevent overheating and deterioration.
Six square millimetres (6.00mm²) is the recommended
cross-section area.
This is a type X appliance which means it is
free-standing and can be fitted with cabinets on one
or both sides. It may also be fitted in a corner setting.
Side walls which are above hob level should be
protected by heat resistant non-combustible material
and MUST NOT be nearer than 40mm to the hob
side.
A nominal air gap of 2mm at either side of the cooker
is required to enable the cooker to be moved into
position. It is recommended that proprietary trims are
fitted to protect the worktops of either side of the
appliance. These are available from most DIY stores.
Two spacers have been incorporated into the back of
the appliance to ensure an air gap of 10mm is
maintained at hotplate level. Tiles or other forms of
deep wall covering should not obscure this gap.
8
Page 9
Overhanging surfaces or a cooker hood should be a
minimum of 685mm above the hob.
It is important to ensure that the appliance is level
after installation. Levelling feet are fitted to the front
of the appliance to accommodate uneven floors.
THE COOLING FAN FOR THE CONTROL
The cooling fan will always come on when the grill
and the top oven are switched on. If they are only
used for a short period of time the fan will switch off
when the controls are turned off. If the grill or the top
oven are used for a longer period of time the fan will
run on depending on the temperature, and may cycle
on and off until the cooker has cooled.
In the case of the main oven the cooling fan may not
switch on except when used for a longer period of
time. The cooling fan may run on, and cycle on and
off after the control knobs have been switched off,
until the cooker has cooled. Do not switch the cooker
off at its power point until the fan has cooled the
cooker down.
S
REVERSIBLE MAIN OVEN DOOR
If you require the oven door to be hinged on the
opposite side, you will need to contact a qualified
Service Engineer. See page 29 for your nearest
Service Centre. PLEASE NOTE that a charge will be
made.
GENERAL NOTES ON USING YOUR
COOKER
We suggest that you run all the elements for a short
period to burn off any residue from their surfaces.
To do this, run the ovens at 220°C for approximately
45 minutes. The procedure should be repeated with
the grill for approximately 5 - 10 minutes.
During this period an unpleasant odour may be
emitted, it is therefore advisable to open a window
for ventilation.
ABOUT CONDENSATION AND STEAM
When food is heated it produces steam similar to a
boiling kettle. The ovens are vented to allow some of
this steam to escape between the wall and the rear
of the appliance. However, always stand back from
the appliance when opening the oven door to allow
any build up of steam or heat to release.
GRILL AND OVEN FURNITURE
The following items of oven furniture have been
supplied with the cooker:
1 grill pan
1 grill pan handle
1 grill pan grid
1 grill deflector
If the steam comes into contact with a cool surface
on the outside of the appliance, e.g. a trim, it will
condense and produce water droplets. This is quite
normal and is not caused by a fault on the appliance.
To prevent discolouration, regularly wipe away
condensation and also soilage from surfaces.
For your safety, wall coverings at the rear of the
appliance should be securely fixed to the wall.
OVEN / GRILL INDICATOR NEONS
These lights indicate whether the ovens or grill are
switched on. In the case of the ovens, they also
indicate when the set temperature has been reached.
They will cycle on and off during use to show that the
temperature is being maintained. The grill neon may
cycle when the grill is switched on.
1 cranked shelf for
grilling and top oven
cooking only
2 straight shelves
for main oven cooking
9
Page 10
GETTING TO KNOW YOUR COOKER
THE CONTROL PANEL
A C
B D
FEATURES
A - Main Oven Temperature Control
B - Main Oven Indicator Neon
C - Top Oven/Grill Control
D - Top Oven/Grill Indicator Neon
E - Hotplate Controls
E
10
Page 11
ELECTRONIC MINUTE MINDER
1 = (-) DECREASE CONTROL & MINUTE
MINDER SETTING BUTTON
2 = (+) INCREASE CONTROL
( ) COOKPOT SYMBOL
( ) CLOCK SETTING
SYMBOL
( ) MINUTE MINDER SYMBOL
The electronic minute minder can indicate the time of
day, operate as a minute minder and it can be used
to time and switch off the main oven.
1. SET THE TIME OF DAY
When the electricity supply is first switched ON,
the display will flash 0.00. See Fig. 1.
Press buttons (1) and (2) together. The display
will momentarily read 88.88. See Fig. 2. Release
buttons, 0.00 will appear in the display as Fig. 3.
Within 5 seconds press button 2, 12.00 will
show in the display as Fig. 4.
Within 5 seconds press and hold either button
(1) to decrease or button (2) to increase the time
until the correct time of day on the 24 hour clock
is reached, e.g.14.30. See Fig. 5.
Note: The increase and decrease control
buttons operate slowly at first, and then more
rapidly. They should be pressed separately.
Fig.1
Fig.2
Fig.3
1
2
Fig.4
Fig.5
11
Page 12
2. THE MINUTE MINDER
IMPORTANT
The minute minder can be used to time a set cooking
period. At the end of the cook time the minute minder
will automatically switch off the main oven if in use.
The minute minder gives an audible reminder at the
end of any period of cooking up to 23 hours and 59
minutes.
To set press button (1) and the display will read
0. 00, see Fig. 6.
Release button (1) and press and hold button (2).
The display will count up in one minute intervals until
the interval to be timed is reached e.g. 30 minutes,
see Fig. 7. If necessary press and hold button (1) to
achieve the correct time interval.
The minute minder will begin to count down once set.
At the end of the timed period the minute minder will
click, switching the main oven OFF if in use.
An audible signal will sound for up to 2 minutes. The
second oven, if in use will remain ON. The cookpot
symbol will flash and the time of day will show in the
display. See Fig. 8.
Fig.6
Fig.7
Fig.8
To stop the sound press button (1). The display will
stop flashing and show the time of day, e.g. 15.00.
The cookpot symbol ( ) will go out, see Fig. 9.
If using the main oven it will come on again once
button (1) has been depressed. The second oven will
remain on. When cooking is complete remove food
and turn OFF oven temperature control.
3. TO CANCEL THE MINUTE MINDER
Press and release button (1). Press and hold button
1 and the display will count down in one minute
intervals to 0. 00 See Fig 10. Release button (1).
After a few seconds the cookpot symbol will flash
and the time of day will show in the display. See Fig.
11.
If the main oven is in use this will switch OFF after a
few seconds. The second oven if in use will remain
ON.
To reset, press buttons (1) and (2) together. See Fig.
12.
4. THINGS TO NOTE
1. The time of day must be set before the main
oven will operate. There will be a few
seconds delay before the oven switches on.
Fig.9
Fig.10
Fig.11
2. The minute minder function controls the main
oven only and will switch the oven OFF at the
end of a timed period. This function is useful
if you want to begin cooking now and have
the oven switch OFF automatically.
3. If you have used the minute minder to time
food cooking in the main oven you will need
to reset the timer by pushing both buttons
before the oven can operate again.
12
Fig.12
Page 13
THE SEALED HOTPLATES
BEFORE USING THE HOTPLATES FOR THE FIRST TIME
Turn the control knob to a medium/high setting and allow the hotplate to heat, uncovered by a saucepan for 3-5
minutes. This hardens the protective coating on the hotplates, and makes it more resistant to normal use. A
harmless smoke will be given off from the hotplates.
l
To operate the hotplates turn the control knobs in
either direction to vary the heat setting.
l
The highest number represents the hottest
setting and the lowest represents the coolest
setting. Choose a setting appropriate to the
quantity and type of food to be cooked.
RECOMMENDED SAUCEPANS
For speed and economy only good quality
saucepans with flat bases and close fitting lids are
recommended.
To check the flatness of the saucepan, place a ruler
across the pan base, hold at eye level and look for
light showing. There should be very little or no light
visible between the ruler and the pan base.
Pressure cookers, preserving pans, etc., should
comply with the recommendations given above.
Traditional round-bottomed Woks must not be used
even with a stand. Woks with flat-bottomed bases
are available and do comply with the above
recommendations.
HINTS AND TIPS
l
Avoid the use of decorative covers as they
can cause condensation to form on the
hotplates which may lead to deterioration.
l
Follow any guidelines provided by the
saucepan manufacturer, particularly those
relating to recommended heat settings.
The size of the base of the saucepan should be the
same or up to 2.5cm/1 inch larger than the hotplate.
If the base is too small, energy will be wasted,
boilovers will also be more difficult to deal with as
spillage will fall directly onto the hotplate.
l
Avoid using thin, badly dented or distorted
saucepans as they can lead to sticking and
burning of food.
l
To prolong the life of the hotplates:-
l
Never use utensils with a skirt, e.g. a bucket
l
Never use an asbestos mat
13
Page 14
DEEP FAT FRYING
SPECIAL FRYING NOTE:
6. Frying temperatures
Celsius Fahrenheit
Scale (
o
C) Scale (oF)
For safety purposes when deep fat frying, fill the pan
one-third full of oil, DO NOT cover the pan with a lid
and DO NOT leave the pan unattended. In the
unfortunate event of a fire, switch OFF at the
electricity supply and cover the pan with a lid or
damp cloth to assist in smothering the flames.
DO NOT use water on the fire. Leave the pan to cool
for at least 30 minutes before moving it.
DO NOT leave the fat or oil in the frying pan on the
hob to store it in case the hob is inadvertently
switched ON.
1. Preparing the food
Seal the food by coating with flour, egg and
breadcrumbs or batter. Do not use a basket with
batter coated foods as they will stick.
2. Amount of oil
For safety purposes fill the pan only one-third full
of oil.
150 300
First frying of potatoes 170 340
175 350
180 360
Second frying of potatoes 190 375
Frying chicken and fish 195 380
200 390
PRESERVING
1. DO NOT use a pan that overlaps the perimeter of
the hob trim.
2. To allow for a full rolling boil, the pan should be
no more than one third full when all the
ingredients have been added. It is better to use
two pans rather than overfill one, or use half
quantities.
3. Use firm fruit or vegetables and wash well before
using.
3. Testing the temperature of the oil
It is advisable to use a thermometer to test the
temperature of the oil. Alternatively, drop a small
cube of bread into the oil which should brown in
just under a minute if the oil is at the correct
temperature of 190°C/375°F.
4. Cooking the food
Lower the food gently into the oil. Do not add
too much food at once or the temperature of the
oil will be reduced and may result in soggy,
greasy food.
Turn the food if necessary; doughnuts float to the
surface so will not brown on the upperside if not
turned. Once cooked, drain the food on
absorbent paper.
5. Double frying chips
Double frying will ensure good chips. First fry the
chips for a few minutes at 170°C/340°F to seal
the outside. Remove the chips from the oil.
Increase the temperature of the oil to
190°C/375°F to finish cooking and brown the
chips.
4. Preserving sugar gives clear jam, however
granulated sugar is cheaper and gives equally
good flavour.
5. Crystallization may be caused if sugar is not
completely dissolved before bringing jam to the
boil. Over boiling will affect the flavour, setting
properties and colour of the jam.
6. To test jam for setting:
If a jam thermometer is available, boil jam to
104°C. Marmalade should be boiled to 106°C.
If a jam thermometer is not available, remove
pan from heat, place sample of jam on a cold
dish and cool quickly (i.e. in a freezer or frozen
food storage compartment of a refrigerator).
When cold, it will crinkle and hold the mark of a
finger run through it, if it is ready.
7. The scum should be removed as soon as
possible after setting, but marmalade should be
allowed to cool before potting to prevent the peel
rising.
Chips may be kept for several hours after the first
frying before finishing off with the second frying.
14
Page 15
THE GRILL
CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. CHILDREN SHOULD BE
KEPT AWAY.
SELECTING THE GRILL
l
To operate the grill open the grill door and turn
the top oven/grill control clockwise so that '0' on
the control knob lines up with setting 1, 2 or 3.
l
Setting 3 represents the grill on Full.
At settings 1 and 2 the grill may cycle on and off
over time and you may prefer to use these
settings for keeping food warm.
THE GRILL PAN AND HANDLE
The grill pan is supplied with a removable handle.
To insert the handle, press the button on the handle
with the thumb and pivot the handle slightly upwards
inserting the lip into widest part of the bracket. Move
the handle towards the left, lower into position and
release the button.
l
The grill neon will illuminate. It may cycle on and
off during cooking.
THINGS TO NOTE
THE GRILL DOOR MUST BE LEFT FULLY OPEN
DURING GRILLING. IF THE DOOR IS CLOSED
THE TOP OVEN WILL OPERATE.
If the grill door is accidentally closed during grilling,
the grill will cut out and the top oven will operate.
The cranked shelf MUST only be used in the grill
compartment, but a straight shelf from the main oven
may be used to provide alternative positions.
Some smoke from fat splashes may be evident as
the grill cleans itself.
The top oven cannot be operated when the grill is in
use.
Only the inner element will operate when grilling.
Ensure the handle is positively located.
When removing the handle, press the button on the
handle with the thumb and pivot the handle slightly
upwards and towards the right to remove from the
bracket.
Ensure your hand is protected when inserting
and removing the grill pan handle as the control
panel trim and grill element can become very
hot.
ALWAYS REMOVE THE GRILL PAN HANDLE
DURING GRILLING.
15
Page 16
To correctly locate the grill pan on the shelf, ensure
that the cut out on the underside of the handle
bracket locates over the front bar of the shelf.
To check the progress of the food being grilled, the
grill pan should be withdrawn on the shelf to tend the
food during cooking, or the carrier shelf can be lifted
away from the cooker and rested on a heat resistant
work surface.
l
Accompaniments such as tomatoes and
mushrooms may be placed around the outer
edges or underneath the grid when grilling meats.
l
When toasting bread use the shelf in position 2
with the grid in the high position and placing the
bread in the centre of the grid.
l
Preheat the grill on a full setting for five minutes
before cooking. Adjust the shelf as necessary
during cooking.
l
The food should be turned over during cooking
as required.
GRILLING CHART
HINTS AND TIPS
l
Food should be thoroughly dried before
grilling to minimise splashing. Brush lean
meats and fish lightly with a little oil or melted
butter to keep them moist during cooking.
l
Adjust the grid and grill pan runner position to
allow for different heights of food.
l
Place food on the grill pan grid or directly
onto the grill pan base.
FOOD SHELF GRILL TIME
Bacon Rashers
Beefburgers
Chicken Joints
Chops - Lamb
Pork
Fish - Whole
Trout/Mackerel
Fillets - Plaice/Cod
Kebabs
Kidneys - Lamb/Pig
Liver - Lamb/Pig
Sausages
2 crk.
2 crk.
2 crk.
2 crk.
2 crk.
2 crk.
2 crk.
2 crk.
2 crk.
2 crk.
2 crk.
(mins)
2-3 each side
6-10 each side
15-20 each side
7-10 each side
10-15 each side
8-12 each side
4-6 each side
10-15 each side
4-6 each side
5-10 each side
10-15 each side
16
16
Steaks - Rare
Medium
Well Done
Toasted Sandwiches
crk. = cranked shelf
Shelf positions are counted from the bottom
upwards.
The times quoted above are given as a guide and
should be adjusted to suit personal taste.
2 crk.
2 crk.
2 crk.
2 crk.
3-6 each side
6-8 each side
7-10 each side
1¼-1½ each
side
Page 17
THE TOP OVEN
USES OF THE TOP OVEN
The top oven is the smaller of the two ovens. It is heated by elements in the top and bottom of the oven. It is
designed for cooking on one level and for smaller quantities of food. It gives especially good results if used to cook
fruit cakes, sweet or savoury flans or quiche.
The top oven is also ideal for use as a warming compartment to warm dishes and keep food hot. Use a
temperature setting of 90-100°C on the top oven control dial.
SELECTING THE TOP OVEN
l
Turn the top oven temperature control to the
required setting. Our diagram shows the oven set
to 150°C. Close the oven door.
THINGS TO NOTE
1. The grill cannot be operated when the top oven is
in use. Only the outer part of the top oven
element in conjunction with the base element will
operate when using the top oven.
2. The top oven indicator neon will glow until the
oven has reached the desired temperature and
then go out. It will then cycle ON and OFF
showing that the oven temperature is being
maintained.
3. Always place plates on the oven shelf to warm.
Never place directly on the top oven base as it
becomes very hot and damage may occur.
TO FIT THE TOP OVEN SHELF
The cranked shelf must only be used in the top oven
compartment.
The shelf should be fitted with the straight rods
uppermost on the frame and the forms towards the
back of the oven. If not fitted correctly the anti-tilt and
safety stop mechanism will be affected.
Back of the Oven
Straight Rods
Frame
HINTS AND TIPS
l
All cooking should be carried out using an oven
shelf positioned in one of the shelf runners.
l
Stand dishes on a suitably sized baking tray on
the shelf to prevent spillage onto the oven base
and to help reduce cleaning.
17
Page 18
l
There should always be at least 2.5cm (1")
between the top of the food and the element.
This gives best cooking results and allows room
for rise in yeast mixtures, Yorkshire puddings,
etc.
l
When cooking cakes, pastry, scones, bread, etc.,
place the tins or baking trays centrally on the
shelf directly below the element.
l
DO NOT place dishes directly onto the oven
base as it becomes very hot and damage may
occur.
l
For economy leave the door open for the
shortest possible time, particularly when placing
food into a pre-heated oven.
l
The material and finish of the baking trays and
dishes will affect the degree of base browning of
the food. Enamelware, dark, heavy or non-stick
utensils increase base browning. Shiny
aluminium or polished steel trays reflect the heat
away and give less base browning.
l
DO NOT use the grill pan as a baking tray as this
will increase base browning of the food.
l
Because of the smaller cooking space, lower
temperatures and shorter cooking times are
sometimes required. Be guided by the
recommendations on page 21.
18
18
Page 19
THE MAIN FAN OVEN
USES OF THE FAN OVEN
PREHEATING
The fan oven quickly reaches its temperature, so it is not usually necessary to preheat the oven. Without
preheating, however, you may find you need to add an extra 5 - 10 minutes on the recommended cooking times.
For recipes needing high temperatures, e.g. bread, pastries, scones, soufflés, etc., best results are achieved if the
oven is preheated first.
COOKING TEMPERATURES
Fan oven cooking generally requires lower temperatures than conventional cooking. Follow the temperatures
recommended in the chart on page 21. As a guide reduce temperatures by about 20°C - 25°C for your own
recipes.
BATCH BAKING
The fan oven cooks evenly on both shelf levels, especially useful when batch baking.
SELECTING THE FAN OVEN
l
Turn the main oven temperature control to the
required setting.
l
The main oven control display will illuminate.
THINGS TO NOTE
1. The main oven indicator neon will glow until the
oven has reached the required temperature and
then go out. It will cycle ON and OFF periodically
during cooking showing that the temperature is
being maintained.
2. The cooling fan for the controls may switch in
after a time. See page 9 for more information on
the operation of the cooling fan.
19
Page 20
TO FIT THE MAIN OVEN SHELVES
The shelves should be fitted with the straight rods
uppermost on the frame and the forms towards the
back of the oven. If not fitted correctly the anti-tilt and
safety stop mechanism will be affected.
Back of Oven
Straight Rods
Frame
HINTS AND TIPS
l
Arrange the shelves in the required positions
before switching the oven ON. Shelves are
numbered from the bottom upwards.
l
It is recommended that when baking larger
quantities, the shelf positions should be evenly
spaced to suit the load being cooked. A slight
increase in cooking time may be necessary.
l
Do not place dishes or baking trays directly on
the oven floor as it interferes with the oven air
circulation and can lead to base burning; use the
lower shelf position. However non critical dishes
can be placed on the oven base when more
space is required.
l
The use of excessively high temperatures can
cause uneven browning. It may be necessary to
reduce temperatures slightly. Refer to the
recommendations given in the oven cooking
chart on page 21.
l
When cooking more than one dish in the fan
oven, place dishes centrally on different shelves
rather than cluster several dishes on one shelf.
This will allow the heat to circulate freely for the
best cooking results.
l
When batch baking one type of food, e.g. Victoria
sandwich cakes, those of similar size will be
cooked in the same time.
l
Do not use the cranked shelf from the grill in the
main oven.
20
20
Page 21
OVEN COOKING CHART
The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperatu
by 10°C to suit individual preferences and requirements.
FAN OVEN TOP OVEN
FOOD SHELF
POSITION
Biscuits
Bread
Bread rolls/buns
Cakes: Small & Queen
Sponges
Victoria Sandwich
Madeira
Rich fruit
Christmas
Gingerbread
Meringues
Flapjack
Shortbread
Casseroles Beef/Lamb
Chicken
Convenience Foods Follow manufacturer's instructions
Fish
Fish Pie (potato topped)
Fruit Pies, Crumbles
Milk Puddings
Pasta, Lasagne, etc.
Pastry: Choux
Eclairs, Profiteroles
Flaky/Puff Pies
Shortcrust- Mince Pies
Meat Pies
Quiche, Tarts, Flans
Patés and Terrines
Roasting Meat, Poultry
Scones
Shepherd's pie
Soufflés
Vegetables: Baked Jacket Potatoes
Roast Potatoes
Stuffed Marrow
Stuffed Tomatoes
Yorkshire Puddings: (large)
(individual)
Shelf
positions
are not
critical
but ensure
that oven
shelves are
evenly
spaced
when more
than one is
used
COOKING
TEMP (°C)
180-190
200-220
200-220
160-170
160-170
160-170
140-150
130-140
130-140
140-150
80-100
170-180
130-140
140-160
180-190
170-190
190-200
190-200
130-140
190-200
190-200
170-180
210-220
190-200
190-210
180-210
150-160
160-180
210-220
190-200
170-180
180-190
180-190
180-190
180-190
210-220
200-210
SHELF
POSITION
1 crk
1 crk*
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk*
1 crk*
1 crk
1 crk*
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk*
1 crk
1 crk*
1 crk
1 crk
1 crk*
1 crk
1 crk*
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
COOKING
TEMP (°C)
170-190
200-220
200-220
180-190
160-170
160-170
140-150
140-150
130-140
140-150
90-100
170-180
140-150
140-160
180-190
170-190
190-200
190-200
140-150
170-180
180-190
170-180
210-220
190-200
190-210
180-200
150-160
160-180
220-230
190-200
170-180
180-190
180-190
180-190
180-190
200-210
200-210
APPROX
COOK TIME (m)
10-20
25-30
15-20
18-25
18-20
18-25
1¼-1½h
2¼-2½h
3-4½h
depends on size
1¼-1½h
2½-3h
25-30
45-65
2½-3h
1¼-1½h
20-30
20-25
40-50
1½-2h
40-45
30-35
20-30
25-40
15-20
25-35
25-45
1-1½h
see Roasting chart
8-12
30-40
20-30
1-1½h
1-1½h
30-35
15-20
25-40
15-25
res
crk = cranked shelf
* or on a straight shelf on the oven base
Note: Shelf positions are counted from the bottom of the oven.
Do not use the cranked shelf from the grill in the main oven.
21
Page 22
ROASTING CHART
ROASTING CHART
INTERNAL TEMPERATURES Rare: 50-60°C; Medium: 60-70°C; Well Done: 70-80°C
MEAT SECOND/FAN
Beef
OVEN
160-180°C
COOKING TIME
20-35 minutes per ½kg (1lb)
and 20-35 minutes over
Beef, boned
Mutton and Lamb
Pork and veal
Ham
Chicken
Turkey and goose
Duck
Pheasant
160-180°C
160-180°C
160-180°C
160-180°C
160-180°C
160-180°C
160-180°C
160-180°C
25-35 minutes per ½kg (1lb)
and 25-35 minutes over
25-35 minutes per ½kg (1lb)
and 25-35 minutes over
30-40 minutes per ½kg (1lb)
and 30-40 minutes over
30-40 minutes per ½kg (1lb)
and 30-40 minutes over
15-20 minutes per ½kg (1lb)
and 20 minutes over
15-20 minutes per ½kg (1lb) up
to 3½kg (7lb) then 10 minutes
per ½kg (1lb)
25-35 minutes per ½kg (1lb)
and 25-30 minutes over
35-40 minutes per ½kg (1lb)
and 35-40 minutes over
Rabbit
Potatoes with
meat
Potatoes without
meat
The roasting temperatures and times given in the chart should be adequate for most joints, but slight adjustments
may be required to allow for personal requirements and the shape and texture of the meat. However, lower
temperatures and longer cooking times are recommended for less tender cuts or larger joints.
Wrap joints in foil if preferred, for extra browning uncover for the last 30 - 60 min. cooking time.
160-180°C
160-180°C
180-190°C
20 minutes per ½kg (1lb)
and 20 minutes over
according to size
according to size
2222
Page 23
DEFROST FEATURE
USES OF DEFROST FEATURE
This fan oven function defrosts most foods faster
than more conventional methods. It is particularly
suitable for delicate frozen foods which are to be
served cold e.g. cream filled gateaux, cakes covered
with icings or frostings, cheesecakes, biscuits,
scones, etc.
It is preferable to thaw fish, meat and poultry slowly
in the fridge. However, this process can be
accelerated by using the defrost function.
SELECTING DEFROST
Small or thin fish fillets, frozen peeled prawns, cubed
or minced meat, liver, thin chops, steaks etc., can be
thawed in 1 - 2 hours.
A 1kg/2¼lb oven ready chicken will be thawed in
approximately 5 hours. Remove the giblets as soon
as possible during the thawing process.
Joints of meat up to 2kg/4½lb in weight can be
thawed using the defrost function.
ALL JOINTS OF MEAT AND POULTRY MUST BE
THAWED THOROUGHLY BEFORE COOKING.
ALWAYS COOK THOROUGHLY IMMEDIATELY
AFTER THAWING.
l
Turn the main oven temperature control to the
defrost setting.
l
The main oven control display will illuminate.
THINGS TO NOTE
1. When defrost is selected, the oven indicator neon
may come ON. It will stay ON until the oven
reaches room temperature and then go OFF.
It may cycle ON and OFF periodically during
defrosting to maintain a steady room
temperature, inside the oven.
2. Care must always be taken when handling foods
in the home. Always follow the basic rules of food
hygiene to prevent bacterial and microbial growth
and cross contamination when defrosting,
preparing, cooking, cooling and freezing foods.
HINTS AND TIPS
l
Place the frozen food in a single layer where
possible and turn it over half way through the
defrosting process.
l
The actual speed of defrosting is influenced by
room temperature. On warm days defrosting will
be faster than on cooler days.
l
DO NOT leave food at room temperature once it
is defrosted. Cook raw food immediately or store
cooked food in the fridge.
23
Page 24
CARE AND CLEANING
ALWAYS SWITCH OFF THE
ELECTRICITY
SUPPLY AT THE MAIN WALL SWITCH
AND ALLOW THE COOKER TO COOL
BEFORE CLEANING.
CLEANING MATERIALS
Before using any cleaning materials on your cooker,
check that they are suitable and that their use is
recommended by the manufacturer.
Cleaners that contain bleach should NOT be used as
they may dull the surface finishes. Harsh abrasives
should also be avoided.
CLEANING THE SEALED HOTPLATES
AND HOTPLATE TRIMS
In order to maintain the appearance of your cooker's
sealed hotplates and trims you are advised to use
the recommended cleaning agents daily. If you do
not allow spillages to burn on they will be much
easier to clean off.
THINGS TO NOTE
The red spot in the centre of the hotplates may be
removed with some abrasive cleaning agents. This is
not a fault and does not effect the performance of the
hotplate.
CLEANING THE VITREOUS ENAMEL
Use a clean damp cloth or scourer made for nonstick saucepans with 'Jif' or 'Flash' cream cleaner.
AFTER CLEANING
To maintain the appearance of the hotplates
occasionally apply a little salt free vegetable oil or
commercial restorative agent e.g. '4 Hob' or use a
'Minky' Hotplate Cleaning Cloth.
To apply vegetable oil, first heat the hotplate on a
medium setting for 30 seconds then turn OFF. Pour
a very small amount of oil onto kitchen paper, apply
the paper to the hotplate and wipe off any excess oil.
Heat the hotplate on a medium setting for 1 minute.
To apply restorative agent, apply a thin coating
of '4 Hob' or use a Minky cloth following the
manufacturers instructions.
CLEANING THE OUTSIDE OF THE
COOKER
DO NOT use abrasive cleaning materials, or
scourers on the outside of the cooker as some of the
finishes are painted and damage may occur.
Regularly wipe over the control panel, oven doors
and cooker sides using a soft cloth and liquid
detergent.
FOR NORMAL SOILAGE
Wipe over the hotplates and trims using a clean
damp cloth then switch to a low or medium setting for
a few minutes to thoroughly dry.
FOR HEAVY SOILAGE
Use a clean damp cloth or scourer with a cream
cleaner e.g. 'Jif' or 'Flash' or a powder cleaner e.g.
'Ajax' on the hotplate and trims. Follow the circular
grooved pattern on the hotplate when cleaning.
Rinse off cleaning agents thoroughly. Dry as for
normal soilage.
For more stubborn marks warm the hotplate on a low
setting for 30 seconds. Clean the sealed plate with
'Ajax' powder cleaner, 'Jif' or 'Flash' cream cleaner or
a 'Brillo' pad. You may have to rub hard for several
minutes.
Rinse off cleaning agents thoroughly with a damp
cloth. Switch to a low or medium setting for a few
minutes until the hotplate is thoroughly dry.
CLEANING THE HOTPLATE TRIMS
DO NOT ATTEMPT TO REMOVE ANY OF
THE CONTROL KNOBS FROM THE
PANEL
AS THIS MAY CAUSE DAMAGE AND IS A
SAFETY HAZARD
The stainless steel trims may become straw coloured
during use. Using a proprietary stainless steel
cleaner , e.g. 'Shiny Sinks' will help maintain a bright
appearance. Alternatively a powder cleaner such as
'Bar Keepers Friend' may be used regularly.
24
Page 25
CLEANING THE GRILL PAN, GRILL PAN
GRID AND OVEN SHELVES
All removable parts, except the grill pan handle can
be washed in the dishwasher.
The grill pan and oven shelves may be cleaned using
a soap impregnated steel wool pad. The grill pan grid
should be cleaned using hot soapy water. Soaking
first in soapy water will make cleaning easier.
CLEANING INSIDE THE GRILL / OVEN
COMPARTMENTS
The sides, top and back of the grill/top oven and
main oven are coated with a special Stayclean
coating.
The Stayclean coating should not be cleaned
manually.
The vitreous enamel main oven base, back panel
and interior main oven door can be cleaned using
normal oven cleaners or aerosol oven cleaners with
care. Ensure that the manufacturers instructions are
followed and that all parts are well rinsed afterwards.
Aerosol cleaners must not be used on the
Stayclean linings and must not come into
contact with elements as this may cause
damage.
For advice on how to keep the Stayclean linings in
good condition see 'Care of Stayclean Surfaces'.
HINTS AND TIPS
l
Manual cleaning of the Stayclean linings IS NOT
recommended. Damage will occur if oven sprays or
abrasives of any kind are used.
l
Slight discolouration and polishing of the Stayclean
linings may occur in time. This does not affect the
Stayclean properties in any way.
l
A good time to allow the oven to run on is after
the weekly roast. After removing the roast, turn
the oven up to 220°C and allow to run for an hour
or so. It is important NOT to allow a build-up of
soilage as this can prevent the Stayclean from
working.
l
Follow the recommendations below to keep oven
soilage to a minimum.
l
Cook at the recommended temperatures. Higher
temperatures during roasting will increase
soilage. Try cooking at lower temperatures for an
increased length of time, you will save energy
and often the joint is more tender.
l
Use minimal, if any, extra oil or fat when roasting
meat, potatoes only require brushing with fat
before cooking. Extra fat in the oven during
roasting will increase splashing and soilage.
l
It is NOT necessary to add water to the meat tin
when roasting. The water and the fat juices from
the joint create excessive splattering during
cooking - even at normal temperatures, as well
as causing condensation.
CARE OF STAYCLEAN SURFACES
Stayclean surfaces destroy splashes of food and fats
when the oven temperature is raised to around
220°C.
It is a good idea to run the oven for an hour or two
per week to ensure continued good performance
from the Stayclean finish.
Do use the trivet in the roasting tin. During roasting,
the fat from the joint will be contained beneath the
trivet and therefore prevent it from splashing onto the
Stayclean finish.
l
Covering joints during cooking will also prevent
splashing onto the interior surfaces. Removing
the covering for the last 20-30 minutes will allow
extra browning if required. Some large joints and
turkeys especially benefit by this method of
cooking, allowing the joint to cook through before
the outside is over-browned.
25
Page 26
CLEANING BETWEEN THE OUTER AND
INNER DOOR GLASS
The outer door glass is removable for cleaning.
TO REMOVE THE OUTER GLASS
1. Open the oven door slightly to gain access to the
two cross head screws on the top of the oven
door.
2. Loosen the two screws using a pozidrive
screwdriver.
3. Hold the door glass securely in place with one
hand before removing the screws completely with
the other hand.
4. Using both hands, gently tilt the top of the door
glass towards you. Lift slightly to disengage the
locators from the two bottom brackets.
TO REPLACE THE OUTER GLASS
1. Holding the oven door glass with both hands,
gently place the locators into the holes of the
brackets at the bottom of the oven door.
2. Push the top of the oven glass towards the oven
door, ensuring the screw location holes line up.
3. Hold the glass in place with one hand and insert
the cross head screws into the location holes
with the other hand. Give the screws one turn to
ensure the glass is secure.
4. Tighten the screws positively with a pozidrive
screwdriver before closing the oven door.
Do not attempt to use the oven without the glass
being in place.
TO CLEAN INSIDE THE INNER GLASS DOOR
The inner glass door is not removable. Clean using
hot soapy water or Flash Cream Cleaner and a soft
cloth. Take care NOT to use abrasives as they may
damage the glass or seal.
5. Clean the outer and inner glass using hot soapy
water or Flash Cream cleaner may be used. DO
NOT try to clean the aluminium foil which is
inside the door. The foil is there to help keep the
door cool, if it is damaged it will not work.
Ensure that all parts are well rinsed and
thoroughly dry before attempting to replace the
outer door.
26
Page 27
SOMETHING NOT WORKING?
We strongly recommend that you carry out the
following checks on your appliance before calling a
Service Engineer. It may be that the problem is a
simple one, which you can solve yourself without the
expense of a service call.
If our Service Engineer finds that the problem is
listed below you will be charged for the call whether
or not the appliance is under guarantee.
The cooker does not work at all:
* Check that the appliance has been wired in
and is switched on at the wall.
* Check that the main cooker fuse is working.
* Check that the timer is set to manual.
The oven temperature is too high or low:
* Check that the recommended temperatures
and shelf positions are being used (see page
21) Be prepared to adjust the temperatures
up or down by 10°C to achieve the results
you want.
The hotplates and main oven work but the grill
does not:
* Check that you have carefully followed the
instructions for operation of the grill.
If the oven is not cooking evenly or the side
opening door will not stay open:
* Check that the cooker is level.
27
Page 28
SERVICE AND SPARE PARTS
HELP US TO HELP YOU
Please determine your type of enquiry before writing or telephoning.
SERVICE
It is a recommendation by the manufacturer that annual servicing of the product is done by the manufacturers
approved service organisation.
In the event of your appliance requiring service, or if you wish to purchase spare parts please contact your local
Tricity Bendix Service Force Centre by telephoning:
0990 929929
The address of your local Service Force Centre is detailed on the following pages headed Tricity Bendix
Service Force.
Before calling out an engineer, please ensure you have read the details under the heading 'Something Not
Working?' and have the model number and purchase date to hand.
Please note that all enquiries concerning service should be addressed to your local Service Centre.
CUSTOMER CARE DEPARTMENT
For general enquiries concerning your Tricity Bendix cooker or for further information on Tricity Bendix
products, you are invited to contact our Customer Care Department by letter or telephone as follows:
Customer Care Department
Tricity Bendix
PO Box 47
Newbury
Berkshire
RG14 5XL
Tel: (01635) 525542
28
Page 29
TRICITY BENDIX SERVICE FORCE
To contact your local Tricity Bendix Service Centre telephone 0990 929929
CHANNEL ISLANDS
GUERNSEY Guernsey Electricity
JERSEY Jersey Electricity
PO Box 4
Vale , Guernsey
Channel Islands
Company
PO Box 45
Queens Road
St Helier
Jersey
Channel Islands
JE4 8NY
SCOTLAND
ABERDEEN
(M05)
AUCHTERMUCHY
(M03)
BLANTYRE
(M07)
DUMFRIES
(M01)
DUNOON
(M67)
GLASGOW
(M04)
INVERNESS
(M06)
ISLE OF ARRAN
(OWN SALES)
ISLE OF BARRA
(OWN SALES)
ISLE OF BUTE
(M66)
ISLE OF LEWIS
(M69)
ISLE OF MULL
(M68)
8 Cornhill Arcade
Cornhill Drive
Aberdeen
AB2 5UT
33A Burnside
Auchtermuchy
Fife
KY14 7AJ
Unit 5
Block 2
Auchenraith Ind Estate
Rosendale Way
Blantyre
G72 0NJ
93 Irish Street
Dumfries
Scotland
DG1 2PQ
Briar Hill
7 Hill Street,
Dunoon
Argyll
PA23 7AL
20 Cunningham Road
Clyde Estate
Rutherglen,
Glasgow,
G73 1PP
Unit 3B
Smithton Indust. Est.
Smithton
Inverness
IV1 AJ
Arran Domestics
Unit 4 The Douglas
Centre
Brodick
Isle of Arran
KA27 8AJ
J Zerfah
244 Bruernish
Isle of Barra
Western Islands
HS9 5QY
Walker Engineering
Glenmhor
Upper Serpentine Road
Rothesay
Isle of Bute
PA20 9EH
ND Macleod
16 James Street
Stornoway
Isle of Lewis PA87 2QW
Brian Hogg
Braeside
Raeric Road
Tobermory
Isle of Mull PA75 6PU
KELSO
(M08)
ORKNEY
(M65)
SHETLAND
(OWN SALES)
SHETLAND
(OWN SALES)
WHALSAY
(OWN SALES)
NORTHERN IRELAND
BELFAST
(M27)
WALES
CARDIFF
(M28)
CLYWD
(M14)
OSWESTRY
(M17)
2-8 Wood Market
Kelso
Borders TD5 7AX
Corsie Domestics
7 King Street
Kirkwall
Orkney KW15
Tait Electronic Systems
Ltd.
Holmsgarth Road
Lerwick
Shetland ZE1 0PW
Bolts Shetland Ltd
26 North Road
Lerwick
Shetland ZE1 0PE
Leask Electrical
Harlsdale
Symbister, Whalsay
Shetland ZE2 9AA
Owenmore House
Kilwee Industrial Estate
Upper Dunmury Lane
Belfast
BT17 0HD
Guardian Industrial
Estate
Clydesmuir Road
Tremorfa, Cardiff
CF2 2QS
Unit 6-7 Coed - Parc
Abergele Road
Rhuddlan
Clwyd
Wales
LL18 5UG
Plas Funnon Warehouse
Middleton Road
Oswestry
SY11 2PP
NORTH EAST
GATESHEAD
(M39)
GRIMSBY
(M42)
HULL
(M41)
LEEDS
(M37)
NEWTON AYCLIFFE
(M45)
SHEFFIELD
(M38)
NORTH WEST
BIRKENHEAD
(M11)
CARLISLE
(M10)
ISLE OF MAN
(M64)
LIVERPOOL
(M15)
MANCHESTER
(M09)
PRESTON
(M13)
STOCKPORT
(M16)
Unit 356a
Dukesway Court
Dukesway
Team Valley
Gateshead
NE11 0BH
Unit 2
Cromwell Road
Grimsby
South Humberside
DN31 2BN
Unit 1
Boulevard Industrial
Estate
Hull
HU3 4AY
64-66 Cross Gates Road
Leeds
LS15 7NN
Unit 16
Gurney Way
Aycliffe Ind Estate
Newton Aycliffe
DL5 6UJ
Pennine House
Roman Ridge Ind.
Roman Ridge Road
Sheffield
S9 1GB
1 Kelvin Park
Dock Road
Birkenhead
L41 1LT
Unit 8
South John Street
Carlisle
CA2 5AJ
South Quay Ind Estate
Douglas
Isle of Man
Unit 1
Honeys Green Precinct
Honeys Green Lane
Liverpool
L12 9JH
Unit 30, Oakhill Trading
Estate
Devonshire Road
Worsley
Manchester
M28 3PT
Unit 250
Dawson Place
Walton Summit
Bamber Bridge
Preston
Lancashire
PR5 8AL
Unit 20 Haigh Park
Haigh Avenue
Stockport
SK4 1QR
29
Page 30
TRICITY BENDIX SERVICE FORCE
To contact your local Tricity Bendix Service Centre telephone 0990 929929
MIDLANDS
BIRMINGHAM
(M18)
BOURNE
(M44)
BRIDGNORTH
(M72)
GLOUCESTER
(M23)
HEREFORD
(M31)
HIGHAM FERRERS
(M51)
ILKESTON
(M43)
LEICESTER
(M22)
LINCOLN
(M40)
NEWCASTLE UNDER
LYME
(M12)
NUNEATON
(M21)
REDDITCH
(M20)
TAMWORTH
(M19)
WORCESTER
(M73)
66 Birch Road East,
Wyrley Road Industrial
Estate
Witton
Birmingham
B6 7DB
Manning Road Ind Estate
Pinfold Road
Bourne
PE10 9HT
1 Underhill Street
Bridgnorth
Salop
WV16 4BB
101 Rycroft Street
Gloucester
GL1 4NB
Unit 3
Bank Buildings
Cattle Market
Hereford
HE4 9HX
The Old Barn
Westfield Terrace
Higham Ferrers
NN10 8BB
Unit 2
Furnace Road
Ilkeston
DE7 5EP
Unit 23-24 Alliance
Business Pk
Townsend Drive
Nuneaton
Warwickshire
CV11 6RX
Unit 8 Stonefield Park
Clifton Street
Lincoln
LN5 8AA
18-21 Croft Road
Brampton Industrial
Estate
Newcastle under Lyme
Staffordshire
ST5 0TW
19 Ptarmigan Place
Townsend Drive
Nuneaton
CV11 6RX
Heming Road
Washford
Redditch
Worcestershire
B98 0DH
Unit 3
Sterling Park
Claymore
Tamworth
B77 5DO
Unit 1
Northbrook Close
Gregorys Mill Ind Estate
Worcester
WR3 8BP
LONDON & EAST ANGLIA
CANVEY ISLAND 2-4 Sandhurst
CHELMSFORD
(M47)
COLINDALE
(M53)
ENFIELD
(M49)
GRAVESEND
(M57)
HARPENDEN
(M46)
LETCHWORTH
(M50)
LONDON
(M76)
MAIDENHEAD
(M60)
7MOLESEY
(M61)
NEWBURY
(M24)
IPSWICH
(M48)
NORWICH
(M52)
SUNBURY
(M63)
SYDENHAM
(M62)
Kings Road
Canvey Island
SS8 0QY
Hanbury Road
Widford Ind Estate
Chelmsford
Essex
CM12 3AE
Unit 14
Capital Park
Capital Way
Colindale
London NW9 0EQ
284 Alma Road
Enfield
London
EN3 7BB
Unit B4,
Imperial Business Estate
Gravesend
Kent
DA11 0DL
Unit 4
Riverside Estate
Coldharbour Lane
Harpenden
AL5 4UN
16-17 Woodside Ind Est.
Works Road
Letchworth
Herts
SG6 1LA
66 Paddenswick Road
Hammersmith
London
W6 OUB
Reform Road
Maidenhead
Berkshire
SL6 8BY
10 Island Farm Avenue
West Molesey
Surrey
KT8 2UZ
PO Box 5627
Newbury
Berkshire
RG14 5GF
Unit 2B
Elton Park Business
Centre
Hadleigh Road
Ipswich
IP2 0DD
2b Trafalgar Street
Norwich
NR1 3HN
Unit 1a
The Summit
Hanworth Road
Hanworth Ind Estate
Sunbury on Thames
TW16 5D
Unit 6
Metro Centre
Kangley Bridge Road
Sydenham
SE26
SOUTH EAST
ASHFORD
(M58)
FLEET
(M59)
HAYWARDS HEATH
(M55)
TONBRIDGE
(M56)
SOUTH WEST
BARNSTAPLE
(M30)
BOURNEMOUTH
(M26)
BRIDGEWATER
(M35)
BRISTOL
(M25)
EMSWORTH
(M33)
ISLE OF WIGHT
(M34)
NEWTON ABBOT
(M29)
PLYMOUTH
(M32))
REDRUTH
(M36)
Unit 2
Bridge Road Business
Estate
Bridge Road
Ashford
Kent
TN2 1BB
Unit 1
Redfields Industrial
Estate
Church Crookham
Fleet
Hampshire
GU13 0RD
21-25 Bridge Road
Haywards Heath
Sussex
RH16 1UA
Unit 30 Deacon Trading
Estate
Morley Road
Tonbridge
Kent
TN9 1RA
P.O. Box 12
Barnstaple
North Devon
EX31 2YB
63-65 Curzon Road
Bournemouth
Dorset
BH1 4PW
6 Hamp Industrial Estate
Bridgewater
Somerset
TA6 3NT
11 Eldon Way
Eldonwall Trading
Bristol
Avon
BS4 3QQ
266 Main Road
Southboure
Emsworth
PO10 8JL
Unit 8
Enterprise Court
Ryde Business Park
Ryde
Isle of Wight
PO33 1DB
Unit 2 Zealley Industrial
Estate
Kingsteignton
Newton Abbot
S. Devon
TQ12 3TD
16 Faraday Mill
Cattledown
Plymouth
PL4 0ST
Unit 7D
Pool Industrial Estate
Wilson Way, Redruth,
Cornwall
TR15 3QW
30
SI 322 / SI323 - 311311705
Page 31
GUARANTEE CONDITIONS
Standard guarantee conditions
We, Tricity Bendix, undertake that if within 12 months of the date of the purchase this Tricity Bendix appliance or
any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option
repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
l
The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
l
The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's
instructions.
l
The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
l
All service work under this guarantee must be undertaken by a Tricity Bendix service centre.
l
Any appliance or defective part replaced shall become the Company's property.
l
This guarantee is in addition to your statutory and other legal rights.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours
in which case a premium will be charged.
Exclusions
This guarantee does not cover:
l
Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or
removable parts of glass or plastic.
l
Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the
United Kingdom.
l
Appliances found to be in use within a commercial environment, plus those which are subject to rental
agreements.
l
Products of Tricity Bendix manufacture which are not marketed by Tricity Bendix.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:
l
The guarantee starts from the date you first purchased your product.
l
The guarantee is for the same period and to the same extent for labour and parts as exists in the new country
of use for this brand or range of products.
l
This guarantee relates to you and cannot be transferred to another user.
l
Your new home is within the European Community (EC) or European Free Trade Area.
l
The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household.
l
The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your new
home. They will then ensure that the local Service Organisation is aware of your move and able to look after you
and your appliances.
France Senlis +33 (0)3 44 62 28 28
Germany Nürnberg +49 (0)911 323 2600
Italy Pordenone +39 (0)1678 47053
Sweden Stockholm +46 (0)20 78 77 50
UK Newbury +44 (0)1635 525 542
31
1
Page 32
RATING PLATE REFERENCE
MAKE AND MODEL NO. PRODUCT NO. SERIAL NO. DATE OF PURCHASE
IMPORTANT NOTICE
In line with our continuing policy of research and development, we reserve the right to alter models and
specifications without prior notice.
This handbook is accurate at the date of printing, but will be superseded and should be disregarded if
specifications or appearance are changed.
TRICITY BENDIX,PO BOX 47,NEWBURY,BERKSHIRE, RG14 5XL
TELEPHONE (01635) 525542
MODEL NO. PART NO.
SI 322 / SI 323
4
311311705
Loading...
