Thank you for buying a Tricity Bendix cooker. With our 80 years experience in
developing and manufacturing the very best in U.K. cookers, you can be
assured that you have purchased a hard working, reliable, quality product.
Tricity Bendix cookers comply with British Standard safety and performance
requirements. They have been approved by BEAB (British Electrotechnical
Approvals Board) and are covered by a 12 month parts and labour guarantee.
To get the best from your new Tricity Bendix cooker, we ask that you PLEASE
READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be
made to cooking times and temperatures which may differ from your previous
cooker.
It is most important that this instruction book is retained with the appliance for
future reference. Should the appliance be sold, or if you move house and
leave the appliance, always ensure that the book remains with the appliance.
This will enable the new owner to be acquainted with the functioning of the
appliance and the relevant warnings.
Please read the whole instruction book before attempting to use the appliance
ensuring you follow the recommendations given.
5

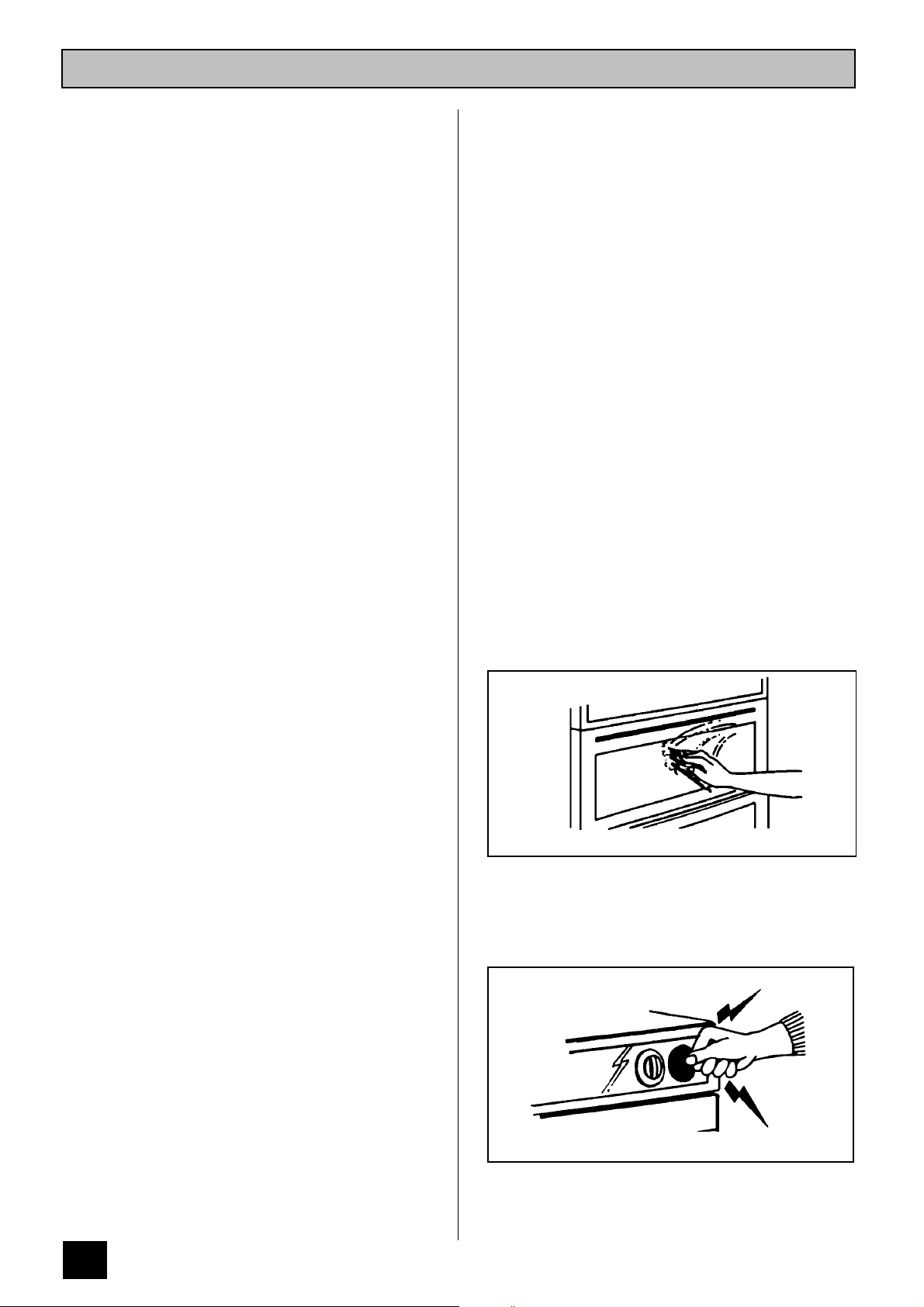

SAFETY
THESE WARNINGS ARE PROVIDED IN
THE INTERESTS OF YOUR SAFETY.
ENSURE THAT YOU UNDERSTAND THEM
ALL BEFORE INSTALLING OR USING THE
COOKER.
PLEASE
READ
CAREFULLY
BEFORE INSTALLATION
This cooker is heavy and care must be
taken when moving it.
Ensure that all packaging, both inside
and outside the cooker, has been
removed before the appliance is used.
This cooker is designed to be operated
by adults. Young children must not be
allowed to tamper with the cooker or
play with the controls.
Do not allow children to sit or climb onto
the drop down oven door.
Caution accessible parts especially
around the grill area may become hot
when the cooker is in use. Children
should be kept away until it has cooled.
Take great care when heating fats and
oils as they will ignite if they become too
hot.
This cooker has been designed for
cooking edible foodstuffs only, and
mustnot be used for any other
purposes.
Never place plastic or any other
material which may melt in the oven or
on the hob.
Do not try to move the cooker by
pulling the door handles.
The cooker must be installed according
to the instructions supplied. Any
electrical installation work must be
undertaken by a qualified
electrician/competent
It is dangerous to alter or modify the
specifications of the product in any way.
After installation, please dispose of the
packaging with due regard to safety and
the environment.
DURING OPERATION
Do not use this cooker if it is in contact
with water. Never operate it with wet
hands.
person.
Ensure cooking utensils are large
enough to contain foods to prevent
spillages and boil overs.
Take care to follow the
recommendations given for tending the
food when grilling. Use the handle
provided in the recommended way.
Do not leave the handle in position
when grilling as it will become hot.
Always use oven gloves to remove and
replace food in the oven. Similarly
always use oven gloves to remove and
replace the grill pan handle when
grilling.
Recommendations given on page 13.
Ensure that you support the grill pan
when it is in the withdrawn or partially
withdrawn position.
6

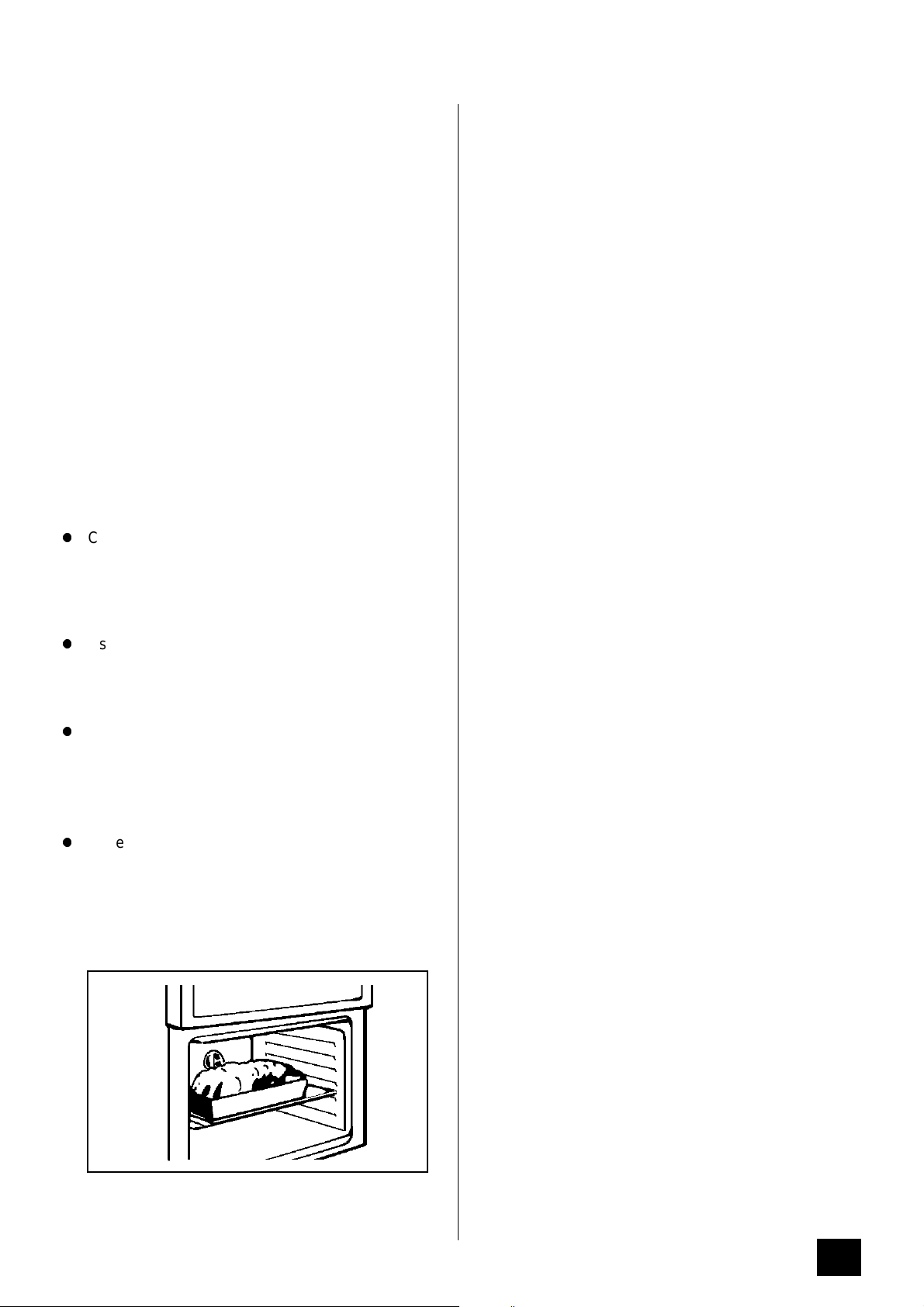

Ensure that all vents are left unobstructed to
ensure ventilation of the oven cavity.
Ensure that the anti-tilt shelf is put in
place correctly. Refer to instructions on
page 15.
Never line any part of the cooker with
aluminium foil. Do not allow heatproof
cooking material, e.g. roasting bags to
come into contact with oven elements.
Always stand back from the cooker
when opening the oven door to allow
any build up of steam or heat to
release.
GENERAL
Under no circumstances should
repairs be carried out by inexperienced
persons as this may cause injury or
serious malfunction.
This cooker should be serviced by an
authorised Service Engineer and only
genuine approved spare parts should be
used. Details of servicing and repair
arrangements are given on page 21 of
this book.
Do not stand on the cooker or on the
open oven door.
AFTER USE
Stand clear when opening the drop
down oven door. Do not allow it to fall
open - support it using the door handle
until it is fully open.
Do not place sealed cans or aerosols
inside the oven. They may explode if
they are heated.
Ensure that all control knobs are in the
OFF position when not in use.
For hygiene and safety reasons this
cooker should be kept clean at all times.
A build-up of fats or other foodstuffs
could result in a fire, especially in the
grill pan.
Do not hang towels, dishcloths or
clothes from the appliance or its
handles. They are a safety hazard.
Only clean this cooker in accordance
with the instructions given in this book.
Your safety is of paramount importance.
Therefore, if you are unsure about any of the
meanings of these WARNINGS contact the:
Consumer Care Department
Telephone (01635) 525542
Do not leave utensils containing
foodstuffs, e.g. fat or oil in or on the
appliance in case it is inadvertently
switched ON.
Cookers and hobs become very hot,
and retain their heat for a long period of
time after use. Children should be kept
well away from the cooker until it has
cooled.
7
INTRODUCTION
WARNING: THIS APPLIANCE MUST BE EARTHED
RATING PLATE
Record the model, product and serial numbers on the
back cover of this instruction book, from the rating plate.
This is situated on the base of the appliance on the
front right hand side.
The appliance must be protected by a suitably rated
fuse or circuit breaker. The rating of the appliance is
given on the rating plate.
Do not remove the rating plate from the cooker as
this may invalidate the guarantee.
INSTALLATION
This appliance complies with Radio Interference
requirements of EEC Directive 87/308/EEC.
The cable should be routed away from potentially hot
areas marked by X in the diagram below.
To move the cooker, open the main oven door and lift
the cooker by holding inside the top of the
compartment.
If your cooker has been damaged in transit, contact
your supplier immediately. DO NOT attempt to install it.
Your cooker left the factory fully packaged to protect it
from damage. If it is delivered without packaging and
damage has occurred, the manufacturer cannot accept
responsibility. Contact your supplier for advice.
Once the packaging has been removed the cooker
should only be moved by hand. DO NOT use a sack
barrow or any other aid to lift the cooker as damage
may occur.
Connection to the electricity supply must be carried out
by a qualified electrician/competent person.
The electrical connection should be made using a
double pole isolating switch (cooker socket) with at least
3mm contact separation. The cable must have
conductors of sufficiently high cross-sectional area to
prevent overheating and deterioration.
Six square millimetres (6.00mm²) is the recommended
cross-section area.
This is a type X appliance which means it is
free-standing and can be fitted with cabinets on one or
both sides.
Side walls which are above hob level should be
protected by heat resistant non-combustible material
and MUST NOT be nearer than 40mm to the hob side.
A nominal air gap of 2mm at either side of the cooker is
required to enable the cooker to be moved into position.
It is recommended that proprietary trims are fitted to
protect the worktops of either side of the appliance.
These are available from most DIY stores.
Two spacers have been incorporated into the back of
the appliance to ensure an air gap of 10mm is
maintained at hotplate level. Tiles or other forms of
deep wall covering should not obscure this gap.
8
Overhanging surfaces or a cooker hood should be a
minimum of 685mm above the hob.
GENERAL NOTES ON USING YOUR
COOKER
We suggest that you run the oven elements for 10 - 15
minutes at 220°C to burn off any residue from their
surfaces.
The procedure should be repeated with the grill for
approximately 5 - 10 minutes.
During this period an odour may be emitted, it is
therefore advisable to open a window for ventilation.
ABOUT CONDENSATION AND STEAM
It is important to ensure that the appliance is level after
installation. Levelling feet are fitted to the front of the
appliance to accommodate uneven floors.
FITTING THE STABILITY BRACKET
It is recommended that a stability bracket supplied with
the appliance be fitted during installation.
The instructions are as follows.
1. Place the appliance in its intended position and level
appliance.
2. Mark off 280mm from the left hand side at the base
of the appliance as shown in dimension 'A', Fig 1.
This is the centre line of the fixing bracket.
3. Draw a line across the front edge of the feet (see
Fig 1) and remove appliance from its position. Mark
off dimension 'B' (see Fig 1) back from this line on
the centre line of the bracket to locate the front edge
of the lower bracket. Fix lower bracket (with two
fixing holes) to the floor then measure the height
from floor level to engagement edge on back of
appliance, dimension 'C' of Fig. 2.
4. Assemble upper bracket to lower bracket so that
underside of bracket is dimension 'C' +3mm above
floor level. (see Fig. 2).
Reposition appliance and check that top bracket
engages into appliance back as shown in Fig. 2.
When food is heated it produces steam similar to a
boiling kettle. The ovens are vented to allow some of
this steam to escape between the wall and the rear of
the appliance. However, always stand back from the
appliance when opening the oven door to allow any
build up of steam or heat to release.
If the steam comes into contact with a cool surface on
the outside of the appliance, e.g. a trim, it will condense
and produce water droplets. This is quite normal and is
not caused by a fault on the appliance.
To prevent discolouration, regularly wipe away
condensation and also soilage from surfaces.
For your safety, wall coverings at the rear of the
appliance should be securely fixed to the wall.

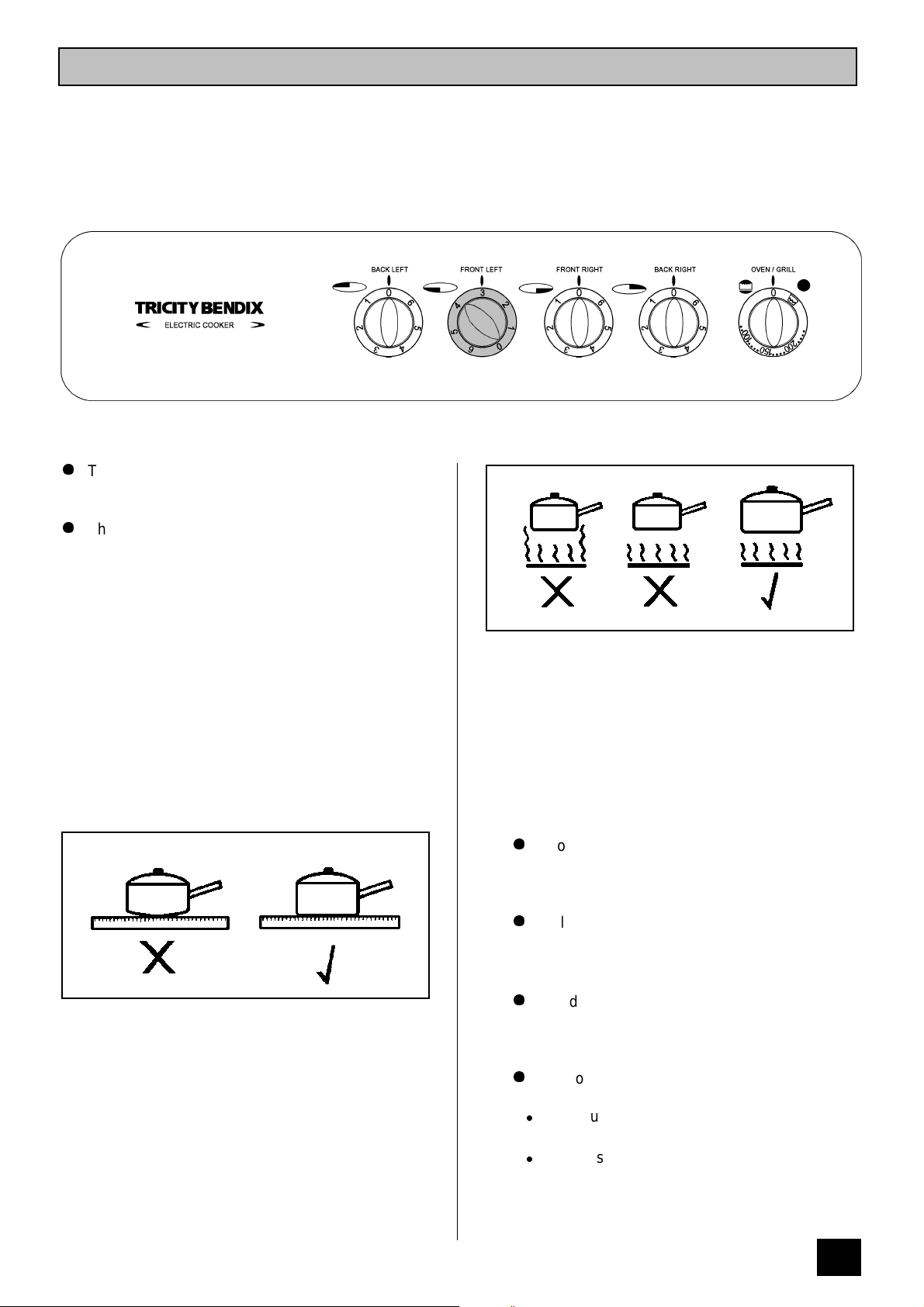

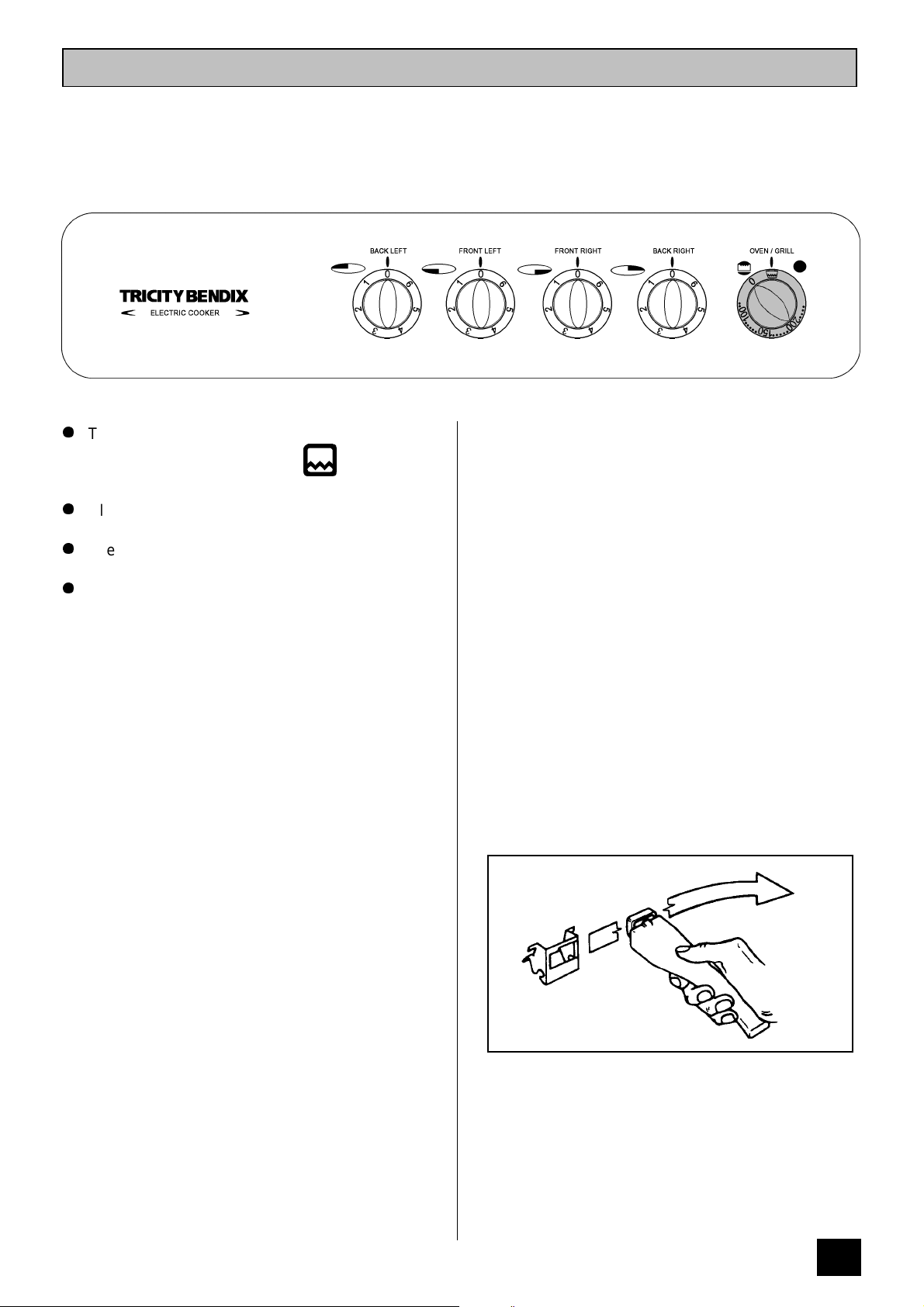

OVEN / GRILL INDICATOR NEON
The light indicates whether the oven or the grill are
switched on. The neon also indicates when the set
temperature is being maintained. The neon will cycle on
and off during cooking. In the case of the oven the neon
indicates when the correct temperature has been
reached.

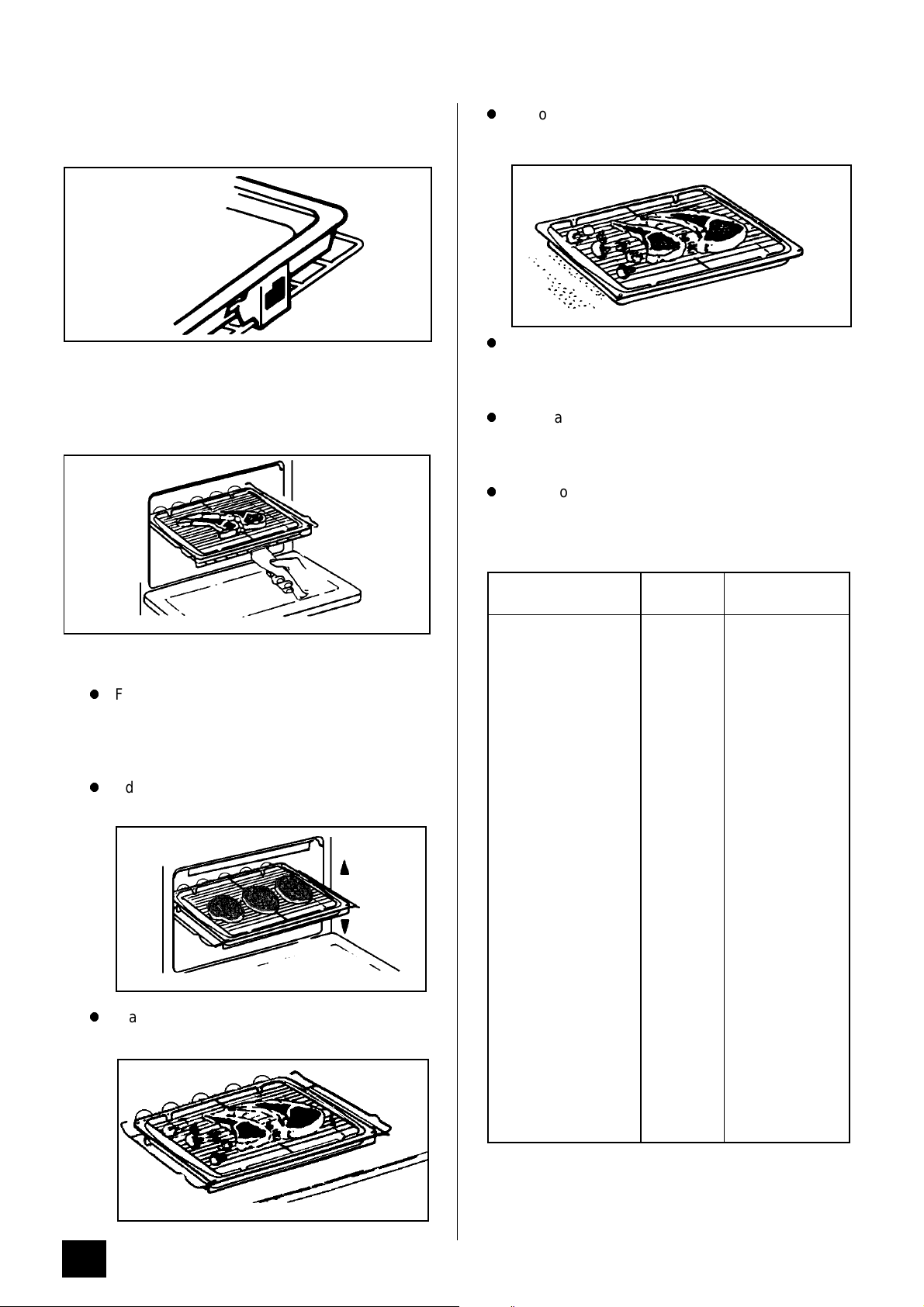

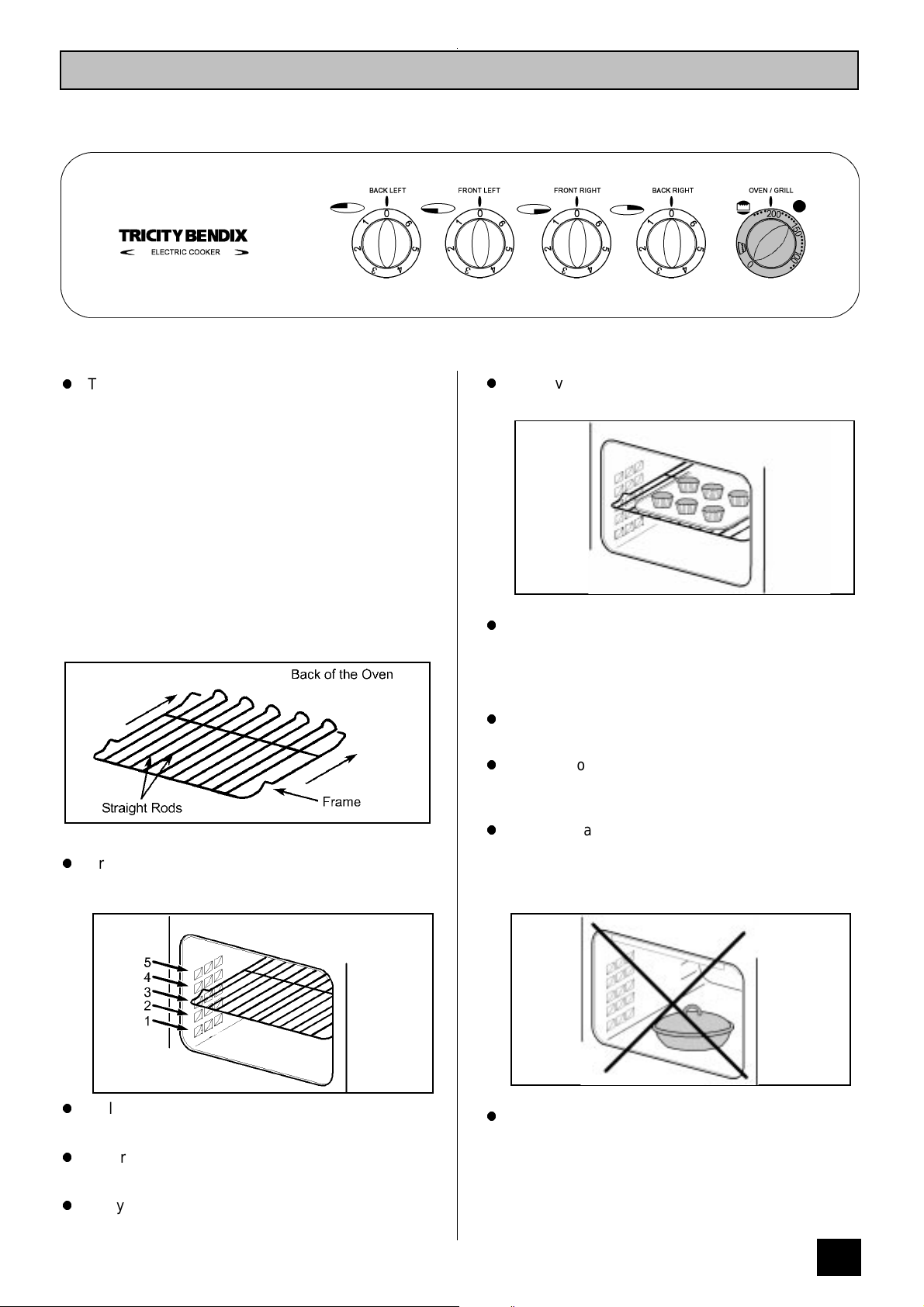

GRILL AND OVEN FURNITURE
The following items of oven furniture have been
supplied with the cooker:
Fig.1
1 grill pan
1 grill pan handle
Fig.2
1 grill pan grid
1 straight shelf
for oven
9
