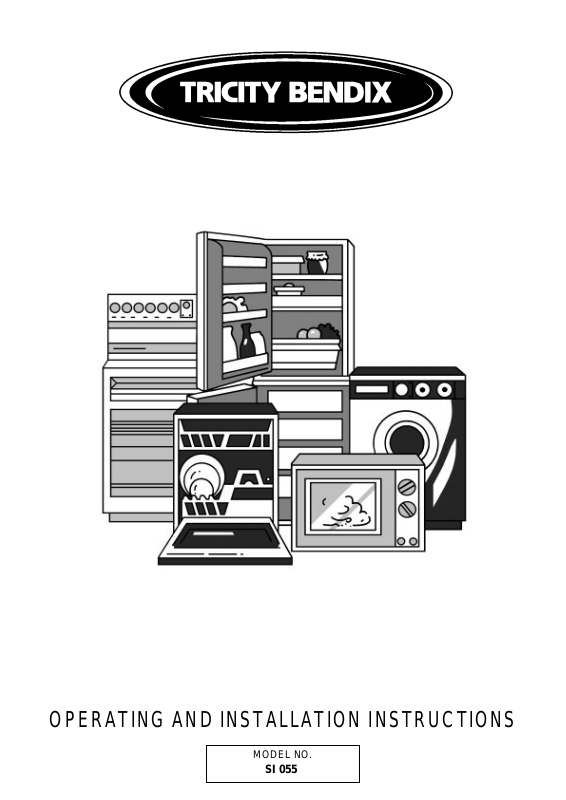

Page 1
OPERATING AND INSTALLATION INSTRUCTIONS
MODEL NO.
SI 055
Page 2
TECHNICAL DETAILS
MODEL NO. SI 055
Voltage: 230/240 Volts AC 50Hz
Wattage: 10.7/11.7 kW
Height: 900mm
Width: 550mm
Depth: 600mm
This appliance complies with: European Council Directive 73/23/EEC.
EMC Directive 89/336/EEC.
CE Marking Directive 93/68/EEC.
2
Page 3
CONTENTS
Technical Details
Contents
Preface
Safety
Introduction ...................................................................................... 8
Getting to Know Your Cooker
The Sealed Hotplates ............................................................................ 11
.........................................................................................
...........................................................................................
.............................................................................................
Before Installation ........................................................................... 6
During Operation ........................................................................... 6
After Use ................................................................................... 7
General .................................................................................... 7
Rating Plate
Installation .................................................................................. 8
General Notes on Using Your Cooker ........................................................ 9
About Condensation and Steam ............................................................. 9
Oven/Grill Indicator Neons .................................................................. 9
Grill and Oven Furniture ..................................................................... 9
The Control Panel ......................................................................... 10
Recommended Saucepans ................................................................. 11
Hints and Tips ............................................................................. 11
Deep Fat Frying
Preserving ................................................................................. 12
.................................................................................
................................................................................
...................................................................
...........................................................................
10
12
2
3
5
6
8
The Grill
The Top Oven
Top Oven Cooking Chart ........................................................................ 17
The Main Oven .................................................................................. 18
Main Oven Cooking Chart ....................................................................... 19
Roasting Chart .................................................................................. 20
.........................................................................................
Selecting the Grill .......................................................................... 13
Things to Note ............................................................................. 13
The Grill Pan and Handle ................................................................... 13
Hints and Tips ............................................................................. 14
Grilling Chart .............................................................................. 14
...................................................................................
Uses of the Top Oven ...................................................................... 15
Selecting the Top Oven .................................................................... 15
Things to Note ............................................................................. 15
To Fit the Top Oven Shelf .................................................................. 15
Hints and Tips ............................................................................. 15
Selecting the Main Oven ................................................................... 18
Things to Note ............................................................................. 18
To Fit the Main Oven Shelves .............................................................. 18
Hints and Tips ............................................................................. 18
13
15
3
Page 4
CONTENTS
Care and Cleaning
Cleaning Materials ......................................................................... 21
Cleaning the Sealed Hotplates and Hotplate Trims .......................................... 21
Things To Note ............................................................................ 21
Cleaning the Outside of the Cooker ......................................................... 21
Cleaning the Grill Pan, Grill Pan Grid, and Oven Shelves .................................... 22
Cleaning Inside the Grill/Oven Compartments ............................................... 22
Care of Stayclean Surfaces ................................................................ 22
Hints and Tips ............................................................................. 22
Something not Working? ........................................................................ 23
Service and Spare Parts

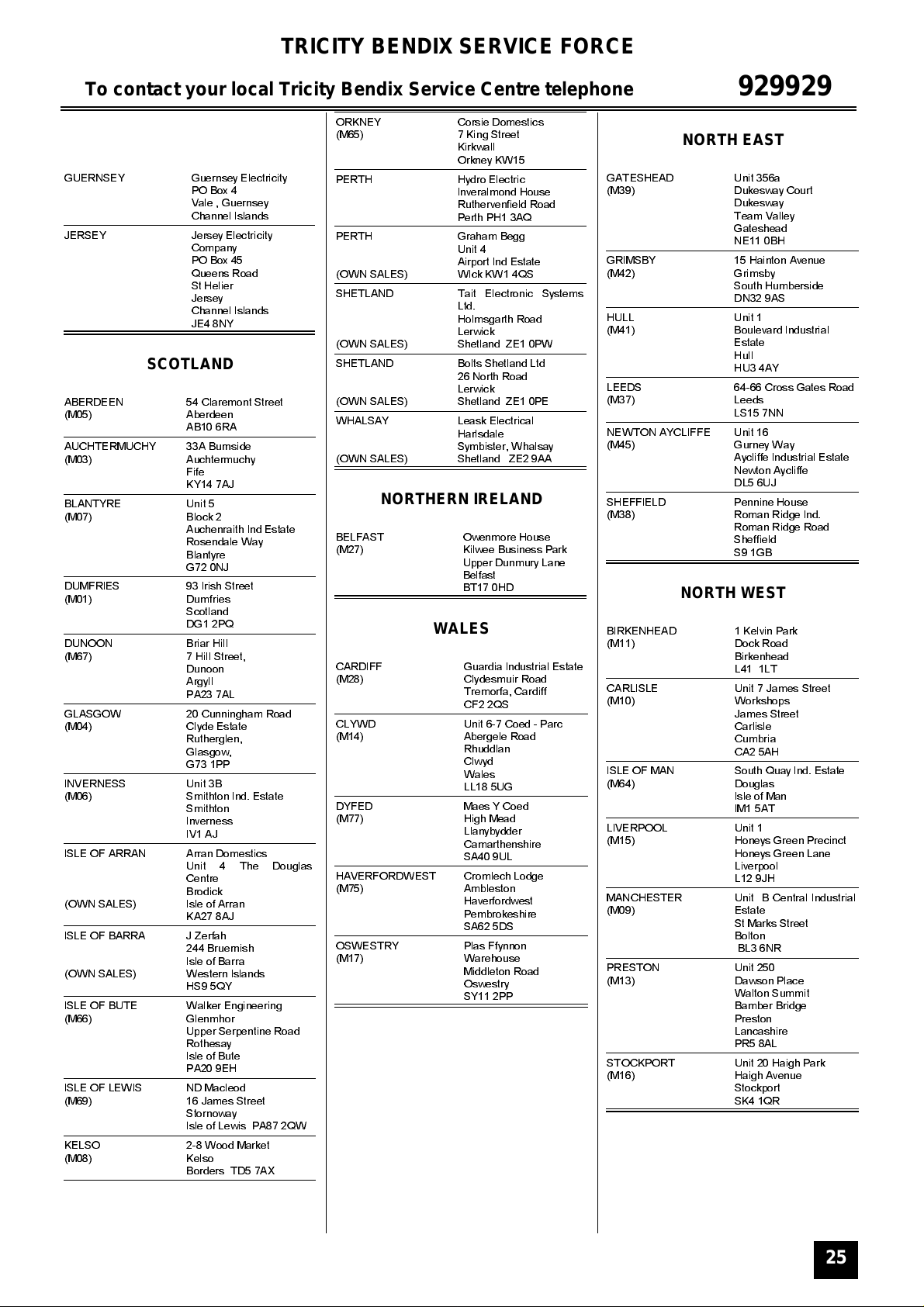

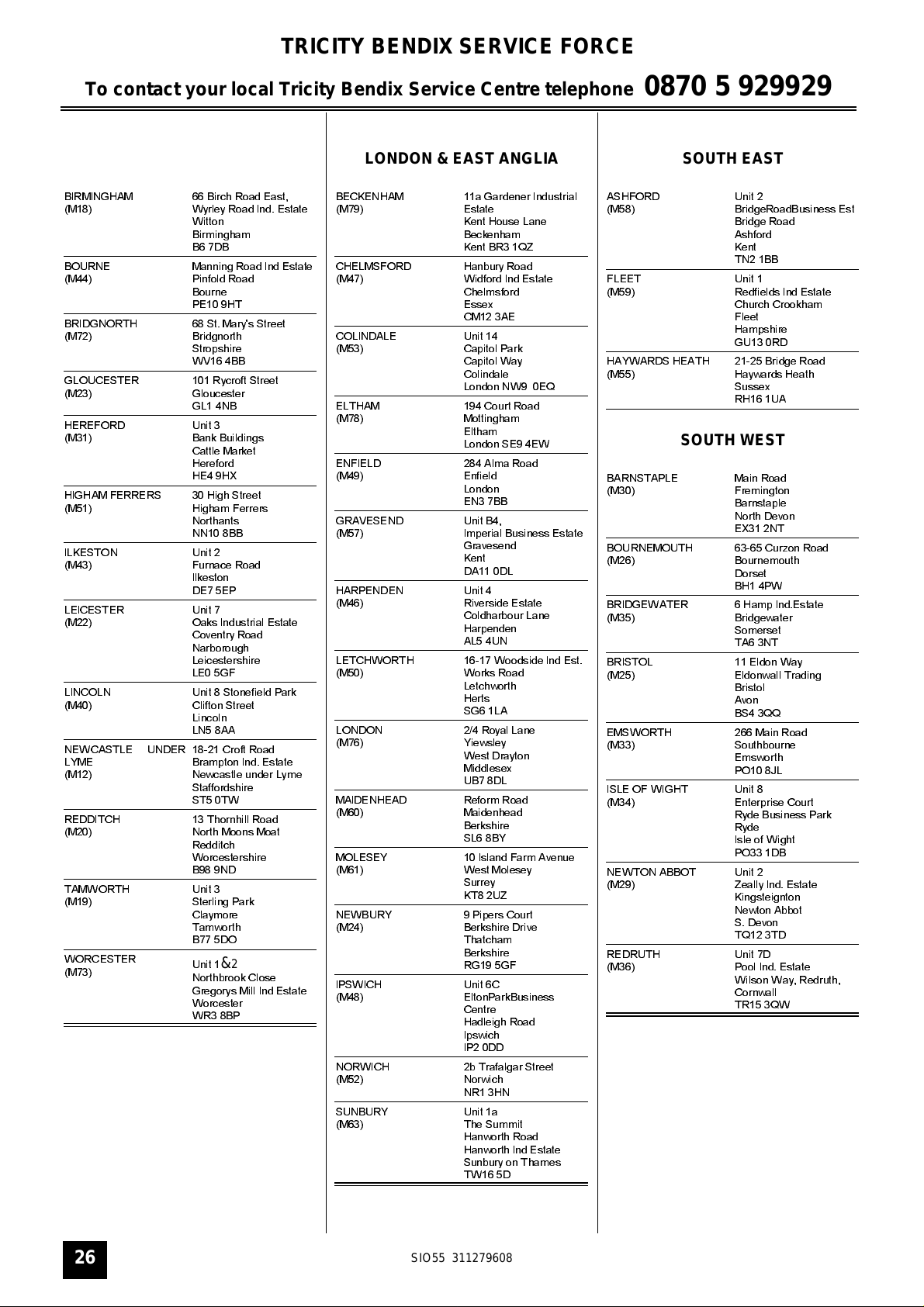

Customer Service Centres ....................................................................... 25
Guarantee Conditions
...............................................................................
.........................................................................
...........................................................................
21
24
27
4
Page 5
PREFACE
Dear Customer,
Thank you for buying a Tricity Bendix cooker. With our 80 years experience in
developing and manufacturing the very best in U.K. cookers, you can be
assured that you have purchased a hard working, reliable, quality product.
Tricity Bendix cookers comply with British Standard safety and performance
requirements. They have been approved by BEAB (British Electrotechnical
Approvals Board) and are covered by a 12 month parts and labour guarantee.
To get the best from your new Tricity Bendix cooker, we ask that you PLEASE
READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be
made to cooking times and temperatures which may differ from your previous
cooker.
It is most important that this instruction book is retained with the appliance for
future reference. Should the appliance be sold, or if you move house and
leave the appliance, always ensure that the book remains with the appliance.
This will enable the new owner to be acquainted with the functioning of the
appliance and the relevant warnings.
Please read the whole instruction book before attempting to use the appliance
ensuring you follow the recommendations given.
5
Page 6
SAFETY
THESE WARNINGS ARE PROVIDED IN
THE INTERESTS OF YOUR SAFETY.
ENSURE THAT YOU UNDERSTAND
THEM ALL BEFORE INSTALLING OR
USING THE COOKER.
PLEASE
READ
CAREFULLY
BEFORE INSTALLATION
This appliance is heavy and care
must be taken when moving it.
Ensure that all packaging, both
inside and outside the appliance, has
been removed before the appliance
is used.
If the cooker is to be placed on a
base, measures must be taken to
prevent the cooker slipping from the
base.
Do not try to move the appliance by
pulling the door handles.
DURING OPERATION
Do not use this appliance if it is in
contact with water. Never operate it
with wet hands.
This appliance is designed to be
operated by adults. Young children
must not be allowed to tamper with
the product or play with the controls.
During use the cooker becomes Hot.
Care should be taken to avoid
touching heating elements inside the
oven.
Accessible parts especially around
the grill area may become hot when
the appliance is in use. Children
should be kept away until it has
cooled.
Take great care when heating fats
and oils as they will ignite if they
become too hot.
This product has been designed for
cooking edible foodstuffs only, and
must not be used for any other
purposes.
Never place plastic or any other
material which may melt in the oven
or on the hob.
The electrical installation work must
be undertaken by a qualified
electrician/competent person.
It is dangerous to alter or modify
the specifications of the product in
any way.
After installation, please dispose of
the packaging with due regard to
safety and the environment.
Ensure cooking utensils are large
enough to contain foods to prevent
spillages and boil overs.
The handles of saucepans which are
smaller than the heated area on the
hob will become hot. Ensure your
hand is protected before handling the
pan.
Take care to follow the
recommendations given for tending
the food when grilling.
6
Page 7
Always use oven gloves to remove
and replace food in the oven.
Ensure that all vents are left
unobstructed to ensure ventilation of
the oven cavity.
Ensure that the anti-tilt shelves are
put in place correctly. Refer to
instructions on page 15 and 18.
Never line any part of the appliance
with aluminium foil.
Always stand back from the
appliance when opening the oven
door to allow any build up of steam
or heat to release.
Do not place sealed cans or
aerosols inside the oven. They may
explode if they are heated.
Do not leave the hotplates switched
on for long periods when not covered
by a saucepan. The controls may
overheat.
GENERAL
Under no circumstances should
repairs be carried out by
inexperienced persons as this may
cause injury or serious malfunction.
This product should be serviced by
an authorised Service Engineer and
only genuine approved spare parts
should be used. Details of servicing
and repair arrangements are given on
page 24 of this book.
Do not stand on the appliance or on
the open oven door.
Do not hang towels, dishcloths or
clothes from the appliance or its
handles. They are a safety hazard.
Only clean this appliance in
accordance with the instructions
given in this book.
AFTER USE
Ensure that all control knobs are in
the OFF position when not in use.
For hygiene and safety reasons this
appliance should be kept clean at all
times. A build-up of fats or other
foodstuffs could result in a fire,
especially in the grill pan.
Do not leave utensils containing
foodstuffs, e.g. fat or oil in or on the
appliance in case it is inadvertently
switched ON.
Cookers and hobs become very hot,
and retain their heat for a long period
of time after use. Children should be
kept well away from the appliance
until it has cooled.
Your safety is of paramount importance.
Therefore, if you are unsure about any of the
meanings of these WARNINGS contact the:
Customer Care Department
Telephone 0870 5 950950
7
Page 8
INTRODUCTION
WARNING: THIS APPLIANCE MUST BE EARTHED
RATING PLATE
Record the model, product and serial numbers on the
back cover of this instruction book, from the rating
plate. This is situated on the lower front frame of the
appliance and can be seen upon opening the top
oven door.
The appliance must be protected by a suitably rated
fuse or circuit breaker. The rating of the appliance is
given on the rating plate.
Do not remove the rating plate from the cooker
as this may invalidate the guarantee.
INSTALLATION
If your cooker has been damaged in transit, contact
your supplier immediately. DO NOT attempt to install
it.
The cable should be routed away from potentially hot
areas marked by X in the diagram below.
To move the cooker, open the main oven door and
lift the cooker by holding inside the top of the
compartment.
Your cooker left the factory fully packaged to protect
it from damage. If it is delivered without packaging
and damage has occurred, the manufacturer cannot
accept responsibility. Contact your supplier for
advice.
Once the packaging has been removed the cooker
should only be moved by hand. DO NOT use a sack
barrow or any other aid to lift the cooker as damage
may occur.
Connection to the electricity supply must be carried
out by a qualified electrician/competent person.
The electrical connection should be made using a
double pole isolating switch (cooker socket) with at
least 3mm contact separation. The cable must have
conductors of sufficiently high cross-sectional area to
prevent overheating and deterioration.
Six square millimetres (6.00mm²) is the recommended
cross-section area.
This is a type Y appliance which means it is
free-standing and can be fitted with cabinets on one
or both sides. It may also be fitted in a corner setting.
Side walls which are above hob level should be
protected by heat resistant non-combustible material
and MUST NOT be nearer than 40mm to the hob
side.
A nominal air gap of 2mm all around the cooker is
required to enable the cooker to be moved into
position.
Always ensure an air gap is maintained at hotplate
level. Tiles or other forms of deep wall covering
should not obscure this gap.
Air gap
8
Page 9
Overhanging surfaces or a cooker hood should be a
minimum of 685mm above the hob.
GRILL AND OVEN FURNITURE
The following items of oven furniture have been
supplied with the cooker:
1 grill pan
(311409401)
It is important to ensure that the appliance is level
after installation. Levelling feet are fitted to the
appliance to accommodate uneven floors.
GENERAL NOTES ON USING YOUR
COOKER
We suggest that you run the oven elements for 10 15 minutes at 220°C to burn off any residue from
their surfaces.
The procedure should be repeated with the grill for
approximately 5 - 10 minutes.
During this period an odour may be emitted, it is
therefore advisable to open a window for ventilation.
ABOUT CONDENSATION AND STEAM
When food is heated it produces steam similar to a
boiling kettle. The ovens are vented to allow some of
this steam to escape. However, always stand back
from the appliance when opening the oven door to
allow any build up of steam or heat to release.
If the steam comes into contact with a cool surface
on the outside of the appliance, e.g. a trim, it will
condense and produce water droplets. This is quite
normal and is not caused by a fault on the appliance.
1 grill pan handle
(311468100)
Note
If you require an additional handle for your grill pan,
this can be ordered from your local Tricity Bendix
Service Centre by quoting part number 311479800\6.
1 grill pan grid
(311419801)
1 cranked shelf for
grilling and top oven
cooking only
2 straight shelves
for main oven cooking
To prevent discolouration, regularly wipe away
condensation and also soilage from surfaces.
For your safety, wall coverings at the rear of the
appliance should be securely fixed to the wall.
OVEN / GRILL INDICATOR NEONS
These lights indicate whether the ovens or grill are
switched on. In the case of the ovens, they also
indicate when the set temperature has been reached.
They will turn on and off during use to show that the
temperature is being maintained. The grill neon may
cycle when the grill is switched on.
Scuffing of the Stayclean main oven linings by the
oven furniture pack may occur during transit. These
marks will disappear after the oven elements have
been burnt off for the first time.
9
Page 10
GETTING TO KNOW YOUR COOKER
THE CONTROL PANEL
A C
B D
FEATURES
A - Top Oven/Grill Control
B - Top Oven/Grill Indicator Neon
C - Main Oven Temperature Control
D - Main Oven Indicator Neon
E - Hotplate Controls
E
10
Page 11
THE SEALED HOTPLATES
BEFORE USING THE HOTPLATES FOR THE FIRST TIME
Turn the control knob to a medium/high setting and allow the hotplate to heat, uncovered by a saucepan for 3-5
minutes. This hardens the protective coating on the hotplates, and makes it more resistant to normal use. A
harmless smoke will be given off from the hotplates.
l
To operate the hotplates turn the control knobs in
either direction to vary the heat setting.
l
The highest number represents the hottest
setting and the lowest represents the coolest
setting. Choose a setting appropriate to the
quantity and type of food to be cooked.
RECOMMENDED SAUCEPANS
For speed and economy only good quality
saucepans with flat bases and close fitting lids are
recommended.
To check the flatness of the saucepan, place a ruler
across the pan base, hold at eye level and look for
light showing. There should be very little or no light
visible between the ruler and the pan base.
Pressure cookers, preserving pans, etc., should
comply with the recommendations given above.
Traditional round-bottomed Woks must not be used
even with a stand. Woks with flat-bottomed bases
are available and do comply with the above
recommendations.
HINTS AND TIPS
l
Avoid the use of decorative covers as they
can cause condensation to form on the
hotplates which may lead to deterioration.
l
Follow any guidelines provided by the
saucepan manufacturer, particularly those
relating to recommended heat settings.
The size of the base of the saucepan should be the
same or up to 2.5cm/1 inch larger than the hotplate.
If the base is too small, energy will be wasted,
boilovers will also be more difficult to deal with as
spillage will fall directly onto the hotplate.
l
Avoid using thin, badly dented or distorted
saucepans as they can lead to sticking and
burning of food.
l
To prolong the life of the hotplates:-
l
Never use utensils with a skirt, e.g. a bucket
l
Never use an asbestos mat
11
Page 12
DEEP FAT FRYING
SPECIAL FRYING NOTE:
6. Frying temperatures
Celsius Fahrenheit
Scale (
o
C) Scale (oF)
For safety purposes when deep fat frying, fill the pan
one-third full of oil, DO NOT cover the pan with a lid
and DO NOT leave the pan unattended. In the
unfortunate event of a fire, switch OFF at the
electricity supply and cover the pan with a lid or
damp cloth to assist in smothering the flames.
DO NOT use water on the fire. Leave the pan to cool
for at least 30 minutes before moving it.
DO NOT leave the fat or oil in the frying pan on the
hob to store it in case the hob is inadvertently
switched ON.
1. Preparing the food
Seal the food by coating with flour, egg and
breadcrumbs or batter. Do not use a basket with
batter coated foods as they will stick.
2. Amount of oil
For safety purposes fill the pan only one-third full
of oil.
150 300
First frying of potatoes 170 340
175 350
180 360
Second frying of potatoes 190 375
Frying chicken and fish 195 380
200 390
PRESERVING
1. DO NOT use a pan that overlaps the perimeter of
the hob trim.
2. To allow for a full rolling boil, the pan should be
no more than one third full when all the
ingredients have been added. It is better to use
two pans rather than overfill one, or use half
quantities.
3. Use firm fruit or vegetables and wash well before
using.
3. Testing the temperature of the oil
It is advisable to use a thermometer to test the
temperature of the oil. Alternatively, drop a small
cube of bread into the oil which should brown in
just under a minute if the oil is at the correct
temperature of 190°C/375°F.
4. Cooking the food
Lower the food gently into the oil. Do not add
too much food at once or the temperature of the
oil will be reduced and may result in soggy,
greasy food.
Turn the food if necessary; doughnuts float to the
surface so will not brown on the upperside if not
turned. Once cooked, drain the food on
absorbent paper.
5. Double frying chips
Double frying will ensure good chips. First fry the
chips for a few minutes at 170°C/340°F to seal
the outside. Remove the chips from the oil.
Increase the temperature of the oil to
190°C/375°F to finish cooking and brown the
chips.
4. Preserving sugar gives clear jam, however
granulated sugar is cheaper and gives equally
good flavour.
5. Crystallization may be caused if sugar is not
completely dissolved before bringing jam to the
boil. Over boiling will affect the flavour, setting
properties and colour of the jam.
6. To test jam for setting:
If a jam thermometer is available, boil jam to
104°C. Marmalade should be boiled to 106°C.
If a jam thermometer is not available, remove
pan from heat, place sample of jam on a cold
dish and cool quickly (i.e. in a freezer or frozen
food storage compartment of a refrigerator).
When cold, it will crinkle and hold the mark of a
finger run through it, if it is ready.
7. The scum should be removed as soon as
possible after setting, but marmalade should be
allowed to cool before potting to prevent the peel
rising.
Chips may be kept for several hours after the first
frying before finishing off with the second frying.
12
Page 13
THE GRILL
CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. CHILDREN SHOULD BE
KEPT AWAY.
SELECTING THE GRILL
l
To operate the grill open the grill door and turn
the top oven/grill control clockwise so that '0' on
the control knob lines up with setting 1, 2 or 3.
l
Setting 3 represents the grill on Full.
At settings 1 and 2 the grill may turn on and off
over time and you may prefer to use these
settings for keeping food warm.
l
The grill neon will illuminate. It may turn on and
off during cooking.
THINGS TO NOTE
THE GRILL DOOR MUST BE LEFT FULLY OPEN
DURING GRILLING. IF THE DOOR IS CLOSED
THE TOP OVEN WILL OPERATE.
If the grill door is accidentally closed during grilling,
the grill will cut out and the top oven will operate.
The cranked shelf MUST only be used in the grill
compartment, but a straight shelf from the main oven
may be used to provide alternative positions.
Some smoke from fat splashes may be evident as
the grill cleans itself.
The top oven cannot be operated when the grill is in
use.
Only the inner element will operate when grilling.
THE GRILL PAN AND HANDLE
Ensure the handle is correctly located. It is not
necessary to remove the grill pan handle during
grilling.
To remove the handle, slide the handle to the right
and lift the handle away from the cut out on the grill
pan.
The grill pan is supplied with a removable handle.
To attach the handle, place the wirework under the
cut out in the pan so that the metal plate hooks over
the top of the grill pan.
Slide the handle to the left and over the central bump
on the grill pan.
Place the grill pan on the shelf so that the pan is
positioned centrally beneath the grill.
13
Page 14
To check the progress of the food being grilled, the
grill pan should be withdrawn on the shelf to attend to
food during cooking.
GRILLING CHART
FOOD SHELF GRILL TIME
Bacon Rashers
2 crk.
(mins)
2-3 each side
HINTS AND TIPS
l
Food should be thoroughly dried before grilling to
minimise splashing. Brush lean meats and fish
lightly with a little oil or melted butter to keep
them moist during cooking.
l
Adjust the height of the grilling grid and grill pan
runner position to allow for different foods.
l
Accompaniments such as tomatoes and
mushrooms may be placed underneath the grid
when grilling meats.
Beefburgers
Chicken Joints
Chops - Lamb
Pork
Fish - Whole
Trout/Mackerel
Fillets - Plaice/Cod
Kebabs
Kidneys - Lamb/Pig
Liver - Lamb/Pig
Sausages
Steaks - Rare
Medium
Well Done
Toasted Sandwiches
2 crk.
2 crk.
2 crk.
2 crk.
2 crk.
2 crk.
2 crk.
2 crk.
2 crk.
2 crk.
2 crk.
2 crk.
2 crk.
2 crk.
6-10 each side
15-20 each side
7-10 each side
10-15 each side
8-12 each side
4-6 each side
10-15 each side
4-6 each side
5-10 each side
10-15 each side
3-6 each side
6-8 each side
7-10 each side
1¼-1½ each
side
l
When toasting bread use the cranked shelf in
position 2 with the grid in the high position.
l
Preheat the grill on a full setting for a few
minutes before sealing steaks or toasting. Adjust
the heat setting and the shelf as necessary
during cooking.
l
The food should be turned over during cooking
as required.
NOTE
If you require an additional handle for your grill pan,
this can be ordered from your local Tricity Bendix
Service Centre by quoting part number 311479800\6.
crk. = cranked shelf
Shelf positions are counted from the bottom
upwards.
The times quoted above are given as a guide and
should be adjusted to suit personal taste.
14
Page 15
THE TOP OVEN
USES OF THE TOP OVEN
The top oven is the smaller of the two ovens. It is heated by elements in the top and bottom of the oven. It is
designed for cooking on one level and for smaller quantities of food. It gives especially good results if used to cook
fruit cakes, sweet or savoury flans or quiche.
The top oven is also ideal for use as a warming compartment to warm dishes and keep food hot. Use a
temperature setting of 90-100°C on the top oven control dial.
SELECTING THE TOP OVEN
l
Turn the top oven temperature control to the
required setting. Our diagram shows the oven set
to 150°C. Close the oven door.
THINGS TO NOTE
1. The grill cannot be operated when the top oven is
in use. Only the outer part of the top oven
element in conjunction with the base element will
operate when using the top oven.
2. The top oven indicator neon will glow until the
oven has reached the desired temperature and
then go out. It will then turn ON and OFF
showing that the oven temperature is being
maintained.
3. Always place plates on the oven shelf to warm.
Never place dishes directly on the top oven base
as it becomes very hot and damage may occur.
TO FIT THE TOP OVEN SHELF
The cranked shelf must only be used in the top oven
compartment.
The shelf should be fitted with the straight rods
uppermost on the frame and the forms towards the
back of the oven. If not fitted correctly the anti-tilt and
safety stop mechanism will be affected.
HINTS AND TIPS
l
All cooking should be carried out using an oven
shelf positioned in one of the shelf runners.
l
Stand dishes on a suitably sized baking tray on
the shelf to prevent spillage onto the oven base
and to help reduce cleaning.
15
Page 16
l
There should always be at least 2.5cm (1")
between the top of the food and the element.
This gives best cooking results and allows room
for rise in yeast mixtures, Yorkshire puddings,
etc.
l
When cooking cakes, pastry, scones, bread, etc.,
place the tins or baking trays centrally on the
shelf directly below the element.
l
DO NOT place dishes directly onto the oven
base as it becomes very hot and damage may
occur.
l
For economy leave the door open for the
shortest possible time, particularly when placing
food into a pre-heated oven.
l
The material and finish of the baking trays and
dishes will affect the degree of base browning of
the food. Enamelware, dark, heavy or non-stick
utensils increase base browning. Shiny
aluminium or polished steel trays reflect the heat
away and give less base browning.
l
DO NOT use the grill pan as a baking tray as this
will increase base browning of the food.
l
Because of the smaller cooking space, lower
temperatures and shorter cooking times are
sometimes required. Be guided by the
recommendations on page 17.
16
16
Page 17
TOP OVEN COOKING CHART
The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperatu
by 10°C to suit individual preferences and requirements. Shelf positions are counted from the bottom of the oven.
TOP OVEN
FOOD SHELF
POSITION
Biscuits
Bread
Bread rolls/buns
Cakes: Small & Queen
Sponges
Victoria sandwich
Madeira
Rich fruit
Christmas
Gingerbread
Meringues
Flapjack
Shortbread
Casseroles Beef/Lamb
Chicken
Convenience foods Follow instructions on the pack
Fish
Fish pie (potato topped)
Fruit crumble
Milk puddings
Pasta, lasagne, etc.
Pastry: Choux, eclairs
Profiteroles
Flaky/puff pies
Shortcrust-mince pies
Meat pies
Quiche, tarts, flans
Patés and terrines
Roasting meat, poultry
Scones
Shepherd's pie
Soufflés
Vegetables: Baked jacket potatoes
Roast potatoes
Stuffed marrow
Stuffed tomatoes
Yorkshire puddings: (large)
(individual)
crk = cranked shelf
1 crk
1 crk
1 crk
1 crk
1 crk
2 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
1 crk
COOKING
TEMP (°C)
170-190
200-220
200-220
180-190
160-170
160-170
140-150
140-150
130-140
140-150
90-100
170-180
140-150
140-160
180-190
170-190
190-200
190-200
140-150
170-180
180-190
170-180
210-220
190-200
190-210
180-200
150-160
170-180
220-230
190-200
170-180
180-190
180-190
180-190
180-190
200-210
200-210
APPROX
COOK TIME
1¼-1½h
2¼-2½h
depends on size
1¼-1½h
1¼-1½h
see Roasting chart
(mins)
10-20
25-30
15-20
18-25
18-20
18-25
3-4½h
2½-3h
25-30
45-65
2½-3h
20-30
20-25
40-50
1½-2h
40-45
30-35
20-30
25-40
15-20
25-35
25-45
1-1½h
8-12
30-40
20-30
1-1½h
1-1½h
30-35
15-20
25-40
15-25
res
17
Page 18
THE MAIN OVEN
SELECTING THE OVEN
l
To operate the main oven turn the main oven
temperature control to the required setting.
THINGS TO NOTE
1. The oven indicator neon will glow until the oven
has reached the required temperature and then
go out. It will turn ON and OFF periodically
during cooking showing that the temperature is
being maintained.
l
The conventional oven is fitted with side
elements. Avoid placing food too close to the
side element oven lining to prevent scorching.
TO FIT THE MAIN OVEN SHELVES
The shelves should be fitted with the straight rods
uppermost on the frame and the forms towards the
back of the oven. If not fitted correctly the anti-tilt and
safety stop mechanism will be affected.
HINTS AND TIPS
l
Arrange the shelves in the required positions
before switching the oven ON. Shelves are
numbered from the bottom upwards.
l
Do not line any part of the oven with aluminium
foil as it may cause damage or interfere with the
air circulation.
For best results always:-
l
Preheat the oven until the indicator neon goes
out.
l
For economy leave the oven door open for the
shortest possible time particularly when placing
food into a pre-heated oven.
l
If cooking on two shelves, ensure the shelves are
evenly spaced to allow heat to circulate. Use the
cooking chart as a guide to shelf positions.
l
You may prefer to interchange food such as pies
and bread halfway through cooking.
18
Page 19
MAIN OVEN COOKING CHART
The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the
temperatures by 10° C to suit individual preferences and requirements.
Shelf positions are counted from the bottom of the oven.
FOOD
Biscuits
Flapjacks
Shortbread
Bread
Bread rolls/buns
Casseroles - beef
Chicken casserole
Cakes: Small & Queen
Victoria sandwich
Gingerbread
Madeira
Rich fruit
Christmas
Meringues
Convenience Foods Follow instructions on the pack
Fish 3 180-190 20-30
Fish pie (potato topped)
Shepherds pie
Fruit pies and crumbles
Milk puddings
Pastry: Choux- Chocolate eclairs
Profiteroles
Shortcrust- Mince pies
Flaky/Puff pies
Quiche Lorraine/tarts/flan
Meat pie
Plate tarts/pies 2 and 5 200-210 30-45
Scones
Soufflés
Roasting Meat and Poultry 1 180-200 See Roasting Chart
Pasta e.g. Lasagne 3 200 30-40
Vegetable dishes
Baked jacket potatoes
Baked stuffed marrow
Baked stuffed tomatoes
Roast potatoes
Yorkshire puddings: (large)
(individual)
MAIN OVEN
SHELF
POSITIONS
4 and 5
5
3
1 and 5 210-220 20-30
3
3
2 and 5
2 and 5
3
3
3
2
2
3 200-210 20-25
4
2
2 and 5
2 and 5
2 and 5
3
5 200-210 30-45
2 and 5
3
2 and 4
5
3
5
5
2 and 5
COOKING
TEMP (°C)
190-200
180-190
150-160
140-150
180-190
180-190
180-190
150-160
170-180
150-160
140-150
90-100
210-220
150-160
190-200
180-190
200-210
220-230
230-240
200
200
200
190
200-220
230
230
APPROXIMATE
TIME (MINS)
25-30
2-3 hours
1½ hours
1¼-1½ hours
1-1¼ hours
2¼-2
Depending on size 3-4½h
2½-3 hours
1½-2 hours
1-1½ hours
1-1½ hours
COOK
10-20
45-65
20-25
20-25
3
/4 hours
40-45
30-35
20-30
15-20
30-40
8-12
30-40
30-35
20-25
35-40
35-40
19
Page 20
ROASTING CHART
TEMPERATURES (°C)
MEAT MAIN OVEN TOP OVEN
Beef
Beef, boned
Mutton and Lamb
Pork and veal
Ham
Chicken
Turkey and goose
180-200
180-200
180-200
180-200
180-200
180-200
180-200
170-180
170-180
170-180
170-180
170-180
170-180
170-180
COOKING TIME
20-35 minutes per ½kg (1lb)
and 20-35 minutes over
25-35 minutes per ½kg (1lb)
and 25-35 minutes over
25-35 minutes per ½kg (1lb)
and 25-35 minutes over
30-40 minutes per ½kg (1lb)
and 30-40 minutes over
30-40 minutes per ½kg (1lb)
and 30-40 minutes over
15-20 minutes per ½kg (1lb)
and 20 minutes over
15-20 minutes per ½kg (1lb) up
to 3½kg (7lb) then 15 minutes
per ½kg (1lb) over 3½kg (7lb)
Duck
Pheasant
Rabbit
Potatoes with
meat
Potatoes without
meat
180-200
180-200
180-200
180-200
190-200
170-180
170-180
170-180
170-180
180-190
25-35 minutes per ½kg (1lb)
and 25-35 minutes over
35-40 minutes per ½kg (1lb)
and 35-40 minutes over
20 minutes per ½kg (1lb)
and 20 minutes over
according to size
according to size
2020
Page 21
CARE AND CLEANING
ALWAYS SWITCH OFF THE
ELECTRICITY
SUPPLY BEFORE CLEANING
CLEANING MATERIALS
Before using any cleaning materials on your cooker,
check that they are suitable and that their use is
recommended by the manufacturer.
Cleaners that contain bleach should NOT be used as
they may dull the surface finishes. Harsh abrasives
should also be avoided.
CLEANING THE SEALED HOTPLATES
AND HOTPLATE TRIMS
In order to maintain the appearance of your cooker's
sealed hotplates and trims you are advised to use
the recommended cleaning agents daily. If you do
not allow spillages to burn on they will be much
easier to clean off.
THINGS TO NOTE
The red spot in the centre of the hotplates may be
removed with some abrasive cleaning agents. This is
not a fault and does not effect the performance of the
hotplate.
FOR NORMAL SOILAGE
CLEANING THE VITREOUS ENAMEL
Use a clean damp cloth or scourer made for nonstick saucepans with cream cleaner.
AFTER CLEANING
To maintain the appearance of the hotplates
occasionally apply a little salt free vegetable oil or
commercial restorative agent.
To apply vegetable oil, first heat the hotplate on a
medium setting for 30 seconds then turn OFF. Pour
a very small amount of oil onto kitchen paper, apply
the paper to the hotplate and wipe off any excess oil.
Heat the hotplate on a medium setting for 1 minute.
To apply restorative agent, apply a thin coating
of '4 Hob' or use a 'Minky' Hotplate Cleaning Cloth
following the manufacturers instructions.
CLEANING THE OUTSIDE OF THE
COOKER
DO NOT use abrasive cleaning materials, or
scourers on the outside of the cooker as some of the
finishes are painted and damage may occur.
Regularly wipe over the control panel, oven doors
and cooker sides using a soft cloth and liquid
detergent.
Wipe over the hotplates and trims using a clean
damp cloth then switch to a low or medium setting for
a few minutes to thoroughly dry.
FOR HEAVY SOILAGE
Use a clean damp cloth or scourer with a cream
cleaner e.g. 'Jif' or a powder cleaner e.g. 'Ajax' on
the hotplate and trims. Follow the circular grooved
pattern on the hotplate when cleaning. Rinse off
cleaning agents thoroughly. Dry as for normal
soilage.
For more stubborn marks warm the hotplate on a low
setting for 30 seconds. Clean the sealed plate with
'Ajax' powder cleaner, 'Jif' cream cleaner or a Brillo
pad. You may have to rub hard for several minutes.
Rinse off cleaning agents thoroughly with a damp
cloth. Switch to a low or medium setting for a few
minutes until the hotplate is thoroughly dry.
CLEANING THE HOTPLATE TRIMS
The stainless steel trims may become straw coloured
during use. Using a proprietary stainless steel
cleaner , e.g. 'Shiny Sinks' will help maintain a bright
appearance. Alternatively a powder cleaner such as
'Bar Keepers Friend' may be used regularly.
DO NOT ATTEMPT TO REMOVE ANY OF
THE CONTROL KNOBS FROM THE
PANEL
AS THIS MAY CAUSE DAMAGE AND IS A
SAFETY HAZARD
21
Page 22
CLEANING THE GRILL PAN, GRILL PAN
GRID, AND OVEN SHELVES
All removable parts, except the grill pan handle can
be washed in the dishwasher.
The grill pan, grill pan grid, and oven shelves may be
cleaned using a soap impregnated steel wool pad.
The grill pan grid should be cleaned using hot soapy
water. Soaking first in soapy water will make cleaning
easier.
CLEANING INSIDE THE GRILL / OVEN
COMPARTMENTS
The sides of the main oven are coated with special
Stayclean linings.
The Stayclean linings should not be cleaned
manually.
The vitreous enamel main oven base, back panel,
interior main oven door and top oven/ grill
compartment can be cleaned using normal oven
cleaners or aerosol oven cleaners with care. Ensure
that the manufacturers instructions are followed and
that all parts are well rinsed afterwards.
Aerosol cleaners must not be used on the
Stayclean linings and must not come into
contact with elements as this may cause
damage.
For advice on how to keep the Stayclean linings in
good condition see 'Care of Stayclean Surfaces'.
HINTS AND TIPS
l
Manual cleaning of the Stayclean linings IS NOT
recommended. Damage will occur if oven sprays
or abrasives of any kind are used.
l
Slight discolouration and polishing of the
Stayclean linings may occur in time. This does
not affect the Stayclean properties in any way.
l
A good time to allow the oven to run on is after
the weekly roast. After removing the roast, turn
the oven up to 220°C and allow to run for an hour
or so. It is important NOT to allow a build-up of
soilage as this can prevent the Stayclean from
working.
l
Follow the recommendations below to keep oven
soilage to a minimum.
l
Cook at the recommended temperatures. Higher
temperatures during roasting will increase
soilage. Try cooking at lower temperatures for an
increased length of time, you will save energy
and often the joint is more tender.
l
Use minimal, if any, extra oil or fat when roasting
meat, potatoes only require brushing with fat
before cooking. Extra fat in the oven during
roasting will increase splashing and soilage.
l
It is NOT necessary to add water to the meat tin
when roasting. The water and the fat juices from
the joint create excessive splattering during
cooking - even at normal temperatures, as well
as causing condensation.
CARE OF STAYCLEAN SURFACES
Stayclean surfaces destroy splashes of food and fats
when the oven temperature is raised to around
220°C.
It is a good idea to run the oven for an hour or two
per week to ensure continued good performance
from the Stayclean finish.
Do use the trivet in the roasting tin. During roasting,
the fat from the joint will be contained beneath the
trivet and therefore prevent it from splashing onto the
Stayclean finish.
l
Covering joints during cooking will also prevent
splashing onto the interior surfaces. Removing
the covering for the last 20-30 minutes will allow
extra browning if required. Some large joints and
turkeys especially benefit by this method of
cooking, allowing the joint to cook through before
the outside is over-browned.
22
Page 23
SOMETHING NOT WORKING?
We strongly recommend that you carry out the
following checks on your appliance before calling a
Service Engineer. It may be that the problem is a
simple one, which you can solve yourself without the
expense of a service call.
If our Service Engineer finds that the problem is
listed below you will be charged for the call whether
or not the appliance is under guarantee.
The cooker does not work at all:
* Check that the appliance has been wired in
and is switched on at the wall.
* Check that the main cooker fuse is working.
The oven temperature is too high or low:
* Check that the recommended temperatures
and shelf positions are being used (see
pages 17, 19 and 20). Be prepared to adjust
the temperatures up or down by 10°C to
achieve the results you want.
The hotplates and main oven work but the grill
does not:
* Check that you have carefully followed the
instructions for operation of the grill.
If the oven is not cooking evenly or the side
opening door will not stay open:
* Check that the cooker is level.
23
Page 24
SERVICE AND SPARE PARTS
In the event of your appliance requiring service, or if
you wish to purchase spare parts please contact
your local Tricity Bendix Service Force Centre by
telephoning:
0870 5 929929
Your call will be routed to the Service Force Centre
covering your post code area. The address of your
local Service Force Centre is detailed on pages 25 -
26.
For Service in the Republic of Ireland contact
Tricity Bendix
Long Mile Road
Dublin 12
Telephone: 01 4090752
Before calling out an engineer, please ensure you
have read the details under the heading 'Something
Not Working'.
When you contact the Service Centre you will need
to give the following details:
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model, product and serial number of the
appliance (found on the rating plate)
5. The purchase date
CUSTOMER CARE DEPARTMENT
For general enquiries concerning your Tricity Bendix appliance, or further information on Tricity Bendix products,
you are invited to contact our Customer Care Department by letter or telephone as follows:
Customer Care Department
Tricity Bendix
55 - 77 High Street
Slough
Berkshire
SL1 1DZ
Tel: 0870 5 950950 *
( *call to this number may be recorded for training purposes. )
24
Page 25
TRICITY BENDIX SERVICE FORCE
To contact your local Tricity Bendix Service Centre telephone 0870 5 929929
CHANNEL ISLANDS
GUERNSEY Guernsey Electricity
JERSEY Jersey Electricity
PO Box 4
Vale , Guernsey
Channel Islands
Company
PO Box 45
Queens Road
St Helier
Jersey
Channel Islands
JE4 8NY
SCOTLAND
ABERDEEN
(M05)
AUCHTERMUCHY
(M03)
BLANTYRE
(M07)
DUMFRIES
(M01)
DUNOON
(M67)
GLASGOW
(M04)
INVERNESS
(M06)
ISLE OF ARRAN
(OWN SALES)
ISLE OF BARRA
(OWN SALES)
ISLE OF BUTE
(M66)
ISLE OF LEWIS
(M69)
KELSO
(M08)
54 Claremont Street
Aberdeen
AB10 6RA
33A Burnside
Auchtermuchy
Fife
KY14 7AJ
Unit 5
Block 2
Auchenraith Ind Estate
Rosendale Way
Blantyre
G72 0NJ
93 Irish Street
Dumfries
Scotland
DG1 2PQ
Briar Hill
7 Hill Street,
Dunoon
Argyll
PA23 7AL
20 Cunningham Road
Clyde Estate
Rutherglen,
Glasgow,
G73 1PP
Unit 3B
Smithton Ind. Estate
Smithton
Inverness
IV1 AJ
Arran Domestics
Unit 4 The Douglas
Centre
Brodick
Isle of Arran
KA27 8AJ
J Zerfah
244 Bruernish
Isle of Barra
Western Islands
HS9 5QY
Walker Engineering
Glenmhor
Upper Serpentine Road
Rothesay
Isle of Bute
PA20 9EH
ND Macleod
16 James Street
Stornoway
Isle of Lewis PA87 2QW
2-8 Wood Market
Kelso
Borders TD5 7AX
ORKNEY
(M65)
PERTH Hydro Electric
PERTH
(OWN SALES)
SHETLAND
(OWN SALES)
SHETLAND
(OWN SALES)
WHALSAY
(OWN SALES)
Corsie Domestics
7 King Street
Kirkwall
Orkney KW15
Inveralmond House
Ruthervenfield Road
Perth PH1 3AQ
Graham Begg
Unit 4
Airport Ind Estate
WIck KW1 4QS
Tait Electronic Systems
Ltd.
Holmsgarth Road
Lerwick
Shetland ZE1 0PW
Bolts Shetland Ltd
26 North Road
Lerwick
Shetland ZE1 0PE
Leask Electrical
Harlsdale
Symbister, Whalsay
Shetland ZE2 9AA
NORTHERN IRELAND
BELFAST
(M27)
Owenmore House
Kilwee Business Park
Upper Dunmury Lane
Belfast
BT17 0HD
WALES
CARDIFF
(M28)
CLYWD
(M14)
DYFED
(M77)
HAVERFORDWEST
(M75)
OSWESTRY
(M17)
Guardia Industrial Estate
Clydesmuir Road
Tremorfa, Cardiff
CF2 2QS
Unit 6-7 Coed - Parc
Abergele Road
Rhuddlan
Clwyd
Wales
LL18 5UG
Maes Y Coed
High Mead
Llanybydder
Camarthenshire
SA40 9UL
Cromlech Lodge
Ambleston
Haverfordwest
Pembrokeshire
SA62 5DS
Plas Ffynnon
Warehouse
Middleton Road
Oswestry
SY11 2PP
NORTH EAST
GATESHEAD
(M39)
GRIMSBY
(M42)
HULL
(M41)
LEEDS
(M37)
NEWTON AYCLIFFE
(M45)
SHEFFIELD
(M38)
NORTH WEST
BIRKENHEAD
(M11)
CARLISLE
(M10)
ISLE OF MAN
(M64)
LIVERPOOL
(M15)
MANCHESTER
(M09)
PRESTON
(M13)
STOCKPORT
(M16)
Unit 356a
Dukesway Court
Dukesway
Team Valley
Gateshead
NE11 0BH
15 Hainton Avenue
Grimsby
South Humberside
DN32 9AS
Unit 1
Boulevard Industrial
Estate
Hull
HU3 4AY
64-66 Cross Gates Road
Leeds
LS15 7NN
Unit 16
Gurney Way
Aycliffe Industrial Estate
Newton Aycliffe
DL5 6UJ
Pennine House
Roman Ridge Ind.
Roman Ridge Road
Sheffield
S9 1GB
1 Kelvin Park
Dock Road
Birkenhead
L41 1LT
Unit 7 James Street
Workshops
James Street
Carlisle
Cumbria
CA2 5AH
South Quay Ind. Estate
Douglas
Isle of Man
IM1 5AT
Unit 1
Honeys Green Precinct
Honeys Green Lane
Liverpool
L12 9JH
Unit B Central Industrial
Estate
St Marks Street
Bolton
BL3 6NR
Unit 250
Dawson Place
Walton Summit
Bamber Bridge
Preston
Lancashire
PR5 8AL
Unit 20 Haigh Park
Haigh Avenue
Stockport
SK4 1QR
25
Page 26
TRICITY BENDIX SERVICE FORCE
To contact your local Tricity Bendix Service Centre telephone 0870 5 929929
MIDLANDS
BIRMINGHAM
(M18)
BOURNE
(M44)
BRIDGNORTH
(M72)
GLOUCESTER
(M23)
HEREFORD
(M31)
HIGHAM FERRERS
(M51)
ILKESTON
(M43)
LEICESTER
(M22)
LINCOLN
(M40)
NEWCASTLE UNDER
LYME
(M12)
REDDITCH
(M20)
TAMWORTH
(M19)
WORCESTER
(M73)
66 Birch Road East,
Wyrley Road Ind. Estate
Witton
Birmingham
B6 7DB
Manning Road Ind Estate
Pinfold Road
Bourne
PE10 9HT
68 St. Mary's Street
Bridgnorth
Stropshire
WV16 4BB
101 Rycroft Street
Gloucester
GL1 4NB
Unit 3
Bank Buildings
Cattle Market
Hereford
HE4 9HX
30 High Street
Higham Ferrers
Northants
NN10 8BB
Unit 2
Furnace Road
Ilkeston
DE7 5EP
Unit 7
Oaks Industrial Estate
Coventry Road
Narborough
Leicestershire
LE0 5GF
Unit 8 Stonefield Park
Clifton Street
Lincoln
LN5 8AA
18-21 Croft Road
Brampton Ind. Estate
Newcastle under Lyme
Staffordshire
ST5 0TW
13 Thornhill Road
North Moons Moat
Redditch
Worcestershire
B98 9ND
Unit 3
Sterling Park
Claymore
Tamworth
B77 5DO
Unit 1
&2
Northbrook Close
Gregorys Mill Ind Estate
Worcester
WR3 8BP
LONDON & EAST ANGLIA
BECKENHAM
(M79)
CHELMSFORD
(M47)
COLINDALE
(M53)
ELTHAM
(M78)
ENFIELD
(M49)
GRAVESEND
(M57)
HARPENDEN
(M46)
LETCHWORTH
(M50)
LONDON
(M76)
MAIDENHEAD
(M60)
MOLESEY
(M61)
NEWBURY
(M24)
IPSWICH
(M48)
NORWICH
(M52)
SUNBURY
(M63)
11a Gardener Industrial
Estate
Kent House Lane
Beckenham
Kent BR3 1QZ
Hanbury Road
Widford Ind Estate
Chelmsford
Essex
CM12 3AE
Unit 14
Capitol Park
Capitol Way
Colindale
London NW9 0EQ
194 Court Road
Mottingham
Eltham
London SE9 4EW
284 Alma Road
Enfield
London
EN3 7BB
Unit B4,
Imperial Business Estate
Gravesend
Kent
DA11 0DL
Unit 4
Riverside Estate
Coldharbour Lane
Harpenden
AL5 4UN
16-17 Woodside Ind Est.
Works Road
Letchworth
Herts
SG6 1LA
2/4 Royal Lane
Yiewsley
West Drayton
Middlesex
UB7 8DL
Reform Road
Maidenhead
Berkshire
SL6 8BY
10 Island Farm Avenue
West Molesey
Surrey
KT8 2UZ
9 Pipers Court
Berkshire Drive
Thatcham
Berkshire
RG19 5GF
Unit 6C
EltonParkBusiness
Centre
Hadleigh Road
Ipswich
IP2 0DD
2b Trafalgar Street
Norwich
NR1 3HN
Unit 1a
The Summit
Hanworth Road
Hanworth Ind Estate
Sunbury on Thames
TW16 5D
SOUTH EAST
ASHFORD
(M58)
FLEET
(M59)
HAYWARDS HEATH
(M55)
SOUTH WEST
BARNSTAPLE
(M30)
BOURNEMOUTH
(M26)
BRIDGEWATER
(M35)
BRISTOL
(M25)
EMSWORTH
(M33)
ISLE OF WIGHT
(M34)
NEWTON ABBOT
(M29)
REDRUTH
(M36)
Unit 2
BridgeRoadBusiness Est
Bridge Road
Ashford
Kent
TN2 1BB
Unit 1
Redfields Ind Estate
Church Crookham
Fleet
Hampshire
GU13 0RD
21-25 Bridge Road
Haywards Heath
Sussex
RH16 1UA
Main Road
Fremington
Barnstaple
North Devon
EX31 2NT
63-65 Curzon Road
Bournemouth
Dorset
BH1 4PW
6 Hamp Ind.Estate
Bridgewater
Somerset
TA6 3NT
11 Eldon Way
Eldonwall Trading
Bristol
Avon
BS4 3QQ
266 Main Road
Southbourne
Emsworth
PO10 8JL
Unit 8
Enterprise Court
Ryde Business Park
Ryde
Isle of Wight
PO33 1DB
Unit 2
Zeally Ind. Estate
Kingsteignton
Newton Abbot
S. Devon
TQ12 3TD
Unit 7D
Pool Ind. Estate
Wilson Way, Redruth,
Cornwall
TR15 3QW
26
SIO55 311279608
Page 27
GUARANTEE CONDITIONS
Standard guarantee conditions
We, Tricity Bendix, undertake that if within 12 months of the date of the purchase this Tricity Bendix appliance or
any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option
repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
l
The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
l
The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's
instructions.
l
The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
l
All service work under this guarantee must be undertaken by a Tricity Bendix service centre.
l
Any appliance or defective part replaced shall become the Company's property.
l
This guarantee is in addition to your statutory and other legal rights.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours
in which case a premium will be charged.
Exclusions
This guarantee does not cover:
l
Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or
removable parts of glass or plastic.
l
Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the
United Kingdom.
l
Appliances found to be in use within a commercial environment, plus those which are subject to rental
agreements.
l
Products of Tricity Bendix manufacture which are not marketed by Tricity Bendix.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:
l
The guarantee starts from the date you first purchased your product.
l
The guarantee is for the same period and to the same extent for labour and parts as exists in the new country
of use for this brand or range of products.
l
This guarantee relates to you and cannot be transferred to another user.
l
Your new home is within the European Community (EC) or European Free Trade Area.
l
The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household.
l
The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your new
home. They will then ensure that the local Service Organisation is aware of your move and able to look after you
and your appliances.
France Senlis +33 (0)3 44 62 28 28
Germany Nürnberg +49 (0)911 323 260
Italy Pordenone +39 (0)1678 47053
Sweden Stockholm +46 (0)20 78 77 50
UK Slough +44 (0)1753 219898
27
Page 28
RATING PLATE REFERENCE
MAKE AND MODEL NO. PRODUCT NO. SERIAL NO. DATE OF PURCHASE
IMPORTANT NOTICE
In line with our continuing policy of research and development, we reserve the right to alter models and
specifications without prior notice.
This handbook is accurate at the date of printing, but will be superseded and should be disregarded if
specifications or appearance are changed.
TRICITY BENDIX,55 - 77 HIGH STREET, SLOUGH, BERKSHIRE, SL1 1DZ
TELEPHONE 0870 5 950950
MODEL NO. PART NO.
SI 055
© Electrolux Household Appliances Limited 2000
. .
From the Electrolux Group. The world's No. 1 choice
The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux group products (such
4
as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150
countries around the world.
.
311279608
Page 29
documentation manual, user maintenance, brochure, user reference, pdf manual
This file has been downloaded from:
User Manual and User Guide for many equipments like mobile phones, photo cameras, monther board, monitors, software, tv, dvd, and othes..
Manual users, user manuals, user guide manual, owners manual, instruction manual, manual owner, manual owner's, manual guide,
manual operation, operating manual, user's manual, operating instructions, manual operators, manual operator, manual product,
Loading...
