SLIP IN GAS COOKER
SG335
PLEASE READ THIS INSTRUCTION BOOKLET BEFORE USING THE APPLIANCE
OPERATING & INSTALLATION
INSTRUCTIONS
Page 2
2
These warnings are pr ovided in th e interest s of y our safety. Ensure that you un derstand them all before installing or using the appliance. Your safety is of paramount importance. If you are unsure about any of the information in t his book contact th e Customer Care Department.
INSTALLATION
The appliance must be installed according to the instructions suppli ed. The installation work must be undertaken by a competent pers on as stated in the Gas Safety (Installatio n & Use) Regulations current editions and the IEE Wiring Regulations. The appliance should be service d by an authorised Service Engineer and o nly genuine approved spare parts should be used. It is important that the appliance is suitable f or your gas supply. Your installer should check the rating plate. Make sure that a stability bracket is fitted. The appliance must be installed in an adequately ventilated room. If the appliance is to be placed on a base, me asures must be taken to prevent the appliance from slipping from the base. This appliance is heavy and care must be taken when moving it. Do not attempt to lift or move this appliance by the handles. All packaging, both inside and outs ide the appli ance must be removed before the appliance is used. It is dangerous to alter the specif ications or modify the appliance in any way. After installation please dispose of the packaging with due regard for saf ety an d th e env ir on ment . Y our local authority can arrange this.
CHILD SAFETY
Do not allow children to play with any part of the
packaging. Do not allow children to sit or climb on the drop down doors. This appliance is des igned to be o perated by adults. Young children must not be allowed to tamper with the controls or play near or with the appliance.
CAUTION: Accessible parts may be hot when the grill is in use. Young children should be kept away.
DURING USE
This appliance is not intended to be operated by means of an external timer or separate remote control system. This appliance has been des igned for domestic use to cook edible foods tuffs only and must not be used for any other purposes.
Take great care when heat ing fats and oils as they will ignite if they become too hot. When you are lighti ng any burner check that it is lit before you leave the appliance. When turning off a burner, do not leave the appliance until the flame has gone out. Never place plastic or any other material that may melt in or on the oven. Do not leave the grill pan handle in position when grilling as it will become hot. Always support the grill pan when it is in the withdrawn or partially withdrawn position. Always use oven glov es to re mov e and place fo od in the oven. Ensure cooki ng utensils are larg e enough t o contai n foods to prevent spillages and boil overs. During use the applianc e becomes hot. Care should be taken to avoid touching the heating elements inside the oven. Ensure that all vents are not obstructed to ensure ventilation of the oven cavity.
Never line any part of the appliance with foil. Always stand back from the appliance when
opening the oven door to allow any build up of steam or heat to release.
Never leave the appliance unattended when the oven doors are open.
Do not place sealed cans or aerosols inside the
oven. They may explode if they are heated. Ensure that all contr ol knobs are in the OFF position when not in use. Do not stand on the applianc e or on the o pen oven doors. Do not hang towels, dishcloths or cl othes from the appliance or its handles. Do not use this appliance if it is in contact with water. Never operate it with wet hands.
CLEANING AND MAINTENANCE
For hygiene and safety reasons this appliance should be kept clean at all times. A build-up of fats or other foodstuffs could result in a fire especially in the grill pan.
Do not leave cookware containing foodstuffs, e.g.
fat or oil in the applianc e in case it is inadvertently switched on. Do not disconnect the appliance from the gas supply if the supply pipe does not have a bayonet connection as described in the ins tallation sect ion. If this is the case contac t the per son who installed the appliance. Always allow the appliance to cool before switching off at the wall prior to carrying out any cleaning/maintenance work. Only clean this appliance in accordance with the instructions given in this book.
Page 3
3
CONTENTS
FOR THE USER
Important Safety Information 2 Description of the Appliance 4 Getting to Know Your Appliance 5
Before Using the Appliance 6 Rating Plate 6 Preparing to Use your Appliance 6 Condensation and Steam 6 Cookware 6 Grill and Oven Furniture 6
The Gas Hob 7 Using the Hob 7 To Light the Hob Burners 7 To Turn Off Any Burner 7 Things to Note 8 Hints & Tips 8
The Grill 9 Using the Grill 9 Things to Note 9 The Grill Pan and Handle 9 Hints and Tips 10 Grilling Chart 10
The Main Oven 11 Using the Main Oven 11 Heat Zones 11 Preheating 11 Things to Note 11 To Fit the Main Oven Shelves 11 Hints and Tips 12
Cooking Chart 13
Roasting Chart 14
Slowcook 15
Using Slowcook 15 Food Preparation 15 General Points 16
Care and Cleaning
Cleaning Materials 17 Cleaning the Outside of the Appliance 17 Cleaning the Control Knobs and Handles 17 Cleaning the Hob 17 When Replacing Hotplate Burner Parts 18 Cleaning the Shelves and Grill/Oven Furniture 18 Cleaning the Grill 18 Cleaning Inside the Grill and Oven Compartments 19 Hints and Tips 19 Cleaning the Door(s) 19
Something Not Working? 21 Service and Spare Parts 22 Guarantee Conditions 23
FOR THE INSTALLER
Technical Details 24
Important Safety Requirements 25 Provision For Ventilation 25
Moving Your Appliance 26
For Your Safety 26 Location of Appliance 26 Levelling the Appliance 26 Connecting to Gas Supply 27 Fitting the Stability Bracket 27 The Battery 28 Testing 28 General Note 29 Notes 30
To help you the following symbols will be found in the text.
Hints and Tips Safety Instructions
Please read the instruction book carefully before use and retain for future reference.
AT THE END OF THE APPLIANCE'S LIFE
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
Page 4
4
DESCRIPTION OF THE APPLIANCE
SLIP-IN GAS SINGLE OVEN
Main Oven
Control Panel
Grill
Page 5
5
GETTING TO KNOW YOUR APPLIANCE
THE CONTROL PANEL
FEATURES
A - Hotplate Controls B - Grill Control C - Main Oven Temperature Control D - Hotplate Controls E - Ignition Switch
5
4
3
2
1
6
7
8
9
A
B
C
D
E
Page 6
6
BEFORE USING THE APPLIANCE
RATING PLATE
This is situated on the front frame of the appliance and can be seen upon o pen in g th e do or . A lt ernatively the rating plate may also b e foun d on the back or t op of some models (where applicable). The appliance must be protec ted by a suitably rated fuse or circuit breaker . The rating of the ap pliance is given on the rating plate.
Do not remove the rating plate from the appliance as this may invalidate the guarantee.
PREPARING TO USE YOUR APPLIANCE
Wipe over the base of the oven(s) with a soft cloth and hot soapy water and wash the furniture before use. We suggest that you run the oven elements for 10 – 15 minutes at 220
o
C to burn off any residue from
their surfaces. The procedure should be repeated with the grill for approximately 5 – 10 minutes . During this period an odour may be emitted, it is therefore advisable to open a window for ventilation.
CONDENSATION AND STEAM
When food is heated it produces steam similar to a boiling kettle. The vents a llow some of this steam to escape. However, always stand back from the appliance when opening the door(s) to allow any build up of steam or heat to release. If the steam comes into contact with a cool surface on the outside of the appliance, e.g. a trim, it will condense and produce water droplets. This is quite normal and is not caused by a fault on the appliance. To prevent discolouration, regularly wipe away condensation and also soilage from surfaces. For your safety wall coverings at the rear of the appliance should be securely fixed to the wall.
COOKWARE
Main oven - Do not use baking trays larger than 30cm x 30cm (12” x 12”) as they will restrict the circulation of heat and may affect performance.
GRILL AND OVEN FURNITURE
The following items of grill and oven furniture have been supplied with the appliance:-
1 grill pan
1 grill pan handle
1 grill pan grid
1 straight shelf for grilling only
2 straight shelves for fan oven cooking
Page 7
7
THE HOB
USING THE HOB
The gas hob has different burner sizes to suit different types of cooking: To ensure maximum burner efficienc y only use pots and pans with flat bases appropriate to the burner size used. Larger burner (Rapid) - use a large pan for food such as chips. Medium burners (Normal) - use for everyday cooking. Small burner (Simmer) - use for simmering foods such as soups and stews. The largest pan which y ou shoul d use on any burner is 230mm (9"). The bas e of the smallest pan s hould not measure less than 100mm (4").
Ensure the pan supports are correctly fitted before using the hob.
TO LIGHT THE HOB BURNERS
The hob ignition works by means of a battery.
· Lift up the lid. You ca nnot use the hob whe n the lid is down.
· Push in and turn the c ontrol knob to the left to the highest setting. This is shown by a large flame symbol. Press the ignition button immediately.
· When the burner has lit r elease the control and ignition button, adjust the setting as required.
Warning: If the ignition button is not pressed immediately a build up of gas may cause the flame to spread.
If you close the lid of the appliance while any of the hotplate burners are lit, the gas will go out. This is because it would be dangerous if the burners stayed on when the lid was closed.
Always use the control knob to turn off a burner. Do not use the lid as a cut-off device. This will only cut off the gas when the lid is closed. The gas will flow again when the lid is opened.
TO TURN OFF ANY BURNER
1. Turn the control knob to the off position. This is shown by a large dot.
When lighting any burner, ensure that it is lit before you leave the appliance. When turning off a burner, ensure the flame has gone out before leaving the appliance.
Page 8
8
In the event of the burner flames being accidentally extinguished, turn off the burner control and do not attempt to re­ignite the burner for at least 1 min.
THINGS TO NOTE
If you are having any d ifficulty lighting a hob burner turn all the hob controls off and make sure the burner parts have been replaced correctly.
HINTS AND TIPS
· Do not overfill pans or they will boil over.
· Do not use pa ns with ver y heavy hand les which
cause the pan to tip.
· Do not use the lid as a work surface or chopping
board. This could damage the glas s and red uce its strength.
Place pans on the centre of the burners. Position pans so the handles cannot be accidentally knocked or overhang the appliance. Lift pans on and off the pan supports. Do not slide them across the hob.
· Do not leave accidental spill age on the hob or removable parts. The spillage should be wiped up and the parts washe d and carefully dried as soon as the hob, pan s upports and burner parts are cool enough to touch.
· A flat based Wok will stand stable on the pan supports. If you use a round Wok with a collar support, the collar must be the open wirework type otherwise the performance of the burner will be affected.
Take care to avoid burns and scalds when reaching across the hotplate.
Take extra care when deep fat frying, do not cover the pan with a lid. Do not leave a pan unattended. If the pan catches fire, leave it where it is and turn off all controls. Place a damp cloth or a fitting lid over the pan to smother the flames. Never put water on the fire. Leave to cool for 30 minutes.
Page 9
9
THE GRILL
WARNING – Accessible parts may become hot when the grill is in use. Keep children away.
When you first operate the grill y ou may hear some sounds as the burner heats up, this is quite normal and is not a fault on the appliance.
USING THE GRILL
· Fully open the grill door.
· Push in the control knob and turn to the large
flame symbol (highes t sett ing). Press the ig nitio n button immediately.
· When the burner has lit r elease the control and ignition button, adjust the setting as required.
The grill door must be left open when grilling.
THINGS TO NOTE
· Some smoke from fat sp lashes may be evident as the grill cleans itself.
Never cover the grill pan or grid with foil as this can lead to grill fires.
THE GRILL PAN AND HANDLE
The grill pan is supplied with a removable handle. To attach the handle, press the button on the handle
with the thumb and insert the lip into the widest part of the bracket. Slide the handle towards the left and release the button.
Ensure the handle is correctly located.
To remove the handle, press the button on the handle with the thumb and slide the handle towards the right. Release the button.
Page 10
10
Always remove the grill pan handle during grilling.

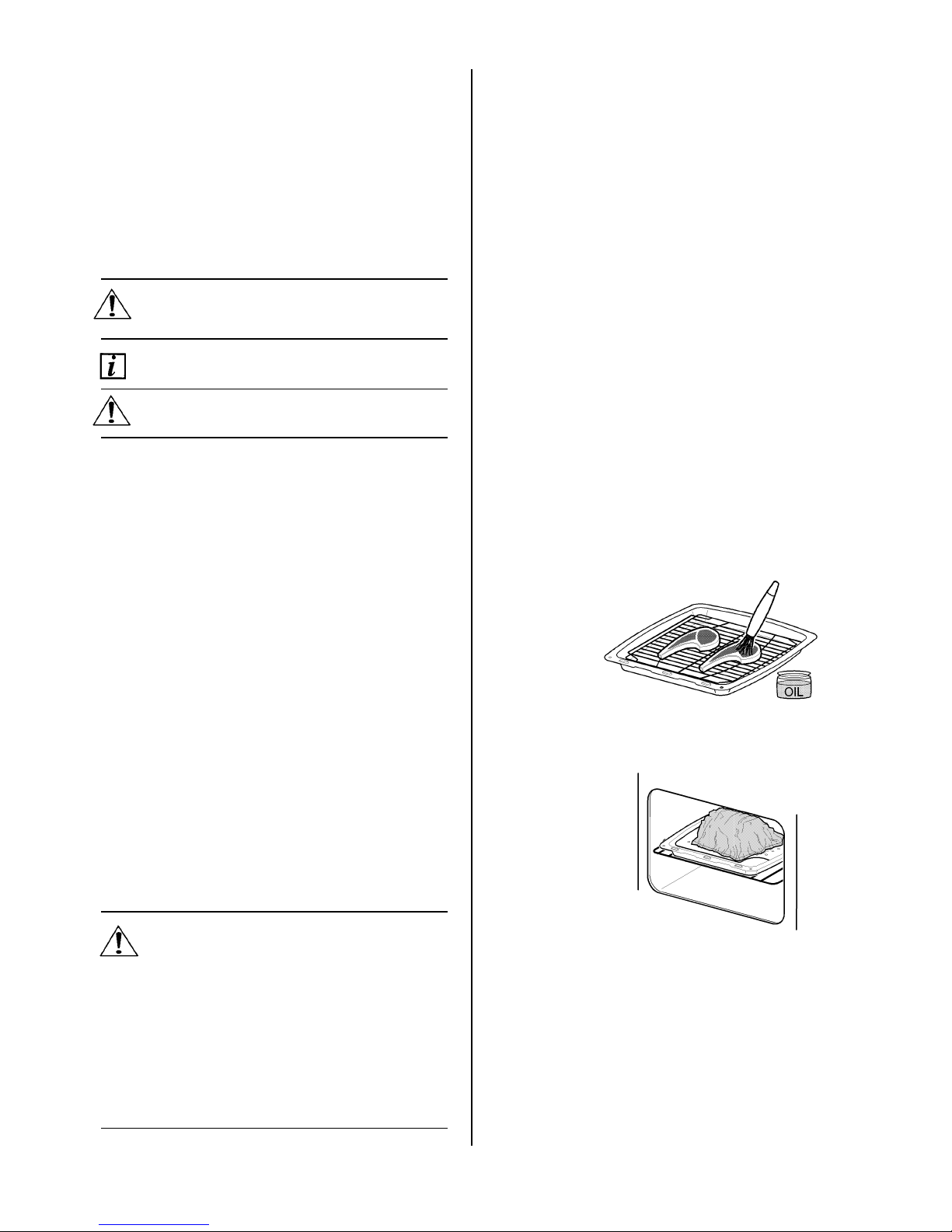

Place the grill pan on the shelf so that the pan is positioned centrally beneath the grill. Ensure that the cut out on the underside of the handle bracket locates between the bars of the shelf.
HINTS AND TIPS
· Most foods should be placed on the grid in the grill pan to allow maximu m circ ulat ion of a ir to li ft the food out of the fats and juices.
· Adjust the grid and grill pan runner position to allow for different thicknesses of food.
· Food should be thoroughly dried before grilling to minimise splashing. Brush lean meats and fish lightly with a little oil or mel ted butt er to k eep them moist during cooking.
· Accompaniments such as tomatoes and mushrooms may be placed underneath the grid when grilling meats.
· When toasting bread use the shelf in position 1 with the grid in the high position.
· Preheat the grill on a full setting for a few minutes before sealing steaks or toasting. Adjust the heat setting and the shelf as necessary during cooking.
· The food should be turn ed over during cooking as required.
GRILLING CHART
FOOD SHELF GRILL TIME
(mins in total)
Bacon Rashers 5 - 6
Beefburgers 10 - 15
Chicken Joints 30 - 40
Chops – Lamb 15 - 20
Pork 20 - 30
Fish – Whole
Trout/Mackerel
15 - 25
Fillets -
Plaice/Cod
10 - 15
Kebabs 20 - 30
Kidneys –
Lamb/Pig
8 - 12
Liver –
Lamb/Pig
10 - 20
Sausages 20 - 30
Steaks – Rare 6 - 12
Medium 12 - 16
Well Done 14 - 20
Toasted
Sandwiches
Adjust
grill
setting
and
grill
pan
grid
to
suit
different
thicknesses
of
food
3 - 4
The times quoted above are given as a guide and should be adjusted to suit personal taste.
Page 11
11
THE MAIN OVEN
HEAT ZONES
There are zones of heat within the oven. The temperature in the middle is the gas mark you have chosen. The top of the ov en is slight ly hot ter and the lower shelf slightly cooler. The base of the oven is quite a lot cooler. You c an make use of these heat zones when you are cooking foods requiring different temperatures all at the same time. If you are cooking more than one tray of similar items, for example cak es or biscuits, swap the trays during cooking or you c an remove the top tray when the food is cooked and move the lower tray to the higher shelf to finish cooking.
PREHEATING
When you need to preheat the oven, we rec omme nd you do so for 20 minutes.
For recipes needing high temperatures, e.g. bread, pastries, scones, soufflés etc., best results are achieved if the oven is preheated first. For best results when cooking frozen or cooked chille d ready meals always preheat the oven first.
USING THE MAIN OVEN
· Open the oven door.

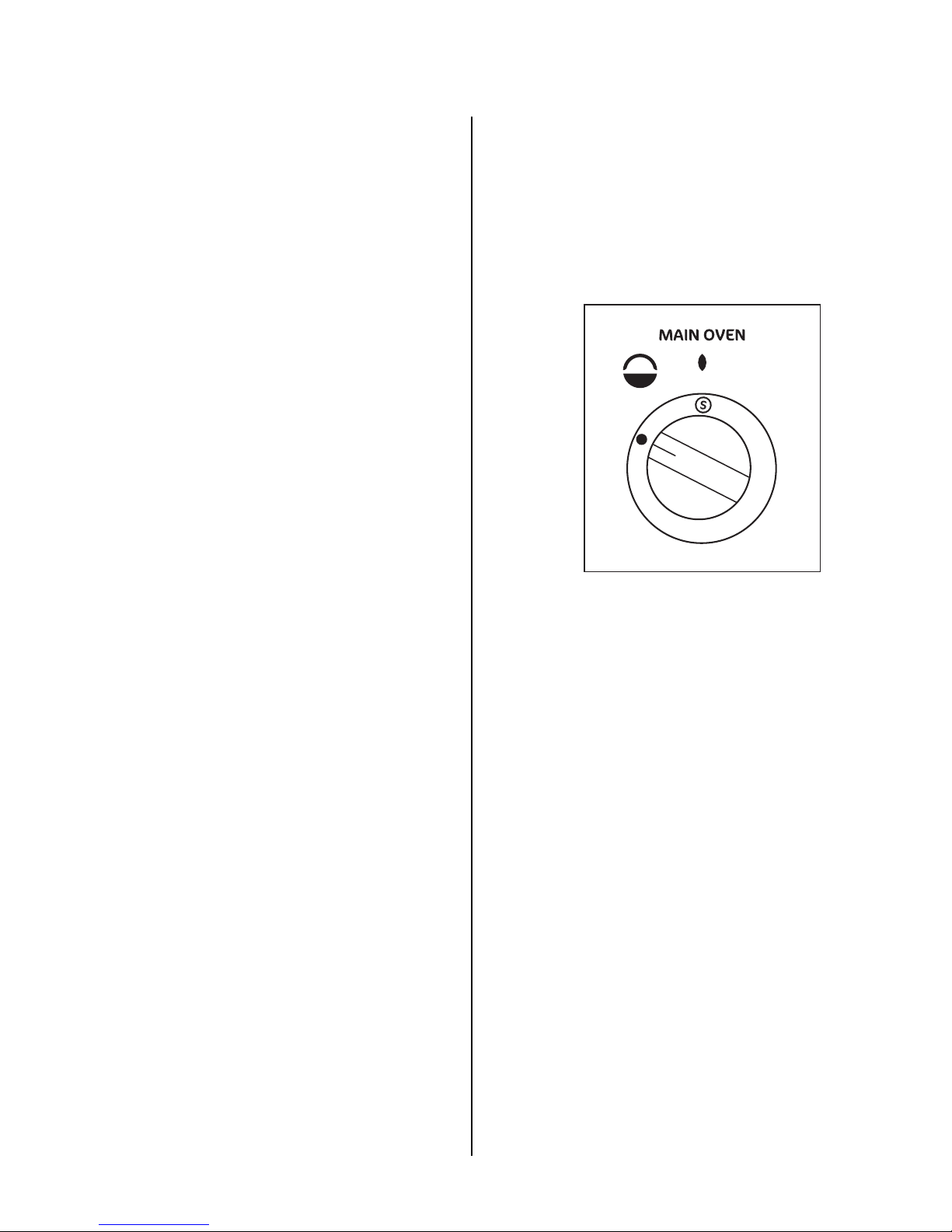

· Push in the control knob and turn it to gas mark
9. When the burner has lit release the button. There will only be small flames at first.
· Turn the control knob to the required gas mark.
· Wait until the oven burner is showing large
flames.
· Close the oven door.
· To turn the oven off, push in the control knob
and turn to the off position. T his is shown by a large dot.

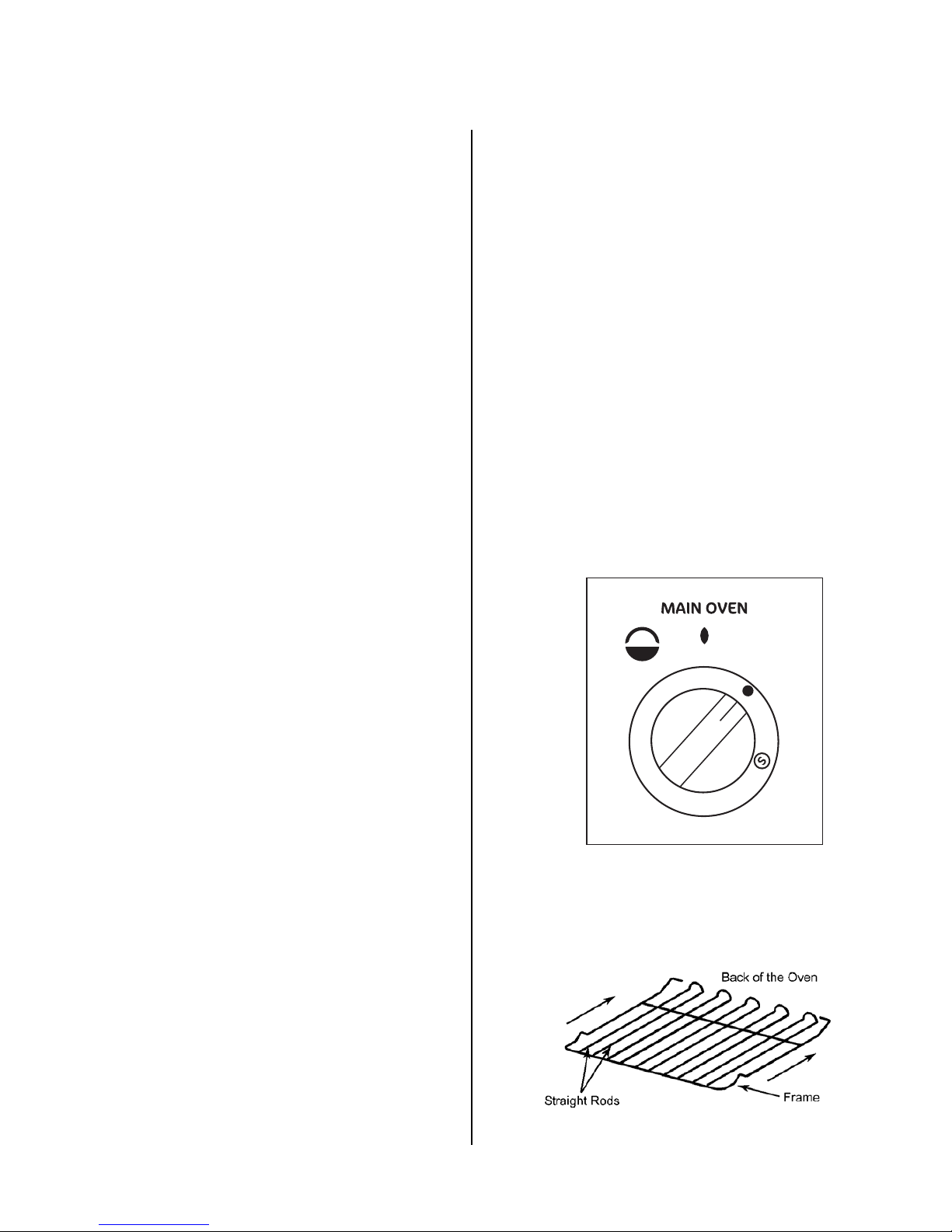

TO FIT THE MAIN OVEN SHELVES
The shelves should be fitted with the straight rods uppermost on the frame and the forms towards the back of the oven. If not fitted correctly the anti-tilt and safety stop mechanism will be affected.
5
4
3
2
1
6
7
8
9
Page 12
12
HINTS AND TIPS

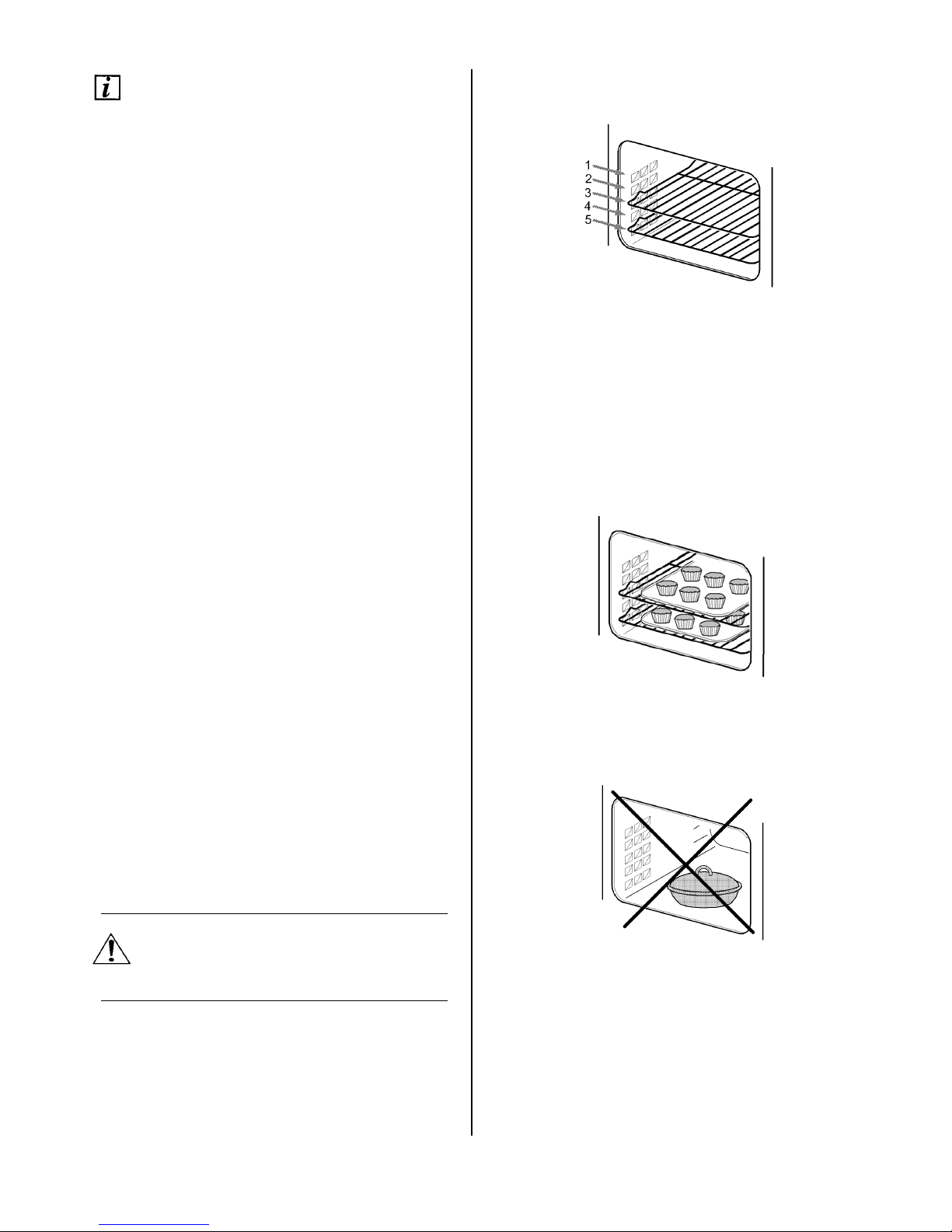

· Arrange the shelves in the required positions before switching the oven on. Shelf positions are counted from the top downwards.
· Ensure that food is placed centr ally on the shelf and there is sufficient room around the baking tray/dish to allow for maximum circulation.
· Do not push dishes too far back as food will burn if it overhangs the burner flame.
· Stand dishes on a su itably sized baking tray on the shelf to prevent sp illage onto the oven base and to help reduce cleaning.
· The material and finish of the baking tray and dishes used affect base br owning. Enamelware, dark, heavy or non- stic k utensils increase base browning. Shiny aluminum or polished steel trays reflect the heat away and give less base browning.
· When cooking more than one dis h in the oven, place dishes centra lly on d ifferent s helves rather than cluster several d ishes on on e shelf, t his w ill allow the heat to circulate freely for the best cooking results.
· If you are cooking mor e than one tray of similar items, for example cakes or biscuits, swap the trays during cooking or you can remove t he top tray when the food is cooked and move the lower tray to the higher shelf to finish cooking.
· Do not place baking trays directly on the oven base as it interferes with the oven air c irculation and can lead to base burning; use the lower shelf position.
Do not place cookware and cooking pots with rough bases e.g. cast iron on the oven door as damage to the glass may occur.
Page 13
13
COOKING CHART
The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperatures to suit individual preferences and requirements.
FOOD
SHELF
POSITION
Gas
Mark
APPROX.
COOK TIME (min)
Biscuits 2+4 4 10 - 20 Bread 3 8* 30 - 40 Bread rolls/buns 2 8* 10 - 20
Cakes: Small & Queen
Sponges Victoria Sandwich (7") Madeira (7") Rich Fruit (8") Christmas (8")
Gingerbread Meringues Flapjack Shortbread
2+4 2+4 2+4
4 4 4
3 5 3 3
5 4 4 4 2 2
2 1 5 3
15 - 25 18 - 20 20 - 30
1 - 1¼
2½h - 2¾
4 - 5h
depends on size
1¼ - 1½h
2½ - 3h 25 - 30 45 - 65
Casseroles: Beef/Lamb
Chicken
4 4
3 4
2½ - 3h
1¼ - 1½h
Convenience Foods Follow manufacturer's instructions Fish 2 4 20 - 30 Fish Pie (Potato Topped) 3 6 20 - 25 Fruit Pies, Crumbles 3 6 40 - 50 Milk Puddings 3 3 1½ - 2h Pasta Lasagne etc. 3 5 30 - 40
Pastry: Choux
Eclairs, Profiteroles Flaky/Puff Pies
Shortcrust Mince Pies
Meat Pies Quiche, Tarts, Flans
2 2 2
2+4
2 2
6 5 6 5 7 5
30 - 35 20 - 30 25 - 40 15 - 20 25 - 35 25 - 45
Roasting Meat, Poultry 3 5 see roasting chart Scones 2+4 7 8 - 12 Shepherd’s Pie 3 7 30 - 40 Soufflés 3 5 20 - 30 Vegetables: Baked Jacket Potatoes
Roast Potatoes
2 2
5 6
1½h - 2h
1 - 1½h
Yorkshire Pudding: Large
Individual
2 2
7 7
25 - 40 15 - 25
*When baking bread cook for 10 minutes at gas mark 8 then reduce to mark 6 for the remaining cook time. Note: Shelf positions are counted from the top of the oven downwards. To help pastry dishes brown on the underside cook on a metal plate or place on a baking tray.
Page 14
14
ROASTING CHART
INTERNAL TEMPERATURES – Rare : 50-60°C; Medium : 60-70°C; Well done : 70-80°C
MEAT Gas Mark COOKING TIME Beef 5 20-35 minutes per ½kg (1lb)
and 20-35 minutes over
Beef, boned 5 25-35 minutes per ½kg (1lb)
and 25-35 minutes over
Mutton and Lamb 5 25-35 minutes per ½kg (1lb)
and 25-35 minutes over
Pork and Veal 5 30-40 minutes per ½kg (1lb)
and 30-40 minutes over
Ham 5 30-40 minutes per ½kg (1lb)
and 30-40 minutes over
Chicken 5 20-25 minutes per ½kg (1lb)
and 20 minutes over
Turkey and Goose 5 20-25 minutes per ½kg (1lb) up to
3½kg (7lb) then 10 minutes per ½kg (1lb) over 3½kg (7lb)
Duck 5 25-35 minutes per ½kg (1lb)
and 25-30 minutes over
Pheasant 5 35-40 minutes per ½kg (1lb)
and 35-40 minutes over
Rabbit 5 20 minutes per ½kg (1lb)
and 20 minutes over
The roasting temperat ures an d times g iven in the c hart s hould be ad equate f or most jo ints, but sl ight adj ustment s may be required to allow for personal requirements and the shape and texture of the meat. However, lower temperatures and longer cooking times are recommended f or less tender cuts or larger joi nts. If you cover the food with foil or lid allow an extra 10-15 minutes for each ½kg (1lb)
Page 15
15
SLOW COOK
The slow cook setting gives a very low heat in th e oven. It is particular ly useful when you are cooking soups, stews and casseroles because the long slow cooking will make cheaper, tougher cuts of meat more tender. Some foods such as pastry and biscuits are not suitable for slow cooking because the temperature is too low. Cover all food during cooking to prevent it from drying out. You can uncover food for the last half hour if it is normally served golden brown.
USING SLOW COOK
· You need to cook food at gas mark 6 for 30 minutes before you turn the oven down to the slow cook setting. This makes sure that the temperature of the food gets hot enough to star t the food cooking.
FOOD PREPARATION - SLOW COOKING
JOINTS OF MEAT AND POULTRY
· Do not cook meat joints over 2.7kg (6lb).
· Do not cook poultry over 2 kg (4lb 8oz).
· Cook on the middle shelf of the oven or above.
· Cook stuffing separately.
· Cook for at least six hours.
· Only cook joints of p or k if y o u c an mak e s ure, by
using a meat thermometer, t hat the temperature inside the joint is at least 88°C.
· For good air circulat ion always stand j oints on a rack in a roasting tin or casserole.
· Thaw all frozen meat and poultry before you cook it.
· Prime cuts of meat do not benefit from slow cooking.
· Remove excess fat and skin un les s it is br ow ned first.
SOUPS, CASSEROLES AND STEWS
· Do not cook casseroles over 2.7 kg (6lb).
· Bring to the boil on the hotplate then cook on
slow cook.
· Cook on the middle shelf of the oven or above.
· Cover food with a tight fitting lid or tin foil.
5
4
3
2
1
6
7
8
9
Page 16
16
Vegetables
· Cut into small pieces.
· Dried beans must be pre- soaked then boiled in
an open pan for 15 minutes before add in g to any dish.
· Place vegetables under meat in casseroles.
· Cover food with a tight fitting lid or tin foil.
MILK PUDDINGS
· Cover the cereal with b oiling water and leave it to stand for 30 minutes.
· Drain and make the pudding in the usual way.
GENERAL POINTS FOR SLOW COOKING
Frozen Foods
Thaw thoroughly before cooking.
Thickening
Toss meat in flour for casseroles. Alternatively blend cornflour with water and add it at the end of cooking.
Flavouring
Flavours are held in t he food because there is little evaporation. Adjust flavouring at the end of the cooking time.
Liquid
Use slightly less liquid as there is little evapor ation during cooking. Always ad d milk and milk products, for example cream towards the end of cooking to prevent them from curdling.
Reheating
Cool left over food quickly and then put it in the fridge. Do not reheat food using the slow cook setting. Reheat food in the usual way or in a microwave. Only reheat food once.
Page 17
17
CARE AND CLEANING
Before cleaning always allow the appliance to cool down.
CLEANING MATERIALS
Before using any cleaning materials on your appliance, check that they are suitable and that their use is recommended by the manufacturer. Cleaners that contain bleach should NOT be used as they may dull the surface finishes. Harsh abrasives must also be avoided.
CLEANING THE OUTSIDE OF THE APPLIANCE
Do not use abrasive cleaning materials e.g. Hob
Brite, Brillo pads or scourers on painted or printed finishes as damage may occur. Regularly wipe over the control panel, doors and appliance sides using a soft cloth and hot soapy water. To prevent streaking finish with a soft cloth. Stainless Steel cream cleaners are abrasive and should be avoided as they may dull the surface finish. Any spillage on the stainless steel finish
must be wiped off immediately.
Do not attempt to remove any of the control knobs from the appliance as this may cause damage and is a safety hazard.
CLEANING THE CONTROL KNOBS AND HANDLES
It is strongly recommended that only hot soapy water is used for cleaning the control knobs and handles. ANY OTHER CLEANING MATERIALS MAY DULL THE SURFACE FINISH.
CLEANING THE HOB
Clean the hotplate top using a mild abrasive. Take care not to damage the spark electrodes. If the spark electrodes are damaged the burners will not light. You can remove the pan supports, burner caps and burner crowns to clean them. Again take care not to damage the spark electrodes. Clean the burner crowns and pan supports by soaking them in very hot soapy water. Aluminium based saucepans can leave shiny metal marks on the pan supports. You can remove any stubborn stains by scouring with a soap impregnated steel wool pad. If you look after the burner crowns and pan supports in this way they will stay reasonably clean. However the surface will dull with time. After cleaning the appliance parts, dry them thoroughly before you put them back.
Page 18
18
WHEN REPLACING HOTPLATE BURNER PARTS

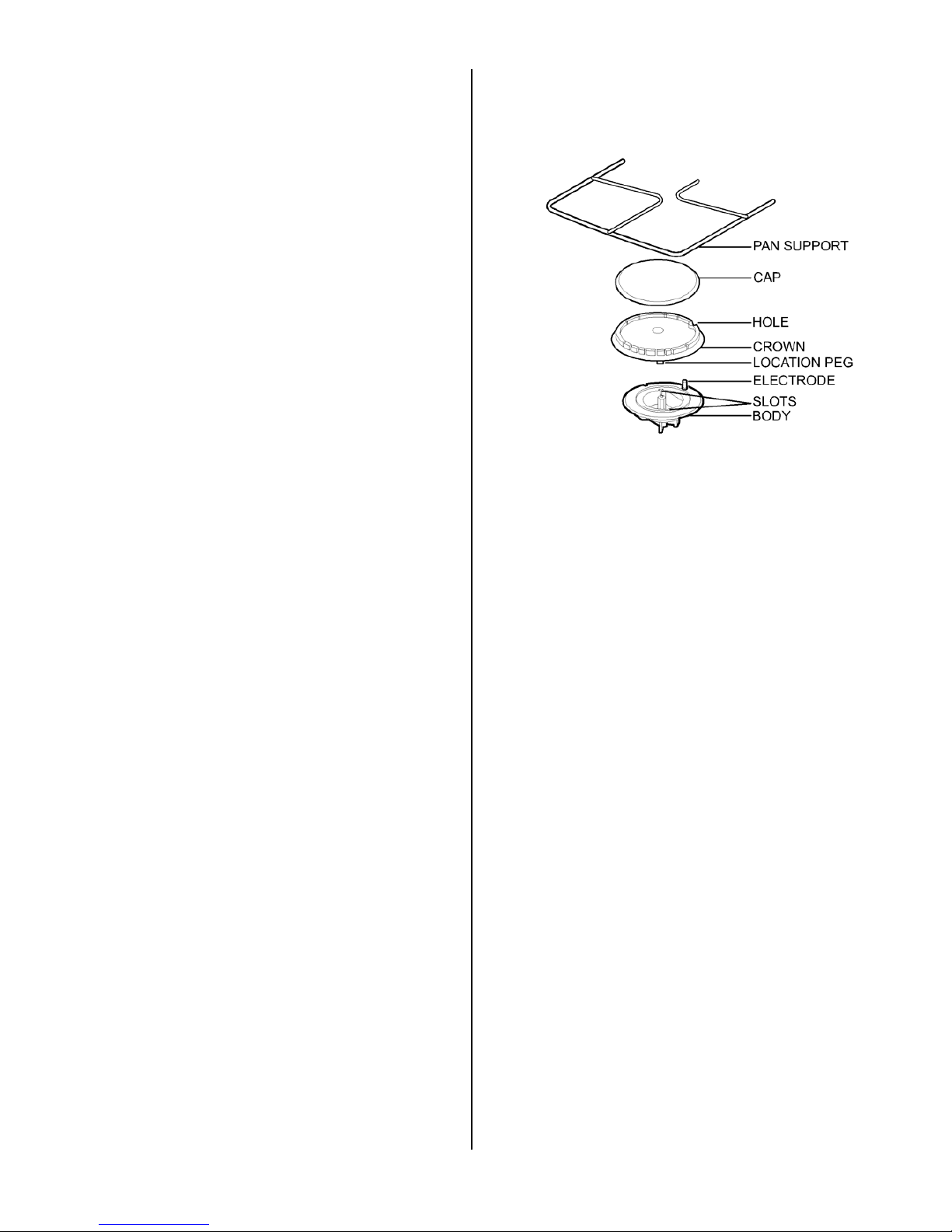

1. Crown to body. (Do not try to force the crown on to the body).
Make sure that the hole in the crown is over the electrode. Check that the location pegs sit in the slots in the body. When the crown is in this position let it fall freely on to the body. Check that the crown can be moved slightly from side to side.
2. Cap to crown. Place cap centrally on the top of crown (enamel side up). Move sideways and front to back to check the cap is properly fitted.
3. Check for ignition. If a burner will not light then you need to check the crown and cap positions.
CLEANING THE SHELVES AND GRILL/OVEN FURNITURE
All removable parts, except the grill pan handle can be washed in the dishwasher. The grill pan, grill pan grid and oven shelves may be cleaned using a soap impregnated steel wool pad. Soaking first in hot soapy water will make cleaning easier.
CLEANING THE GRILL
Do not clean the grill burner itsel f. Cleaning the gril l
may cause the holes in the burner to become blocked preventing it from operating correctly. Due to the nature of stainless steel the grill burner may tarnish through use over a period of time. This is quite normal and is not a fault on the appliance Clean the area around the grill frequently usin g hot soapy water.
Page 19
19
CLEANING INSIDE THE GRILL AND OVEN COMPARTMENTS
The sides and back of the main oven compartmen t are coated with a special Stayclean coating. They should not be cleaned manually. The vitreous enamel main oven base and grill compartment can be cleaned using normal oven cleaners with care. Ensure that the manufacturers instructions are followed and that all parts are well rinsed afterwards.

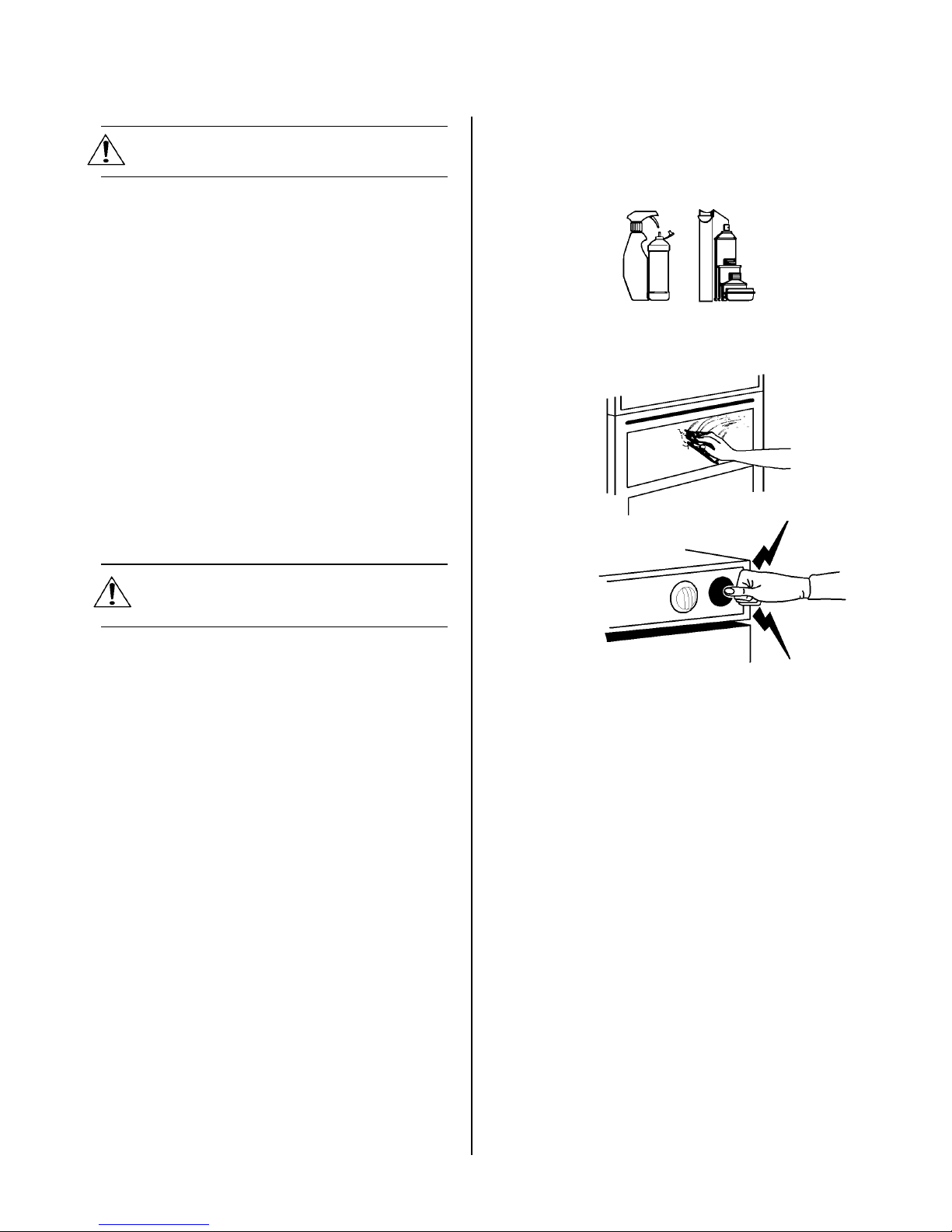

Aerosol cleaners must not come into contact with elements/burners or the door seal as this may cause damage.
HINTS AND TIPS
Aerosol cleaners must not be used on Stayclean surfaces.
To carry out the cleaning cycle remove the oven shelves and set the ov en to gas mar k 7. It is a good idea to run the oven for an hour or two per week to ensure continued good performance from the Stayclean finish. Slight discoloration and polishing of the Stayclean surfaces may occur in time. This DOES NOT affect the Stayclean properties in any way. Use minimal, if any, extra oil or fat when roasting meat, potatoes only require br ushing with fat before cooking. Extra fat in the oven during roasting will increase splashing and soilage. It is NOT necessary to ad d water to a meat tin whe n roasting. The water an d the fat juices from the jo int create excessive splattering during cooking – even at normal temperatures, as well as causing condensation. Covering joints during cooking will also prevent splashing onto the interior surfaces. Removing the covering for the last 20-30 minutes will allow extra browning if required. Some large joints and turkeys especially benefit by this method of cooking, allowing the joint to c ook through before the outside is over browned.
CLEANING THE DOOR(S)
To prevent damaging or weakening the door glass panels avoid the use of the following:
· Household detergents and bleaches
· Impregnated pads unsuitable for non-
stick saucepans
· Brillo/Ajax pads or steel wool pads
· Chemical oven pads or aerosols
· Rust removers
· Bath/Sink stain removers
Page 20
20
CLEANING BETWEEN THE OUTER AND INNER DOOR GLASS
The outer door glass is removable for cleaning.
TO REMOVE THE OUTER GLASS

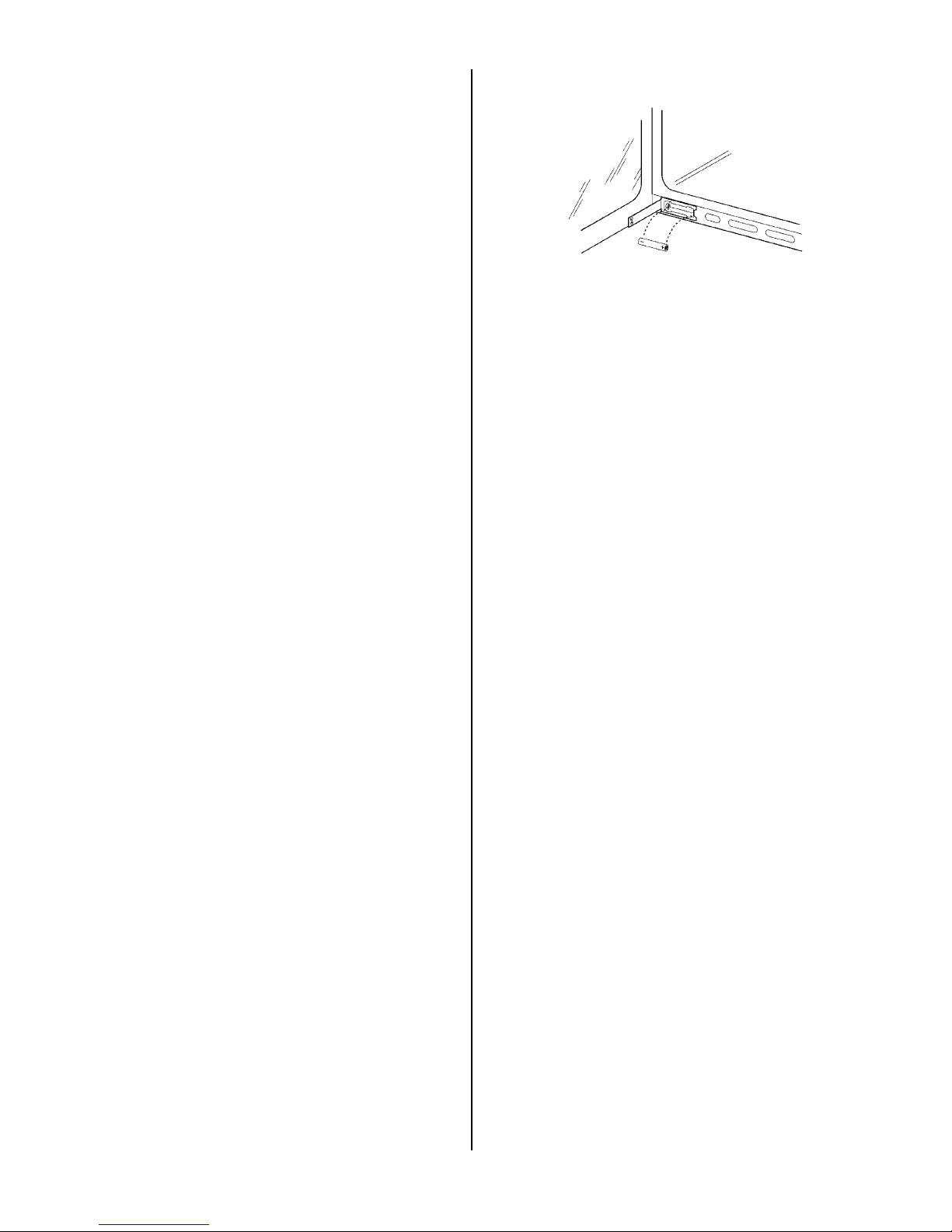

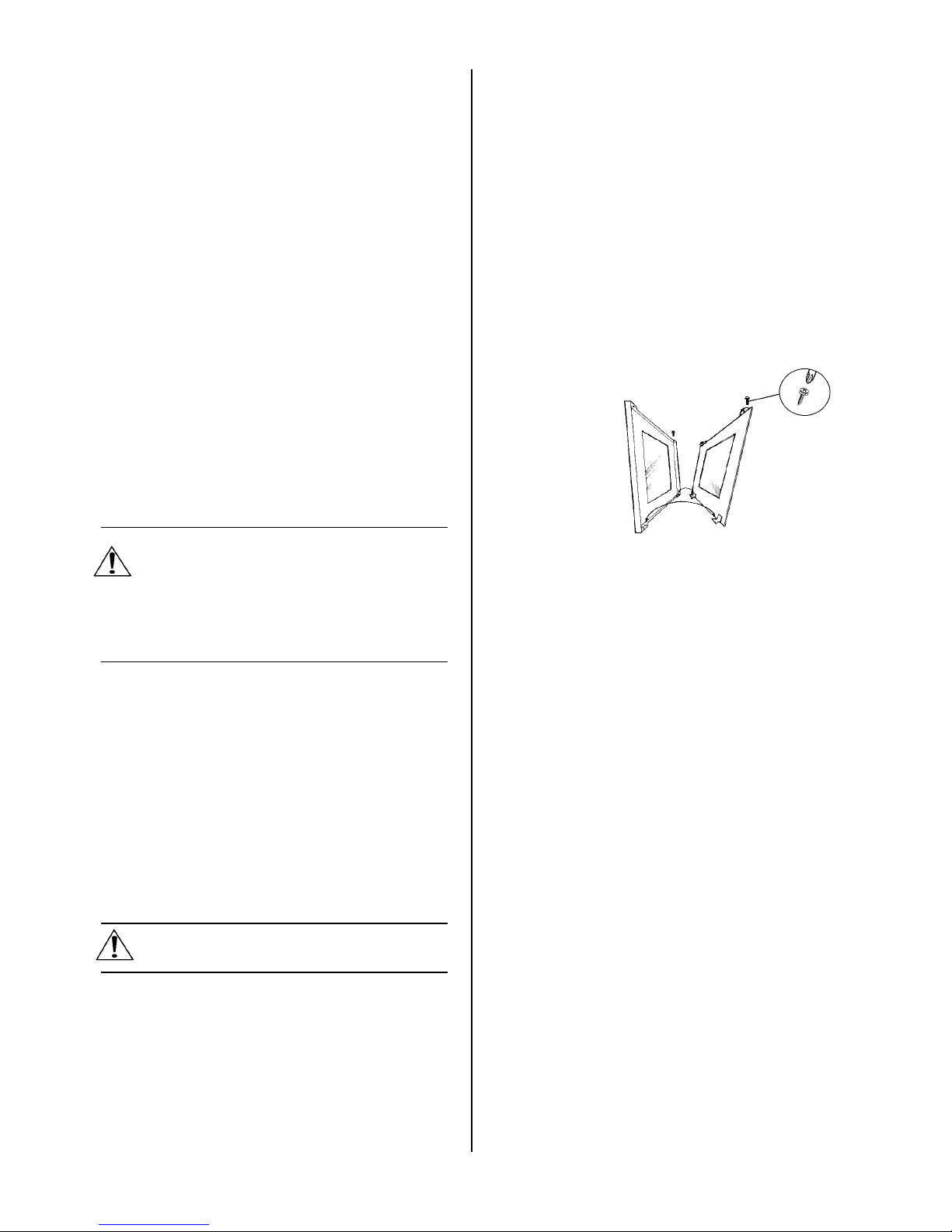

1. Open the oven door sl ightly to ga in access to the two cross head screws on the top of the oven door.
2. Loosen the two screws using a Pozidrive screwdriver.
3. Hold the door glass securely in place with one hand before removing th e s crews c omplet ely w ith the other hand.
4. Using both hands, gently tilt the top of the door glass towards you, lift slightly to disengage the locators from the two bottom brackets.
5. Clean the outer and inner glass using hot soapy water or Hob Brite cleaner m ay be used. Do not use Hob Brite on the Stainless Steel or painted finishes. Do not try to clean the foil which is inside the door. The fo il is there t o he lp keep the door cool, if it is dam age d it wi ll not wor k . Ensure that all parts are well r insed and th oroughly dr ied before attempting to replace the outer door.
If the door glass panel becomes chipped or has deep scratches the glass will be weakened and must be replaced to prevent the possibility of the panel shattering. Please contact your local Service Force Centre who will be pleased to advise further.
TO REPLACE THE OUTER GLASS
1. Holding the oven glass with both hands, gently place the locators into the holes of the brackets at the bottom of the oven door.
2. Push the top of the oven glass towards the oven door, ensuring the screw location holes line up.
3. Hold the glass in place with one hand and insert the cross head screws into the location holes with the other hand. Give the screws one turn to ensure the glass is secure.
4. Tighten the screws positively with a Pozidrive screwdriver before closing the oven door.
Do not attempt to use the oven without the glass being in place.
TO CLEAN THE INNER GLASS DOOR PANELS
Clean the inner glass door panels using a soft cloth and hot water to which a little washing up liquid has been added. If the inner panel is heavily soiled, Hob Brite may be used. Do not use abrasive cleaning materials on the door glass. Ensure that all parts are well rinsed and thoroughly dried before attempting to replace the glass.
Page 21
21
SOMETHING NOT WORKING?
Maintenance must only be carried out by a co mpetent/qualified per son. Do not try to alter/mod ify the appliance yourself, as this could be dangerous.
We recommend that your appliance has an annual gas safety check carried out by our approved service organisation.
Please carry out the following checks on your appliance before calling a Service Engineer. It may be that the problem is a simple one that you can sole yourself without the expense of a service call.
In-guarantee customers should make sure that the checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown.
Please note that proof of purchase is required for in-guarantee service calls.
PROBLEM POSSIBLE SOLUTION
Check that there is not a problem with your gas supply. You can do this by making sure the other gas appliances such as central heating or gas fires are working.
The battery may need replacing.
The grill and oven do not work.
If you have checked the above: Allow the appliance to cool for a couple of hours. The appliance should now be working normally.
Check that the appliance is correctly installed and is level.
The oven is not cooking evenly.
Check that the recommended temperatures and shelf positions are being used.
The oven temperature is too high or too low.
Check that the recommended temperatures and shelf positions are being used. Be prepared to adjust the temperature up or down slightly to achieve the results you want.
Ensure the burner parts have been placed correctly. The battery may need replacing.
The hob burners will not light.
Check that there is not a problem with your gas supply. You can do this by making sure the other gas appliances such as central heating or gas fires are working.
Page 22
22
SERVICE AND SPARE PARTS
In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local Service Force Centre by telephoning:-
0870 5 929929
Your telephone call will be automatically routed to the Service Force Centre covering your post code area. For the address of your local Service Force Centre and further information about Service Force, please visit the
website at www.serviceforce.co.uk. Before calling out an engineer, please ensure you have read the details under the heading "Something Not
Working?". When you contact the Service Force Centre you will need to give the following details:
1. Your name, address and post code.
2. Your telephone number.
3. Clear and concise details of the fault.
4. The model and serial number of the appliance (found on the rating plate).
5. The purchase date.
Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee service calls.
CUSTOMER CARE DEPARTMENT
For general enquires concerning your Tricity Bendix appliance, or for further information on Tricity Bendix products, please contact our Customer Care Department by letter or telephone at the address below;
Customer Care Department Tricity Bendix 55 – 77 High Street Slough Berkshire SL1 1DZ Tel: 0870 5 950950 (*)
*calls to this number may be recorded for training purposes.
Page 23
23
GUARANTEE CONDITIONS
Standard guarantee conditions
We, Tricity Bendix, undertake that if within 12 months of the date of the purchase this Tricity Bendix appliance or any part thereof is proved to b e defective by reas on only of faulty wor kmanship or mat erials, we will, at our option re pair or replace the same FR EE OF CHARGE for labour, materials or carr iage on condition that:
· The ap pliance has been correctly i nstalled and use d only on the electricity supply stated on the ratin g
plate.
· The appliance has been used for normal domestic purposes only, and in accordance with the
manufacturer’s instructions.
· The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any
person not authorised by us.
· All service work under this guarantee must be undertaken by a Service Force Centre.
· Any appliance or defective part replaced shall become the Company’s property.
· This guarantee is in addition to your statutory and other legal rights.
Home visits are made betwe en 8.30am and 5.30pm Monday to Friday. Visits may be available o utside these hours in which case a premium will be charged.
Exclusions
This guarantee does not cover:
· Dama ge or calls resulting from transport ation, improper use or neglect, the rep lacement of any light
bulbs or removable parts of glass or plastic.
· Costs incurred for calls to put righ t an appliance which is improperly installed or calls to appliances
outside the United Kingdom.
· App liances found to be in use wit hin a comm ercial envir onment, plus thos e which are s ubject to re ntal
agreements.
· Products of Tricity Bendix manufacture which are not marketed by Tricity Bendix.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:
· The guarantee starts from the date you first purchased your product.
· The guar antee is for the s ame period an d to the same extent for lab our and par ts as exists in the new
country of use for this brand or range of products.
· This guarantee relates to you and cannot be transferred to another user.
· Your new home is within the European Community (EC) or European Free Trade Area.
· The pro duct is insta lled and used in ac cordanc e with our ins tructi ons a nd is on ly us ed dom estic ally, i.e.
a normal household.
· The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.
France Senlis +33 (0) 3 44 62 20 13 Germany Nürnberg +49 (0) 800 234 7378 Italy Pordernone +39 (0) 800117511 Sweden Stockholm +46 (0) 20 78 77 50 UK Slough +44 (0) 1753 219898 Ireland Dublin +353 (0) 1 4090752
Page 24
24
TECHNICAL DETAILS
DIMENSIONS
Height: 900 mm (nominal) Width: 500 mm (nominal) Depth: 600 mm (to front of door panel) Weight: 54 .4 Kg Net
Space for fixing at hotplate level 2mm minimum clearance Space for fixing above hotplate level. See important note 'Location of Appliance'. Minimum space above hotplate 750mm (If cooker hood is fitted refer to the cooker hood installation instructions.
Minimum distance from rear wall 5mm (spacer given by pressed spacer on vent panel)
CONNECTIONS
Gas connection: - Rear left hand side of appliance at hotplate level
Rc ½ (½” B.S.P. female)
Electrical connection: - None
IGNITION Battery 1.5 Volt AA size
HOTPLATE
Natural Gas
Heat Input R.H.F R.H.F L.H.R L.H.F
1.0kW 1.9kW 1.9kW 2.9kW (3412 Btu/h) (6483 Btu/h) (6483 Btu/h) (9895 Btu/h)
Injector Marking 070 096 096 119
L.P.Gas
Heat Input 1.0kW 1.9kW 1.9kW 2.8kW
(71.8g/h) (136.5g/h) (136.5g/h) (194.0g/h)
Injector Marking 050 071 071 086
GRILL Natural Gas L.P.Gas Heat Input 2.7kW (9215 Btu/h) 2.7kW (176g/h) Injector Marking 121 78
MAIN OVEN
Heat Input 2.4kW (8189Btu/h) 2.4kW (172.4g/h) Injector Marking 108 78 Thermostat By-Pass Marking 69 48
GENERAL
Ignition (H.T. Spark) Spark Gap 3-4mm
GAS CATEGORY COUNTRIES OF DESTINATION
CAT. I
2H GB
CAT. I
3+ GB
This appliance complies with: European Council Directives Low voltage Directive 73/23/EEC ,Gas Directive 90/396/EEC EMC Directive 89/336/EEC, CE Marking Directive 93/68/EEC.
Page 25
25
INSTALLATION INSTRUCTIONS
IMPORTANT – SAFETY REQUIREMENTS
Where applicable N atural G as and L .P Gas vers ions of this appliance are av a ilab le. Chec k th at th is mo de l is suitable for the type of supply available. This appliance must be installed and/or serviced by a competent person in accordance with the Gas Safety (Installation and Use) Regulations Current Editions and the I.E.E . Wiring R egulations . Detai led recommendations are contained in the following British Standard Codes of Practice – BS.6172, BS.5440: Part 2 and B.S. 6891. All Britis h Standards must be ‘Current Editions’.
This appliance must be installed by a qualified electrician / competent person (CORGI Registered). Safety may be impaired if installation is not carried out in accordance with these instructions.
Before connecting the appliance make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This is situated on the lower front frame of the appliance and can be seen upon opening the door. Alternatively the rating plate may also be found on the back or top of some models (where applicable).
Do not alter the electrical circuitry of this appliance.
PROVISION FOR VENTILATION
This appliance is not connected to a combustion products evacuation d evice. It shall be insta lled and connected in accordance wi th the curren t instal lation regulations. Particular atte ntion shall be given to the relevant requirements regarding ventilation. The room containing th e appliance should have an air supply in accordance with BS.5440: Part 2 Current Edition. All rooms require an openable window or equivalent and some rooms w ill require a permanent vent as well. For room volumes up to 5m
3
an air vent of 100cm
2
is requir ed: for room volumes
between 5m
3
and 10m3 an air vent of 50cm2 is
required. If the room has a door tha t opens directly to the outside, no air vent is required. For room volumes that exceed 11 m
3
no air vent is required. If
there are other fuel bur ning appliances in the sa me room, BS.5440: Part 2 Current Edition should be consulted to determine the requisite air vent requirements. Prolonged intensive use of the appli anc e may c al l f or additional ventilation, for example opening a window, or more effective ventilation, for ex ample increasing the level of mechanical ventilati on where pr esent.
Page 26
26
MOVING YOUR APPLIANCE
You may damage some soft or badly fitted floor coverings when you move the appliance. The floor covering under the appliance should be securely fixed so it does not ruck up when you move the appliance across it. Alternatively you could remove the floor covering. This appliance is heavy and care must be taken when moving it. Do not try to move the appliance by pulling the door handles. To move the appliance open the grill door. Raise the appliance off its front feet by lifting it from inside the oven. Pull the appliance forward. When you replace the appliance push it back to the stop and make sure there is the same gap at each rear corner.
FOR YOUR SAFETY
Do not try to disconnect the a ppliance from the gas
supply if the supply pipe does not have a bayonet connection, as described in the installation instructions. If this is the case contact the person who installed the appliance.
LOCATION OF APPLIANCE
This appliance must not be installed in a bed- sitting room of volume less than 20m
3
or in a bathroom,
shower room or garage. It is essential that the appliance is positioned as Fig 1a. Shelves, wall cabinets and cooker hoods must be fitted a minimum of 750mm directly abov e the top of the hotplate (or greater for cooker hoods if recommended by manufacturers instructions) and 400mm above the hotplate when fitted in line with the outside of the appliance. If the units are intended to be fitted adjacent to the appliance but less than 400mm above the hotplate, then a minimum spac e of 50mm must be maintained between the sides of the unit and the appliance ( See Fig 1b). Curtains must not be fitted immediately be hind the appliance or w ithin 150mm of the sides of the hotplate. If fitted next to or between two base units a minimum space of 2mm must be left between eac h unit and the sid es of the appliance. The lev elling feet fitted to the app liance will achieve a nominal height to hotplate trims of 900mm + 20mm.
Note: - L.P.G. cookers MUST NOT be installed below ground level i.e. in a basement or aboard any boat, yacht or other vessel.
LEVELLING THE APPLIANCE
Adjustment to suit floor conditions or height is obtained by rotating clockwise or anti clockwise the feet at the front and rear of the appliance. A spirit level should be placed on one of the shelves to confirm the appliance is correctly levelled.

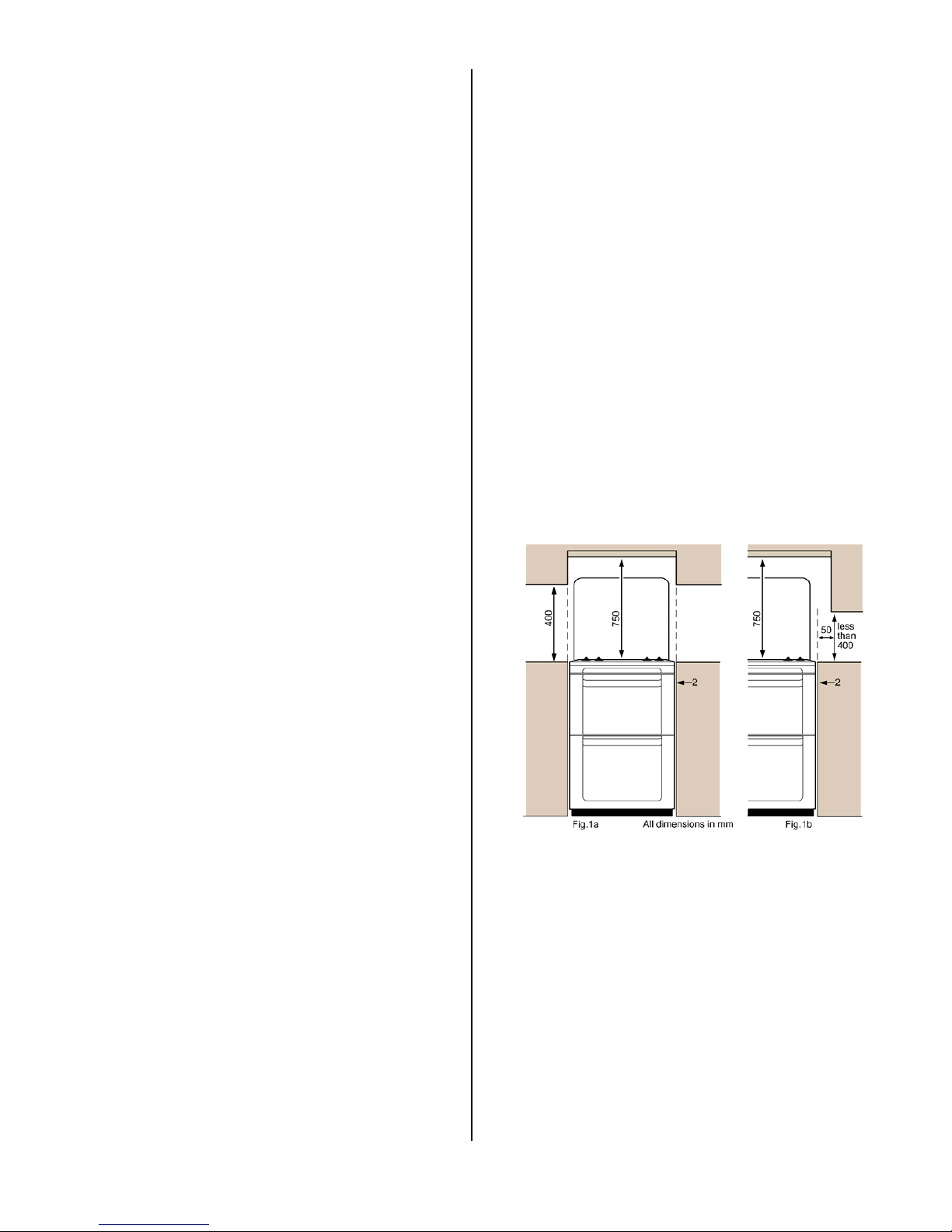

Fig 1.a Fig 1.b
Page 27
27
CONNECTING TO GAS SUPPLY
This appliance is designed to be installed with an appliance flexible connection only. Supply piping should not be less than R
3
/8. Connection is made to the Rc ½ (½” B.S.P.) female threaded entry pipe located just below the hotplate level on the rear left hand side of the appliance. NOTE: ONLY LIQUID
SEALANTS TO BE USED WHEN INLET GAS PIPE IS FITTED I.E.: DO NOT USE P.T.F.E. SEALANT
TAPE. Carry out a gas tightness test after
connecting to the gas supply. The gas bayonet connector must be fitted in the shaded area indicated in Fig.2. Tak e into account that it must be possible to pull the appliance forward sufficiently.
Ensure the hose does not become trapped when pushing the appliance into position.
IMPORTANT: FLEXIBLE TUBING USED MUST COMPLY WITH BS.669 CURRENT EDITION.
LPG Flexible connec t ions m u st be a type suitable for L.P.G and capable of operation up to 50 mbar and carry a red stripe, band or label.
FITTING THE STABILITY BRACKET
It is recommended that if the appliance is to be installed with a flexible supply pipe, a stability bracket be fitted and is available from your supplier (see Important Safety Requirements). These instructions should be read in conjunction with any leaflet packed with the stability bracket.
1. Place the appliance in its intended posit ion and
level appliance.
2. Mark off 250mm from the left hand side of the
appliance as shown in dimension 'A', Fig 3a. This is the centre line of the fixing bracket.
3. Draw a line from the front edge of the feet (see
Fig.3a) and remove appliance from its position. Mark off dimension 'B' (see Fig.3a) back from this line on the centre line of the bracket to locate the front edge of the lower bracket. Fix lower bracket (with two fixing holes) to the floor then measure the height from floor level to engagement edge on back of appliance, dimension 'C' of Fig. 3b.
4. Assemble upper bracket to lower bracket so that
the underside of bracket is dimension 'C' + 3mm above floor level. (See Fig. 3b) Reposition appliance and check that top bracket engages into appliance back as shown in Fig. 3b.

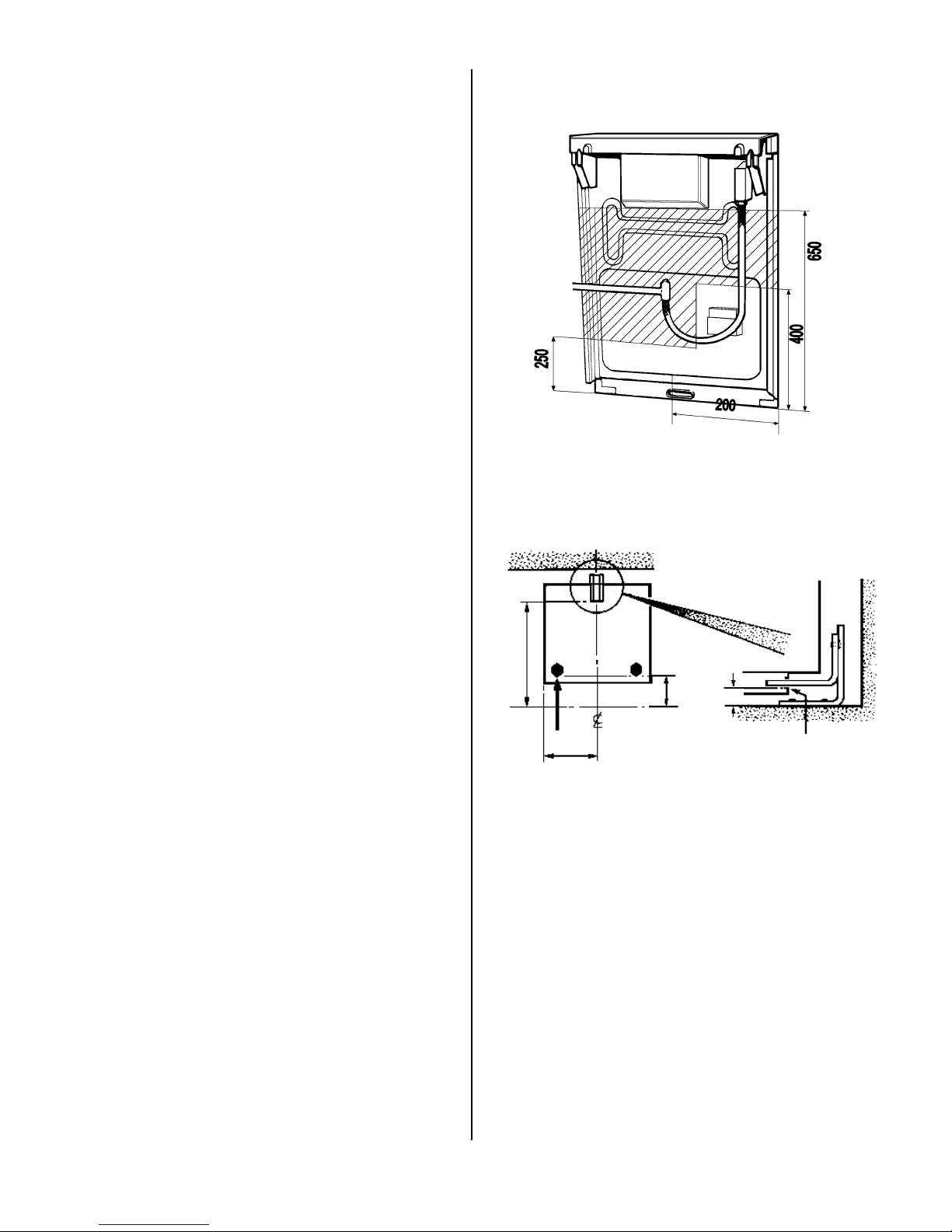

Fig.2.
(A)
(C)
100mm
487mm (B)
250mm
Fig.3a.
Fig.3b.
Page 28
28
THE BATTERY
1. The battery is located on the left hand side of the
front plinth.
2. To gain assess to the battery, open the main
oven door and lift up the battery holder lid.
3. Fit the new battery ensur ing (+) terminal is nex t
to the (+) sign on the battery. See Fig. 4.
4. Close the lid of the battery holder.
PRESSURE TESTING
1. The oven injector is used as a pressure test
point. Remove the oven furniture. Remove oven
burner box retaining clips (one spring clip from each side) and remove box front c over . Rep lace one clip back into the right hand side of the burner box. Remove oven burner by removing the spring clip from the right hand side of the oven burner and slide bur ner off injector, whilst easing it forward and taking care not to strain the F.S.D. phial.
2. Connect the pressure gauge to the oven injector.
3. Check the supply pressure by turning the
thermostat on and one hotplate tap full on and light the appropriate burner. The pressure should be either:-
(i) For Natural Gas 20mbar (ii) For LP. Gas. The pres sure must be set
to 28 mbar for use on butane or 37 mbar for use on propane.
4. Turn off the taps, dis conn ec t th e pr ess ur e gauge
and replace oven burner and cover, ensuring that the F.S.D phial is correctly located into the bracket on the burner.
5. Check operation of the oven.
CHECKING THE GRILL
Place the grill pan containing the grid, with the handle attached, into the gr ill c ompartm ent. Li ght the grill burner by turning the grill tap full on and pressing the ignition button on the f ascia panel. As soon as the burner is lit the button can be released.
CHECKING THE HOTPLATE
Lift the lid. Fit the bur ner crowns and caps ensuring that they are correctly seated. Fit the pan supports. Check each of the hotplate bur n er s in turn by tur ni ng the hotplate tap to its full on position and pressing the ignition button. As soon as the burners are lit the button can be released.
Fig.4.
Page 29
29
CHECKING LID SHUT-OFF DEVICE
1. Lift the lid
2. Turn one hotplate tap to its full on posit ion and
push the ignition button.
3. Close the lid. There should now be no gas
supply to the hotplate and the burner will go out.
4. Turn off the hotplate and lift the lid. The gas
supply should now be restored to the hotplate, when the tap is turned on.
CHECKING THE MAIN OVEN
1. Turn on the oven thermostat control knob to
mark 9 and press the ignition button. As soon as the burner is alight the button can be released.
2. There should now be a low gas rate to the
burner, which is the F.S.D by pass rate.
3. When the F.S.D. phial has heated up it opens
the F.S.D valve which allows the main gas supply to the oven burner.
4. After 1 minute check that the flame covers the
full width of the burner and is stable.
5. Set the oven control to Mk 2, close the oven
door and check that after ab out 10 minutes the flame size has reduced.
6. Turn off the control and check that the oven
flames go out.
GENERAL NOTE
Instruct the user on how to use the ap pliance an d its ignition system. Refer the user to the wording on the inside cover which gives advice on the safe operation of the appliance.
Page 30
NOTES
30
Page 31
NOTES
31
Page 32
Tricity Bendix, 55-77 High Street, Slough, Berkshire SL1 1DZ
Consumer care telephone number 08705 950950
IMPORTANT NOTICE
In line with our continuing policy of research and development, we reserve the right to alter models and specifications without prior notice.
This instruction booklet is accurate at the date of printing, but will be superseded if specifications or appearance are changed.
SG335 - 311740100
© Electrolux plc 2005
Loading...
