Tricity Bendix SE402 User Manual

Download

Page 1

OPERATING & INSTALLATION

INSTRUCTIONS

SLIP IN ELECTRIC COOKER

SE402

PLEASE READ THIS INSTRUCTION BOOKLET BEFORE USING THE APPLIANCE

Page 2

TECHNICAL DETAILS

MODEL NO. SE 402

Voltage: 230-240 Volts AC 50Hz

Wattage: 11.5-12.5kW

Height: 900mm

Width: 550mm

Depth: 600mm

Weight: 60 kg

This appliance complies with: European Council Directive 73/23/EEC. EMC Directive 89/336/EEC. CE Marking Directive 93/68/EEC

Page 3

CONTENTS

Technical Details .................................................................................................................................... 2

Contents .................................................................................................................................................. 3

Preface ..................................................................................................................................................... 5

Safety ....................................................................................................................................................... 6

Before Installation ........................................................................................................................... 6

During Operation ............................................................................................................................. 6

After Use ......................................................................................................................................... 7

General ........................................................................................................................................... 7

Introduction ............................................................................................................................................. 8

Rating Plate .................................................................................................................................... 8

Installation ....................................................................................................................................... 8

General Notes on Using Your Appliance ........................................................................................ 9

About Condensation and Steam ..................................................................................................... 9

The Cooling Fan for the Controls .................................................................................................... 9

Grill and Oven Furniture .................................................................................................................. 9

Getting to Know Your Appliance .......................................................................................................... 10

The Control Panel ........................................................................................................................... 10

The Sealed Hotplates ............................................................................................................................. 11

Recommended Saucepans ............................................................................................................ 11

Hints and Tips ................................................................................................................................. 11

Deep Fat Frying ...................................................................................................................................... 12

Preserving ............................................................................................................................................... 12

The Dual Grill .......................................................................................................................................... 13

Uses of the Grill .............................................................................................................................. 13

Selecting the Grill ............................................................................................................................ 13

Things to Note ................................................................................................................................. 13

The Grill Pan and Handle ............................................................................................................... 13

Hints and Tips ................................................................................................................................. 14

Grilling Chart ................................................................................................................................... 14

The Top Oven .......................................................................................................................................... 15

Uses of the Top Oven ..................................................................................................................... 15

Selecting the Top Oven .................................................................................................................. 15

Things to Note ................................................................................................................................. 15

To Fit the Top Oven Shelf ............................................................................................................... 15

Hints and Tips ................................................................................................................................. 16

The Main Oven ........................................................................................................................................ 17

Uses of the Fan Oven ..................................................................................................................... 17

Selecting Fan Oven ........................................................................................................................ 17

Things to Note ................................................................................................................................. 17

To Fit the Main Oven Shelves ........................................................................................................ 18

Hints and Tips ................................................................................................................................. 18

Page 4

CONTENTS

Oven Cooking Chart ............................................................................................................................... 19

Oven Roasting Chart .............................................................................................................................. 20

Defrost Feature ....................................................................................................................................... 21

Uses of Defrost Feature .................................................................................................................. 21

Selecting Defrost ............................................................................................................................. 21

Things to Note ................................................................................................................................. 21

Hints and Tips ................................................................................................................................. 21

Care and Cleaning .................................................................................................................................. 22

Cleaning Materials .......................................................................................................................... 22

Cleaning the Handles ...................................................................................................................... 22

Cleaning the Outside of the Appliance ........................................................................................... 22

Cleaning the Sealed Hotplates and Hotplate Trims ........................................................................ 22

Things to Note ................................................................................................................................. 22

Cleaning the Grill and Oven Furniture ............................................................................................. 23

Cleaning Inside the Grill and Oven Compartments ........................................................................ 23

Care of Stayclean Surfaces ............................................................................................................ 23

Hints and Tips ................................................................................................................................. 23

Something Not Working? ...................................................................................................................... 24

Service and Spare Parts ........................................................................................................................ 25

Guarantee Conditions ............................................................................................................................ 26

Notes ........................................................................................................................................................ 27

Page 5

PREFACE

Dear Customer,

Thank you for buying a Tricity Bendix appliance. With our 80 years experience in developing and manufacturing the very best in U.K. appliances, you can be assured that you have purchased a hard working, reliable, quality product.

Tricity Bendix appliances comply with British Standard safety and performance requirements. They have been approved by BEAB (British Electrotechnical Approvals Board) and are covered by a 12 month parts and labour guarantee.

To get the best from your new Tricity Bendix appliance, we ask that you PLEASE READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be made to cooking times and temperatures, which may differ, from your previous appliance.

It is most important that this instruction book is retained with the appliance for future reference. Should the appliance be sold, or if you move house and leave the appliance, always ensure that the book remains with the appliance. This will enable the new owner to be acquainted with the functioning of the appliance and the relevant warnings.

Please read the whole instruction book before attempting to use the appliance ensuring you follow the recommendations given.

Page 6

SAFET

THESE WARNINGS ARE PROVIDED IN THE INTERESTS OF YOUR SAFETY. ENSURE THAT YOU UNDERSTAND THEM ALL BEFORE INSTALLING OR USING THE APPLIANCE.

PLEASE READ CAREFULLY

BEFORE INSTALLATION

This appliance is heavy and care

must be taken when moving it.

Ensure that all packaging, both

inside and outside the appliance has been removed before the appliance is used.

If the appliance is to be placed on a base, measures must be taken to prevent the appliance slipping from the base.

DURING OPERATION

This appliance is not intended to be operated by means of an external timer or remote control system.

Do not use this appliance if it is in contact with water. Never operate it with wet hands.

This appliance is designed to be operated by adults. Young children must not be allowed to tamper with the appliance or play with the controls.

During use the appliance becomes Hot. Care should be taken to avoid touching the heating elements inside the oven.

CAUTION: Accessible parts may be hot when the grill is in use. Young children should be kept away.

Do not try to lift or move the

appliance by pulling the door handles.

The electrical installation work must be undertaken by a qualified electrician/competent person.

It is dangerous to alter or modify the specifications of the appliance in any way.

Do not allow young children to play with any part of the packaging.

After installation, please dispose of the packaging with due regard to safety and the environment, your local authority can arrange this.

Take great care when heating fats and oils, as they will ignite if they become too hot.

This appliance has been designed for cooking edible foodstuffs only, and must not be used for any other purposes.

Never place plastic or any other material which may melt in the oven or on the hob.

Ensure cooking utensils are large enough to contain foods to prevent spillages and boil overs.

The handles of saucepans which are smaller than the heated area on the hob will become hot. Ensure your hand is protected before handling the pan.

Page 7

Take care to follow the recommendations given for tending the food when grilling.

Always use oven gloves to remove and replace food in the oven.

Ensure that all vents are left unobstructed to ensure ventilation of the oven cavity.

Ensure the anti-tilt shelves are put in place correctly. Refer to instructions on pages 15 and 18.

Never line any part of the appliance with foil. Do not allow heatproof cooking materials e.g. roasting bags, to come into contact with oven elements.

Always stand back from the appliance when opening the oven door to allow any build up of steam or heat to release.

Never leave the appliance unattended when the doors are open.

Do not place sealed cans or

aerosols inside the oven. They may explode if they are heated.

Do not leave the hotplates switched ON for long periods when not covered by a saucepan. The controls and cabinets may overheat.

Do not leave utensils containing foodstuffs, e.g. fat or oil in or on the appliance in case it is inadvertently switched ON.

Cookers and hobs become very hot, and retain their heat for a long period of time after use. Children should be kept well away from the appliance until it has cooled.

GENERAL

Under no circumstances should

any repairs be carried out by an inexperienced person as this may cause injury or serious malfunction.

This appliance should be serviced by an authorised service Engineer and only genuine-approved spare parts should be used. Details of repair and servicing arrangements are supplied on page 25 of this book.

Do not stand on the appliance or on the open oven door.

Do not hang towels, dishcloths or clothes from the appliance or its handle. They are a safety hazard.

Only clean this appliance in accordance with the instructions given in this book.

AFTER USE

Ensure that all control knobs are in

the OFF position when not in use.

For hygiene and safety reasons this appliance should be kept clean at all times. A build-up of fats or other foodstuffs could result in a fire, especially in the grill pan.

Your safety is of paramount importance.

Therefore, if you are unsure about any of the meanings of these WARNINGS contact the:

Customer Care Department Telephone 0870 5 950950

Page 8

INTRODUCTION

WARNING: THIS APPLIANCE MUST BE EARTHED

RATING PLATE

This is situated on the lower front frame of the appliance and can be seen upon opening the door. Alternatively the rating plate may also be found on the back or top of some models (where applicable).

The appliance must be protected by a suitably rated fuse or circuit breaker. The rating of the appliance is given on the rating plate.

Do not remove the rating plate from the appliance as this may invalidate the guarantee.

INSTALLATION

If your appliance has been damaged in transit, contact your supplier immediately. DO NOT attempt to install it.

Your appliance left the factory fully packaged to protect it from damage. If it is delivered without packaging and damage has occurred, the manufacturer cannot accept responsibility. Contact your supplier for advice.

Once the packaging has been removed the appliance should only be moved by hand. DO NOT use a sack barrow or any other aid to lift the appliance as damage may occur.

To move the appliance, open the main oven door, and lift the appliance by holding inside the top of the compartment.

This is a type Y appliance, which means it is freestanding and can be fitted with cabinets on one or both sides. It may also be fitted in a corner setting.

Side walls which are above hob level should be protected by heat resistant non-combustible material and MUST NOT be nearer than 40mm to the hob side.

A nominal air gap of 2mm at either side of the appliance is required to enable the appliance to be moved into position.

Always ensure an air gap is maintained at hotplate level. Tiles or other forms of deep wall covering should not obscure this gap.

Connection to the electricity supply must be carried out by a qualified electrician/competent person.

The electrical connection should be made using a double pole isolating switch (cooker socket) with at least 3mm contact separation in all poles. The cable must have conductors of sufficiently high crosssectional area to prevent overheating and deterioration.

The recommended cross-section area is six square millimetres (6.00mm

The cable should be routed away from potentially hot areas marked by X in the diagram below.

Air gap

Overhanging surfaces or a cooker hood should be a minimum of 685mm above the hob.

It is important to ensure that the appliance is level after installation. Levelling feet are fitted to the appliance to accommodate uneven floors.

Page 9

GENERAL NOTES ON USING YOUR APPLIANCE

We suggest that you run the oven elements for 10 – 15 minutes at 220 their surfaces.

The procedure should be repeated with the grill for approximately 5 – 10 minutes.

During this period an odour may be emitted, it is therefore advisable to open a window for ventilation.

C to burn off any residue from

ABOUT CONDENSATION AND STEAM

When food is heated it produces steam similar to a boiling kettle. The oven is vented to allow some of this steam to escape between the wall and the rear of the appliance. However, always stand back from the appliance when opening the oven door to allow any build up of steam or heat to release.

If the steam comes into contact with a cool surface on the outside of the appliance, e.g. a trim, it will condense and produce water droplets. This is quite normal and is not caused by a fault on the appliance.

To prevent discolouration, regularly wipe away condensation and also soilage from surfaces.

GRILL AND OVEN FURNITURE

The following items of grill/oven furniture have been supplied with the appliance. If you require replacements of any of the items listed below please contact your local Service Force Centre, quoting the relevant part number.

1 grill pan (311409401)

1 grill pan handle (311468100)

Note:

If you require an additional handle for your grill pan, this can be ordered from your local Service Force Centre by quoting part number 311479800\6.

For your safety wall coverings at the rear of the appliance should be securely fixed to the wall.

THE COOLING FAN FOR THE CONTROLS

The cooling fan comes on immediately when the grill or top oven are switched on and after a time when the main fan oven is in use. The operation of the cooling fan is temperature dependent in the case of the main oven and the cooling fan may not switch in at all at low temperature settings or where the main oven has only been used for a short time. The cooling fan may run on, after the control knobs have been switched off, until the appliance has cooled. Do not switch the appliance off at its power point until the fan has cooled the appliance down.

CONTROL PANEL INDICATOR NEONS

These lights indicate whether the ovens are switched on.

The neons also indicate when the set temperature has been reached. They will turn on and off during use to show that the temperature is being maintained.

If the neons do not operate as the instructions indicate the controls have been incorrectly set. Return all controls to zero and re-set following the instructions for the required setting.

1 grill pan grid (311419801)

1 straight shelf for grilling and top oven cooking

2 straight shelves for main oven cooking

Scuffing of the Stayclean panel/s by the oven furniture pack may occur during transit. These marks will disappear after the oven elements have been burnt off for the first time.

Page 10

GETTING TO KNOW YOUR APPLIANCE

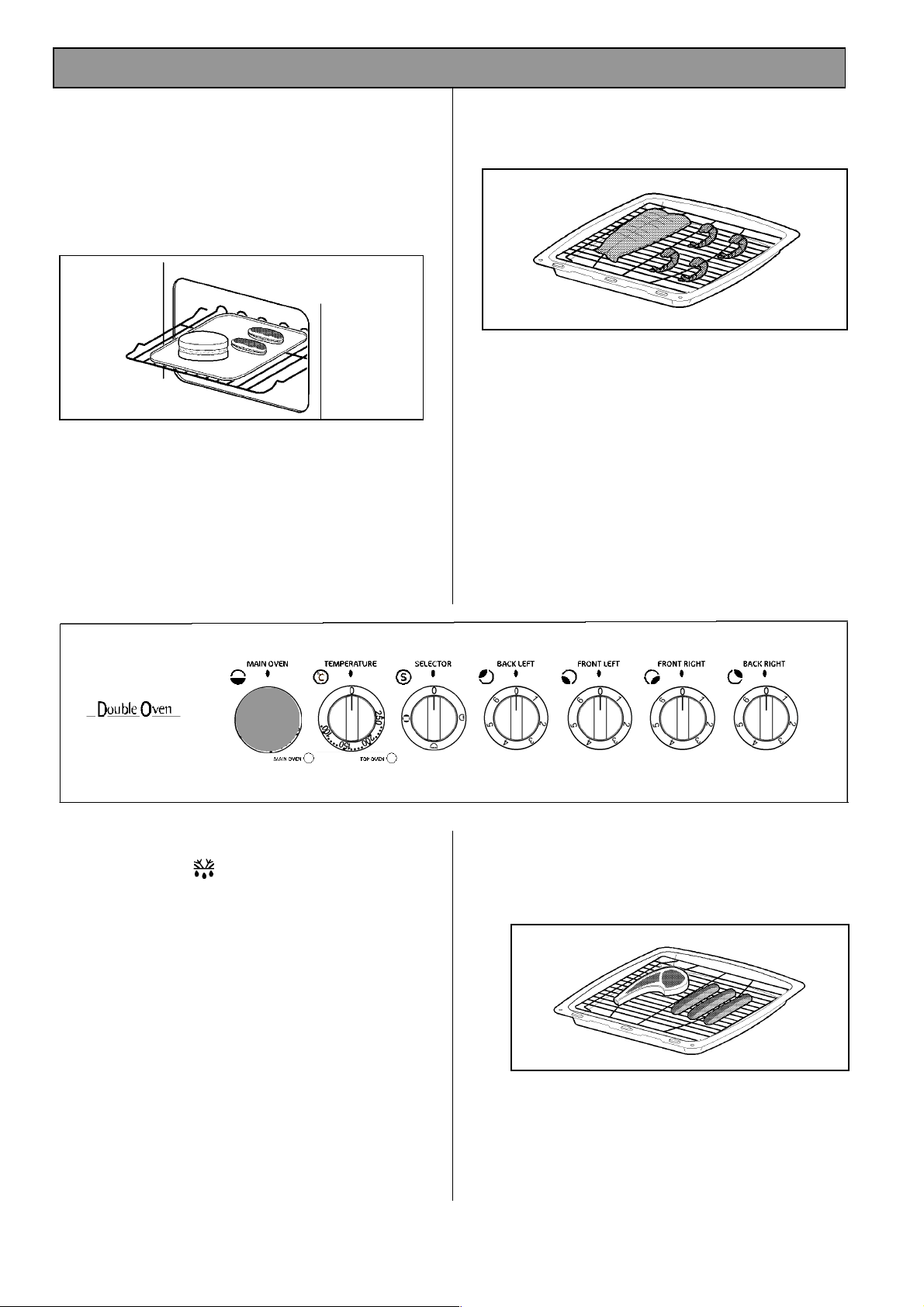

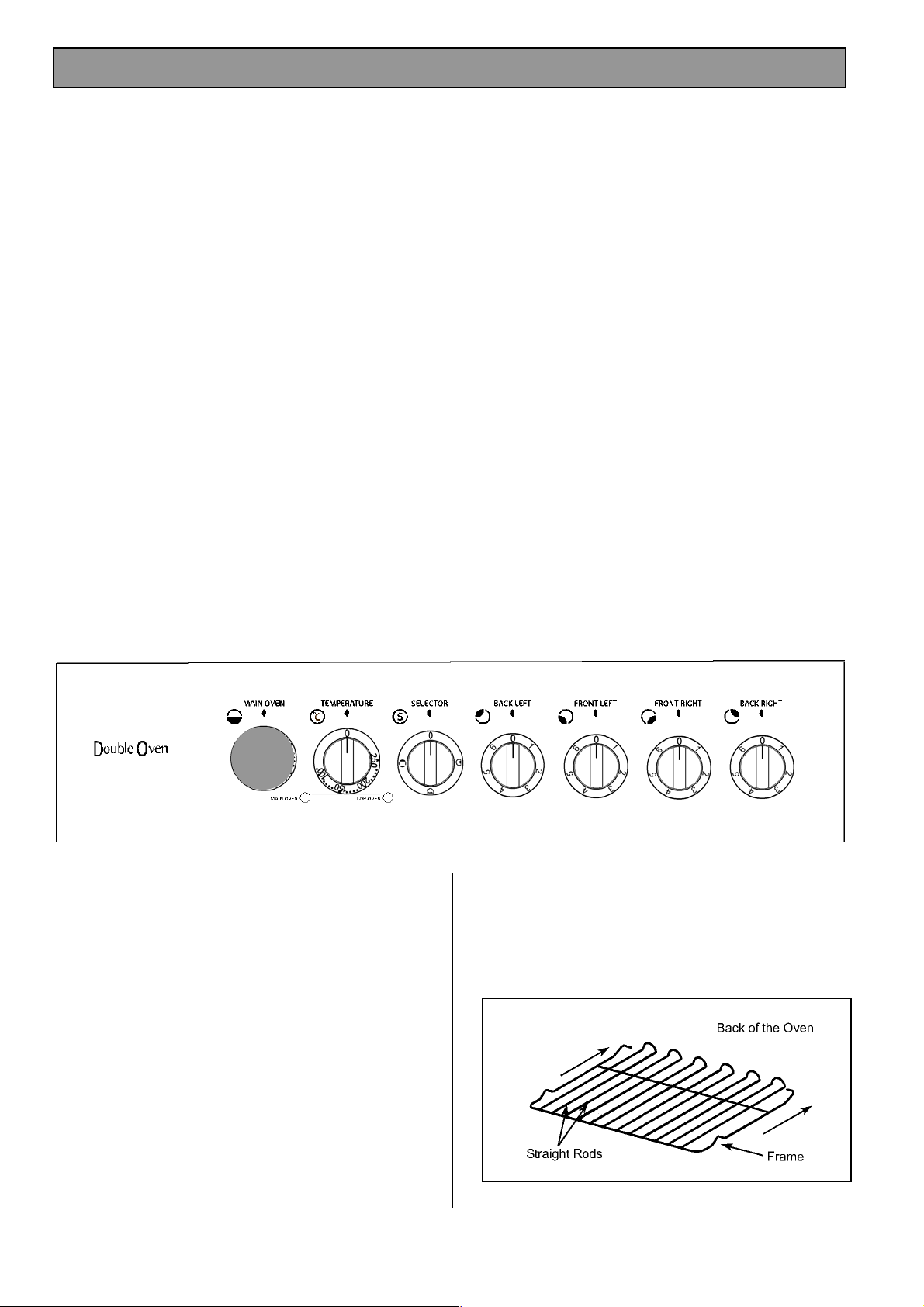

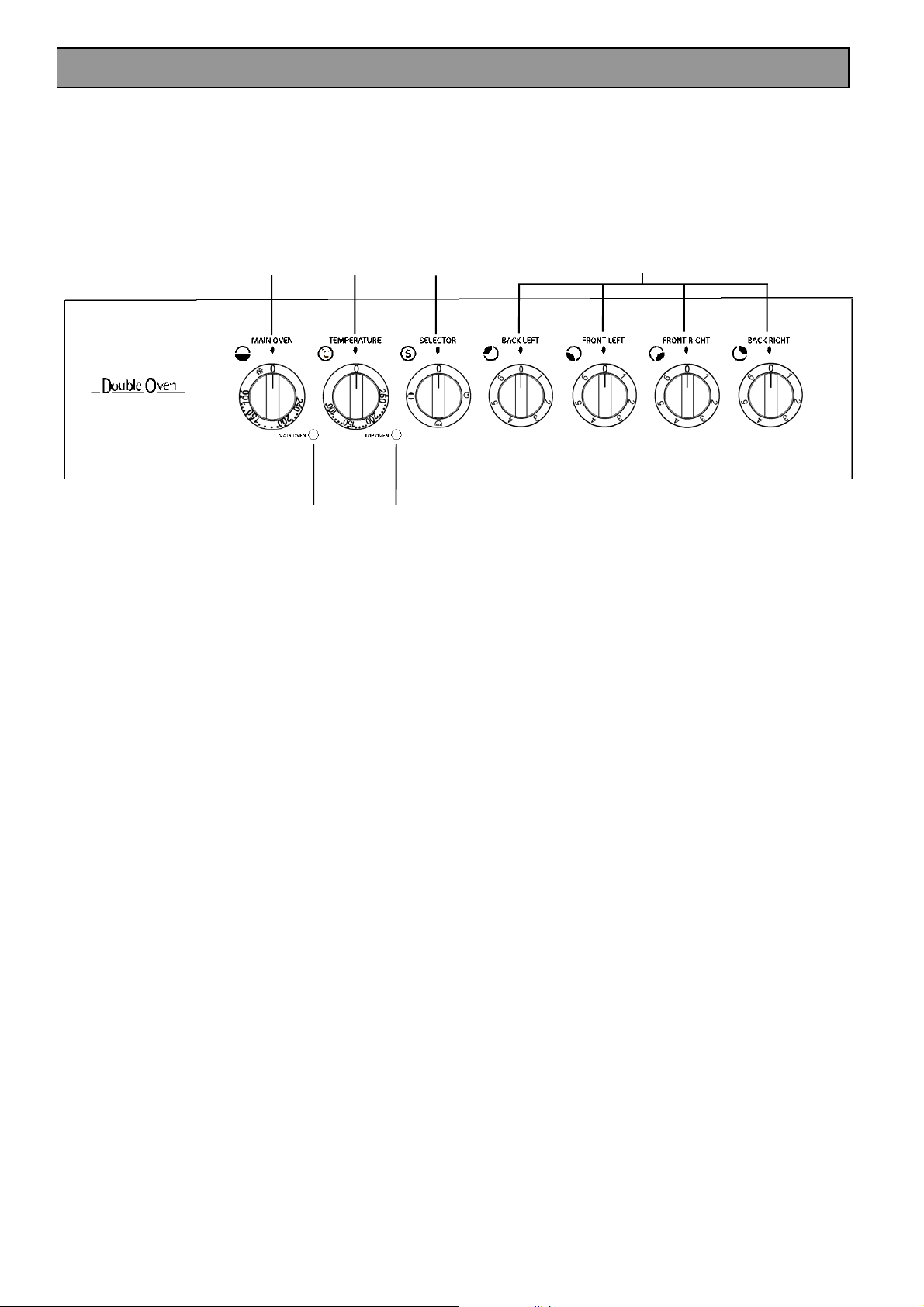

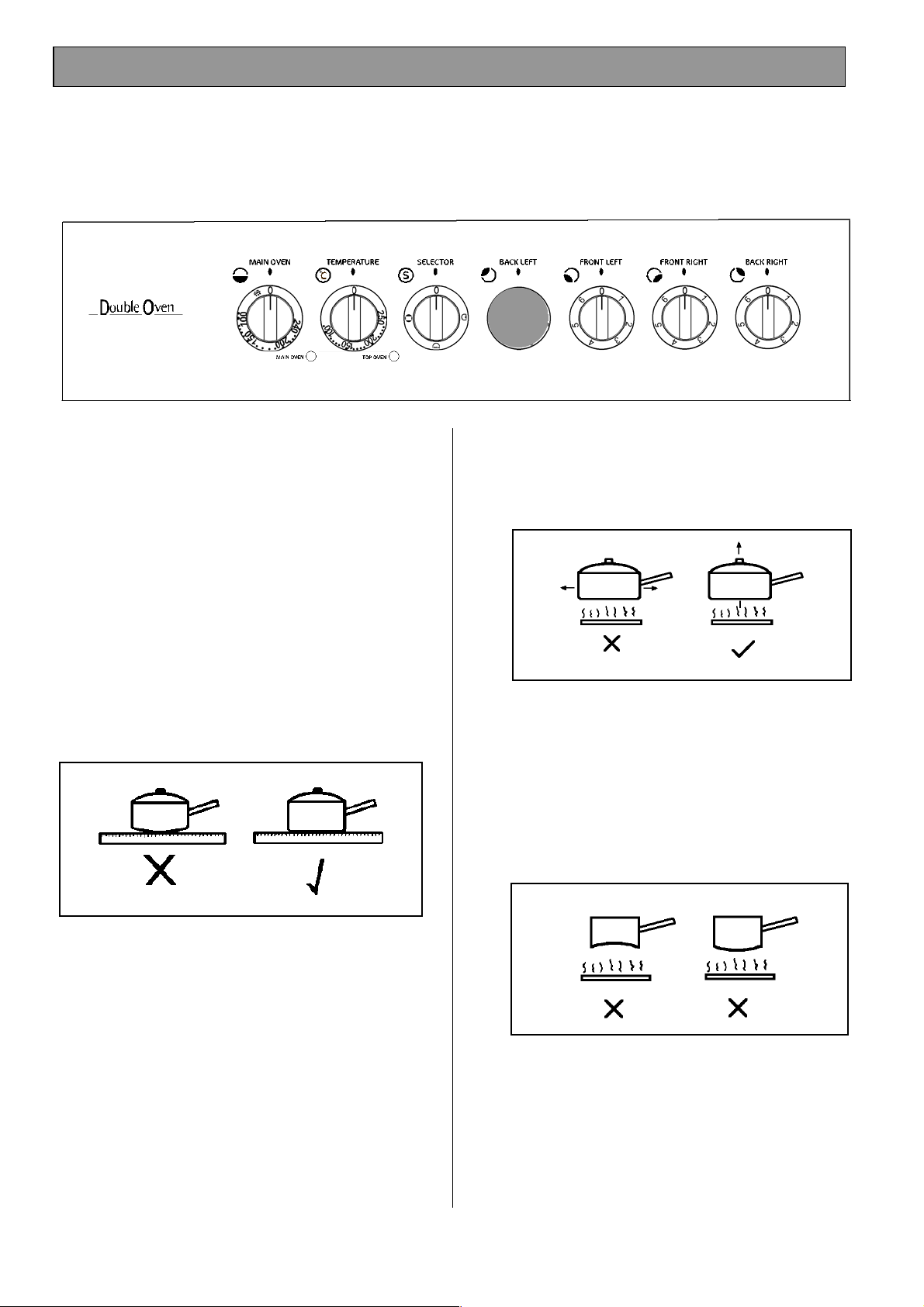

THE CONTROL PANEL

FEATURES

A - Main Oven Temperature Control B - Top Oven Temperature Control C - Selector Control D - Hotplate Controls EF--Main Oven Indicator Neon

E F

Top Oven Indicator Neon

B C

Page 11

THE SEALED HOTPLATES

BEFORE USING THE HOTPLATES FOR THE FIRST TIME

Turn the control knob to a medium/high setting and allow the hotplate to heat, uncovered by a saucepan for 3-5 minutes. This hardens the protective coating on the hotplates and makes it more resistant to normal use. A harmless smoke will be given off from the hotplates.

· To operate the hotplates turn the control knobs in

either direction to vary the heat setting.

· The highest number represents the hottest

setting and the lowest number represents the coolest setting. Choose a setting appropriate to the quantity and type of food to be cooked.

RECOMMENDED SAUCEPANS

For speed and economy only good quality saucepans with flat bases and close fitting lids are recommended.

To check the flatness of the saucepan, place a ruler across the pan base, hold at eye level and look for light showing. There should be very little or no light visible between the ruler and the pan base.

HINTS AND TIPS

· Lift, rather than slide saucepans on and off the

hob to help reduce scratches and maintain the efficiency of the hotplates.

· Avoid the use of decorative covers as they can

cause condensation to form on the hotplates which may lead to deterioration.

· Follow any guidelines provided by the saucepan

manufacturer, particularly those relating to recommended heat settings.

· Avoid using thin, badly dented or distorted

saucepans as they can lead to sticking and burning of food.

The size of the base of the saucepan should be the same or up to 2.5cm/1 inch larger than the hotplate. If the base is too small, energy will be wasted, boilovers will also be more difficult to deal with as spillage will fall directly onto the hotplate.

Pressure cookers, preserving pans etc., should comply with the recommendations given above. Traditional round bottomed Woks must not be used even with a stand. Woks with flat-bottomed bases are available and do comply with the above recommendations.

· To prolong the life of the hotplates:

· Never use utensils with a skirt, e.g. a bucket.

· Never use an asbestos mat.

· Never leave the hotplates ON when not

covered with a saucepan.

Page 12

DEEP FAT FRYING

SPECIAL FRYING NOTE:

For safety purposes when deep fat frying, fill the pan one third full of oil, DO NOT cover the pan with a lid and DO NOT leave the pan unattended. In the unfortunate event of a fire, switch the appliance OFF at the electricity supply and cover the pan with a lid or damp cloth to assist in smothering the flames.

6. Frying temperatures

First frying of potatoes

Celsius Fahrenheit

Scale (°C)

150

170 340

175 350 180 360

Scale (°F)

300

DO NOT use water on the fire. Leave the pan to cool for at least 30 minutes before moving it.

DO NOT leave the fat or oil in the frying pan on the hob to store it in case the hob is inadvertently switched ON.

1. Preparing the food.

Seal the food by coating with flour, egg and breadcrumbs or batter. Do not use a basket with batter coated foods as they will stick.

2. Amount of oil.

For safety purposes fill the pan only one-third full of oil.

3. Testing the temperature of the oil.

It is advisable to use a thermometer to test the temperature of the oil. Alternatively, drop a small cube of bread into the oil which should brown in just under a minute if the oil is at the correct temperature of 190°C/375°F.

4. Cooking the food.

Lower the food gently into the oil. Do Not add too much food at once or the temperature of the oil will be reduced and may result in soggy, greasy food.

Turn the food if necessary; doughnuts float to the surface so will not brown on the upperside if not turned. Once cooked, drain the food on absorbent paper.

5. Double frying chips.

Double frying will ensure good chips. First fry the chips for a few minutes at 170°C/340°F to seal the outside. Remove the chips from the oil. Increase the temperature of the oil to 190°C/375°F to finish cooking and brown the chips.

Second frying of potatoes Frying chicken and fish 195 380

190 375

200 390

PRESERVING

1. DO NOT use a pan that overlaps the perimeter of the hob trim.

2. To allow for a full rolling boil, the pan should be no more than one third full when all the ingredients have been added. It is better to use two pans rather than overfill one, or use half quantities.

3. Use firm fruit or vegetables and wash well before using.

4. Preserving sugar gives clear jam, however granulated sugar is cheaper and gives equally good flavour.

5. Crystallization may be caused if sugar is not completely dissolved before bringing jam to the boil. Over boiling will affect the flavour, setting properties and colour of the jam.

6. To test jam for setting:

If a jam thermometer is available, boil jam to 104°C. Marmalade should be boiled to 106°C.

If a jam thermometer is not available, remove pan from heat, place sample of jam on a cold dish and cool quickly (i.e. in a freezer or frozen food storage compartment of a refrigerator). When cold, it will crinkle and hold the mark of a finger run through it, if it is at setting point.

7. The scum should be removed as soon as possible after setting point has been reached. Marmalade should be allowed to cool before potting to prevent the peel rising.

Chips may be kept for several hours after the first frying before finishing off with the second frying.

Page 13

THE DUAL GRILL

USES OF THE GRILL

CAUTION – ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. CHILDREN SHOULD BE KEPT AWAY.

The grill is a dual circuit grill which means that the full area of the grill can be used or for economy purposes, the centre section only can be used when cooking smaller quantities of food.

SELECTING THE GRILL

· Select the grill function for full grill.

· Select the grill function for centre section only.

· Turn the temperature control knob to the right as

far as it will go. This is the hottest setting.

· To use the grill at lower settings, turn the

temperature control knob so that 110°C or 150°C on the knob lines up with the off dot on the panel.

THINGS TO NOTE

THE GRILL DOOR MUST BE LEFT FULLY OPEN DURING GRILLING.

· Some smoke from fat splashes may be evident

as the grill cleans itself.

· The top oven cannot be operated when the grill

is in use.

· The inner grill element may appear to glow

slightly brighter than the outer element. This is quite normal.

Slide the handle to the left and over the central bump on the grill pan.

Ensure the handle is correctly located. It is not necessary to remove the grill pan handle during grilling.

To remove the handle, slide the handle to the right and lift the handle away from the cut out on the grill pan.

THE GRILL PAN AND HANDLE

The grill pan is supplied with a removable handle. To attach the handle, place the wirework under the cut out in the pan so that the metal plate hooks over the top of the grill pan.

Place the grill pan on the shelf so that the pan is positioned centrally beneath the grill.

Page 14

HINTS AND TIPS

GRILLING CHART

· In order to become acquainted with the

performance of the Dual grill, it is advisable to check food regularly when grilling.

· Food should be thoroughly dried before grilling to

minimise splashing. Brush lean meats and fish lightly with a little oil or melted butter to keep them moist during cooking.

· Adjust the height of the grilling grid and grill pan

runner position to allow for different thicknesses of foods.

· Accompaniments such as tomatoes and

mushrooms may be placed underneath the grid when grilling meats.

FOOD SHELF

Bacon Rashers 1 2-3 each side

Beefburgers 1 6-10 each side

Chicken Joints 1 15-20 each side

Chops - Lamb 1 7-10 each side

Pork 1 10-15 each side

Fish - Whole

Trout/Mackerel 1 8-12 each side

Fillets - Plaice/Cod 1 4-6 each side

Kebabs 1 10-15 each side

Kidneys - Lamb/Pig 1 4-6 each side

Liver - Lamb/Pig 1 5-10 each side

Sausages 1 10-15 each side

Steaks - Rare 1 3-6 each side

Medium 6-8 each side Well Done 1 7-10 each side

GRILL TIME

(mins in total)

· When toasting bread use the shelf in position 1

with the grid in the high position.

· Preheat the grill on a full setting for a few minutes

before cooking. Adjust the heat setting and the shelf as necessary during cooking.

· The food should be turned over during cooking

as required.

· When using the centre section of the dual grill,

ensure food is positioned centrally on the grill pan grid in the grill pan.

NOTE:

If you require an additional handle for your grill pan, this can be ordered from your local Service Force Centre by quoting part number 311479800\6.

Toasted Sandwiches 1 1¼-1½ each side

Shelf positions are counted from the bottom upwards.

The times quoted above are given as a guide and should be adjusted to suit personal taste.

Page 15

THE TOP OVEN

USES OF THE TOP OVEN

The top oven is the smaller of the two ovens. It is heated by elements in the top and bottom of the oven. It is designed for cooking smaller quantities of food. It gives especially good results if used to cook fruit cakes, sweet or savoury flans or quiche.

The top oven is also ideal for use as a warming compartment to warm dishes and keep food hot. Use the lowest setting on the top oven temperature control.

SELECTING THE TOP OVEN

· Turn the top oven function selector to.

· Turn the top oven temperature control to the

required setting.

· The cooling fan will operate immediately with the

top oven. For more details on cooling fan operation see page 9.

THINGS TO NOTE

1. The grill cannot be operated when the top oven is in use. If the grill and top oven controls are selected at the same time, only the top oven will operate.

2. The top oven indicator neon will glow until the oven has reached the desired temperature and then go out. It will turn ON and OFF periodically during cooking showing that the oven temperature is being maintained.

3. The cooling fan will operate immediately with the top oven. For more details about the cooling fan see page 9.

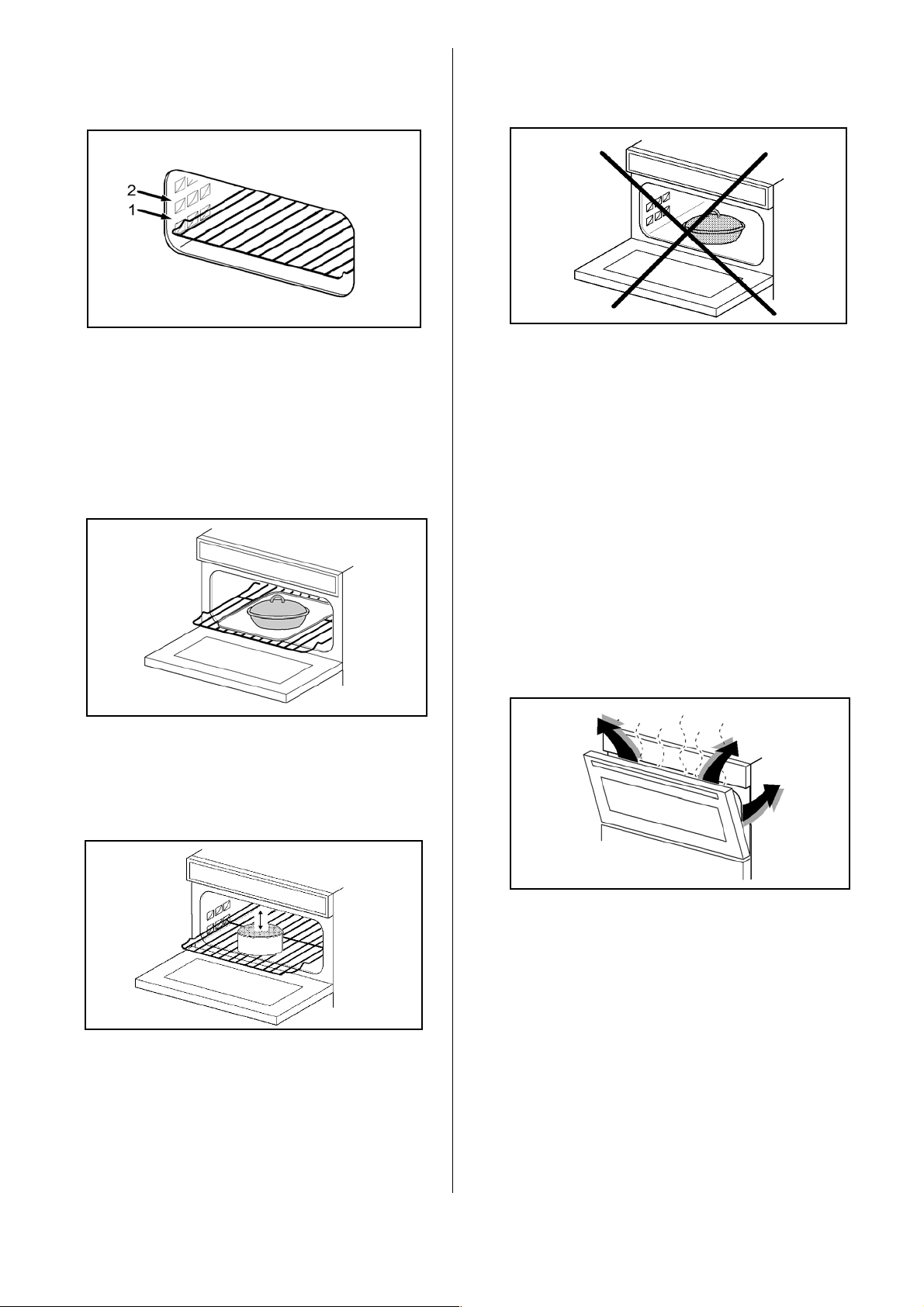

TO FIT THE TOP OVEN SHELF

The shelf should be fitted with the straight rods uppermost on the frame and the forms towards the back of the oven. If not fitted correctly the anti-tilt and safety stop mechanism will be affected.

4. Always place plates on the oven shelf to warm. Never place dishes directly on the top oven base as becomes very hot and damage may occur.

Page 16

HINTS AND TIPS

· Most cooking should be carried out using an

oven shelf positioned in one of the shelf runners.

· DO NOT place dishes directly onto the oven

base as it becomes very hot and damage may occur.

· Larger roasts and casseroles should normally be

cooked in the main oven. However, they may be cooked on a flat shelf placed on the base of the top oven provided there is sufficient room for air circulation around the food.

· Stand dishes on a suitably sized baking tray on

the shelf to prevent spillage onto the oven base and to help reduce cleaning.

· There should always be at least 2.5cm (1”)

between the top of the food and the element. This gives best cooking results and allows room for rise in yeast mixtures, Yorkshire puddings, etc.

· The material and finish of the baking trays and

dishes will affect the degree of base browning of the food. Enamelware, dark, heavy or non-stick utensils increase base browning. Shiny aluminium or polished steel trays reflect the heat away and give less base browning.

· DO NOT use the grill pan as a baking tray as this

will increase base browning of the food.

· Because of the smaller cooking space, lower

temperatures and shorter cooking times are sometimes required. Be guided by the recommendations on pages 19 and 20.

· For economy leave the door open for the shortest

possible time, particularly when placing food into a pre-heated oven.

· When cooking cakes, pastry, scones, bread, etc.,

place the tins or baking trays centrally on the shelf directly below the element.

Page 17

THE MAIN OVEN

USES OF THE FAN OVEN

The oven is heated by the element around the fan situated behind the back panel. The fan draws air from the oven, the element heats the air which is circulated into the oven via the vents in the back panel. The advantages of fanned oven cooking are:

PREHEATING

The fan oven quickly reaches its temperature, so it is not usually necessary to preheat the oven. Without preheating however, you may find you need to add an extra 5 – 10 minutes on the recommended cooking times. For recipes needing high temperatures, e.g. bread, pastries, scones, soufflés etc., best results are achieved if the oven is preheated first. For best results when cooking frozen or cooked chilled ready meals always preheat the oven first.

COOKING TEMPERATURES

Fan oven cooking generally requires lower temperatures than conventional cooking. Follow the temperatures recommended in the chart on page 19. As a guide reduce temperatures by about 20°C – 25°C for your own recipes, using a conventional oven.

BATCH BAKING

The fan oven cooks evenly on both shelf levels, especially useful when batch baking.

SELECTING THE FAN OVEN

· Turn the fan oven temperature control to the

required setting.

THINGS TO NOTE

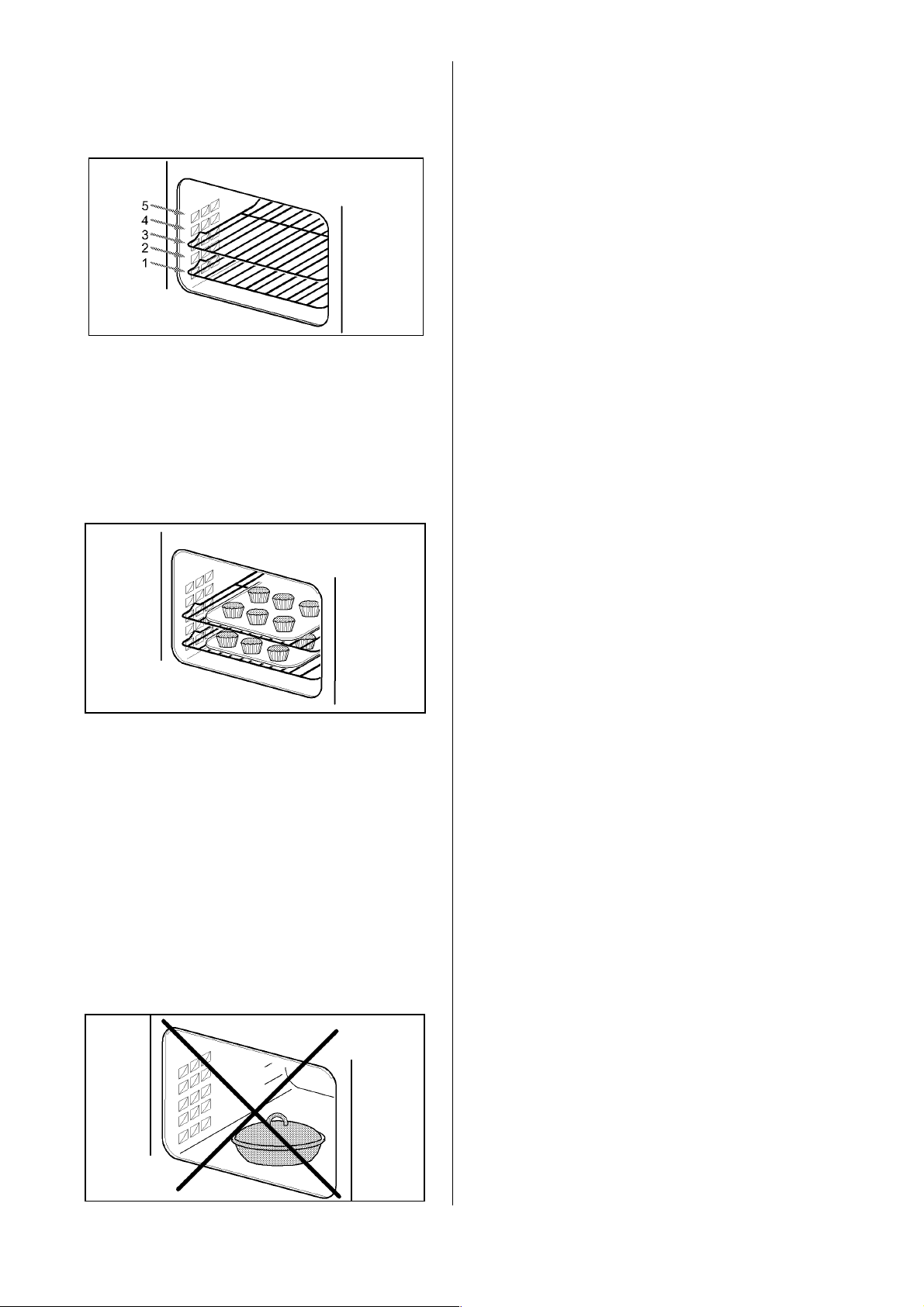

TO FIT THE MAIN OVEN SHELVES

The shelves should be fitted with the straight rods uppermost on the frame and the forms towards the back of the oven. If not fitted correctly the anti-tilt and safety stop mechanism will be affected.

· The main oven indicator neon will glow until the

oven has reached the desired temperature and then go out. It will turn ON and OFF periodically during cooking showing that the temperature is being maintained.

· The cooling fan for the controls may switch in

after a time. See page 9 for more information on the operation of the cooling fan.

Page 18

HINTS AND TIPS

· Arrange the shelves in the required positions

before switching the oven ON. Shelf positions are numbered from the bottom upwards.

· When cooking more than one dish in the fan

oven, place dishes centrally on different shelves rather than cluster several dishes on one shelf, this will allow the heat to circulate freely for the best cooking results.

· When batch baking one type of food, e.g. Victoria

sandwich cakes, those of similar size will be cooked in the same time.

· It is recommended that when baking larger

quantities the shelf positions should be evenly spaced to suit the load being cooked. A slight increase in cooking time may be necessary.

· The use of excessively high temperatures can

cause uneven browning. It may be necessary to reduce temperatures slightly. Refer to the recommendations given in the oven cooking chart, see pages 19 and 20.

· Do not place baking trays directly on the oven

base as it interferes with the oven air circulation and can lead to base burning; use the lower shelf position.

Page 19

OVEN COOKING CHARTOVEN COOKING CHART

The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperatures by 10°C to suit individual

preferences and requirements.

FAN OVEN TOP OVEN

FOOD SHELF

POSITION Biscuits Bread Bread rolls/buns Cakes: Small & Queen

Sponges 160 - 170 1 160 - 170 18 - 20 Victoria Sandwich positions 160 - 170 1 160 - 170 18 - 25 Madeira 140 - 150 1 140 - 150 1¼ - 1½h Rich Fruit 130 - 140 1 140 - 150 2¼ - 2½h Christmas are not 130 - 140 1 130 - 140 3 - 4½h

Gingerbread 140 - 150 1 140 - 150 1¼ - 1½h Meringues critical 90 - 100 1 90 - 100 2½ - 3h Flapjack 170 - 180 1 170 - 180 25 - 30 Shortbread 130 - 140 1 140 - 150 45 - 65

Casseroles: Beef/Lamb but ensure 140 - 160 1* 140 - 160 2½ - 3h

Chicken 180 - 190 1* 180 - 190 1¼ - 1½h Convenience Foods Follow manufacturer’s instructions Fish that oven 170 - 190 1 170 - 190 20 - 30 Fish Pie (Potato Topped) 190 - 200 1* 190 - 200 20 - 25 Fruit Pies, Crumbles 190 - 200 1 190 - 200 40 - 50 Milk Puddings shelves 130 - 140 1 140 - 150 1½ - 2h Pasta Lasagne etc. 190 - 200 1 170 - 180 40 - 45

Pastry: Choux are 190 - 200 1 180 - 190 30 - 35

Eclairs, Profiteroles 170 - 180 1 170 - 180 20 - 30

Flaky/Puff Pies 210 - 220 1* 210 - 220 25 - 40 Shortcrust Mince Pies evenly 190 - 200 1 190 - 200 15 - 20

Meat Pies 190 - 210 1* 190 - 210 25 - 35

Quiche, Tarts, Flans 180 - 210 1 180 - 200 25 - 45

Roasting Meat, Poultry 160 - 180 1* 160 - 180 see roasting chart

Shelf

spaced

COOKING

TEMP °C 180 - 190 200 - 220 200 - 220 160 - 170

SHELF

POSITION

1 1

COOKING

TEMP°C 170 - 190 200 - 220 200 - 220 180 - 190

APPROX

COOK TIME (m)

10 - 20 25 - 30 15 - 20 18 - 25

depends on size

Scones when more 210 - 220 1 220 - 230 8 - 12 Shepherd’s Pie 190 - 200 1* 190 - 200 30 - 40 Soufflés 170 - 180 1 170 - 180 20 - 30 Vegetables: Baked Jacket Potatoes than one is 180 - 190 1 180 - 190 1 - 1½h

Roast Potatoes 180 - 190 1 180 - 190 1 - 1½h

Yorkshire Puddings: Large used 210 - 220 1 200 - 210 25 - 40

Individual 200 - 210 1 200 - 210 15 - 25

* = Shelf on the oven base

Note: Shelf positions are counted from the bottom of the oven.

Page 20

ROASTING CHART

INTERNAL TEMPERATURES – Rare : 50-60°C, Medium : 60-70°C, Well done : 70-80°C

MEAT SECOND/FAN OVEN COOKING TIME

Beef 160-180°C

Beef, boned 160-180°C 25-35 minutes per ½kg (1lb)

Mutton and Lamb 160-180°C 25-35 minutes per ½kg (1lb)

Pork and Veal 160-180°C 30-40 minutes per ½kg (1lb)

Ham 160-180°C 30-40 minutes per ½kg (1lb)

Chicken 160-180°C 15-20 minutes per ½kg (1lb)

Turkey and Goose 160-180°C 15-20 minutes per ½kg (1lb) up

Duck 160-180°C 25-35 minutes per ½kg (1lb)

Pheasant 160-180°C 35-40 minutes per ½kg (1lb)

20-35 minutes per ½kg (1lb) and 20-35 minutes over

and 25-35 minutes over

and 30-40 minutes over

and 20 minutes over

to 3½kg (7lb) then 10 minutes per ½kg (1lb) over 3½kg (7lb)

and 25-35 minutes over

and 35-40 minutes over

Rabbit 160-180°C 20 minutes per ½kg (1lb)

and 20 minutes over

Potatoes with meat 160-180°C According to size

Potatoes without meat 180-190°C According to size

The roasting temperatures and times given in the chart should be adequate for most joints, but slight adjustments may be required to allow for personal requirements and the shape and texture of the meat. However, lower temperatures and longer cooking times are recommended for less tender cuts or larger joints.

Wrap joints in foil if preferred, for extra browning uncover for the last 20 – 30 min. cooking time.

Page 21

DEFROST FEATURE

USES OF DEFROST FEATURE

This fan oven function defrosts most foods faster than more conventional methods. It is particularly suitable for delicate frozen foods which are to be served cold e.g. cream filled gateaux, cakes covered with icings or frostings, cheesecakes, biscuits, scones, etc.

It is preferable to thaw fish, meat and poultry slowly in the fridge. However, this process can be accelerated by using the defrost function.

Small or thin fish fillets, frozen peeled prawns, cubed or minced liver, thin chops, steaks etc., can be thawed in 1 – 2 hours.

A 1kg/2¼lb oven ready chicken will be thawed in approximately 5 hours. Remove the giblets as soon as possible during the thawing process.

Joints of meat up to 2kg/4½lb in weight can be thawed using the defrost function.

ALL JOINTS OF MEAT AND POULTRY MUST BE THAWED THOROUGHLY BEFORE COOKING.

ALWAYS COOK THOROUGHLY IMMEDIATELY AFTER THAWING.

SELECTING DEFROST

· Turn the main oven temperature control to the

defrost setting.

· When defrost is selected, the oven indicator neon

may come ON. It will stay ON until the oven reaches room temperature and then go OFF.

· It may turn ON and OFF periodically during

defrosting to maintain a steady room temperature, inside the oven.

HINTS AND TIPS

· Place the frozen food in a single layer where

possible and turn it over half way through the defrosting process.

THINGS TO NOTE

Care must always be taken when handling foods in the home. Always follow the basic rules of food hygiene to prevent bacterial and microbial growth and cross contamination when defrosting, preparing, cooking, cooling and freezing foods.

· The actual speed of defrosting is influenced by

room temperature. On warm days defrosting will be faster than on cooler days.

· DO NOT leave food at room temperature once it

is defrosted. Cook raw food immediately or store cooked food in the fridge, once it has cooled.

Page 22

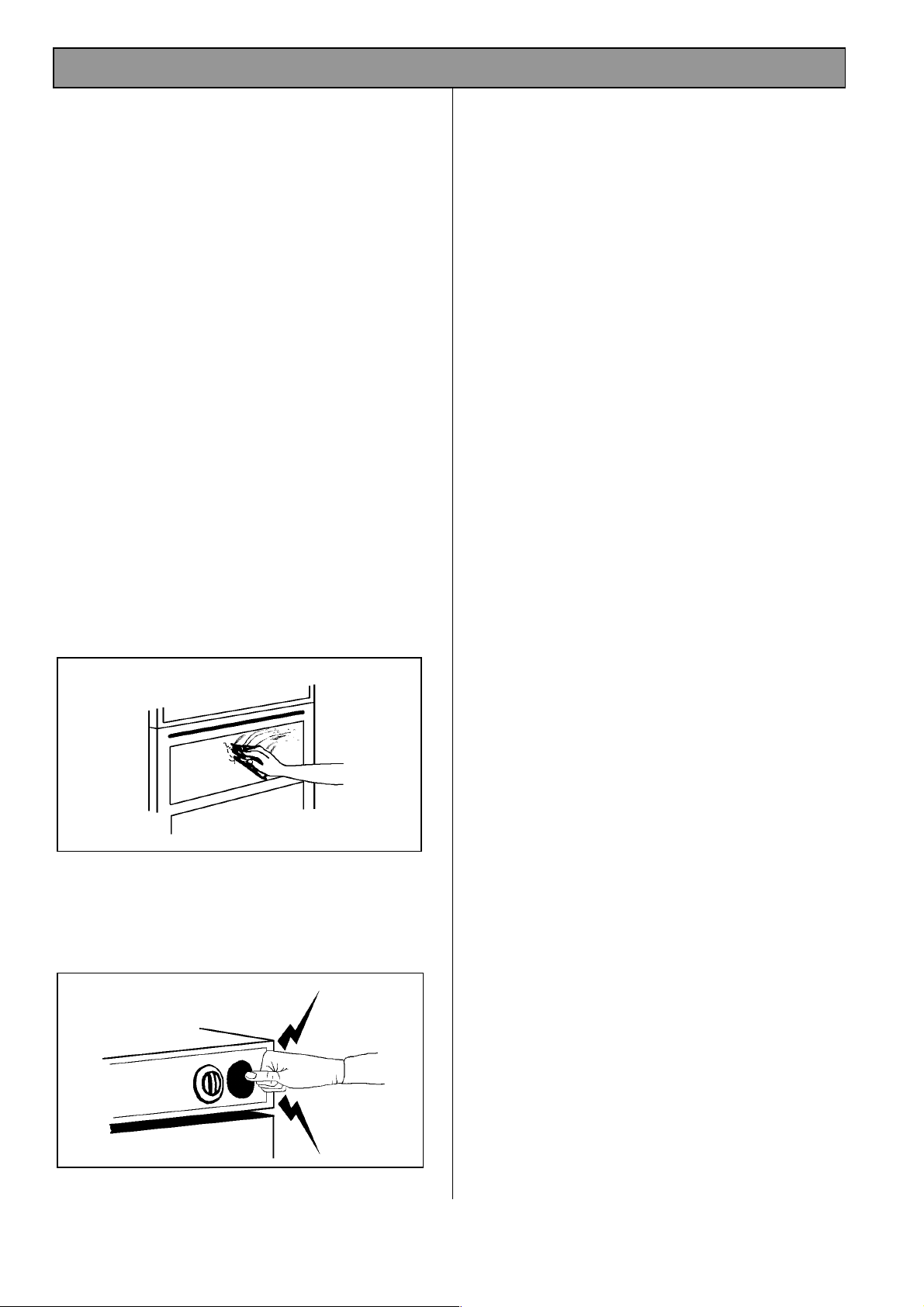

CARE AND CLEANING

BEFORE CLEANING THE APPLIANCE, ALWAYS ALLOW THE COOLING FAN TO COOL THE APPLIANCE DOWN BEFORE SWITCHING OFF AT THE ELECTRICITY SUPPLY.

CLEANING MATERIALS

Before using any cleaning materials on your appliance, check that they are suitable and that their use is recommended by the manufacturer.

Cleaners that contain bleach should NOT be used as they may dull the surface finishes. Harsh abrasives should also be avoided.

CLEANING THE HANDLES

It is strongly recommended that only soapy water is used for cleaning the handles.

CLEANING THE OUTSIDE OF THE APPLIANCE

DO NOT use abrasive cleaning materials, or

scourers on the outside of the appliance as some of the finishes are painted and damage may occur. Regularly wipe over the control panel, oven doors and appliance sides using a soft cloth and liquid detergent.

CLEANING THE SEALED HOTPLATES AND HOTPLATE TRIMS

In order to maintain the appearance of your appliance's sealed hotplates and trims, you are advised to use the recommended cleaning agents daily. If you do not allow spillages to burn on they will be much easier to clean off.

THINGS TO NOTE

The red spot in the centre of the hotplates may be removed with some abrasive cleaning agents. This is not a fault and does not affect the performance of the hotplates.

FOR NORMAL SOILAGE

Wipe over the hotplates and trims using a clean damp cloth then switch to a low or medium setting for a few minutes to thoroughly dry.

FOR HEAVY SOILAGE

Use a clean damp cloth or scourer with a cream cleaner e.g. ‘Cif’ or a powder cleaner e.g. ‘Ajax’ on the hotplate and trims. Follow the circular grooved pattern on the hotplate when cleaning. Rinse off cleaning agents thoroughly. Dry as for normal soilage.

DO NOT ATTEMPT TO REMOVE ANY OF THE CONTROL KNOBS FROM THE APPLIANCE AS THIS MAY CAUSE DAMAGE AND IS A SAFETY HAZARD.

For more stubborn marks warm the hotplate on a low setting for 30 seconds. Clean the sealed plate with ‘Ajax’ powder cleaner, ‘Cif’ or cream cleaner or a ‘Brillo’ pad. You may have to rub hard for several minutes.

Rinse off cleaning agents thoroughly with a damp cloth. Switch to a low or medium setting for a few minutes until the hotplate is thoroughly dry.

CLEANING THE HOTPLATE TRIMS

The stainless steel trims may become straw coloured during use. Using a proprietary stainless steel cleaner, e.g. ‘Shiny Sinks’ will help maintain a bright appearance. Alternatively a powder cleaner such as ‘Bar Keepers Friend’ may be used regularly.

CLEANING THE VITREOUS ENAMEL

Use a clean damp cloth or scourer made for nonstick saucepans with ‘Cif’ or cream cleaner.

Page 23

AFTER CLEANING

CARE OF STAYCLEAN SURFACES

To maintain the appearance of the hotplates occasionally apply a little salt free vegetable oil or commercial restorative agent.

To apply vegetable oil, first heat the hotplate on a medium setting for 30 seconds then turn OFF. Pour a very small amount of oil onto kitchen paper, apply the paper to the hotplate and wipe off any excess oil. Heat the hotplate on a medium setting for 1 minute.

To apply restorative agent, apply a thin coating of ‘4 Hob’ or use a ‘Minky’ Hotplate Cleaning Cloth following the manufacturers instructions.

CLEANING THE GRILL AND OVEN FURNITURE

All removable parts except the grill pan handle can be washed in the dishwasher.

The grill pan, grill pan grid and oven shelves may be cleaned using a soap impregnated steel wool pad. Soaking first in hot soapy water will make cleaning easier.

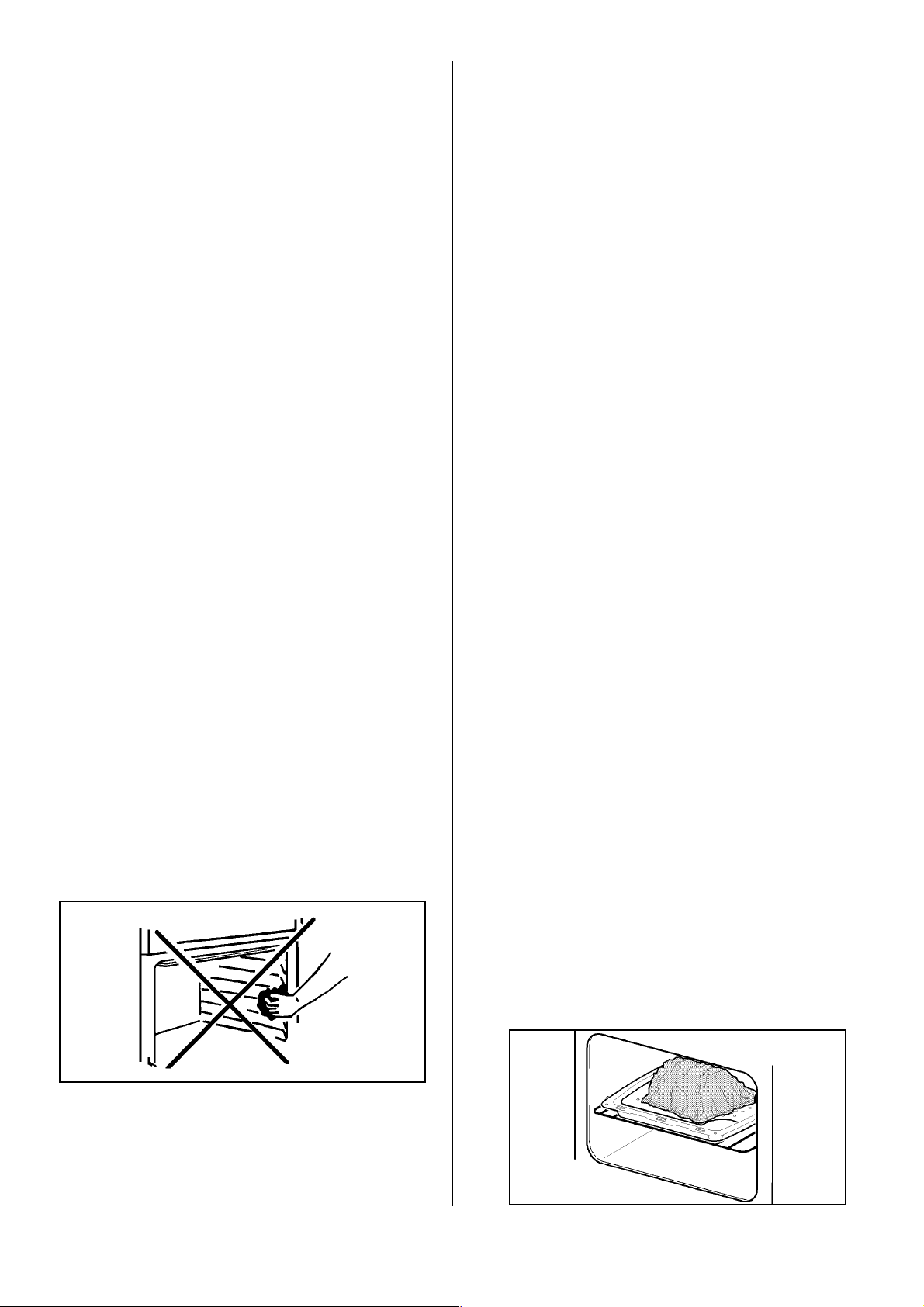

CLEANING INSIDE THE OVEN AND GRILL COMPARTMENTS

The sides, top and back of the grill/top oven and main oven are coated with a special Stayclean coating. The Stayclean coating should not be cleaned manually.

The vitreous enamel fan oven base and grill compartment base, can be cleaned using normal oven cleaners or aerosol oven cleaners with care. Ensure that the manufacturers instructions are followed and that all parts are well rinsed afterwards.

Aerosol cleaners must not be used on Stayclean surfaces and must not come into contact with elements as this may cause damage.

Stayclean surfaces destroy splashes of food and fats when the oven temperature is raised to around 220°C.

It is a good idea to run the oven for an hour or two per week to ensure continued good performance from the Stayclean finish.

HINTS AND TIPS

· Manual cleaning of Stayclean Surfaces IS NOT

recommended. Damage will occur if oven sprays or abrasives of any kind are used.

· Slight discolouration and polishing of the

Stayclean Surfaces may occur in time. This does not affect the Stayclean properties in any way.

· A good time to allow the oven to run on is after

the weekly roast. After removing the roast, turn the oven up to 220°C and allow to run for an hour or so. It is important NOT to allow a build-up of soilage as this can prevent the Stayclean from working.

· Follow the recommendations below to keep oven

soilage to a minimum.

· Cook at the recommended temperatures. Higher

temperatures during roasting will increase soilage. Try cooking at lower temperatures for an increased length of time, you will save energy and often the joint is more tender.

· Use minimal, if any, extra oil or fat when roasting

meat, potatoes only require brushing with fat before cooking. Extra fat in the oven during roasting will increase splashing and soilage.

· It is not necessary to add water to a meat tin

when roasting. The water and the fat juices from the joint create excessive splattering during cooking even at normal temperatures as well as causing condensation.

· Covering joints during cooking will also prevent

splashing onto the interior surfaces. Removing the covering for the last 20-30 minutes will allow extra browning if required. Some large joints and turkeys especially benefit by this method of cooking, allowing the joint to cook through before the outside is over-browned.

Page 24

SOMETHING NOT WORKING?

We strongly recommend that you carry out the following checks on your appliance before calling a Service Engineer. It may be that the problem is a simple one which you can solve yourself without the expense of a Service call. If our Service Engineer finds that the problem is listed below you will be charged for the call whether or not the appliance is under guarantee.

The appliance does not work at all:

* Check that the appliance has been wired in

and is switched on at the wall.

* Check that the main appliance fuse is

working.

The oven temperature is too high or low:

* Check that the recommended temperatures

are being used (see page 19). Be prepared to adjust the temperature up or down by 10°C to achieve the results you want.

The hotplates and main oven work but the grill does not:

* Check that you have carefully followed the

instructions for operation of the grill.

* If the cooling fan fails the grill will not operate

correctly. Please call your Local Service Force Centre.

If the oven is not cooking evenly or the side opening door will not stay open:

* Check that the appliance is correctly installed

and that it is level.

The oven fan is noisy:

* Check that the appliance is level.

* Check that bake ware and shelves are not

vibrating in contact with the back panel in the oven.

Page 25

SERVICE AND SPARE PARTS

In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local Service Force Centre by telephoning:-

0870 5 929929

Your telephone call will be automatically routed to the Service Force Centre covering your post code area.

For the address of your local Service Force Centre and further information about Service Force, please visit the website at www.serviceforce.co.uk.

Before calling out an engineer, please ensure you have read the details under the heading "Something Not Working?".

When you contact the Service Force Centre you will need to give the following details:

1. Your name, address and post code.

2. Your telephone number.

3. Clear and concise details of the fault.

4. The model and serial number of the appliance (found on the rating plate).

5. The purchase date.

Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee service calls.

For Customer Service in Ireland please contact us at the address below:

Tricity Bendix Electrolux Group (Irl) Ltd Long Mile Road Dublin 12 Republic of Ireland

Tel: +353 (0) 1 4090752

Email: service.eid@electrolux.ie

CUSTOMER CARE DEPARTMENT

For general enquires concerning your Tricity Bendix appliance, or for further information on Tricity Bendix products, please contact our Customer Care Department by letter or telephone at the address below;

Customer Care Department Tricity Bendix 55 – 77 High Street Slough Berkshire SL1 1DZ Tel: 0870 5 950950 (*)

*calls to this number may be recorded for training purposes.

Page 26

GUARANTEE CONDITIONS

Standard guarantee conditions

We, Tricity Bendix, undertake that if within 12 months of the date of the purchase this Tricity Bendix appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:

· The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.

· The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s

instructions.

· The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not

authorised by us.

· All service work under this guarantee must be undertaken by a Service Force Centre.

· Any appliance or defective part replaced shall become the Company’s property.

· This guarantee is in addition to your statutory and other legal rights.

Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a premium will be charged.

Exclusions

This guarantee does not cover:

· Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or

removable parts of glass or plastic.

· Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the

United Kingdom.

· Appliances found to be in use within a commercial environment, plus those which are subject to rental

agreements.

· Products of Tricity Bendix manufacture which are not marketed by Tricity Bendix.

European Guarantee

If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:

· The guarantee starts from the date you first purchased your product.

· The guarantee is for the same period and to the same extent for labour and parts as exists in the new country

of use for this brand or range of products.

· This guarantee relates to you and cannot be transferred to another user.

· Your new home is within the European Community (EC) or European Free Trade Area.

· The product is installed and used in accordance with our instructions and is only used domestically, i.e. a

normal household.

· The product is installed taking into account regulations in your new country.

Before you move please contact your nearest Customer Care centre, listed below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.

France Senlis +33 (0) 3 44 62 20 13 Germany Nürnberg +49 (0) 800 234 7378 Italy Pordernone +39 (0) 800117511 Sweden Stockholm +46 (0) 20 78 77 50 UK Slough +44 (0) 1753 219898 Ireland Dublin +353 (0) 1 4090752

Page 27

NOTES

Page 28

Tricity Bendix, 55-77 High Street, Slough, Berkshire SL1 1DZ

Consumer care telephone number 08705 950950

IMPORTANT NOTICE

In line with our continuing policy of research and development, we reserve the right to alter models and specifications without prior notice.

This instruction booklet is accurate at the date of printing, but will be superseded if specifications or appearance are changed.

SE402 - 311679600
