OPERATING & INSTALLATION
INSTRUCTIONS
ELECTRIC COOKER
SE 211
GB
WARNINGS
It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred, always ensure that the book is left with the appliance in order that the new owner can get to know the functions of the appliance and the relevant warnings.
These warnings are provided in the interest of safety. You MUST read them carefully before installing or using the appliance.
Installation
•This cooker must be installed by qualified personnel, according to the manufacturer’s instructions and to the relevant British Standards.
•This cooker is heavy. Take care when moving it.
•Remove all packaging before using the cooker.
•Ensure that the electrical supply complies with the type stated on the rating plate.
•Do not attempt to modify the cooker in any way.
Child Safety
•This cooker is designed to be operated by adults. Do not alow children to play near or with the cooker.
•The cooker gets hot when it is in use and retains their heat for a long period after use. Children should be kept away until it has cooled.
•Children can also injure themselves by pulling pans or pots off the cooker.
During use
•This cooker is intended for domestic cooking only. It is not designed for commercial or industrial purposes.
•Do not use this cooker if it is in contact with water. Do not operate the cooker with wet hands.
•The grill pan will become hot during use, always use oven gloves when removing or replacing a hot grill pan.
•During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.
•Ensure the control knobs are in the ‘OFF’ position when not in use.
•When using other electrical appliances, ensure the cable does not come into contact with the hot surfaces of the cooker.

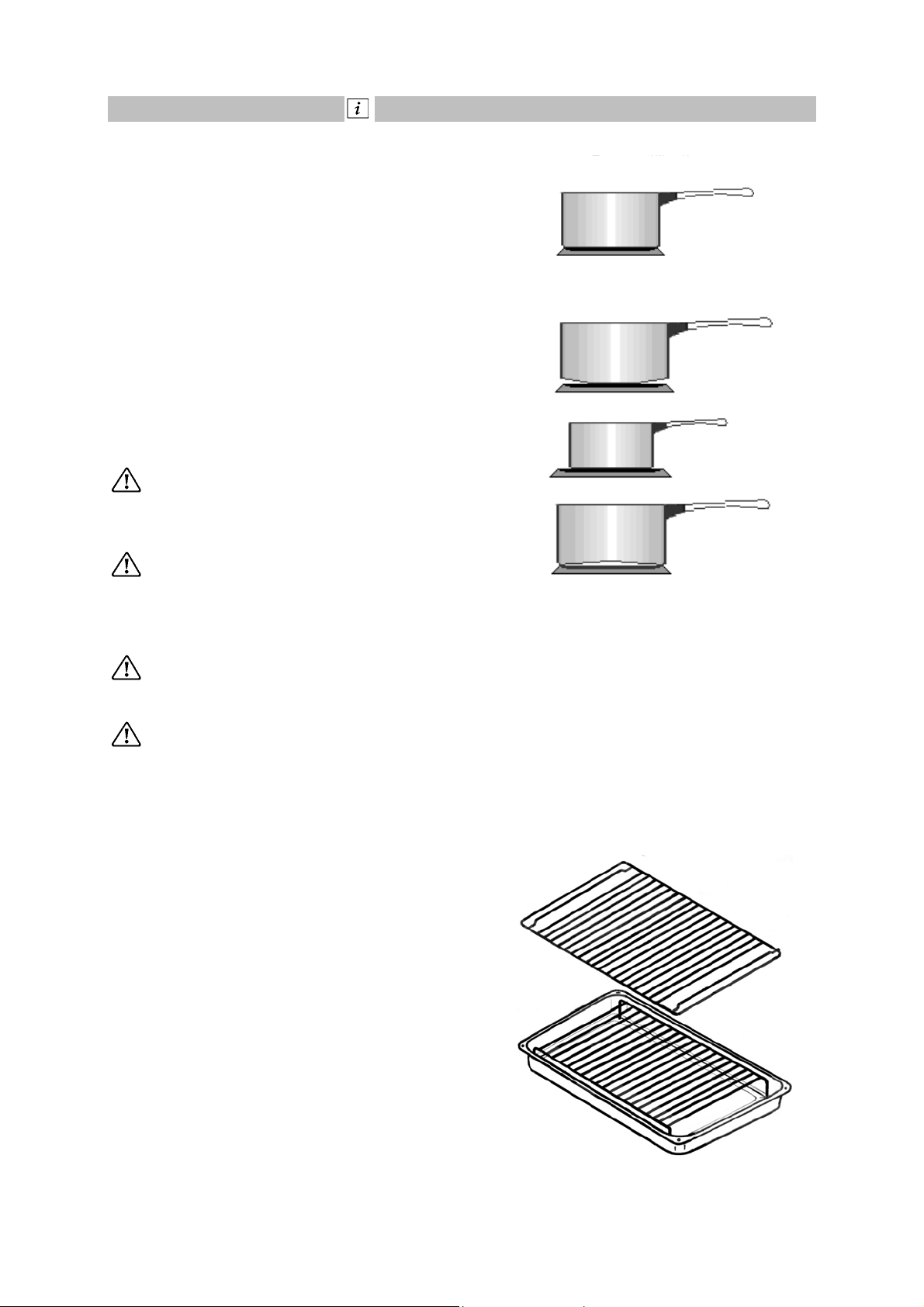

•Unstable or misshapen pans should not be used on the hob hotplates as unstable pans can cause an accident by tipping or spillage.
•Never leave the cooker unattended when cooking with oil and fats.
•This cooker should be kept clean at all times. A build-up of fats or foodstuffs could result in a fire.
•Only clean this oven in accordance with the instructions.
•Never use plastic dishes in the oven or on the hob hotplates. Never line any part of the oven with aluminium foil.
•Always ensure that the oven vent, which is located at the centre back of the hob, is left unobstructed to ensure ventilation of the oven cavity.
•Perishable food, plastic items and aerosols may be affected by heat and should not be stored above the cooker.
Service
•This cooker should only be repaired or serviced by an authorised Service Engineer and only genuine approved spare parts should be used.
Environmental Information
•After installation, please dispose of the packaging with due regard to safety and the environment.
•When disposing of an old appliance, make it unusable, by cutting off the cable.
The symbol
on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
Your safety is of paramount importance.
Therefore, if you are unsure about any of the meanings of these WARNINGS, contact the:
Customer Care Departement Telephone: 08705 950950
3
|
CONTENTS |
Instructions for the Installer |
|
Tehnical features |
5 |
Installation |
6 |
Location |
6 |

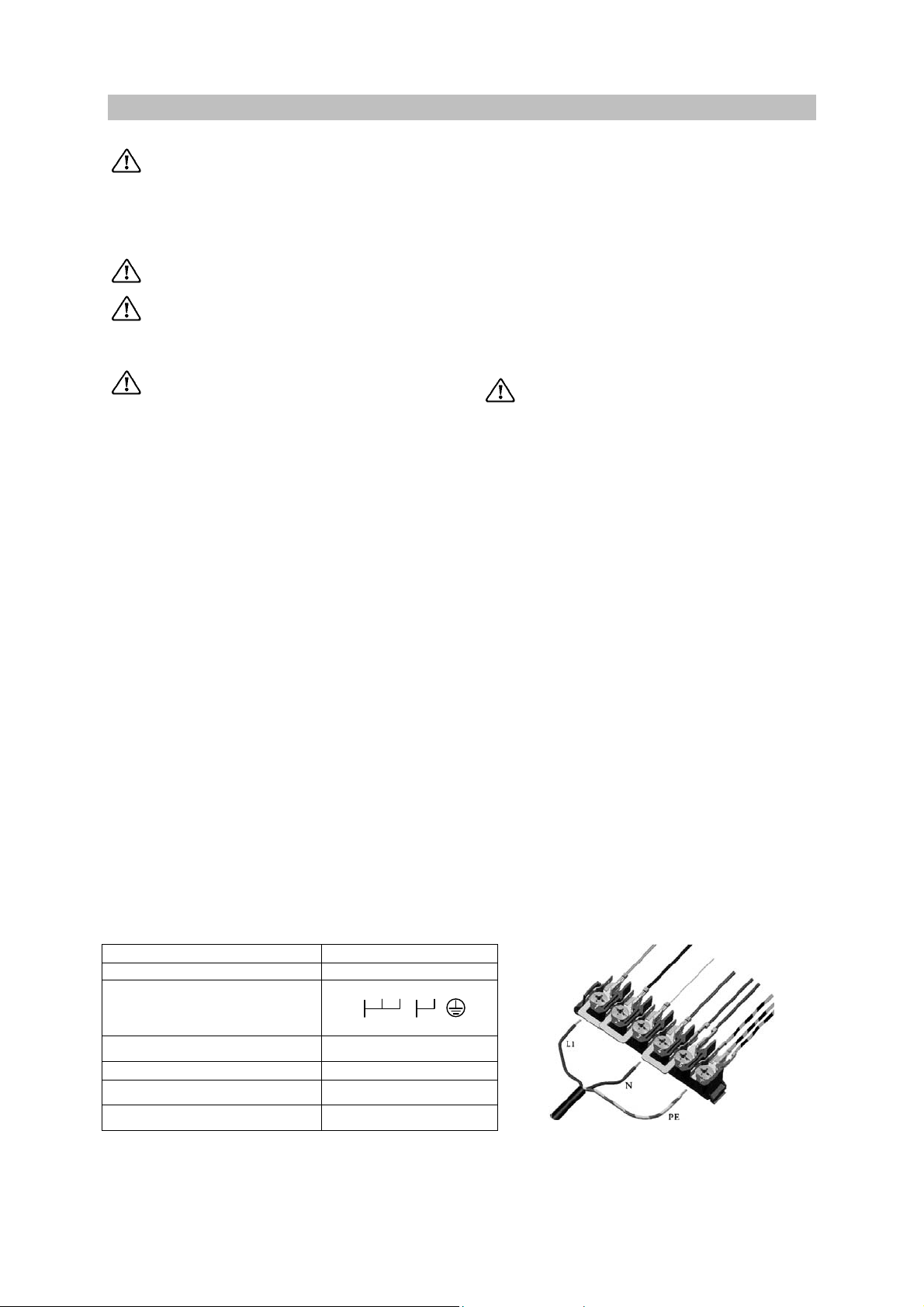

Electrical connections |
7 |
Instructions for the User |
|

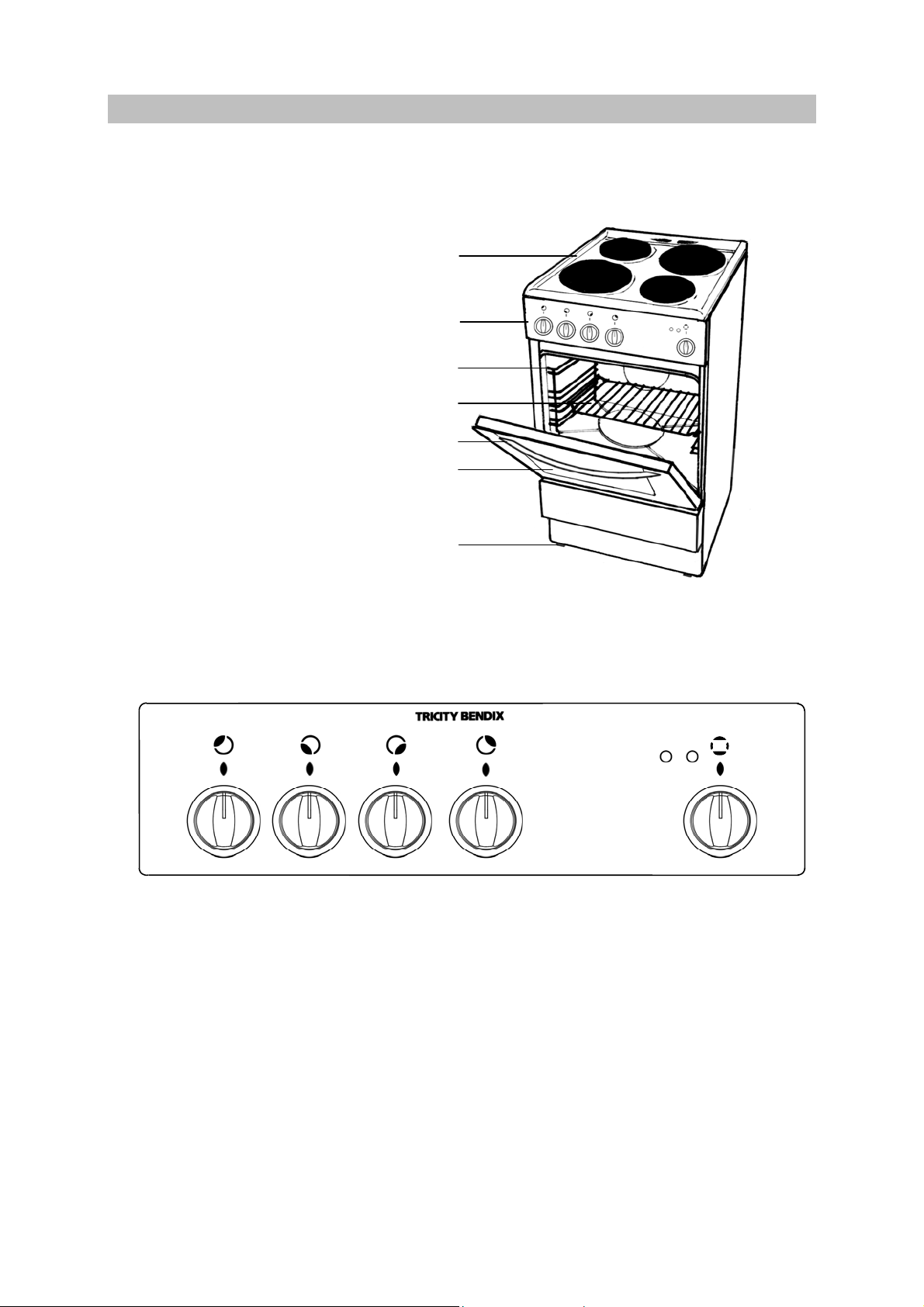

Use and care |
8 |
Before the first use of the oven |
9 |
Electric oven |
10 |

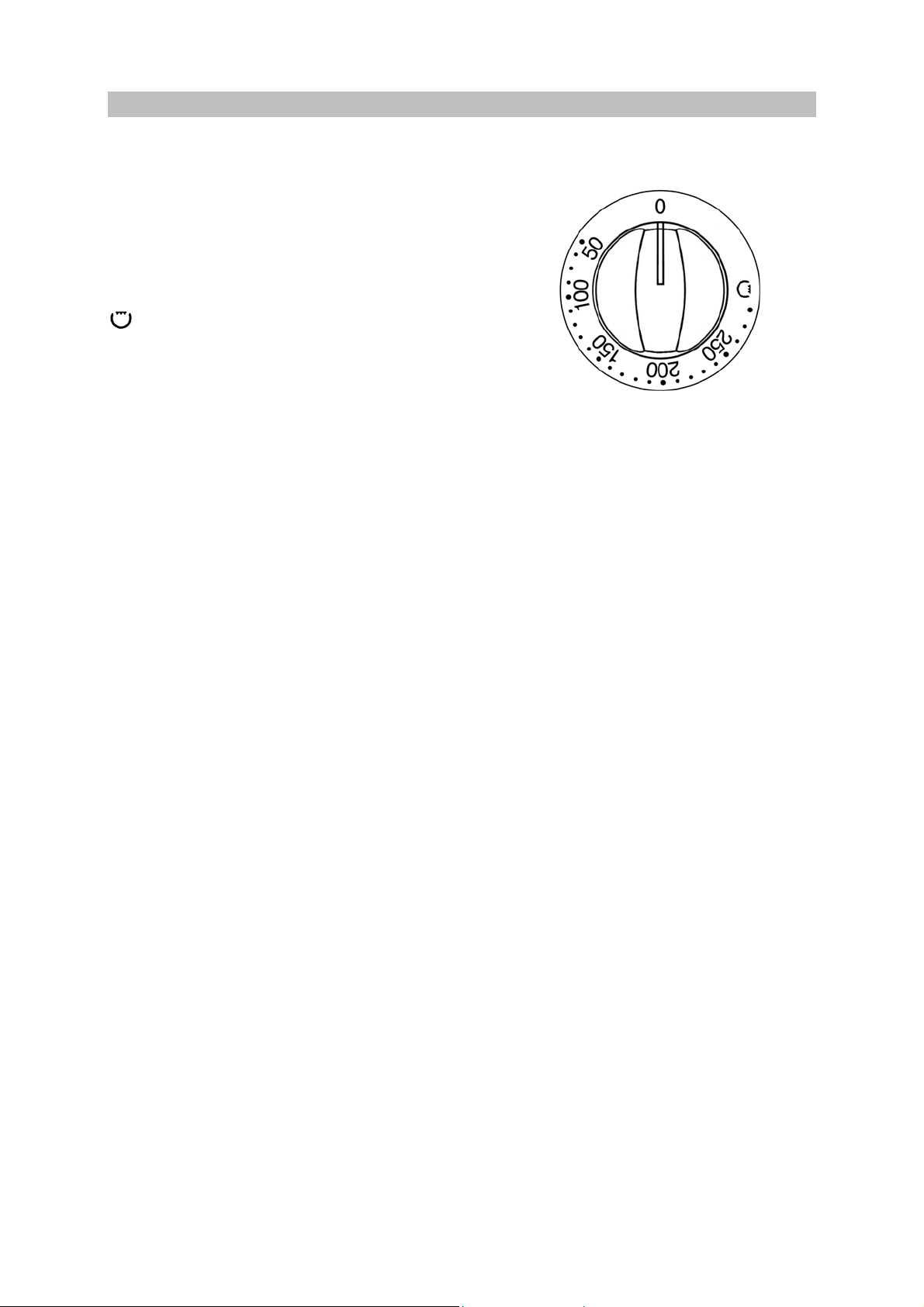

Oven function control knob |
10 |
Cooking in the oven |
10 |
Grilling |
11 |
Hints and tips |
11 |

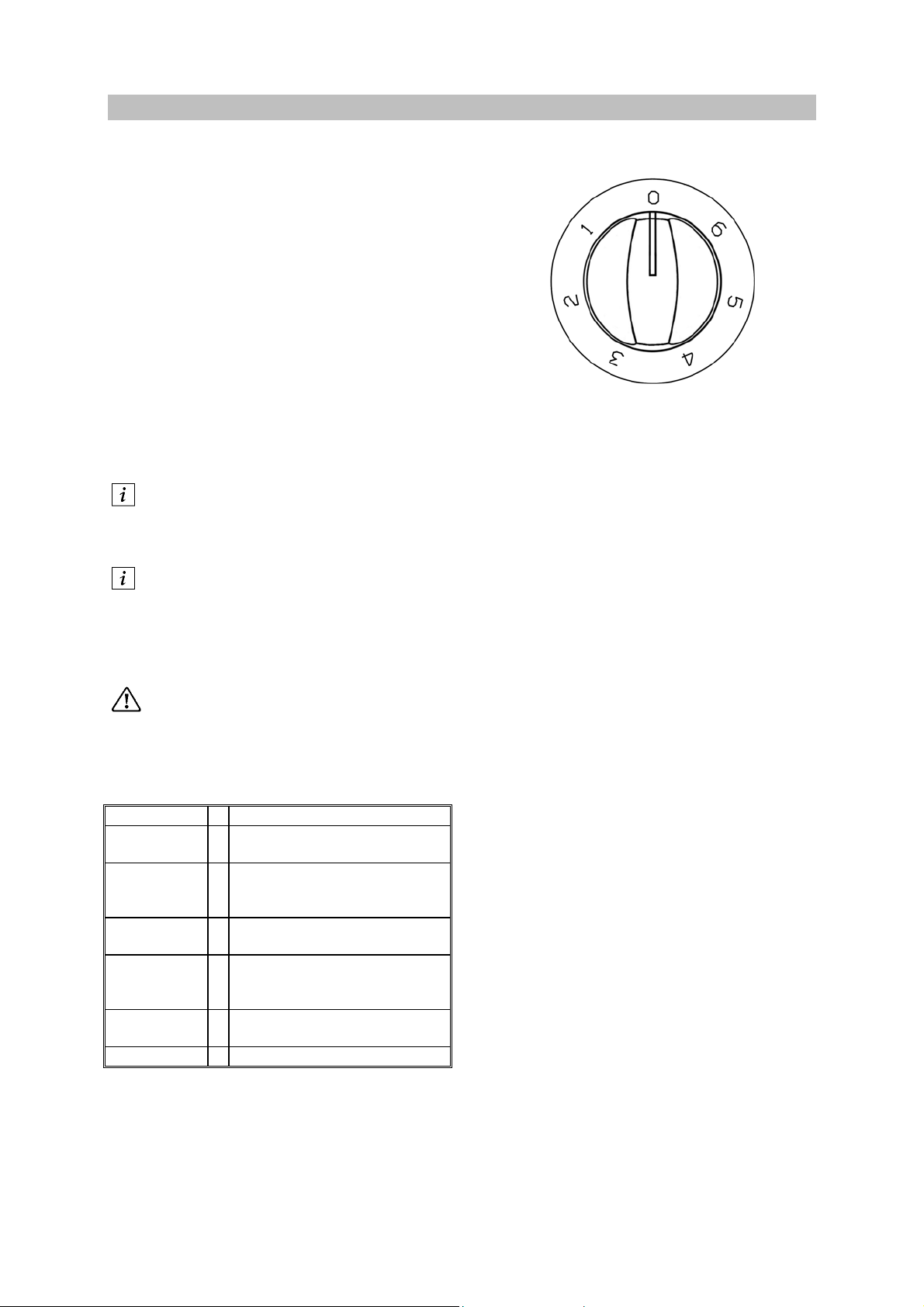

Electric hotplates |
12 |
Hints and tips |
13 |
Maintenance and cleaning |
14 |
Something Not Working |
16 |
Service and spare parts |
17 |
Guarantee Conditions |
18 |
How to read the instruction book
The symbols below will guide you when reading the instruction book
Safety instructions
Step by Step Operation
Advice and recommendations
Environmental Information
4
INSTRUCTIONS FOR THE INSTALLER
TECHNICAL FEATURES
Dimensions |
Height |
|
900 mm |
|
Width |
|
500 mm |
|
Depth |
|
600 mm |
|
Oven Capacity |
|
49 l |
|
|
|
|
Hob |
Front left |
Hob element Ø 180 mm |
2000 - 2090 W |
|
Back left |
Hob element Ø 145 mm |
1000 - 1050 W |
|
Front right |
Hob element Ø 145 mm |
1000 - 1050 W |
|
Back right |
Hob element Ø 180 mm |
1500 - 1570 W |
|
|
|
|
|
Total hob rating |
|
5500 - 5760 W |
|
|
|
|
Oven |
Oven element |
|
1650 - 1700 W |
|
Grill element |
|
1825 - 1900 W |
|
Cleaning |
|
manual |
|
|
|
|
|
Total oven rating |
|
1825 - 1900 W |
|
|
|
|
Supply |
Rated voltage |
|
230 - 240 V |
|
Rated frequency |
|
50 Hz |
|
|
|
|
Accessories |
Oven grid |
|
|
|
Roasting tray / grill pan |
|
|
|
Trivet |
|
|
|
|
|
|
|
Total cooker rating |
|
7325 - 7660 W |
|
|
|
|
This appliance complies with:
European Council Directive 73/23/EEC
EMC Directive 89/336/EEC
CE Marking Directive 93/68/EEC
5
INSTALLATION
This cooker must be installed in accordance with the IEE Wiring Regulations (Current Edition). Detailed recommendations are contained in the following British Standards Codes Of Practice:
B.S. 6172/ B.S. 5440, Par.2 and B.S. 6891 Current Editions.
The appliance must be installed in accordance with " Y " specification (EN60.335-2.6). The cooker must not be installed higher than the worktop.
Please ensure that when the appliance is installed it is easily accessible for the engineer in the event of a breakdown.
Before your appliance is connected to the mains electricity supply, check to ensure that the voltage and the frequency shown on the rating plate correspond with your supply voltage.
This appliance must be earthed.
LOCATION
The appliance must not be installed in a bed-sitting room of volume less than 20m3 or in a bathroom or shower room. It is essential that the appliance is positioned as in the enclosed figure i.e. shelves, wall cabinets and cooker hoods must be fitted a minimum of 690mm directly above the top of hotplate and 400mm above the hotplate when fitted in line with the outside of the appliance. If the units are intended to be fitted adjacent to the appliance but less than 400mm above the hotplate, then a minimum space of 100mm must be maintained between the sides of the unit and the appliance (see fig).
If fitted next to or between two base units a minimum space of 1mm must be left between each unit and the sides of the appliance. The levelling feet fitted to the appliance will achieve a nominal height to hotplate of 900mm+10mm.
The appliance must be installed in accordance with EN 1116-1995, regarding the depth of the superior furniture.
The appliance must be set on a heatproof floor. The adjustable feet must not be removed.
Levelling
The appliance is provided with adjustable small feet placed in the back and front corners of the base.
By adjusting the small feet it is possible to change the height of the appliance so as to ensure a better levelling with other surfaces and an even distribution of the liquids contained in pots and pans.
400
max 400
690
min 600
min 570
690 |
100 |
less than |
400 |
6
