TRICITY BENDIX SB462B Acclaim User Manual
OPERATING AND INSTALLATION INSTRUCTIONS
MODEL NO.
SB462
TECHNICAL DETAILS
MODEL NO. SB462
Voltage: 230/240 Volts AC 50Hz
Wattage: 10.5/11.4 kW
Height: 1290mm
Width: 550mm
Depth: 595mm
Weight: 62.3 kg
This appliance complies with: European Council Directive 73/23/EEC.
EMC Directive 89/336/EEC.
CE Marking Directive 93/68/EEC.
2
CONTENTS
Technical Details .................................................................................................................................... 2
Contents ................................................................................................................................................. 3
Preface .................................................................................................................................................... 5
Safety ...................................................................................................................................................... 6
Before Installation ........................................................................................................................... 6
During Operation ............................................................................................................................ 6
After Use ........................................................................................................................................ 7
General ........................................................................................................................................... 7
Introduction ............................................................................................................................................ 8
Rating Plate .................................................................................................................................... 8
Installation ...................................................................................................................................... 8
Reversible Main Oven Door ........................................................................................................... 9
General Notes on Using Your Appliance ....................................................................................... 9
About Condensation and Steam .................................................................................................... 9
Grill and Oven Furniture ................................................................................................................. 9
Getting to Know Your Appliance .......................................................................................................... 10

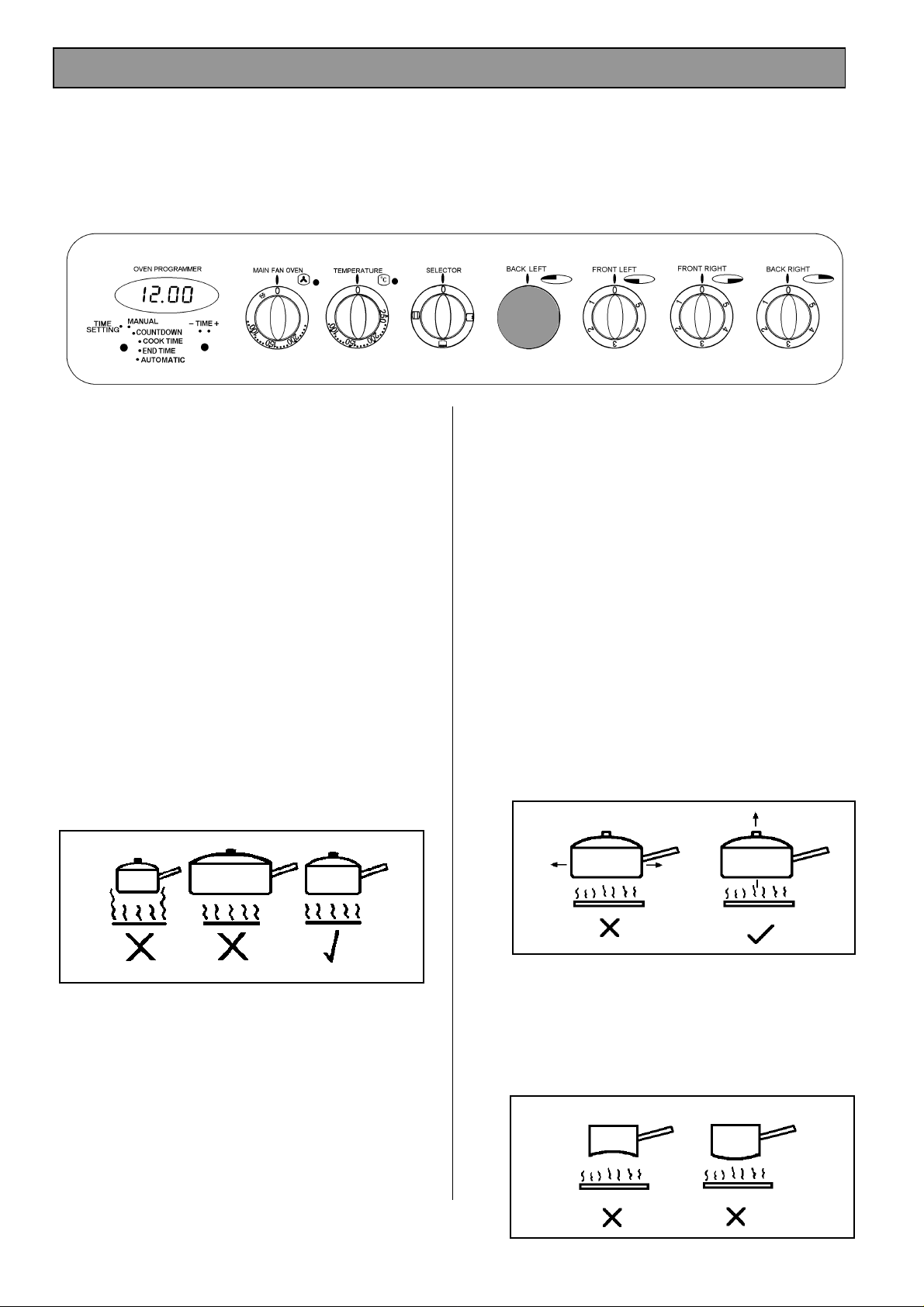

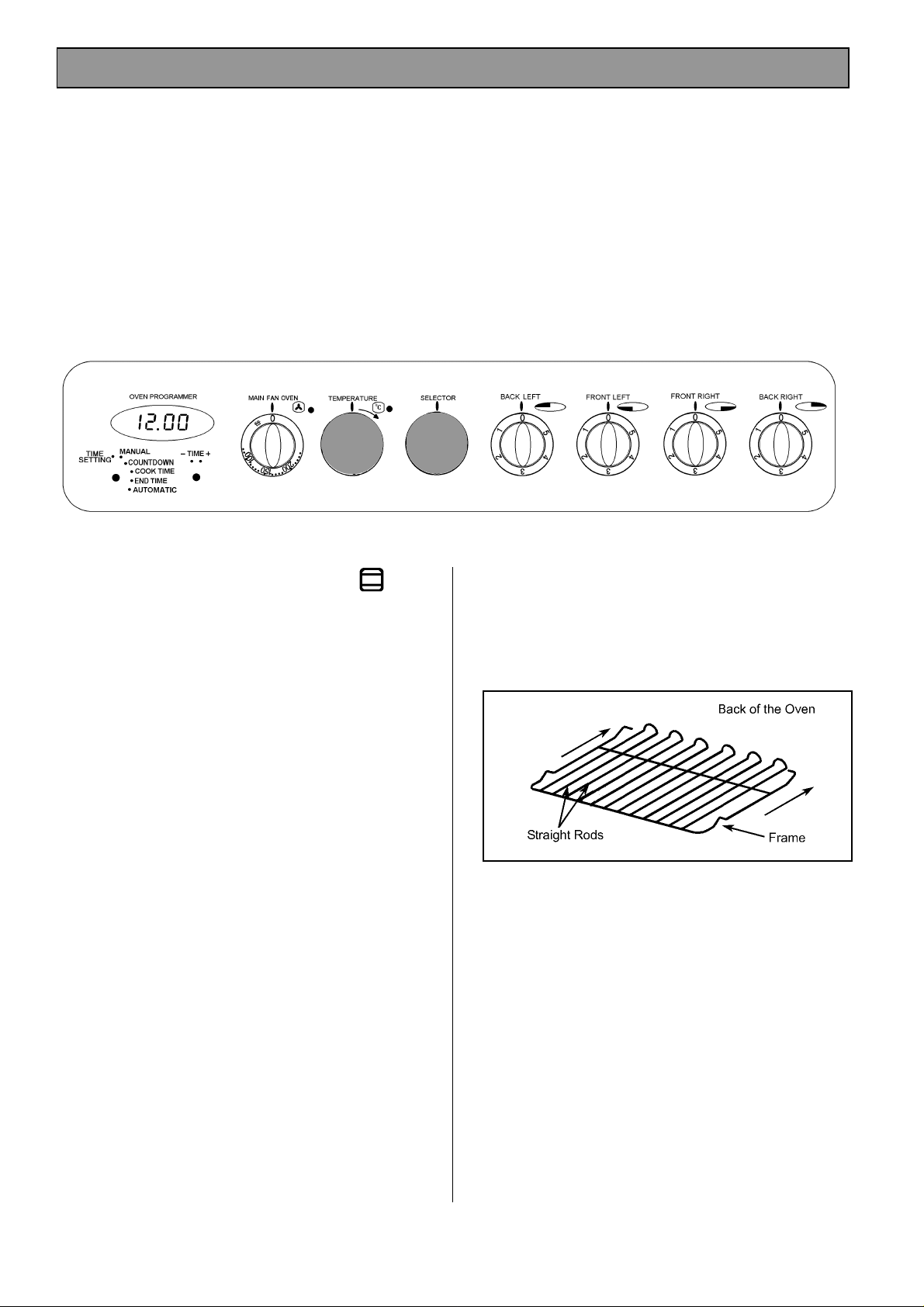

The Control Panel .......................................................................................................................... 10

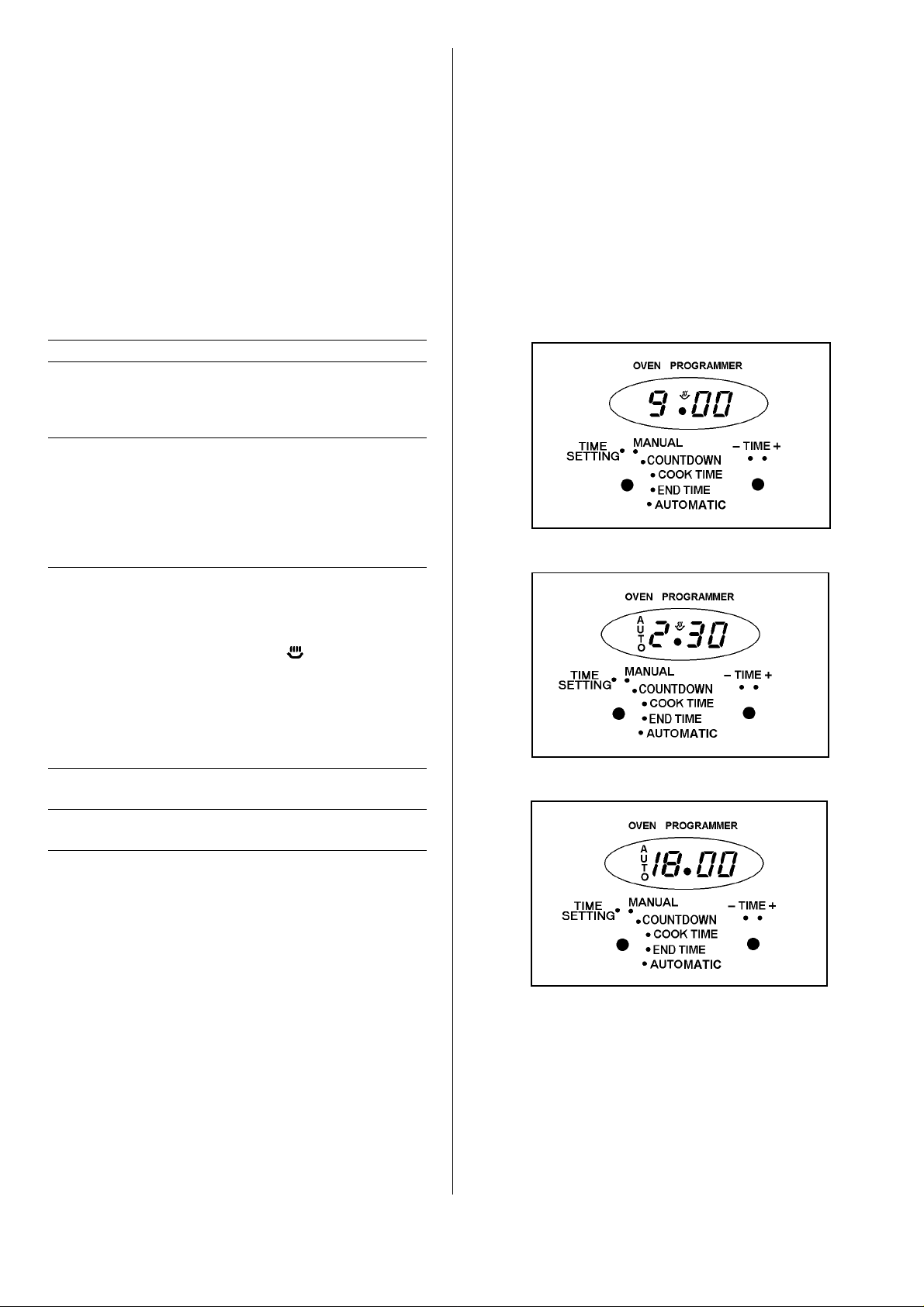

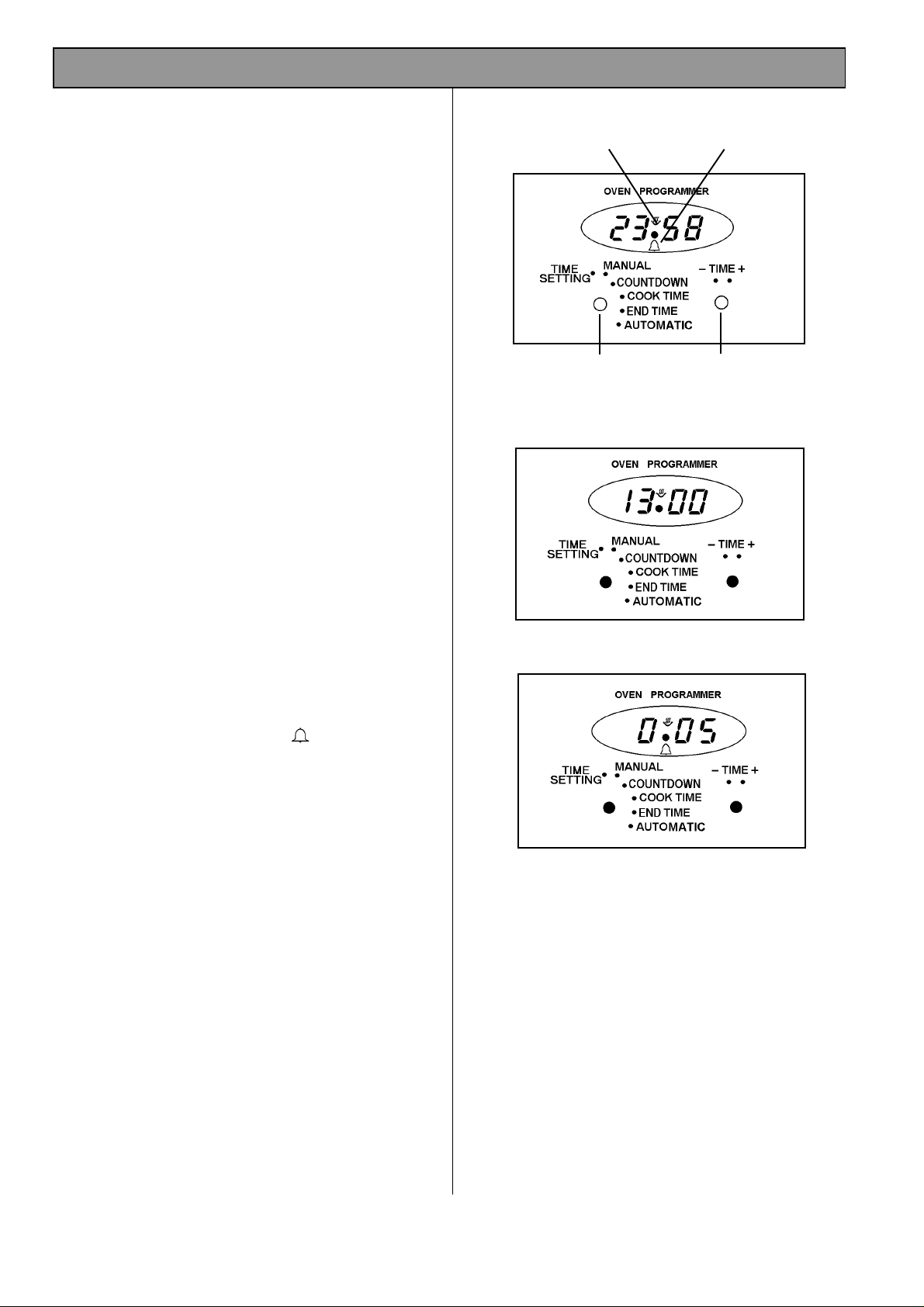

The Timer ....................................................................................................................................... 11
The Ceramic Hob ................................................................................................................................... 13
Recommended Saucepans ............................................................................................................13
Hints and Tips ................................................................................................................................ 13
Deep Fat Frying ...................................................................................................................................... 14
Preserving .............................................................................................................................................. 14
The Dual Grill .......................................................................................................................................... 15
Uses of the Grill .............................................................................................................................. 15
Selecting the Grill ........................................................................................................................... 15
Things to Note ................................................................................................................................ 15

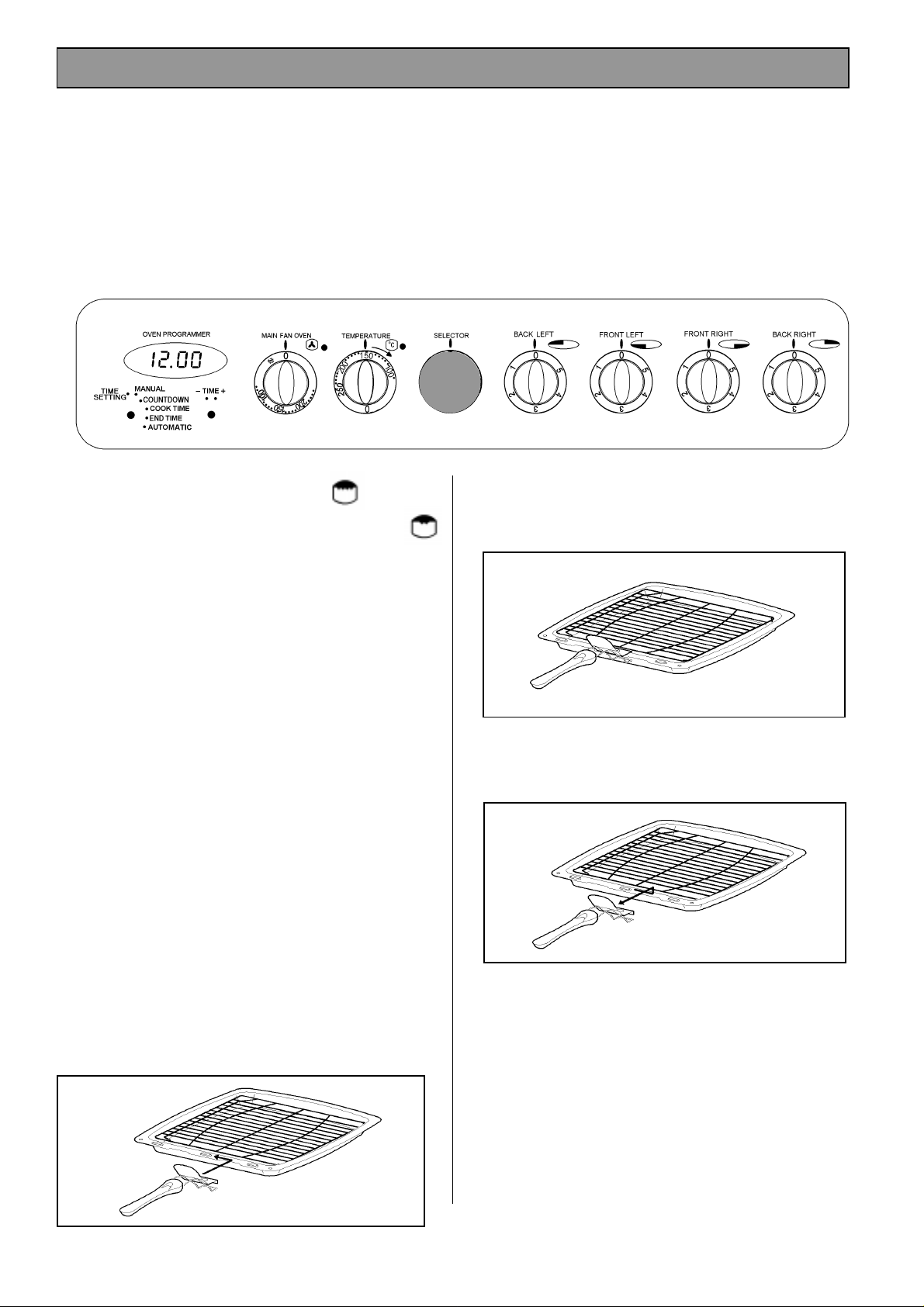

The Grill Pan and Handle ............................................................................................................... 15
Hints and Tips ................................................................................................................................ 16
Grilling Chart .................................................................................................................................. 16
The Top Oven ......................................................................................................................................... 17
Uses of the Top Oven .................................................................................................................... 17
Selecting the Top Oven .................................................................................................................. 17
Things to Note ................................................................................................................................ 17

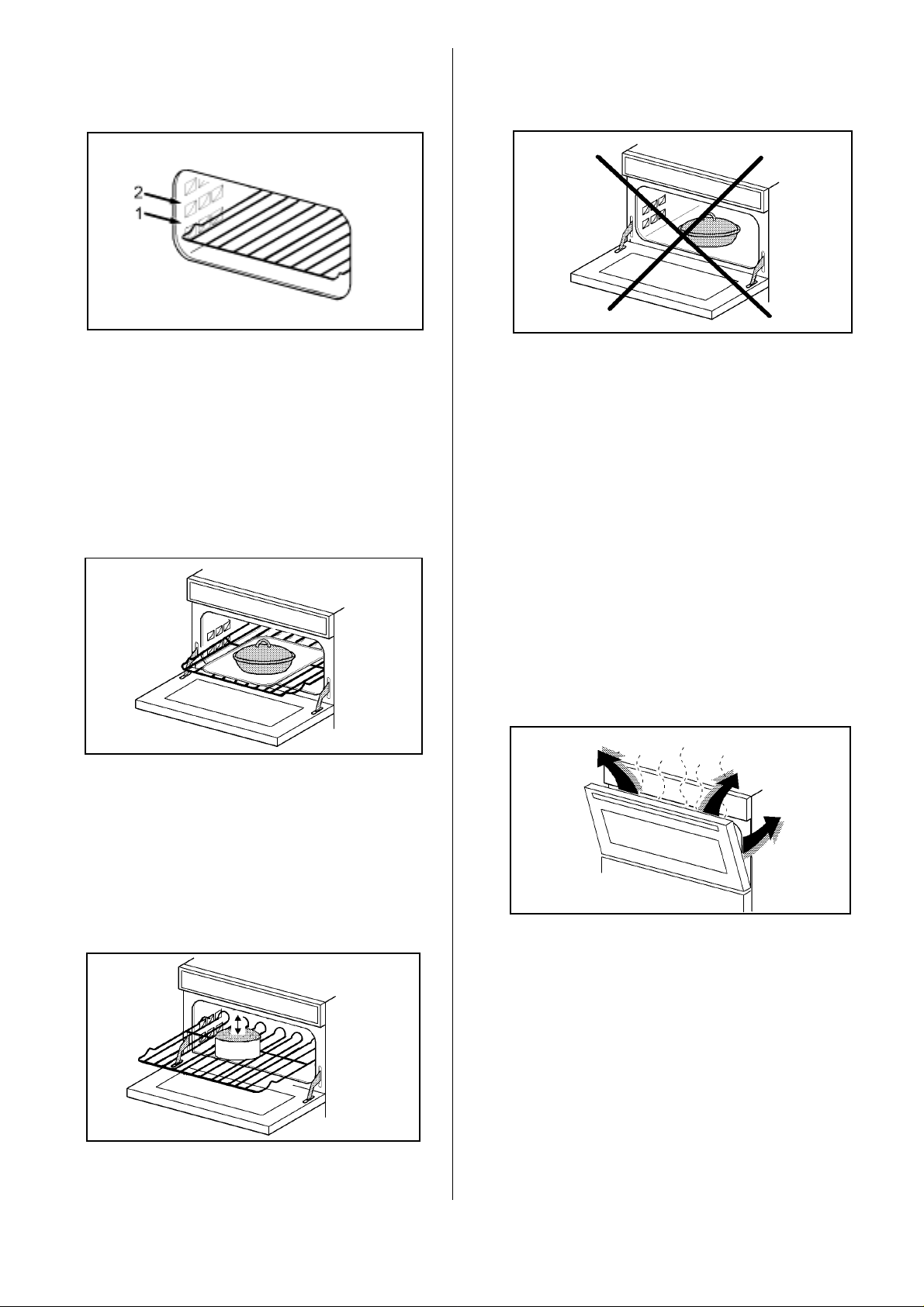

To Fit the Top Oven Shelf .............................................................................................................. 17
Hints and Tips ................................................................................................................................ 18
The Main Fan Oven ................................................................................................................................19
Uses of the Fan Oven .................................................................................................................... 19
Selecting the Fan Oven .................................................................................................................. 19
Things to Note ................................................................................................................................ 19

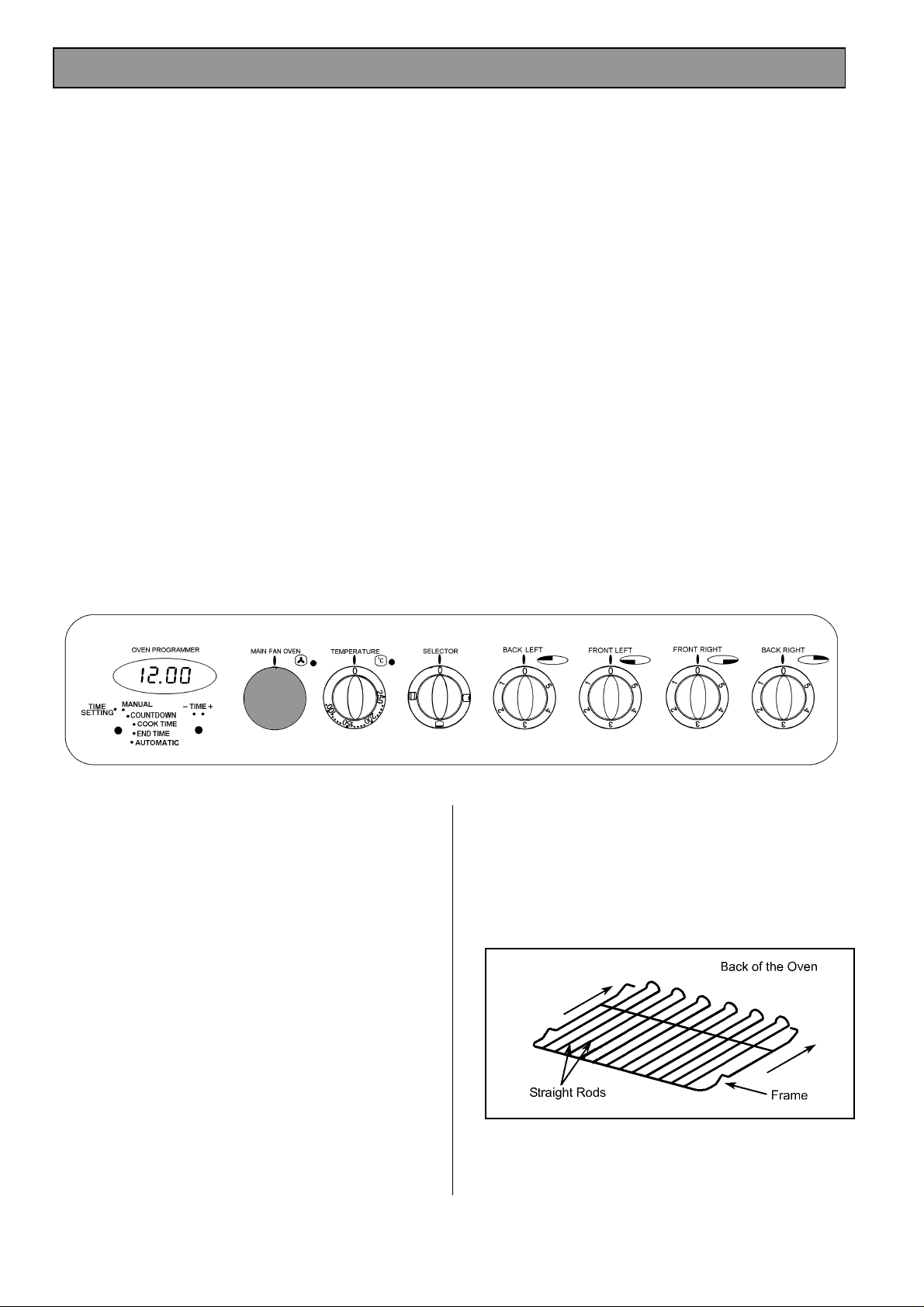

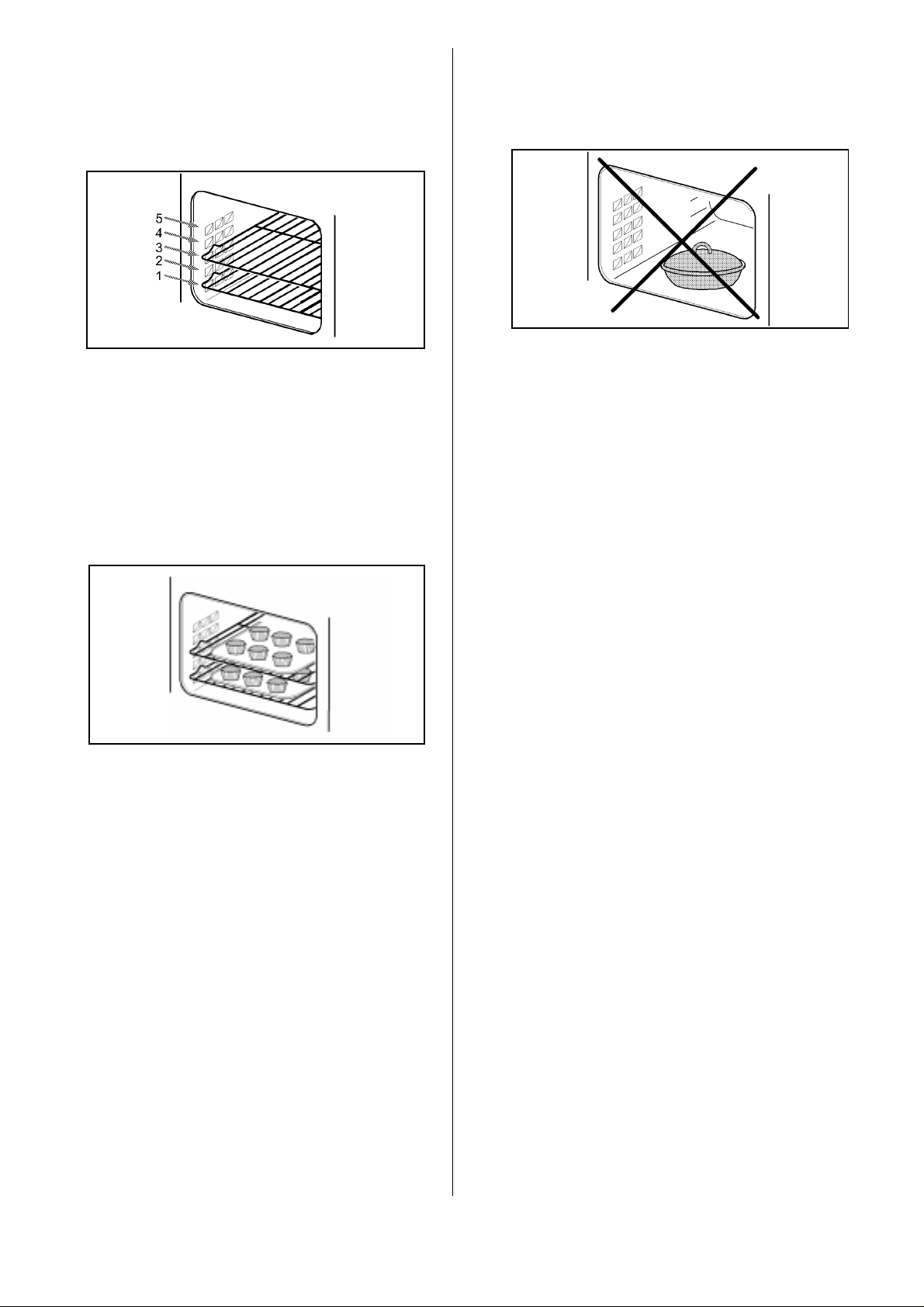

To Fit the Main Oven Shelves ........................................................................................................ 19
Hints and Tips ................................................................................................................................ 20
Oven Cooking Chart .............................................................................................................................. 21
Roasting Chart ....................................................................................................................................... 22
3
CONTENTS
Defrost Feature ...................................................................................................................................... 23
Uses of Defrost Feature ................................................................................................................. 23
Selecting Defrost ............................................................................................................................ 23
Things to Note ................................................................................................................................ 23
Hints and Tips ................................................................................................................................ 23
Care and Cleaning ................................................................................................................................. 24
Cleaning Materials ......................................................................................................................... 24

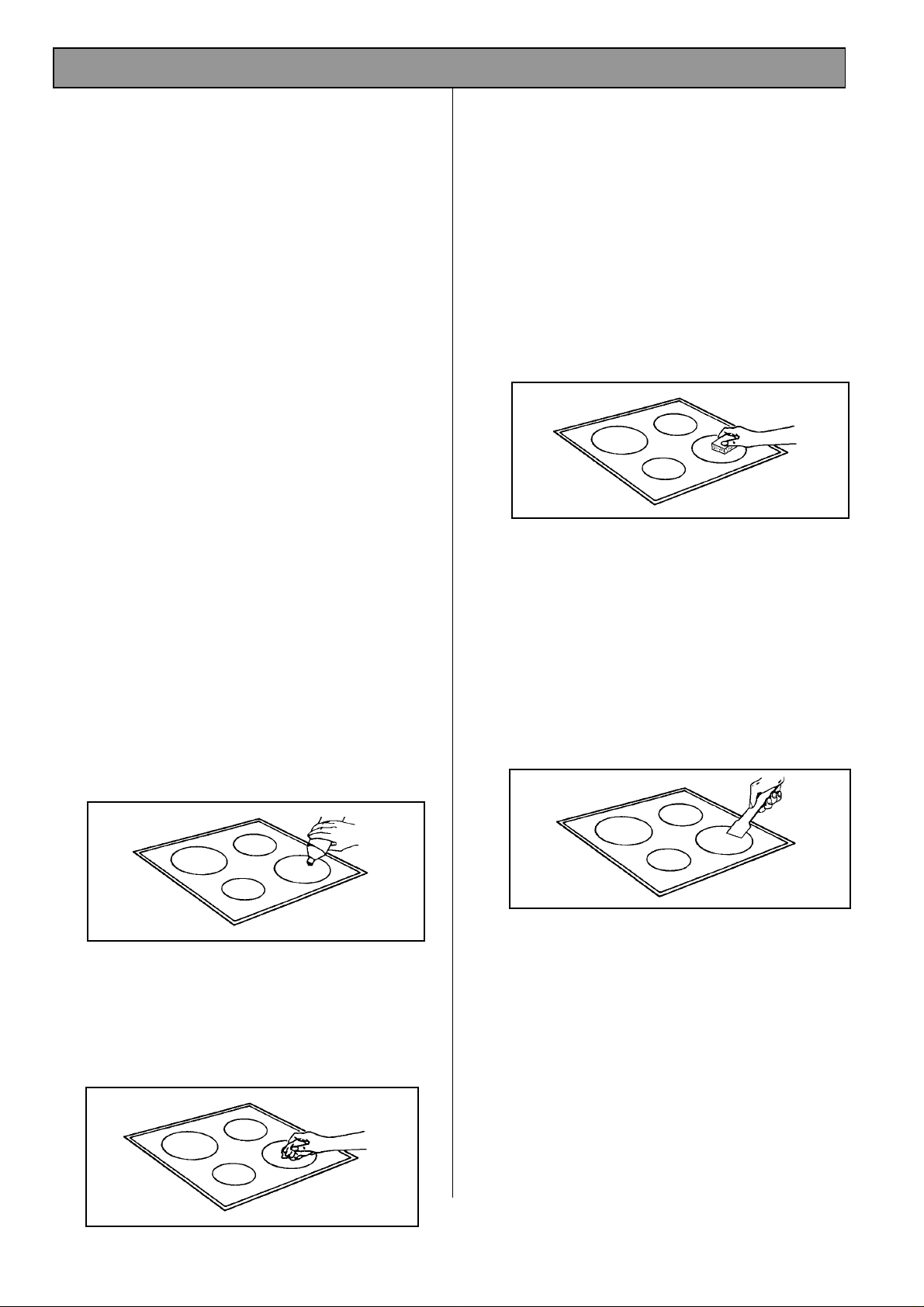

Cleaning the Ceramic Hob ............................................................................................................. 24
Hints and Tips ................................................................................................................................ 24
Cleaning the Outside of the Appliance ........................................................................................... 25
Cleaning the Grill and Oven Furniture ........................................................................................... 25
Cleaning Inside the Oven and Grill Compartments ........................................................................ 25
Care of Stayclean Surfaces ........................................................................................................... 26
Hints and Tips ................................................................................................................................ 26

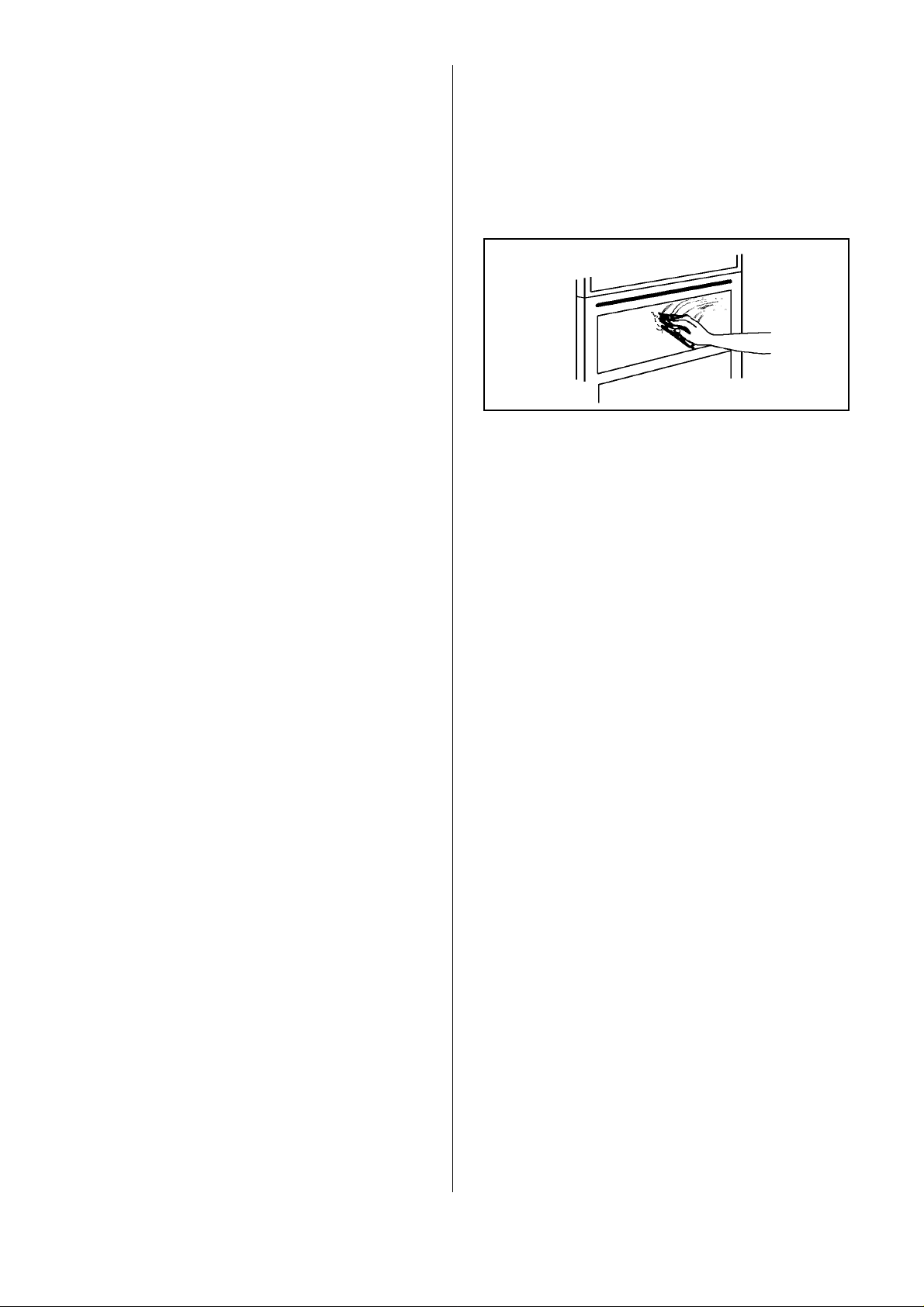

Cleaning the Door Glass ................................................................................................................ 26

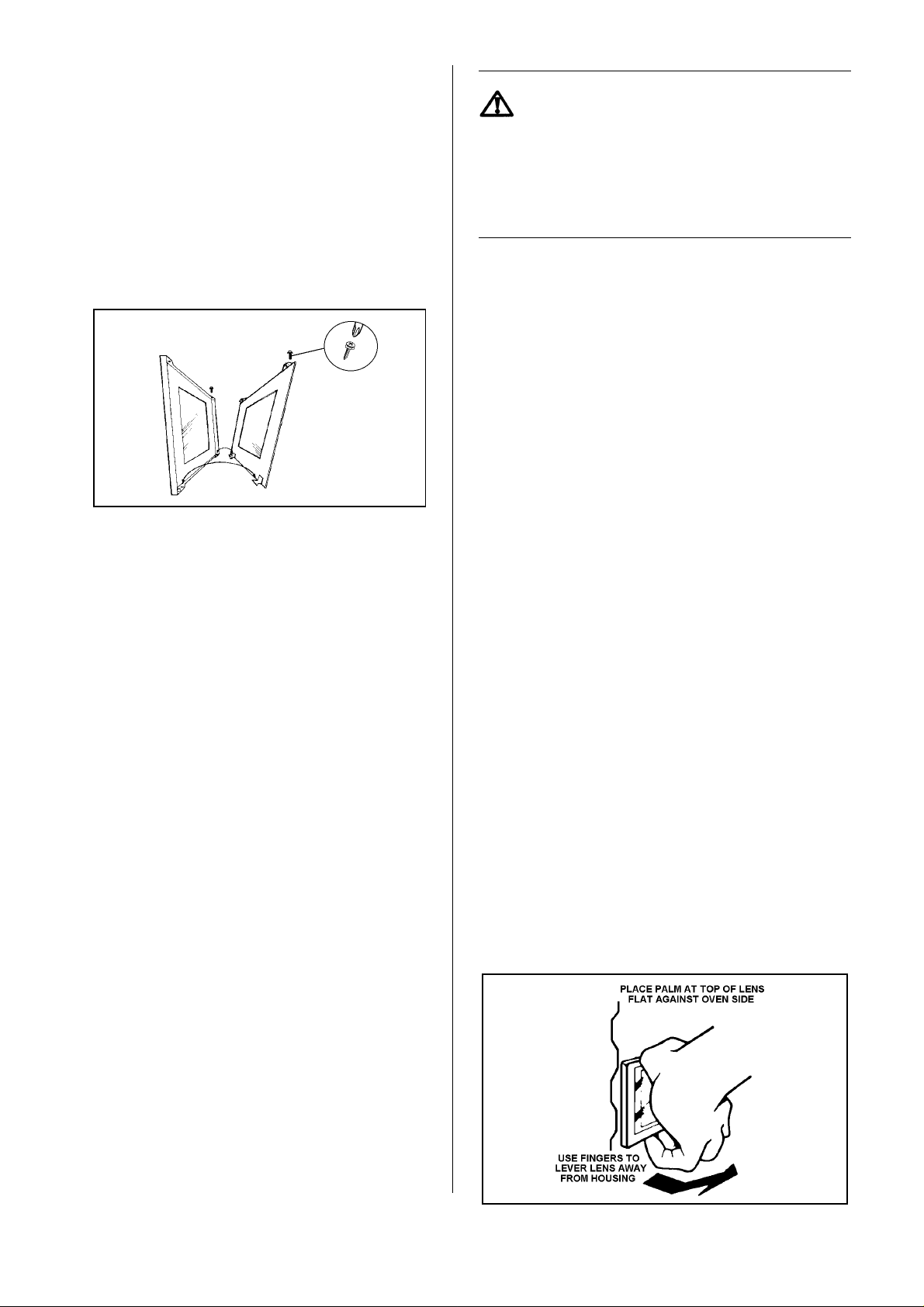

Replacing the Oven Light Bulb .......................................................................................................27
Something Not Working? ...................................................................................................................... 28
Service and Spare Parts ........................................................................................................................ 29
Guarantee Conditions ........................................................................................................................... 30
Notes ....................................................................................................................................................... 31
4
PREFACE
Dear Customer,
Thank you for buying a Tricity Bendix appliance. With our 80 years experience in
developing and manufacturing the very best in U.K. appliances, you can be
assured that you have purchased a hard working, reliable, quality product.
Tricity Bendix appliances comply with British Standard safety and performance
requirements. They have been approved by BEAB (British Electrotechnical
Approvals Board) and are covered by a 12 month parts and labour guarantee.
To get the best from your new Tricity Bendix appliance, we ask that you PLEASE
READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be
made to cooking times and temperatures, which may differ, from your previous
appliance.
It is most important that this instruction book is retained with the appliance for
future reference. Should the appliance be sold, or if you move house and leave
the appliance, always ensure that the book remains with the appliance. This will
enable the new owner to be acquainted with the functioning of the appliance and
the relevant warnings.
Please read the whole instruction book before attempting to use the appliance
ensuring you follow the recommendations given.
5
SAFETY
THESE WARNINGS ARE PROVIDED IN
THE INTERESTS OF YOUR SAFETY.
ENSURE THAT YOU UNDERSTAND
THEM ALL BEFORE INSTALLING OR
USING THE APPLIANCE.
PLEASE
READ
CAREFULLY
BEFORE INSTALLATION
This appliance is heavy and care
must be taken when moving it.
Ensure that all packaging, both
inside and outside the appliance has
been removed before the appliance
is used.
Do not allow young children to play
with any part of the packaging.
After installation, please dispose of
the packaging with due regard to
safety and the environment, your
local authority can arrange this.
DURING OPERATION
Do not use this appliance if it is in
contact with water. Never operate it
with wet hands.
This appliance is designed to be
operated by adults. Young children
must not be allowed to tamper with
the appliance or play with the
controls.
During use the appliance becomes
Hot. Care should be taken to avoid
touching the heating elements inside
the oven.
Iftheapplianceistobeplacedona
base, measures must be taken to
prevent the appliance slipping from
the base.
lift
Do not try to
appliance by pulling the door
handles.
The electrical installation work must
be undertaken by a qualified
electrician/competent person.
It is dangerous to alter or modify the
specifications of the appliance in any
way.
Do not use the appliance if the
ceramic glass is damaged. If a fault
or crack becomes visible during
cooking, disconnect the appliance
immediately from the electricity
supply and contact your local Service
Force Centre.
Do not place foil or plastic containers
on ceramic glass.
or move the
CAUTION: Accessible parts may
be hot when the grill is in use.
Young children should be kept
away.
Take great care when heating fats
and oils, as they will ignite if they
become too hot.
This appliance has been designed for
cooking edible foodstuffs only, and
must not be used for any other
purposes.
Never place plastic or any other
material which may melt in the oven
or on the hob.
Ensure cooking utensils are large
enough to contain foods to prevent
spillages and boil overs.
The handles of saucepans which are
smaller than the heated area on the
hob will become hot. Ensure your
hand is protected before handling the
pan.
6
Take care to follow the
recommendations given for tending
the food when grilling.
Always use oven gloves to remove
and replace food in the oven.
Ensure that you support the grill pan
when it is in the withdrawn or partially
withdrawn position.
Ensure that all vents are left
unobstructed to ensure ventilation of
theovencavity.
Ensure the anti-tilt shelves are put in
place correctly. Refer to instructions
on pages 17 and 19.
Never line any part of the appliance
with foil. Do not allow heatproof
cooking materials e.g. roasting bags,
to come into contact with oven
elements.
Do not leave utensils containing
foodstuffs, e.g. fat or oil in or on the
appliance in case it is inadvertently
switched on.
Cookers and hobs become very hot,
and retain their heat for a long period
of time after use. Children should be
kept well away from the appliance
until it has cooled.
GENERAL
Under no circumstances should
any repairs be carried out by an
inexperienced person as this may
cause injury or serious malfunction.
This appliance should be serviced by
an authorised service Engineer and
only genuine-approved spare parts
should be used. Details of repair and
servicing arrangements are supplied
on page 29 of this book.
AFTER USE
Always stand back from the
appliance when opening the oven
door to allow any build up of steam or
heat to release.
Never leave the appliance
unattended when the oven doors
are open.
Do not place sealed cans or
aerosols inside the oven. They may
explode if they are heated.
Do not leave the hotplates switched
ON for long periods when not
covered by a saucepan. The controls
may overheat.
Do not stand on the appliance or on
the open oven door.
Do not hang towels, dishcloths or
clothes from the appliance or its
handle. They are a safety hazard.
Always allow the cooling fan to cool
the appliance down before switching
off at the wall prior to carrying out
any cleaning or maintenance work.
Only clean this appliance in
accordance with the instructions
given in this book.
Extreme care must be taken when
using a ceramic hob scraper.
Your safety is of paramount importance.
Ensure that all control knobs are in
the OFF position when not in use.
For hygiene and safety reasons
this appliance should be kept
clean at all times. A build-up of
fats or other foodstuffs could
result in a fire, especially in the
grill pan.
Therefore, if you are unsure about any of
the meanings of these WARNINGS contact
the:
Customer Care Department
Telephone 0870 5 950950
7
INTRODUCTION
WARNING: THIS APPLIANCE MUST BE EARTHED
RATING PLATE
This is situated on the front frame of the appliance
and can be seen upon opening the top cavity door.
Alternatively the rating plate may also be found on
the back or top of some models (where applicable).
The appliance must be protected by a suitably rated
fuse or circuit breaker. The rating of the appliance is
given on the rating plate.
Do not remove the rating plate from the appliance
as this may invalidate the guarantee.
INSTALLATION
If your appliance has been damaged in transit,
contact your supplier immediately. DO NOT attempt
to install it.
Your appliance left the factory fully packaged to
protect it from damage. If it is delivered without
packaging and damage has occurred, the
manufacturer cannot accept responsibility. Contact
you supplier for advice.
The cable must be routed away from potentially hot
areas marked by X in the diagram below.
To move the appliance, open the main oven door,
and lift the appliance by holding inside the top of the
compartment.
Once the packaging has been removed the appliance
should only be moved by hand. DO NOT use a sack
barrow or any other aid to lift the appliance as
damage may occur.
Connection to the electricity supply must be carried
out by a qualified electrician/competent person.
The electrical connection should be made using a
double pole isolating switch (cooker socket) with at
least 3mm contact separation in all poles. The cable
must have conductors of sufficiently high crosssectional area to prevent overheating and
deterioration.
The recommended cross-section is six square
millimetres (6.00mm
2
).
This is a type Y appliance which means it is freestanding and can be fitted with cabinets on one or
both sides. It may also be fitted in a corner setting.
Side walls which are above hob level should be
protected by heat resistant non-combustible material
and MUST NOT be nearer than 40mm to the hob
side.
A nominal air gap of 2mm all around the appliance is
required to enable the appliance to be moved into
position.
Overhanging surfaces or a cooker hood should be a
minimum of 685mm above the hob.
It is important to ensure that the appliance is level
after installation. Levelling feet are fitted to the
appliance to accommodate uneven floors.
8
REVERSIBLE MAIN OVEN DOOR
GRILL AND OVEN FURNITURE
If you require the oven door to be hinged on the
opposite side, you will need to contact a qualified
Service Engineer. PLEASE NOTE that a charge will
be made.
GENERAL NOTES ON USING YOUR
APPLIANCE
We suggest that you run the oven elements for 10 –
15 minutes at 220
surfaces.
The procedure should be repeated with the grill for
approximately 5 – 10 minutes.
During this period an odour may be emitted, it is
therefore advisable to open a window for ventilation.
o
C to burn off any residue from their
ABOUT CONDENSATION AND STEAM
When food is heated it produces steam similar to a
boiling kettle. The oven is vented to allow some of
this steam to escape. However, always stand back
from the appliance when opening the oven door to
allow any build up of steam or heat to release.
The following items of grill/oven furniture have been
supplied with the appliance. If you require
replacements of any of the items listed below please
contact your local Service Force Centre, quoting the
relevant part number.
1 grill pan
(311409401)
1 grill pan handle
(311468100)
Note
If you require an additional handle for your grill pan,
this can be ordered from your local Service F orce
Centre by quoting part number 311479800\6.
If the steam comes into contact with a cool surface
on the outside of the appliance, e.g. a trim, it will
condense and produce water droplets. This is quite
normal and is not caused by a fault on the appliance.
To prevent discolouration, regularly wipe away
condensation and also soilage from surfaces.
For your safety wallcoverings at the rear of the
appliance should be securely fixed to the wall.
1 grill pan grid
(311419801)
1 straight shelf
for grilling and top
oven cooking only
2 straight shelves
for main oven cooking
Scuffing of the Stayclean panel/s by the oven
furniture pack may occur during transit. These marks
will disappear after the oven elements have been
burnt off for the first time.
9
GETTING TO KNOW YOUR APPLIANCE

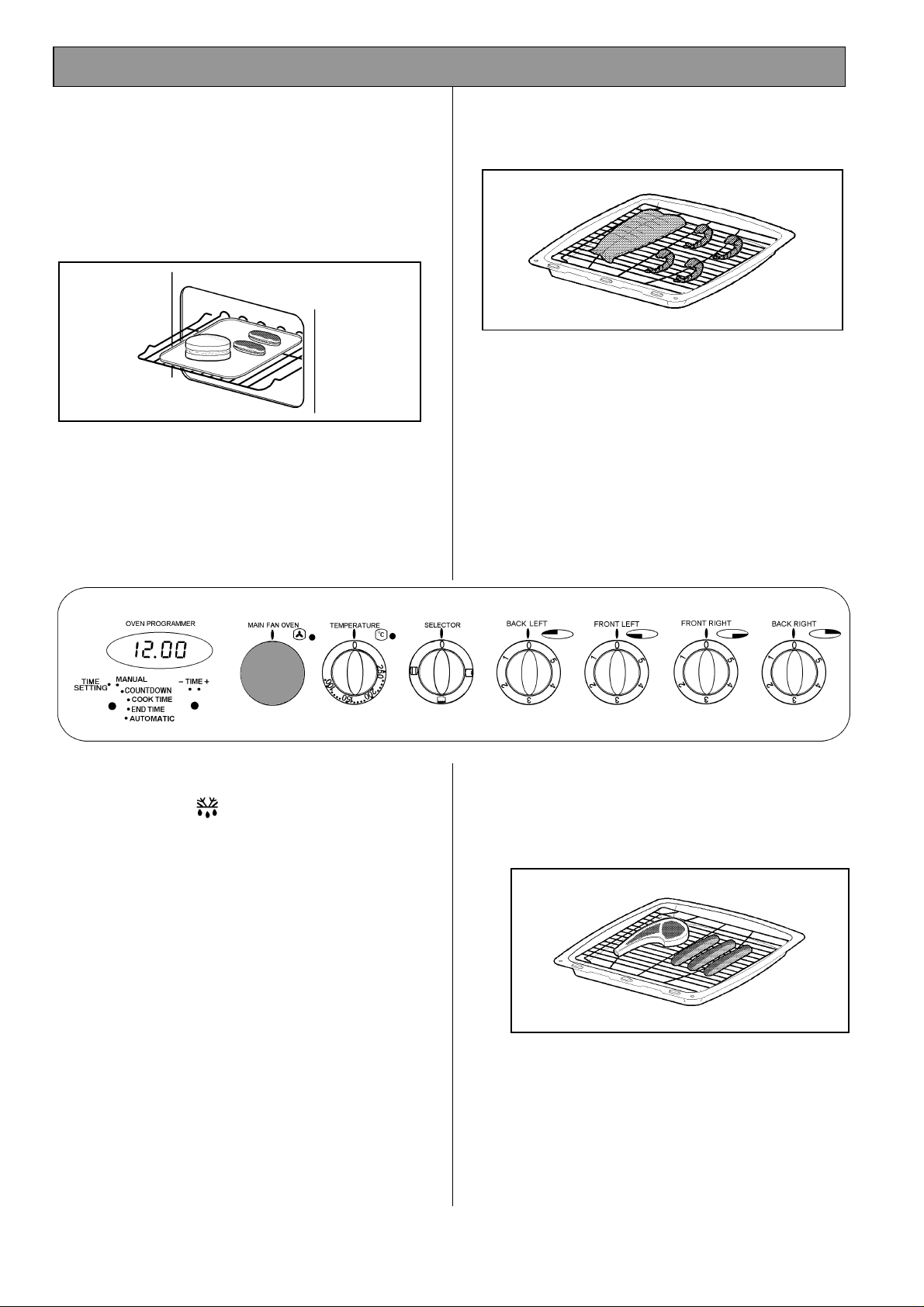

THE CONTROL PANEL
A
B
BC
D
FEATURES
A-Timer
B - Main Fan Oven Temperature Control
C - Main Oven Indicator Neon
D - Top Oven Temperature Control
E - TopOvenIndicatorNeon
F - Selector Control
G - Hotplate Controls
E
F
G
10
Loading...
