Tricity Bendix SB416 Operating Instruction

OPERATING & INSTALLATION

INSTRUCTIONS

SPLASHBACK ELECTRIC COOKER

SB416

PLEASE READ THIS INSTRUCTION BOOKLET BEFORE USING THE APPLIANCE

TECHNICAL DETAILS

MODEL NO. SB 416

Voltage: 230-240 Volts AC 50Hz

Wattage: 10.0-10.9kW

Height: 1290mm

Width: 550mm

Depth: 595mm

Weight: 55 kg

This appliance complies with: European Council Directive 73/23/EEC.
EMC Directive 89/336/EEC.
CE Marking Directive 93/68/EEC

Manufacturer TRICITY BENDIX

Model Number

Energy Efficiency on a Scale A (more efficient ) to G (less efficient)

Energy Consumption in kWh (1)

Useable Volume - Litres

Oven Size (2)

Top Oven - Conventional

Bottom Oven (4)

(1) Based on the test results for a standard load i n accordance with EN50304
(2) Small:12l < 35l Medium : 35l < 65l Large : 65l+
(3) Surface Area of Shelf
(4) Forced Air Convection Function unl ess stated

Time Taken to 'Cook' Standard Load - Minutes

The Area of the largest Baking Sheet -cm² (3) 858

Energy Efficiency on a Scale A (more efficient ) to G (less efficient)

Energy Consumption in kWh (1)

Useable Volume - Litres 61

Oven Size (2)

Time Taken to 'Cook' Standard Load - Minutes 57

The Area of the largest Baking Sheet -cm² (3)

SB416

N/A

33

N/A

C

1.10

Medium

1440

2

CONTENTS

Technical Details .................................................................................................................................... 2

Contents .................................................................................................................................................. 3

Preface ..................................................................................................................................................... 4

Safety ....................................................................................................................................................... 5

Before Installation ........................................................................................................................... 5

During Operation ............................................................................................................................. 5

After Use ......................................................................................................................................... 6

General ........................................................................................................................................... 6

Introduction ............................................................................................................................................. 7

Rating Plate .................................................................................................................................... 7

Installation ....................................................................................................................................... 7

General Notes on Using Your Appliance ........................................................................................ 8

About Condensation and Steam ..................................................................................................... 8

Grill and Oven Furniture .................................................................................................................. 8

Getting to Know Your Appliance .......................................................................................................... 9

The Control Panel ........................................................................................................................... 9

The Radiant Hob ..................................................................................................................................... 10

Recommended Saucepans ............................................................................................................ 10

Hints and Tips ................................................................................................................................. 10

Deep Fat Frying ...................................................................................................................................... 11

Preserving ............................................................................................................................................... 11

The Grill ................................................................................................................................................... 12

The Grill Pan and Handle ............................................................................................................... 12

Hints and Tips ................................................................................................................................. 13

Grilling Chart ................................................................................................................................... 13

The Fan Oven .......................................................................................................................................... 14

Uses of the Fan Oven ..................................................................................................................... 14

Selecting the Fan Oven .................................................................................................................. 14

Things to Note ................................................................................................................................. 14

To Fit the Oven Shelves ................................................................................................................. 14

Hints and Tips ................................................................................................................................. 15

Oven Cooking Chart ............................................................................................................................... 16

Oven Roasting Chart .............................................................................................................................. 17

Defrost Feature ....................................................................................................................................... 18

Uses of Defrost Feature .................................................................................................................. 18

Selecting Defrost ............................................................................................................................. 18

Things to Note ................................................................................................................................. 18

Hints and Tips ................................................................................................................................. 18

Care and Cleaning .................................................................................................................................. 19

Cleaning Materials .......................................................................................................................... 19

Cleaning the Brass Plated Handles ................................................................................................ 19

Cleaning the Outside of the Appliance ........................................................................................... 19

Cleaning the Radiant Hob and Hotplate Trims ............................................................................... 19

Cleaning the Grill and Oven Furniture ............................................................................................. 19

Cleaning Inside the Grill/Oven Compartments ............................................................................... 19

Care of Stayclean Surfaces ............................................................................................................ 20

Things to Note ................................................................................................................................. 20

Hints and Tips ................................................................................................................................. 20

Something Not Working? ...................................................................................................................... 21

Service and Spare Parts ........................................................................................................................ 22

Guarantee Conditions ............................................................................................................................ 23

3

PREFACE

Dear Customer,

Thank you for buying a Tricity Bendix appliance. With our 80 years experience in
developing and manufacturing the very best in U.K. appliances, you can be
assured that you have purchased a hard working, reliable, quality product.

Tricity Bendix appliances comply with British Standard safety and performance
requirements. They have been approved by BEAB (British Electrotechnical
Approvals Board) and are covered by a 12 month parts and labour guarantee.

To get the best from your new Tricity Bendix appliance, we ask that you PLEASE
READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be
made to cooking times and temperatures, which may differ, from your previous
appliance.

It is most important that this instruction book is retained with the appliance for
future reference. Should the appliance be sold, or if you move house and leave
the appliance, always ensure that the book remains with the appliance. This will
enable the new owner to be acquainted with the functioning of the appliance and
the relevant warnings.

Please read the whole instruction book before attempting to use the appliance
ensuring you follow the recommendations given.

4

SAFET

Y

THESE WARNINGS ARE PROVIDED IN
THE INTERESTS OF YOUR SAFETY.
ENSURE THAT YOU UNDERSTAND
THEM ALL BEFORE INSTALLING OR
USING THE APPLIANCE.

PLEASE
READ
CAREFULLY

BEFORE INSTALLATION

This appliance is heavy and care

must be taken when moving it.

Ensure that all packaging, both

inside and outside the appliance has
been removed before the appliance
is used.

If the appliance is to be placed on a
base, measures must be taken to
prevent the appliance slipping from
the base.

DURING OPERATION

This appliance is not intended to be
operated by means of an external
timer or remote control system.

Do not use this appliance if it is in
contact with water. Never operate it
with wet hands.

This appliance is designed to be
operated by adults. Young children
must not be allowed to tamper with
the appliance or play with the
controls.

During use the appliance becomes
Hot. Care should be taken to avoid
touching the heating elements inside
the oven.

CAUTION: Accessible parts may
be hot when the grill is in use.
Young children should be kept
away.

Do not try to lift or move the

appliance by pulling the door
handles.

The electrical installation work must
be undertaken by a qualified
electrician/competent person.

It is dangerous to alter or modify the
specifications of the appliance in any
way.

Do not allow young children to play
with any part of the packaging.

After installation, please dispose of
the packaging with due regard to
safety and the environment, your
local authority can arrange this.

Take great care when heating fats
and oils, as they will ignite if they
become too hot.

This appliance has been designed for
cooking edible foodstuffs only, and
must not be used for any other
purposes.

Never place plastic or any other
material which may melt in the oven
or on the hob.

Ensure cooking utensils are large
enough to contain foods to prevent
spillages and boil overs.

The handles of saucepans which are
smaller than the heated area on the
hob will become hot. Ensure your
hand is protected before handling the
pan.

5

Take care to follow the
recommendations given for tending
the food when grilling.

Do not leave utensils containing
foodstuffs, e.g. fat or oil in or on the
appliance in case it is inadvertently
switched ON.

Always use oven gloves to remove
and replace food in the oven.

Ensure that all vents are left
unobstructed to ensure ventilation of
the oven cavity.

Ensure the anti-tilt shelves are put in
place correctly. Refer to instructions
on page 14.

Never line any part of the appliance
with foil. Do not allow heatproof
cooking materials e.g. roasting bags,
to come into contact with oven
elements.

Always stand back from the
appliance when opening the oven
door to allow any build up of steam or
heat to release.

Appliances and hobs become very
hot, and retain their heat for a long
period of time after use. Children
should be kept well away from the
appliance until it has cooled.

GENERAL

Under no circumstances should

any repairs be carried out by an
inexperienced person as this may
cause injury or serious malfunction.

This appliance should be serviced by
an authorised service Engineer and
only genuine-approved spare parts
should be used. Details of repair and
servicing arrangements are supplied
on page 22 of this book.

Do not stand on the appliance or on
the open oven door.

Do not hang towels, dishcloths or
clothes from the appliance or its
handle. They are a safety hazard.

AFTER USE

Never leave the appliance
unattended when the doors are
open.

Do not place sealed cans or

aerosols inside the oven. They may
explode if they are heated.

Ensure that all control knobs are in
the OFF position when not in use.

For hygiene and safety reasons
this appliance should be kept
clean at all times. A build-up of
fats or other foodstuffs could
result in a fire, especially in the
grill pan.

Always switch OFF the appliance at

its power point and allow the
appliance to cool before any
maintenance or cleaning work is
carried out.

Only clean this appliance in
accordance with the instructions
given in this book.

Your safety is of paramount importance.

Therefore, if you are unsure about any of
the meanings of these WARNINGS contact
the:

Customer Care Department
Telephone [phone]

6

INTRODUCTION

WARNING: THIS APPLIANCE MUST BE EARTHED

RATING PLATE

This is situated on the lower front frame of the
appliance and can be seen upon opening the door.
Alternatively the rating plate may also be found on
the back or top of some models (where applicable).

The appliance must be protected by a suitably rated
fuse or circuit breaker. The rating of the appliance is
given on the rating plate.

Do not remove the rating plate from the appliance
as this may invalidate the guarantee.

INSTALLATION

If your appliance has been damaged in transit,
contact your supplier immediately. DO NOT attempt
to install it.

Your appliance left the factory fully packaged to
protect it from damage. If it is delivered without
packaging and damage has occurred, the
manufacturer cannot accept responsibility. Contact
your supplier for advice.

The cable should be routed away from potentially hot
areas marked by 'X' in the diagram below.

To move the appliance, open the oven door, and lift
the appliance by holding inside the top of the oven
compartment.

Once the packaging has been removed the appliance
should only be moved by hand. DO NOT use a sack
barrow or any other aid to lift the appliance as
damage may occur.

Connection to the electricity supply must be carried
out by a qualified electrician/competent person.

The electrical connection should be made using a
double pole isolating switch (cooker socket) with at
least 3mm contact separation in all poles. The cable
must have conductors of sufficiently high cross­sectional area to prevent overheating and
deterioration.

The recommended cross-section area is six square
millimetres (6.00mm

2

).

This is a type 'Y' appliance, which means it is free­standing and can be fitted with cabinets on one or
both sides. It may also be fitted in a corner setting.

Side walls which are above hob level should be
protected by heat resistant non-combustible material
and MUST NOT be nearer than 40mm to the hob
side.

A nominal air gap of 2mm at either side of the
appliance is required to enable the appliance to be
moved into position.

Overhanging surfaces or a cooker hood should be a
minimum of 685mm above the hob.

It is important to ensure that the appliance is level
after installation. Levelling feet are fitted to the
appliance to accommodate uneven floors.

7

GENERAL NOTES ON USING YOUR
APPLIANCE

We suggest that you run the oven elements for 10 –
15 minutes at 220
their surfaces. The procedure should be repeated
with the grill for approximately 5 – 10 minutes.
During this period an odour may be emitted, it is
therefore advisable to open a window for ventilation.

o

C to burn off any residue from

ABOUT CONDENSATION AND STEAM

When food is heated it produces steam similar to a
boiling kettle. The oven is vented to allow some of
this steam to escape between. However, always
stand back from the appliance when opening the
oven door to allow any build up of steam or heat to
release.

GRILL AND OVEN FURNITURE

The following items of grill/oven furniture have been
supplied with the appliance. If you require
replacements of any of the items listed below, please
contact your local Service Force Centre quoting the
relevant part number.

1 grill pan
(311409401)

If the steam comes into contact with a cool surface
on the outside of the appliance, e.g. a trim, it will
condense and produce water droplets. This is quite
normal and is not caused by a fault on the appliance.

To prevent discolouration, regularly wipe away
condensation and also soilage from surfaces.

For your safety wall coverings at the rear of the
appliance should be securely fixed to the wall.

1 grill pan handle
(311468100)

Note:

If you require an additional handle for your grill pan,
this can be ordered from your local Service Force
Centre by quoting part number 311479800\6.

1 grill pan grid
(311419801)

1 straight shelf
for grilling

2 straight shelves
for oven cooking

8

GETTING TO KNOW YOUR APPLIANCE

A

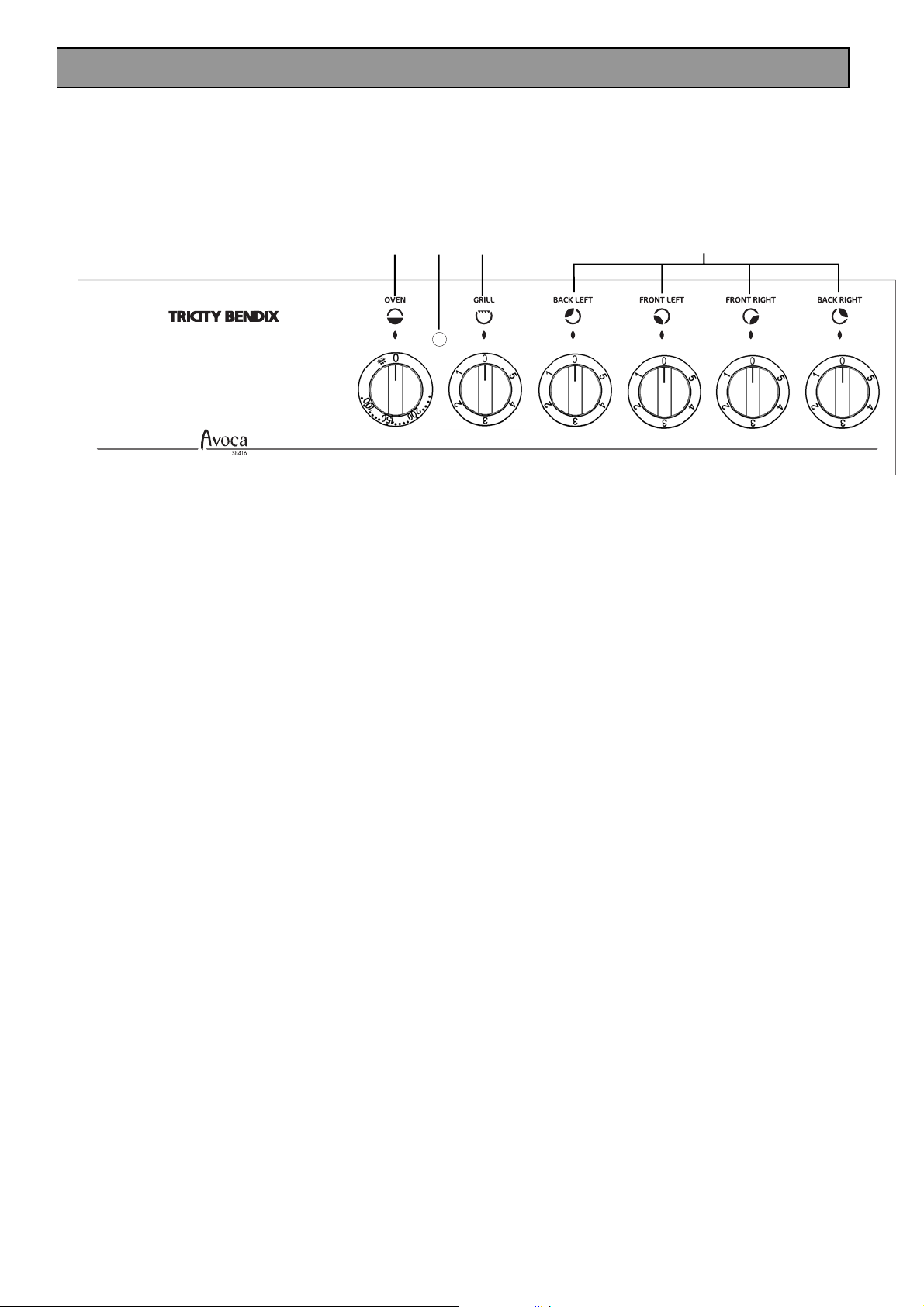

THE CONTROL PANEL

FEATURES

A - Oven Temperature Control
B - Oven Indicator Neon
C - Grill Control
D - Hotplate Controls

C

B

D

9

THE RADIANT HOB

USING THE HOB

· To operate the hotplates turn the control knobs in

either direction to vary the heat setting.

· The highest number represents the hottest

setting and the lowest number represents the
coolest setting. Choose a setting appropriate to
the quantity and type of food to be cooked.

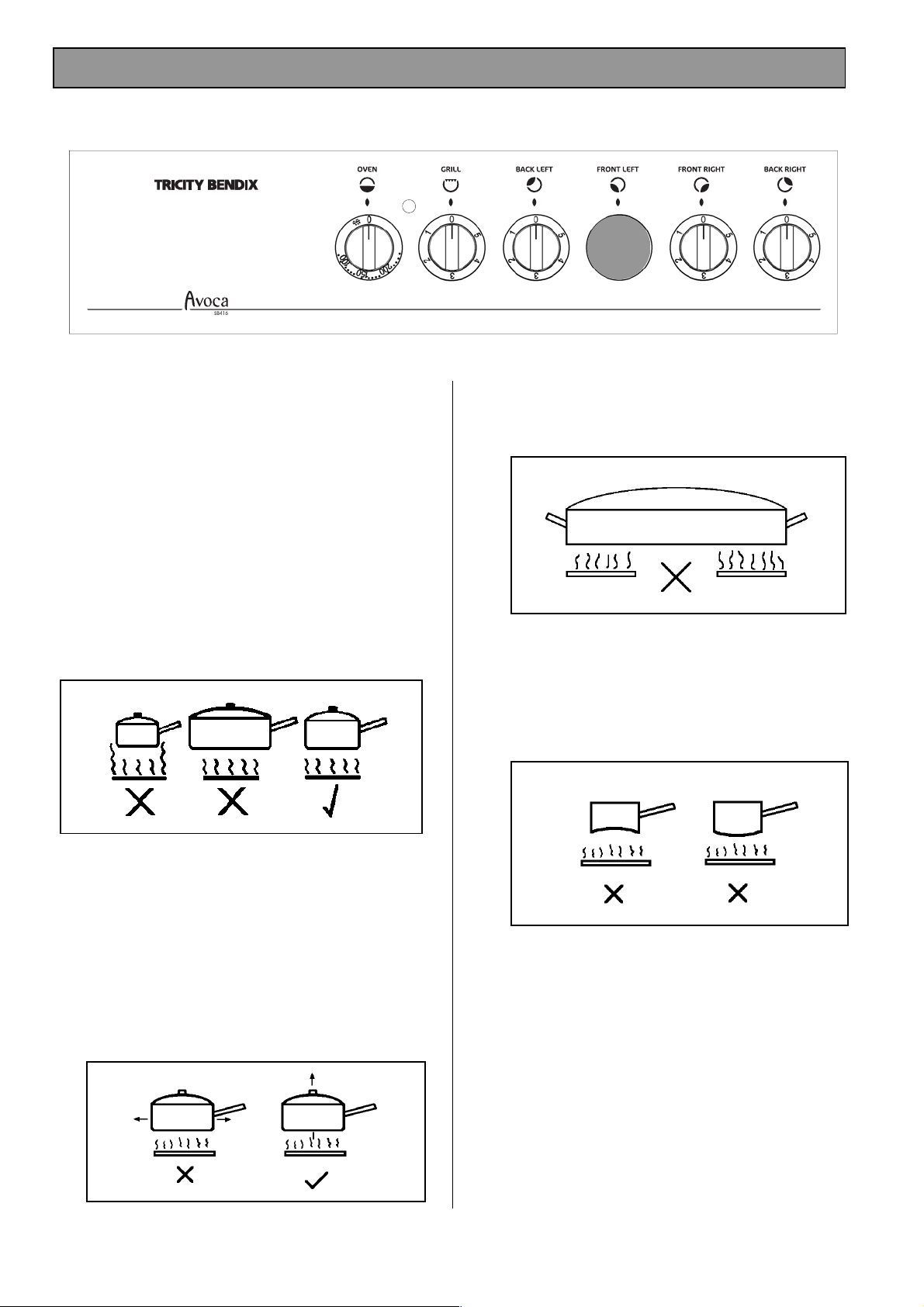

RECOMMENDED SAUCEPANS

For speed and economy only good quality saucepans
with flat bases and close fitting lids are
recommended.

The saucepan base should cover the hotplate as
much as possible. A base diameter of up to 225mm
(9") may be used on a 180mm (7") hotplate.

· Avoid placing fish kettles or large preserving

pans across two hotplates as this may cause
damage.

· Follow any guidelines provided by the saucepan

manufacturer, particularly those relating to
recommended heat settings.

· Avoid using thin, badly dented or distorted

saucepans. Those with uneven bases should not
be used.

Pressure cookers, preserving pans etc., should
comply with the recommendations given above.

Traditional round bottomed Woks must not be used
even with a stand. Woks with flat-bottomed bases
are available and do comply with the above
recommendations.

HINTS AND TIPS

· Lift, rather than slide saucepans on and off the

hob to help reduce scratches and maintain the
efficiency of the hotplates.

· To prolong the life of the hotplates:

· Never use utensils with a skirt, e.g. a bucket.

· Never use an asbestos mat.

· Never line the spillage tray with foil.

· Never leave the hotplates ON when not

covered with a saucepan.

· For full details on deep fat frying and preserving

refer to instructions on page 11.

10

DEEP FAT FRYING

SPECIAL FRYING NOTE:

For safety purposes when deep fat frying, fill the pan
one third full of oil, DO NOT cover the pan with a lid
and DO NOT leave the pan unattended. In the
unfortunate event of a fire, switch the appliance OFF
at the electricity supply and cover the pan with a lid
or damp cloth to assist in smothering the flames.

6. Frying temperatures

First frying of potatoes

Celsius Fahrenheit

Scale (°C)

150

170 340

175 350
180 360

Scale (°F)

300

DO NOT use water on the fire. Leave the pan to cool
for at least 30 minutes before moving it.

DO NOT leave the fat or oil in the frying pan on the
hob to store it in case the hob is inadvertently
switched ON.

1. Preparing the food.

Seal the food by coating with flour, egg and
breadcrumbs or batter. Do not use a basket with
batter coated foods as they will stick.

2. Amount of oil.

For safety purposes fill the pan only one-third full
of oil.

3. Testing the temperature of the oil.

It is advisable to use a thermometer to test the
temperature of the oil. Alternatively, drop a
small cube of bread into the oil which should
brown in just under a minute if the oil is at the
correct temperature of 190°C/375°F.

4. Cooking the food.

Lower the food gently into the oil. Do Not add
too much food at once or the temperature of the
oil will be reduced and may result in soggy,
greasy food.

Turn the food if necessary; doughnuts float to the
surface so will not brown on the upperside if not
turned. Once cooked, drain the food on
absorbent paper.

5. Double frying chips.

Double frying will ensure good chips. First fry the
chips for a few minutes at 170°C/340°F to seal
the outside. Remove the chips from the oil.
Increase the temperature of the oil to
190°C/375°F to finish cooking and brown the
chips.

Second frying of potatoes
Frying chicken and fish 195 380

190 375

200 390

PRESERVING

1. DO NOT use a pan that overlaps the perimeter of
the hob trim.

2. To allow for a full rolling boil, the pan should be
no more than one third full when all the
ingredients have been added. It is better to use
two pans rather than overfill one, or use half
quantities.

3. Use firm fruit or vegetables and wash well before
using.

4. Preserving sugar gives clear jam, however
granulated sugar is cheaper and gives equally
good flavour.

5. Crystallization may be caused if sugar is not
completely dissolved before bringing jam to the
boil. Over boiling will affect the flavour, setting
properties and colour of the jam.

6. To test jam for setting:

If a jam thermometer is available, boil jam to
104°C. Marmalade should be boiled to 106°C.

If a jam thermometer is not available, remove
pan from heat, place sample of jam on a cold
dish and cool quickly (i.e. in a freezer or frozen
food storage compartment of a refrigerator).
When cold, it will crinkle and hold the mark of a
finger run through it, if it is at setting point.

7. The scum should be removed as soon as
possible after setting point has been reached.
Marmalade should be allowed to cool before
potting to prevent the peel rising.

Chips may be kept for several hours after the first
frying before finishing off with the second frying.

11

THE GRILL

CAUTION – ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE.
CHILDREN SHOULD BE KEPT AWAY.

· To operate the grill, turn the control knob in either

direction to the required setting.

· The highest number represents the hottest

setting and the lowest number represents the
coolest setting.

NOTE:

THE GRILL DOOR MUST BE LEFT OPEN DURING
GRILLING.

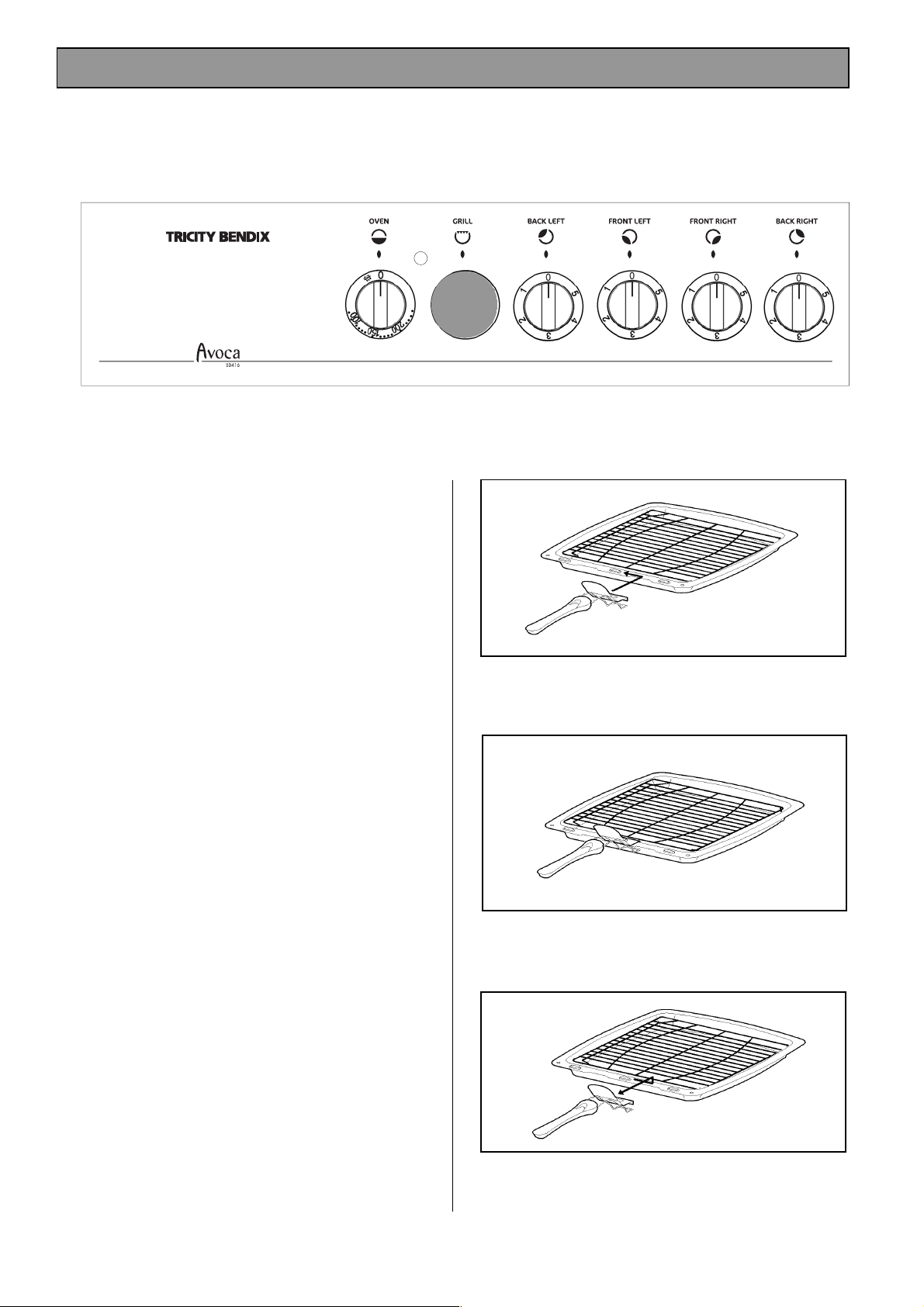

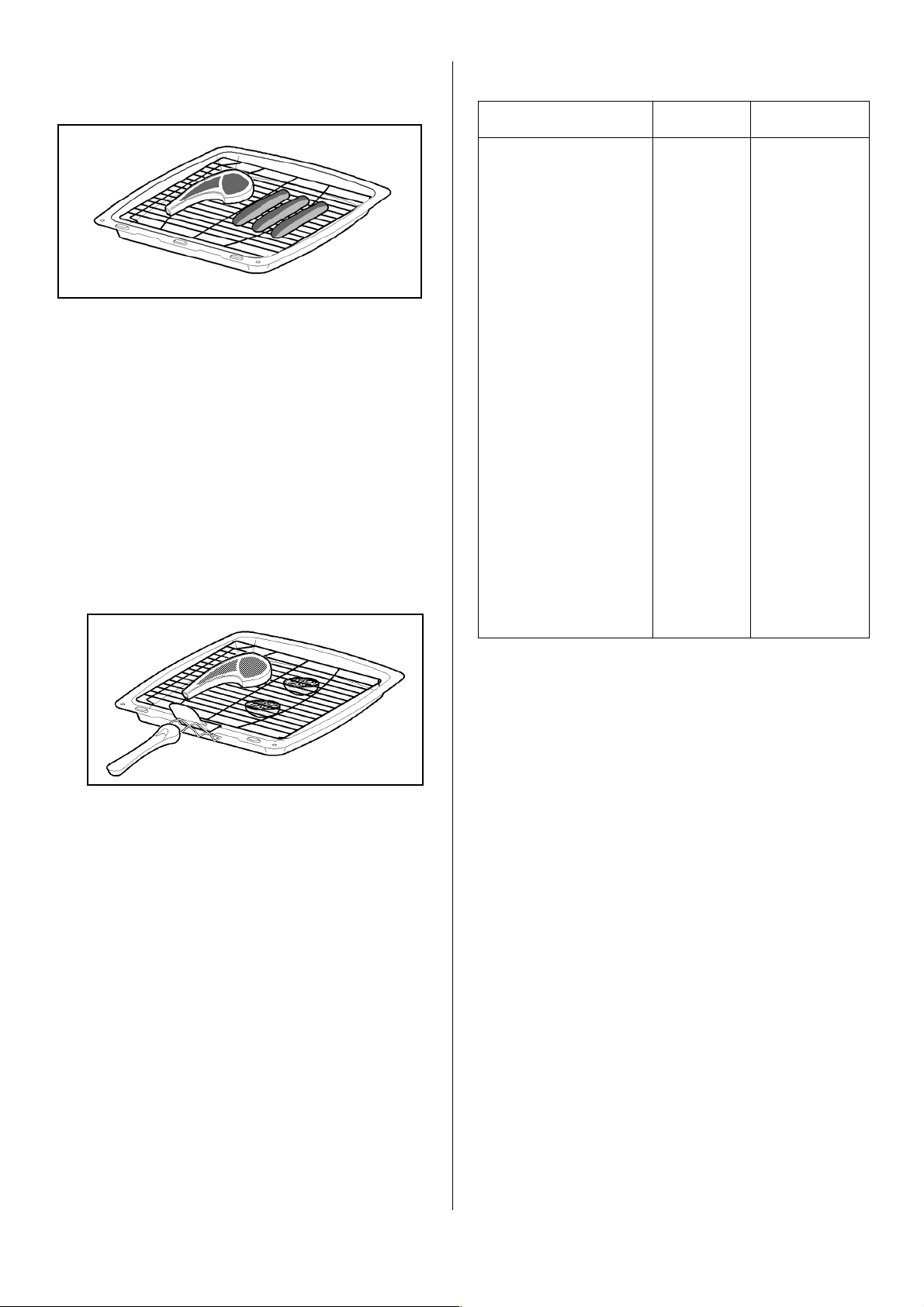

THE GRILL PAN AND HANDLE

The grill pan is supplied with a removable handle.

To attach the handle, place the wirework under the
cut out top so that the metal plate hooks over the top
of the grill pan.

Slide the handle to the left and over the central bump
on the grill pan.

Ensure the handle is correctly located. It is not
necessary to remove the grill pan handle during
grilling.

To remove the handle, slide the handle to the right
and lift the handle away from the cut out on the grill
pan.

Place the grill pan on the shelf so that the pan is
positioned centrally beneath the grill.

12

To check the progress of the food being grilled, the
grill pan should be withdrawn on the shelf to attend to
food during cooking.

HINTS AND TIPS

· Food should be thoroughly dried before grilling to

minimise splashing. Brush lean meats and fish
lightly with a little oil or melted butter to keep
them moist during cooking.

GRILLING CHART

FOOD RUNNER

POSITION

Bacon Rashers 1 5-6

Beefburgers 1 10-15

Chicken Joints 1 30-40

Chops – Lamb 1 15-20

Pork 1 20-30

Fish – Whole 1

Trout/Mackerel 1 15-25

Fillets – Plaice/Cod 1 10-15

Kebabs 1 20-30

Kidneys – Lamb/Pig 1 8-12

GRILL TIME

(mins in total)

· Adjust the height of the grilling grid and grill pan

runner position to allow for different thicknesses
of foods.

· Accompaniments such as tomatoes and

mushrooms may be placed underneath the grid
when grilling meats.

· When toasting bread use the straight shelf in

position 1 with the grid in the high position.

· Preheat the grill on a full setting for a few minutes

before sealing steaks or toasting. Adjust the heat
setting and the shelf as necessary during
cooking.

Liver – Lamb/Pig 1 10-20

Sausages 1 20-30

Steaks – Rare 1 6-12

Medium 1 12-16
Well Done 1 14-20

Toasted Sandwiches 1 3-4

Shelf positions are counted from the bottom upwards.

The times quoted above are given as a guide and
should be adjusted to suit personal taste.

· The food should be turned over during cooking

as required.

NOTE:

If you require an additional handle for your grill pan,
this can be ordered from your local Service Force
Centre by quoting part number 3111479800\6.

13

THE FAN OVEN

USES OF THE FAN OVEN

PREHEATING

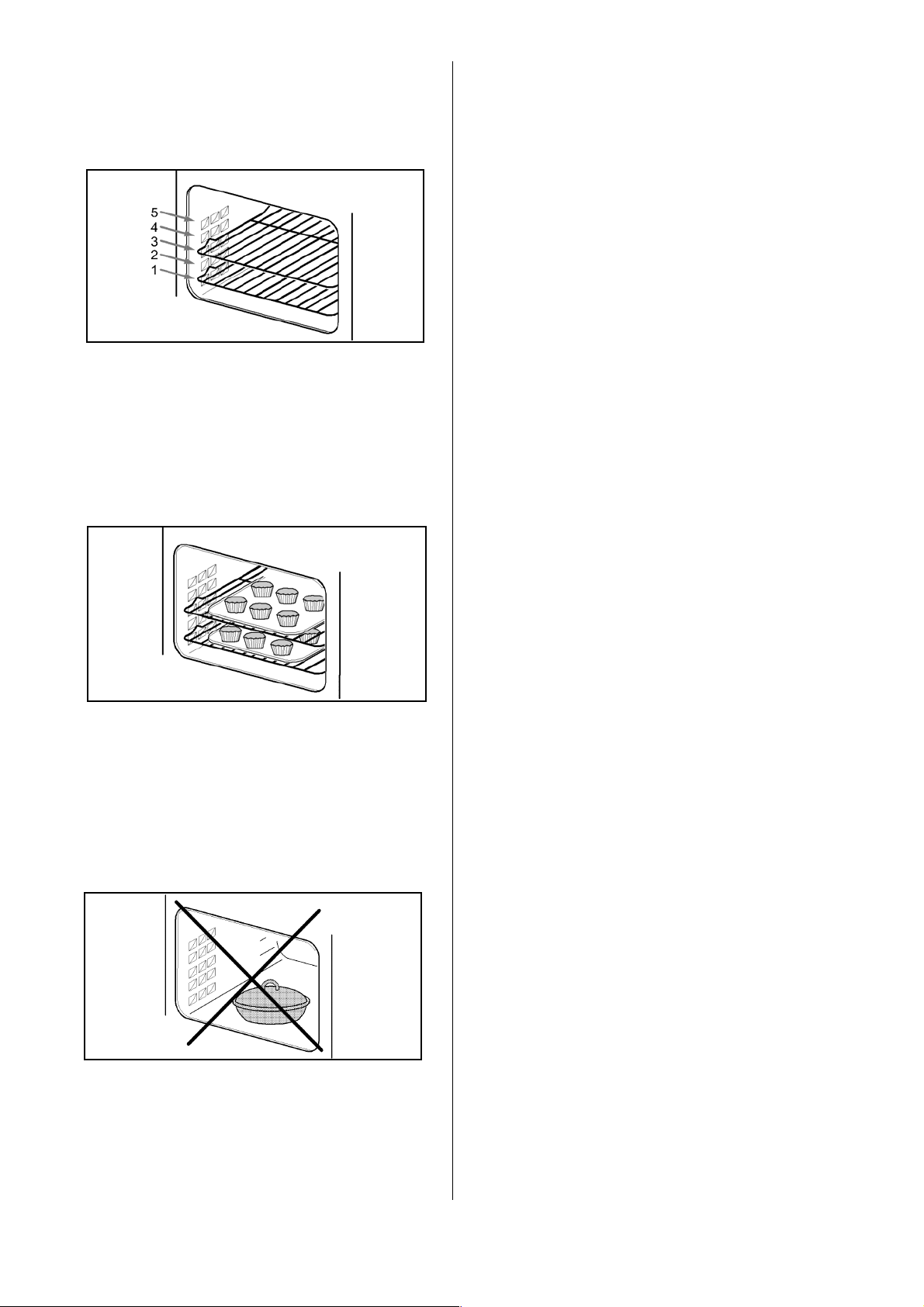

The fan oven quickly reaches its temperature, so it is not usually necessary to preheat the oven. Without
preheating, however, you may find you need to add an extra 5 –10 minutes on the recommended cooking times.
For recipes needing high temperatures, e.g. bread, pastries, scones, soufflés, etc., best results are achieved if the
oven is preheated first. For best results when cooking frozen or cooked chilled ready meals always preheat the
oven first.

COOKING TEMPERATURES

Fan oven cooking generally requires lower temperatures than conventional cooking. Follow the temperatures
recommended in the chart on page 16. As a guide reduce temperatures by about 20°C – 25°C for your own
recipes, using a conventional oven.

BATCH BAKING

The fan oven cooks evenly on both shelf levels, especially useful when batch baking.

SELECTING THE FAN OVEN

· Turn the oven temperature control to the required

setting.

THINGS TO NOTE

1. The oven indicator neon will glow until the oven has
reached the desired temperature and then go out. It
will turn ON and OFF periodically during cooking
showing that the temperature is being maintained.

TO FIT THE OVEN SHELVES

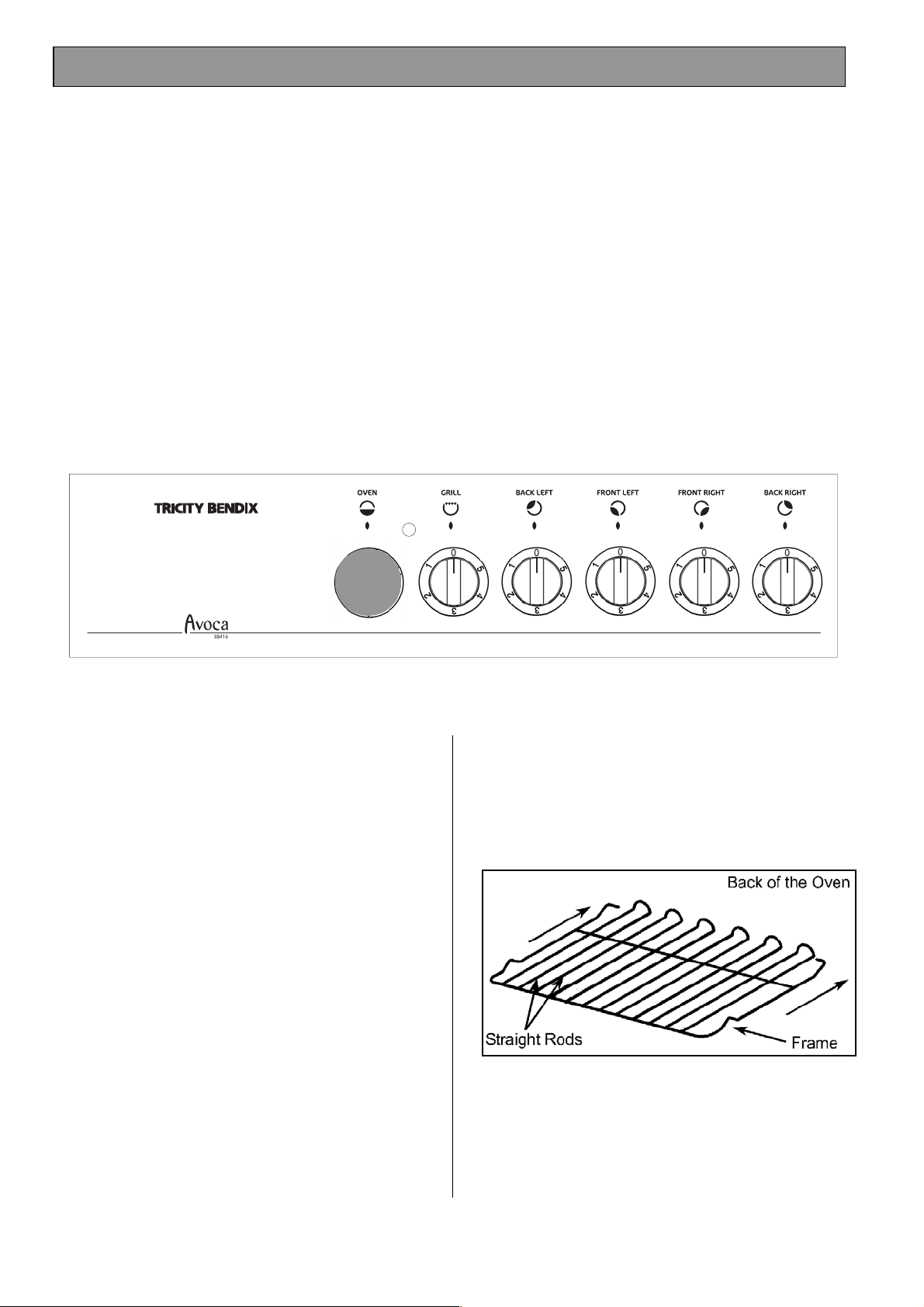

The shelves should be fitted with the straight rods
uppermost on the frame and the forms towards the
back of the oven. If not fitted correctly the anti-tilt
and safety stop mechanism will be affected.

14

HINTS AND TIPS

· Arrange the shelves in the required positions

before switching the oven ON. Shelf positions
are numbered from the bottom upwards.

· When cooking more than one dish in the fan

oven, place dishes centrally on different shelves
rather than cluster several dishes on one shelf.
This will allow the heat to circulate freely for the
best cooking results.

· When batch baking one type of food, e.g. Victoria

sandwich cakes, those of similar size will be
cooked in the same time.

· It is recommended that when baking larger

quantities, the shelf positions should be evenly
spaced to suit the load being cooked. A slight
increase in cooking time may be necessary.

· DO NOT place baking trays directly on the oven

base as it interferes with the oven air circulation
and can lead to base burning; use the lower shelf
position.

· The use of excessively high temperatures can

cause uneven browning. It may be necessary to
reduce temperatures slightly. Refer to the
recommendations given in the oven cooking
chart on page 16.

15

OVEN COOKING CHART

The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the
temperatures by 10°C to suit individual

preferences and requirements.

FAN OVEN

FOOD SHELF

POSITION
Biscuits
Bread
Bread rolls/buns
Cakes: Small & Queen

Sponges 160 - 170 18 - 20
Victoria Sandwich positions 160 - 170 18 - 25
Madeira 140 - 150 1¼ - 1½h
Rich Fruit 130 - 140 2¼ - 2½h
Christmas are not 130 - 140 3 - 4½h

Gingerbread 140 - 150 1¼ - 1½h
Flapjack critical 170 - 180 25 - 30
Shortbread 130 - 140 45 - 65

Casseroles: Beef/Lamb 140 - 160 2½ - 3h

Chicken but ensure 180 - 190 1¼ - 1½h

Convenience Foods Follow manufacturers

Fish 170 - 190 20 - 30
Fish Pie (Potato Topped) that oven 190 - 200 20 - 25
Fruit Pies, Crumbles 190 - 200 40 - 50
Milk Puddings 130 - 140 1½ - 2h
Pasta Lasagne etc. 190 - 200 40 - 45
Pastry: Choux shelves are 190 - 200 30 - 35

Eclairs, Profiteroles 170 - 180 20 - 30
Flaky/Puff Pies 210 - 220 25 - 40

Shortcrust Mince Pies evenly 190 - 200 15 - 20

Meat Pies 190 - 210 25 - 35
Quiche, Tarts, Flans 180 - 210 25 - 45

Roasting Meat, Poultry 160 - 180 see roasting chart
Scones 210 - 220 8 - 12
Shepherd’s Pie when more 190 - 200 30 - 40
Soufflés 170 - 180 20 - 30
Vegetables: Baked Jacket Potatoes 180 - 190 1 - 1½h

Roast Potatoes than one is 180 - 190 1 - 1½h

Shelf

spaced

COOKING TEMP °C APPROX

COOK TIME (m)
180 - 190
200 - 220
200 - 220
160 - 170

instructions

15 - 20
18 - 25

10 - 20
25 - 30

depends on size

Yorkshire Puddings: Large 210 - 220 25 - 40

Individual used 200 - 210 15 - 25

16

ROASTING CHART

ROASTING CHART

INTERNAL TEMPERATURES –
Rare : 50-60°C, Medium : 60-70°C, Well done : 70-80°C

MEAT FAN OVEN COOKING TIME

Beef 180 - 200°

Beef, boned 180 - 200° 25-35 minutes per ½kg (1lb)

Mutton and Lamb 180 - 200° 25-35 minutes per ½kg (1lb)

Pork and Veal 180 - 200° 30-40 minutes per ½kg (1lb)

Ham 180 - 200° 30-40 minutes per ½kg (1lb)

Chicken 180 - 200° 15-20 minutes per ½kg (1lb)

Turkey and Goose 180 - 200° 15-20 minutes per ½kg (1lb) up

Duck 180 - 200° 25-35 minutes per ½kg (1lb)

Pheasant 180 - 200° 35-40 minutes per ½kg (1lb)

20-35 minutes per ½kg (1lb)
and 20-35 minutes over

and 25-35 minutes over

and 25-35 minutes over

and 30-40 minutes over

and 30-40 minutes over

and 20 minutes over

to 3½kg (7lb) then 10 minutes
per ½kg (1lb) over 3½kg (7lb)

and 25-35 minutes over

and 35-40 minutes over

Rabbit 180 - 200° 20 minutes per ½kg (1lb)

and 20 minutes over

Potatoes with meat 180 - 200° According to size

Potatoes without meat 190 - 200° According to size

The roasting temperatures are intended as a guide only. It may be necessary to increase or decrease the
temperatures by 10°C to suit individual preferences and requirements.

Wrap joints in foil if preferred, for extra browning uncover for the last 20 – 30 min. cooking time.

17

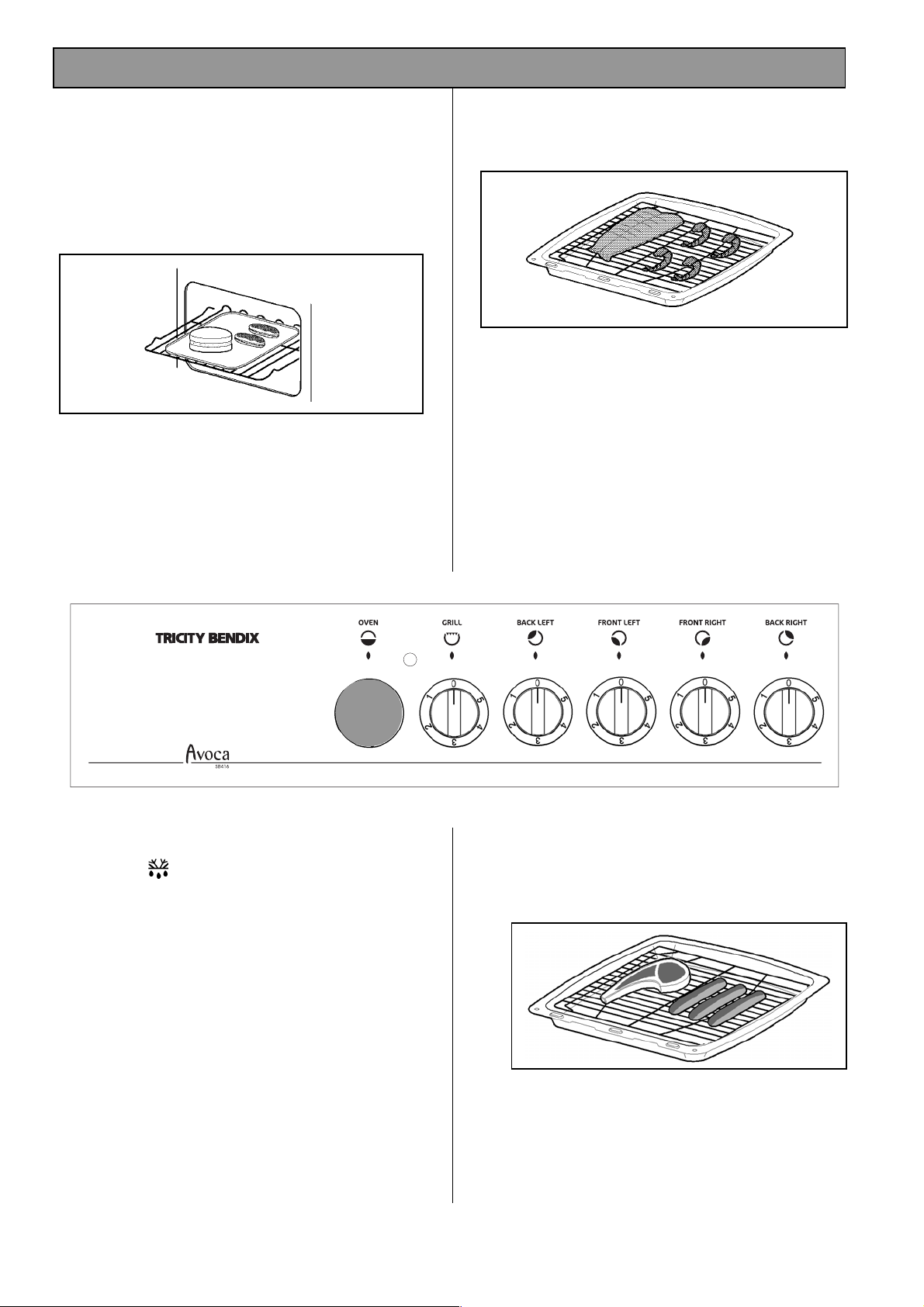

DEFROST FEATURE

USES OF DEFROST

This fan oven function defrosts most foods faster
than more conventional methods. It is particularly
suitable for delicate frozen foods which are to be
served cold e.g. cream filled gateaux, cakes covered
with icings or frostings, cheesecakes, biscuits,
scones, etc.

It is preferable to thaw fish, meat and poultry slowly
in the fridge. However, this process can be
accelerated by using the defrost function.

Small or thin fish fillets, frozen peeled prawns, cubed
or minced liver, thin chops, steaks etc., can be
thawed in 1 – 2 hours.

A 1kg/2¼lb oven ready chicken will be thawed in
approximately 5 hours. Remove the giblets as soon
as possible during the thawing process.

Joints of meat up to 2kg/4½lb in weight can be
thawed using the defrost function.

ALL JOINTS OF MEAT AND POULTRY MUST BE
THAWED THOROUGHLY BEFORE COOKING.

ALWAYS COOK THOROUGHLY IMMEDIATELY
AFTER THAWING.

SELECTING DEFROST

· Turn the oven temperature control to the defrost

setting

· When defrost is selected, the oven indicator neon

may come ON. It will stay ON until the oven
reaches room temperature and then go OFF.

· It may turn ON and OFF periodically during

defrosting to maintain a steady room
temperature, inside the oven.

HINTS AND TIPS

· Place the frozen food in a single layer where

possible and turn it over half way through the
defrosting process.

THINGS TO NOTE

Care must always be taken when handling foods in
the home. Always follow the basic rules of food
hygiene to prevent bacterial and microbial growth
and cross contamination when defrosting, preparing,
cooking, cooling and freezing foods.

· The actual speed of defrosting is influenced by

room temperature. On warm days defrosting will
be faster than on cooler days.

· DO NOT leave food at room temperature once it

is defrosted. Cook raw food immediately or store
cooked food in the fridge, once it has cooled.

18

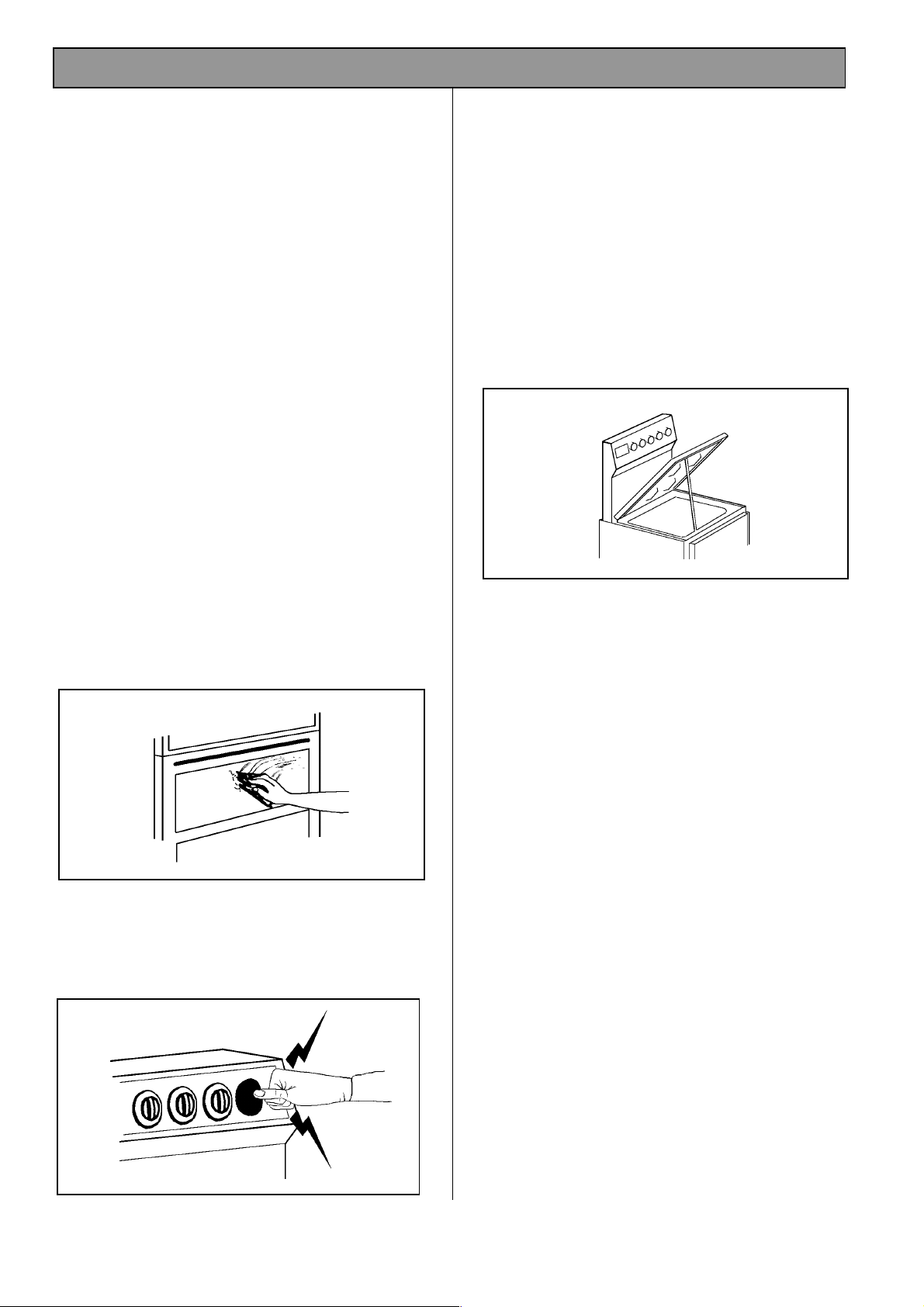

CARE AND CLEANING

BEFORE CLEANING THE APPLIANCE,
ALWAYS ALLOW APPLIANCE TO COOL
DOWN BEFORE SWITCHING OFF AT
THE ELECTRICITY SUPPLY.

CLEANING MATERIALS

Before using any cleaning materials on your
appliance, check that they are suitable and that their
use is recommended by the manufacturer.

Cleaners that contain bleach should NOT be used as
they may dull the surface finishes. Harsh abrasives
should also be avoided.

CLEANING THE HANDLES

It is strongly recommended that only hot soapy water
is used for cleaning the handles.

CLEANING THE OUTSIDE OF THE
APPLIANCE

DO NOT use abrasive cleaning materials, or

scourers on the outside of the appliance as some of
the finishes are painted and damage may occur.
Cleaners that contain bleach should NOT be used as
they may dull the surface finishes. Regularly wipe
over the control panel, splashback, doors and
appliance sides using a soft cloth and liquid
detergent cleaning materials.

CLEANING THE RADIANT HOB AND
HOTPLATE TRIMS

Clean the hob surface with liquid detergent or a mild
abrasive cream cleaner.

The chrome hotplate trims are removable for easy
cleaning, and can be washed in the dishwasher. The
chrome hotplate supports should NOT be removed.

The spillage tray below the hotplates can be cleaned
using a soap impregnated steel wool pad.

For convenience, the hob is hinged and can be
supported using the hob stay rod during cleaning.

CLEANING THE GRILL AND OVEN
FURNITURE

All removable parts, except the Stayclean oven
panels and grill pan handle can be washed in the
dishwasher.

DO NOT ATTEMPT TO REMOVE ANY OF
THE CONTROL KNOBS FROM THE
APPLIANCE AS THIS MAY CAUSE
DAMAGE AND IS A SAFETY HAZARD.

The grill pan, grill pan grid and oven shelves may be
cleaned using a soap impregnated steel wool pad.
Soaking first in hot soapy water will make cleaning
easier.

CLEANING INSIDE THE GRILL/OVEN
COMPARTMENTS

The vitreous enamel in the grill compartment and on
the oven base can be cleaned using normal oven
cleaners or aerosol oven cleaners with care.

Ensure that the manufacturers instructions are
followed and that all parts are well rinsed afterwards.

Aerosol cleaners must not be used on Stayclean
surfaces and must not come into contact wit
elements as this may cause damage.

19

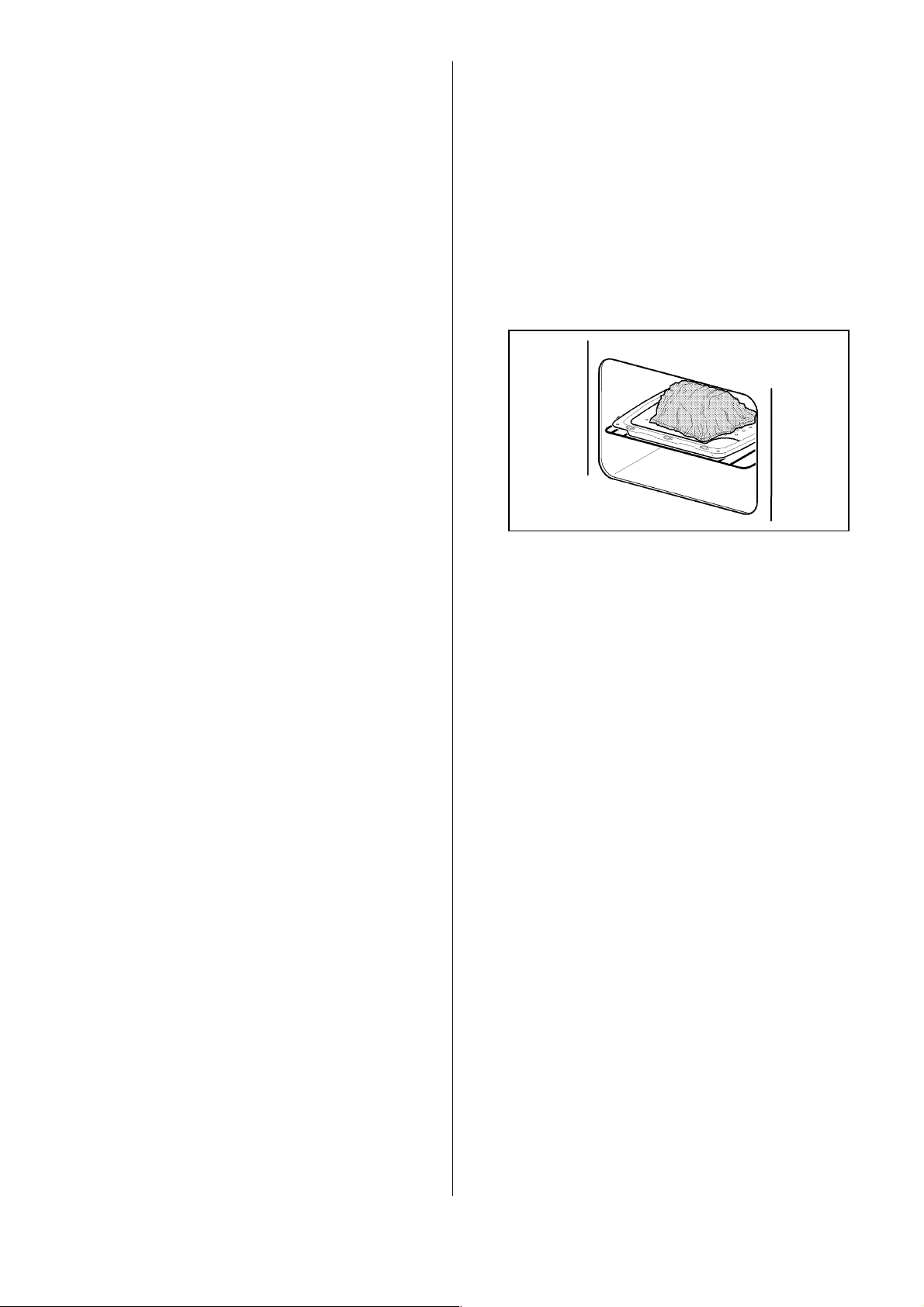

CARE OF STAYCLEAN SURFACES

Your appliance has oven linings coated with a special
finish to help make cleaning the oven easier.

The Stayclean surfaces destroy splashes of food and
fats when the oven temperature is raised to around
220°c.

It is a good idea to run the oven for an hour or two
per week to ensure continued good performance
from the Stayclean finish.

THINGS TO NOTE

When operating the appliance at higher temperatures
than used in normal cooking the surfaces of the
appliance may get hotter than usual. Children should
be kept away.

HINTS AND TIPS

· Manual cleaning of the Stayclean surfaces IS

NOT recommended. Damage will occur if
abrasives or aerosol sprays of any kind are used.

· It is not necessary to add water to a meat tin

when roasting. The water and the fat juices from
the joint create excessive splattering during
cooking, even at normal temperatures, as well as
causing condensation.

· Covering joints during cooking will also prevent

splashing onto the interior surfaces. Removing
the covering for the last 20-30 minutes will allow
extra browning if required. Some large joints and
turkeys especially benefit by this method of
cooking, allowing the joint to cook through before
the outside is over-browned.

· Slight discolouration and polishing of the

Stayclean surfaces may occur in time. This
DOES NOT affect the Stayclean properties in
any way.

· A good time to allow the oven to run on is after

the weekly roast. After removing the roast, turn
the oven up to 220°C and allow to run for an hour
or so. It is important not to allow a build-up of
soilage as this can prevent the Stayclean
surfaces from working.

· Follow the recommendations below to keep oven

soilage to a minimum.

· Cook at the recommended temperatures. Higher

temperatures during roasting will increase
soilage. Try cooking at lower temperatures for
an increased length of time, you will save energy
and often the joint is more tender.

· Use minimal, if any, extra oil or fat when roasting

meat, potatoes only require brushing with fat
before cooking. Extra fat in the oven during
roasting will increase splashing and soilage.

20

SOMETHING NOT WORKING?

Before calling an Engineer please carry out the
following checks, you may be able to solve the
problem without the expense of an engineer.

If our Service Engineer finds that the problem is listed
below you will be charged for the call whether or not
the appliance is under guarantee.

The appliance does not work at all:

* Check that the appliance has been wired in

and is switched on at the wall.

* Check that the main appliance fuse is

working.

The oven temperature is too high or low:

* Check that the recommended temperatures

are being used (see page 16). Be prepared
to adjust the temperature up or down by
10°C to achieve the results you want.

The hotplates are slow to boil or simmer
inadequately:

* Check that the saucepans being used are

suitable. See page 10.

The oven is not cooking evenly or the side
opening door will not stay open:

* Check that the appliance is level.

21

SERVICE AND SPARE PARTS

In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local
Service Force Centre by telephoning:-

0870 5 929929

Your telephone call will be automatically routed to the Service Force Centre covering your post code area.

For the address of your local Service Force Centre and further information about Service Force, please visit the
website at www.serviceforce.co.uk.

Before calling out an engineer, please ensure you have read the details under the heading "Something Not
Working?".

When you contact the Service Force Centre you will need to give the following details:

1. Your name, address and post code.

2. Your telephone number.

3. Clear and concise details of the fault.

4. The model and serial number of the appliance (found on the rating plate).

5. The purchase date.

Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee service
calls.

For Customer Service in Ireland please contact us at the address below:

Tricity Bendix
Electrolux Group (Irl) Ltd
Long Mile Road
Dublin 12
Republic of Ireland

Tel: [phone]

Email: [e-mail]

CUSTOMER CARE DEPARTMENT

For general enquires concerning your Tricity Bendix appliance, or for further information on Tricity Bendix products,
please contact our Customer Care Department by letter or telephone at the address below;

Customer Care Department
Tricity Bendix
55 – 77 High Street
Slough
Berkshire
SL1 1DZ
Tel: [phone] (*)

*calls to this number may be recorded for training purposes.

22

GUARANTEE CONDITIONS

Standard guarantee conditions

We, Tricity Bendix, undertake that if within 12 months of the date of the purchase this Tricity Bendix
appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we
will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on
condition that:

· The appliance has been correctly installed and used only on the electricity supply stated on the rating

plate.

· The appliance has been used for normal domestic purposes only, and in accordance with the

manufacturer’s instructions.

· The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person

not authorised by us.

· All service work under this guarantee must be undertaken by a Service Force Centre.

· Any appliance or defective part replaced shall become the Company’s property.

· This guarantee is in addition to your statutory and other legal rights.

Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside
these hours in which case a premium will be charged.

Exclusions

This guarantee does not cover:

· Damage or calls resulting from transportation, improper use or neglect, the replacement of any light

bulbs or removable parts of glass or plastic.

· Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances

outside the United Kingdom.

· Appliances found to be in use within a commercial environment, plus those which are subject to rental

agreements.

· Products of Tricity Bendix manufacture which are not marketed by Tricity Bendix.

European Guarantee

If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:

· The guarantee starts from the date you first purchased your product.

· The guarantee is for the same period and to the same extent for labour and parts as exists in the new

country of use for this brand or range of products.

· This guarantee relates to you and cannot be transferred to another user.

· Your new home is within the European Community (EC) or European Free Trade Area.

· The product is installed and used in accordance with our instructions and is only used domestically, i.e. a

normal household.

· The product is installed taking into account regulations in your new country.

Before you move please contact your nearest Customer Care centre, listed below, to give them details of
your new home. They will then ensure that the local Service Organisation is aware of your move and able to
look after you and your appliances.

France Senlis +33 (0) 3 44 62 20 13
Germany Nürnberg +49 (0) 800 234 7378
Italy Pordernone +39 (0) 800117511
Sweden Stockholm +46 (0) 20 78 77 50
UK Slough +44 (0) 1753 219898
Ireland Dublin [phone]

23

Tricity Bendix, 55-77 High Street, Slough, Berkshire SL1 1DZ

Consumer care telephone number 08705 950950

IMPORTANT NOTICE

In line with our continuing policy of research and development, we reserve the right to alter models and
specifications without prior notice.

This instruction booklet is accurate at the date of printing, but will be superseded if specifications or
appearance are changed.

SB416 - 311677100

© Electrolux plc 2003
