TRICITY BENDIX SB410W, SB410B User Manual
Better Products. Better Value.
OPERATING AND INSTALLATION INSTRUCTIONS
MODEL NO.
SB 410
23
TECHNICAL DETAILS
MODEL NO. SB 410
Voltage: 230/240 Volts AC 50Hz
Wattage: 9.8/10.7kW
Height: 1290mm
Width: 550mm
Depth: 595mm
Weight: 52kg
This appliance complies with European Council Directive 72/23/EEC.
This appliance carries the C.E. mark.
2
CONTENTS
Technical Details
Contents
Preface
Safety
Introduction ...................................................................................... 7
Getting to Know Your Cooker
The Radiant Hob
.........................................................................................
...........................................................................................
.............................................................................................
Before Installation ........................................................................... 5
During Operation ............................................................................ 5
After Use ................................................................................... 6
General .................................................................................... 6
Rating Plate ................................................................................ 7
Installation .................................................................................. 7
Reversible Main Oven Door ................................................................. 8
General Notes on Using your Cooker ........................................................ 8
About Condensation and Steam ............................................................. 8
Grill and Oven Furniture ..................................................................... 8

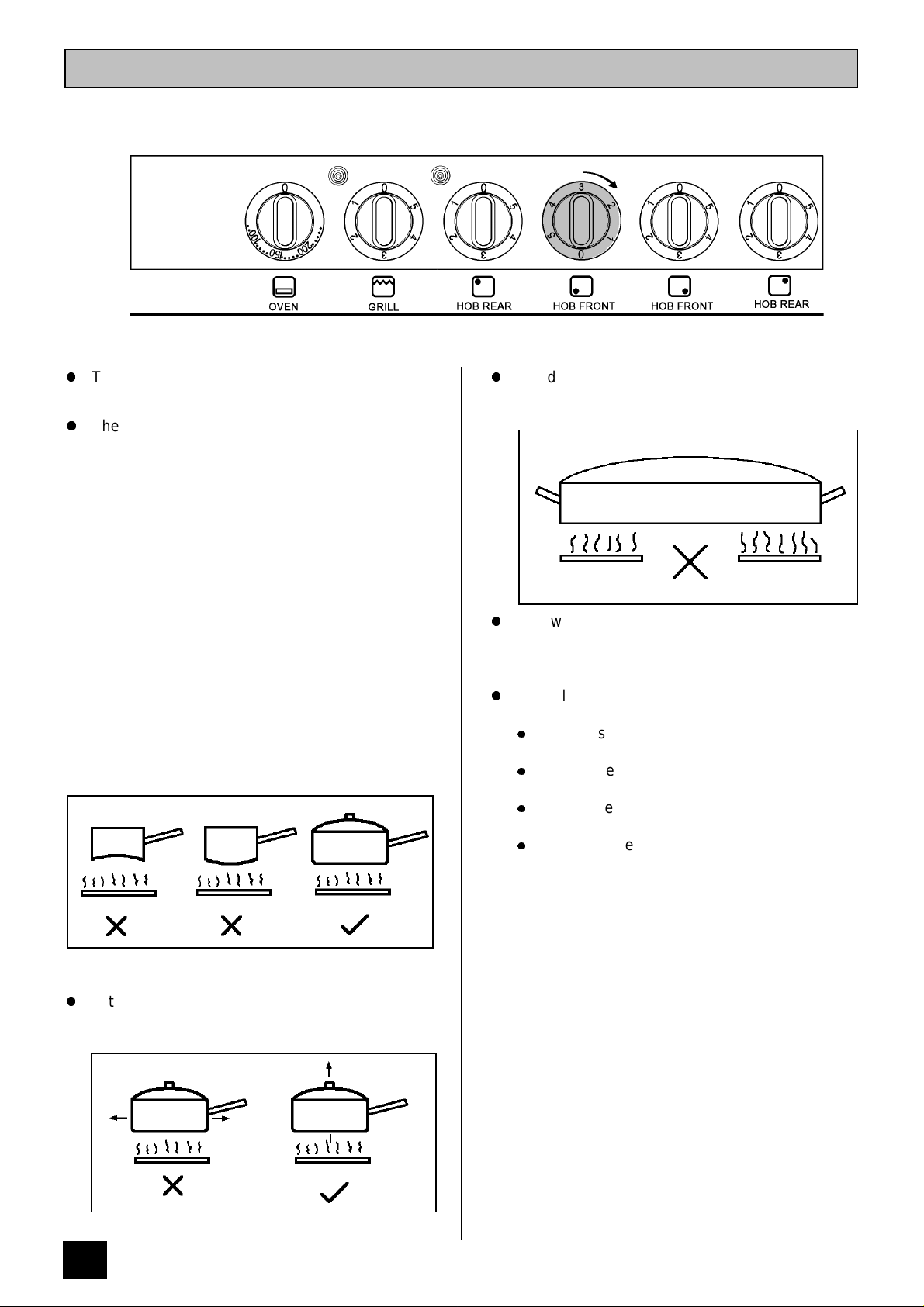

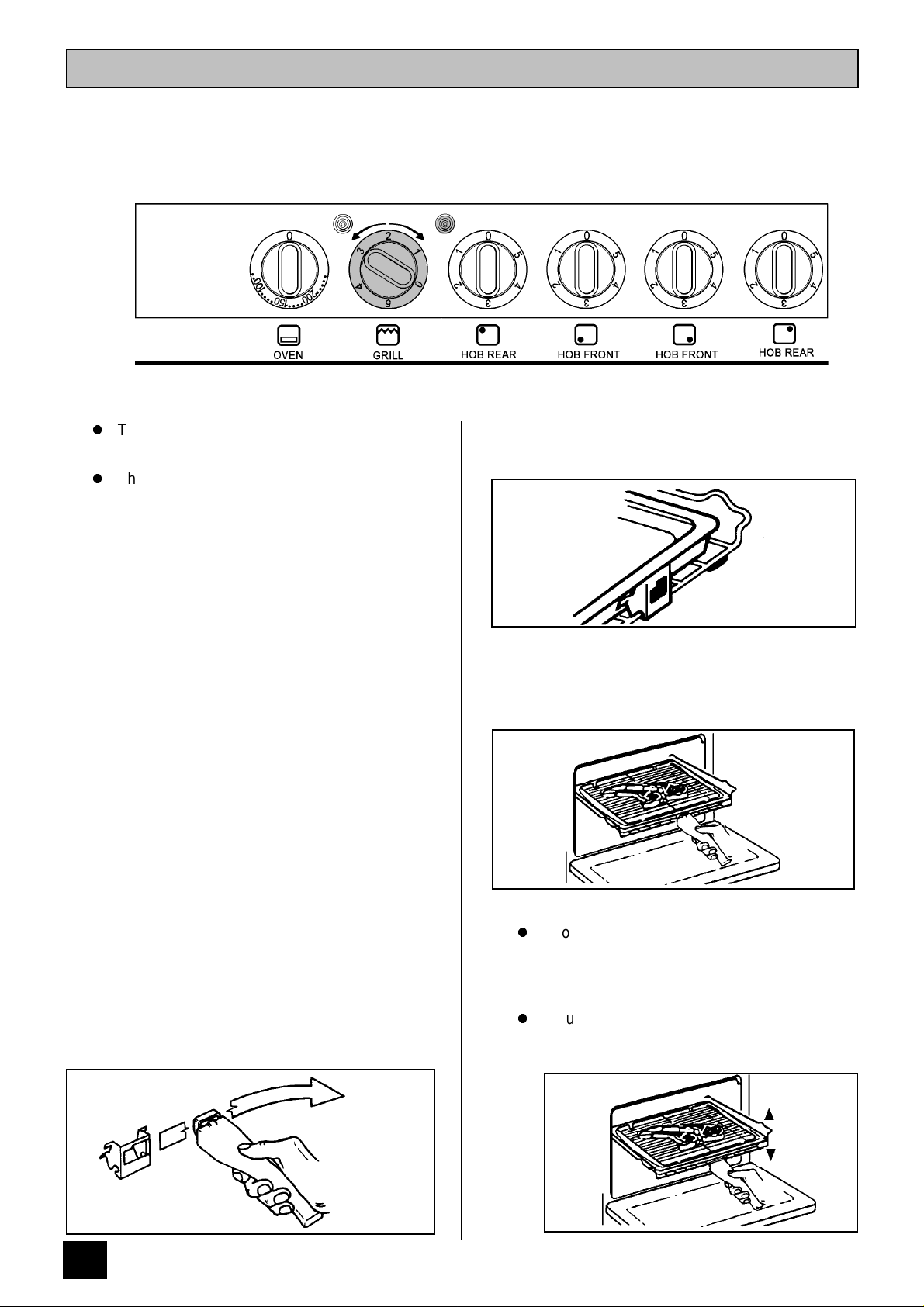

The Control Panel .......................................................................... 9
Recommended Saucepans ................................................................. 10
Hints and Tips ............................................................................. 10
Deep Fat Frying ........................................................................... 10
Preserving ................................................................................. 11
.................................................................................
....................................................................
................................................................................
10
2
3
4
5
9
The Grill
The Oven
Care and Cleaning
Something not Working? ........................................................................ 19
Service and Spare Parts
Customer Service Centres
Guarantee Conditions
.........................................................................................
The Grill Pan and Handle ................................................................... 12
Hints and Tips ............................................................................. 12

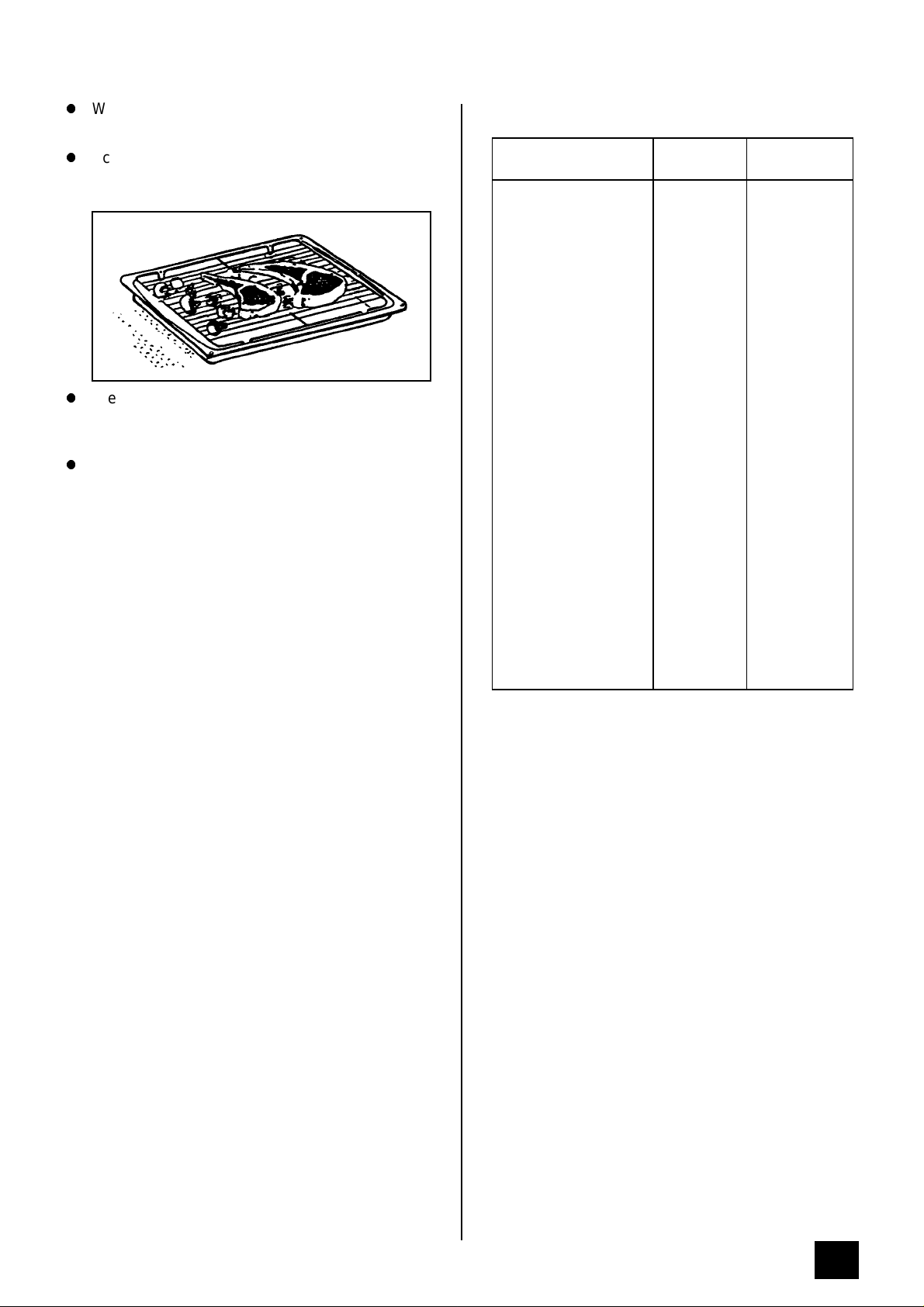

Grilling Chart .............................................................................. 13
........................................................................................

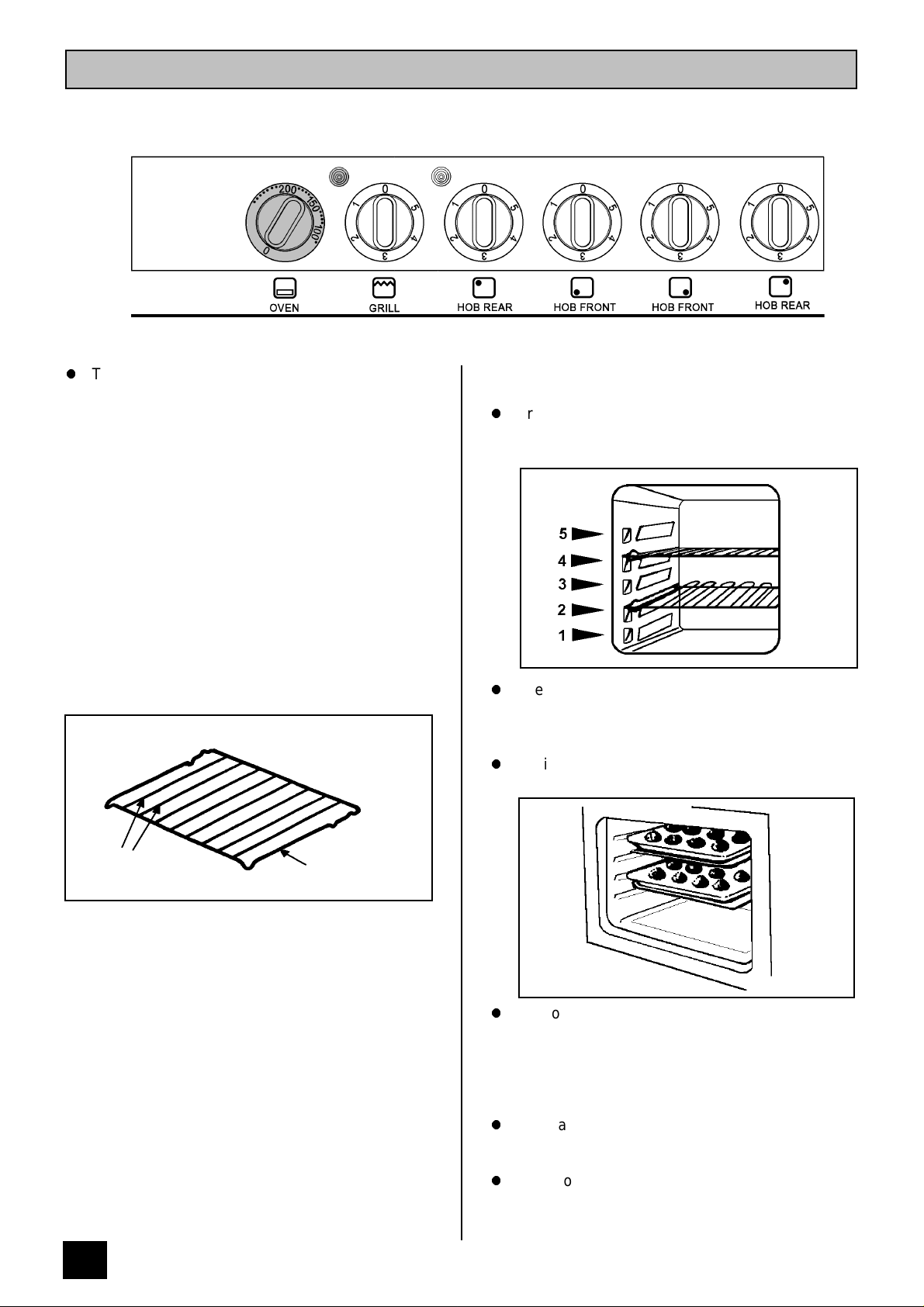

To Fit the Oven Shelves ................................................................... 14
Hints and Tips ............................................................................. 14
Oven Cooking Chart ....................................................................... 15
Roasting Chart ............................................................................. 16
...............................................................................
Cleaning Materials ........................................................................ 17
Cleaning the Outside of the Cooker ........................................................ 17
Cleaning the Hob and Hotplate Trims ...................................................... 17
Cleaning the Grill Deflector, Grill and Oven Furniture ........................................ 17
Cleaning Inside the Oven and Grill Compartments .......................................... 17
Care of Stayclean Surfaces ................................................................ 17
Hints and Tips ............................................................................ 18
.........................................................................
.......................................................................
...........................................................................
12
14
17
20
21
25
3
PREFACE
Dear Customer,
Thank you for buying a Tricity Bendix cooker. With our 80 years experience in
developing and manufacturing the very best in U.K. cookers, you can be
assured that you have purchased a hard working, reliable, quality product.
Tricity Bendix cookers comply with British Standard safety and performance
requirements. They have been approved by BEAB (British Electrotechnical
Approvals Board) and are covered by a 12 month parts and labour guarantee.
To get the best from your new Tricity Bendix cooker, we ask that you PLEASE
READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be
made to cooking times and temperatures which may differ from your previous
cooker.
It is most important that this instruction book is retained with the appliance for
future reference. Should the appliance be sold, or if you move house and
leave the appliance, always ensure that the book remains with the appliance.
This will enable the new owner to be acquainted with the functioning of the
appliance and the relevant warnings.
Please read the whole instruction book before attempting to use the appliance
ensuring you follow the recommendations given.
4

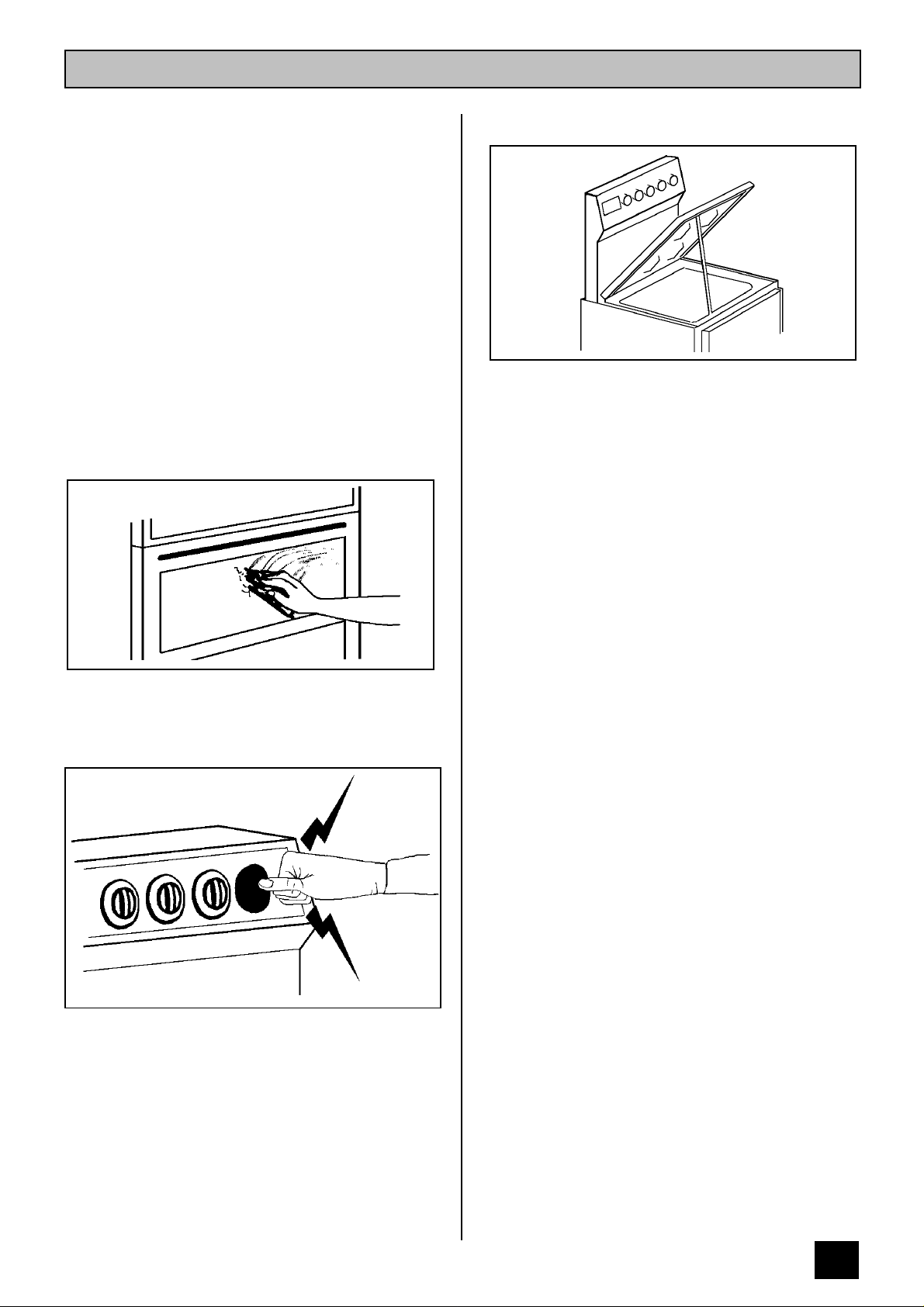

SAFETY
THESE WARNINGS ARE PROVIDED IN
THE INTERESTS OF YOUR SAFETY.
ENSURE THAT YOU UNDERSTAND
THEM ALL BEFORE INSTALLING OR
USING THE COOKER.
PLEASE
READ
CAREFULLY
BEFORE INSTALLATION
This cooker is heavy and care must
be taken when moving it.
Ensure that all packaging, both
inside and outside the cooker has
been removed before the cooker is
used.
This cooker is designed to be
operated by adults and children
under supervision. Young children
must not be allowed to tamper with
the cooker or play with the controls.
Accessible parts especially around
the grill area, may become hot when
the cooker is in use. Children should
be kept away until it has cooled.
Take great care when heating fats
and oils as they will ignite if they
become too hot.
This cooker has been designed for
cooking edible foodstuffs only, and
must not be used for any other
purposes.
Never place plastic or any other
material which may melt in the oven
or on the hob.
Do not try to move the cooker by
pulling the door handles.
The electrical installation work must
be undertaken by a qualified
electrician/ competent person.
It is dangerous to alter or modify
the specifications of the cooker in
any way.
After installation, please dispose of
the packaging with due regard to
safety and the environment.
DURING OPERATION
Ensure cooking utensils are large
enough to contain foods to prevent
spillages and boil overs.
The handles of saucepans which are
smaller than the heated area on the
hob will become hot. Ensure your
hand is protected before handling the
pan.
Take care to follow the
recommendations given for tending
the food when grilling.
Do not leave the grill pan handle in
position when grilling as it will
become hot.
Always use oven gloves to withdraw
the grill pan, when grilling. Follow the
recommendations on page 12.
Do not use this cooker if it is in
contact with water and never
operate it with wet hands.
5
Ensure that all vents are left
unobstructed to ensure ventilation of
the oven cavity.
Ensure that the anti-tilt shelves are
put in place correctly. Refer to
instructions on pages 14.
Never line any part of the cooker
with aluminium foil.
GENERAL
Under no circumstances should
any repairs be carried out by an
inexperienced person as this may
cause injury or serious malfunction.
This cooker should be serviced by
an authorised Service Engineer and
only genuine-approved spare parts
should be used. Details of repair and
servicing arrangements are supplied
on page 20 of this book.
AFTER USE
Always stand back from the cooker
when opening the oven door to allow
any build up of steam or heat to
release.
Do not place sealed cans or
aerosols inside the oven. They may
explode if they are heated.
Ensure that all control knobs are in
the OFF position when not in use.
For hygiene and safety reasons this
cooker should be kept clean at all
times. A build-up of fats or other
foodstuffs could result in a fire,
especially in the grill pan.
Do not stand on the cooker or on
the open oven door.
Do not hang towels, dishcloths or
clothes from the cooker or its handle.
They are a safety hazard.
Always switch OFF the cooker at its
power point and allow the cooker to
cool before any maintenance or
cleaning work is carried out.
Only clean this cooker in accordance
with the instructions given in this
book.
Your safety is of paramount importance.
Do not leave utensils containing
foodstuffs, e.g. fat or oil in or on the
cooker in case it is inadvertently
switched ON.
Cookers and hobs become very hot,
and retain their heat for a long period
of time after use. Children should be
kept well away from the cooker until
it has cooled.
Therefore, if you are unsure about any of the
meanings of these WARNINGS contact the:
Consumer Care Department
Telephone (01582) 585858
6
INTRODUCTION
WARNING: THIS COOKER MUST BE EARTHED
RATING PLATE
Record the model and serial numbers on the back
cover of this instruction book from the rating plate.
This is situated on the lower front frame of the
cooker and can be seen upon opening the oven
door.
The cooker must be protected by a suitably rated
fuse or circuit breaker. The rating of the cooker is
given on the rating plate.
INSTALLATION
If your cooker has been damaged in transit, contact
your supplier immediately. DO NOT attempt to
install it.
The cable should be routed away from potentially hot
areas marked by an ' X' in the diagram below.
To move the cooker, open the main oven door, and
lift the cooker by holding inside the top of the oven
compartment.
Your cooker left the factory fully packaged to protect
it from damage. If it is delivered without packaging
and damage has occurred, the manufacturer cannot
accept responsibility. Contact your supplier for
advice.
Once the packaging has been removed the cooker
should only be moved by hand. DO NOT use a sack
barrow or any other aid to lift the cooker as damage
may occur.
Connection to the electricity supply must be carried
out by a qualified electrician/competent person.
The electrical connection should be made using a
double pole isolating switch (cooker socket) with at
least 3mm contact separation. The cable must have
conductors of sufficiently high cross-sectional area to
prevent overheating and deterioration.
Six square millimetres ( 6.00mm² ) is the recommend
cross-section area.
This is a type Y appliance which means it is
free-standing and can be fitted with cabinets on one
or both sides. It may also be fitted in a corner
setting.
Side walls which are above hob level should be
protected by heat resistant non-combustible material
and MUST NOT be nearer than 40mm to the hob
side.
A nominal air gap of 2mm at the sides of the cooker
is required to enable the cooker to be moved into
position.
Overhanging surfaces or a cooker hood should be a
minimum of 685mm above the hob.
ed
It is important to ensure that the appliance is level
after installation. Levelling feet are fitted to the front
of the appliance to accommodate uneven floors.
7
REVERSIBLE MAIN OVEN DOOR
If you require the oven door to be hinged on the
opposite side, you will need to contact a qualified
Service Engineer. See page 21 for your nearest
Service Centre. PLEASE NOTE that a charge will
be made.
GENERAL NOTES ON USING YOUR
COOKER
We suggest that you run all the elements for a short
period to burn off any residue from their surfaces.
During this period an unpleasant odour may be
emitted, it is therefore advisable to open a window
for ventilation.
1 grill pan handle
1 grill pan grid
1 grill deflector
ABOUT CONDENSATION AND STEAM
When food is heated it produces steam similar to a
boiling kettle. The ovens are vented to allow some of
this steam to escape. However, always stand back
from the cooker when opening the oven door to allow
any build up of steam or heat to release.
If the steam comes into contact with a cool surface
on the outside of the cooker, e.g. a trim, it will
condense and produce water droplets. This is quite
normal and is not caused by a fault on the cooker.
To prevent discolouration, regularly wipe away
condensation and also soilage from surfaces.
For your safety wallcoverings at the rear of the
appliance should be securely fixed to the wall.
GRILL AND OVEN FURNITURE
The following items of grill/oven furniture have been
supplied with the cooker.
1 cranked shelf for
grilling only
2 straight shelves
for main oven cooking
1 meat tin
Scuffing of the stayclean oven lining by the oven
furniture pack may occur during transit. These marks
will disappear after the oven elements have been
burnt off for the first time.
1 grill pan
8
GETTING TO KNOW YOUR COOKER
THE CONTROL PANEL
FEATURES
A - Oven Temperature Control
B - Oven Indicator Neon
C - Grill Control
D - Grill Indicator Neon
E - Hotplate Controls
9
Loading...
