INSTALLATION AND INSTRUCTION MANUAL
LARDER LF506W
LF506GR
ECL506W
Thank you for buying a TRICITY BENDIX DOMESTIC APPLIANCE
To enable you to use your appliance effectively and safely, please read this instruction
book carefully before using the appliance and retain for future reference. If you require
guidance in the use of the appliance or require further information, please contact our
Customer Care Department.
TRICITY BENDIX
CUSTOMER CARE DEPARTMENT
P.O. BOX 47
NEWBURY
BERKSHIRE
RG14 5XL
Tel: 01635 525542
Fax: 01635 42970
Guide to use the instruction book
The following Symbols will be found in the text to guide you through the instructions
Safety Instructions Hints and Tips
Step by step instructions Environmental Information
for an operation
2
IMPORTANT SAFETY INSTRUCTIONS
These warnings are provided in the interests of your safety. Ensure that you understand them
all before installing or using this appliance. Your safety is of paramount importance. If you are
unsure about any of the meanings or these warnings contact the Customer Care Department.
Installation
This appliance is heavy. Care should be taken
when moving it.
It is dangerous to alter the specifications or
attempt to modify this product in any way.
Ensure that the appliance does not stand on
the electrical supply cable. If the supply cord
is damaged, it must be replaced by a special
cord available from your local Service Force
Centre.
Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.
Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall but leaving the
required distance for ventilation as stated in
the installation instructions.
The appliance should be left for 2 hours after
installation before it is turned on, in order to
allow the refrigerant to settle.
Child Safety
Do not allow children to tamper with the
controls or play with the product.
Servicing
This product should be serviced by an
authorised engineer, and only genuine spare
parts should be used.
Under no circumstances should you attempt
to repair the machine yourself. Repairs carried
out by inexperienced persons may cause
injury or serious malfunctioning. Contact your
local Service Force Centre.
At the End of the appliance Life
When disposing of your appliance, use an
authorised disposal site.
Remove the plug and ensure that any locks or
catches are removed, to prevent young
children being trapped inside.
Please read this
instruction book carefully
before use and retain
for future reference.
During Use
This appliance is designed for domestic use
only, specifically for the storage of edible
foodstuffs only.
Maintenance and Cleaning
Switch off, and unplug the appliance before
carrying out any cleaning or maintenance
work.
3
TABLE OF CONTENTS
For the User
Important Safety Instructions 3
Description of the Appliance 5
Control Panel 5
Using Your Appliance 6
Before Use 6
To Start The Appliance 6
Thermostat Control 6
Larder Compartment 7
Storage Guide
Shelf Adjustment
Hints and Tips 8
Normal Operating Sounds 8
Food Storage 8
Energy Saving Advice 8
For the Installer
Installation Instructions 15
Technical Information 15
Electrical Connections 16
Electrical requirements 16
Installation
Installation requirements 17
Ventilation requirements 17
Levelling 17
Door Reversal 18
7
7
Side Fixed Handle Change 19
Guarantee Conditions 20
Maintenance and Cleaning 9
Internal Cleaning 9
External Cleaning 9
To Change the Lightbulb 9
Defrosting Your Appliance 10
When the Appliance is Not in Use 10
What Happens if Something
Goes Wrong 11
Service and Spare Parts 12
Service Centres 13
4
Description of the Appliance
Heat Resistant Top
Adjustable Shelf
Salad Drawer
Cover
Salad Drawer
Adjustable Feet
Control Panel
Thermostat
Dairy
Compartment
Door Storage
Shelf
Bottle Shelf
THE FURNISHINGS FROM THE SHRINK WRAP PACK SHOULD BE POSITIONED
PACK CONTENTS:
LF506W
Wire Shelf (2)
Glass Salad Drawer Cover/Trim (1)
Salad Drawer (1)
Egg Tray (1)
CONTROL PANEL
IN LINE WITH THE ABOVE DIAGRAM
LF506GR
Wire Shelf/Trim Assembly (3)
Glass Salad Drawer Cover/Trim (1)
Salad Drawer (1)
Egg Tray (1)
ECL506W
Wire Shelf (2)
Glass Salad Drawer Cover/Trim (1)
Salad Drawer (1)
Egg Tray (1)
Butter Dish (1)
5
USING THE APPLIANCE
This appliance is designed for
domestic use only, specifically for the
storage of edible foodstuffs.
This appliance is designed to operate in
ambient temperatures (surrounding air
temperature) between 10°C (50°F) and 32°C
(90°F).
If these temperatures are exceeded i.e.,
colder or warmer, the appliance will not
operate correctly.
Before Use
Remove all securing tapes.
Wash the inside of the appliance with lukewarm
water with a little bicarbonate of soda added (5ml
to 0.5 litre of water). Do not use soap or
detergent as the smell may linger. Dry the
appliance thoroughly.
Do not use detergents, abrasive
powders, highly perfumed cleaning
products, wax polishes or products
containing alcohol.
To Start the Appliance
1. Allow the appliance to stand for 2 hrs after
installation.
2. Plug in the appliance and switch on at the
mains supply.
3. Turn the thermostat control to the required
setting. A setting of 3 - 4 is usually suitable for
normal operation (see thermostat control).
4. Leave the appliance for approximately 4 hours
for the correct temperature to be reached
before placing food inside.
Thermostat Control
The thermostat control situated in the control
panel regulates the temperature of the larder
compartment. Thermostat control is marked from
1-6, the higher the number, the colder the setting.
Position 1 - Cold
Position 6 - Coldest
The temperature will be affected by:
Ambient temperature
How often the door is opened
How much food is stored
Position of the appliance
In determining the correct temperature control
setting, all these factors have to be considered
and some experimentation may be necessary
.
Do not allow children to tamper with the
controls or play with the product.
6
Larder Compartment
The correct temperature for safe storage of fresh food inside is 0oC to 5oC (32oF to 41oF). The warmest
part of the fridge compartment is at the top of the cabinet and the coolest at the bottom.
Storage Guide
Eggs,
butter,
cheese
Cooked meats,
ready meals,
baked goods
Dairy produce,
margarine,
preserves,
marmalade
Fresh meats,
fresh poultry,
fresh fish,
mince, burgers
Preserves,
marmalade
Drinks,
milk
Vegetables,
fruit
Adjustable shelves
The larder compartment is fitted with shelves
which are adjusted for the storage of different
sized articles.
If the door cannot be opened further than 90
remove the shelves by tilting the shelf
downwards and pulling outwards.
°
7
HINTS AND TIPS
Normal Operating Sounds
You may hear faint gurgling or bubbling
sounds when the refrigerant is pumped
through the coils or tubing at the rear, to the
cooling plate/evaporator.
When the compressor is on, the refrigerant is
being pumped round , and you will hear a
whirring sound or pulsating noise from the
compressor.
A thermostat controls the compressor, and
you will hear a faint 'click' when the thermostat
cuts in and out.
Food Storage
To obtain the best results from your appliance
neither hot foods nor liquids which may
evaporate, should be placed in the larder
compartment.
Energy Saving Advice
Do not install the cabinet close to sources of
heat, such as a cooker, dishwasher or
radiator.
Locate the appliance in a cool well ventilated
room and make sure that the air openings of
the cabinet are not obstructed.
Always leave warm food to cool down to room
temperature before placing in the fridge.
Try to avoid keeping the door open for long
periods, or opening the door too frequently as
warm air will enter the cabinet, and cause the
compressor to switch on unnecessarily often.
Ensure there are no obstructions preventing
the door from closing properly.
It is advisable to periodically clean the
refrigeration system at the back of the
appliance with a duster or vacuum cleaner.
Keep the time between buying chilled food
and placing it in your fridge as short as
possible.
Do not push food together too much, try to
allow air to circulate around each item.
Do not store food uncovered.
Remove suspect food from your refrigerator
and clean, refer to cleaning and maintenance.
8
MAINTENANCE AND CLEANING
Before any maintenance or cleaning work
is carried out DISCONNECT the appliance
from the ELECTRICITY supply
Internal Cleaning
Clean the inside and accessories with warm water
and bicarbonate of soda (5ml to 0.5 litre of water).
Rinse and dry thoroughly.
Do not use detergents, abrasive powders,
highly perfumed cleaning products, wax
polishes or cleaning products containing
bleach or alcohol.
Clean the drain hole of the water trough at regular
intervals and ensure that the drain hole is clear at
all times. If blocked carefully clear using a piece
of flexible curtain wire inserted into the drain
outlet to remove the blockage.
Regularly check the door seals and wipe clean to
ensure they are clean and free from debris.
External Cleaning
Wash the outer cabinet with warm soapy water.
Do NOT use abrasive products.
There are sharp edges on the underside
of the product so care should be taken
when cleaning.
Once or twice a year dust the condenser (black
grille) and the compressor at the back of the
appliance, with a brush or vacuum cleaner, as an
accumulation of dust will affect the performance
of the appliance and cause excessive electricity
consumption.
To Change the Light Bulb
1. Switch off the appliance and disconnect
from the electricity supply.
2. Remove the light cover by first removing the
screw with a screwdriver.
3. Pull the cover outwards towards the roof of
the cabinet.
4. Unscrew the bulb and replace it with a new
15 watt E14 SES bulb (available from your
local Service Force Centre).
5. Replace the cover by engaging the top
locating lugs and press home.
6. Replace and tighten the screw.
9

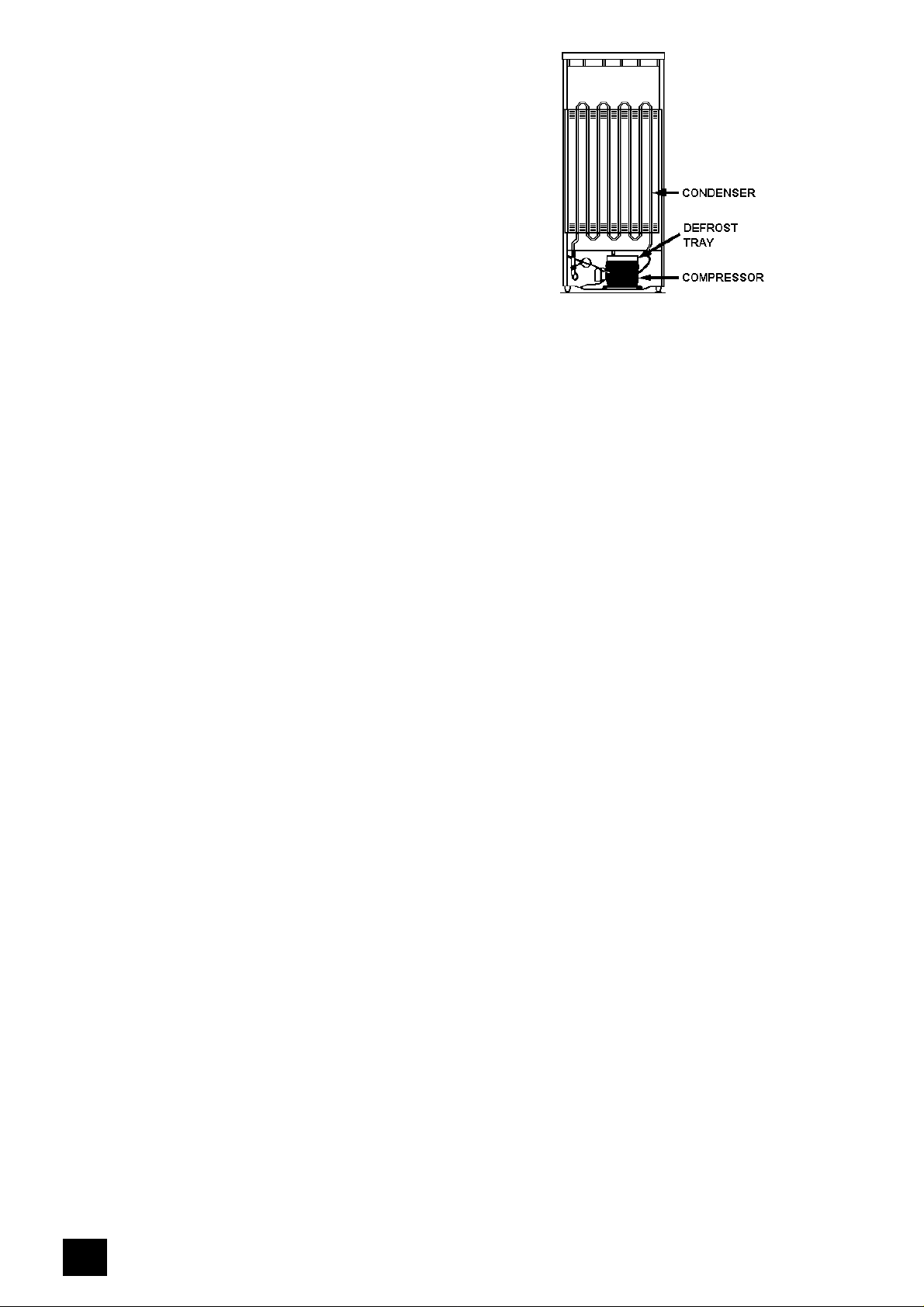

Defrosting Your Appliance
The fridge compartment is defrosted
automatically. Defrost water from the cooling
plate runs out of the drain and onto a tray on
the motor compressor where it is evaporated.
this process is completely automatic. Droplets of
water on the cooling plate during defrosting are
quite normal and will freeze on the plate
afterwards.
When the Appliance is Not in Use
When the appliance is not in use for long periods
disconnect from the electricity supply, empty all of
the food and clean the appliance, leaving the
door ajar to prevent unpleasant smells.
10
WHAT HAPPENS IF SOMETHING GOES WRONG
BEFORE contacting your local service force centre, check the following points:
Symptom Solution
No power to the appliance Check there is power at the socket.
Check there is not a power cut by checking the
household lights.
Check the fuse has not blown.
The light does not come on Ensure that the bulb is correctly fitted.
Replace the bulb if it has blown.
Check the door light switch is not jammed.
The temperature in the fridge section is too high
The compressor runs continuously Adjust the thermostat to give correct temperature
Excessive frost and ice has built up Ensure the door is not left open.
Check the ambient temperature is within the
appliances operating limits of 10°C to 32°C.
Relocate the appliance if necessary. Check the
thermostat is turned to the correct setting relative
to ambient conditions.
control. See page 6.
Check that the door is closed.
Large quantities of food have recently been
placed in the cabinet / and or door is frequently
opened.
Check that air ventilation is not obstructed.
Check that nothing is preventing the door from
closing.
Is the door gasket intact and clean.
Noise
Water under the salad bin Check the drain hole is not blocked. (see
If after the above checks there is still a fault call your local Service Force Centre.
In-guarantee customers should ensure that the above checks have been made as the engineer will
make a charge if the fault is not a mechanical or electrical breakdown.
Please note that proof of purchase is required for in-guarantee service calls.
Refer to normal operating sounds.
Maintenance and Cleaning).
11
Service and Spare Parts
If you require service or spare parts please
contact your local Service Force Centre by
telephoning:
0990 929929
The address of your local centre can be found on
the following pages; and also in your local
telephone directory.
Before contacting your local Service Force Centre
make a note of the model and serial number,
together with the date of purchase. The service
department will require this information.
The model and serial number can be found on the
rating plate situated inside the cabinet.
12
TRICITY BENDIX SERVICE FORCE
To contact your local Tricity Bendix Service Centre telephone 0990 929929
CHANNEL ISLANDS
GUERNSEY Guernsey Electricity
JERSEY Jersey Electricity
PO Box 4
Vale , Guernsey
Channel Islands
Company
PO Box 45
Queens Road
St Helier
Jersey
Channel Islands
JE4 8NY
SCOTLAND
ABERDEEN
(M05)
AUCHTERMUCHY
(M03)
BLANTYRE
(M07)
DUMFRIES
(M01)
DUNOON
(M67)
GLASGOW
(M04)
INVERNESS
(M06)
ISLE OF ARRAN
(OWN SALES)
ISLE OF BARRA
(OWN SALES)
ISLE OF BUTE
(M66)
ISLE OF LEWIS
(M69)
KELSO
(M08)
8 Cornhill Arcade
Cornhill Drive
Aberdeen
AB2 5UT
33A Burnside
Auchtermuchy
Fife
KY14 7AJ
Unit 5
Block 2
Auchenraith Ind Estate
Rosendale Way
Blantyre
G72 0NJ
93 Irish Street
Dumfries
Scotland
DG1 2PQ
Briar Hill
7 Hill Street,
Dunoon
Argyll
PA23 7AL
20 Cunningham Road
Clyde Estate
Rutherglen,
Glasgow,
G73 1PP
Unit 3B
Smithton Indust. Est.
Smithton
Inverness
IV1 AJ
Arran Domestics
Unit 4 The Douglas
Centre
Brodick
Isle of Arran
KA27 8AJ
J Zerfah
244 Bruernish
Isle of Barra
Western Islands
HS9 5QY
Walker Engineering
Glenmhor
Upper Serpentine Road
Rothesay
Isle of Bute
PA20 9EH
ND Macleod
16 James Street
Stornoway
Isle of Lewis PA87 2QW
2-8 Wood Market
Kelso
Borders TD5 7AX
ORKNEY
(M65)
SHETLAND
(OWN SALES)
SHETLAND
(OWN SALES)
WHALSAY
(OWN SALES)
NORTHERN IRELAND
BELFAST
(M27)
WALES
CARDIFF
(M28)
CLYWD
(M14)
OSWESTRY
(M17)
HAVERFORDWEST
(M75)
Corsie Domestics
7 King Street
Kirkwall
Orkney KW15
Tait Electronic Systems
Ltd.
Holmsgarth Road
Lerwick
Shetland ZE1 0PW
Bolts Shetland Ltd
26 North Road
Lerwick
Shetland ZE1 0PE
Leask Electrical
Harlsdale
Symbister, Whalsay
Shetland ZE2 9AA
Owenmore House
Kilwee Industrial Estate
Upper Dunmury Lane
Belfast
BT17 0HD
Guardian Industrial
Estate
Clydesmuir Road
Tremorfa, Cardiff
CF2 2QS
Unit 6-7 Coed - Parc
Abergele Road
Rhuddlan
Clwyd
Wales
LL18 5UG
Plas Ffynnon
Warehouse
Middleton Road
Oswestry
SY11 2PP
Cromlech Lodge
Amerlston
Haverfordwest
SA62 5DS
GATESHEAD
(M39)
GRIMSBY
(M42)
HULL
(M41)
LEEDS
(M37)
NEWTON AYCLIFFE
(M45)
SHEFFIELD
(M38)
NORTH WEST
BIRKENHEAD
(M11)
CARLISLE
(M10)
ISLE OF MAN
(M64)
LIVERPOOL
(M15)
MANCHESTER
(M09)
PRESTON
(M13)
STOCKPORT
(M16)
Unit 356a
Dukesway Court
Dukesway
Team Valley
Gateshead
NE11 0BH
Unit 2
Cromwell Road
Grimsby
South Humberside
DN31 2BN
Unit 1
Boulevard Industrial
Estate
Hull
HU3 4AY
64-66 Cross Gates Road
Leeds
LS15 7NN
Unit 16
Gurney Way
Aycliffe Ind Estate
Newton Aycliffe
DL5 6UJ
Pennine House
Roman Ridge Ind.
Roman Ridge Road
Sheffield
S9 1GB
1 Kelvin Park
Dock Road
Birkenhead
L41 1LT
Unit 8
South John Street
Carlisle
CA2 5AJ
South Quay Ind Estate
Douglas
Isle of Man
Unit 1
Honeys Green Precinct
Honeys Green Lane
Liverpool
L12 9JH
Unit 30, Oakhill Trading
Estate
Devonshire Road
Worsley
Manchester
M28 3PT
Unit 250
Dawson Place
Walton Summit
Bamber Bridge
Preston
Lancashire
PR5 8AL
Unit 20 Haigh Park
Haigh Avenue
Stockport
SK4 1QR
NORTH EAST
13
TRICITY BENDIX SERVICE FORCE
To contact your local Tricity Bendix Service Centre telephone 0990 929929
SOUTH EAST
MIDLANDS
LONDON & EAST ANGLIA
BIRMINGHAM
(M18)
BOURNE
(M44)
BRIDGNORTH
(M72)
GLOUCESTER
(M23)
HEREFORD
(M31)
HIGHAM FERRERS
(M51)
ILKESTON
(M43)
LEICESTER
(M22)
LINCOLN
(M40)
NEWCASTLE UNDER
LYME
(M12)
NUNEATON
(M21)
REDDITCH
(M20)
TAMWORTH
(M19)
WORCESTER
(M73)
66 Birch Road East,
Wyrley Road Industrial
Estate
Witton
Birmingham
B6 7DB
Manning Road Ind Estate
Pinfold Road
Bourne
PE10 9HT
1 Underhill Street
Bridgnorth
Salop
WV16 4BB
101 Rycroft Street
Gloucester
GL1 4NB
Unit 3
Bank Buildings
Cattle Market
Hereford
HE4 9HX
The Old Barn
Westfield Terrace
Higham Ferrers
NN10 8BB
Unit 2
Furnace Road
Ilkeston
DE7 5EP
Unit 7 Oaks Industrial
Estate
Coventry Road
Narborough
Leicestershire
LE9 5GF
Unit 8 Stonefield Park
Clifton Street
Lincoln
LN5 8AA
18-21 Croft Road
Brampton Industrial
Estate
Newcastle under Lyme
Staffordshire
ST5 0TW
19 Ptarmigan Place
Townsend Drive
Nuneaton
CV11 6RX
Heming Road
Washford
Redditch
Worcestershire
B98 0DH
Unit 3
Sterling Park
Claymore
Tamworth
B77 5DO
Unit 1
Northbrook Close
Gregorys Mill Ind Estate
Worcester
WR3 8BP
CHELMSFORD
(M47)
COLINDALE
(M53)
ENFIELD
(M49)
GRAVESEND
(M57)
HARPENDEN
(M46)
LETCHWORTH
(M50)
MAIDENHEAD
(M60)
MOLESEY
(M61)
NEWBURY
(M24)
IPSWICH
(M48)
NORWICH
(M52)
SUNBURY
(M63)
SYDENHAM
(M62)
WEST DRAYTON
(M76)
Hanbury Road
Widford Ind Estate
Chelmsford
Essex
CM12 3AE
Unit 14
Capitol Park
Capitol Way
Colindale
London NW9 0EQ
284 Alma Road
Enfield
London
EN3 7BB
Unit B4,
Imperial Business Estate
Gravesend
Kent
DA11 0DL
Unit 4
Riverside Estate
Coldharbour Lane
Harpenden
AL5 4UN
16-17 Woodside Ind Est.
Works Road
Letchworth
Herts
SG6 1LA
Reform Road
Maidenhead
Berkshire
SL6 8BY
10 Island Farm Avenue
West Molesey
Surrey
KT8 2UZ
PO Box 5627
Newbury
Berkshire
RG14 5GF
Unit 2B
Elton Park Business
Centre
Hadleigh Road
Ipswich
IP2 0DD
2b Trafalgar Street
Norwich
NR1 3HN
Unit 1a
The Summit
Hanworth Road
Hanworth Ind Estate
Sunbury on Thames
TW16 5D
Unit 6
Metro Centre
Kangley Bridge Road
Sydenham
SE26
2 / 4 Royal Lane
Yiewsley
West Drayton
Middlesex
UB7 8DL
ASHFORD
(M58)
FLEET
(M59)
HAYWARDS HEATH
(M55)
TONBRIDGE
(M56)
SOUTH WEST
BARNSTAPLE
(M30)
BOURNEMOUTH
(M26)
BRIDGEWATER
(M35)
BRISTOL
(M25)
EMSWORTH
(M33)
ISLE OF WIGHT
(M34)
NEWTON ABBOT
(M29)
PLYMOUTH
(M32))
REDRUTH
(M36)
Unit 2
Bridge Road Business
Bridge Road
Ashford
Kent
TN2 1BB
Unit 1
Redfields Industrial
Estate
Church Crookham
Fleet
Hampshire
GU13 0RD
21-25 Bridge Road
Haywards Heath
Sussex
RH16 1UA
Unit 30 Deacon Trading
Estate
Morley Road
Tonbridge
Kent
TN9 1RA
P.O. Box 12
Barnstaple
North Devon
EX31 2YB
63-65 Curzon Road
Bournemouth
Dorset
BH1 4PW
6 Hamp Industrial Estate
Bridgewater
Somerset
TA6 3NT
11 Eldon Way
Eldonwall Trading
Bristol
Avon
BS4 3QQ
266 Main Road
Southbourne
Emsworth
PO10 8JL
Unit 8
Enterprise Court
Ryde Business Park
Ryde
Isle of Wight
PO33 1DB
Unit 2 Zealley Industrial
Estate
Kingsteignton
Newton Abbot
S. Devon
TQ12 3TD
16 Faraday Mill
Cattledown
Plymouth
PL4 0ST
Unit 7D
Pool Industrial Estate
Wilson Way, Redruth,
Cornwall
TR15 3QW
Estate
14
INSTALLATION INSTRUCTIONS
Technical Information
(LF506W) (LF506GR)
DIMENSIONS
HEIGHT: 85.0cm (33.4") HEIGHT: 85.0cm (33.4")
WIDTH: 49.5cm (19.5") WIDTH: 49.5cm (19.5")
DEPTH: 60.0cm (23.6") DEPTH: 61.5cm (24.2")
CAPACITY
GROSS: : 134 litres
NET: 131 litres
POWER ABSORBED: 90W
VOLTAGE: 230 - 240V
FREQUENCY: 50Hz
AVERAGE DAILY UNITS OF ELECTRICITY: 0.65Kwh
This appliance complies with the following E.E.C Directives:
73/23 EEC
89/336 EEC
modifications.
of 19.2.73 (Low Voltage Directive) and subsequent modifications;
of 3.5.89 (Electromagnetic Compatibility Directive) and
*
subsequent
It is dangerous to alter the specifications
or attempt to modify this product in any
way.
15
Electrical Connections
Any electrical work required to install this
appliance should be carried out by a
qualified electrician or competent person.
This appliance must be earthed.
The manufacturer declines any liability should
these safety measures not be observed.
Electrical Requirements
Before switching on, make sure the electricity
supply voltage is the same as that indicated on
the appliance rating plate.
The appliance is supplied with a 13 amp plug
fitted. In the event of having to change the fuse in
the plug supplied, a 13 amp ASTA approved
(BS1362) fuse must be used.
Should the plug need to be replaced for any
reason. The wires in the mains lead are coloured
in accordance with the following code:
Green and Yellow : Earth
Blue : Neutral
Brown : Live
The wire coloured green and yellow must be
connected to the terminal marked with the letter
"E" or by the earth symbol or coloured green
and yellow.
The wire coloured blue must be connected to the
terminal marked "N" or coloured black.
The wire coloured brown must be connected to
the terminal marked "L" or coloured red.
Upon completion there must be no cut, or stray
strands of wire present and the cord clamp must
be secure over the outer sheath.
16
Installation Requirements
To ensure correct operation this appliance
must not be located where the temperatures
will fall below 10°C (50°F) or rise above 32°C
(90°F).
Avoid the following locations: unheated kitchen,
outhouse, conservatory, garage.
For correct operation this appliance must be
installed.
l
In a dry atmosphere.
l
Out of direct sunlight.
l
Away from extreme temperature
( not next to a cooker or other sources of
heat).
l
Your appliance will be heavy when loaded
with food and must therefore be stood on a
strong firm floor.
Ventilation Requirements
Gently push into place until the top panel rear
ventilation grille touches against the wall.
When in position a 50 mm (2") clear space
above the appliance should be maintained.
If space above the appliance is not available,
clearance of 25mm (1") should be maintained
on both sides.
OR
Ensure that the appliance does not stand
on the electrical supply cable.
Parts which heat up should not be
exposed. Whenever possible , the back of
the appliance should be close to a wall but
leaving the required distance for
ventilation.
Levelling
The appliance should be level, to eliminate
rocking:
Ensure the appliance is upright and both
adjusters are in firm contact with the floor so
that the cabinet is level.
Adjust the level by screwing out the
appropriate level adjuster at the front, (use
your fingers or a suitable spanner).
This appliance is heavy. Care should be
taken when moving it.
17
Door Reversal
1. Disconnect the appliance from the electricity
supply.
2. Remove all loose items, including food. Store
food in a cool place.
3. Make sure a towel or cloth is at the base of
the product to prevent it from slipping.
4. Carefully lean the appliance backwards,
resting the top on a stool, or something
similar, at least 30cm (12") from the floor.
(care must be taken not to allow the appliance
wheels to slip).
Do not support the appliance on the rear
ventilation grille or condenser.
5. Remove level adjuster (A) from base of
product retaining small cup spacer which is
located around the threaded portion of the
adjuster.
6. Remove the foot / hinge assembly (B) by
removing screws marked (C).
7. Remove the door by lifting it slightly and
carefully sliding it down off the top hinge pin.
Remove the top hinge pin F by removing
screw G and transfer to the opposite side.
8. Refit the door by carefully sliding it onto the
upper hinge pin F. Take the bottom hinge foot
assembly B and transfer it over to the
opposite side of the cabinet being careful to
retain any spacing washer fitted onto the
bottom hinge pin. Push the hinge foot
assembly B into the door bearing using the
pin of the foot for location. Three holes will
then line up with the hinge foot and screws C
should be used to secure the hinge.
A
B
C
9. Refit level adjuster and spacer A in the
opposite side of the cabinet.
The base of your product should now be in
line with the diagram.
10.Stand the appliance upright.
18
B
C
A
Side Fixed Handle Change
i) Protect the paintwork from damage with
masking tape or other suitable material while
using a blunt knife or similar instrument to
carefully prise out the plastic plugs from
alternative handle positions on the opposite
side of the door.
ii) Remove the screw covers and screws from
the handle and transfer it to its new position
replacing the screw covers, then replace the
plastic plugs into the vacated screws holes.
19
GUARANTEE CONDITIONS
Standard guarantee conditions
We, Tricity Bendix, undertake that if within 12 months of the date of the purchase this Tricity Bendix appliance or
any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option
repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
l
l
l
l
l
l
The appliance has been correctly installed and used only on the electricity supply stated on the rating
plate.
The appliance has been used for normal domestic purposes only, and in accordance with the
manufacturer's instructions.
The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person
not authorised by us.
All service work under this guarantee must be undertaken by a Tricity Bendix service centre.
Any appliance or defective part replaced shall become the Company's property.
This guarantee is in addition to your statutory and other legal rights.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside
these hours in which case a premium will be charged.
Exclusions
This guarantee does not cover:
l
l
l
l
Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs
or removable parts of glass or plastic.
Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside
the United Kingdom.
Appliances found to be in use within a commercial environment, plus those which are subject to rental
agreements.
Products of Tricity Bendix manufacture which are not marketed by Ticity Bendix.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your new home subject
to the following qualifications:
l
l
l
l
l
l
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your new
home. They will then ensure that the local Service Organisation is aware of your move and able to look after you
and your appliances.
The guarantee starts from the date you first purchased your product.
The guarantee is for the same period and to the same extent for labour and parts as exists in the new
country of use for this brand or range of products.
This guarantee relates to you and cannot be transferred to another user.
Your new home is within the European Community (EC) or European Free Trade Area.
The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household.
The product is installed taking into account regulations in your new country.
France Senlis +33 (0)3 44 62 28 28
Germany Nürnberg +49 (0)911 323 260
Italy Pordenone +39 (0)1678 47053
Sweden Stockholm +46 (0)20 78 77 50
UK Newbury +44 (0)1635 525 542
20
22
LF506W/GR ECL506W- 822020593-00
822020593-00
9/1997
Loading...
