Tricity Bendix FD 852 User Manual

2222 275-06

FD 852

OPERATING AND INSTALLATION

INSTRUCTIONS

FRIDGE-FREEZER

IMPORTANT SAFETY INFORMATION

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information.

This information has been provided in the interest of safety. You MUST read it carefully before installing or using the appliance.

Installation

¥ This appliance is heavy. Care should be taken

when moving it.

¥ It is dangerous to alter the specifications or

attempt to modify this product in any way.

¥ Care must be taken to ensure that the appliance

does not stand on the electrical supply cable. If the supply cord is damaged, it must be replaced by a special cable available from your local Service Force Centre.

¥ Any electrical work required to install this

appliance should be carried out by a qualified electrician or competent person.

¥ Parts which heat up should not be exposed.

Whenever possible, the back of the appliance should be close to a wall but leaving the required distance for ventilation as stated in the installation instructions.

¥ The appliance should be left for 2 hours after

installation before it is turned on, in order to allow the refrigerant to settle.

Child Safety

¥ Do not allow children to tamper with the controls

or play with the product.

¥ Keep all packaging well away from children.

During Use

¥ This appliance is designed for domestic use only,

specifically for the storage of edible foodstuffs only.

¥ Frozen food must NOT be re-frozen once it has

thawed out.

¥ Do not place carbonated or fizzy drinks in the

freezer.

¥ Do not remove items from the freezer if your

hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

¥ Ice lollies can cause Ôfrost/freezer burnsÕ if

consumed straight from the freezer.

¥ ManufacturersÕ storage recommendations should

be strictly adhered to. Refer to relevant instructions.

¥ The cooling plate or refrigerated freezer shelves

in this appliance contain channels through which the refrigerant passes. If these are punctured this will cause substantial damage to the appliance and result in food loss. DO NOT USE SHARP INSTRUMENTS to scrape off frost or ice. Under NO circumstances should solid ice be forced off the lining or shelves. Solid ice should be allowed to thaw, when defrosting the appliance. See Defrost Instructions.

Maintenance and Cleaning

¥ Switch off and unplug the appliance before

carrying out any cleaning or maintenance work.

Servicing

¥ This product should be serviced by an authorised

engineer and only genuine spare parts should be used.

¥ Under no circumstances should you attempt to

repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Refer to your local Service Force Centre and always insist on genuine spare parts.

At the end of the Appliance Life

¥ When disposing of your appliance, use an

authorised disposal site.

¥ Remove the plug and ensure that any locks or

catches are removed, to prevent young children being trapped inside.

CONTENTS

Instructions for the user

Important Safety Information

Description of the appliance

Operation

Before use 5

Setting the temperature 5

The freezer compartment 5

Freezing fresh food 5

Thawing 5

Making ice cubes 5

Fresh food refrigeration 6

Normal operating sounds 6

Movable shelves 7

Positioning the door shelves 7

Health and Safety Guidelines

Maintenance and Cleaning

Internal cleaning 9

External cleaning 9

When the appliance is not in use 9

Changing the light bulb 9

Defrosting 9

Something not working

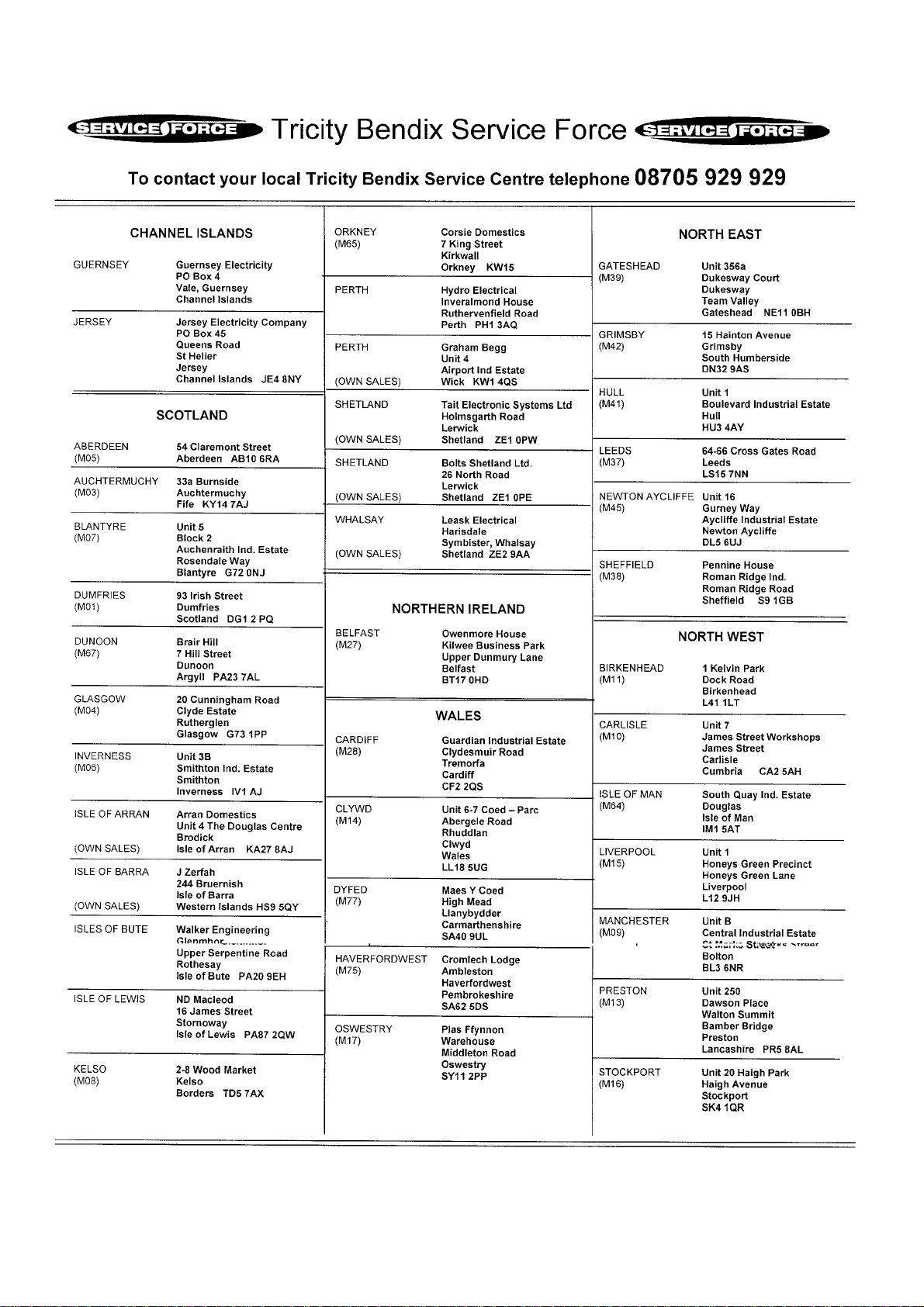

Service and Spare Parts

Customer Care

Guarantee Conditions

Instructions for the installer

Technical specification

Installation

Positioning 17

Rear spacers 17

Electrical Connection

Door Reversal

DESCRIPTION OF THE APPLIANCE

FAST FREEZE

C D

A- Thermostat control for both compartments B- Dairy compartment (for dairy products to prevent tainting) C- Can storage shelf D- Movable shelf E- Bottle storage shelf F - Freezer calender (recommended storage times for frozen foods) G - Freezing fresh food H- Frozen food storage I- Salad crisper (to keep fruit and vegetables fresh) J- Glass shelf K- Cooked foods storage shelves

OPERATION

Before using

Remove all securing tapes. Wash inside the appliance with lukewarm water and bicarbonate of soda (5 ml to 0.5 litre of water).

Do not use soap or detergent as the smell may linger. Dry thoroughly.

Setting the temperature

The temperature inside the refrigerator is regulated by a thermostat with 6 temperature positions and an ÒOFFÓ (O) position.

Position 1 = minimum coldness

Position 6 = maximum coldness

Turn the thermostat dial to the required position.

The intermediate position is usually the most suitable (3-4).

The thermostat setting can vary as the temperature inside the refrigeration compartment depends on the following factors:

Ð room temperature

Ð how often the door is opened

Ð how much food is stored

Ð position of the appliance

Important

If the fridge is not defrosting correctly, it is possible that because a very low temperature has been selected, the motor is working continuously, which prevents the defrost cycle from operating.

To ensure correct defrosting, a lower number should be selected on the thermostat and you should notice that the motor cuts out from time to time, which is correct.

If you wish to return to a lower temperature, turn the thermostat to a higher number, however you should turn the setting lower occasionally to allow automatic defrosting.

The freezer compartment

The four-star freezer compartment is suitable for storage of commercially frozen food and for freezing fresh foods.

Freezing fresh food

It is not necessary to adjust the thermostat setting when freezing fresh food.

In any 24 hours you can freeze up to 3 kg.

Place food to be frozen in the bottom drawer of the freezer as this is the coldest part.

Important

In the event of a power cut the food in the freezer will not be affected if the power cut is short and if the freezer is full. Do not open the door. Should the food begin to thaw, it must be consumed quickly and must not be re-frozen .

Thawing

Deep frozen or frozen food, prior to being used, can be thawed in the fridge or at room temperature depending on the time available. Small food items may even be cooked from frozen; in this case cooking will take longer.

Any frozen food which is allowed to thaw accidentally should either be eaten as soon as possible or thrown away. Alternatively, if the food is uncooked and has not been completely defrosted it can be cooked and then refrozen.

Meat, fish and fruit should be thawed in the refrigerator compartment and small pieces of meat can even be cooked while still frozen, but you must ensure that it is thoroughly cooked through.

Vegetables should be directly immersed in boiling water; ready-cooked dishes can be placed directly in the oven in their aluminium wrapping.

A microwave oven is particularly suitable for thawing any type of frozen or deep-frozen food: follow the oven instructions, particularly regarding the placement of aluminium wrapping or containers in the oven.

Defrosted cooked food must never be refrozen.

Making ice cubes

The appliance is provided with one or more trays for ice-cubes trays.

Fill the tray(s) 3/4 full to give the ice space to expand and place them in the freezer compartment.

To release the ice cubes simply give the tray a slight twist.

Do not use sharp or metallic instruments to remove the trays from the freezer.

Normal Operating Sounds

¥ You may hear faint gurgling or bubbling sounds

when the refrigerant is pumped through the coils or tubing at the rear, to the cooling plate/evaporator or to the fixed freezer shelves.

¥ When the compressor is on, the refrigerant is

being pumped round, and you will hear a whirring sound or pulsating noise from the compressor.

¥ A thermostat controls the compressor, and you

will hear a faint ÕclickÕ when the thermostat cuts in and out.

Fresh food refrigeration

To obtain the best performance, do not store warm food or evaporating liquids in the refrigerator; do cover or wrap the food, particularly if it has a strong flavour.

Do not cover the shelves with any protective material, such as paper, cardboard or plastic, which may obstruct the air circulation through them.

To help you use your refrigerator correctly, here are some more useful hints:

Raw meat (beef, pork, lamb & wild fowl): wrap in polythene bags and place on top of the salad crispers.

Meat can only be stored safely in this way for one or two days at the most.

Fruit & vegetables: these should be thoroughly cleaned and placed in the bottom salad crispers.

Butter & cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.

Milk bottles: these should have a cap and should be stored in the bottle rack on the door.
