Tricity Bendix Service Centres .........................page16
TECHNICAL SPECIFICATIONS
DIMENSIONSHeight
Width
Depth
POWER SUPPLY VOLTAGE AND FREQUENCY
TOTAL POWER ABSORBED
AVERAGE DAILY UNITS ELECTRICITY
GROSS CAPACITYFridge
Freezer
NET CAPACITYFridge
Freezer
STAR RATING
2
150cm
54.5 cm
60cm
220-240 V / 50 Hz
130 W
1.35 kWh
174 l
76 l
170 l
60 l
WARNINGS
IT IS MOST IMPORTANT THA T THIS INSTRUCTION
BOOK SHOULD BE RETAINED WITH THE APPLIANCE FOR FUTURE REFERENCE. SHOULD THE
APPLIANCE BE SOLD OR TRANSFERRED TO ANOTHER OWNER, OR SHOULD YOU MOVE HOUSE
AND LEAVE THE APPLIANCE, ALWAYS ENSURE
THAT THE BOOK IS SUPPLIED WITH THE APPLIANCE IN ORDER THAT THE NEW OWNER CAN
GET TO KNOW THE FUNCTIONING OF THE APPLIANCE AND THE RELEVANT WARNINGS.
THESE WARNINGS ARE PROVIDED IN THE INTEREST OF SAFETY. YOU MUST READ THEM CAREFULLY BEFORE INSTALLING OR USING THE APPLIANCE.
ª
This appliance is designed to be operated by
adults. Children should not be allowed to tamper
with the controls or play with the product.
ª
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
ª
This product should be serviced by an authorised
Tricity Bendix Service Centre, and only genuine
spare parts should be used.
ª
It is dangerous to alter the specifications or modify
this product in any way.
ª
Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
ª
Tricity Bendix domestic refrigerators, freezers and
fridge/freezers are designed to be used specifically
for the storage of edible foodstuffs only.
ª
The cooling plate or refrigerated freezer shelves in
this appliance contain channels through which the
refrigerant passes. If these are punctured this would
cause substantial damage to the appliance and result in food loss. DO NOT USE SHARP INSTRUMENTS to scrape off frost or ice. Under NO circumstances should solid ice be forced off the lining or
shelves. Solid ice should be allowed to thaw, when
defrosting the appliance. See Defrost instructions.
ª
The appliance should be left for 2 hours after installation before it is turned on in order to allow the refrigerant to settle.
ª
This appliance is heavy . Car e should be taken when
moving it.
ª
Do not remove items from the freezer if your hands
are damp/wet, as this could cause skin abrasions
or “frost/freezer burns”.
ª
Ice lollies can cause “frost/freezer burns” if consumed straight from the freezer.
ª
Manufacturers’ storage recommendations should
be strictly adhered to. Refer to relevant instructions.
ª
Under no circumstances should you attempt to repair the appliance yourself. Repairs carried out by
inexperienced persons may cause injury or serious
malfunctioning. Refer to your local Tricity Bendix
Service Centre and always insist on genuine spare
parts.
ª
There are working parts in this product which heat
up. Always ensure that there is adequate ventilation
as a failure to do this will result in possible food
loss. See installation instructions.
ª
Parts which heat up should not be exposed. Wherever possible, the back of the appliance should be
close to a wall but leaving the required distance for
ventilation as stated in the installation instructions.
ª
Before defrosting, cleaning or maintenance work is
carried out, be sure to switch off the appliance and
unplug it.
ª
Frozen food must NOT be re-frozen once it has
thawed out.
ª
Do not place carbonated or fizzy drinks in the freezer as it creates pressure on the container, which
may cause it to explode, resulting in damage to the
appliance.
12/95
2222 275-03
3
CONSERVATION
In the interests of the Environment:
When disposing of your old fridge, freezer or
fridge/freezer.
Help to keep your country tidy – use authorised disposal sites for your old appliances.
For maximum efficiency:
Make sure that the appliance is cleaned properly.
Make sure that the door is closed properly.
Do not position the appliance near to sources of heat.
Do not over-fill your appliance, air MUST be allowed
to circulate.
4
INSTALLATION
Warning
IF YOU ARE DISCARDING AN OLD APPLIANCE THAT
HAS A LOCK OR CATCH ON THE DOOR, YOU MUST
ENSURE THAT IT IS MADE UNUSABLE TO PREVENT
YOUNG CHILDREN BEING TRAPPED INSIDE.
Depending upon the position which you choose for
your appliance, you may wish to reverse the way in
which the door opens. To do this, refer to instructions

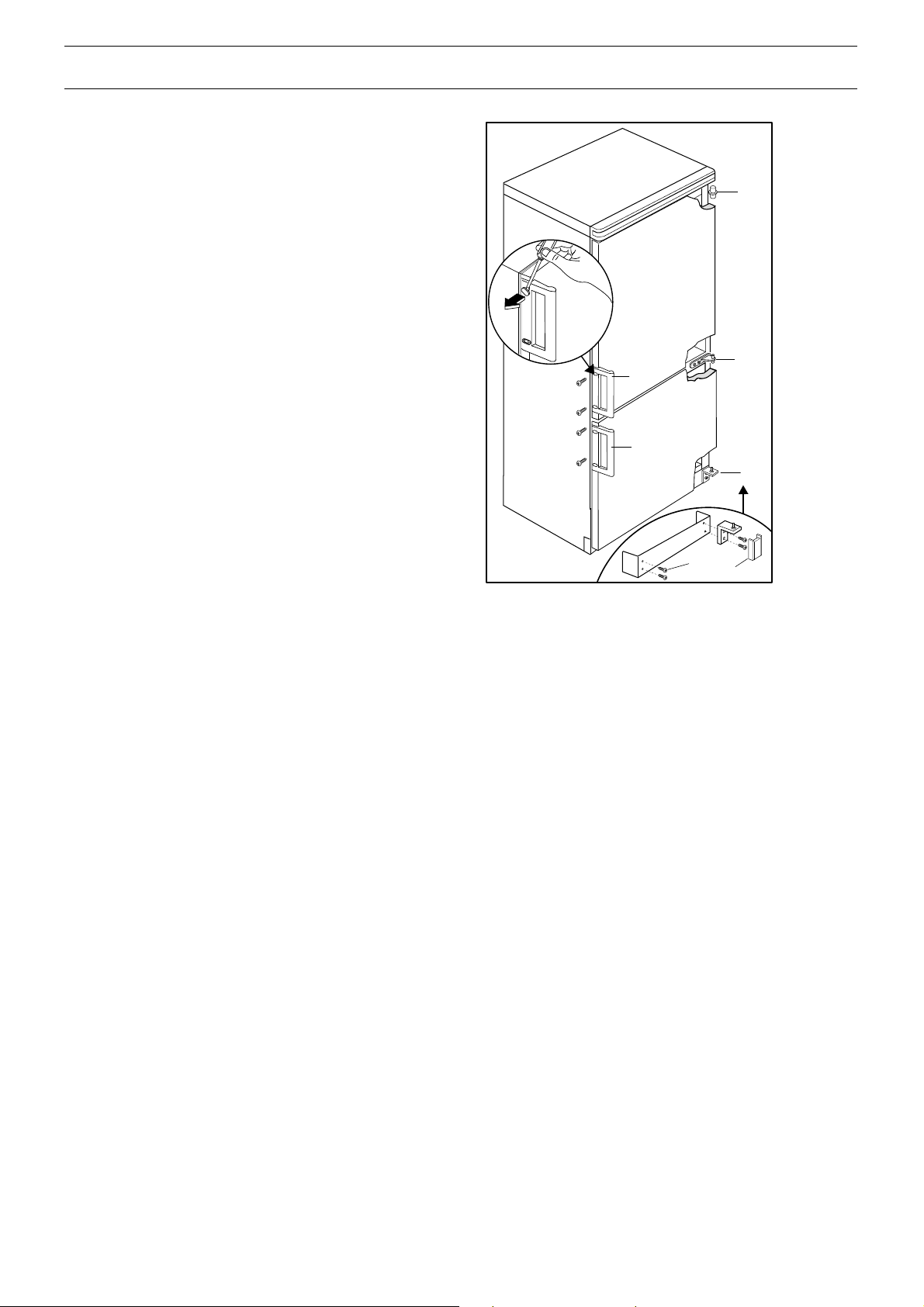

on “Door reversal directions” paragraph.
Positioning
For this appliance to work efficiently, it should be located away from heat sources, e.g. cookers, radiators,
boilers, direct sunlight etc. This also includes locations or rooms where the ambient temperature reaches above 32 degrees C or drops below 10 degrees
(e.g. conservatories).
You should also ensure that air can circulate freely
around the back and the top of the cabinet. There
must also be at least 100 mm (4”) distance between
the top of the cabinet and any overhanging kitchen
furniture (Fig. 1-A). Ideally, the appliance should not
be positioned beneath overhanging furniture
(Fig. 1-B).
Fig. 1
Adjust the level of the appliance by screwing out the
adjustable foot, or feet, at the bottom of the cabinet
using your fingers or a spanner (see Fig. 2).
Fig. 2
D200
Rear spacers
(Fig. 3)
In the bag with the documentation, there are two
spacers which must be fitted in the two top corners.
Slacken the screws and insert the spacer under the
screw head, then re-tighten the screws.
Fig. 3
100 mm
min.
A
D204
B
There should also be a gap of 25 mm either side of the
appliance. Do not obstruct the space underneath. The
back of the cabinet may be placed close to the wall
but must not touch it. DO NOT install in places with restricted ventilation.
D594
Before using
Remove all securing tapes. Wash inside the appliance
with lukewarm water and bicarbonate of soda (5 ml to
0.5 litre of water). Do not use soap or detergent as the
smell might linger. Dry thoroughly.
5
-
The electrical connections
WARNING: THIS APPLIANCE MUST BE EARTHED.
The manufacturer declines any liability should this
safety measure not be observed.
If the plug that is fitted to your appliance is not suitable for your socket outlet, it must be cut off and the
appropriate plug fitted.
Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to prevent
the hazard of shocks in case it should be plugged into
a 13amp socket in another part of your home.
Important
The wires in the mains lead are coloured in accordance with the following code:
Green and Yellow- Earth
Blue- Neutral
Brown- Live
If you fit your own plug, the colours of the wires in the
mains lead of your appliance may not correspond with
the markings identifying the terminals in your plug,
proceed as follows:
Fig. 4
GREEN & YELLOW
13 AMP. FUSE
A replacement cover/carrier must be obtained from
your local Tricity Bendix Service Centre whose address is listed in the Customer Care Booklet which accompanies your instruction manual.
This appliance complies with the E.E.C. Directive
No. 87/308 of 2.6.87 relative to radio interference
suppression.
This appliance complies with the following
E.E.C. Directives:
73/23 EEC of 19.2.73 (Low Voltage Directive) and
subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
Please ensure that when the appliance is installed
it is easily accessible for the engineer in the event
of a breakdown.
13 AMP
BROWN
BLUE
D207
CORD CLAMP
Connect the Green and Yellow (earth) wire to the terminal in the plug which is marked with the letter «E» or
the earth symbol , or coloured green and yellow.
Connect the blue (neutral) wire to the terminal in the
plug which is marked with the letter «N» or coloured
black.
Connect the brown (live) wire to the terminal in the
plug which is marked with the letter «L» or coloured
red.
The plug moulded onto the lead incorporates a fuse.
For replacement, use a 13amp BS1362 fuse. Only
ASTA or BSI approved fuses should be used.
The plug must not be used if the fuse cover/carrier is
lost. The cover/carrier is indicated by the coloured insert at the base of the plug.
6
