Tricity Bendix FD106W User Manual

INSTALLATION AND INSTRUCTION MANUAL

REFRIGERATOR/FREEZER FD106W

Thank you for buying a TRICITY BENDIX DOMESTIC APPLIANCE
To enable you to use your appliance effectively and safely, please read this instruction

book carefully before using the appliance and retain for future reference. If you require
guidance in the use of the appliance or require further information, please contact our
Customer Care Department.

TRICITY BENDIX
CUSTOMER CARE DEPARTMENT
P.O. BOX 47
NEWBURY
BERKSHIRE
RG14 5XL

Tel: [phone]
Fax: [phone]

Guide to use the instruction book

The following Symbols will be found in the text to guide you through the instructions

Safety Instructions Hints and Tips

Step by step instructions Environmental Information
for an operation

2

IMPORTANT SAFETY INSTRUCTIONS

These warnings are provided in the interests of your safety. Ensure that you understand them
all before installing or using this appliance. Your safety is of paramount importance. If you are
unsure about any of the meanings or these warnings contact the Customer Care Department.

Installation

This appliance is heavy. Care should be taken
when moving it.

It is dangerous to alter the specifications or
attempt to modify this product in any way.

Ensure that the appliance does not stand on
the electrical supply cable. If the supply cord
is damaged, it must be replaced by a special
cord available from your local Service Force
Centre.

Any electrical work required to install this
appliance should be carried out by a qualified
electrician or competent person.

Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall but leaving the
required distance for ventilation as stated in
the installation instructions.

The appliance should be left for 2 hours after
installation before it is turned on, in order to
allow the refrigerant to settle.

Child Safety

Do not allow children to tamper with the
controls or play with the product.

Maintenance and Cleaning

Switch off, and unplug the appliance before
carrying out any cleaning or maintenance
work.

Do not use sharp instruments to scrape off
frost or ice. (See defrosting instructions).

Servicing

This product should be serviced by an
authorised engineer, and only genuine spare
parts should be used.

Under no circumstances should you attempt
to repair the machine yourself. Repairs carried
out by inexperienced persons may cause
injury or serious malfunctioning. Contact your
local Service Force Centre.

At the End of the appliance Life

When disposing of your appliance, use an
authorised disposal site.

Remove the plug and ensure that any locks or
catches are removed, to prevent young
children being trapped inside.

During Use

This appliance is designed for domestic use
only, specifically for the storage of edible
foodstuffs only.

Frozen food should not be refrozen once it
has thawed out.

Do not place carbonated or fizzy drinks in the
freezer.

Ice lollies can cause 'frost/freezer burns' if
consumed straight from the freezer.

Do not remove items from the freezer if your
hands are damp/wet, as this could cause skin
abrasions or frost/freezer burns.

Manufacturers' recommended storage times
should be adhered to. Refer to relevant
instructions

.

Please read this

instruction book carefully

before use and retain

for future reference.

3

TABLE OF CONTENTS

For the User

Important Safety Instructions 3

Description of the Appliance 5

Using Your Appliance 6

Before Use 6
To Start The Appliance 6
Thermostat Control 6
Indicator Light 7
Larder Compartment 8

Storage Guide
Shelf Adjustment

The Freezer Compartment

Frozen Food Storage
Freezing Fresh Food

Hints and Tips 10

Food Storage 10
Energy Saving Advice 10
In the Event of a Power Failure 10

8
8

9

9
9

For the Installer

Installation Instructions 17

Technical Information 17

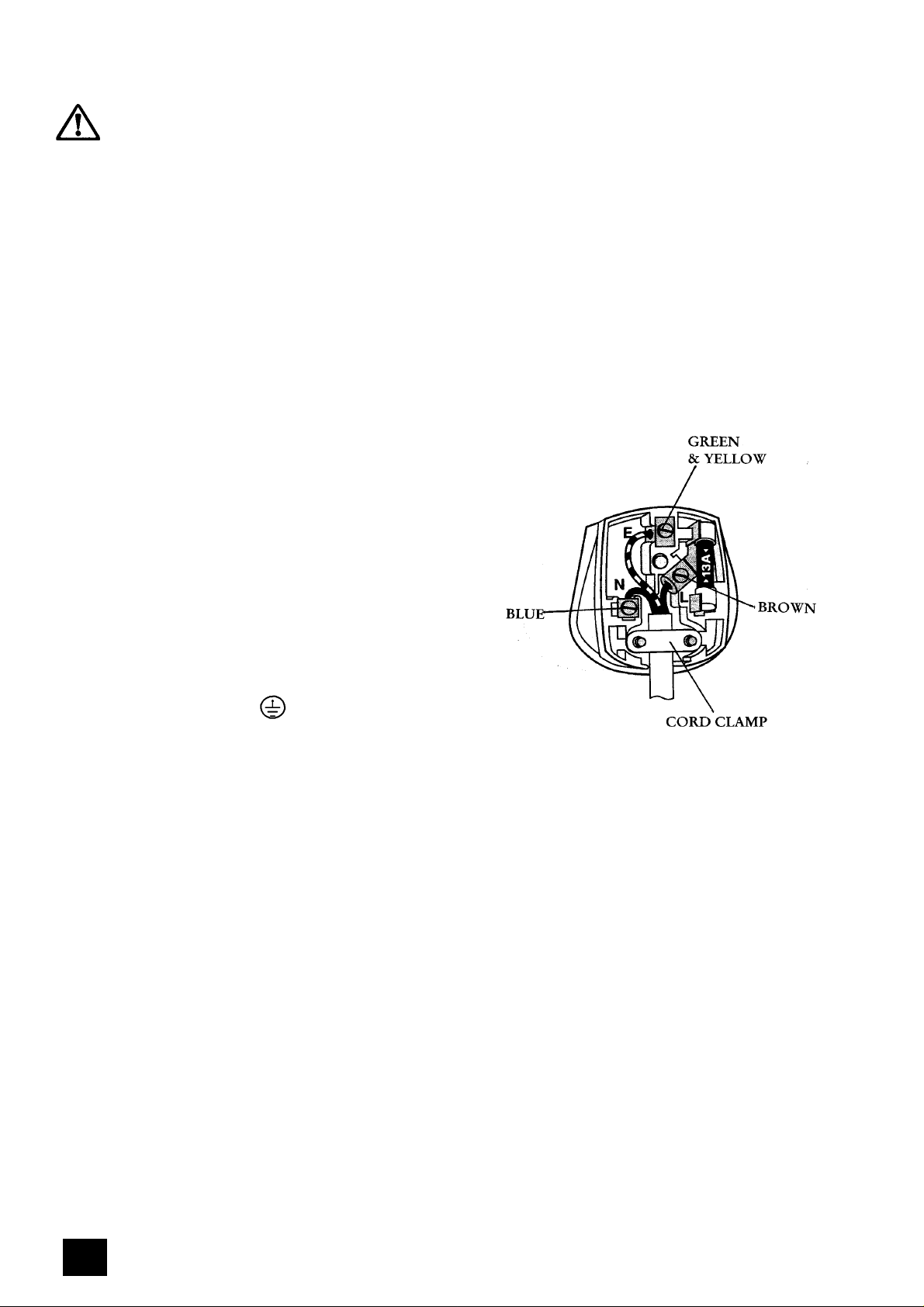

Electrical Connections 18

Electrical Requirements 18

Installation requirements 19
Ventilation requirements 19
Levelling 19

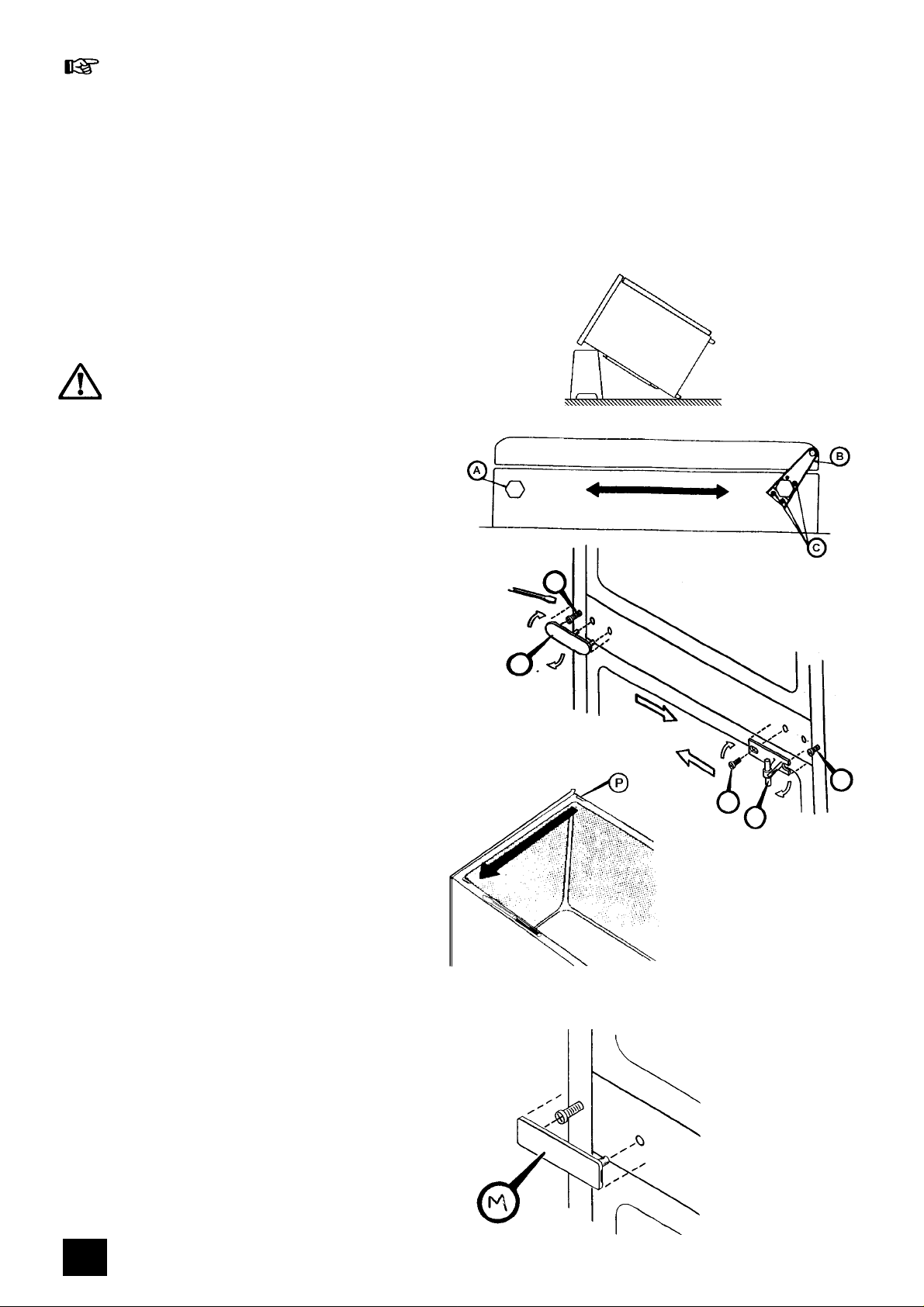

Door Reversal 20

Guarantee Conditions 22

Maintenance and Cleaning 11

Internal Cleaning 11
External Cleaning 11
To Change the Lightbulb 11

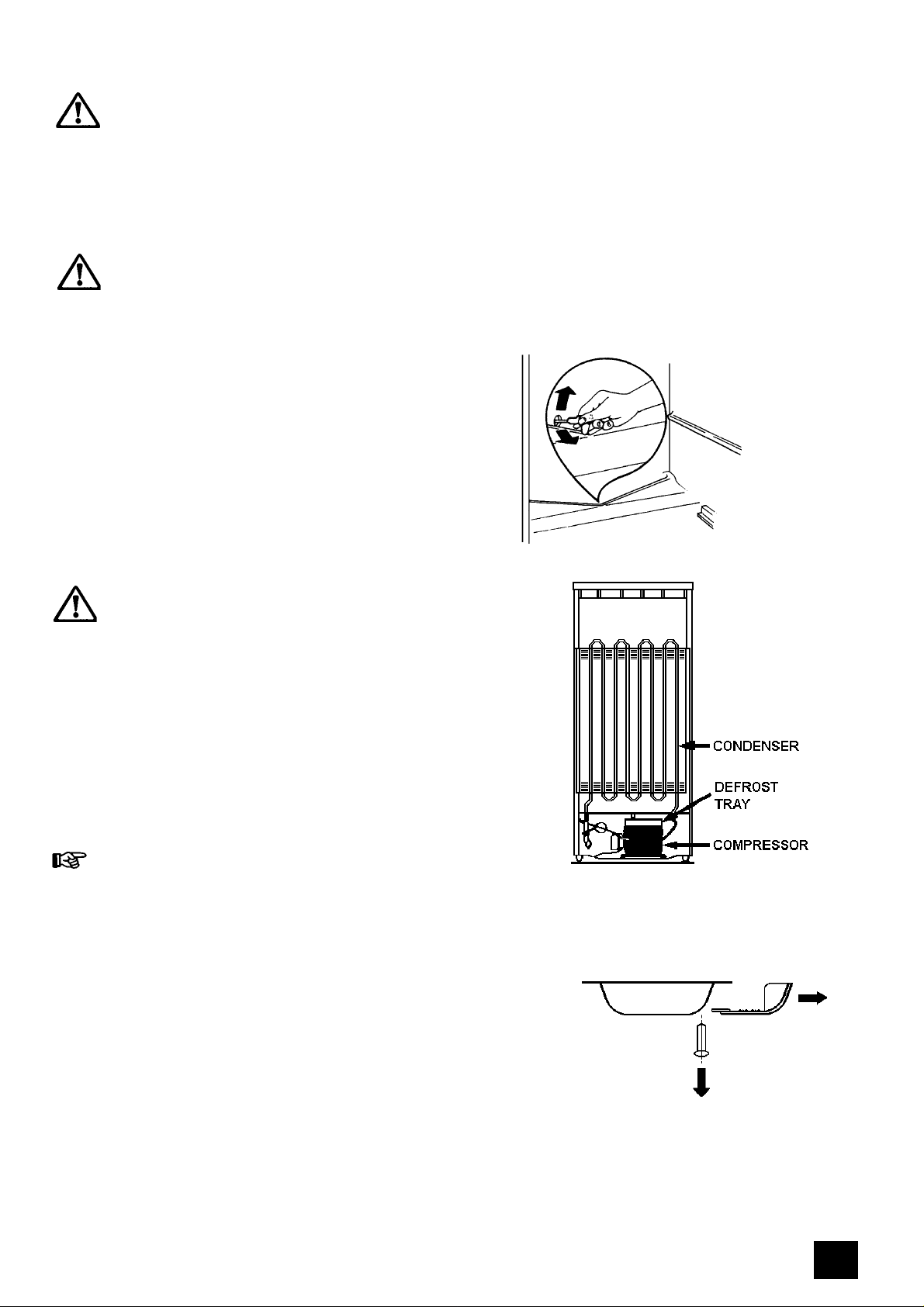

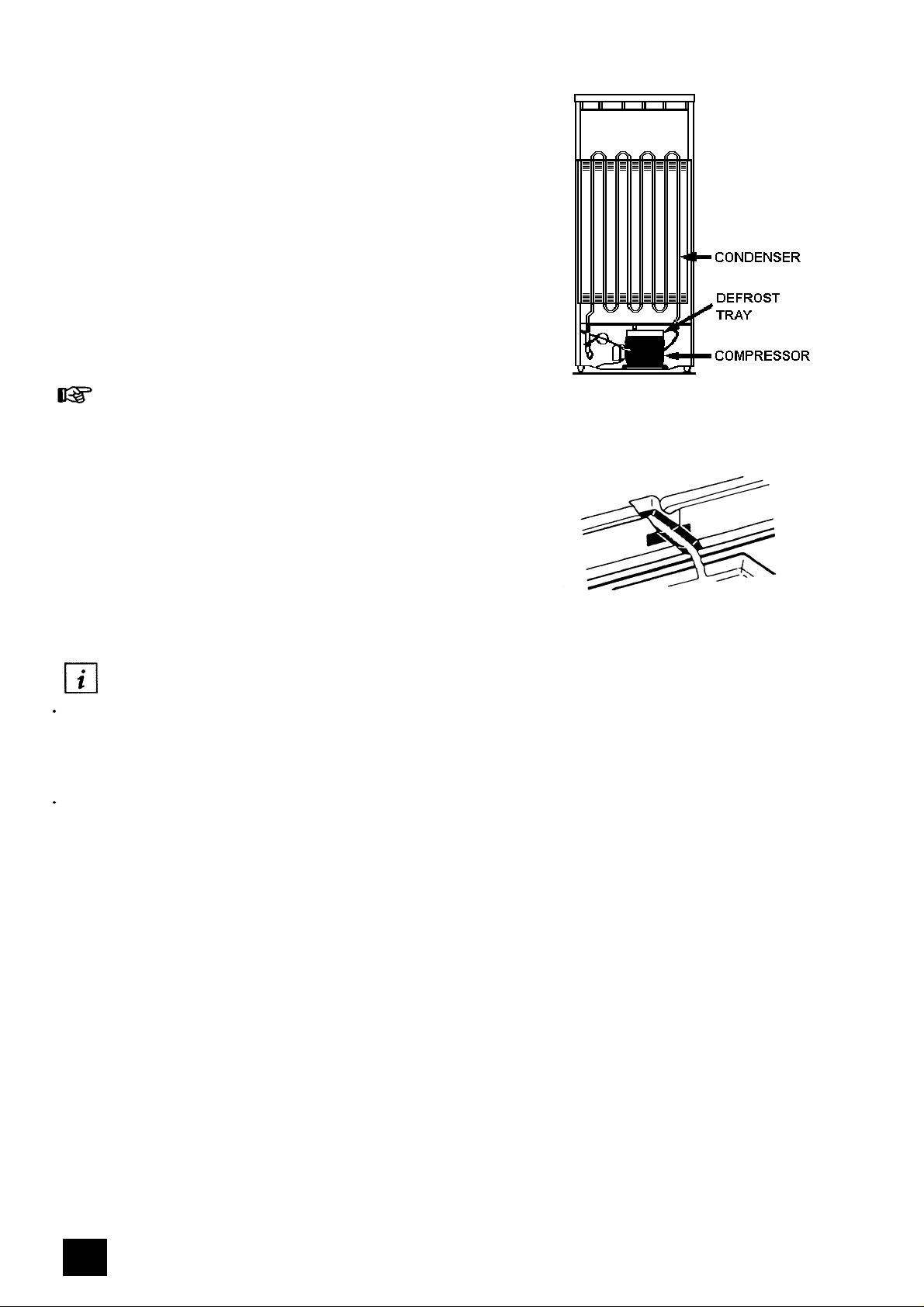

Defrosting Your Appliance 12
When the Appliance is Not in Use 12

What Happens if Something
Goes Wrong 13

Service and Spare Parts 14
Service Centres 15

4

Description of the Appliance

Interior Light

Adjustable Shelves

Salad Drawer Cover

Salad Drawer

Freezer Flap

Freezer
Baskets

Non Heat Resistant Top

Control Panel

Dairy Compartment

Door Shelf

Bottle Shelf with Bottle Grip

Level Adjusters

THE FURNISHINGS FROM THE SHRINK WRAP PACK SHOULD BE

POSITIONED IN LINE WITH THE ABOVE DIAGRAM

Pack Contents:

Wire Shelf/Trim Assembly (3)
Glass Salad Drawer Cover/Trim (1)
Salad Drawer (2)

Control Panel

GREEN INDICATOR LIGHT

Defrost Spout

Egg Tray (1)
Ice Tray (1)

THERMOSTAT

5

USING THE APPLIANCE

This appliance is designed for
domestic use only, specifically for the
storage of edible foodstuffs.

This appliance is designed to operate in
ambient temperatures (surrounding air
temperature) between 10°C (50°F) and 32°C
(90°F).
If these temperatures are exceeded i.e.,
colder or warmer, the appliance will not
operate correctly. Should the ambient
temperatures be exceeded for long periods,
the temperature in the freezer section will rise
above -18°C and food spoilage may occur.

Before Use

Remove all securing tapes.
Wash the inside of the appliance with lukewarm
water with a little bicarbonate of soda added (5ml
to 0.5 litre of water). Do not use soap or
detergent as the smell may linger. Dry the
appliance thoroughly.

Do not use detergents, abrasive
powders, highly perfumed cleaning
products, wax polishes or products
containing alcohol.

To Start the Appliance

1. Allow the appliance to stand for 2 hrs after
installation.

2. Plug in the appliance and switch on at the
mains supply.

3. Turn the thermostat control to the required
setting. A setting of 3 - 4 is usually suitable for
normal operation (see thermostat control).

4. Leave the appliance for approximately 4 hours
for the correct temperature to be reached
before placing food inside.

Thermostat Control

The thermostat control situated in the control
panel regulates the temperature both within the
fridge and freezer compartments. Thermostat
control is marked from 1-6, the higher the
number, the colder the setting.

Position 1 - Cold
Position 6 - Coldest

The temperature will be affected by:

Ambient temperature

How often the door is opened
How much food is stored
Position of the appliance

In determining the correct temperature control
setting, all these factors have to be considered
and some experimentation may be necessary

Do not allow children to tamper with the
controls or play with the product.

6

.

INDICATOR LIGHT

The green indicator light is situated in the control
panel.

When the appliance is switched on at the mains
the green indicator light will glow and continue to
glow until the appliance is switched off at the
mains.

GREEN INDICATOR LIGHT

7

Larder Compartment

The correct temperature for safe storage of fresh food inside is 0oC to 5oC (32oF to 41oF). The warmest
part of the fridge compartment is at the top of the cabinet and the coolest at the bottom.

Eggs, butter, cheese

Cooked meats,
ready meals,
baked goods

Dairy Produce,
margarine,
preserves,
marmalade

Preserves, marmalade

Fresh meats,
fresh poultry,
fresh fish, mince,
burgers

Vegetables, fruit

Frozen food storage
Ice Making

Freezing fresh food

Adjustable shelves

Adjustment of the door shelves can be made to
accommodate varying heights of bottles and
other containers. Gently ease the shelf in the
directions shown.

Drinks, milk

Store light items such as small cartons and jars
on the shelves provided in the door. The bottle
shelf can be used for the storage of heavier
bottles.

The larder compartment is fitted with shelves
which are adjusted for the storage of different
sized articles.

If the door cannot be opened further than 90

°

remove the shelves by tilting the shelf
downwards and pulling outwards.

8
