tricity bendix EL315 User Manual

MODERNE COOKER
MODEL EL 315W
INSTALLATION AND USERS'
INSTRUCTIONS
2
PREFACE
Welcome to your new Electra cooker. Its stylish and practical design will enhance your kitchen and make "cooking electric" a pleasure.
Even if you have used an electric cooker before, it is important that you read these instructions thoroughly before starting to cook, paying particular attention to the installation and safety instructions.
Getting Help If you have any problems with installing or operating your new cooker please contact your
Electricity Company for advice.
For your own safety, make sure that these instructions on installation, use and maintenance are followed.
IMPORTANT We advise you to keep these instructions in a safe place for future reference.
If you sell or transfer ownership of this product, please pass on these instructions to the new owner.
1
TECHNICAL DETAILS
MODEL NO. EL 315
Voltage: 230/240 Volts AC 50Hz Wattage: 10.0/10.9kW Height: 900mm Width: 495mm Depth: 590mm Weight: 48kg This appliance complies with European Council Directive 72/23/EEC.
It also carries the C.E. mark.
2
CONTENTS
Preface
Technical Details ................................................................................. 2
Contents
Safety
Introduction ...................................................................................... 7
Getting to Know your Cooker
The Radiant Hob
...........................................................................................
.........................................................................................
.............................................................................................
Before Installation ........................................................................... 5
During Operation ........................................................................... 5
After Use ................................................................................... 6
General .................................................................................... 6
Rating Plate
Installation .................................................................................. 7
Reversible Oven Door ....................................................................... 8
General Notes on Using Your Cooker ........................................................ 8
About Condensation and Steam ............................................................. 8
Control Panel Indicator Neons ............................................................... 8
Cookware .................................................................................. 8

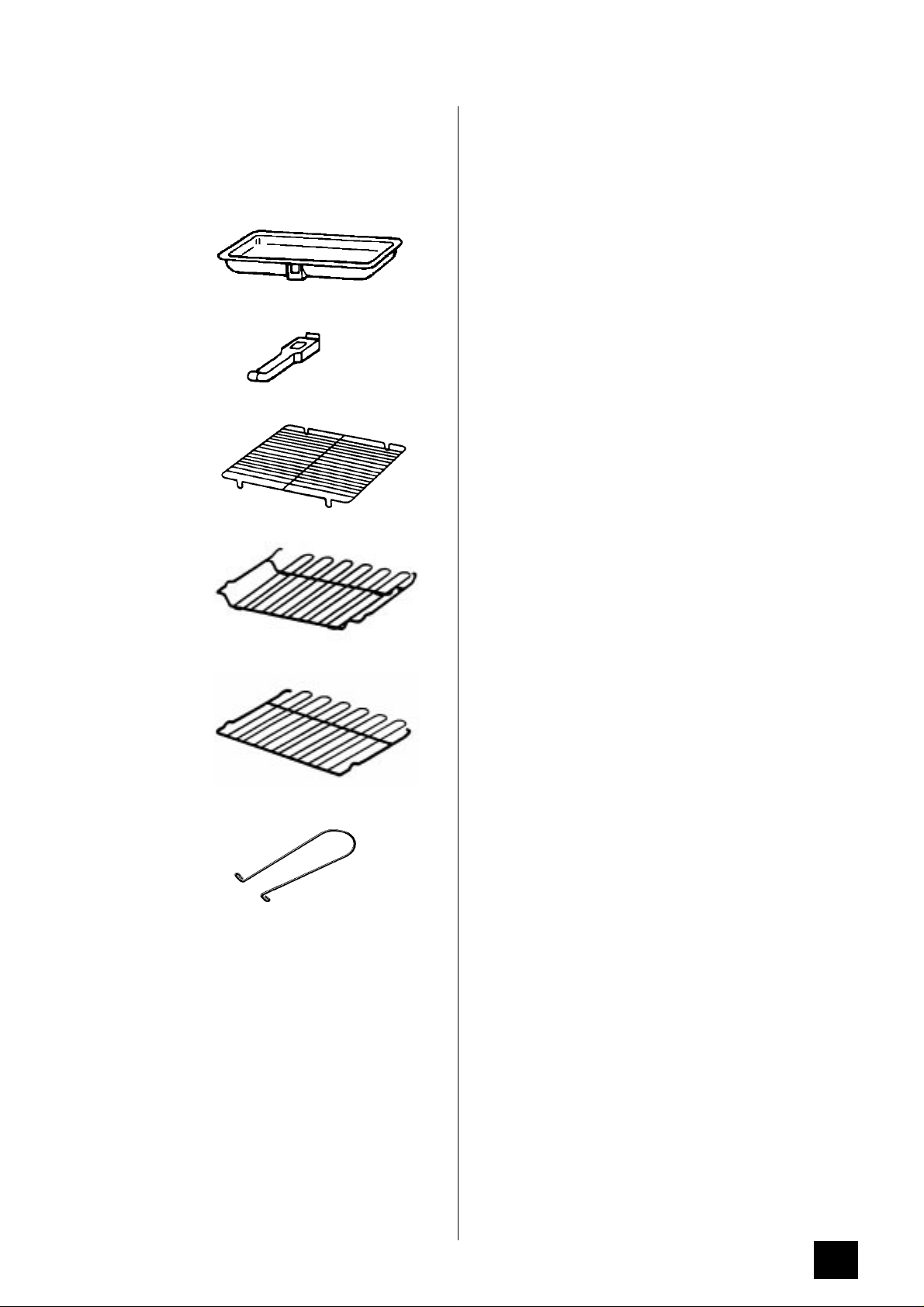

Grill and Oven Furniture ..................................................................... 9

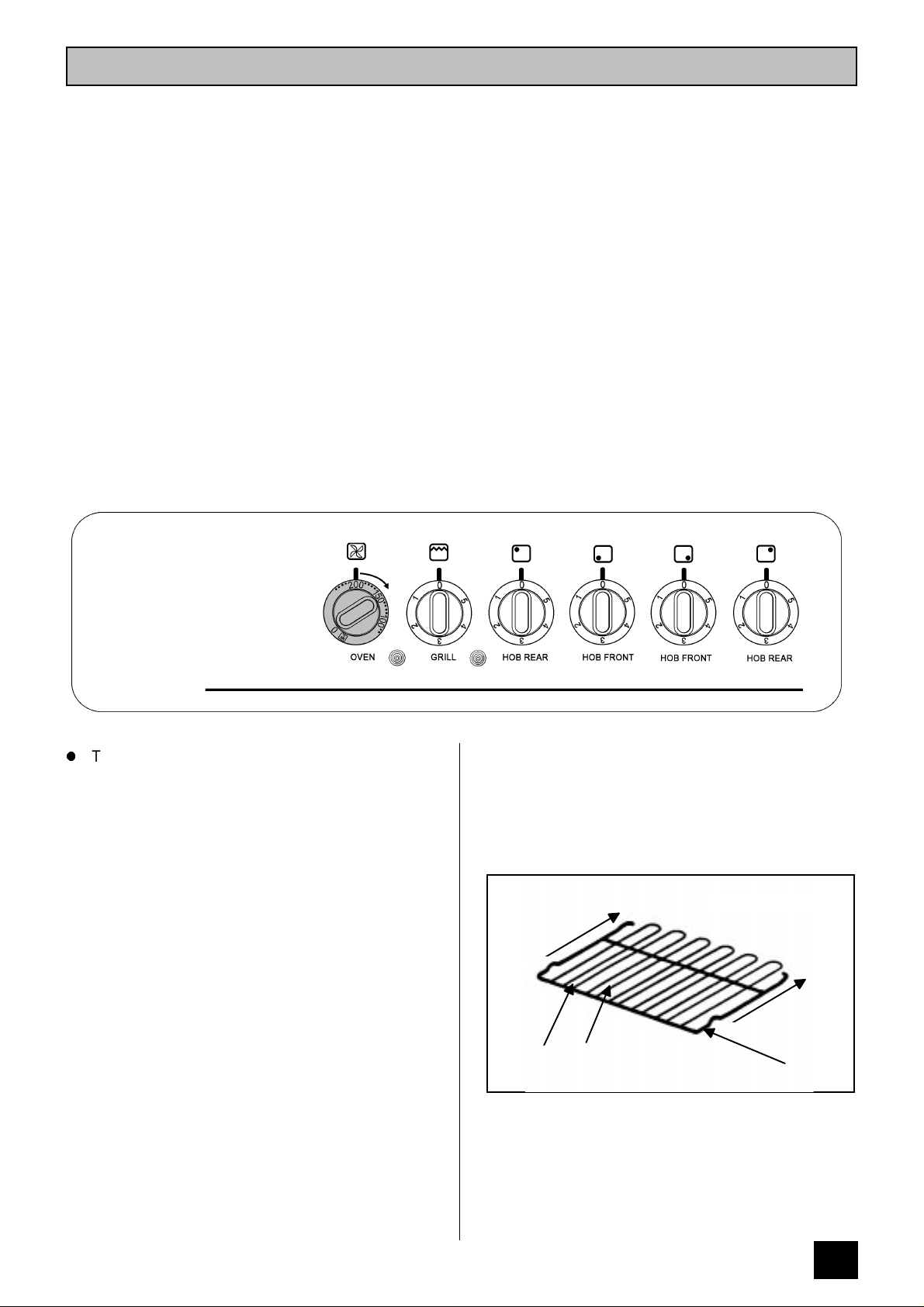

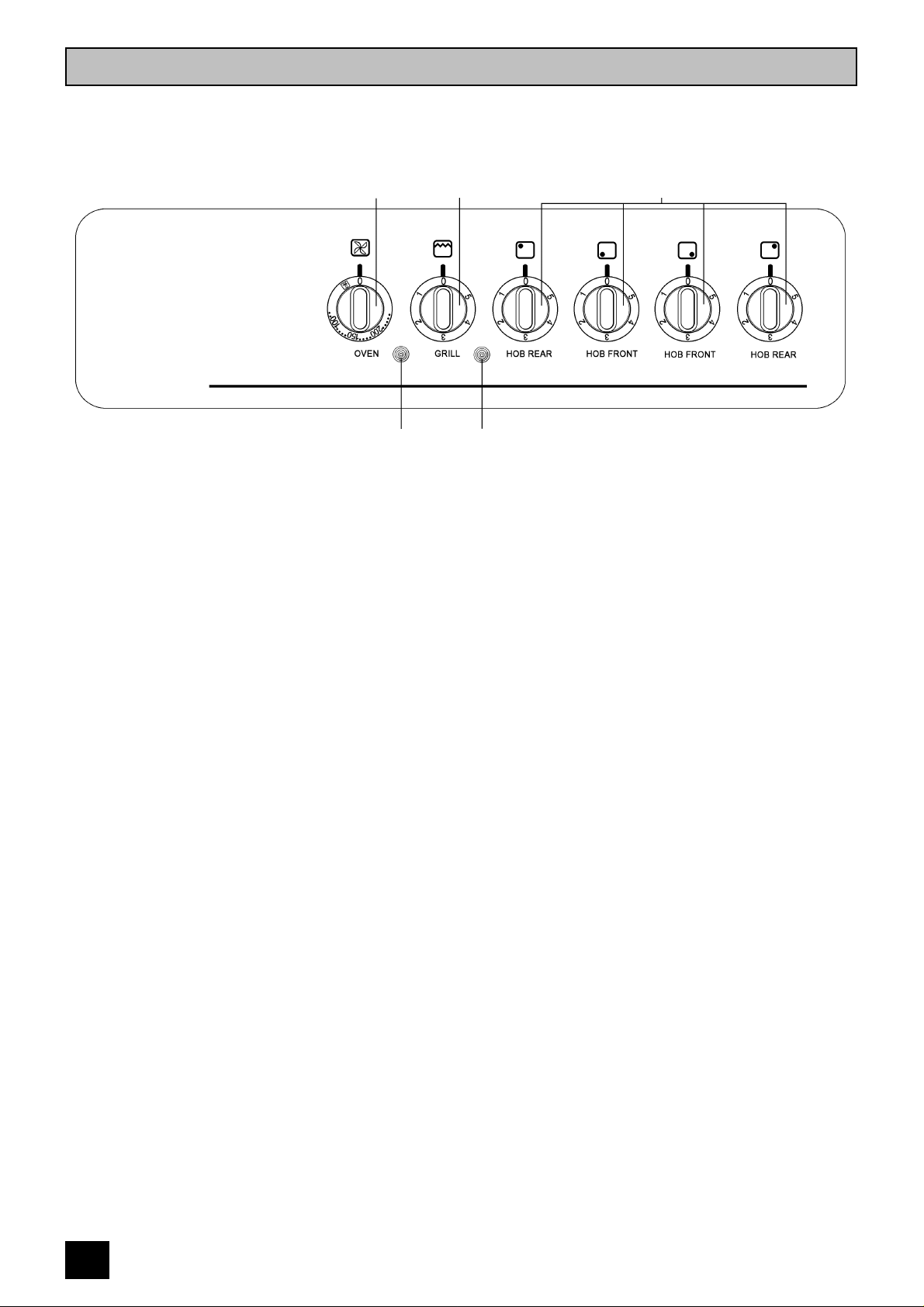

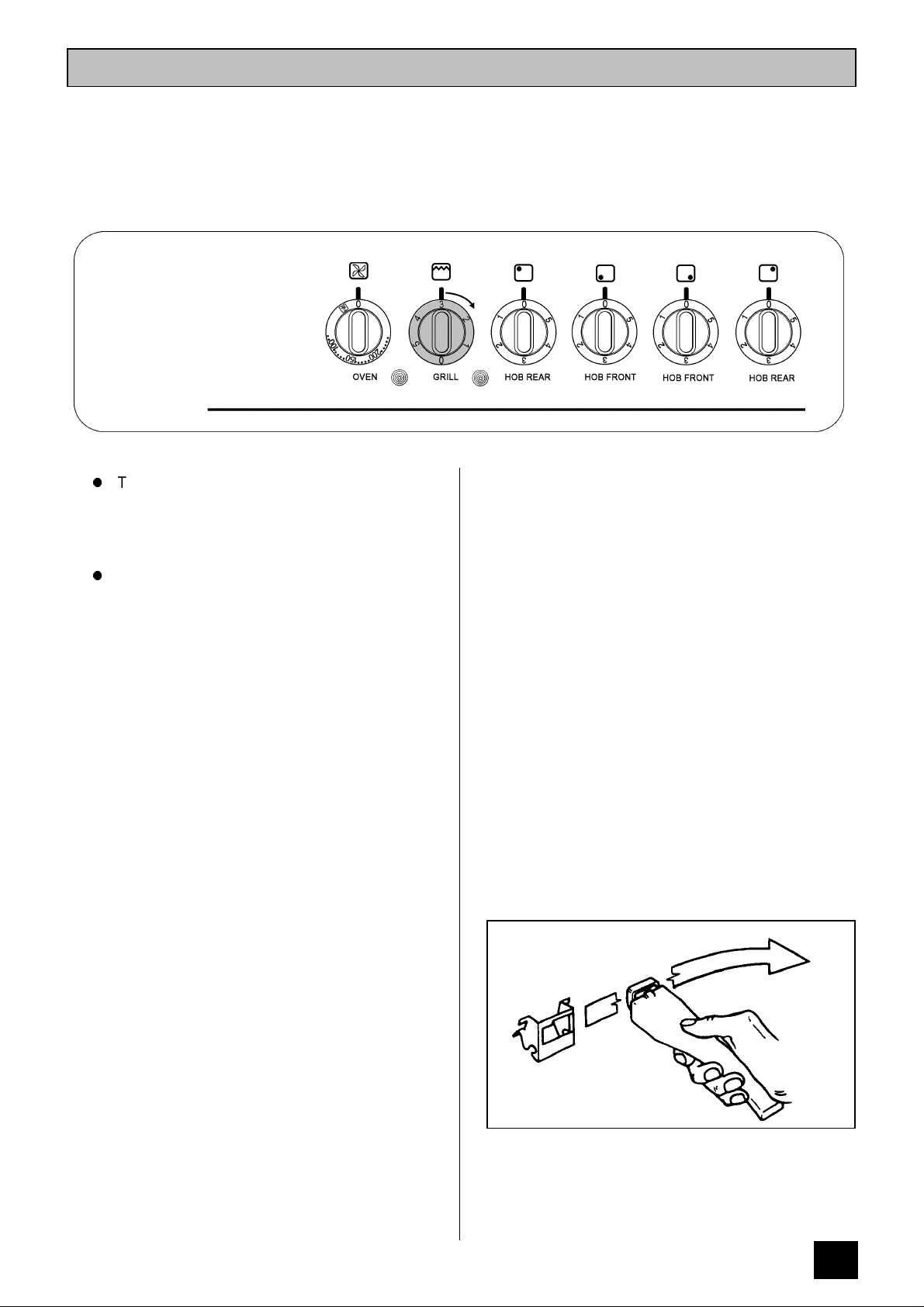

The Control Panel ......................................................................... 10
Recommended Saucepans ................................................................. 11
Hints and Tips ............................................................................. 11
Deep Fat Frying ........................................................................... 11
Preserving ................................................................................. 12
................................................................................
...................................................................
................................................................................
10
11
1 3 5
7
The Grill
The Fan Oven
Oven Cooking Chart ............................................................................. 17
Defrosting ....................................................................................... 18
........................................................................................
Selecting the Grill .......................................................................... 13

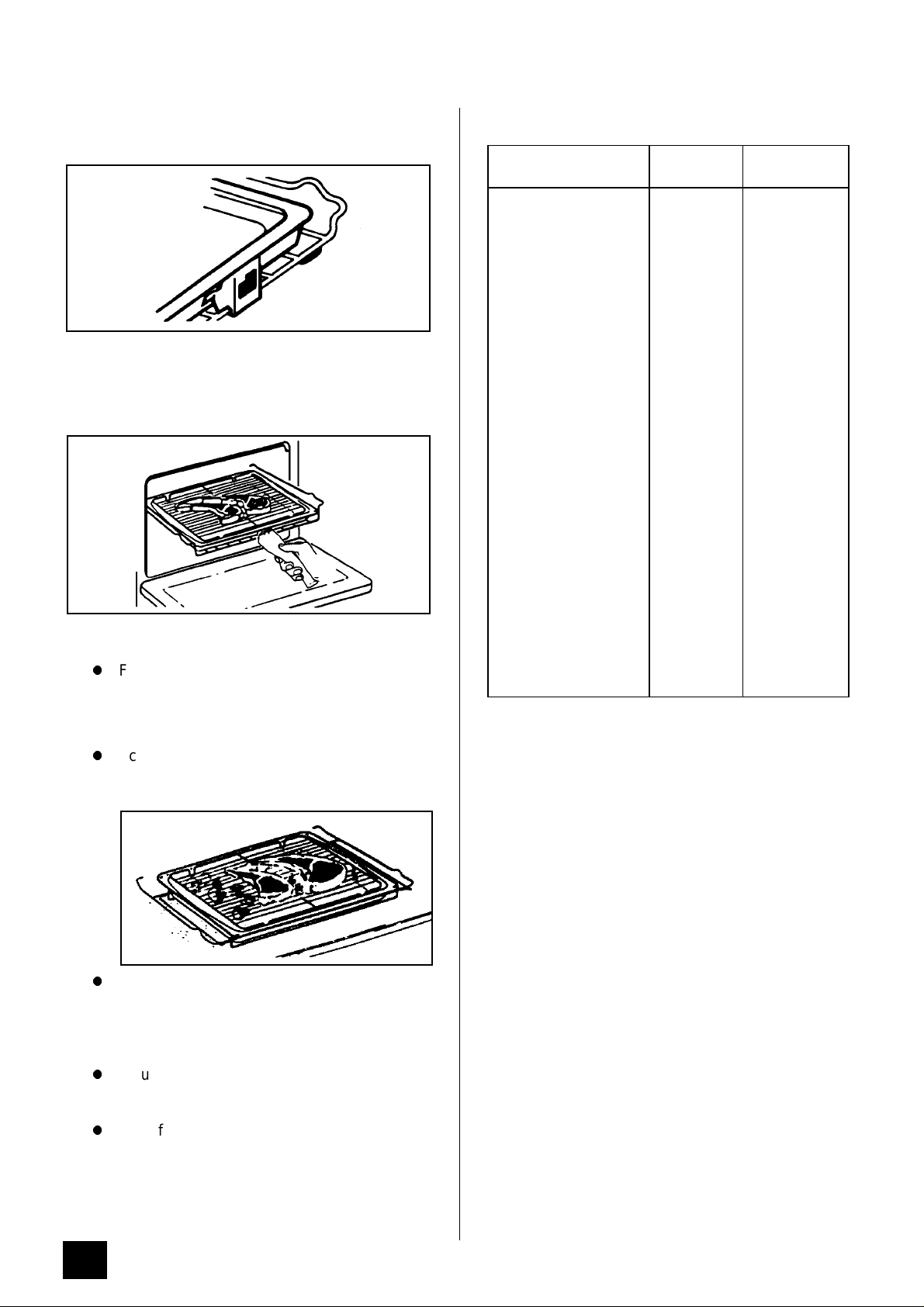

The Grill Pan and Handle ................................................................... 13
Hints and Tips ............................................................................. 14
Grilling Chart .............................................................................. 14
...................................................................................
Uses of the Fan Oven ...................................................................... 15
Selecting the Fan Oven .................................................................... 15
Things to Note ............................................................................. 15

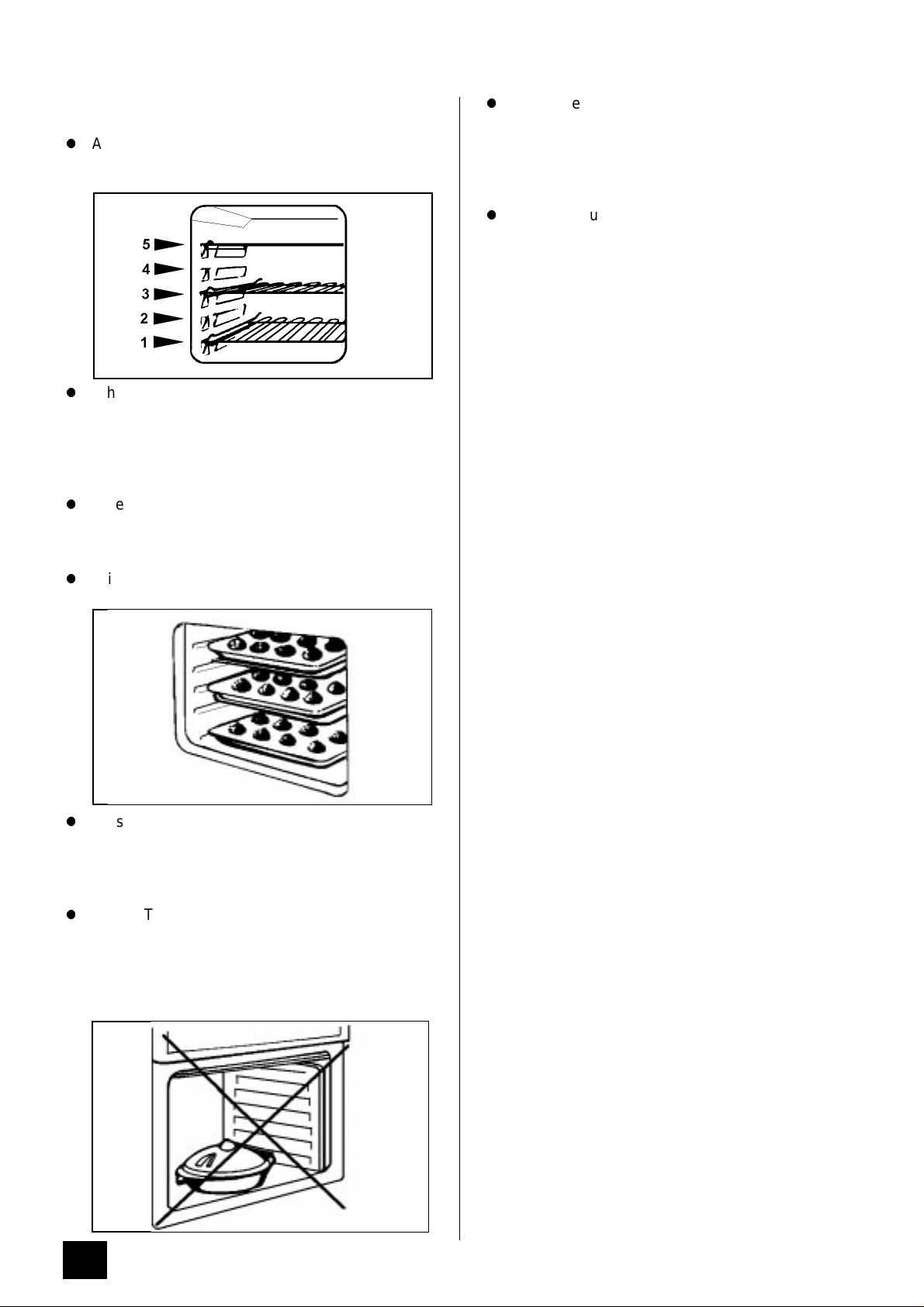

To Fit the Oven Shelves ................................................................... 15
Hints and Tips ............................................................................. 16
Uses of Defrost Feature .................................................................... 18
Selecting Defrost .......................................................................... 18
Things to Note ............................................................................. 18
Hints and Tips ............................................................................. 18
13
15
3
CONTENTS

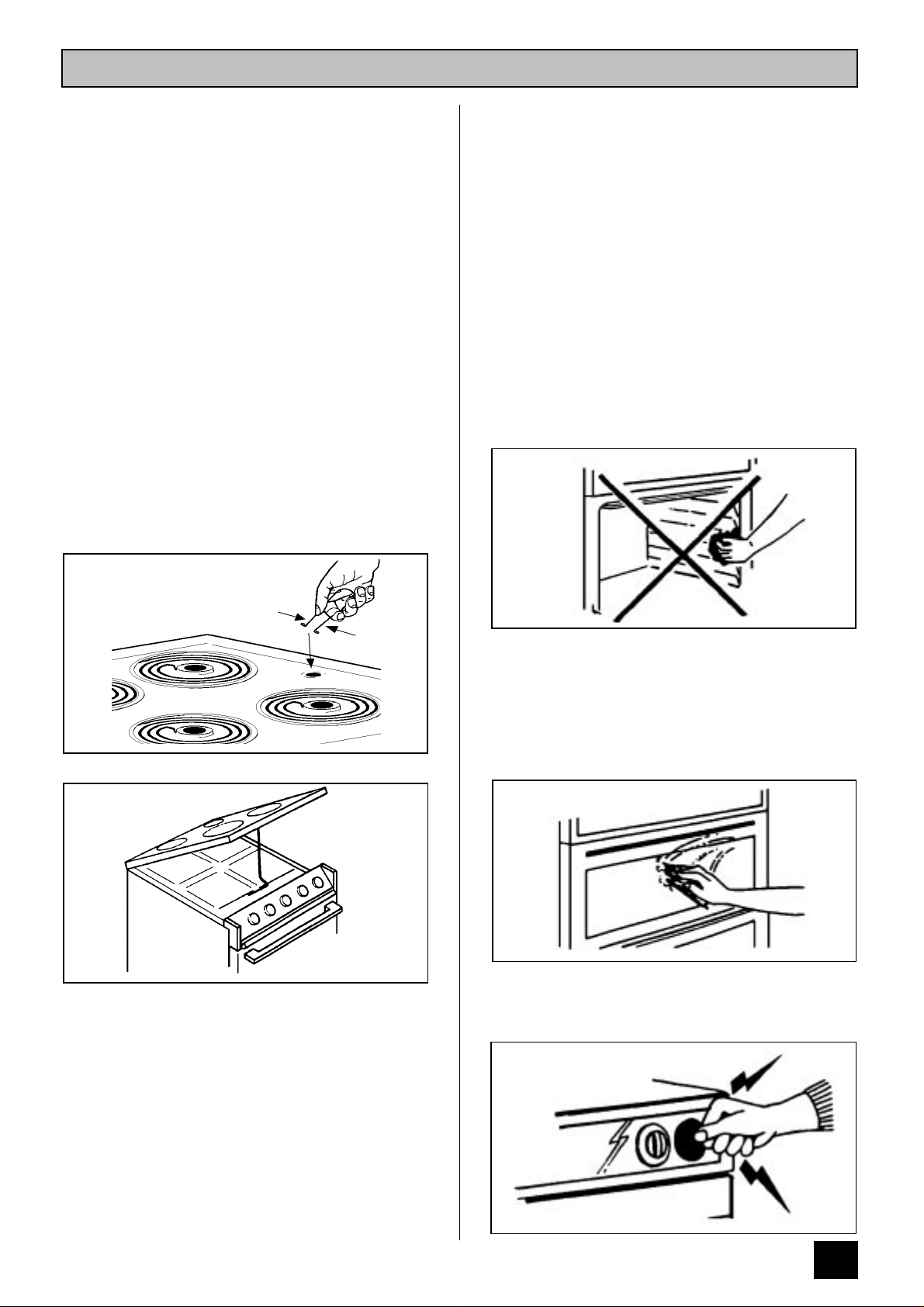

Care and Cleaning ............................................................................... 19
Cleaning Materials ......................................................................... 19
Cleaning the Radiant Hob and Hotplate Trims ............................................... 19
Cleaning the Grill Pan, Grill Pan Grid and Oven Shelves ..................................... 19
Cleaning Inside the Oven and Grill Compartments ........................................... 19
Cleaning the Outside of the Cooker ......................................................... 19
Hints and Tips ............................................................................. 20
Something not Working? ........................................................................ 21
Guarantee
Service Call Record ............................................................................. 23
.......................................................................................
22
4
SAFETY
THESE WARNINGS ARE PROVIDED IN THE INTERESTS OF YOUR SAFETY. ENSURE THAT YOU UNDERSTAND THEM ALL BEFORE INSTALLING OR USING THE COOKER.
PLEASE READ CAREFULLY
BEFORE INSTALLATION
This cooker is heavy and care must
be taken when moving it.
Ensure that all packaging, both inside and outside the cooker has been removed before the cooker is used.
DURING OPERATION
Do not use this cooker if it is in
contact with water. Never operate it with wet hands.
This cooker is designed to be operated by adults and children under supervision. Young children must not be allowed to tamper with the cooker or play with the controls.
Accessible parts especially around the grill area may become hot when the cooker is in use. Children should be kept away until it has cooled.
Take great care when heating fats and oils as they will ignite if they become too hot.
Do not try to move the cooker by
pulling the door handles.
The electrical installation work must be undertaken by a qualified electrician/ competent person.
It is dangerous to alter or modify the specifications of the cooker in any way.
After installation, please dispose of the packaging with due regard to safety and the environment.
This cooker has been designed for cooking edible foodstuffs only, and must not be used for any other purposes.
Never place plastic or any other material which may melt in the oven or on the hob.
Ensure cooking utensils are large enough to contain foods to prevent spillages and boil overs.
The handles of saucepans which are smaller than the heated area on the hob will become hot. Ensure your hand is protected before handling the pan.
Take care to follow the recommendations
given for tending the food when grilling.
Do not leave the grill pan handle in position when grilling as it will become hot.
5
Always use oven gloves to remove
and replace the grill pan handle when grilling. Recommendations given on page 13.
Ensure that you support the grill pan when it is in the withdrawn or partially withdrawn position.
Ensure that all vents are left unobstructed to ensure ventilation of the oven.
Ensure that the anti-tilt shelves are put in place correctly. Refer to instructions on page 15.
Cookers and hobs become very hot, and retain their heat for a long period of time after use. Children should be kept well away from the cooker until it has cooled.
GENERAL
Under no circumstances should
repairs be carried out by inexperienced persons as this may cause injury or serious malfunction.
This cooker should be serviced by an authorised Service Engineer and only genuine approved spare parts should be used.
Details of servicing and repair arrangements are supplied on page
23.
AFTER USE
Never line any part of the cooker
with aluminium foil.
Always stand back from the cooker when opening the oven door to allow any build up of steam or heat to release.
Do not place sealed cans or aerosols inside the oven. They may explode if they are heated.
Do not leave the hotplates switched ON for long periods when not covered by a saucepan. The controls may overheat.
Ensure that all control knobs are in the OFF position when not in use.
Do not stand on the cooker or on
the open oven door.
Do not hang towels, dishcloths or clothes from the cooker or its handle. They are a safety hazard.
Always switch off the cooker at its power point and allow to cool before any maintenance or cleaning work is carried out.
Only clean this cooker in accordance with the instructions given in this book.
Your safety is of paramount importance.
For hygiene and safety reasons this cooker should be kept clean at all times. A build-up of fats or other foodstuffs could result in a fire, especially in the grill pan.
Do not leave utensils containing foodstuffs, e.g. fat or oil in or on the cooker in case it is inadvertently switched ON.
Therefore, if you are unsure about any of the meanings of these WARNINGS contact your local Electricity Company.
6
INTRODUCTION
RATING PLATE
Record the model and serial numbers on page 23 of this book from the rating plate. This is situated on the lower front frame of the cooker and can be seen upon opening the main oven door.
The cooker must be protected by a suitably rated fuse or circuit breaker. The rating of the cooker is given on the rating plate.
INSTALLATION WARNING: THIS COOKER MUST BE
EARTHED.
This cooker complies with Radio Interference requirements of EEC Directive 87/308/EEC.
If your cooker has been damaged in transit, contact your supplier immediately. DO NOT attempt to install it.
The cable should be routed away from potentially hot areas marked by X in the diagram below.
REAR VIEW
To move the cooker, open the oven door, and lift the cooker by holding inside the top of the compartment.
Your cooker left the factory fully packaged to protect it from damage. If it is delivered without packaging and damage has occurred, the manufacturer cannot accept responsibility. Contact your Electricity Company for advice.
Once the packaging has been removed the cooker should only be moved by hand. DO NOT use a sack barrow or any other aid to lift the cooker as damage may occur.
For your own safety, we recommend that your cooker is installed by a competent electrician. The installation must comply with current I.E.E. Regulations.
The cooker must be connected to the correct electrical supply as stated on the voltage label on the cooker, through a suitable cooker control unit incorporating a double pole switch having a contact separation of at least 3mm in all poles.
The cable connecting the electricity supply to this cooker must have conductors of sufficiently high cross-sectional area to prevent overheating and degradation. Six square millimetres ( 6.0mm minimum recommended cross-sectional area.
2
) is the
This is a type Y cooker which means it is free-standing and can be fitted with cabinets on one or both sides. It may also be fitted in a corner setting.

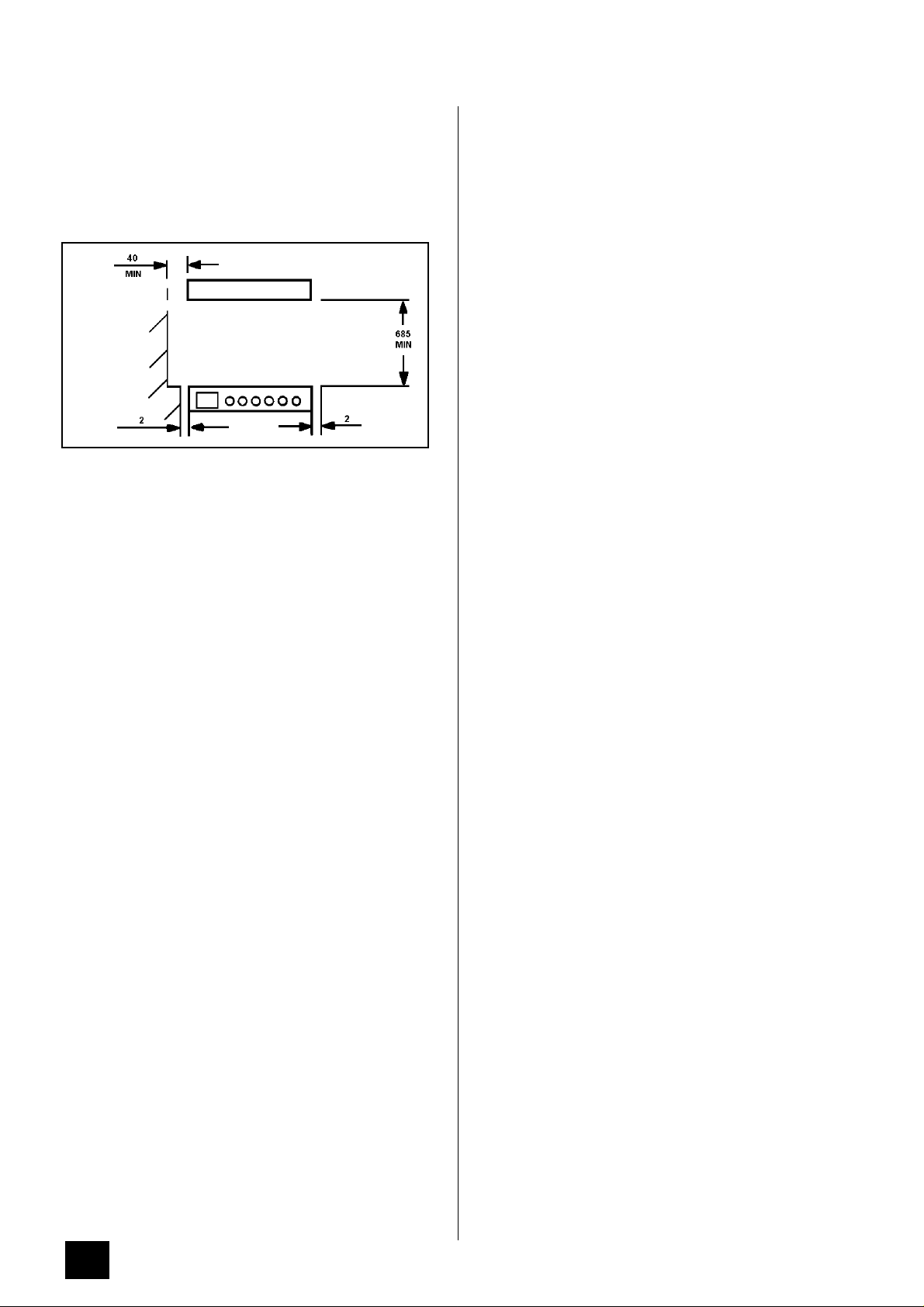

Ensure that the cooker is standing level. Side walls which are above hob level should be
protected by heat resistant non-combustible material and MUST NOT be nearer than 40mm to the hob side.
A nominal air gap of 2mm all around the cooker is required to enable the cooker to be moved into position.
A spacer has been incorporated into the back of the appliance to ensure an air gap of 10mm is maintained at hotplate level. Tiles or other forms of deep wall covering should not obscure this gap.
The cooker must be protected by a suitably rated fuse or circuit breaker. The rating of the cooker is given on the rating plate.
7
