Tricity Bendix CSIE 510 User Manual

C
OPERATING AND INSTALLATION INSTRUCTIONS
MODEL NO.
SIE 510
TECHNICAL DETAILS
Tricity Bendix Service Force
MODEL NO. CSIE 510
This appliance complies with: European Council Directive 73/23/EEC. EMC Directive 89/336/EEC. CE Marking Directive 93/68/EEC.
2
CONTENTS
Technical Details .................................................................................................................................... 2
Contents ................................................................................................................................................. 3
Preface .................................................................................................................................................... 5
Safety ...................................................................................................................................................... 6
Before Installation .......................................................................................................................... 6
During Installation .......................................................................................................................... 6
After Use ........................................................................................................................................ 7
General ........................................................................................................................................... 7
Introduction ............................................................................................................................................ 8
Rating Plate .................................................................................................................................... 8
Installation ...................................................................................................................................... 8
General Notes on using your Cooker ............................................................................................. 9
About Condensation and Steam .................................................................................................... 9
The Cooling Fan for the Controls ................................................................................................... 9
Control Panel Indicator Neons ....................................................................................................... 9
Cookware ....................................................................................................................................... 9
Grill and Oven Furniture ................................................................................................................. 10
Getting to Know Your Cooker .............................................................................................................. 11
The Control Panel .......................................................................................................................... 11

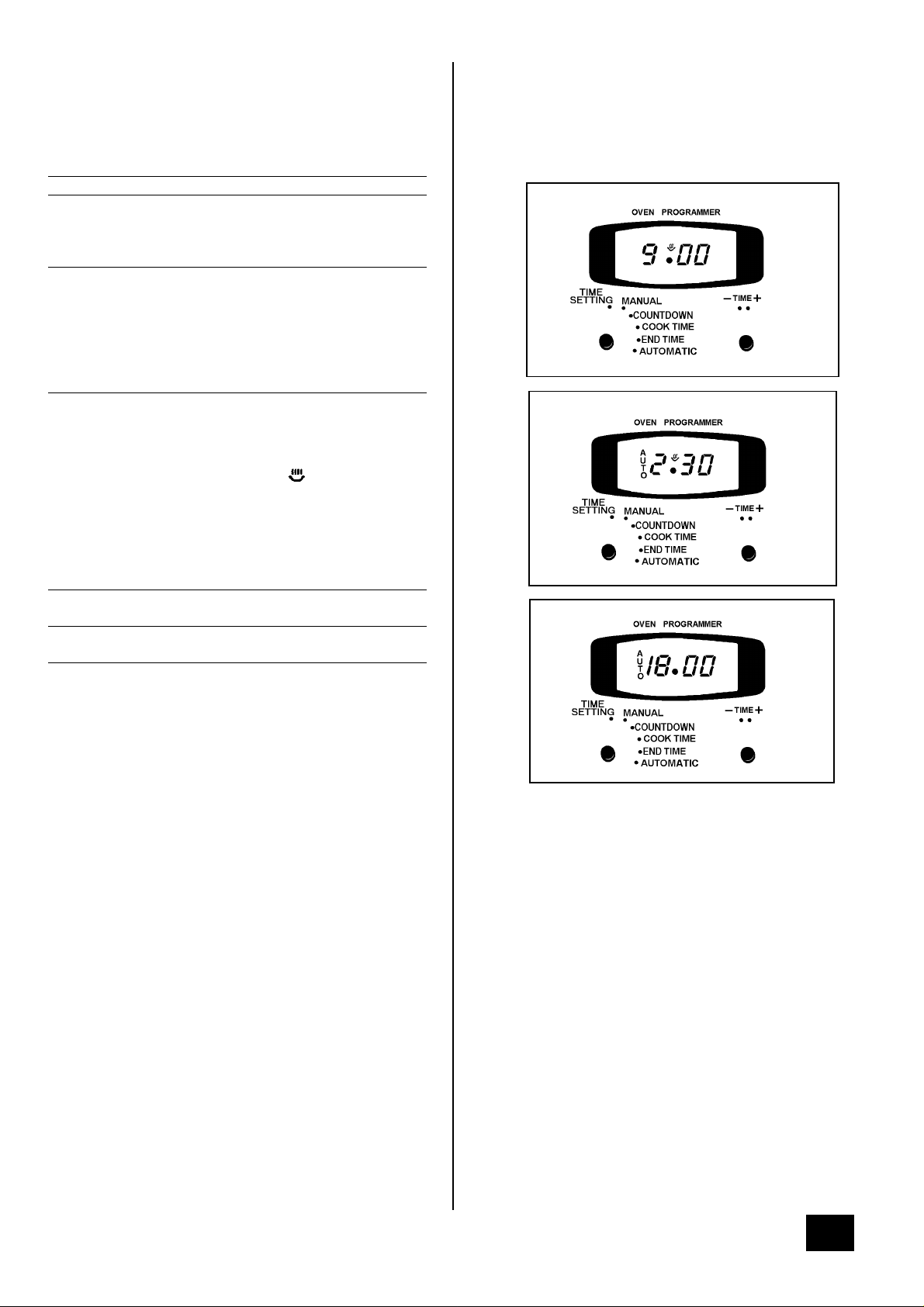

The Timer ....................................................................................................................................... 12
The Ceramic Hob ................................................................................................................................... 14
Recommended Saucepans ............................................................................................................14
Hints and Tips ................................................................................................................................ 14
Hot Hob Indicator ........................................................................................................................... 15
Deep Fat Frying ...................................................................................................................................... 15
Preserving .............................................................................................................................................. 15
The Dual Grill .......................................................................................................................................... 16
Uses of the Dual Grill ..................................................................................................................... 16
Selecting the Dual Grill ................................................................................................................... 16
Things to Note ................................................................................................................................ 16

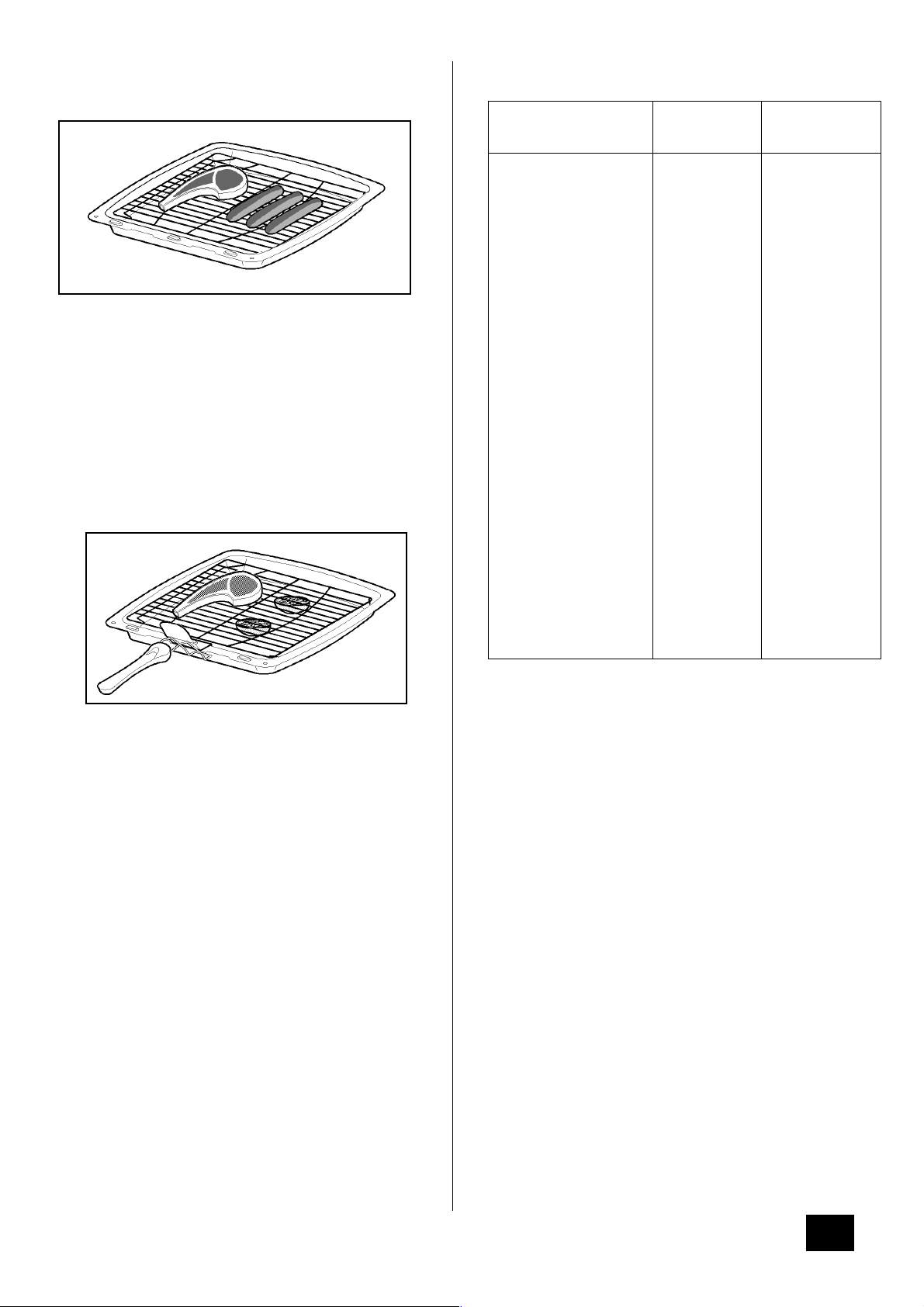

The Grill Pan and Handle ............................................................................................................... 16
Hints and Tips ................................................................................................................................ 17
Grilling Chart .................................................................................................................................. 17
The Top Oven ......................................................................................................................................... 18
Uses of the Fan Oven .................................................................................................................... 18
Selecting the Top Oven .................................................................................................................. 18
Things to Note ................................................................................................................................ 18
To Fit the Top Oven Shelf .............................................................................................................. 18
Hints and Tips ................................................................................................................................ 19
The Main Fan Oven ................................................................................................................................20
Uses of the Fan Oven .................................................................................................................... 20
Selecting the Fan Oven .................................................................................................................. 20
Things to Note ................................................................................................................................ 20
To Fit the Main Oven Shelves ........................................................................................................ 20

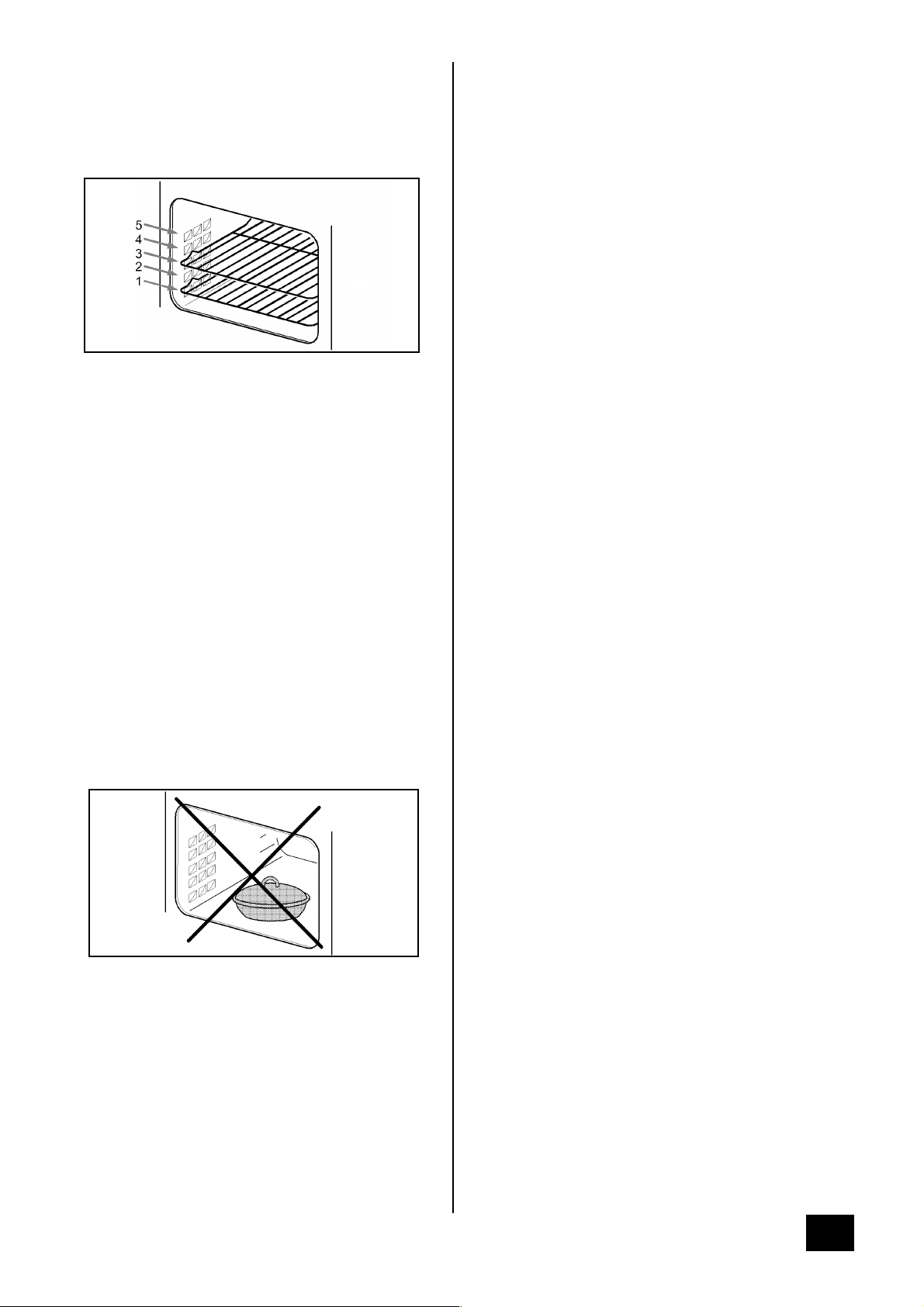

Hints and Tips ................................................................................................................................ 21
Oven Cooking Chart .............................................................................................................................. 22
Roasting Chart ....................................................................................................................................... 23
3
CONTENTS
Defrosting ............................................................................................................................................... 24
Uses of Defrost Feature ................................................................................................................. 24
Selecting Defrost ............................................................................................................................ 24
Things to Note ................................................................................................................................ 24
Hints and Tips ................................................................................................................................ 24
Care and Cleaning ................................................................................................................................. 25
Cleaning Materials ......................................................................................................................... 25
Cleaning the Ceramic Hob ............................................................................................................. 25
Hints and Tips ................................................................................................................................ 26
Cleaning the Outside of the Cooker ............................................................................................... 26
Cleaning the Grill Pan, Grill Pan Grid and Oven Shelves .............................................................. 26
Cleaning Inside the Oven and Grill Compartments ....................................................................... 26

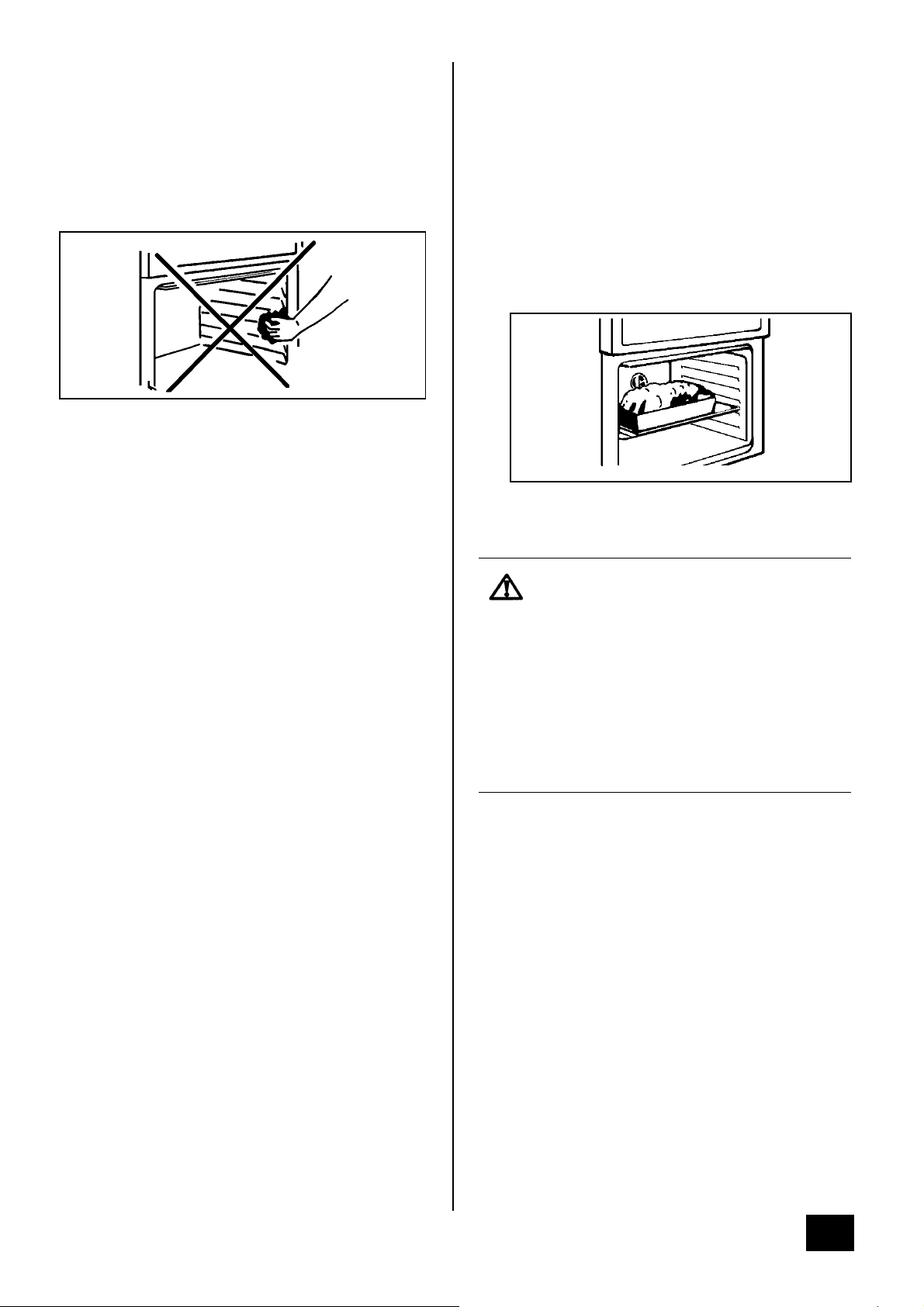

Care of Stayclean Surfaces ........................................................................................................... 27
Hints and Tips ................................................................................................................................ 27
Cleaning the Door Glass ................................................................................................................ 27
Replacing the Oven Light Bulb .......................................................................................................28
Something not Working? ...................................................................................................................... 29
ServiceandSpareParts........................................................................................................................ 30
Customer Service Centres .................................................................................................................... 31
Guarantee Conditions ........................................................................................................................... 33
Tricity Bendix Service Force
4
PREFACE
Dear Customer,
Thank you for buying a Tricity Bendix cooker. With our 80 years experience in developing and manufacturing the very best in U.K. cookers, you can be assured that you have purchased a hard working, reliable, quality product.
Tricity Bendix cookers comply with British Standard safety and performance requirements. They have been approved by BEAB (British Electrotechnical Approvals Board) and are covered by a 12 month parts and labour guarantee.
To get the best from your new Tricity Bendix cooker, we ask that you PLEASE READ THESE INSTRUCTIONS CAREFULLY. Particular attention should be made to cooking times and temperatures, which may differ, from your previous cooker.
It is most important that this instruction book is retained with the appliance for future reference. Should the appliance be sold, or if you move house and leave the appliance, always ensure that the book remains with the appliance. This will enable the new owner to be acquainted with the functioning of the appliance and the relevant warnings.
Please read the whole instruction book before attempting to use the appliance ensuring you follow the recommendations given.
5
SAFETY
Tricity Bendix Service Force
THESE WARNINGS ARE PROVIDED IN THE INTERESTS OF YOUR SAFETY. ENSURE THAT YOU UNDERSTAND THEM ALL BEFORE INSTALLING OR USING THE COOKER.
PLEASE READ CAREFULLY
BEFORE INSTALLATION
This cooker is heavy and care
must be taken when moving it.
Ensure that all packaging, both
inside and outside the cooker has been removed before the appliance is used.
If the cooker is to be placed on a base, measures must be taken to prevent the cooker slipping from the base.
After installation, please dispose of the packaging with due regard to safety and the environment.
DURING OPERATION
Do not use this cooker if it is in
contact with water. Never operate it with wet hands.
This cooker is designed to be operated by adults. Young children must not be allowed to tamper with the cooker or play with the controls.
During use the cooker becomes hot. Care should be taken to avoid touching the heating elements inside the oven.
Accessible parts especially around the grill area may become hot when the cooker is in use. Children should be kept away until it has cooled.
Do not try to move the cooker by pulling the door handles.
The electrical installation work must be undertaken by a qualified electrician/competent person.
It is dangerous to alter or modify the specifications of the cooker in any way.
Do not use the cooker if the ceramic glass is damaged. If a fault or crack becomes visible during cooking, disconnect the cooker immediately from the electricity supply and contact the Customer Service Centre.
Do not place silver foil or plastic containers on ceramic glass.
Take great care when heating fats and oils, as they will ignite if they become too hot.
This cooker has been designed for cooking edible foodstuffs only, and must not be used for any other purposes.
Never place plastic or any other material which may melt in the oven or on the hob.
Ensure cooking utensils are large enough to contain foods to prevent spillages and boil overs.
The handles of saucepans which are smaller than the heated area on the hob will become hot. Ensure your hand is protected before handling the pan.
6
Take care to follow the recommendations given for tending the food when grilling.
Do not leave utensils containing foodstuffs, e.g. fat or oil in or on the cooker in case it is inadvertently switched on.
AFTER USE
Ensure that you support the grill
pan when it is in the withdrawn or partially withdrawn position.
Ensure that all vents are left unobstructed to ensure ventilation of the oven cavity.
Ensure the anti-tilt shelves are put in place correctly. Refer to instructions on pages 18 and 20.
Never line any part of the cooker with aluminium foil.
Always stand back from the cooker when opening the oven door to allow any build up of steam or heat to release.
Do not place sealed cans or aerosols inside the oven. They may explode if they are heated.
Do not leave the hotplates switched ON for long periods when not covered by a saucepan. The controls may overheat.
Cookers and hobs become very hot, and retain their heat for a long period of time after use. Children should be kept well away from the cooker until it has cooled.
GENERAL
Under no circumstances should
any repairs be carried out by an inexperienced person as this may cause injury or serious malfunction. This cooker should be serviced by an authorised service Engineer and only genuine-approved spare parts should be used. Details of repair and servicing arrangements are supplied on page 30 of this book.
Do not stand on the cooker or on the open oven door.
Do not hang towels, dishcloths or clothes from the cooker or its handle. They are a safety hazard.
Always allow the cooling fan to cool the cooker down before switching off at the wall prior to carrying out any cleaning or maintenance work.
Ensure that all control knobs are in the OFF position when not in use.
For hygiene and safety reasons this cooker should be kept clean at all times. A build-up of fats or other foodstuffs could result in a fire, especially in the grill pan.
Only clean this cooker in accordance with the instructions given in this book. Extreme care must be taken when using a ceramic hob scraper.
Your safety is of paramount importance. Therefore, if you are unsure about any of the
meanings of these WARNINGS contact the: Customer Care Department
Telephone 0870 5 950950
7
INTRODUCTION
R
Tricity Bendix Service Force
WARNING: THIS COOKER MUST BE EARTHED RATING PLATE
Record the model, product and serial numbers on the back cover of this instruction book from the rating plate. This is situated on the lower front frame of the cooker and can be seen upon opening themainovendoor.
The cooker must be protected by a suitably rated fuse or circuit breaker. The rating of the cooker is given on the rating plate.
Do not remove the rating plate from the cooker as this may invalidate the guarantee.
INSTALLATION
The cable must be routed away from potentially hot areas marked by X in the diagram below.
EAR VIEW
To move the cooker, open the main oven door, and lift the cooker by holding inside the top of the compartment.
If your cooker has been damaged in transit, contact your supplier immediately. DO NOT attempt to install it.
Your cooker left the factory fully packaged to protect it from damage. If it is delivered without packaging and damage has occurred, the manufacturer cannot accept responsibility. Contact you supplier for advice.
Once the packaging has been removed the cooker should only be moved by hand. DO NOT use a sack barrow or any other aid to lift the cooker as damage may occur.
Connection to the electricity supply must be carried out by a qualified electrician/competent person.
The electrical connection should be made using a double pole isolating switch (cooker socket) with at least 3mm contact separation in all poles. The cable must have conductors of sufficiently high cross-sectional area to prevent overheating and deterioration.
2
.
2
))iisstthhe
Six square millimetres (6.00mm
rreeccoommmmeennddeeddccrroossss--sseeccttiioonnaarreeaa.
This is a type Y cooker which means it is free­standing and can be fitted with cabinets on one or both sides. It may also be fitted in a corner setting.
Ensure that the cooker is standing level. Side walls which are above hob level should be
protected by heat resistant non-combustible material and MUST NOT be nearer than 40mm to the hob side.
A nominal air gap of 2mm all around the cooker is required to enable the cooker to be moved into position.
Always ensure an air gap is maintained at hotplate level. Tiles or other forms of deep wall covering should not obscure this gap.
Air gap
e
8
Note: Vapours from the oven vents may in time
cause discolouration of wallcoverings behind the cooker. For ease of cleaning it may be preferable to tile behind the cooker.
Overhanging surfaces or a cooker hood should be a minimum of 685mm above the hob.
It is important to ensure that the cooker is level after installation. Levelling feet are fitted to the appliance to accommodate uneven floors.
GENERAL NOTES ON USING YOUR COOKER
THE COOLING FAN FOR THE CONTROLS
The cooling fan operates immediately when the grill or top oven is switched on. It m ay run on after the controls are switched off until the appliance has cooled. Note: The action of the cooling fan will depend on how long the top oven or grill have been used and at what temperature. It may not run on where the grill or top oven has been used for a short time or at low temperatures. Do not switch the cooker off at its power point until the cooling fan has cooled the cooker down.
CONTROL PANEL INDICATOR NEONS
These lights indicate whether the grill or ovens are switched on.
In the case of the ovens, the neons also indicate when the set temperature has been reached. They will turn on and off during use to show that the temperature is being maintained. The grill indicator neon may turn on and off during use.
We suggest that you run the oven elements for 10 – 15 minutes at 220 their surfaces. The procedure should be repeated with the grill for approximately 5 – 10 minutes. During this period an odour may be emitted, it is therefore advisable to open a window for ventilation.
o
C to burn off any residue from
ABOUT CONDENSATION AND STEAM
When food is heated it produces steam similar to a boiling kettle. The oven is vented to allow some of this steam to escape. However, always stand back from the cooker when opening the oven door to allow any build up of steam or heat to release.
If the steam comes into contact with a cool surface on the outside of the cooker, e.g. a trim, it will condense and produce water droplets. This is quite normal and is not caused by a fault on the cooker.
To prevent discolouration, regularly wipe away condensation and also soilage from surfaces.
If the neons do not operate as the instructions indicate the controls have been incorrectly set. Return all controls to zero and re-set following the instructions for the required setting.
When the main oven has been set for automatic cooking the neon will remain unlit until the cooktime begins.
COOKWARE
Baking trays, oven dishes etc., should not be placed directly against the grid covering the fan at the back of the oven.
Do not use baking trays larger than 30cm x 35cm (12” x 14”) as they will restrict the circulation of heat and may affect performance.
For your safety wallcoverings at the rear of the cooker should be securely fixed to the wall.
9

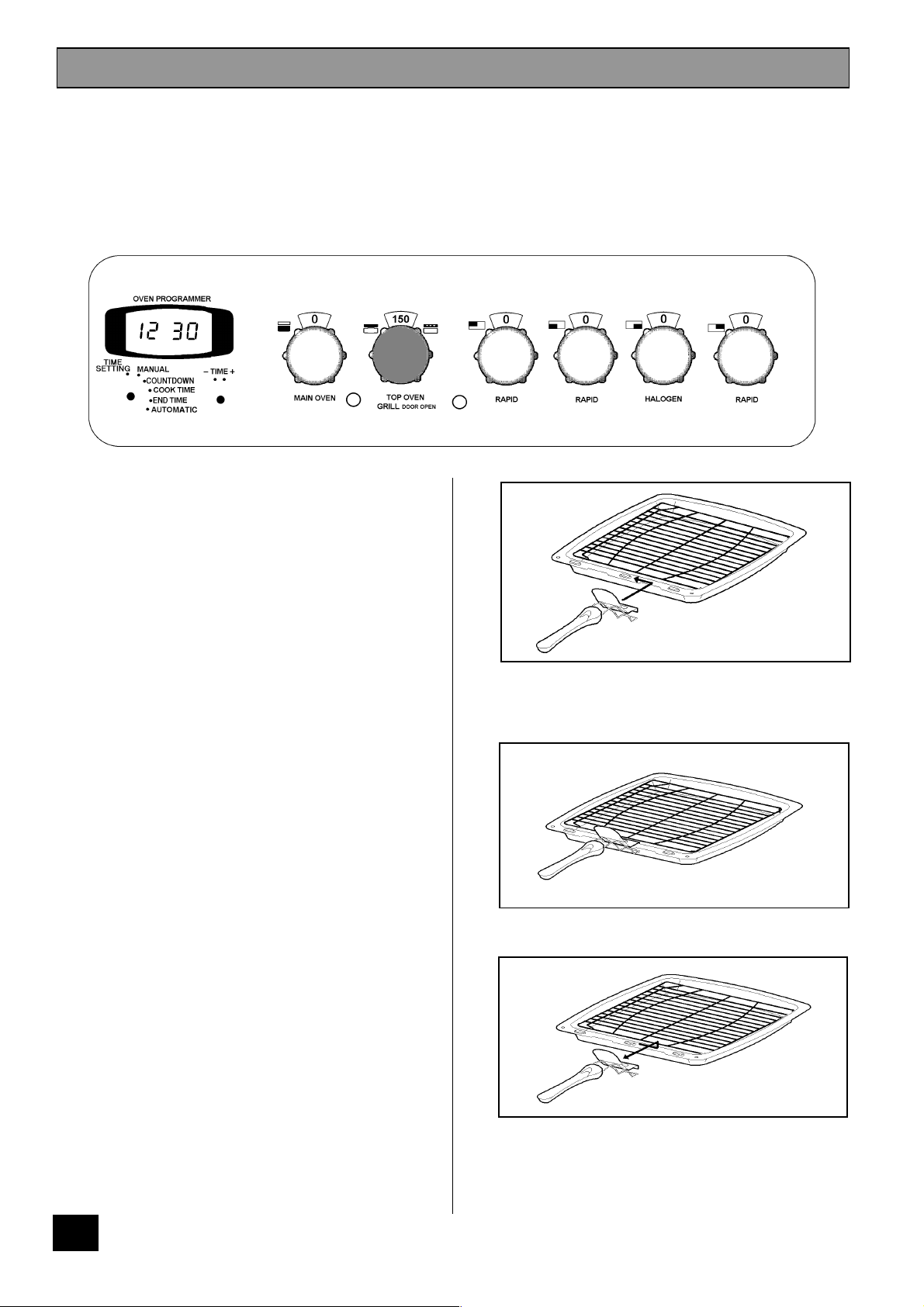

GRILL AND OVEN FURNITURE
The following items of grill and oven furniture have been supplied with the cooker. If you require replacements of any of the items listed below please contact your local Service Force Centre, quoting the relevant part number.
1 grill pan (311409401)
1 grill pan handle (311468100)
Scuffing of the Stayclean main oven lining by the oven furniture pack may occur during transit. These marks will disappear after the oven elements have been burnt off for the first time.
Note
If you require an additional handle for your grill pan, this can be ordered from your local Tricity Bendix Service Centre by quoting part number 311479800\6.
1 grill pan grid (311419801)
1 straight shelf for grilling and top oven cooking only
2 straight shelves for main oven cooking
10
GETTING TO KNOW YOUR COOKER
THE CONTROL PANEL
A
B
B
D
C
FEATURES
A-Timer B - Main Oven Temperature Control C Main Oven Indicator Neon D - Top Oven / Grill Temperature Control E - TopOven/GrillIndicatorNeon F Hotplate Controls
F
E
11
Loading...
+ 25 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
