3
Table of contents
Important Warnings 4..................
YOUR COOKER 6......................
THE OVEN CAVITY 7...................
Oven accessories 8......................
The cooking levels 8.....................
THE ELECTRONIC PROGRAMMER 9....
BEFORE THE FIRST USE 11.............
HOW TO USE YOUR COOKING HOB 12...
OVEN CONTROLS 13....................
The function selector 13...................
The temperature control 13................
The neon indicator lights 13................

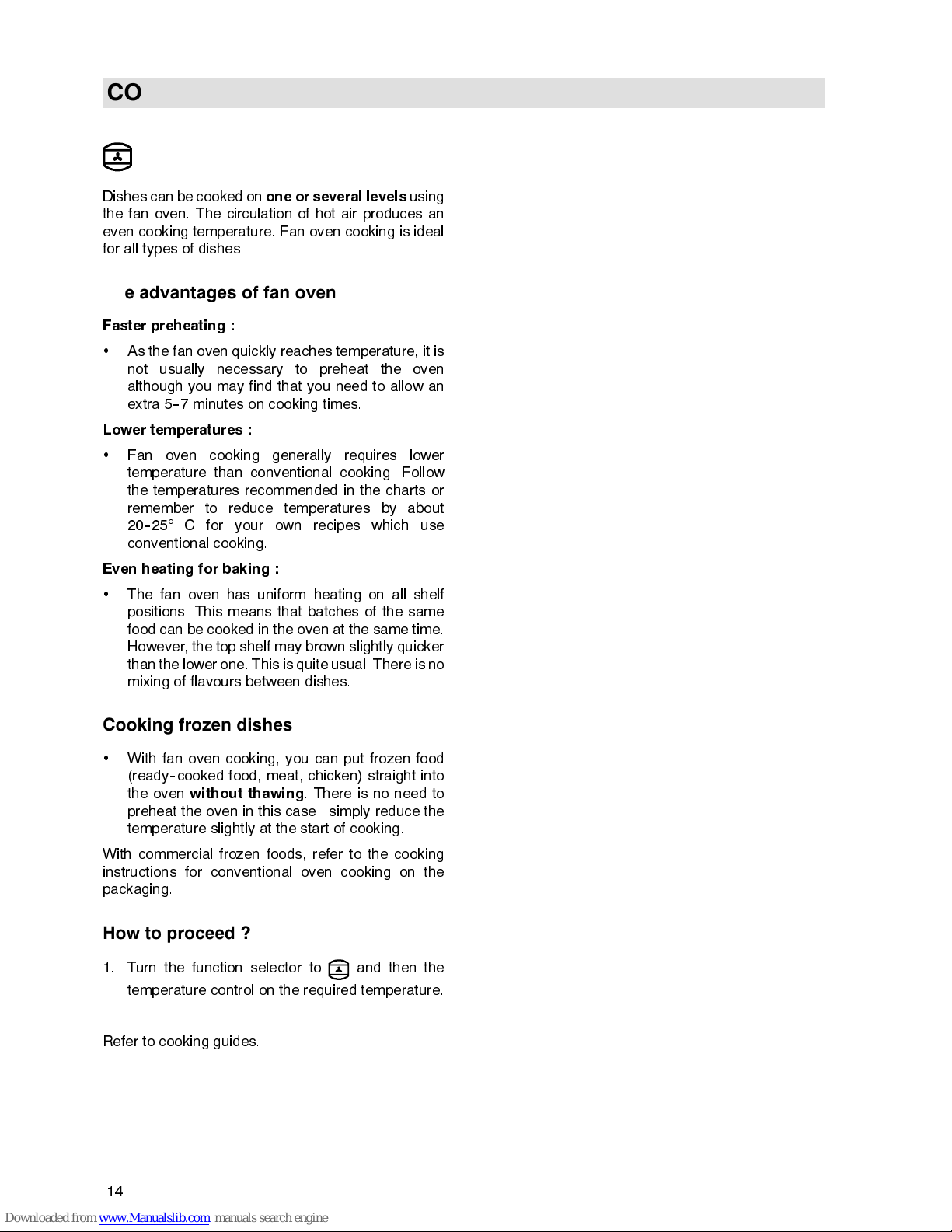

COOKING FUNCTIONS 14...............

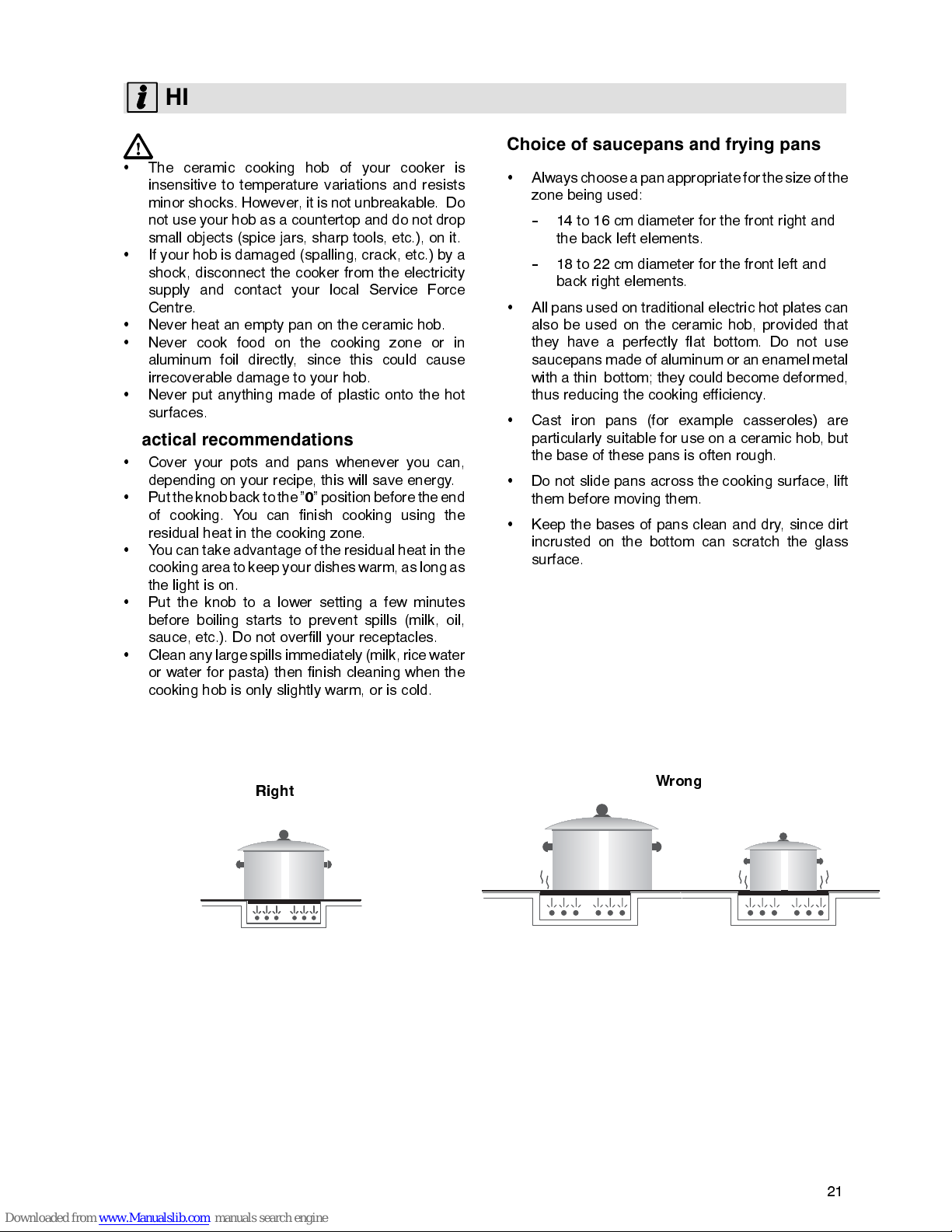

HINTS AND TIPS : THE HOB 21..........
HINTS FOR SUCCESSFUL COOKING 22
COOKING GUIDE 23.....................
MAINTENANCE AND CLEANING 24......
CLEANING AND CARE 26...............

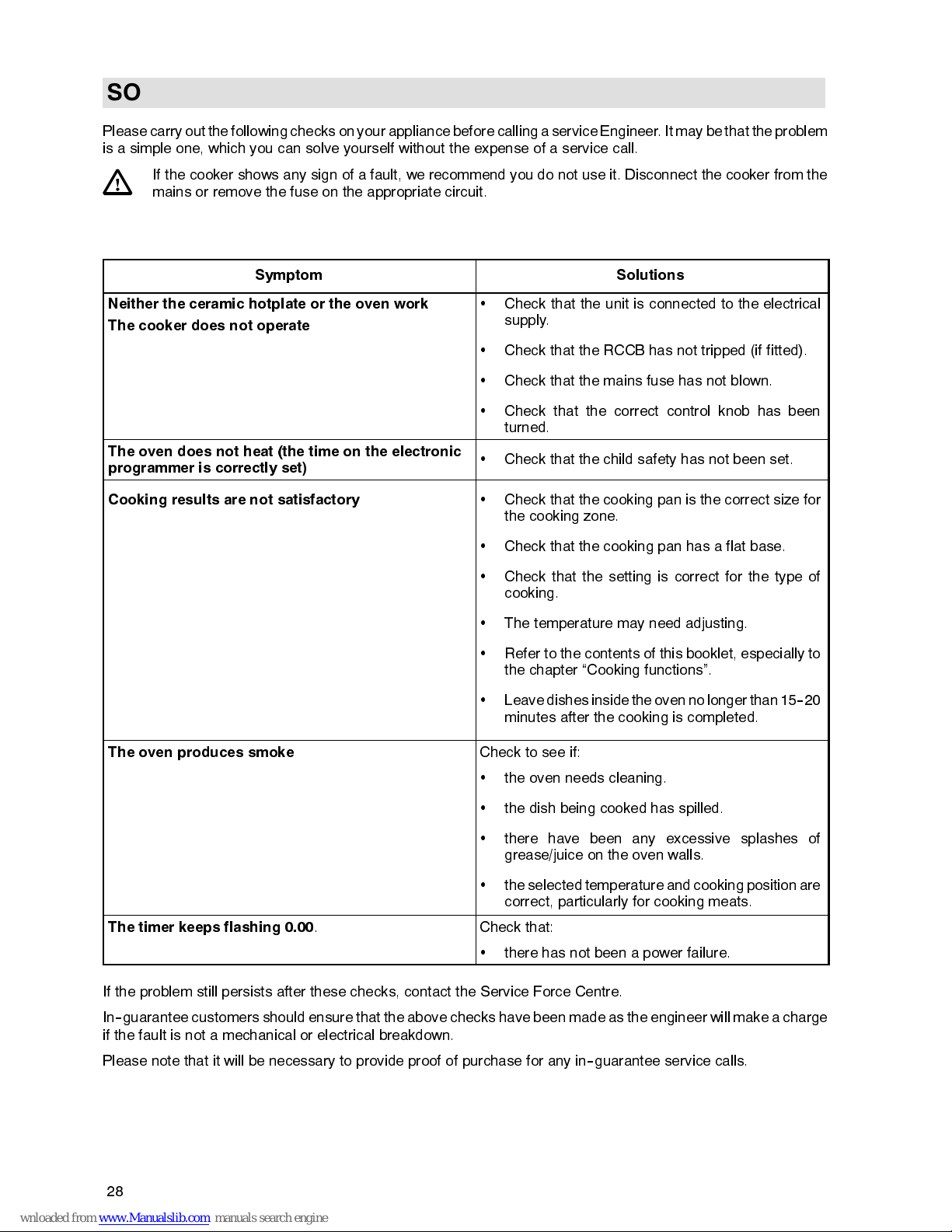

SOMETHING NOT WORKING 28..........
SERVICE AND SPARE PARTS 29.........
GUARANTEE CONDITIONS 30...........

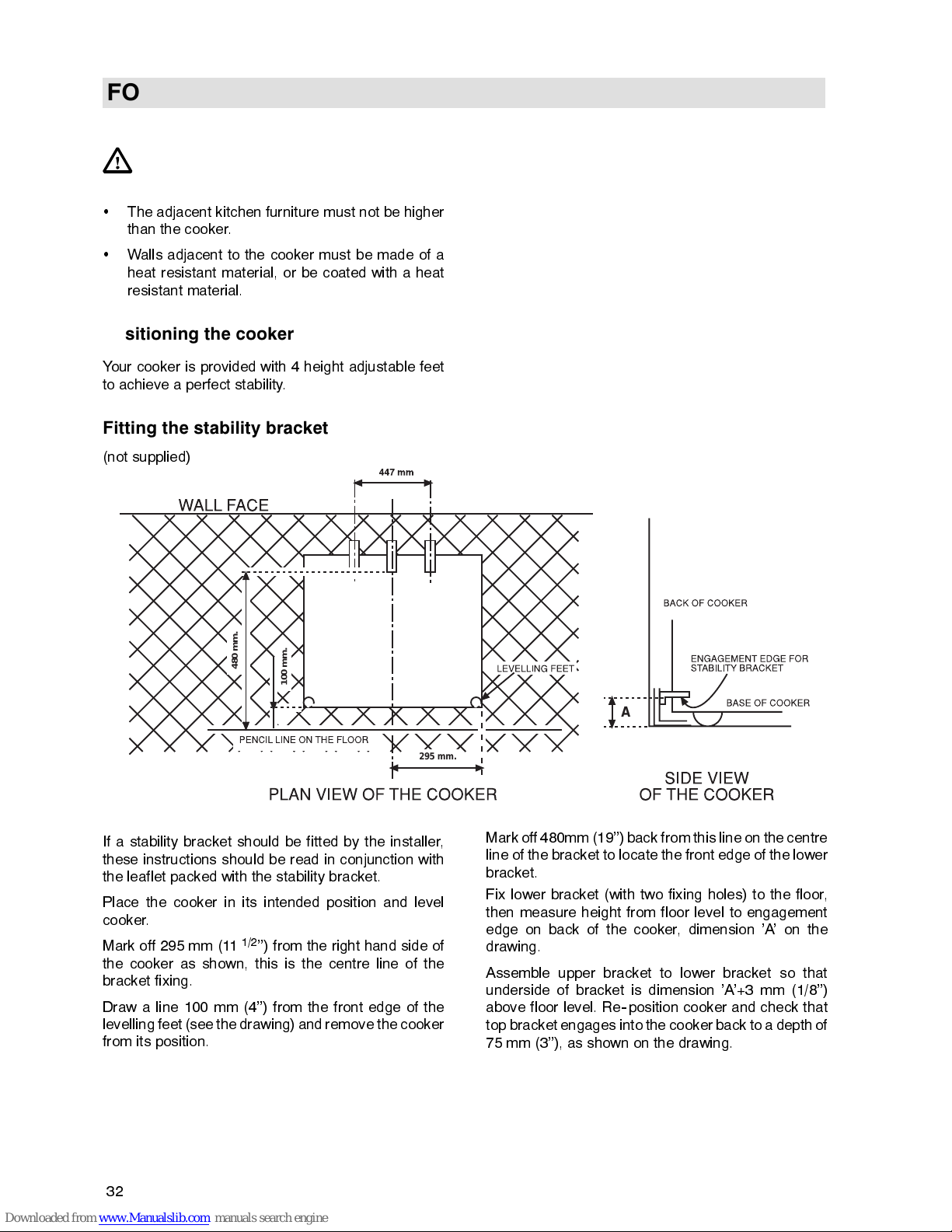

FOR THE INSTALLER 32.................
TECHNICAL INFORMATION 34...........
Guide to use the Instruction Book
This section explains standard symbols used throughout to make it
easier for the User to find information i.e
Safety instructions
1.2.3
. Step by step instructions for an operation
Hints and tips
Environmental information
4
These warnings are provided in the interest of safety. You MUST read them carefully before installing or
using theappliance. Your safety isofparamount importance.Ifyou are unsure about anyof the meanings
of these WARNINGS, contact the Customer Care Department.
Installation
•
The cooker must be installed according to the
instructions supplied. Any electrical work must be
undertaken by a qualified electrician/competent
person.
•
This cooker is heavy and care must be takenwhen
moving it. Do not try to move the appliance by
pulling the door handle.
•
Remove
all packaging
, both inside and outside
the cooker, before using the appliance. After
installation, please dispose of the packaging with
due regard to safety and the environment.
•
It is dangerous
to alter the specifications or
modify the appliance in any way.
During Use
•
This cooker has been designed for cooking edible
foodstuffs onlyand
mustnot
be usedfor anyother
purposes.
•
Never line any part of the cooker with
aluminium
foil
. Do not allow heatproof cooking material, e.g.
roastings bags, to come into contact with oven
elements.
•
Never
place plastic or any other material which
may melt in or on the cooker.
•
Do not
place sealed cans or aerosols inside the
cooker. They may explode if they are heated.
•
Do not
hang towels, dishcloths or clothes from the
oven or its handle. They are a
safety hazard
.
•
Do not
use this cooker if it is in contact with water
and never operate it with wet hands.
•
Always cook with the oven door closed.
•
Take
great care
when heating fats and oils asthey
will ignite if they become too hot.
•
Always
use oven gloves to remove and replace
food in the oven. Similarly always use oven gloves
to remove andreplace the grill pan handles,before
and after grilling.
•
Always
remove the grill panhandleswhen grilling.
•
Ensure that you
support
the grill pan when
removing it from the oven.
•
Takecare
to follow therecommendations given for
tending the food when grilling.
•
Always
stand back from the oven when opening
the oven door, to allow any build--up of steam or
heat to release.
•
Stand clear when opening the drop down oven
door.
Do not
allow it to fall open -- support the door
using the door handle, until it is fully open.
•
Ensure that all control knobs are in the
OFF
position when not in use.
•
Do not
leave cookware containing foodstuffs, e.g.
fat or oil in or on the oven in case it is inadvertently
switchedON.
•
When using other electrical appliances near the
cooker, ensure the cable does not come into
contact with the hot surfaces of the cooking
appliance.
•
Never leave anything on the cooking hob. A fire
could be caused if it is accidentally switched on.
•
Do not drop anything on the ceramic surface. A
sudden shock such as a salt pot dropping can
crack or break the glass.
•
Do not stare at the halogen lamps in the cooking
elements (if your applianceis equipped withthem).
•
When the oven door is open:
-- do not put any heavy loads on it,
-- make sure that children cannot climb on the
door or sit on it.
•
Do not leave the door open if the oven is still
switched on or if is still warm, to avoid damaging
the controls of your appliance.
•
Never leave your cooking hob switched on if there
is nothing on it.
•
Before you use your appliance for the first time,
warm it up once without cooking anything. Make
sure that the room is sufficiently well ventilated
(controlled mechanical ventilation) and that the
ventilation is switched on or the window is open.
•
The appliance gets hot when it is in use. Do not
touch heating elements inside the oven.
•
Residual heat indicators come on to inform you
that elements are switched on or are still warm.
Make sure that young children keep away from the
appliance until these lights go off.
•
Never leave anything on the hob while using the
cooking zones (cloths, aluminium foil, etc.).
Important Safety Instructions
5
•
Do not store cleaning products or inflammable
products in the drawer.
•
Make sure that there is nothing underneath the
drawer, so that it will slide properly.
•
The use of unsuitable cleaning products causes
scratches, attacks the surface or may discolour
the surface. This is why it is essential to use only
SPECIAL CERAMIC COOKING HOBS cleaning
products. Never use sharp objects to remove
spills.
We cannot be responsible for incorrect use of your
cooker or a failure to respect safety rules. Also
respect cleaning instructions at all times.
•
Other than the accessories supplied with your
cooker, only use dishes, cake moulds, etc., that
are heat resistant (follow the manufacturer’s
instructions).
Child Safety
•
This appliance is designed to be operated by
adults. Young children
must not
be allowed to
tamper with the controls or play near or with the
appliance.
•
Accessible parts, especially around the grill area,
become hot when the cooker is in use. Children
should be
kept away
until it has cooled.
Maintenance and Cleaning
•
Only
clean this oven in accordance with the
instructions.
•
The cooker should be kept clean at all times. A
build--up of fats or other foodstuffs could result in
a fire, especially in the grill pan.
•
For safety reasons, do notcleanthe appliance with
a steam or high--pressure cleaner.
•
Always switch off at the electrical supply prior to
carrying out any cleaning or maintenance work.
Service
•
You must not attempt to repair the appliance
yourself. Repairs carried out by inexperienced
persons may cause injury or serious
malfunctioning. Refer to your local TRICITY
BENDIX Service Force Centre. Always insist on
genuine TRICITY BENDIX spare parts.
Disposal of an old appliance
•
Make the appliance unusable, by cutting off the
cable, and remove any door catches, to prevent
small children being trapped inside.
It is most important that this instruction book
should beretained withthe applianceforfuture
reference. Should the appliance be sold or
transferred, always ensure that the book is left
with the appliance in order that the new owner
can get to know the functions of the appliance
and the relevant warnings.
6
YOUR COOKER
Control panel
➀
Electronic timer
➁
Oven temperature control
➂
Temperature indicator light
➃
Oven function selector
➄
Hob and oven on indicator light
➅to➈
Cooking zone controls
Cooking hob
Highlight (radiant) cooking zone
1,20 kW
Highlight (radiant) cooking zone
2,30 kW
Residual heat indicator
Highlight (radiant) cooking zone
1,80 kW
Highlight (radiant) cooking zone
1,20 kW
7
THE OVEN CAVITY
➀
Shelf runners
➁
Fan
➂
Roof
➃
Grill elements
➄
Oven light
➅
Lower heating element (under the base panel)
➊to➎
Shelf levels
8
Oven accessories
In addition to the accessories supplied with your
cooker, only use ovenware that is ovenproof to
very high temperatures (follow manufacturers’
instructions).
Your cooker is equipped with :
•
2wireshelves
•
1 grill pan
The wire shelves
Dishes, cake tins and so on can be placed on these
shelves.
It can be used high side up or low side up to adjust the
position of your dishes in relation to the source of heat.
For very heavy dishes (4 kg or more), always use the
shelf high side up.
The grill pan
The grill pan is supplied with 1 grid and 2 handles.
The co oking levels
The oven has five shelf levels which are counted from
1 to 5 (from the bottom upwards).
The wire shelf
High side up
Low side up
The grill pan
9
THE ELECTRONIC PROGRAMMER
To set t he time of day
Press buttons “
COUNTDOWN
” and “
COOK TIME
”
and atthe sametime turn thetime setting knobuntilthe
correct time of day is displayed.
Manual function
Press button “
MANUAL
” to set the oven for manual
function.
To set the minute minder :
Press button “
COUNTDOWN
” and at the same time
turn the time setting knob until the duration time is
displayed (maximum 23 hours, 59 minutes). After a
few seconds the time of day will show in the display.
To check the number of minutes remaining, press the
“
COUNTDOWN
” button. At the endofthe timed period
an alarm will sound. To switch off the alarm press
button “
COUNTDOWN
”.
The minute minderdoesnot stop the cooking whenthe
duration has ellapsed. To stop the oven set the
temperature control on
and the function selector on
0.
10
To set t he timer to switch off only
(Immediate start - Automatic stop)
This is useful if you want to begin cooking immediately
but have the oven switched off automatically.
1. Set the function selector knoband the temperature
control knob on the required settings.
2. Place the dish in the oven.
3. Press button “
COOKTIME
” and, atthe same time,
turn the time setting knob until the required
cooking duration is displayed.
At the end of the cooking time the oven will switch off,
an alarm will sound.
Turn the function and temperature knobs on the Stop
position (temperature control on
and function
selector on 0).
To switch off the alarm press button “
COUNTDOWN
”.
To set the timer to switch the oven on and off
(Deferred start - Automatic stop)
1. Ensure the clock is showing the right time of day.
2. Carry out steps 1, 2 and 3 as explained in “To set
the timer to switch off only”.
3. Press button “
END TIME
” and at the same time
turn the time setting knob until the end cooking
time is displayed.
At the end of the cooking time the oven will switch off,
an alarm will sound.
Turn the function and temperature knobs to the off
position (temperature control on
and function
selector on 0).
To switch off the alarm press button “
COUNTDOWN
”.
To cancel a programme
1. Press button “
COOKTIME
” and, atthe same time,
turn the timesetting knobuntilthe cookingduration
is set on “0.
2. If the end cooking time has been set too, press
button“
END TIME
” and at the same time, turn the
time setting knob until the end cooking time is set
on “0”.
Child saf ety
To prevent a child switching on the oven during your
absence, your oven is equipped with a “locking
system”.
•
When the oven is switched off press at the same
time the buttons “
COUNTDOWN
” and “
COOK
TIME
”:“On” is displayed.
•
Immediately turn the time setting knob clockwise
with one step only : “Of” is displayed. The child
safety symbol is displayed after a few seconds.
•
To deactivate the child safety, repeat this
operation. The child safety symbol disappears :
you can now use your oven.
11
BEFORE THE FIRST USE
Remove
all packaging
, both inside and
outside the oven, before using the appliance.
First cleaning
Before the first use of the cooking hob clean the
ceramic top with a damp sponge. Then dry carefully.
Remove the accessories from the oven and wash in
warm and soapy water. Then rinse and dry carefully.
First heat ing up
In order to remove possible production
remnants, clean the appliance and heat up the
oven without food once prior to first use.
Ensure that the room is well--ventilated.
How to proceed ?
1. Remove all accessories from the oven.
2. Remove any labels and protective film from the
front of the cooker.
3. Set the time of day (refer to “THE ELECTRONIC
PROGRAMMER” chapter).
4. Set the function selector to conventional oven
and the temperature control to position 270°C.
5. Heat the oven for an hour to remove any odours
from the manufacturing process.
The cooking mode, time andtemperature shown inthe
cooking guides are designed especially for your
cooker. For best results, follow the guides.
FUNCTION SELECTOR
TEMPERATURE
12
HOW TO USE YOUR COOKING HOB
Hilight (radiant) cooking zones
Cooking zones turn red within 10 seconds after they
have been switched on. They become red and then
dark again while they are in use (refer to the ”Cooking
Guides” chapter).
Each cooking zone is protected by a temperature
limiter that switches it off if it overheats (for example
operation with nothing on it).
To switch a zone on:
•
Turn the knob towards the right or the left.
•
Put the knob to the maximum position for a few
seconds, and then move it to the selected setting
and the ”On” light comes on.
To switch a zone off:
•
Turn the knob to the ”0” position.
The ”On” light goes off, unless another zone is
switched on.
The ”hob on” light
The ”On” light comes on when you turn one of the
cooking zone knobs. It goes off when all zones are
switched off.
Safety
•
Each zone has a residual heat light (safety
indicator). This light comes on when the element
is hot. When you switch a zone off, the light
remains on as long as there is a risk of the heat
released bytheelement causing a burn(even ifthe
zone is no longer red). This will not indicate
residual heat if there is a power cut.
•
We recommend that young children should not be
allowed to come close to the appliance until these
lights have all gone off.
•
Never put anything on the cooking hob that could
melt (utensils with plastic handles, aluminum foil,
food containing sugar, etc.); clean immediately
following an accident.
•
If the hob is damaged or cracked, disconnect the
cooker from the electricity supply and contact your
local Service Force Centre.
•
Never leave a cooking zone switched on if there is
no pan on it.
13
OVEN CONTROLS
The function selector
To obtain the desired cooking mode, turn the function
selector :
•
Oven light
•
Fan oven
•
Thermal grilling
•
Roasting meat
•
Preheating
•
Conventional oven
•
Grill
•
Pyrolytic cleaning
Once a function has been selected, an appropriate
temperature must be set for the oven to heat up.
To switch off the oven turn the temperature control to
and then the function selector to0.
The oven light comes on as soon as the function
selector is turned. The lightremains onduring cooking.
The temperature control
The neon indicator lights
Oven on
The indicator light comes on when the appliance is
switched on, and goes out when the function selector
is in the Off position
(
0
).
Temperature
The indicator light comes on while the oven is
pre--heating and goes out when the required
temperature is reached. It switches on and off during
cooking to indicate that the temperature is being
maintained.
After use ensure the knobs are in the
Off--position (temperature control to
and
function selector to
0
).
FUNCTION SELECTOR
TEMPERATURE
14
COOKING FUNCTIONS
Fan oven
Dishes can be cooked on
one or several levels
using
the fan oven. The circulation of hot air produces an
even cooking temperature. Fan oven cooking is ideal
for all types of dishes.
The ad vantages of fan oven
Faster preheating :
•
As the fan oven quickly reaches temperature, it is
not usually necessary to preheat the oven
although you may find that you need to allow an
extra 5--7 minutes on cooking times.
Lower temperatures :
•
Fan oven cooking generally requires lower
temperature than conventional cooking. Follow
the temperatures recommended in the charts or
remember to reduce temperatures by about
20--25°C for your own recipes which use
conventional cooking.
Even heating for baking :
•
The fan oven has uniform heating on all shelf
positions. This means that batches of the same
food can be cooked in the oven at the same time.
However, the top shelf may brown slightly quicker
than the lower one. This is quite usual. There is no
mixing of flavours between dishes.
Cooking frozen dishes
•
With fan oven cooking, you can put frozen food
(ready--cooked food, meat, chicken) straight into
the oven
without thawing
. There is no need to
preheat the oven in this case : simply reduce the
temperature slightly at the start of cooking.
With commercial frozen foods, refer to the cooking
instructions for conventional oven cooking on the
packaging.
How to proceed ?
1. Turn the function selector to and then the
temperature control on the required temperature.
Refer to cooking guides.
15
Cooking the same type of food on two
levels
Which accessories to use ?
In most cases, use wire shelves on runners
➀
and➂.
See cooking charts.
Cooking different types of dishes on
two levels
The multi--level position makes it possible for you to
cook a complete meal at once. Todo so, be guided by
the following recommendations :
•
The various dishes should require similar
temperatures.
•
Overall cooking time should be the same as the
longest cooking time required.
•
Different dishes may be placed inside or removed
from the oven at different times. This depends on
the cooking time required for each of them, and
possibly on the order in which they are to be
served.
•
Take care not to open the oven door while another
dish could be adversely affected (for instance,
opening thedoor could prevent acake from rising).
•
Remember that certain dishes rise in cooking, so
leave enough space between shelves.
•
Meat and poultry should preferably be placed on
shelf
➀
so as not to spit on other dishes.
Defrosting
The fan oven operates without heat and circulates the
air, at room temperature, inside the oven. This increa-
ses the speed of defrosting. However, please notethat
the temperature of the kitchen will influence the speed
of defrosting.
This function is particularly suitable for delicate food
which could be damaged by heat, e.g. cream filled
gateaux, iced cakes, pastries, bread and other yeast
products.
How to proceed ?
1. Turn the oven function selector to .
2. Ensure the temperature control knob is in the Off
position
.
Hints and tips
•
Cover food with a lid, aluminium foil or plastic film
to prevent drying out during defrosting.
•
ALWAYS COOK THOROUGHLY IMMEDIATELY
AFTER THAWING.
•
Frozen food should be placed in a single layer
when ever possible and turned over half way
through the defrosting process.
•
Only joints of meat and poultry up to 2 kg (4lb.)are
suitable for defrosting in this way.
16
Thermal grilling
Thermal grilling is used with the door
closed. Never leave the grill unattended
when cooking.
Thermal grilling offers an alternative method of
cooking food items normally associated with
conventional grilling. The grill element and the oven
fan operate alternately, circulating hot air around the
food. The need to check and turn the food is reduced.
Thermal grilling helps to minimize cooking smells in
the kitchen.
With the exception of toast and rare steaks, you can
thermally grill all the foods you would normally cook
under a conventional grill. Cooking is more gentle,
therefore food generally takes a little longer to cook
with thermal grilling compared with conventional
grilling. One of the advantages is that larger loads can
be cooked at the same time.
The pre--heating is not necessary for this cooking
method.
How to proceed ?
Grilling
1. Prepare the food to be grilled.
2. Place the food directly on the grill pan grid.
3. Set the function selector to
and then the
temperature control to the required temperature
(see cooking guides).
4. Place the grill pan on runner
➂or➃
depending on
the thickness of the food being grilled.
5. When one side is browned, turn the meat over
without piercing ittoavoid losing juices. For poultry
and sausages, piercing before cooking is
recommended.
6. Cook the other side.
7. Season when cooking has finished.
Cooking time depends on the thickness of the meat
and not on its weight.
Browning toppings
1. Set the function selector to
and then the
temperature control to the required temperature
(see cooking guide).
2. Place thedishcontaining the food onthe shelf. The
closer the food is to grill element the faster the
browning will occur.
3. Leave thedishunderthe grill for afew minutes until
the food is bubbling and browned.
17
Roasting meat
This position is ideal for cooking meat.
Spitting of fat, smoking and odours are considerably
reduced.
Meat is evenly browned and tender, while the oven
stays cleaner longer.
How to proceed ?
1. Preheat the oven by putting the selector in the
position
and then the thermostat on the
temperature required.
2. Place the meat in the oven, then, without changing
the temperature position, place the selector in the
position, for roasting meat.
18
Preheating
This function is suitable for preheating the oven when
you have to roast meat (see cooking guide).
How to proceed ?
1. Turn the function selector to and the
temperature control knob to the required
temperature (see cooking guides). The
temperature control indicator will light up and
remain lit until the required temperature has been
reached.
2. When the temperature indicator light goes out,
turn the function selector to the roasting meat
position
.
3. Place the dish in the oven.
19
Conventional oven
Ideal for all types of cooking, especially baking, fish,
terrines and vegetable based dishes.
The oven should be pre--heated.
To ensure even heat distribution, we recommend you
cook on one level only.
How to proceed ?
1. Pre--heat the oven by setting the function selector
to
and the temperature control to the required
temperature. See the cooking guide.
Pre--heating time :
•
Approximatively 6
1/2
minutes to reach 150°C.
•
Approximatively 9 minutes to reach 200°C.
2. Place the dish in the oven as soon as the
temperature indicator light goes off.
20
Grill
Use the grill with the oven door closed
to
prevent damage to the control panel.
Never leave the grill unattended when cooking.
Preheat for 3 to 5 minutes.
This cooking mode is ideal for cuts of meat (pork
chops, sausages,...) which stay tender and juicy, for
toasting or for browning toppings on prepared dishes,
preferably hot (e.g. macaroni cheese).
How to proceed ?
Grilling
1. Prepare the food to be grilled.
2. Set the function selector to
and then the
temperature control to the required temperature
(see cooking guides).
When grill element has become red :
3. Put the grill pan on the shelf. Use shelf level
➂
or
➃
depending on the thickness of the food being
grilled.
4. When one side is browned, turn the meat over
without piercing ittoavoid losing juices. For poultry
and sausages, piercing before cooking is
recommended.
5. Cook the other side.
6. Season when cooking has finished.
Cooking time depends on the thickness of the meat
and not on its weight.
Browning toppings
1. Set the function selector to
and then the
temperature control to the required temperature
(see cooking guide).
2. Place thedishcontaining the food onthe shelf. The
closer the food is to grill element the faster the
browning will occur.
3. Leave thedishunderthe grill for afew minutes until
the food is bubbling and browned.
21
HINTS AND TIPS : THE HOB
Safety
•
The ceramic cooking hob of your cooker is
insensitive to temperature variations and resists
minor shocks. However, it is not unbreakable. Do
not use your hob as a countertop and do not drop
small objects (spice jars, sharp tools, etc.), on it.
•
If your hob is damaged (spalling, crack, etc.) by a
shock, disconnect the cooker from the electricity
supply and contact your local Service Force
Centre.
•
Never heat an empty pan on the ceramic hob.
•
Never cook food on the cooking zone or in
aluminum foil directly, since this could cause
irrecoverable damage to your hob.
•
Never put anything made of plastic onto the hot
surfaces.
Practical recommendations
•
Cover your pots and pans whenever you can,
depending on your recipe, this will save energy.
•
Put the knobback to the ”0” position before the end
of cooking. You can finish cooking using the
residual heat in the cooking zone.
•
You can take advantage of the residual heat in the
cooking area to keep your dishes warm, as longas
the light is on.
•
Put the knob to a lower setting a few minutes
before boiling starts to prevent spills (milk, oil,
sauce, etc.). Do not overfill your receptacles.
•
Clean any largespills immediately (milk, rice water
or water for pasta) then finish cleaning when the
cooking hob is only slightly warm, or is cold.
Right
Choice of saucepans and frying pans
•
Always choose apan appropriate for thesize ofthe
zone being used:
-- 14 to 16 cm diameter for the front right and
the back left elements.
-- 18 to 22 cm diameter for the front left and
back right elements.
•
All pans used on traditional electric hot plates can
also be used on the ceramic hob, provided that
they have a perfectly flat bottom. Do not use
saucepans made of aluminum or an enamel metal
with a thin bottom; they could become deformed,
thus reducing the cooking efficiency.
•
Cast iron pans (for example casseroles) are
particularly suitable for use on a ceramic hob, but
the base of these pans is often rough.
•
Do not slide pans across the cooking surface, lift
them before moving them.
•
Keep the bases of pans clean and dry, since dirt
incrusted on the bottom can scratch the glass
surface.
Wrong
22
HINTS FOR SUCCESSFUL COOKING
Choice of ovenware
The thickness, conductivity and colour of ovenware
affect the cooking results.
A) Aluminium, earthenware, oven glassware and
aluminium with a non--stick interior
reduce
cooking and base browning. These materials
are recommended forlight,soft textured cakes
and roasts.
B) Enamelled cast iron, anodized aluminium,
zinc--plated iron, porcelain, aluminium with a
non--stick interior and coloured exterior
increase
cooking and base browning. These
materials are recommended in particular for
tarts, quiches and crispy baking that should be
browned beneath as well as on top.
If you see
What to do ?
Top too dark
Bottom too light
not cooked enough
Use a tin or dish
typeBor
place in lower runner
Top too light
Bottom too dark
overcooked
Use a tin or dish
typeAor
place in higher runner
During cooking, certain dishes increase in volume, so
remember to choose a container big enough : ideally,
the uncooked dish should take uponly twothirds ofthe
container, leaving the upper third free for expansion.
To avoid excessive spitting, use high--sided dishes for
roasting meat and poultry, or ovenproof glass roasting
trays with a lid, appropriate to the size of the joint.
Condensation and steam
When food is heated it produces steam in the same
way as a boiling kettle. The oven is vented to allow
some of this steam to escape. However, always stand
back from theovenwhen openingthedoor to allow any
build up of steam or heat to release.
If the steam comes into contact with a cool surface on
the outside of the oven, e.g. a trim, it will condense and
produce water droplets. This is quite normal and is not
caused by a fault on the oven.
To prevent discolouration, regularly wipe away
condensation and also soilage from surfaces.
Practical tips
•
Pierce the skin of poultry or sausages with a fork
before cooking, to avoid the skin swelling and
bursting with the heat.
•
Leave as little fat as possible around joints of meat
to avoid spitting and reduce the fat content.
•
For tender joints of meat, turn halfway through
cooking and add a little hot water to the dish to
produce a tasty gravy and reduce spitting onto the
walls of the oven.
•
Do not exceed the temperature settings
recommended in the cooking guide for meat.
To save energy
•
Cook several dishes one after another, if possible,
to save the energy needed to pre--heat the oven
each time. Whenever possible, do not hesitate to
cook 2or 3 cakes ortarts, for example, at the same
time.
23
COOKING GUIDES
The preheating of the oven is necessary for following cooking settings
:
For cooking setting
preheating mode time : approx. 6 minutes to reach 150°C
time : approx. 9 minutes to reach 200°C
For cooking setting
preheating mode time : approx. 15 minutes to reach 200°C
Dish
Cooking
Shelf level
(runner)
Temperature
selector
Cook time
(minutes)
Small cakes (2 x 12) 2 and 4
160
°
C
23
Scones (2 x 12) 2 and 4
210
°
C
6
Victoria sandwich 1 and 3
160
°
C
28
Rich fruit cake 2
140
°
C
120
Apple pie 2 and 4
190
°
C
35
Bread loaves (8 x 1lb) 1 and 4
200
°
C
25
Only your experience will enable you to determine the correct settings for your personal cooking needs.
The temperatures are intended asa guide only.Itmay be necessary toincrease ordecrease thetemperature
to suit individual requirements.
24
MAINTENANCE AND CLEANING
Cleaning the hob
Ensure the hob is cool and that all control knobs are in
the off position before cleaning.
Clean the hob before each use, to ensure that nothing
will burn onto the ceramic hob.
Never use aggressive or abrasive agents, such as
oven sprays, stain or rust removers, scouring
powders, or sponges with an abrasive effect.
Special cleaning agents and ceramic hob scrapers are
available from your local Service Force Centre.
Cleaning after each use
Slight, non burnt soilage can be wiped off with a damp
cloth. Burnt soilage has to be removed with a scraper.
Afterwards wipe off the ceramic hobwith adamp cloth,
and clean with a ceramic hob cleaning agent.
Stain removal
Light metallics stains (aluminium residues) can be
removed from the cooking zone with a ceramic hob
cleaning agent when cool.
Sugar solutions, food stuffs with a high sugar content
must be removed immediately with a scraper. If this
type of soilage is not removed immediately it can
cause irreparable damage to the ceramic surface.
When the surface has cooled wipe over with a damp
cloth and clean with a ceramic hob cleaning agent.
Before using any detergent or cleaning agent on the
ceramic top, ensure they are recommended by the
manufacturer for use on ceramic hobs.
Do not apply any cleaning agents to hot cooking
zones. Ensure any residues are wiped off before the
cooking zones are used again.
Control panel and knobs
Use a moist sponge dampened with soapy water.
Then rinse and dry thoroughly.
Door, drawer and sides
Use a wet sponge to which a mild detergent has been
added. Rinse and dry thoroughly.
Never use abrasive products.
If a chemical cleaner proves inadequate
Check whether the use of a scraper is more effective.
. when darks stains occur If the use of a scraper and a ceramic hob cleaner proves
unsuccessful, your hob surface may have been damaged by using
unsuitable cleaning agents, or by pan bases with a scouring effect.
This will not impair the efficiency of your ceramic hob.
. when metallic discolourations appear on
the cooking zone
Pots and pans with unsuitable bottoms, or unsuitable cleaning agents
have been used. The discolourations can only be removed with
considerable effort, using a ceramic glass cleaner.
. when the surface shows scratches These may be caused by scraping or melted on objects and cannot
be removed. This will not impair the efficiency of your ceramic hob.
25
Replacing the oven light
Ensure the cooker is disconnected from the
electrical supply before changing the bulb.
The 25 W -- E14 (230/240 V) screw--in bulb is
a
special “heat--resistant” bulb
capable of
withstanding temperatures up to 300°C. Replacement
bulbs are available through your local Service Force
Centre.
The bulb is located at the back innerside of the oven
and can be reached from inside the oven.
To replace the bulb :
1. Unscrew the bulb protection cover (turn
anti--clockwise).
2. Unscrew the bulb anti--clockwise.
3. Screw in a new bulb.
4. Screw in the bulb protecting cap carefully.
26
CLEANING AND CARE
Cleaning of the pyrolytic enamel oven
The principle
The walls of the oven are made of special high
temperature enamel which is shiny in appearance and
smooth to the touch.
During the pyrolytic cleaning, the temperature of the
oven reaches approximatively 500°C. The food and
grease splatters are carbonised and wiped away as
ash residue when the interior is completely cold.
Smoke is filtered out by a catalyser.
The safety
The pyrolytic cleaning is perfectly safe : a safety lock
prevents any accidental opening of the door as soon
as the temperature in the oven approaches 300°C.
Beyond 300°C, the door remains locked even if the
pyrolysis cycle is interrupted (by a power failure or
deliberately). You will not be able to open the door
again until the oven has cooled.
During the cleaning cycle, a fan operates. Ventilation
continues even after the cleaning cycle until the oven
has cooled sufficiently.
Pyrolytic cleaning can only be carried out under
the control of the programmer.
Regular maintenance
After cooking, remember to wipe off any splashes or
stains with a damp sponge.
For better visibility when cleaning the oven, set the
selector to
position.
In the event of spills on the bottom panel, soak the
panel but do not scrape it and avoid abrasive cleaning
products that risk damaging surfaces (enamel,
varnish, lacquer).
Periodic maintenance
After a cleaning cycle, wipe up the ash residue left by
the pyrolytic cleaning process. Do not hesitate to run
a cleaning cycle as often as necessary. We
recommend you to run a pyrolytic cycle once per
month. This is just an indication : the frequency
depends on the level of soiling.
Run the cleaning cycle immediately after cooking to
take advantage of the residual heat in the oven. The
cleaning process will mean the oven is unavailable for
use for approximately 2 hours 30 minutes.
How to proceed ?
1. Empty the oven of all accessories (oven shelves,
grill pan). The high temperature during the
pyrolytic cycle could damage them as well as the
cavity.
2. If necessary, remove all excess soilage which
could cause too much smoke to be absorbed by
the catalyser.
3. Close the oven door.
4. Set the function selector and temperature controls
on the pyrolytic
position .
5. Programme the pyrolytic cleaning in semi
automatic or fully automatic operation (see
following page).
6. Once the pyrolytic cycle time is over :
Return the control knobs to their OFF positions
(temperature control on
●
and then function
selector on0).
The“
oven on
” neonindicator switches off andthe
door unlocks when the temperature inside the
oven is cool enough.
Cleaning the accessories
Clean them with a warm washing up liquid solution.
Rinse and dry carefully.
27

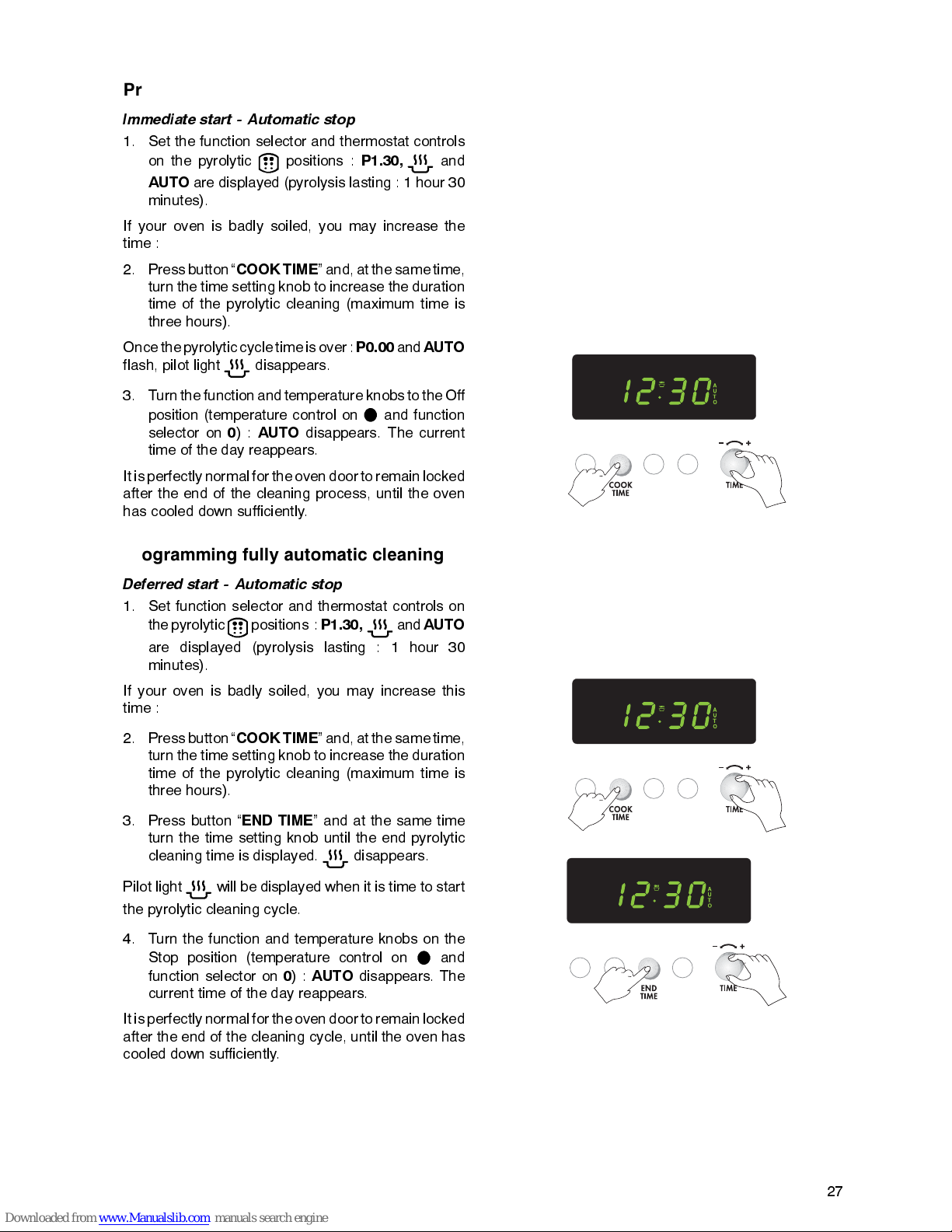

Programming semi--automatic cleaning
Immediate start - Automatic stop
1. Set the function selector and thermostat controls
on the pyrolytic
positions :
P1.30,
and
AUTO
are displayed (pyrolysis lasting : 1 hour 30
minutes).
If your oven is badly soiled, you may increase the
time :
2. Press button “
COOKTIME
” and, atthe same time,
turn the time setting knob to increase the duration
time of the pyrolytic cleaning (maximum time is
three hours).
Oncethepyrolyticcycle timeis over:
P0.00
and
AUTO
flash, pilot light
disappears.
3. Turn the function andtemperature knobs to the Off
position (temperature control on
and function
selector on0):
AUTO
disappears. The current
time of the day reappears.
It is perfectly normal for the ovendoorto remain locked
after the end of the cleaning process, until the oven
has cooled down sufficiently.
Programming fully automatic cleaning
Deferred start - Automatic stop
1. Set function selector and thermostat controls on
the pyrolytic
positions :
P1.30,
and
AUTO
are displayed (pyrolysis lasting : 1 hour 30
minutes).
If your oven is badly soiled, you may increase this
time :
2. Press button “
COOKTIME
” and, atthe same time,
turn the time setting knob to increase the duration
time of the pyrolytic cleaning (maximum time is
three hours).
3. Press button “
END TIME
” and at the same time
turn the time setting knob until the end pyrolytic
cleaning time is displayed.
disappears.
Pilot light
will be displayed when it is time to start
the pyrolytic cleaning cycle.
4. Turn the function and temperature knobs on the
Stop position (temperature control on
and
function selector on0):
AUTO
disappears. The
current time of the day reappears.
It is perfectly normal for the ovendoorto remain locked
after the end of the cleaning cycle, until the oven has
cooled down sufficiently.
28
SOMETHING NOT WORKING
Please carry out the following checks onyourappliance before callinga service Engineer .It may bethat the problem
is a simple one, which you can solve yourself without the expense of a service call.
If the cooker shows any sign of a fault, we recommend you do not use it. Disconnect the cooker from the
mains or remove the fuse on the appropriate circuit.
Symptom
Solutions
Neither the ceramic hotplate or the oven work
The cooker does not operate
•
Check that the unit is connected to the electrical
supply.
•
Check that the RCCB has not tripped (if fitted).
•
Check that the mains fuse has not blown.
•
Check that the correct control knob has been
turned.
The oven does not heat (the time on the electronic
programmer is correctly set)
•
Check that the child safety has not been set.
Cooking results are not satisfactory
•
Check that the cooking pan is the correct size for
the cooking zone.
•
Check that the cooking pan has a flat base.
•
Check that the setting is correct for the type of
cooking.
•
The temperature may need adjusting.
•
Refer to the contents of this booklet, especially to
the chapter “Cooking functions”.
•
Leave dishesinsidethe oven nolonger than 15--20
minutes after the cooking is completed.
The oven produces smoke
Check to see if:
•
the oven needs cleaning.
•
the dish being cooked has spilled.
•
there have been any excessive splashes of
grease/juice on the oven walls.
•
the selected temperature and cooking position are
correct, particularly for cooking meats.
The timer keeps flashing 0.00
. Check that:
•
there has not been a power failure.
If the problem still persists after these checks, contact the Service Force Centre.
In--guarantee customers should ensure that the above checks have been made as the engineer will make a charge
if the fault is not a mechanical or electrical breakdown.
Please note that it will be necessary to provide proof of purchase for any in--guarantee service calls.
29
SERVICE AND SPARE PARTS
In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local
Service Force Centre by telephoning
:
08705 929929
Your telephone call will be automatically routed to the Service Force Centre covering your post code area.
For the address of your local Service Force Centre and further information about Service Force, please visit the
website at www.serviceforce.co.uk
Before calling out an engineer, please ensure you have read the details under the heading “SOMETHING NOT
WORKING“
For Customer Service in Ireland please contact us at the address below :
Tricity Bendix
Electrolux Group (Irl) Ltd
Long Mile Road
Dublin 12
Republic of Ireland
Tel : +353 (0)1 4090752
Email: service.eid@electrolux.ie
When you contact the Service Force Centre you will need to give the following details :
1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of the fault
4. The model and serial number of the appliance (found on the rating plate)
5. The purchase date
Please note that a valid purchase receipt or guarantee documentation is required for in--guarantee service calls.
Customer Care Department
For general enquiries concerning your TRICITY BENDIX appliance or for further information on TRICITY BENDIX
products, please contact our Customer Care Department by letter or telephone at the address below or visit our
website at www
.tricity--bendix.co.uk
Customer Care Department
Tricity Bendix
55--77 High Street
Slough
Berkshire
SL1 1DZ
Tel : 08705 950 950 *
* calls to this number may be recorded for training purposes.
30
GUARANTEE CONDITIONS
STANDARD GUARANTEE CONDITIONS
We, TRICITY BENDIX, undertake that if, within 12 months of the date ofpurchase, this TRICITY BENDIX appliance
or any part thereof is proved to be defective by any reason only of faulty workmanship or materials, we will, at our
option, repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that :
•
The appliance has been correctly installed and
used only on the electricity supply stated on the
rating plate.
•
The appliance has been used for normal domestic
purposes only, and in accordance with the
manufacturer’s instructions.
•
The appliance has not been serviced, maintained,
repaired, taken apart or tampered with by any
person not authorised by us.
•
All service work under this guarantee must be
undertaken by a TRICITY BENDIX Service Force
Centre.
•
Any appliance or defective part replaced shall
become the Company’s property.
•
This guarantee is in addition to your statutory and
other legal rights.
Home visits are made between
8.30am
and
5.30pm
Monday to Friday. Visits may be available outside
these hours, inwhich casea
premium
will becharged.
Exclusions
This guarantee does not cover :
•
Damage or calls resulting from transportation,
improper use or neglect, the replacement of any
light bulb or removable parts of glass or plastic.
•
Costs incurred for calls to put right an appliance
which is improperly installed or calls to appliances
outside the European Community (EC) or
European Free Trade Area.
•
Appliances found to be in use within a commercial
environment, plus those whicharesubject to rental
agreements.
•
Products of TRICITY BENDIX manufacture which
are not marketed by TRICITY BENDIX.
European Gu arantee
If you should move to another country within EUROPE
then your guaranteemoves with youto your newhome
subject to the following qualifications :
•
The guarantee starts from the date you first
purchased your product.
•
The guarantee is for the same period and to the
same extent for labour and parts as exists in the
new country of use for this brand or range of
products.
•
This guarantee relates to you and cannot be
transferred to another user.
•
Your new home is withintheEuropeanCommunity
(EC) or European Free Trade Area.
•
The product is installed and used in accordance
with our instructions and is only used domestically,
i.e. a normal household.
•
The electricity supply complies with the
specifications given on the rating plate.
•
The product is installed taking into account
regulations in your new country.
Before you move, please contact your nearest
Customer Care Centre, listed below, to give them
details of your new home. They will then ensure that
the Local Service Organisation is aware of your move
and able to look after you and your appliances.
France Senlis +33(0)344622013
Germany Nürnberg +49 (0)800 234 7378
Italy Pordenone +39 (0)800117511
Sweden Stockholm +46 (0)20 78 77 50
UK Slough +44 (0)1753 219898
Ireland Dublin +353 (0)1 4090752
31

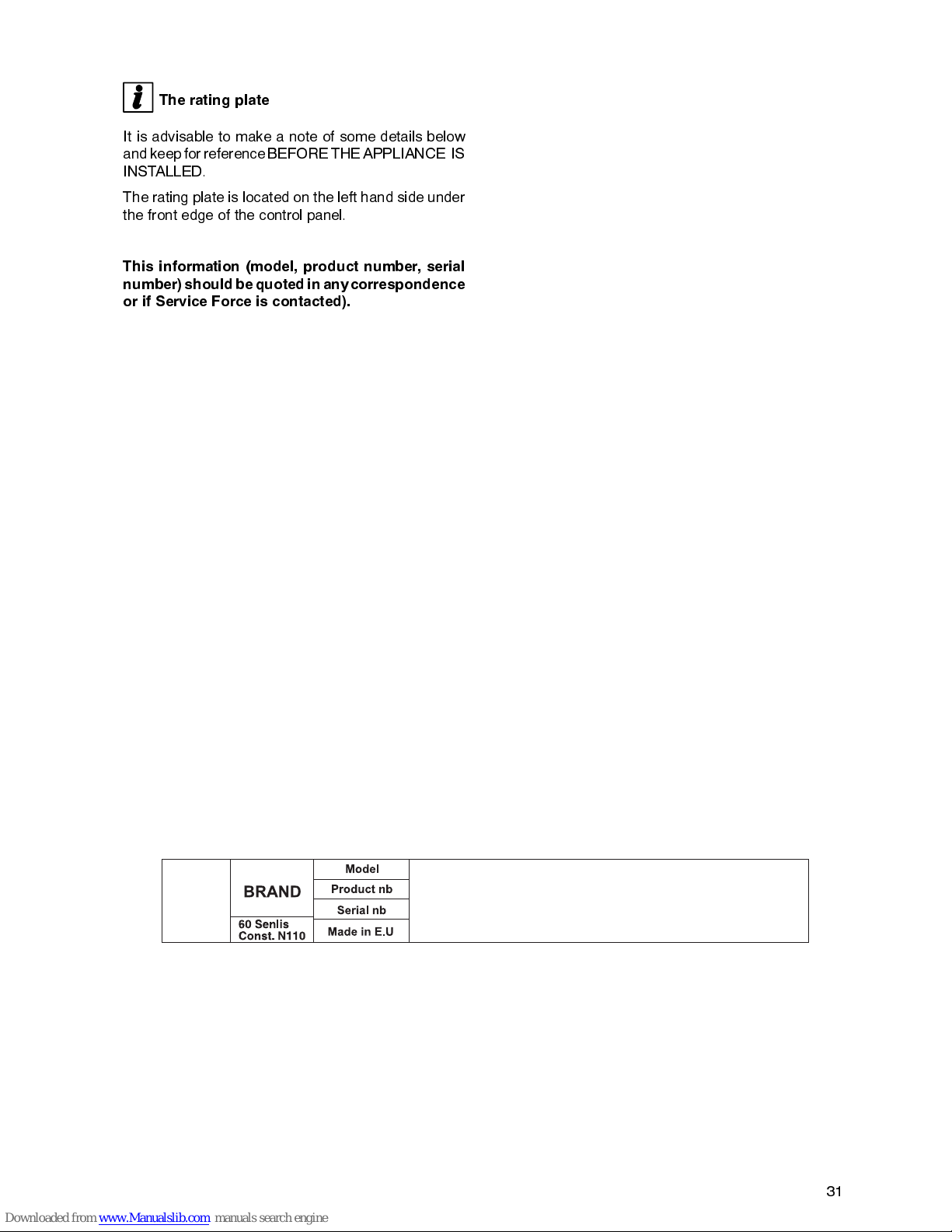

The rating plate
It is advisable to make a note of some details below
andkeep forreference BEFORETHEAPPLIANCE IS
INSTALLED.
The rating plate is located on the left hand side under
the front edge of the control panel.
This information (model, product number, serial
number) shouldbe quotedin any correspondence
or if Service Force is contacted).
32
FOR THE INSTALLER
Safety instructions
•
The adjacent kitchen furniture must not be higher
than the cooker.
•
Walls adjacent to the cooker must be made of a
heat resistant material, or be coated with a heat
resistant material.
Positioning the cooker
Your cooker is provided with 4 height adjustable feet
to achieve a perfect stability.
Fitting the stability bracket
(not supplied)
480 mm.
100 mm.
295 mm.
A
If a stability bracket should be fitted by the installer,
these instructions should be read in conjunction with
the leaflet packed with the stability bracket.
Place the cooker in its intended position and level
cooker.
Mark off 295 mm (11
1/2
’’) from the right hand side of
the cooker as shown, this is the centre line of the
bracket fixing.
Draw a line 100 mm (4’’) from the front edge of the
levelling feet (see the drawing) and remove the cooker
from its position.
Mark off 480mm (19’’) back from this line on the centre
line of the bracket to locate the front edge of the lower
bracket.
Fix lower bracket (with two fixing holes) to the floor,
then measure height from floor level to engagement
edge on back of the cooker, dimension ’A’ on the
drawing.
Assemble upper bracket to lower bracket so that
underside of bracket is dimension ’A’+3 mm (1/8’’)
above floor level. Re--position cooker and check that
top bracket engages into the cooker back to a depth of
75 mm (3’’), as shown on the drawing.
33
Electrical connection
Cookers are designed to operate exclusively on 50 Hz
AC power -- (refer to the label sticked on the cord).
Check that:
•
the mains supply is correct,
•
the mains cable is not damaged,
•
the mains cable is the correct specification,
•
the mains supply is provided with a means of
isolation comprising of a double pole switch with a
minimum contact opening distance of 3 mm, and
ensuring that the earth connection is not broken.
Installation and maintenance must be done by a
qualified professional in accordance with the
regulatory texts and current IEE regulations.
We cannot be held responsible for accidents or
incidents caused by incorrect or defective
earthing.
Mains cable
This cooker is supplied with a special heat resistant
mainscable(typeH07RN--F/2,00m),whichMUST
NOT be removed. If this cable becomes damaged, or
needs to be replaced for any reason, then only the
cable with
Part Number 337225201/9
must be used,
which can be obtained from your local Service Force
Centre.
The manufacturer will not be responsible for any
damage or injury if this warning is ignored.
Fuse rating
30 Amps
34
TECHNICAL INFORMATION
Commercial reference
Electrical connection
SE545P
230 V 50 Hz
Cooking hob
Front right element
Rear right element
Front left element
Rear left element
Hilight element (radiant) 1,20 kW∅145 mm
Hilight element (radiant) 2,30 kW∅210 mm
Hilight element (radiant) 1,80 kW∅180 mm
Hilight element (radiant) 1,20 kW∅145 mm
Oven
Oven
Oven power
Grilling
Grilling power
Oven lighting
Type of cleaning
electric
2,40 kW
electric
2,90 kW
bulb 25 W type E14
pyrolytic
Minute minder, time setting &
cleaning programming
Electronic programmer
Accessories
2wireshelves
1 grill pan
Drawer to tidy the
accessories
Mains cable
2,00 m
Dimensions
Height to the cooking hob
Width
Depth
Weight
90 cm
59,5 cm
61,8 cm
61,5 kg
The mark meets the requirements laid down in directives : electromagnetic compatibility 89/336,
mark 93/68 and low voltage 73/23.
3372489--01
Loading...
