Tricity Bendix CDW 087 User Manual

Dishwasher
CDW 087
OPERATING & INSTALLATION
INSTRUCTIONS
2
For the user
Important safety information 3 Description of the appliance 4 The control panel 4 Before use 5
Using your appliance 8 Loading your appliance 8 Adjusting the height of the upper basket 9 Use of detergent 10
Hints and tips 11 Washing programmes 12 Operating sequence 13 Maintenance and cleaning 14
Something not working 16 Service and spare parts 17
Customer Care Department 17
Guarantee conditions 18 Hints for test centres 19
Tricity Bendix Service Force 24
For the installer
Installation instructions 20

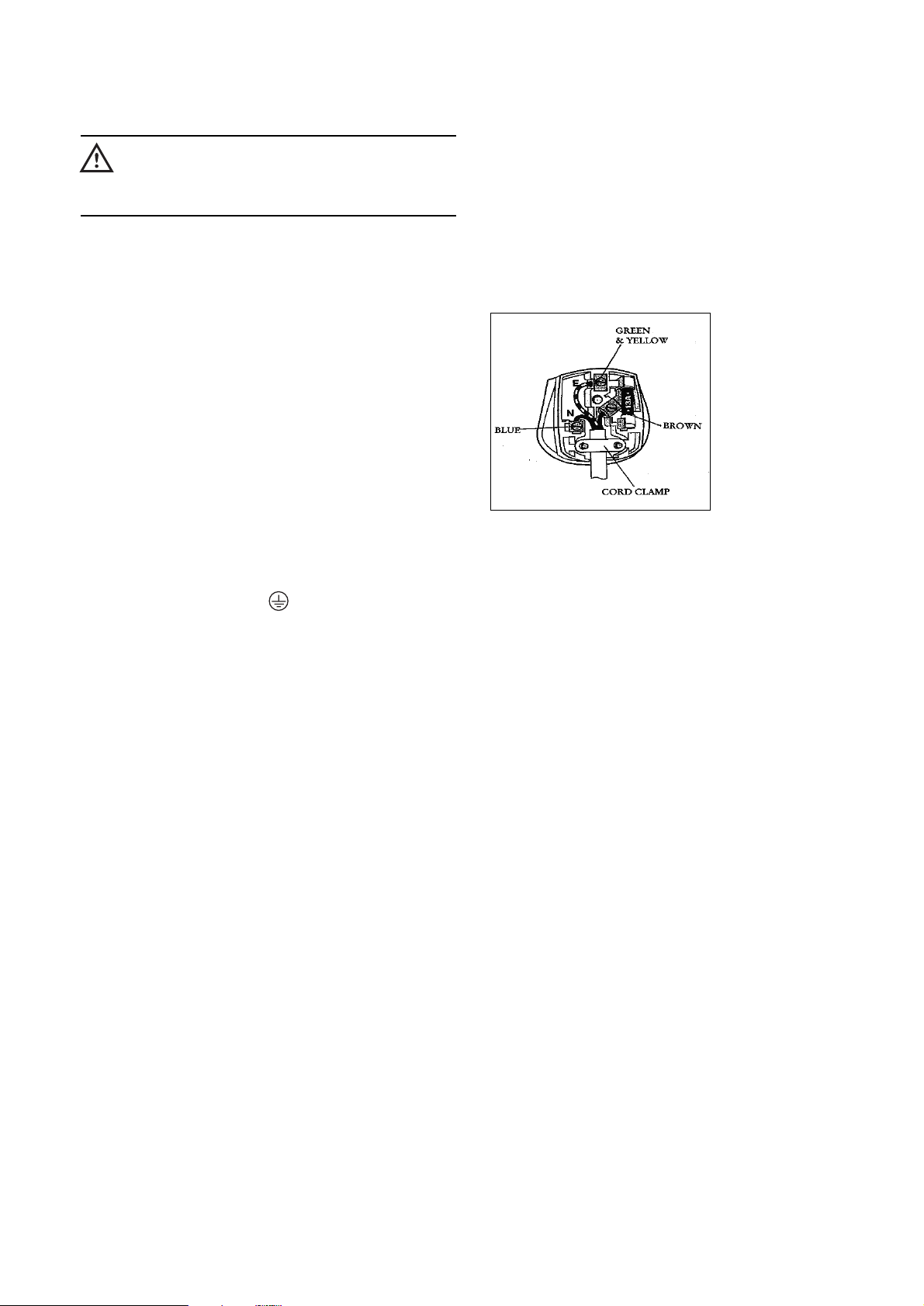

Water supply connections 20 Water outlet hose connection 21 Electrical connection 22

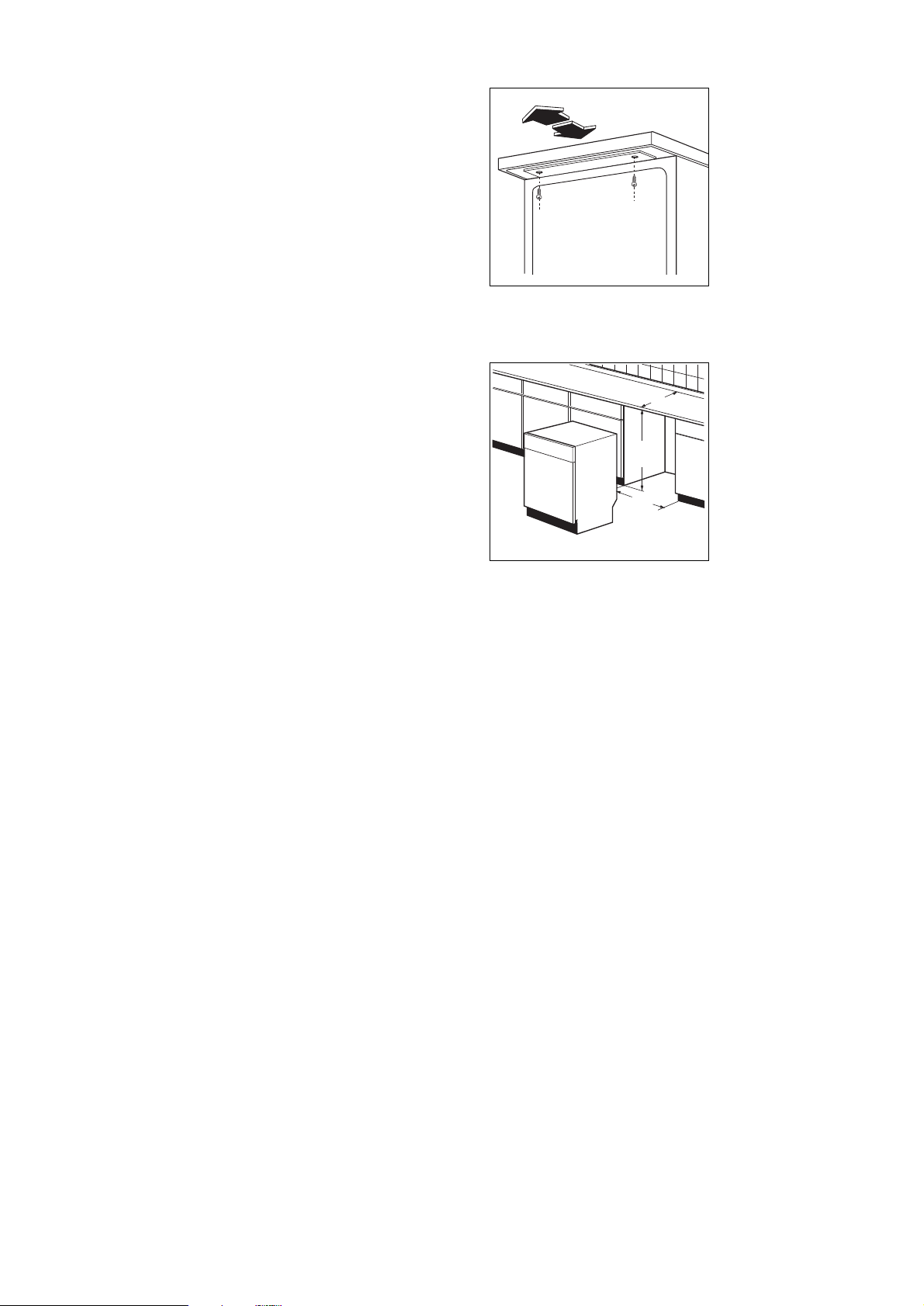

Adjusting the worktop 23 Fitting under a counter 23 Levelling 23
IND20en
Contents
Guide to use the instruction book
The following symbols will be found in the text to guide you throughout the instructions:
Safety instructions
1. 2. 3. Step by step
Hints and tips
Environmental information
3
Installation
● This appliance is heavy.Care should be taken when
moving it.
● It is dangerous to alter the specifications or attempt
to modify this product in any way.
● Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
● Any electrical work required to install this appliance
should be carried out by a qualified electrician or competent person.
● Any plumbing work required to install this appliance
should be carried out by a qualified plumber or competent person.
Child Safety
● This appliance is designed to be operated by adults.
Children should not be allowed to tamper with the controls or play with the product.
● Keep all packaging well away from children.
● Keep all detergents in a safe place out of children's
reach.
During Use
● Items that are contaminated by petrol, paint, steel
or iron debris, corrosive, acidic or alkaline chemicals must not be washed in this dishwasher.
● Under no circumstances should you open the door
whilst the appliance is in operation.Always turn off the appliance before opening the door.
● Only use detergent specifically designed for use in
dishwashers.
● Long bladed knives stored in an upright position are
a potential hazard.
● Long and/or sharp items of cutlery such as carving
knives must be positioned horizontally in the upper basket.
● When finishing loading or unloading close the
door, as an open door can be a hazard.
● Do not sit or stand on the open door.
● Isolate the appliance from the power supply and
turn off the water supply after use.
● Care should be taken when cleaning the bottom
door seal and hinge area as any exposed metal edges may cut if care is not taken.
● This product should be serviced by an
authorised Service engineer, and only genuine spare parts should be used.
● Under no circumstances should you attempt to
repair the machine yourself.Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre.Always insist on genuine spare parts.
Conservation
In the interest of the environment:
● Materials marked with the symbol are
recyclable.
● Check with your local Council or Environmental
Health Office to see if there are facilities in your area for re-cycling this appliance.
● When the appliance is to be scrapped, cut off
the power supply cable and make the door closing device unusable to prevent young children from being trapped inside.
● Help to keep your country tidy - use authorised
disposal sites for your old appliance.
AVV01en
Important safety information
It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information.
This information has been provided in the interest of your safety.You MUST read it carefully before installing or using the appliance.
4
1. Water hardness adjustment
2. Levelling spacers
3. Upper basket stop
4. Large filter
5. Salt container
6. Rinse aid dispenser
7. Detergent dispenser
8. Control panel
9. Central filters
10. Lower spray arm
11. Upper spray arm
12. Upper basket
13. Worktop
1.Mains on indicator light
2. On/Off push button
3.Programme guide
4.Door handle
5.Programme marker
6.Programme selector dial
7. Wash programme phase indicator
As the programme progresses, the programme selector dial turns, to show the phase in the wash programme the appliance has reached.
Prewash / Rinse and Hold Wash Cold rinse Hot rinse Drying
APP27en
Description of the appliance
The control panel
1 2
3
4
5
6
7
8
9
10
11
12
13
IN88
12 3 4 5 6 7
5
Before using your dishwasher for the first time:
1. Ensure that the electrical and water connections comply with the installation instructions.
2. Remove all packaging from inside the appliance.
3. Set the water softener.
4. Pour half a litre of water inside the salt container
and then fill with salt.
5. Fill the rinse aid dispenser.
Setting the water softener
The dishwasher is equipped with a water softener designed to remove minerals and salts from the water supply, which would have a detrimental or adverse effect on the operation of the appliance.
The higher the content of these salts, the harder your water is.
Water hardness is measured in equivalent scales, Clarke and French degrees.
The softener should be adjusted according to the hardness of the water in your area.Your local Water Authority can advise you on the hardness of the water in your area.
The dishwasher is factory set at level 2. If this level is not suitable for your area the softener
should be adjusted.
To adjust the water softener Level 1
If your water is "level 1" it is already soft and therefore there is no need to use salt.
Levels 3 and 5 (water softener adjustment)
If your water is level 3 or 5, proceed as follows:
- slide out the lower basket and unscrew the cap of
the salt container;
- turn the two-position selector anticlockwise from
position - to position + with the aid of a blunt knife or screwdriver.
Levels 4 and 5 (adjustment on the machine)
If your water is level 4 or 5, open the door and drill membrane (A) on the upper left-hand corner of the machine.
With a water hardness of level 5 both adjustments must be made.
PDU08en
Before use
Level
Use of
salt
French
degrees
(°TH)
Clarke
degrees
1 2 3 4 5
NO YES YES YES YES
0 - 10 11 - 27 28 - 35 36 - 49 50 - 63
0 - 14 15 - 39 40 - 50 51 - 70 71 - 90
Water hardness
AA01
A
AA04
6
Filling with salt
Only use salt specifically designed for use in dishwashers. All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener.
Only fill with salt just before starting one of the complete washing programmes (not the Rinse and Hold programme).This will prevent any grains of salt or salty water, which may have been spilled,remaining on the bottom of the machine for any period of time, which may cause corrosion.
To fill:
1. To fill with salt, unscrew the cap of the salt
container.
2. Pour half a litre of water inside the container (this is necessary only before filling with salt for the first time).
3. Using the funnel provided, pour in the salt until the
container is full. Do not worry if water over flows from the unit when filling with salt, this is quite normal.
4. Replace the cap making sure that there is no trace of salt on the screw thread or on the gasket.
5. Screw on the cap tightly.
The salt container will require topping up periodically. The salt cap has a refill indicator window in the centre.
A green float is clearly visible when there is salt inside the container, and almost disappears when the salt has finished reminding you to add salt.
SAL03en
SALE
SALT
SALZ
SEL
SR06
SR11
7
Rinse aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, spot and streak free drying. The dispenser, which is positioned inside the door, holds about 110 ml of rinse aid, which is sufficient for 16 - 40 dishwashing programmes, depending upon the dosage setting.
Filling with rinse aid
1. Open the container by turning the lid (A)
anticlockwise.
2. Add the rinse aid until the container is completely full.The indicator (B) will be completely dark.
3. Top up the rinse aid when the indicator (B) becomes clear.
Ensure that the lid is closed after every refill.
Do not put liquid detergent in the rinse aid compartment. Clean up any rinse aid spilt during filling with an absorbent cloth to avoid excess foaming during the next wash.
Adjusting the dose
According to the finish and drying results obtained, adjust the dose of rinse aid by means of the 6 position selector (C) (position 1 minimum dosage, position 6 maximum dosage).
Start from position 3. Gradually increase the dose if there are drops of water
or lime spots on the dishes after washing.Reduce it if there are sticky whitish streaks on the dishes.
BRI01en
BR01
A
m
a
x
6
5
4
3
2
1
B
BR03
BR02
C
5
4
6
x
3
a
2
m
1
8
Loading your appliance
Before placing dishes in the machine, remove any scraps of food, to avoid clogging the filters and consequently reducing the performance.
Do not load very small items which can fall through the baskets.
Open the door and slide out the baskets to load the dishes.
The lower basket
The lower basket is designed to take saucepans, lids, plates, salad bowls, cutlery etc.
Serving dishes and large lids should be arranged around the edge of the basket, ensuring that the upper spray arm can turn freely.
The cutlery basket
Long bladed knives stored in an upright position are a potential hazard. Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket. Take care when loading or unloading sharp items such as knives.
Cutlery should be placed in the removable cutlery basket with the handles facing downwards.
If the handles protrude from the bottom of the basket, obstructing the lower spray arm, load the cutlery with the handles facing upwards.
Mix spoons with other cutlery to prevent them from sticking together.
Silver cutlery tends to go black if mixed with steel cutlery. Place it in the cutlery basket separate from the others.
Arrange spoons, dessert spoons, knives and other small items of cutlery in the rack on the side of the cutlery basket.
CES23en
Using your appliance
UI57
UI12
UI08
9
The upper basket
The upper basket is designed for plates (dessert plates, saucers, dinner plates of up to 24 cm in diameter), salad bowls, cups and glasses.
Larger plates (dinner plates up to 24 cm in diameter) must be loaded in the front part of the upper basket.
Arrange items on and underneath the fold-down cup rack so that water can reach all surfaces.
Glasses with long stems can be placed upside down in the raised cup racks.
Light items (plastic bowls etc.) should be loaded in the upper basket and arranged so they do not move.
Before closing the door, ensure that the spray arms can rotate freely.
When loading the dishes, ensure that you do not cover the water inlet funnel in the middle of the upper basket.
Adjusting the height of the upper basket
If washing very large plates (over 27 cm and up to 31 cm in diameter) you can load them in the lower basket after moving the upper basket to the higher position.
To move to the higher position proceed as follows:
1. Move the front runner stops (A) of the upper basket
outward and slide the basket out.
2. Refit the basket in the higher position and replace the stops (A) in their original position.
When the top basket is in the higher position it will only take plates up to 20 cm in diameter and you will not be able to use the raised cup racks.
After loading your machine always close the door,as an open door can be a hazard.
CES14en
US20
US16
US16
A
RC01
