Thank you for buying a Tricity Bendix built-in oven. With our 80 years
experience in developing and manufacturing the very best in U.K. cookers,
you can be assured that you have purchased a hard working, reliable, quality
cooker.
In addition Tricity Bendix cookers comply with British Standard safety and
performance requirements. They have been approved by BEAB (British
Electrotechnical Approvals Board) and are covered by a 12 month parts and
labour guarantee.
In order that you get the best from your new Tricity Bendix cooker, the
following instructions have been prepared. PLEASE MAKE SURE YOU READ
THEM CAREFULLY. Particular attention should be paid to cooking times and
temperatures which may differ from your previous cooker.
It is most important that this instruction book is retained with the cooker for
future reference. Should the cooker be sold, or transferred to another owner,
or should you move house and leave the cooker, always ensure that the book
remains with the cooker so that the new owner can be acquainted with the
functioning of the cooker and the relevant warnings.
Please read the whole instruction book before attempting to use the cooker
ensuring you follow the recommendations given.
5
SAFETY
THESE WARNINGS ARE PROVIDED IN
THE INTERESTS OF YOUR SAFETY.
ENSURE THAT YOU UNDERSTAND
THEM
ALL BEFORE INSTALLING OR USING
THE COOKER.
PLEASE
READ
CAREFULLY
BEFORE INSTALLING YOUR COOKER
This cooker is heavy and care must
be taken when moving it.
Ensure that all packaging, both
inside and outside the cooker has
been removed before the cooker is
used.
Do not try to move the cooker by
pulling the door handle. Refer to
installation instructions.
WHILST USING YOUR COOKER
This cooker is designed to be
operated by adults. Young children
must not be allowed to tamper with
the controls or play near or with the
cooker.
Caution accessible parts especially
around the grill area may become hot
when the cooker is in use. Children
should be kept away until it has
cooled.
Ensure that all control knobs are in
the OFF position when not in use.
Take great care when heating fats
and oils as they will ignite if they
become too hot.
This cooker has been designed for
cooking edible foodstuffs only, and
mustnot be used for any other
purposes.
The cooker must be installed according
to the instructions supplied. Any electrical
installation work must be undertaken by
a qualified electrician/competent person.
It is dangerous to alter the specifications
or modify the cooker in any way.
After installation, please dispose of
the packaging with due regard to
safety and the environment.
Do not use this cooker if it is in
contact with water and never operate
it with wet hands.
Never place plastic or any other
material which may melt in or on the
oven itself.
Ensure cooking utensils are large
enough to contain foods to prevent
spillages and boil overs.
Take care to follow the endations
Take care to follow the recommendations
given for tending the food when

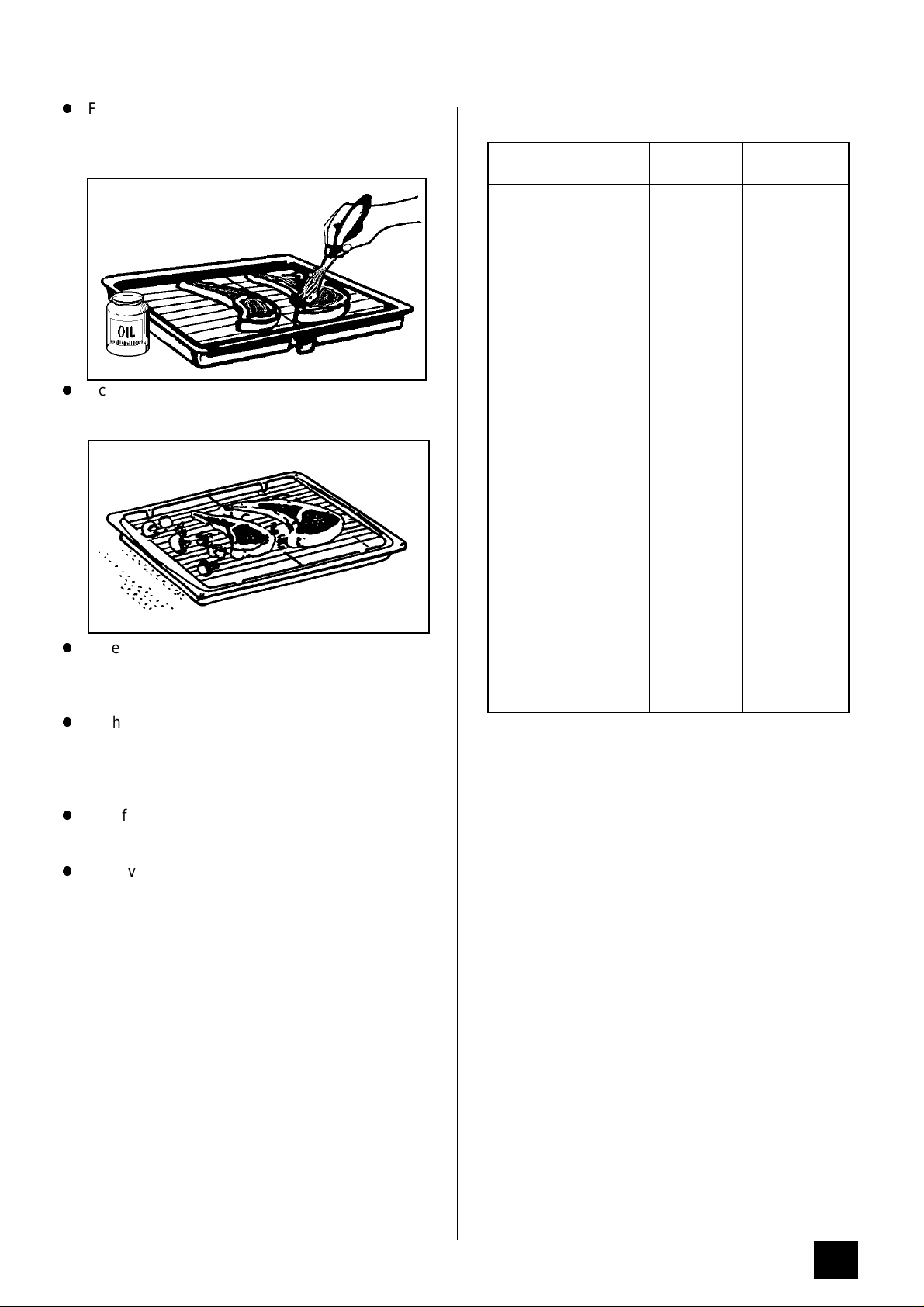

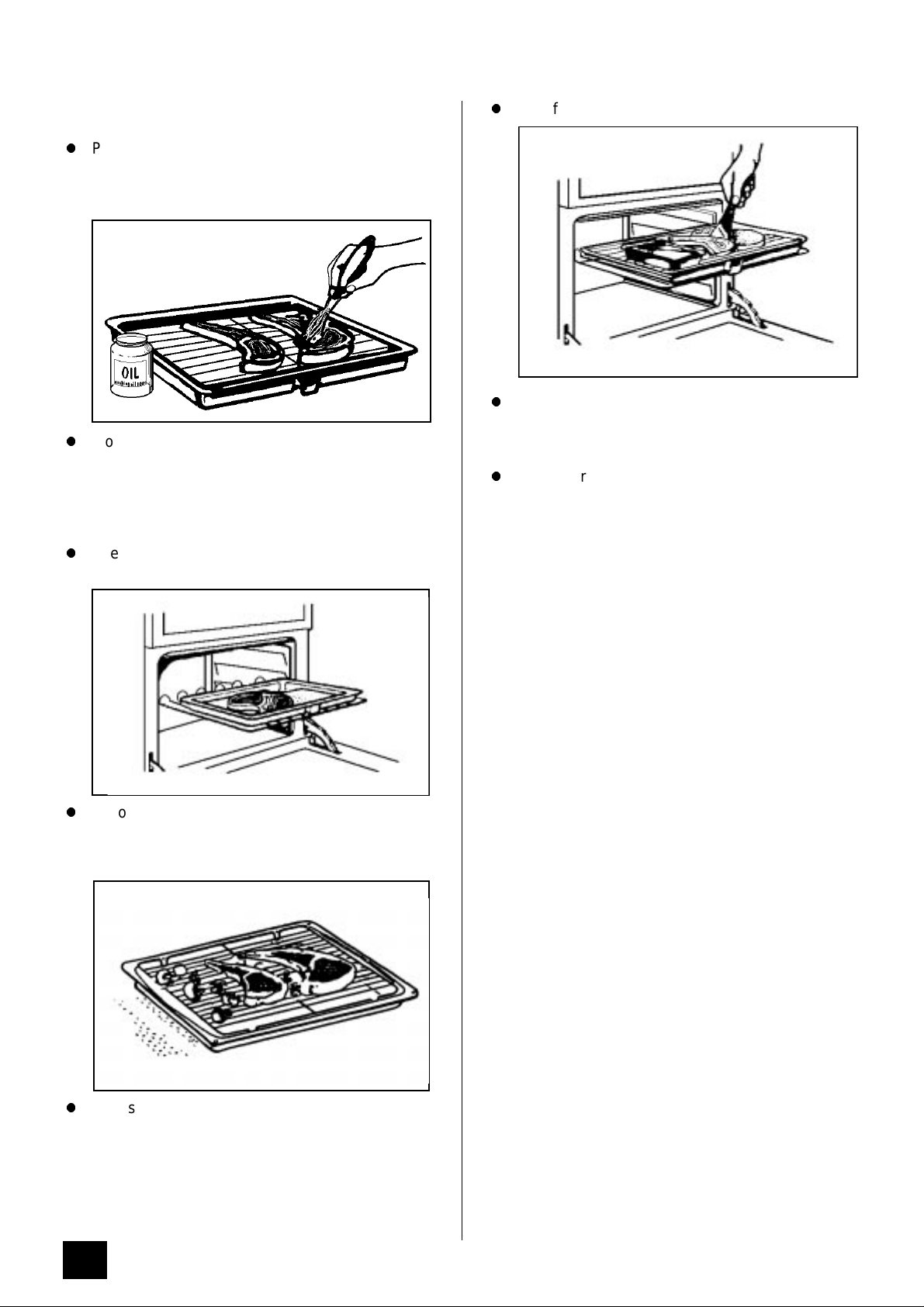

grilling. Use the handle provided in
the recommended way (see page
26).
Do not leave the handle in position
when grilling as it will become hot.
Always use oven gloves to remove
and replace food in the oven.

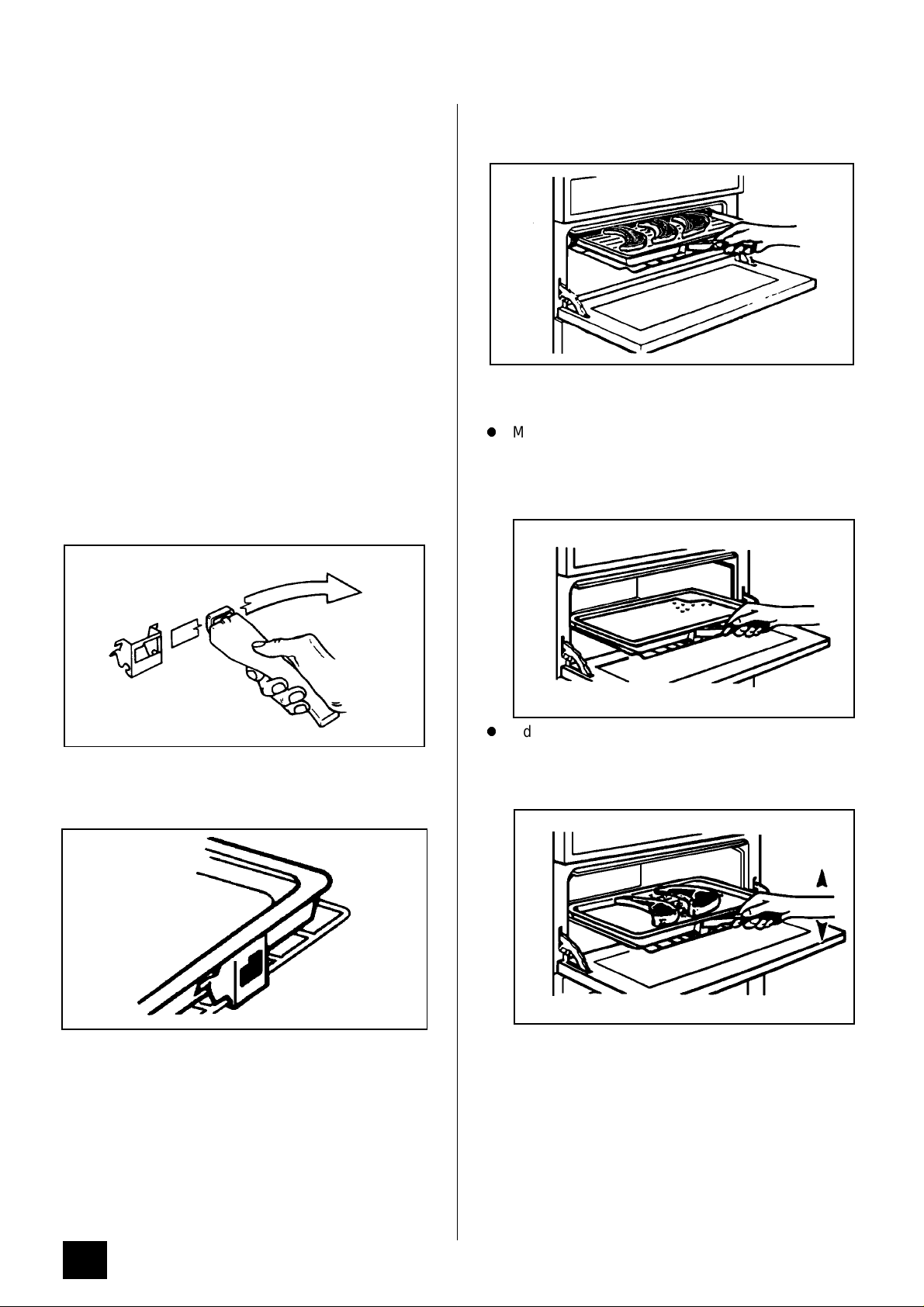

Similarly always use oven gloves to
remove and replace the grill pan
handle when grilling.
6
Ensure that you support the grill pan
when it is in the withdrawn or partially
withdrawn position.
Ensure that all vents are left
unobstructed to ensure ventilation of
the oven cavity.

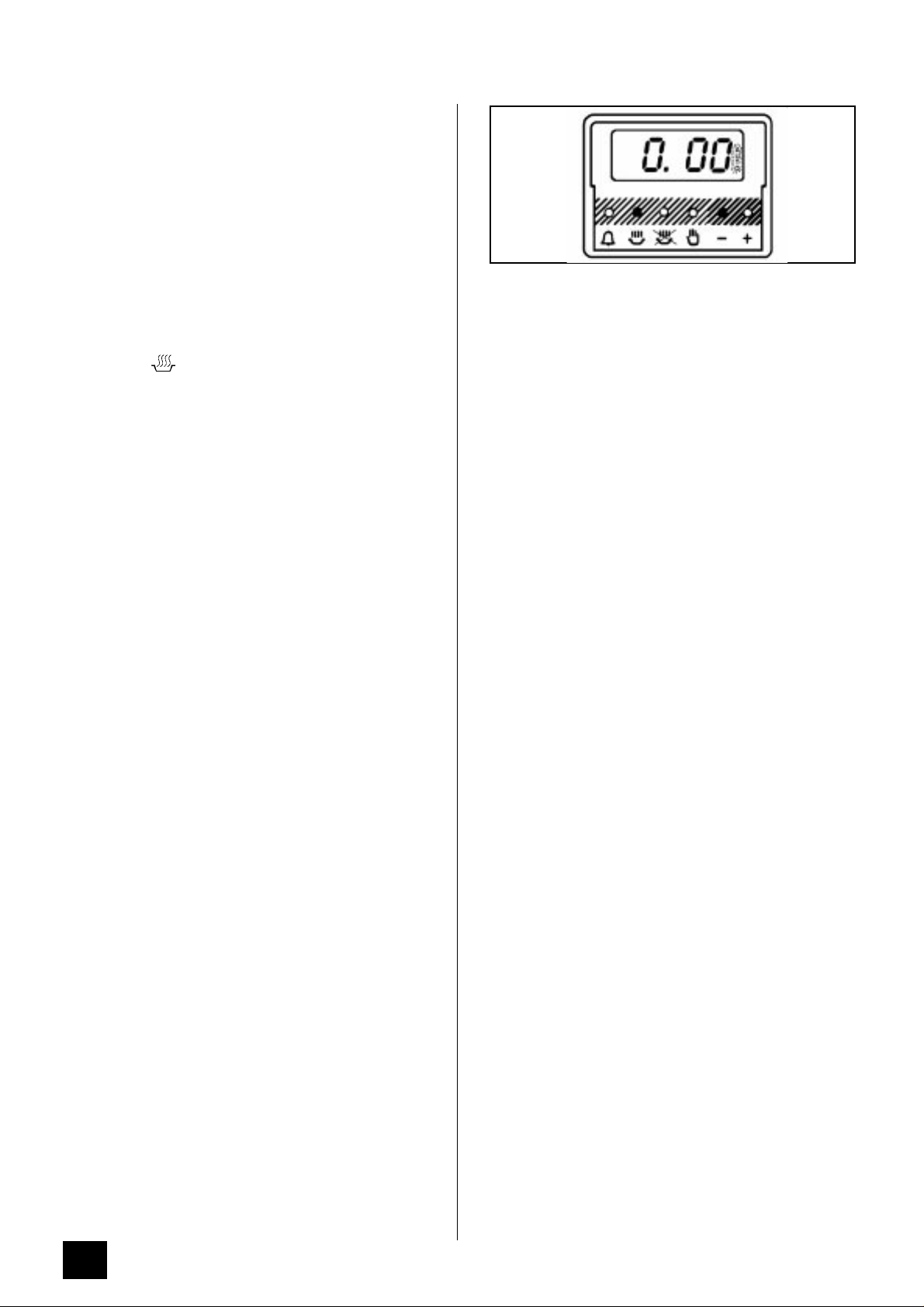

You must ensure that the grill
control is in the 'OFF' position when

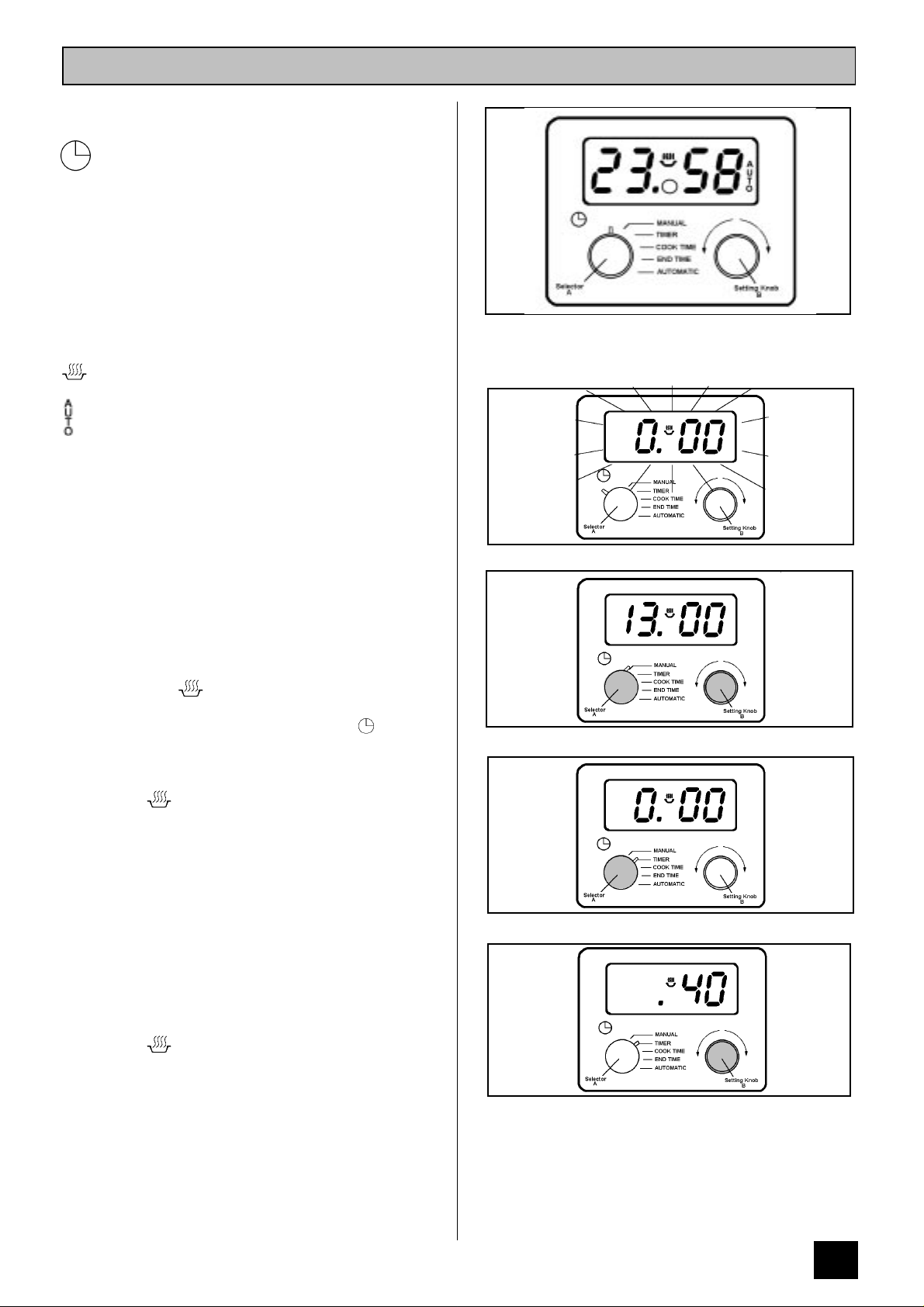

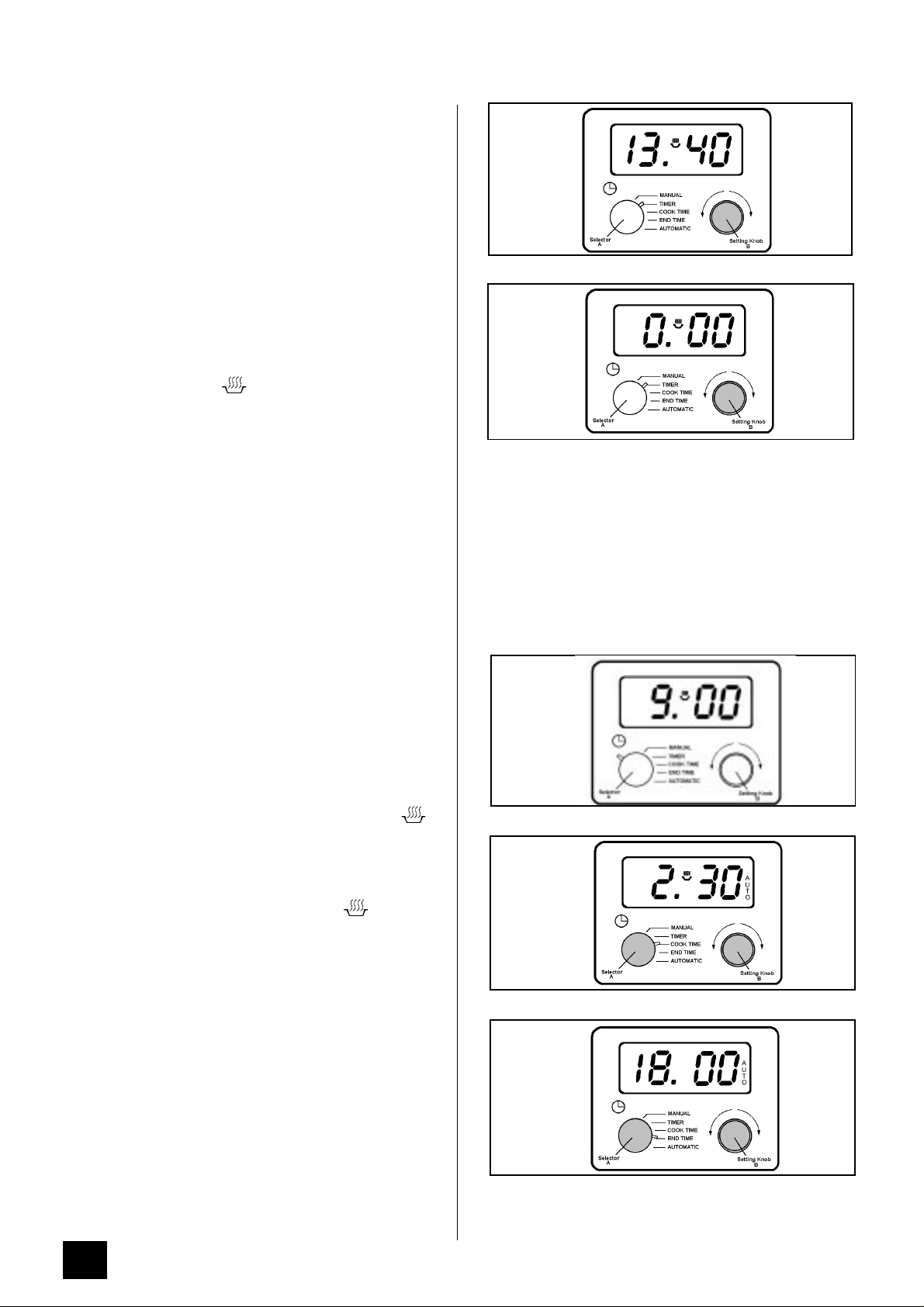

the timer control has been set for
automatic cooking
Never line any part of the cooker
with aluminium foil. Do not allow
heatproof cooking material, e.g.
roasting bags to come into contact
with oven elements.
Cookers and hobs become very hot,
and retain their heat for a long period
of time after use. Children should be
kept well away from the cooker until
it has cooled.
GENERAL
Under no circumstances should
repairs be carried out by inexperienced
persons as this may cause injury or
serious malfunction. This cooker should
be serviced by an authorised Service
Engineer and only genuine approved
spare parts should be used. Details of
servicing and repair arrangements are
supplied on page 47 of this book.
Do not stand on the cooker or on
the open oven door.
Always stand back from the cooker
when opening the oven door to allow
any build up of steam or heat to
release.
Stand clear when opening the drop
down oven door. Do not allow it to
fall open - support it using the door
handle until it is fully open.
Do not place sealed cans or aerosols
inside the oven. They may explode if they
are heated.
AFTER USING YOUR COOKER
Ensure that all control knobs are in
the OFF position when not in use.
For hygiene and safety reasons this
cooker should be kept clean at all
times. A build-up of fats or other
foodstuffs could result in a fire,
especially in the grill pan.
Do not leave utensils containing
foodstuffs, e.g. fat or oil in or on the
cooker in case it is inadvertently
switched ON.
Do not hang towels, dishcloths or
clothes from the cooker or its handle.
They are a safety hazard.
Always allow the cooling fan to cool
the cooker down before switching off
at the wall prior to carrying out any
cleaning or maintenance work.
Only clean this cooker in accordance
with the instructions given on page
43.
Your safety is of paramount importance.
Therefore, if you are unsure about any of
the meanings of these WARNINGS
contact the:
Consumer Care Department
Telephone: (01635) 525542
7
INSTALLATION INSTRUCTIONS
THINGS YOU NEED TO KNOW
WARNINGS:
l
This cooker must be installed by a qualified
electrician/competent person. Safety may be impaired
if installation is not carried out in accordance with these
instructions.
l
This cooker must be earthed.
l
Do not remove the screws from the earth tab
extending from the oven mains terminal block
(Fig. 8).
l
Before connecting the cooker make sure that the
voltage of your electricity supply is the same as
that indicated on the rating plate. The rating plate
can be seen by opening the oven door and
looking below the oven door seal.
l
Do not alter the electrical circuitry of this cooker.
THINGS TO NOTE
l
This cooker is designed to be fitted in cabinets of
the recommended dimensions as shown (Fig. 3
and 4).
l
The dimensions given provide adequate air
circulation around the unit within the cabinet,
ensuring compliance with BS EN60-335.
l
Enquiries regarding the installation of the cooker
point if required should be made to your Regional
Electricity Company to ensure compliance with
their regulations.
GETTING THINGS READY
CHOICE OF ELECTRICAL CONNECTION
l
There are two possible ways to connect your
cooker, please choose from the most appropriate
after reading the descriptions:
a) It is recommended that this appliance is wired
with suitably rated cable (min 13 A), into fixed
wiring using a double pole isolator with at least
3mm contact separation in all poles and neutral,
located within 2m of the appliance. If this fixed
wiring circuit is only supplying the cooker, then a
fuse of 13A (or circuit breaker) should be
incorporated. When the circuit combines oven
and hob, then wire and fuse rating should be
increased accordingly.
Subject to Regional Electricity Company
regulations if you wish to connect the
oven and hob to the power supply you
may use one of the following two
methods:-
b) If you wish to connect an oven and a hob to a
cooker point you can:i)By connecting the oven and hob separately
to the cooker point. Oven and hob units
should be separately connected to a control
panel. In this case the cooker should be
operated from 6mm, twin core, and earth,
PVC insulated cable. See Fig. 1.
l
The cooker point should be within 2m of the
cooker to make it accessible to switch off the
cooker in case of an emergency.
l
To protect the hands wear gloves when lifting the
oven into its housing.
NOTE: HOUSE CIRCUIT
Earth leakage and continuity tests must be carried
out before the cooker is connected to the mains
supply and re-checked after fitting.
Fig.1
8
ii)By connecting the cooker point to the hob
and then connecting the hob to the oven.
Provided that the hob manufacturer permits
it, connect the oven to the hob and the hob
to the cooker point using the same cabling
as described in (a) above. Check the hob
terminal block is large enough to take two
cables and is of suitable rating. If not b) i) on
page 8 must be used. See Fig. 2.
NOTE: 13 Amp cable is not suitable for connecting
this application.
Fig. 2
NOTE: It is good practice to:
l
Fit an Earth Leakage Circuit Breaker to your
house wiring.
l
Wire your appliance to the latest IEE regulations.
PREPARING CABINET FOR FITTING OF OVEN
l
Make sure the cabinet is the correct size for the
appliance to be fitted (Ref. Fig. 3 and 4.)
l
If the size is between 565-570mm, then the
cabinet should be modified so that at the screw
fixing points the recommended dimension of at
least 560-565mm is maintained. The modification
should ideally be localised to ensure that after
screw fitment the oven is securely fixed into
position.
l
The cabinet must be stable and level by firmly
securing it to the wall or floor. If necessary, make
arrangements to ensure the shelf upon which the
oven will rest is level.
9
RECOMMENDED CABINET DIMENSIONS (IN MILLIMETRES)
Fig. 3 Built Under Installation.
600
560 min
570 max
550 min
5
595
5
Cross section
through
cabinet showing
oven positioned
540
5
5
570
585
Cross section
through
cabinet showing
oven positioned
600 min
570
595
600
540
560 min
570 max
Fig. 4 Built In Installation.
10
2000 Recommended
550 min
HOW TO FINISH UNPACKING
l
Place packed cooker next to the cabinet in which
it will be installed.
l
Remove the cooker packing except for bottom
tray which should be left in position until the
cooker is ready to be fitted into its cabinet.
l
Carefully score down from each end of the cable
sheathing along the length of the bare earth wire (if a
cut was made along the length of the live and neutral
wires, it might cut into their sheathing) to the cuts
already made.
l
Carefully prise open the sheathing at each end of
the cable to expose the encased wiring.
l
Ensure the owner is given these operating
instructions.
TOOLS REQUIRED
The following tools will be needed and it helps to
assemble them before starting to install the oven:-
A terminal screwdriver (3mm wide blade)
A pozidrive screwdriver
Pliers
Wirestrippers
Knife
Sidecutters
Adhesive Tape
Tape Measure
MAKING THE ELECTRICAL CONNECTIONS
Important: Switch off at mains, miniature circuit
breaker and, if appropriate, remove fuse before
commencing any electrical work.
TO REMOVE COVER OF MAINS TERMINAL
From the rear of the cooker, remove mains input
terminal cover to gain access to terminal block.
l
First remove retaining screw with pozidrive
screwdriver. See Fig. 5.
Pozidrive
Screwdriver
Fig. 5
l
Prise cover loose using screwdriver in position
(1) then lever off with screwdriver in position (2)
at either side. See Fig. 6.
PREPARING CABLE
We recommend you use a new length of cable to
ensure your safety.
l
Ensure you have the correct length of cable
appropriate to the wiring method you are using.
When fitting new cable allow sufficient cable for
removal of the unit at a later date, should it be
necessary.
l
Score, but do not cut through, around the
sheathing with a knife 100mm (4in) from each
end of the cable and break through to the
encased wires by bending the cable backwards
and forwards to fatigue the sheathing.
Terminal
Screwdriver
Fig. 6
(1)
11
l
Lift cover and remove screw from cable clamp.
See Fig. 7.
l
Clamp the mains cable securely ensuring 5mm of the
outer insulation is inside the terminal block and that the
wires are not taught but not so slack as to cause any
fouling. See Fig. 8.
l
Place fuse/miniature circuit breaker in circuit and
switch on at mains.
Cable
Clamping
Block
Fig. 7
CONNECTING TO THE MAINS TERMINAL
WARNING: This cooker must be earthed.
l
Make connection as shown in Fig. 8 by
proceeding as follows:-
CONNECTING TO A HOB OR COOKER POINT
Feed the cable through the cabinet and
arrange to route the cable away from the
cooker which may become hot.
l
Either follow in general terms the instructions for
connecting to the terminal block or refer to the
hob suppliers installation instructions.
CHECKING ELECTRICAL CONNECTIONS
l
Confirm the cooker is correctly connected by
switching on and observing the various oven
functions indicators.
l
The electronic timer will flash on and off.
NOTE: HOUSE CIRCUIT
Earth leakage and continuity tests must be carried
out before the cooker is connected to the mains
supply and re-checked after fitting.
Fig. 8
l
Preform wires to the appropriate shape to suit
fitting into the mains terminal block.
l
Strip inner insulation on wires using wirestrippers.
l
Twist the bared wires using pliers.
l
Cut bared wires 10mm away from the end of the
inner insulation. Where uninsulated Earth wires
are used ensure they are suitably sheathed to
leave 10mm bare wire to fit into the terminal.
l
Clamp bare wires into the relevant terminal and
check they are held by tugging each one in turn.
12
FITTING INTO THE CABINET
IMPORTANT: Ensure that the oven is switched
off at the wall before any further work is carried
out.
Using a tape measure establish the internal width of
the cabinet. Refer to page 9 if greater than 565mm.
l
Position the cooker in front of the cabinet. See
Fig. 9.
l
Take out all oven furniture before installation to
reduce the weight you need to lift. The oven door
should be taped up to keep it closed whilst lifting.
l
To place the cooker into the cabinetry follow the
procedure below:-
N.B. Two people will be required to carry out the
lifting procedure.
a) Each person should squat either side of the
cooker.
Fig. 9
Mains
Cable
Pack Base
b) Tilt the cooker so that your hands can support
the underside of the cooker.
c) Keeping your back straight, raise the appliance to
the cabinet by straightening at the knees.
d) Rest the rear underside of the cooker on the
cabinet floor while your hands support the front.
e) The cooker can be pushed fully into the cabinet.
Take care to avoid fouling the mains lead.
f) Ensure the cooker is central in the cabinet and
level.
g) When the cooker is fully housed, screw the
stability screws (supplied with the cooker) into
the side of the cabinet taking care not to distort
the side trims (see Fig.10). It is advisable to turn
each screw alternately to avoid damaging the
trims.
h) Switch on the cooker then refer to the operating
instructions in the following pages.
Fixing Points
for
Stability Screws
Fig. 10
13

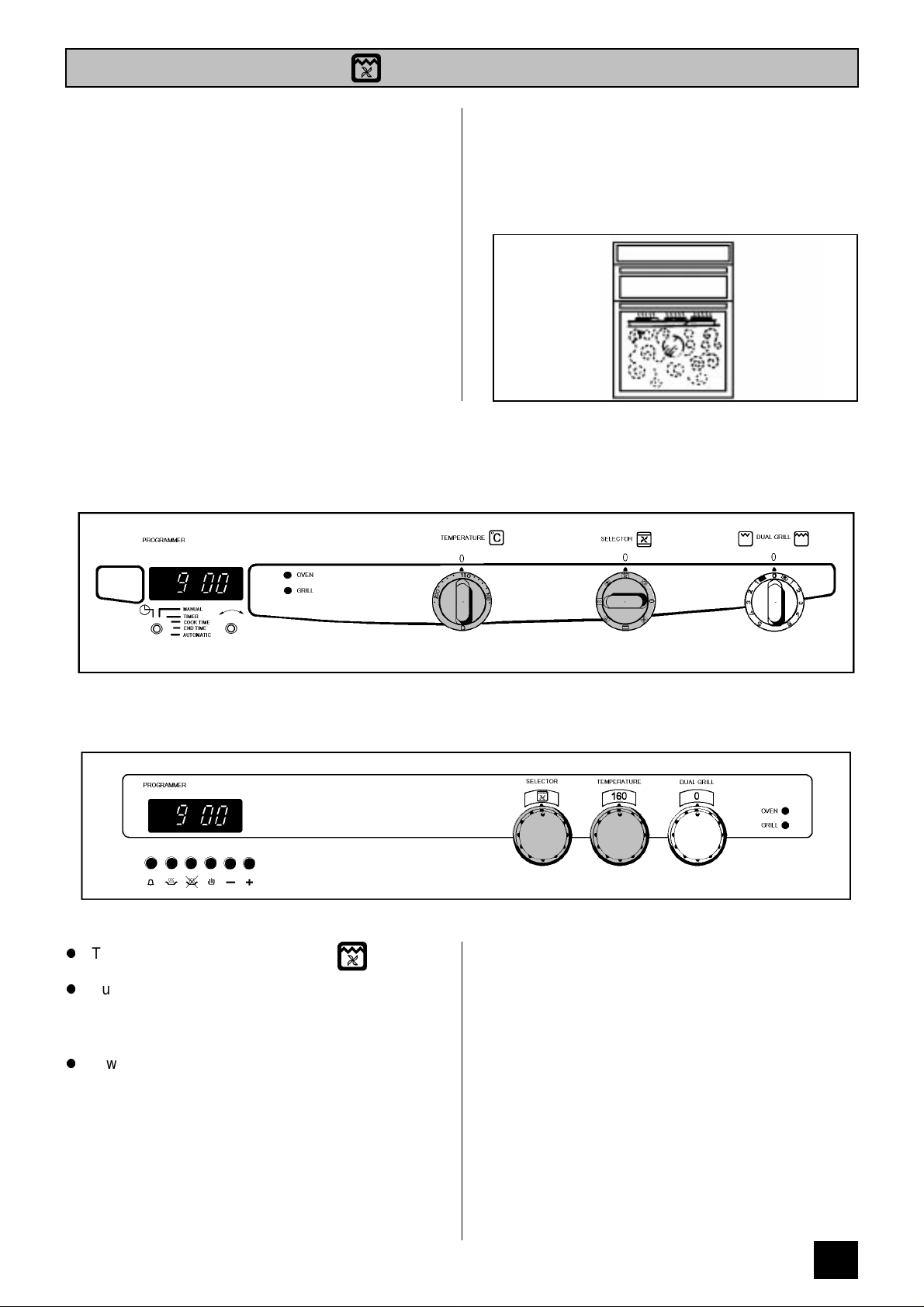

INTRODUCTION
WARNING: THIS COOKER MUST BE EARTHED

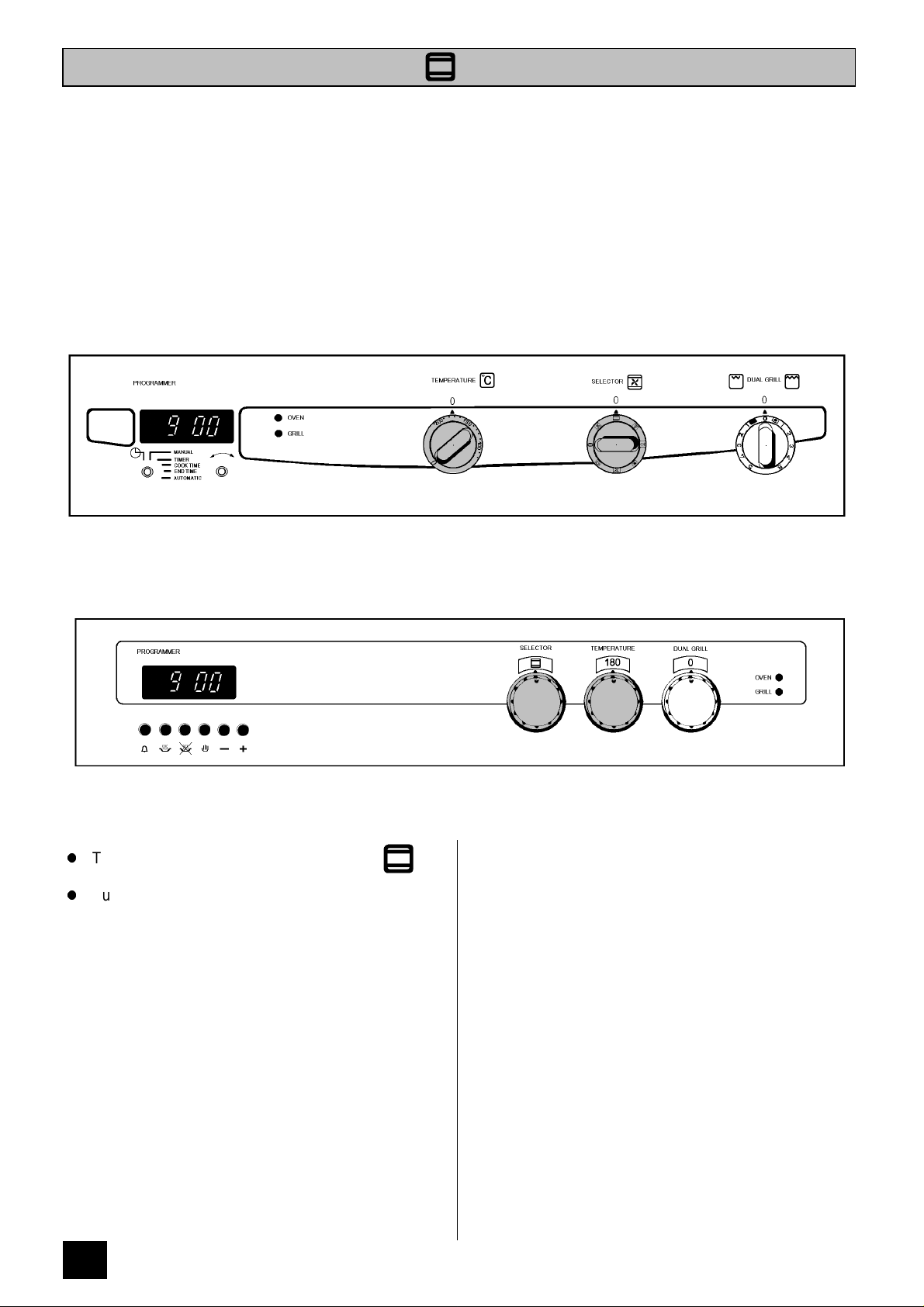

GETTING TO KNOW YOUR OVEN (BS 631)
A
B

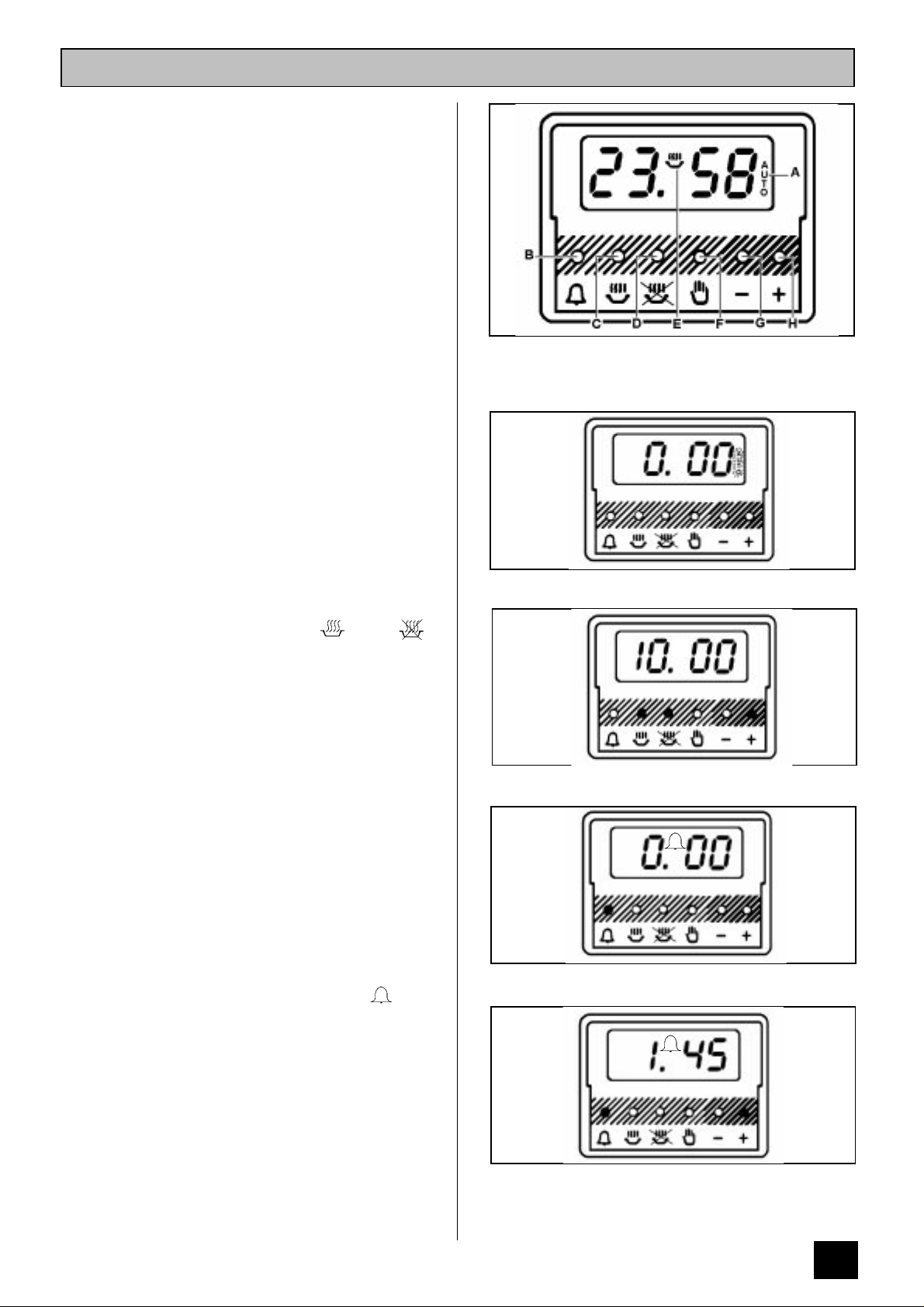

A -Electronic Timer E -Selector
B -Oven Indicator NeonFan Oven
C -Grill Indicator NeonConventional Oven
D -Oven Temperature ControlZoned Oven
C
D
E
F
Defrost
Oven Clean
Thermal Grill
Dual Grill
GETTING TO KNOW YOUR OVEN (BS 641)
A
A -Electronic TimerC - Oven Temperature Control
B -SelectorD -Dual Grill Control
Record the model, product and serial numbers on the
back cover of this instruction book from the rating
plate. This is situated on the lower front frame of the
cooker and can be seen upon opening the oven door.
The cooker must be protected by a suitably rated fuse
or circuit breaker. The rating of the cooker is given on
the rating plate.
GENERAL NOTES ON USING YOUR OVEN
Wipe over the base of the ovens with a soft cloth and
hot soapy water and wash the grill and oven furniture
before use.
We suggest that you run the oven elements for 10 15 minutes at 220°C to burn off any residue from their
surfaces.
The procedure should be repeated with the grill for
approximately 5 - 10 minutes.
During this period an odour may be emitted, it is
therefore advisable to open a window for ventilation.
WHEN FIRST SWITCHING ON

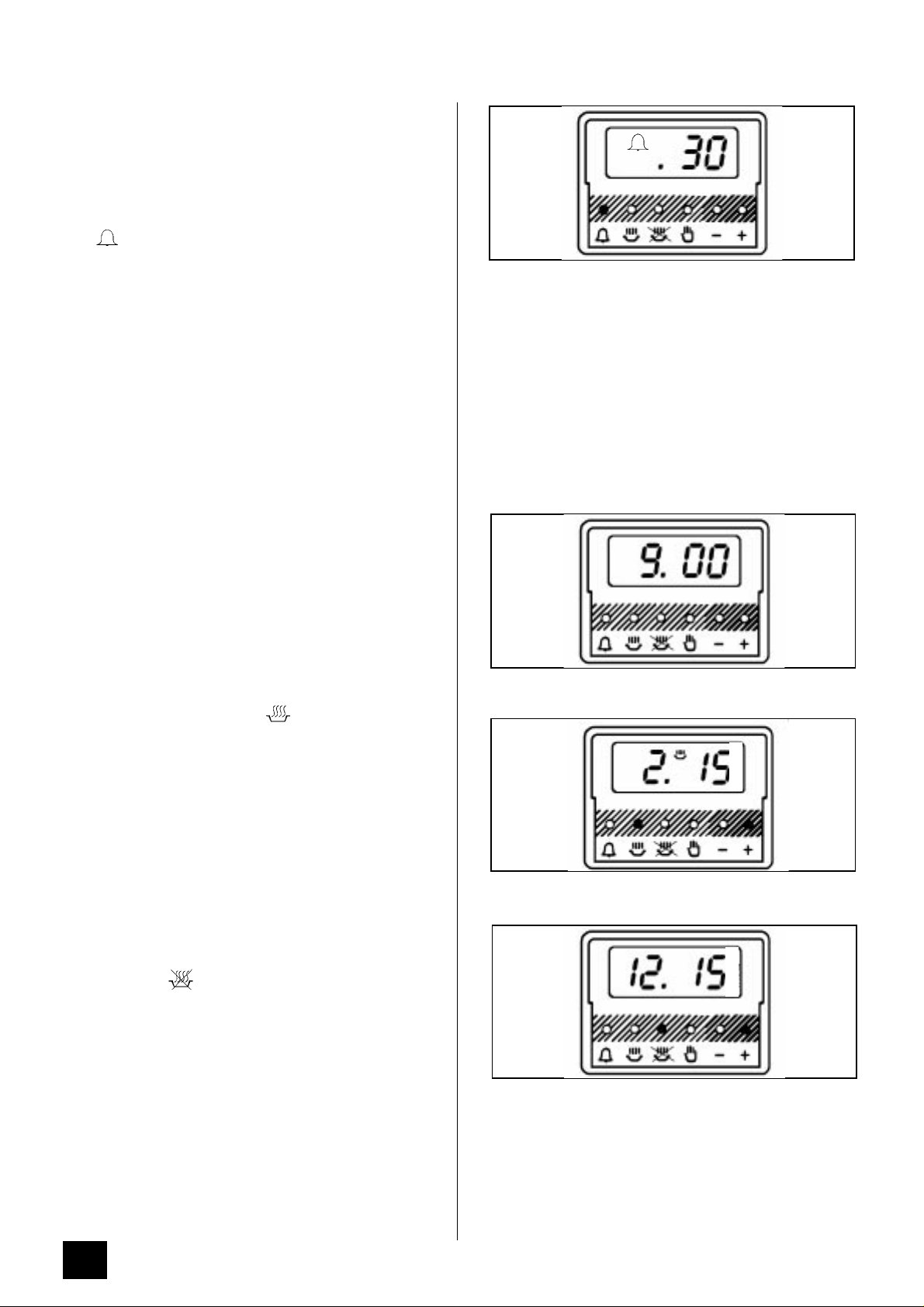

The timer must be set to manual before the oven can
be operated. See pages 17 and 21. This must be
done whenever the cooker is switched off at the wall
or when there has been a power failure.
If the oven indicator neon does not glow when the
controls are switched on, it is most likely that the timer
is set for automatic cooking.
ABOUT CONDENSATION AND STEAM
Surfaces in close contact with the oven vent should be
regularly wiped to reduce soilage and discolouration from
cooking vapours.
COOKWARE
Baking trays, oven dishes etc., should not be placed
directly against the grid covering the fan at the back of
the oven.
Do not use baking trays larger than 30cm x 35cm (12"
x 14") as they will restrict the circulation of heat and
may affect performance.
THE TRIVET
When roasting use the trivet in the meat tin. Fat and
meat juices will drain into the meat tin below and can
be used to make gravy. The trivet also prevents
splashes of fat from soiling the inside surface of the
oven.
N.B. The meat tin should not be placed on a heated
hotplate as this may cause the enamel to crack.
The cooling fan comes on immediately when the grill
is switched on and after a short time when the oven is
in use.
During the initial period the cooling fan may cycle ON
and OFF, this is quite normal.
It may run on after the controls are switched off until
the appliance has cooled. If an automatic programme
has been set the cooling fan does not come on until
the cook time begins.
Do not switch off the cooker at its power point before
the cooling fan has cooled the appliance down.
When food is heated it produces steam in the same
way as a boiling kettle does. The oven is vented to
allow some of this steam to escape. However, always
stand back from the cooker when opening the oven
door to allow any build up of steam or heat to release.
If the steam comes into contact with a cool surface on
the outside of the cooker, e.g. a trim, it will condense
and produce water droplets. It may be necessary to
wipe over the cooker occasionally to remove any
droplets of water. This is quite normal and is not
caused by a fault on the cooker.
NOTE
The action of the cooling fan will depend on how long
the oven has been used and at what temperature. It
may not switch in at all at lower temperature settings
nor run on where the grill or oven has only been used
for a short time.
15

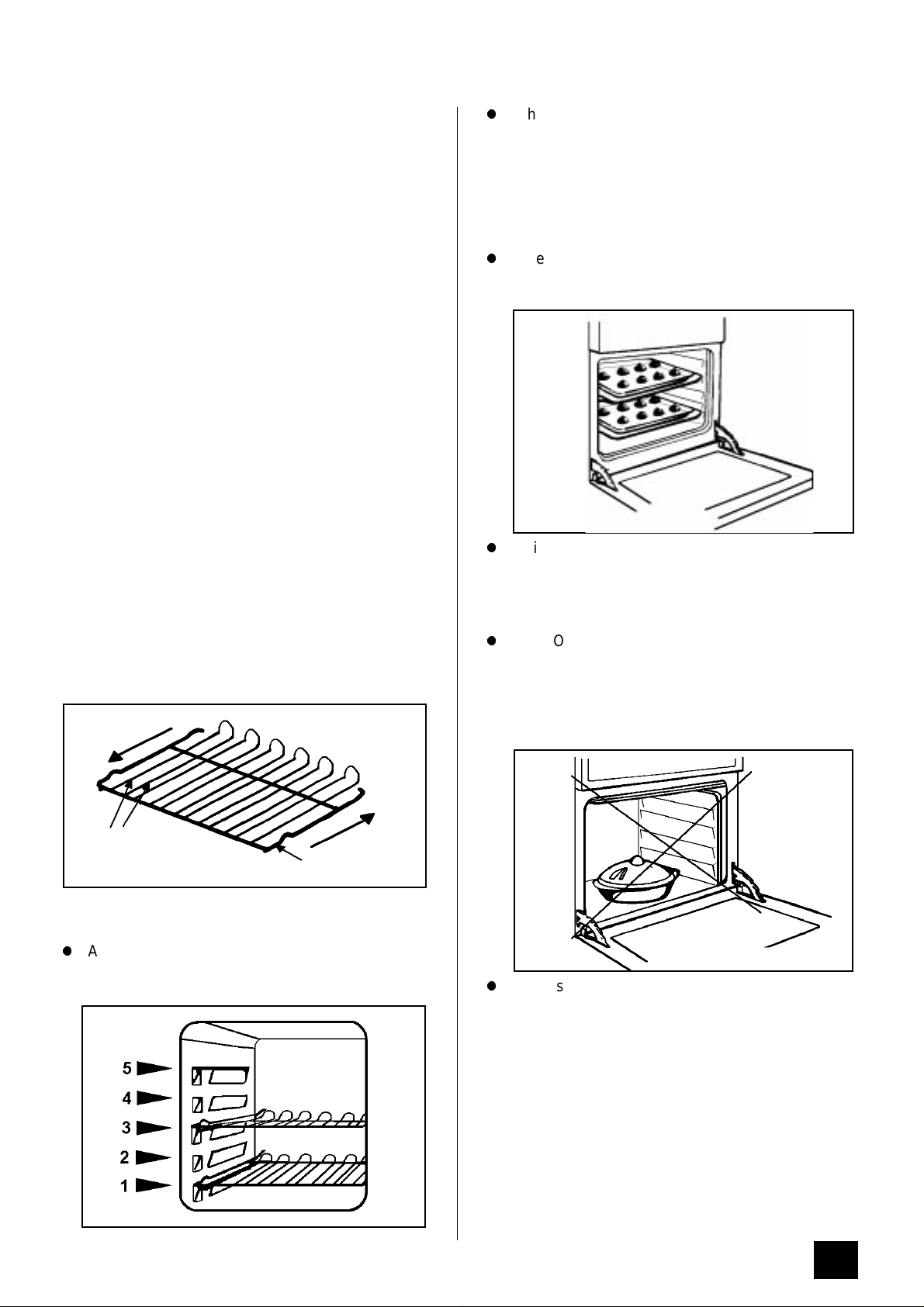

THE SHELF POSITIONS
GRILL AND OVEN FURNITURE
Recommended shelf positions have been shown in
the cooking chart on page 34.
If not fitted correctly the shelf will lie at an angle and
the safety stop will not be effective. To ensure that the
shelf has the correct side uppermost, the wire
stringers, which make up the shelf, should lie on top
of the surrounding frame.
PUSH PUSH CONTROL KNOBS
(BS 641 only)
The following items of grill and oven furniture have
been supplied with the cooker.
1 grill pan/meat tin
1 grill pan handle
1 grill pan grid
1 grill deflector
These control knobs can remain flush with the control
panel, when not in use, or pushed and released to
stand out from the panel for easy operation.
CONTROL PANEL INDICATOR NEONS
These lights indicate whether the oven or grill is
switched ON. In the case of the oven, the neon also
indicates when the set temperature has been
reached. It will cycle on and off during use to show
that the temperature is being maintained.
If the neon does not operate as the instructions
indicate the controls have been incorrectly set. Return
all controls to zero and reset following the instructions
for the required setting.
When the oven is set for automatic cooking the neon
should remain unlit during OFF periods.
1 trivet
2 straight shelves
The grill deflector sits above the grill element and
prevents fat splashing onto the oven roof. The
deflector may be easily removed for cleaning.
Scuffing of the Stayclean oven lining by the oven
furniture pack may occur during transit.
16
These marks will disappear after the oven elements
have been burnt off for the first time.
Loading...
+ 36 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
