tricity bendix BF423W User Manual
BF 423 W
2222 270-05
2
CONTENTS
Warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 3
Conservation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 4
Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 4
Before using . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 4
The electrical connections . . . . . . . . . . . . . . . . . . . . . . . . . . .page 5
Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 5
Door reversibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 6
Fitting a decorative door panel. . . . . . . . . . . . . . . . . . . . . . . . . .page 6
Your appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 8
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 9
The controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 9
Frozen food storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 9
Ice making . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 10
Thawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 10
Freezing fresh food . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 10
Helpful hints when buying food . . . . . . . . . . . . . . . . . . . . . . . . .page 10
Defrosting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 10
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 10
Normal sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 11
Health and safety guidelines. . . . . . . . . . . . . . . . . . . . . . . . . .page 11
Maintenance and cleaning . . . . . . . . . . . . . . . . . . . . . . . . . .page 12
Internal cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 12
When the appliance is not in use . . . . . . . . . . . . . . . . . . . . . . . . .page 12
What happens if something goes wrong? . . . . . . . . . . . . . . . . . . . . .page 12
Guarantee conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . .page 13
Tricity Bendix Service Centres . . . . . . . . . . . . . . . . . . . . . . . . .page 14
TECHNICAL SPECIFICATIONS
POWER SUPPLY VOLTAGE AND FREQUENCY
TOTAL POWER ABSORBED
AVERAGE DAILY UNITS ELECTRICITY
GROSS CAPACITY
NET CAPACITY
STAR RATING
220-240 V / 50 Hz
120 W
1.30 kWh
120 l
101 l
3
WARNINGS
IT IS MOST IMPORTANT THAT THIS INSTRUCTION
BOOK SHOULD BE RETAINED WITH THE APPLIANCE FOR FUTURE REFERENCE. SHOULD THE
APPLIANCE BE SOLD OR TRANSFERRED TO ANOTHER OWNER, OR SHOULD YOU MOVE HOUSE
AND LEAVE THE APPLIANCE, ALWAYS ENSURE
THAT THE BOOK IS SUPPLIED WITH THE APPLIANCE IN ORDER THAT THE NEW OWNER CAN
GET TO KNOW THE FUNCTIONING OF THE APPLIANCE AND THE RELEVANT WARNINGS.
THESE WARNINGS ARE PROVIDED IN THE INTEREST OF SAFETY. YOU MUST READ THEM CAREFULLY BEFORE INSTALLING OR USING THE APPLIANCE.
ª
This appliance is designed to be operated by
adults. Children should not be allowed to tamper
with the controls or play with the product.
ª Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
ª This product should be serviced by an authorised
Tricity Bendix Service Centre, and only genuine
spare parts should be used.
ª It is dangerous to alter the specifications or modify
this product in any way.
ª Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
ª Tricity Bendix domestic refrigerators, freezers and
fridge/freezers are designed to be used specifically
for the storage of edible foodstuffs only.
ª The cooling plate or refrigerated freezer shelves in
this appliance contain channels through which the
refrigerant passes. If these are punctured this would
cause substantial damage to the appliance and result in food loss. DO NOT USE SHARP INSTRUMENTS to scrape off frost or ice. Under NO circumstances should solid ice be forced off the lining or
shelves. Solid ice should be allowed to thaw, when
defrosting the appliance. See Defrost instructions.
ª The appliance should be left for 2 hours after instal-
lation before it is turned on in order to allow the refrigerant to settle.
ª This appliance is heavy. Care should be taken when
moving it.
ª Do not remove items from the freezer if your hands
are damp/wet, as this could cause skin abrasions
or “frost/freezer burns”.
ª Ice lollies can cause “frost/freezer burns” if con-
sumed straight from the freezer.
ª Manufacturers’ storage recommendations should
be strictly adhered to. Refer to r elevant instructions.
ª Under no circumstances should you attempt to re-
pair the appliance yourself. Repairs carried out by
inexperienced persons may cause injury or serious
malfunctioning. Refer to your local Tricity Bendix
Service Centre and always insist on genuine spare
parts.
ª There are working parts in this product which heat
up. Always ensure that there is adequate ventilation
as a failure to do this will result in possible food
loss. See installation instructions.
ª Parts which heat up should not be exposed. Wher-
ever possible, the back of the appliance should be
close to a wall but leaving the required distance for
ventilation as stated in the installation instructions.
ª Before defrosting, cleaning or maintenance work is
carried out, be sure to switch off the appliance and
unplug it.
ª Frozen food must NOT be re-frozen once it has
thawed out.
ª Do not place carbonated or fizzy drinks in the freez-
er as it creates pressure on the container, which
may cause it to explode, resulting in damage to the
appliance.
01/96
2222 270-05
4
Warning
IF YOU ARE DISCARDING AN OLD APPLIANCE THAT
HAS A LOCK OR CATCH ON THE DOOR, YOU MUST
ENSURE THAT IT IS MADE UNUSABLE TO PREVENT
YOUNG CHILDREN BEING TRAPPED INSIDE.
Positioning
The appliance should be installed well away from
sources of heat such as radiators, boilers, direct sunlight etc.; best performance is obtained with ambient
temperature between +16 ° C and +32 ° C.
For building-in and door reversibility, if necessary, refer to the relevant instructions in the following pages.
Before using
Remove all securing tapes. Wash inside the appliance
with lukewarm water and bicarbonate of soda (5 ml to
0.5 litre of water). Do not use soap or detergent as the
smell may linger. Dry thoroughly.
CONSERVATION
In the interests of the Environment:
When disposing of your old fridge, freezer or
fridge/freezer.
Help to keep your country tidy – use authorised disposal sites for your old appliances.
For maximum efficiency:
Make sure that the appliance is cleaned properly.
Make sure that the door is closed properly.
Do not position the appliance near to sources of heat.
Do not over-fill your appliance, air MUST be allowed
to circulate.
INSTALLATION
5
The electrical connections
WARNING: THIS APPLIANCE MUST BE EARTHED.
The manufacturer declines any liability should this
safety measure not be observed.
If the plug that is fitted to your appliance is not suitable for your socket outlet, it must be cut off and the
appropriate plug fitted.
Remove the fuse from the cut off plug.
The cut off plug should then be disposed of to pr event
the hazard of shocks in case it should be plugged into
a 13amp socket in another part of your home.
Important
The wires in the mains lead are coloured in accordance with the following code:
Green and Yellow - Earth
Blue - Neutral
Brown - Live
If you fit your own plug, the colours of the wires in the
mains lead of your appliance may not correspond with
the markings identifying the terminals in your plug,
proceed as follows:
Fig. 1
Connect the Green and Yellow (earth) wire to the terminal in the plug which is marked with the letter «E» or
the earth symbol , or coloured green and yellow.
Connect the blue (neutral) wire to the terminal in the
plug which is marked with the letter «N» or coloured
black.
Connect the brown (live) wire to the terminal in the
plug which is marked with the letter «L» or coloured
red.
The plug moulded onto the lead incorporates a fuse.
For replacement, use a 13amp BS1362 fuse. Only
ASTA or BSI approved fuses should be used.
The plug must not be used if the fuse cover/carrier is
lost. The cover/carrier is indicated by the coloured insert at the base of the plug.
A replacement cover/carrier must be obtained from
your local Tricity Bendix Service Centre whose address is listed in the Customer Care Booklet which accompanies your instruction manual.
D207
GREEN & YELLOW
13 AMP. FUSE
BROWN
CORD CLAMP
BLUE
13 AMP
100-170
596
820-870
547
550
600
820
870
D506
D507
This appliance complies with the E.E.C. Directive
No. 87/308 of 2.6.87 relative to radio interference
suppression.
This appliance complies with the following
E.E.C. Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive) and
subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.
Please ensure that when the appliance is installed
it is easily accessible for the engineer in the event
of a breakdown.

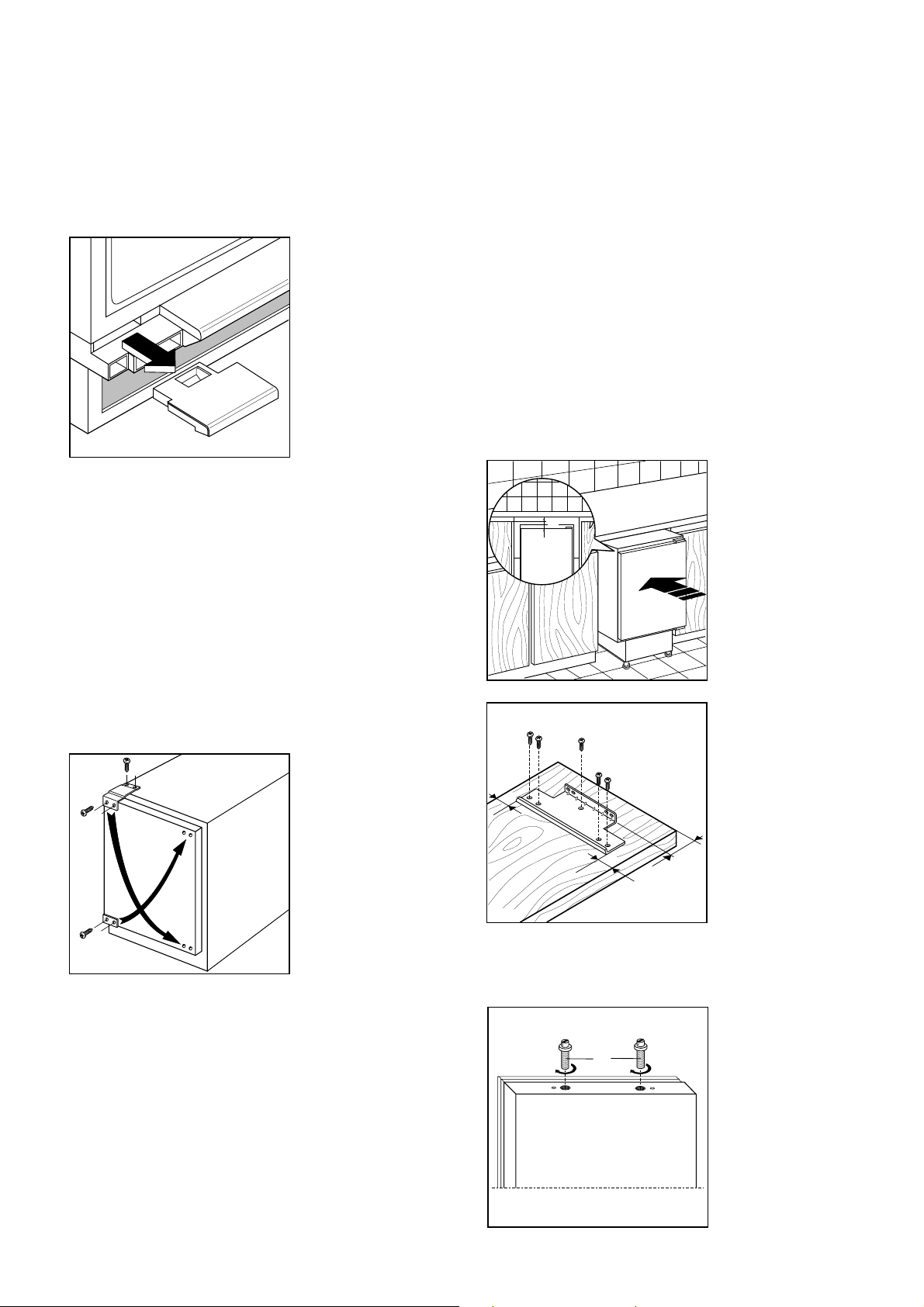

Location
Fig. 2
This appliance is
designed to be
built-in to a space
having the dimensions given in
Fig. 2.
Fig. 3
The height of the
appliance can be
altered if required
by means of adjustable feet situated at its base
(Fig. 3).
