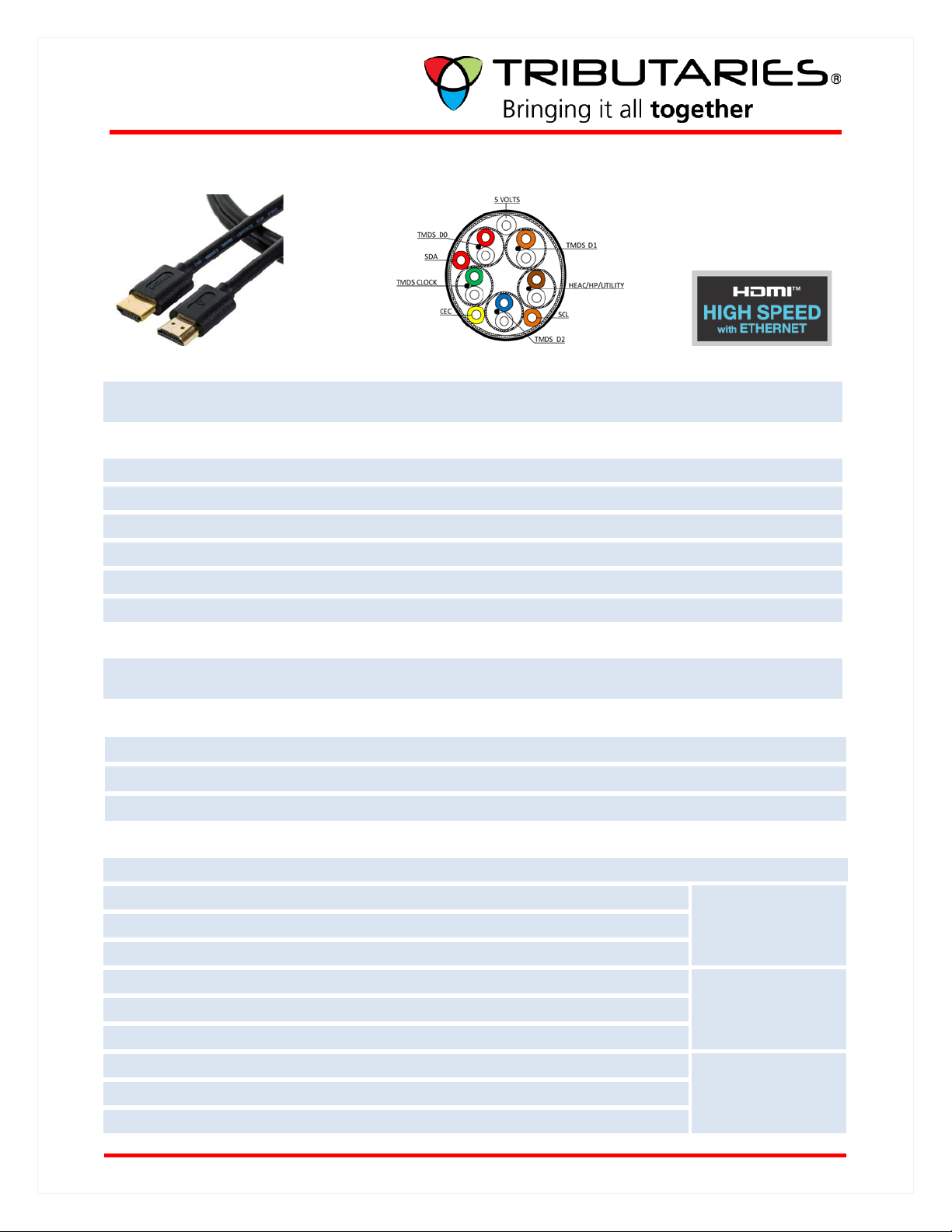

Page 1
Detailed Specifications
& Technical Data
Small 20mm size connector about the size of a nickel with boss elements
UHD-030 3 meter
Description
The Tributaries UHD HDMI is the “Go-To” cable for short runs of HDMI. The connector is low profile; almost the size of a nickel.
Guarantees 4K/60 2160p UHD HDMI signal transmission
Features
• Designed, packaged and tested in Orlando Florida, USA
• Certified HDMI High Speed to support 4K/60, Deep Color, Ethernet, Extended Audio Channels, CEC and ARC
• Boss elements on the connector ensures a secure connection
• Cable is thin, flexible and rated UL®CL2 FT4
• 100% tested in production and 100% tested before shipping with 1080p/60 application
• Limited Lifetime Warranty
Terminations
Tributaries UHD is terminated with HDMI type A connectors.
for a secure connection.
HDMI Compliance
HDMI ATC Certification Category 2 / High Speed with Ethernet
Certified Data Rate 3.4Gbps / 10.2Gbps (4K UHD)
Supported Clock Rate 340Mhz
Conductors
PIN DESCRIPTION Conductor INSULATION NOTES
Pin 1 TMDS Data 2+ 30 AWG OFC Foamed PE
Pin 2 TMDS Data 2 Drain 30 AWG BC
Pin 3 TMDS Data 2- 30 AWG OFC Foamed PE
Pin 4 TMDS Data 1+ 30 AWG OFC Foamed PE
Pin 5 TMDS Data 1 Drain 30 AWG BC
Pin 6 TMDS Data 1- 30 AWG OFC Foamed PE
Pin 7 TMDS Data 0+ 30 AWG OFC Foamed PE
Pin 8 TMDS Data 0 Drain 30 AWG BC
Pin 9 TMDS Data 0- 30 AWG OFC Foamed PE
www.tributariescable.com 1-800-521-1596 1-407-855-0497 Issue Date: 1-26-15 Page 1of 3
Shielded Pair
Shielded Pair
Shielded Pair
Page 2
Detailed Specifications
& Technical Data
UHD-030 3 meter
Pin 10 TMDS Clock+ 30 AWG OFC Foamed PE
Pin 11 TMDS Clock Drain 30 AWG BC
Pin 12 TMDS Clock- 30 AWG OFC Foamed PE
Pin 13 CEC 30 AWG OFC HDPE
Pin 15
Pin 16
Pin 18 +5V Power 30 AWG OFC HDPE
Pin 14 Utility / HEAC+ 30 AWG OFC Foamed PE
Pin 17 DDC/CEC Ground/HEAC Drain 30 AWG BC
Pin 19 Hot Plug Data / HEAC- 30 AWG OFC Foamed PE
Cable Shielding
Aluminum Mylar Facing Outside
Braided Shield
Jacket
Color
Material
Outside Diameter
I2C Serial Clock for DDC
I2C Serial Data Line for DDC
30 AWG OFC HDPE
30 AWG OFC HDPE
100% Coverage 25% overlap
85% Coverage / Aluminum
Black
PVC – Polyvinyl Chloride
6.0 mm
Shielded Pair
Shielded Pair
UL Listing
EU RoHS Compliant (Y/N)
UL CL2 / FT4
YES

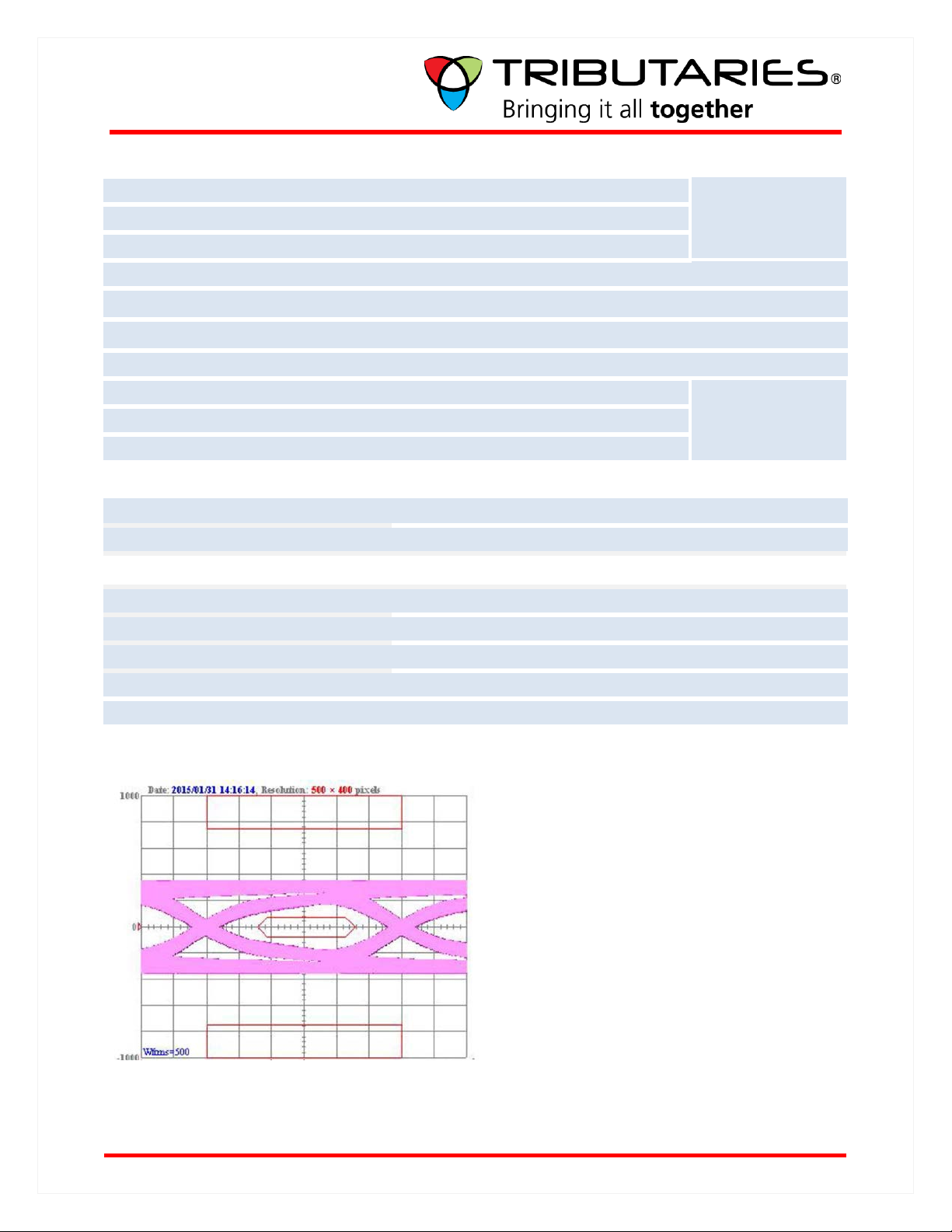

10.2Gbps High Speed Eye Pattern Test for UHD-030
www.tributariescable.com 1-800-521-1596 1-407-855-0497 Issue Date: 1-26-15 Page 2of 3
Page 3
Detailed Specifications
& Technical Data
UHD-030 3 meter
Application Specifications
Max Video Format Supported 2160p (UHD/4K) 8-bit 4:4:4, 17.82Gbps
VESA Graphics Supports as defined by HDMI specification
3D Video Supported / System Dependant
Audio Formats Supported 32 Ch, PCM 2.0, DTS 7.1, 3D Audio/ System Dependant
HDMI Ethernet Channel Supported / System Dependant
HDMI Audio Return Channel Supported / System Dependant
Notes
While Tributaries has made every reasonable effort to ensure the accuracy of these specifications, information contained herein may
be subject to error and omission and to change without notice. Tributaries provides these specifications on an “AS IS” basis, with no
representations or warranties, whether express, statutory or implied. The cable will be packaged to preclude the inducement of
damage due to handling and transportation, and will be in accordance with the best commercial practices available. Shipping
containers will be constructed as to eliminate any possible damage to the cable due to shipment.
Stock Models
Stock Code Description Color Quantity
UHD-030B UHD HDMI w/Ethernet Cable 3m Bag Black Each
UHD-030D UHD HDMI w/Ethernet Cable 3m Display Black Each
UHD-030K UHD HDMI w/Ethernet Cable 3m Bulk/5 Black Each
www.tributariescable.com 1-800-521-1596 1-407-855-0497 Issue Date: 1-26-15 Page 3of 3
