HXC6R
CAT6 Repeater for HXC6
Doubles the distance of CAT6 passively
www.tributariescable.com
©2009 Gordon J. Gow Technologies, Inc. All rights reserved.
TRIBUTARIES® is a registered trademark of Gordon J. Gow Technologies, Inc. All other trademarks
are the property of their respective owners. As we continually strive to improve our products,
TRIBUTARIES® reserves the right to change product specifications without notice. The technical
and other information contained herein is not intended to set forth all technical and other
specifications of TRIBUTARIES® products. Additional information can be obtained on-line at
www.tributariescable.com
Gordon J. Gow Technologies, Inc.
Orlando, FL 32809
www.tributariescable.com
2. Features
Compliant with HDMI 1.3, HDCP 1.1 and DVI1.1 standards.•
Supports digital video formats in Deep Color Mode at up to 36 bits •
(12bits/color).
New lossless compressed Digital Audio (Dolby TrueHD, Dolby Digital •
Plus and DTS-HD Master Audio).
Supports CAT-6 cables.•
Supports equalization and re-clocking of the incoming TMDS data •
before re-transmitting.
Supports 1080p/8bit color up to 45 meters (90 meters using the •
HXC6R)
Supports 1080p/12bit color up to 15 meters (30 meters using the •
HXC6R).
Supports CEC bypass.•
Supports xvYCC Color Space.•
3. Package Contents
HXC6R CAT6 to CAT6 Repeater •
Owner’s Manual•

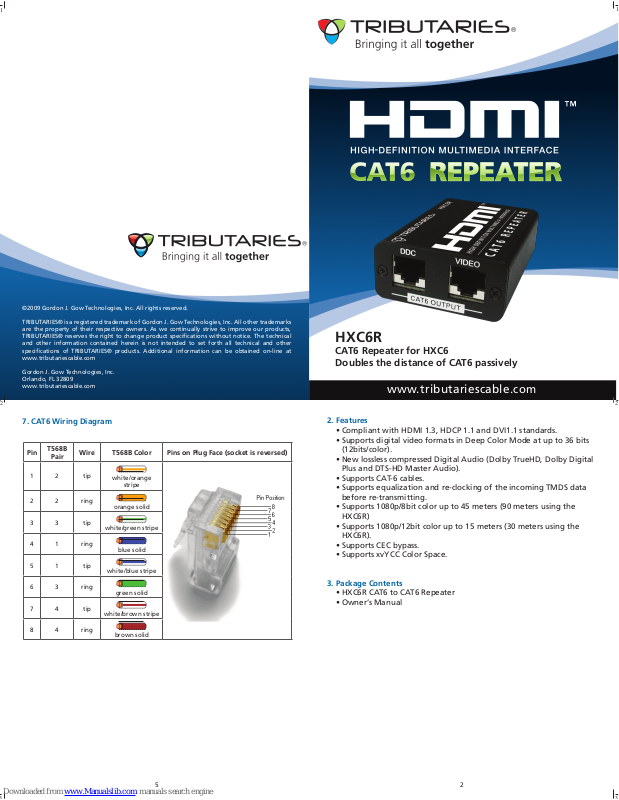

7. CAT6 Wiring Diagram
Pin
T568B
Pair
Wire T568B Color Pins on Plug Face (socket is reversed)
1 2 tip
white/orange
stripe
2 2 ring
orange solid
3 3 tip
white/green stripe
4 1 ring
blue solid
5 1 tip
white/blue stripe
6 3 ring
green solid
7 4 tip
white/brown stripe
8 4 ring
brown solid
5 2
2
2
1
1
Page 2
HXC6R
1. Introduction........…………………….....................….....…………............
2. Features....................................................................................................
3. Package Contents....................................................................................
4. Operation Controls and Functions.........................................................
4.1 Front Panel.......................................................................................
4.2 Rear Panel........................................................................................
5. Specifications...........................................................................................
6. Connection and Installation...................................................................
7. CAT6 Wiring Diagram.............................................................................
1. Introduction
The Tributaries passive HXC6R CAT6 Extender is a fully digital product.
Designed to work with Tributaries HXC6 Transmitter and Receiver,
the HXC6R can double the distance of the HXC6, for a total distance
up to 90 meters. Simply insert the Tributaries HXC6R at the end of
the appropriate length of CAT6 cable run from the Tributaries HXC6
Transmitter unit. A similar length of CAT6 can then be run to the
Tributaries HXC6 Receiver unit. The HXC6R supports all the features of
the HXC6.
It is possible to substitute CAT5E cable for CAT6. However, the
maximum resolution capability will be limited to 1080p/8bit color,
HDMI v1.2.
The HXC6R is HDMI v1.3 certified supporting 12 bit Deep Color and
new lossless compressed Digital audio; Dolby TrueHD®, Dolby Digital
Plus and DTS®-HD Master Audio with a bandwidth up to 225MHz.
1
2
2
3
3
3
4
4
5
1
4. Operation Controls and Functions
4.1 Front Panel
Video OUTPUT: Connect the VIDEO output to the VIDEO input of
the receiver unit using CAT5E or CAT6 cable.
DCC OUTPUT: Connect the DDC output to the DDC input of the
receiver unit using CAT5E or CAT6 cable.
1
2
4.2 Rear Panel
Video OUTPUT: Connect the VIDEO output to the VIDEO input of
the receiver unit using CAT5E or CAT6 cable.
DCC OUTPUT: Connect the DDC output to the DDC input of the
receiver unit using CAT5E or CAT6 cable.
1
2
1 2
VIDEO DDC
CAT6 INPUT
1 2
DDC VIDEO
CAT6 OUTPUT
5. Specifications
Supported resolutions: HDMI - 480i/480p, 576i/576p, 1.
720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
Input: 1 x CAT-6 input for Video, 1 x CAT6 input for DDC 2.
Output: 1 x CAT-6 output for Video, 1 x CAT6 output for DDC3.
Operating Temperature: 32°F (0°C) ~ 104°F (40°C)14.
Dimensions: 2” (50mm) W x 2 5.
7
/16" (62mm) D x 7/8” (23mm) H
Weight: 3.7oz (106g)6.

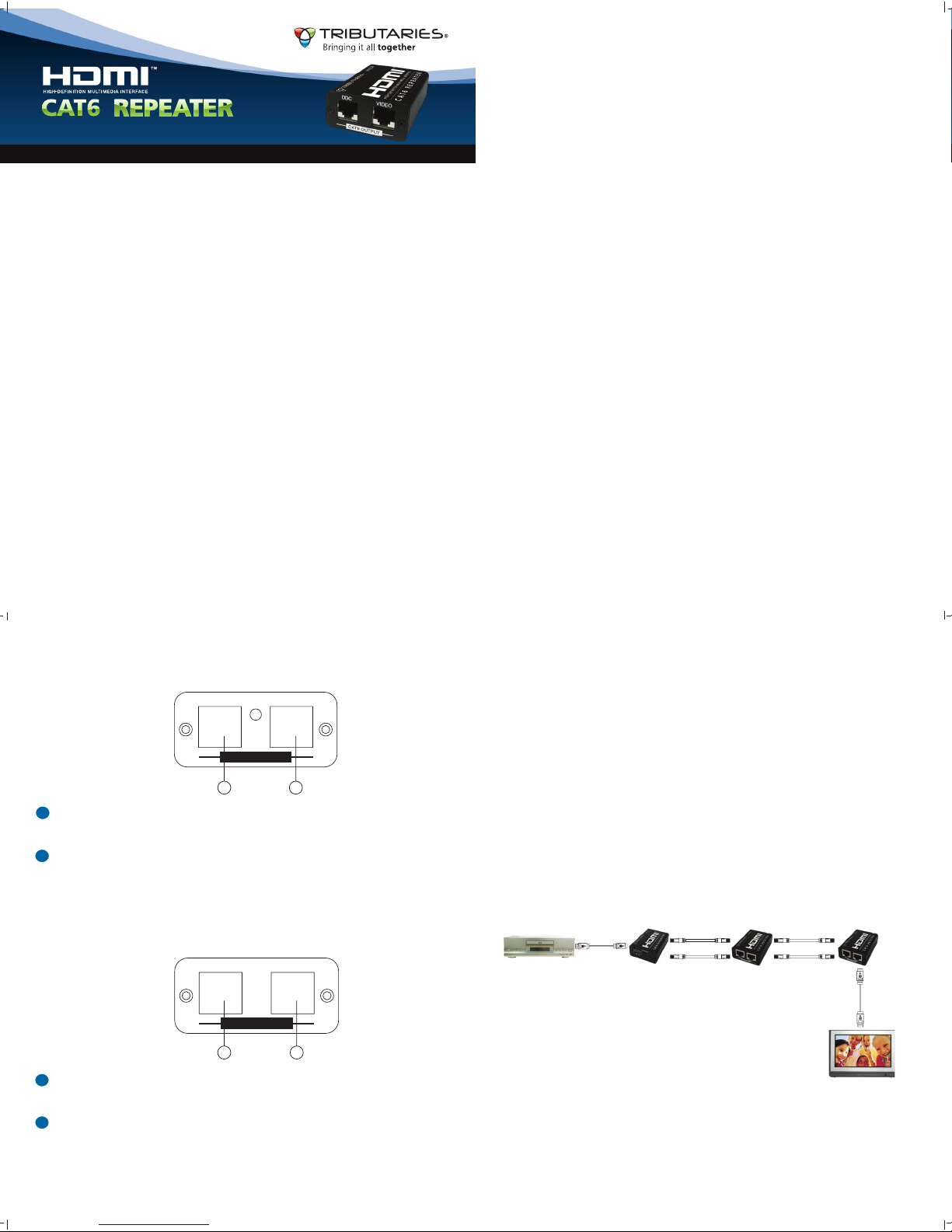

6. Connection and Installation
HDMI LCD TV
Transmitter
Receiver
DVD PLAYER
HDMI
Cable
DDC
VIDEO
HDMI
Cable
CAT6
HXC6R
Repeater
DDC
VIDEO
CAT6
6
3 4
2
2
1
HXC6
HXC6
