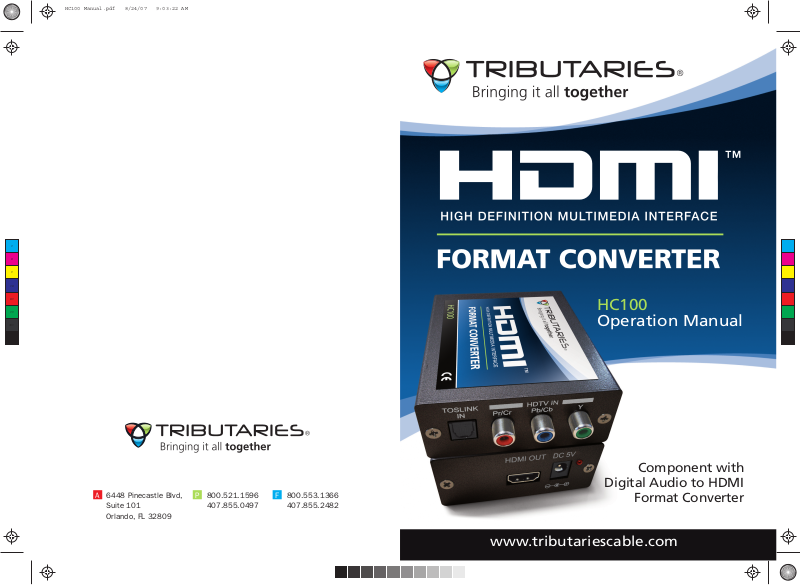

Page 1
HC100
Operation Manual
Component with
Digital Audio to HDMI
Format Converter
www.tributariescable.com
A 6448 Pinecastle Blvd,
Suite 101
Orlando, FL 32809
P 800.521.1596
407.855.0497
F 800.553.1366
407.855.2482
HC100 Manual.pdf 8/24/07 9:03:22 AM
C
M
Y
CM
MY
CY
CMY
K
Page 2
REAR PANEL
HDMI Plasma,
LCD or DLP TVs
PC/YPbPr to
HDMI Format
Converter
HDMI output connector:
Connect to the HDMI input of your display
TV using an HDMI cable.
DC power supply 5V 1A
Power LED light
Toslink digital audio input:
Connects to the Toslink output of your DVD
player (audio set to PCM mode) or Set-Top-Box.
Analog YPbPr/YCbCr input connector:
Connects to the YPbPr or YCbCr output of
your DVD player or Set-Top-Box.
DVD
YPbPr
Component out
HC100
Introduction
The component with digital audio to HDMI format converter converts analog
YCbCr/YPbPr and audio to digital HDMI format.
It allows you to connect the YCbCr/YPbPr output from a DVD or Set-Top-Box equipment
to the digital HDMI input of the latest HD ready plasma,LCD or DLP TV.
Its high bandwidth capability supports HDTV resolution up to 1080p.
This package includes
• One HC100 unit • One switching power supply adaptor • User manual
Features
• It enables you to connect a Set-Top-Box or DVD player with a YPbPr/YCbCr and a Toslink
output (audio set to PCM mode) to the HDMI input of an HD ready plasma, LCD or DLP TV.
• The acceptable input format is YCbCr/YPbPr and digital Toslink PCM audio.
• HDMI is compliant with HDMI 1.2.
• Supports up to 1080p/60Hz.
Operation Controls and Functions
Specifications
• HD Input: Analog YCbCr/YPbPr through 3 RCA connectors
• Input signal:Y: 1Vp-p, 75ohm & CbCr or PbPr: 0.7p-p, 75ohm
• Audio Input: Digital Toslink audio (PCM mode)
• HDMI is compliant with HDMI 1.2
• Bandwidth: 165MHz
• Input/Output resolution:
HD: 480i@60 • 576i@50 • 480p@60 • 576p@50 • 720p@60 • 720p@50 • 1080i@60
• 1080i@50 • 1080p@60 • 080p@50 • 1080p@30 • 1080p@25 • 1080p@24
• Dimensions: 76mm (3”)W x 30mm (1 1/8”)H x 105mm (4 1/8”)D
• Power: 5V 1A Center-positive
Connection and Installation
1
2
3
4
5
4
5
FRONT PANEL
HDMI OUT DC 5V
1
2
3
TOSLINK
IN
HDTV IN
Pr/Cr Pb/Cb
Y
3 RCA
to 3 RCA
cable
HC100
HDMI
cable
HC100 Manual2.pdf 8/24/07 9:03:35 AM
C
M
Y
CM
MY
CY
CMY
K
