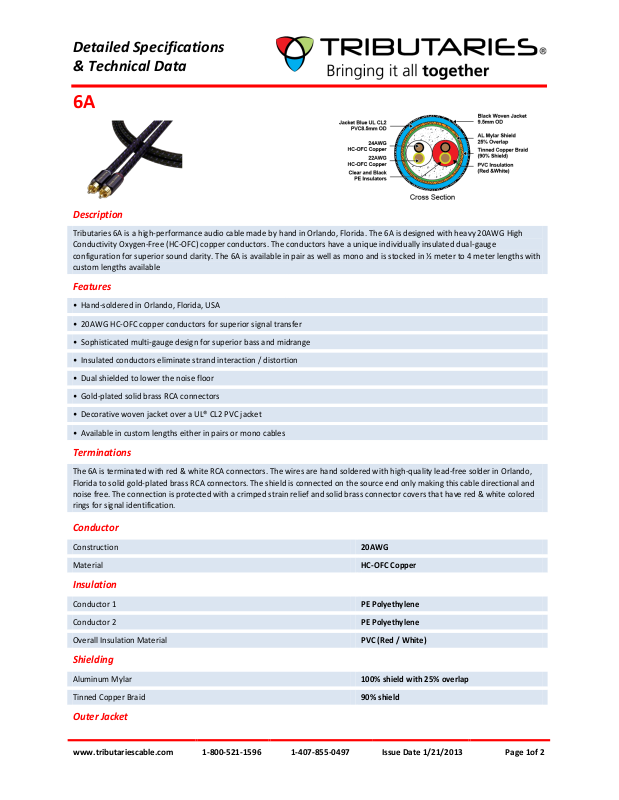

Page 1

Detailed Specifications & Technical Data

www.tributariescable.com

1-800-521-1596

1-407-855-0497

Issue Date 1/21/2013

Page 1of 2

Description

Tributaries 6A is a high-performance audio cable made by hand in Orlando, Florida. The 6A is designed with heavy 20AWG High Conductivity Oxygen-Free (HC-OFC) copper conductors. The conductors have a unique individually insulated dual-gauge configuration for superior sound clarity. The 6A is available in pair as well as mono and is stocked in ½ meter to 4 meter lengths with custom lengths available

Features

• Hand-soldered in Orlando, Florida, USA

• 20AWG HC-OFC copper conductors for superior signal transfer

• Sophisticated multi-gauge design for superior bass and midrange

• Insulated conductors eliminate strand interaction / distortion

• Dual shielded to lower the noise floor

• Gold-plated solid brass RCA connectors

• Decorative woven jacket over a UL® CL2 PVC jacket

• Available in custom lengths either in pairs or mono cables

Terminations

The 6A is terminated with red & white RCA connectors. The wires are hand soldered with high-quality lead-free solder in Orlando, Florida to solid gold-plated brass RCA connectors. The shield is connected on the source end only making this cable directional and noise free. The connection is protected with a crimped strain relief and solid brass connector covers that have red & white colored rings for signal identification.

Conductor

Construction

20AWG

Material

HC-OFC Copper

Insulation

Conductor 1

PE Polyethylene

Conductor 2

PE Polyethylene

Overall Insulation Material

PVC (Red / White)

Shielding

Aluminum Mylar

100% shield with 25% overlap

Tinned Copper Braid

90% shield

Outer Jacket

Page 2

Detailed Specifications & Technical Data

www.tributariescable.com

1-800-521-1596

1-407-855-0497

Issue Date 1/21/2013

Page 2of 2

Decorative Outside Jacket Cover

Woven Mesh Black with Violet stripe

UL® CL2 Rated Jacket Color

Black

Material

PVC – Polyvinyl Chloride

Outside Diameter

9.5mm (8.5mm without decorative woven mesh)

Notes

While Tributaries has made every reasonable effort to ensure the accuracy of these specifications, information contained herein may be subject to error and omission and to change without notice. Tributaries provides these specifications on an “AS IS” basis, with no representations or warranties, whether express, statutory or implied.

The cable will be packaged to preclude the inducement of damage due to handling and transportation, and will be in accordance with the best commercial practices available. Shipping containers will be constructed as to eliminate any possible damage to the cable due to shipment.

Stock Models

Stock Code

Description

Color

Quantity

6A-005

Series 6 Audio —.5m
