USER'S GUIDE
PON OPTICAL POWER METER
EnglishEnglish
Page 2
Page 3
WARNING
You are cautioned that changes or modifications not espressly approved in
this document could void yout authority to operate this equipment.
To reduce the risk of fire or electric shock,do not expose this apparatus to
rain or moisture.
To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.
NOTE
As the laser is harmful to the eyes, do not attempt to disassemble the cabinet.
CLASS I LASER PRODUCT
Precautions for Use
Use batteries
At the same time, can not use different style or different capacitance batteries.
And only charge the rechargeable batteries.
Avoiding condensation problems
As much as possible, avoid sudden temperature changes. Do not attempt
to use the drive immediately after moving it from a cold to a warm location,
to raising the room temperature suddenly, as condensation may form with
in the drive. If the temperature changes suddenly while using the drive,
stop using it and take out batteries for at least an hour.
Storage
When long time no use, must take out the batteries to avoid destroying the
device.
1
Page 4
Standard

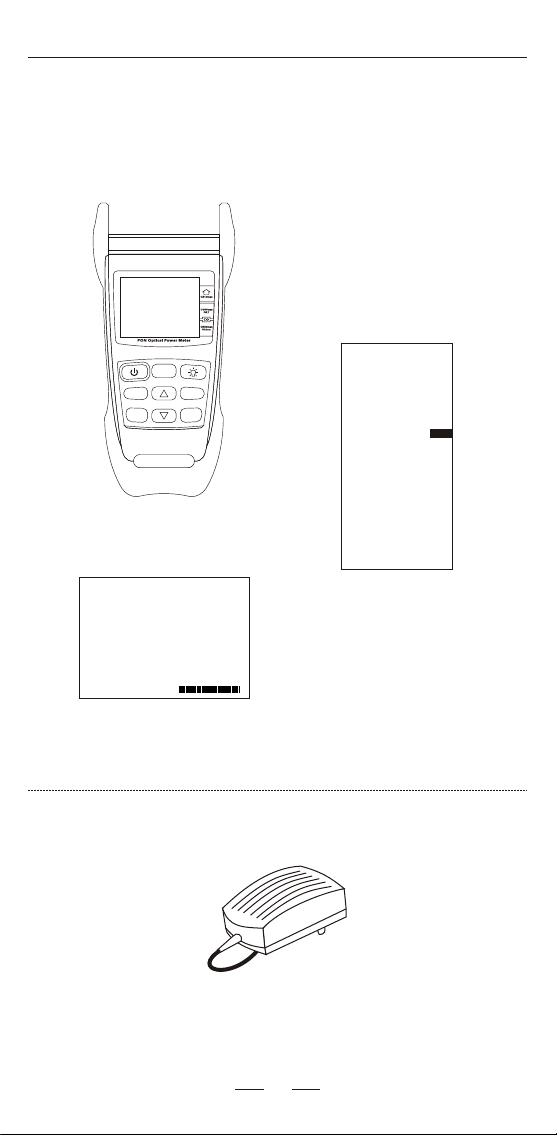

First check the accessories
()If any accessory is short please relate with the dealer ASAP
F/P
mode
>2S PERM
dBm/dB
Threshold
REF/
Save
ReCall
Enter
Host
USER'S GUIDE
PON OPTICAL POWER METER
Manual
EnglishEnglish
Calibration Certificate
Optional
AC/DC Adaptor
2
Page 5
1
16
Description
2
3
10
F/P
4
5
7
>2S PERM
dBm/dB
Save
ReCall
mode
Threshold
REF/
Enter
6
8
9
12
11

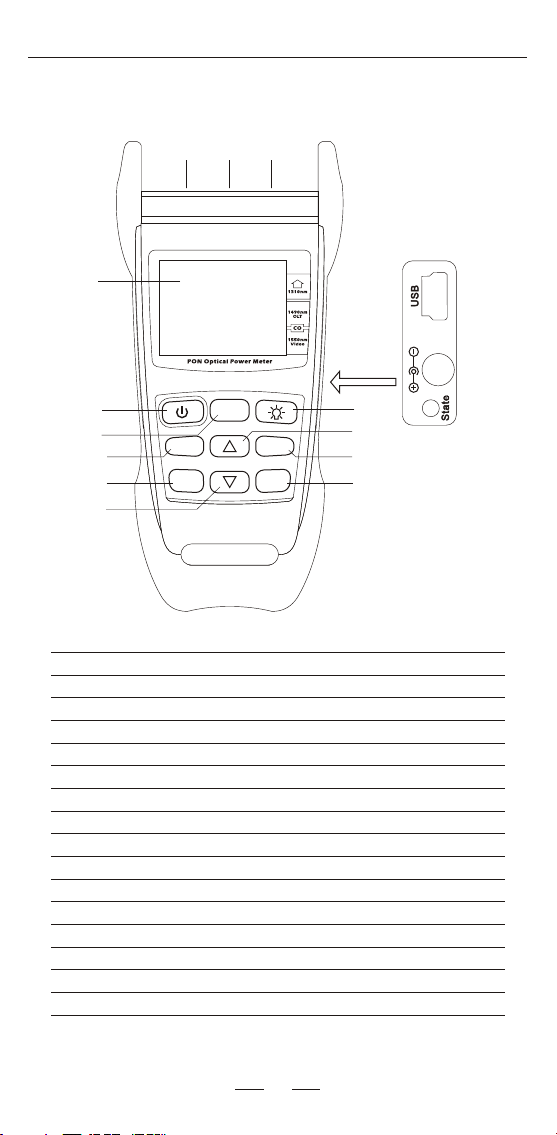

1- ONT (1310nm) input connector
2- OLT/Video (1490/1550nm) input connector
3- LCD
4- Power Key
5- F/P mode Key ( PASS, WRNG, FAIL)
6- VFL key
7- Unit Key ( dBm, dB )
8- Up Key
9- Threshold Key
10- Save Key
11- Down Key
12- REF Key / Enter Key
13- USB port
14- AC/DC port (Chargeable)
15- Battery charging LED
16- Connector of VFL or OPM
13
9V1A9V
1A
14
15
3
Page 6

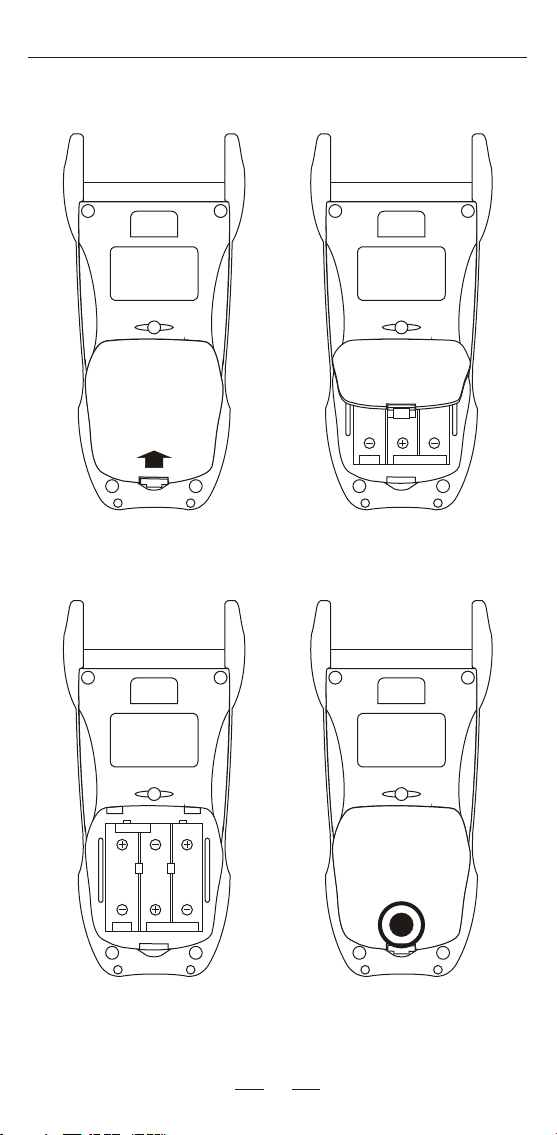

Set batteries
Warning:At the same time, can not use different style and different capacitance batteries.
1.Press and push down
3.Place the batteries
2.Open the lid
4.Close the lid and push up
4
Page 7

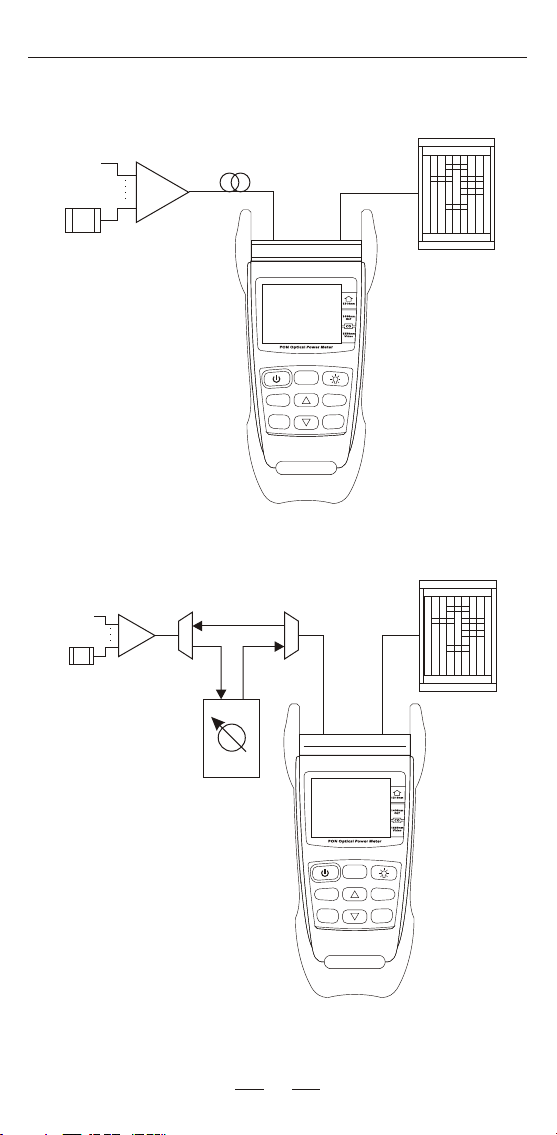

PON testing
Optical Splitter
ONT
Optical Splitter
Lamda
ONT
Demultiplexer
Data Networks Analyser
IXIA/Smartbits
Fiber
F/P
mode
>2S PERM
dBm/dB
Save
ReCall
Data Networks Analyser
IXIA/Smartbits
1490nm
1310nm
Lamda
Multiplexer
Threshold
REF/
Enter
OLT
OLT
Variable Optical
Attenuator
F/P
mode
>2S PERM
dBm/dB
Threshold
REF/
Save
ReCall
Enter
5
Page 8
Power on/off, auto power off
Select Function
PON
OPM
VFL
F/P
mode
>2S PERM
dBm/dB
Save
ReCall
Threshold
REF/
Enter

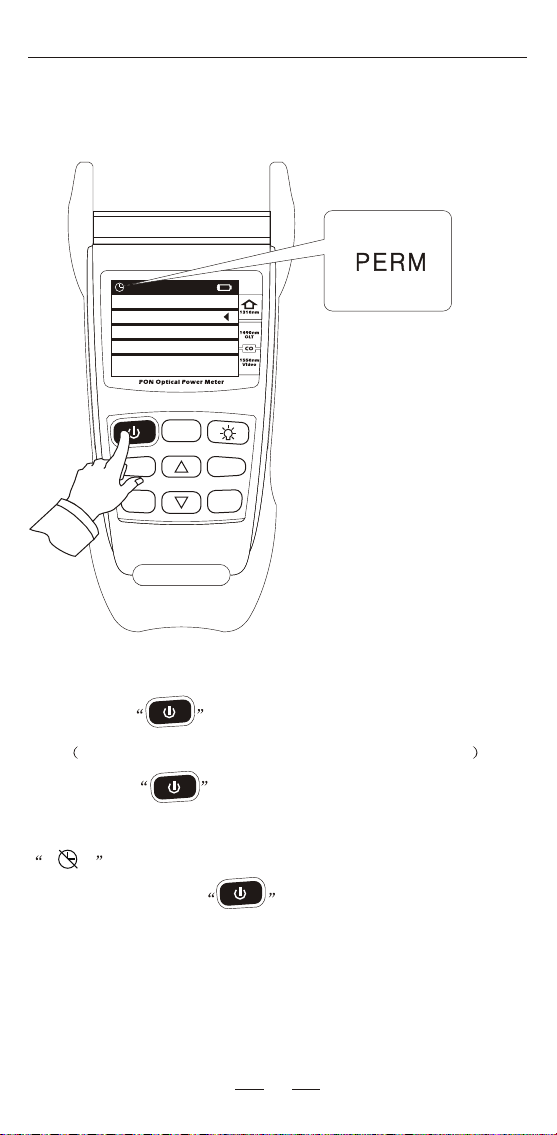

Press the key to turn on the device with auto power
>2S PERM
off. After 10 minutes no key pressed, it will auto power off.

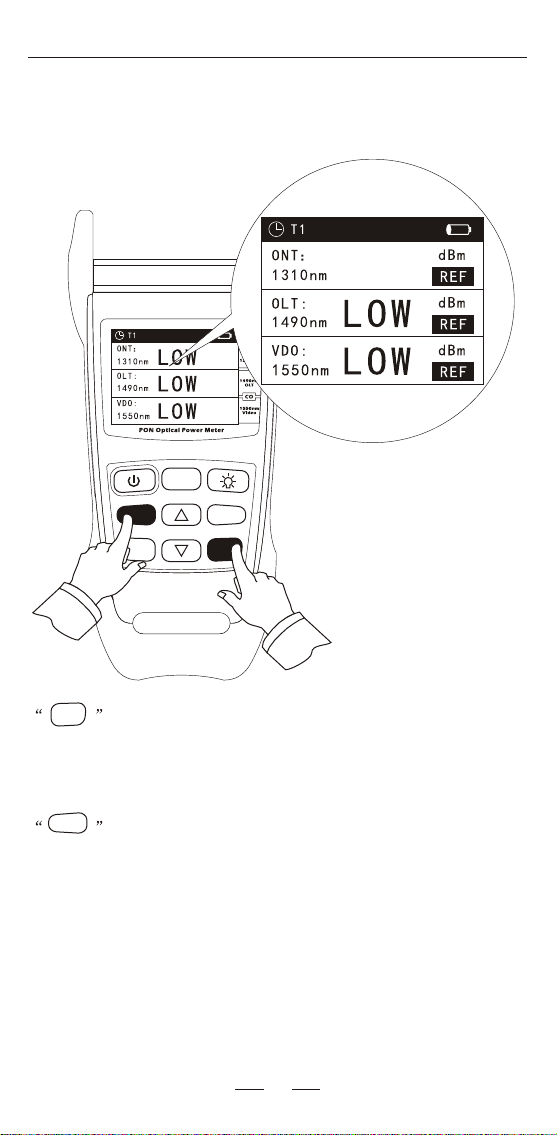

Press the key for 2 seconds when turn on the device,
>2S PERM
the auto power off will be cancelled, and the LCD will show
.
Also long press the key to shut down the device.
>2S PERM
6
Page 9
Select Function
PON
OPM
VFL
>2S PERM
dBm/dB
Save
ReCall
PON Test mode
F/P
mode
Threshold
REF/
Enter
It can test the signal of 1310,1490,1550nm and show its power
at the same time.
HI and LOW mean the result is out of the testing range.
7
Page 10
>2S PERM
dBm/dB
Save
ReCall
PON- F/P Mode
F/P
mode
Threshold
REF/
Enter

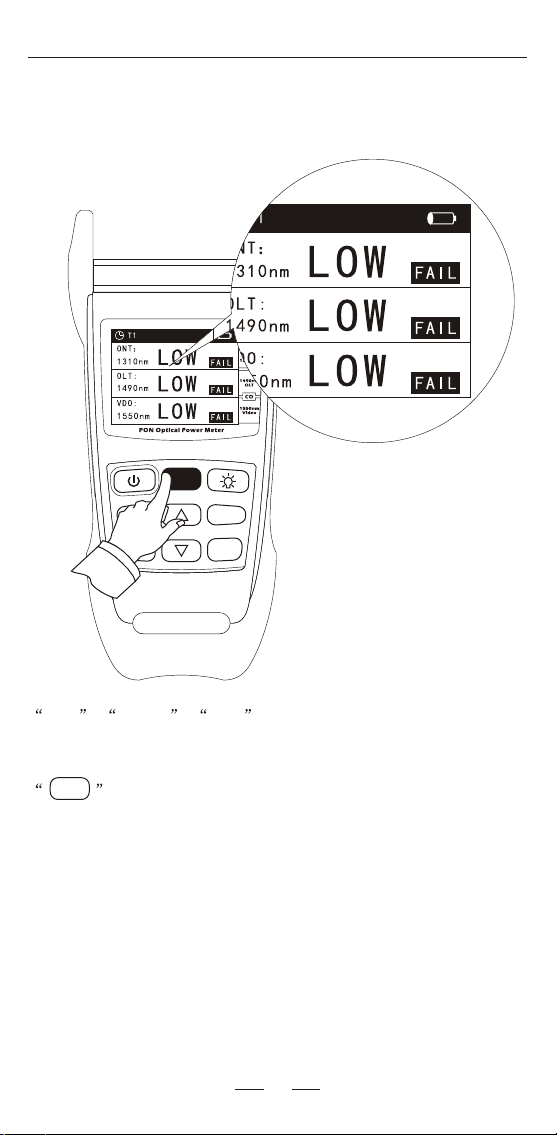

PASS , WRNG , FAIL :
Alarm, depends on the threshold the user set.
F/P
mode
key
Open or close the alarm function ( PASS, WRNG, FAIL ).
On LCD
:
there are warning words beside the results.
Tx:
The group NO of thresholds.
8
Page 11
>2S PERM
-18.69
dBm/dB
Save
ReCall
PON- REF set
F/P
mode
Threshold
REF/
Enter
REF/
Enter
key: It will show you the reference value you stored
before, then turn the unit to dB. Keep pressing it for 2 seconds, you
can save current value as a new reference.
DBm/dB
key: Change the unit ( dBm, dB).
Note: The value must be in the testing range when you press these
two keys.
9
Page 12
PON- Threshold set
Threshold
Unit : dBm
OLT:1490nm
ONT:1310nm
VDO:1550nm
OVER FALT : OVER FALT :
OVER FALT :
03.0
LOW WRNG: LOW WRNG:
LOW WRNG:
-20.0
LOW FALT : LOW FALT :
LOW FALT :
-30.0
03.0
-20.0
-30.0
03.0
-20.0
-30.0
NUM: 5
>2S PERM
dBm/dB
Save
ReCall
03.0
-20.0
-30.0
Threshold
OLT:1490nm
OVER FALT :
LOW WRNG:
LOW FALT :
VDO:1550nm
F/P
mode
03.0
-20.0
-30.0
03.0
-20.0
-30.0
Threshold
REF/
Enter
Threshold
Unit : dBm
NUM: 5
ONT:1310nm
OVER FALT : OVER FALT :
LOW WRNG: LOW WRNG:
LOW FALT : LOW FALT :

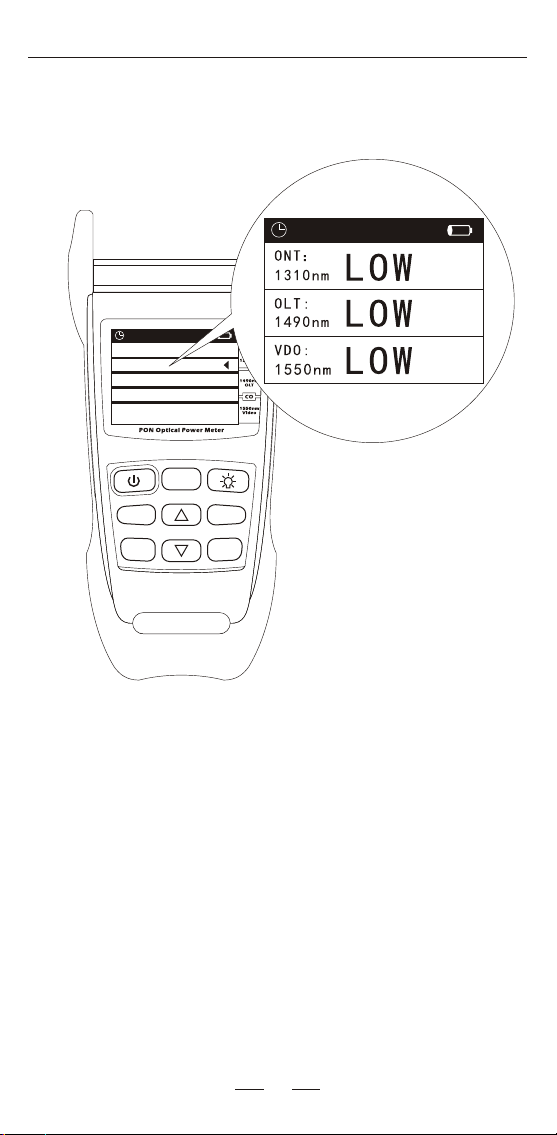

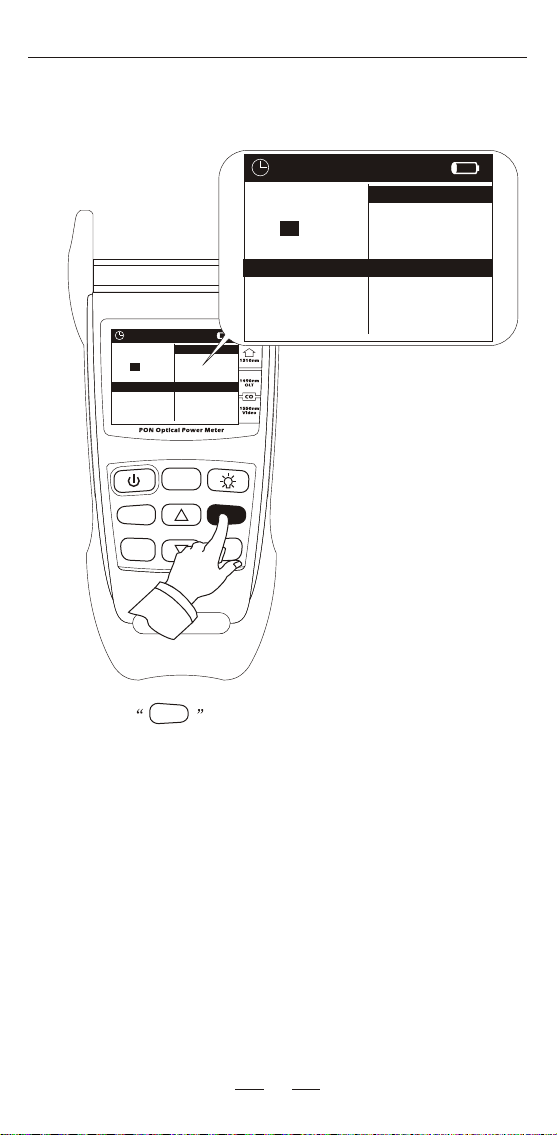

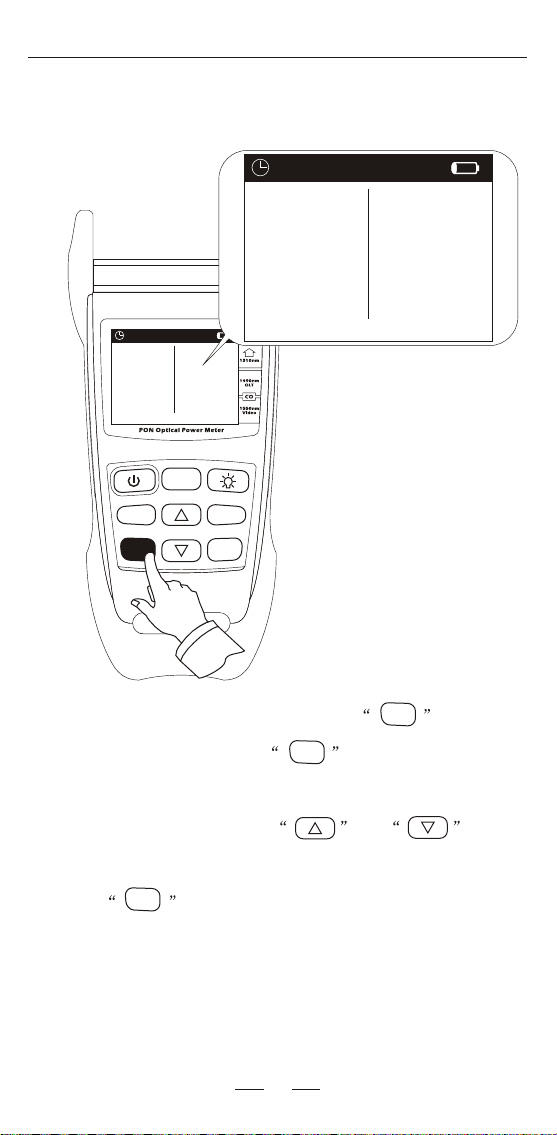

Press the key, user can shift the interface. The upper
right picture shows the threshold set interface.
User can set these 10 thresholds. Please see page 11 for details.
10
Page 13
FIGURE 1
PON- Threshold set
03.0
-20.0
-30.0
OLT:1490nm
OVER FALT :
LOW WRNG:
LOW FALT :
VDO:1550nm
03.0
-20.0
-30.0
03.0
-20.0
-30.0
Threshold
Unit : dBm
NUM: 5
ONT:1310nm
OVER FALT : OVER FALT :
LOW WRNG: LOW WRNG:
LOW FALT : LOW FALT :
FIGURE 2
ONT:1310nm------
OVER FALT :
LOW WRNG:
LOW FALT :
03.0
-20.0
-30.0
Wavelength
Max. Value
Warning Value
Min. Value
FIGURE 3
LOW FALT :

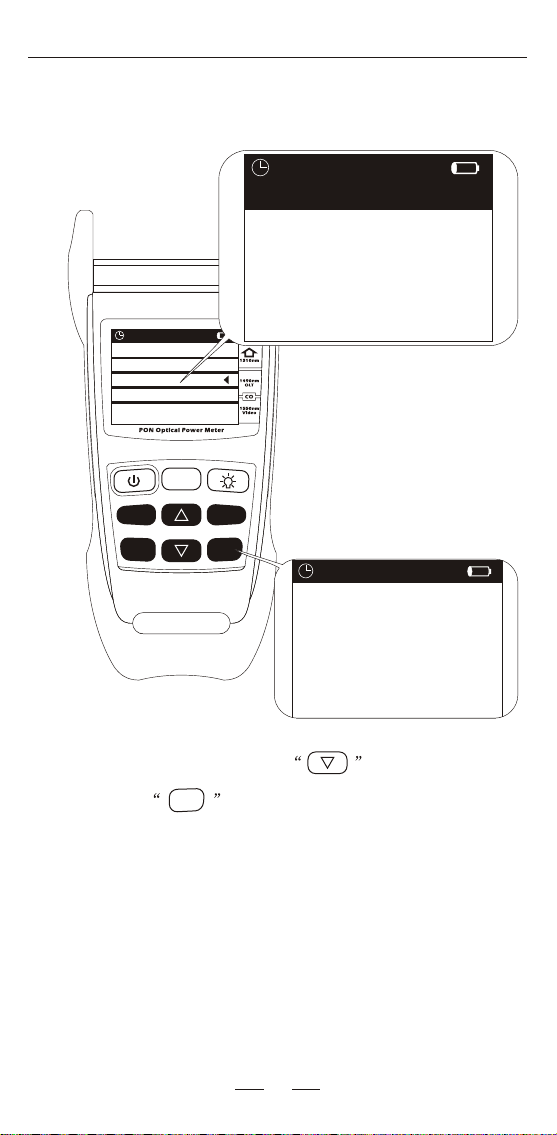

When the cursor is on NUM , you can change the
threshold number by pressing key. (see figure 1)
Enter
When the cursor is on FALT: , WRNG: , FALT: , you can
shift the cursor from each bit of the data. (see figure 2)
Move the cursor up, please note the cursor is not in one
bit of any data.
Increase the bit by 1, when the cursor is in one bit of any
data. (see figure 3)
Move the cursor down, please note the cursor is not in one
bit of any data.
Decrease the bit by 1, when the cursor is in one bit of any
data. (see figure 3)
-30.0
REF/
Enter
How to understand the threshold:
1.Each wavelength has its threshold.
2.If the current value > Max. Value, the alarm of corresponding
wavelength will be FAIL .
3.If the current value < Max. Value, but > Warning Value, the
alarm of corresponding wavelength will be PASS .
4.If the current value < Warning Value, but > Min. Value, the
alarm of corresponding wavelength will be WRNG .
5.If the current value < Min. Value, the alarm of corresponding
wavelength will be FAIL .
11
Page 14
0001
0001
0002
0003
0004
0005
0006
0007
0008
0009
0010
1310nm
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
1490nm
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
1550nm
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
History
0002
0003
0004
0005
0006
0007
0008
0009
0010
History
>2S PERM
dBm/dB
Save
ReCall
PON- Data Storage
1310nm
1490nm
mode
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
F/P
1550nm
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
Threshold
REF/
Enter
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
Save

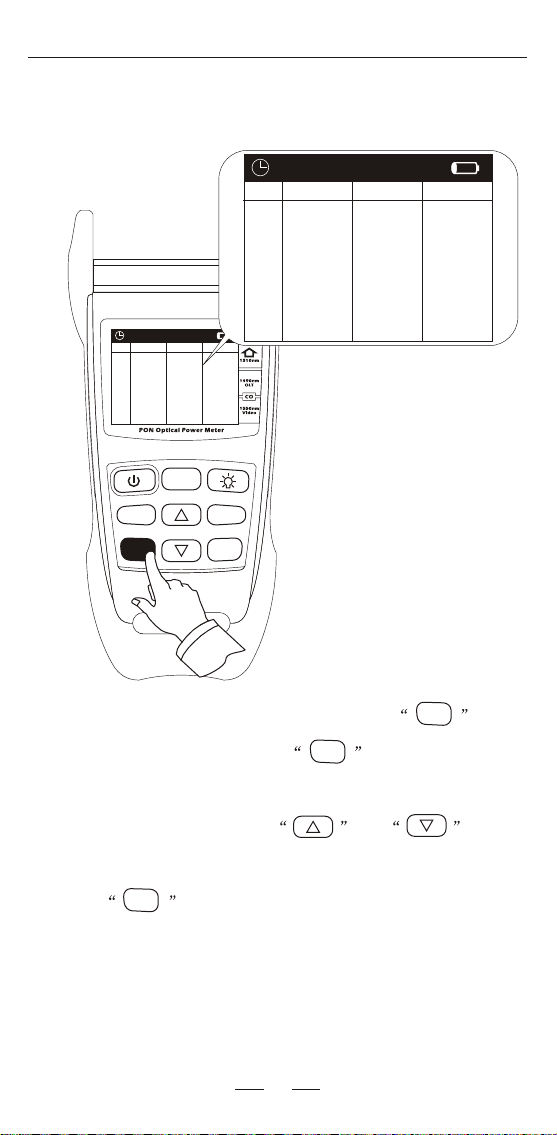

When in PON testing interface, user can press key to
Save
the History interface. And press the key for 2 seconds to
ReCall
ReCall
save the current value.
In the History interface, press and key to
change the history page.
Save
Press key again back to the testing interface.
ReCall
12
Page 15
0.00
0.00
0.00
0.00
0.00
0.00
1300nm
1550nm
850 nm
1490nm
1310nm
1625nm
dBm
dBm
dBm
dBm
dBm
dBm
Reference
Select Function
110.83
pw
dBm-26.62
1310nm
PON
OPM
VFL
>2S PERM
dBm/dB
Save
ReCall
mode
F/P
OPM Mode
OPTIONAL
Threshold
REF/
Enter
When turn on the device, press key to select OPM
mode and press key to enter the normal optical power
REF/
Enter
meter mode.
In normal power meter mode:
dBm/dB: change the unit, dBm, uW and dB.
Threshold: change the wavelength,
850/1300/1310/1490/1550/1625nm.
REF/Enter: press to check the REF value, press for 2 seconds to
save the current value as a new REF value.
13
Page 16
01
01
02
03
04
05
06
07
08
09
10
1625nm
1625nm
1625nm
1625nm
1625nm
1625nm
1625nm
1625nm
1625nm
1625nm
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
11
12
13
14
15
16
17
18
19
20
1625nm
1625nm
1625nm
1625nm
1625nm
1625nm
1625nm
1625nm
1625nm
1625nm
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
Page1/5
History
02
03
04
05
06
07
08
09
10
History
1625nm
1625nm
1625nm
1625nm
1625nm
1625nm
1625nm
1625nm
1625nm
1625nm
>2S PERM
dBm/dB
Save
ReCall
OPM-Data Storage
1625nm
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
0.00
Page1/5
mode
0.00
11
1625nm
0.00
12
1625nm
0.00
13
1625nm
0.00
14
1625nm
0.00
15
1625nm
0.00
16
1625nm
0.00
17
1625nm
0.00
18
1625nm
0.00
19
1625nm
0.00
20
F/P
Threshold
REF/
Enter
Save
When in testing interface, user can press key to the
Save
History interface.. And press the key for 2 seconds to save
ReCall
ReCall
the current value.
In the History interface, press and key to
change the history page.
Save
Press key again back to the testing interface.
ReCall
14
Page 17
Select Function
VFL
PON
OPM
VFL
>2S PERM
dBm/dB
Save
ReCall
mode
F/P
VFL Mode
OPTIONAL
Threshold
REF/
Enter

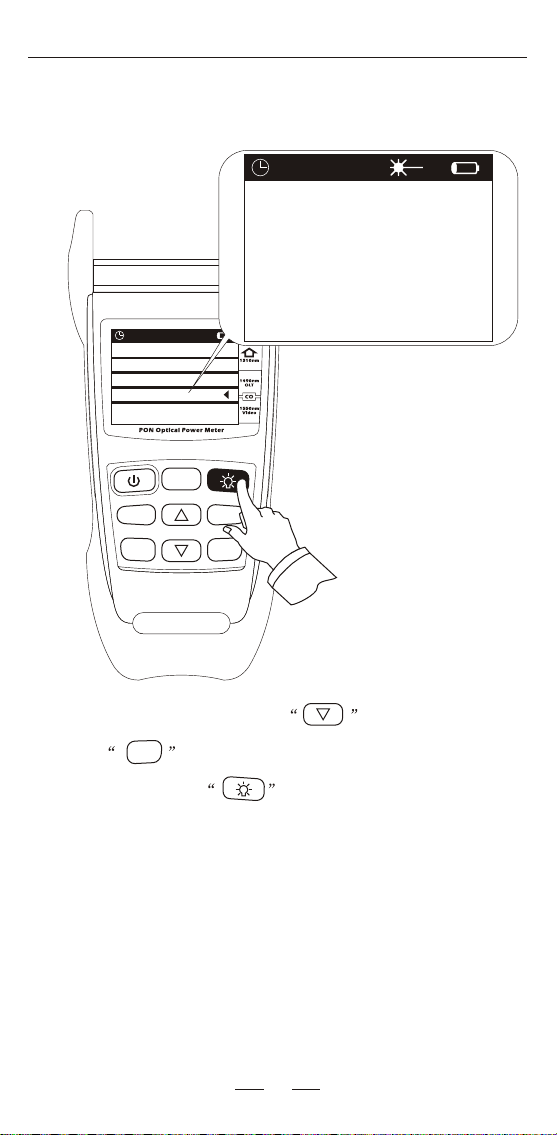

When turn on the device, press key to select VFL mode
REF/
and press key to enter the visual fault locator mode.
Enter
In VFL mode: press key can change the light status
to be ON - Flashing - OFF.
15
Page 18
Select Function
PON
OPM
VFL
>2S PERM
dBm/dB
Save
ReCall
Battery energy detect
F/P
mode
Threshold
REF/
Enter

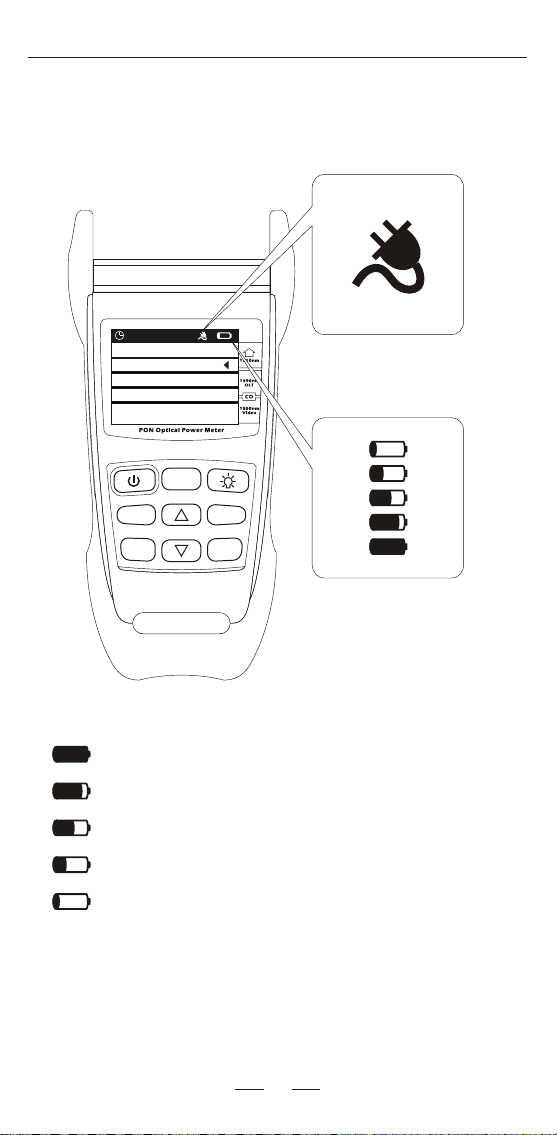

Battery energy has five indicators:
Remain 80%---100%
Remain 60%---80%
Remain 40%---60%
Remain 20%---40%
Remain less than 20%
If the energy is too low, the beep will be on and the device will
auto power off. When you plug in the AC adapter and rechargeable
batteries inside, the screen will show the charging icon on upper
right corner.
16
Page 19
Battery charge
First you must use the rechargeable batteries. When the energy
is less than 20%, you should charge the batteries. Long time low
energy, the life of the batteries will be short. When charging, the
battery indication on LCD will flash. After charging fully, the
indication will stop flashing and show full. Don't charge for more
than 24 hours. If charging while using the device, the time will be
longer. The rechargeable batteries must be in device when you use
the AC/DC adaptor for charging. And do not charge the
non-rechargeable batteries, or the device will be destroyed and also
lose the guarantee.
17
Page 20
Maintenance and calibration
Routine attention
1.Fiber-optical adapter should keep clean.
2.Please store the device in dry and ventilated place.
3.The long period no use , please take out the batteries.
Common malfunction
DescribedDescribed
Can not turn on
After turn on shut it
immediately
Can not charge
Display the messy
code
Operation do not
have reaction
Malfunction causeMalfunction cause
No battery
Check battery
capacities
Use Non-rechargeable
batteries
Reset is incorrect Reset
Program is disorderly
Handle wayHandle way
Check battery setting
Change battery
Change battery
18
Reset
Page 21
PON Detailed Parameter
Measurement of 1310nmMeasurement of 1310nm
Pass band
Measurement range
Max. permitted input level
Isolation of 1490/1550nm bands
Accurate Of Burst Signal
Measurement of 1490nmMeasurement of 1490nm
Pass band
Measurement range
Max. permitted input level
Isolation of 1310nm bands
Isolation of 1550nm bands
Measurement of 1550nmMeasurement of 1550nm
Pass band
Measurement range
Max. permitted input level
Isolation of 1310nm bands
Isolation of 1490nm bands
1260nm~1360nm
+10dBm~-35dBm
15dBm
>40dB
< 0.5dB
1480nm~1500nm
+10dBm~-50dBm
15dBm
>40dB
>40dB
1530nm~1570nm
+25dBm~-45dBm
25dBm
>40dB
>40dB
Optic type
Optic connector
Accurate
Linearity
Pass through insertion loss
Power supply
Battery life
Chargeable
Auto-off
Operating Temp
Storage Temp
Weight
Size
SM 9/125um
SC/PC (or customize)
0.2dB(Burstsignal: 0.5dB)
0.1dB
<1.5dB
Size AA x 3batteries or AC/DC adapter
>20H
Yes
Yes
-10 ~ +50 , <95%RH
-20 ~ +60 , <95%RH
400g
190mm*95mm*50mm
19
Page 22
OPM/ VFL Detailed Parameter
Visual Fault LocatorVisual Fault Locator
Wavelength
Output Power
V01
V10
V15
V20
V25
Optic connector
Optical Power MeterOptical Power Meter
Measurement range
T
M
C
Resolution
Accurate
Linearity
Detector type
Connector
Range of Wavelength
Calibration Wavelength
650 20nm
1mW
10mW
15mW
20mW
25mW
2.5mmUPP
-70dBm~+8dBm
-60dBm~+18dBm
-50dBm~+26dBm
0.01dB
0.2dB
2%
InGaAs
FC/PC & 2.5mm UPP
700~1700nm
850/1300/1310/1490/1550/1625nm
Model OptionModel Option
Standard
V01
V10
V15
V20
V25
T
M
C
PON Power Meter
PON Power Meter + 1mW VFL
PON Power Meter + 10mW VFL
PON Power Meter + 15mW VFL
PON Power Meter + 20mW VFL
PON Power Meter + 25mW VFL
PON Power Meter + OPM(-70~+8dBm)
PON Power Meter + OPM (-60~+18dBm)
PON Power Meter + OPM (-50~+26dBm)
20
Page 23
21
Page 24
161214P/N 40331 Rev.4007
Loading...
