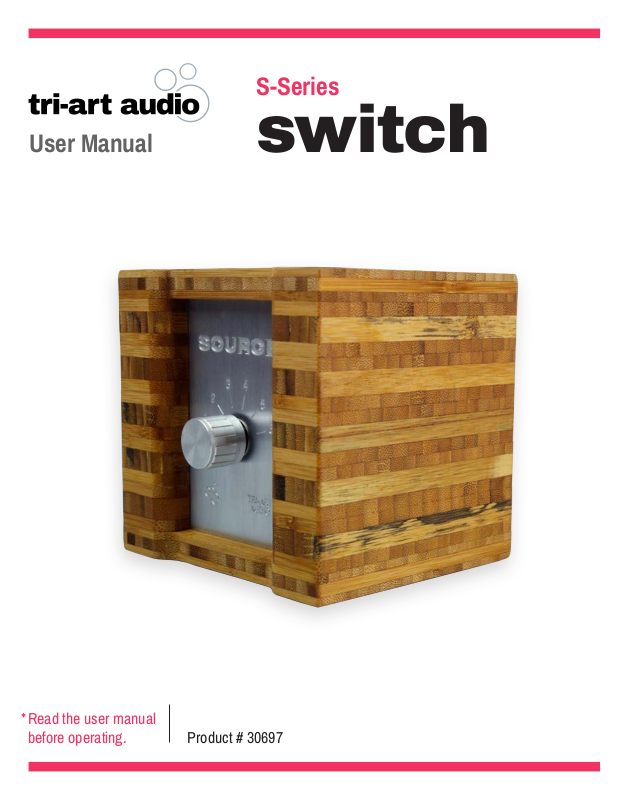

tri-art audio S Series User Manual

S-Series

User Manual

switch

* Read the user manual
before operating.

Product # 30697

safety
information

Before you start...

Warning of a hazard for the user, the unit or possible misuse. Important notice.

Thank you for buying a Tri-Art Audio product. Please read through this manual to understand and
operate this this product correctly. Please keep this manual in a safe place so that you may refer
to it whenever necessary. Please ensure the product you are using is rated for your country’s
electrical system, or it will not be covered under our warrenty.

Warning:

To prevent re or shock hazard, do not expose this product to rain or moisture.

Important Notice:

The serial number for this equipment is located on the bottom of this component. Please write this
serial number on the enclosed warrenty card and follow the instructions to register your product for
our three (3) year limited warrenty.

This equipment is designed for consumer use, such as home audio systems. It is not designed to
operate in a business environment or a mobile application. Mobile, pro or commerical businesses
such as resturants will not be covered under warrenty.

caution: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable

parts inside. Refer servicing to qualied service personnel.

safety
information

Safety Instructions

Read Instructions:

All the safety and operating instructions should be read before operating this equipment.

Retain Instructions:

The safety and operating instructions should be retained for future reference.

Heed All Warnings:

All warnings, set up procedures, and operating instructions should be strictly adheared to.
Follow all instructions carefully.

Water and Moisture:

Under no circumstances should this audio component be used near water.
It is not to be used in a bathroom, water closet, shower, kitchen, wet basement,
pool/spa/suana area, or outside.

safety
information

Safety Instructions

Ventilation:

Please ensure that the location of this equipment is such that in no way does it prevent adequate
ventilation. Do not enclose this in fabric or enclose in a cabinet where there is no adequate

ventilation. In no instance should the product be located where the ow of air is impeded or cannot

allow proper vanilation.

Heat:

This product should be located well away from all the heat sources such as but not limited to

heaters, forced air heat, radiators, stoves, and replaces.

Power Sources:

The Tri-Art component should be connected to a power supply as listed on the actual component
and manual.

Cleaning:

Your Tri-Art product was soaked in hemp oil and sealed in beeswax. Only use the Tri-Art Beeswax
and Hemp Oil in moderate amounts as per the instructions to freshen up the appearance from time
to time as needed. Do not use lacquers or aerosol wax products with this product. Do not pour

water on the surface at any time.

Heavy Objects:

Do not place heavy objects on this component.

switch front:

1

Input Labels (6 Different Inputs)

2

Input Selector Knob

1

2

switch back:

1 4

Input Labels

2

Left and Right Inputs 1 to 3

3

Left and Right Inputs 4 to 6

Output Group 1

5

Output Group 2

1

1

3

4

2

5

3

6

5

2

4

use &
guidelines

The Switch box will connect up to six stereo pair of RCA inputs. There are two outputs. Outputs
can be connected to our Headphone amplier and our integrated amplier and can be used

concurrently.

Switch Example

The Tri-Art Audio switch can be used to swap between source at the turn of a knob.

Bluetooth Receiver P-Series

Phono Amp

input

1

4

Blue-Ray Player

FM Tuner

SPIDIF DAC

S-Series Power Amp

2

5

3

6

Additional Source

Headphone Amp

switch specs

Input: Six (6) Stereo Pair
Output: Two (2) Stereo Pair
Selector: Six (6) Selection Round Selector Knob

Crafted with bamboo and natural sheep’s wool.
Learn more at triartaudio.com

included
in the box

• S-Series Switch Box

• One (1) 1m Stereo pair of RCA Interconnects

warranty
information

For Your Protection:

Completely and immediately mail the product registration card so that we may contact you

directly in the event a safety notication is issued in accordance with the 1972 Consumer

Safety Act, or for other reasons Tri-Art Audio may deem necessary.

Technical Support Hotline [phone]

Our technical department will gladly answer any questions you may have about our

products. Monday through Thursday, 9am to 5pm and Friday, 9am to 3pm EST.

Manufacturer’s Limited Three Year Warrenty:

Tri-Art Audio warrants this unit to be free from defective material or workmanship and will
repair or replace this unit or any part thereof if it proves defective in normal use or service
within three (3) years from the date of original purchase.

Audio at the address below. This warranty will be considered void if the unit has been
tampered with, improperly serviced, subjected to abuse or misuse or if installed in a
commercial vehicle. This warranty does not cover accidental damage.

For all warranty information please see Tri-Art Audio’s warranty
information card included with your new equipment.

thank you for
your purchase!

triartaudio.com

Designed . Fabricated . Assembled

In Canada
