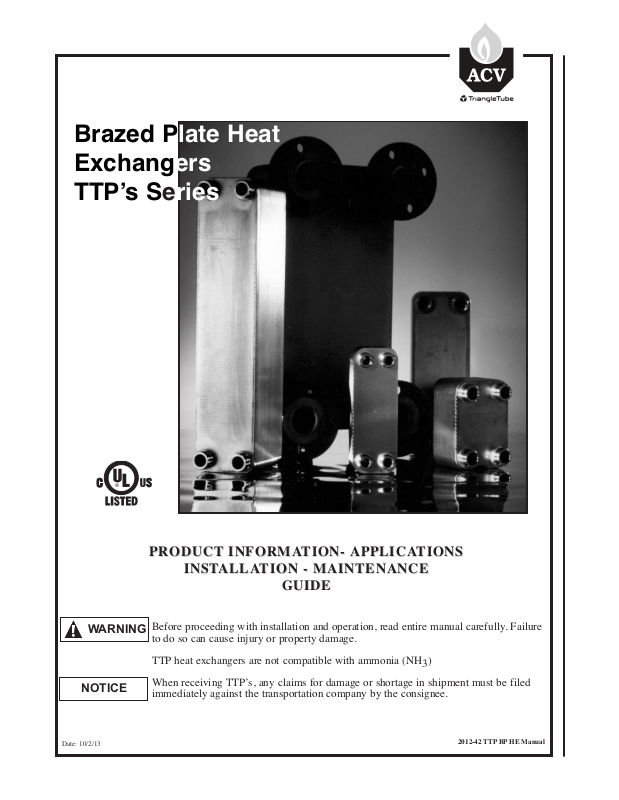

Brazed Plate Heat
®
Exchangers
TTP’s S
eries
PRODUCT INFORMATION- APPLICATIONS
PRODUCT INFORMATION- APPLICATIONS
INSTALLATION - MAINTENANCE
INSTALLATION - MAINTENANCE
GUIDE
GUIDE
WARNING
NOTICE
Date: 10/2/13
Before proceeding with installation and operation, read entire manual carefully. Failure
to do so can cause injury or property damage.
TTP heat exchangers are not compatible with ammonia (NH3)
When receiving TTP’s, any claims for damage or shortage in shipment must be filed
immediately against the transportation company by the consignee.
2012-42 TTP BP HE Manual
Table of Contents
Product and Safety Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
General Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Operating and Code Restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
General Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Maintenance and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Domestic Water Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-10
Radiant and Snow Melt Applications. . . . . . . . . . . . . . . . . . . . . . . . . 11-12
Steam to Water Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Refrigerant (Condenser/Evaporator) Applications. . . . . . . . . . . . . . . 13
Products Specification and Dimensions . . . . . . . . . . . . . . . . . . . . . . 14
Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
i
Product and Safety Information
ollowing terms are used throughout this manual to bring
F
attention to the presence of potential hazards or to
mportant information concerning the product.
i
DANGER
CAUTION
Indicates a potentially hazardous situation which, if
gnored, may result in minor injury or property
i
damage.
Indicates presence of a hazardous situation, which,
if ignored, will result in death, serious injury or substantial property damage.
WARNING
Indicates a potentially hazardous situation which, if
ignored, can result in death, serious injury or sub-
stantial property damage.
NOTICE
Indicates special instructions on installation, operation, or maintenance, which are important to equipment but not related to personal injury hazards.
NOTICE
Triangle Tube reserves the right to modify the technical specifications and components
of its products without prior notice.
1
General Product Information
IGH EFFICIENCY
H
The design of the plates creates two separate channels
for a true counter current flow movement. This complex
hannel system results in high turbulence and high heat
c
transfer.
MATERIALS
The standard TTP Braze Plate Heat Exchanger has
plates and connections made of AISI 316L stainless
steel. The brazing alloy is 99.9% copper. An optional
TTP Braze Plate Heat Exchanger with marine grade
stainless plates and nickel brazing material is available,
see Notice on page 3. The use of these materials provides a high degree of corrosion resistance and suitability with a wide variety of fluids.
SELF CLEANING
TTP Braze Plate Heat Exchangers operate with high turbulence flow, even at low flow rates. This high turbulence keeps small particles in suspension minimizing
fouling and scaling.
PPLICATIONS
A
TTP Braze Plate Heat Exchangers are suitable for a variety of single-phase fluid-to-fluid and two-phase refriger-
ant to fluid applications.
• Fluid-to-Fluid
- Domestic Hot Water production
- Floor Heating
- Snow Melting
- Swimming Pool and Spas - See Notice on page 3
- Industrial Liquid Cooling
- Engine / Hydraulic Oil cooling
• Two-Phase
- Water cooled condensers
- Liquid Chillers
- Economizers
- De-superheaters
- Sub-coolers
2
Operation and Code Restrictions
RODUCT APPROVALS
P
- Triangle Tube’s TTP Braze Plate Heat Exchangers
are UL approved.
- ASME is available as an option.
CODE COMPLIANCE & RESTRICTIONS
• All piping and installations must conform with the
instructions listed in this manual and where applicable:
- Local, state, provincial and national codes.
• Where recommendations in this manual differ from
local, state or national codes, the local, state or
national codes take precedence.
The heat exchanger is a single wall exchanger and complies with National Standard Plumbing Code provided:
- Boiler / primary water (including additives) is
practically non-toxic, having a toxicity rating or
Class of 1 as listed in Clinical Toxicology of
Commercial Products, and
- Boiler / primary water pressure is limited to max-
imum 30 psig by approved relief valve.
Single wall heat exchangers are permitted under
Uniform Plumbing Code - Paragraphs L3.2 and L3.3 if
they satisfy all of the following requirements:
ATER / FLUID QUALITY RESTRICTIONS
W
• pH limit should be maintained between 6 and 8 for
copper brazed exchangers
• pH limit (minimum) of 2 for nickel braze exchangers
• Chloride level of less than 80 mg/l
• Sulfuric Acid or other types of corrosive acids
• Highly chlorinated water such as pool water is not
acceptable and will cause premature failure.
NOTICE
For pool and spa application with chlorine levels up
to 3000 ppm it is recommend to use the nickel
brazed heat exchangers.
Salt water or electronic chlorinating pools and spas
is not acceptable and will cause premature failure.
NOTICE
For salt water or electronic chlorinating pool and
spa applications contact Triangle Tube Technical
Services for assistance in sizing a titanium plate
heat exchanger.
REFRIGERANT RESTRICTIONS
1. The heat transfer medium is potable water or contains only substances, which are recognized as
safe by the U.S. Food and Drug Administration.
2. The pressure of the heat transfer medium is
maintained less than the normal minimum operating pressure of the potable water system.
3. The equipment is permanently labeled to indicate
that only additives recognized as safe by the FDA
shall be used in the heat transfer medium.
Other heat exchanger designs may be permitted
where approved by the administrative authority.
OPERATING RESTRICTION
Max. Operating Pressure (“E” model): 150 psig
Max. Operating Pressure (Double Wall): 362 psig
Max. Operating Pressure: 450 psig
Max. Operating Temperature: 350ºF
Min. Operating Temperature: (-)320ºF
The copper brazed heat exchangers are not compatible
with ammonia (NH3) systems. The heat exchangers with
nickel brazing are suitable for this type of application.
DOUBLE WALL BRAZE PLATE HEAT EXCHANGER
The TTP-5 Series DW is a true double wall heat
exchanger that provides extra protection against leakage while providing leak detection. This system consists
of two stainless steel plates instead of one. In case of
internal damage to the plates, the chance of fluid crosscontamination is reduced.
NOTICE
For sizing applications using a double wall heat
exchanger it is recommended to contact Triangle
Tube’s Engineering Department.
Max. Steam Pressure: 15 psi
3
General Installation
GENERAL INSTALLATION REQUIREMENTS
Ensure all plumbing / piping meets or exceeds
all local, state or national codes.
- Use isolation valves to isolate system components
- Install unions for easy removal of the braze plate
heat exchanger. It is recommended to use
dielectric unions or couplings to protect fittings
from corrosion when connecting dissimilar materials such as copper and galvanized iron pipe.
- Provision should be made to allow for thermal
expansion or vibration.
- It is recommended to provide provisions for back
flushing and / or chemical in-place cleaning.
- A water strainer is recommended on the water
inlet circuit to protect the heat exchanger from
restricted flow rate and/or blockage. The strainer should have a 16-20 mesh as minimum, a 2040 mesh is recommended.
OUNTING GUIDELINES
M
• The heat exchanger should be mounted in a manner
that allows sufficient space to perform maintenance.
• It is recommended that the heat exchanger be
mounted in a vertical position with the colored label
on the left side of the installation. When space and
piping restrictions require another position, the following guidelines should be applied:
Liquid-to-Liquid Single Phase Applications
- The heat exchanger can be mounted in any position that does not create the possibility of trapping
air or other gases in the heat exchanger.
- If the heat exchanger must be mounted with the
connections on the side, orient the heat
exchanger so that the connections for the fluid
likely to have entrapped air is at the top.
Two-Phase Applications
- Flush all piping prior to connecting to the heat
exchanger.
- Provisions should be provided in the piping to
allow air elimination and drainage of the system.
NOTICE
When boiler water is utilized as the hot water circuit,
a strainer may not be required on the inlet side of the
heat exchanger provided a water strainer is incorporated as an integral component in the boiler system.
WARNING
To prevent the over-pressurization of the heat
exchanger, a safety relief valve should be installed
in the piping in the vicinity of the heat exchanger.
The safety relief valve, if required, is to be provided
by the installer.
- The heat exchanger must be mounted in a vertical position.
NOTICE
For steam applications the heat exchanger must be
mounted in a vertical position only.
WARNING
The heat exchanger may have sharp edges.
Exercise caution when handling. Wear gloves.
- It is recommended that the heat exchanger be
supported by a bracket or stand with a bottom
support.
NOTICE
The heat exchanger should not be supported solely
by the piping or connections.
- Insure that severe vibrations or pulsation cannot be transmitted to the heat exchanger.
Install vibration absorbers in the piping and use
vibration absorbing material between the heat
exchanger and the equipment as needed.
4
General Installation
Red label

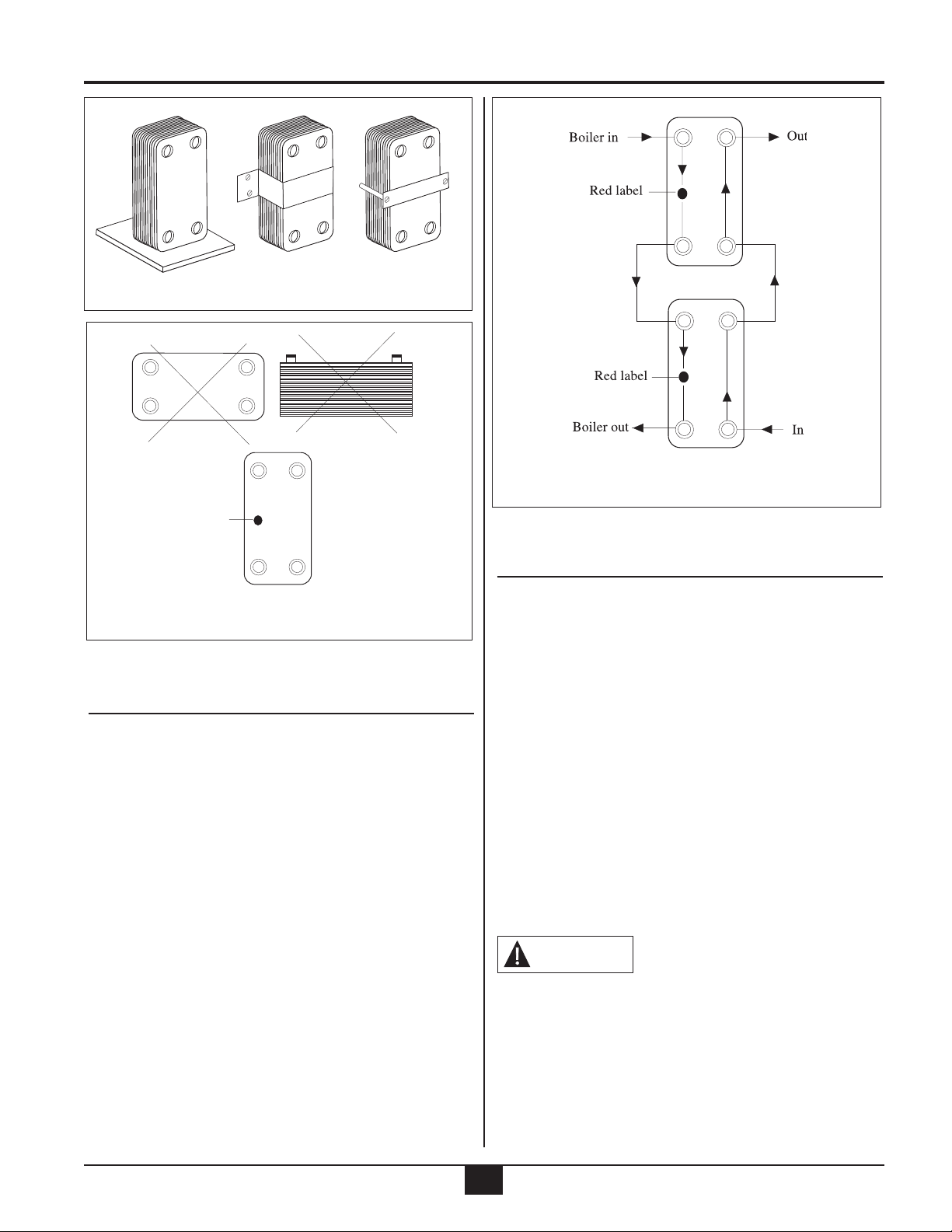

Fig.1: Recommended Methods of Mounting
Fig.3: Multiple Series Arrangement
Fig.2: Recommended Mounting Position
GENERAL PIPING ARRANGEMENTS - MULTIPLE
HEAT EXCHANGERS
Multiple Heat Exchangers in Series
- Able to extend the thermal length (capacity) of a
heat exchanger.
- Generally a high pressure drop occurs through
the heat exchangers
Multiple Heat Exchangers in Parallel
- Able to handle large flow rates with smaller
sized heat exchangers.
- Can maintain lower pressure drops through the
heat exchangers with larger flow rates.
SOLDERING AND WELDING CONNECTIONS
Soldering Procedures:
Recommended solder material: 30 - 55% silver alloy
Recommended flux material: Black flux for silver soldering
1. Degrease and clean the soldering surfaces on
the piping and the heat exchanger connections.
2. Apply the flux to both surfaces.
3. For refrigerant applications, purge using dry
nitrogen gas on the refrigerant side to prevent
internal oxidation.
4. Heat the soldering area to approximately 1200ºF
(650ºC). Use a wet cloth to protect the heatexchanger while brazing.
WARNING
Do not heat the soldering area higher than 1200ºF.
Damage to the heat exchanger brazing material
could occur.
5. Keep the piping in a fixed position and apply the
solder.
5
General Installation
WARNING
Do not braze the heat exchanger in a horizontal or
lat position. Solder material may fall into the heat
f
exchanger or piping connection, creating a blockage
within the distribution channels . Direct the flame
away from the heat exchanger

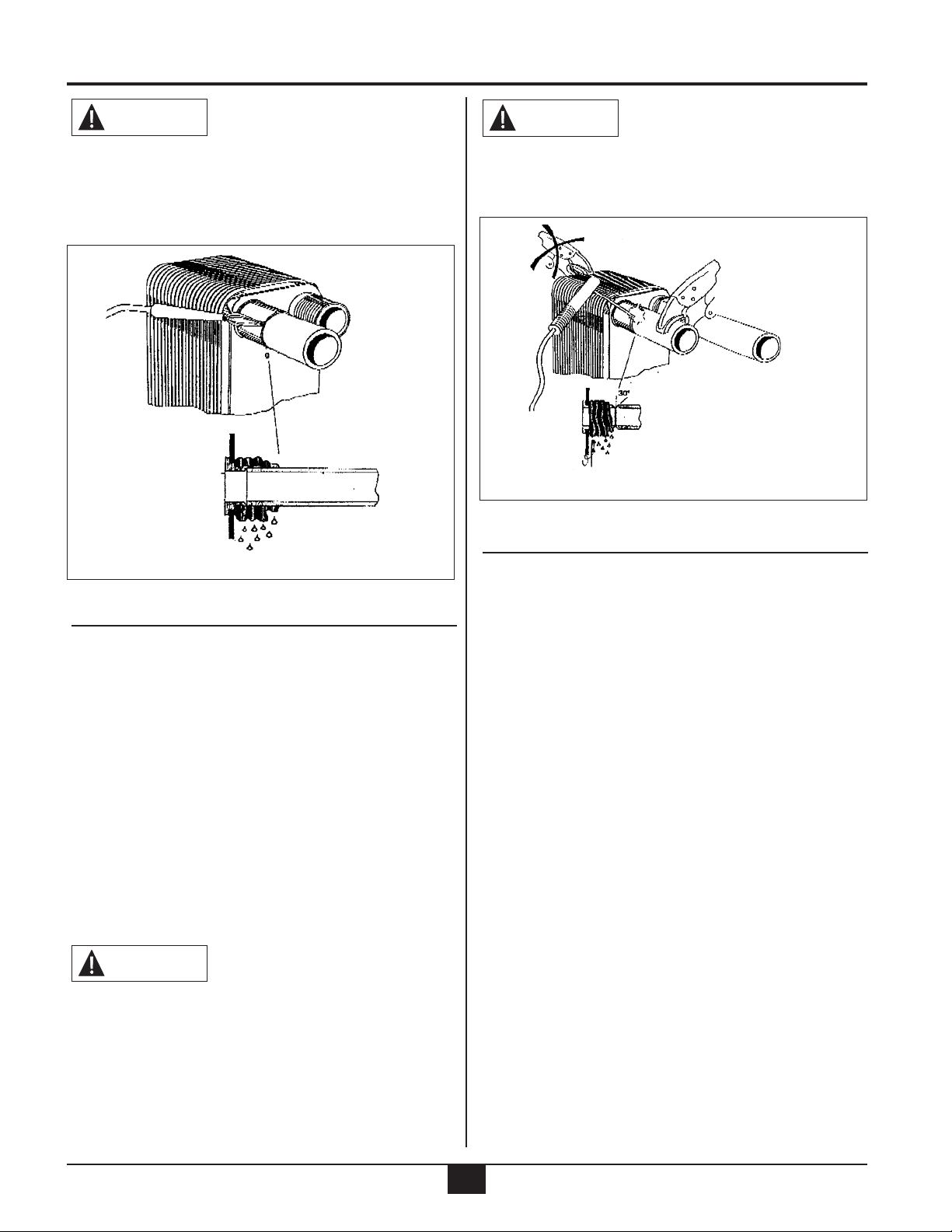

Fig. 4: Solder Connection
WARNING
Do not heat the welding area higher than 1200ºF.
Damage to the heat exchanger brazing material
could occur.
Fig. 5: Welded Connection
THREADED CONNECTIONS
WELDING PROCEDURES
1. Prepare the edge of the connecting pipe for
welding with a 30º angle chamfer.
2. Place the connecting pipe into the heat
exchanger connection.
3. Use TIG or MIG/MAG welding method filling the
groove form by the two edges.
4. For refrigerant applications, purge using dry
nitrogen gas on the refrigerant side to prevent
internal oxidation.
5. Heat the welding area to approximately 1200ºF
(650ºC). Use a wet cloth to protect the heatexchanger while welding.
WARNING
When using electrical welding circuits, connect the
ground terminal to the joining tube, do not connect
to the back of the heat exchanger. Damage to the
internal channels and/or brazing material of the heat
exchanger could occur.

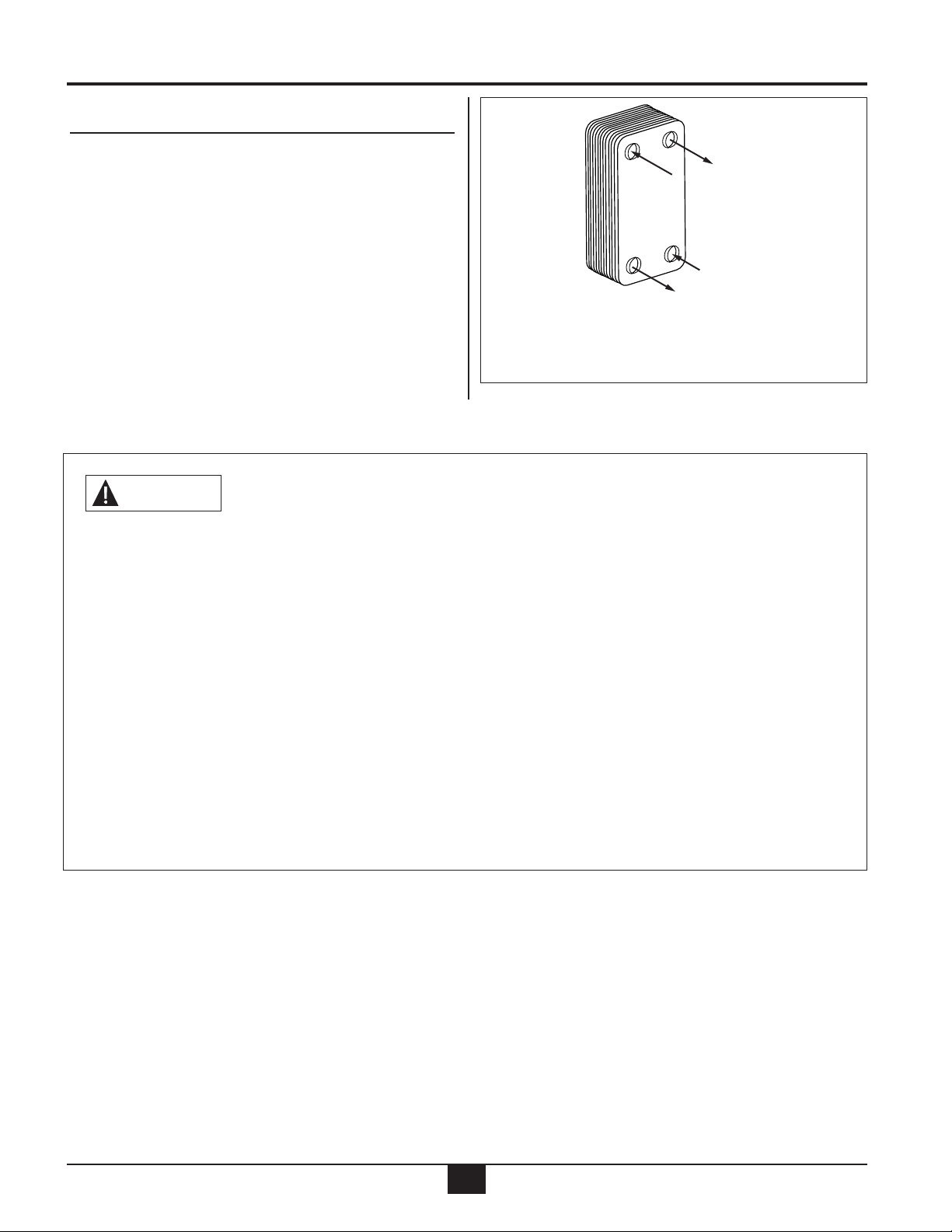

General Guidelines
• Use Teflon or Mylar tape or other sealant on the
male threaded part of the heat exchanger connection to prevent leakage.
• Use a back-up-wrench method when installing
threaded connections. DO NOT over torque the connection. Over tightening connection will damage the
heat exchanger.
6
Maintenance and Cleaning
ENERAL GUIDELINES FOR CLEANING
G
• A 5% solution of Phosphoric Acid or Oxalic Acid is
ecommended as a cleaning solution. Other types
r
of cleaning solutions such as ice making machine
de-scaler are available and may be used, check the
manufacturer’s instructions for compatability.
• Do not heat the acid solution when back flushing
through the heat exchanger.
• Flush the heat exchanger with fresh water when the
cleaning process is completed. A final rinse using a
solution of 1 to 2% sodium hydroxide (NaOH) or
sodium bicarbonate (NaHCO3) ensures all acid is
neutralized.
• For optimum cleaning the cleaning solution flow rate
should be a minimum 1.5 times the normal operational flow rate and preferably in a back flush mode.
WARNING
To prevent damage to the heat exchanger and refrig-
rant components, do not chemically clean the
e
refrigerant circuit of the heat exchanger.
NOTICE
In some applications the heat exchanger may be
subject to severe conditions, including high temperature and/or hard water conditions, causing accelerated scaling and corrosion rates, which will alter the
performance of the heat exchanger. In applications
where these factors are present it is important to
establish a regular maintenance and cleaning
schedule.
7
Applicatons
D
omestic
Outlet
Domestic
Inlet
Primary
Supply
Primary
Return
DOMESTIC WATER APPLICATIONS
• Typically the fluid circuit with the highest temperature and/or pressure should be connected to the left
side connections as indicated with the colored label.
• The circuit flows should be piped in a counterflow
arrangement.
• On instantenous water heating applications (applications without any storage tank) a flow switch must be
used to prevent overheating of the heat exchanger.
• A three-way tempering valve/anti-scalding safety
device is required.
DANGER
Fig. 8: Domestic Piping Arrangement
HOT WATER CAN SCALD!
• Water temperatures over 125ºF can cause
severe burns instantly, or death from scalds.
• Feel water before bathing or showering.
• Consumer Product Safety Commission and
some states recommend temperature settings
of 130ºF or less. Setting thermostat higher than
130ºF will increase the risk of scald injury and
cause severe personal injury or death.
• Water heated to a temperature suitable for
clothes washing, dish washing and other sanitizing needs will scald and cause permanent
injury.
• Children and elderly, infirm, or handicapped persons are more likely to be injured by hot water.
Never leave them unattended in or near a bathtub. If anyone using hot water in the building fits
this description, or if state laws or local codes
require certain water temperatures at hot water
faucets, take special precautions.
- Install an automatic mixing valve at the heat
exchanger or at each hot water faucet, bath
and shower outlet. Selection and installation must comply with valve manufacturer’s
recommendation and instructions.
- Use the lowest practical temperature set-
ting.
8
Applications

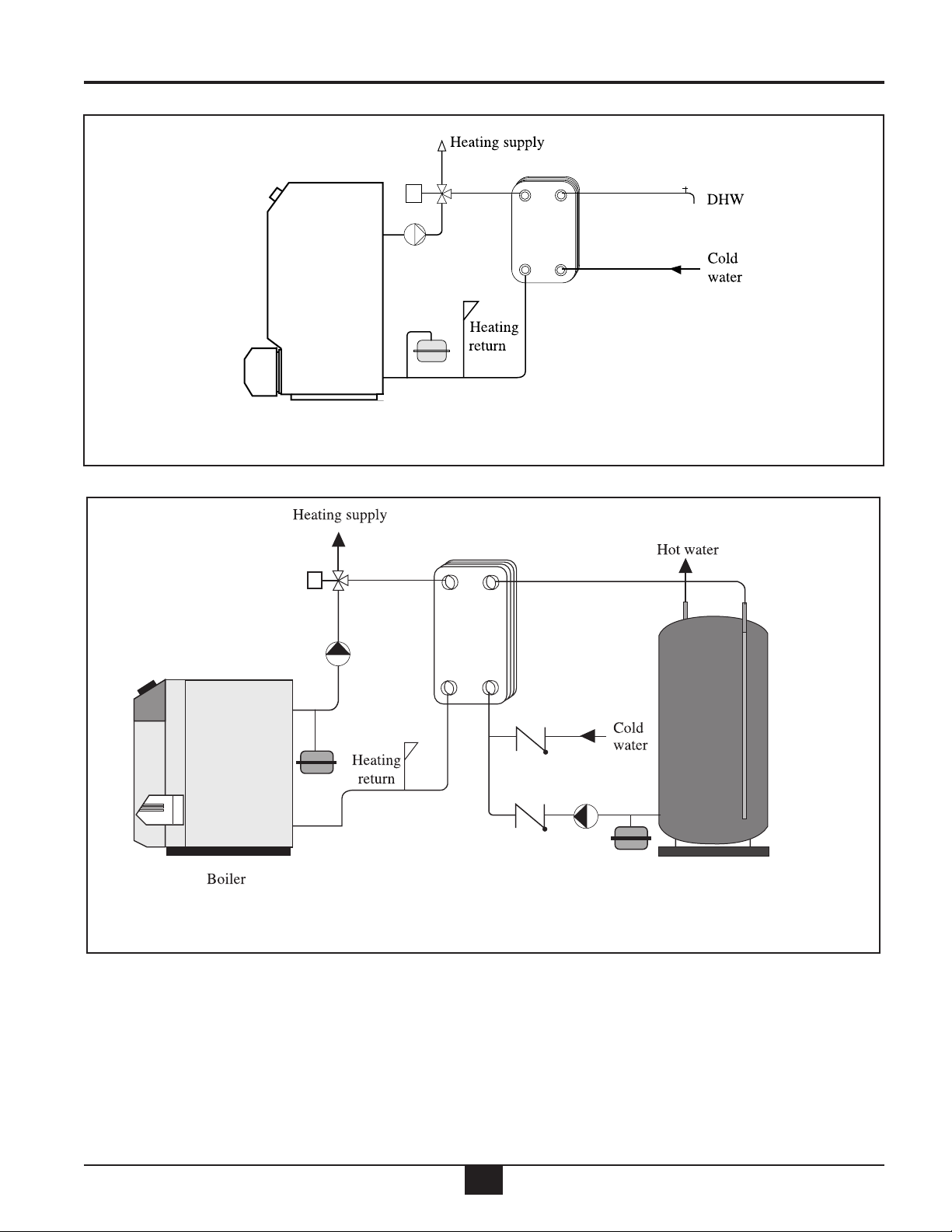

Fig. 9: Example of TTP heat exchanger providing instantaneous DHW
Fig. 10: Example of TTP heat exchanger combined with storage tank
9
Applications

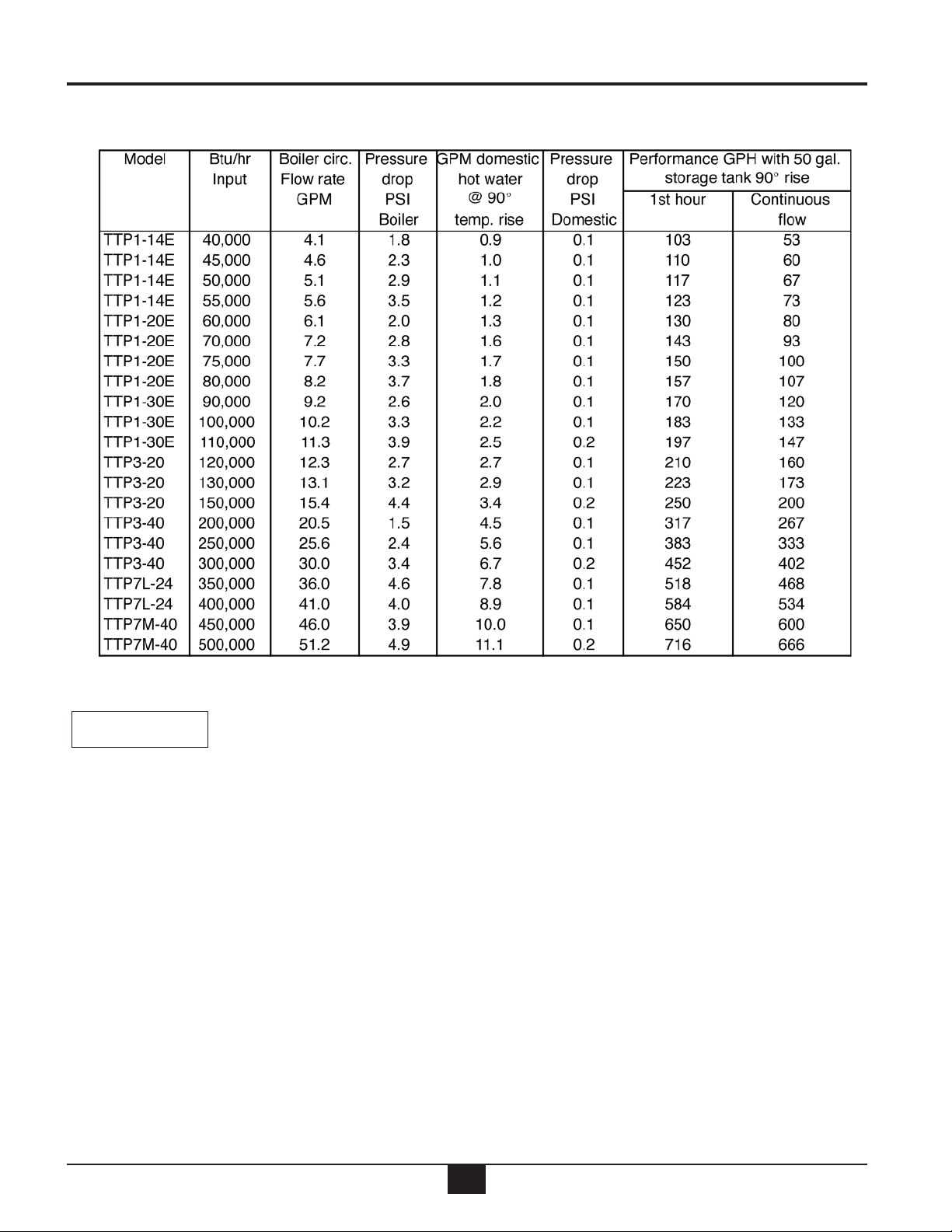

hart 2: Domestic Application Sizing
C
Boiler Water Supply: 180 ºF, Domestic Inlet Temp.: 50 ºF
NOTICE
The sizing Data in Chart 2 includes only a general
overview of sizing applications available. For additional or more detailed sizing parameters contact
your local Triangle Tube Distributor or Triangle
Tube’s Engineering Department.
10
Applications
Snow melting slab
or radiant floor
circulator
Balancing valve
TTP heat exchanger
Supply other zones
Boiler
circulator
Returns
Air separator

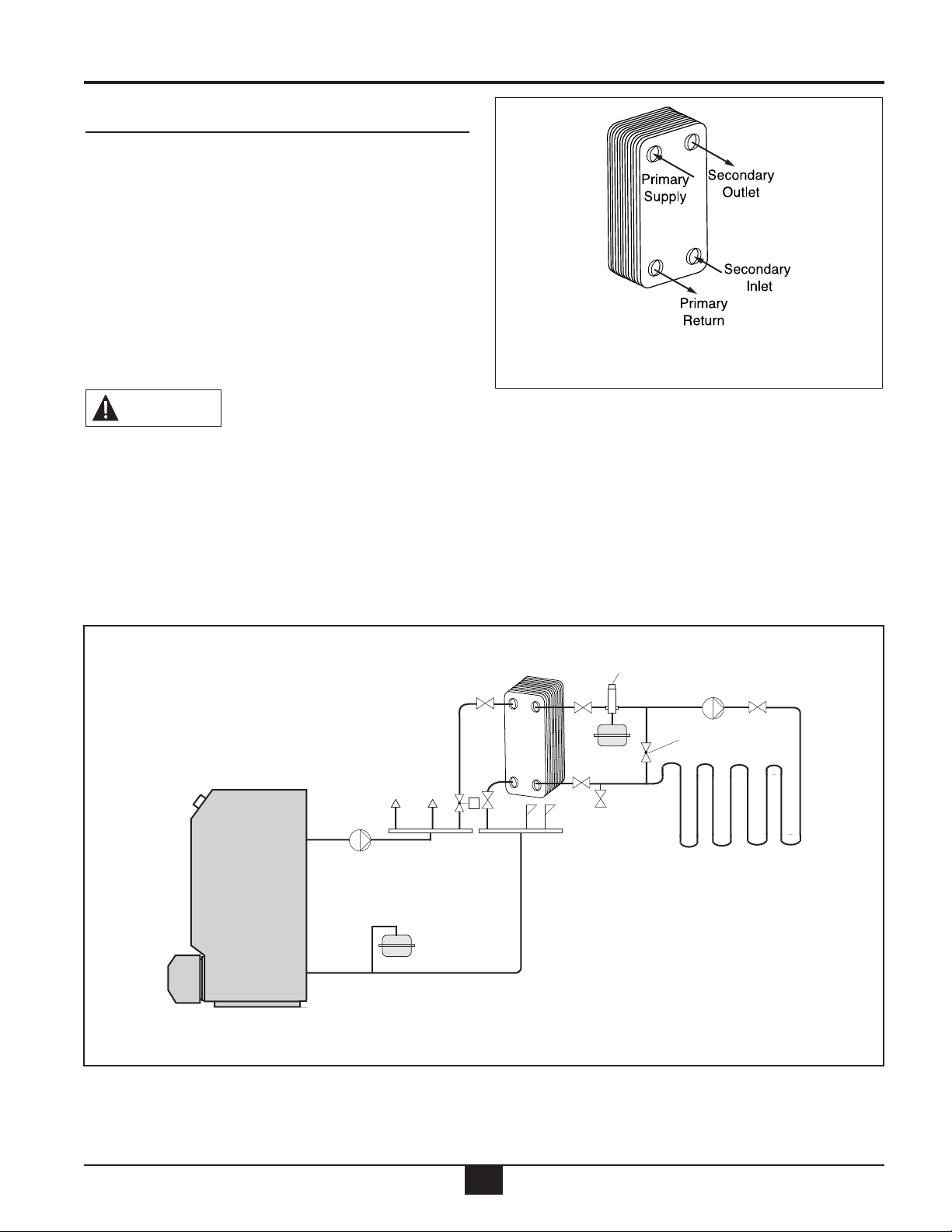

RADIANT AND SNOW MELT APPLICATIONS
Typically the fluid circuit with the highest tempera-
•
ture and/or pressure should be connected to the left
side connections as indicated with the colored label.
• The circuit flows should be piped in a counterflow
arrangement.
• Use antifreeze specifically intended for hydronic
heating systems. Inhibited propylene glycol is recommended.
• Typical boiler water to glycol blend is 10% to 40%
depending on location and weather conditions.
WARNING
Do not use automotive ethylene glycol or any undiluted or petroleum-based antifreeze. This can cause
severe personal injury, death or substantial property damage.
Fig. 11: Radiant/Snowmelt Arrangement
Fig. 12: Example of radiant snow melting application with TTP heat exchanger
11
Applications
Chart 3: Radiant/Snowmelt Application Sizing
Model
TTP1-14E 25,000 2.6 0.5 2.5 0.4
TTP1-14E 30,000 3.1 0.8 3.0 0.6
TTP1-14E 35,000 3.6 1.1 3.5 0.9
TTP1-14E 40,000 4.1 1.4 4.0 1.1
TTP1-14E 45,000 4.6 1.8 4.5 1.4
TTP1-14E 50,000 5.2 2.3 5.0 1.7
TTP1-14E 55,000 5.7 2.8 5.5 2.1
TTP1-14E 60,000 6.2 3.4 6.0 2.5
TTP1-14E 65,000 6.7 4.0 6.5 2.9
TTP1-14E 70,000 7.2 4.6 7.0 3.4
TTP3-20 100,000 10.3 1.6 10.1 1.3
TTP3-20 125,000 12.9 2.6 12.6 2.1
TTP3-20 150,000 15.5 3.8 15.2 3.0
TTP3-20 175,000 18.8 5.2 17.7 4.1
TTP3-20 200,000 20.6 6.9 20.2 5.5
TTP3-20 225,000 23.2 8.8 22.7 7.0
Btu/Hr
Supplied
Boiler
GPM
Pressure Drop
PSIBoiler
Radiant/
Snowmelt
GPM
Pressure Drop
PSIRadiant/
Snowmelt
Boiler (180 ºF-160 ºF) Radiant (100 ºF-120 ºF)
NOTICE
The sizing given in Chart 3 includes only a general
overview of sizing applications available. For additional or more detailed sizing parameters contact
your local Triangle Tube Distributor or Triangle
Tube’s Engineering Department.
NOTICE
The sizing given in Chart 3 does not account for any
glycol solution used in a snowmelt application.
12
Applications
Water
Inlet
Water
Outlet
Gas
Outlet
Gas/Liquid
Inlet
TEAM TO WATER APPLICATIONS
S
• Ensure the braze plate heat exchanger is mounted
vertically to allow gravity drainage of the condensate.
• The installer should use “Good Steam Practices”
which include a steam trap below the unit and vacuum breakers.
• The steam circuit must enter the heat exchanger’s
top connection, with the condensate leaving the heat
exchanger through the bottom connection.
• Provide steam traps at critical points e.g. in front of
the control valve, to prevent “pooling” of condensate.
NOTICE
Water Hammer and Other Deformations Caused By
Wet Steam: A high moisture content in the steam
could condense within the heat exchanger forming
pools of water at critical points, exposing the system and the heat exchanger to water hammer. One
critical point is the area ahead of the control valve
when the valve is located ahead of the inlet to the
heat exchanger. When the control valve is in the
close position the stationary steam in front of the
valve is subject to condense. Heat losses due to
radiation and/or faulty insulation can increase the
rate of condensation. Also, when the control valve
is in the closed position, condensation on the plates
of the heat exchanger occurs, producing a vacuum
or negative pressure inside the heat exchanger.
When the control valve opens to admit steam to the
heat exchanger, the differential in pressure causes a
sudden acceleration in the steam flow, pulling the
accumulated water into the heat exchanger at a high
velocity. The amount of energy produced by this
water at a high velocity can be very great, resulting
in heavy wear and tear and other mechanical damage in the heat exchanger, which results in potential
leaks.
Avoidance Practices: On low pressure steam systems or on applications with no-continuous processes, place traps prior to the control valve and other
critical points in the steam distribution system.
NOTICE
For sizing applications using steam it is recommended to contact Triangle Tube’s Engineering
Department.

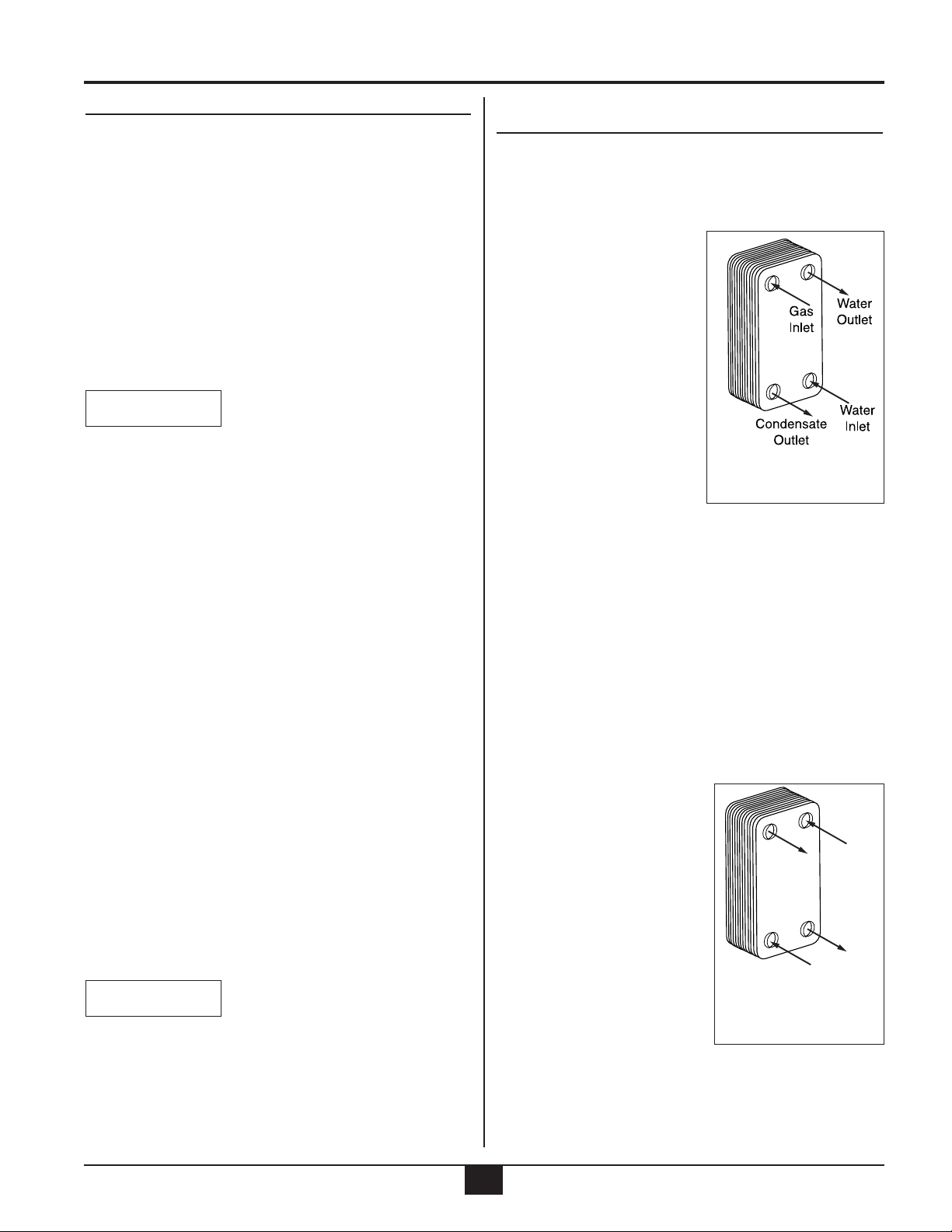

EFRIGERANT (CONDENSER / EVAPORATOR)
R
APPLICATIONS
Condenser Applications
The heat exchanger must be mounted in a vertical
•
position to allow gravity drainage of the condensate.
• The refrigerant gas
must enter the heat
exchanger on the left
side (as indicated by the
color label) using the
upper connection.
• The cooling water must
enter the lower right connection of the heat
exchanger and exit from
the upper right connection. This will maintain
the counter flow concept.
Fig.13: Condenser
Applications
Evaporator Applications
• The heat exchanger must be mounted in a vertical
position.
• The refrigerant gas/liquid mixture must enter the
heat exchanger on the left side (as indicated by the
colored label) using the lower connection.
• The water must enter the upper right connection of
the heat exchanger and exit from the lower right connection. This will maintain the counter flow concept.
• The thermal expansion valve should be placed close
to the inlet connection of the heat ex- changer. The
thermal expansion val- ve
sensing bulb should be
placed on the refrigerant
outlet pipe approximately
12 to 24 inches from the
heat exchanger.
• A pressure differential
switch or flow switch
must be installed to prevent possible freeze-up
due to loss of water flow.
Fig.14: Evaporator
Applications
13
Technical Data

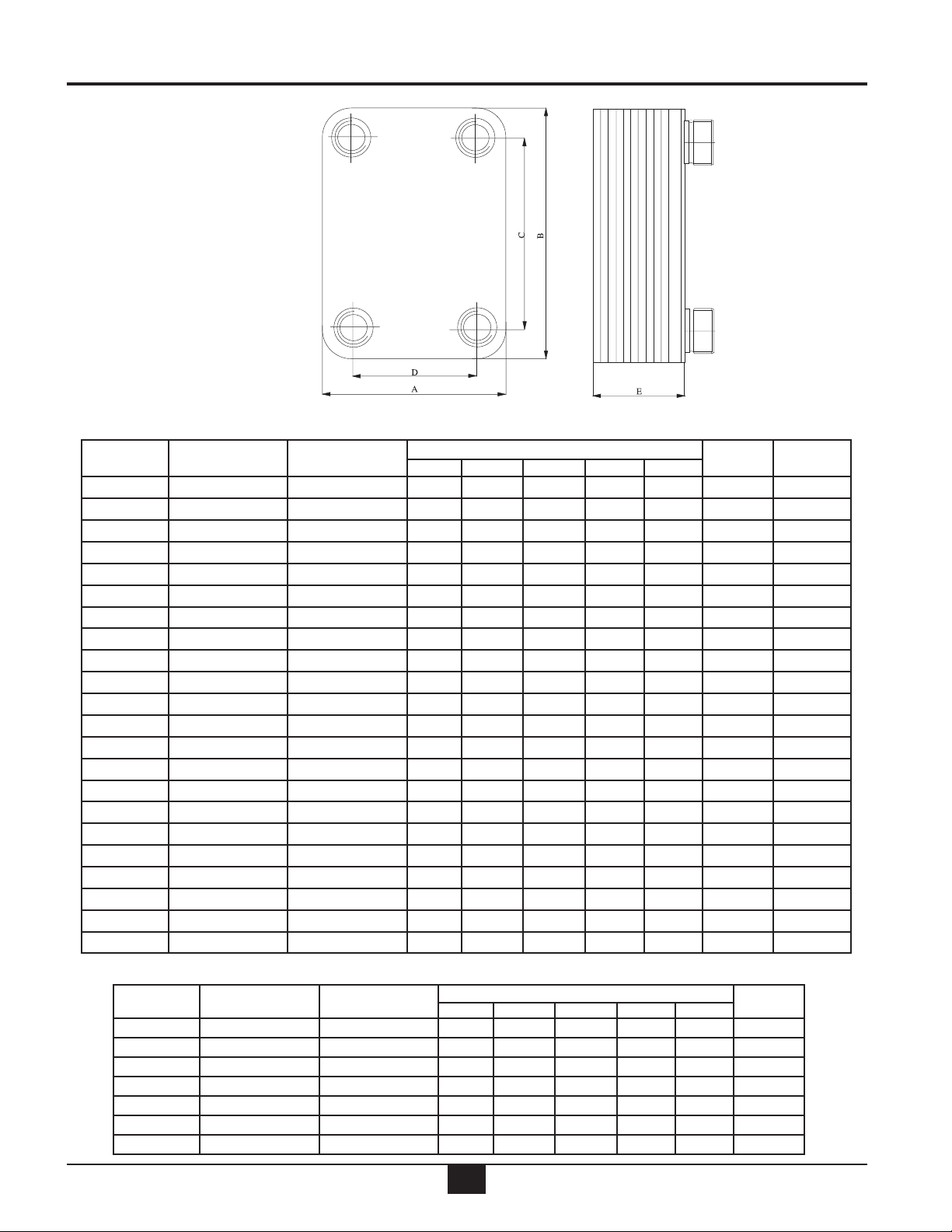

Fig.: 15 Dimensional Data
Single Wall Heat Exchangers
Model
TTP1-14E 3/4” 7/8” 2.9 8.0 6.7 1.6 1.6 3.1 14
TTP1-20E 3/4” 7/8” 2.9 8.0 6.7 1.6 1.6 3.8 20
TTP1-30E 3/4” 7/8” 2.9 8.0 6.7 1.6 1.6 4.9 30
TTP3-14 1” 1 1/8” 4.9 12.2 10.0 2.7 1.6 5.5 14
TTP3-16 1” 1 1/8” 4.9 12.2 10.0 2.7 1.8 6.2 16
TTP3-30 1” 1 1/8” 4.9 12.2 10.0 2.7 3.1 11.7 30
TTP3-36 1” 1 1/8” 4.9 12.2 10.0 2.7 3.6 14.0 36
TTP4-10 1” 1 1/8” 5.1 13.3 11.1 2.9 1.3 6.6 10
TTP4-14 1” 1 1/8” 5.1 13.3 11.1 2.9 1.6 7.8 14
TTP4-24 1” 1 1/8” 5.1 13.3 11.1 2.9 2.5 10.8 24
TTP4-30 1” 1 1/8” 5.1 13.3 11.1 2.9 3.0 12.6 30
TTP4-50 1” 1 1/8” 5.1 13.3 11.1 2.9 4.8 18.6 50
TTP4-70 1” 1 1/8” 5.1 13.3 11.1 2.9 6.6 24.6 70
TTP7-20 2” 2 1/8” 11.1 21.4 18.1 7.8 2.5 51.0 20
TTP7-24 2” 2 1/8” 11.1 21.4 18.1 7.8 2.9 55.4 24
TTP7-30 2” 2 1/8” 11.1 21.4 18.1 7.8 3.6 62.0 30
TTP7-40 2” 2 1/8” 11.1 21.4 18.1 7.8 4.6 73.0 40
TTP7-50 2” 2 1/8” 11.1 21.4 18.1 7.8 5.7 84.0 50
TTP7-60 2” 2 1/8” 11.1 21.4 18.1 7.8 6.7 95.0 60
TTP7-100 2” 2 1/8” 11.1 21.4 18.1 7.8 10.9 139.0 100
TTP7-120 2” 2 1/8” 11.1 21.4 18.1 7.8 12.9 161.0 120
TTP7-150 2” 2 1/8” 11.1 21.4 18.1 7.8 16.1 194.0 150
Thread
Connection NPT
Sweated
Connection
A B C D E
Dimensions
Weight Plates
Double Wall Heat Exchangers
Model
TTP5-8DW 1” 1 1/8” 4.9 20.80 18.80 2.9 1.0 9.2
TTP5-14DW 1” 1 1/8” 4.9 20.80 18.80 2.9 1.6 12.8
TTP5-20DW 1” 1 1/8” 4.9 20.80 18.80 2.9 2.1 16.4
TTP5-30DW 1” 1 1/8” 4.9 20.80 18.80 2.9 3.0 22.4
TTP5-50DW 1 1/4” 1 3/8” 4.9 20.80 18.80 2.9 4.8 34.4
TTP5-60DW 1 1/4” 1 3/8” 4.9 20.80 18.80 2.9 7.5 52.4
TTP5-100DW 1 1/4” 1 3/8” 4.9 20.80 18.80 2.9 9.3 64.4
Thread
Connection NPT
Solder
Connection
Dimensions
A B C D E
14
Weight
Product Selection
Media
Water
Glycol
% Glycol
Steam
Steam PSI
Hot Side
Cold Side
Flow Rate
Temp. In
Temp. out
Max Pressure Drop
Capacity
Date:
Name:
Company:
Fax:
Job Ref.:
Application:
GPM
DEG F
DEG F
PSI
Water
Glycol
% Glycol
Steam
Steam PSI
GPM
DEG F
DEG F
PSI
Btu/hr
Media
Water
Glycol
% Glycol
Steam
Steam PSI
Hot Side
Cold Side
Flow Rate
Temp. In
Temp. out
Max Pressure Drop
Capacity
GPM
DEG F
DEG F
PSI
Water
Glycol
% Glycol
Steam
Steam PSI
GPM
DEG F
DEG F
PSI
Btu/hr
Double Wall Requirement
Brazed Plate Heat Exchanger Design Data
Application Parameters
OUR SELECTION: Type of Heat Exchanger:
F
ax: (856) 228 3584 - Tel: (856) 228 8881
Brazed Plate Heat Exchanger
Submit this information to Triangle Tube
for computerized sizing assistance. Our
program will select the optimum heat
exchanger for your particular application.
ith our computer program we will select the optimum heat exchanger for your particular applications.
W
Please fax this selection sheet back to our Engineering Department.
15
RESTIGE Condensing Wall Mounted Boiler
P
- 95% AFUE - Enegy Star Certified
- Fully modulating
- Natural gas or propane
- Stainless Steel Construction
- Direct vent with standard schedule 40 PVC
- Outdoor Reset
- Low Nox
SMART Series Indirect Fired Water Heaters
- Exclusive “tank-in-tank” design
- Stainless steel construction
- Available in 7 sizes
Maxi-flo Pool and Spa Heat Exchangers
- Limited LIFETIME residential warranty
- 6 year limited commercial warranty
- Self cleaning/self descaling design
- Constructed of high quality corrosion resistant stainless steel (AISI 316)
- Specially designed built-in flow restrictor to assure maximum heat
exchange
- Compact and light weight
- Available in 8 sizes that can accommodate any size pool or spa
Triangle Tube - 1 Triangle Lane - Blackwood, NJ 08012 - Tel: (856) 228 8881 - Fax: (856) 228 3584
E-mail: sales@triangletube.com - www.triangletube.com
Loading...
