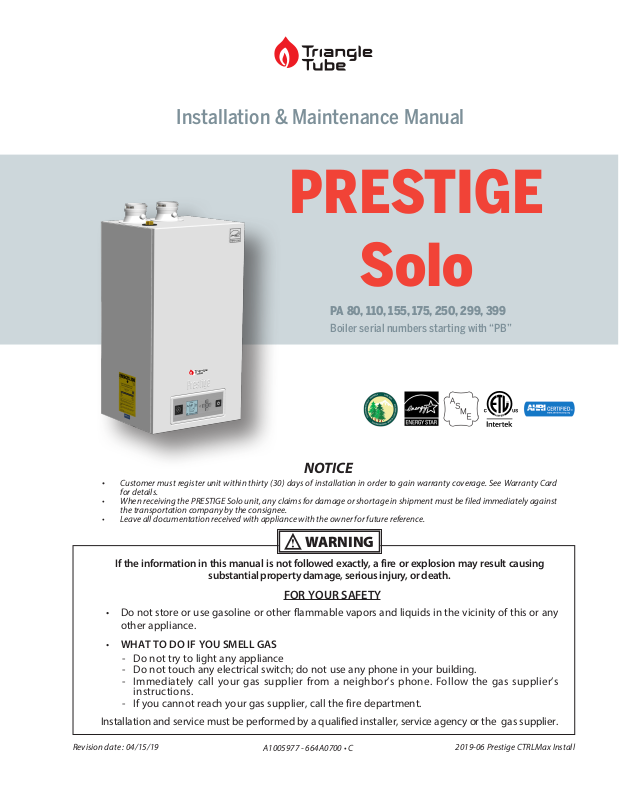

Installation & Maintenance Manual
PRESTIGE
Solo
PA 80, 110, 155, 175, 250, 299, 399
Boiler serial numbers starting with “PB”
NOTICE
• Customer must register unit within thirty (30) days of installation in order to gain warranty coverage. See Warranty Card
for details.
• When receiving the PRESTIGE Solo unit, any claims for damage or shortage in shipment must be filed immediately against
the transportation company by the consignee.
• Leave all documentation received with appliance with the owner for future reference.
WARNING
If the information in this manual is not followed exactly, a fire or explosion may result causing
substantial property damage, serious injury, or death.
FOR YOUR SAFETY
• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
• WHAT TO DO IF YOU SMELL GAS
- Do not try to light any appliance
- Do not touch any electrical switch; do not use any phone in your building.
- Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s
instructions.
- If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
Revision date : 04/15/19
A1005977 - 664A0700 • C
2019-06 Prestige CTRLMax Install
INTENTIONALLY LEFT BLANK
TABLE OF CONTENTS
PRODUCT AND SAFETY INFORMATION .......................................................................... XI
CHAPTER 1 - PRE-INSTALLATION REQUIREMENTS ........................................................ 1
1.1. Code Compliance ............................................................................................................................ 1
1.2. Determining Product Location ....................................................................................................... 1
1.3. Boiler Freeze Protection Feature ...................................................................................................2
1.4. Boiler Replacement.........................................................................................................................2
1.5. Recommended Clearances ............................................................................................................2
1.6. Residential Garage Installations ....................................................................................................2
CHAPTER 2 - COMBUSTION AIR & VENTING ...................................................................3
2.1. Combustion Air Contamination .....................................................................................................3
2.2. Ventilation and Combustion Air Requirements - Direct Vent ...................................................... 4
2.3. Ventilation and Combustion Air Requirements - Category IV .....................................................4
2.4. Methods of Accessing Combustion Air Into A Space - Category IV ...........................................5
2.4.1. Indoor Combustion Air ..........................................................................................................5
2.4.2. Outdoor Combustion Air.......................................................................................................5
2.4.3 Combination of Indoor and Outdoor Combustion Air ......................................................6
2.5. Combustion Air and Vent Piping ....................................................................................................6
2.6. Removal of an Existing Boiler from a Common Vent System .....................................................7
2.7. Carbon Monoxide Detector Installation ........................................................................................8
2.8. Commonwealth of Massachusetts Installation Requirements ...................................................8
2.8.1 Installation of Carbon Monoxide Detectors. ........................................................................8
2.8.2 Approved Carbon Monoxide Detectors. .............................................................................8
2.8.3 Signage ..................................................................................................................................8
2.8.4 Inspection. .............................................................................................................................8
2.8.5 Manufacturer Requirements - Gas Equipment Venting System Provided. .....................9
2.8.6 Manufacturer Requirements - Gas Equipment Venting System Not Provided. ..............9
CHAPTER 3 - UNIT PREPARATIONS .................................................................................11
3.1. Handling Instructions ....................................................................................................................11
3.2. Wall Mounting Installation .............................................................................................................11
3.3. Wall Mounting Guidelines ..............................................................................................................11
3.4. Stud Walls - Installation ...............................................................................................................12
3.4.1 PRESTIGE Solo 80/110/155/175/250 .............................................................................. 12
3.4.2 PRESTIGE Solo 299/399 ................................................................................................... 12
3.5. Wall Bracket Installation - Solid Walls ..........................................................................................12
3.6. Boiler Mounting ............................................................................................................................. 12
iiiiii
TABLE OF CONTENTS
CHAPTER 4 - BOILER PIPING ........................................................................................... 13
4.1. General Piping Requirements ...................................................................................................... 13
4.2. Pressure Relief Valve ....................................................................................................................13
4.3. Boiler Air Vent ................................................................................................................................ 14
4.4. Low Water Cutoff Device .............................................................................................................. 14
4.5. Additional Limit Control ................................................................................................................ 15
4.6. Backflow Preventer ....................................................................................................................... 15
4.7. Boiler System Piping Applications ............................................................................................... 15
4.8. Expansion Tank and Makeup Water ............................................................................................16
4.8.1 Diaphragm Expansion Tank ................................................................................................ 16
4.8.2 Closed-Type Expansion Tank .............................................................................................. 16
4.9. Circulator ....................................................................................................................................... 17
4.10. Sizing Primary Piping .................................................................................................................... 17
4.11. Domestic Hot Water System Piping ............................................................................................ 17
4.12. System Piping - Zone Circulators ................................................................................................ 17
4.13. System Piping - Zone Valves ........................................................................................................ 17
4.14. System Piping - Through Boiler ................................................................................................... 17
4.15. System Piping - Radiant Heating ................................................................................................ 23
4.16. System Piping - Special Application ........................................................................................... 23
4.17. System Piping - Multiple Units Installation ................................................................................ 23
CHAPTER 5 - INSTALLING VENT/COMBUSTION AIR & CONDENSATE DRAIN ..........25
5.1. Installing Vent and Combustion Air ............................................................................................ 25
5.2. Installing Condensate Drain Assembly ...................................................................................... 25
CHAPTER 6 - GAS PIPING ................................................................................................. 27
6.1. Gas Supply Piping Connection .....................................................................................................27
6.2. Natural Gas ................................................................................................................................... 28
6.2.1 Pipe Sizing ........................................................................................................................... 28
6.2.2 Supply Pressure Requirements ........................................................................................ 28
6.3. Propane Gas ................................................................................................................................. 29
6.3.1 Pipe Sizing ........................................................................................................................... 29
6.3.2 Supply Pressure Requirements ........................................................................................ 29
CHAPTER 7 - INTERNAL WIRING ......................................................................................33
7.1. General Requirements ................................................................................................................. 33
7.2. Fuse Locations ............................................................................................................................. 33
iviv
TABLE OF CONTENTS
CHAPTER 8 - EXTERNAL WIRING ....................................................................................35
8.1. General Requirements ................................................................................................................. 35
8.2. Line Voltage Connections ............................................................................................................ 35
8.3. Circulator Wiring .......................................................................................................................... 35
8.4. Flame Status & Alarm Wiring ...................................................................................................... 35
8.5. Low Voltage Connections ............................................................................................................ 36
8.6. Thermostat Wiring ....................................................................................................................... 36
8.7. Outdoor Sensor Wiring .................................................................................................................37
8.8. Domestic Hot Water Wiring ..........................................................................................................37
8.9. Additional Boiler Limits ................................................................................................................37
8.10. External Modulation Control ........................................................................................................37
8.11. System Sensor Wiring ..................................................................................................................37
8.12. Cascade Wiring ............................................................................................................................ 38
8.13. Modbus Wiring ............................................................................................................................. 38
CHAPTER 9 - CTRLMAX OPERATION .............................................................................. 41
9.1. CTRLMax Navigation .................................................................................................................... 41
9.2. CTRLMax Menu Structure ........................................................................................................... 42
9.3. Home Screen ................................................................................................................................ 43
9.4. Status Line Messages .................................................................................................................. 44
9.5. Main Menu .................................................................................................................................... 45
9.6. EZ Setup ....................................................................................................................................... 45
9.7. Heating EZ Setup ................................................................................................................ 46
9.7.1 Select CH Demand (No outdoor sensor connected) ...................................................... 46
9.7.2 Select CH Demand (Outdoor sensor connected) .............................................................47
9.8. Domestic Hot Water EZ Setup ........................................................................................... 48
9.9. EZ Setup Reset ................................................................................................................... 49
9.10. Display EZ Setup .................................................................................................................. 49
9.11. CH/DHW Operation ............................................................................................................ 50
9.12. Boiler Information ................................................................................................................ 50
9.12.1 Information Items ................................................................................................................ 51
9.12.2 Lockout Screen .................................................................................................................... 52
9.12.3 Manual Reset Lockouts .......................................................................................................53
9.12.4 Automatic Reset Blocking Lockouts ................................................................................. 54
vv
TABLE OF CONTENTS
CHAPTER 10 - START-UP PREPARATION ........................................................................ 55
10.1. Boiler System Fluid Requirements ............................................................................................. 55
10.1.1 Boiler Fluid pH Level 6.0 to 8.0 ..........................................................................................55
10.1.2 Boiler Fluid Hardness Less Than 7 Grains .........................................................................55
10.1.3 Chlorinated Water ...............................................................................................................55
10.1.4 Flush Boiler to Remove Sediment ......................................................................................55
10.1.5 Cleaning of Old Boiler/System: .........................................................................................55
10.1.6 Cleaning of New Boiler/System: .......................................................................................55
10.1.7 Check and Test Antifreeze ................................................................................................. 56
10.1.8 Use of Antifreeze in the Boiler System ............................................................................. 56
10.2. Filling the Boiler System .............................................................................................................. 56
10.3. Check Low Water Cut-Off Device ................................................................................................ 56
10.4. Check For Gas Leaks ....................................................................................................................57
10.5. Check Thermostat Circuit ............................................................................................................57
10.6. Inspect Condensate Drain Assembly .......................................................................................... 57
CHAPTER 11 - START-UP PROCEDURES .........................................................................59
11.1. Final Checks Before Start-Up ...................................................................................................... 59
11.2. PRESTIGE Solo Start-Up ............................................................................................................. 59
11.3. Check the PRESTIGE Solo and System ...................................................................................... 59
11.3.1 Check Boiler Piping. ............................................................................................................59
11.3.2 Check Vent and Combustion Air Piping.............................................................................59
11.3.3 Verify Carbon Monoxide Detector .....................................................................................59
11.3.4 Check Gas Piping ................................................................................................................ 60
11.3.5 Verify Flame Pattern and Combustion ............................................................................. 60
11.3.6 Measure Input - Natural Gas Only ...................................................................................... 61
11.3.7 Test High Temperature Limit .............................................................................................. 61
CHAPTER 12 - OUTDOOR RESET CONTROL ...................................................................63
12.1. Mounting the Outdoor Sensor .................................................................................................... 63
12.2. Wiring the Sensor ......................................................................................................................... 63
CHAPTER 13 - EXTERNAL MODULATING CONTROL .....................................................65
13.1. Wiring the Modulating Controller ................................................................................................ 65
13.2. CTRLMax Programming .............................................................................................................. 65
13.3. Programming of External Modulating Control........................................................................... 65
CHAPTER 14 - CHECK-OUT PROCEDURES .....................................................................67
CHAPTER 15 - INSTALLATION RECORD ..........................................................................69
vivi
TABLE OF CONTENTS
CHAPTER 16 - MAINTENANCE SCHEDULES ....................................................................71
16.1. Service Technician ........................................................................................................................ 71
16.2. Owner Maintenance ...................................................................................................................... 71
CHAPTER 17 - MAINTENANCE PROCEDURES ................................................................ 73
17.1. Service Technician Maintenance Procedures ............................................................................73
17.2. Reported Problems .......................................................................................................................73
17.3. Check Surrounding Area ............................................................................................................73
17.4. Inspect Burner Area ......................................................................................................................73
17.5. Check System Piping ....................................................................................................................73
17.6. Clean Condensate Drain Assembly .............................................................................................73
17.7. Check Ventilation Air Openings ...................................................................................................74
17.8. Inspect Vent and Combustion Air Piping ....................................................................................74
17.9. Check Boiler System .....................................................................................................................74
17.10. Check Expansion Tank ..................................................................................................................74
17.11. Check Boiler Relief Valve ..............................................................................................................74
17.12. Inspection of Ignitor ...................................................................................................................... 74
17.13. Check Ignition Cable and Ground Wiring ....................................................................................75
17.14. Check Control Wiring ....................................................................................................................75
17.15. Check Control Settings ................................................................................................................75
17.16. Perform Start-up and Checkout Procedures ..............................................................................75
17.17. Check Burner Flame .....................................................................................................................75
17.18. Check Flame Signal .......................................................................................................................75
17.19. Check Combustion Levels ............................................................................................................76
17.20. Check Flue Gas Temperature .......................................................................................................76
17.21. Clean Heat Exchanger ..................................................................................................................76
17.22. Check Carbon Monoxide Detectors ............................................................................................76
17.23. Review With Owner .......................................................................................................................76
17.24. Torque Specifications Table .........................................................................................................76
CHAPTER 18 - REPLACEMENT PARTS............................................................................. 77
CHAPTER 19 - PRODUCT SPECIFICATIONS .................................................................... 87
viivii
INDEX OF ILLUSTRATIONS AND TABLES

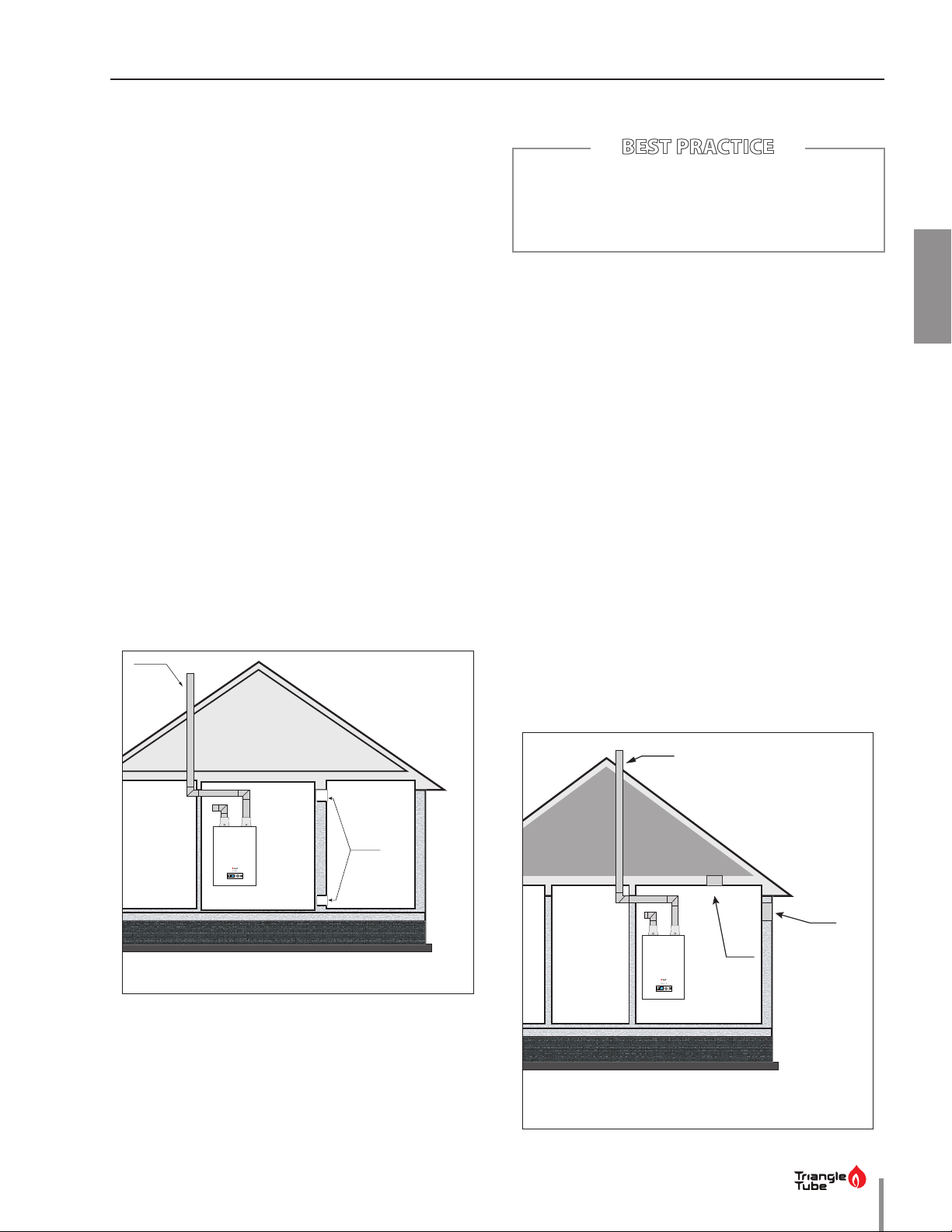

Fig. 1 - All Combustion Air from adjacent Indoor Spaces through Indoor Combustion Openings ......5
Fig. 2 - All Combustion Air from Outdoors Through One Permanent Air Opening ...............................5

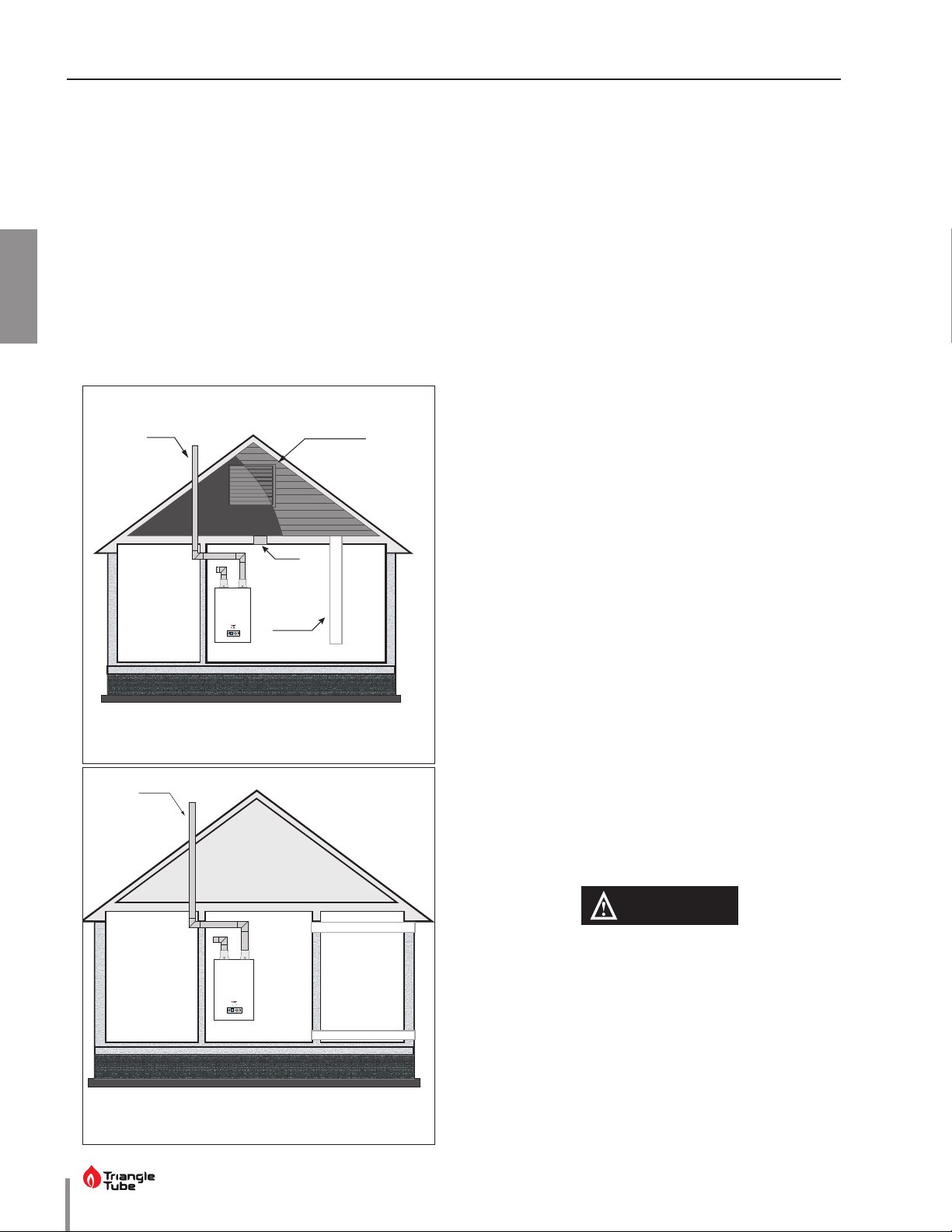

Fig. 3 - All Combustion Air from Outdoors Through Ventilated Attic .....................................................6
Fig. 4 - All Combustion Air from Outdoors Through Horizontal Ducts ...................................................6
Fig. 5 - Pressure Relief Valve and Boiler Drain Valve Installation .......................................................... 13

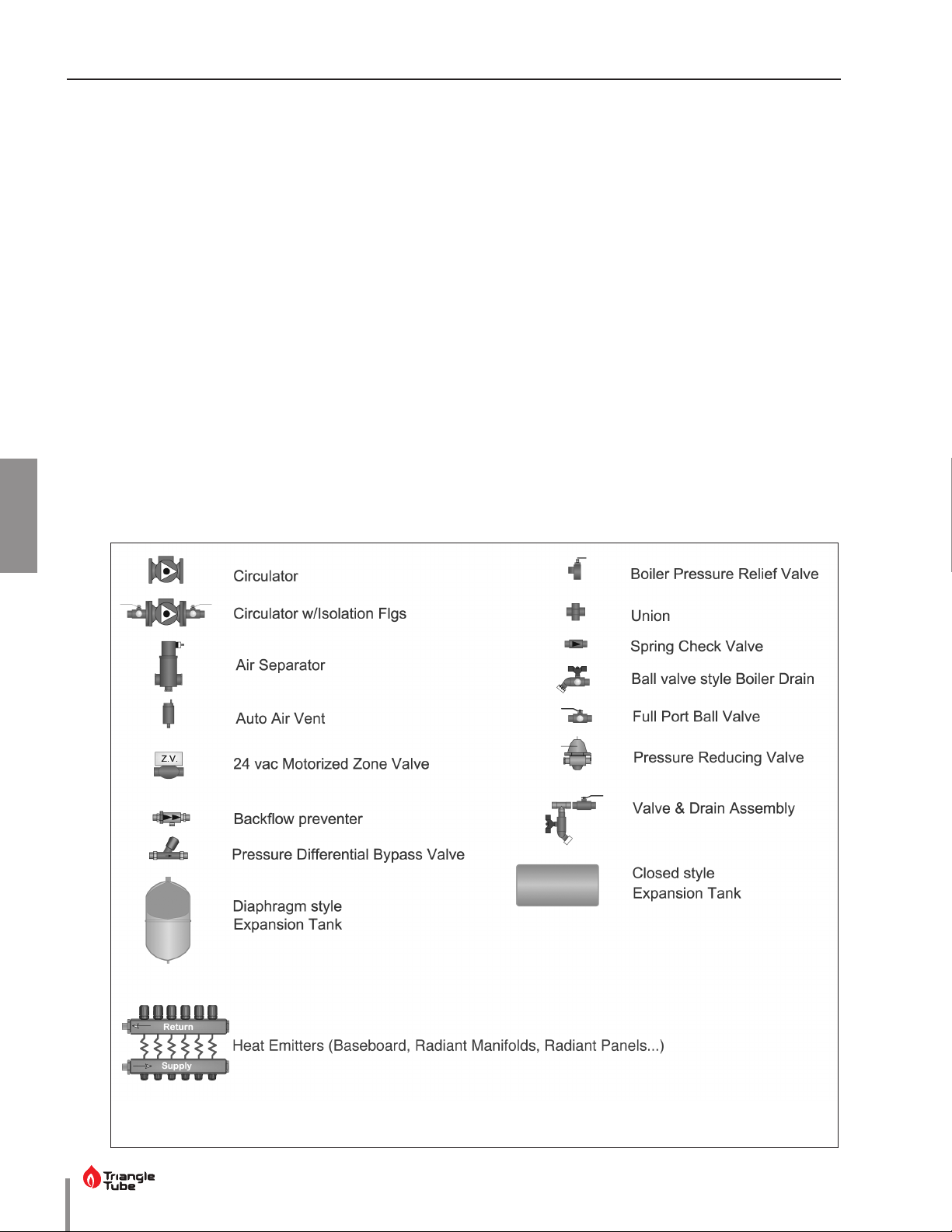

Fig. 6 - Piping Component Legend .......................................................................................................... 14

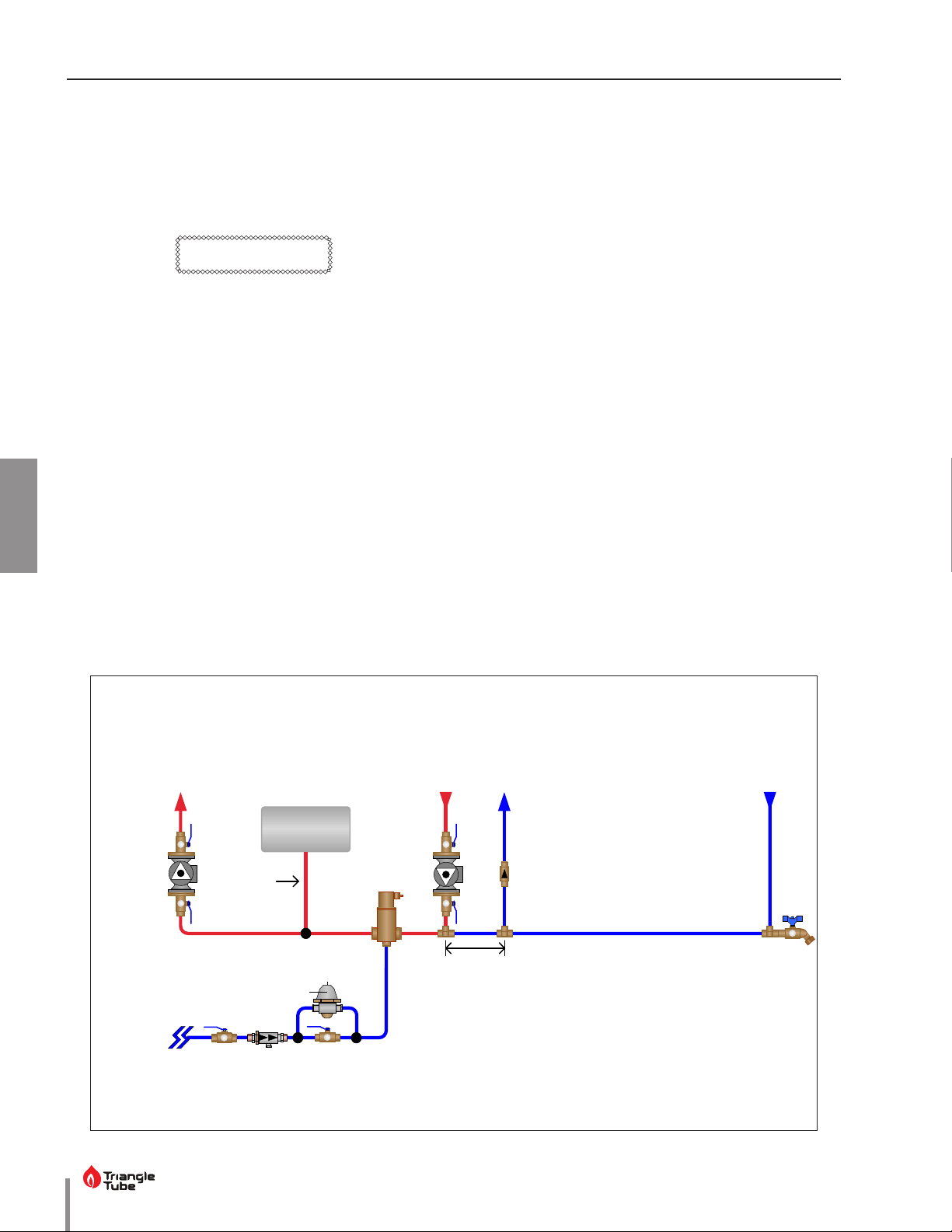

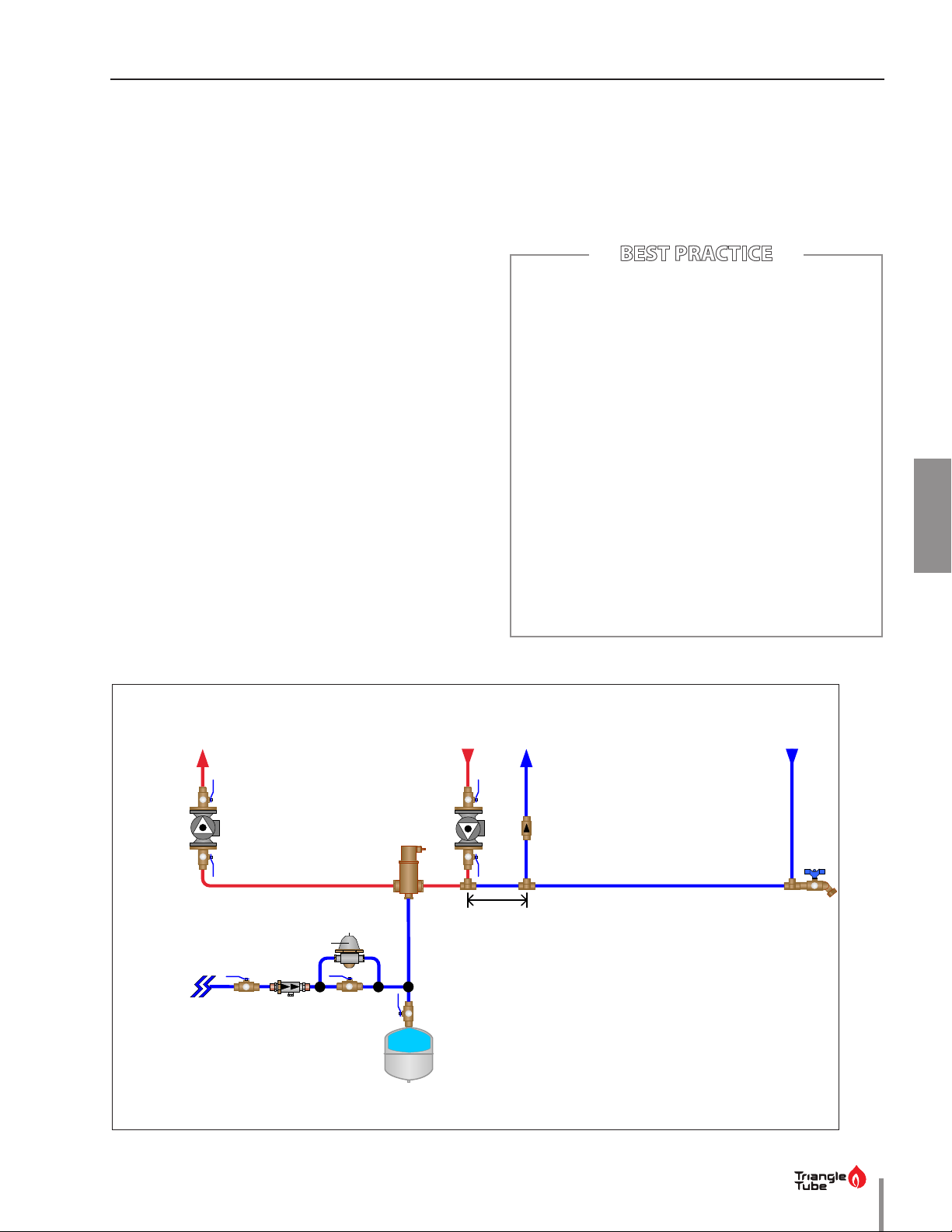

Fig. 7 - Near Boiler Piping - Diaphragm Expansion Tank ....................................................................... 15
Fig. 8 - Near Boiler Piping - Closed Type Expansion Tank .....................................................................16

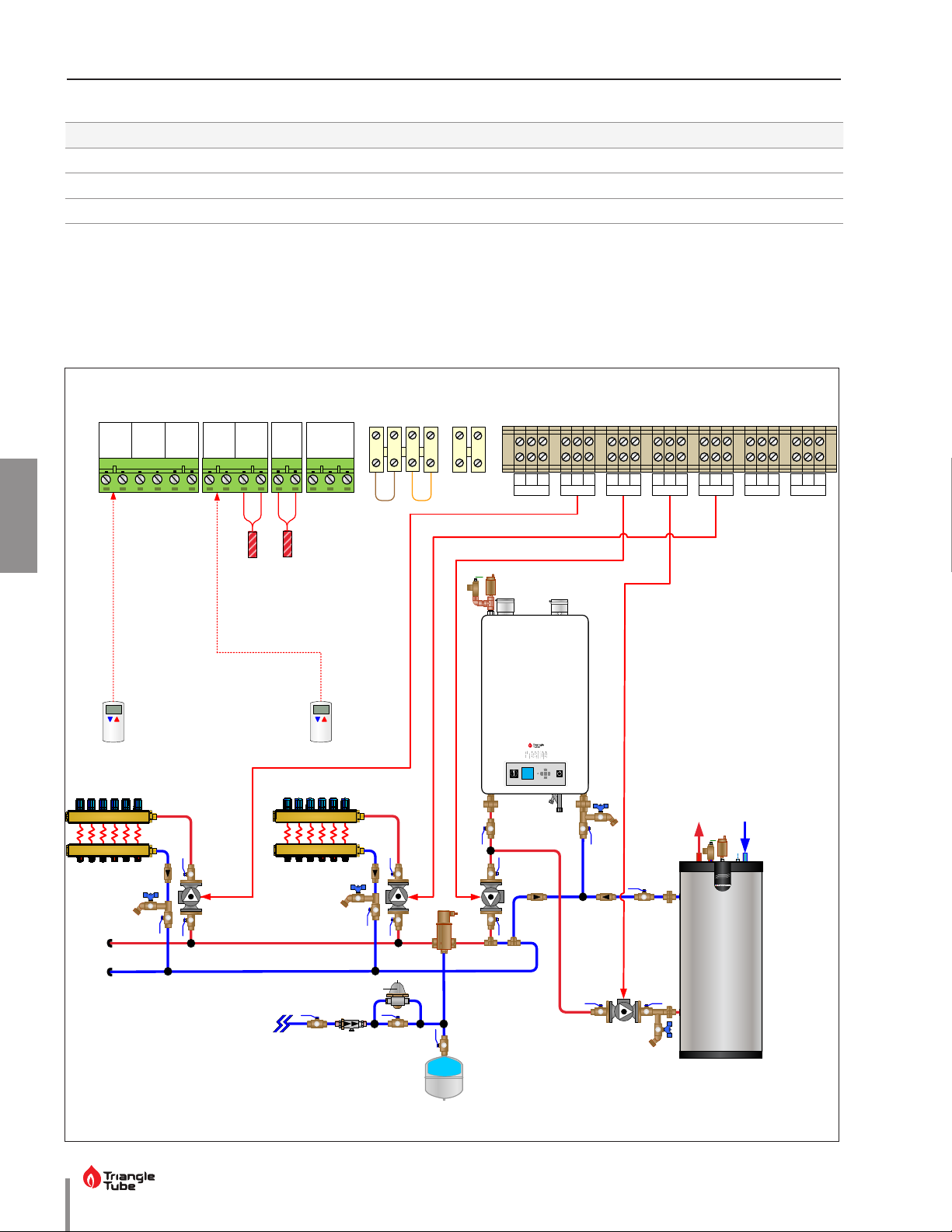

Fig. 9 - System Piping - Zoning with Zone Circulators ..........................................................................18

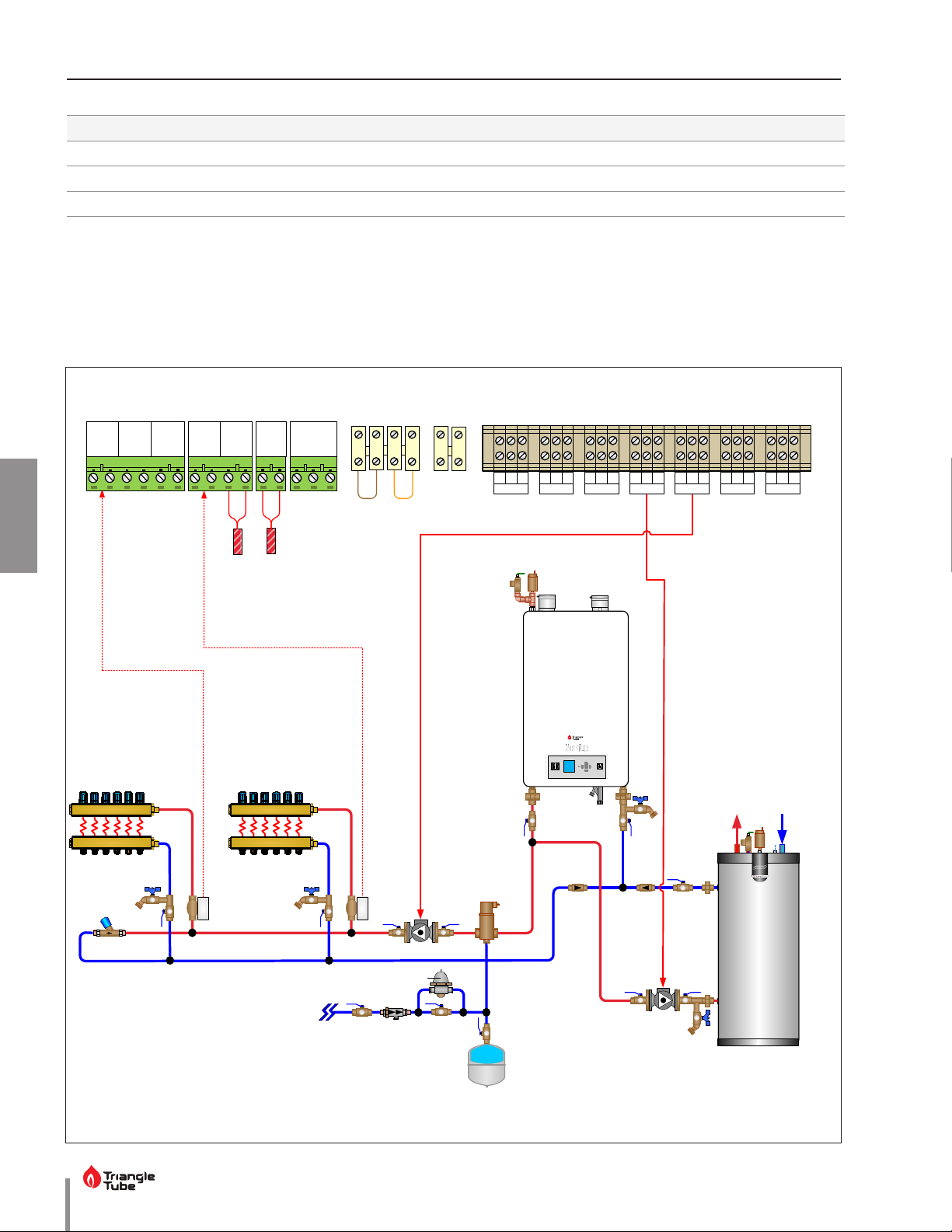

Fig. 10 - System Piping - Zoning with Zone Valves ................................................................................19
Fig. 11 - System Piping - Multiple Zone Valve with Single System/Boiler Circulator ......................... 20
Fig. 12 - System Piping - Single Zone System with Single System/Boiler Circulator ........................ 21

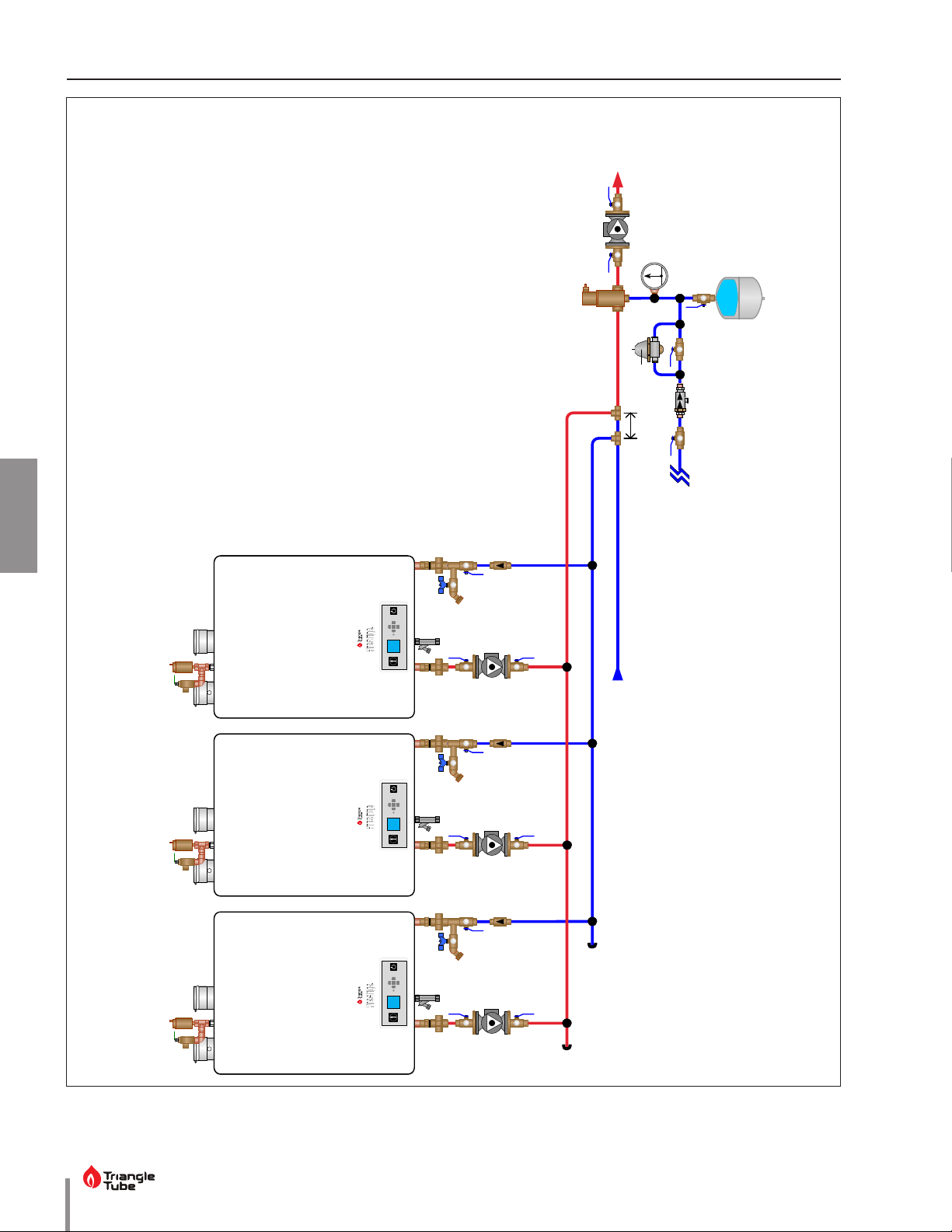

Fig. 13 - Multiple PRESTIGE Solo Boiler Piping - Primary / Secondary ............................................. 22

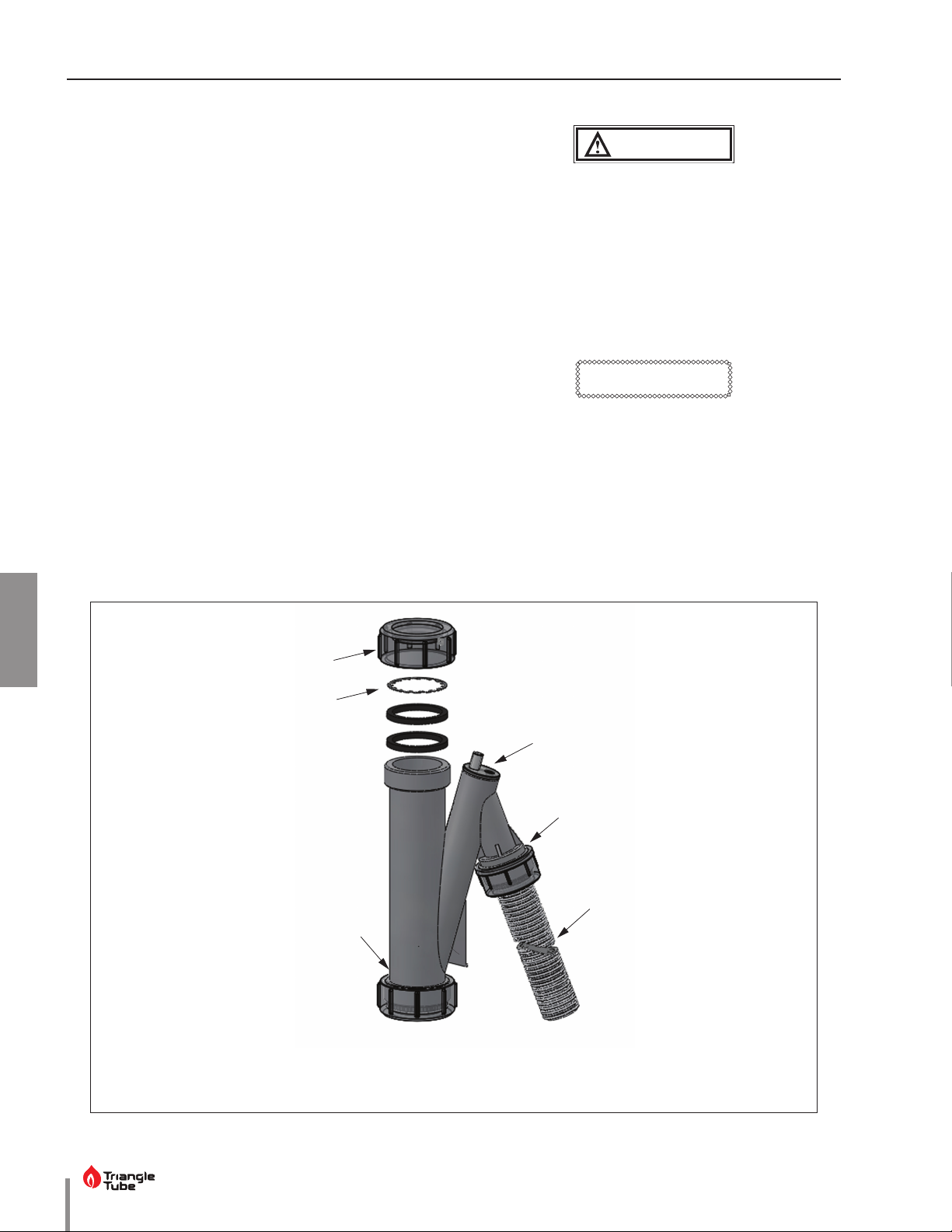

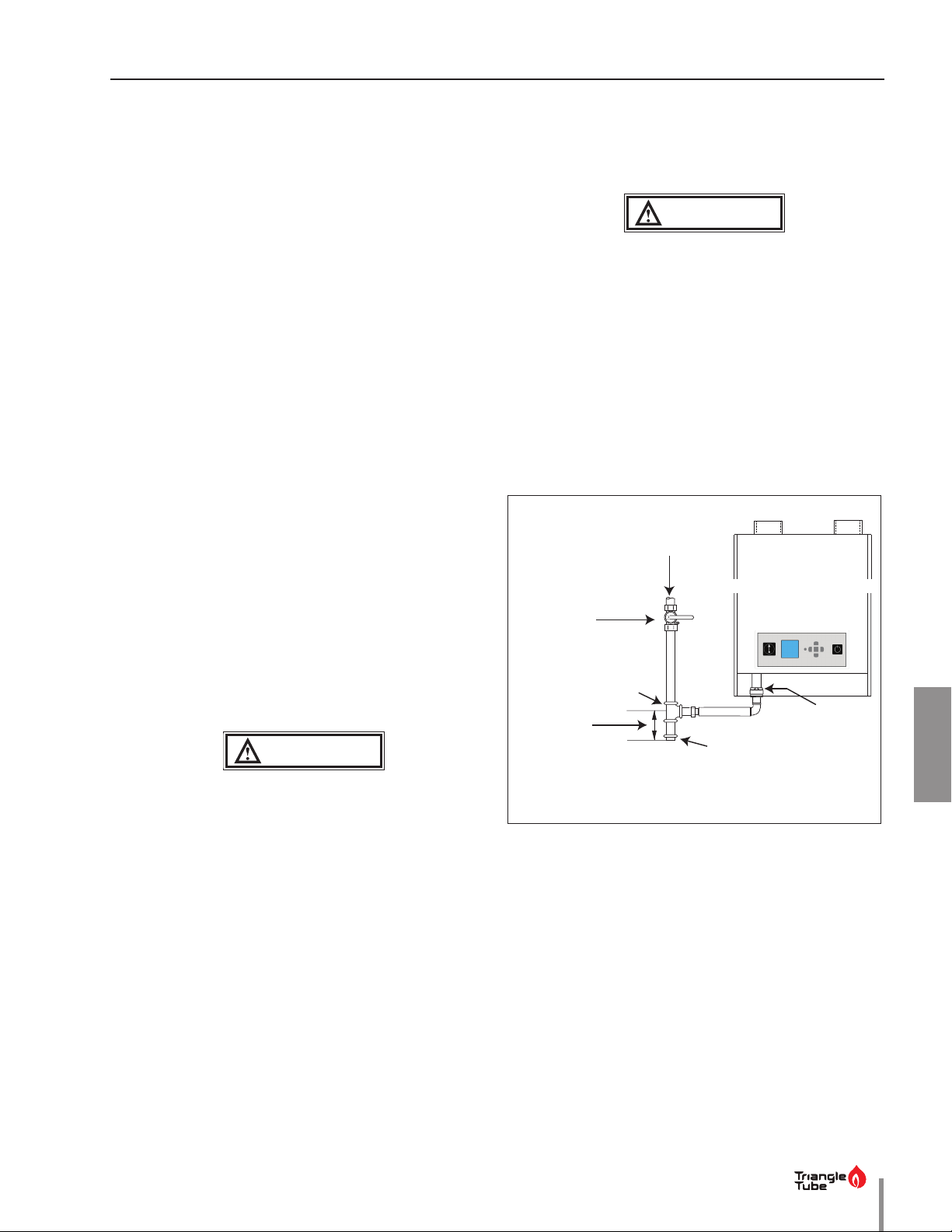

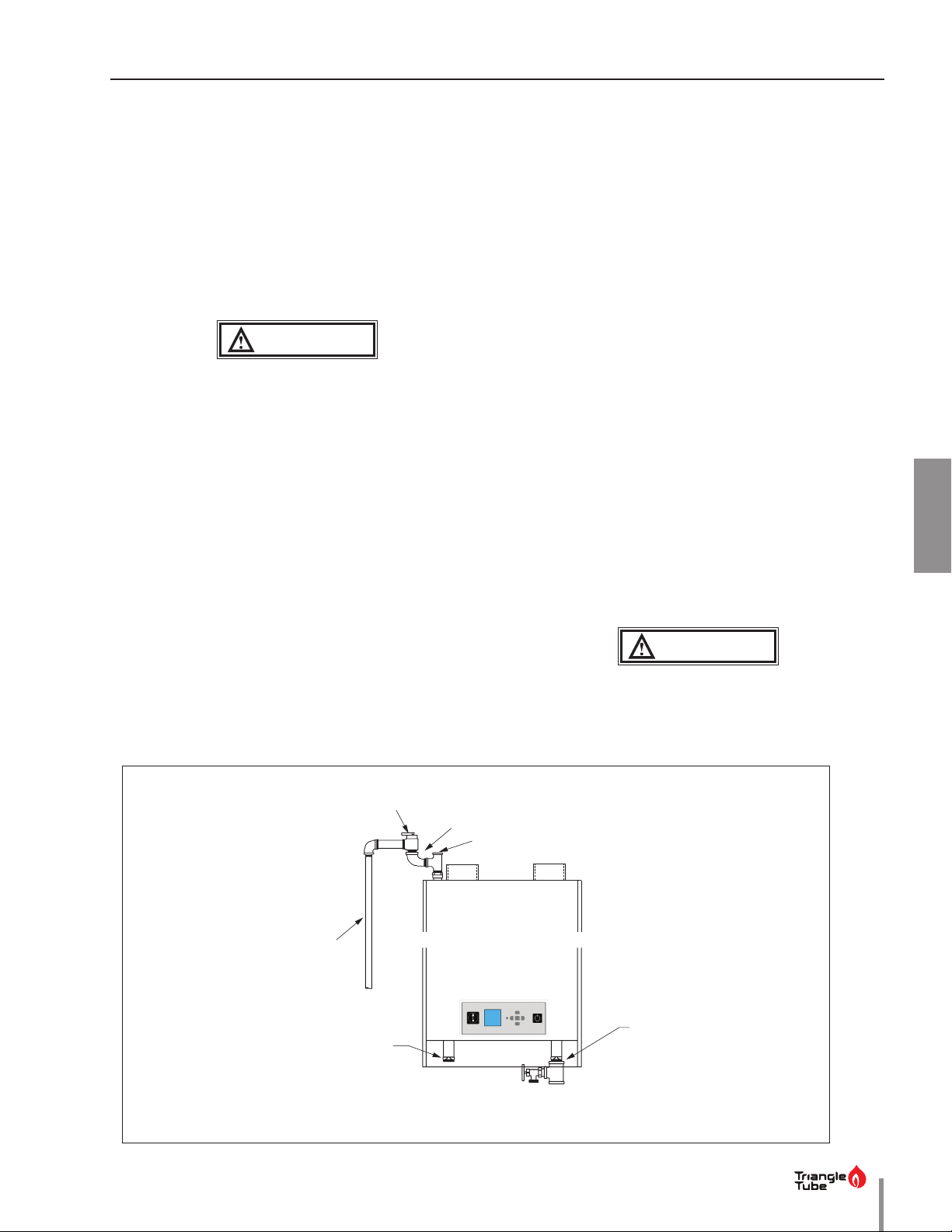

Fig. 14 - Condensate Drain Assembly.................................................................................................... 26
Fig. 15 - Recommended Gas Supply Piping ............................................................................................27

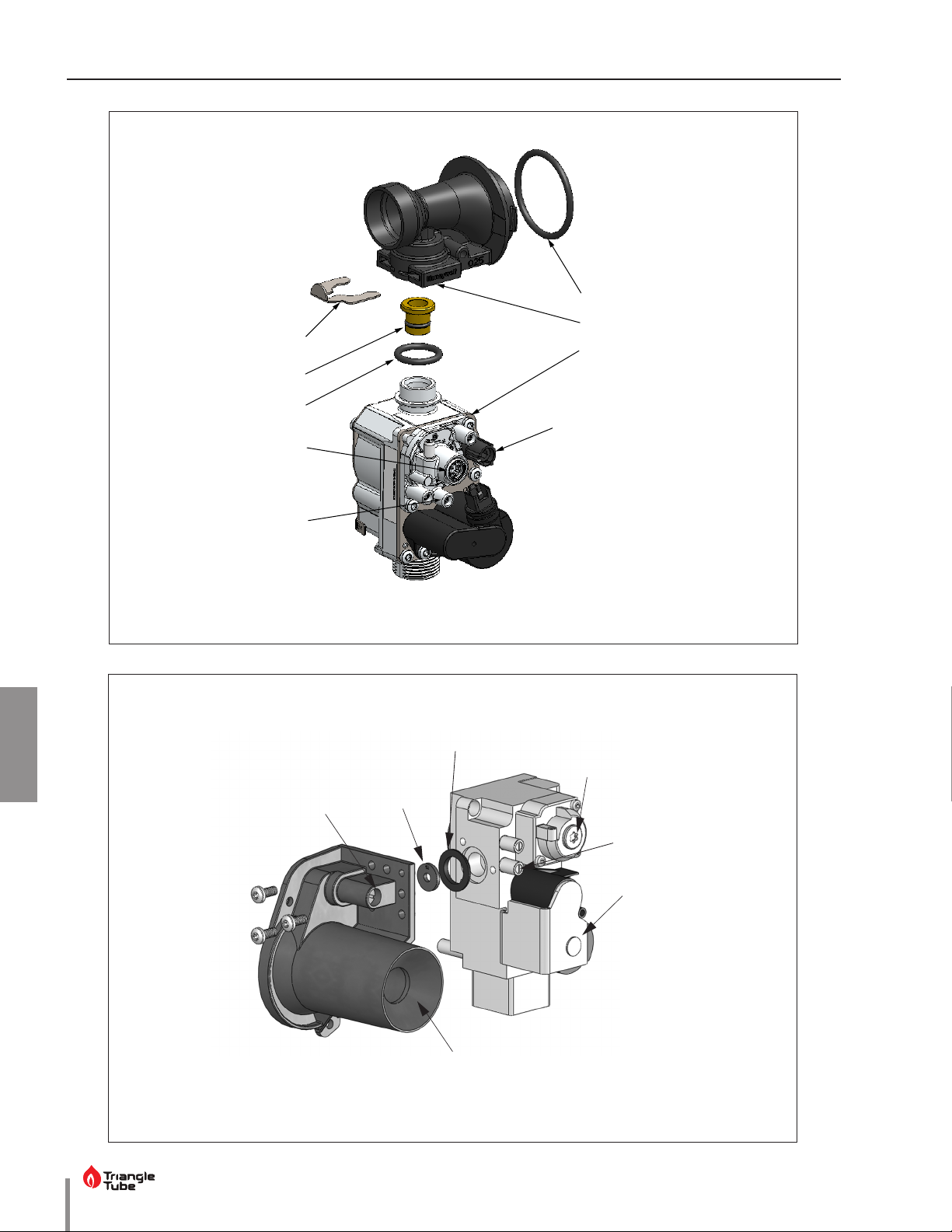

Fig. 16 - Gas Valve / Venturi Assembly - PRESTIGE Solo 80-110 ......................................................... 30

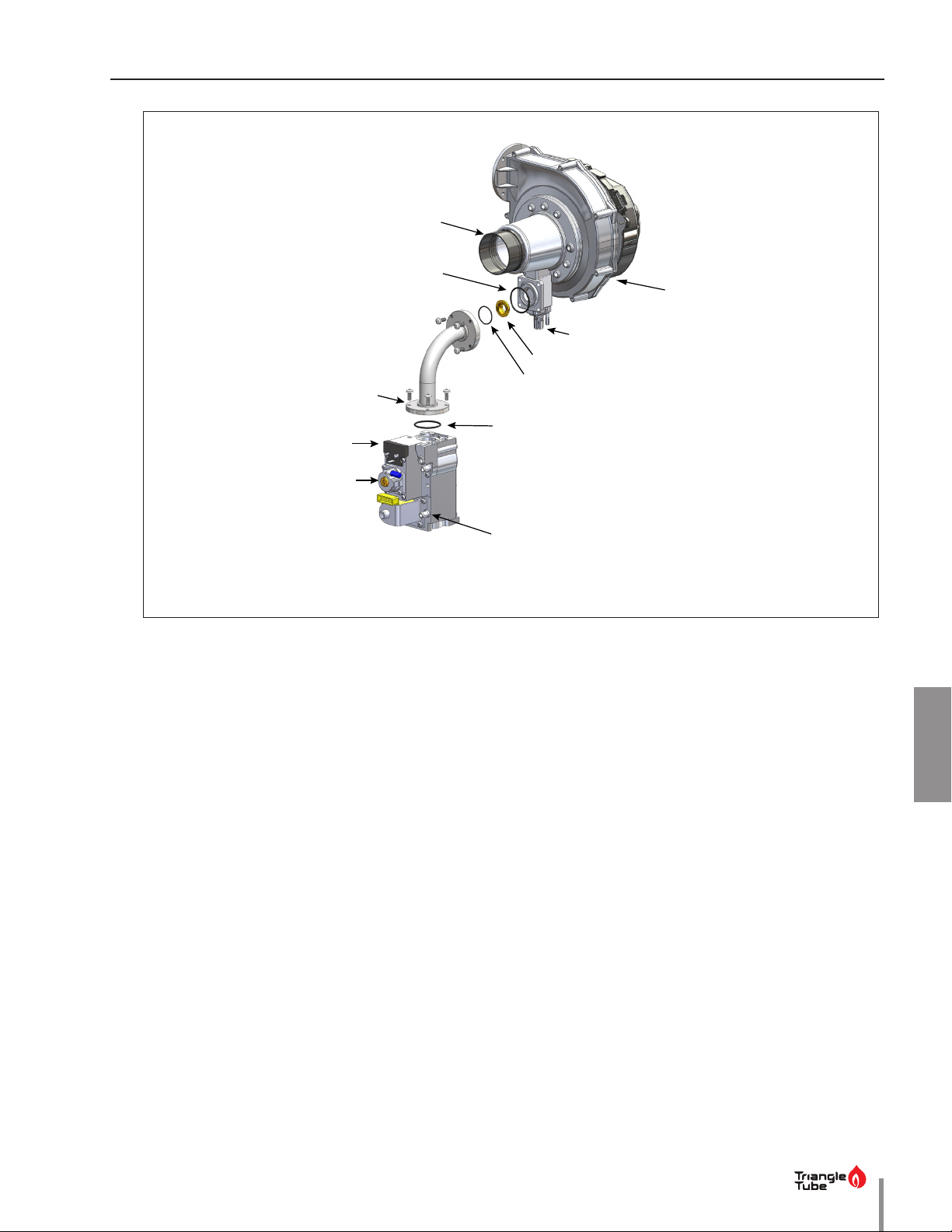

Fig. 17 - Gas Valve / Venturi Assembly - PRESTIGE Solo 155/175/250 ............................................. 30
Fig. 18 - Gas Valve / Venturi Assembly - PRESTIGE Solo 299/399 ...................................................... 31

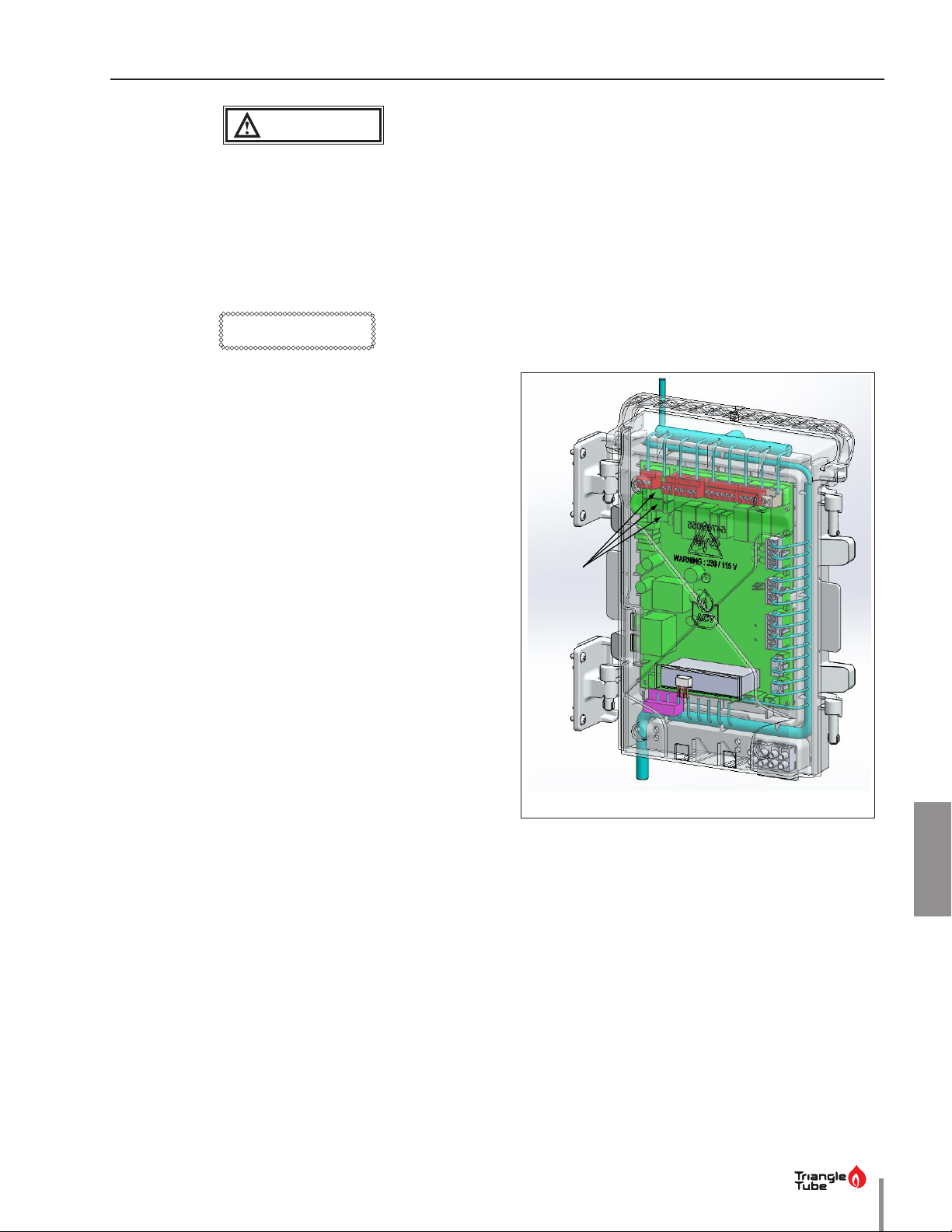

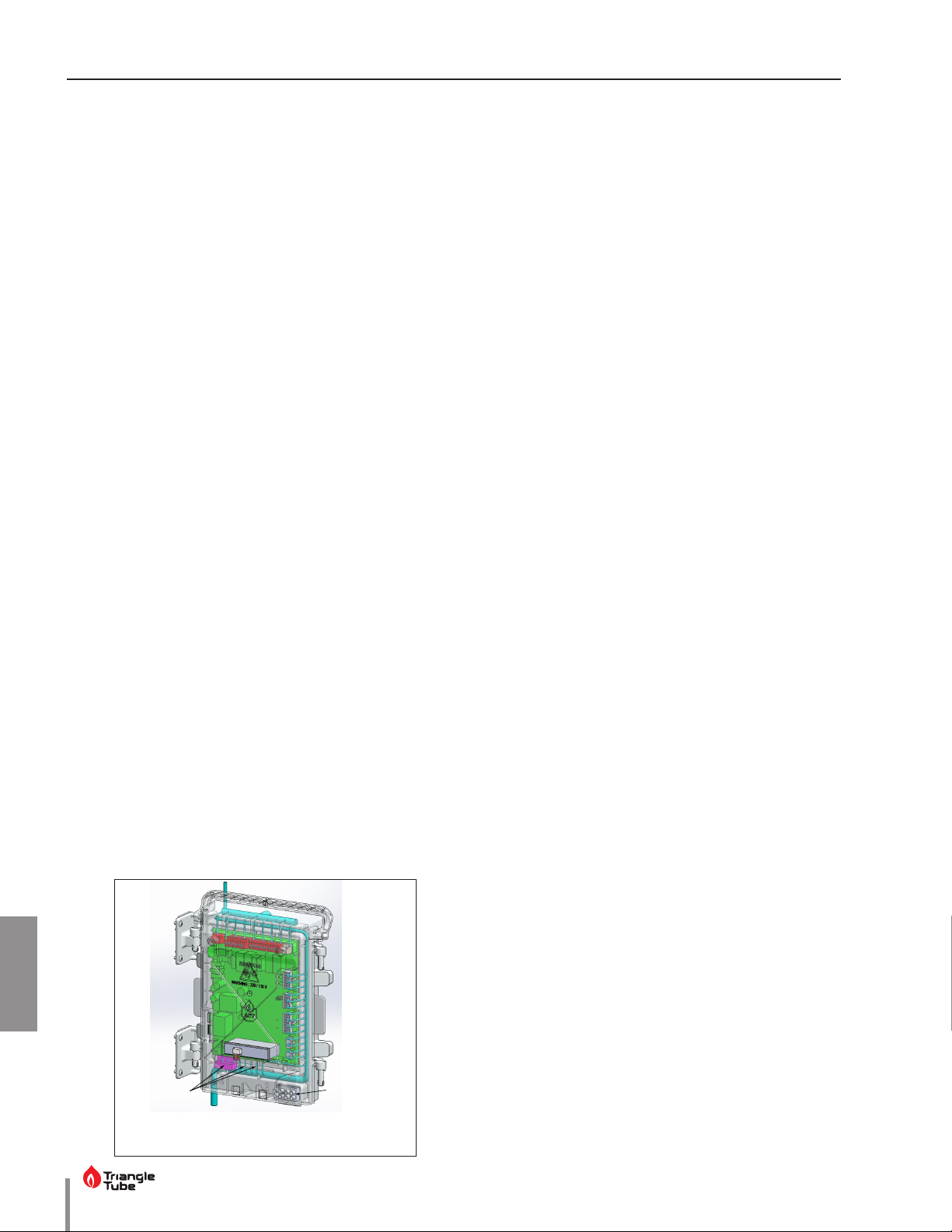

Fig. 19 - CTRLMax Control Module Fuse Location ............................................................................... 33

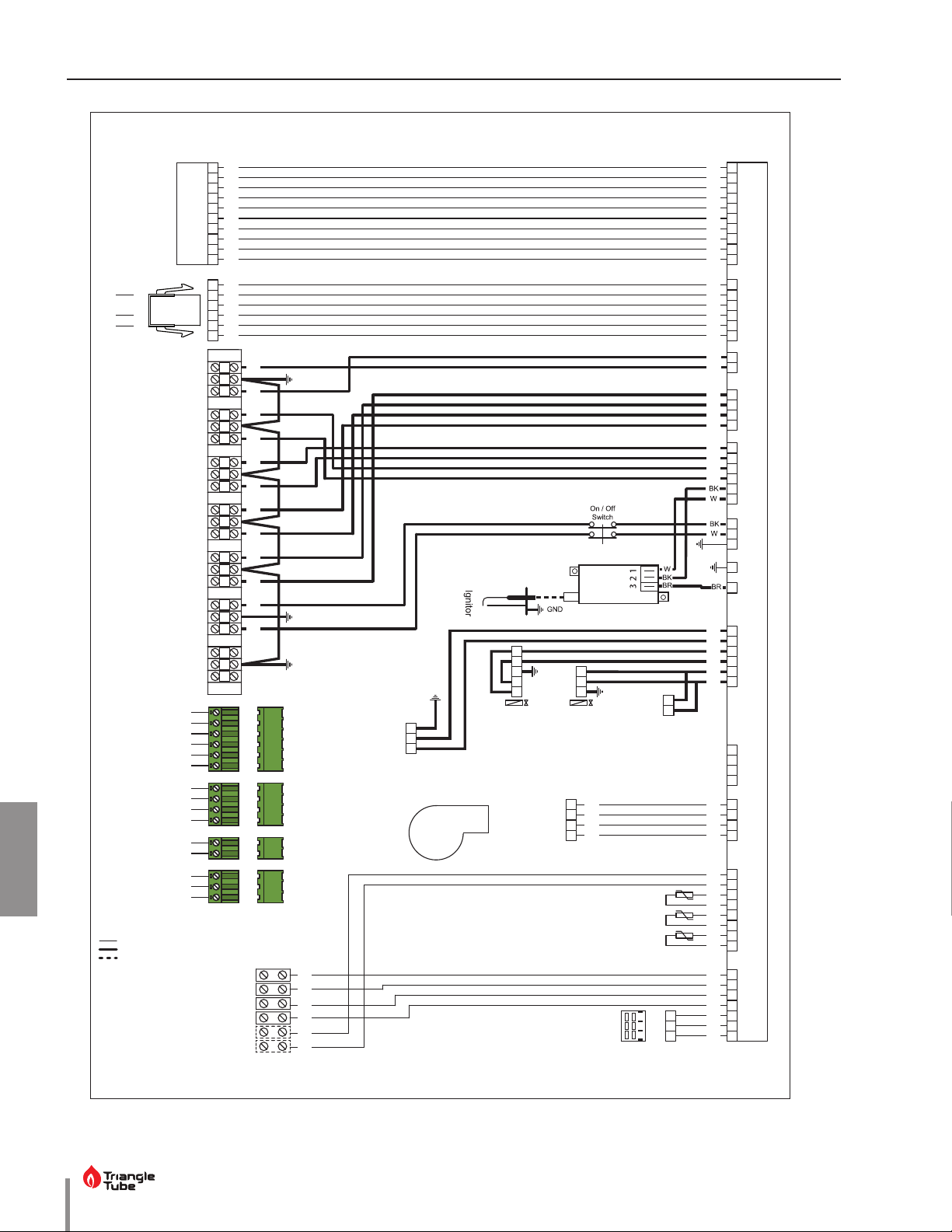

Fig. 20 - Prestige Solo Boiler Factory Wiring ......................................................................................... 34
Fig. 21 - Terminal Strip Location ............................................................................................................ 35
Fig. 22 - Low Voltage Connections ......................................................................................................... 36

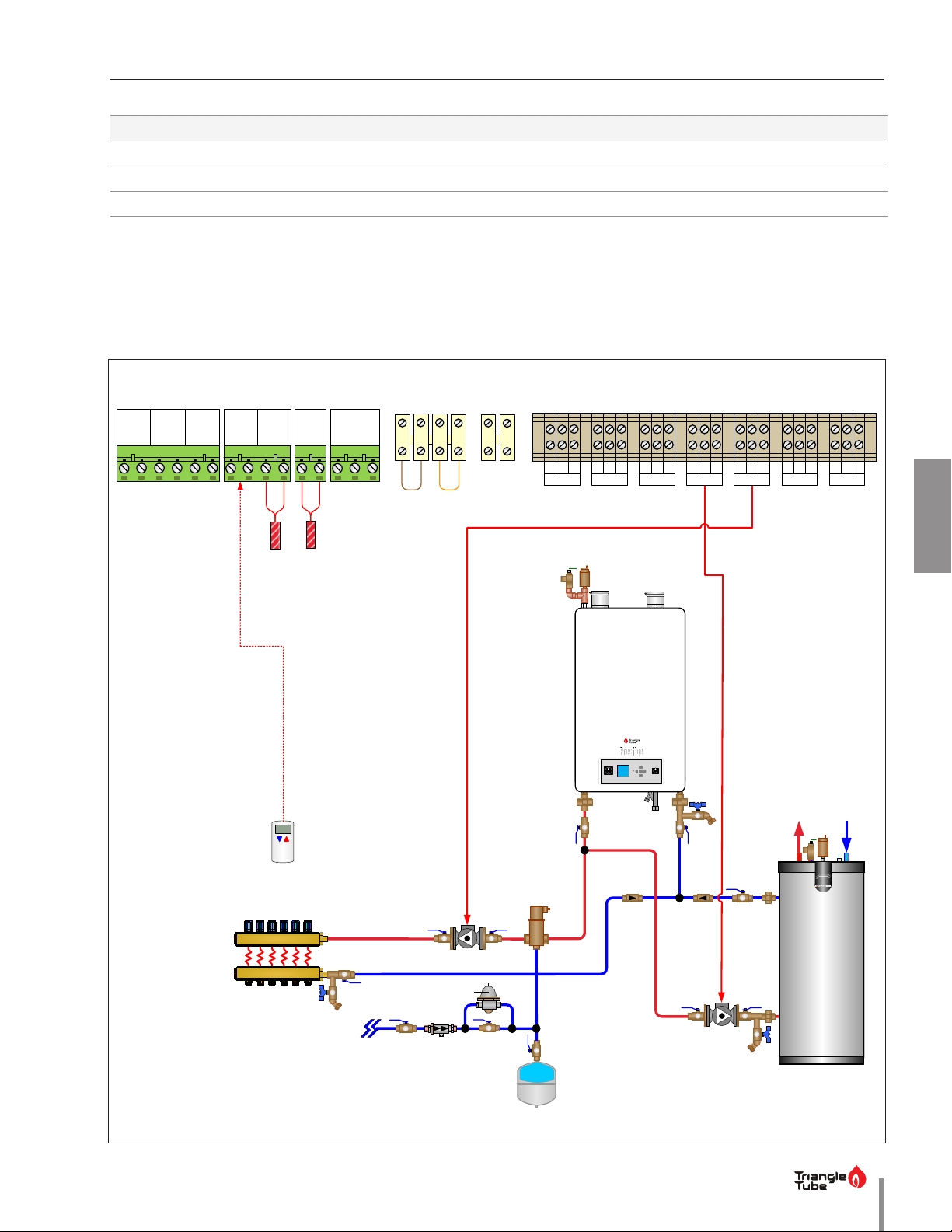

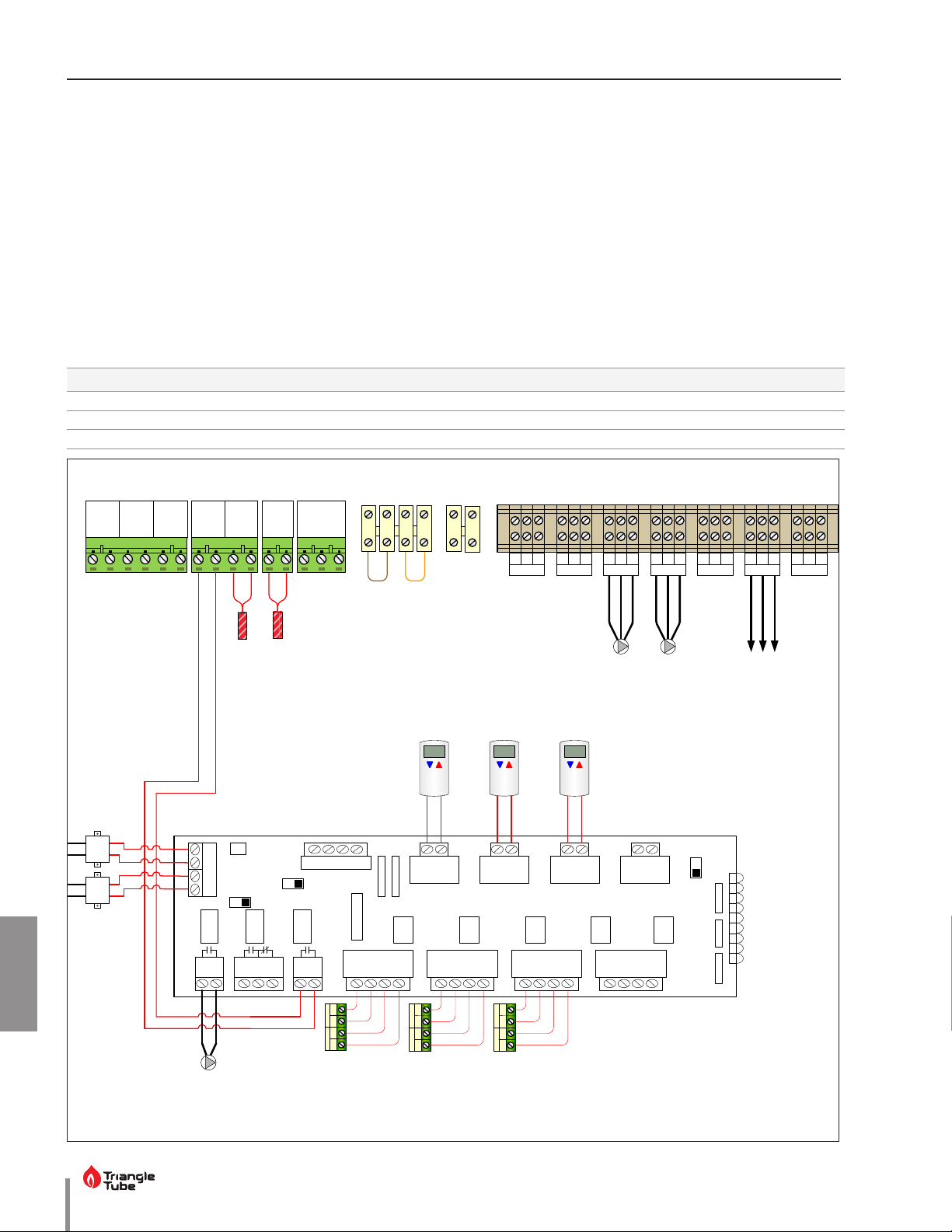

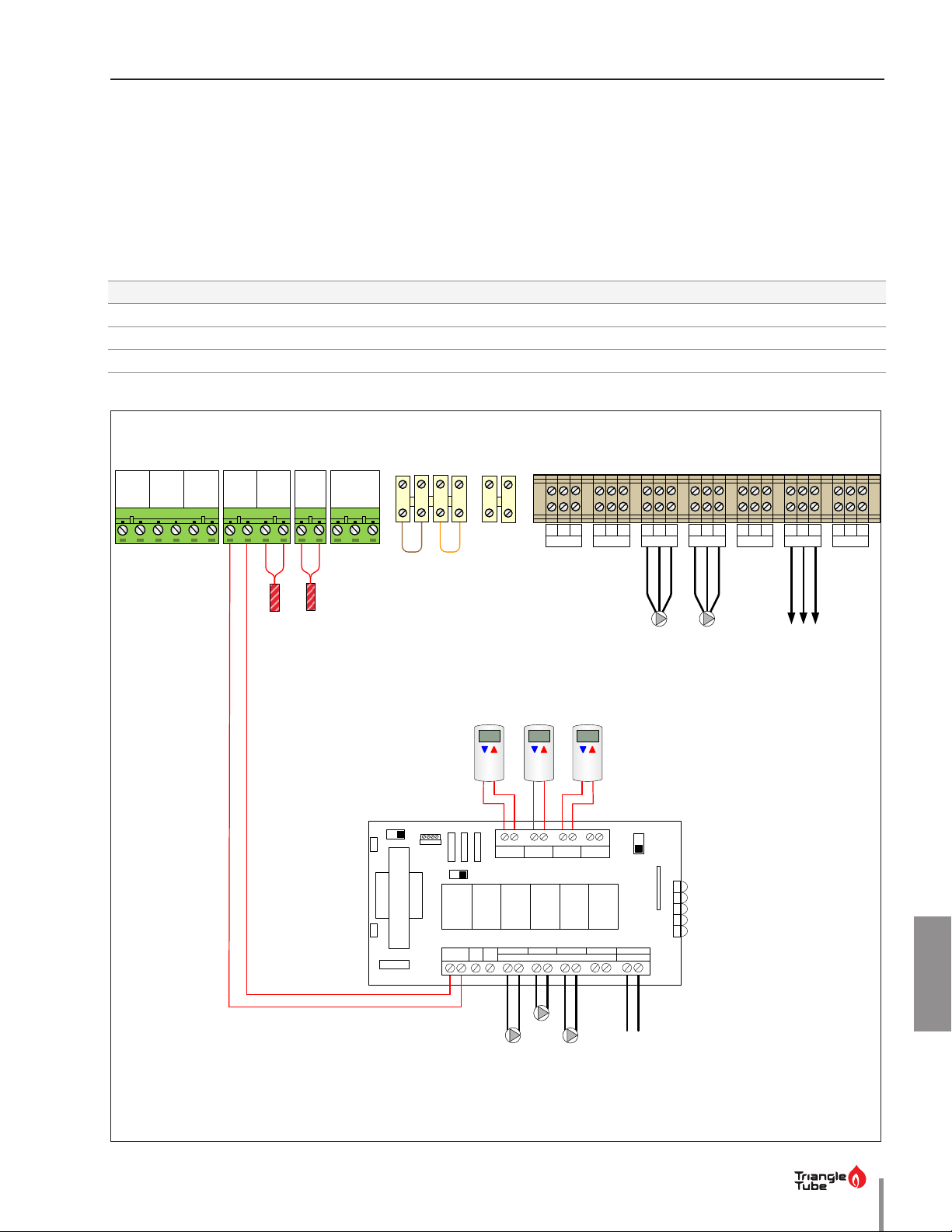

Fig. 23 - Typical Zone Panel Wiring to PRESTIGE with Zone Valves .................................................... 38
Fig. 24 - Typical Zone Panel Wiring to PRESTIGE with Zone Circulators ............................................. 39

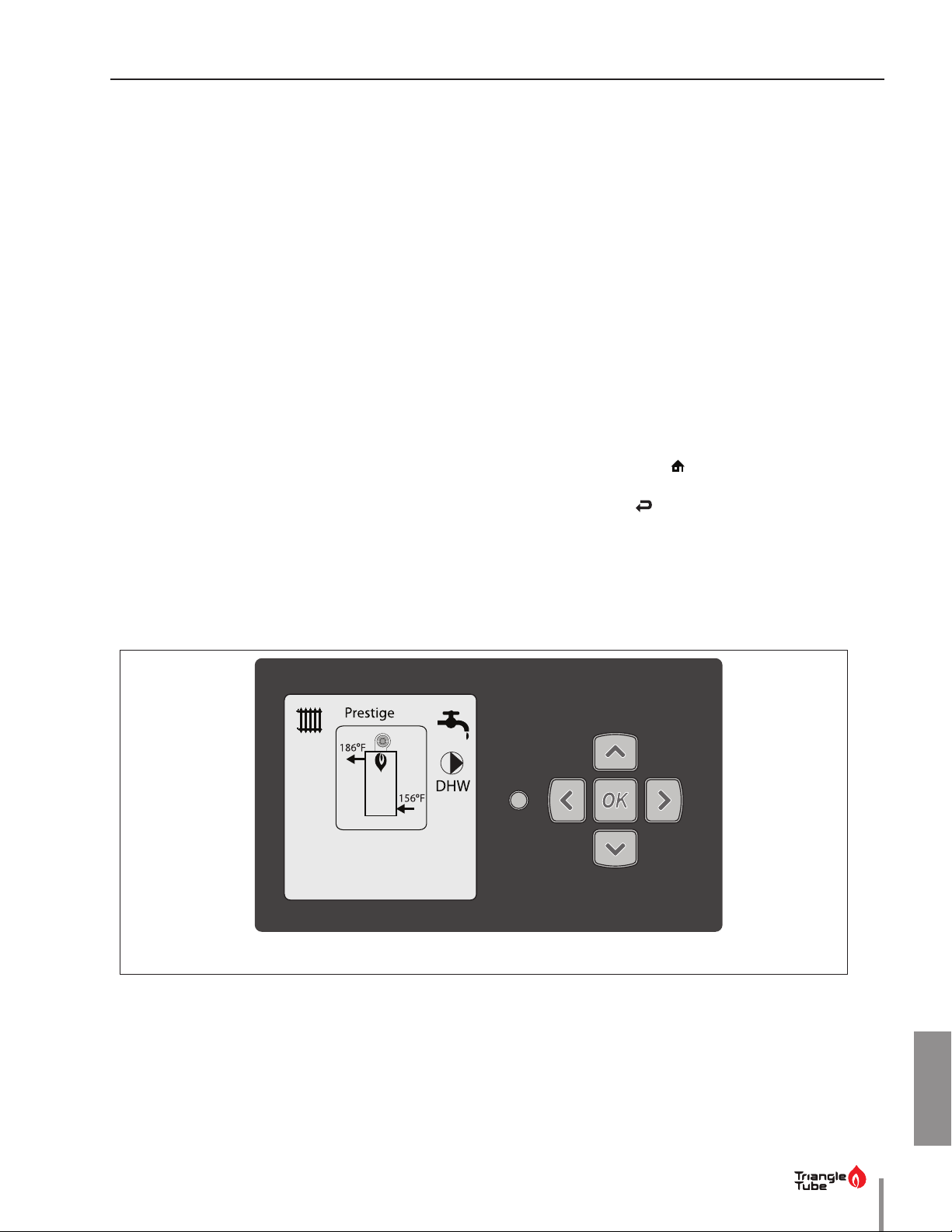

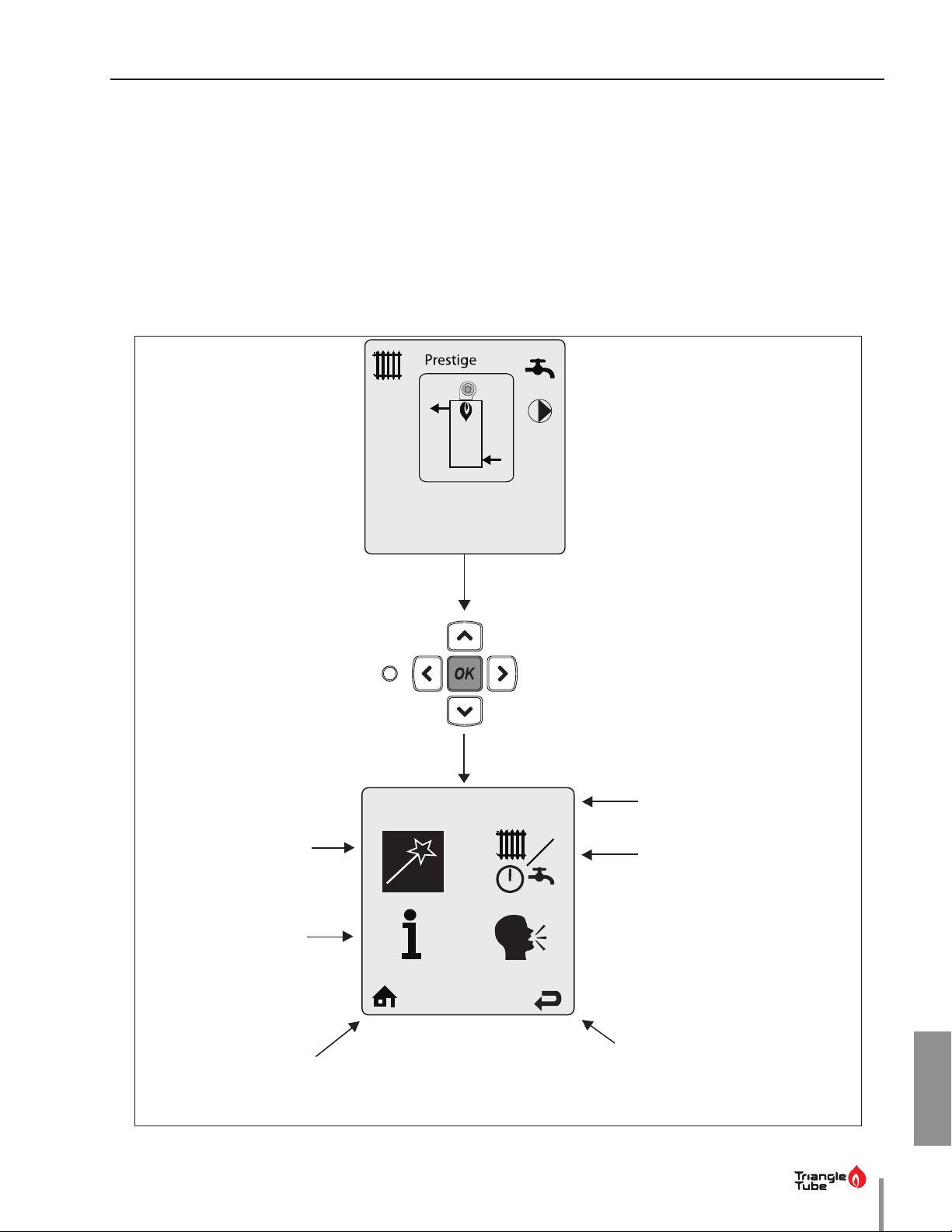

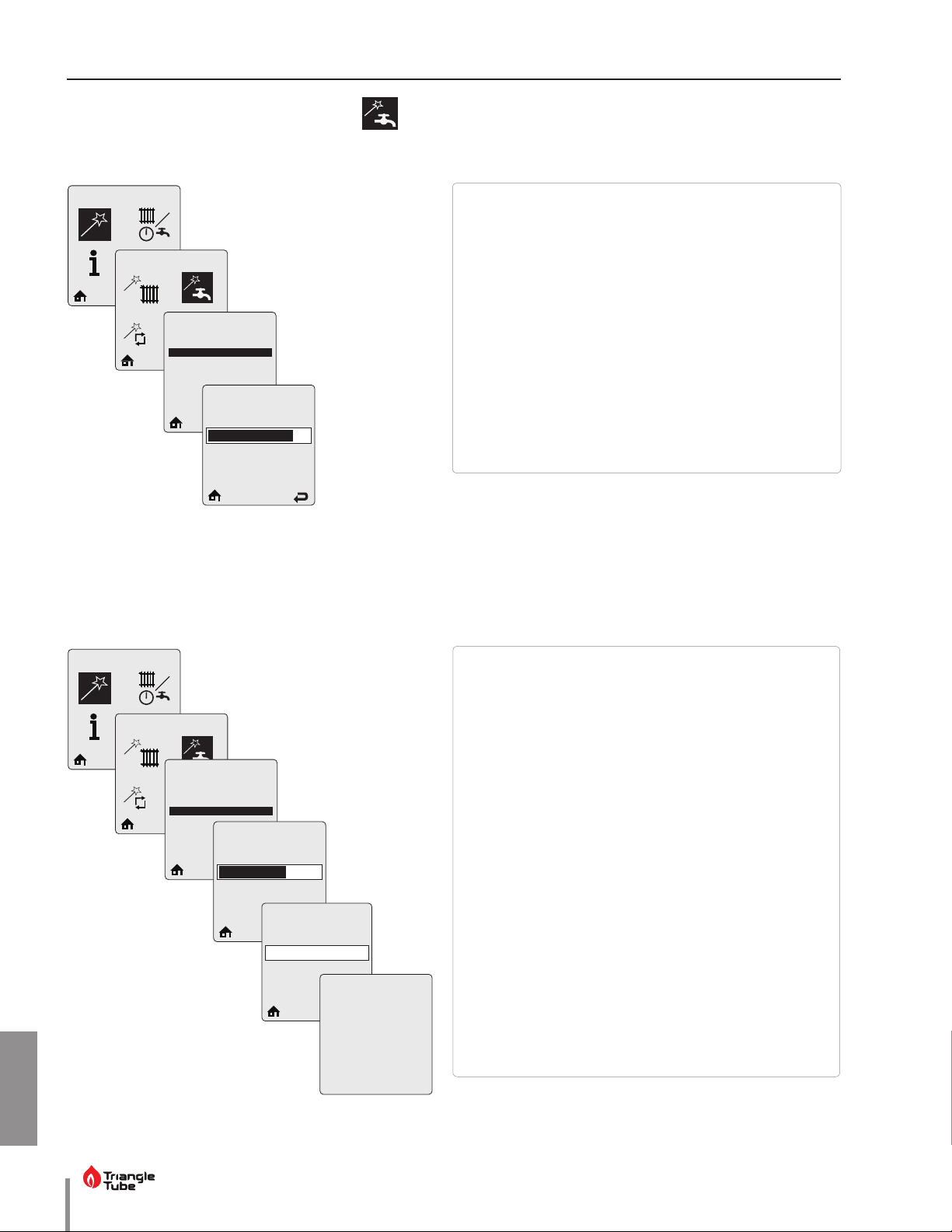

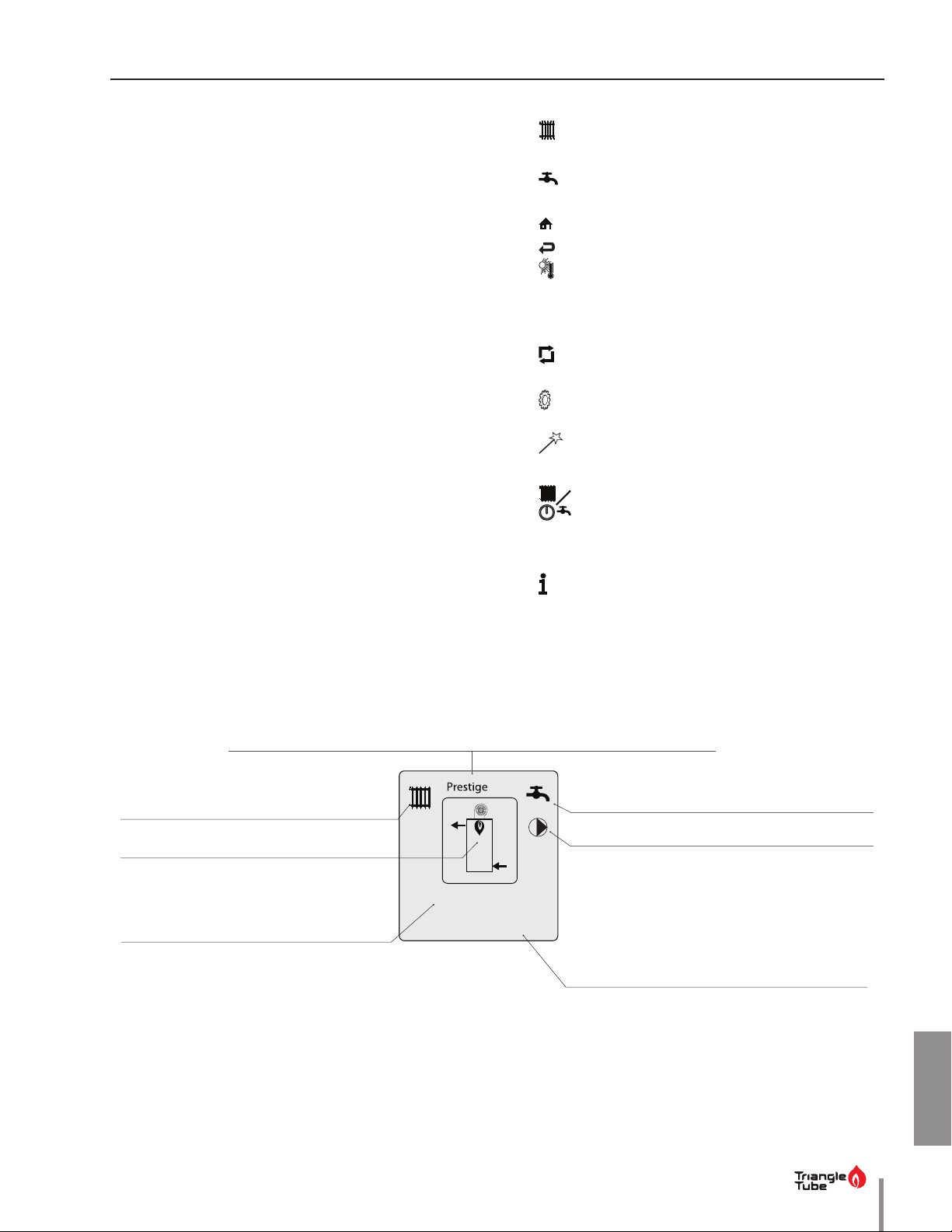

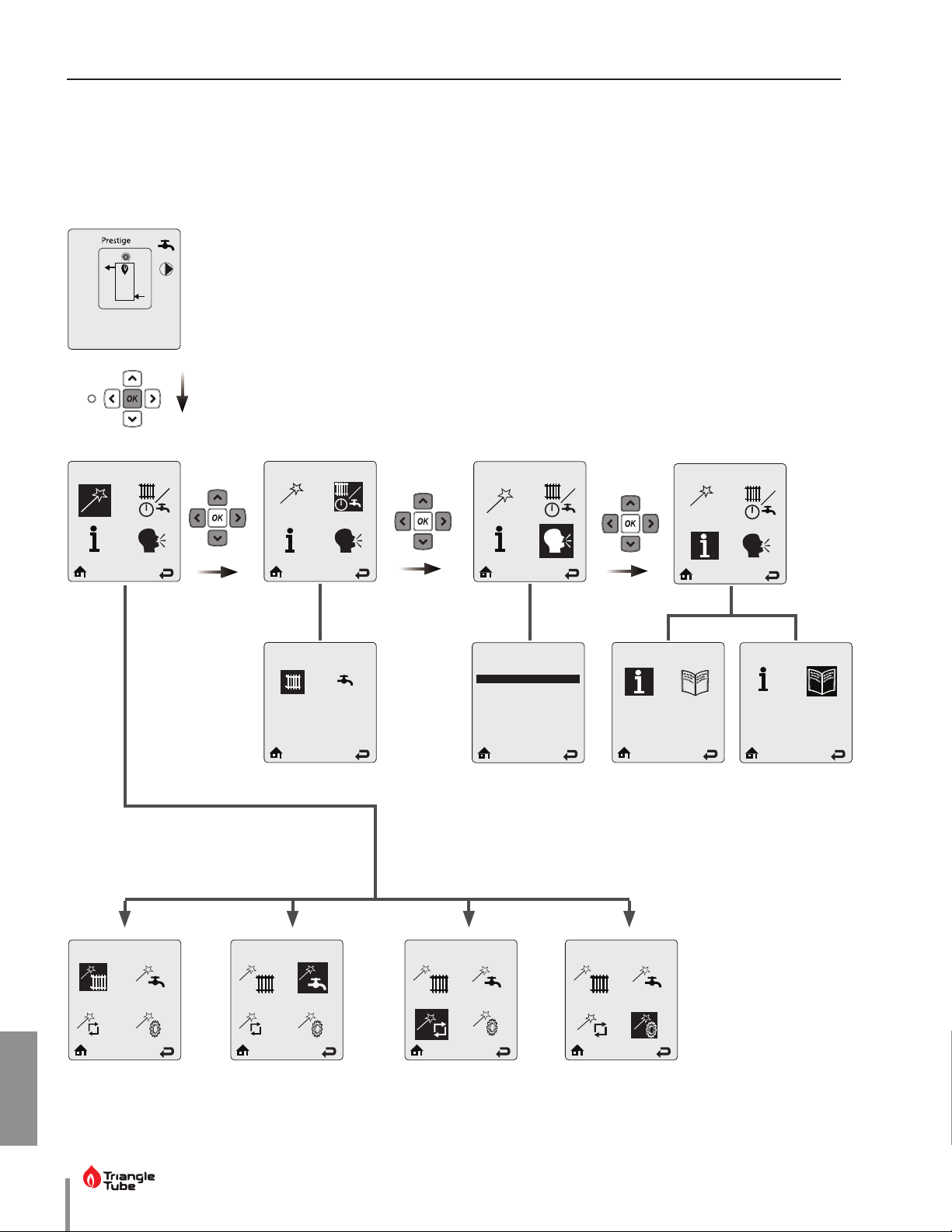

Fig. 25 - CTRLMax User Interface ........................................................................................................... 41

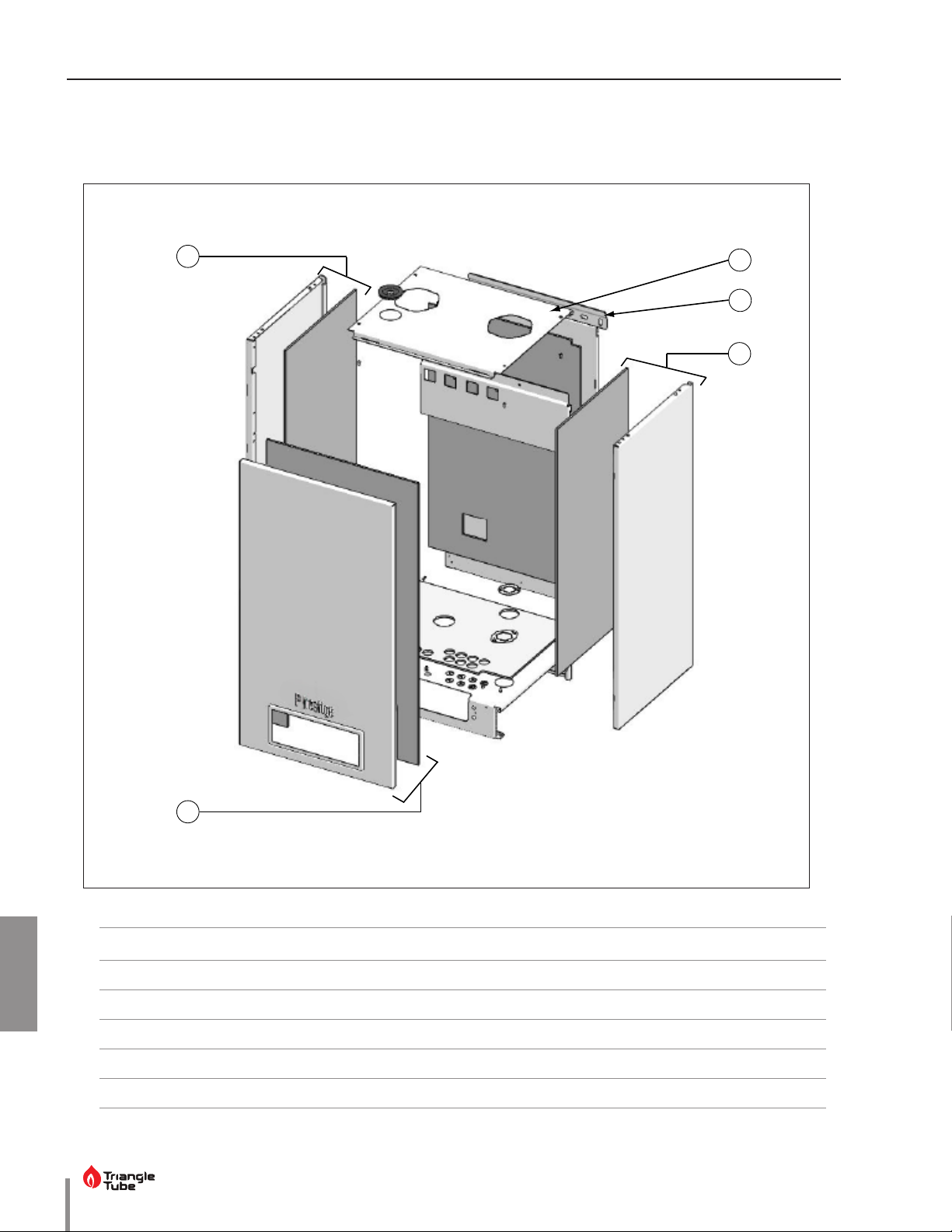

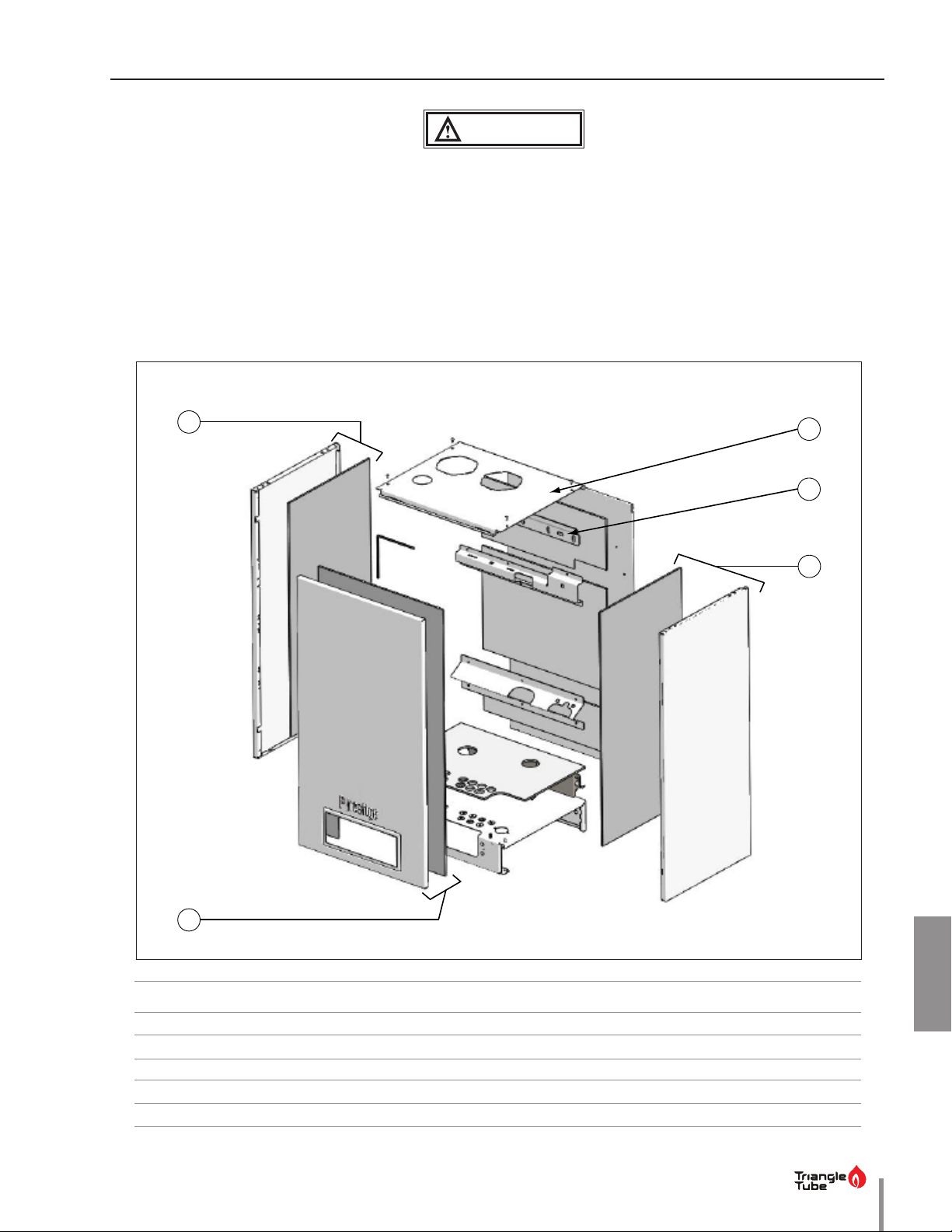

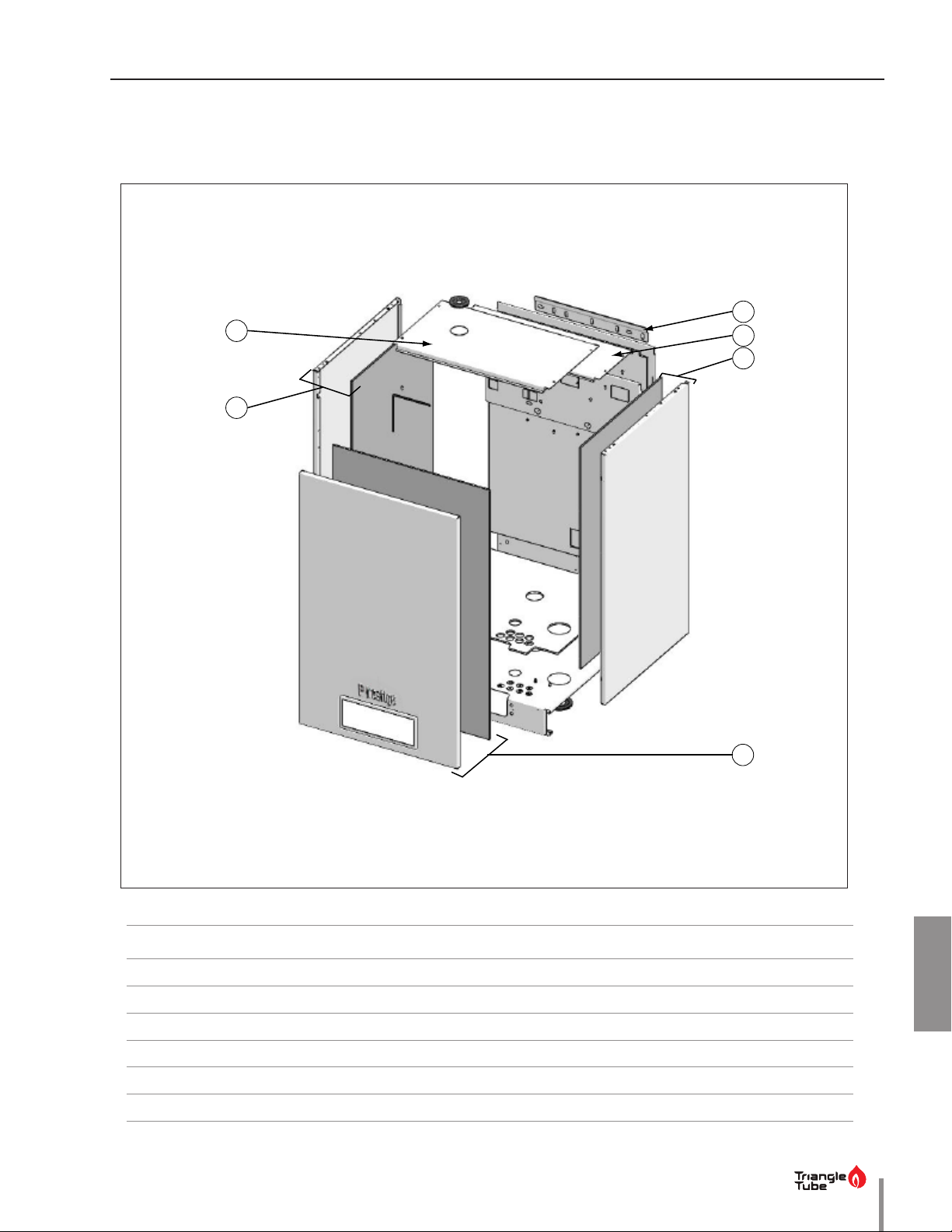

Fig. 26 - PRESTIGE Solo 80/110 Jacket Components ...........................................................................77
Fig. 27 - PRESTIGE Solo 155/175/250 Jacket Components .................................................................78
Fig. 28 - PRESTIGE Solo 299/399 Jacket Components....................................................................... 79

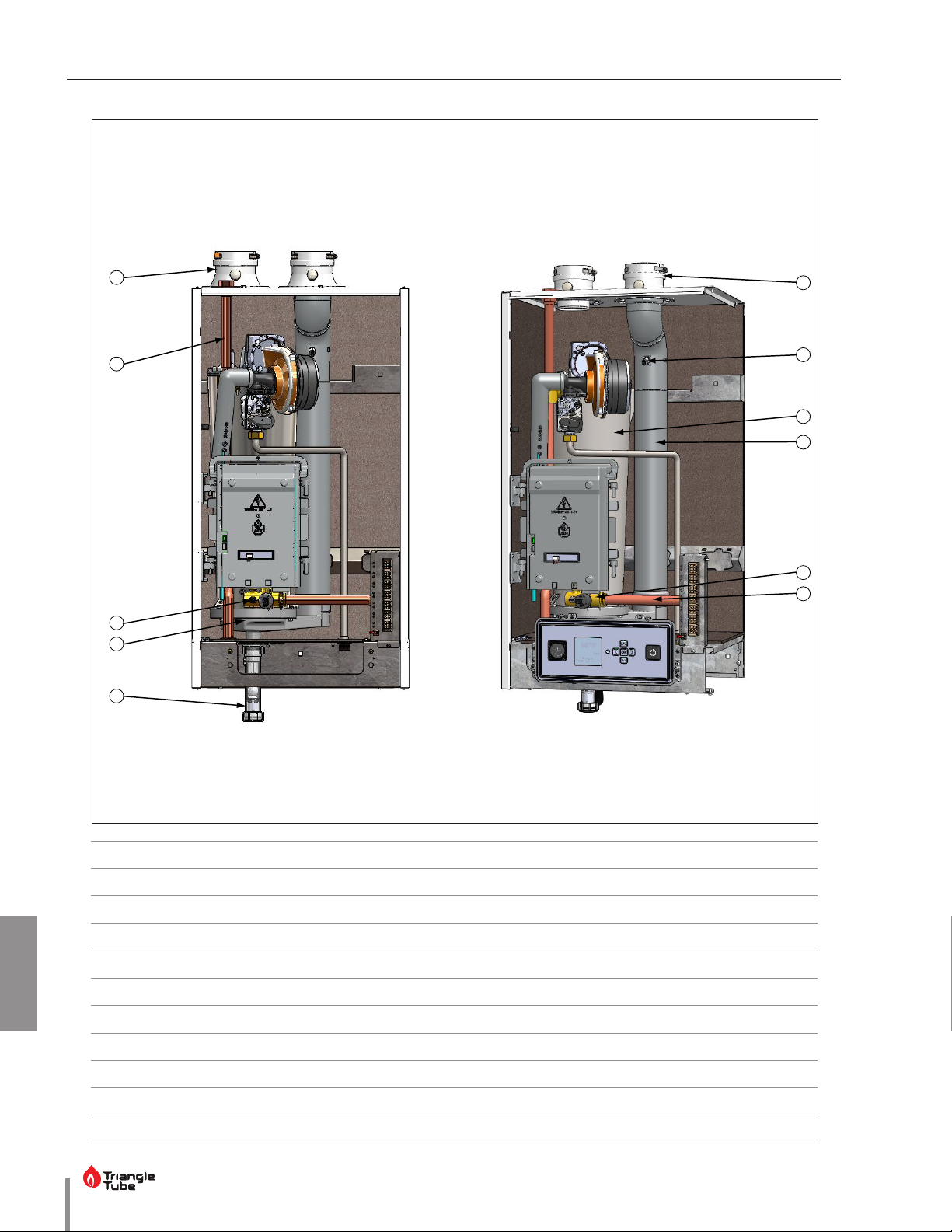

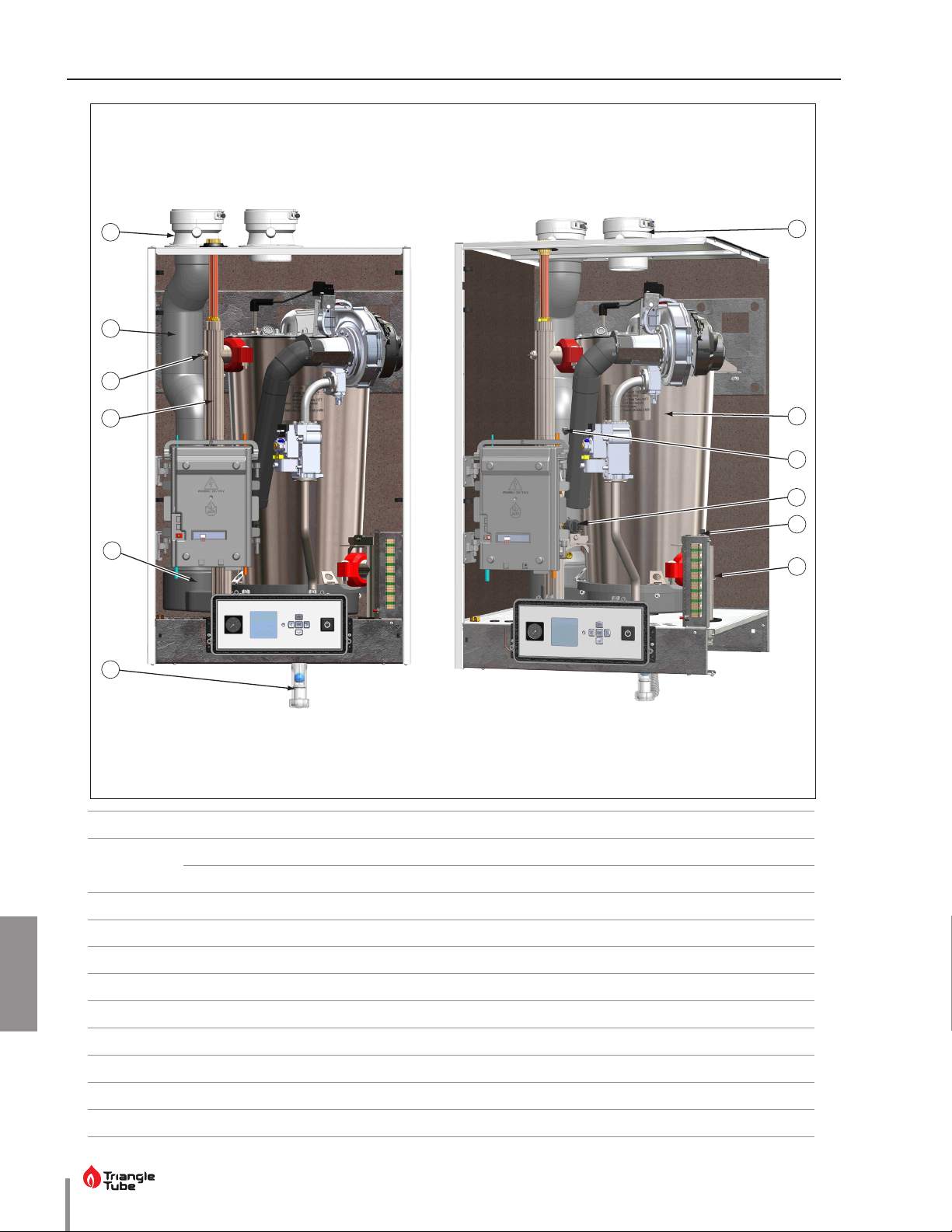

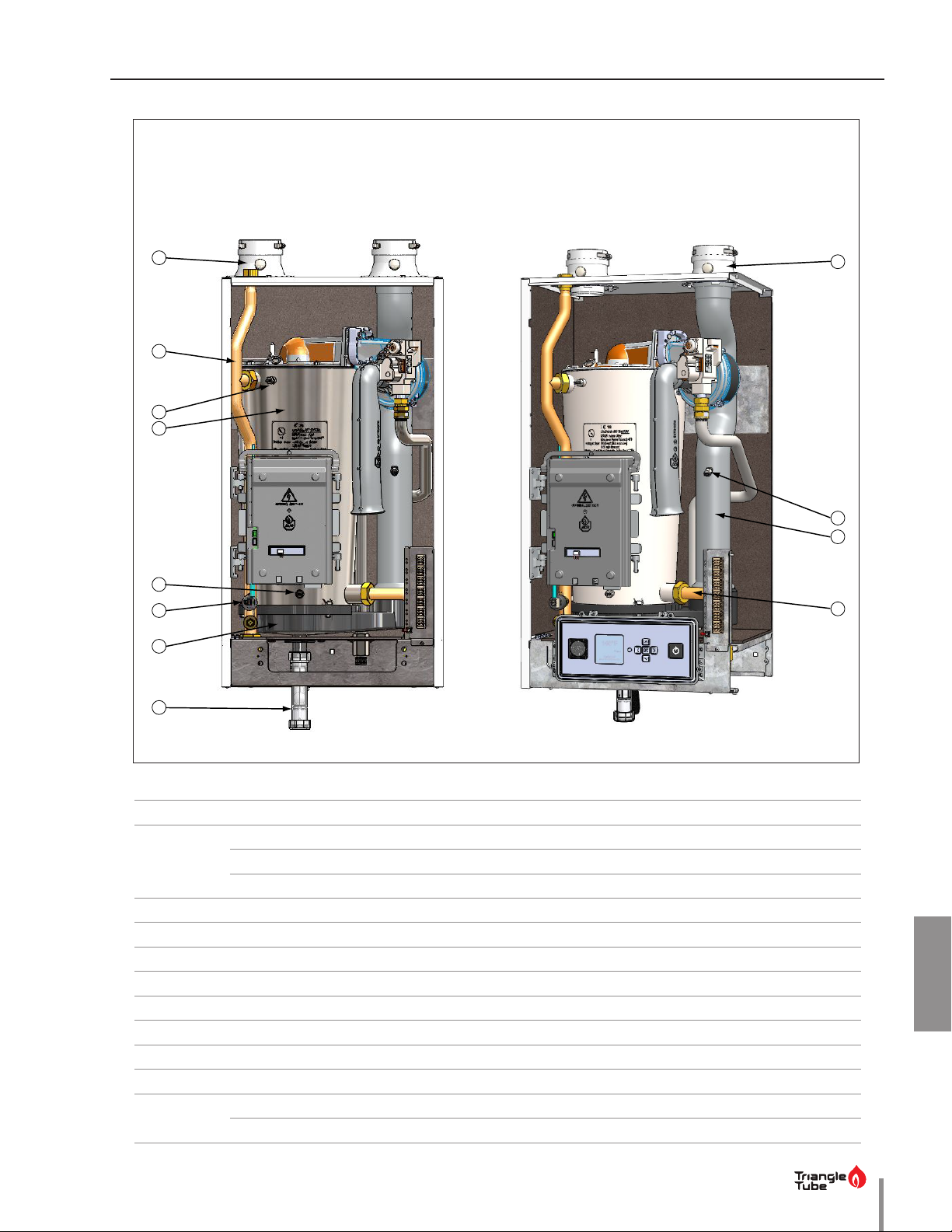

Fig. 29 - PRESTIGE Solo 80/110 Internal Components ....................................................................... 80
Fig. 30 - PRESTIGE Solo 155/175/250 Internal Components ............................................................. 81
Fig. 31 - PRESTIGE Solo 299/399) Internal Components ................................................................... 82

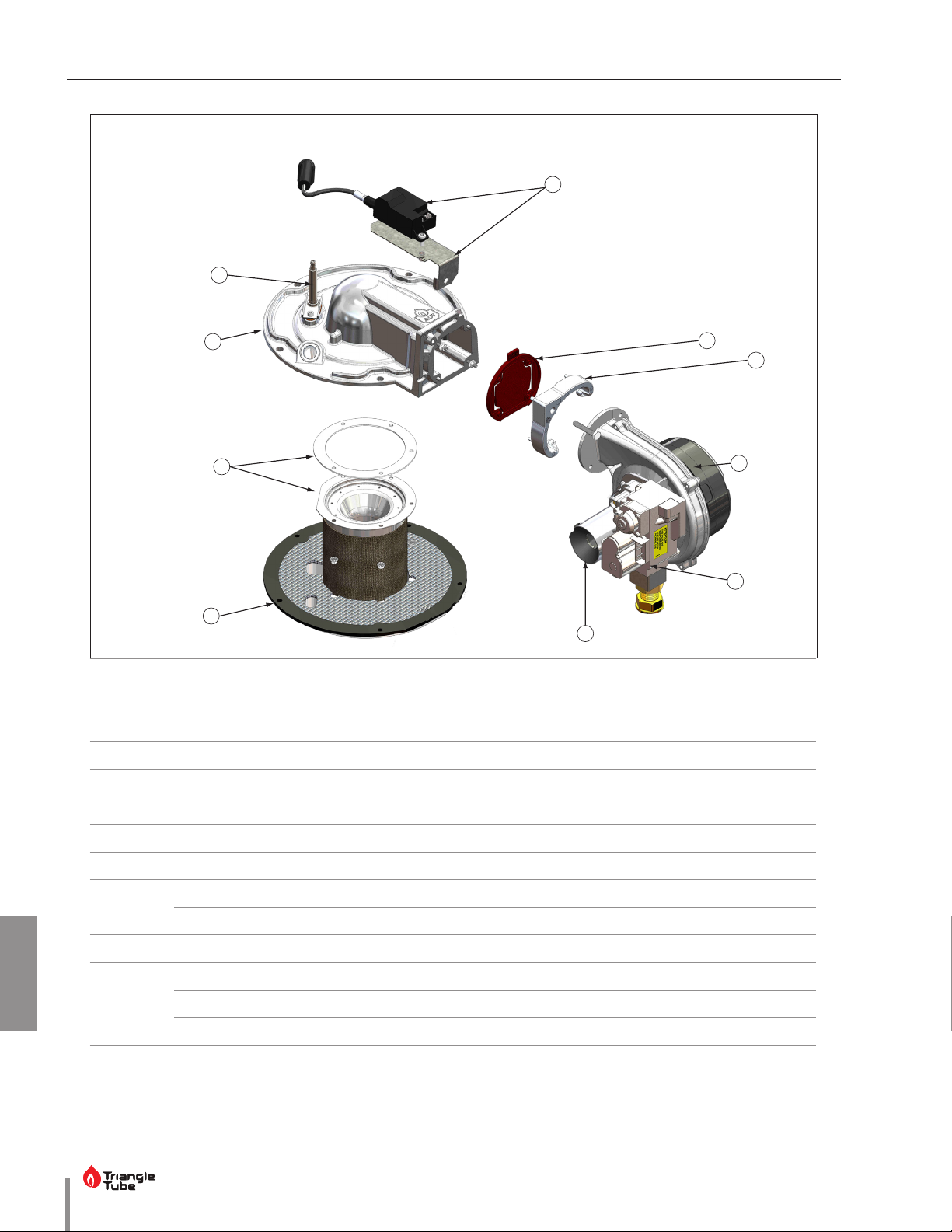

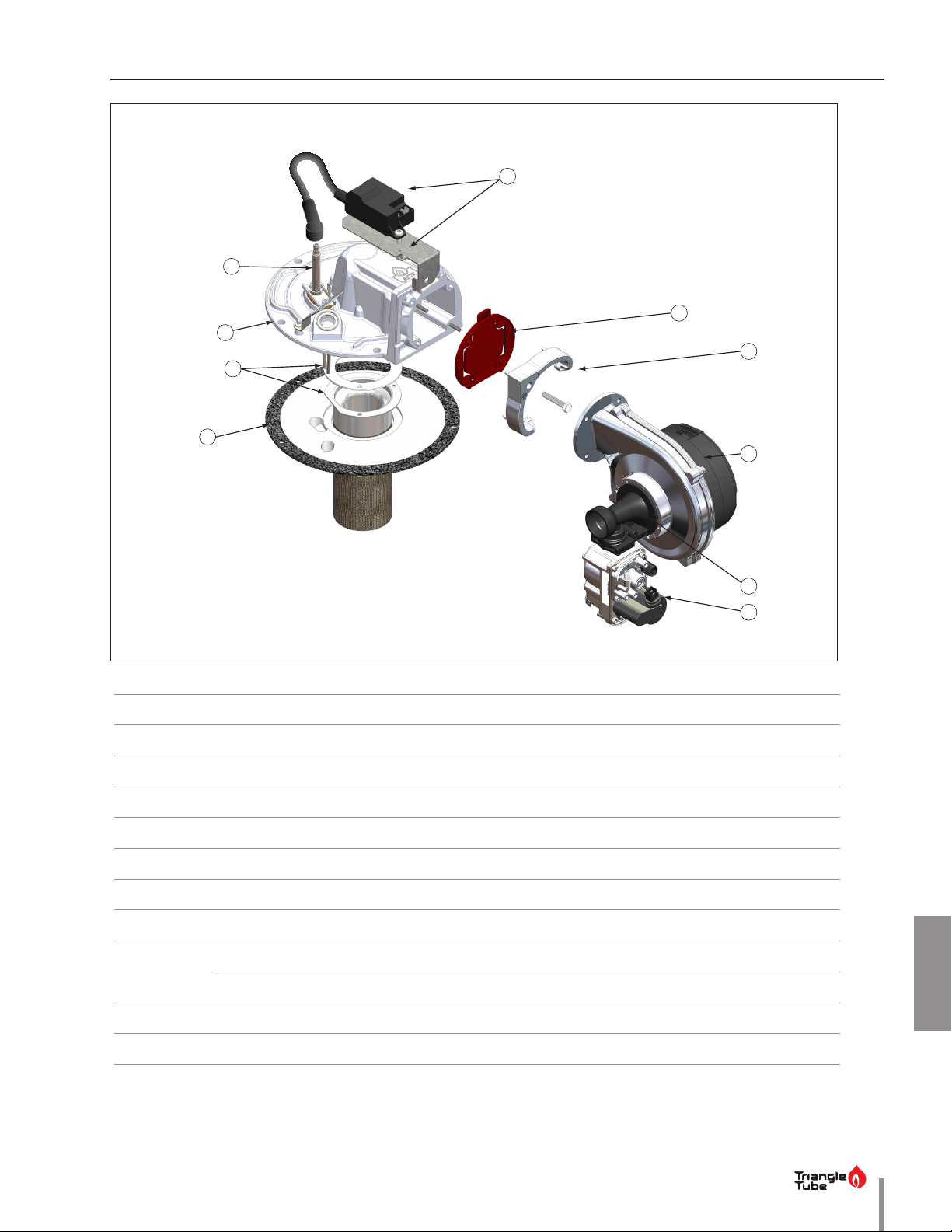

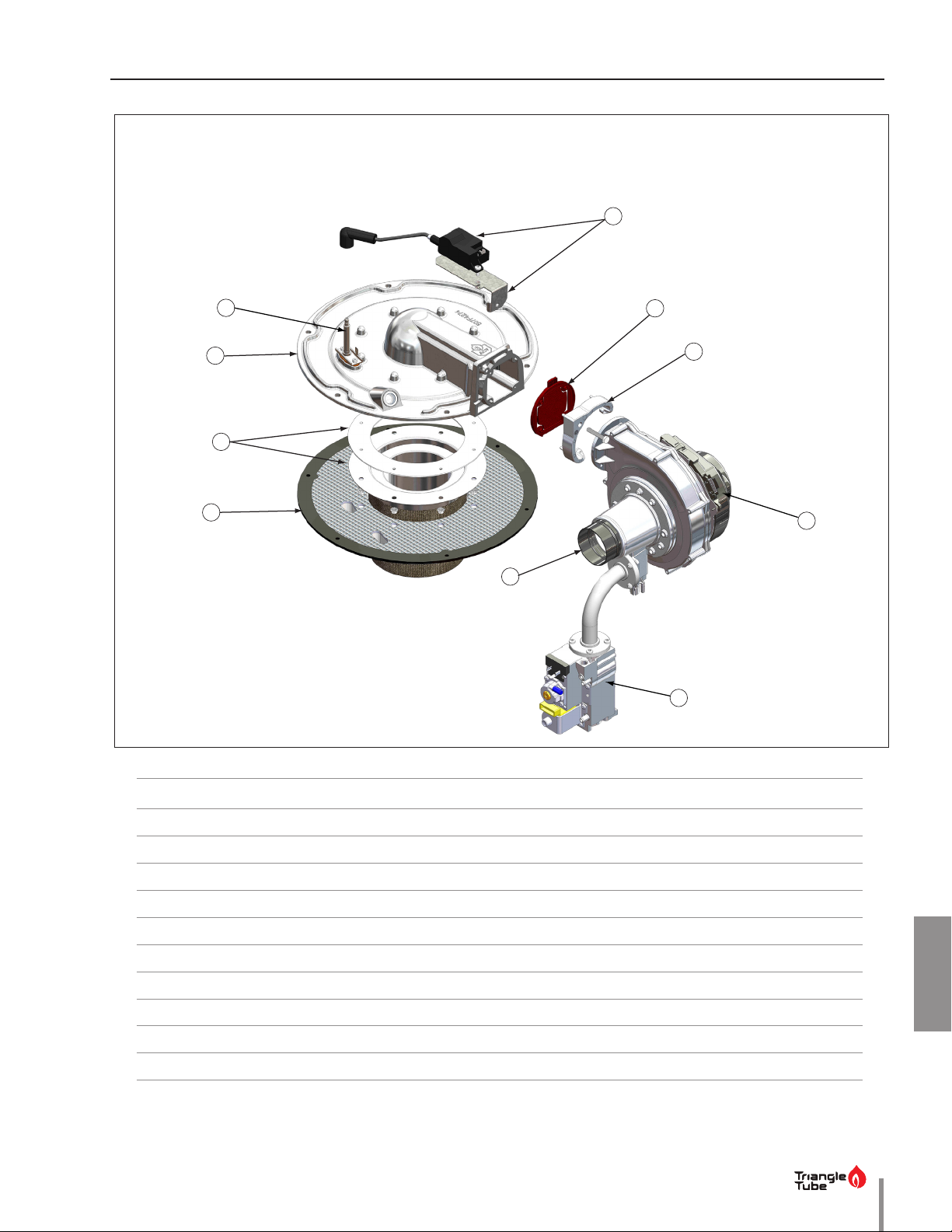

Fig. 32 - PRESTIGE Solo 80/110 Burner Components ........................................................................ 83
Fig. 33 - PRESTIGE Solo 155/175/250 Burner Components .............................................................. 84
Fig. 34 - PRESTIGE Solo 299/399 Burner Components ................................................................... 85

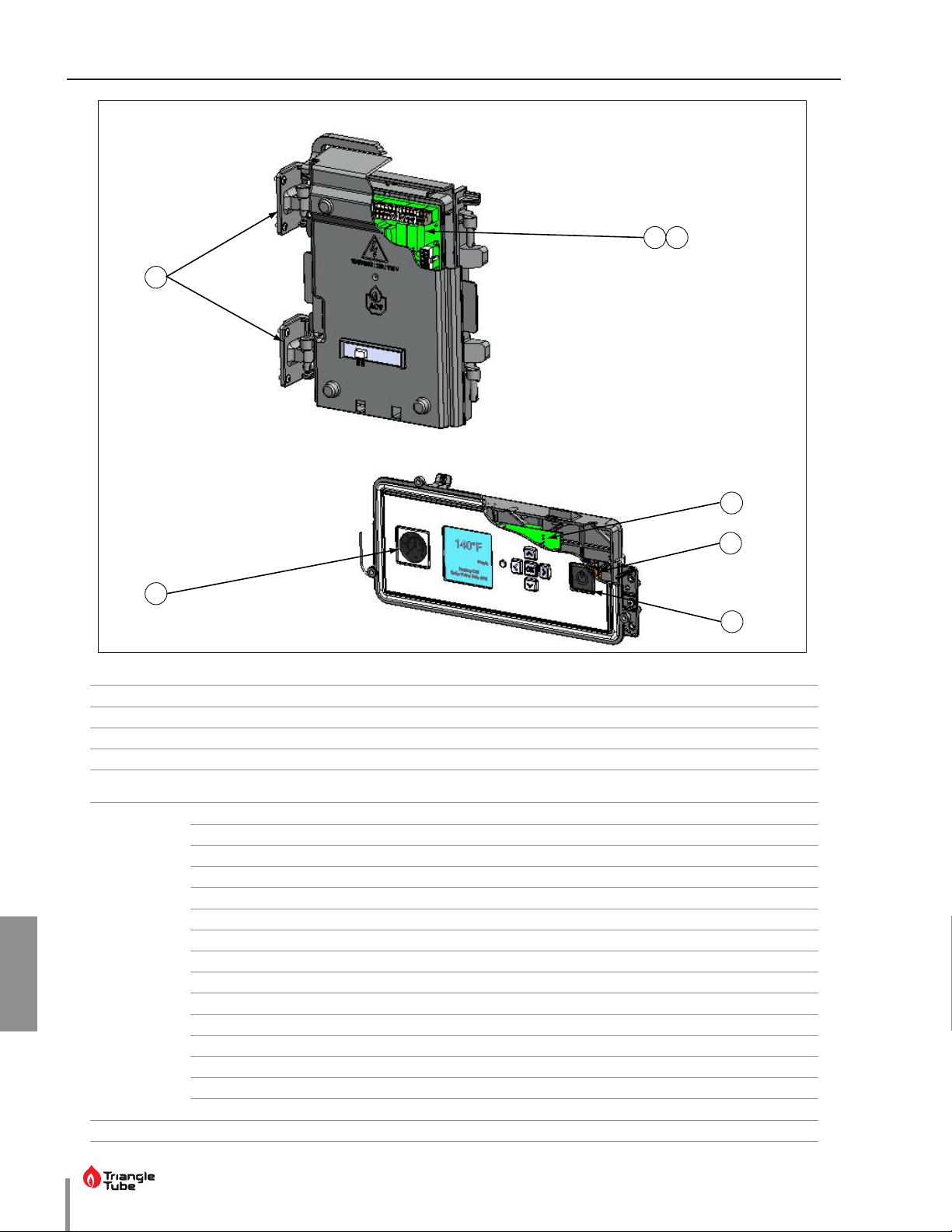

Fig. 35 - PRESTIGE Solo Control & Display Enclosures ....................................................................... 86
Fig. 36 - Front View PRESTIGE Solo 80/110 ......................................................................................... 88
Fig. 37 - Right Side View PRESTIGE Solo 80/110 ................................................................................. 89
viiiviii
INDEX OF ILLUSTRATIONS AND TABLES
Fig. 38 - Front View PRESTIGE Solo 155/175/250 .............................................................................. 90
Fig. 39 - Right Side View PRESTIGE Solo 155/175/250 .......................................................................91
Fig. 40 - Front View PRESTIGE Solo 299/399 ...................................................................................... 92
Fig. 41 - Right Side View PRESTIGE Solo 299/399 .............................................................................. 93
Graph 1 - Pressure Loss Through Boiler - Taco Circulators ................................................................. 94
Graph 2 - Pressure Loss Through Boiler - Grundfos Circulators ........................................................ 94
Graph 4 - Pressure Loss Through Boiler - Grundfos Circulators ....................................................... 95
Graph 3 - Pressure Loss Through Boiler - Taco Circulators .............................................................. 95
Graph 5 - Pressure Loss Through Boiler - Taco Circulators ................................................................ 96
Graph 6 - Pressure Loss Through Boiler - Grundfos Circulators ...................................................... 96
Table 1 - Gas Piping Sizing - Natural Gas ............................................................................................... 28

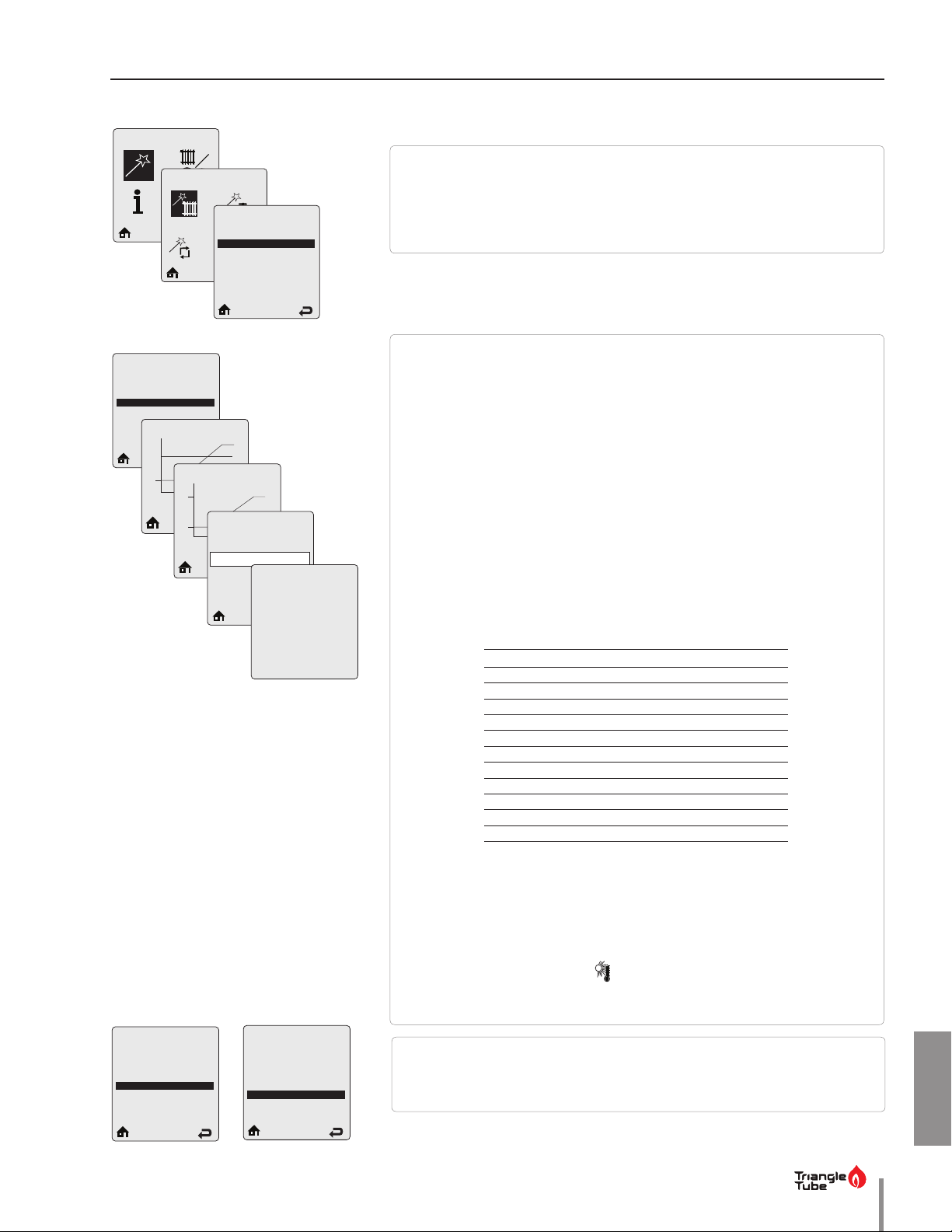

Table 2 - Outdoor Reset Preset Selections .............................................................................................47
Table 3 - Throttle Screw Adjustment ......................................................................................................61
Table 4 - Acceptable Combustion Levels ...............................................................................................61
ixix
INTENTIONALLY LEFT BLANK
PRODUCT AND SAFETY INFORMATION
IMPORTANT SAFETY INFORMATION FOR
THE HOMEOWNER AND THE INSTALLER
DANGER
SAFETY
This manual contains important information with respect to the
installation, starting up and maintenance of the appliance.
This manual must be provided to the Homeowner, who will
keep it in a safe place for future reference.
Triangle Tube accepts no liability for any damage,
injury, or loss of life resulting from incorrect
installation, alteration of any factory supplied
parts, or the use of parts or ttings not specied by
Triangle Tube. If there is a conict or doubt about the
proper installation of the unit or any factory supplied
replacement parts please contact Triangle Tube
Technical Support.
DEFINITIONS
The following terms are used throughout this manual
to bring attention to the presence of potential hazards
or to important information concerning the product.
DANGER
Indicates the presence of a hazardous situation which, if ignored, will result in substantial
property damage, serious injury, or death.
WARNING
Indicates a potentially hazardous situation
which, if ignored, can result in substantial
property damage, serious injury, or death.
CAUTION
Indicates a potentially hazardous situation
which, if ignored, can result in minor property
damage, or injury.
NOTICE
Indicates special instructions on installation,
operation or maintenance, which are important to the equipment but not related to person-
al injury hazards.
BEST PRACTICE
Indicates recommendations made by Triangle
Tube for the installers, which will help to ensure
optimum operation and longevity of the equip-
ment.
• Do not use this appliance if any part has been under
water. Immediately call a qualified service technician
to inspect the appliance and to replace any part of
the control system which has been under water.
• Avoid electrical shock when servicing the
appliance, by disconnecting the electrical supply
prior to performing maintenance.
• Failure to comply with these instructions will
result in substantial property damage, serious
injury, or death.
WARNING
• What to do if you smell gas:
- Do not try to light any appliance
- Do not touch any electrical switch; do not use
any phone in your building.
- Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
- If you cannot reach your gas supplier, call the
fire department.
• Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
• Prior to installing this product, the qualified
installer must read all instructions included in
this manual and all accompanying manuals/
documents with this appliance.
• All installation steps required in these manuals
must be performed in the proper order given.
• This product must be maintained / serviced and
inspected annually by a qualified service technician.
• A byproduct of any gas fired appliance is carbon
monoxide. Triangle Tube requires the installation
of a minimum of two (2) hard-wired carbon
monoxide detectors with an alarm and battery
back-up; one in the mechanical room where
the boiler is located and another installed in
the living area outside the bedroom(s) for all
installations. Consult the local authority having
jurisdiction for any additional carbon monoxide
detector requirements in your area. See Section
2.8 on page 8 for additional carbon monoxide
detector requirements in Massachusetts.
• Failure to comply with these instructions can
result in substantial property damage, serious
injury, or death.
xixi
SAFETY
PRODUCT AND SAFETY INFORMATION
WARNING
• Should overheating occur or if the gas supply fails
to shut off, turn OFF the manual gas control valve
external to the appliance.
• Do not add cold make up water when the
appliance is hot. Thermal shock can potentially
cause cracks in the heat exchanger.
• Failure to comply with these instructions can
result in substantial property damage, serious
injury, or death.
CAUTION
• It is prohibited to carry out any modifications to
the appliance without prior written consent from
Triangle Tube.
• Faulty parts must only be replaced by genuine
Triangle Tube factory parts.
• Failure to comply with these instructions can result
in minor property damage, or injury.
NOTICE
• The homeowner is only permitted to carry out the basic
set-up operations (EZ Setup) after he has received all
relevant instructions from the installer. Any other setup must be carried out by a qualified installer.
• In case of any anomaly, please call your qualified
service technician.
• Make sure to reference the unit’s model number and
serial number from the rating label when inquiring
about service or troubleshooting.
• Triangle Tube reserves the right to change the
technical characteristics, components and features of
its products without prior notice. Check for an updated
version of this manual at www.triangletube.com.
xiixii
CHAPTER 1 - PRE-INSTALLATION REQUIREMENTS
1.1. Code Compliance
The PRESTIGE Solo must be installed by a qualied installer in accordance with the following:
• All applicable local, state, national and provincial codes, ordinances, regulations and laws.
• For installations in Massachusetts, code requires
the PRESTIGE Solo to be installed by a licensed
plumber or gas tter, and if antifreeze is utilized,
the installation of a reduced pressure back-ow
preventer device is required in the boiler’s cold
water ll or make up water supply line.
• For installation in Massachusetts, all direct vented
appliances must comply with the guidelines as
outlined in Section 2.8 on page 8.
• The National Fuel Gas Code (NFPA54/ ANSI Z
223.1).
• National Electric Code (ANSI/NFPA 70).
• For installations in Canada - Installation Code for
Gas Burning Equipment (CAN/CSA B149.1), Canadian Electrical Code Part 1 (CSA C22.1).
• Standards for Controls and Safety Devices for
Automatically Fired Boilers (ANSI/ASME CSD-1),
when required.
NOTICE
The boiler gas manifold and gas controls meet
the safe lighting and other performance re-
quirements as specified in ANSI Z21.13.
1.2. Determining Product Location
NOTICE
The PRESTIGE Solo is certified for indoor,
conditioned space installations ONLY.
Before locating the PRESTIGE Solo check for convenient
locations to:
• Heating system piping
• Venting
• Gas supply piping
• Electrical service
Ensure the PRESTIGE Solo location allows the combustion air/vent piping to be routed directly through the
building and terminate properly outside with a minimum amount of length and bends.
Ensure the area chosen for the installation of the PRESTIGE
Solo is free of any combustible materials, gasoline, or other ammable liquids.
WARNING
Failure to remove or maintain the area free
of combustible materials, gasoline, or other flammable liquids or vapors can result in
substantial property damage, serious injury,
or death.
Ensure the PRESTIGE Solo and its controls are protected
from dripping or spraying water during normal operation or service.
The PRESTIGE Solo should be installed in a location so
that any water leaking from the boiler, piping connections, or relief valve will not cause damage to the surrounding area or any lower oors in the structure.
CHAPTER 1
11
CHAPTER 1 - PRE-INSTALLATION REQUIREMENTS
CHAPTER 1
1.3. Boiler Freeze Protection Feature
The CTRLMax boiler management system has a freeze
protection feature built in. This feature monitors the
boiler water temperature and responds as follows
when no call for heat is present:
• 46ºF [8ºC] Pump outputs congured to respond to
a CH1 Call are enabled.
• 42ºF [6ºC] Pump outputs congured to respond to
a CH1 or CH2 Call are enabled, Burner operates at
low re.
• 60ºF [15ºC] Freeze protection ends. Burner & all
pumps turn o after completing CH Post Pump Time.
CAUTION
• The boiler freeze protection feature is disabled during a hard lockout. The burner
will not fire, but the circulators will operate.
• The boiler freeze protection feature is designed to protect the boiler, not the heating
system. The boiler should be installed in a
primary/secondary piping arrangement if it
is installed in an unheated space or exposed
to water temperatures of 46ºF or less. Refer
to Chapter 4 for primary/secondary and
Chapter 10 for antifreeze guides.
• Failure to comply can result in minor prop-
erty damage, or injury.
1.4. Boiler Replacement
If the PRESTIGE Solo is replacing an existing boiler, the
following items should be checked and corrected prior
to installation:
• Boiler piping leaks and corrosion.
• Proper location and sizing of the expansion
tank on the boiler heating loop.
• The existing vent system is appropriate for the
PRESTIGE Solo and it is correctly installed. Refer
to the PRESTIGE Vent Supplement for the vent
system requirements.
• Amount and quality of propylene glycol within
the system, if applicable.
1.5. Recommended Clearances
The PRESTIGE Solo is approved for zero clearance to
combustibles, excluding vent and boiler piping.
• Boiler piping must be a minimum 1/4 inch from
combustible materials.
• Reference the PRESTIGE Vent Supplement for
vent pipe clearance requirements.
BEST PRACTICE
It is recommended that the following clearances
be maintained for serviceability:
• Top boiler jacket - 24 inches [610 mm].
• Front - 24 inches [610 mm].
• Bottom boiler piping - 24 inches [610 mm].
• Rear - 0 inches
• Sides - 6 inches [153 mm]
NOTICE
When maintaining less than recommended
service clearances, some product labeling, including the rating label, may become hidden
and unreadable.
WARNING
• If the recommended clearances listed above cannot be maintained
or the enclosure in which the boiler is installed is less than 85 cubic
feet, the space must be ventilated.
See Section 2.2 on page 4.
• When installing the PRESTIGE Solo in a confined space, sufficient air must be provided
to allow, under normal operating conditions, proper air flow around the product
to maintain ambient temperatures within
safe limits to comply with the National Fuel
Gas Code (NFPA 54 / ANSI Z223.1)
• Failure to comply with these instructions
can result in substantial property dam-
age, serious injury, or death.
1.6. Residential Garage Installations
When installing the PRESTIGE Solo in a residential garage, the following special precautions per NFPA 54/
ANSI Z223.1 must be taken:
• Mount the unit a minimum 18 inches [458 mm]
above the oor level of the garage. Ensure the
burner and ignition devices / controls are no less
than 18 inches [458 mm] above the oor level.
• Locate or protect the unit in a manner so it cannot be damaged by a moving vehicle.
22
CHAPTER 2 - COMBUSTION AIR & VENTING
2.1. Combustion Air Contamination
WARNING
If the PRESTIGE Solo combustion air inlet is
located in an area likely to cause or contain
contamination, or if products which could contaminate the air cannot be removed, the combustion air must be repiped and terminated at
another location. Contaminated combustion
air will damage the unit and its burner system,
and can result in substantial property damage,
serious injury, or death.
DANGER
• Do not operate the PRESTIGE Solo if the
combustion air inlet is located near a laundry room or pool facility. These areas will
always contain hazardous contaminants.
• Pool, laundry, common household, and
hobby products often contain fluorine or
chlorine compounds. When these chemicals pass through the burner and vent
system, they can form strong acids. These
acids will corrode the heat exchanger,
burner components, and vent system,
causing serious damage and possible
flue gas spillage or water leakage into
the surrounding area.
• Please read the information listed below.
If contaminating chemicals are located
near the area of the combustion air inlet,
the installer must pipe the combustion
air inlet to an area free of these chemicals,
as indicated in Chapter 5 on page 25.
Potential contaminating products
• Spray cans containing chloro/uorocarbons
• Permanent Wave Solutions
• Chlorinated wax
• Chlorine based swimming pool chemicals /
cleaners
• Calcium Chloride used for thawing ice
• Sodium Chloride used for water softening
• Refrigerant leaks
• Paint or varnish removers
• Hydrochloric acid / muriatic acid
• Cements and glues
• Antistatic fabric softeners used in clothes dryers
• Chlorine-type bleaches, detergents, and cleaning solvents found in household laundry rooms
• Adhesives used to fasten building products and
other similar products
Areas likely to contain these products
• Dry cleaning / laundry areas and establishments
• Beauty salons
• Metal fabrication shops
• Swimming pools and health spas
• Refrigeration Repair shops
• Photo processing plants
• Auto body shops
• Plastic manufacturing plants
• Furniture renishing areas and establishments
• New building construction
• Remodeling areas
• Garages with workshops
CHAPTER 2
• Failure to comply with these instructions
will result in substantial property dam-
age, serious injury, or death
33
CHAPTER 2 - COMBUSTION AIR & VENTING
CHAPTER 2
2.2. Ventilation and Combustion Air Requirements - Direct Vent
A Direct Vent appliance utilizes uncontaminated outdoor air piped directly to the appliance for combustion.
For Direct Vent installations involving only the PRESTIGE Solo, in which the minimum service clearances are
maintained as listed in Section 1.5 on page 2, no
ventilation openings are required, but may be necessary to equalize the air pressure with the outside.
For Direct Vent installations involving only the PRESTIGE
Solo, in which the minimum service clearances are not
maintained as listed in Section 1.5 on page 2, the
space / enclosure must provide two openings for ventilation. The openings must be sized to provide 1 square
inch of free area per 1,000 BTUH of boiler input. The
openings shall be placed 12 inches from the top of the
space and 12 inches from the oor of the space.
For installations in which the PRESTIGE Solo shares the
space with air movers (exhaust fan, clothes dryers, replaces, etc.) and other combustion equipment (gas
or oil) the space must be provided with adequate air
openings to provide ventilation and combustion air to
the equipment. To properly size the ventilation / combustion air openings, the installer must comply with the
National Fuel Gas Code (NFPA 54 / ANSI Z223.1) for installations in the U.S. or CAN/CSA B149.1 for installations
in Canada.
WARNING
The space must be provided with ventilation
/ combustion air openings properly sized for
all make-up air requirements (exhaust fans,
clothes dryers, fireplaces, etc.) and the total
input of all appliances located in the same
space as the PRESTIGE Solo, excluding the input of a Direct Vent PRESTIGE Solo which uses
combustion air directly from the outside,
thus additional free area for the openings is
not required. Failure to provide or properly
size the openings can result in substantial
property damage, serious injury, or death.
2.3. Ventilation and Combustion Air Requirements - Category IV
A Category IV appliance utilizes uncontaminated indoor
or outdoor air surrounding the appliance for combustion.
BEST PRACTICE
In order to reduce the potential risks associated
with indoor contaminates (see list in Section
2.1 on page 3), flammable vapors and tight
housing construction with little or no infiltration
air, it is recommended to pipe uncontaminated
combustion air directly from the outdoors to
the appliance. This practice also promotes higher system efficiency by reducing heated indoor
air from being exhausted from the house and
replaced by cold infiltration air into the house.
For installations in which the PRESTIGE Solo shares the
space with air movers (exhaust fan, clothes dryers, replaces, etc.) and other combustion equipment (gas
or oil) the space must be provided with adequate air
openings to provide ventilation and combustion air to
the equipment. To properly size the ventilation / combustion air openings, the installer must comply with
the National Fuel Gas Code (NFPA 54 / ANSI Z223.1) for
installations in the U.S. or CAN/ CSA B149.1 for installations in Canada.
WARNING
The space must be provided with ventilation
/ combustion air openings properly sized for
all make-up air requirements (exhaust fans,
clothes dryers, fireplaces, etc.) and the total
input of all appliances, including the PRESTIGE Solo when located in the same space.
Failure to provide or properly size the openings can result in substantial property dam-
age, serious injury, or death.
44
CHAPTER 2 - COMBUSTION AIR & VENTING
Gas Vent
Openings
2.4. Methods of Accessing Combustion Air
Into A Space - Category IV
2.4.1. Indoor Combustion Air
NOTICE
• The methods listed in this chapter for accessing Indoor Combustion Air assume that the
infiltration rate is adequate and not less than
.40 ACH.
• For infiltration rates less than .40 ACH, reference the National Fuel Gas Code (NFPA 54 /
ANSI Z223.1) for additional guidance.
Opening Size and Location
Openings used to connect indoor spaces shall be sized and
located in accordance with the following, see Fig. 1 below :
• Combining spaces on the same story. Each opening
shall have a minimum free area of 1 sq. in./1000 Btu/hr
of the total input rating of all gas utilization equipment
in the space, but not less than 100 sq. inches. One
opening shall commence within 12 inches of the top,
and one opening shall commence within 12 inches
of the bottom of the enclosure. The minimum dimension of air openings shall be not less than 3 inches.
2.4.2. Outdoor Combustion Air
BEST PRACTICE
Isolating the combustion appliance room from
the rest of the building and bringing in uncontaminated outside air for combustion and ven-
tilation is always preferred.
Opening Size and Location
The minimum dimension of air openings shall be not
less than 3 inches
Openings used to supply combustion and ventilation
air shall be sized and located in accordance with the
following:
• One Permanent Opening Method . One permanent
opening, commencing within 12 in. of the top of
the enclosure, shall be provided as shown in Fig.
2 below. The equipment shall have clearances of
at least 1 inch from the sides and 6 in. from the
front of the appliance. The opening shall directly
communicate with the outdoors or shall communicate through a vertical or horizontal duct to the
outdoors or spaces that freely communicate with
the outdoors and shall have a minimum free area
of the following:
• 1sq. in./3000 Btu/hr of the total input rating of
all equipment located in the enclosures, and
• Not less than the sum of the areas of all vent
connectors in the space.
CHAPTER 2
Fig. 1 - All Combustion Air from adjacent Indoor Spaces
through Indoor Combustion Openings
• Combining spaces in dierent stories. The volumes of
spaces in dierent stories shall be considered as communicating spaces where such spaces are connected
by one or more openings in doors or oors having a
total minimum free area of 2 sq. in./1000 Btu/hr of total input rating of all gas utilization equipment.
Gas Vent
Opening
Alternate
opening
location
Fig. 2 - All Combustion Air from Outdoors Through One
Permanent Air Opening
55
CHAPTER 2 - COMBUSTION AIR & VENTING
CHAPTER 2
• Two Permanent Opening Method. Two permanent
openings, one commencing within 12 in. of the top
and one commencing within 12 in. of the bottom
of the enclosure, shall be provided. The openings
shall communicate directly, or by ducts, with the
outdoors or spaces that freely communicate with
the outdoors, as follows:
• Where directly communicating with the outdoors or where communication to the outdoors
is through vertical ducts, each opening shall
have a minimum free area of 1 sq. in./4000 Btu/
hr of total input rating of all equipment in the
enclosure. See Fig. 3 below.
Ventilation louvers
Outlet air
Inlet air duct
(ends 1ft (30 cm)
above oor)
(each end of the attic)
Gas Vent
• Where communicating with the outdoors is
through horizontal ducts, each opening shall have
a minimum free area of not less than 1 sq.in./2000
Btu/hr of total input rating of all equipment in the
enclosure. See Fig. 4 below.
2.4.3 Combination of Indoor and Outdoor
Combustion Air
Indoor Openings. Where used, openings connecting the interior spaces shall comply with Section 2.4.1 on page 5.
Outdoor Opening(s) Location. Outdoor opening(s) shall
be located in accordance with Section 2.4.2 on page 5.
Outdoor Opening(s) Size. Outdoor opening(s) shall be
calculated in accordance with the following:
• The ratio of the interior spaces shall be the avail-
able volume of all communicating spaces divided
by the required volume.
• The outdoor size reduction factor shall be 1 minus
the ratio of interior spaces.
• The minimum size of outdoor opening(s) calculat-
ed in accordance with the above outdoor air chapter multiplied by the reduction factor. The minimum dimension of air openings shall not be less
than 3 in.
Fig. 3 - All Combustion Air from Outdoors Through
Ventilated Attic
Gas Vent
Outlet air duct
Inlet air duct
Fig. 4 - All Combustion Air from Outdoors Through
Horizontal Ducts
2.5. Combustion Air and Vent Piping
The PRESTIGE Solo requires a Category IV venting system, which is designed for pressurized venting and
condensate.
The PRESTIGE Solo is certied as a Category IV or Direct
Vent (sealed combustion) appliance. A Category IV appliance utilizes uncontaminated indoor or outdoor air
surrounding the appliance for combustion. A Direct Vent
appliance utilizes uncontaminated outdoor air piped directly to the appliance for combustion.
DANGER
Do not install the PRESTIGE Solo into a common vent with any other gas or oil appliances.
This will cause flue gas spillage or appliance
malfunction, which will result in substantial
property damage, serious injury, or death.
66
CHAPTER 2 - COMBUSTION AIR & VENTING
BEST PRACTICE
In order to reduce the potential risks associated with indoor contaminates (see list in Section
2.1 on page 3), flammable vapors and tight
housing construction with little or no infiltration
air, it is recommended to pipe uncontaminated
combustion air directly from the outdoors to the
appliance. This practice also promotes higher
system efficiency by reducing heated indoor air
from being exhausted from the house and re-
placed by cold infiltration air into the house.
DANGER
Verify installed combustion air and vent piping are sealed gas tight and meet all provided
instructions and applicable codes, failure to
comply will result in serious injury, or death.
WARNING
Failure to properly support the vent system
can cause the venting system to fail, resulting in substantial property damage, serious
injury, or death.
NOTICE
Install combustion air and vent pipe as detailed
in the PRESTIGE Vent Supplement included in
the boiler installation envelope. Refer to optional vent kit instructions for additional vent
installation instructions.
2.6. Removal of an Existing Boiler from a
Common Vent System
BEST PRACTICE
When an existing boiler is removed from a common venting system, the common venting system
is likely to be too large for proper venting of the remaining appliances. At the time of removal of an
existing boiler, the following steps shall be followed
with each appliance remaining connected to the
common venting system placed in operation, while
the other appliances remaining connected to the
common venting system are not in operation.
1. Seal any unused openings in the common venting
system.
2. Visually inspect the venting system for proper size
and horizontal pitch and determine there is no
blockage or restriction, leakage, corrosion and other
deciencies which could cause an unsafe condition.
3. Insofar as is practical:
• Close all exterior building doors and windows
and all doors between the space in which the
appliances remaining connected to the common venting system are located and other
spaces of the building.
• Turn on clothes dryers and any appliance not
connected to the common venting system.
• Turn on any exhaust fans, such as range hoods
and bathroom exhausts, so they will operate at
maximum speed.
• Do not operate a summer exhaust fan.
• Close replace dampers.
4. Place in operation the appliance being inspected.
• Follow the lighting instructions.
• Adjust thermostat so appliance will operate
continuously.
5. Test for spillage at the draft hood relief opening
after 5 minutes of main burner operation. Use the
ame of a match or candle, or smoke from a cigarette, cigar or pipe.
6. After it has been determined that each appliance
remaining connected to the common venting system properly vents when tested as outlined above,
return doors, windows, exhaust fans, replace
dampers, and any other gas-burning appliance to
their previous condition of use.
7. Any improper operation of the common venting system should be corrected so the installation conforms
with the National Fuel Gas Code (NFPA 54 / ANSI
Z223.1) for installations in the U.S. or CAN/CSA B149.1
for installations in Canada. When resizing any portion of the common venting system, the common
venting system should be resized to approach the
minimum size as determined using the appropriate
tables in Chapter 13 of the National Fuel Gas Code
(NFPA 54 / ANSI Z223.1) for installations in the U.S. or
CAN/CSA B149.1 for installations in Canada.
DANGER
Do not install the PRESTIGE Solo into a common vent with any other gas or oil appliances.
This will cause flue gas spillage or appliance
malfunction, resulting in substantial proper-
ty damage, serious injury, or death.
CHAPTER 2
77
CHAPTER 2 - COMBUSTION AIR & VENTING
CHAPTER 2
2.7. Carbon Monoxide Detector Installation
Triangle Tube requires the installation of a minimum
of two (2) hard wired carbon monoxide detectors with
an alarm and battery back-up in the mechanical room
where the Prestige Solo is located and another installed
in the living area outside the bedroom(s) for all installations.
Each carbon monoxide detector shall comply with
NFPA 720 and be ANSI/UL 2034 listed and IAS certied.
Consult the local authority having jurisdiction for any additional carbon monoxide detector requirements in your
area. See Section 2.8 on page 8 for additional carbon
monoxide detector requirements in Massachusetts.
WARNING
A byproduct of any gas fired appliance is carbon monoxide. Failure to install carbon monoxide detectors with alarms can result in seri-
ous injury, or death.
2.8. Commonwealth of Massachusetts Installation Requirements
For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure
used in whole or in part for residential purposes, including those owned or operated by the Commonwealth
and where the side wall exhaust vent termination is
less than seven (7) feet above nished grade in the area
of the venting, including but not limited to decks and
porches, the following requirements shall be satised:
2.8.1 Installation of Carbon Monoxide Detectors.
1. At the time of installation of the side wall horizontal
vented gas fueled equipment, the installing plumber or
gastter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is
installed on the oor level where the gas equipment is
to be installed.
2. In addition, the installing plumber or gastter shall
observe that a battery operated or hard wired carbon
monoxide detector with an alarm is installed on each
additional level of the dwelling, building or structure
served by the side wall horizontal vented gas fueled
equipment.
3. It shall be the responsibility of the property owner to
secure the services of qualied licensed professionals
for the installation of hard wired carbon monoxide detectors.
a. In the event that the side wall horizontally vent-
ed gas fueled equipment is installed in a crawl
space or an attic, the hard wired carbon monoxide detector with alarm and battery back-up
may be installed on the next adjacent oor level.
b. In the event that the requirements of this sub-
division can not be met at the time of completion of installation, the owner shall have a period of thirty (30) days to comply with the above
requirements; provided, however, that during
said thirty (30) day period, a battery operated
carbon monoxide detector with an alarm shall
be installed.
2.8.2 Approved Carbon Monoxide Detectors.
Each carbon monoxide detector as required in accordance with the above provisions shall comply with
NFPA 720 and be ANSI/UL 2034 listed and IAS certied.
2.8.3 Signage
A metal or plastic identication plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet above grade directly in
line with the exhaust vent terminal for the horizontally
vented gas fueled heating appliance or equipment.
The sign shall read, in print size no less than one half
(1/2) inch in size, “GAS VENT DIRECTLY BELOW. KEEP
CLEAR OF ALL OBSTRUCTIONS”.
2.8.4 Inspection.
The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve
the installation unless, upon inspection, the inspector
observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR
5.08(2)(a) 1 through 4.
Exemptions
The following equipment is exempt from 248 CMR
5.08(2)(a) 1 through 4:
1. The equipment listed in Chapter 10 entitled “Equipment Not Required To Be Vented” in the most current edition of NFPA 54 as adopted by the Board;
and
2. Product Approved side wall horizontally vented gas
fueled equipment installed in a room or structure
separate from the dwelling, building or structure
used in whole or in part for residential purposes.
88
CHAPTER 2 - COMBUSTION AIR & VENTING
2.8.5 Manufacturer Requirements - Gas Equipment Venting System Provided.
When the manufacturer of Product Approved side wall
horizontally vented gas equipment provides a venting
system design or venting system components with the
equipment, the instructions provided by the manufacturer for installation of the equipment and the venting
system shall include:
1. Detailed instructions for the installation of the venting
system design or the venting system components;
and
2. A complete parts list for the venting system design
or venting system.
2.8.6 Manufacturer Requirements - Gas Equipment Venting System Not Provided.
When the manufacturer of a Product Approved side
wall horizontally vented gas fueled equipment does
not provide the parts for venting the ue gases, but
identies “special venting systems”, the following requirements shall be satised by the manufacturer:
1. The referenced “special venting system” instructions
shall be included with the appliance or equipment
installation instructions; and
2. The “special venting systems” shall be Product Ap-
proved by the Board, and the instructions for that system shall include a parts list and detailed installation
instructions.
A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for venting
instructions, and/or all venting design instructions shall
remain with the appliance or equipment at the completion of the installation.
CHAPTER 2
99
INTENTIONALLY LEFT BLANK
CHAPTER 3 - UNIT PREPARATIONS
3.1. Handling Instructions
The PRESTIGE Solo is generally easier to handle and
maneuver once removed from the shipping carton.
To remove the shipping carton:
NOTICE
Use care not to drop, bump or rotate the boiler
upside down, as damage to the boiler will result.
1. Remove any shipping straps and open the side of
the shipping carton.
2. Slide the unit with the foam inserts out of the carton.
3. Discard all packing materials.
3.2. Wall Mounting Installation
The PRESTIGE Solo should be wall mounted using the
bracket provided with the boiler. The PRESTIGE Solo is
not designed for oor installation. If oor installation is
required, an optional oor stand is available through Triangle Tube. The PRESTIGE Solo is not to be installed on
carpeting
WARNING
The wall used for mounting the PRESTIGE
Solo must be vertically plumb and capable of
supporting a minimum 130 pounds [59 kg]
for the PRESTIGE Solo 80/110, 175 pounds [80
kg] for PRESTIGE Solo 155/175/250 and 265
pounds [120 Kg] for PRESTIGE Solo 299/399.
Failure to comply with these requirements
can result in substantial property damage,
serious injury, or death.
3.3. Wall Mounting Guidelines
The wall-mounting bracket is designed for stud spacing of 12 inch or 16 inch on centers. For unconventional stud spacing, a solid / secure mounting surface must
be provided for installation of the bracket.
1. For applications using wood studs, install the bracket using the lag screws provided with the boiler.
Ensure both lag screws are installed securely in the
studs.
2. For applications using metal studs, install the bracket to the studs using 3/16” toggle bolts and washers.
3. DO NOT mount or attempt to mount the wall
bracket to hollow sheet rock or lath walls using
anchors. Only install boiler to studs or equivalent
wood structure.
4. For applications using solid walls (rock, concrete,
brick, cinder block, etc.), install the wall bracket using anchors (double expansion shields) and bolts
with washers provided with the boiler.
5. The boiler is too heavy and bulky for a single person
to lift and attempt to mount; a minimum of 2 people are required for mounting the boiler.
WARNING
Use extreme care not to drop the boiler or
cause bodily injury while lifting or mounting the boiler onto the wall bracket. Once
mounted, verify that the boiler is securely
attached to the bracket and wall. Failure to
comply with the above guidelines can result
in substantial property damage, serious inju-
ry, or death.
CHAPTER 3
1111
CHAPTER 3 - UNIT PREPARATIONS
CHAPTER 3
3.4. Stud Walls - Installation
3.4.1 PRESTIGE Solo 80/110/155/175/250
1. Locate the studs in the general area of the boiler
installation.
2. Place the wall-mounting bracket on the wall centering the mounting slots with the stud centers
and ensuring the upper edge of the bracket is away
from the wall.
3. Level the bracket, while maintaining it’s centering
with the studs and use a pencil to mark the location
of the mounting slots.
4. Remove the bracket from the wall and drill a 1/4” diameter by 3” deep hole in the center of each mark.
For applications using metal studs and 3/16” toggle
bolts, drill the required clearance hole.
5. Reposition the bracket on the wall and align with
the mounting slots/holes. Insert the two lag screws
provided (or toggle bolts for metal studs) through
the mounting slots/holes and loosely tighten.
6. Level bracket and tighten screws (bolts for metal
studs) securely making sure not to over-tighten to
avoid damaging drywall or plaster.
3.4.2 PRESTIGE Solo 299/399
1. To distribute the weight of the boiler evenly when
mounting onto a stud wall it is recommended to
use the PRESTIGE Solo Wall Frame kit.
2. When using the wall frame to mount the boiler, reference the kit installation instructions and ensure
the frame is securely fastened to the wall.
3. If the structure of the wall is questionable in supporting a minimum weight of 265 pounds [120 kg.],
it is recommended to use the optional oor stand.
3.5. Wall Bracket Installation - Solid Walls
1. Locate the general area of the boiler installation.
2. Place the wall-mounting bracket on the wall ensuring the upper edge of the bracket is away from the
wall.
3. Level the bracket and use a pencil to mark the location of the mounting slots on the wall.
4. Remove the bracket from the wall and drill a 5/8”
diameter by 1-3/8” deep hole in the center of each
mark.
5. Install the provided anchors ush or slightly recessed in the drilled holes with threaded side facing
down.
6. Reposition the bracket on the wall and align with
the mounting slots/holes. Insert the two bolts with
washers through the mounting slots/holes and
loosely tighten.
7. Level bracket and tighten bolts securely.
3.6. Boiler Mounting
1. Obtain assistance in lifting the boiler onto the wall
bracket.
2. Install the boiler making sure the boiler mounting
lip located along the upper edge of the rear jacket
panel engages the wall-mounting bracket. Ensure
the boiler is seated properly and is secure.
1212
CHAPTER 4 - BOILER PIPING
Boiler Return Connection
with Tee Fitting and
Boiler Drain Valve
(field supplied)
Boiler Supply
Connection
Pressure Relief Valve
(Supplied with Boiler)
3/4" Street Elbow
Air Vent
Drain Piping Directed
to a Suitable
Place of Drainage
4.1. General Piping Requirements
• All plumbing must meet or exceed all local, state
and national plumbing codes.
• Support all piping using hangers. DO NOT support
piping by the unit or its components.
• Use isolation valves to isolate system components.
• Install unions for easy removal of the PRESTIGE Solo
from the system piping.
WARNING
Use a two-wrench method when tightening
field piping onto the boiler piping connections.
Use one wrench to prevent the boiler connections from turning and the second to tighten
field piping. Failure to support the boiler piping connections could damage piping, causing
a leak, resulting in substantial property dam-
age, serious injury, or death.
4.2. Pressure Relief Valve
1. The PRESTIGE Solo is supplied with a 30 psi pressure
relief valve and must be piped using the PRV con-
nection as shown in Fig. 5 below.
2. To avoid potential water damage to the surrounding area or potential scalding hazard due to the operation of the relief valve, the discharge piping:
• Must be connected to the discharge outlet of the
relief valve and directed to a safe place of disposal.
• Length should be as short and direct as possible.
The size of the discharge line must not be reduced,
maintain the same size as the outlet of the relief
valve.
• Must be directed downward towards the oor
at all times. The piping should terminate at
least 6 inches [153 mm] above any drain connection to allow clear visibility of the discharge.
• Must terminate with a plain end, not with a threaded
end. The material of the piping must have a serviceable temperature rating of 250ºF or greater.
• Must not be subject to conditions where freez-
ing could occur.
• Must not contain any shut-o valves or ob-
structions. No shut-o valve should be piped
between the boiler and relief valve.
CHAPTER 4
Failure to comply with the guidelines on
installing the pressure relief valve and discharge piping can result in substantial prop-
erty damage, serious injury, or death.
Fig. 5 - Pressure Relief Valve and Boiler Drain Valve Installation
WARNING
1313
CHAPTER 4 - BOILER PIPING
CHAPTER 4
4.3. Boiler Air Vent
NOTICE
This boiler is supplied with a special automatic air vent that will provide reliable operation
in purging air from the boiler. The hygroscopic
cap supplied with the automatic air vent MUST
remain tight at all times on the air vent body.
The hygroscopic cap has a membrane which
expands upon contact with water and seals
the air vent until the membrane dries up due to
new air forming in the air vent.
1. Make sure to fully tighten the cap on the air vent
during initial installation.
2. Never loosen the hygroscopic cap to allow air to escape
the air vent. Air will exit with the cap fully tightened in
place.
3. If the hygroscopic cap is not fully tightened, water
may leak from the cap. Simply tighten the cap securely.
4.4. Low Water Cutoff Device
• The PRESTIGE Solo is equipped with a factory installed pressure sensor type Low Water Cut O
(LWCO).
• The minimum operating system pressure is 10 psig.
• Check local codes if a Low Water Cuto is required.
If so, determine if this device meets their requirements.
NOTICE
The PRESTIGE Solo control system also senses the water temperatures entering and exiting the heat exchanger to provide protection
against low water conditions. Where local
codes and jurisdiction do not accept a pressure
device for low water protection, the jurisdiction
may accept this PRESTIGE Solo integral control
function as a means of providing low water
protection.
1414
Fig. 6 - Piping Component Legend
CHAPTER 4 - BOILER PIPING
Boiler
Supply
Boiler
Return
System
Supply
Cold
Water
Fill
System
Return
12"
Max.
4.5. Additional Limit Control
If a separate Low Water Cut O (LWCO) is required by
the local jurisdiction or when the boiler is installed
above the system piping, the following guidelines
must be followed:
• The LWCO must be designed for water installations,
electrode probe-type is recommended.
• The LWCO must be installed in a tee connection on
the boiler supply piping above the boiler.
• Wiring of the LWCO to the PRESTIGE Solo is done
directly onto the low voltage terminal strip. Reference Fig. 21 on page 35 for available external
limit (manual or auto reset) terminals.
If the installation is to comply with ASME or Canadian
requirements, an additional high temperature limit
may be required. Consult local code requirements to
determine compliance. The limit should be installed as
follows:
• Install the limit in the boiler supply piping between
the boiler and any isolation valve.
• Consult heat exchanger for maximum temperature
set point.
• For wiring of the limit, reference Fig. 21 on page
35. Wire the limit to the manual reset terminals
on the low voltage terminal strip. An open manual
reset limit will require a manual reset of the control.
4.6. Backflow Preventer
• Use a backow preventer valve in the make-up water supply to the unit as required by local codes.
4.7. Boiler System Piping Applications
BEST PRACTICE
• It is recommended on all piping applica-
tions to utilize a primary/secondary piping
arrangement as a means to provide freeze
protection of the boiler, which is an integral
function of the boiler control. Maintain at
least the minimum boiler flow rate shown
in the Graphs of Chapter 19 on page 87.
For other piping arrangements, contact
Triangle Tube Technical Support or consult other approved/recognized design ar-
rangements.
• On piping applications utilizing a single zone
or other recognized piping design arrangements, it is recommended that the installer
uses flow/check valves with weighted seats at
or near the PRESTIGE Solo to prevent gravity
circulation.
CHAPTER 4
Fig. 7 - Near Boiler Piping - Diaphragm Expansion Tank
1515
CHAPTER 4 - BOILER PIPING
Boiler
Supply
Boiler
Return
System
Supply
Cold
Water
Fill
System
Return
12"
Max.
Minimum
¾” Piping
CHAPTER 4
4.8. Expansion Tank and Makeup Water
Ensure the expansion tank is properly sized for the boiler
volume, (3 gallons [12 L] for the PRESTIGE Solo 80/110,
5 gallons [19 L] for the PRESTIGE Solo 155/175/250, 7
gallons [26 L] for PRESTIGE Solo 299/399), the system
water volume, and the system water temperature.
CAUTION
Undersized expansion tanks will cause system
water to be lost through the pressure relief
valve and cause additional makeup water to be
added to the system. Eventual boiler heat exchanger failure can result due to this excessive
makeup water addition.
The expansion tank must be located as shown in Fig.
7 on page 15 and Fig. 8 below, when using a prima-
ry/secondary piping arrangement or as per recognized
design methods. Refer to the expansion tank manufacturer for additional installation details.
Connect the expansion tank to an air separator only if
the air separator is located on the suction side (inlet)
of the system circulator. Always locate and install the
system ll connection at the same location as the expansion tank connection to the system.
4.8.1 Diaphragm Expansion Tank
Always install an automatic air vent on top of the air
separator to remove residual air from the system.
4.8.2 Closed-Type Expansion Tank
It is recommended to pitch any horizontal piping upwards toward the expansion tank 1 inch per 5 feet of
piping. Use 3/4” piping to the expansion tank to allow
air within the system to rise.
NOTICE
DO NOT install automatic air vents on a closedtype expansion tank system. Air must remain
in the system and be returned to the expansion
tank to provide an air cushion. An automatic
air vent would cause air to be vented from the
system resulting in a water-logged expansion
tank.
1616
Fig. 8 - Near Boiler Piping - Closed Type Expansion Tank
CHAPTER 4 - BOILER PIPING
4.9. Circulator
A circulator with ow check must be utilized with the
PRESTIGE Solo. The circulator, when wired directly to
the PRESTIGE Solo, will allow for domestic hot water priority and provide circulation for the freeze protection
feature of the boiler control. See the Graphs in Chapter
19 on page 87 for pressure drop and minimum ow
rate through the boiler.
4.10. Sizing Primary Piping
See Fig. 9 on page 18 through Fig. 13 on page 22, for
recommended piping arrangements based on various
applications. Size the piping and system components
required in the space heating system using recognized
design methods.
4.11. Domestic Hot Water System Piping
See Fig. 9 on page 18 through Fig. 12 on page 21
for recommended piping to a DHW system. This recommended piping conguration ensures priority is
given to the production and recovery of DHW.
The piping for DHW is separate from the boiler system
piping and does not require a primary / secondary piping conguration.
To wire the DHW circulator to the boiler control module, reference Chapter 8 on page 35.
4.12. System Piping - Zone Circulators
4.13. System Piping - Zone Valves
Connect the PRESTIGE Solo to the system piping as
shown in Fig. 10 on page 19 when zoning with zone
valves.
NOTICE
To ensure an adequate flow rate through the
PRESTIGE Solo, the boiler supply and return
piping size must be a minimum of 1 inch for the
PRESTIGE Solo 80/110, 1-1/4 inch for the PRESTIGE Solo 155/175/250 and 1-1/2 inch for the
PRESTIGE Solo 299/399.
4.14. System Piping - Through Boiler
Primary / secondary piping is preferred, but is not required for smaller systems (1 to 3 zones) provided that
at least the minimum ow rate through the boiler is
maintained at all times. The circulator must be sized
to overcome the pressure drop through the system as
well as the Prestige Solo. See the Graphs in Chapter 19
on page 87 for pressure drop and minimum ow rate
through the boiler.
Fig. 11 on page 20 illustrates a multiple zone valve
system with a single system/boiler circulator. A by-pass
loop with a pressure dierential valve must be installed
on the system piping.
Fig. 12 on page 21 illustrates a single zone system utilizing the boiler circulator as the system circulator.
CHAPTER 4
Connect the PRESTIGE Solo to the system piping as
shown in Fig. 9 on page 18 when zoning with zone
circulators.
The installer must provide a separate circulator for each
zone of space heating.
NOTICE
To ensure an adequate flow rate through the
PRESTIGE Solo, the boiler supply and return
piping size must be a minimum of 1 inch for the
PRESTIGE Solo 80/110, 1-1/4 inch for the PRESTIGE Solo 155/175/250 and 1-1/2 inch for the
PRESTIGE Solo 299/ 399.
1717
CHAPTER 4 - BOILER PIPING
PRESET PUMP CONFIGURATION 4
Heat Call Pump 4 Pump 3 DHW Pump CH Pump
CH1 OFF ON OFF ON
CH2 ON ON OFF OFF
DHW OFF OFF ON OFF
NOTICE
Consult the CTRLMax Control Supplement for information on setting the required Pre-
set Pump Configuration.
CHAPTER 4
Low Voltage Terminals
CH2
System
Thermostat
Sensor
6 5 4 3 2 1 4 3 2 1 2 1 23 1
X5 X6 X4 X7
Modulation
Signal
- +
CH1
Thermostat
Outdoor
Sensor
Outdoor Sensor
aquastat
or
DHW Sensor
- +G
ModbusDHW Sensor
External Limit
Terminals
Manual Auto
Mix Sensor
Terminals
Line Voltage Terminals
L G N L G N L G N L G N L G N L G N
PUMP 4 PUMP 3
FLAME
DHW PUMP CH PUMP
DHW
Hot
POWER SUPPLY
DHW
Cold
1818
Fig. 9 - System Piping - Zoning with Zone Circulators
CHAPTER 4 - BOILER PIPING
PRESET PUMP CONFIGURATION 3
Heat Call Pump 4 Pump 3 DHW Pump CH Pump
CH1 OFF ON OFF ON
CH2 OFF ON OFF ON
DHW OFF OFF ON OFF
NOTICE
Consult the CTRLMax Control Supplement for information on setting the required Pre-
set Pump Configuration.
Low Voltage Terminals
CH2
System
Thermostat
6 5 4 3 2 1 4 3 2 1 2 1 23 1
Modulation
Sensor
X5 X6 X4 X7
Dry Contact
Zone Valve
End Switches
Signal
- +
CH1
Thermostat
Outdoor
Sensor
Outdoor Sensor
aquastat
or
DHW Sensor
- +G
ModbusDHW Sensor
External Limit
Terminals
Manual Auto
Mix Sensor
Terminals
L G N L G N L G N L G N L G N L G N
PUMP 4 PUMP 3
FLAME
DHW PUMP CH PUMP
POWER SUPPLY
DHW
Hot
DHW
Cold
CHAPTER 4
Z.V.
Z.V.
Fig. 10 - System Piping - Zoning with Zone Valves
1919
CHAPTER 4 - BOILER PIPING
PRESET PUMP CONFIGURATION 3
Heat Call Pump 4 Pump 3 DHW Pump CH Pump
CH1 OFF ON OFF ON
CH2 OFF ON OFF ON
DHW OFF OFF ON OFF
NOTICE
Consult the CTRLMax Control Supplement for information on setting the required Pre-
set Pump Configuration.
CHAPTER 4
Low Voltage Terminals
CH2
System
Thermostat
6 5 4 3 2 1 4 3 2 1 2 1 23 1
Modulation
Sensor
X5 X6 X4 X7
Dry Contact
Zone Valve
End Switches
Signal
- +
CH1
Thermostat
Outdoor
Sensor
Outdoor Sensor
aquastat
or
DHW Sensor
- +G
ModbusDHW Sensor
External Limit
Terminals
Manual Auto
Mix Sensor
Terminals
L G N L G N L G N L G N L G N L G N
PUMP 4 PUMP 3
FLAME
DHW PUMP CH PUMP
POWER SUPPLY
DHW
Hot
DHW
Cold
2020
Z.V.
Z.V.
Fig. 11 - System Piping - Multiple Zone Valve with Single System/Boiler Circulator
CHAPTER 4 - BOILER PIPING
PRESET PUMP CONFIGURATION 1
Heat Call Pump 4 Pump 3 DHW Pump CH Pump
CH1 OFF ON OFF ON
CH2 ON ON OFF OFF
DHW OFF ON ON OFF
NOTICE
Consult the CTRLMax Control Supplement for information on setting the required Pre-
set Pump Configuration.
Low Voltage Terminals
CH2
System
Thermostat
6 5 4 3 2 1 4 3 2 1 2 1 23 1
Modulation
Sensor
X5 X6 X4 X7
Signal
- +
CH1
Thermostat
Outdoor
Sensor
Outdoor Sensor
aquastat
or
DHW Sensor
- +G
ModbusDHW Sensor
External Limit
Terminals
Manual Auto
Mix Sensor
Terminals
L G N L G N L G N L G N L G N L G N
PUMP 4 PUMP 3
FLAME
DHW PUMP CH PUMP
POWER SUPPLY
DHW
Hot
CHAPTER 4
DHW
Cold

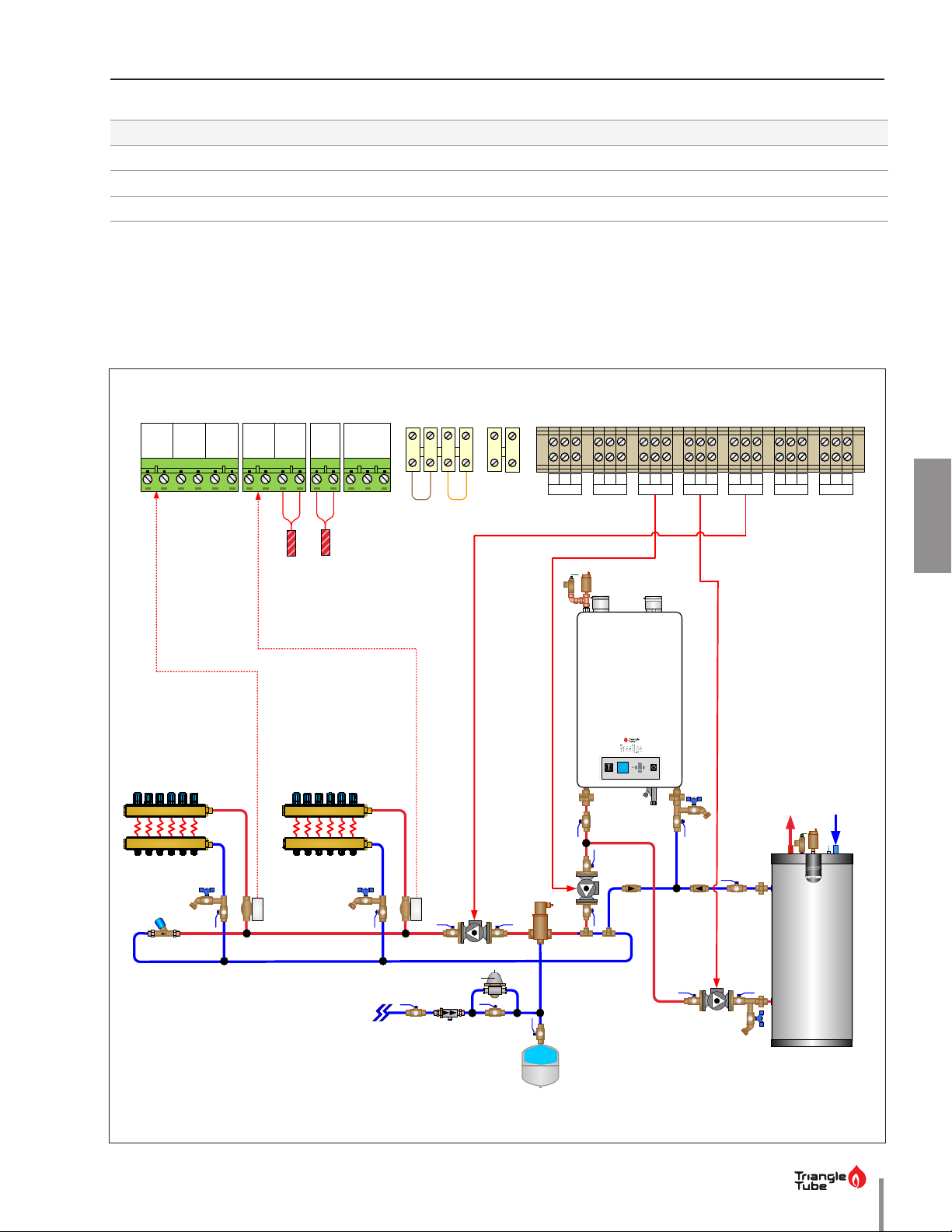

Fig. 12 - System Piping - Single Zone System with Single System/Boiler Circulator
2121
CHAPTER 4 - BOILER PIPING
Supply
System
CHAPTER 4
NOTICE
tion
Consult the CTRLMax Con-
trol Supplement for infor-
mation on wiring and con-
figuring the boilers using
the built-in Cascade func-
P G
12"
Max.
Return
System
2222
Fig. 13 - Multiple PRESTIGE Solo Boiler Piping - Primary / Secondary
CHAPTER 4 - BOILER PIPING
4.15. System Piping - Radiant Heating
The heat exchanger design of the PRESTIGE Solo allows
operation in a condensing mode. This feature requires
no regulation of the return water temperature back to
the boiler in radiant heating applications.
The design and construction of the PRESTIGE Solo heat
exchanger allows the installation of the boiler on systems with non - oxygen barrier tubing.
NOTICE
DO NOT install a SMART indirect water
heater along with the PRESTIGE Solo in systems with non-oxygen barrier tubing. Failure
to comply will result in premature failure of the
SMART indirect water heater.
The boiler water supply temperature can be maintained
by the PRESTIGE Solo, potentially eliminating the need
for a mixing system to achieve the desired temperature
if all zones of heat require the same temperature set
point.
It is recommended to install a high temperature limit to
ensure that the primary supply temperature does not
exceed the maximum allowable temperature for the
radiant tubing.
4.16. System Piping - Special Application
If the boiler is used in conjunction with a chilled water/
medium system, the boiler and chiller must be piped in
parallel. Install ow/check valves to prevent the chilled
medium from entering the boiler.
If the boiler is used to supply hot water to the heating
coils of an air handler where they may be exposed to
chilled air circulation, install ow/check valves or other
automatic devices to prevent gravity circulation of the
boiler water during cooling cycles.
4.17. System Piping - Multiple Units Installation
Use a balanced manifold system as the primary / secondary connection to the space heating piping as
shown in Fig. 13 on page 22.
For the space heating piping, refer to the applications
mentioned in this manual or use recognized design
methods.
CHAPTER 4
NOTICE
The addition of a high temperature limit is important if the PRESTIGE Solo is connected to a
domestic hot water system, which requires a
high primary supply water temperature.
Size the system piping and circulator to provide the
ow needed for the radiant system.
NOTICE
To ensure an adequate flow rate through the
PRESTIGE Solo, the boiler supply and return
piping size must be a minimum of 1 inch for the
PRESTIGE Solo 80/110, 1-1/4 inch for the PRESTIGE Solo 155/175/250 and 1-1/2 inch for the
PRESTIGE Solo 299/399.
2323
INTENTIONALLY LEFT BLANK
CHAPTER 5 - INSTALLING VENT/COMBUSTION AIR & CONDENSATE DRAIN
5.1. Installing Vent and Combustion Air
WARNING
DANGER
The PRESTIGE Solo must be vented and supplied with combustion air as shown in the
PRESTIGE Vent Supplement, included in the
installation envelope. Refer to instructions
for parts list and method of installation.
Once installation is completed, inspect the
vent and combustion air system thoroughly
to ensure systems are airtight, properly supported, and comply with the instructions given in the venting supplement and are within
all requirements of applicable codes. Failure
to comply with the venting and combustion
air piping installation requirements will result in substantial property damage, serious
injury, or death.
NOTICE
Contact Triangle Tube for other venting options
including PVC Concentric Vent/Air Termination
and Stainless Steel or PVC Flush Mount Horizontal Terminations. Refer to the instructions includ-
ed with these kits for method of installation.
5.2. Installing Condensate Drain Assembly
1. Locate the condensate drain assembly and ensure
the metal washer is installed as shown in Fig. 14 on
page 26.
NOTICE
The installer may want to fill the condensate
drain assembly with water prior to assembling
on the unit.
• Ensure installation of the condensate
drain assembly included the metal washer. Failure to comply could result in the
assembly dislocating from the boiler. Dislocation of the condensate drain assembly can result in property damage, seri-
ous injury, or death.
• Ensure the condensate drain assembly
contains the plastic ball. Do not install
the condensate drain assembly if the ball
is lost or missing, replace the entire assembly. Installing the condensate drain
assembly without the plastic ball can result in substantial property damage, seri-
ous injury, or death.
4. Remove the compression nut and rubber seal from
the condensate drain assembly drain outlet.
5. Slide the compression nut and rubber seal over the
3/4” x 2’ exible tube provided.
NOTICE
The use of 3/4” PVC or CPVC pipe is also acceptable. If 3/4” pipe is used, deburr and chamfer
pipe to allow mating onto the drain assembly.
6. Thread the rubber seal into the compression nut
to ease installation of the tube to the condensate
drain assembly.
7. Seat the tube onto the condensate drain assembly
and tighten the compression nut. Hand tight only!
NOTICE
• The installer may opt to use 13/16” ID tub-
ing in lieu of provided tube.
CHAPTER 5
WARNING
Do not operate the boiler without the factory-supplied condensate drain assembly
installed. Operation of the boiler without
the condensate drain assembly installed can
result in property damage, serious injury, or
death.
2. Install the condensate drain assembly on the boiler
condensate drain by pushing the condensate drain
assembly up until it stops.
3. Tighten the condensate drain assembly retaining
nut.
• The drain line materials must be an approved material by the authority having
jurisdiction. In absence of such authority,
PVC and CPVC piping must comply with
ASTM D1785 or D2845. The cement and
primer used on the piping must comply
with ASME D2564 or F493. For installations
in Canada, use ULC certified PVC or CPVC
pipe, fittings and cement/primer.
2525
CHAPTER 5 - INSTALLING VENT/COMBUSTION AIR & CONDENSATE DRAIN
8. Route the tube from the condensate drain assembly to a oor drain or condensate pump.
WARNING
CHAPTER 5
NOTICE
When selecting and installing a condensate
pump, ensure the pump is approved for use
with condensing appliances. The pump should
be equipped with an overflow switch to prevent
property damage from potential condensate
spillage.
9. The PRESTIGE Solo will typically produce a condensate that is considered slightly acidic with a pH content below 4.0. Install a neutralizing lter if required
by authority having jurisdiction.
The condensate drain assembly must remain
filled with water. Extended periods of non
use or high temperature operation may allow
the water to evaporate. Periodically check
the water level in the condensate drain assembly and fill with water as necessary. Failure to keep the condensate drain assembly
full of water can result in substantial proper-
ty damage, serious injury, or death.
CAUTION
The condensate drain assembly must remain
unobstructed and allow unrestricted flow of
condensate. The condensate should not be
subject to conditions where freezing could occur. If the condensate is subjected to freezing
or becomes obstructed , it can leak, resulting in
potential water damage to the boiler and sur-
rounding area.
Retaining Nut
Metal Washer
Plastic Ball
(Not shown)
Drain Assembly
Fill Plug
with Vaccum
Break Port
Compression
Nut with Rubber Seal
Flexible Tubing
(or 3/4 PVC/
CPVC Piping
to Drain)
Condensate
Fig. 14 - Condensate Drain Assembly
2626
Union Fitting
CHAPTER 6 - GAS PIPING
6.1. Gas Supply Piping Connection
NOTICE
The gas supply piping must be installed in accordance to all applicable local, state, national
codes, and utility requirements.
1. Install a 1/2” NPT for PRESTIGE Solo 80/110, 3/4” NPT
for PRESTIGE Solo 155/175/250 or 1” NPT for PRESTIGE Solo 299/399 pipe union at the gas nipple, for
ease of service.
2. Install a manual shuto valve in the gas supply piping
as shown in Fig. 15 below. For installations in Canada,
the installer must tag and identify the main shuto
valve.
3. Install a sediment trap (drip leg) on the gas supply
line prior to connecting to the PRESTIGE Solo gas
train as shown in Fig. 15 below.
4. Support the gas piping using hangers. Do not support the piping by the unit or its components.
5. Purge all air from the gas supply piping.
6. Before placing the PRESTIGE Solo into operation,
check and test all connections for leaks.
• Close the manual shuto valve during any pres-
sure test with less than 13”w.c..
• Disconnect the PRESTIGE Solo and its gas valve
from the gas supply piping during any pressure
test greater than 13”w.c..
WARNING
Do not check for gas leaks with an open
flame. Use a gas detection device or bubble
test. Failure to check for gas leaks can cause
substantial property damage, serious injury,
or death.
7. Use pipe dope compatible with natural and propane gases. Apply sparingly only to the male
threads of pipe joints so that pipe dope does not
block gas ow.
WARNING
• Failure to apply pipe dope as detailed
above can result in substantial property
damage, serious injury, or death.
• Use a two-wrench method when tightening field piping onto the boiler piping
connections. Use one wrench to prevent
the boiler connections from turning and
the second to tighten field piping. Failure
to support the boiler piping connections
could damage piping, causing a leak, resulting in substantial property damage,
serious injury, or death.
Gas Flow
External Manual
Gas Shut Off Valve
(Must Be Within 6”
of the Boiler )
Tee Fitting
Sediment Trap
Min. Length of
3”
Fig. 15 - Recommended Gas Supply Piping
Cap
CHAPTER 6
2727
CHAPTER 6
CHAPTER 6 - GAS PIPING
6.2. Natural Gas
6.2.1 Pipe Sizing
Refer to Table 1 below for schedule 40 metallic pipe
length and diameter requirements for natural gas,
based on rated PRESTIGE Solo input (divide by 1,000 to
obtain cubic feet per hour).
• Table 1 is based on Natural Gas with a specic gravity of 0.60 and a pressure drop through the gas piping of 0.30”w.c..
• For additional gas pipe sizing information, refer to
National Fuel Gas Code (NFPA 54 / ANSI Z223.1)
for installations in the U.S. or CAN/CSA B149.1 for
installations in Canada.
6.2.2 Supply Pressure Requirements
1. Pressure required at the gas valve inlet supply pres-
sure port:
• Maximum 13”w.c. at ow or no ow conditions
to the burner.
• Minimum 5”w.c. during ow conditions to the
burner. Must be veried during start up and
with all other gas appliances operating within
the building.
2. Install 100% lockup gas pressure regulator in the
gas supply line if inlet pressure can exceed 13”w.c
at any time. Adjust the lockup pressure regulator
for 13”w.c maximum.
WARNING
DO NOT adjust or attempt to measure gas
valve outlet pressure. The gas valve is factory-set for the correct outlet pressure. This setting is suitable for natural gas and propane
and requires no field adjustment. Attempts
by the installer to adjust or measure the gas
valve outlet pressure can result in damage to
the valve, causing substantial property dam-
age, serious injury, or death.
NOTICE
The natural gas orifice requirements are:
• PRESTIGE Solo 80:........................0.185” (4.7 mm)
• PRESTIGE Solo 110 ................... 0.242” (6.15 mm)
• PRESTIGE Solo 155/175/250 .......None Required
• PRESTIGE Solo 299/399 ..............0.339” (8.6 mm)
•
WARNING
The PRESTIGE Solo is factory equipped with the
required natural gas orifice. The natural gas orifice must never be modified or replaced with a
different size orifice. Failure to use the required
natural gas orifice can result in substantial
property damage, serious injury, or death.
Length of Pipe in Feet
SCH 40 1/2” 3/4” 1” 1-1/4” 1-1/2”
10 132 278 520 1050 1600
20 92 190 350 730 1100
30 73 152 285 590 890
40 63 130 245 500 760
50 56 115 215 440 670
75 45 93 175 360 545
100 38 79 150 305 460
150 31 64 120 250 380
2828
Table 1 - Gas Piping Sizing - Natural Gas
Capacity of Schedule 40 Metallic Pipe in Cubic Feet of Natural Gas Per Hour (based
on 0.60 specific gravity, 0.30” w.c. pressure drop)
CHAPTER 6 - GAS PIPING
6.3. Propane Gas
6.3.1 Pipe Sizing
WARNING
• The unit was shipped with a propane conversion kit which is located on the top of
the unit in the instructions packet. This
kit includes all the necessary parts and
instruction to perform the conversion
from natural to propane gas. If this conversion kit is missing, please contact Triangle Tube Technical Support for missing
kit before installing unit.
• Prior to start up, ensure the unit is set to
fire propane. Check the rating label for
the type of fuel. Check the gas valve for
propane conversion label. If there is a
conflict or doubt on the burner set up, remove the gas valve and check for the pro-
pane orifice, see Fig. 16 or Fig. 17 on page
30 or Fig. 18 on page 31.
WARNING
DO NOT adjust or attempt to measure gas
valve outlet pressure. The gas valve is factory-set for the correct outlet pressure. This setting is suitable for natural gas and propane
and requires no field adjustment. Attempts
by the installer to adjust or measure the gas
valve outlet pressure can result in damage to
the valve, causing substantial property dam-
age, serious injury, or death.
NOTICE
The propane orifice requirements are:
• PRESTIGE Solo 80.......................0.142” (3.6 mm)
• PRESTIGE Solo 110 ................. 0.175” (4.45 mm)
• PRESTIGE Solo 155 ................... 0.205” (5.2 mm)
• PRESTIGE Solo 175 ................... 0.232” (5.9 mm)
• PRESTIGE Solo 250 ....................0.250” (6.3 mm)
• PRESTIGE Solo 299/399 ..............0.264” (6.7 mm)
• Failure to ensure proper burner setup can
result in substantial property damage,
serious injury, or death.
Contact the local propane gas supplier for recommended sizing of piping, tanks and 100% lockup gas regulator.
6.3.2 Supply Pressure Requirements
1. Adjust the propane supply regulator provided by
the gas supplier for 13”w.c. maximum pressure
2. Pressure required at the gas valve inlet supply pressure port:
• Maximum 13”w.c. at ow or no ow conditions
to the burner
• Minimum 5”w.c. during ow conditions to the
burner. Must be veried during start up and
with all other gas appliances operating within
the building.
•
WARNING
The propane gas orifice must never be modified
or replaced with a different size orifice. Failure
to use the required propane gas orifice can result in substantial property damage, serious in-
jury, or death.
CHAPTER 6
2929
CHAPTER 6 - GAS PIPING
Venturi
Orifice
(if required)
Throttle
Screw
Gas Valve
Gasket
Gas Valve
Offset Pressure
Cover Screw
Inlet Gas
Pressure Port
Venturi O-Ring
CHAPTER 6
Venturi Clip
Venturi
Gas Valve
Orifice
O-Ring
Throttle Screw
Offset Pressure
Cover Screw
Inlet Gas
Pressure Port
Fig. 16 - Gas Valve / Venturi Assembly - PRESTIGE Solo 80-110
3030
Fig. 17 - Gas Valve / Venturi Assembly - PRESTIGE Solo 155/175/250
CHAPTER 6 - GAS PIPING
Blower Assembly
Gas Valve Collar O-Ring
Orifice
Orifice O-Ring
Gas Valve
Gas Valve Collar
Venturi
Offset Pressure
Cover Screw
Throttle Screw
Inlet Gas Pressure
Port
Venturi O-Ring
Fig. 18 - Gas Valve / Venturi Assembly - PRESTIGE Solo 299/399
CHAPTER 6
3131
INTENTIONALLY LEFT BLANK
CHAPTER 7 - INTERNAL WIRING
WARNING
7.2. Fuse Locations
ELECTRICAL SHOCK HAZARD. For your safety, disconnect electrical power supply to the
unit before servicing or making any electrical
connections to avoid possible electric shock
hazard. Failure to do so can cause serious in-
jury, or death.
CAUTION
Prior to servicing, label all wires before disconnecting. Wiring errors can cause improper and
dangerous operation. Verify proper wiring and
operation after servicing.
7.1. General Requirements
• Wiring must be N.E.C Class 1.
• If original wiring as supplied with the unit must
be replaced, use only Type T 194ºF [90ºC] wire or
equivalent as a minimum.
• The PRESTIGE Solo must be electrically grounded
as required by National Electrical Code (ANSI/NFPA
70) for installations in the U.S., or the Canadian Electrical Code Part 1(CSA C22.1) for installations in Canada.
• The CTRLMax control module contains 3 internal
replaceable 5A fuses as shown in Figure 19 below.
• The top two fuses protect the PRESTIGE Solo as well
as the CH, DHW, and Flame outputs.
• The bottom fuse protects the P3, P4, and Alarm
outputs.
• Spare fuses are located on the back of the control
module enclosure.
Location
of Fuses
Fig. 19 - CTRLMax Control Module Fuse Location
CHAPTER 7
3333
CHAPTER 7 - INTERNAL WIRING
CHAPTER 7
2
4
5
P4 Pump
P3 Pump
DHW Pump
CH Pump
Power Supply
CH2
Thermostat
System
Sensor
Modulation
Signal
CH1
Thermostat
Outdoor
Sensor
DHW Sensor
or Aquastat
Modbus
Wire Legend
- Low Voltage
- Line Voltage
- Ingnition Cable
Wire Color Legend
BK – Black
W – White
GR – Green
BL – Blue
R – Red
O – Orange
V – Violet
Y – Yellow
BR – Brown
GY – Gray
CTRLMax
Display
Cascade
Slave
Flame
Alarm
1
Y
Y
2
Y
3
Y
4
Y
5
Y
6
7
8
Y
9
10
W
1
W
2
W
3
W
4
W
5
W
6
1
L
2
G
3
N
4
L
5
G
N
6
7
L
8
G
9
N
L
10
G
11
N
12
13
L
14
G
15
N
16
L
17
G
18
N
19
L
20
G
21
N
Manual Reset
Limit
Auto Reset
Limit
Mix
Sensor
Prestige Solo Internal Wiring
BK
W
BK
BK
BK
BK
BK
21234123456
1
123
1
2
3
4
1
2
GND
W
W
W
W
Ignition transformer
GND
W
V1
GND
GND
X5
Blower
Power Terminals
3
2
1
X6
Blower
V1
G
V2
V2
Gas Valve
(Solo 299/399)
Blower
Signal Terminals
5
GND
1
3
Gas Valve
(Solo 155/175/250)
1
2
4
5
GND
R
W
V
BK
1
2
Gas Valve
(Solo 80/110)
X4
X7
Flue Temperature Sensor
Return Temperature Sensor
Supply Temperature Sensor
BR
BR
O
O
BK
BK
Water Pressure
Sensor
1
1
2
2
3
3
GND
Cascade
Master
CTRLMax
Control Board
1
Y
2
Y
3
Y
4
Y
5
Y
X11X13
6
Y
7YY
8
Y
9YY
10YY
1
W
2
W
3
W
X15
4
W
5
W
6
W
2
W
X10
BK
1
4
W
3
BK
X12
2
W
BK
1
6
BK
5
W
4
BK
P14
3
W
2
BK
W
1
3
BK
W
2
P13
1
F00
F01
BK
6
W
5
4
BK
X9
3
W
2
BK
1
W
1
2
X16
3
4
6
R
11
W
X1
V
12
BK
5
BK
1
BK
6
2
Y
7
Y
X3
3
BL
8
BL
4
R
R
9
1
BR
8
BR
2
O
X2
9
O
14
W
7
BK
13
R
3434
Fig. 20 - Prestige Solo Boiler Factory Wiring
CHAPTER 8 - EXTERNAL WIRING
8.1. General Requirements
All eld wiring must comply with:
• National Electrical Code (ANSI/NFPA 70) for installations in the U.S., and any other national, state, provincial or local codes or requirements.
• Canadian Electrical Code Part 1 (CSA C22.1) for installations in Canada.
WARNING
ELECTRICAL SHOCK HAZARD. For your safety,
disconnect electrical power supply to the unit
before servicing or making any electrical connections to avoid possible electric shock hazard.
Failure to do so can cause serious injury, or death.
NOTICE
The low voltage terminals are located at the
bottom of the CTRLMax control module. The
line voltage terminals are located in the lower
right corner as shown in Fig. 21 below.
8.2. Line Voltage Connections
1. Connect a dedicated 120 VAC/15A service to the
line voltage terminals located internally in the lower right corner, as shown in Fig. 21 below.
2. Route the incoming 120 VAC power wires through one
of the provided openings in the bottom jacket panel.
3. The unit is provided with a service switch located
on the front panel, check local code requirements
for compliance.
8.3. Circulator Wiring
1. The circulator connections used will depend on
the systems piping layout. See Fig. 9 on page 18
through Fig. 12 on page 21 for common system
piping applications and associated circulator wiring. Consult the CTRLMax Control Supplement for
additional options.
NOTICE
The circulator, flame, and ignition transformer outputs are protected by fuses on the CTRLMax control module. The total combined amp
draw of the CH, DHW, and Flame outputs must
not exceed 4 amps at any time for the Solo 80
through 250, or 3 amps at any time for the Solo
299 & 399. The total combined amp draw of the
P3, P4, and ignition transformer outputs must
not exceed 5 amps at any time for all Prestige
models. Use an isolation relay to lower the total
combined amp draw if exceeding this limits.
2. Connect the CH circulator wiring to the line voltage
terminals located internally in the lower right corner, as
shown in Fig. 21 on the left. This circulator is typically
used to supply heat to the central/space heating loop.
3. Connect the DHW circulator wiring to the line voltage
terminals located internally in the lower right corner,
as shown in Fig. 21 on the left. This circulator is typically
used to supply heat to an indirect hot water heater.
4. Connect the P3 circulator wiring to the line voltage
terminals located internally in the lower right corner, as shown in Fig. 21 on the left. This circulator is
typically used to circulate water through the PRESTIGE Solo in primary/secondary piped systems.
5. Connect the P4 circulator wiring to the line voltage terminals located internally in the lower right corner, as shown
in Fig. 21 on the left. This circulator is typically used as a
dedicated circulator to a second space heating zone.

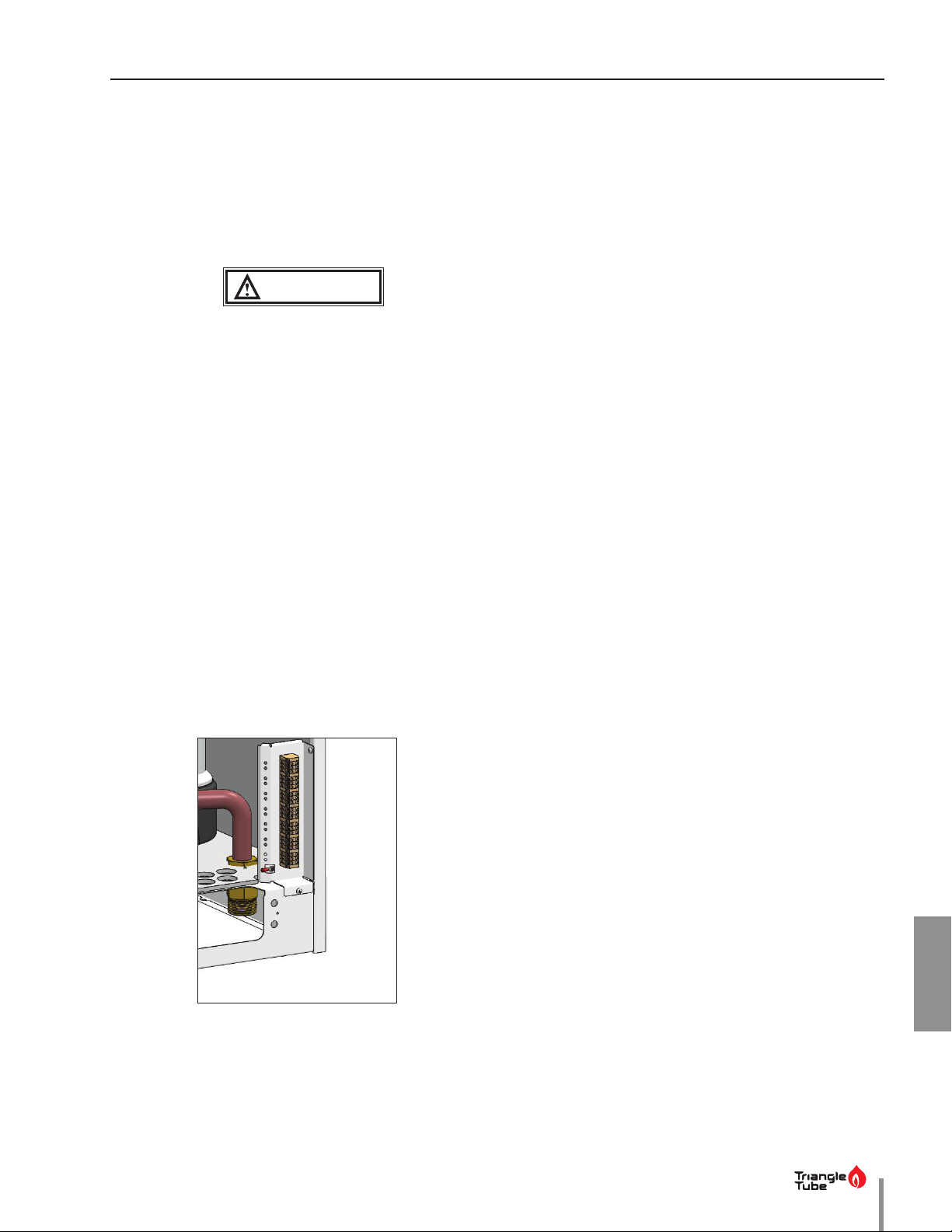

Fig. 21 - Terminal Strip Location
NOTICE
If local electrical codes require an additional service
switch, the installer must provide and install a fused
disconnect or minimum 15 amp service switch.
8.4. Flame Status & Alarm Wiring
NOTICE
The Flame and Alarm outputs both supply
110VAC when activated. Use an isolation relay
to provide dry contacts if required by the exter-
nal monitoring system.
The Flame output is typically used to provide on/o status to an external monitoring system. The Flame output will provide 0VAC when the PRESTIGE Solo is not
red and 110VAC when the PRESTIGE Solo is red.
CHAPTER 8
3535
CHAPTER 8 - EXTERNAL WIRING
An unused circulator output can be congured in the Installer Menu to provide an alarm output. The Alarm output
is typically used to provide lockout status to an external
monitoring system. The Alarm output will provide 0VAC
when the PRESTIGE Solo is not in a lockout and 110VAC
when the PRESTIGE Solo is in a lockout. The types of lockouts which will cause the Alarm output to activate are adjustable in the Installer Menu. Consult the CTRLMax Control Supplement for information on this setting.
1. Connect the external monitoring device to the line
voltage terminals located internally in the lower
right corner, as shown in Fig. 21 on page 35.
NOTICE
The circulator, flame, and ignition transformer outputs are protected by fuses on the CTRLMax control
module. The total combined amp draw of the CH,
DHW, and Flame outputs must not exceed 4 amps
at any time for the Solo 80 through 250, or 3 amps at
any time for the Solo 299 & 399. The total combined
amp draw of the P3, P4, and ignition transformer
outputs must not exceed 5 amps at any time for all
Prestige models. Use an isolation relay to lower the
total combined amp draw if exceeding these limits..
8.5. Low Voltage Connections
Line and Low Voltage wiring should be separated to
prevent possible electrical noise on the low voltage circuits. Line and Low Voltage wiring should use separate
electrical knockouts on the PRESTIGE Solo cabinet and
should remain separated inside the PRESTIGE Solo.
NOTICE
CH and DHW call connections to the PRESTIGE Solo require a dry contact with no external
voltage present. Ensure no external voltage is
present on each set of wires before connecting
to the PRESTIGE Solo. If external voltage is present, the use of an isolation relay is required to
prevent damage to the CTRLMax controller.
8.6. Thermostat Wiring
The CTRLMax control has two thermostat call inputs for
multiple zone / temperature systems. This allows each
call to have its own outdoor reset curve and maximizes
the eciency of the system.
NOTICE
Simultaneous CH1 and CH2 calls will result
in the PRESTIGE Solo operating at the highest
target temperature. The use of a mixing device
on the lower temperature zone(s) may be required to protect the lower temperature zone(s)
from damage. The CTRLMax control includes a
mixing valve function which can operate a mixing valve in a dual temperature system. Consult
the CTRLMax Control Supplement for addition-
al information on this function. .
1. Connect the room thermostat or dry contact zone
valve end switch wires to low voltage terminals X63&4 or X5-5&6 located at the bottom of the CTRLMax control module as shown in Fig 22 below.
2. Follow thermostat manufacturer’s instructions for
proper installation. Thermostat should be located
on an inside wall away from any heat or cold inuences such as drafts, lights, replaces, etc.
3. Set the thermostat anticipator (If applicable) as follows:
• Set for 0.2 amps when wired directly to the
PRESTIGE Solo.
• Set to match the electrical power requirements
of the connected device when wired to zone
relays or other devices. Refer to the relay manufacturer’s specications and the thermostat
instructions for additional information on anticipator setting.
CHAPTER 8
3636
Low Voltage
Terminals
Fig. 22 - Low Voltage Connections
External Limit
Terminals
NOTICE
The use of power stealing thermostats
which draw their power from the PRESTIGE Solo
can lead to erratic or unpredictable operation.
CHAPTER 8 - EXTERNAL WIRING
8.7. Outdoor Sensor Wiring
The Outdoor Reset function and Warm Weather Shutdown (WWSD) features require the connection of the
included outdoor temperature sensor. See Chapter 12
on page 63 for outdoor sensor installation and setup.
8.8. Domestic Hot Water Wiring
The Domestic Hot Water terminals can accept either a
call from an aquastat (thermostat) or temperature sensor. Use of the included indirect water heater sensor is
recommended.
1. Connect the DHW aquastat or temperature sensor wires to low voltage terminals X4-1&2 located
at the bottom of the CTRLMax control module as
shown in Fig. 22 on page 36.
8.9. Additional Boiler Limits
Additional boiler limits (High Temperature Limit, LWCO,
etc.) can be wired into either the Manual Reset Limit or
Auto Reset Limit terminals of the PRESTIGE Solo. These
limit connections will provide a “hard” lockout requiring
a manual reset of the PRESTIGE Solo or a “soft” lockout in
which the PRESTIGE Solo will automatically reset when
the limit resets.
A Manual Reset External Limit Open (E87) lockout will
occur anytime the manual reset terminals are open. An
Auto Reset External Limit Open (76) lockout will not occur until just before ignition when the auto reset terminals are open. The Auto Reset terminals should be used
for any type of burner interlock such as a combustion
air louver or water ow proving switch.
NOTICE
• The Manual Reset Limit and Auto Reset
Limit terminals are located on the lower
right corner of the CTRLMax control module housing.
• Manual Reset Limit and Auto Reset Limit
connections to the PRESTIGE Solo require a
dry contact with no external voltage present. Ensure no external voltage is present
on each set of wires before connecting to
the PRESTIGE Solo. If external voltage is
present, the use of an isolation relay is required to prevent damage to the CTRLMax
controller.
1. Remove the factory-installed brown jumper wire at
the Manual Reset Limit terminals that will accept
the additional boiler limit.
2. Remove the factory-installed orange jumper wire at
the Auto Reset Limit terminals that will accept the
additional boiler limit.
3. Connect the external limit wires to the Manual Reset Limit or Auto Reset Limit low voltage terminals
located on the lower right corner of the CTRLMax
control module housing as shown in Fig. 22 on
page 36.
8.10. External Modulation Control
The PRESTIGE Solo ring rate can be controlled by an
external modulating boiler controller. See Chapter 13
on page 65 for external modulation signal wiring and
setup.
8.11. System Sensor Wiring
An optional system temperature sensor can be placed
on the central heating loop to control the temperature
in the central heating loop instead of the boiler loop.
When connected, the PRESTIGE Solo will automatically modulate to maintain the target temperature in the
central heating loop. The boiler supply temperature
sensor will continue to be used as a high temperature
limit.
CAUTION
Locate the system temperature sensor
where it can accurately measure the supply
temperature to the heating system. Inaccurate system temperature readings could lead
to overheating or under heating resulting in
property damage.
1. Connect the system temperature sensor wires to
low voltage terminals X5-3&4 located at the bottom of the CTRLMax control module as shown in
Fig. 22 on page 36.
CHAPTER 8
3737
CHAPTER 8 - EXTERNAL WIRING
8.12. Cascade Wiring
The CTRLMax control includes the ability to operate up
to six boilers together as one without the need for external controllers. Consult the CTRLMax Control Supplement for more information.
8.13. Modbus Wiring
The CTRLMax control includes the ability to communicate with building management systems (BMS) through
a Modbus interface. Consult the CTRLMax Control Supplement for more information.
PRESET PUMP CONFIGURATION 3
Heat Call Pump 4 Pump 3 DHW Pump CH Pump
CH1 OFF ON OFF ON
CH2 OFF ON OFF ON
DHW OFF OFF ON OFF
External Limit
Terminals
Manual Auto
X7X4
CH2
Thermostat
6 5
Low Voltage Terminals
System
Modulation
CH1
Outdoor
Signal
-+
2 1
CH2
Thermostat
Thermosta
t
4 3
Sensor
2 1
X6X5
Sensor
4 3
DHW
Sensor or
Aquastat
2 1
Modbus
+ G 3 2 1
Modbus communication will only occur if the external
device is properly wired to the PRESTIGE Solo as follows:
X7-1 = RS-485 –
X7-2 = RS-485 Ground
X7-3 = RS-485 +
NOTICE
Triangle Tube has building management system
(BMS) gateways available to convert Modbus to
most BMS protocols including BACnet® MS/TP,
BACnet® /IP, Metasys® N2, and LonWorks®. Con-
tact Triangle Tube for more information
Mix Sensor
Terminals
L G N L G N L G N L G N L G N L G N
FLAME PUMP 4 P UMP 3
Line Voltage Terminals
DHW PUMP
CH PUMP
POWER SUPPLY
CHAPTER 8
P3
DHW
DHW Sensor
Outdoor Sensor
Zone 1
Thermostat
68
PLUG-IN
FUSE 7 AMP MAX
ZONE 1
1234
Zone 1
Zone Valve
CARDS
TT
ZONE 1
1234
Motor
1
2
End Switch
3
4
Zone 2
Zone Valve
Factory
Installed
Transformer
Factory
Installed
Transformer
POWER
CONTROLS
POWER IN
RESET NORMAL
ENDSW
B
PUMP
MODE
N/O N/CCOM
ZONE 4 RELAY
1234
SLAVE
MASTER
EXPANSION
ENDSW
A
BOILER
Motor
1
2
End Switch
3
4
System
Zone 2
Thermostat
Thermostat
68
TT
ZONE 2
FOUR ZONE ZONE VALVE CONTROL WITH OPTIONAL PRIORITY
ZONE 2
Motor
1
2
End Switch
3
4
ZONE 3
12 34
Zone 3
Zone Valve
Zone 3
68
TT
ZONE 3
TT
ZONE 4
ZONE 4
1234
PRIORITY
120V/15A
Service
ZONE 4
ON
OFF
Circulator
3838
Fig. 23 - Typical Zone Panel Wiring to PRESTIGE with Zone Valves
CHAPTER 8 - EXTERNAL WIRING
PRESET PUMP CONFIGURATION 4
Heat Call Pump 4 Pump 3 DHW Pump CH Pump
CH1 OFF ON OFF ON
CH2 ON ON OFF OFF
DHW OFF OFF ON OFF
CH2
Thermostat
6 5
Low Voltage Terminals
System
Sensor
4 3
Modulation
Signal
-+
2 1
CH1
CH2
Thermostat
Thermosta
t
4 3
X6X5
Outdoor
Sensor
2 1
Sensor or
Aquastat
Outdoor Sensor
DHW
2 1
DHW Sensor
Modbus
+ G 3 2 1
X7X4
External Limit
Terminals
Manual Auto
SLAVE
MASTER
1234
EXPANSION
RESET NORMA L
Mix Sensor
Thermostat
PLUG IN CARDS
MODE
Terminals
Zone 1
68
Line Voltage Terminals
L G N L G N L G N L G N L G N L G N
FLAME PUMP 4 PUMP 3
Zone 2
Thermostat
FOUR ZONE SWITCHING RELAY
WITH OPTIONAL PRIORITY
Zone 3
Thermostat
68
68
ZONE 4
PRIORITY
ZONE4ZONE3ZONE2ZONE1
DHW PUMP
CH PUMP
DHWP3
ON
OFF
POWER SUPPLY
120V/15A
Service
FUSE 1 AMP
SWITCH
X X
END
ZRZC
Zone 1
Circulator
ZONE2ZONE1
120 VOLT CIRCULATORS
Zone 2
Circulator
ZONE3
Zone 3
Circulator
ZONE4
120 VAC
POWER
INPUT
INPUT
(H & N)
Fig. 24 - Typical Zone Panel Wiring to PRESTIGE with Zone Circulators
CHAPTER 8
3939
INTENTIONALLY LEFT BLANK
CHAPTER 9 - CTRLMAX OPERATION
The ControlMax (CTRLMax) Boiler Management System
is designed to be exible yet easy to use. CTRLMax
monitors and controls the PRESTIGE Solo to provide
heat as eciently as possible. CTRLMax includes many
advanced features:
• Two central/space heating (CH) call inputs with
separate outdoor reset curves.
• Domestic Hot Water (DHW) call input with optional
priority.
• EZ Setup feature allows the installer to quickly customize CTRLMax for each installation.
• Mixing valve control to simultaneously heat dual
temperature heating systems.
• Cascade function allows up to six PRESTIGE Solo boilers to operate together in a single heating system.
• Modbus interface for integrating with building
management systems.
All CTRLMax features are easy to use through a graphical display where information is presented either
graphically or in plain English, so code charts are not
required. Fig. 25 shows an CTRLMax display example
of the PRESTIGE Solo red for a domestic hot water demand.
9.1. CTRLMax Navigation
Navigation is performed through four arrow buttons
UP, DOWN, LEFT, RIGHT with a center OK button for
making selections and entering information.
The INSTALLER button (the small round button) pro-
vides the installing contractor with full access to all
available features after entering a password. Reference
the CTRLMax Control Supplement for Installer level
functions
The Main Menu can be entered from the Home Screen
by pressing the OK button.
The menu system utilizes icons to represent each selection. The current selected menu is displayed as a reversed image with a text description shown at the top
of the display. Menus can be entered by highlighting
the desired icon and pressing the OK button.
The Home Screen icon at the bottom of each screen
returns to the Home Screen when selected. The Previous Screen icon at the bottom of each screen returns to the previous screen when selected.
Solo
Target = 186°F
DHW Demand
Fig. 25 - CTRLMax User Interface
CHAPTER 9
4141
CHAPTER 9 - CTRLMAX OPERATION
9.2. CTRLMax Menu Structure
Home Screen
Solo
186°F
DHW
156°F
Target = 186°F
DHW Demand
EZ Setup
CH / DHW Operation
Heating Enabled
Select Language
Select Language
English
Français
Nederlands
Español
Italiano
Deutsch
Boiler Information
a
b
c
d
e
f
b
b
b
a
b
c
b
d
e
f
b
b
a
b
c
d
e
f
b
b
b
b
Boiler Information
b
b
b
b
f
e
d
c
b
b
b
a
f
e
d
b
c
b
b
b
b
a
f
e
d
c
b
a
Lockout History
a
b
c
d
e
a
b
c
d
e
a
b
c
d
e
f
b
b
b
b
b
f
f
b
e
b
d
b
c
b
b
b
b
a
f
f
e
b
d
b
b
c
b
b
b
b
a
f
e
b
d
b
c
b
b
a
CHAPTER 9
Heating EZ Setup DHW EZ Setup
4242
EZ Setup Reset Display EZ Setup
CHAPTER 9 - CTRLMAX OPERATION
9.3. Home Screen
The Home Screen presents status information in a very
user friendly way so that the current state of the boiler
can be quickly accessed.
• Screen backlight - it will illuminate when any button is depressed, and remain illuminated for ve
minutes.
• Screen contrast - it can be adjusted at the Home
screen by pressing and holding the OK button,
then pressing and holding the LEFT button along
with the OK button. Press the UP and DOWN
button to increase or decrease the contrast while
holding the OK and LEFT buttons depressed. All
buttons must be released and the procedure performed again to switch between increasing and
decreasing contrast.
Main Icons of CTRLMax display
• Central Heating - indicates information related
to central/space heating.
• DHW - indicates information related to Domestic Hot Water.
• Home - to go back to the home screen.
• Back - to go back to the previous screen.
• Warm Weather Shutdown - displays on the
home screen when the outdoor temperature
reaches the Warm Weather Shutdown temperature.
• Reset - to reset the system to the factory settings.
• Settings - to access controller settings (language, units, etc.).
• Easy Setup - to quickly adjust the most common settings.
• CH/DHW operation - to enable/disable the
central/space heating or Domestic Hot Water functions
The model is indicated at the top of the screen.
The PRESTIGE Solo is represented in the center of the Home Screen. Basic operating
information such as supply and return temperatures are displayed as well as current
Radiator icon: indicates that a central heating
call has been received. A small number 1 or 2
indicates which CH calls are active
A ame symbol is displayed when the unit is red. The
ame size changes to indicate the current ring rate.
Basic information: The user can toggle
through items using the LEFT and RIGHT keys
to view Target, Supply, Return, Domestic, Outdoor, System and Mix Zone temperatures.
burner status.
Solo
186°F
156°F
Target = 186°F
DHW Demand
• Information - to get information on the boiler.
Faucet icon: indicates that a DHW call has been
received.
Circulator icons: indicate which circulators are currently
DHW
powered.
Status line: displays the current operating state of
the boiler. See Section 9.4 on page 44.
4343
CHAPTER 9
CHAPTER 9 - CTRLMAX OPERATION
9.4. Status Line Messages
Standby - Indicates that the Prestige is ready to re-
spond when a demand is received.
CH Demand - A central heating call has been received.
DHW Demand - A domestic hot water call has been
received.
CH/DHW Demand - Central heating and domestic hot
water calls are being received simultaneously. Both calls
are being satised simultaneously because domestic
hot water priority has been disabled.
DHW Priority - Central heating and domestic hot water calls are being received simultaneously. Domestic
hot water call is being satised rst because it has priority over central heating calls.
Priority Timeout - Central heating and domestic hot water calls are being received simultaneously. The domestic
hot water priority time limit has been exceeded. Priority
will now switch back and forth between central heating
and domestic hot water calls until one call is satised.
External Demand - An external modulation call has
been received.
Slave Operation - The Prestige is a slave in a cascade
system.
Manual Operation - The burner or circulators have
manually been enabled in the Installer Menu.
DHW Setpoint Reached - The burner is not red because the supply/system water temperature exceeds the
setpoint. The domestic circulator(s) continue(s) to operate and the burner will re again once the supply/system
water temperature drops below the setpoint.
CH Post Pump - The central heating circulator(s) is/are
running to remove heat from the Prestige at the completion of a call.
DHW Post Pump - The domestic hot water circulator(s)
is/are running to remove heat from the Prestige at the
completion of a call.
Freeze Protection - The burner is red because the
freeze protection feature has been activated. Freeze
protection will end once the supply/system water temperature is raised to 60°F [16°C].
Boiler Protection - The burner ring rate is being reduced because of an excessive dierence between the
boiler supply and return temperatures. The ring rate
will begin increasing once the temperature dierence
is less than 45°F [25°C].
Low Water Pressure - The system pressure has dropped
to 10.1 psi. The Prestige will still respond to calls until
the pressure drops below 7.2 psi. Increase system pressure to 14.5 psi to clear Low Water Pressure warning
Lockout Description - The lockout which currently
has the Prestige shut down is displayed
CHAPTER 9
CH Burner Delay - The burner will not re until the call
blocking time has elapsed.
DHW Burner Delay - The burner will not re until the
call blocking time has elapsed.
CH Setpoint Reached - The burner is not red because
the supply/system water temperature exceeds the setpoint. The central heating circulator(s) continue(s) to
operate and the burner will re again once the supply/
system water temperature drops below the setpoint.
4444
CHAPTER 9 - CTRLMAX OPERATION

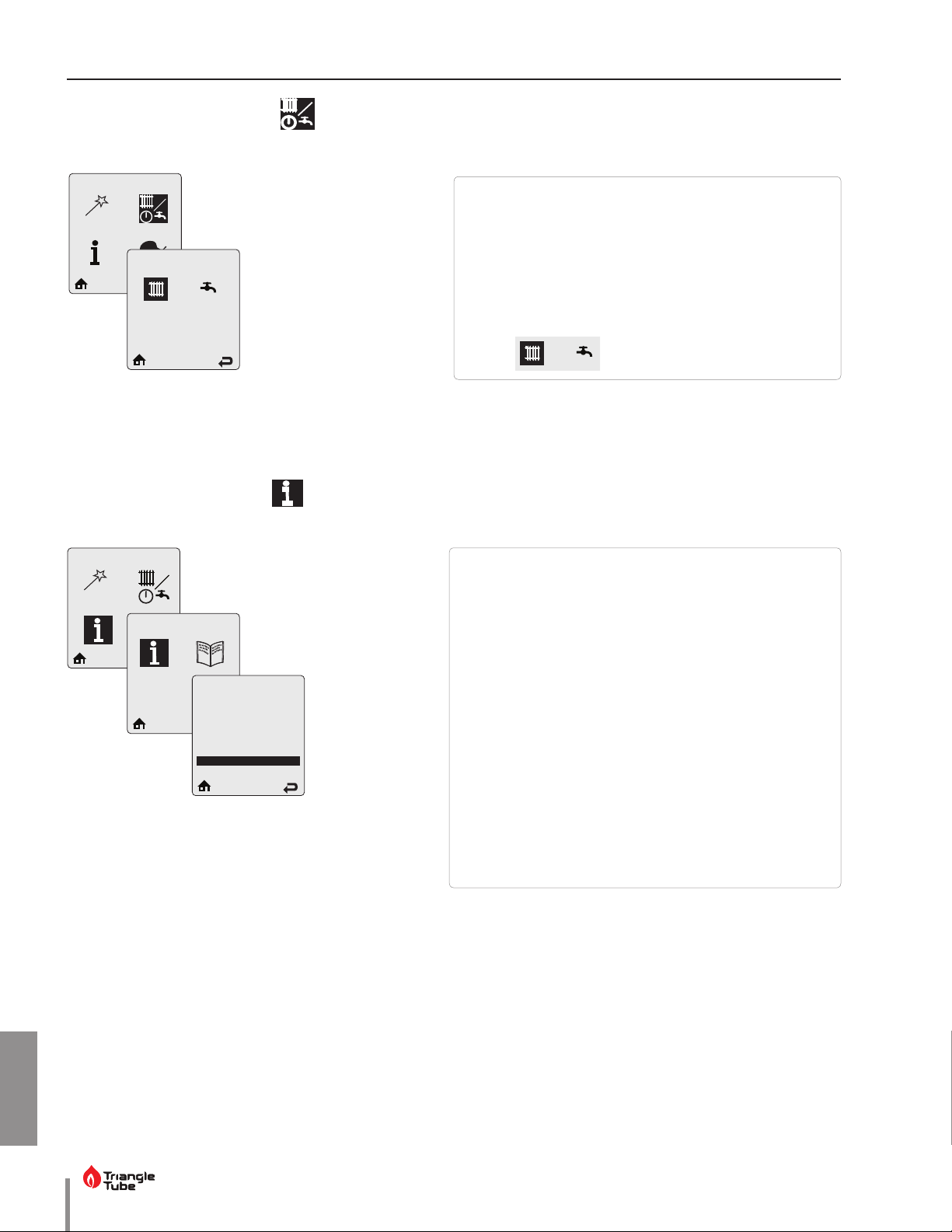

9.5. Main Menu
The Main Menu can be entered from the Home Screen
by pressing the OK button.
The menu system utilizes icons to represent each selection.
The currently selected menu is displayed as an inversed
image with a text description shown at the top of the
display.
Menus can be entered by highlighting the desired icon
and pressing the OK button.
186°F
Target = 186°F
DHW Demand
9.6. EZ Setup
The EZ Setup menus provide a simple way to quickly customize CTRLMax for each installation. EZ Setup
prompts the user to make selections which allows the
PRESTIGE Solo to be setup very quickly without searching through long lists of settings and manually making
adjustments.
Solo
DHW
156°F
The EZ Setup menu can
be accessed by selecting
this icon.
The Boiler Information
Menu can be accessed
by selecting this icon.
The Home Screen icon at
the bottom of each screen
returns to the Home Screen
when selected.
EZ Setup
Press OK Button
Currently selected menu
The CH / DHW Operation
Menu can be accessed by
selecting this icon.
The Previous Screen icon at the
bottom of each screen returns to
the previous screen when selected.
CHAPTER 9
4545
CHAPTER 9 - CTRLMAX OPERATION
9.7. Heating EZ Setup
Heating EZ Setup allows the installer to quickly customize the central heating settings for the application.
9.7.1 Select CH Demand (No outdoor sensor connected)
EZ Setup
Heating EZ Setup
Select CH Demand
Thermostat & Setpoint
Constant & Setpoint
0 - 10 V Modulation Signal
Select CH Demand
Thermostat & Setpoint
Constant & Setpoint
0 - 10 V Modulation Signal
CH1 Setpoint
180°F
68°F 188°F
CH2 Setpoint
68°F 188°F
140°F
EZ Setup Complete
Heating EZ setup is complete.
Additional changes can be made in
the Installer Menu if required.
Press OK to return to EZ Setup Menu
Select CH Demand prompts the installer to select how a CH Demand is generated.
Thermostat & Setpoint - A central heating call from a thermostat
or zone panel will enable the Prestige and the setpoint will be xed
for central heating calls. After Thermostat & Setpoint is selected, the
CH1 Setpoint screen appears. (see below).
Constant & Setpoint - The Prestige will maintain setpoint without
an external CH call from a thermostat or zone panel. The setpoint
will be xed for CH calls. After Constant & Setpoint is selected, the
CH1 Setpoint screen appears.
CH1 Setpoint prompts to enter the xed setpoint for a CH1 heating
call when a Setpoint option is chosen in Select CH Demand.
Press the LEFT or RIGHT buttons to adjust the temperature setpoint
then press OK to store the setting. The CH2 Setpoint screen then
appears.
CH2 Setpoint prompts to enter the xed setpoint for a CH2 heating
call when a Setpoint option is chosen in Select CH Demand.
Press the LEFT or RIGHT buttons to adjust the temperature setpoint
then press OK to store the setting and complete the Heating EZ Setup.
CH1 Default: 180°F [82°C]
CH2 Default: 140°F [60°C]
CHAPTER 9
4646
Select CH Demand
Thermostat & Setpoint
Constant & Setpoint
0 - 10 V Modulation Signal
Additional changes can be made in
Press OK to return to EZ Setup Menu
0 - 10V Modulation Signal - This option allows the Prestige ring
rate to be controlled by an external control system.
Refer to Chapter 13 on page 65 for more information.
EZ Setup Complete
Heating EZ setup is complete.
the Installer Menu if required.
CHAPTER 9 - CTRLMAX OPERATION
9.7.2 Select CH Demand (Outdoor sensor connected)
EZ Setup
Select CH Demand prompts the installer to select how a CH Demand is generated.
Heating EZ Setup
Select CH Demand
Thermostat & Outd. Curve
Constant & Outdoor Curve
Constant & Setpoint
0 - 10 V Modulation Signal
Thermostat & Outd. Curve – A central heating call from a thermostat or zone panel will
enable the Prestige and the setpoint will vary with the outdoor temperature for central
heating calls. After Thermostat & Outd. Curve is selected, the Select CH1 Reset Curve
screen appears (see below).
Select CH Demand
Thermostat & Outd. Curve
Constant & Outdoor Curve
Constant & Setpoint
0 - 10 V Modulation Signal
Select CH1 Reset Curve
140°F
MAX
Select CH2 Reset Curve
80°F
140°F
18°C
Current Settings
80°F
Select CH Demand
Thermostat & Outd. Curve
Constant & Outdoor Curve
Constant & Setpoint
0 - 10 V Modulation Signal
-12°C
Warm Weather Shutdown
O
18°C
-12°C
Current Settings
O 25°C
EZ Setup Complete
Heating EZ setup is complete.
Additional changes can be made in
the Installer Menu if required.
Press OK to return to EZ Setup Menu
Select CH Demand
Thermostat & Outd. Curve
Constant & Outdoor Curve
Constant & Setpoint
0 - 10 V Modulation Signal
Constant & Outdoor Curve - The Prestige will maintain setpoint without an external CH call from
a thermostat or zone panel. The setpoint will vary with the outdoor temperature for central heating
calls. After Constant & Outdoor Curve is selected, the Select CH1 Reset Curve screen appears
Select CH1 Reset Curve prompts to select an outdoor reset curve for a CH1 heating
call when an Outdoor Curve option is chosen in Select CH Demand. Outdoor reset curve
presets are available to cover most applications. The outdoor reset curve can also be
adjusted to any desired settings in the Installer Menu.
Press the UP or DOWN buttons to select the outdoor reset curve appropriate for the type of heating system, then press OK to store the setting. The S elect CH2 Reset Curve screen then appears.
Default: Radiators 2
Select CH2 Reset Curve prompts to select an outdoor reset curve for a CH2 heating call
when an Outdoor Curve option is chosen in Select CH Demand. Outdoor reset curve presets are available to cover most applications. The outdoor reset curve can also be adjusted
to any desired settings in the Installer Menu.
Press the UP or DOWN buttons to select the outdoor reset curve appropriate for the type of heating
system, then press OK to store the setting. The Warm Weather Shutdown screen then appears.
Default: Radiators 2
Table 2 - Outdoor Reset Preset Selections
Preset Minimum Setpoint Maximum Setpoint
Floor Heat Low Temp. 76°F [24°C] 96°F [35°C]
Floor Heat High Temp. 76°F [24°C] 104°F [40°C]
Radiators 1 80°F [27°C] 120°F [49°C]
Radiators 2 80°F [27°C] 140°F [60°C]
Radiators 3 80°F [27°C] 158°F [70°C]
Radiators 4 80°F [27°C] 176°F [80°C]
Radiators 5 80°F [27°C] 188°F [87°C]
Cast iron baseboard 100°F [38°C] 170°F [77°C]
Finned tube baseboard 120°F [49°C] 180°F [82°C]
Radiators 6 120°F [49°C] 170°F [77°C]
Fancoil 140°F [60°C] 180°F [82°C]
Warm Weather Shutdown prompts to enter an optional outdoor temperature at which to
disable the central heating function and any circulator placed into constant circulation with
the Pump Permanent Circulation setting. The Prestige will continue to respond to a domestic hot water call or a 0- 10V Modulation Signal when the outdoor temperature exceeds the
Warm Weather Shutdown Temperature setting.
Press the LEFT or RIGHT buttons to adjust the Warm Weather Shutdown Temperature then
press the OK button to store the setting and complete Heating EZ Setup.
The Warm Weather Shutdown icon ( ) is displayed on the home screen when the outdoor temperature reaches the Warm Weather Shutdown temperature.
Default: OFF.
Constant & Setpoint - See section 9.7.1 on page 46.
0 - 10V Modulation Signal - See section 9.7.1 on page 46.
4747
CHAPTER 9
CHAPTER 9 - CTRLMAX OPERATION
9.8. Domestic Hot Water EZ Setup
Domestic Hot Water EZ Setup allows the installer to quickly customize the Domestic Hot Water settings for the application
EZ Setup
DHW EZ Setup
Select DHW Demand
Thermostat
Sensor
DHW
Boiler Setpoint
168°F
96°F 188°F
Select DHW Demand prompts the installer to select how a DHW
Demand is generated.
When Thermostat is selected in Select DHW Demand, a domestic
hot water call from an aquastat or dry contact switch will enable
the Prestige with a xed setpoint for a domestic hot water call. After
Thermostat is selected, the DHW Boiler Setpoint screen appears.
Default: Thermostat
DHW Boiler Setpoint prompts to enter the xed boiler setpoint
temperature during a domestic hot water call.
Press the LEFT or RIGHT buttons to adjust the temperature set-
point then press OK to store the setting. The DHW Priority Timeout
screen then appears (see below).
Default: 168°F [75°C].
CHAPTER 9
EZ Setup
DHW EZ Setup
Select DHW Demand
Thermostat
Sensor
DHW Storage Setpoint
140°F
68°F 168°F
DHW Priority Timeout
O
O 120 min.
EZ Setup Complete
DHW EZ setup is complete.
Additional changes can be made in
the Installer Menu if required.
Press OK to return to EZ Setup Menu
When Sensor is selected in Select DHW Demand, use of an optional Indirect Water Heater Sensor is required. The Prestige monitors the
DHW storage temperature and generates a DHW call whenever the
temperature drops below the DHW storage setpoint by 6°F [3°C].
DHW Storage Setpoint prompts to enter the DHW Storage Setpoint temperature.
Press the LEFT or RIGHT buttons to adjust the temperature setpoint
then press OK to store the setting. The DHW Priority Timeout screen
then appears.
Default: 140°F [60°C].
NOTICE
The DHW Boiler Setpoint will automatically be set 28°F
[15°C] higher than the DHW Storage Setpoint setting
DHW Priority Timeout prompts to enter an optional time limit that
a domestic hot water call has priority over central heating call.
Press the LEFT or RIGHT buttons to adjust the timeout value, if required, then press OK to store the setting and complete the DHW EZ
Setup.
Default: O
4848
CHAPTER 9 - CTRLMAX OPERATION
9.9. EZ Setup Reset
EZ Setup
EZ Setup Reset
EZ Setup Reset
Press OK to restore factory settings,
any other button to keep current
settings.
9.10. Display EZ Setup
EZ Setup
Display EZ Setup
English
Français
Nederlands
Español
Italiano
Deutsch
Select Language
EZ Setup Reset allows reset of all EZ Setup settings back to the orig-
inal factory defaults. See Chapter 13 on page 65 for the list of set-
tings reset by this function.
Follow the on-screen instructions to reset all EZ Setup settings.
Display EZ Setup allows language (Nine dierent languages: English, French, Dutch, Spanish, Italian, German, Czech, Polish and Russian) and temperature units selection.
Press the UP or DOWN buttons to select the required language then
press OK to store the setting. The Select Unit screen then appears.
Press the UP or DOWN buttons to select the required temperature
units then press OK to store the setting.
Select Unit
Fahrenheit
Celsius
CHAPTER 9
4949
CHAPTER 9 - CTRLMAX OPERATION
Heating Enabled
9.11. CH/DHW Operation
CH / DHW Operation
Heating Enabled
9.12. Boiler Information
Boiler Information
Boiler Information
a
b
b
c
b
d
b
e
b
f
f
b
e
b
d
b
a
b
c
c
b
b
d
b
b
e
a
f
f
e
b
d
b
a
b
b
c
b
c
b
d
b
b
e
a
f
f
b
e
b
d
b
c
b
b
a
Boiler Information
Boiler Status Standby
Heating Call No
DHW Call No
Boiler Firing Rate --
Ionization current 0μA
Boiler Setpoint --
CH/DHW Operation provides a simple way to enable/disable either
the CH or the DHW function of the Prestige.
Press the LEFT or RIGHT buttons to select the CH or DHW icon, then
press OK to toggle between the enabled/disabled status. The status
is displayed at the top of the screen.
Using the arrow keys, select the HOME or RETURN icon at the bottom of the screen to go back either to the home page or to the
previous screen.
Default :
Boiler Information provides real time operating information of the
Prestige. Each line contains an information item followed by its current value. Six lines are displayed on the screen at one time.
Some information items include a logging function which records
one sample every 12 minutes to produce a graph of the last 24 hours.
Select the information item in Boiler Information then press the OK
button to view its graph. The following items have a logging function:
• Boiler Firing Rate
• Ionization Current
• Boiler Setpoint
• Boiler Supply Temperature
• Boiler Return Temperature
• Boiler Flue Temperature
• Outdoor Temperature
• DHW Storage Temperature
• External Modulation Signal
• Pressure
Press the UP or DOWN buttons to scroll through the items.
CHAPTER 9
5050
CHAPTER 9 - CTRLMAX OPERATION
9.12.1 Information Items
Information Item Description
Boiler Status
Heating Call Displays if a central heating call is present.
DHW Call Displays if a domestic hot water call is present.
Boiler Firing Rate Displays the current ring rate of the Prestige.
Ionization Current Displays the current ame ionization current from the ignitor.
Boiler Setpoint Displays the current setpoint of the Prestige.
Supply Temp. Displays the current supply temperature of the Prestige.
Return Temp. Displays the current return temperature to the Prestige.
Boiler Flue Temp. Displays the current ue temperature of the Prestige.
Outdoor Temp. Displays the current outdoor temperature.
DHW Storage Temp.
External Modulation Signal
Displays the current operating state of the Prestige. This is the same as the status
line on the home screen.
Displays the current DHW storage temperature when Indirect Water Heater Sensor PSRKIT22 is installed.
Displays the current external modulation signal being received from an external
controller.
Pressure Displays the current system water pressure.
CH Ignitions
CH Runtime
DHW Ignitions
DHW Runtime
Mix Zone Temperature Displays the current low temperature mix zone temperature.
Displays the number of central heating ignitions since the unit was installed. This
counter increases in increments of twenty.
Displays the number of hours the Prestige has run for a central heating call since
the unit was installed.
Displays the number of domestic hot water ignitions since the unit was installed.
This counter increases in increments of twenty.
Displays the number of hours the Prestige has run for a domestic hot water call
since the unit was installed.
CHAPTER 9
5151
CHAPTER 9 - CTRLMAX OPERATION
Boiler Information
Lockout History
a
b
b
c
b
d
b
e
b
f
f
b
e
b
d
b
a
b
c
c
b
b
b
d
b
e
a
f
f
e
b
d
b
a
b
b
c
b
c
b
d
b
b
e
a
f
f
b
e
b
d
b
c
b
b
a
Lockout History
1. Blower speed 5h ago
2. DHW Sensor Open 2h ago
3. Sensor Drift 25 h ago
4. No error 27 h ago
5. No error 27 h ago
6. No error 27 h ago
Lockout Details
Blower speed
Boiler Status --
Heating Call --
DHW Call --
Boiler Firing Rate 44%
Ionization current 44μA
Lockout History records the last eight lockouts. Six lines are displayed on the Lockout History screen at one time. Each line contains a
lockout description followed by how long ago the lockout occurred.
Press the UP or DOWN buttons to scroll through the items then press
OK to select and get more details through the Lockout Details screen.
The following information items are recorded at the time of a lockout:
• Boiler Status
• Heating Call
• Domestic Call
• Boiler Firing Rate
• Flame Ionization Current
• Boiler Setpoint
• Boiler Supply Temperature
• Boiler Return Temperature
• Boiler Flue Temperature
• Outdoor Temperature
• System Temperature
9.12.2 Lockout Screen
If a problem occurs, the Lockout Screen replaces the
Home Screen. The backlight will remain on until the
lockout is reset.
Pressing any arrow button will return to the Home
Screen so that additional troubleshooting can be performed. See Sections 9.12.3 on page 53 and 9.12.4
on page 54 for a list of lockouts and descriptions.
Select the Home Screen icon at the bottom of any
screen to return to the lockout screen.
Low Water
Lockout text. The rst sentence describes the lockout,
Water pressure has fallen below
7.2 psi. Increase pressure
to normal range.
If problem persists,
call for service
the second sentence gives a possible cure, and the third
tells how to reset the lockout.
Lockout message.
CHAPTER 9
5252
E37
Lockout reference code. Refer to Sections 9.12.3 on
page 53 and Section 9.12.4 on page 54 for more
information.
CHAPTER 9 - CTRLMAX OPERATION
9.12.3 Manual Reset Lockouts
Code Lockout Message Description
E1 Failed Ignition The burner failed to light after 5 ignition attempts.
E2 False Flame Flame detected prior to ignition.
E3 High Boiler Temperature Boiler temperature has reached 210°F [99ºC] or 102°F [39°C].
E5 Blower Speed Blower is not at correct speed or speed signal is not being received by control module.
E8 Flame Circuit Error Flame circuit test failed.
E9 Gas Valve Circuit Error Gas valve circuit test failed.
E13 Reset Limit Reached Resets are limited to 5 every 15 minutes.
E15 Sensor Drift Supply or return sensor reading has drifted.
E16 Supply Sensor Stuck Supply sensor reading is not changing.
E17 Return Sensor Stuck Return sensor reading is not changing.
E18 Sensor Failure Supply or return sensor reading changed very rapidly.
E19 Flame Failure During Startup Phase Flame lost after startup
E21 Internal Control Fault A / D conversion error.
E30 Supply Sensor Shorted A short circuit has been detected in the boiler supply temperature sensor circuit.
E31 Supply Sensor Open An open circuit has been detected in the boiler supply temperature sensor circuit.
E43 Return Sensor Shorted A short circuit has been detected in the boiler return temperature sensor circuit.
E44 Return Sensor Open An open circuit has been detected in the boiler return temperature sensor circuit.
E47 Water Pressure Sensor Error Water pressure sensor is disconnected or broken.
E80 Return > Supply Return temperature is higher than supply temperature.
E83 Delta T Protection Excessive difference between boiler supply and return temperatures has occured 5 times
E84 High Flue Temperature Flue temperature has exceeded high limit 5 times
E87 External Limit Open An external manual reset limit has opened
CHAPTER 9
5353
CHAPTER 9 - CTRLMAX OPERATION
9.12.4 Automatic Reset Blocking Lockouts
Code Lockout Message Description
E7 High Flue Temperature Flue temperature exceeds high limit.
E12 Internal Control Fault EEPROM misconguration.
E25 Internal Control Fault CRC check error.
E32 DHW Sensor Shorted A short circuit has been detected in the DHW temperature sensor circuit.
E33 DHW Sensor Open An open circuit has been detected in the DHW temperature sensor circuit.
E34 Low Voltage Line voltage has fallen below an acceptable operating level.
E37 Low Water Water pressure has fallen below 7.2 psi.
E45 Flue Sensor Shorted A short circuit has been detected in the boiler ue temperature sensor circuit.
E46 Flue Sensor Open An open circuit has been detected in the boiler ue temperature sensor circuit.
E76 External Limit Open An external automatic reset boiler limit has opened.
E77 High Mix Circuit Temperature Mix circuit temperature exceeds Mix zone high limit setting.
E78 Mix Circuit Sensor Shorted A short circuit has been detected in the mix circuit temperature sensor circuit.
E79 Mix Circuit Sensor Open An open circuit has been detected in the mix circuit temperature sensor circuit.
E81 Sensor Drift Supply and return temperatures are not equal.
E82 Delta T Protection Excessive dierence between the boiler supply and return temperatures.
E89 Incorrect Setting A parameter setting is in conict with another setting.
E90 Firmware Mismatch Control module and display rmware versions are incompatible.
E91 System Sensor Shorted A short circuit has been detected in the system temperature sensor circuit.
E92 System Sensor Open An open circuit has been detected in the system temperature sensor circuit.
E93 Outdoor Sensor Shorted A short circuit has been detected in the outdoor temperature sensor circuit.
E94 Internal Display Fault Display memory error.
E95 Supply Sensor Error Supply sensor reading is invalid.
E96 Outdoor Sensor Open An open circuit has been detected in the outdoor temperature sensor circuit.
CHAPTER 9
E97 Cascade Mismatch Cascade conguration has changed.
E98 Cascade Bus Error Communication with other boilers has been lost.
E99 Controller Bus Error Communication between boiler display and control module has been lost.
5454
CHAPTER 10 - START-UP PREPARATION
NOTICE
Requirements below must be met for warranty
coverage of Prestige Solo heat exchangers. A
thorough cleaning of any existing system, using approved heating system cleaning agents
is required prior to installation of the Prestige
Solo boiler. System should be treated with an
approved inhibitor after filling for long term
protection.
10.1. Boiler System Fluid Requirements
WARNING
Do not use petroleum-based cleaning or sealing compounds in the boiler system. Damage to seals and gaskets in the system components can occur, resulting in substantial
property damage, serious injury, or death.
Chapter 10
10.1.3 Chlorinated Water
Do not use the PRESTIGE Solo to heat a swimming pool
or spa directly.
Maintain the chlorine level of the water at levels considered safe for drinking.
10.1.4 Flush Boiler to Remove Sediment
The installer must ush the boiler system to remove
any sediment to allow proper operation of the PRESTIGE Solo .
Flush the system until the water runs clean and is free
of sediment.
For zoned systems, each zone should be ushed
through a purge valve. Purge valves and isolation
valves should be installed on each zone to allow proper
ushing of the system.
10.1.5 Cleaning of Old Boiler/System:
NOTICE
System fluid including additives, must be practically non-toxic, having a toxicity rating or
Class of 1, as listed in Clinical Toxicology of
Commercial Products.
10.1.1 Boiler Fluid pH Level 6.0 to 8.0
Maintain the boiler uid pH between 6.0 and 8.0. Check
using litmus paper or contact a water treatment company for a chemical analysis.
If the pH does not meet this requirement, do not operate the PRESTIGE Solo or leave the unit lled until the
condition is corrected.
10.1.2 Boiler Fluid Hardness Less Than 7 Grains
• Drain the existing system.
• Fill system with fresh water and cleaner, place existing boiler in operation and run all zones.
• Follow manufacturer’s instructions for proper cleaner concentration and proper cleaning time.
• Thoroughly drain and ush system with fresh water
after cleaning.
• Install new boiler and ll system with fresh water
and proper amount of inhibitor.
• Verify pH and inhibitor level per inhibitor manufacturer’s specs; add inhibitor if necessary.
10.1.6 Cleaning of New Boiler/System:
• Install new boiler and ush system with clean water
to remove any debris.
• Fill system with fresh water and proper amount of
inhibitor.
• Verify pH and inhibitor level per inhibitor manufacturer’s specs; add inhibitor if necessary.
For areas with unusually hard water (hardness above 7
grains) consult a water treatment company.
5555
Chapter 10
CHAPTER 10 - START-UP PREPARATION
10.1.7 Check and Test Antifreeze
For boiler systems containing antifreeze solutions, follow the antifreeze manufacturer’s instructions in verifying the inhibitor level and to ensure the uid characteristics are within specication requirements.
Due to the degradation of inhibitors over time, antifreeze
uids must be periodically replaced. Refer to the manufacturer of the antifreeze for additional instructions.
10.1.8 Use of Antifreeze in the Boiler System
WARNING
NEVER use automotive or ethylene glycol antifreeze or undiluted antifreeze in the system
as freeze protection. This can result in substantial property damage, serious injury, or
death.
Determine the antifreeze uid quantity using the system water volume and following the antifreeze manufacturer instructions.
10.2. Filling the Boiler System
1. Close the boiler drain valve located on the bottom
of the unit and any manual or automatic air vents
in the system.
2. Open all system isolation valves.
3. Fill the boiler system to correct system pressure.
Correct pressure will vary with each application.
NOTICE
Typical residential system fill pressure is 12 psi.
System pressure will increase as system temperature increases. Operating pressure of the
system should never exceed 25 psi.
4. Purge air and sediment in each zone of the boiler
system through the purge valve. Open air vents to
allow air to be purged from the zones.
5. Once the system is completely lled and purged of
all air and sediment, check the system pressure and
check/repair any leaks.
The water volume of the PRESTIGE Solo is approximately 3 gallons [12 L] for PRESTIGE Solo 80/110 or 5 gallons
[19 L] for PRESTIGE Solo 155/175/250 or 7 gallons [26 L]
for PRESTIGE Solo 299/399. Remember to include the
volume of the expansion tank.
Check with local code requirements for the installation
of backow preventers or actual disconnection of the
boiler’s cold water ll or make up water supply line.
NOTICE
Massachusetts Code requires the installation of
a backflow preventer if antifreeze is used.
Ensure the concentration of antifreeze to water does
not exceed a 50/50 ratio.
NOTICE
System fluid including additives, must be practically non-toxic, having a toxicity rating or
Class of 1, as listed in Clinical Toxicology of
Commercial Products.
WARNING
Unrepaired system leaks will cause continual makeup water to be added to the boiler.
Continual makeup water will cause mineral
buildup within the heat exchanger, reducing
the heat transfer, causing heat buildup and
eventual heat exchanger failure. This can result in substantial property damage, serious
injury, or death.
10.3. Check Low Water Cut-Off Device
• The PRESTIGE Solo is provided with a factory in-
stalled LWCO device that monitors system pressure.
• Access the Boiler Information Menu by following
instructions in Section 9.12 on page 50. Scroll
down to see the current system pressure and verify
it is within the range given in Section 10.2 above.
5656
CHAPTER 10 - START-UP PREPARATION
10.4. Check For Gas Leaks
WARNING
• Prior to start-up and during initial operation, check for a gas leak using a combustable gas detector. Do not proceed
with the start-up if there is any indication
of a gas leak. Any leaks found must be re-
paired immediately.
• Propane installations only - The propane
supplier mixes an odorant with the propane to make its presence detectable. In
some cases the odorant can fade and the
gas may no longer have an odor.
• Prior to start-up of the unit and periodically after start-up have the propane sup-
plier check and verify the odorant level.
• Failure to comply with these instructions
can result in substantial property dam-
age, serious injury, or death.
10.6. Inspect Condensate Drain Assembly
1. Inspect and ensure the Condensate Drain Assembly
is properly installed as described in Section 5.2 on
page 25.
2. Remove the plug from the Condensate Drain Assembly and ll with fresh water.
WARNING
The condensate drain assembly must be
filled with water when the PRESTIGE Solo is
in operation. The condensate drain assembly
prevents flue gas emissions from entering
the condensate line. Failure to ensure trap is
filled with water can result in serious injury,
or death.
3. Re-Install plug in condensate drain assembly.
Chapter 10
10.5. Check Thermostat Circuit
• Disconnect the external thermostat wires from the
low voltage terminal strip.
• Connect a voltmeter across the wire ends of the external thermostat wiring.
• Close each thermostat, zone valve and relay in the
external circuit one zone at a time and check the
voltage reading across the wire ends.
• There should NEVER be voltage measured at the
wire ends.
• If voltage is measured under any condition, check
and correct the external wiring.
NOTICE
In systems using 3-wire zone valves, voltage
backfeed to the unit is a common problem. Use
an isolation relay to prevent voltage from the
external circuit from entering the PRESTIGE Solo.
• Reconnect the external thermostat wires to the low
voltage terminal strip.
5757
FOR YOUR SAFETY, READ BEFORE OPERATING
WARNING
If you do not follow these instructions exactly, a fire or explosion may result,
causing substantial property damage, serious injury, or death.
A. This appliance does not have a pilot. It is equipped
with an ignition device which automatically lights
the burner. DO NOT try to light the burner by hand.
B. BEFORE OPERATING, smell all around the appliance
area for gas. Be sure to smell next to the oor because
some gas is heavier than air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use
any phone in your building
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call
the re department.
OPERATING INSTRUCTIONS
1. STOP! Read the safety information above. This appliance is equipped with an ignition device which
automatically lights the burner. DO NOT try to light
the burner by hand.
2. Set room thermostat(s) to lowest setting. Turn the
external manual gas valve handle clockwise
to “CLOSE” (valve handle must be perpendicular to
gas piping).
3. Turn the service switch on the appliance control
panel OFF.
4. Remove the front jacket panel on the unit.
5. Wait ve (5) minutes to clear out any gas. If you then
smell gas in the jacket enclosure or around the unit,
STOP! Follow “B” in the safety information above. If
you don’t smell gas, go to the next step.
6. Turn the external manual gas valve handle counter
clockwise to “OPEN” gas supply (valve handle
shall be parallel to gas piping).
C. Use only your hand to turn the external manual gas
valve. Never use tools. If the valve will not turn by
hand, don’t try to repair it; call a qualied service
technician. Force or attempted repair may result in
a re or explosion.
D. Do not use this appliance if any part has been
under water. Immediately call a qualied service
technician to inspect the appliance and to replace
any part of the control system and any gas control
which has been under water.
7. Turn the service switch on the appliance control
panel “ON”.
8. Set room thermostat(s) to desired setting(s).
9. The appliance control panel display will show the
current operating status on the Status Line at the
bottom of the screen. “Standby” means there is no
call for heat (all thermostats are satised). “CH Demand” indicates a space heating call has been received. “DHW Demand” indicates a domestic hot
water call has been received. A ame icon will be
displayed when the unit is red.
10. If the unit will not operate, follow the instructions
“To Turn O Gas to Appliance” and call your service
technician or gas supplier.
11. Replace the front jacket panel. Make sure the panel
is seated rmly in place and all mounting screws are
tightened.
TO TURN OFF GAS TO APPLIANCE
1. Set the room thermostat to lowest setting.
2. Turn the service switch on the appliance control
panel to “OFF”
58
3. Turn the external manual gas valve handle clockwise to “CLOSE”.
CHAPTER 11 - START-UP PROCEDURES
11.1. Final Checks Before Start-Up
Ø Read Chapter 9 on page 41 regarding the oper-
ation of the CTRLMax Boiler Management System.
Ø Verify the PRESTIGE Solo and the boiler system are
full of water and all system components are correctly set for operation, including the minimum
ow rate through the boiler, see specications in
Chapter 19 on page 87..
Ø Verify Start-up Preparation items outlined in Chap-
ter 10 on page 55 have been completed.
Ø Verify all electrical connections are correct and se-
curely fastened.
Ø Inspect vent and combustion air piping for signs
of deterioration from corrosion, physical damage or
sagging. Verify combustion air and vent piping are
intact and correctly installed and supported. Reference the PRESTIGE Vent Supplement.
Ø Verify burner conguration - Propane only.
• Check for proper labeling on the gas valve and
the rating label for propane conguration.
• If there is doubt on the burner conguration,
remove the gas valve and check for proper propane gas orice size. Refer to Section 6.3.2 on
page 29 for orice sizes. Refer to Fig 16 and
Fig. 17 on page 30 or Fig. 18 on page 31 for
location of the propane gas orice.
4. Is an external limit (if applicable) open? Ensure the
external limit is reset to the closed position.
5. Are the gas supply valves open at the unit and meter?
6. Is incoming gas supply pressure at the unit more
than 5”w.c. and less than 13” w.c. with all gas appliances ON or OFF.
7. Are the heating thermostats set above room temperature?
8. Remove the blower assembly and verify the blower
check valve is moving freely.
If none of these conditions correct the problem, contact Triangle Tube Technical Support.
11.3. Check the PRESTIGE Solo and System
11.3.1 Check Boiler Piping.
• Check Boiler system piping and components for
leaks. If found, shut down the unit and repair immediately.
• Purge any remaining air from the system. Air in the
system will interfere with circulation, creating heat
distribution problems and noise.
11.3.2 Check Vent and Combustion Air Piping.
CHAPTER 11
Ø Ensure the Condensate Drain Assembly is lled
with water.
11.2. PRESTIGE Solo Start-Up
1. Press the ON-OFF button located on the front control panel to the OFF position. Turn ON the electrical supply/service to the unit.
2. Read and follow the Operating Instructions outlined on previous page.
If PRESTIGE Solo Does Not Start Correctly
1. Check for loose electrical connections, blown fuses
on control module, or an open service switch.
2. Verify CH and DHW operation is enabled. A radiator
or faucet icon with an X through it indicates that
function is disabled.
3. Check the system pressure in the Boiler Information
Menu by following the instructions in Section 9.12
on page 50..
• Check for a gas-tight seal at every connection and
seam of the vent and combustion air piping.
DANGER
Venting system must be sealed gas-tight to
prevent flue gas spillage and carbon monoxide emissions, which will result in serious
injury, or death.
11.3.3 Verify Carbon Monoxide Detector
Verify that at least two (2) carbon monoxide detectors
are installed and operating properly. One must be installed in the mechanical room where the PRESTIGE
Solo is located and another installed in the living area
outside the bedroom(s).
5959
CHAPTER 11 - START-UP PROCEDURES
a
b
c
d
e
f
b
b
b
b
a
b
c
d
e
f
b
b
a
b
c
d
e
a
b
c
d
e
f
b
b
b
b
a
b
c
d
e
f
b
b
a
b
c
d
a
b
c
d
e
f
b
b
b
b
a
b
c
d
e
f
b
b
a
b
c
d
e
a
b
c
d
e
f
b
b
b
b
a
b
c
d
e
f
b
b
f
b
g
a
b
c
d
CHAPTER 11
Check around the unit for gas odor following the procedure outlined in this manual on page 58.
DANGER
If any gas leaks are found or suspected, shut
the unit down immediately. Use a gas detection device or bubble test to locate the
source of the gas leak and repair at once. Do
not operate the unit until the leak is corrected. Failure to comply with this procedure will
result in substantial property damage, seri-
ous injury, or death.
11.3.5 Verify Flame Pattern and Combustion
An adequate CH load must be present to dissipate the heat generated during the combustion
1. Check the ame pattern through the observation
port of the heat exchanger. The ame should be
blue and stable. The ame should be over the
test. If an adequate CH load is not available, an
indirect water heater can be used to dissipate
the heat by creating a DHW call which will en-
length of the burner head.
NOTICE
Combustion testing and adjustments must be
performed by a qualified installer, service agency or the gas supplier. All combustion measurements must be performed with recently
e. Press the RIGHT button to adjust the ring rate
from 1% to 100%. Hold down the RIGHT button to rapidly increase the ring rate.
f. Press the OK button while the FAN icon is high-
lighted to shutdown the burner.
calibrated equipment (1 year max.) to ensure
proper reading and accuracy.
3. If the combustion levels during high re (100%) are
2. Test for CO2 or O2 and for CO during high ring
rate. The combustion readings must be within the
range listed in Table 4 on page 61. The CO level
must not exceed 100 ppm for natural gas and
150 ppm for propane gas when combustion is
correct. Perform the following procedure to manu-
ally place the burner into high re.
outside the acceptable levels, adjust the THROTTLE
SCREW (see Fig. 16 and Fig. 17 on page 30, and Fig.
18 on page 31) according to Table 3 on page 61.
4. Once the combustion level is set at high re (100%),
manually place the boiler into low re (1%) mode
by pressing the LEFT button to adjust ring rate
down.
5. Verify the combustion levels during low re (1%) are
a. Press the round INSTALLER button. Reference
Section 9.1 on page 41.
within the acceptable combustion levels in Table 4
on page 61.
b. Enter the installer access code “054” by using
the LEFT and RIGHT buttons to select a digit
and the UP and DOWN buttons to change the
digit. Press the OK button to enter the access
code.
c. Press the RIGHT button to highlight the Manual
Operation icon
then press the OK button.
d. Press the OK button while the FAN icon is high-
If the combustion levels at low fire (1%) are
not within the range given in Table 4 on page
61, shut the boiler down and contact Trian-
gle Tube Technical Support. Failure to comply with this requirement can result in substantial property damage, serious injury, or
lighted to manually re the burner and power
the CH circulator(s).
Manual Operation
FAN
CH1
DHW
Released
O
O
O
CH2
NOTICE
able the DHW circulator.
WARNING
death.
11.3.4 Check Gas Piping
6060
CHAPTER 11 - START-UP PROCEDURES
a
b
c
d
e
f
b
b
b
b
a
b
c
d
e
f
b
b
a
b
c
d
e
a
b
c
d
e
f
b
b
b
b
a
b
c
d
e
f
b
b
a
b
c
d
a
b
c
d
e
f
b
b
b
b
a
b
c
d
e
f
b
b
a
b
c
d
e
a
b
c
d
e
f
b
b
b
b
a
b
c
d
e
f
b
b
f
b
g
a
b
c
d
a
b
c
d
e
f
b
b
b
b
a
b
c
d
e
f
b
b
a
b
c
d
e
a
b
c
d
e
f
b
b
b
b
a
b
c
d
e
f
b
b
a
b
c
d
a
b
c
d
e
f
b
b
b
b
a
b
c
d
e
f
b
b
a
b
c
d
e
a
b
c
d
e
f
b
b
b
b
a
b
c
d
e
f
b
b
f
b
g
a
b
c
d
Table 3 - Throttle Screw Adjustment
Direction
Clockwise
Counter-Clockwise
PB 80/110/
299/399
Increase CO2
Decrease O
Decrease CO2
Increase O
PB 155/175/250
Decrease CO2
2
Increase O
Increase CO2
2
Decrease O
2
2
11.3.6 Measure Input - Natural Gas Only
1. Ensure the boiler is ring at maximum ring rate. To
manually place the boiler into high re, reference
Section 11.3.5 on page 60.
2. Operate the unit for approximately 10 minutes.
3. Turn o all gas appliances within the building, except the PRESTIGE Solo.
4. At the gas meter, record the time required to use
one cubic foot of gas.
5. Calculate Natural gas input using the following
equation:
3600 x 1000 / number of seconds recorded for one
cubic foot of gas = BTU/H.
6. The BTU/H calculated should approximate the input rating listed on the unit.
3. Press the OK button while CH & DHW Settings icon
is highlighted.
4. Press the DOWN button to highlight the Boiler Set-
tings icon
then press the OK button.
5. Press the DOWN button to highlight Lockout Temperature then press the OK button.
6. Press the UP button to highlight 102ºF [39ºC] then
press the OK button.
7. Press the DOWN button to highlight the Home
Screen icon
then press the OK button.
8. Initiate a CH or DHW call and conrm that a High
Boiler Temperature lockout occurs once the supply
temperature reaches 102ºF [39ºC].
9. Press any ARROW button to return to the Home
Screen.
10. Press the round INSTALLER button.
11. Press the OK button while the CH & DHW Settings
icon
is highlighted.
12. Press the DOWN button to highlight the Boiler Set-
tings icon
then press the OK button.
CHAPTER 11
11.3.7 Test High Temperature Limit
The high temperature limit can be temporarily lowered
from 210ºF [99ºC] to 102ºF [39ºC] for testing.
1. Press the round INSTALLER button. Reference Fig.
25 on page 41..
2. Enter the installer access code “054” by using the
LEFT and RIGHT buttons to select a digit and the
UP and DOWN buttons to change the digit. Press
the OK button to enter the access code.
Table 4 - Acceptable Combustion Levels
Natural Gas
All Models
CO2 Range 8.8 to 10.5% 10.7 to 12.0% 10.4 to 11.4%
CO2 Target 9.2% 11.0%
O2 Range 2.3 to 5.3% 2.7 to 4.7% 3.7 to 5.2%
High Fire
O2 Target 4.6% 4.2%
CO2 Range 0.5 to 0.6% Lower than High Fire CO2
PB 80/110/155/175/250/299
13. Press the DOWN button to highlight Lockout Temperature, then press the OK button.
14. Press the DOWN button to highlight 210ºF [99ºC]
then press the OK button.
15. Press the DOWN button to highlight the Home
Screen icon
then press the OK button.
16. Press the OK button to reset the lockout and return
the unit to service.
Propane
Propane
PB 399
O2 Range 0.8 to 0.9% Higher than High Fire O2
Low Fire
CO Max 100 ppm 150 ppm
6161
INTENTIONALLY LEFT BLANK
CHAPTER 12 - OUTDOOR RESET CONTROL
The use of the outdoor reset function is required to
optimize boiler eciency, see notice below. If the
outdoor sensor is not installed before turning on the
PRESTIGE Solo, an Outdoor Sensor Open error (E96) will
be displayed. The error will not prevent the boiler from
operating. The error will automatically reset once the
outdoor sensor is installed or if the outdoor reset function is disabled. Reference Section 9.7 on page 46
for information on disabling the outdoor reset function.
The outdoor reset function can only be disabled if the
installation meets one of the exceptions listed in the
IMPORTANT notice below.
12.1. Mounting the Outdoor Sensor
1. The exterior wall selected for mounting the outdoor sensor should represent the heat load of the
building. Typically a northern wall will suit most
buildings.
2. Ensure the outdoor sensor is shielded from direct
sunlight or the eects of heat or cold from other
sources (exhaust fans, appliance vents...) to prevent
false temperature readings.
3. Mount the outdoor sensor at an elevation on the
exterior wall to prevent accidental damage or tampering.
4. Avoid mounting the outdoor sensor in areas subjected to excessive moisture.
5. Once an area on the exterior wall has been determined, follow the mounting instructions included
with the outdoor sensor.
12.2. Wiring the Sensor
1. Connect 18 AWG 2-wire cable or similar to the outdoor sensor.
2. Route the cable back to the PRESTIGE Solo boiler,
ensuring the wires are not run parallel to telephone
or power wiring.
NOTICE
If the sensor wires are located in an area
with sources of electromagnetic interference
(EMI), the sensor wires should be shielded or
the wires should be run in a grounded metal
conduit. If using shielded cable, the shielding
should be connected to the common ground of
the unit.
3. Connect the outdoor sensor wires to low voltage terminals X6-1&2 located at the bottom of the CTRLMax
control module as shown in Fig. 22 on page 36.
CHAPTER 12
IMPORTANT
In accordance with Chapter 325 (f) (3) of the Energy Policy and Conservation Act, this boiler is equipped with a
feature that saves energy by reducing the boiler water temperature as the heating load decreases. This feature
is equipped with an override which is provided primarily to permit the use of an external energy management
system that serves the same function.
THIS OVERRIDE MUST NOT BE USED UNLESS AT LEAST ONE OF THE FOLLOWING CONDITIONS
IS TRUE.
• An external energy management system is installed that reduces the boiler water temperature
as the heating load decreases.
• This boiler is not used for any space heating
• This boiler is part of a modular or multiple boiler system having a total input of 300,000 BTU/
hr or greater.
• This boiler is equipped with a tankless coil.
6363
INTENTIONALLY LEFT BLANK
CHAPTER 13 - EXTERNAL MODULATING CONTROL
The PRESTIGE Solo can directly accept an analog
0-10 VDC signal from an external modulating boiler
controller to control the ring rate.
13.1. Wiring the Modulating Controller
Run two 18 gauge wires from the external modulating
boiler controller’s 0-10 VDC boiler output to low voltage
terminals X5-1&2 located at the bottom of the CTRLMax
control module, as shown in Fig. 22 on page 36.. This
signal will both enable and modulate the boiler. No wiring is required at the thermostat terminals.
External modulating control will only function if the
external modulating controller is properly wired to the
PRESTIGE Solo as follows:
• X5-1 = +
• X5-2 = -
NOTICE
13.2. CTRLMax Programming
The CTRLMax control module must be programmed to
accept the 0-10 VDC signal from the external modulating boiler control.
1. Use the Heating EZ Setup function to set CH Demand to 0-10V Modulation Signal. Reference Sec-
tion 9.7 on page 46.
13.3. Programming of External Modulating
Control
The external modulating control must be programmed
to send 2 VDC to enable the boiler and run it at low re,
and 10 VDC to run the boiler at high re. Once the control enables the boiler, it must wait 30 seconds to allow
the burner to stabilize before modulating the boiler.
CHAPTER 13
Ensure that the polarity of the connections
from the external modulating boiler controller
to the boiler are correct. Reversed polarity will
lead to no response from the boiler.
Factory CTRLMax Settings
HEATING SETTING
Heating Operation Enabled
Demand Type
Absolute Max CH Setpoint 185°F [85°C] 68°F [20°C] 188°F [87°C]
CH1 Maximum Setpoint 180°F [82°C] 68°F [20°C] 188°F [87°C] 180°F [82°C]
CH1 Minimum Setpoint 80°F [27°C] 60°F [15°C] 188°F [87°C]
Outdoor Curve Coldest Day 10°F [-12°C] -30°F [-34°C] 50°F [10°C]
Outdoor Curve Warmest Day 64°F [18°C] 60°F [15°C] 78°F [25°C]
CH2 Circuit Enabled
CH2 Maximum Setpoint 140°F [60°C] 68°F [20°C] 194°F [90°C]
CH2 Minimum Setpoint 80°F [27°C] 60°F [15°C] 190°F [88°C]
Warm Weather Shutdown O O 78°F [25°C]
Circulation Pump Permanent Disabled
CH Post Pump Time 5 Minutes O 20 Minutes
Freeze Protection Enabled
Frost Protection Setpoint -22°F [-30°C] -22°F [-30°C] 50°F [10°C]
Parallel Shift Value 0°F [0°C] 0°F [0°C] 144°F [80°C]
CH Call Blocking 2 Minutes 0 Minute 30 Minutes
FACTORY
DEFAULT
Thermostat &
Outd. Curve
MINIMUM
SETTING
MAXIMUM
SETTING
EZ SETUP RESET INSTALLER RESET
3 3
3 3
3 3
3 3
3 3
3
3
3
3
3
3
3
3
3
3
3
3
6565
CHAPTER 13 - EXTERNAL MODULATING CONTROL
Factory CTRLMax Settings (cont’d)
DHW SETTING
DHW Operation Enabled
Demand Type Thermostat
DHW Boiler Setpoint 168°F [75°C] 96°F [35°C] 188°F [87°C]
DHW Setpoint 140°F [60°C] 68°F [20°C] 168°F [75°C]
DHW On Dierential 6°F [3°C] 4°F [2°C] 18°F [10°C]
DHW Storage Adder 28°F [15°C] 10°F [5°C] 54°F [30°C]
DHW Post Pump Time 2 Minutes Off 30 minutes
CHAPTER 13
DHW Priority Timeout O Off 120 Minutes
DHW Priority Enabled
DHW Call Blocking 0 Minute 0 Minute 30 Minutes
DHW to CH Call Blocking 1 Minute 0 Minute 30 Minutes
Antilegionella Function Disabled Enabled
BOILER SETTING
Lockout Temp. 210°F [99°C]
Modbus Address 0=BCST 0=BCST 247
Flex. Relay 1(CH) CH1
Flex. Relay 2(DHW) DHW
Flex. Relay 3(P3) CH1/CH2/DHW
Flex. Relay 4(ERR) ERROR
Flex. Relay 5(Flame) FLAME
Flex. Relay 6(P4) CH2
Error Relay
Pump PWM Minimum 30% 1% 100%
Ignition Level Varies by model
Mix Zone High Limit 114°F [45°C] 68°F [20°C] 176°F [80°C]
Appliance Setting Varies by model
FACTORY
DEFAULT
FACTORY
DEFAULT
On Lockout, Blocking
and Warning
MINIMUM
SETTING
MINIMUM
SETTING
MAXIMUM
SETTING
MAXIMUM
SETTING
EZ SETUP RESET INSTALLER RESET
3
3 3
3 3
3
3
3
3 3
3
3
3
3
EZ SETUP RESET INSTALLER RESET
3
3
3
CASCADE SETTING
Stage Delay 60 Seconds 0 Second 255 Seconds
Minimum Firing Rate 18% 0% 100%
Max. Firing Rate Varies by model 0 MBH [0kW] 869 MBH [255kW]
CH/DHW Boilers 0 0 6
Auto. Rotation Enabled
CH Prop. Gain 7 1 255
CH Integral Gain 245 1 255
DHW Prop. Gain 7 1 255
DHW Integral Gain 245 1 255
6666
FACTORY
DEFAULT
MINIMUM
SETTING
MAXIMUM
SETTING
EZ SETUP RESET INSTALLER RESET
3
3
3
3
3
3
3
3
3
CHAPTER 14 - CHECK-OUT PROCEDURES
NOTICE
Perform the following check-out procedures
as outlined and check off items as completed. When procedures are completed, the installer should complete the installation record
in Chapter 15 on page 69.
q Boiler system uid chemistry checked and veried
as outlined in Section 10.1 on page 55..
q Boiler system was completely ushed to remove
any debris/sediment.
q Any automatic air vents placed within the system
are open one full turn.
q Air is purged from the heating zones and boiler sys-
tem piping.
q If applicable, conrm that the burner has been
properly congured for Propane as outlined in Sec-
tion 6.3 on page 29.
q Thermostat circuit wiring checked and veried that
no voltage is present as outlined in Section 10.5 on
page 57.
q Operating Instructions on page 58 were followed
during start-up.
q Combustion levels and ame pattern veried as
outlined in Section 11.3.5 on page 60.
q Measured the rate of input on Natural Gas as out-
lined in Section 11.3.6 on page 61.
q Test high temperature limit as outlined in Section
11.3.7 on page 61.
q Checked the incoming gas pressure to the PRES-
TIGE Solo to ensure a minimum pressure of 5”w.c
during ow conditions to all gas appliances and a
maximum pressure of 13”w.c during non-ow conditions for Natural and Propane.
q Adjusted balancing valves and system limit con-
trols to provide design temperatures to the primary
space heating system.
q In multiple zone applications, adjusted for correct
ow of boiler water to each zone.
q Checked and veried room thermostat(s) function
properly and the thermostat(s) heat anticipator (if
used) was properly set.
q Observed several operating cycles for proper oper-
ation of the PRESTIGE Solo and the system.
q Set the room thermostat(s) to the desired room
temperature.
q Reviewed all instructions shipped with the PRES-
TIGE Solo with the homeowner or maintenance
personnel.
q Completed the Installation Record of Chapter 15
on page 69.
q Ensure all manuals and other documents are re-
turned to the Installation envelope and given to
the owner for safekeeping.
CHAPTER 14
6767
INTENTIONALLY LEFT BLANK
CHAPTER 15 - INSTALLATION RECORD
Ensure all manuals and other documents are returned to the Installation envelope and given to the owner for
safekeeping.
PRESTIGE Model Number:
Serial Number:
Date of Installation:
Fuel: Natural Gas Propane
Measured Rate of Input:
Btu/hr
Combustion Readings:
CO
2
O
2
CO
%
%
ppm
The following items were completed during installation:
Installation instructions have been followed and completed
Check-out procedures have been followed and completed
Information regarding the unit and installation received and left with owner /
maintenance personnel.
CHAPTER 15
Installer Information
(Company)
(Address)
(Address)
(Phone Number)
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
_________________________________________________________________
6969
INTENTIONALLY LEFT BLANK
CHAPTER 16 - MAINTENANCE SCHEDULES
16.1. Service Technician
At least on an annual basis the following maintenance
should be performed by a qualied service technician:
General
• Attend to any reported problems.
• Inspect the interior of the boiler jacket area; clean
and vacuum if necessary.
• Clean the condensate drain assembly and ll with
fresh water.
• Check boiler uid pH on systems.
• Check for leaks, both inside and outside the unit:
water, gas, ue and condensate.
• Verify vent piping and air inlet piping are in good
condition, sealed tight and properly supported.
• Check boiler water pressure, piping and expansion
tank.
• Check control settings.
• Check ignition electrode (sand o any white oxide;
clean and reposition).
• Check ignition wiring and ground wiring.
• Check all control wiring and connections.
• Check burner ame pattern (stable and uniform).
• Check carbon monoxide detectors.
Additional items if combustion or performance is poor:
• Clean heat exchanger and ue ways.
• Remove burner assembly and clean burner head
using compressed air only.
16.2. Owner Maintenance
Periodically:
• Check the area around the unit.
• Check and remove any blockage from the combustion air inlet and ventilation openings.
• Check the temperature and pressure gauges.
Monthly:
• Check vent piping.
• Check combustion air inlet piping.
• Check the pressure relief valve.
• Check the condensate drain system.
Every 6 months:
• Check boiler piping and gas supply piping for corrosion or potential signs of leakage.
• Operate the pressure relief valve.
WARNING
Follow the maintenance procedures given
throughout this manual. Failure to perform
the service and maintenance or follow the directions in this manual can result in damage
to the PRESTIGE Solo or system components,
resulting in substantial property damage, se-
rious injury, or death.
Once the maintenance items are completed, review
the service with the owner.
CHAPTER 16
7171
INTENTIONALLY LEFT BLANK
CHAPTER 17 - MAINTENANCE PROCEDURES
17.1. Service Technician Maintenance Procedures
WARNING
The PRESTIGE Solo must be inspected and ser-
viced annually, preferably at the start of the
heating season, by a qualified service technician. In addition, the owner maintenance and
care of the unit as outlined in Chapter 16 on page
71 and further explained in the Prestige User’s Information manual should be performed
to assure maximum efficiency and reliability
of the unit. Failure to service and maintain the
PRESTIGE Solo and the system components can
result in equipment failure, resulting in substan-
tial property damage, serious injury, or death.
NOTICE
The following information provides detailed
instructions for completing the service technician maintenance items outlined in the main-
tenance schedule of Chapter 16 on page 71.
17.2. Reported Problems
Any problems reported by the owner should be
checked, veried and corrected before proceeding
with any maintenance procedures.
17.3. Check Surrounding Area
• Re-install venturi inlet elbow and front jacket panel
when completed.
WARNING
Do not use solvents to clean any of the burner components. The components could be
damaged, resulting in unreliable or unsafe
operation. Failure to comply with this instruction can result in substantial property
damage, serious injury, or death.
17.5. Check System Piping
• Inspect all water and gas piping for leaks and verify
that the piping is properly supported.
• Inspect the ttings and components on the unit
and verify they are leak free.
WARNING
Eliminate all system water leaks. Continual
fresh make-up water will reduce the heat exchanger life causing boiler failure. Leaking
water may also cause severe property damage to the surrounding area. Inspect the gas
supply piping using the procedure outlined in
Section 11.3.4 on page 60. Failure to comply
with this instruction can result in substantial
property damage, serious injury, or death.
• Verify that the area surrounding the PRESTIGE Solo is
free of combustible / ammable materials or ammable vapors or liquids. Remove immediately if found.
• Verify that combustion air inlet area is free of any
contaminates. Refer to the materials listed in Sec-
tion 2.1 on page 3 of this manual. If any of
these products are in the area from which the unit
takes its combustion air, they must be removed
immediately or the combustion air intake must be
relocated to another area.
17.4. Inspect Burner Area
• Remove the boiler front jacket panel and venturi
inlet elbow.
• Vacuum any dirt or debris from the burner/blower
components.
• Check the burner plate mounting nuts for tightness, see Section 17.24 on page 76 for torque
specication.
• Check burner plate gasket for discoloration or damage.
• Check for ue gas leakage where the condensate
pan connects to the heat exchanger and at the top
and bottom of the internal vent pipe.
17.6. Clean Condensate Drain Assembly
• Loosen the retaining nut from the condensate
drain assembly and disconnect the assembly from
the boiler.
• Empty any water from the trap and ush with fresh
water as necessary to clean.
• Remove plastic ball and clean with fresh water.
• Check the drain piping from the condensate drain
assembly to the drain. Flush to clean as necessary.
• Install the plastic ball into the condensate drain
assembly and reassemble onto the boiler by tightening the retaining nut with rubber seal onto the
boiler. Hand tight only.
• Remove the ll plug on the condensate drain assembly and ll with water. See Fig. 14 on page 26.
• Replace the ll plug on drain assembly.
CHAPTER 17
7373
CHAPTER 17 - MAINTENANCE PROCEDURES
17.7. Check Ventilation Air Openings
• Verify that all ventilation openings to the mechanical room or building are open and unobstructed.
Check the operation and wiring of any automatic
ventilation dampers.
• Check and verify the vent termination and the combustion air intake are free of debris and obstructions.
17.8. Inspect Vent and Combustion Air Piping
• Visually inspect the venting system and combustion air piping for blockage, deterioration of gaskets or leakage. Repair any deciencies.
• Verify that the combustion air inlet and vent piping
is connected, sealed and properly supported.
DANGER
Failure to inspect the vent system and combustion air inlet piping and to have any conditions
repaired, will result in serious injury, or death.
17.9. Check Boiler System
gravity circulation of air-saturated tank water back
into the system. This device prevents air from bubbling up through the water as it returns from the
system.
• Ensure no automatic air vents are used in the system. This will allow air to escape from the system
instead of returning to the tank.
Diaphragm Tank:
• Ensure the system contains a minimum of one automatic air vent. Recommended location of the air
vent should be atop an air eliminator.
• Remove the tank from the system and check the
charge pressure. For residential applications, the
charge pressure is typically 12 psig. If tank does not
hold pressure, then the membrane is damaged and
the tank should be replaced.
17.11. Check Boiler Relief Valve
Inspect the relief valve and lift the lever to verify ow at
least annually or as recommended on the warning tag
of the valve.
WARNING
• Verify all system components are correctly installed
and operating properly.
• Check the cold ll pressure for the system. Typical
cold water ll pressure is 12 psig.
• Verify the system pressure, as the unit operates at
high temperature, does not exceed 25 psig. Excessive pressure indicates expansion tank sizing is incorrect or system performance problems.
• Inspect air vent and air separators in the system.
Ensure vents do not leak, replace any leaking vents.
CHAPTER 17
• Verify boiler uid pH level is between 6.0 and 8.0.
• Check and verify inhibitor /antifreeze concentration
within the boiler water meets inhibitor/antifreeze
manufacturer’s specications.
• If necessary contact a boiler water treatment company for a chemical analysis.
17.10. Check Expansion Tank
Refer to Chapter 4 on page 13 for recommended location of the expansion tank and air eliminators.
Closed -Type Tank:
• Ensure tank is partially lled with water leaving an
air gap as a cushion. Refer to the manufacturer’s
instruction for proper ll level.
• Ensure the tank is tted with a device that reduces
Before manually operating the pressure relief
valve, ensure the discharge piping is directed to a suitable place of disposal to avoid a
potential scald hazard. The discharge piping
must be full size without restriction and installed to permit complete drainage of both
the valve and line. Failure to comply with this
instruction can result in substantial property
damage, serious injury, or death.
If after closing the valve, the valve fails to seat properly
or continually weeps, replace the relief valve. Ensure
the cause of the relief valve to weep is the valve itself,
not due to system over-pressurization caused by an expansion tank that is waterlogged or undersized.
17.12. Inspection of Ignitor
• Remove the ignitor from the burner mounting plate.
• Remove any white oxides accumulated on the ignitor using ne grit sandpaper or steel wool. If the
ignitor does not clean to a satisfactory condition,
replace the ignitor .
• When installing the ignitor, ensure the gasket is in
good condition and correctly positioned. Replace
the gasket if necessary. Tighten ignitor screws in
multiple steps, alternating between the screws to
ensure proper alignment. See Section 17.24 on
page 76 for torque specications.
7474
CHAPTER 17 - MAINTENANCE PROCEDURES
17.13. Check Ignition Cable and Ground Wiring
• Inspect the ignition cable from the ignitor to the
spark generator.
• Inspect the ground wire from the ignitor to the
CTRLMax control module.
• Inspect the wiring between the spark generator
and the CTRLMax Control module.
• Ensure wiring is in good condition and securely
connected.
• Check ground continuity using a continuity meter.
• Replace ground wire if ground continuity is not
satisfactory.
17.14. Check Control Wiring
Inspect all control wiring. Ensure wiring is in good condition and properly connected.
17.15. Check Control Settings
• Review all boiler settings in the Heating & DHW
EZ Setup menus. Adjust settings as necessary, see
Section 9.7 on page 46 and Section 9.8 on page 48
• Check any external limit control settings (if used).
Adjust settings as necessary.
17.16. Perform Start-up and Checkout Procedures
• Start the unit and perform the start-up procedures
as listed in Chapter 11 on page 59.
• Verify the cold water ll pressure is correct and the
operating pressure of the boiler is within normal
operating range.
• Complete the checkout procedures as outlined in
Chapter 14 on page 67.
17.17. Check Burner Flame
• Inspect the ame pattern through the observation
port of the heat exchanger.
• If ame pattern is not fully blue and covers the entire burner surface during high re, shut the unit
down and allow it to cool thoroughly before disassembly.
• Close the external manual gas valve on the gas
supply line and disconnect the gas piping and gas
valve wire harness connector.
• Disconnect the wiring harness connectors from the
blower and remove the blower clamp. Remove the
blower from the unit.
• Remove the mounting nuts securing the burner
plate to the heat exchanger and set aside.
• Carefully remove the burner plate assembly from the
heat exchanger. Ensure that the combustion chamber 2-in-1 insulation is not damaged during removal
of burner mounting plate assembly. Make sure that
there are no released stiches or frayed areas.
• Remove the burner head mounting screws and remove the burner head. Inspect the burner head for
deterioration. Use compressed air or a vacuum to
clean the burner head.
• Remove the venturi and gas valve assembly from
the blower.
• Use a vacuum cleaner or compressed air to clean
the interior of the blower assembly. Inspect the
blower blades to ensure they are clean and not
damaged.
• Re-assemble the venturi and gas valve onto the
blower. Ensure the venturi gasket or o-ring is in
good condition and positioned correctly. Replace
gasket or o-ring if necessary.
• Re-assemble the burner head onto the burner
mounting plate. Ensure the burner head gasket
is in good condition and positioned correctly. Replace gasket if necessary.
• Re-assemble the burner plate assembly onto the
heat exchanger. Ensure the combustion chamber
2-in-1 insulation is in place and positioned correctly. Replace if necessary.
• Remove the blower gasket from the burner plate
assembly and clean with fresh water. Reinstall
blower gasket onto burner plate assembly with the
check valve hinge at the top.
• Re-assemble the blower onto the burner plate and
reconnect the wiring harness connectors.
• Re-assemble the gas supply connection and wire
harness to the gas valve. Open the external manual
gas valve. Check gas piping for any leaks as outlined
in Section 10.4 on page 57 and repair if necessary.
• Torque all screws, bolts, and nuts in accordance
with specications in Section 17.24 on page 76.
• Place the unit back into service.
17.18. Check Flame Signal
• The ame signal can be read from the Boiler Information screen. It should be a min. 2-3 μΑ at low re.
• Check the ignitor condition if ame signal is low.
• Check ground wire for continuity if ame signal is
low. Replace ignitor if conditions are satisfactory.
CHAPTER 17
7575
CHAPTER 17 - MAINTENANCE PROCEDURES
17.19. Check Combustion Levels
• Re-assemble the blower onto the burner plate and
reconnect the wiring harness connectors.
Refer to Section 11.3.5 on page 60 for measuring
combustion levels and burner adjustments.
17.20. Check Flue Gas Temperature
• Manually place the boiler into high re. See Section
11.3.5 on page 60 for procedure.
• Navigate to the Boiler Information Menu to observe the
ue gas temperature. See Section 9.12 on page 50 .
• If the ue gas temperature is more than 54°F [30°C]
above the supply water temperature, shut the boiler down and follow the heat exchanger cleaning
procedure below.
• Reconnect the gas piping and wire harness to the
gas valve. Open the external manual gas valve.
Check gas piping for any leaks as outlined in Sec-
tion 10.4 on page 57 and repair if necessary.
• Torque all screws, bolts, and nuts in accordance
with specications in Section 17.24 on page 76.
• Close isolation valves on the boiler water piping to
isolate the boiler from the heating system.
• Attach a hose to the boiler drain valve and ush
the boiler thoroughly with fresh water by using the
purge valves to allow water to enter through the
make-up water line to the boiler.
• Once the boiler has been completely ushed, re-
17.21. Clean Heat Exchanger
Shut down the boiler:
• Follow the instructions on Page 58 “To Turn O
Gas to Appliance”
• Do not drain the boiler unless the boiler will be
subject to freezing conditions.
• Do not drain the boiler if antifreeze is used in
the system.
• Allow the boiler to cool down to room temperature
before servicing.
turn the boiler back into operation.
• Perform the required startup and checkout procedures as outlined in Chapter 10 on page 55 and
Chapter 14 on page 67.
17.22. Check Carbon Monoxide Detectors
Verify that at least two (2) carbon monoxide detectors
are installed and operating properly. One must be installed in the mechanical room where the PRESTIGE
Solo is located and another installed in the living area
outside the bedroom(s).
• Close the external manual gas valve on the gas
supply line and disconnect the gas piping and gas
valve wire harness connector.
• Disconnect the wiring harness connectors from the
blower and remove the blower clamp. Remove the
blower from the unit.
CHAPTER 17
• Remove the mounting nuts securing the burner
17.23. Review With Owner
Ensure the owner understands the importance of performing the maintenance schedule specied in this
manual.
plate to the heat exchanger and set aside.
• Carefully remove the burner plate assembly from
17.24. Torque Specifications Table
the heat exchanger. Ensure that the combustion
chamber 2-in-1 insulation is not damaged during
removal of burner mounting plate assembly.
• Use compressed air or water to remove any accumulation from the heat exchanger ue ways.
• Re-assemble the burner plate assembly onto the
heat exchanger. Ensure the combustion chamber
2-in-1 insulation is in place and positioned correctly. Replace if necessary.
Item Min. Max.
Burner Plate Nuts 44 53
Burner Head Bolts 26.5 31
Fan Clamp Screw 62 71
Gas Valve Screws 31 35
Venturi Screws 31 35
Ignitor Screws 13 18
Torque Req’d (in-lbs)
• Remove the blower gasket from the burner plate
assembly and clean with fresh water. Reinstall
blower gasket onto burner plate assembly with the
check valve hinge at the top.
7676
CHAPTER 18 - REPLACEMENT PARTS
• Replacement parts must be purchased through a local Triangle Tube distributor. When ordering a part, please provide the model number and de-
scription and/or part number of replacement part.
• Use only genuine Triangle Tube replacement parts to ensure warranty
coverage and to avoid improper operation or damage to appliance.
• Contact Triangle Tube at 856-228-8881 or www.triangletube.com for a list
of distributors near you.
Fig. 26 - PRESTIGE Solo 80/110 Jacket Components
WARNING
2
4
5
3
1
Item Part # Description
1 PAJKT01 Front Jacket Panel (with insulation)
2 PAJKT03 Left Side Jacket Panel (with insulation)
3 PAJKT21 Right Side Jacket Panel (with insulation)
4 PAJKT04 Top Panel
5 PSRKIT21 Wall Mounting Bracket with Hardware
CHAPTER 18
7777
CHAPTER 18 - REPLACEMENT PARTS
Fig. 27 - PRESTIGE Solo 155/175/250 Jacket Components
2
4
5
3
1
CHAPTER 18
Item Part # Description
1 PAJKT01 Front Jacket Panel (with insulation)
2 PAJKT03 Left Side Jacket Panel (with insulation)
3 PAJKT21 Right Side Jacket Panel (with insulation)
4 PAJKT12 Top Panel
5 PSRKIT21 Wall Mounting Bracket with Hardware
7878
CHAPTER 18 - REPLACEMENT PARTS
Fig. 28 - PRESTIGE Solo 299/399 Jacket Components
4
2
6
5
3
Item Part # Description
1 PAJKT15 Front Jacket Panel (with insulation)
2 PAJKT16 Left Side Jacket Panel (with insulation)
3 PAJKT22 Right Side Jacket Panel (with insulation)
4 PAJKT17 Top Panel - Front
5 PAJKT18 Top Panel - Rear
6 PSRKIT21 Wall Mounting Bracket with Hardware
1
CHAPTER 18
7979
CHAPTER 18 - REPLACEMENT PARTS
1
4
5
2
2
3
6
10
8
9
7
Fig. 29 - PRESTIGE Solo 80/110 Internal Components
Item Part # Description
1 PARKIT90 Heat Exchanger Body
CHAPTER 18
2 PTADPT07 Vent Outlet/Combustion Air Inlet Adapter
3 PARKIT02 Polypropylene Vent Pipe
4 PTRKIT123 Supply/Return Temperature Sensor
5 PARKIT01 Flue Temperature Sensor
6 PARKIT04 LWCO Pressure Sensor
7 PARKIT05 Condensate Drain Assembly
8 PARKIT06 Boiler Piping - Return Assembly
9 PARKIT07 Boiler Piping - Supply Assembly
10 PTRKIT119 Polypropylene Condensate Pan 80/110
8080
CHAPTER 18 - REPLACEMENT PARTS
Fig. 30 - PRESTIGE Solo 155/175/250 Internal Components
2
9
4
1
4
6
10
7
2
5
3
8
Item Part # Description
PARKIT91 Heat Exchanger Body Solo 155
1
PARKIT92 Heat Exchanger Body Solo 175
PARKIT93 Heat Exchanger Body Solo 250
2 PTADPT07 Vent Outlet/Combustion Air Inlet Adapter
3 PARKIT08 Polypropylene Vent Pipe
4 PTRKIT122 Supply/Return Temperature Sensor
5 PARKIT01 Flue Temperature Sensor
6 PARKIT04 LWCO Pressure Sensor
7 PSRKIT05 Condensate Drain Assembly
8 PARKIT46 Boiler Piping - Return Assembly
9 PARKIT47 Boiler Piping - Supply Assembly
10
PARKIT43 Polypropylene Condensate Pan Solo 155
PTRKIT120 Polypropylene Condensate Pan Solo 175 & 250
CHAPTER 18
8181
CHAPTER 18 - REPLACEMENT PARTS
Fig. 31 - PRESTIGE Solo 299/399) Internal Components
10
2
3
4
9
7
2
1
5
6
4
8
Item Part # Description
PARKIT94 Heat Exchanger Body Solo 299
1
PARKIT95 Heat Exchanger Body Solo 399
2 PTADPT08 Vent Outlet/Combustion Air Inlet Adapter
CHAPTER 18
3 PARKIT09 Polypropylene Vent Pipe
4 PARKIT78 Supply/Return Temperature Sensor
5 PARKIT01 Flue Temperature Sensor
6 PARKIT04 LWCO Pressure Sensor
7 PSRKIT05 Condensate Drain Assembly
8 PSRKIT48 Boiler Piping - Return Assembly
9 PSRKIT49 Boiler Piping - Supply Assembly
10 PTRKIT121 Polypropylene Condensate Pan Solo 299/399
8282
CHAPTER 18 - REPLACEMENT PARTS
Fig. 32 - PRESTIGE Solo 80/110 Burner Components
9
6
2
1
10
5
4
3
Item Part # Description
1 PARKIT12 Combustion Chamber 2-in-1 Insulation
2 PARKIT14 Burner Head Assembly (with Gasket)
3 PARKIT11 Blower Assembly (with Gasket)
4 PARKIT18 Blower Clamp
5 PARKIT19 Blower Gasket
6 PARKIT15 Burner Plate Assembly
7 PARKIT17 Gas Valve
PARKIT10 Venturi - Solo 80 (025)
8
PARKIT20 Venturi - Solo 110 (040)
9 PARKIT130 Ignitor Assembly
8
7
CHAPTER 18
10 PARKIT133 Spark Generator and Bracket
8383
CHAPTER 18 - REPLACEMENT PARTS
Fig. 33 - PRESTIGE Solo 155/175/250 Burner Components
9
10
6
2
1
Item Part # Description
PARKIT42 Combustion Chamber 2-in-1 Insulation - Solo 155
1
PARKIT52 Combustion Chamber 2-in-1 Insulation - Solo 175 & 250
2 PARKIT54 Burner Head Assembly (with Gasket)
PARKIT51 Blower Assembly (with Gasket) - Solo 155 & 175
3
PARKIT70 Blower Assembly (with Gasket) - Solo 250
5
4
3
7
8
4 PARKIT18 Blower Clamp
5 PARKIT19 Blower Gasket
PARKIT45 Burner Plate Assembly - Solo 155
6
CHAPTER 18
PARKIT55 Burner Plate Assembly - Solo 175 & 250
7 PTRKIT111 Gas Valve
PSRKIT81 Venturi - Solo 155 (002)
8
PARKIT40 Venturi - Solo 175 (001)
PSRKIT83 Venturi - Solo 250 (051)
9 PARKIT131 Ignitor Assembly
10 PARKIT133 Spark Generator and Bracket
8484
CHAPTER 18 - REPLACEMENT PARTS
Fig. 34 - PRESTIGE Solo 299/399 Burner Components
10
8
6
2
1
9
5
4
3
7
Item Part # Description
1 PARKIT72 Combustion Chamber 2-in-1 Insulation
2 PARKIT74 Burner Head Assembly (with Gasket)
3 TCRKIT16 Blower Assembly
4 PARKIT18 Blower Clamp
5 PARKIT19 Blower Gasket
6 PARKIT75 Burner Plate Assembly
7 TCRKIT18 Gas Valve
8 PARKIT132 Ignitor Assembly
9 TCRKIT19 Venturi
10 PARKIT133 Spark Generator and Bracket
CHAPTER 18
8585
CHAPTER 18 - REPLACEMENT PARTS
Fig. 35 - PRESTIGE Solo Control & Display Enclosures
6
5a 5b
242
1
3
Item Part # Description
1 PTRKIT109 Pressure Gauge
2 TCRKIT22 Power Switch
3 PTSWI02 Power Switch Cover
4 PARKIT101 Display Module
5a PARKIT102
5b
PARKIT111 Control Module, Low altitude - Prestige Solo 80
PARKIT121 Control Module, High altitude (> 5,000 ft) - Prestige Solo 80
PARKIT112 Control Module, Low altitude - Prestige Solo 110
PARKIT122 Control Module, High altitude (> 5,000 ft) - Prestige Solo 110
CHAPTER 18
6 PAHNG01 Control Box Hinges
PARKIT113 Control Module, Low altitude - Prestige Solo 155
PARKIT123 Control Module, High altitude (> 5,000 ft) - Prestige Solo 155
PARKIT114 Control Module, Low altitude - Prestige Solo 175
PARKIT124 Control Module, High altitude (> 5,000 ft) - Prestige Solo 175
PARKIT115 Control Module, Low altitude - Prestige Solo 250
PARKIT125 Control Module, High altitude (> 5,000 ft) - Prestige Solo 250
PARKIT116 Control Module, Low altitude - Prestige Solo 299
PARKIT126 Control Module, High altitude (> 5,000 ft) - Prestige Solo 299
PARKIT117 Control Module, Low altitude - Prestige Solo 399
PARKIT127 Control Module, High altitude (> 5,000 ft) - Prestige Solo 399
Control Module (Requires Display Software 4.03 and up)
To be used with boiler serial numbers starting with PB
Control Modules below are to be used with all other boiler serial numbers
8686
CHAPTER 19 - PRODUCT SPECIFICATIONS
Boiler
Model
Solo 80
Solo 110
Solo 155
Solo 175
Solo 250
Solo 299
Boiler
Model
Solo 399
Fuel Input
Natural
Propane
Natural
Propane
Natural
Propane
Natural
Propane
Natural
Propane
Natural
Propane
Fuel Input Output
Natural
Propane
16,000 -
80,000
20,000 -
110,000
27,800 -
153,000
30,900 -
170,000
43,600 -
240,000
72,500 -
299,000
72,500 -
399,000
Heating Capacity
DOE
74,000 64,000 95% 103 / 47
102,000 89,000 95% 103 / 47
142,000 123,000 95% 118 / 53.5
157,000 137,000 95% 128 / 58
222,000 193,000 95% 140 / 63.5
278,000 242,000 95% 210 / 95
379,000 330,000 94.1% 95.1% 216 / 98
Net AHRI
Rating
Net AHRI
Rating
Combustion
Eciency
AFUE
Thermal
Eciency
Shipping
Weight
Lbs / Kg
Shipping
Weight
Lbs / Kg
NOTICE
• The heating capacity of the PRESTIGE Solo 80/110/155/175/250/299 is based
on the test requirements of the U.S. Department of Energy.
• The AHRI rating is based on a piping and pick up allowance of 1.15. This al-
lowance should be sufficient for standard radiation requirements.
• Based on the given AFUE the PRESTIGE Solo 80/110/155/175/250/299 meets
the energy efficiency guidelines established by Energy Star.
• Input and output ratings are shown for sea level applications. The PRESTIGE
Solo automatically derates the input at approximately 2% for every 1,000 Ft.
of altitude. No alterations to the boiler or burner system are required.
• PRESTIGE Solo 399 output rating is based off of the thermal efficiency.
CHAPTER 19
8787
CHAPTER 19 - PRODUCT SPECIFICATIONS

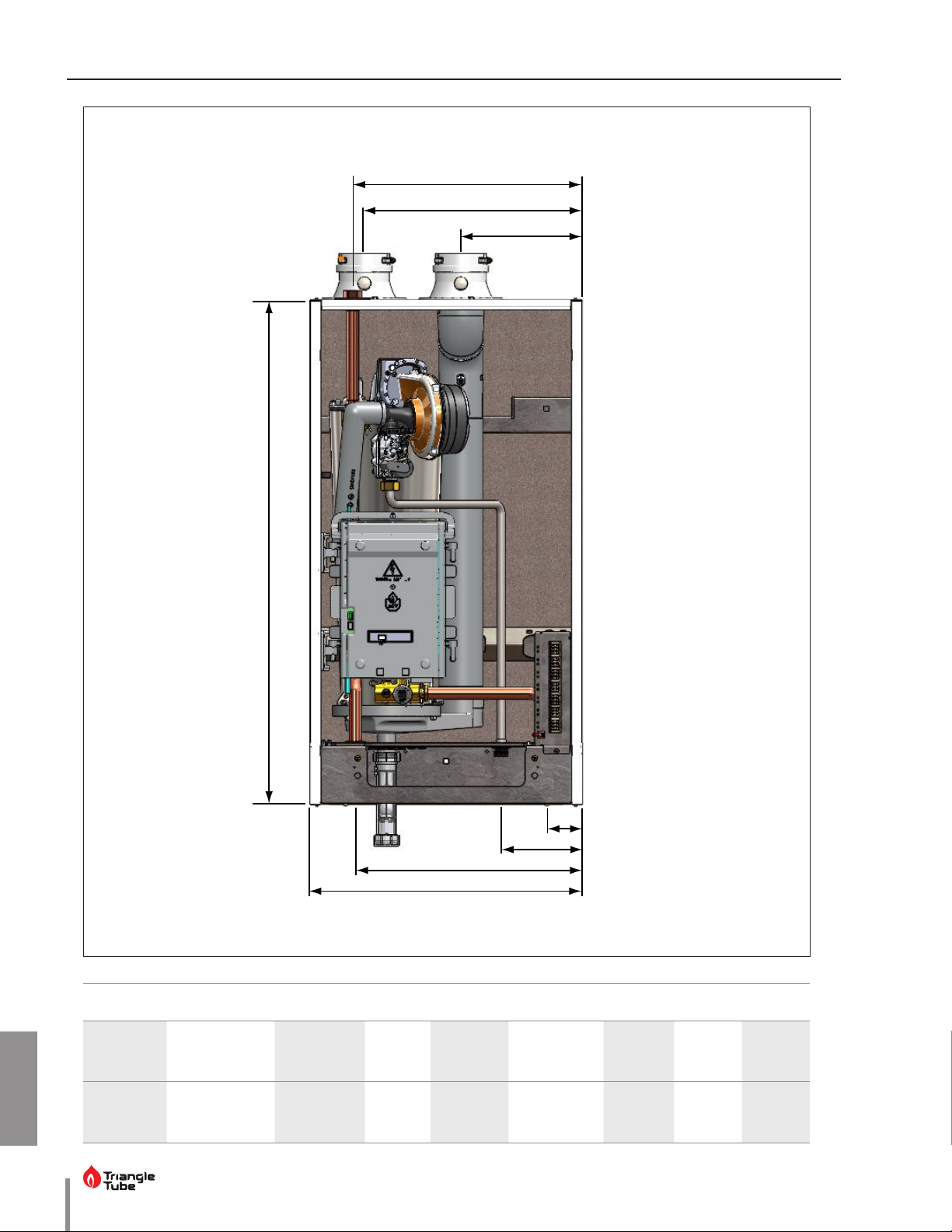

Fig. 36 - Front View PRESTIGE Solo 80/110
A
B
C
H
D
E
F
G
A B C D E F G H
CHAPTER 19
Connection
Dimension
in [mm]
8888
3/4” NPSC Pressure
Relief Valve
16-5/8”
[423]
3” Combustion
Air Inlet
15-13/16”
[402]
3” Vent
Outlet
8-13/16”
[224]
1” NPT Boiler
Return
2-7/8”
[73]
1/2” NPT Gas
Connection
5-7/8”
[150]
1” NPT Boil-
er Supply
16-7/16”
[418]
Boiler
Width
19-3/4”
[502]
Boiler
Height
36-9/16”
[928]
