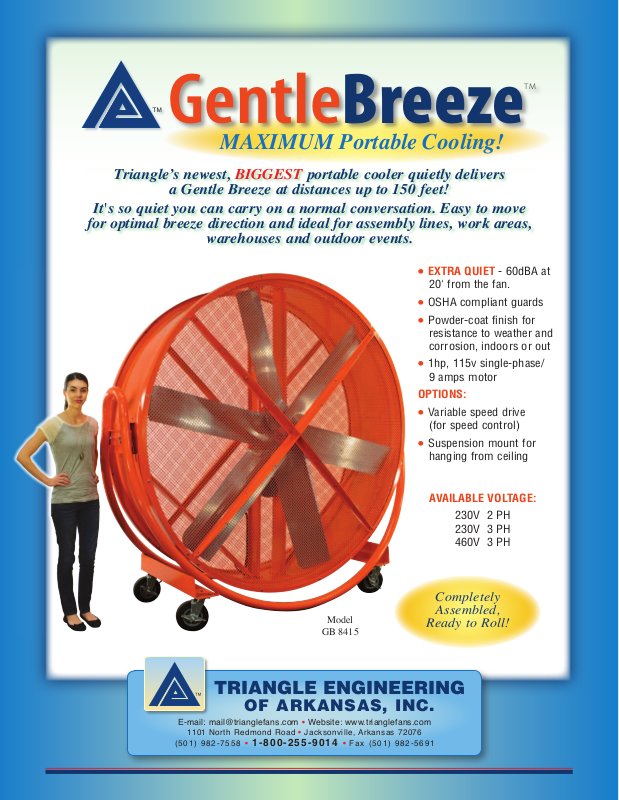

Page 1
TM
Gentle
Breeze
MAXIMUM Portable Cooling!
Triangle’s newest, BIGGEST portable cooler quietly delivers
a Gentle Breeze at distances up to 150 feet!
It's so quiet you can carry on a normal conversation. Easy to move
for optimal breeze direction and ideal for assembly lines, work areas,
warehouses and outdoor events.
Extra quiEt - 60dBA at
•
20' from the fan.
OSHA compliant guards
•
Powder-coat finish for
•
resistance to weather and
corrosion, indoors or out
1hp, 115v single-phase/
•
9 amps motor
OPtiONS:
•
•
Model
GB 8415
Triangle engineering
Ready to Roll!
of arkansas, inc.
E-mail: [email protected] • Website: www.trianglefans.com
1101 North Redmond Road • Jacksonville, Arkansas 72076
(501) 982-7558 • 1-800-255-9014 • Fax (501) 982-5691
Variable speed drive
(for speed control)
Suspension mount for
hanging from ceiling
aVaiLaBLE VOLtaGE:
230V 2 PH
230V 3 PH
460V 3 PH
Completely
Assembled,
Page 2
TM
Gentle
Breeze
MAXIMUM Portable Cooling!
Dimensions (A) 96" (B) 35" (C) 95"
Crate Dimensions (A) 101" (B) 42" (C) 103"
Speed 220 RPM
Sound Level 60dBA at 20' from fan
Weight 675 LBS
Shipping Weight 1050 LBS
C
30’
20’
10’
10’
20’
30’
A
0
475 fpm 310 fpm 190 fpm 180 fpm
10’ 20’ 30’ 40’ 50’ 60’ 70’ 80’ 90’ 100’ 110’ 120’ 130’ 140’ 150’
Air speeds are the average velocity for each zone
•
Air speeds were measured 67" from the floor
•
B
Specifications subject to change. November 2013
