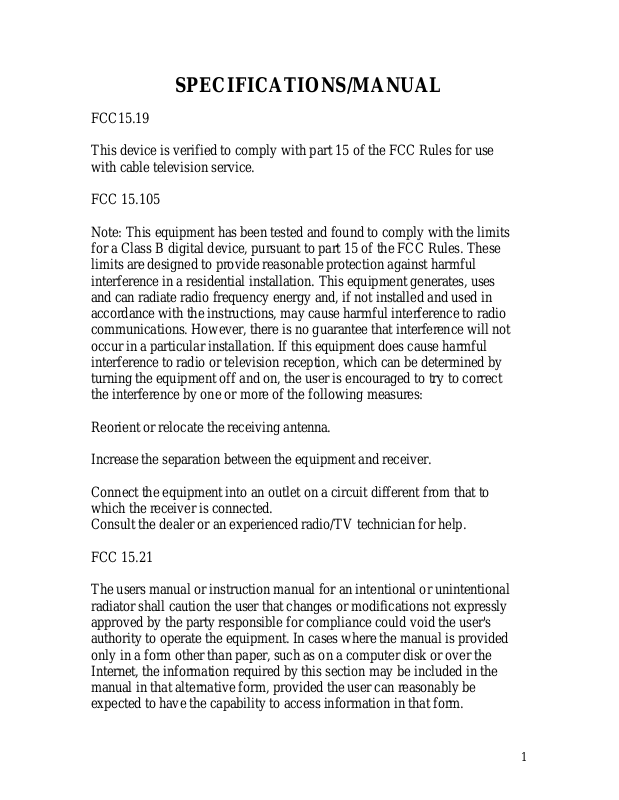

SPECIFICATIONS/MANUAL
FCC15.19
This device is verified to comply with part 15 of the FCC Rules for use
with cable television service.
FCC 15.105
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC 15.21
The users manual or instruction manual for an intentional or unintentional
radiator shall caution the user that changes or modifications not expressly
approved by the party responsible for compliance could void the user's
authority to operate the equipment. In cases where the manual is provided
only in a form other than paper, such as on a computer disk or over the
Internet, the information required by this section may be included in the
manual in that alternative form, provided the user can reasonably be
expected to have the capability to access information in that form.
1
Page 2
AUG, 10. 2004
d
FM STEREO TUNER SPECIFICATION
1. Applicable product P/No
: TRF-901 FM STEREO TUNER MODULE
2. Appearance
Unit shall not have any excessive strain, bruise, uneven plating etc,
which decrease its commercial value
3. General Specifications
4. Test Modulation
1
Frequency
Range
87.5 ~ 108MHz KR/USA/Europe/CCIR
76 ~ 108MHz Japan Wide
Specification Item No.
Receiving
2
System
Operating Temperature 4
ANT Input Impedance 5
No
Modulation
1
Frequency
RF Input Level
2
1KHz,
22.5KHz/dev
60㏈㎶
TRF SOLUTION
Upper Super Heterodyne System KR/USA/Europe/CCIR
Lower Super Heterodyne System Japan
375KHz Intermediate Frequency 3
-10 ~ +65℃
75Ω Unbalance
STEREO MONO Item
1KHz, 75KHz/dev
(PILOT=10%, Fpilot=19KHz)
APPROVAL CHECK DESIGN
Page
5 / 1
2
Page 3
AUG, 10. 2004
5. DC Specification
Supply
Voltage(Vcc)
Consumption
Current
FM STEREO TUNER SPECIFICATION
Specification Test Condition Item
UNIT MAX TYPMIN
V 3.3 3.0 2.7 Off station
mA 8.5 7.0 -
6. Electronic Specification
No
.
Usable Sensitivity
1
(S/N 30dB)
2
3
4
5
6
Specification Test Condition Item
UNIT MAX TYP MIN
9 6 - 90.0MHz
9 6 - 98.0MHz
9 6 - 106.0MHz
㏈㎶
㏈㎶
㏈㎶
dB - 60 50 22.5KHz/dev S/N Ratio
% 1.5 0.5 - 1KHz, 22.5KH/dev Distortion
mV 100 80 60 1KHz, 22.5KHz/dev Audio Output Level
dB - 30 25 106.0MHz Image Rejection
dB - 30 20 1KHz, 75KHz/dev Stereo Separation
TRF SOLUTION
DESIGN CHECK APPROVAL
5 / 2 Page
Page 4
FM STEREO TUNER SPECIFICATION AUG, 10. 2004
7. Reliability Test
1) Low and High Temperature Storage Test
After storage at -10℃ or +65℃ for each 96hours recovery in the room,
Tuner must meet specification as approved.
2) Humidity
After exposure of 96hours in a chamber of temperature at +40℃ and relative
humidity 90%, then after 4hours exposure in normal temperature and
humidity, tuner must meet specification as approved.
3) Drop Test
A packed unit shall be dropped on the board from 1m in height and this
test shall be performed on each plane of the package.
After this test, there shall be No Looseness, etc.
4) Temperature Range
Nothing shall be found abnormal in operation a range -10℃~+65℃.
DESIGN CHECK APPROVAL
TRF SOLUTION
5 / 3 Page
