HORIZONTAL FENCE SYSTEM
W/
HORIZONTAL FENCE SYSTEM
Fencing
COMPOSITE FENCE SYSTEMS
FENCE DISTRIBUTORS
091719
543 E. 600 S. Provo, UT 84606
1-877-700-8739 - YourNextFence.com
Copyright © 2019. FDS FENCE DISTRIBUTORS. All rights reserved.
Modification or reproduction is prohibited without written permission.
Horizons Horizontal Fence System is a trademark of FDS Fence
Distributors, Patent Pending
TM

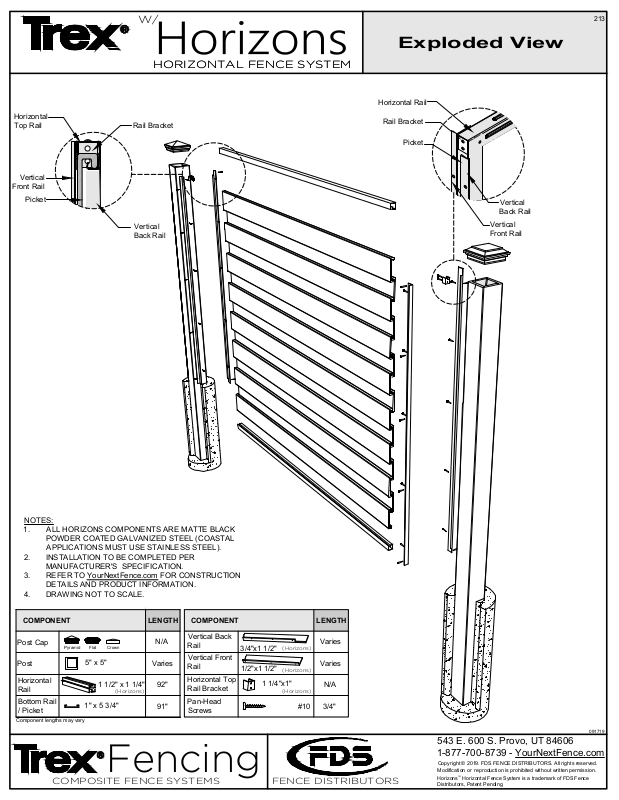

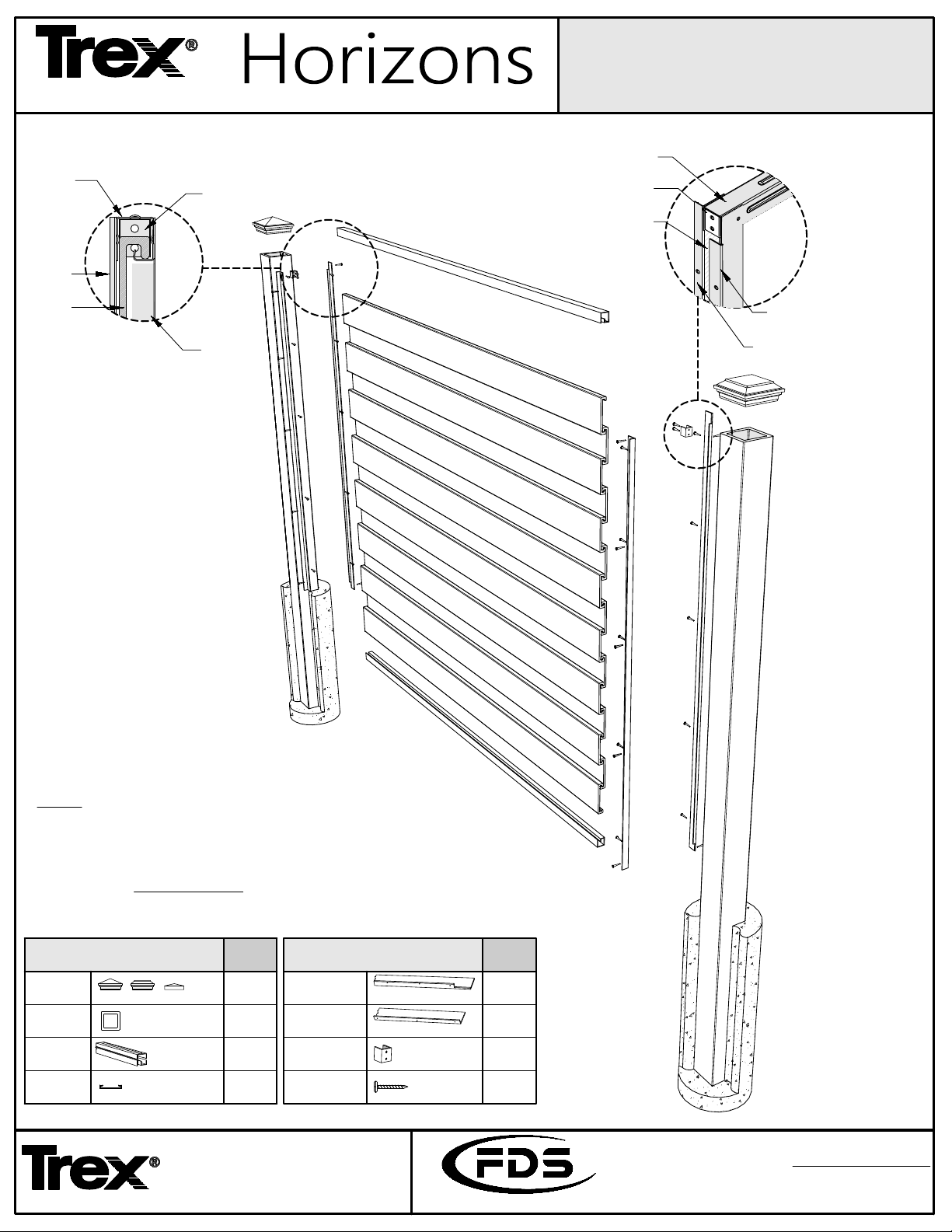

Exploded View
Varies
92"
3/4"
N/A
N/A
91"
FDS
Rail Bracket
Rail Bracket
Vertical
Front Rail
Horizontal
Top Rail
Vertical
Back Rail
Picket
Varies
Varies
Post Cap
Pyramid
Flat Crown
5" x 5"
Post
1" x 5 3/4"
3/4"x1 1/2"
1 1/4"x1"
Horizontal
Rail
1/2"x1 1/2"
Horizontal Top
Rail Bracket
#10
Bottom Rail
/ Picket
Vertical Back
Rail
Vertical Front
Rail
1 1/2" x 1 1/4"
(Horizons)
(Horizons)
(Horizons)
Component lengths may vary
COMPONENT
LENGTH COMPONENT LENGTH
Pan-Head
Screws
(Horizons)
Vertical
Back Rail
Vertical
Front Rail
Horizontal Rail
Picket
NOTES:
1. ALL HORIZONS COMPONENTS ARE MATTE BLACK
POWDER COATED GALVANIZED STEEL (COASTAL
APPLICATIONS MUST USE STAINLESS STEEL).
2. INSTALLATION TO BE COMPLETED PER
MANUFACTURER'S SPECIFICATION.
3. REFER TO
YourNextFence.com
FOR CONSTRUCTION
DETAILS AND PRODUCT INFORMATION.
4. DRAWING NOT TO SCALE.
