T-Rex Reptile User Manual

reptile

User manual

20113-manual_Reptile.indd 1 07/04/08 13:47:50

20113-manual_Reptile.indd 2 07/04/08 13:47:58

CONGR AT UL AT IONS

on your purchase of Reptile, a brand new member of the
renowned Replica family of delay pedals from T-Rex
Engineering.

Reptile offers a full range of advanced delay features
– including tape-delay flutter simulation – in a compact,
intuitively designed unit. And of course it delivers loads of
incredible warm tone that you’ll only find in a T-Rex pedal.

Turn the page to learn about the controls on your Reptile.
And please handle it with care… because this baby bites!

20113-manual_Reptile.indd 3 07/04/08 13:48:01

CONTROL YOUR REPT IL E!

The main controls on your Reptile are the ECHO, REPEAT, TIME and
LEVEL knobs, while the FLUTTER DEPTH & SPEED knobs and the
MODULATION button provide further options.

ECHO determines the mix of direct and delayed signal. Turn it down
for a subtler natural effect, and crank it up for doubling or freaky long
delay effects.

The REPEAT knob lets you control the number of times a sound is
repeated – from just once to a virtual infinity.

TIME determines the rate of your echo repeats and can be adjusted
from 10 to 1,000 ms. TIP: to experiment, try tuning in a classic 50s
slap-back sound by combining a fast time with a low repeat value.

20113-manual_Reptile.indd 4 07/04/08 13:48:04

The FLUTTER DEPTH & SPEED controls let you simulate that great
tape-delay “warbled” effect, while the MODULATION button subtly
alters the character of your delay.

Note: The INPUT LEVEL knob on the side of your Reptile eliminates
overdrive distortion caused by too high an input signal. Keep it set
just below where the red light comes on.

Technical specs:

Controls: ON/OFF, ECHO, REPEAT, TIME, LEVEL, FLUTTER DEPTH AND SPEED,
MODULATION and INPUT LEVEL
Connections: INPUT, OUTPUT, power supply
Power supply: 9V DC
Power consumption:
120 mA
Size:
Box: 100 x 120 x 35 mm. Switches/knobs on top: 16 mm.
Feet on bottom: 3 mm

20113-manual_Reptile.indd 5 07/04/08 13:48:04

20113-manual_Reptile.indd 6 07/04/08 13:48:17

GUAR ANTEE

T-Rex Engineering offers a two-year guarantee on all our products. In
the unlikely event of a malfunction, please send your product to us in
Denmark. We will then repair or replace your product and send it back
to you – free of charge and usually within a week.
Please note that we cannot replace a product until we have received
it here in Denmark.

About T-Rex

Based in Vejle, Denmark, T-Rex Engineering makes classic and sig­nature effects pedals for the world’s best musicians. Our approach
blends hi-tech innovation with old-world craftsmanship – always in
the service of killer tone.

20113-manual_Reptile.indd 7 07/04/08 13:48:19

T-Rex Engineering ApS, Tel.: [phone], Fax: [phone]

www.t-rex-engineering.com, mail: [e-mail]

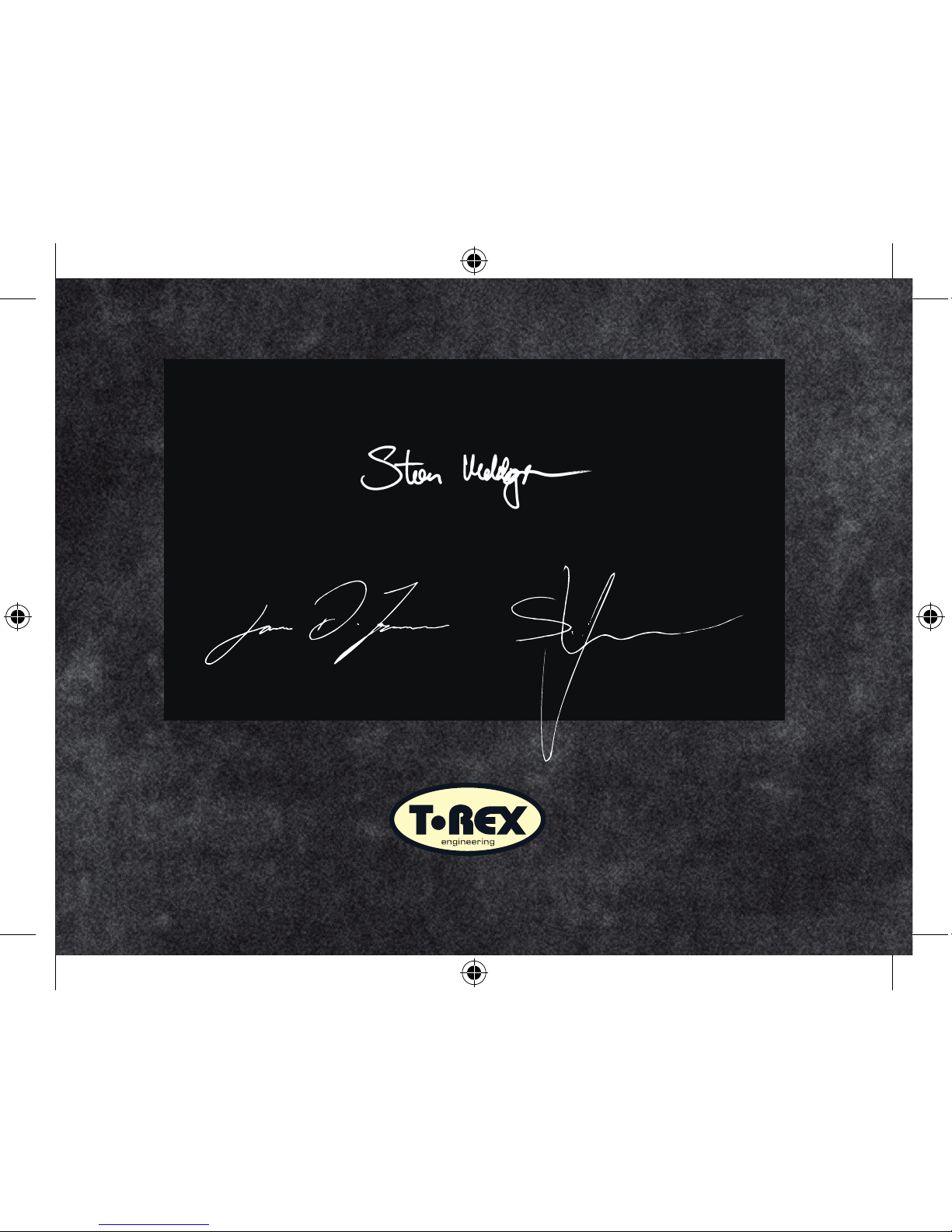

Sebastian Jensen

Production Director

Lars Dahl-Jørgensen

Development Director

Steen Meldgaard Laursen

Managing Director

IS SU ED I N VE JL E, MA RCH 200 8
