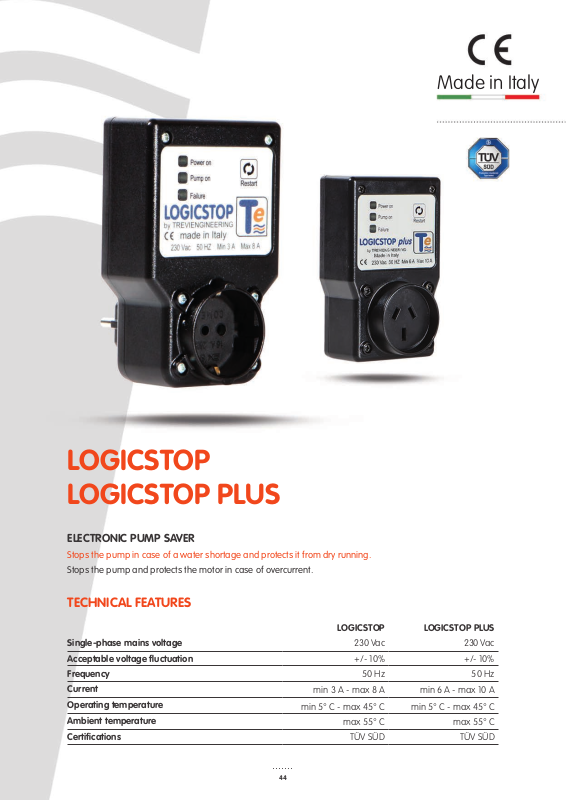

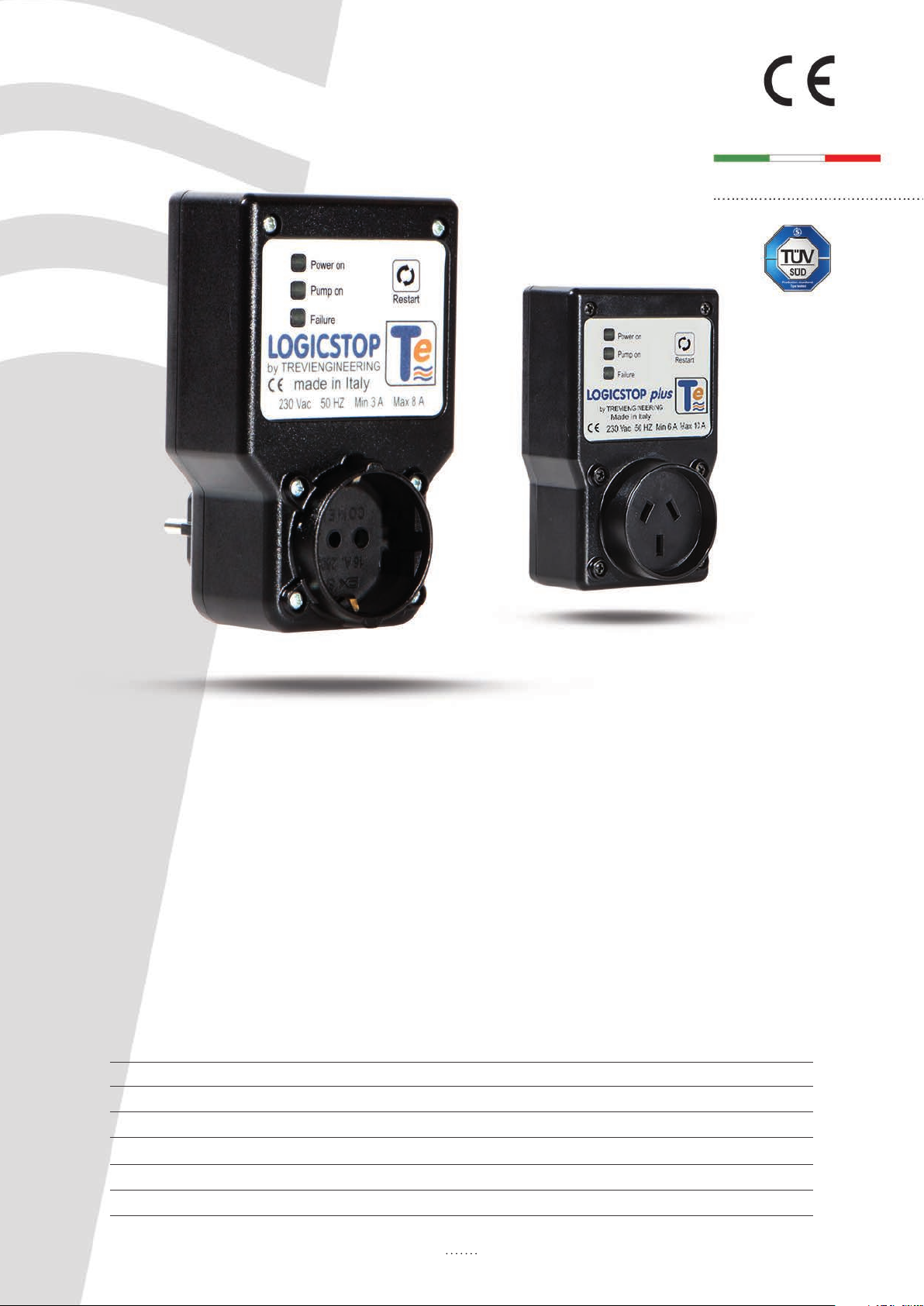

LOGICSTOP
LOGICSTOP PLUS
ELECTRONIC PUMP SAVER
Stops the pump in case of a water shortage and protects it from dry running.
Stops the pump and protects the motor in case of overcurrent.
TECHNICAL FEATURES
LOGICSTOP LOGICSTOP PLUS
Single-phase mains voltage
Acceptable voltage fluctuation
Frequency
Current
Operating temperature
Ambient temperature
Certifications
min 3 A - max 8 A min 6 A - max 10 A
min 5° C - max 45° C
230 Vac 230 Vac
+/- 10% +/- 10%
50 Hz 50 Hz
max 55° C max 55° C
TÜV SÜD TÜV SÜD
min 5° C - max 45° C
44
Page 2
CONTROL PANEL
SIGNALING OF THE WORKING PHASES AND ANOMALIES
POWER ON
PUMP ON
FAILURE
RESTART
Green led
Yellow led
Red led
Button
on
on
blinking
on
Device energized
Pump running
Water shortage
Overcurrent
Motor data acquisition
Reset after failure
INSTALLATION AND STARTUP
To operate, it must be connected to the power supply line of the pump.
For this reason, the power supply of the pump must be inserted in the device, which is then connected to the power point.
In case of water shortage, the device stops the pump protecting it from dry running. This failure is indicated with the blinking red Failure led.
In case of the current absorption exceeding 8 Ampere (or 10 Ampere for Logicstop Plus version), the device stops the pump motor and protects it against overcurrent. This failure is indicated with the red Failure led on.
To restore normal operation to the device and the system simply press the red Restart button.
In case of a temporary blackout, the device will automatically rearm once the electricity returns.

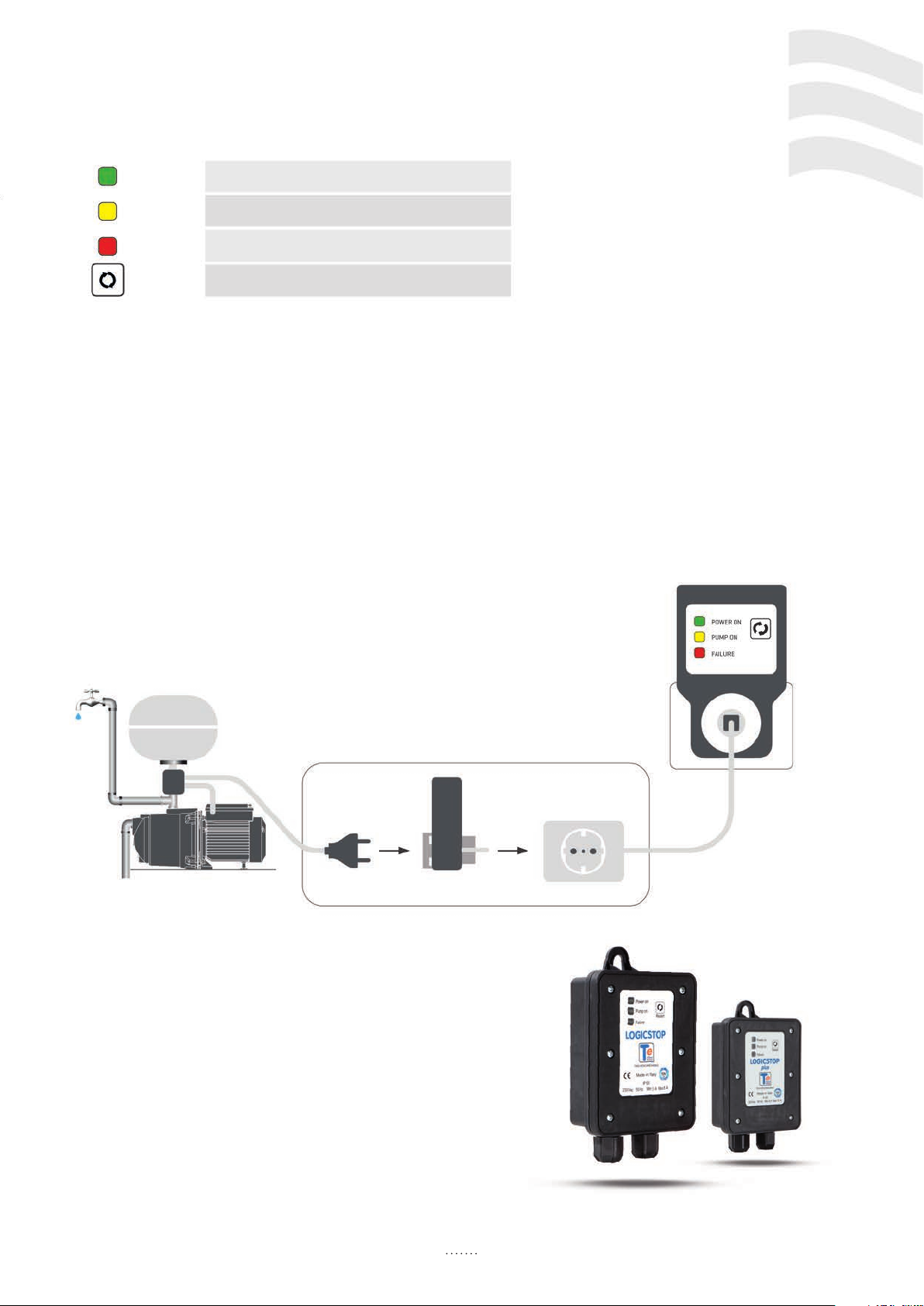

EXAMPLE OF INSTALLATION
LOGICSTOP / LOGICSTOP PLUS
SCHUKO PLUG / SOCKET
OPTIONALS
LOGICSTOP IP65 / LOGICSTOP IP65 PLUS
- Version with IP65 degree protection of Logicstop and Logicstop Plus versions (see picture).
LOGICSTOP “AUSTRALIA”
- Version with Australian plug/socket.
LOGICSTOP INTEGRATO
- The “on-board” version of Logicstop inserted directly into the terminal box cover of the
pump. Only made on request.
